Preface

The R0E572110CFK00 is a user system interface board that connects a user system for the SH7211 FP-144L package to the SH7211 E200F emulator (R0E0200F1EMU00 or R0E572110VKK00).
i

Contents

Section 1 Configuration..................................................................................... 1
Section 2 Environmental Conditions.................................................................3
Section 3 Connection Procedures...................................................................... 4
3.1 Connecting User System Interface Board to User System................................................ 4
3.1.1 Installing IC Socket .............................................................................................4
3.1.2 Installing Cable Head........................................................................................... 5
3.1.3 Fastening Cable Head .......................................................................................... 5
3.2 Connecting User System Interface Board to EV-Chip Unit ............................................. 7

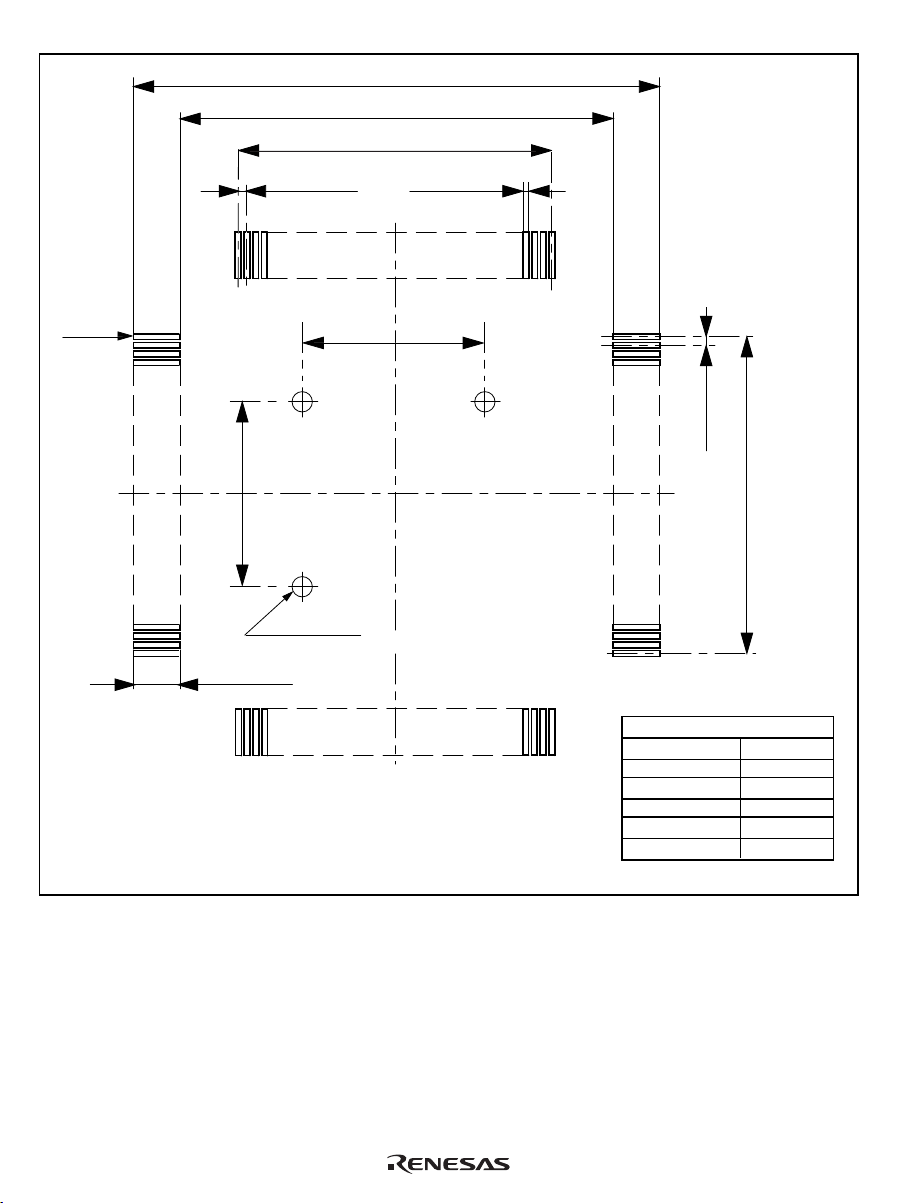

3.3 Recommended Dimensions for User System Mount Pad (Footprint)...............................9
3.4 Dimensions for External Bus Trace Unit, EV-Chip Unit, and User System
Interface Board ................................................................................................................. 11
3.5 Resulting Dimensions after Connecting User System Interface Board ............................12
Section 4 Installing the MPU to the User System .............................................15
Section 5 Verifying Operation........................................................................... 17
Section 6 Notice ................................................................................................18
ii

Section 1 Configuration

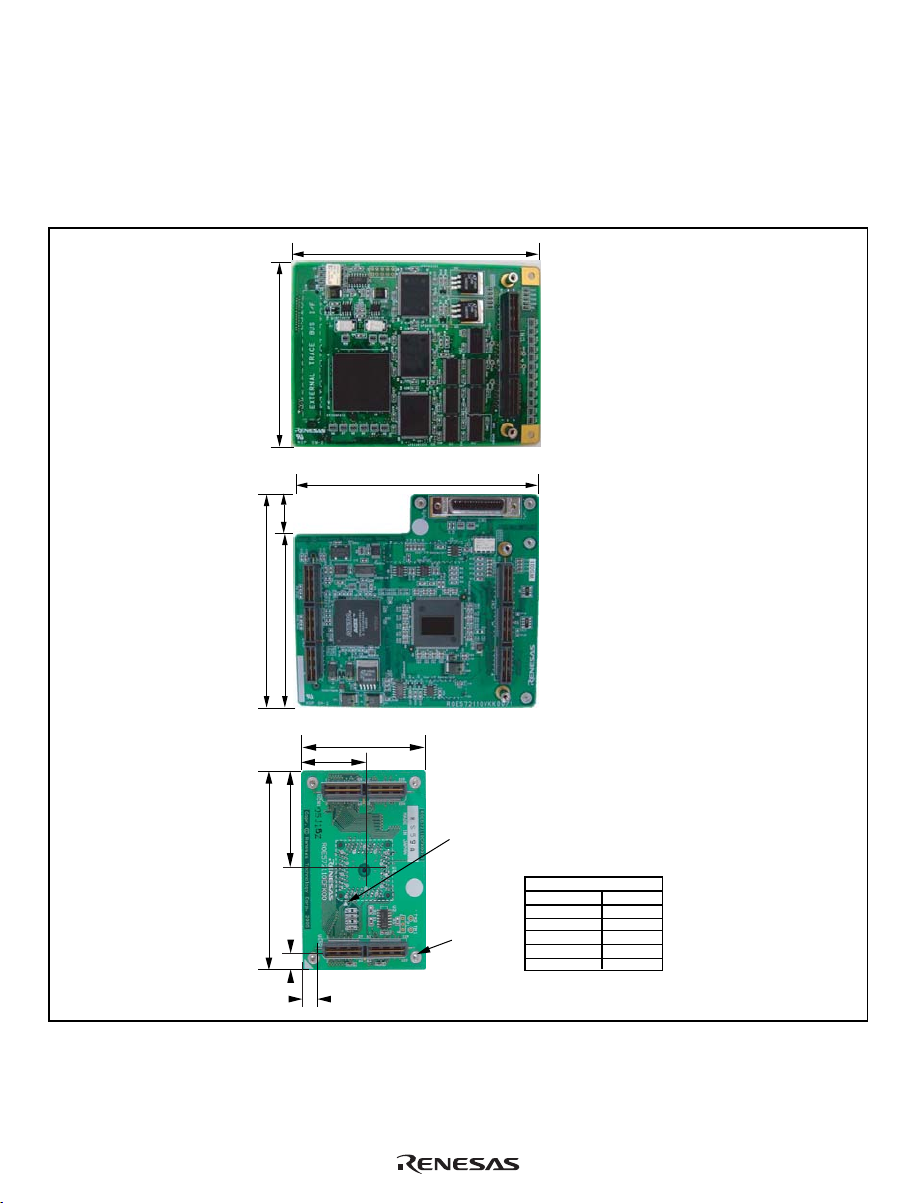

Figure 1 and table 1 show the configuration and components of the user system interface board for the FP-144L package. Please make sure you have all of these components when unpacking.
Screws (M2.0 x 6 mm)
External bus trace unit
EV-chip unit
Screws (M2.0 x 10 mm)
Board
Socket cover
Spacer
IC socket
User system
Figure 1 User System Interface Board for the SH7211 FP-144L Package
1
CAUTION
Use a NQPACK144SD socket (manufactured by Tokyo Eletech Corporation) for the FP-144L package IC socket on the user system.
Table 1 R0E572110CFK00 Components
No. Component Quantity Remarks
1 Board 1 With four spacers (2.6MP x 11 mm)
2 IC socket 1 For the FP-144L package (to be mounted on the
user system)
3 Socket cover 1 For the FP-144L package (for installing MPU)
4 Screws (M2.0 x 10 mm) 4 For fastening board
5 Screws (M2.0 x 6 mm) 4 For installing an FP-144L-packaged MPU
6 Guide pins 3
7 Screwdriver 1
8 User’s manual 1 User’s manual for R0E572110CFK00 (this
manual)
2

Section 2 Environmental Conditions

Maintain the conditions in table 2 when using the emulator.
Table 2 Environmental Conditions
Item Specifications
Temperature Operating: +10 to +35°C
Storage: -10 to +35°C
Humidity Operating: 35 to 80% RH, no condensation
Storage: 35 to 80% RH, no condensation
Vibration Operating: 2.45 m/s2 max.
Storage: 4.9 m/s Transportation: 14.7 m/s
Ambient gases There must be no corrosive gases present.
2
max.
2
max.
3

Section 3 Connection Procedures

3.1 Connecting User System Interface Board to User System

WARNING
Always switch OFF the user system and the emulator product before the USER SYSTEM INTERFACE BOARD is connected to or removed from any part. Before connecting, make sure that pin 1 on both sides are correctly aligned. Failure to do so will result in a FIRE HAZARD and will damage the user system and the emulator product or will result in PERSONAL INJURY. The USER PROGRAM will be LOST.
To connect the cable head to the user system, follow the instructions below.

3.1.1 Installing IC Socket

Solder the IC socket for an FP-144L package to the user system.
CAUTION
Be sure to completely solder the leads so that the solder slops gently over the leads and forms solder fillets. (Use slightly more solder than the MPU.)
4

3.1.2 Installing Cable Head

CAUTION
Check the location of pin 1 before inserting.
Align pin 1 on the IC socket for an FP-144L package on the user system with pin 1 on the user system interface board, and insert the user system interface board into the IC socket on the user system, as shown in figure 2.

3.1.3 Fastening Cable Head

CAUTION
1. Use a Phillip-type screwdriver whose head matches the
screw head.
2. The tightening torque must be 0.054 N•m or less.
If the applied torque cannot be accurately measured, stop tightening when the force required to turn the screw becomes significantly greater than that needed when first tightening. If a screw is tightened too much, the screw head may break or an IC socket contact error may be caused by a crack in the IC socket solder.
3. If the emulator does not operate correctly, cracks might
have occurred in the solder. Check conduction with a tester and re-solder the IC socket if necessary.
Fasten the user system interface board to the IC socket for an FP-144L package on the user system with the four screws (M2.0 alternating between screws on opposing corners. Take special care, such as manually securing the IC socket soldered area, to prevent the soldered IC socket from being damaged by overtightening the screws or twisting the components.
x 10 mm) provided. Each screw should be tightened a little at a time,
5
User system
Screws (M2.0 x 10 mm)
Board
Pin 1
IC socket (NQPACK144SD manufactured by Tokyo Eletech Corporation)

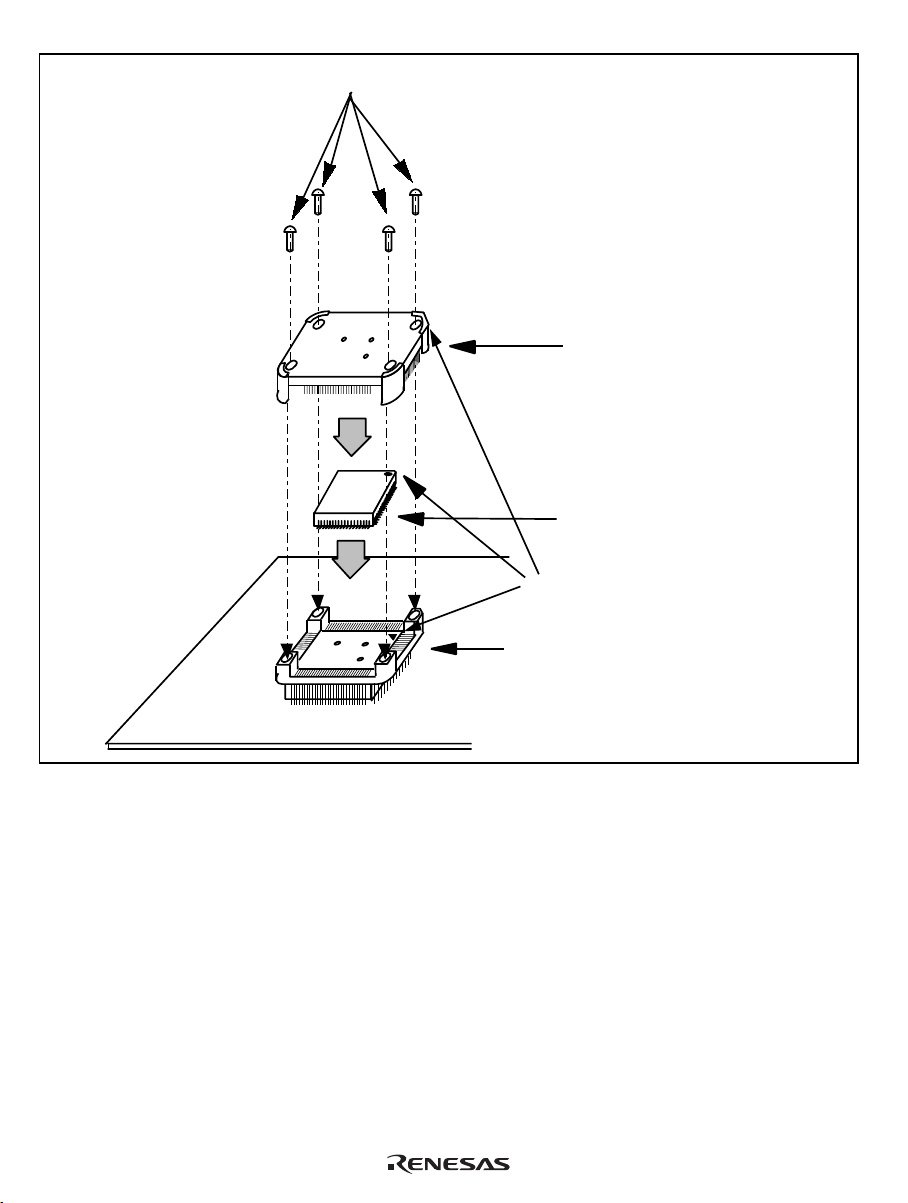

Figure 2 Connecting User System Interface Board to User System
6

3.2 Connecting User System Interface Board to EV-Chip Unit

WARNING
Observe the precautions listed below. Failure to do so will result in a FIRE HAZARD and will damage the user system and the emulator product or will result in PERSONAL INJURY. The USER PROGRAM will be LOST.
1. Always switch OFF the user system and the emulator
product before the USER SYSTEM INTERFACE BOARD is connected to or removed from any part. Before connecting, make sure that pin 1 on both sides are correctly aligned.
2. The user system interface board dedicated to the
emulator must be used.
1. Make sure the user system and emulator are turned off.
2. Align the connectors on the board with those on the EV-chip unit according to their numbers (figure 3).
3. Adjust the height of the spacer attached to the board with the user system.
7
External bus trace unit
EV-chip unit
Connector No.
EV-Chip Unit Connector No.
User I/F Connector 1 (CN3)
User I/F Connector 2 (CN4)
Board
Board Connector No.
UCN1
UCN2
Spacer
User system
Pin 1
Figure 3 Connecting User System Interface Board to EV-Chip Unit
8

3.3 Recommended Dimensions for User System Mount Pad (Footprint)

Figure 4 shows the recommended dimensions for the mount pad (footprint) for the user system with an IC socket for an FP-144L package (NQPACK144SD: manufactured by Tokyo Eletech Corporation). Note that the dimensions in figure 4 are somewhat different from those of the actual chip's mount pad.
9
23.00 min
19.00 max
0.50 × 35 = 17.50
Pin 1
0.50
7.0
φ1.0
Location determination hole
2.00
7.0
0.25
0.5
0.50 × 35 = 17.5
Dimension and tolerance
Dimension Up to 1.2
1.3 to 2.0
2.1 to 5.0
5.1 to 10.0
10.1 or above
Tolerance ±0.05 ±0.10 ±0.15 ±0.20 ±0.30
Unit: mm
10
Figure 4 Recommended Dimensions for Mount Pad
3.4 Dimensions for External Bus Trace Unit, EV-Chip Unit, and User
System Interface Board
The dimensions for the external bus trace unit, EV-chip unit, and the user system interface board are shown in figure 5.
125.0
90.0
External bus trace unit
125.0
20.0
110.0
90.0
EV-chip unit
60.0
30.0
90.0
45.0
5.0
Board
5.0
Pin 1
Spacer
Dimension and tolerance Dimension Up to 1.2
1.3 to 2.0
2.1 to 5.0
5.1 to 10.0
10.1 or above
Tolerance ±0.05 ±0.10 ±0.15 ±0.20 ±0.30
Unit: mm
Figure 5 Dimensions for External Bus Trace Unit, EV-Chip Unit, and User System
Interface Board
11

3.5 Resulting Dimensions after Connecting User System Interface Board

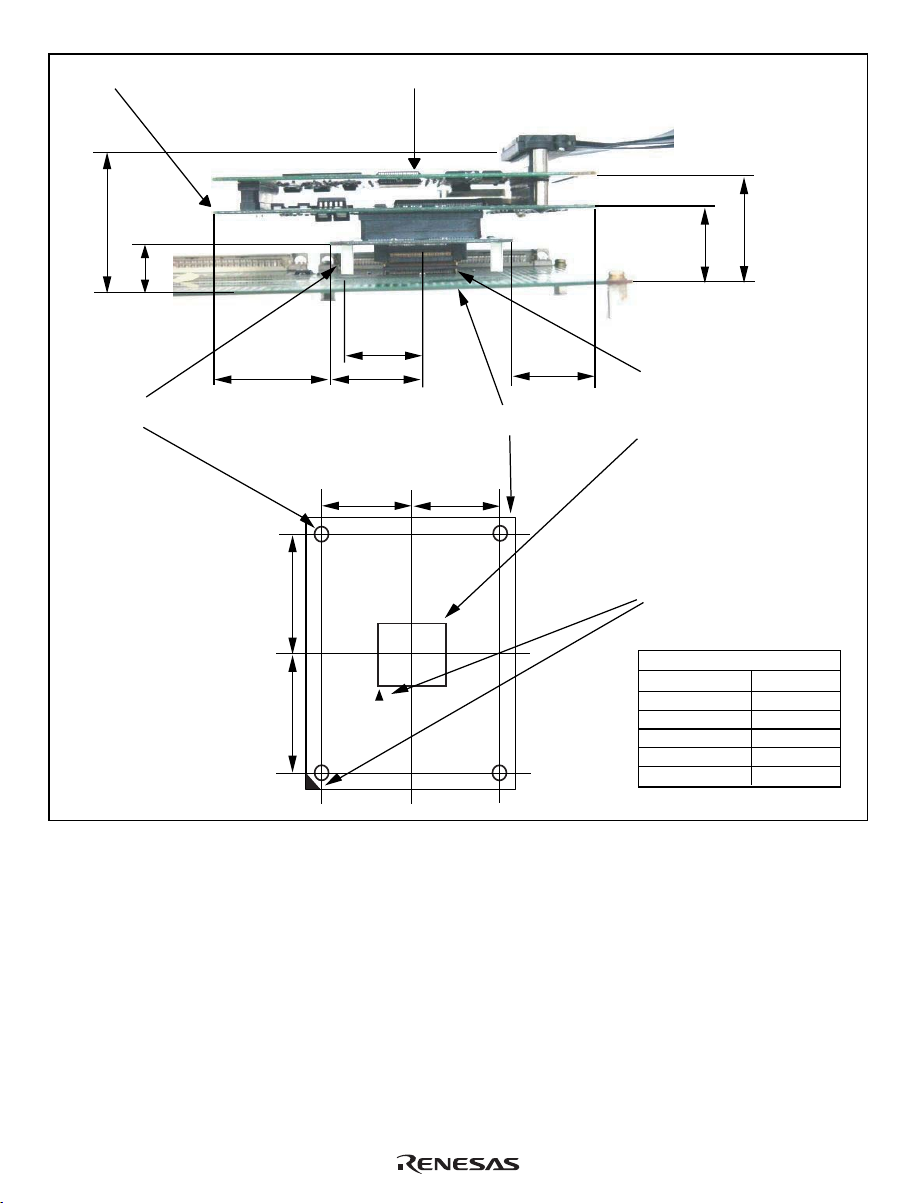

The resulting dimensions, after connecting the user system interface board to the user system, are shown in figures 6, 7, and 8.
External bus trace unit
EV-chip unit
68.4
Spacer (φ6.0)
12.5
37.5
39.19
Optional memory unit
24.5
30.0
24.5
User system
24.5
55.0
29.2
27.5
IC socket (NQPACK144SD manufactured by Tokyo Eletech Corporation)
Pin 1
Dimension and tolerance
39.19
Dimension Up to 1.2
1.3 to 2.0
2.1 to 5.0
5.1 to 10.0
10.1 or above
Top view
Tolerance ±0.05 ±0.10 ±0.15 ±0.20 ±0.30
Figure 6 Resulting Dimensions after Connecting User System Interface Board (when
Connecting External Bus Trace Unit, Optional Memory Unit, and EV-Chip Unit)
12
Unit: mm
EV-chip unit
External bus trace unit
55.5
12.5
Spacer (φ6.0)
37.5
39.19
39.19
30.0
24.5
24.5
User system
24.5
27.5
42.1
29.2
IC socket (NQPACK144SD manufactured by Tokyo Eletech Corporation)
Pin 1
Dimension and tolerance
Dimension Up to 1.2
1.3 to 2.0
2.1 to 5.0
5.1 to 10.0
10.1 or above
Tolerance ±0.05 ±0.10 ±0.15 ±0.20 ±0.30
Unit: mm
Figure 7 Resulting Dimensions after Connecting User System Interface Board (when
Connecting External Bus Trace Unit and EV-Chip Unit)
13
EV-chip unit
42.6
12.5
Spacer (φ6.0)
37.5
39.19
39.19
30.0
24.5
24.5
User system
24.5
27.5
29.2
IC socket (NQPACK144SD manufactured by Tokyo Eletech Corporation)
Pin 1
Dimension and tolerance
Dimension Up to 1.2
1.3 to 2.0
2.1 to 5.0
5.1 to 10.0
10.1 or above
Tolerance ±0.05 ±0.10 ±0.15 ±0.20 ±0.30
Unit: mm
Figure 8 Resulting Dimensions after Connecting User System Interface Board (when
Connecting EV-Chip Unit)
14

Section 4 Installing the MPU to the User System

CAUTION
1. Check the location of pin 1 before inserting.
2. Use a Philips-type screwdriver whose head matches the screw head.
3. The tightening torque must be 0.054 N•m or less.
If the applied torque cannot be accurately measured, stop tightening when the force required to turn the screw becomes significantly greater than that needed when first tightening. If a screw is tightened too much, the screw head may break or an IC socket contact error may be caused by a crack in the IC socket solder.
4. If the MPU does not operate correctly, cracks might have
occurred in the solder. Check conduction with a tester and re-solder the IC socket if necessary.
Check the location of pin 1 before inserting the MPU into the IC socket on the user system, as shown in figure 9. After inserting the MPU, fasten the socket cover with the provided four screws (M2.0
x 6 mm). Take special care, such as manually securing the IC socket soldered area, to
prevent the IC socket from being damaged by overtightening the screws or twisting the components.
15
User system
Screws (M2.0 x 6 mm)
Socket cover
MPU (SH7211)
Pin 1
IC socket (NQPACK144SD manufactured by Tokyo Eletech Corporation)
16
Figure 9 Installing MPU to User System

Section 5 Verifying Operation

1. Turn on the emulator according to the procedures described in the SH7211 E200F Emulator User's Manual (R0E0200F1EMU00E or R0E572110VKK00E).
2. Verify the user system interface cable connections by checking the pin states with the extended monitor and checking the bus states with the FILL command (emulator command). If an error is detected, recheck the soldered IC socket and the location of pin 1.
3. The emulator connected to this user system interface board supports three kinds of clock sources as the MPU clock. For details, refer to the SH7211 E200F Emulator User's Manual (R0E0200F1EMU00E).
To use the emulator internal clock
Select the clock in the emulator by the CLOCK command (emulator command).
To use the external clock on the user system
Supply the external clock from the user system to the emulator by inputting the EXTAL pin (pin 26) on the user system interface board or connecting the crystal oscillator to the XTAL (pin 25) and EXTAL pins. For details, refer to the section of Clock Pulse Generator in the SH7211 Group Hardware Manual. Figure 10 shows the clock oscillator on the user system interface board.
1 MΩ SU04
EXTAL
System clock
XTAL
SU04 LVC125
270 Ω
22 Ω
Figure 10 Clock Oscillator
To E200F emulator
17

Section 6 Notice

1. Before connecting any parts or cables, make sure that pin 1 on the both sides are correctly
aligned.
2. Do not apply excessive force to the user system interface board while it is connected to the
user system.
3. The dimensions of the recommended mount pad for the IC socket for this user system
interface board are different from those of the MPU.
4. This user system interface board is specifically designed for the SH7211 E200F EV-chip unit
(R0E572110VKK00). Do not use this board with any other emulator.
5. When power is not supplied to the Vcc pin on the user system interface board, the emulator displays ** VCC DOWN. The emulator will not operate correctly.
18
SH7211 Group FP-144L User System Interface Board User's Manual
Publication Date: Rev.1.01, August 8, 2006 Published by: Sales Strategic Planning Div. Renesas Technology Corp. Edited by: Customer Support Department Global Strategic Communication Div. Renesas Solutions Corp.
© 2006. Renesas Technology Corp. All rights reserved. Printed in Japan.
Sales Strategic Planning Div. Nippon Bldg., 2-6-2, Ohte-machi, Chiyoda-ku, Tokyo 100-0004, Japan
RENESAS SALES OFFICES
Refer to "http://www.renesas.com/en/network" for the latest and detailed information.
Renesas Technology America, Inc.
450 Holger Way, San Jose, CA 95134-1368, U.S.A Tel: <1> (408) 382-7500, Fax: <1> (408) 382-7501
Renesas Technology Europe Limited
Dukes Meadow, Millboard Road, Bourne End, Buckinghamshire, SL8 5FH, U.K. Tel: <44> (1628) 585-100, Fax: <44> (1628) 585-900
Renesas Technology (Shanghai) Co., Ltd.
Unit 204, 205, AZIACenter, No.1233 Lujiazui Ring Rd, Pudong District, Shanghai, China 200120 Tel: <86> (21) 5877-1818, Fax: <86> (21) 6887-7898
Renesas Technology Hong Kong Ltd.
7th Floor, North Tower, World Finance Centre, Harbour City, 1 Canton Road, Tsimshatsui, Kowloon, Hong Kong Tel: <852> 2265-6688, Fax: <852> 2730-6071
Renesas Technology Taiwan Co., Ltd.
10th Floor, No.99, Fushing North Road, Taipei, Taiwan Tel: <886> (2) 2715-2888, Fax: <886> (2) 2713-2999
Renesas Technology Singapore Pte. Ltd.
1 Harbour Front Avenue, #06-10, Keppel Bay Tower, Singapore 098632 Tel: <65> 6213-0200, Fax: <65> 6278-8001
Renesas Technology Korea Co., Ltd.
Kukje Center Bldg. 18th Fl., 191, 2-ka, Hangang-ro, Yongsan-ku, Seoul 140-702, Korea
Tel: <82> (2) 796-3115, Fax: <82> (2) 796-2145
Renesas Technology Malaysia Sdn. Bhd
Unit 906, Block B, Menara Amcorp, Amcorp Trade Centre, No.18, Jalan Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia Tel: <603> 7955-9390, Fax: <603> 7955-9510
http://www.renesas.com
Colophon 6.0
SH7211 Group FP-144L
User System Interface Board
User’s Manual
Loading...
