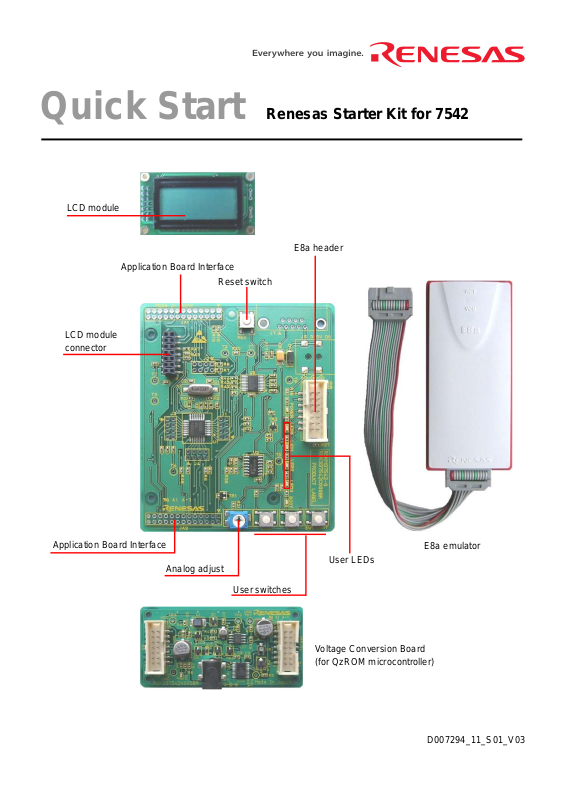

Quick Start

LCD module

LCD module
connector

Application Board Interface

Reset switch

Renesas Starter Kit for 7542

E8a header

Application Board Interface

E8a emulator

User LEDs

Analog adjust

User switches

Voltage Conversion Board
(for QzROM microcontroller)

D007294_11_S01_V03

1. Installation

Do not connect the E8a emulator hardware until the software support has been installed.

1. Insert the CD into your computer’s CD-ROM drive. The CD should automatically run the installation program. If
the installer does not start, browse to the CD root folder and double click on “setup.exe”.

2. The installer will ask you which language is to be used, please choose the appropriate one.

3. On the first screen of the installer proper, click <Next>.

4. The License Agreement will be shown, click <Yes>.

5. The next screen asks you to pick the world region – please select and click <Next>.

6. Select the Renesas Starter Kit you wish to install and click <Next>.

7. The destination f olders are specified on th e next screens. It is recom mended to accept the def ault settings.
Click <Next> to continue.

8. Click <Next> on all screens until the installation process commences.

9. After the installation the machin e’s site code will be shown, this is not important at this stage, click <Next> then
<Finish>.

10. Ensure ‘Launch AutoUpdate’ is selected and click <Finish>.

11. Configure Auto-Update to finish the installation.

2. Connection

Note: Do not connect Voltage Conversi on Board to the CPU Boar d. Please refer to the Voltage Conversion Board
User’s Manual for more det ails.

12. Now connect the E8a to J6 on the board us ing the ribbon cable, also connect the LCD m odule to J8 on the
board ensuring that the pin 1 designation corresponds to the marking on the board.

13. Connect the E8a emulator to a spare USB port.

The “Found New Hardware” Wizard will appear. Please follow the steps below to install the drivers. Note that
administrator privileges are required for a Windows

14. Select ‘No, not this time’ if dialog appears and click <Next>.

15. Verify the “Recommended” option is selected and click <Next>.

16. If using Windows XP, skip to step 18; otherwise click <Next>.

17. Click <Next> to install the driver.

18. Click <Finish> to close the wizard.

Note: The Windows driver signing dialog may be displayed. Please accept the driver to continue.

TM

2000/XP machine.

3. High-performance Embedded Workshop Workspace

High-performance Em bedded W orkshop inte grates v arious to ols suc h as compiler, assembler, debugger and editor
into a common graphical user interface. T o learn more on how to use High-performance Embedded Workshop, open
the High-performance Embedded Workshop manual installed on your computer (Start Menu > All Programs >
Renesas > High-performance Embedded Workshop > Manual Navigator).

19. Launch High-performance Embedded Workshop from the Start Menu. (Start Menu > All Programs > Renesas >
High-performance Embedded Workshop > High-performance Embedded Workshop)

20. In the “Welcome” dialog box: Verify “Create New Workspace” is selected. Click <OK>.

21. In the “New Project Workspace” dialog box: Set the “CPU Family” to “740 Family”, and verify the “Tool chain” is
set to “Renesas 74 0 Fam ily Stand ard” or “I AR ICC7 40” ( IAR S ystem s’ C com piler ). Selec t “ RSKM3 7542” f rom
the left hand pane.

22. Enter a nam e for the work space. T he proj ect nam e will be autom atic all y complete d with the W orkspac e name.
You can change this name to “Tutorial” if required. Click <OK>.

23. On the “RSKM37542- Step 1” window: Select “Tutorial” and click <Next>.

24. On the “RSKM37542- Step 2” window: Click <Finish>.
