Remeha Gas-65-110 Technical Specifications
Boiler Type :
Gas 110 - 65
Issue Date :
March 2012
MODEL : Gas 110 ECO 65
No of Sections: One piece casting
Rated Output kW (80/60°c) :
12 - 61
Efficiency % : NCV (80/60°c) :
106
Rated Output kW (50/30°c) :
13.3 - 65
SBEM Seasonal Efficiency % : GCV
97.57
Weight (dry) kgs :
116
Min/Max Gas pressure mbar :
17- 40 NG
Overall Dim WxHxD mm :
600 x 1100 x 770##
Min/Max Gas pressure mbar :
25 - 60 LPG
Radiated Losses watt :
125
BURNER TYPE Pre mix
Std Fuel Available :
Natural Gas
Optional Fuel :
Propane
Fuel Consumption M3/h :
6.56 NG max
LPG adjustment (¹)
Fuel Consumption Kg/h :
4.82 LPG max
Gas Connection size BSP :
¾” m
Flame Protection :
Ionisation
Noise levels dB(A) at 1 metre :
< 48
Ignition :
Electronic
Nox Mg/kW :
32 0% 0² (dry)
HYDRAULICS
Water Content ltrs :
6.5
Connection Size “ BSP :
1¼”M
Resistance @ 11°C ∆t mbar :
580
Std Operating Temp °C :
20 - 90
Resistance @ 20°C ∆t mbar :
175
Max Operating Temp °C :
90
Nom Flow Rate @ 11° C ∆t l/s :
High Limit Set Point °C :
Nom Flow Rate @ 20° C ∆t l/s :
0.73
Max operating pressure bar :
4
Condensate conn mm :
25 OD
Min operating pressure bar :
0.8
Min operating pressure bar :
0.3 o/v
FLUE/AIR INLET
Concentric connection
Supplied as standard * #
Flue diameter mm I/D :
100
Mass flue gas flow rate kgs/hr :
20.5 - 104
Air inlet diameter mm I/D :
150
Flue Gas Temperature °C (75/60) :
Residual Fan Duty PA :
65
100
ELECTRICAL
Power Supply :
230v – 1ph – 50hz
Fuse Rating amps :
6.3
Power Consumption W :
88
Controls Voltage :
24 (max 4va)
Modulating input V dc :
Insulation Class IP :
21
CONTROL OPERATION
Open Therm
Modulating (18 - 100%)
High limit protection
Low water protection
Hot water priority facility (3 way valve or pump)
Safety interlock
Volt free common alarm
and boiler run indication
Hours run indication
Optional :
For further options
2945 CK >
optimising/Compensator multiple boiler
Contact our sales team
Celcia MC4 >
multiple boiler control (4) with iSense
for use on multiple boiler flue applications
Smart Kits >
Control Kit >
pipework kits for multiple boilers
230v switching relay

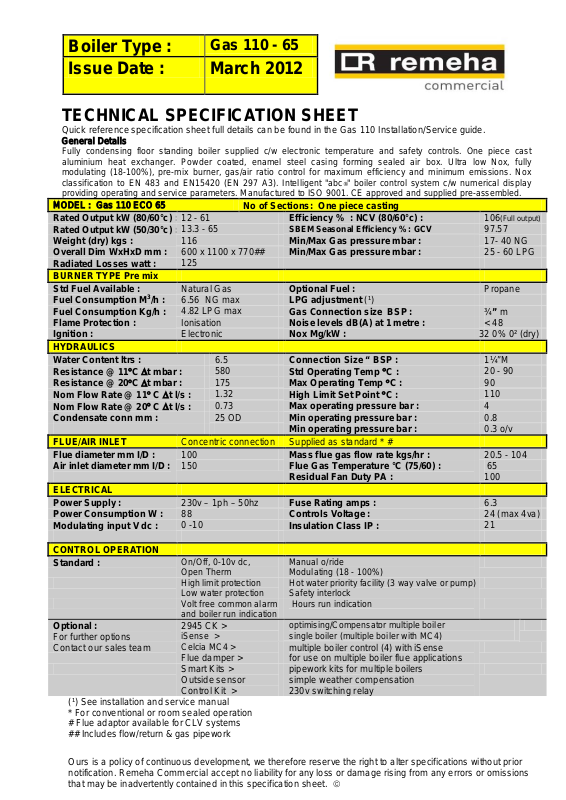

TECHNICAL SPECIFICATION SHEET
Quick reference specification sheet full details can be found in the Gas 110 Installation/Service guide.
General Details
Fully condensing floor standing boiler supplied c/w electronic temperature and safety controls. One piece cast
aluminium heat exchanger. Powder coated, enamel steel casing forming sealed air box. Ultra low Nox, fully
modulating (18-100%), pre-mix burner, gas/air ratio control for maximum efficiency and minimum emissions. Nox
classification to EN 483 and EN15420 (EN 297 A3). Intell igent "abc
providing operating and service parameters. Manufactured to ISO 9001. CE approved and supplied pre-assembled.
®" boiler control system c/w numerical display
(Full output)
Standard :
1.32
On/Off, 0-10v dc,
iSense >
Flue damper >
Manual o/ride
single boiler (multiple boiler with MC4)
110
(¹) See installation and service manual
* For conventional or room sealed operation
# Flue adaptor available for CLV systems
## Includes flow/return & gas pipework
Ours is a policy of continuous development, we therefore reserve the right to alter specifications without prior
notification. Remeha Commercial accept no liability for any loss or damage rising from any errors or omissions
that may be inadvertently contained in this specification sheet.
Outside sensor
simple weather compensation
