Remcor TJ80 Installation Manual

Remcor Incorporated
500 Regency Drive
Glendale Heights, IL 60139
Telephone [phone]
Facsimile [phone]

FOR CONNECTING WHRILPOOL TRANSTEC IIR ICEMAKER

TO REMCOR TJ40.TJ80 –A, AB, ABC DISPENSER

(refer to installation drawing attached)

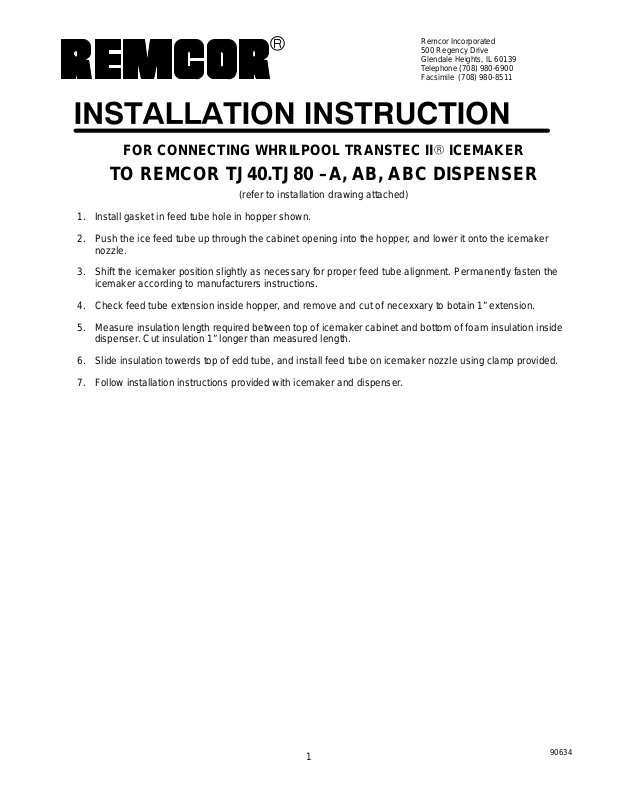

1. Install gasket in feed tube hole in hopper shown.

2. Push the ice feed tube up through the cabinet opening into the hopper, and lower it onto the icemaker
nozzle.

3. Shift the icemaker position slightly as necessary for proper feed tube alignment. Permanently fasten the
icemaker according to manufacturers instructions.

4. Check feed tube extension inside hopper, and remove and cut of necexxary to botain 1” extension.

5. Measure insulation length required between top of icemaker cabinet and bottom of foam insulation inside
dispenser. Cut insulation 1” longer than measured length.

6. Slide insulation towerds top of edd tube, and install feed tube on icemaker nozzle using clamp provided.

7. Follow installation instructions provided with icemaker and dispenser.

1

90634

FIGURE 1. INSTALLATION

ROUTE ICEMAKER
BULB AS SHOWN

DETAIL
“B”

DETAIL
“A”

DISPENSER

DISPENSER

INSULATION

ICEMAKER ICEMAKER

FEED
TUBE

GASKET

SEAL
WITH
RTV

HOPPER

DETAIL “B”

90634 2
