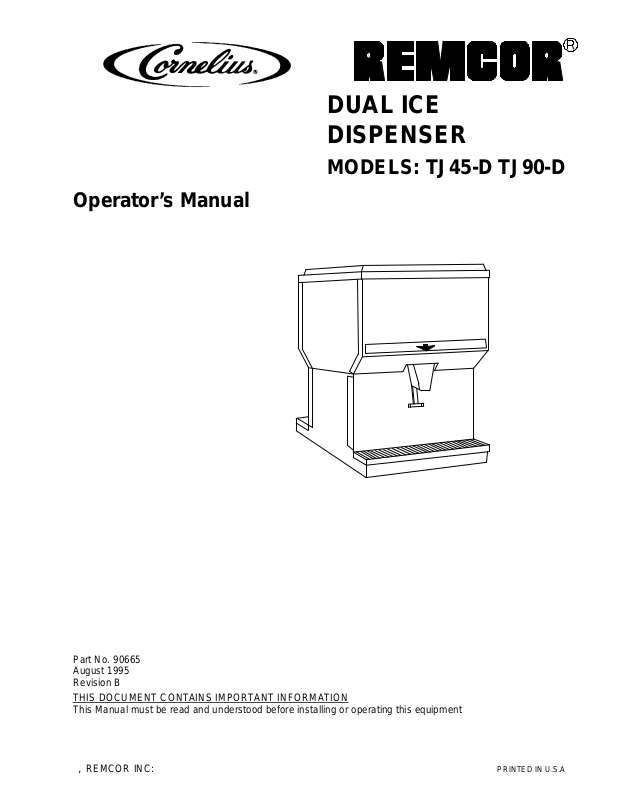

Remcor TJ-45D Installation Manual

Operator’s Manual

DUAL ICE
DISPENSER

MODELS: TJ45-D TJ90-D

Part No. 90665
August 1995
Revision B

THIS DOCUMENT CONTAINS IMPORTANT INFORMATION
This Manual must be read and understood before installing or operating this equipment

âREMCOR INC:

PRINTED IN U.S.A

TABLE OF CONTENTS

SAFETY PRECAUTIONS 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GENERAL DESCRIPTION 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSTALLA TION INSTRUCTIONS 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPERA TOR INSTRUCTION 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATING INSTRUCTIONS 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CLEANING INSTRUCTIONS 2............................................

DISPENSER 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MAINTENANCE 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DAILY OR AS REQUIRED 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WEEKLY OR AS REQUIRED 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MONTHLY 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TOUBLESHOOTING 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BLOWN FUSE OR CIRCUIT BREAKER 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GATE DOES NOT OPEN. AGITATOR DOES NOT TURN. 5. . . . . . . . . . . . . . . . . .

GATE NOES NOT OPEN OR IS SLUGGISH. AGITATOR TURNS. 5. . . . . . . . . . .

GATE OPENS. AGITATOR DOES NOT TURN. 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

ICE DISPENSES CONTINUOUSLY. 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SLUSHY ICE. WATER IN HOPPER. 5......................................

PARTS LIST 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page

WARRANTY 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LIST OF FIGURES

FIGURE 1. MOUNTING TEMPLATES 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

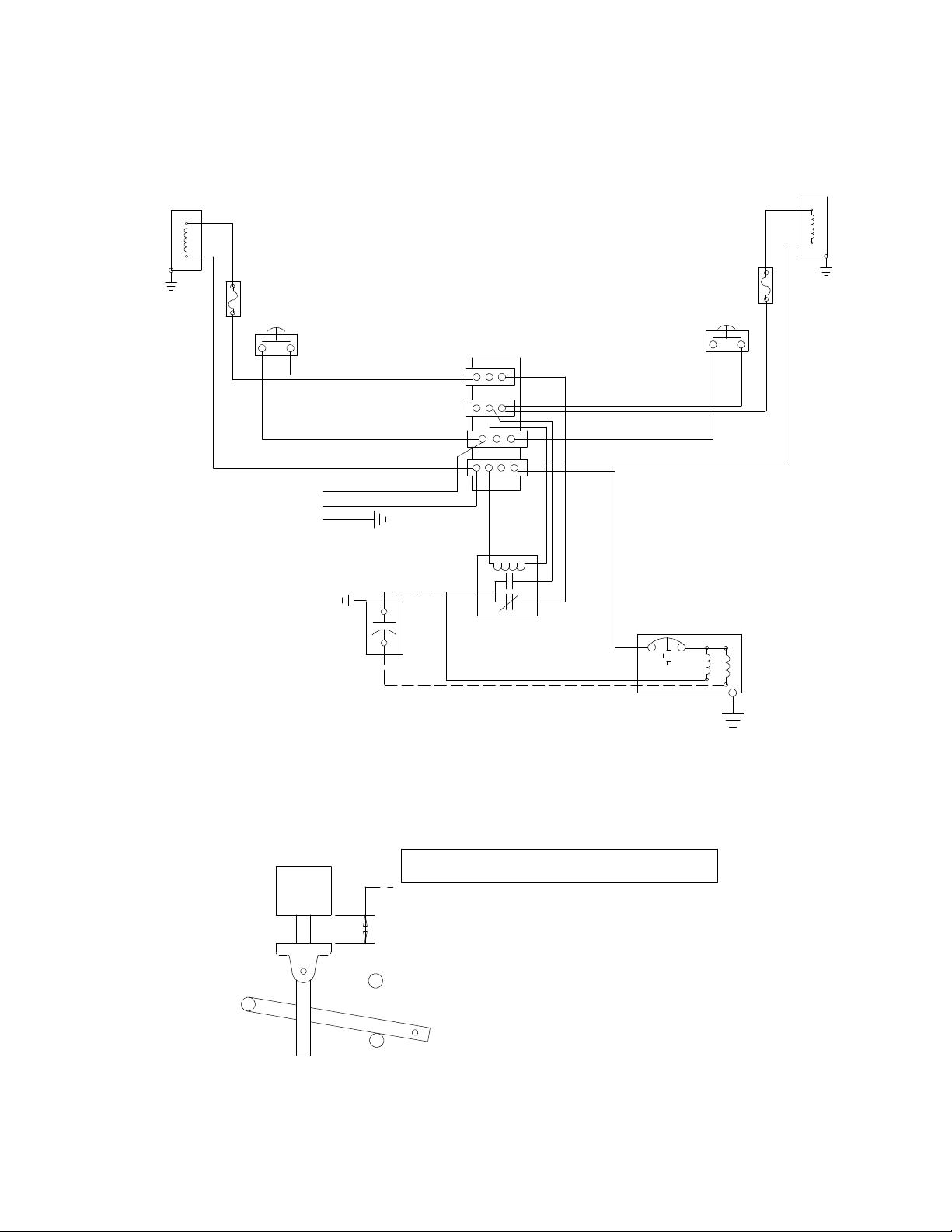

FIGURE 2. WIRING DIAGRAM TJ45, 90-D DISPENSER 7. . . . . . . . . . . . . . . . . . .

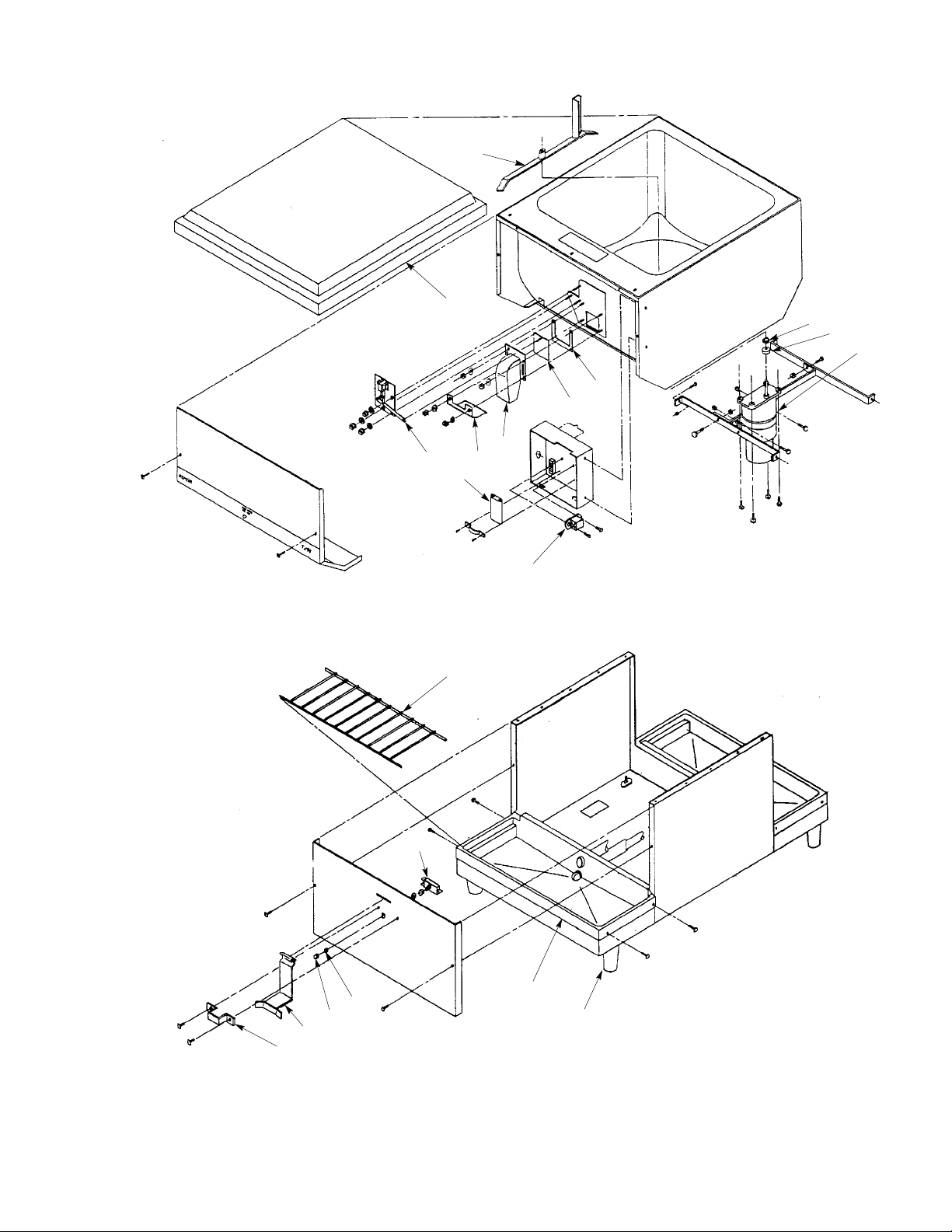

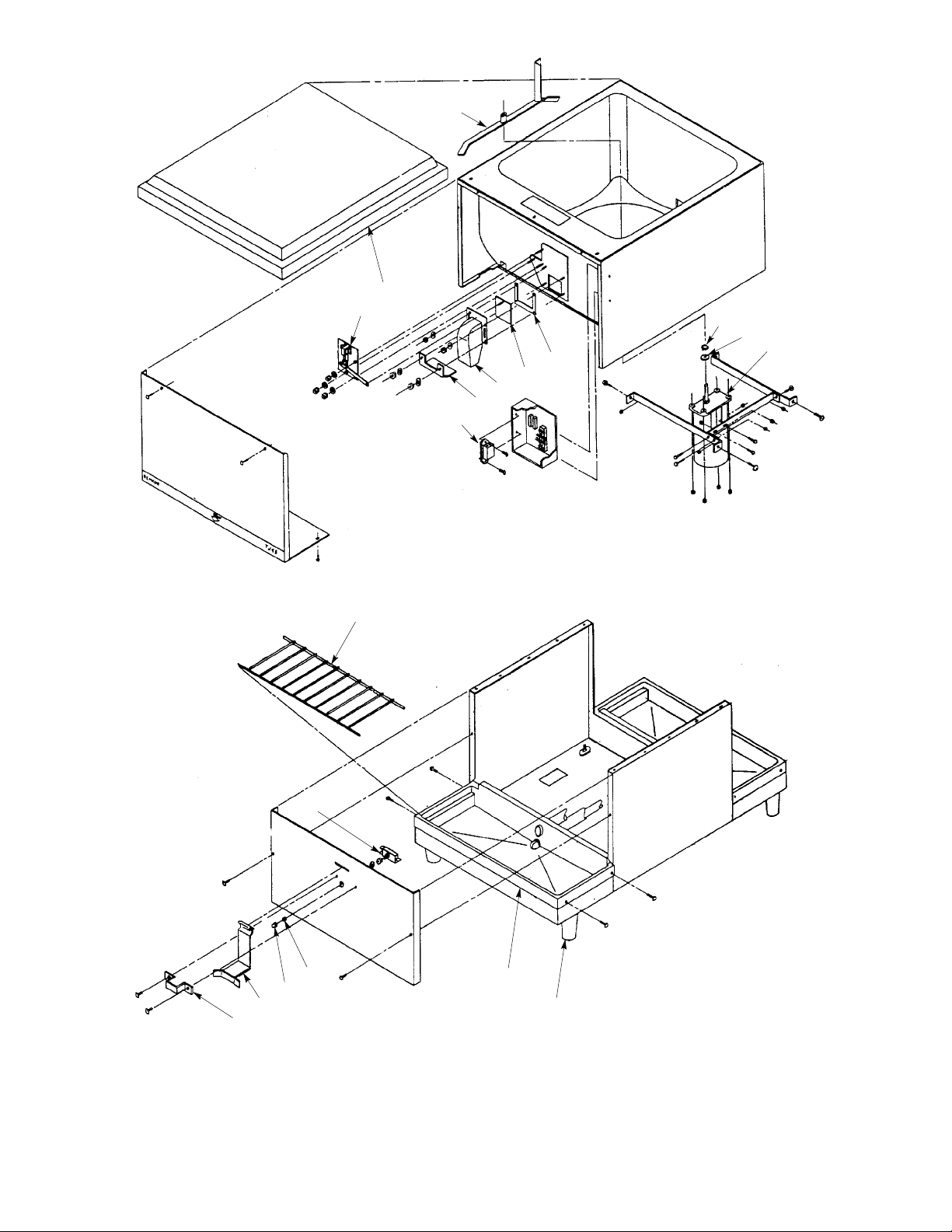

FIGURE 3. EXPLODED VIEW UPPER SECTION TJ45 8. . . . . . . . . . . . . . . . . . . .

FIGURE 4. EXPLODED VIEW LOWER SECTION TJ45 TJ90 9. . . . . . . . . . . . . . .

FIGURE 5. EXPLODED VIEW UPPER SECTION TJ90 10. . . . . . . . . . . . . . . . . . . . .

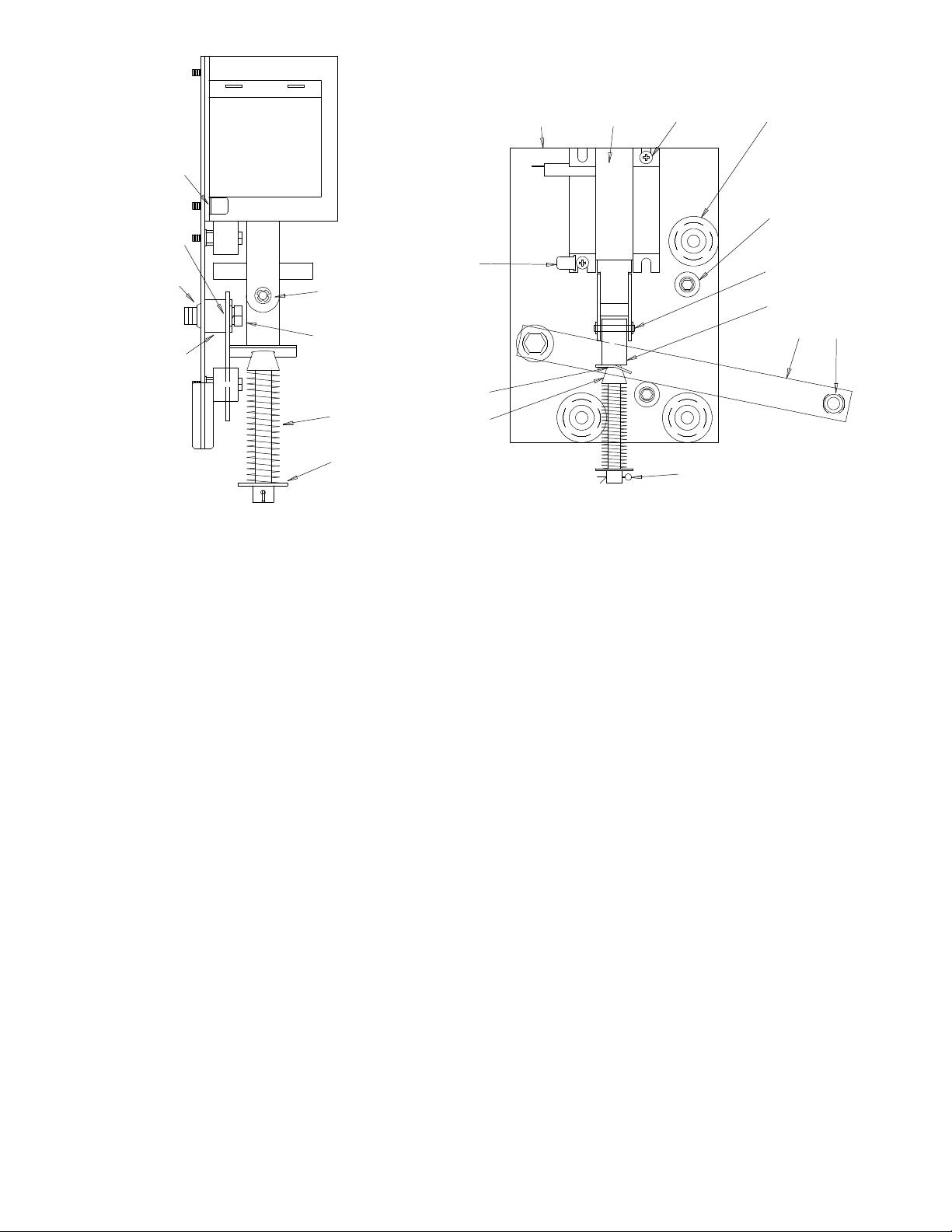

FIGURE 6. SOLENOID ASSEMBLY 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LIST OF TABLES

TABLE 1. SPECIFICATIONS 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Manufactured Under One or More of the Following Patent Numbers:

3,211,336, 3,274,792, 3,393,839 , 3,517,860, 3,739,842, 4,215,803, 4,227,377, 4,300,3594,346,824

Canadian Patent Numbers912,514 (10/72), 936,855 (11,73), 4,429,543, 4,921,149

Other Patents Pending

i

90665

SAFETY PRECAUTIONS

Always disconnect power to the dispenser before servicing or cleaning.
Never place hands inside of hopper or gate area without disconnecting power to the dispenser. Agitator rotation

occurs automatically when the dispenser is energized!
This ice dispenser has been specifically designed to provide protection against personal injury and eliminates

contamination of ice. To insure continued protection and sanitation, observe the following

ALWAYS be sure the removable lid is properly installed to prevent
unauthorized access to the hopper interior and possible contamination of ice.

ALWAYS be sure the upper and lower front panels are securely fastened.
ALWAYS keep area around the dispenser clean of ice cubes.

CAUTION: Dispenser cannot be used with crushed or flaked ice.
Use of bagged ice which has frozen into large chunks can void warranty. The dispenser

agitator is not designed to be an ice crusher. Use of large chunks of ice which “jam up”
inside the hopper will cause failure of the agitator motor and damage to the hopper. If bagged ice
is used, it must be carefully and completely broken into small, cube-sized pieces before filing into
the dispenser hopper.

GENERAL DESCRIPTION

The Remcor “TJ” series of ice dispensers will solve ice service needs in the sanitary, space saving, economical
way . Designed to be manually filled with ice from any remote ice making source, these dispensers will dispense
cubes (up 1” in size), cubelets, hard-chipped or cracked ice.

Table 1. Specifications

Model: TJ45-D

Ice Storage Capacity: 45 lbs.

Electrical: 120/1/60 3AMP

Drain Connection: 3/4” F.P.T.

Electrical Connection: 6’, 3-wire cord with 3-prong ground-type plug

Dimensions: 26½” H x 16” W x 22” D

Model: TJ90-D

Ice Storage Capacity: 90 lbs.

Electrical: 120/1/60 3AMP

Drain Connection: 3/4” F.P.T.

Electrical Connection: 6’, 3-wire cord with 3-prong ground-type plug

Dimensions: 30” H x 22” W x 28” D

CAUTION: Dispenser cannot be used with crushed or flaked ice. Use of bagged ice, which

has frozen into large chunks can void warranty. The dispenser agitator is not design ed to

be an ice crusher -- use of large chunks of ice which “jam--up” inside the hopper will cause
failure of the agitator motor and damage to the hopp er. If bagged ice is used it must be carefully
and completely broken into small, cube-size pieces before filling into the dispenser hopper.

906651

INSTALLATION INSTRUCTIONS

1. *Locate the dispenser indoors on a level counter top, unpack 4 legs and install them into the threaded
holes provided in the bottom of the unit.

2. Connect 3/4” IPS (or equal) drain line to the 3/4” threaded drain connections at the lower rear of the unit.
This line must pitch downward to an open drain, and must contain no traps, or improper drainage will
result.

3. Clean the hopper interior (see cleaning instructions).

4. Connect the power cord to a 120 volt, 60 Hz. 3-wire grounded receptacle.

Unit is now ready for operation.

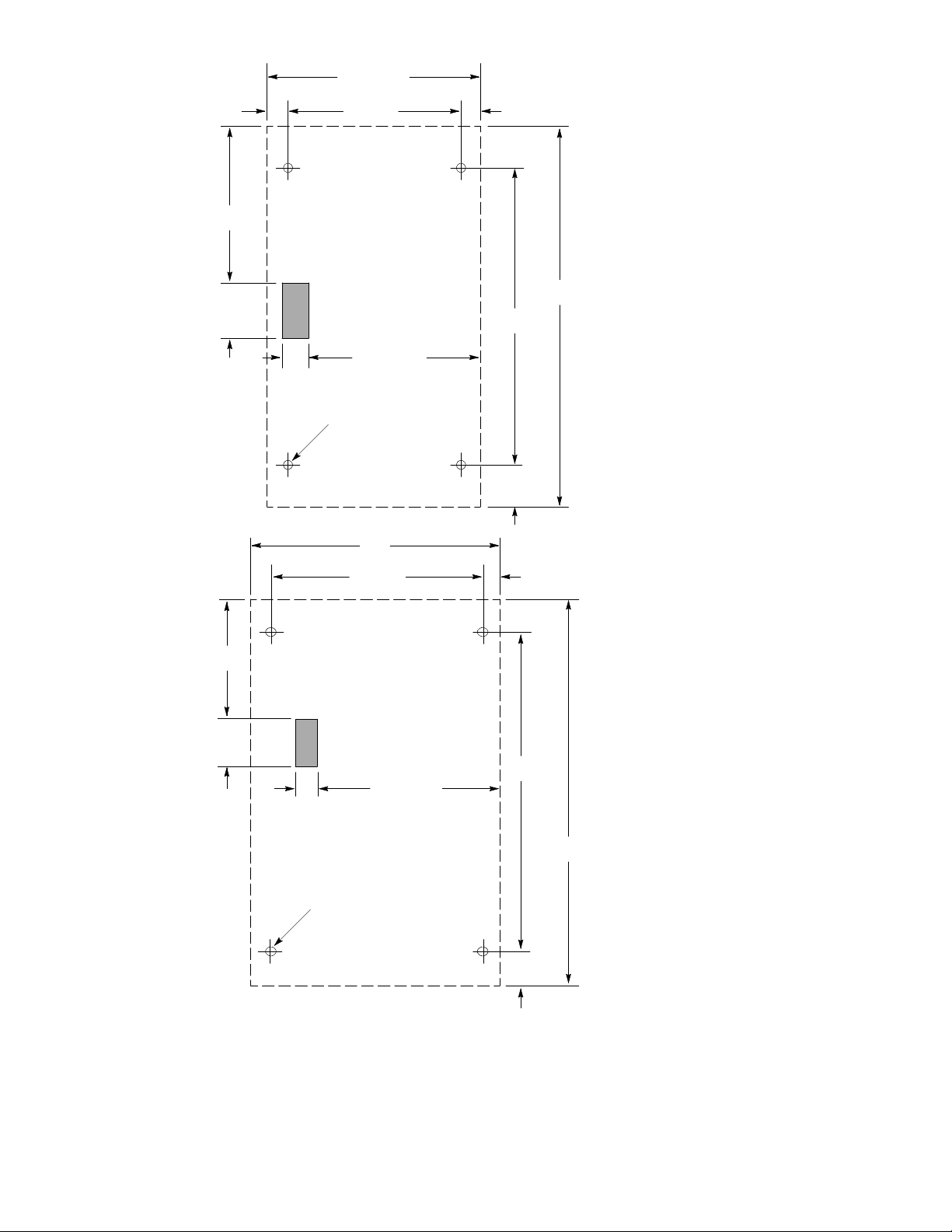

NOTE: *Figure 1, page 6 provides mounting template for those who desire to mou nt dispensers on a

counter.

NOTE: Water pipe connections and fixtu res directly conn ected to a potable water supply shall be

sized, installed and maintained according to Federal, State, and Lo cal Laws

OPERATOR INSTRUCTION

OPERATING INSTRUCTIONS

Fill the hopper with ice and replace the lid. Pushing the dispense lever will cause ice to flow from the ice chute.
Ice flow will continue until the lever is released. If ice does not dispense, see the “Troubleshooting Guide” to fine
the cause

CAUTION: Use caution to avoid spilling ice when filling d ispen ser. Clean up immediately
and spilled ice from filling or operating the unit. To prevent con tamination of ice, the lid
must be installed on the unit at all times.

CLEANING INSTRUCTIONS

WARNING: Disconnect power before cleaning . Do n ot use metal scrapers, sharp objects,
or abrasives on the surface of the liner as damage may result. Do not use solvents or oth er
cleaning agents, as they may attack the plastic liner.

Dispenser

1. Clean the ice dispenser interior at lease once a month.

2. Remove agitator assembly and wash and rinse it thoroughly .

3. Wash down the inside of hopper and top cover with mild detergent solution and rinse thoroughly to remove
all traces of detergent.

4. Replace agitator.

90665 2

5. Sanitize the inside of hopper and agitator with a solution of 1/2 ounce household bleach in 1 gallon of
water. (200 PPM)

6. Remove Ice chute cover as follows:
A. Flex sides outward to disengage lower pins.
B. Lift Ice Chute cover to disengage upper pins.
C. Lower Ice Chute cover down out of unit. Note: It may be helpful to twist cover slightly.

7. Clean the inside of the ice chute and ice chute cover with a mild detergent solution and rinse thoroughly to
remove all traces of detergent.

8. Reverse steps above to reassemble ice chute.

9. Sanitize as descried in step 5.

906653
