Remcor TJ45 Installation Manual

Operator’s Manual

ICE DISPENSER

MODELS: TJ45 TJ90

Part No. 90614
Revision G

THIS DOCUMENT CONTAINS IMPORTANT INFORMATION
This Manual must be read and understood before installing or operating this equipment

âREMCOR INC:

PRINTED IN U.S.A

TABLE OF CONTENTS

SAFETY PRECAUTIONS 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GENERAL DESCRIPTION 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSTALLA TION INSTRUCTIONS 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPERA TOR INSTRUCTION 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATING INSTRUCTIONS 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CLEANING INSTRUCTIONS 3............................................

DISPENSER 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MAINTENANCE 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DAILY OR AS REQUIRED 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WEEKLY OR AS REQUIRED 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

MONTHLY 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TOUBLESHOOTING 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BLOWN FUSE OR CIRCUIT BREAKER 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GATE DOES NOT OPEN. AGITATOR DOES NOT TURN. 5. . . . . . . . . . . . . . . .

GATE DOES NOT OPEN OR IS SLUGGISH. AGITATOR TURNS. 5. . . . . . . . . . .

GATE OPENS. AGITATOR DOES NOT TURN. 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

ICE DISPENSES CONTINUOUSLY. 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SLUSHY ICE. WATER IN HOPPER. 5......................................

PARTS LIST 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page

WARRANTY 14..............................................................

LIST OF FIGURES

FIGURE 1. MOUNTING TEMPLATES 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FIGURE 2. WIRING DIAGRAM TJ45, 90 DISPENSER 7. . . . . . . . . . . . . . . . . . . . . .

FIGURE 3. EXPLODED VIEW UPPER SECTION TJ45 8. . . . . . . . . . . . . . . . . . . .

FIGURE 4. EXPLODED VIE LOWER SECTION TJ45 9. . . . . . . . . . . . . . . . . . . . . .

FIGURE 5. EXPLODED VIEW UPPER SECTION TJ90 10. . . . . . . . . . . . . . . . . . . . .

FIGURE 6. EXPLODED VIEW LOWER SECTION TJ90 11. . . . . . . . . . . . . . . . . . . .

FIGURE 7. SOLENOID ASSEMBLY 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LIST OF TABLES

TABLE 1. SPECIFICATIONS 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

i

90614

SAFETY PRECAUTIONS

Always disconnect power to the dispenser before servicing or cleaning.
Never place hands inside of hopper or gate area without disconnecting power to the dispenser. Agitator rotation

occurs automatically when the dispenser is energized!
This ice dispenser has been specifically designed to provide protection against personal injury and eliminates

contamination of ice. To insure continued protection and sanitation, observe the following

ALWAYS be sure the removable lid is properly installed to prevent
unauthorized access to the hopper interior and possible contamination of ice.

ALWAYS be sure the upper and lower front panels are securely fastened.
ALWAYS keep area around the dispenser clean of ice cubes.

CAUTION: Dispenser cannot be used with crushed or flaked ice.
Use of bagged ice which has frozen into large chunks can void warranty . The dispenser

agitator is not designed to be an ice crusher. Use of large chunks of ice which “jam up”
inside the hopper will cause failure of the agitator motor and damage to the hopper. If bagged ice
is used, it must be carefully and completely broken into small, cube-sized pieces before filling into
the dispenser hopper.

GENERAL DESCRIPTION

The Remcor “TJ” series of ice dispensers will solve ice and beverage service needs in the sanitary, space
saving, economical way . Designed to be manually filled with ice from any remote ice making source, these
dispensers will dispense cubes (up 1” in size), cubelets, hard-chipped or cracked ice.

Table 1. Specifications

Model: TJ45

Ice Storage Capacity: 45 lbs.

Electrical: 120/1/60 3AMP

Drain Connection: 3/4” F.P.T.

Electrical Connection: 6’, 3-wire cord with 3-prong ground-type plug

Dimensions: 26½” H x 16” W x 22” D

Model: TJ90

Ice Storage Capacity: 90 lbs.

Electrical: 120/1/60 3AMP

Drain Connection: 3/4” F.P.T.

Electrical Connection: 6’, 3-wire cord with 3-prong ground-type plug

Dimensions: 30” H x 22” W x 28” D

906141

INSTALLATION INSTRUCTIONS

1. * Locate the dispenser indoors on a level counter top, unpack 4 legs and install them into the threaded
holes provided in the bottom of the unit.

2. Connect 3/4” IPS (or equal) drain line to the 3/4” threaded drain connections at the lower rear of the unit.
This line must pitch downward to an open drain, and must contain no traps, or improper drainage will
result.

3. Clean the hopper interior (see cleaning instructions).

4. Connect the power cord to a 120 volt, 60 Hz. 3-wire grounded receptacle.

Unit is now ready for operation.

NOTE: *Figure 1, page 6 provides mounting template for those who desire to mount dispensers on a
counter.

90614 2

OPERATOR INSTRUCTION

OPERATING INSTRUCTIONS

Fill the hopper with ice and replace the lid. Pushing the dispense lever will cause ice to flow from the ice chute.
Ice flow will continue until the lever is released. If ice does not dispense, see the “Troubleshooting Guide” to find
the cause

CAUTION: Use caution to avoid spilling ice when filling dispenser. immediately Clean up
any spilled ice from filling or operation of the unit. To prevent contamination of ice, the lid
must be installed on the unit at all times.

CLEANING INSTRUCTIONS

WARNING: Disconnect power before cleaning. Do not use metal scrapers, sharp objects,
or abrasives on the surface of the liner as damage may result. Do not use solvents or other
cleaning agents, as they may attack the plastic liner.

Dispenser

1. Clean the ice dispenser interior at lease once a month.

2. Remove agitator assembly , wash and rinse it thoroughly.

3. Wash down the inside of hopper and top cover with mild detergent solution. Rinse thoroughly to remove all
traces of detergent.

4. Replace agitator.

5. Sanitize the inside of hopper and agitator with a solution of 1 ounce household bleach in 2 gallons of
water. (200 PPM)

6. Remove Ice chute cover as follows:
A. Flex sides outward to disengage lower pins.
B. Lift Ice Chute cover to disengage upper pins.
C. Lower Ice Chute cover down out of unit. Note: It may be helpful to twist cover slightly .

7. Clean the inside of the ice chute and ice chute cover with a mild detergent solution and rinse thoroughly to
remove all traces of detergent.

8. Reverse steps above to reassemble ice chute.

9. Sanitize as described in step 5.

906143

MAINTENANCE

The following dispenser maintenance should be performed at the intervals indicated:

DAILY or as required

Remove foreign material from the vending area sink to prevent drain blockage.

WEEKLY or as required

Clean vending area. Check for proper water drainage from the vending area sink.

MONTHLY

Clean and sanitize the hopper interior (see CLEANING INSTRUCTIONS).
If the dispenser fails to dispense ice when operated, check that the hopper has ice in it and that power is being

supplied to the unit. If the problem persists, check the following:

1. Determine if the agitator is rotating (check for the sound of ice movement in the hopper).

2. Observe whether the gate is operating.

After checking the above, refer to the TROUBLESHOOTING GUIDE for possible problem causes and
corrective action.

90614 4

TOUBLESHOOTING

IMPORTANT: only qualified personnel should service internal components.

Should your unit fail to operate properly , check that the electric plug is secure, and that the hopper contains ice.
If the unit still does not dispense, check the following chare under the appropriate symptoms to aid in locating
the defect.

Trouble Probable Cause

BLOWN FUSE OR CIRCUIT BREAKER. A. Short circuit in wiring.

B. Defective gate solenoid.
C. Defective agitator motor.

GATE DOES NOT OPEN. AGITATOR DOES NOT
TURN.

GATE DOES NOT OPEN OR IS SLUGGISH.
AGITATOR TURNS.

GATE OPENS. AGITATOR DOES NOT TURN. A. Ice solidified in hopper.

ICE DISPENSES CONTINUOUSLY. A. Stuck or bent depressor lever (does not release

SLUSHY ICE. WATER IN HOPPER. A. Blocked drain.

A. No power.

B. Defective dispensing switch.
C. Bent depressor lever (does not actuate switch).

A. Excessive pressure against gate slide.

B. Defective gate solenoid.
C. Weak gate spring.

B. Defective agitator motor.
C. Defective capacitor (TJ90 only).

switch).
B. Defective dispensing switch.
C. Improper switch installation.

B. Unit not level.
C. Poor ice quality due to water quality or icemaker

problem.
D. Improper use of flake ice.

906145

21 25/32 -IN

OUTLINE OF

UNITS

15 7/8 -IN

1 5/8 -IN

12 5/8 -IN 1 5/8 -IN

TJ45

18 9/16 -IN

3/4-IN DIA.

1 5/8 -IN

27 23/32 -IN

24 1/2 -IN

22-IN

1 5/8 -IN18 3/4-IN

TJ90

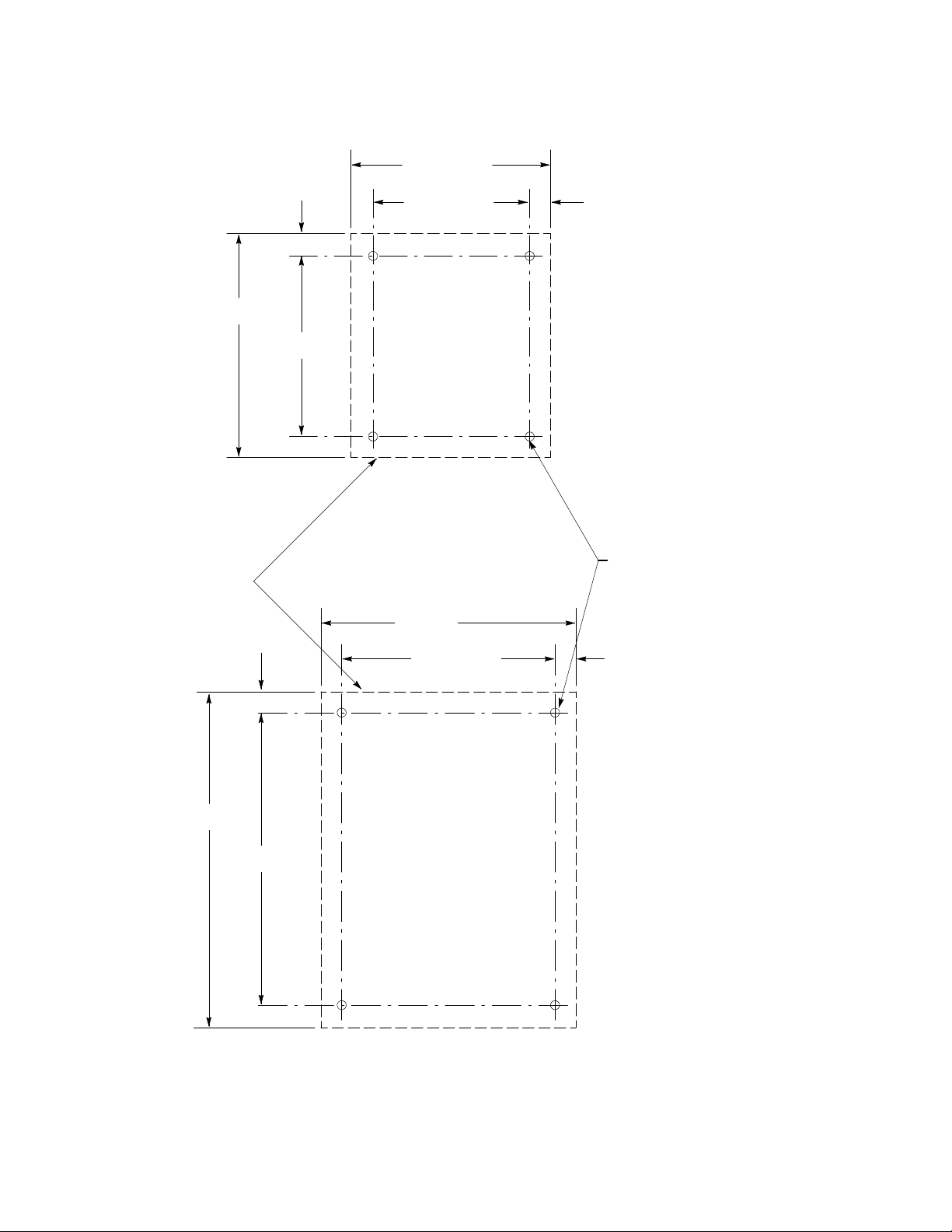

FIGURE 1. MOUNTING TEMPLA TES

90614 6

SERVICE INFORMATION

GRD

DANGER:

GRN

L N

BLK

RED

BLK

WHT

BLK

ELECTRIC SHOCK HAZARD. DISCONNECT POWER BEFORE SERVICING UNIT.

GATE

SOLENOID

LIGHT

WHT

ICE LEVEL SIGNAL

(OPTIONAL)

WHT

WHT

RED

DISPENSE SWITCH

(STANDARD)

RED

1¼ AMP. TIME

DELAY FUSE

RED

BLU

THERMOSTAT

BLK

AGITATOR

MOTOR

CAPACITOR

TJ-90 ONLY

PORTION TIMER

7/8-IN

PORTION

CONTROL

(OPTIONAL)

TO TERMINAL

BOARD

TD

WHT

RED

SW

ORN

RED

BLK

SOLENOID ADJUSTMENT

WHEN REPLACING SOLENOID AD­JUST TO 7/8” AS SHOWN BEFORE
TIGHTENING MOUNTING SCREWS

DISPENSE

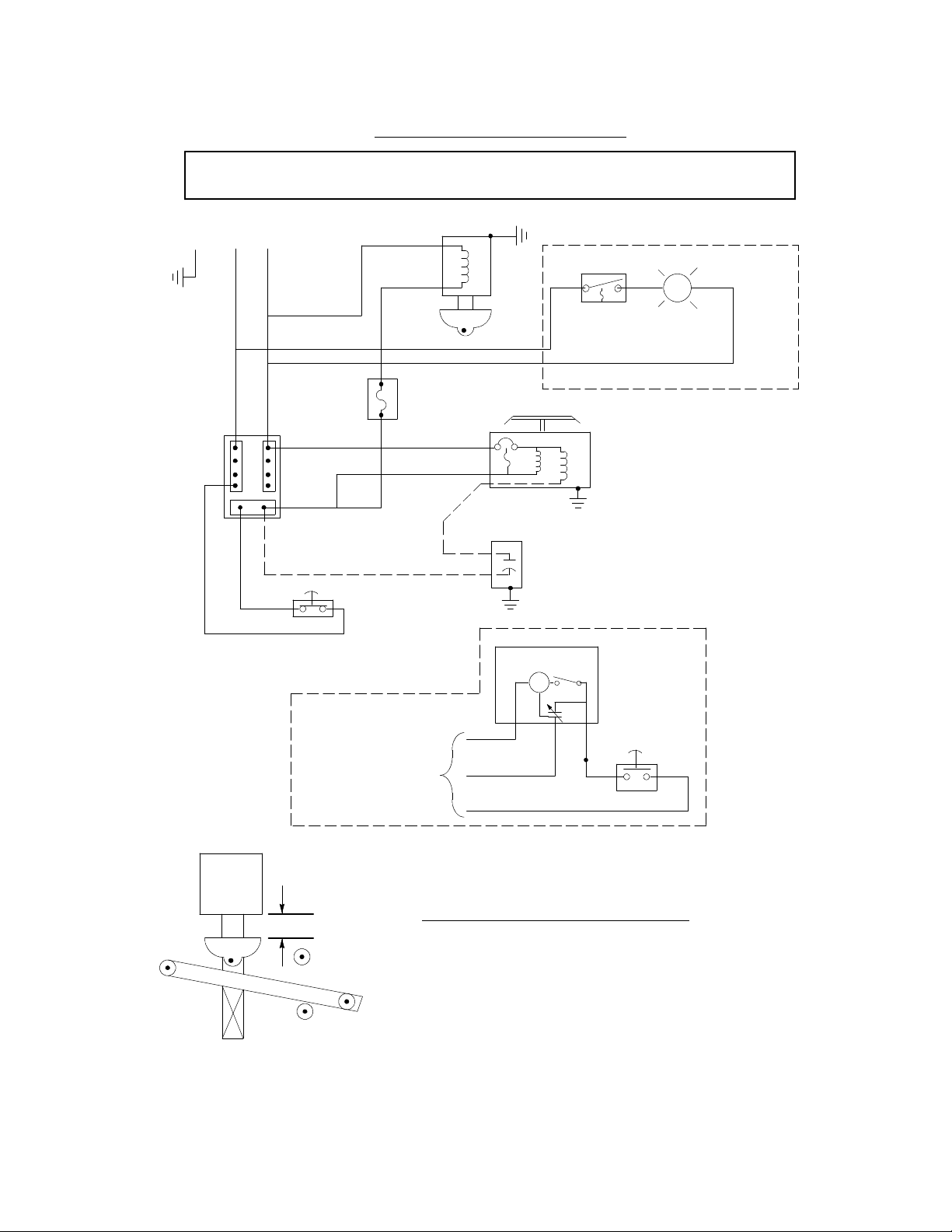

SWITCH

FIGURE 2. WIRING DIAGRAM TJ45, 90 DISPENSER

906147

4

12

19

15

1

14

8

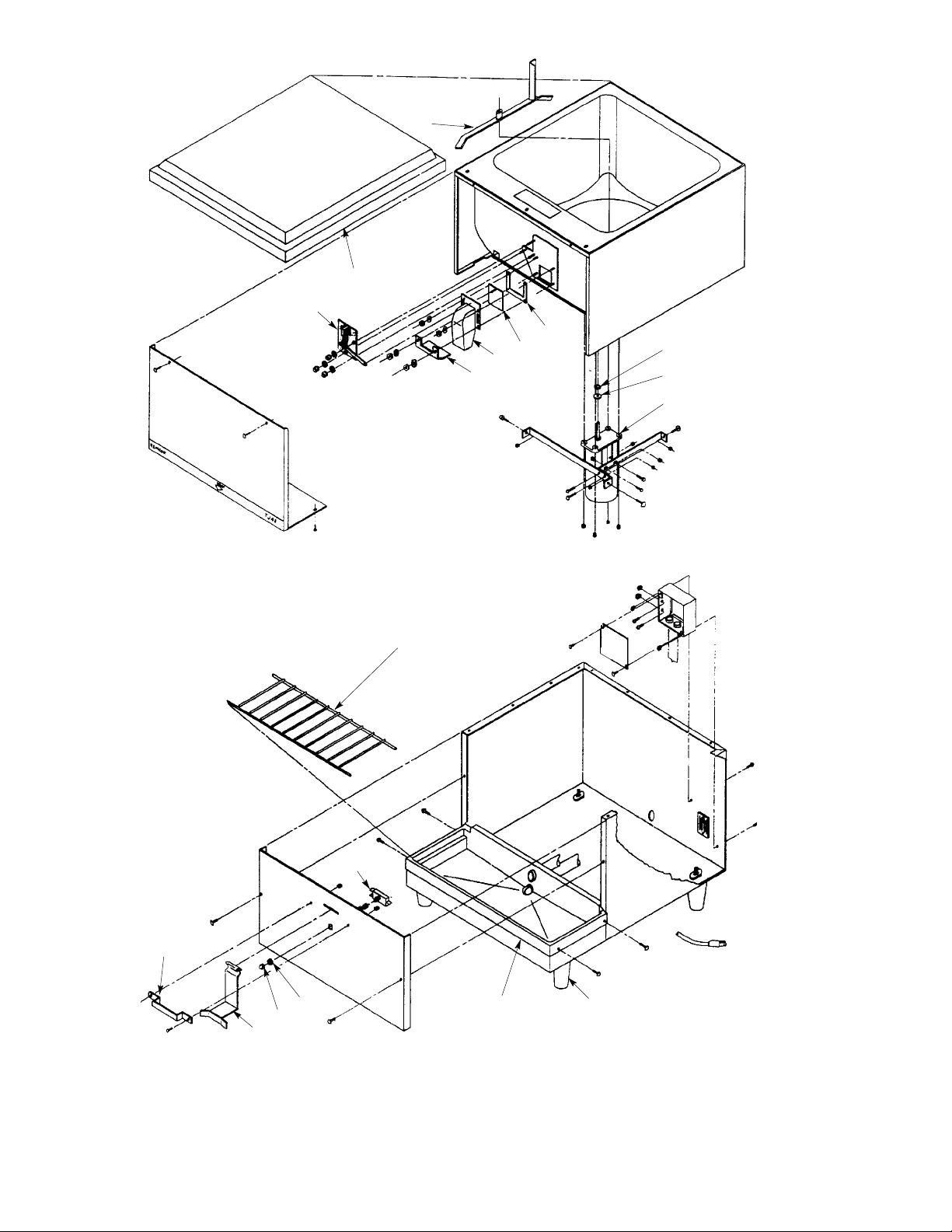

FIGURE 3 UPPER SECTION EXPLODED VIEW TJ45

10

11

9

16

5

2

7

6

3

13

17

FIGURE 4 EXPLODED VIEW LOWER SECTION TJ45

890614

4

10

12

15

1

14

8

19

18

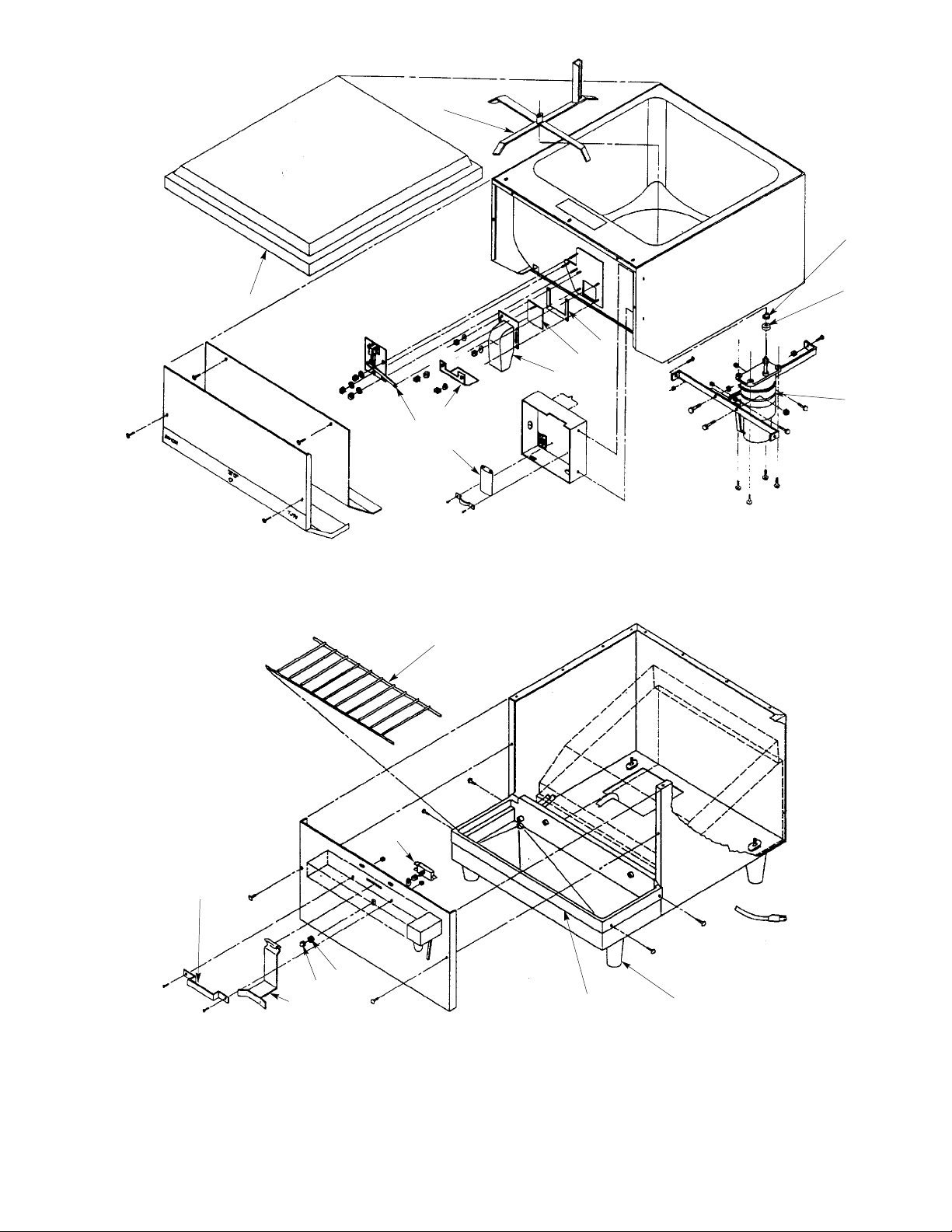

FIGURE 5 EXPLODED VIEW UPPER SECTION TJ90

16

11

9

5

2

7

6

3

13

17

FIGURE 6 EXPLODED VIEW LOWER SECTION TJ90

9 90614

PARTS LIST

Item No. Part No. TJ45 Part No. TJ90 Description

1 21491 21491 Gate Slide
2 22644 22644 Depressor Retainer
3 21515 21515 Depressor Lever
4 21517 21629 Agitator
5 30895 30895 Dispensing Switch
6 31007 31007 Switch Boot
7 31163 31163 Switch Insert
8 23062 23062 Foam Shield

9 31106 31112 Agitator Motor
10 50454 50454 Motor Shaft Seal
11 50481 50806 Motor Gasket
12 50748 50791 Lid
13 50750 50793 Sink
14 53015 53015 Ice Chute Back Section

53016 53016 Ice Chute Cover
15 50770 50770 Gate Gasket
16 70426 70441 Sink Grill
17 70419 70419 Leg
18 ---------- 30774 Capacitor
19 31093 31093 Solenoid Assembly
20 70438 70438 Rebuilding Kit

1090614

22

17

19

22

4

1

4

18

21

16
15
14

19

13

9

2

3

5

22

20

6

8

11

10

12

7

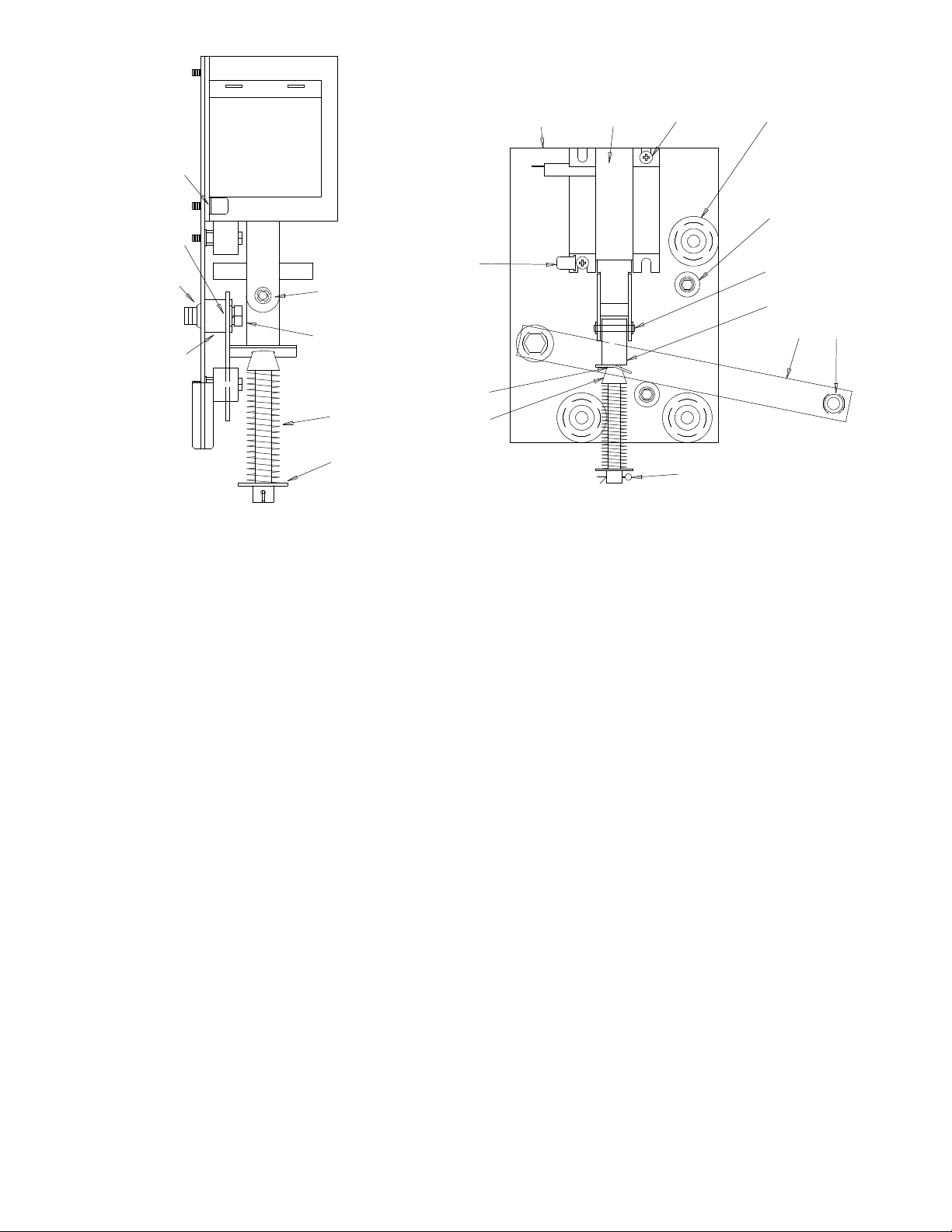

FIGURE 7. SOLENOID ASSEMBLY

Index

No.

1 21493 1 Solenoid Mounting Plate

2# 31551 1 Solenoid Service Kit

3 70171 2 8--32 x 3/8 Phil Tr HD Screw
4 70121 2 No. 8 Lockwasher

5 50752 3 Isolator
6* 50789 2 Bumper Assembly
7* 70423 1 Cotter Pin
8* 10080 1 Gate Lift Rod

9 10081 1 Gate Lift Rod Bushing

10 50754 1 Gate Arm Bearing
11 21492 1 Gate lift Arm
12 70043 1 Flatwasher

13* 70422 1 Spring

14 70263 1 1/4-20 x 3/4 Hex Hd Screw
15 70048 1 1/4 Lockwasher
16 70066 1 1/4 Flatwasher
17 10077 1 Pivot Bearing
18 30227 1 1/4 Quick Connect Tab

19 50305 ---- Lubricant
20* 21592 1 Solenoid Linkage Pin
21* 70433 2 Retainer Ring

22 51088 ---- Loctite

----* 70438 ---- Rebuilding Kit

Part No. Qty. Name

NOTE: * Parts supplied with rebuilding kit.

# 31551 solenoid supplied with items 20 & 21.

11 90614

REMCOR PRODUCT COMPANY

500 REGENCY DRIVE

GLENDALE HEIGHTS, IL 60139-2268
TELEPHONE [phone]
FACSIMILE (708) 980 --8511

WARRANTY

REMCOR warrants that all equipment and parts are free from defects in material and workmanship
under normal use and service. For a copy of the warranty applicable to your REMCOR product, in
your country, please write, fax or telephone the IMI Cornelius office nearest you. Please provide the
equipment model number and the date of purchase.

IMI Cornelius Offices

AUSTRALIA D P.O. 210, D RIVERWOOD, D NSW 2210, AUSTRALIA D (61) 2 533 3122 D FAX [phone]
AUSTRIA D AM LANGEN FELDE 32 D A-1222 D VIENNA, AUSTRIA D (43) 1 233 520 D FAX [phone]
BELGIUM D BOSKAPELLEI 122 D B-2930 BRAASCHAAT, BELGIUM D (32) 3 664 0552 D FAX [phone]
BRAZIL D RUA ITAOCARA 97 D TOMAS COELHO D RIO DE JANEIRO, BRAZIL D (55) 21 591 7150 D FAX [phone]
ENGLAND D TYTHING ROAD ALCESTER D WARWICKSHIRE, B49 6 EU, ENGLAND D (44) 789 763 101 D FAX [phone]
FRANCE D 71 ROUTE DE ST. DENIS D F-95170 DEUIL LA BARRE D PARIS, FRANCE D (33) 1 34 28 6200 D FAX [phone]
GERMANY D CARL LEVERKUS STRASSE 15 D D-4018 LANGENFELD, WEST GERMANY D (49) 2173 7930 D FAX [phone]
GREECE D 488 MESSOGION AVENUE D AGIA PARASKEVI D 153 42 D ATHENS, GREECE D (30) 1 600 1073 D FAX [phone]
HONG KONG D 1104 TAIKOTSUI CENTRE D 11-15 KOK CHEUNG ST D TAIKOKTSUE, HONG KONG D [phone] D FAX [phone]
ITALY D VIA PELLIZZARI 11 D 1-20059 D VIMARCATE, ITALY D (39) 39 608 0817 D FAX [phone]
NEW ZEALAND D 20 LANSFORD CRES. D P.O. BOX 19-044 AVONDALE D AUCKLAND 7, NEW ZEALAND D (64) 9 8200 357 D FAX [phone]
SINGAPORE D 16 TUAS STREET D SINGAPORE 2263 D (65) 862 5542 D FAX [phone]
SPAIN D POLIGONO INDUSTRAIL D RIERA DEL FONOLLAR D E-08830 SANT BOI DE LLOBREGAT D BARCELONA, SPAIN D (34) 3 640 2839 D FAX [phone]
USA D ONE CORNELIUS PLACE D ANOKA, MINNESOTA D [phone] D FAX [phone]

12 90614SD 99-2

CORPORATE HEADQUARTERS:

Glendale Heights, IL 60139

Remcor Incorporated

500 Regency Drive

708. 980.6900
