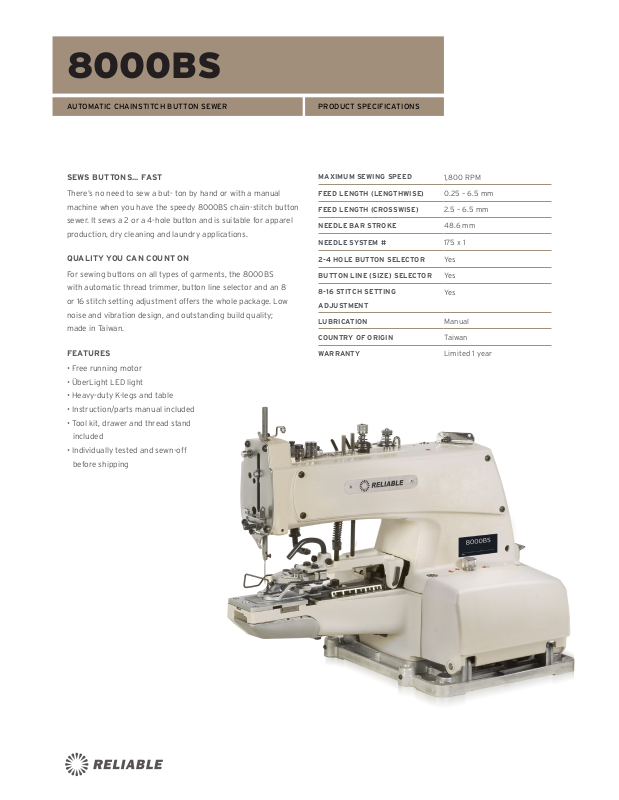

Reliable 8000BS Specifications

8000BS

AUTOMATIC CHAINSTITCH BUTTON SEWER PRODUCT SPECIFICATIONS

SEWS BUTTONS... FAST

There’s no need to sew a but- ton by hand or with a manual
machine when you have the speedy 8000BS chain-stitch button
sewer. It sews a 2 or a 4-hole button and is suitable for apparel
production, dry cleaning and laundry applications.

QUALITY YOU CAN COUNT ON

For sewing buttons on all types of garments, the 8000BS
with automatic thread trimmer, button line selector and an 8
or 16 stitch setting adjustment offers the whole package. Low
noise and vibration design, and outstanding build quality;
made in Taiwan.

FEATURES

• Free running motor

• ÜberLight LED light

• Heavy-duty K-legs and table

• Instruction/parts manual included

• Tool kit, drawer and thread stand
included

• Individually tested and sewn-off
before shipping

MAXIMUM SEWING SPEED

FEED LENGTH (LENGTHWISE)

FEED LENGTH (CROSSWISE)

NEEDLE BAR STROKE

NEEDLE SYSTEM #

2-4 HOLE BUTTON SELECTOR

BUTTON LINE (SIZE) SELECTOR

8-16 STITCH SETTING

ADJUSTMENT

LUBRICATION

COUNTRY OF ORIGIN

WARRANTY

1,800 RPM

0.25 – 6.5 mm

2.5 – 6.5 mm

48.6 mm

175 x 1

Yes

Yes

Yes

Manual

Taiwan

Limited 1 year
