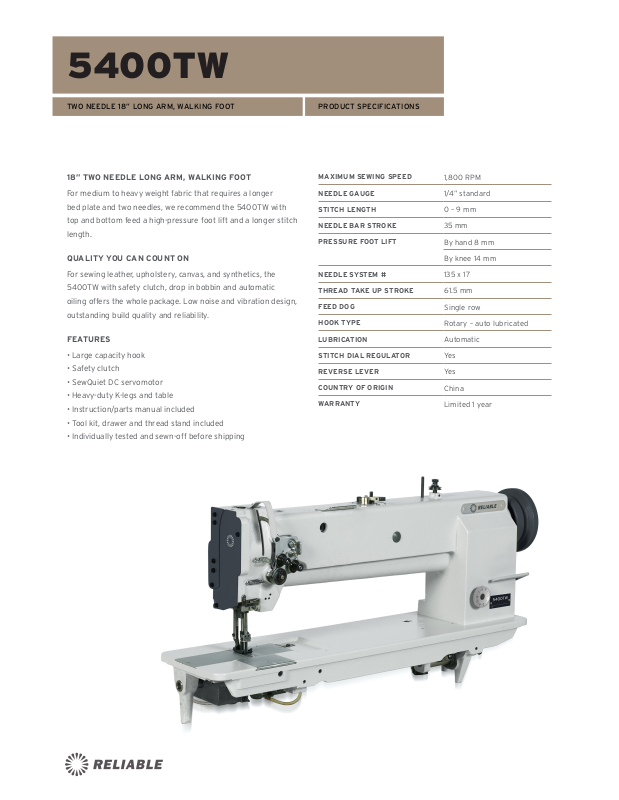

5400TW
TWO NEEDLE 18” LONG ARM, WALKING FOOT PRODUCT SPECIFICATIONS
18” TWO NEEDLE LONG ARM, WALKING FOOT
For medium to heavy weight fabric that requires a longer
bed plate and two needles, we recommend the 5400TW with
top and bottom feed a high-pressure foot lift and a longer stitch
length.
QUALITY YOU CAN COUNT ON
For sewing leather, upholstery, canvas, and synthetics, the
5400TW with safety clutch, drop in bobbin and automatic
oiling offers the whole package. Low noise and vibration design,
outstanding build quality and reliability.
FEATURES
• Large capacity hook
• Safety clutch
• SewQuiet DC servomotor
• Heavy-duty K-legs and table
• Instruction/parts manual included
• Tool kit, drawer and thread stand included
• Individually tested and sewn-off before shipping
MAXIMUM SEWING SPEED
NEEDLE GAUGE
STITCH LENGTH
NEEDLE BAR STROKE
PRESSURE FOOT LIFT
NEEDLE SYSTEM #
THREAD TAKE UP STROKE
FEED DOG
HOOK TYPE
LUBRICATION
STITCH DIAL REGULATOR
REVERSE LEVER
COUNTRY OF ORIGIN
WARRANTY
1,800 RPM
1/4” standard
0 – 9 mm
35 mm
By hand 8 mm
By knee 14 mm
135 x 17
61.5 mm
Single row
Rotary – auto lubricated
Automatic
Yes
Yes
China
Limited 1 year
