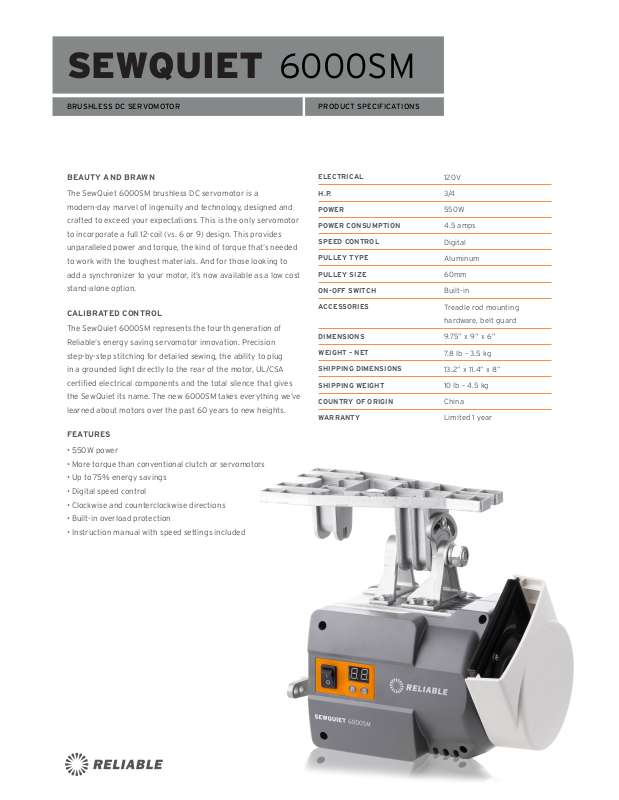

Reliable 6000SM Specifications

SEWQUIET 6000SM

BRUSHLESS DC SERVOMOTOR PRODUCT SPECIFICATIONS

BEAUTY AND BRAWN

The SewQuiet 6000SM brushless DC servomotor is a

modern-day marvel of ingenuity and technology, designed and

crafted to exceed your expectations. This is the only servomotor

to incorporate a full 12-coil (vs. 6 or 9) design. This provides

unparalleled power and torque, the kind of torque that’s needed

to work with the toughest materials. And for those looking to

add a synchronizer to your motor, it’s now available as a low cost

stand-alone option.

CALIBRATED CONTROL

The SewQuiet 6000SM represents the fourth generation of

Reliable’s energy saving servomotor innovation. Precision

step-by-step stitching for detailed sewing, the ability to plug

in a grounded light directly to the rear of the motor, UL/CSA

certified electrical components and the total silence that gives

the SewQuiet its name. The new 6000SM takes everything we’ve

learned about motors over the past 60 years to new heights.

FEATURES

• 550W power

• More torque than conventional clutch or servomotors

• Up to 75% energy savings

• Digital speed control

• Clockwise and counterclockwise directions

• Built-in overload protection

• Instruction manual with speed settings included

ELECTRICAL

H.P.

POWER

POWER CONSUMPTION

SPEED CONTROL

PULLEY TYPE

PULLEY SIZE

ON-OFF SWITCH

ACCESSORIES

DIMENSIONS

WEIGHT – NET

SHIPPING DIMENSIONS

SHIPPING WEIGHT

COUNTRY OF ORIGIN

WARRANTY

120V

3/4

550W

4.5 amps

Digital

Aluminum

60mm

Built-in

Treadle rod mounting

hardware, belt guard

9.75” x 9” x 6”

7.8 lb – 3.5 kg

13.2” x 11.4” x 8”

10 lb – 4.5 kg

China

Limited 1 year
