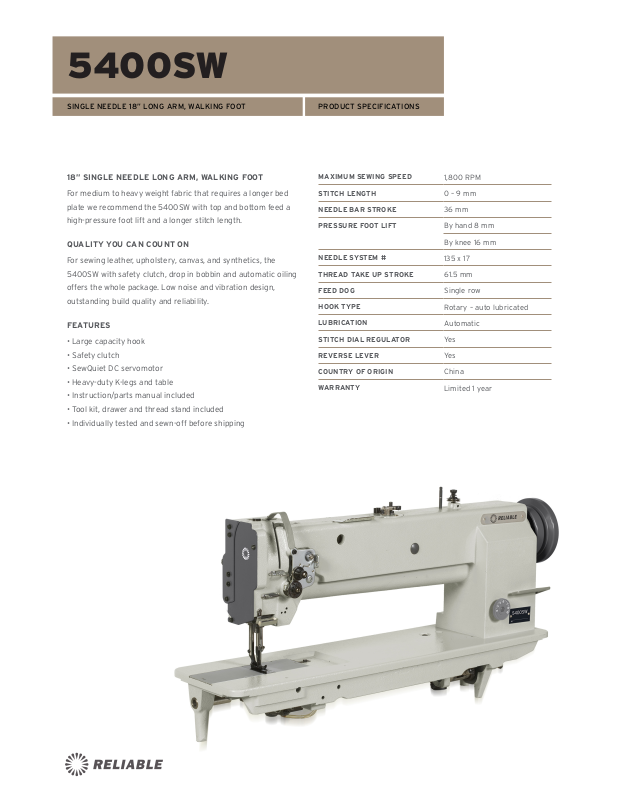

Reliable 5400SW Specifications

5400SW

SINGLE NEEDLE 18” LONG ARM, WALKING FOOT PRODUCT SPECIFICATIONS

18” SINGLE NEEDLE LONG ARM, WALKING FOOT

For medium to heavy weight fabric that requires a longer bed

plate we recommend the 5400SW with top and bottom feed a

high-pressure foot lift and a longer stitch length.

QUALITY YOU CAN COUNT ON

For sewing leather, upholstery, canvas, and synthetics, the

5400SW with safety clutch, drop in bobbin and automatic oiling

offers the whole package. Low noise and vibration design,

outstanding build quality and reliability.

FEATURES

• Large capacity hook

• Safety clutch

• SewQuiet DC servomotor

• Heavy-duty K-legs and table

• Instruction/parts manual included

• Tool kit, drawer and thread stand included

• Individually tested and sewn-off before shipping

MAXIMUM SEWING SPEED

STITCH LENGTH

NEEDLE BAR STROKE

PRESSURE FOOT LIFT

NEEDLE SYSTEM #

THREAD TAKE UP STROKE

FEED DOG

HOOK TYPE

LUBRICATION

STITCH DIAL REGULATOR

REVERSE LEVER

COUNTRY OF ORIGIN

WARRANTY

1,800 RPM

0 – 9 mm

36 mm

By hand 8 mm

By knee 16 mm

135 x 17

61.5 mm

Single row

Rotary – auto lubricated

Automatic

Yes

Yes

China

Limited 1 year
