Page 1
www.regency-fire.com
ULTIMATE U39
Direct Vent Freestanding Gas Stove
Owners &
Installation Manual
MODELS: U39-NG Natural Gas U39-LP Propane
WARNING:
If the information in these instructions are not followed exactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4918-027b
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
01/09/06
Page 2
REGENCY
ULTIMATE Direct Vent Freestanding Gas Stove
To the New Owner:
Congratulations! You are the owner of a state-of-the-art ULTIMATE Direct Vent Gas Stove by FPI Fireplace
Products International Ltd. The Regency Gas Series of hand crafted appliances has been designed to provide
you with all the warmth and charm of a woodstove, at the flick of a switch. The models U39-NG, and U39LP of this series has been approved by Warnock Hersey for both safety and efficiency. As it also bears our
own mark, it promises to provide you with economy, comfort and security for many trouble free years to follow.
Please take a moment now to acquaint yourself with these instructions and the many features of your
ULTIMATE Direct Vent Freestanding Gas Stove.
UNIT SPECIFICATIONS
U39-NG & U39-LP
2
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Page 3
TABLE OF CONTENTS
Page Page
Safety Label
Safety Labels .......................................................................... 4
Installation
Specifications ..........................................................................5
Information for Mobile/Manufactured Home
After First Sale..................................................................5
Before You Start.......................................................................5
General Safety Information....................................................6
Installation Checklist..............................................................6
Clearances to Combustibles ...............................................6
Manufactured Mobile Home Requirements.......................7
Locating Your ULTIMATE Gas Stove ...................................7
Louver Installation...................................................................7
Combustion and Ventilation Air............................................7
Venting ......................................................................................7
Installation Precautions .........................................................7
Exterior Vent Terminal Locations .........................................8
Rigid Pipe Venting Components List..................................9
Rigid Pipe Venting Systems
Horizontal or Vertical Terminatioins ..........................10
Safety Precautions for the Installer ....................................11
Venting Arrangements - Horizontal
Terminations: All Systems ..........................................11
Venting Arrangements - Vertical Terminations ...............11
- Straight Vertical ...........................................................11
- Offset Vertical...............................................................11
Vent Restrictor Position .......................................................11
Horizontal and Vertical Venting With Two Elbows ..........12
DV Stove Horizontal Vent Kit................................................13
Dura-Vent Termination Kits .................................................15
Planning Your Dura-Vent Installation ................................15

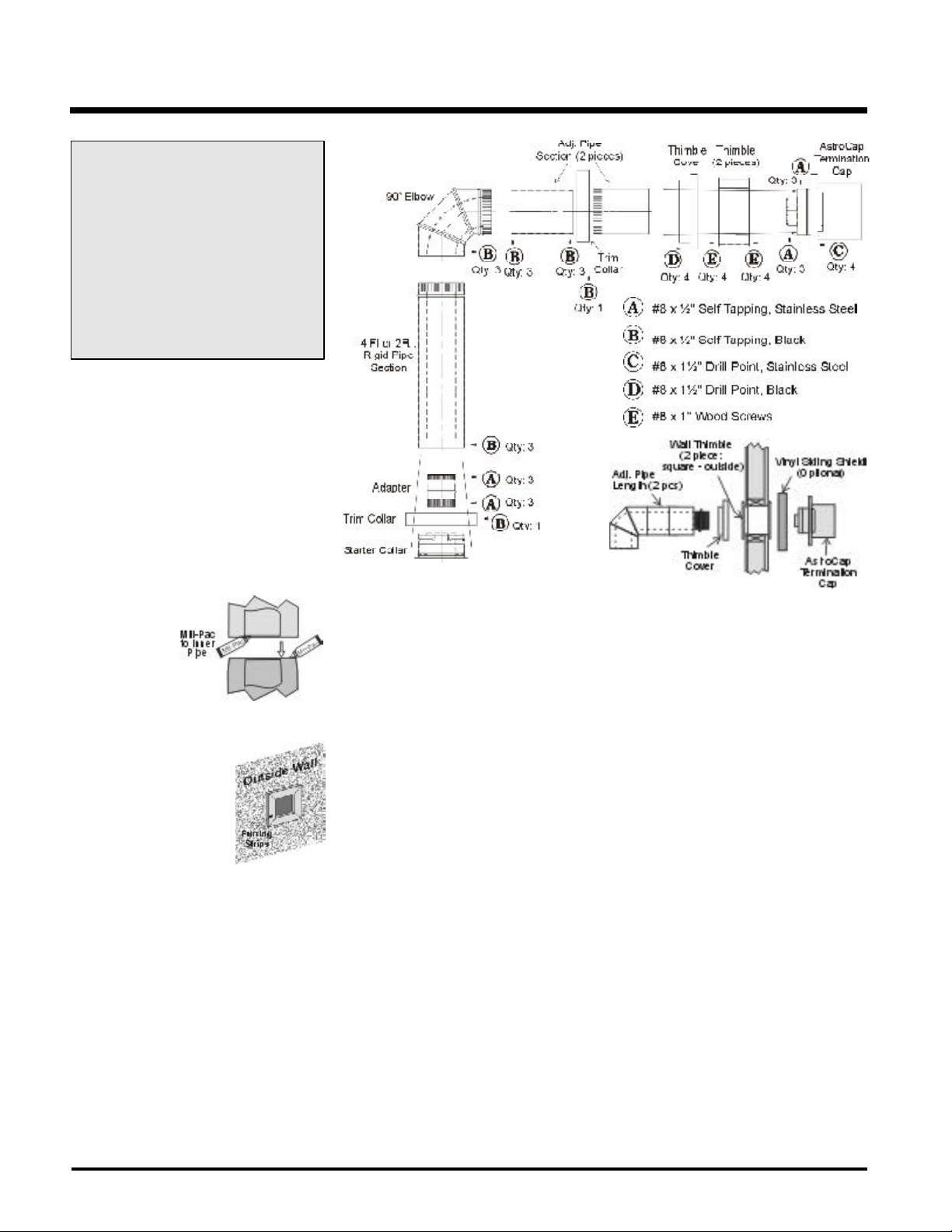

Dura-Vent Venting Components Parts List......................15
Dura-Vent Horizontal Installation .......................................16
Dura-Vent Vertical Termination Installation .....................17
Offset Chart ............................................................................18
Cathedral Ceiling Installations ...........................................18
Support Extension - Round or Square ..............................19

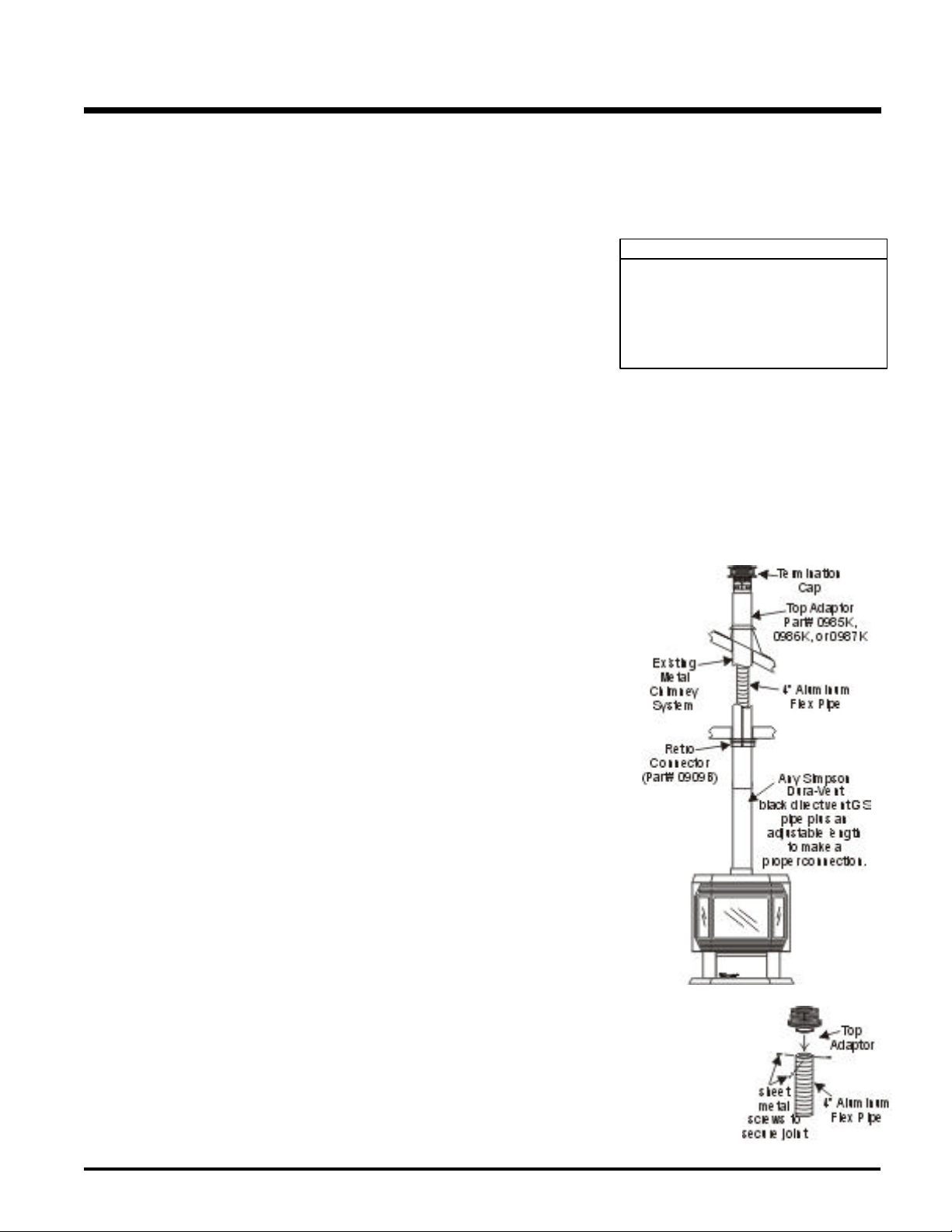

Converting a Class-A Metal Chimney or Masonry
Chimney to a Direct Vent System ...............................19
- Instructions for Converting a Factory Built
Metal Chimney.............................................................19
- Instructions for Converting a Masonry Chimney...20
System Data Chart................................................................21
Gas Connection ....................................................................21
High Elevation........................................................................21
Conversion from Natural Gas to Propane........................22
Conversion to Lower BTU ...................................................23
Gas Pipe Pressure Testing ................................................23
Valve Description ..................................................................23
Aeration Adjustment .............................................................24
Log Installation ......................................................................24
Front Door Installation..........................................................25

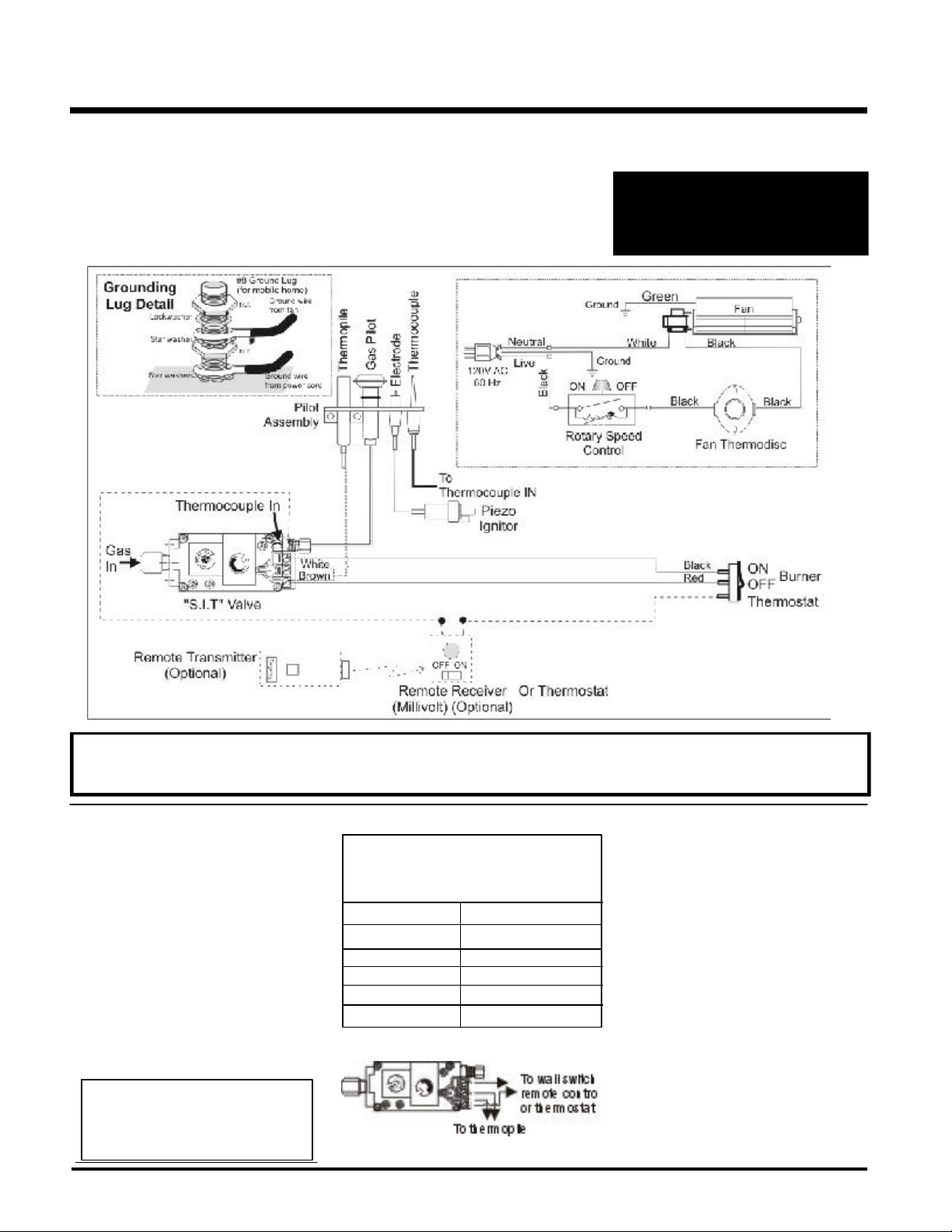

Wiring Diagram .....................................................................26
Optional Wall Thermostat....................................................26
Optional Remote Control Installation................................26
Final Check ............................................................................27
Operating Instructions
Operating Instructions ..........................................................27
Lighting Procedure ...............................................................27
Shutdown Procedure............................................................27
First Fire ..................................................................................27
Convection Fan Operation...................................................28
Copy of Lighting Plate Instructions ....................................28
Adjusting Flame Height .......................................................28
Normal Operating Sounds of Gas Appliances ...............28
Maintenance
Maintenance Instructions ....................................................29
General Vent Maintenance ..................................................29
Gold Plated Doors ................................................................29
Log Replacement .................................................................30
Door Gasket...........................................................................30
Latch Adjustment ..................................................................30
Glass Replacement .............................................................30
Fan Maintenance...................................................................31
Removing Valve .....................................................................32
Replacement Parts List.......................................................33
Warranty
Warranty..................................................................................39
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
3
Page 4
SAFETY LABEL
This is a copy of the label that accompanies each ULTIMATE Direct Vent Freestanding Gas Stove. We have printed a
copy of the contents here for your review.
Copy of Safety Label for U39 Gas Stove
The safety label is located on the inside of
the drop down pedestal door.
NOTE: Regency units are constantly being improved. Check the label on the unit
and if there is a difference, the label on the
unit is the correct one.
For the State of Massachusetts, installation and repair must be done by a plumber or gasfitter
licensed in the Commonwealth of Massachusetts.
For the State of Massachusetts, flexible connectors shall not exceed 36 inches in length.
For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type
valve.
4
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Page 5
INSTALLATION
IMPORTANT:
SAVE THESE
INSTRUCTIONS
The ULTIMATE Direct Vent Freestanding Gas
Stove must be installed in accordance with
these instructions. Carefully read all the instructions in this manual first. Consult the
building authority having jurisdiction to determine the need for a permit prior to starting the
installation.
Note: Failure to follow the instructions
could cause a malfunction of the
heater which could result in death,
serious bodily injury, and/or property damage. Failure to follow
these instructions may also void
your fire insurance and/or warranty.
Note: These instructions take prece-
dence over Simpson Dura-Vent
instructions.
SPECIFICATIONS
Fuels: U39-NG is approved for use with nat-
ural gas.
U39-LP is approved for use with lique-
fied petroleum gases (propane).
Electrical: 120V A.C. system.
Circulation Fan: Variable speed, 125/75.
Log Sets: Ceramic fibre, 7 per set.
Vent System: Coaxial (6-5/8" outer / 4" inner
liner) rigid flue and termination cap.
Installations, Sites, and Communities ANSI/NFPA
501A, and with CAN/CSA Z240-MH Mobile
Home Standard in Canada.
This appliance installation must comply with the
manufacturer's installation instructions and local
codes, if any. In the absence of local codes
follow the current National Fuel Gas Code,
ANSI Z223.1 and the current National Electrical
Code ANSI/NFPA 70 in the U.S.A., and the
current CAN/CGA B149 Gas Installation Code
and the current Canadian Electrical Code CSA
C22.1 in Canada.
This Regency Mobile/Manufactured
Home Listed appliance comes factory
equipped with a means to secure the
unit.
This Regency Mobile/Manufactured
Home listed appliance comes
equipped with a dedicated #8 ground
lug to which an 18 gauge copper wire
from the steel chassis ground must be
attached.
This appliance may only be installed in an aftermarket permanently located, manufactured (mobile) home, where not prohibited
by local codes.
This appliance is only use with the
type of gas indicated on the rating
plate. This appliance is not convertible for use with other gases,
unless a certified kit is used.
BEFORE YOU START
AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE
KEPT CLEAN.
DUE TO HIGH TEMPERATURES,
THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND
AWAY FROM FURNITURE AND
DRAPERIES.
WARNING: FAILURE TO INSTALL
THIS APPLIANCE CORRECTLY
WILL VOID YOUR WARRANTY AND
MAY CAUSE A SERIOUS HOUSE
FIRE.
CHILDREN AND ADULTS SHOULD
BE ALERTED TO THE HAZARDS
OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD
STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION.
YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE
PLACED ON OR NEAR THE APPLIANCE.
1) Provide adequate clearances for servic-
ing, proper operation and around the air
openings into the combustion chamber.
INFORMATION FOR
MOBILE/
MANUFACTURED
HOMES AFTER
FIRST SALE
Safe installation and operation of this appliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of the
following:
INSTALLATION AND REPAIRS
SHOULD BE DONE BY A QUALIFIED SERVICE PERSON. THIS AP-
This Regency product has been tested and
listed by Warnock Hersey as a Direct Vent Wall
Furnace to the following standards: CAN/CGA-
2.17-M91 and ANSI Z21.88b-2003/CSA 2.33b-
2003.
PLIANCE SHOULD BE INSTALLED,
REPAIRED, INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY
A QUALIFIED SERVICE PERSON.
MORE FREQUENT CLEANING MAY
This Direct Vent System Appliance must be
installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard,
Title 24 CFR, Part 3280, or the current Standard
of Fire Safety Criteria for Manufactured Home
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, ETC. IT
IS IMPERATIVE THAT THE CONTROL COMPARTMENT, BURNERS
2) The appliance may be installed on a flat,
solid, continuous surface (e.g. wood, metal, concrete). This may be the floor, or it can
be raised up on a platform to enhance its
visual impact. The appliance may be installed on carpeting, tile, wood flooring or
other combustible material, because the
appliance's metal pedestal base extends
the full width and depth of the appliance.
The ULTIMATE Direct Vent Freestanding
Gas Stove can be installed in a wide variety
of ways and will fit nearly any room layout.
It may be installed in a recessed position,
framed out into the room, or across a
corner.
3) The ULTIMATE Direct Vent Freestanding
Gas Stove is approved for alcove installations, which meet the clearances listed on
page 7. This unit is approved for manufactured home installations, see page 11 for
the required vent arrangements. If installed
5
Page 6
INSTALLATION
into a manufactured home the unit must be
bolted down to the floor.
4) This appliance is Listed for bedroom installations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.
5) This appliance is Listed for Alcove installations, maintain minimum Alcove clearances
as follows, minimum width of 48" (1219mm),
a maximum depth of 36" (914mm), and
minimum ceiling height of 64"(1626mm).
6) We recommend that you plan your installation on paper using exact measurements
for clearances and floor protection before
actually installing this appliance. Have a
qualified building inspector review your
plans before installation.
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform
with local Canadian Electrical Code.
2) The appliance when installed, must be electrically grounded in accordance with local
codes, or in the absence of local codes with
the current National Electrical Code, ANSI/
NFPA 70 or CSA C22.1 Canadian Electrical
Code.
3) The appliance should be inspected for
shipping damage before use and serviced
annually by a professional service
person. More frequent cleaning may be
required due to excessive lint from carpeting, bedding material, etc. It is imperative that
control compartments, and circulating air
passageways of the appliance be kept
clean and free from excessive lint from
carpeting.
4) See general construction and assembly
instructions. The appliance and vent should
be enclosed when installed in or passing
through a living area, where children may
come in contact with it.
8) Any safety glass removed for servicing
must be replaced prior to operating the
appliance.
9) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
INSTALLATION
CHECKLIST
1) Check Clearances to Combustibles (pages
6 and 7), location of unit (page 7) and
venting requirements (pages 7 to 9).
2) Install Louvers, page 7.
3) Install venting, either with the DV Stove
Horizontal Vent Kit (page 10) or the DuraVent Termination kits (page 12). Set Vent
Restrictors, page 9. If converting a ClassA Metal Chimney or Masonry Chimney to a
Direct Vent system, see instructions on
pages 19 to 21.
4) Make gas connections, page 21. Test the
pilot. Must be as per diagram, page 29.
5) If necessary, convert to Propane (page 22)
or convert to lower Btu rating (page 23).
6) Test Gas Pressure, page 23.
7) Install log set, see page 24.
8) Install Front Door Front, page 25.
9) Install optional Remote Control, or Wall Ther-
mostat, page 26.
10)Final check, page 27.
Before leaving this unit with the customer, the
installer must ensure that the appliance is firing
correctly and operation fully explained to
customer.
CLEARANCES TO
COMBUSTIBLES
The clearances listed are MINIMUM distances.
Measure the clearance to both the appliance
and the chimney connector. The farthest
distance is correct if the two clearances
do not coincide.
For example, if the appliance is set as indicated
in one of the figures but the connector is too
close, move the stove until the correct clearance to the connector is obtained.
This appliance may be installed only with the
clearances as shown in the situations pictured.
Do not combine clearances from one type
of installation with another in order to
achieve closer clearances.
This unit can be installed on a solid combustible
surface like a wood floor. This unit can also be
installed directly on carpeting or vinyl when the
bottom pedestal cover plate (provided with unit)
is installed.
Use the minimum clearances shown in the
diagrams below:
U39-NG & U39-LP Clearances
A Side Wall to Unit 7-1/2" / 190 mm
B Back Wall to Unit 6" / 150 mm
E Side Wall to Unit 2" / 50 mm
U39-NG & U39-LP Reference
Dimensions
C Back Wall to Flue Centerline 11"/280 mm
D Side Wall to Flue Centerline 20-1/2"/521 mm
F Side Wall to Flue Centerline 11"/280 mm
Minimum ceiling height is 36" / 914 mm from top
of unit.
5) This appliance must be connected to the
specified vent and termination cap to the
outside of the building envelope. Never vent
to another room or inside a building. Make
sure that the vent is fitted as per the instructions starting on page 7.
6) Inspect the venting system annually for
blockage and any signs of deterioration.
7) Venting terminals shall not be recessed into
a wall or siding.
6
This includes:
1) Clocking the appliance to ensure the cor-
rect firing rate (rate noted on label) after
burning appliance for 15 minutes.
2) If required, adjusting the primary air to
ensure that the flame does not carbon. First
allow the unit to burn for 15-20 min. to
stabilize.
CAUTION: Any alteration to the product
that causes sooting or carboning that
results in damage is not the responsibility of the manufacturer.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Page 7
INSTALLATION
Minimum ceiling
height is 36"/914mm
from top of unit.
MANUFACTURED
MOBILE HOME
ADDITIONAL
REQUIREMENTS
1) Ensure that structural members are not cut
or weakened during installation.
2) Ensure proper grounding using the #8
ground lug provided.
3) Appliance must be anchored to the floor
with the supplied anchoring methods.
LOCATING YOUR
ULTIMATE GAS STOVE
When selecting a location for your stove,
ensure that the clearances listed above are
met as well as ensuring that there is adequate
accessibility for servicing and proper operation.
LOUVER
INSTALLATION
1) Attach the top & bottom louvers to the
side stove panel using 2 screws per
side.
COMBUSTION AND
VENTILATION AIR
The combustion air from this appliance is drawn
from outside the building through the outer flue.
Extra provision for combustion air inside
the room is not required.
VENTING
INTRODUCTION
The DV Stove Horizontal Vent Kit and the
Simpson Dura-Vent Direct Vent System Model
DV-GS venting systems, in combination with
the ULTIMATE Direct Vent Freestanding Gas
Stove, U39-NG, and U39-LP , have been tested
and listed as direct vent heater systems by
Warnock Hersey. If converting a Class-A Metal
Chimney or Masonry Chimney to a Direct Vent
system, see instructions on pages 19 to 21.
These units use the "balanced flue" technology
Co-Axial system. The inner liner vents products
of combustion to the outside while the outer
pipe draws outside combustion air into the
combustion chamber thereby eliminating the
need to use heated room air for combustion and
losing warm room air up the chimney.
Note: These flue pipes must not be con-
nected to any other appliance.
The gas appliance and vent system must be
vented directly to the outside of the building, and
never be attached to a chimney serving a
separate solid fuel or gas burning appliance.
Each direct vent gas appliance must use it's
own separate vent system. Common vent systems are prohibited.
IMPORTANT
Read all instructions carefully before starting
the installation. Failure to follow these instructions may create a fire or other safety hazard,
and will void the warranty. Be sure to check the
venting and clearance to combustible requirements. Consult your local building codes before
beginning installation.
The location of the termination cap must conform to the requirements in the Exterior Vent
Terminal Locations diagram on page 8.
A) Cross Corner
B) Room Divider
C) Island
D) Flat on Wall
E) Flat on Wall Corner
F) Flush with Wall/ Alcove
For Vent Termination requirements, see page 8.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
INSTALLATION
PRECAUTIONS
These venting systems are engineered products that have been designed and tested for
use with the U39-NG, and U39-LP . The warranty will be voided and serious fire, health or other
safety hazards may result from any of the
following actions:
1) Installation of any damaged Direct Vent
component
2) Unauthorized modification of the Direct Vent
System
3) Installation of any component part not manufactured or approved by Simpson Dura-
7
Page 8
INSTALLATION
EXTERIOR VENT TERMINAL LOCATIONS
horizontally from the centerline of the regulator.
H= Not to be installed above a meter/regulator assembly within (3'/90cm)
air inlet to any other appliance *(12"/30cm)
J= Clearance to service regulator vent outlet *(min. 36"/90cm)
K= Clearance to non-mechanical air supply inlet to building or the combustion
property *(min. 84"/2.1m)
L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m)
M= **Clearance above paved sidewalk or a paved driveway located on public
N= Clearance under veranda, porch, deck, or balcony *(min. 12"/30cm)***
horizontal distance of (24"/60cm) from the centerline of the terminal (min.
18"/46cm) check with local code.
A= Clearance above grade, veranda, porch, deck, or balcony *(min. 12"/30cm)
B= Clearance to window or door that may be opened *(12"/30cm)
C= Clearance to permanently closed window *(min. 12"/30cm)
D= Vertical clearance to ventilated soffit located above the terminal within a
8
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
15cm), with Dura-Vent termination cap (min. 12"/30cm)
15cm), with Dura-Vent termination cap (min. 12"/30cm)
E= Clearance to unventilated soffit (min. 12"/30cm)
F= Clearance to outside corner: with AstroCap Termination Cap (min. 6"/
G= Clearance to inside corner: with AstroCap Termination Cap (min. 6"/
Note: * As specified in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.
**A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.
***Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.
Page 9
INSTALLATION
RIGID PIPE VENTING COMPONENTS LIST
All Simpson Dura-Vent components are available directly from FPI.
Description Simpson Dura-Vent Selkirk Amerivent
Direct VentGS
6" Pipe Length, Galvanized 908 4DT-6 N/A
6" Pipe Length, Black 908B 4DT-6B N/A
7" Pipe Length, Galvanized N/A N/A 4D7
7" Pipe Length, Black N/A N/A 4D7B
9" Pipe Length, Galvanized 907 4DT-9 N/A
9" Pipe Length, Black 907B 4DT-9B N/A
12" Pipe Length, Galvanized 906 4DT-12 4D12
12" Pipe Length, Black 906B 4DT-12B 4D12B
18" Pipe Length, Galvanized N/A 4DT-18 N/A
18" Pipe Length, Black N/A 4DT-18B N/A
24" Pipe Length, Galvanized 904 4DT-24 4D2
24" Pipe Length, Black 904B 4DT-24B 4D2B
36" Pipe Length, Galvanized 903 4DT-36 4D3
36" Pipe Length, Black 903B 4DT-36B 4D3B
48" Pipe Length, Galvanized 902 4DT-48 4D4
48" Pipe Length, Black 902B 4DT-48B 4D4B
Adjustable Length, 11"-14", Galv. 911 4DT-AJ N/A
Adjustable Length, 11"-14", Black 911B 4DT-AJB N/A
Adjustable Length, 17"-24", Black 917B N/A N/A
Adjustable Length, 7" Galvinized N/A N/A 4D7A
Adjustable Length, 7" Black N/A N/A 4D7AB
Adjustable Length, 12" Galvinized N/A N/A 4D12A
Adjustable Length, 12" Black N/A N/A 4D12AB
45O Elbow, Galvinized 945 4DT-EL45 4D45L
45O Elbow, Black 945B 4DT-EL45B 4D45LB
45O Elbow, Swivel, Galvinized 945G N/A N/A
45O Elbow, Swivel, Black 945BG N/A N/A
90O Elbow, Galvinized 990 4DT-EL90S 4D90LS
90O Elbow, Black 990B 4DT-EL90SB 4D90LBS
90O Elbow, Swivel, Galvinized 990G N/A N/A
90O Elbow, Swivel, Black 990BG N/A N/A
Ceiling Support 949 - n/a from FPI 4DT-CS 4DFSP
Cathedral Support Box 941 4DT-CSS 4DRSB
Wall Support/Band 988 4DT-WS/B 4DWS
Offset Support 989 - n/a from FPI 4DT-OS N/A
Wall Thimble, Black 942 4DT-WT 4DWT
Wall Thimble Support Box/Ceiling Support 940 N/A N/A
Firestop Spacer 963 4DT-FS 4DFSP
Trim Plate, Black N/A 4DT-TP 4DFPB
Brass Trim for Wall Thimble/Ceiling Support 3951 N/A N/A
Attic Insulation Shield 12" N/A N/A 4DAIS12
Attic Insulation Shield - Cold Climates 36" N/A N/A 4DAIS36
R
Direct-Temp
TM
Direct Vent
R
Basic Horizontal Termination Kit (A) 970 4DT-HKA 4DHTK2
Horizontal Termination Kit (B) 971 4DT-HKB 4DHTK1
Vertical Termination Kit 978 4DT-VKC 4DVTK
High Wind Vertical Cap 991 N/A N/A
High Wind Horizontal Cap 985 N/A N/A
Horizontal Square Termination Cap 984 4DT-HHC 4DHC
Verical Termination Cap 980 4DT-HVC 4DVC
Storm Collar 953 4DT-SC 4DSC
Adjustable Flashing, 0/12-6/12 943 4DT-AF6 4DF
Adjustable Flashing, 6/12-12/12 943S 4DT-AF12 4DF12
Vinyl Siding Standoff 950 4DT-VS N/A
Vinyl Siding Shield Plate N/A 4DT-VSP N/A
Snorkel Termination 14" 982 4DT-ST14 4D12S
Snorkel Termination 36" 981 4DT-ST36 4D36S
946-506/P Vent Guard (Optional)
640-530/P Riser Vent Terminal
946-205 Vinyl Siding Shield for Riser Vent Terminal
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
946-208/P Vent Guard (Optional) - Riser Vent Terminal
946-523/P AstroCap Horizontal Cap
946-206 Vinyl Siding Standoff - AstroCap
9
Page 10
INSTALLATION
Alternate
Horizontal
Termination
Caps
RIGID PIPE VENTING SYSTEMS
Horizontal or Vertical Terminations
WARNING:
Do not combine venting components from
different venting systems.
However use of the the AstroCapTM and FPI
Riser is acceptable with all systems.
This product has been evaluated by Intertek for
using a Dura-Vent Flue Adaptor in conjunction
with Selkirk Direct-Temp and Ameri Vent Direct
venting systems. Use of these systems with
the Direct Vent GS starting collar is deemed
acceptable and does not affect the Intertek WHI
listing of components.
The FPI AstroCap
GS, American Metal Products, Ameri Vent Direct vent and Selkirk Direct-Temp. FPITM, and FPI AstroCapTM are the proprietary trademarks of FPI
Fireplace Products International Ltd. Dura-Vent® and Direct Vent GS are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.
TM
and FPI Riser Vent terminal is certified for installations using FPI venting systems as well as Simpson Dura-Vent®, Direct Vent
When using piping other than Simpson
Dura-Vent, 3 screws must be used to
secure rigid pipe to adaptor.
10
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Page 11
INSTALLATION
Vent or Fireplace Products International Ltd.
4) Installation other than as instructed by
Simpson Dura-Vent and Fireplace Products International Ltd.
Warning: Always maintain required clearances (air spaces)
to nearby combustibles to prevent a fire hazard. Do not fill air
spaces with insulation.
Be sure to check the vent termination
clearance requirements from decks, windows, soffits, gas regulators, air supply
inlets and public walkways as specified in
the Exterior Vent Terminal Locations on
page 8 and in your local building codes.
The gas appliance and vent system
must be vented directly to the outside of the building, and never be
attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance
must use it's own separate vent system.
Common vent systems are prohibited.
RIGID PIPE VENTING ARRANGEMENTS
Horizontal Terminations for All
Venting Systems
The shaded areas in the diagram below
show all allowable combinations of vertical runs with horizontal terminations.
Maximum one 90O elbow (two 45o elbows
equal one 90o elbow).
Propane and Natural Gas:
Residential, Manufactured and
Mobile Homes Installations
The venting arrangements diagrammed below,
have a min. of 75% (flue loss) efficiency with
Fan Off, as required for manufactured homes.
(Actual efficiency may be as high as 85%)
May be installed in Manufactured (Mobile)
Homes after first sale.
Vertical Termination Systems for
Residential Manufactured and
Mobile Homes
The shaded area in the diagram below shows
all allowable combinations of straight vertical and offset to vertical runs with vertical
terminations. Maximum two 45o elbows.
If the vent is ENCLOSED in a chase (min. size 9" x
9") maintain a 1-1/4" clearance to combustibles.
May be installed in Manufactured (Mobile)
Homes after first sale.
SAFETY
PRECAUTIONS FOR
THE INSTALLER
1) Wear gloves and safety glasses
for protection.
2) Exercise extreme caution when
using ladders or on roof tops.
3) Be aware of electrical wiring lo-
cations in walls and ceilings.
Vent Restrictor Position
To set the Vent restriction as indicated in the diagram, simply loosen
the screws and push the vent
restrictor plate to the correct position. Tighten the screws.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Vent Restrictor setting at
38,000 Btu/h
Vent Restrictor setting at
30,000 Btu/h
11
Page 12
INSTALLATION
Horizontal Venting with Two (2) 90o Elbows
One 90o elbow = Two 45o elbows.
Option V H + H1
A) 3' Min. 2' Max.
B) 5' Min. 3' Max.
C) 8' Min. 4' Max.
With these options, maximum total
pipe length is 30 feet with minimum
of 8 feet total vertical and maximum
4 feet total horizontal.
Please note minimum 1 foot
between 90o elbows is required.
Lengths do not include elbow
indicated
Vent restrictor position A (fully
open), refer to page 11.
Vertical Venting with Two (2) 90o Elbows
One 90o elbow = Two 45o elbows.
Option V H V1 V + V1
A) 1' Min. 1' Max. 1' Min. 2' Min.
B) 1' Min. 2' Max. 2' Min. 3' Min.
C) 2' Min. 3' Max. 2' Min. 4' Min.
D) 2' Min. 4' Max. 2' Min. 4' Min.
With these options, max. total pipe length is 30 feet
with min. of 4 feet total vertical and max. 4 feet total
horizontal.
Please note min. 1 foot between 90o elbows is
required.
Lengths do not include elbow indicated
Vent restrictor position A (fully open), refer to
page 11.
12
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Page 13
DV STOVE HORIZONTAL VENT KIT
DV Stove Horizontal Vent Kit (2 ft. Part # 946-116 or 4 ft. Part # 946-216) includes all the parts
needed to install the U39 with minimum horizontal and vertical vent dimensions. For installations
that require longer vertical and/or horizontal vents use the Dura-Vent system as shown on page
15.
Qty. Description
1) 1 Rigid Pipe Section (Kit # 946-116: 2 ft. (1.2m) length,
Kit # 946-216: 4 ft. (1.2m) length), 6-1/2" (165mm) inside diameter
2) 1 Flex Liner, compressed aluminium 2 ply liner,
4" (102mm) inside diameter
3) 4 spring spacers
4) 1 90 deg. Elbow
5) 1 Adjustable pipe section 13-1/2" to 24" (343mm x 610mm), 2 pieces
6) 1 Thimble Cover
7) 1 Wall Thimble (2 pcs.)
8) 1 Adapter
9) 1 AstroCap Termination Cap
10) 2 Trim Collar
11) 1 tube of Mill-Pac, high temperature sealant
12) 12 Screws, #8 x 1/2" Self tapping, Stainless Steel
13) 13 Screws, #8 x 1/2" Self tapping, Black
14) 4 Screws #8 x 1-1/2" Drill Point, Black
15) 4 Screws #8 x 1-1/2" Drill Point, Stainless Steel
16) 8 Wood screws #8 x 1"
INSTALLATION
Optional:
946-206 Vinyl Siding Standoff
Note:
a) Liner sections should be continuous without any joints or
b) This is an approved system, therefore components in this
for AstroCap
seams.
system must not be substituted for any other manufacturer's products.
DV STOVE HORIZONTAL VENT KIT (# 946-116 & #946-216) INSTALLATION
Review the following sequence of instructions which are typical of most installations. The sequence may vary depending on wall thickness. Refer to
vent location and clearance dimensions on pages 8 to 13.
1) Set the unit in its desired location.
Check to determine if wall studs will
be in the way of the venting system,
adjust location until all clearances are
met and there are no obstructions.
Note: A 1-1/2"(38mm) clearance
around the outer pipe must
be maintained except that
only a 1" (25mm) clearance is
needed at the termination
end.
IMPORTANT:
Do not locate termination hood
where excessive snow or ice buildup may occur. Be sure to check vent
termination area after snow falls,
and clear to prevent accidental
blockage of venting system. When using
snow blowers, make sure snow is not
directed towards vent termination area.

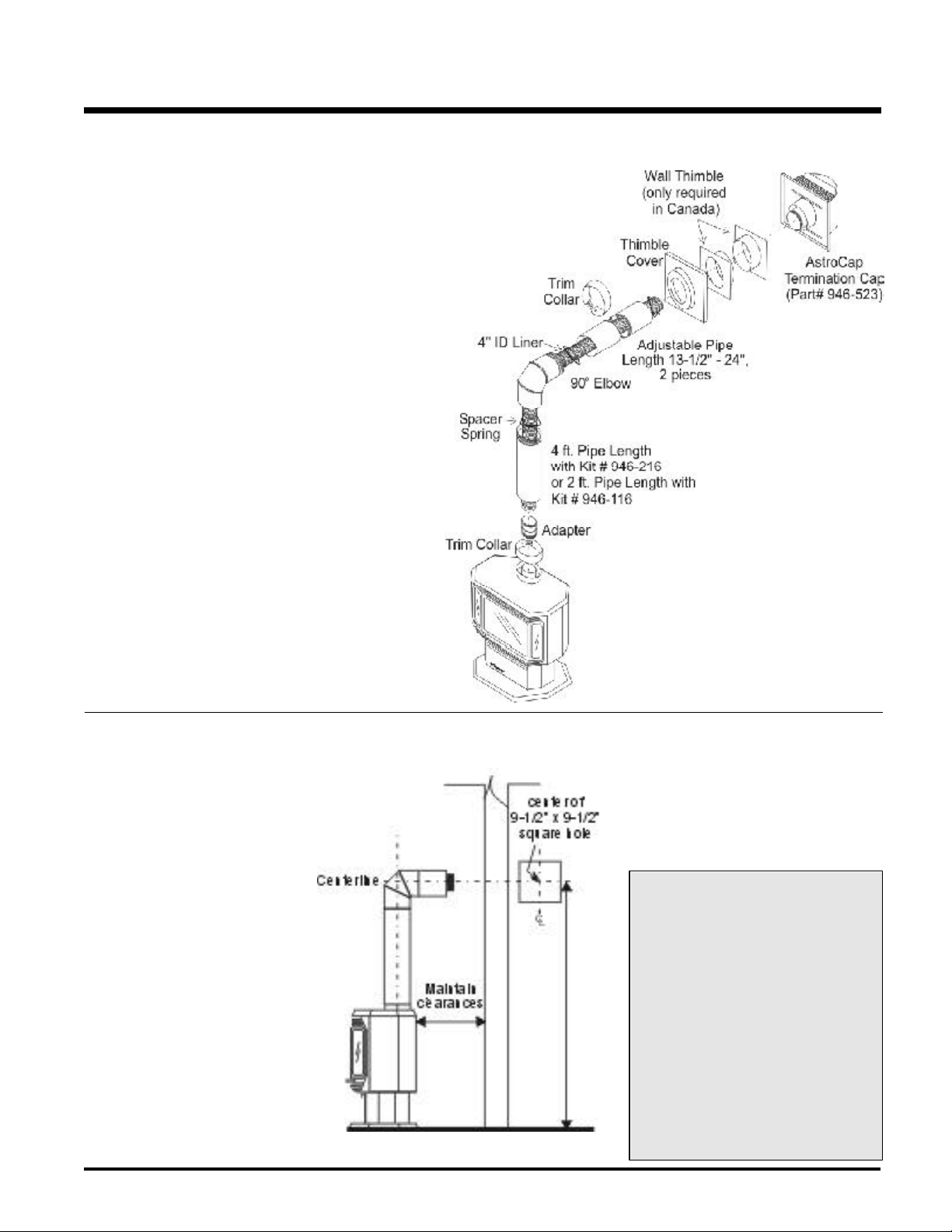

2) Assemble a trial fit to determine the vertical
center-line for the vent termination.
a) Cut a 9-1/2" x 9-1/2" (241mm x 241
mm) square hole on both the interior
and exterior wall.
b) Install wall thimbles on both interior
and exterior wall with 4 wood screws
(#8 x 1") per thimble.
c) Attach the 2 piece adjustable pipe
section to the vent terminal and slide
into position from the exterior. The
larger diameter end of the adjustable pipe goes to the vent
terminal.
Minimum Installation Height:
U39: 59-3/4" ( 1518mm)
d) Install the 90o elbow onto the adjust-
able pipe to determine the vertical
centerline of the starter collar on the
unit.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
13
Page 14
INSTALLATION
Note: if the centerline cannot be
met, the adjustable sections will
have to be cut.
e) Cut the 2 ft. or 4 ft. section of rigid pipe
to length. Ensure that the pipe length
when cut will seat onto both the starter collar and the 90o elbow. Crimped
section of rigid pipe seats into
the 90o elbow. Only cut the uncrimped side of pipe.
Dismantle all pipe sections including vent
terminal.
3) Attach the 4" dia. flex liner to the vent
terminal ensuring that the flex overlaps the
collar of the vent terminal by a minimum of
1-3/8"(35mm). Use Mill-Pac to seal and
secure with 3 of the #8 x 1/2" screws
(stainless steel).
4) Attach the adjustable pipe section to the
vent terminal using Mill-Pac and/or high
temperature silicone and attach with 3 of
the #8 x 1/2" screws (stainless steel).
Hint: Apply the sealant (Mill-Pac and/or high
temperature silicone) to the outer pipe before connecting the inner pipe.
Note: The pipe
seam
should be
facing
down.
Note: To make
the installation
more aesthetically pleasing, we
recommend framing out a square
that the cap can be
mounted on.
Note: If installing termi-
nation on a siding
covered wall, a vinyl siding standoff or furring strips
must be used to ensure that the
termination is not recessed into
the siding. For vinyl siding standoff installation refer to the DuraVent Termination instructions.
5) Slide the partially connected pipe and vent
terminal assembly through the wall thimbles (from the exterior into the interior) and
secure the cap to the exterior wall with 4
of the supplied screws (#8 x 1-1/2" drill
point, stainless steel). Note: pilot holes will
need to be drilled through the wall thimble
on all 4 corners.
Note: The four screws provided for the
vent cap should be replaced with
appropriate fasteners for stucco,
brick, concrete, or other types of
sidings.
6) A bead of non-hardening mastic should be
run around both the termination and vinyl
siding standoff to prevent water from entering and to make a tight seal between the
cap and the standoff.
7) Stretch the 4" dia. flex liner out fully and get
a trial fit of the liner onto the 4" dia. starter
collar.
8) Cut the 4" dia. flex liner to the desired size.
Hint: leave an extra 12" to 16" of length, this
will make the final assembly easier to work
with.
9) Secure the 4" dia. flex liner to the 4" adapter
with Mill-Pac and 3 of the #8 x 1/2" screws
(stainless steel).
10)Slide the decorative Thimble Cover over the
pipe sections and secure with 4 screws
(#8 x 1-1/2" drill point, black) to the wall.
11)Slide the 90o elbow (crimp end up) and the
2 ft. or 4 ft. pipe section (crimp end up) over
the 4" dia. flex liner.
12)Slide the trim collar over the adjustable pipe
sections to cover the joint of the telescopic
section.
13)Install the spring spacers onto the pipe
sections.
14)Secure the 4" dia. flex liner with adapter
onto the stove collar. Put a bead of Mill-Pac
around the appliance adapter and secure
with 3 screws (#8 x 1/2, stainless steel).
15)Attach the pipe section onto the starter
collar by sealing with Mill-Pac and/or high
temperature silicone and securing with 3 of
the #8 x 1/2" (black) screws. Pipe seams
should be facing the wall.
16)Attach the 90o elbow onto the pipe section
by sealing with Mill-Pac and/or high temperature silicone and securing with 3 of the #8
x 1/2" screws (black).
17)Slide the adjustable pipe section onto the
90o elbow. The flex may have to be compressed back in order for the adjustable
pipe to properly mate to the elbow. Seal
with Mill-Pac and/or high temperature silicone and secure with 3 of the #8 x 1/2"
screws (black). Pipe seams facing down.
18)Install the trim collar over the starter collar
and secure with a #8 x 1/2" screw (black).
If the pipe needs to be touched up, use only
Stove Brite High Temperature Metallic Black
Stove Paint.
NOTE: All inner joints must be sealed
with Mill-Pac.
All outer joints may be sealed with
high temperature silicone.
14
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove

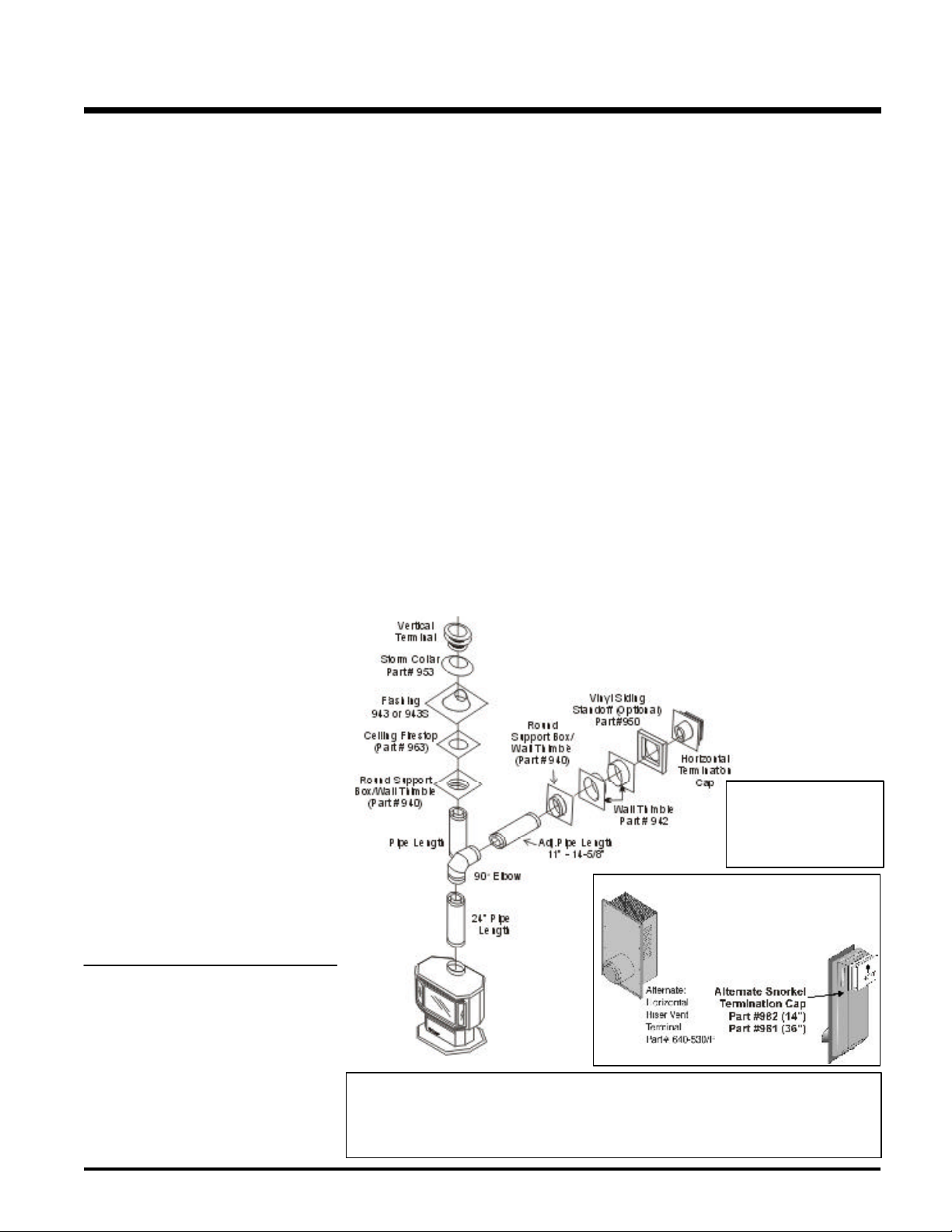

Page 15
INSTALLATION
DURA-VENT
TERMINATION KIT
Planning Your Dura-Vent
Installation
There are two basic types of Dura-Vent Direct
Vent System installations: horizontal termination and vertical termination. Confirm the maximum horizontal run and maximum vertical rise
from the diagrams on pages 8-13.
When planning your installation, it will be necessary to select the proper length of vent pipe
for your particular requirements. For horizontal
installations, determine the minimum clearance
from the rear of the unit to the wall. It is also
important to note the wall thickness. (The wall
thimble is suitable for 2 x 4 or 2 x 6 wall
construction.) Select the amount of vertical rise
desired for "vertical-to-horizontal" type installations.
Warning: Always maintain required clearances (air spaces) to nearby combustibles to prevent a fire hazard. Do not fill air
spaces with insulation.
The minimum clearance requirements between
the outer wall of the vent pipe and nearby
combustible surfaces is 1-1/4 inch. Be sure to
check the vent termination clearance requirements from decks, windows, soffits, gas regulators, air supply inlets and public walkways
as specified in the Exterior Vent Terminal Locations on page 8 and in your local building codes.
Note: These are the minimum pieces
required. Other parts may be required for your particular installation. See page 13 for a list of vent
parts.
If installing termination on a siding covered wall,
a vinyl siding standoff or furring strips can be
used in order to ensure that the termination is
not recessed into siding.
The vinyl siding standoff is required for walls
with vinyl siding.
Minimum components for a Dura-Vent
Horizontal
Installation:
A) Dura-Vent Horizontal Termination Kit
B) Wall Thimble (required for combus-
tible walls)
Minimum components for a Dura-Vent
Vertical Termination:
C) Dura-Vent Vertical Termination Kit
See page 12 for pipe lengths.
The Simpson Dura-Vent Direct Vent System
offers a complete line of component parts for
installation of both horizontal and vertical installation. Many items are offered in decorative
black, as well as galvanized finish. The galvanized pipe and fittings are used for concealed
locations such as attics or where corrosion is
a factor, such as above the roof line. Decorative brass trim kits are available for both wall
thimbles and ceiling support boxes.
Part # Description
971 Horiz. Termination Kit includes: 90
black elbow, wall thimble cover,
horiz. square termination cap, 24"
black pipe, 11" -14" 5/8" adjustable
black pipe
970 Basic Horiz. Termination Kit
includes: 90o black elbow, wall
thimble cover, horiz. square
termination cap
978 Vert. Termination Kit includes
0/12 - 6/12 pitch adjustable
flashing, storm collar, low profile
term. cap
908B 6" Pipe Length-Black
907B 9" Pipe Length-Black
906 12" Pipe Length Galv.
906B 12" Pipe Length-Black
904 24" Pipe Length Galv.
904B 24" Pipe Length-Black
903 36" Pipe Length Galv.
903B 36" Pipe Length-Black
902 48" Pipe Length Galv.
902B 48" Pipe Length-Black
o
To determine the length of vent pipe required for
vertical installations, measure the distance from
the unit flue outlet to the ceiling, the ceiling
thickness, the vertical rise in an attic or second
storey, and allow for sufficient vertical height
above the roof line.
For multi-storey applications, fire stops are
required at each floor level. If an offset is
needed, additional pipe, elbows and supports
will be required.
DURA-VENT VENTING
COMPONENTS
You will require the following components with
your new Regency Direct Vent Freestanding
Gas Stove. Please review your product to make
sure you have everything you need. In the
event that you are missing any part, contact
your dealer.
Dura-Vent Basic
Horizontal Kit # 970
1 90o Elbow
1 Wall Thimble Cover
1 Horiz. Sq. Term. Cap
Alternate Horizontal
Termination Caps
The Regency AstroCap
Dura-Vent® and Direct Vent GS.
RegencyTM, and Regency AstroCapTM are the proprietary trademarks of FPI Fireplace Products
International Ltd.
Dura-Vent® and Direct Vent GS are registered and/or proprietary trademarks of Simpson Dura-Vent
Co. Inc.
TM
is certified for installations using FPI venting systems as well as Simpson
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
15

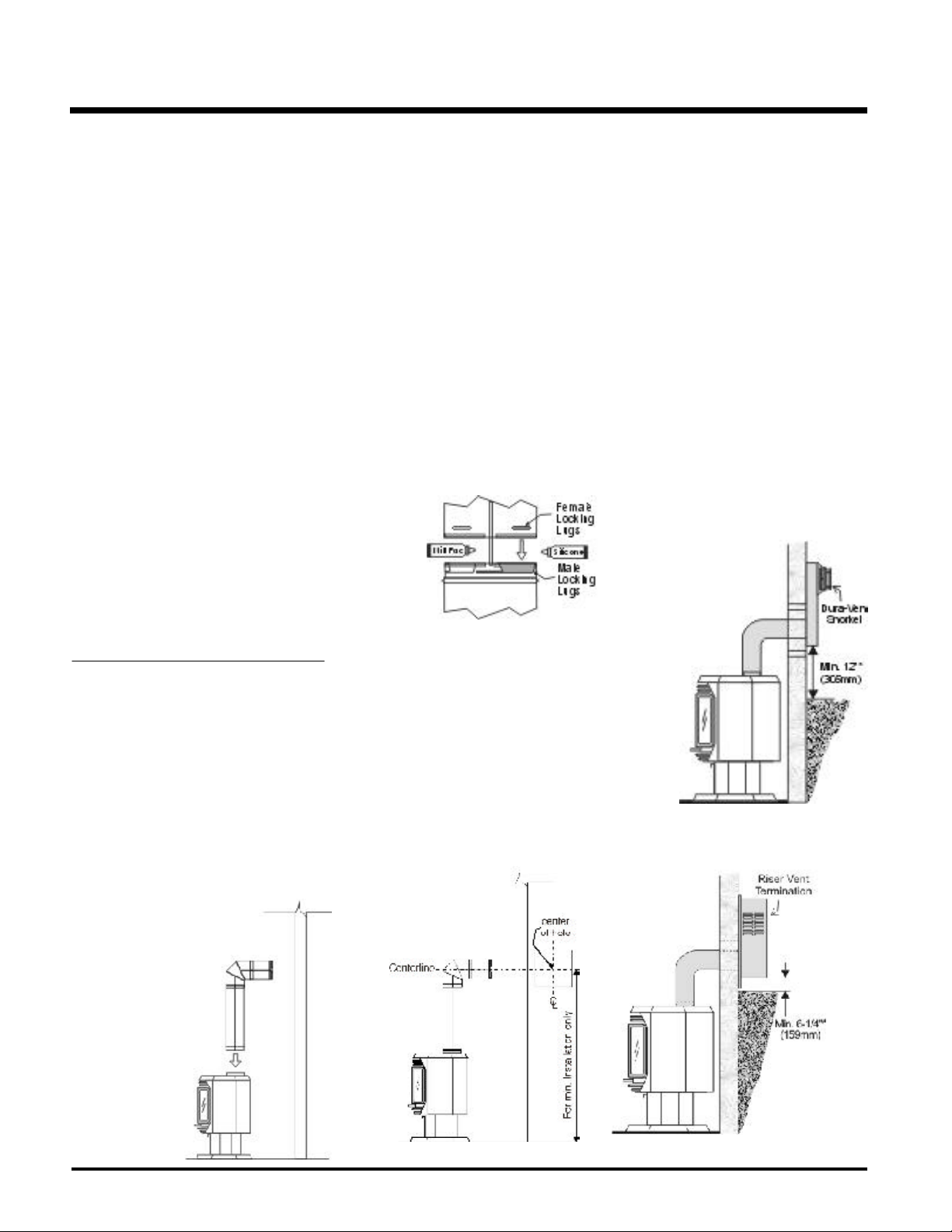

Page 16
INSTALLATION
911B 11"-14 5/8" Adj. Pipe Length-Black
917B 17"- 24" Adj. Pipe Length Black
945 45O Elbow Galv.
945B 45O Elbow-Black
945G 45O Elbow-Swivel Galv.
945BG 45O Elbow-Swivel-Black
990 90O Elbow Galv.
990B 90O Elbow-Black
990G 90O Elbow-Swivel Galv.
990BG 90O Elbow-Swivel-Black
991 High Wind Term. Cap (Vertical)
980 Vertical Term. Cap
984 Horiz. Sq. Term. Cap
985 Horiz. Sq. High Wind Term. Cap
982 Snorkel-14" Rise Term.Cap
981 Snorkel-36" Rise Term.Cap
940 Wall Thimble-Support/Box
941 Cathedral/Ceiling-Support/Box
3951 Brass Trim-Wall Thimble/
Ceiling Support
963 Firestop Spacer
943 Flashing 0/12-6/12
943S Flashing 7/12-12/12
953 Storm Collar
950 Vinyl Siding Standoff
988 Wall Strap
942 Wall Thimble
Parts not supplied by Dura-Vent
946-506/P Vent Guard (Optional)
640-530 Riser Vent Terminal (Optional)
948-128 Vinyl Siding Shield for Riser
Vent Terminal
946-228 Horizontal Square Termination Cap
DURA-VENT
HORIZONTAL
INSTALLATIONS
1) Set the unit in its desired location. Check to
determine if wall studs or roof rafters are
in the way when the venting system is
attached. If this is the case, you may want
to adjust the location of the unit.
2) Direct Vent pipe and fittings are designed
with special twist-lock connections to connect the venting system to the appliance
flue outlet. A twist-lock appliance adaptor is installed on the
unit at the factory. Assemble
the desired combination of pipe and elbows
to the appliance adaptor with pipe seams
oriented towards the
wall or ceiling, as much
out of view as possible. The final positioning of the pipe
and 90o elbow
assembly is determined by the
mounting orientation of the
adaptor on the stove and twist-locked for
a solid connection.
Note:
a) Twist-lock procedure: Four indenta-
tions, located on the female ends
of pipes and fittings, are designed to
slide straight onto the male ends of
adjacent pipes and fittings, by orienting
the four pipe indentations so they match
and slide in to the four entry slots on the
male ends (diagram 1). Push the pipe
sections completely together, then
twist-lock one section clockwise approximately one-quarter turn, until the
two sections are fully locked. The female locking lugs will not be visible from
the outside on the Black Pipe or fittings.
They may be located by examining the
inside of the female ends. Apply sealant
"Mill-Pac" to inner pipe and high temp
silicone sealant to outer pipe on every
twist-lock joint.
Hint: Apply
silicone to female
end.
Diagram 1
b) Horizontal runs of vent must be sup-
ported every three feet. Wall straps
are available for this purpose.
3) With the pipe attached to the stove, slide
the stove into its correct location, and mark
the wall for a 10" x 10" (inside dimensions)
square hole. The center of the square hole
should line up with the centerline of the
horizontal pipe, as shown in diagram 2. Cut
and frame the 10 inch square hole in the
exterior wall where the vent will be terminated. If the wall being penetrated is constructed of non-combustible material, i.e.
masonry block or concrete, a 7" diameter
hole is acceptable.
Diagram 2
Note:
a) The horizontal run of vent should have a 1/
4 inch rise for every 1 foot of run
towards the termination. Never allow
the vent to run downward. This could
cause high temperatures and may
present the possibility of a fire.
b) The location of the horizontal vent ter-
mination on an exterior wall must meet
all local and national building codes,
and must not be blocked or obstructed.
For External Vent Terminal Locations,
see diagram on page 8.
c) Snorkel Terminations:
For installations requiring a vertical rise
on the exterior of the building, 14-inch
and 36-inch tall Snorkel Terminations
as shown in Dia. 3 are available, as well
as the standard Riser Vent, see Dia. 3a.
Follow the same installation procedures
as used for standard Horizontal Termination. NEVER install the snorkel upside down.
*Dia 3, 3a & 4: As specified
in CGA B149 Installation
Code. Local codes or regulations may require different clearances.
Diagram 3
NOTE: For Snorkel terminations in ABOVE
grade installations, follow national or local code requirements.
Note: Riser
Vent is only for
use in above
U39: 59-3/4" (1518mm)
Diagram 3a
grade terminations.
16
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove

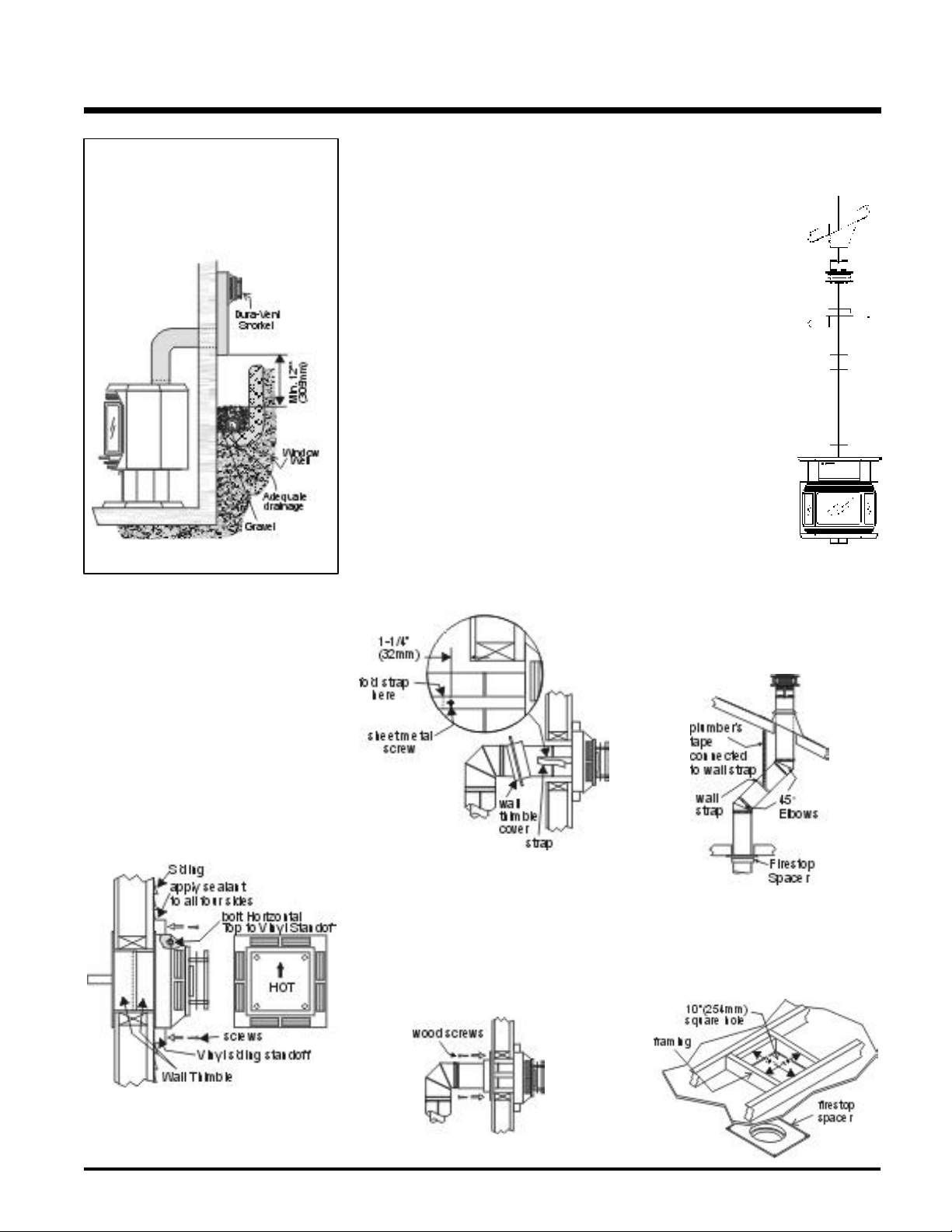

Page 17
INSTALLATION
Below Grade Installation
If the Snorkel Termination must be installed
below grade, i.e. basement application, proper
drainage must be provided to prevent water
from entering the Snorkel Termination. Refer to
Dia. 4. Do not attempt to enclose the Snorkel
within the wall, or any other type of enclosure.
Diagram 4
4) If installing the vent termination to a wall
with vinyl siding, the Vinyl Siding Standoff
must be used. Attach the Vinyl Siding
Standoff to the Horizontal Vent Termination, but first run a bead of non-hardening
mastic around its outside edges, so as to
make a seal between vent cap and the
standoff. Install the Vinyl Siding Standoff
(Part # 950) between the vent cap and the
exterior wall and attach with the four wood
screws provided. Seal around the Vinyl
Siding Standoff on all four sides. Diagram
5. The arrow on the vent cap should
be pointing up. Insure that the 1-1/4"
clearances to combustible materials are
maintained. See diagram 5.
Note: If installing termination on a siding
covered wall, a vinyl siding standoff or
furring strips must be used to ensure that
the termination is not recessed into the
siding. The four wood screws provided
should be replaced with appropriate fasteners for stucco, brick, concrete, or other
types of sidings.
5) Before connecting the horizontal run of
vent pipe to the vent termination, slide the
black decorative wall thimble cover over
the vent pipe, then slide the Wall Thimble
(Part # 942) over the vent pipe.
6) Slide the appliance and vent assembly towards the wall carefully inserting the vent
pipe into the vent cap assembly. It is important that the vent pipe extends into the vent
cap a sufficient distance so as to result in
a minimum pipe overlap of 1-1/4 inches.
Secure the connection between the vent
pipe and the vent cap by attaching the two
sheet metal strips extending from the vent
cap assembly into the outer wall of the vent
pipe. Use the two sheet metal screws
provided to connect the strips to the pipe.
Bend any remaining portion of the sheet
metal strip back towards the vent cap, so
it will be concealed by the decorative wall
thimble cover. See diagram 6.
DURA-VENT VERTICAL
TERMINATION
1) Maintain the 1-1/4" clear-
ances (air spaces) to combustibles when passing
through ceilings, walls,
roofs, enclosures, attic rafter, or other nearby combustible surfaces. Do not
pack air spaces with insulation. Check page 9 for the
maximum vertical rise of
the venting system and the
maximum horizontal offset
limitations.
2) Set the gas appliance in its
desired location. Drop a
plumb bob down from the
ceiling to the position of
the appliance flue exit, and
mark the location where
the vent will penetrate the
ceiling. Drill a small hole at
his point. Next, drop a
plumb bob from the roof to
the hole previously drilled in the ceiling, and
mark the spot where the vent will penetrate
the roof. Determine if ceiling joists, roof
rafters or other framing will obstruct the
venting system. You may wish to relocate
the appliance or to offset, as shown in
diagram 9 to avoid cutting load bearing
members.
Diagram 8
Diagram 6
7) Install the Wall Thimble in the center of the
10" square and attach with wood screws.
8) Slide the decorative wall thimble up to the
wall surface being careful not to scratch
the paint and attach with screws provided.
Apply decorative brass or chrome trim if
desired. See diagram 7.
Diagram 5
Diagram 7
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Diagram 9
3) To install the Round Support Box/Wall Thimble in a flat ceiling, cut a 10 inch square hole
in the ceiling centred on the hole drilled in
Step 2. Frame the hole as shown in diagram
10.
Diagram 10
17

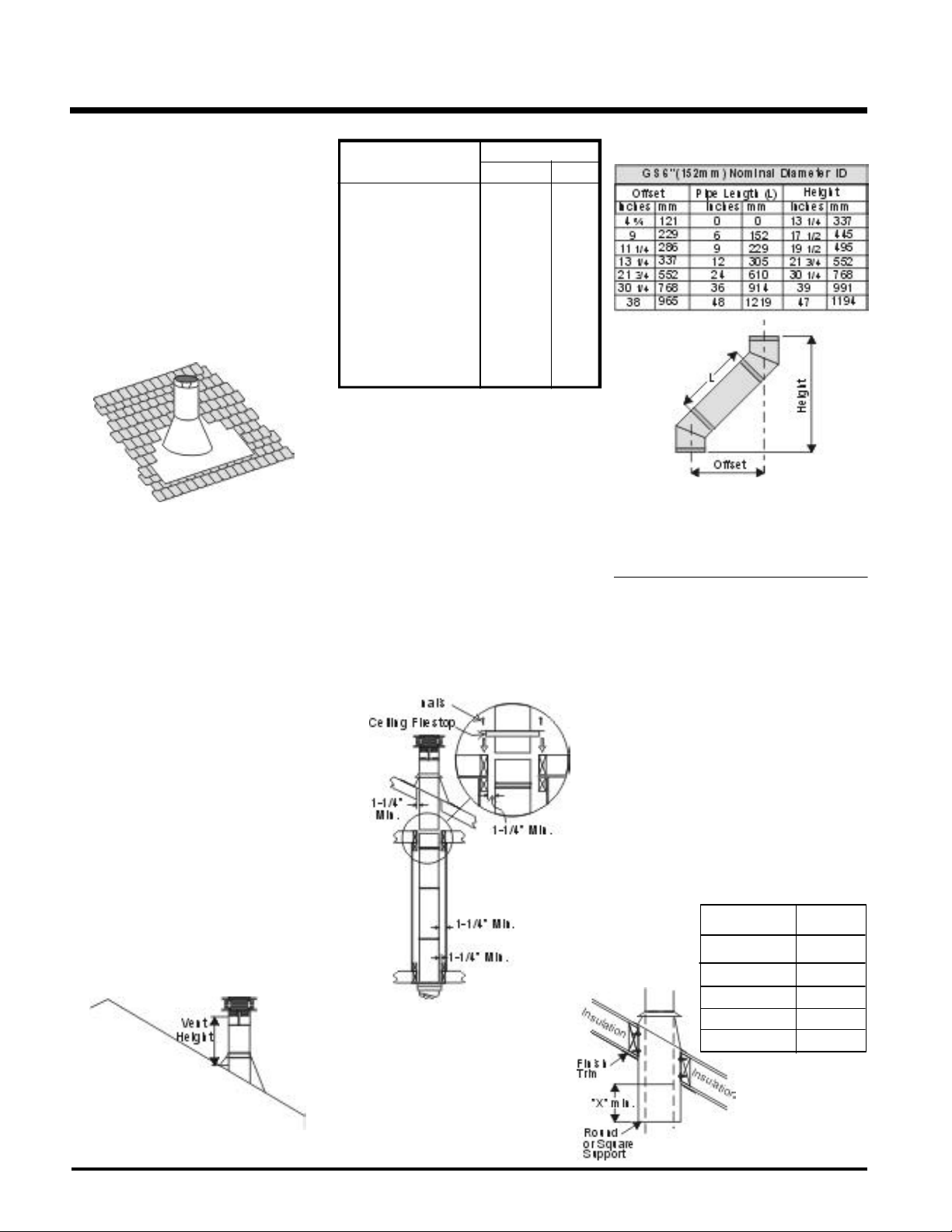

Page 18
INSTALLATION
4) Assemble the desired lengths of black pipe
and elbows necessary to reach from the
appliance adaptor up though the Round
Support Box. Insure that all pipes and
elbow connections are in the fully twistlocked position and sealed.
5) Cut a hole in the roof centred on the small
drilled hole placed in the roof in Step 2. The
hole should be of sufficient size to meet the
minimum requirements for clearance to
combustibles of 1-1/4". Slip the flashing
under the shingles (shingles should overlap half the flashing) as per diagram 11.
Diagram 11: The upper half of the flashing is
installed under the roofing material and not
nailed down until the chimney is installed.
This allows for small adjustments.
6) Continue to assemble pipe lengths.
Note: If an offset is necessary in the attic
to avoid obstructions, it is important to support the vent pipe every
3 feet, to avoid excessive stress
on the elbows, and possible separation. Wall straps are available
for this purpose. See diagram 7.
Galvanized pipe and elbows may be utilized in the attic as well as above the
roofline. The galvanized finish is desirable
above the roofline due to its higher corrosion resistance.
Continue to add pipe sections through the
flashing until the height of the vent cap
meets the minimum height requirements
specified in diagram 12 or local codes. Note
that for steep roof pitches, the vertical
height must be increased. A poor draft, or
down drafting can result from high wind
conditions near big trees or adjoining roof
lines, in these cases, increasing the vent
height may solve the problem.
Roof Pitch Minimum Vent Height
Feet Meters
flat to 7/12 2 0.61
over 7/12 to 8/12 2 0.61
over 8/12 to 9/12 2 0.61
over 9/12 to 10/12 2.5 0.76
over 10/12 to 11/12 3.25 0.99
over 11/12 to 12/12 4 1.22
over 12/12 to 14/12 5 1.52
over 14/12 to 16/12 6 1.83
over 16/12 to 18/12 7 2.13
over 18/12 to 20/12 7.5 2.29
over 20/12 to 21/12 8 2.44
7) Ensure vent is vertical and secure the base
of the flashing to the roof with roofing rails,
slide storm collar over the pipe section and
seal with a mastic.
8) Install the vertical termination cap by twist
locking it.
Notes:
a) For multistorey vertical installations, a
Ceiling Fire stop (Part # 963) is required
at the second floor, and any subsequent floor. Diagram 13. The opening
should be framed to 10 " x 10" inside
dimensions, in the same manner as
shown in diagram 10.
Diagram 13
Offset Chart
b) Any occupied areas above the first floor,
including closets and storage spaces,
through which the vertical vent passes,
must be enclosed.
CATHEDRAL CEILINGS
Round Support (RDS) &
Square Support (SQS)
If your home has a cathedral ceiling (no attic
space between the ceiling and the roof), install
the chimney and support as follows.
1) Situate the chimney in a convenient location
as near as possible to the appliance outlet.
Cut and frame a hole in the roof for the
support. The sides of this hole must be
vertical with 1 1/4" clearance.
2) Place the support in the opening. Lower it
to the correct height as determined by the
table and diagram below.
Slope "X"
0/12 -2/12 4"
2/12 -7/12 5-1/2"
7/12 -12/12 6-3/4"
12/12-24/12 7-1/2"
24/12+ 12-1/2"
18
Diagram 12
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Page 19
INSTALLATION
Using a level, make sure the support is
vertical. If the support extends above the
roof, cut it flush with the top of the roof. Nail
the support to the frame opening using (8)
3" spiral nails or #8 x 1-1/2" screws.
Note: If you are using a 6" square sup-
port you may find it difficult to
screw it in place because it is fairly
small inside.
Simpson Dura-Vent has provided angle
brackets with this support which can be
screwed to the outside of the support box
and nailed to surrounding framing as required. Use a minimum of four #8 x 1/2"
screws per bracket. In some cases these
brackets may need to be trimmed (e.g.: to
fit under a flashing). Place the Finish Collar
around the support and fasten it to the
ceiling using the screws provided.
3) Use appropriate roof flashing. Place the
flashing under the upper shingles and on
top of the lower shingles approximately
half of the flashing should be under the
shingles.
4) Assemble the desired lengths of Black Pipe
and Elbows necessary to reach from the
appliance adaptor up through the support
box and flashing to proper height as per Dia.
12, local codes or page 11. Ensure that all
pipe and elbow connections are in their
fully twist lock position.
5) Ensure vent is vertical and secure flashing
to the roof with roofing nails. Slide the
storm collar over the pipe section and seal
with a mastic.
6) Twist lock the vent cap on to the last
section.
Support Extensions - Round
(RDSE) or Square (SQSE)
Steep pitched cathedral ceilings may require
the use of a support extension. This piece fits
down inside the support and can be adjusted
to increase the support's length by up to 22".
The extension is attached to the support using
the eight metal screws provided. Be sure there
is at least a 2 inch overlap where the extension
joins the support.
CONVERTING A
CLASS-A METAL
CHIMNEY OR
MASONRY CHIMNEY
T O A DIRECT VENT
SYSTEM
General
There are two different types of direct vent
conversion systems listed below. Follow the
appropriate directions for your installation.
A) Through an existing factory built metal chim-
ney going through the ceiling: A typical
conversion of this type is shown in diagram
1. The concept of direct vent conversion is
to connect an adaptor to an Underwriters
Laboratories (UL) listed 4 inch diameter
aluminum flex pipe which is then passed
down through the center of the existing
metal chimney system. Three sizes of Top
Adaptors are available from Simpson DuraVent. The Retro Connector (909B) is attached to the bottom of the flex pipe. The Top
Adaptor and the Retro Connector are attached to the existing chimney with sheet
metal screws. The appliance is then connected to the chimney with appropriate
black direct vent pipe and an adjustable
length section.
B) Through the wall of an existing masonry
chimney: A typical conversion of an existing masonry chimney is shown in Diagram
6. A Top Adaptor (985K) and Flashing are
used at the top of the masonry chimney. The
4 inch aluminum liner is connected to the
adaptor and is passed down the chimney
and out through the masonry wall and
attached to the Retro Connector (909B).
The Retro Connector is attached to the
masonry wall and then connected to the
direct vent pipe leading to the appliance.
Prior to installation and connection of the
vent system to a factory-built or masonry
chimney, the chimney must be inspected
and thoroughly cleaned by a qualified
service person, such as a certified chimney sweep or home inspection service.
If the appliance shuts off during operation, contact a qualified service person to
determine if a negative pressure and/or
leaky chimney condition exists. Do not
operate the appliance until the problem
is corrected.
Approved for US Installations Only
The use of an existing chimney as an air
intake is not covered under the ANSI
Z21.88b-1999, CSA 2.33b-M99 test methods and the resulting ITS/WHI product
certification. The code Authority Having
Jurisdiction must be consulted prior to
proceeding with this installation method.
Converting a Factory Built Metal
Chimney
1) Remove the existing chimney cap.
2) Measure the distance from the top end of
the chimney to the bottom of the ceiling
support box, add 3" (76mm) to this measurement, and cut a section of the 4" flex pipe
to that length (the flex should already be
extended to its nominal length).
The direct vent system must not be connected to a damaged factory-built or masonry chimney.
For factory built, zero clearance, and masonry chimneys cleanout doors and caps
or plugs for cleanout tee fittings and ash
dumps shall be secured in place and
sealed before installing a Direct Vent system within the chimney.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Diagram 1
3) Connect the end of the
flex pipe section to the
underside of the Top
Adaptor using 3 sheet
metal screws.
Diagram 2.
Diagram 2
19
Page 20
INSTALLATION
4) Pass the flex pipe down through the center
of the chimney system, and center the
adaptor on the top of the chimney pipe. Drill
four 1/8" diameter holes through the adaptor and into the chimney top. Insure that you
are in fact, drilling into the metal on the
chimney. Twist-lock the Termination Cap
(Part# 980 or 991) onto the Adaptor. (Diagram 3 and 4).
Diagram 3
Diagram 4
5) Pull the flex pipe down through the ceiling
support box, until it protrudes approximately 3" (76mm). Connect the flex pipe to the
Retro Connector by slipping it into the
4-3/4" diameter sleeve on the top side of the
Connector. Use 3 sheet metal screws to
assemble these two parts.
6) Push the flex pipe back up into the ceiling
support box, center the Retro Connector,
and attach it to the support box, or decorative sleeve for double wall solid packed
pipe, with the sheet metal screws (supplied). The holes in the Retro Connector are
pre-punched. Diagram 5.
Converting a Masonry Chimney
Important: The existing masonry flue
opening needs to have an area of at least
a 36 sq. in. to insure proper intake/exhaust flow.
1) Before cutting any holes, assemble the
desired sections of black direct vent pipe to
determine the center of the masonry penetration.
Diagram 6
2) Once the center point of the penetration has
been determined, cut a 6" (152mm) dia. hole
in the masonry. Be careful, if the hole is too
large, the Retro Connector might not mount
properly, and if the hole is too small, then the
appliance might starve for intake air. If there
is a frame wall in front of the masonry wall,
cut and frame a 10" (254mm) clear square
opening in the wall (centered around the 6"
(152mm) masonry opening). IF there is
sheet rock only (no studs) in front of the
masonry, the 10" (254mm) clear opening is
still needed, but does not need to be framed.
This allows the Retro Connector to mount
directly on the masonry and provide clearance to the combustibles. Diagram 11.
Diagram 7
4) To determine the length of flex required,
measure from 3" (76mm) above the top of
the Flashing down to the level of the opening. Add to this measurement the distance
from the center of the chimney to out through
the wall. Cut a piece of 4" flex to this length
(the flex should already be extended to its
nominal length).
5) Connect the 4" flex liner to the Top Adaptor
(Part # 985K) using 3 sheet metal screws.
Diagram 2.
6) Feed the 4" flex liner through the Flashing
into the chimney. Continue to feed the liner
out through the opening in the masonry
wall.
7) Secure the Top Adaptor to the Flashing.
Use 3 sheet metal screws through the side
of the adaptor into the flange on the Flashing
(diagram 8). Twist lock the Termination Cap
(Part # 980 or 991) on to the Top Adaptor.
Diagram 8
Diagram 5
7) The connection between the appliance and
the Retro Connector may be completed
with sections of black direct vent pipe,
together with an adjustable length.
20
3) Secure the Flashing (Part # 705C) to the top
of the masonry chimney using a bead of
non-hardening sealant-adhesive. If the
Flashing is larger than the top of the chimney, then cut and fold flashing as needed
to fit chimney. Diagram 7.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
8) Attach the flex to the Retro Connector. Use
3 sheet metal screws to attach the flex liner
to the Connector. Diagram 9. Mount the
Retro Connector to the masonry wall using
masonry bolts. Re-drill larger holes on connector as needed. Be careful to insure that
the connector is centered in the opening
and the mounting holes line up with the
masonry wall.
Page 21
INSTALLATION

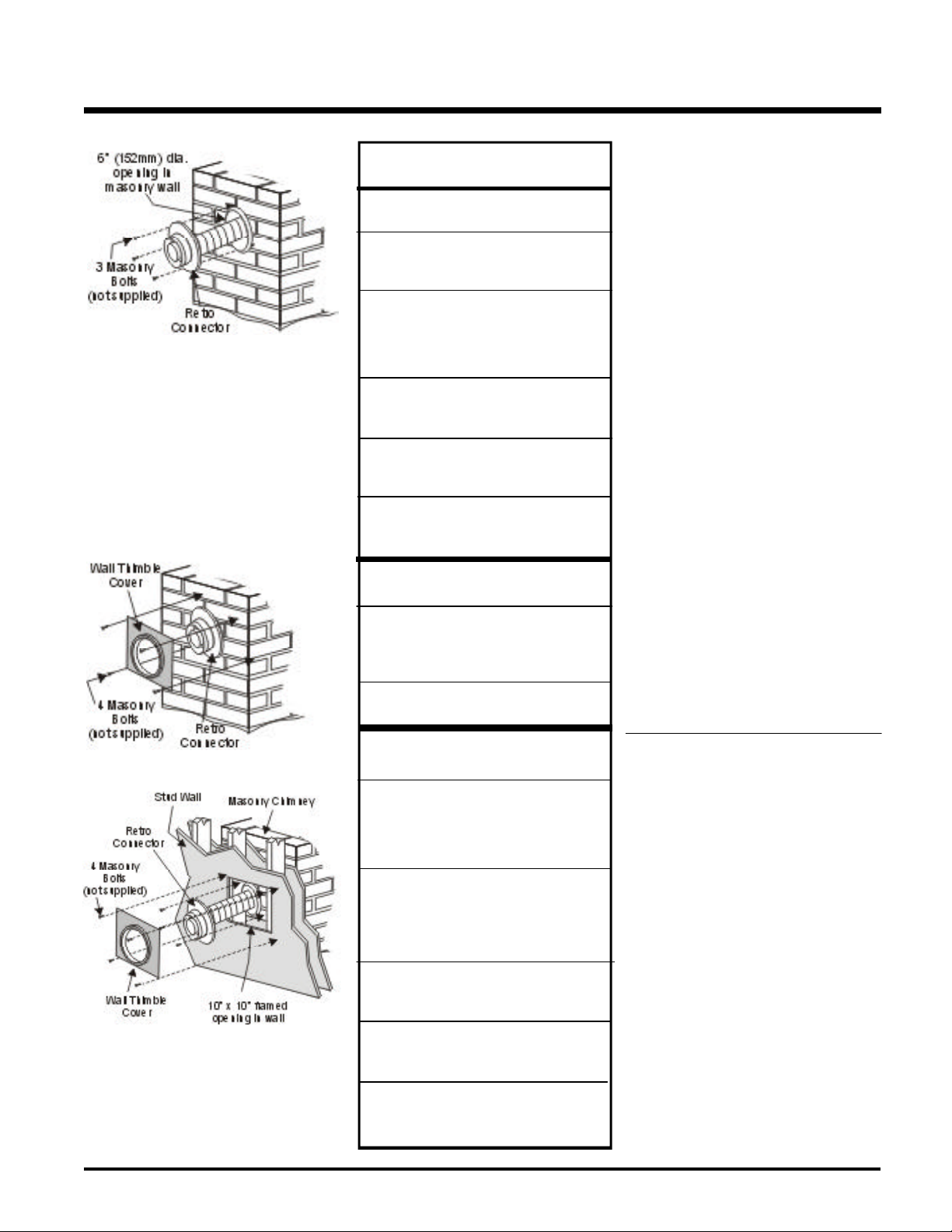

Diagram 9
9) Slide the Wall Thimble Cover (Part # 940)
over the Retro Connector and secure with
masonry bolts. Diagram 10. If you have a
framed wall in front of the masonry, use
wood screws to mount the Wall Thimble
Cover to the framed wall, over the Retro
Connector and the 10" (254mm) square
framed opening. Diagram 11. If needed, add
a section of direct vent pipe to the Retro
Connector in order to extend through the
opening in the Wall Thimble Cover.
System Data
U39 with 40,000 BTU
U39-NG: For 0 to 2000 feet altitude
U39-LP: For 0 to 4500 feet altitude
Burner Inlet Orifice Sizes:
Natural Gas Propane
Burner #32 #50
Max. Input - Natural Gas/Propane
38,000 Btu/h
Min. Input - Natural Gas/Propane
20,000 Btu/h
Supply Pressure
Natural Gas min. 5" w.c.
Propane min. 12" w.c.
Manifold Pressure
Natural Gas 3.8" +/- 0.2" w.c.
Propane 11" +/- 0.2" w.c.
Electrical: 120 V. 1.13A 60Hz.
Circulation: Variable speed fan, 125/75 CFM.
Log Set: Ceramic fiber, 7 per set.
System Data:
HIGH ELEVATION - U39-NG
For 2,000 - 4,500 feet altitude
Burner Inlet Orifice Sizes:
Natural Gas Burner #33
Max. Input Rating 36,100 Btu/h
Min. Input Rating 19,000 Btu/h
GAS CONNECTION
The gas connection is a 3/8" NPT 90o elbow. The
gas line can be rigid pipe or to make installation
easier, use a listed flexible connector and/or
copper tubing if allowed by local codes. Since
some municipalities have additional local codes
it is always best to consult with your local
authorities and the CAN/CGA B149 installation
codes.
For USA installations follow local codes and/or
the current National Fuel Gas Code, ANSI
Z223.1.
When using copper or flex connectors use only
approved fittings. Always provide a union so
that gas lines can be easily disconnected for
burner and/or valve servicing. Flare nuts for
copper lines and flex connectors are usually
considered to meet this requirement.
Important: Always check for gas leaks
with a soap and water solution or gas leak
detector. Do not use open flame for leak
testing.
Note: Prior to any pressure testing of
the gas supply piping system that
exceeds test pressures of 1/2 psig,
this appliance must be disconnected from the piping system. If test
pressures equal to or less than 1/
2 psig are used then this appliance
must be isolated from the piping
system by closing its individual
manual shut-off valve during the
testing.
System Data
Diagram 10
Diagram 11
10)The connection between the appliance and
the Retro Connector may be completed with
a section of black direct vent pipe, together
with an adjustable length pipe section.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
U39 Converted to 30,000 Btu
For 0 to 4500 feet altitude
Burner Inlet Orifice Sizes:
Natural Gas Propane
Burner #37 #52
Max. Input - Natural Gas/Propane
Min. Input - Natural Gas/Propane
Supply Pressure
Natural Gas min. 5" w.c.
Propane min. 12" w.c.
Manifold Pressure
Natural Gas 3.8" +/- 0.2" w.c.
Propane 11" +/- 0.2" w.c.
Electrical: 120 V. 1.13A 60Hz.
Circulation: Variable speed fan, 125/75 CFM.
Log Set: Ceramic fiber, 7 per set.
30,000 Btu/h
15,000 Btu/h
HIGH ELEV ATION
This unit (at 38,000 Btu/h) is approved in Canada for altitude 2000 ft. to 4500 ft. (CAN/CGA-
2.17-M91) with the orifice kit Part # 621-975. For
Natural Gas installations above 4500 ft. follow
current CAN/CGA-B149.1.
In U.S.A., for installations above 2000 ft. refer
to current ANSI Z223.1 Sc8-8.1.2a appendix F,
for resizing orifice.
21

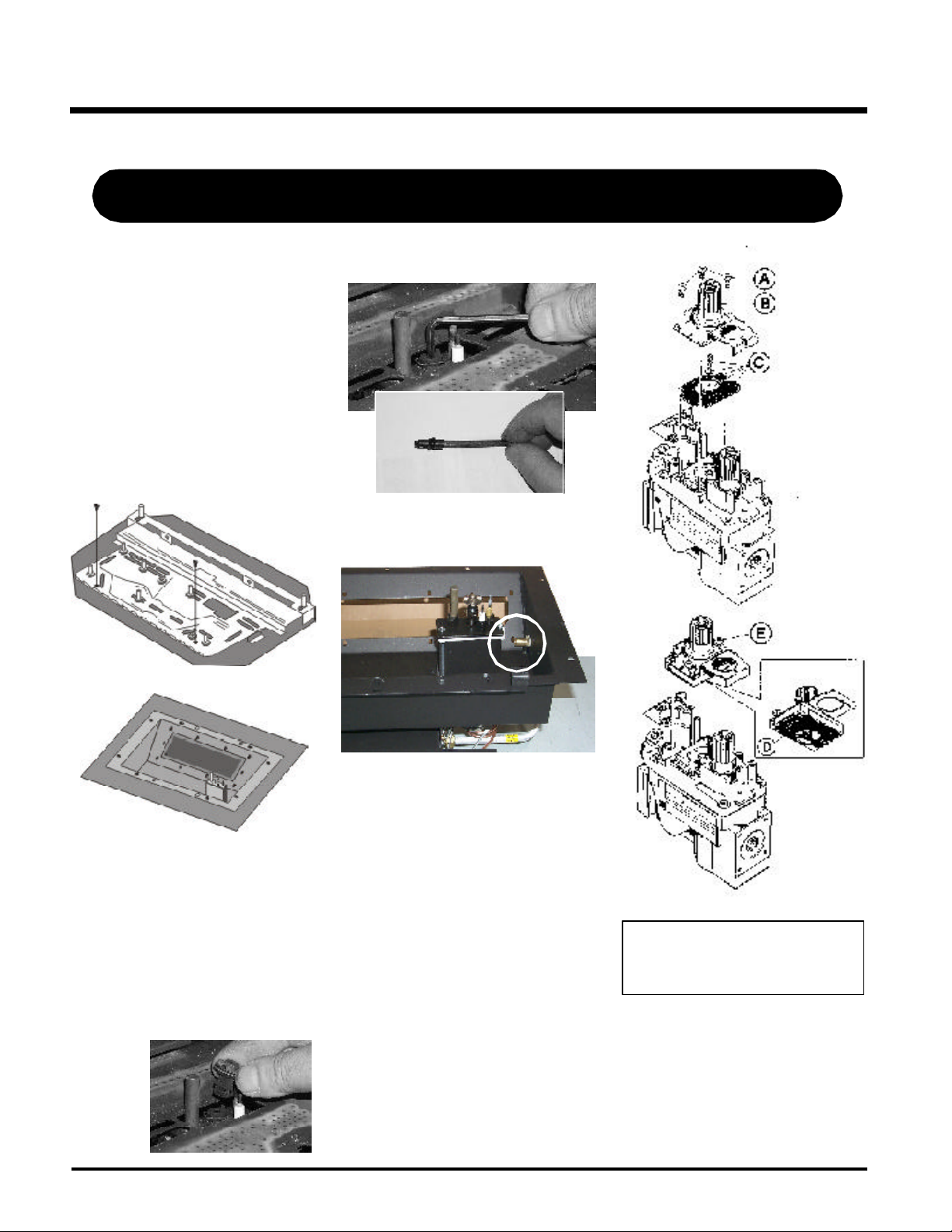

Page 22
INSTALLATION
CONVERSION FROM NA TURAL GAS TO PROPANE
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER
IF IN DOUBT DO NOT DO THIS CONVERSION !!
Conversion Kit #730-969 Contains:
Qty. Part # Description
1 910-018 SIT Conversion Kit-
50% Turndown LP
1 910-037 LP Injector (Pilot Orifice)
1 904-641 Burner Orifice #50
1 908-528 Red "PROPANE" label
1 908-255 Label "Converted to Propane"
1 918-032 Instruction Sheet
1) Shut off the gas supply.
2) Open the front door and carefully remove
the logs and lava rock.
3) Remove burner. See diagram below.
Note: Use a magnetic type screwdriver if pos-
sible.
7) Unscrew the pilot orifice with the allen key
and replace with the LP pilot orifice in the kit.
8) Remove burner orifice with a 1/2" wrench
and discard. Use a wrench to hold on to the
elbow behind the orifice.
Pilot assembly is now accessible for steps
4) to 9).
4) Remove and discard the 3 pressure regulator mounting screws (A), pressure
regulator tower (B) and diaphragm (C).
5) Insure that the rubber gasket (D) is properly positioned and install the new HI/LO
pressure regulator assembly to the valve
using the new screws (E) supplied with
the kit. Tighten screws securely.
6) Pull off the pilot cap to expose the pilot
orifice.
22
Burner Orifice
9) Reinstall new burner orifice LP stamped
#50 and tighten.
10)Reverse steps 3) to 2).
11)Attach the Conversion label "This unit has
been converted to Propane" on top of the
Serial # decal.
12)Replace yellow "Natural Gas" label with red
"Propane" label
13)Check for gas leaks.
14)Check inlet and outlet pressures.
15)Check operation of flame control.
16)Check for proper flame appearance and
glow on logs.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Installer Notice:
These instructions must be left
with the appliance.

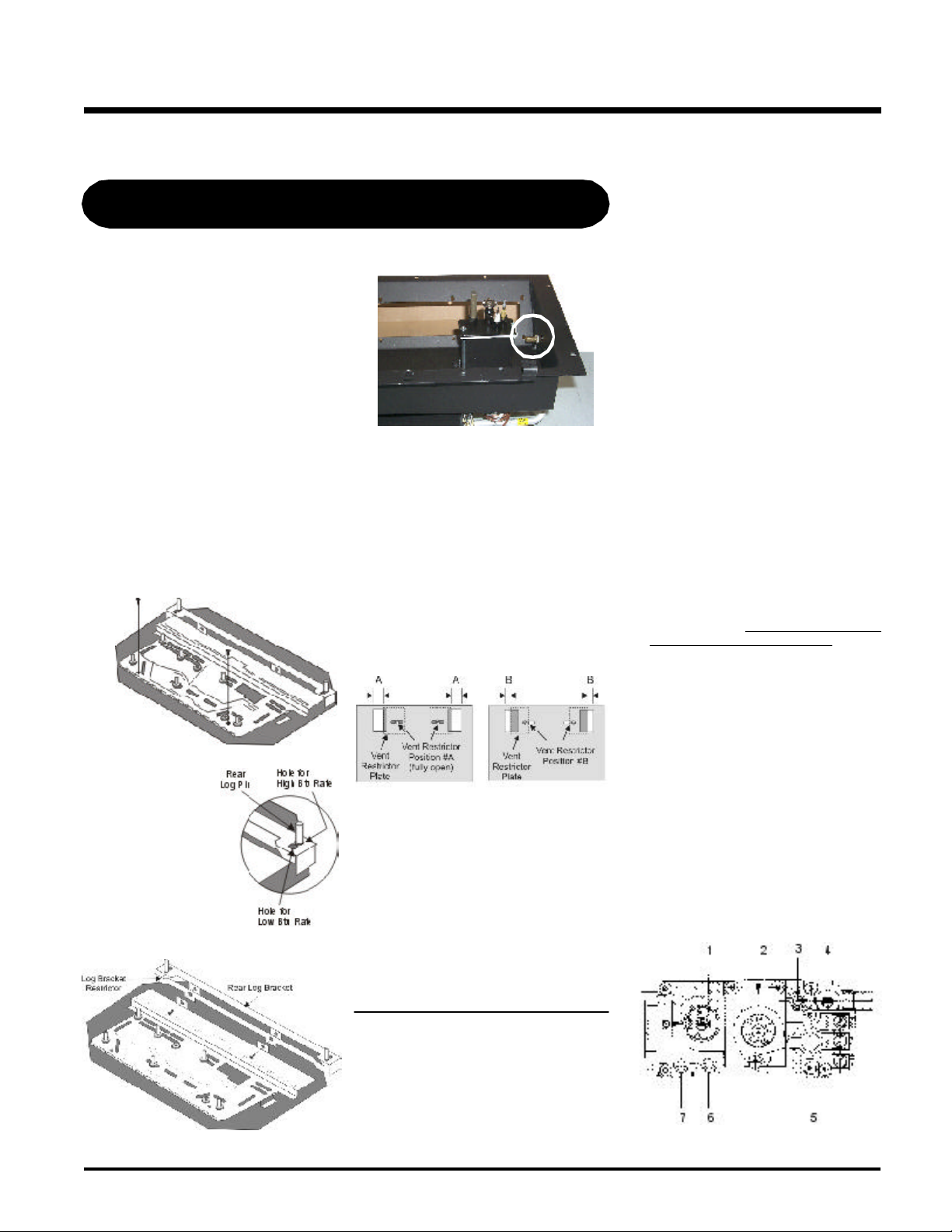

Page 23
INSTALLATION
CONVERSION TO LOWER BTU RA TING
THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS
FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!
Natural Gas Conversion Kit 730-920
Contains:
Qty. Part # Description
1 904-240 Burner Orifice #37 (Natural Gas)
1 918-034 Decal "Converted to 30,000 Btu"
1 918-033 Instruction Sheet
Propane Conversion Kit 730-922
Contains:
Qty. Part # Description
1 904-390 Burner Orifice #52 (Propane)
1 918-034 Decal "Converted to 30,000 Btu"
1 918-033 Instruction Sheet
Additional Piece (pkg. with unit:
1 Log Bracket Restrictor
1) Shut off the gas supply.
2) Open the front door. Carefully remove the
logs and lava rock.
3) Remove burner. See diagram below.
6) Remove burner orifice with a 1/2" wrench
and discard.
Burner Orifice
7) Reinstall new burner orifice (NG stamped
#37 or LP stamped #52) and tighten.
8) Reverse steps 3) and 2).
9) Adjust Vent restrictor setting: To set the
Vent restriction as indicated in the diagram,
simply loosen the screws and push the vent
restrictor plate to the correct position. Tighten the screws.
Unit Btu/h Restrictor Opening
U39 38,000 A 1-3/4" (44mm)
30,000 B 1-1/4" (32mm)
kPa). Disconnect piping from valve at pressures over 1/2 psig.
The manifold pressure is controlled by a regulator built into the gas control, and should be
checked at the pressure test point.
Note: To properly check gas pressure,
both inlet and manifold pressures
should be checked using the valve
pressure ports on the valve.
1) Make sure the valve is in the "OFF" position.
2) Loosen the "IN" and/or "OUT" pressure
tap(s), turning counterclockwise with a 1/
8" wide flat screwdriver.
3) Attach manometer to "IN" and/or "OUT"
pressure tap(s) using a 5/16" ID hose.
4) Light the pilot and turn the valve to "ON"
position. Read manometer.
5) The pressure check should be carried out
with the unit burning and the setting should
be within the limits specified on the safety
label.
6) When finished reading manometer, turn off
the gas valve, disconnect the hose and
tighten the screw (clockwise) with a 1/8"
flat screwdriver. Note: Screw should be
snug, but do not over tighten
Valve Description
Note: Use a
magnetic type
screwdriver if
possible.
4) Unscrew the 2 Rear
Log Pins and move
to the front hole position.
5) Remove Rear Log
Bracket and slide the
Log Bracket Restrictor between the
Rear Log Bracket and the burner, secure
with the 2 screws.
Position the Log Bracket Restrictor between
the Rear Log Bracket and the burner.
Vent Restrictor
setting at High Btu/h
10)Attach the label "This unit has been converted to..." on top of the Serial # decal over
the higher Btu information.
11)Check for gas leaks.
12)Check inlet and outlet pressures.
13)Check operation of flame control. Check for
proper flame appearance and glow on logs.
Vent Restrictor
setting at Low Btu/h
GAS PIPE PRESSURE
TESTING
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-off valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig. (3.45
1) Gas cock knob
2) Manual high/low adjustment
3) Pilot Adjustment
4) Thermocouple Connection
5) Main Operator
6) Outlet Pressure Tap (Manifold
Pressure)
7) Inlet Pressure Tap (Supply
Pressure)
8) Pilot Outlet
9) Main Gas Outlet
10)Flange Securing Screw Holes
11)Alternative TC Connection Point
12)Thermoelectric Unit
13)Additional Valve Mounting Hole
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
23
Page 24

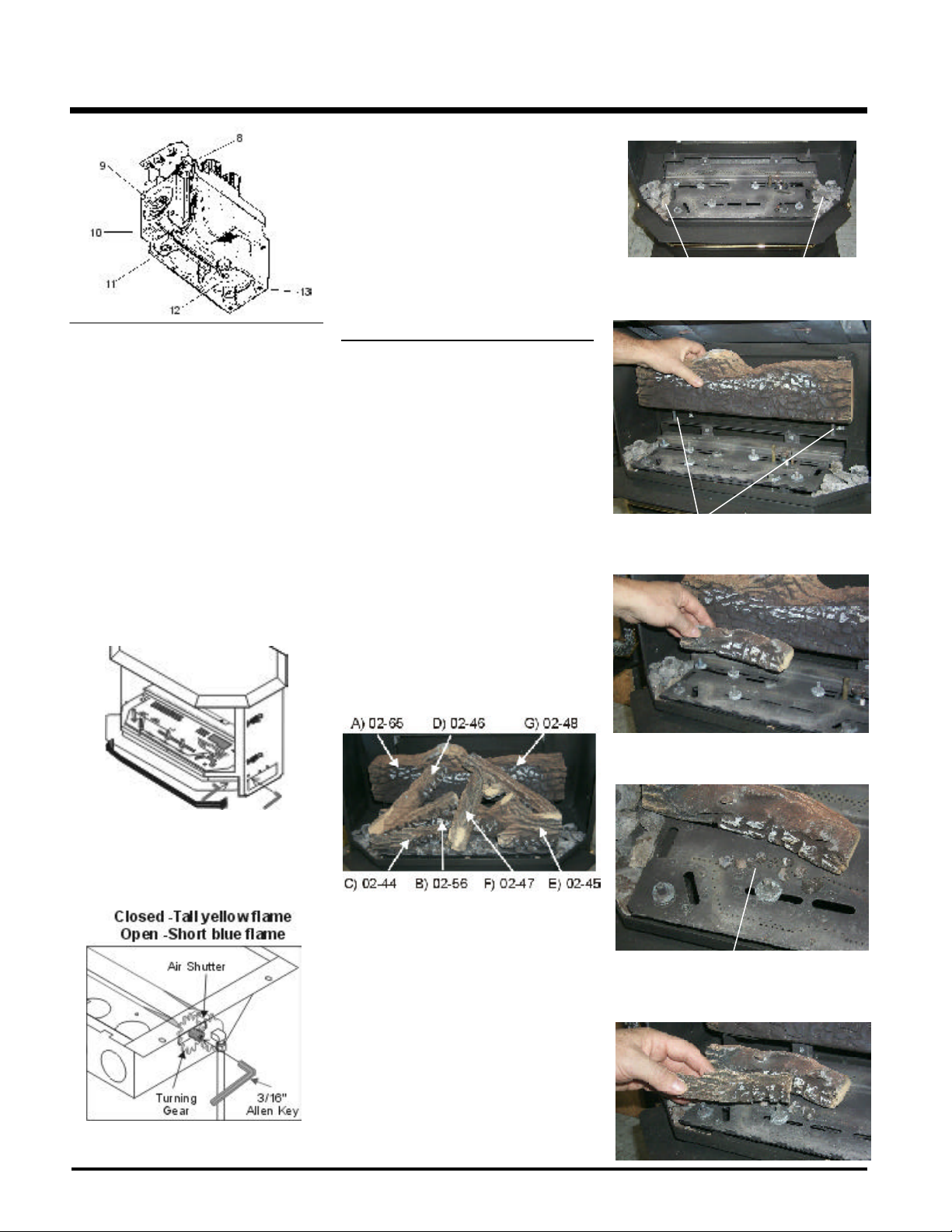

INSTALLATION
Caution: Carbon will be produced if the air
shutter is closed too much.
Note: Any damage due to carboning re-
sulting from improperly setting
the aeration controls is NOT covered under warranty.
AERA TION
ADJUSTMENT
The burner aeration is factory set but may need
adjusting due to either the local gas supply or
altitude.
U39 with 38,000 Btu/h
U39-NG Natural Gas: 1/4" open
U39-LP Propane: 1/2" open
U39 with 30,000 Btu/h
U39-NG Natural Gas 3/16" open
U39-LP Propane 3/8" open
The aeration adjustment gears are located on
the right side of the burner box and can be
accessed from the side or from the front when
the louvers are removed.
Note: Aeration Adjustment should only
be performed by an authorized
Regency Installer at the time of
installation or service.
LOG SET
INSTALLATION
Read the instructions below carefully
and refer to the diagrams. If logs are
broken do not use the unit until they are
replaced. Broken logs can interfere with
the pilot operation.
The gas log kit contains the following:
a) 02-65 Rear Log 902-267
b) 02-56 Middle Left Log 902-230
c) 02-44 Front Left Log 902-228
d) 02-46 Left Top Log 902-231
e) 02-45 Front Right Log 902-229
f) 02-47 Center Log 902-232
g) 02-48 Middle Right Log 902-226
h) Embers 902-151
i) Lava 902-154
Embers
3) Place Rear Log A)02-65 on the two pins on
the rear log support.
Pins on Rear Log Support
4) Place the Middle Left Log B)02-56 on the
two pins as shown.
Embers
A)02-65
B)02-56
To adjust the aeration: use the allen key to turn
the turning gear which will adjust the air shutter.
Open the air shutter for a blue flame or close it
for a yellower flame.
Clockwise to open,
counter-clockwise to close.
24
The "02" refer numbers (i.e. 02-65) are
molded into the rear of each log.
1) Carefully remove the logs from the box and
unwrap them. The logs are fragile, handle
with care - do not force into position.
2) Sprinkle the embers on the left and right
sides of the firebox base.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
5) Sprinkle some lava rock just in front of B)
02-56 on the burner holes.
B)02-56
lava rock
6) Place Front Left Log C)02-44 onto the 2
front pins as shown.
C)02-44
Page 25

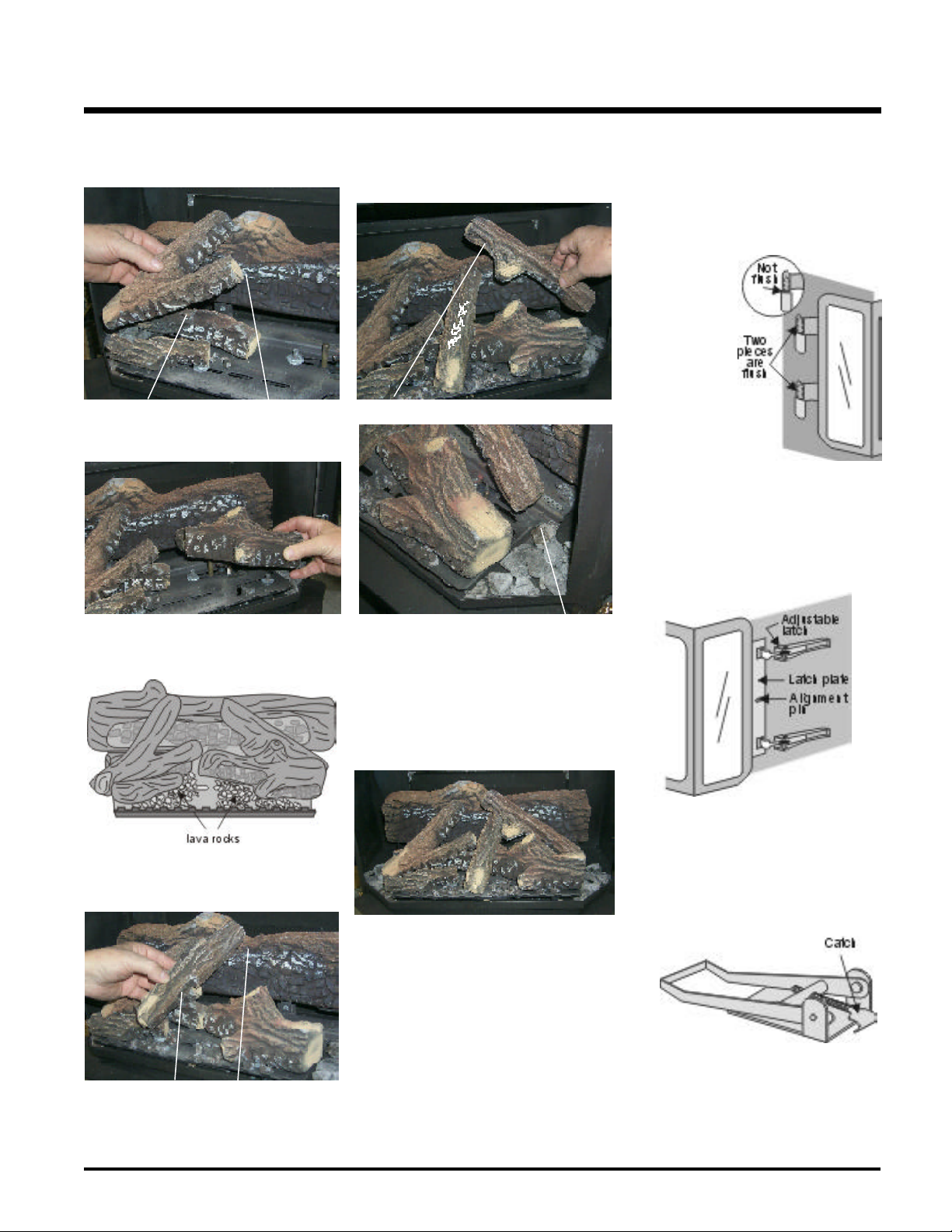

INSTALLATION
7) Place the Left Top Log D)02-46 on the pin
on Log B)02-56 and on top of the cutout on
Log A)02-65.
A)02-65
D)02-46
B)02-56
C)02-44
Pin
8) Place Front Right Log E)02-45 on the two
pins as shown.
Cutout
E)02-45
11)Position notch in Front Right Log G)02-48
on Log F)02-47 and push the bottom right
edge against the bracket on the burner
tray.
G)02-48
A)02-65
E)02-45
Notch
G)02-48
E)02-45
Side View
FRONT DOOR
INSTALLATION
(packaged separately)
1) Open the two side panels.
2) Slide the door
onto the two
hinge pins mak- ing
sure the two
pieces are
flush together.
See diagram 1.
3) Close the door. The
latch plate must be
centered around the
alignment pin. See diagram 2. If the latch plate
interferes with the corner of the stove you
may want to angle the
plate slightly so the door closes easier.
4) The latches should already be at the proper
setting. If they are too hard or too easy to
close, you may want to adjust them by
loosening the latch catch. See diagram 3.
Diagram 1
9) Place the lava rock in the area between the
left and right logs, leaving a space in the
middle for log (F) 02-47.
10)Place the notch in Center Log F)02-47 over
Log E)02-45 and across the cutout on Log
A)02-65.
F)02-47
A)02-65
E)02-45
CutoutNotch
Bracket
The bottom right edge of Log G)02-48 must
sit snugly against the bracket
12)Test fire to ensure proper light off (make
sure flame flows smoothly from one end of
burner to the other. If there is any flame
hesitation, check that area for any blockage of the burner port.
A)02-65
G)02-48
D)02-46
B)02-56
C)02-44
F)02-47
E)02-45
Diagram 2
5) Remove the blue plastic protective coating
from the glass.
6) Test the seal around the door by placing a
piece of paper between the unit and the
door, close the door and try to pull the paper
out. If it slips out easily, then the door is not
properly sealed. Tighten or loosen the latch.
See diagram 3.
Diagram 3
Note: The door latch may require ad-
justment as the door gasket material compresses after a few fires
and after glass replacement. Turn
the latch catch inward or outward
to loosen or tighten.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
25
Page 26
INSTALLATION
This heater does not require a 120V A.C. supply
for operation. In case of a power failure, the
burner switch and the optional remote control/
thermostat will continue to operate. However,
a 120V A.C. power supply is needed for the fan/
blower operation.
WIRING
Caution: Ensure that the wires do
not touch any hot surfaces and are
away from sharp edges.
CAUTION: Label all wires prior to
disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.
WARNING: Electrical Grounding Instructions
This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should be
plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
OPTIONAL WALL
THERMOSTAT
A wall thermostat may be installed if desired.
Connect the wires as per the wiring diagrams.
Note that the wires are connected to the "TH"
on the gas valve. Use table below to determine
the maximum wire length:
Note: Preferable if the thermostat is installed on an interior wall.
Regency offers an optional programmable thermostat but any 250-750 millivolt rated nonanticipator type thermostat that is CSA, ULC or
UL approved may be used.
CAUTION
Do not connect the millivolt
Thermostat Wire Table
Recommended Maximum Lead Length
(Two-Wire) When Using Wall
Thermostat (CP-2 System)
Wire Size Max. Length
14 GA.
16 GA.
18 GA.
20 GA.
22 GA.
50 Ft.
32 Ft.
20 Ft.
12 Ft.
9 Ft.
OPTIONAL REMOTE
CONTROL
Use the Regency Remote Control Kit approved
for this unit. Use of other systems may void your
warranty.
The remote control kit comes with a hand held
transmitter, a receiver and a wall mounting
plate.
1) Choose a convenient location on the wall to
install the receiver and the receptacle box
(protection from extreme heat is very important). Run wires from the fireplace to
that location, use Thermostat Wire Table.
2) Connect the wires as per the wiring diagram above.
wall thermostat wires
to the 120V wires.
26
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Page 27

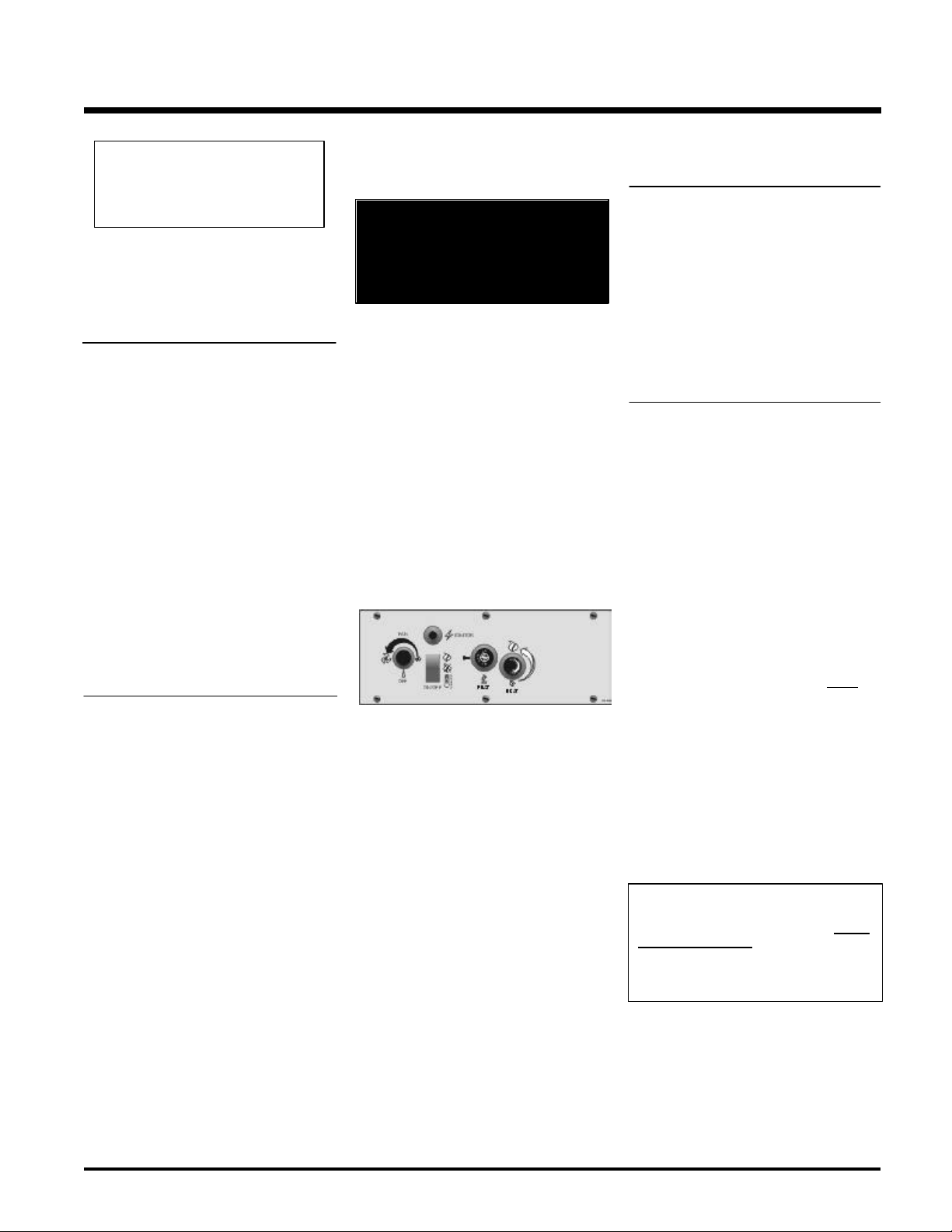

OPERATING INSTRUCTIONS
CAUTION
Do not connect the millivolt
remote control wires to
the 120V wires.
3) Install 3 AAA alkaline batteries in transmit-
ter and 4 AA alkaline batteries in the
receiver. Install the receiver and its cover
in the wall. Switch the remote receiver to
"remote" mode. The remote control is now
ready for operation.
FINAL CHECK
Before leaving this unit with the customer, the
installer must ensure that the appliance is firing
correctly. This includes:
1) Clocking the appliance to ensure the correct firing rate (rate noted on label) at 15
minutes.
2) If required, adjusting the primary air to
ensure that the flame does not carbon. First
allow the unit to burn for 15 min. to stabilize.
3) Check for proper draft.
CAUTION
Any alteration to the product that causes
sooting or carboning that results in damage to the exterior facia is not the responsibility of the manufacturer.
LIGHTING
INSTRUCTIONS
IMPORTANT
To ignite or reignite the pilot,
the door to the firebox must
be opened.
Only when the pilot holds, without pressure
being applied to the control knob, should the
door to the firebox be closed. The unit must
never be operated with the glass or door
open.
IMPORTANT: The PILOT knob cannot be
turned from pilot to off unless it is partial-
ly depressed.
Note: Open the pedestal door of the unit
before lighting the pilot. Once the
pilot is lit, close the door. You
should never operate the unit with
the door open.
1) If the PILOT knob is in the off position
proceed to Step 4.
8) Rotate the HEAT control to adjust the flame
height higher or lower.
SHUTDOWN
INSTRUCTIONS
1) Use the Burner ON/OFF switch, thermo-
stat or remote control to turn off the burner.
2) Push in the PILOT knob slightly and turn
clockwise to off. Do not force.
3) Turn off all electric power to the appliance
if service is to be performed.
FIRST FIRE
The FIRST FIRE in your stove is part of the paint
curing process. To ensure that the paint is
properly cured, it is recommended that you
burn your fireplace for at least four (4) hours
the first time you use it with the fan on. When
first operated, the unit will release an odour
caused by the curing of the paint and the
burning off of any oils remaining from manufacturing. Smoke detectors in the house may
go off at this time. Open a few windows to
ventilate the room for a couple of hours. The
glass may require cleaning.
DO NOT ATTEMPT TO CLEAN THE
GLASS WHILE IT IS STILL HOT!
OPERA TING
INSTRUCTIONS
Before operating this appliance, proceed
through the following check list.
1) Read and understand these Instructions
before operating this appliance.
2) Check to see that all wiring is correct and
enclosed to prevent possible shock.
3) Check to ensure there are no gas leaks.
4) Make sure the three pieces of door glass
are properly positioned. Never operate the
appliance with any of the glass removed or
with the door open.
5) Verify that all venting and the cap is unobstructed.
6) Verify log placement. If the pilot cannot be
seen when lighting the unit - the logs or the
embers have been incorrectly positioned.
7) The unit should never to turned off and on
without a minimum of a 60 second wait.
2) Push in PILOT knob slightly and turn clockwise to off. Knob cannot be turned from
pilot to off unless knob is pushed in slightly. Do not force.
3) Wait five minutes to allow gas, that may
have accumulated in the main burner compartment, to escape. If you smell gas, follow
the instructions on the front of this manual.
If you don't smell gas continue on to the next
step.
4) Turn the PILOT knob counterclockwise to
pilot and align it with the arrow as shown
in diagram above.
5) Push in PILOT knob all the way in and hold.
Immediately push IGNITOR button until pilot
lights. Continue to hold the PILOT knob in for
approximately one minute, then release the
PILOT knob. The pilot flame should continue
to burn. If the pilot does not remain lit, repeat
operation allowing a longer period before
releasing PILOT knob.
6) Turn PILOT knob counter clockwise to on.
7) Use the Burner ON/OFF switch to turn on
the burner.
Note: When the glass is cold and the
appliance is lit, it may cause condensation and fog the glass. This
condensation is normal and will
disappear in a few minutes as the
glass heats up.
DO NOT BURN THE APPLIANCE
WITHOUT THE GLASS FRONT IN
PLACE.
During the first few fires, a white film
may develop on the glass front as part
of the curing process. The glass
should be cleaned or the film will bake
on and become very difficult to remove. Use a non-abrasive cleaner and
NEVER clean the glass while it is hot.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
27
Page 28
OPERATING INSTRUCTIONS

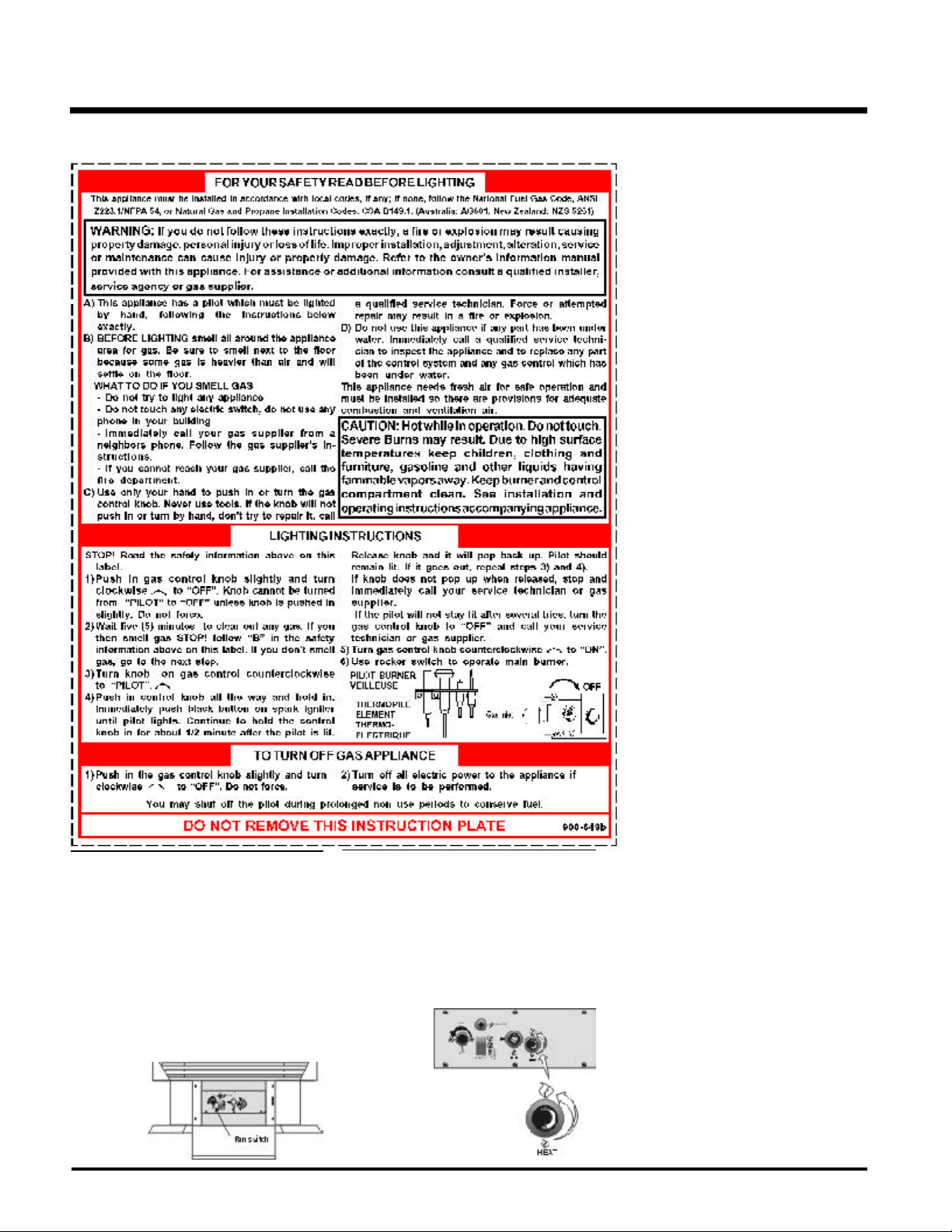

Copy of the Lighting Plate instructions
NORMAL
OPERA TING
SOUNDS OF
GAS APPLIANCES
It is possible that you will hear some
sounds from your gas appliance. This is
perfectly normal due to the fact that
there are various gauges and types of
steel used within your appliance. Listed
below are some examples. All are nor-
mal operating sounds and should
not be considered as defects in your
appliance.
Blower:
Regency gas appliances use high tech
blowers to push heated air farther into
the room. It is not unusual for the fan to
make a "whirring" sound when ON. This
sound will increase or decrease in volume depending on the speed setting of
your fan speed control.
Burner Tray:
The burner tray is positioned directly
under the burner tube(s) and logs and is
made of a different gauge material from
the rest of the firebox and body. Therefore, the varying thicknesses of steel
will expand and contract at slightly different rates which can cause "ticking"
and "cracking" sounds. You should also
be aware that as there are temperature
changes within the unit these sounds
will likely re-occur. Again, this is normal
for steel fireboxes.
AUTOMATIC
CONVECTION FAN
OPERA TION
The fan operates automatically - turn the knob
on the pedestal control panel to adjust to the
desired speed. The fan will turn on as the stove
comes up to operating temperature. After the
unit has been turned off and cools to below a
useful heat output range the fan will shut off
automatically.
28
ADJUSTING FLAME
HEIGHT
Your heater has an adjustable flame to tailor the
look and heat output to your specific needs. It
is adjusted by turning the flame adjustment dial
on the gas control valve.
Turn clockwise to adjust
the flame
higher, counterclockwise
for a lower
flame.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Blower Thermodisc:
When this thermally activated switch
turns ON it will create a small "clicking"
sound. This is the switch contacts closing and is normal.
Pilot Flame:
While the pilot flame is on it can make a
very slight "whisper" sound.
Gas Control Valve:
As the gas control valve turns ON and
OFF, a dull clicking sound may be audible, this is normal operation of a gas
regulator or valve.
Unit Body/Firebox:
Different types and thicknesses of steel
will expand and contract at different
rates resulting in some "cracking" and
"ticking" sounds will be heard throughout the cycling process.
Page 29
MAINTENANCE
MAINTENANCE
INSTRUCTIONS
1) Always turn off the valve before cleaning.
For relighting, refer to lighting instructions.
Keep the burner and control compartment
clean by brushing and vacuuming at least
once a year. When cleaning the logs, use
a soft clean paint brush as the logs are
fragile and easily damaged.
2) Clean glass (never when unit is hot), appliance, louvers, and door with a damp cloth.
Never use an abrasive cleaner. The gold
louvers (and optional gold door) may be
scratched if abrasives are used to clean
them.
The heater is finished in a heat resistant
paint and should only be refinished with
heat resistant paint (not with wall paint).
Regency uses StoveBright Paint - Metallic
Black #6309.
3) Make a periodic check of burner for proper
position and condition. Visually check the
flame of the burner periodically, making
sure the flames are steady; not lifting or
floating. If there is a problem, call a qualified
service person.
4) Caution: Label all wires prior to disconnection when servicing controls. Wiring errors
can cause improper and dangerous operation.
5) The appliance and venting system must be
inspected before use, and at least annually,
by a qualified field service person, to ensure that the flow of combustion and ventilation air is not obstructed.
During the annual service call, the burners
should be removed from the burner tray and
cleaned. Replace the embers but do not
block the pilot.
6) Keep the area near the appliance clear and
free from combustible materials, gasoline,
and other flammable vapours and liquids.
WARNING: CHILDREN AND
ADULTS SHOULD BE ALERTED TO
THE HAZARDS OF HIGH SURFACE
TEMPERATURE AND SHOULD
STAY AWAY TO AVOID BURNS OR
CLOTHING IGNITION. YOUNG
CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE
IN THE SAME ROOM AS THE APPLIANCE.
DO NOT USE THIS APPLIANCE IF
ANY PART HAS BEEN UNDER WATER. IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO
INSPECT THE APPLIANCE AND
TO REPLACE ANY PART OF CONTROL SYSTEM AND ANY GAS
CONTROL WHICH HAS BEEN
UNDER WATER.
CAUTION: ANY SAFETY SCREEN
OR GUARD REMOVED FOR SERVICING AN APPLIANCE MUST BE
REPLACED PRIOR TO OPERATING THE APPLIANCE.
CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE
PLACED ON OR NEAR THE APPLIANCE.
7) Each time the appliance is lit, it may cause
condensation and fog the glass. This condensation and fog is normal and will disappear in a few minutes as the glass heats up.
Never operate the appliance without
the glass properly secured in place or
with the door open.
8) Periodically check the pilot flames. Correct
flame pattern has three strong blue flames:
1 flowing around the thermopile and 1
around the thermocouple, and 1 flowing
across the rear of the burner (it does not
have to be touching the burner).
Note: If you have an incorrect flame pat-
tern, contact your Regency dealer
for further instructions.

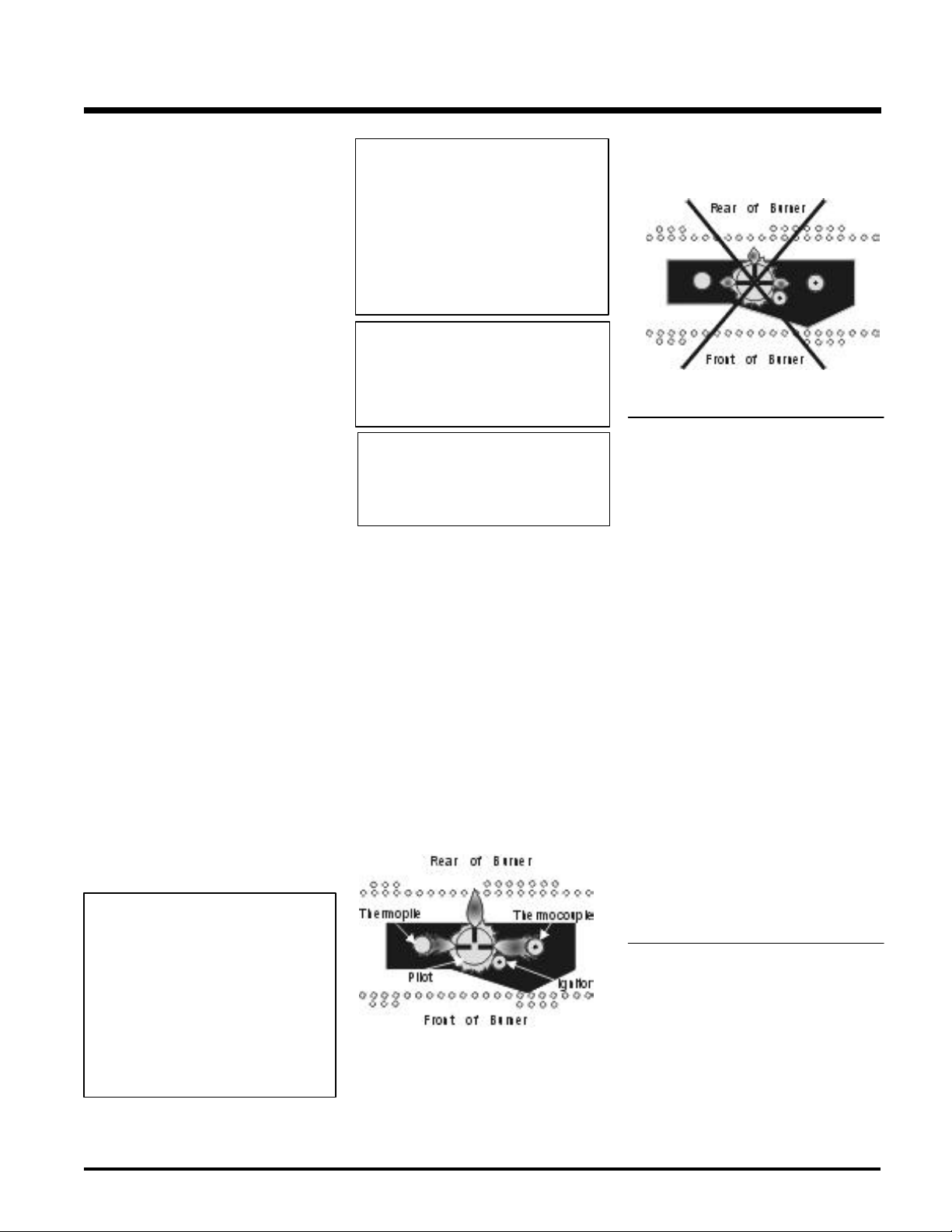

Top View of pilot flame
Incorrect flame pattern will have small, probably yellow flames, not coming into proper contact with the rear of the burner or thermopile.
Top View of pilot flame
GENERAL VENT
MAINTENANCE
Conduct an inspection of the venting system
semi-annually. Recommended areas to inspect
as follows:
1) Check the Venting System for corrosion in
areas that are exposed to the elements.
These will appear as rust spots or streaks,
and in extreme cases, holes. These components should be replaced immediately.
2) Remove the Cap, and shine a flashlight
down the Vent. Remove any bird nests, or
other foreign material.
3) Check for evidences of excessive condensation, such as water droplets forming in
the inner liner, and subsequently dripping
out the joints, Continuous condensation can
cause corrosion of caps, pipe, and fittings.
It may be caused by having excessive
lateral runs, too many elbows, and exterior
portions of the system being exposed to
cold weather.
4) Inspect joints, to verify that no pipe sections
or fittings have been disturbed, and consequently loosened. Also check mechanical
supports such as Wall Straps, or plumbers'
tape for rigidity.
GOLD-PLATED DOORS
The 24 carat gold plated finish on the door
requires little maintenance, and need only be
cleaned with a damp cloth. DO NOT use
abrasive materials or chemical cleaners, as
they may harm the finish and void the warranty.
Clean any fingerprints off before turning the
unit on. If the door starts to discolour,
check the gasket seal and replace if necessary.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
29
Page 30
MAINTENANCE
LOG REPLACEMENT
The unit should never be used with broken logs.
Turn off the gas valve and allow the unit to cool
before opening door to carefully remove the
logs. The pilot light generates enough heat to
burn someone. If for any reason a log should
need replacement, you must use the proper
replacement log. The position of these logs
must be as shown in the diagram under Log
Installation.
Note: Improper positioning of logs may
create carbon build-up and will alter the unit’s performance which
is not covered under warranty.

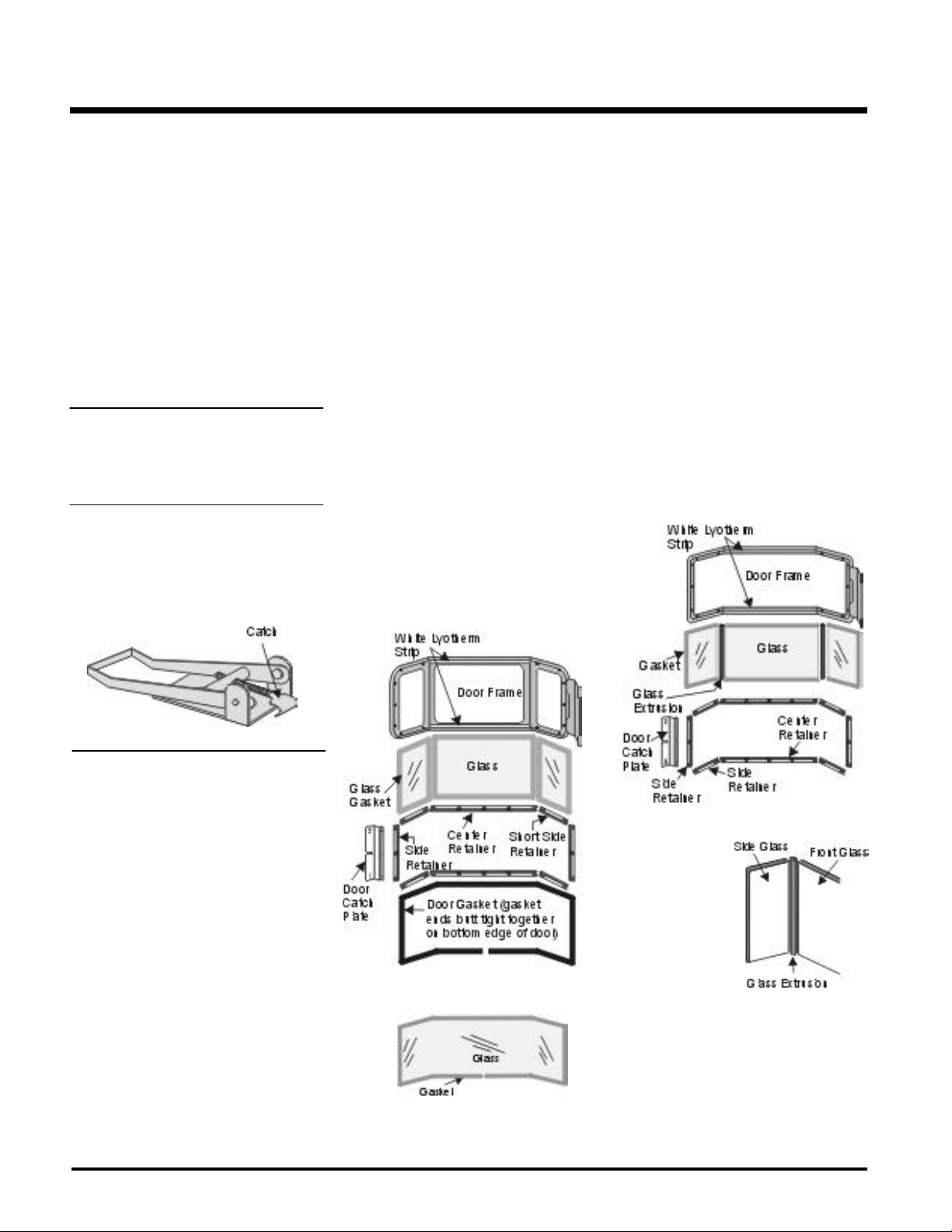

DOOR GASKET
If the door gasket requires replacement use 7/
8" diameter oval door gasket (Part # 650-920).
LATCH ADJUSTMENT
The door latch may require adjustment as the
door gasket material compresses after a few
fires and after glass replacement. Turn the
adjustable catch to tighten or loosen the latch.
Note: Wearing gloves will protect your hands
while handling glass.
Panel Glass Replacement
1) Remove the door from the unit and place on
a soft surface to prevent scratching.
2) Pull out the door gasket.
3) Remove the nuts holding the glass retainers
in place.
4) Remove the glass retainers (sides, top and
bottom) and the door catch plate.
5) Replace the glass. The glass must have
gasketing around it.
6) Reverse the previous steps, replace the
retainers and fasten with the nuts but do not
overtighten, as this can break the glass.
Note: the door catch plate fits on top of the
left side retainer.
7) Put gasket glue on the retainers, but do not
put glue on the screws. Replace the door
gasket, the two ends butt tight together on
the bottom edge of the door.
8) Replace door on the stove and check the
seal.
Mitred Glass Replacement
Removing Glass
1) Remove the door from the unit and place on
a soft surface to prevent scratching.
2) Pull out the door gasket.
3) Remove the 24 nuts holding the glass
retainers in place. Do not remove the nuts
underneath the retainers.
4) Remove the door catch plate.
5) Remove glass retainers on sides first (3
each side) then remove two center retainers.
Note: Center glass retainers are glued
to center glass.
6) Remove glass from extrusions. When re-
moving center glass, leave white insulation in place.
GLASS
REPLACEMENT
Your ULTIMATE stove is supplied with high
temperature, 5 mm Neoceram ceramic glass
that will withstand the highest heat that your
unit will produce. In the event that you break
your glass by impact, purchase your replacement door from an authorized Regency dealer
only, and follow our step-by-step instructions
for replacement. The glass is not sold separately, as it must be properly sealed in the door
frame.
Replacement Part #
940-325/P U39 Wraparound Glass
940-322/P U39 Panel Center Glass
940-323/P U39 Panel Side Glass
WARNING: Do not operate appliance with glass panels removed,
cracked or broken. Replacement of
the glass should be done by a licensed or qualified service person.
30
Panel Glass Door Assembly
Wraparound Assembly Door
(same glass retainers as the
Panel Assembly)
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Installing Glass
1) Install both center
and side glass
onto extrusions as
per diagram.
2) Place glass assembly into door frame.
3) Install retainers by placing 1 drop of glue
where previously glued and put in place.
4) Install side retainers.
5) Install door catch plate.
6) Install the 24 nuts loosely, do not tighten yet.
Page 31
MAINTENANCE
7) Tighten side panels nuts using the following
procedure:
a. tighten top & bottom outside corner nuts
(2)
b. tighten inside nuts (3)
c. tighten top & bottom inside corners (2)
8) Tighten the 10 nuts on center glass retainer.
9) Repeat step 7 for other side panel.
10)Replace new gasket by gluing it in place.
11)Install door onto stove and check the seal.

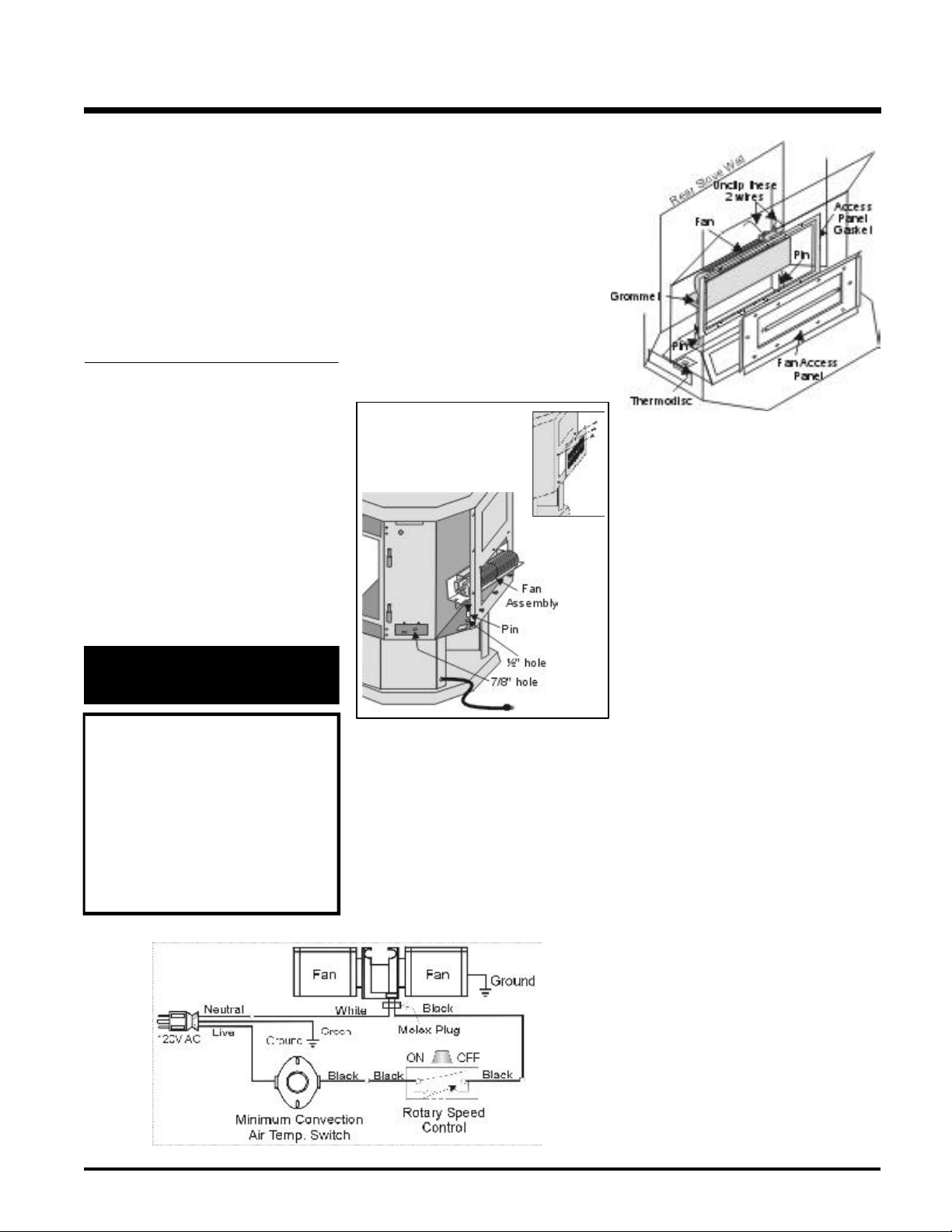

FAN MAINTENANCE
If your fan requires maintenance or replacement, access to the fan is through the plate on
the rear wall of the firebox. NOTE: the unit
MUST NOT be operated without the fan
access panel securely in place and correctly sealed.
IMPORTANT: These fans collect a lot of
dust from within your home. Ensure you maintain these fan motors on a regular basis by vacuuming out the fan squirrel cages,
around the motor, and around the
grills on the back of the stove.
IMPORTANT
Disconnect power supply
before servicing
To remove U39 fan:
1) Unplug or disconnect power source to
stove.
2) Remove all logs and the rear log support,
then remove the 10 screws holding the
access panel in place.
3) Unclip the black and white wires from the
fan motor.
4) Open both side doors and gently pull the
flex pipe away from the center, otherwise
the fan can catch on the flex pipe during
installation and tear the pipe. Do not tear or
damage the flex pipe.
Alternate Fan Access:
If the rear access cover is
accessible, it can be removed
to provide access to the fan.
Replacing U39 Fan:
Reverse the above steps (1 - 5). If necessary
install a new gasket before replacing the fan
access panel. Make sure the fan wires and the
ground wire are reattached.
Hint for pushing fan down onto pins - rub a bit
of dish soap on the grommet so it will slide more
easily onto the pin. Check to make sure the fan
is seated properly on the pins - try to move the
fan back and forth, there should be no noise,
if there is check that the grommets haven't
come loose.
WARNING:
Electrical Grounding Instructions
This appliance is equipped with a
three pronged (grounding) plug
for your protection against shock
hazard and should be plugged
directly into a properly grounded
three-prong receptacle. Do not cut
or remove the grounding prong
from this plug.
5) Lift fan off of the 2 pins, tip back and pull
through firebox opening. Disconnect the
green ground wire from the right side of the
fan as soon as you can reach it.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
31
Page 32
MAINTENANCE

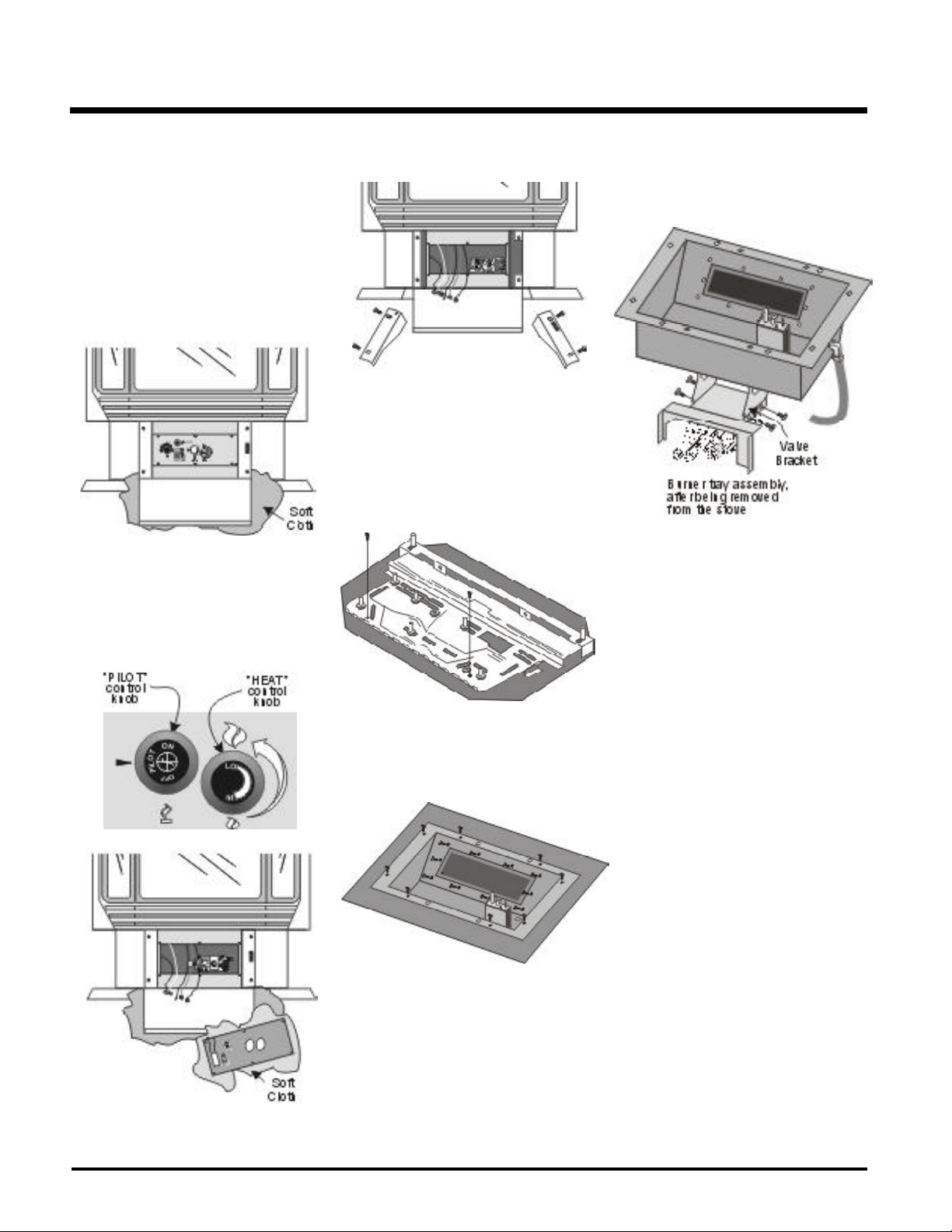

REMOVING VALVE
If your valve requires maintenance or replacement, use the following instructions:
Note: Always close off the gas supply
before removing the valve.
1) Open front pedestal door. You may want
to put a soft cloth on the base of the unit so
that when the pedestal door is open it
doesn't scratch the paint.
2) Undo the six screws holding the control
panel in place.
3) Disconnect all wires from the back of the
panel and then remove panel. You should
lay the panel on a soft cloth so it doesn't get
marked up. See diagram below.
10)To replace the burner tray assembly, simply reverse these instructions.
5) At this point you should disconnect the gas
at the valve. You can access it through the
front now that the control panel is off, or you
can access it through the rear pedestal
cover plate.
6) Carefully remove the logs and lava rock.
7) Remove burner.
4) Remove the two outside frame pieces by
removing two screws per side. See diagram below.
Note: Use a magnetic type screwdriver
if possible.
8) Remove all 18 screws holding the burner
tray assembly in place.
9) Carefully lift the burner tray assembly out.
32
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Page 33

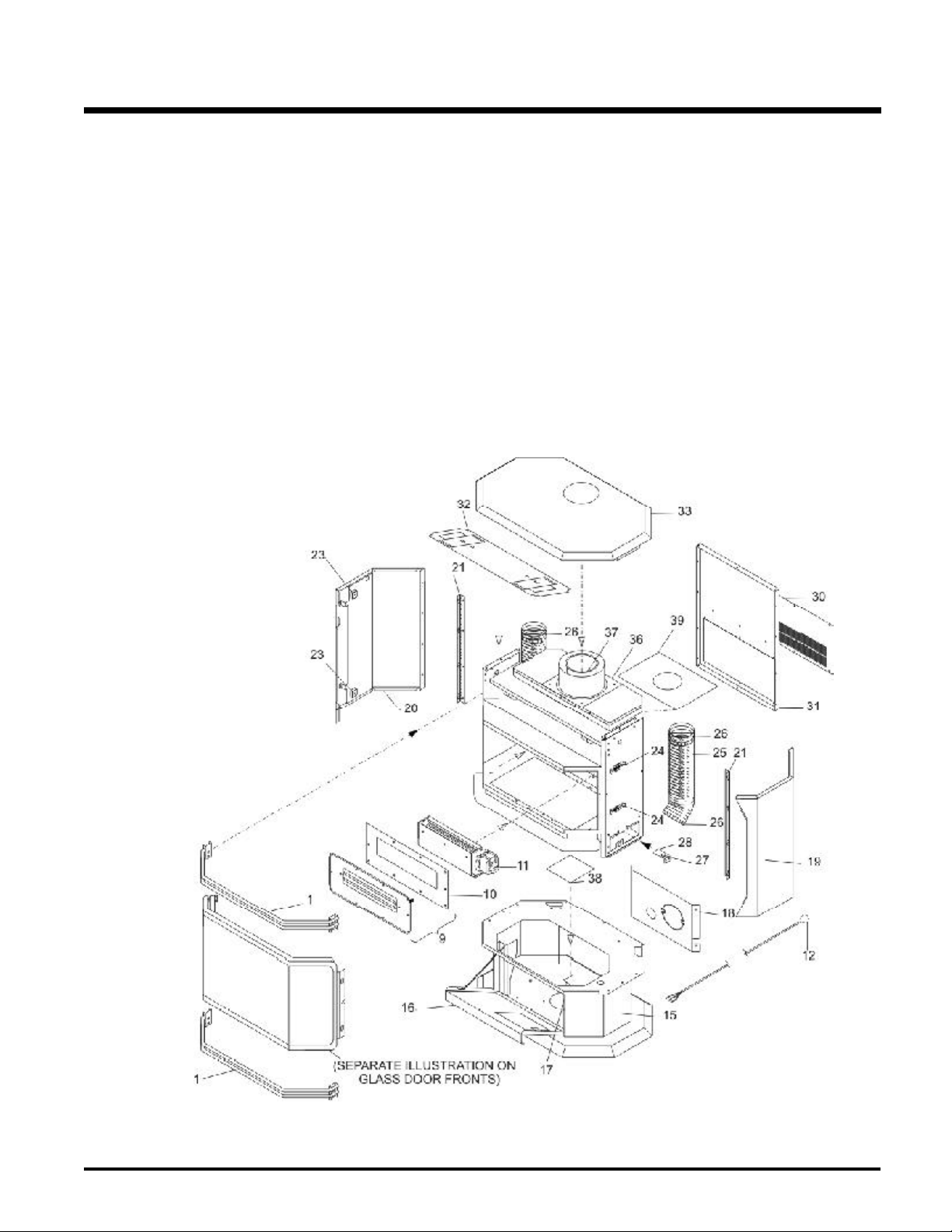

U39 MAIN ASSEMBLY
Part # Description Part # Description
PARTS LIST
1) 560-920 Louver Assy - Gold
560-921 Louver Assy - Brush Nickel
560-922 Louver Assy - Black
9) 730-560 Relief Door Assembly
10) 730-034 Mounting Plate Gasket
11) 730-517/P Fan Assembly
910-331/P Fan Motor (120 Volt)
12) 910-794 Power Cord (120 Volt)
910-330 Fan Speed Control
15) * Pedestal Assembly
16) 730-039 Pedestal Door
17) 904-257 Pedestal Door Magnet
18) 560-025 Pedestal Back
19) 730-530 Short Side Panel Door Assy (Right Side)
20) 730-525 Short Side Panel Door Assy (Left Side)
21) 560-031 Hinge for Side Panel
23) 904-258 Side Panel Door Magnet
24) 948-255 Door Latch c/w Hook
25) * Flex Pipe 3" ID
26) * Hose Clamp
27) 910-233 Thermodisc - Fan Auto/On/Off
28) * Mounting Bracket - Thermodisc
30) 630-021 Fan Access Panel
31) 730-019 Rear Panel
32) 730-565 Firebox Baffle/Restrictor Assy
33) 630-520 False Top Assembly
36) 936-194 Gasket-Starter Collar/Air Passage
37) * Gasket-Flue Collar/Starter Collar
38) 820-058 Pedestal Base Cover
39) * Gasket - Air Passage
948-216 Logo Plate
918-027 Manual
*Not available as a replacement part.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
33
Page 34
PARTS LIST

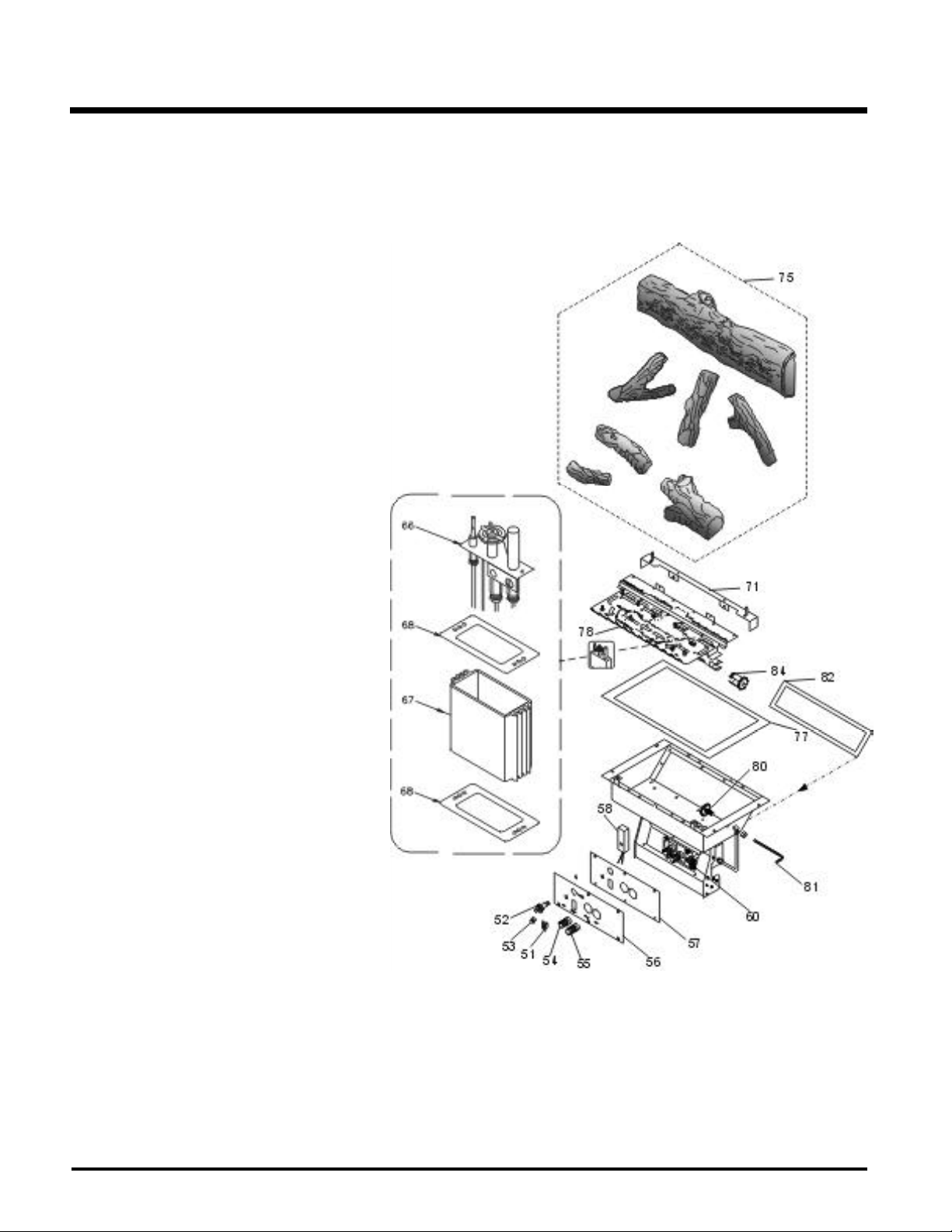

U39 BURNER & LOG ASSEMBLY
Part # Description
51) 910-241 Burner ON/OFF Switch (3-way)
52) 910-190 Piezo Ignitor & Nut
53) 904-586 Knob for Fan Speed Control
54) 910-373 Knob - Pilot Valve Extension
55) 910-372 Flame Adjusting Knob
56) 908-646 Control Panel Decal
57) 650-220 Control Panel Plate
58) 910-330 Fan Speed Control (120 V)
730-574/P Valve Assembly - Natural Gas
730-576/P Valve Assembly - Propane
60) 910-378 Valve S.I.T. - NG
910-380 Valve S.I.T. - LP
66) 910-038 Pilot Assy - S.I.T. - 3 Flame NG
910-039 Pilot Assy - S.I.T. - 3 Flame LP
904-240 #37 Orifice - N.G. at 30,000 Btu/h
904-688 #32 Orifice - N.G. at 38,000 Btu/h
904-390 #52 Orifice - Propane at 30,000 Btu/h
904-641 #50 Orifice - Propane at 38,000 Btu/h
936-170 Orifice Gasket
67) * Pilot Holder
68) W840470 Pilot Assembly Gasket
71) 730-528 Rear Log Bracket
75) 730-935 Log Set
77) 630-008 Gasket - Burner Tray/Firebox
78) 730-550 Burner Assembly (NG/LP)
80) 260-565 Air Shutter Gear Assembly - Female
81) 904-565 Hex Key 3/16" AF
82) 630-009 Gasket-Burner Tray/Air Passage
84) * Air Shutter Gear Assembly - Male
*Not available as a replacement part.
34
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Page 35
Part # Description
730-923 Brush Nickel Mitred Door - Complete
730-924 Gold Mitred Door - Complete
730-926 Black Mitred Door - Complete
730-932 Gold Wrap Door - Complete
730-928 Gold Panel Door - Complete
101) 650-920 Door Gasket Kit
105) * Ceramic Paper
106) 940-323/P Side Glass
107) 936-243 Glass Gasket
108) 940-322/P Centre Glass
111) * Door Frame Fibre Paper
112) 750-015 Door Glass Extrusion
208) 940-325/P Wrap Glass
*Not available as a replacement part.

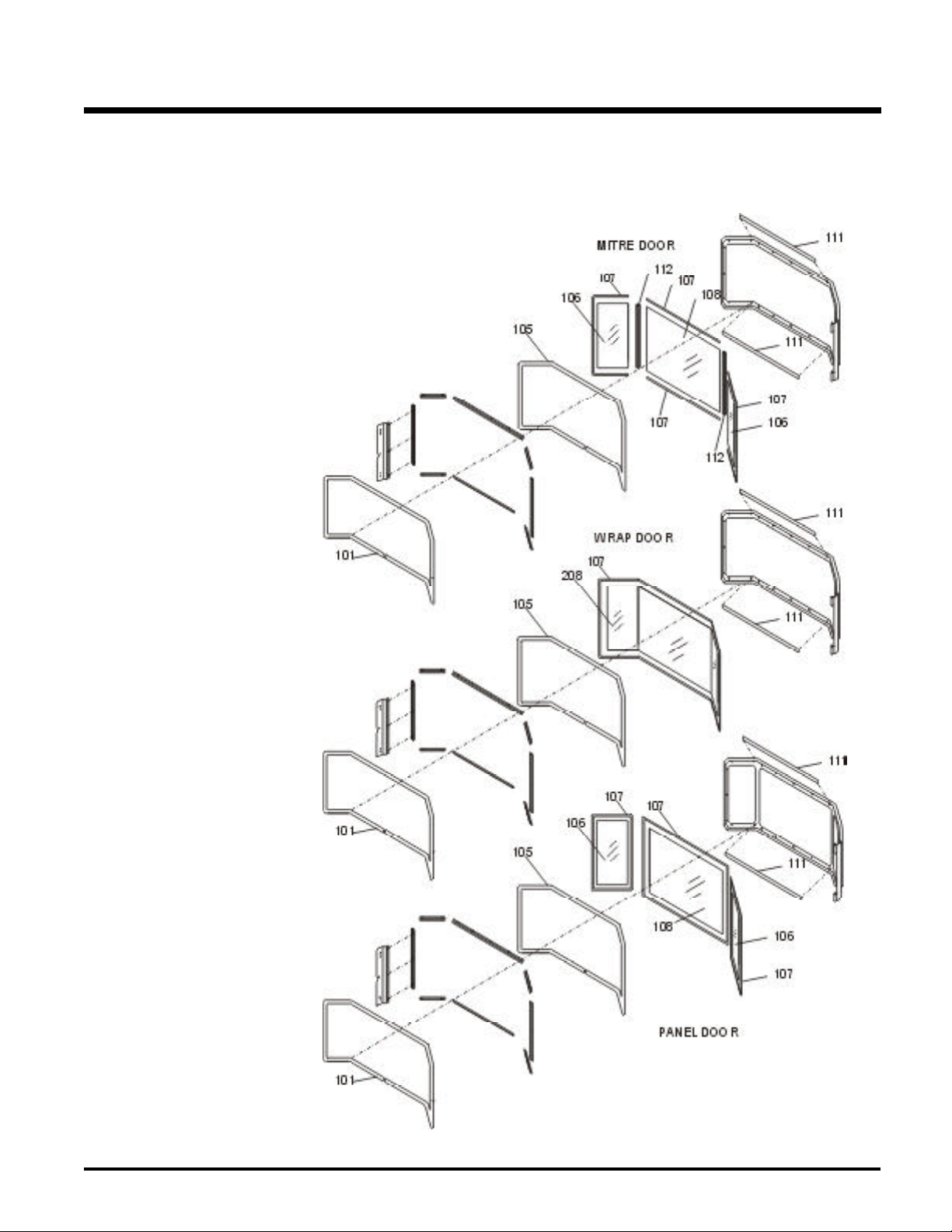

PARTS LIST
U39 DOOR ASSEMBLIES
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
35
Page 36
NOTES
_____________________________________________________________________________________
____________________________________________________________
__________________________________________________________
____________________________________________________________
_______________________________________________________
_____________________________________________________
__________________________________________________________
_________________________________________________________
_________________________________________________________
______________________________________________________
______________________________________________________
_______________________________________________________________
___________________________________________________________
__________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
_____________________________________________________________
__________________________________________________________
__________________________________________________________
_____________________________________________________
________________________________________________________
_________________________________________________________
_________________________________________________________
36
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Page 37
NOTES
_____________________________________________________________________________________
____________________________________________________________
__________________________________________________________
____________________________________________________________
_______________________________________________________
_____________________________________________________
__________________________________________________________
_________________________________________________________
_________________________________________________________
______________________________________________________
______________________________________________________
_______________________________________________________________
___________________________________________________________
__________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
_____________________________________________________________
__________________________________________________________
__________________________________________________________
_____________________________________________________
________________________________________________________
_________________________________________________________
_________________________________________________________
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
37
Page 38
NOTES
_____________________________________________________________________________________
____________________________________________________________
__________________________________________________________
____________________________________________________________
_______________________________________________________
_____________________________________________________
__________________________________________________________
_________________________________________________________
_________________________________________________________
______________________________________________________
______________________________________________________
_______________________________________________________________
___________________________________________________________
__________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
_____________________________________________________________
__________________________________________________________
__________________________________________________________
_____________________________________________________
________________________________________________________
_________________________________________________________
_________________________________________________________
38
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
Page 39
WARRANTY
Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each
unit thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the
purchaser of a Regency Product. This warranty is not transferable.
The Warranty: Limited Lifetime
The combustion chamber, heat exchanger, burner tubes/pans, logs and gold plating (against defective manufacture only) are covered under the Limited Lifetime Warranty
for five (5) years for parts and subsidized labour* and parts only thereafter.
Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for five (5) years and parts only thereafter from date of purchase.
Special Finishes - One year on brushed nickel, louvers and doors. You can expect some changes in color as the product "ages" with constant heating and cooling. FPI
warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors and marks, ie. finger
prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.
Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly
components, and gas valves are covered for one year parts and subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered
repairs and continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date
of replacement.
FPI venting components (Direct Vent units) are covered parts and subsidized labour* for three (3) years from date of purchase.
Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty.
Conditions:
Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent
provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.
It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated
for manufacturer defect.
original
The authorized selling dealer is responsible for all in-field service work carried out on your Regency product. FPI will not be liable for results or costs of workmanship
from unauthorized service persons or dealers.
At all times FPI reserves the right to inspect product in the field which is claimed to be defective.
All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer
name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.
Exclusions:
This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim.
At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured.
ie. as products evolve, field modifications or upgrades will not be performed.
FPI will not be liable for travel costs for service work.
Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.
Embers, glass and door gaskets, door handles and paint are not covered under the terms of this warranty policy.
Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.
The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence
or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by
mechanical systems such as furnaces, fans, clothes dryer, etc.
Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.
FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.
Performance problems due to operator error will not be covered by this warranty policy.
Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from Regency, may nullify
your warranty on this product.
Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.
* Subsidy according to job scale as predetermined by FPI.
Regency U39 ULTIMATE Direct Vent Freestanding Gas Stove
39
Page 40
Regency fireplace products are designed
with reliability and simplicity in mind. In
addition, our internal Quality Assurance
Team carefully inspects each unit
thoroughly before it leaves our
door.
Fireplace Products International
Ltd. is pleased to extend this Limit-
ed Lifetime Warranty to the original
purchaser of a Regency Product.
See the inside back cover for details.
Register your Regency online at
http://www.regency-fire.com
Installer: Please complete the following information
Dealer Name & Address: ________________________________________________
______________________________________________________________________
Installer: ______________________________________________________________
Phone #: ______________________________________________________________
Date Installed: _________________________________________________________
Serial No.:_____________________________________________________________
Regency and Ultimate are trademarks of FPI Fireplace Products International Ltd.
© Copyright 2005, FPI Fireplace Products International Ltd. All rights reserved.
Printed in Canada
Loading...
