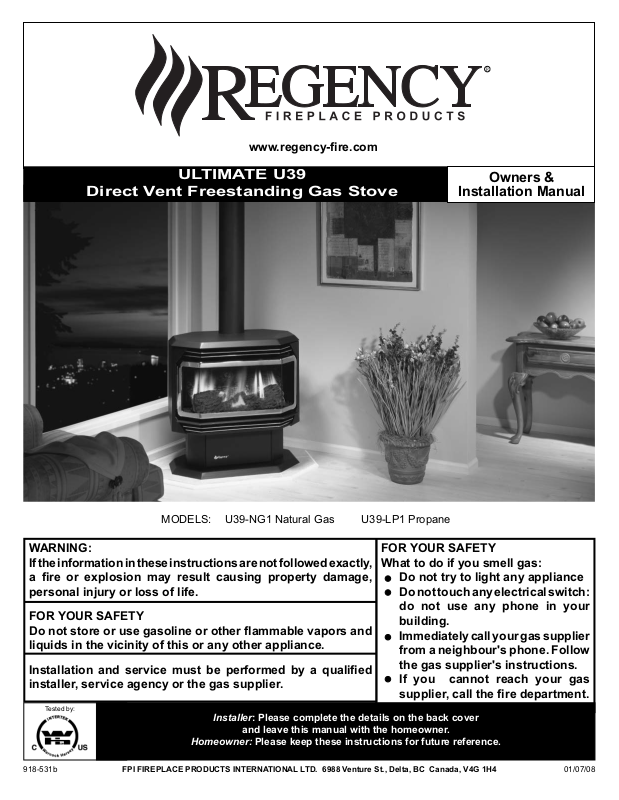

ULTIMATE U39

Direct Vent Freestanding Gas Stove

Owners &

Installation Manual

MODELS: U39-NG1 Natural Gas U39-LP1 Propane

WARNING: If the information in these instructions are not followed exactly, a ﬁ re or explosion may result causing property damage, personal injury or loss of life.

FOR YOUR SAFETY Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁ ed installer, service agency or the gas supplier.

Tested by:

918-531b

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

FOR YOUR SAFETY What to do if you smell gas:

Do not try to light any appliance Do not touch any electrical switch:

do not use any phone in your building.

Immediately call your gas supplier

from a neighbour's phone. Follow the gas supplier's instructions.

If you cannot reach your gas

supplier, call the ﬁ re department.

01/07/08

Page 2

REGENCY

ULTIMATE Direct Vent Freestanding Gas Stove

To the New Owner:

Congratulations! You are the owner of a state-of-the-art ULTIMATE Direct Vent Gas Stove by FPI Fireplace

Products International Ltd. The Regency

provide you with all the warmth and charm of a woodstove, at the ﬂ ick of a switch. The models U39-NG1,

and U39-LP1 of this series has been approved by Warnock Hersey for both safety and efﬁ ciency. As it

also bears our own mark, it promises to provide you with economy, comfort and security for many trouble

free years to follow. Please take a moment now to acquaint yourself with these instructions and the many

features of your ULTIMATE Direct Vent Freestanding Gas Stove.

Gas Series of hand crafted appliances has been designed to

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 3

TABLE OF CONTENTS

SAFETY LABEL

Copy of Safety Label .....................................................4

REQUIREMENTS

MA Code - CO Detector ................................................5

INSTALLATION

Important Message ........................................................6

Speciﬁ cations ................................................................6

Information For Mobile/Manufactured Homes

After First Sale ...............................................................6

Before You Start ............................................................6

General Safety Information ...........................................7

Installation Checklist ......................................................7

Clearances To Combustibles .........................................7

Manufactured Mobile Home Additional Requirements ..8

Locating your Ultimate Gas Stove ...............................8

Louver Installation .........................................................8

Combustion and Ventilation Air .....................................8

Venting Introduction ......................................................8

Exterior Vent Terminal Locations ................................... 9

4” x 6-5/8” Rigid Pipe Cross Reference Chart .............10

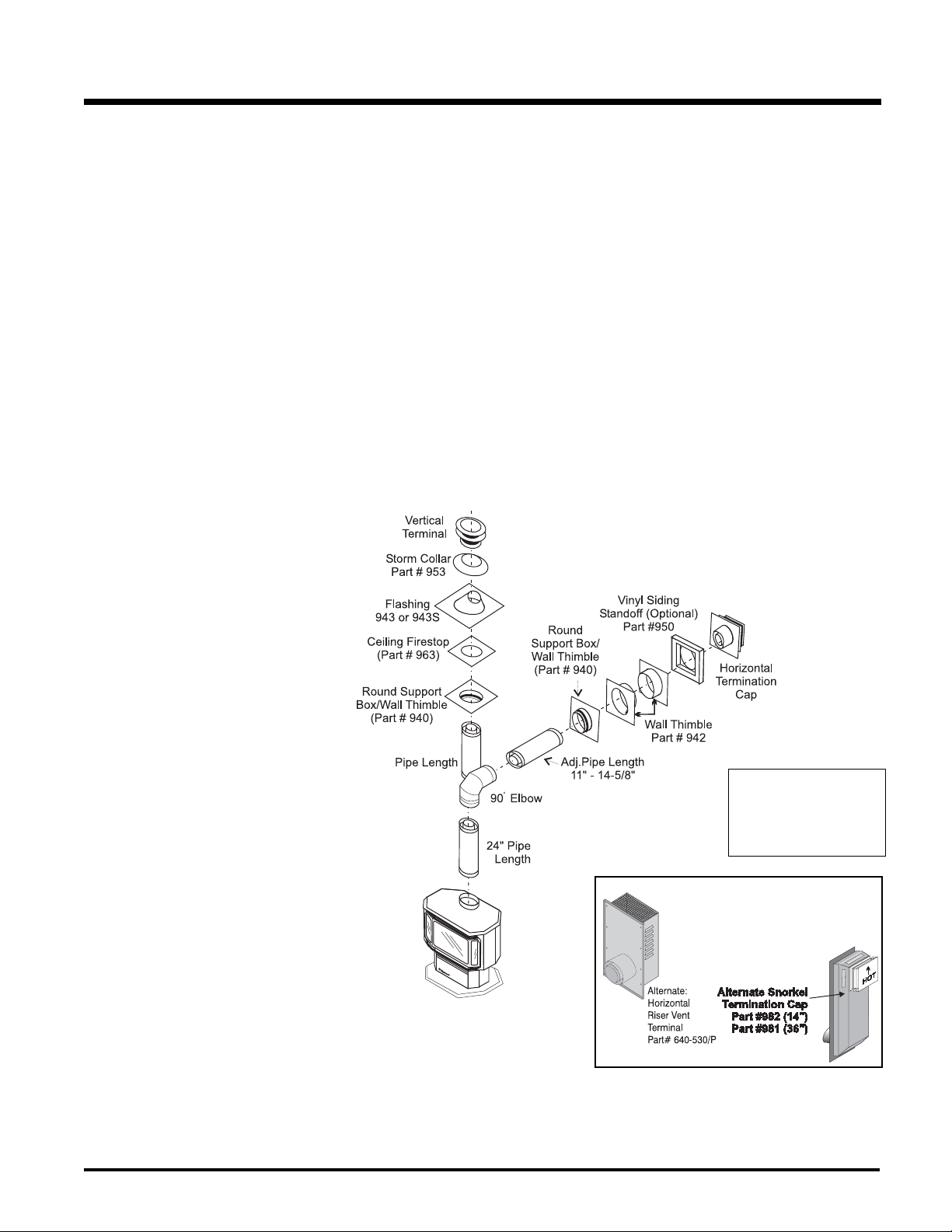

Rigid Pipe Venting Systems ........................................12

Installation Precautions ...............................................13

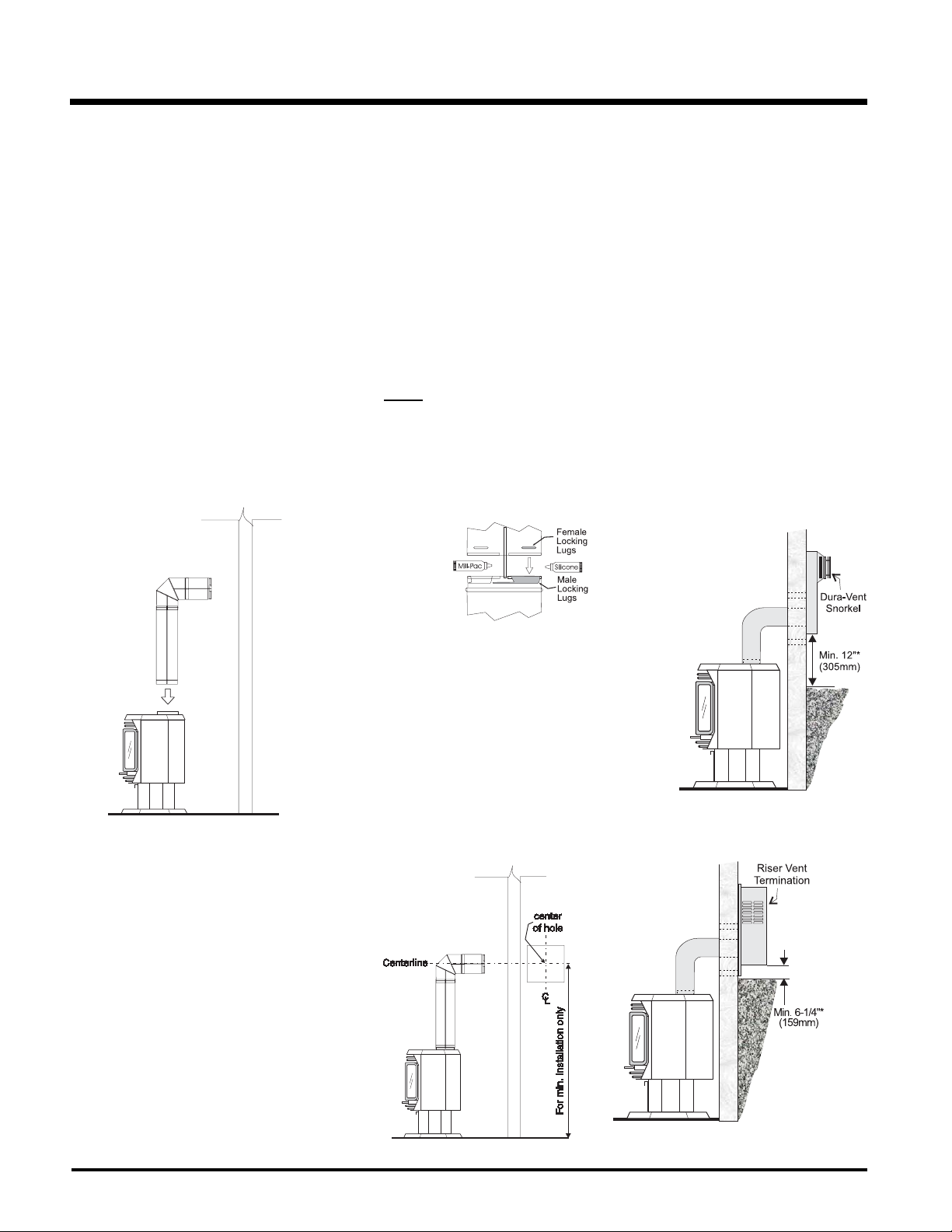

Rigid Pipe Venting Arrangements ................................13

DV Stove Horizontal Vent Kit Installation ....................15

Dura-Vent Termination Kit ............................................17

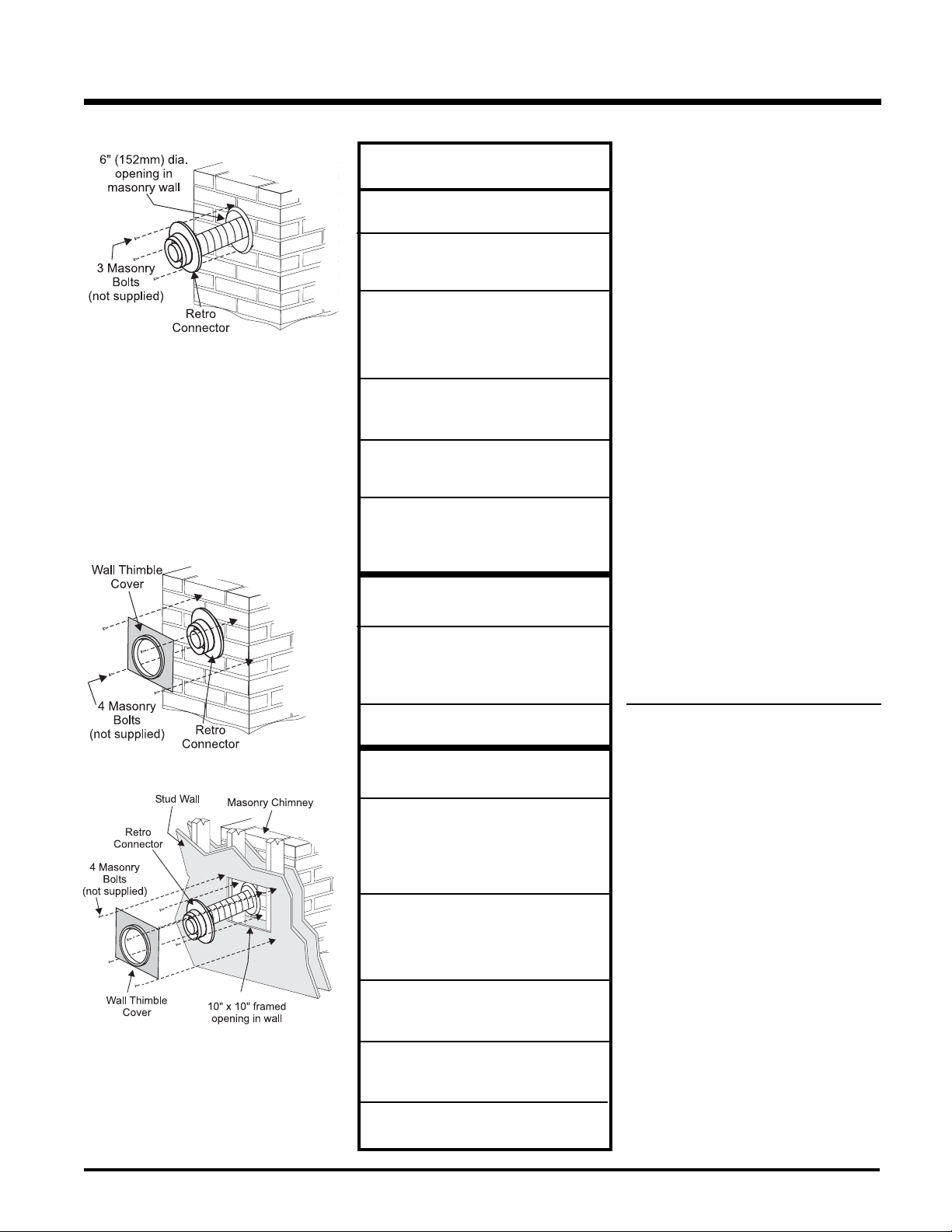

Converting a Class-A Metal Chimney or

Masonry Chimney to a Direct Vent System ................21

Gas Connection ...........................................................23

High Elevation .............................................................23

Conversion Kit# 731-969 from NG to LP .....................24

Conversion to Lower BTU Rating ................................27

Gas Pipe Pressure Testing ..........................................27

Aeration Adjustment ....................................................28

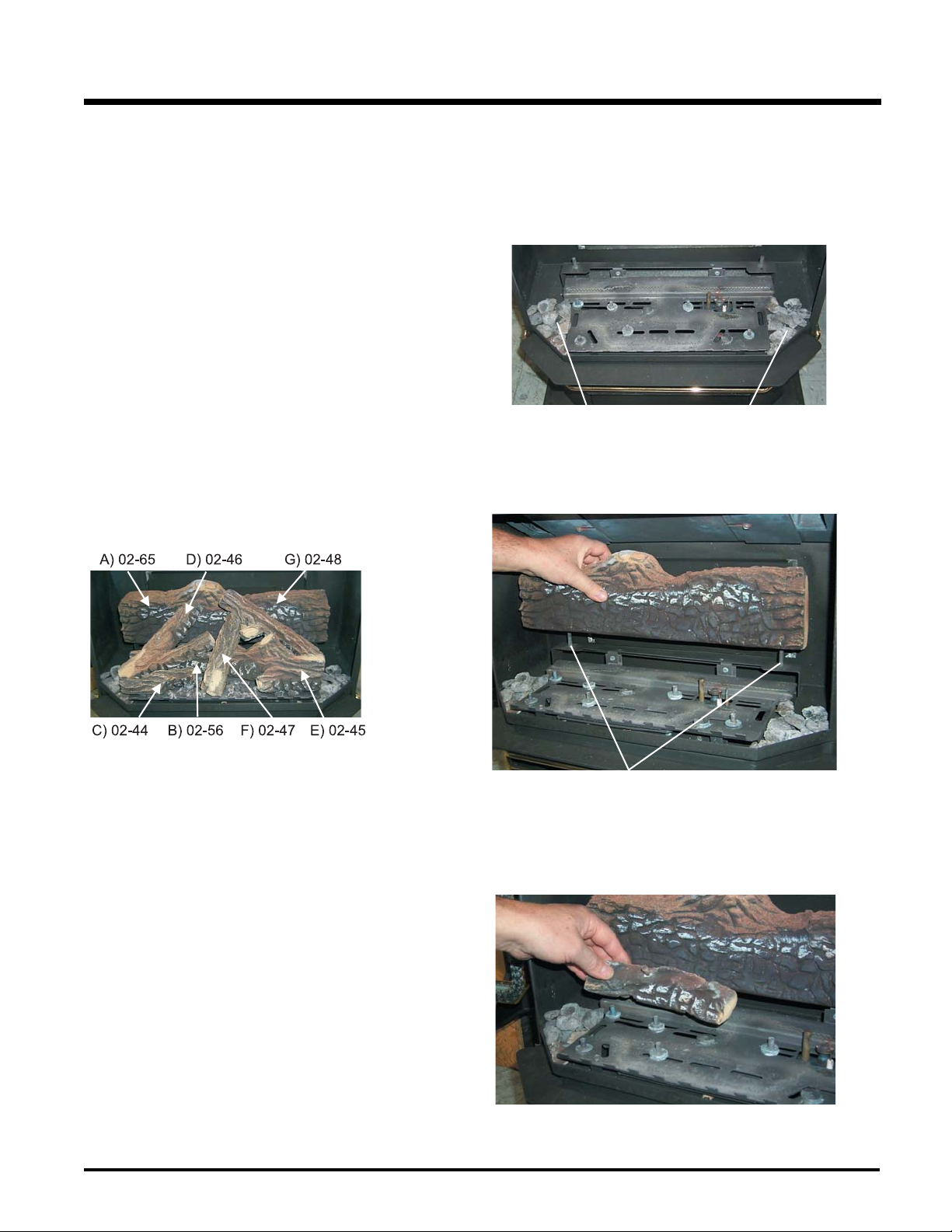

Log Set Installation ......................................................29

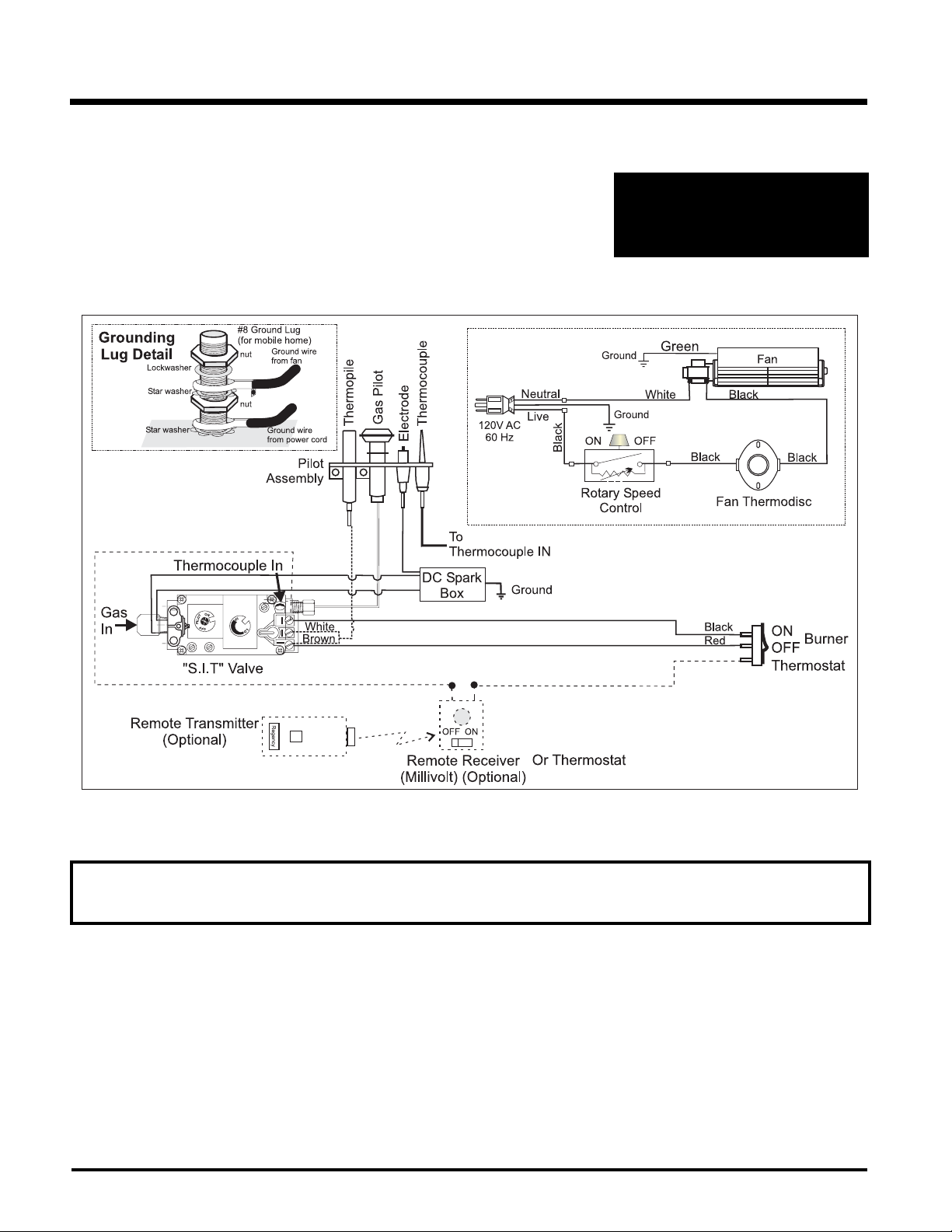

Wiring Diagram ............................................................32

Optional Wall Thermostat ...........................................33

Optional Remote Control ............................................33

Final Check .................................................................33

OPERATING INSTRUCTIONS

Operating Instructions ................................................34

Shutdown Instructions .................................................34

First Fire ......................................................................34

Lighting Procedure ......................................................34

Automatic Convection Fan Operation .........................35

Normal Operating Sounds of Gas Appliances .............35

MAINTENANCE

Maintenance Instructions ............................................36

General Vent Maintenance ..........................................36

Gold-Plated Doors .......................................................36

Log Replacement ........................................................37

Door Gasket ...............................................................37

Latch Adjustment .........................................................37

Glass Replacement .....................................................37

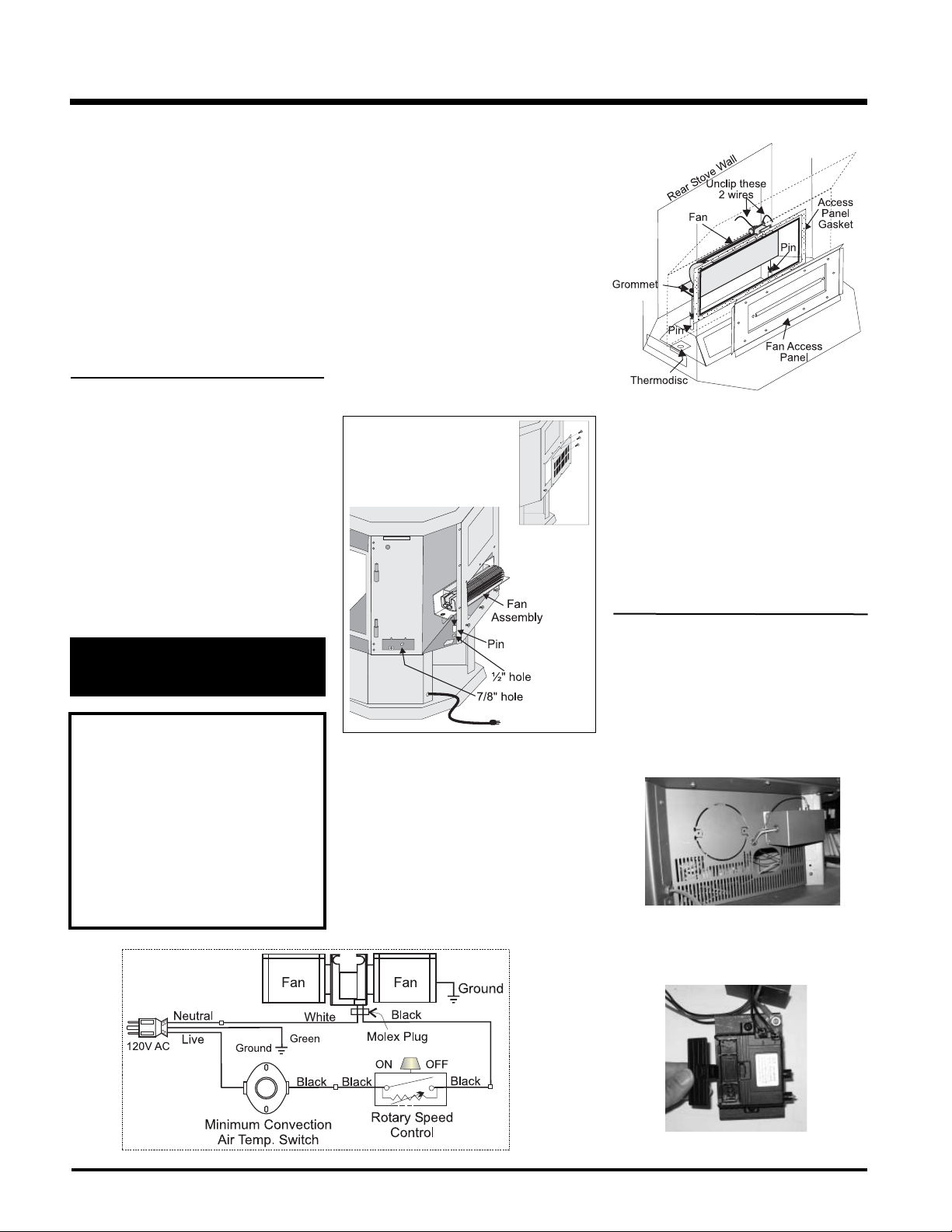

Fan Maintenance .........................................................38

DC Sparker Battery Replacement ...............................38

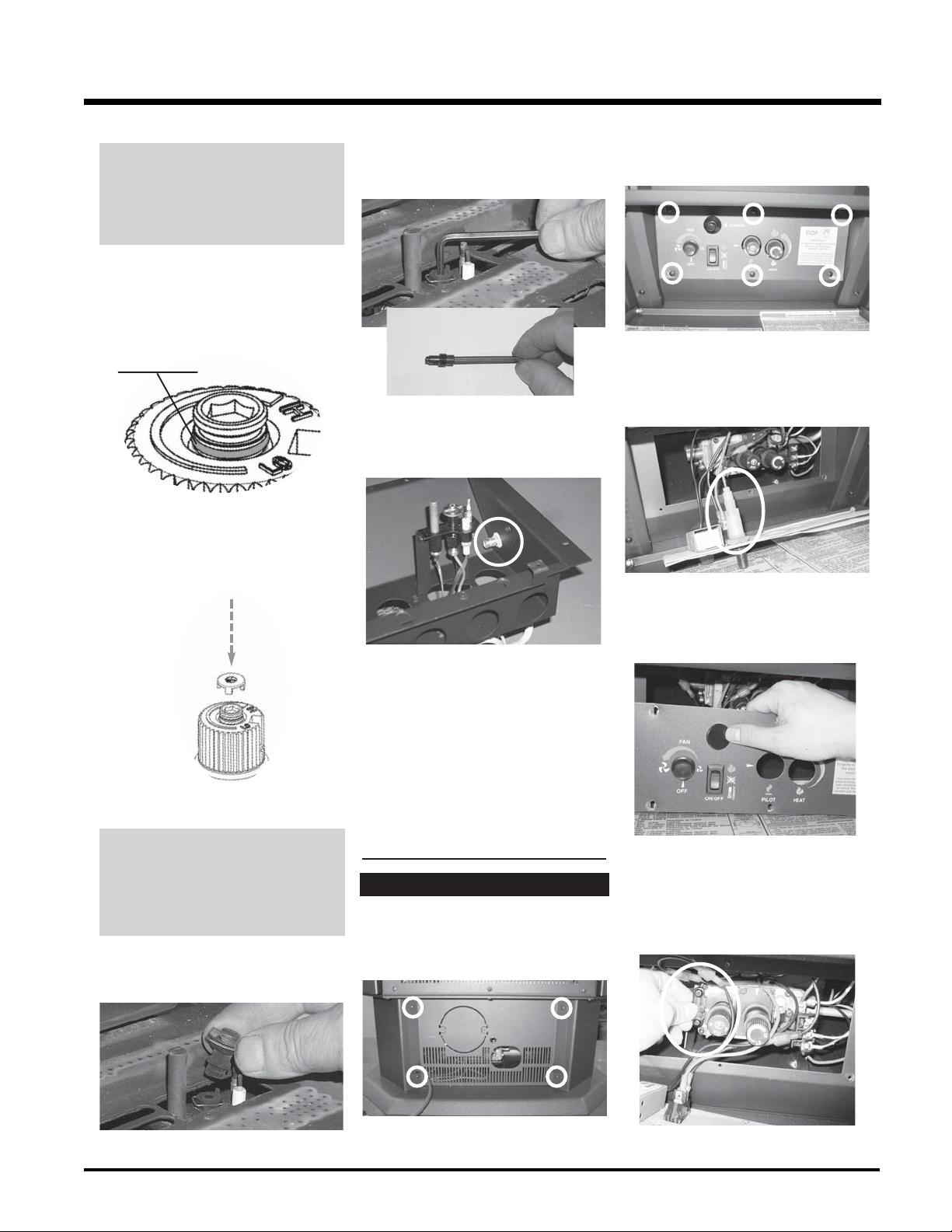

Removing Valve ...........................................................39

PARTS LIST

Main Assembly ............................................................40

Burner & Log Assembly ...............................................41

Door Assemblies .........................................................42

WARRANTY

Warranty ......................................................................43

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 4

SAFETY LABEL

This is a copy of the label that accompanies each ULTIMATE Direct Vent Freestanding Gas Stove. We have printed a copy of the contents here for your review. The safety

Copy of Safety Label for U39 Gas Stove

label is located on the inside of the drop down pedestal door.

NOTE: Regency® units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

For the State of Massachusetts, installation and repair must be done by a plumber or gasﬁ tter licensed in the Commonwealth of Massachusetts.

For the State of Massachusetts, ﬂ exible connectors shall not exceed 36 inches in length.

For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.

The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm with battery back up in the same room where the gas appliance is installed.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 5

REQUIREMENTS

MA Code - CO Detector

(for the State of Massachusetts only)

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies "special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 6

INSTALLATION

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The ULTIMATE Direct Vent Freestanding Gas Stove must be installed in accordance with these instructions. Carefully read all the instructions in this manual ﬁ rst. Consult the building authority having jurisdiction to determine the need for a permit prior to starting the installation.

Note: Failure to follow the instructions

could cause a malfunction of the heater which could result in death, serious bodily injury, and/or property damage. Failure to follow these instructions may also void your ﬁ re insurance and/or warranty.

Note: These instructions take preced-

ence over Simpson Dura-Vent instructions.

SPECIFICATIONS

Fuels: U39-NG1 is approved for use with

natural gas.

U39-LP1 is approved for use with

liqueﬁ ed petroleum gases (propane).

Electrical: 120V A.C. system.

Circulation Fan: Variable speed, 125/75.

Log Sets: Ceramic ﬁ bre, 7 per set.

Vent System: Coaxial (6-5/8" outer / 4" inner

liner) rigid ﬂ ue and termination cap.

INFORMATION FOR

MOBILE/

MANUFACTURED

HOMES AFTER

FIRST SALE

This Regency® product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards: CAN/ CGA-2.17-M91 and ANSI Z21.88b-2003/CSA

2.33b-2003.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/ NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This Regency® Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the unit.

This Regency® Mobile/Manufactured Home listed appliance comes equipped with a dedicated #8 ground lug to which an 18 gauge copper wire from the steel

chassis ground must be attached.

This appliance may only be installed in an aftermarket permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certiﬁ ed

kit is used.

BEFORE YOU START

Safe installation and operation of this appliance requires common sense, however, we are required by the Canadian Safety Standards and ANSI Standards to make you aware of the following:

INSTALLATION AND REPAIRS SHOULD BE DONE BY A QUALIFIED SERVICE PERSON. THIS APPLIANCE SHOULD BE INSTALLED, REPAIRED, INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY A QUALIFIED SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, ETC. IT IS IMPERATIVE THAT THE CONTROL COMPARTMENT, BURNERS AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND

AWAY FROM FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS APPLIANCE CORRECTLY WILL VOID YOUR WARRANTY AND MAY CAUSE A SERIOUS HOUSE FIRE.

CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

1) Provide adequate clearances for

servicing, proper operation and around the air openings into the combustion chamber.

2) The appliance may be installed on a ﬂ at,

solid, continuous surface (e.g. wood, metal, concrete). This may be the ﬂ oor, or it can be raised up on a platform to enhance its visual impact. The appliance may be installed on carpeting, tile, wood ﬂ ooring or other combustible material, because the appliance's metal pedestal base extends the full width and depth of the appliance. The ULTIMATE Direct Vent Freestanding Gas Stove can be installed in a wide variety of ways and will ﬁ t nearly any room layout. It may be installed in a recessed position, framed out into the room, or across a corner.

3) The ULTIMATE Direct Vent Freestanding Gas

Stove is approved for alcove installations, which meet the clearances as listed in the "Locating Your Ultimate Gas Stove" section. This unit is approved for manufactured home installations, see "Rigid Pipe Venting Arrangements" section for the required vent arrangements. If installed into a manufactured home the unit must be bolted down to the ﬂ oor.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 7

INSTALLATION

4) This appliance is Listed for bedroom

installations when used with a Listed Millivolt Thermostat. Some areas may have further requirements, check local codes before installation.

5) This appliance is Listed for Alcove

installations, maintain minimum Alcove clearances as follows, minimum width of 48" (1219mm), a maximum depth of 36" (914mm), and minimum ceiling height of 64"(1626mm).

6) We recommend that you plan your installation

on paper using exact measurements for clearances and floor protection before actually installing this appliance. Have a qualiﬁ ed building inspector review your plans before installation.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform with

local Canadian Electrical Code.

2) The appliance when installed, must be

electrically grounded in accordance with local codes, or in the absence of local codes with the current National Electrical Code, ANSI/NFPA 70 or CSA C22.1 Canadian Electrical Code.

3) The appliance should be inspected for shipping damage before use and serviced

annually by a professional service person. More frequent cleaning may be

required due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments, and circulating air passageways of the appliance be kept clean and free from excessive lint from carpeting.

4) See general construction and assembly instructions. The appliance and vent should be enclosed when installed in or passing through a living area, where children may come in contact with it.

5) This appliance must be connected to the speciﬁ ed vent and termination cap to the outside of the building envelope. Never vent to another room or inside a building. Make sure that the vent is ﬁ tted as per the instructions starting in "Locating Your Ultimate Gas Stove" section.

6) Inspect the venting system annually for blockage and any signs of deterioration.

7) Venting terminals shall not be recessed into a wall or siding.

8) Any safety glass removed for servicing

must be replaced prior to operating the appliance.

9) To prevent injury, do not allow anyone who

is unfamiliar with the operation to use the ﬁ replace.

Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

INSTALLATION

CHECKLIST

1) Loate your appliance. Refer to the following

sections:

a. Locating Your Ultimate Gas Stove b. Exterior Vent Termination Locations c. Clearance to Combustibles d. Combustion and Ventilation Air

2) Install Louvers. Refer to the "Louver

Installation" section.

3) Choose a venting option and install

accordingly. Refer to the following sections where applicable:

a. DV Stove Horizontal Vent Kit Installation b. Dura-Vent Termination Kit c. Set Vent Restrictors. Refer to "Rigid

Pipe Venting Arrangement" section.

d. Converting a Class-A Metal Chimney

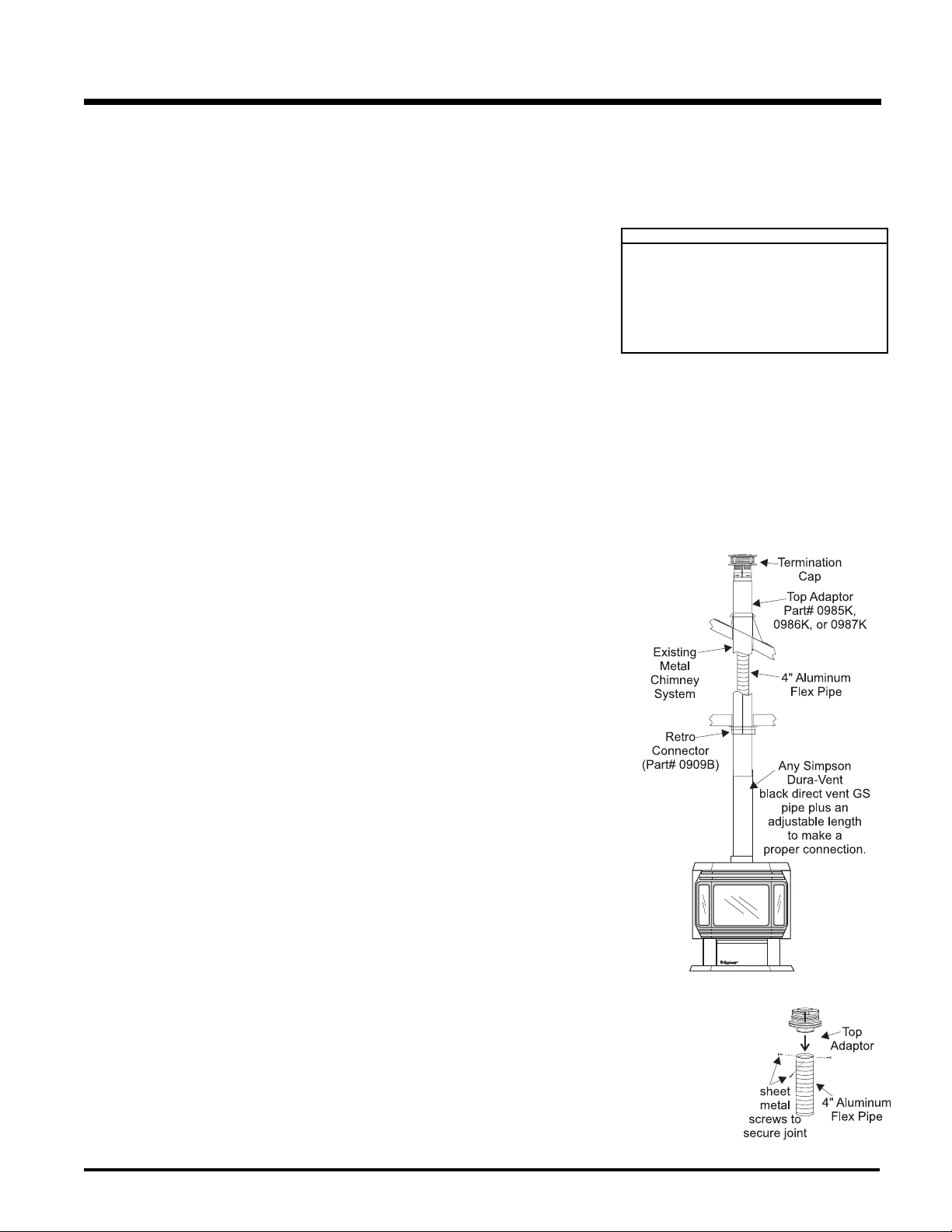

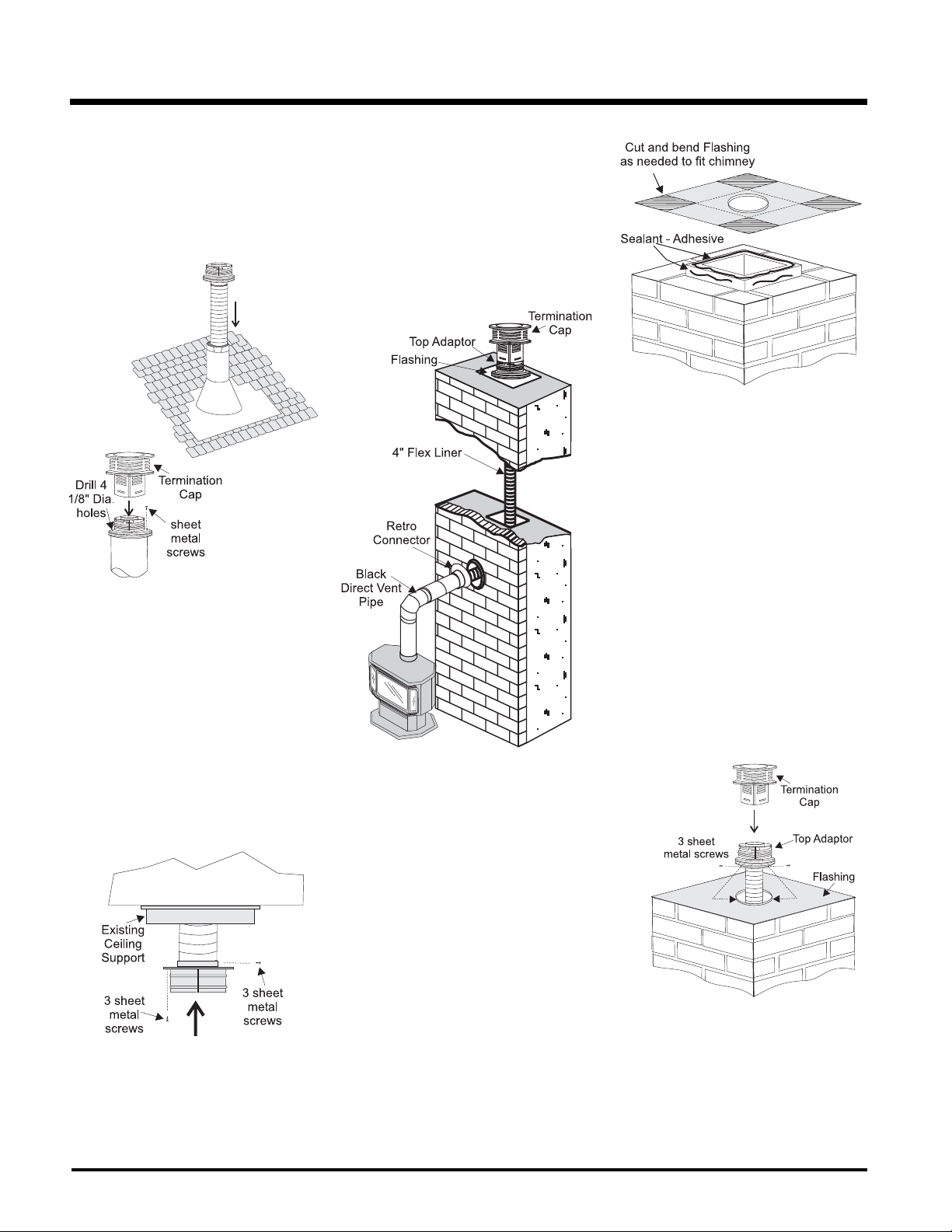

or Masonry Chimney to a Direct Vent system.

4) Make gas connections. Refer to "Gas

Connection" section.

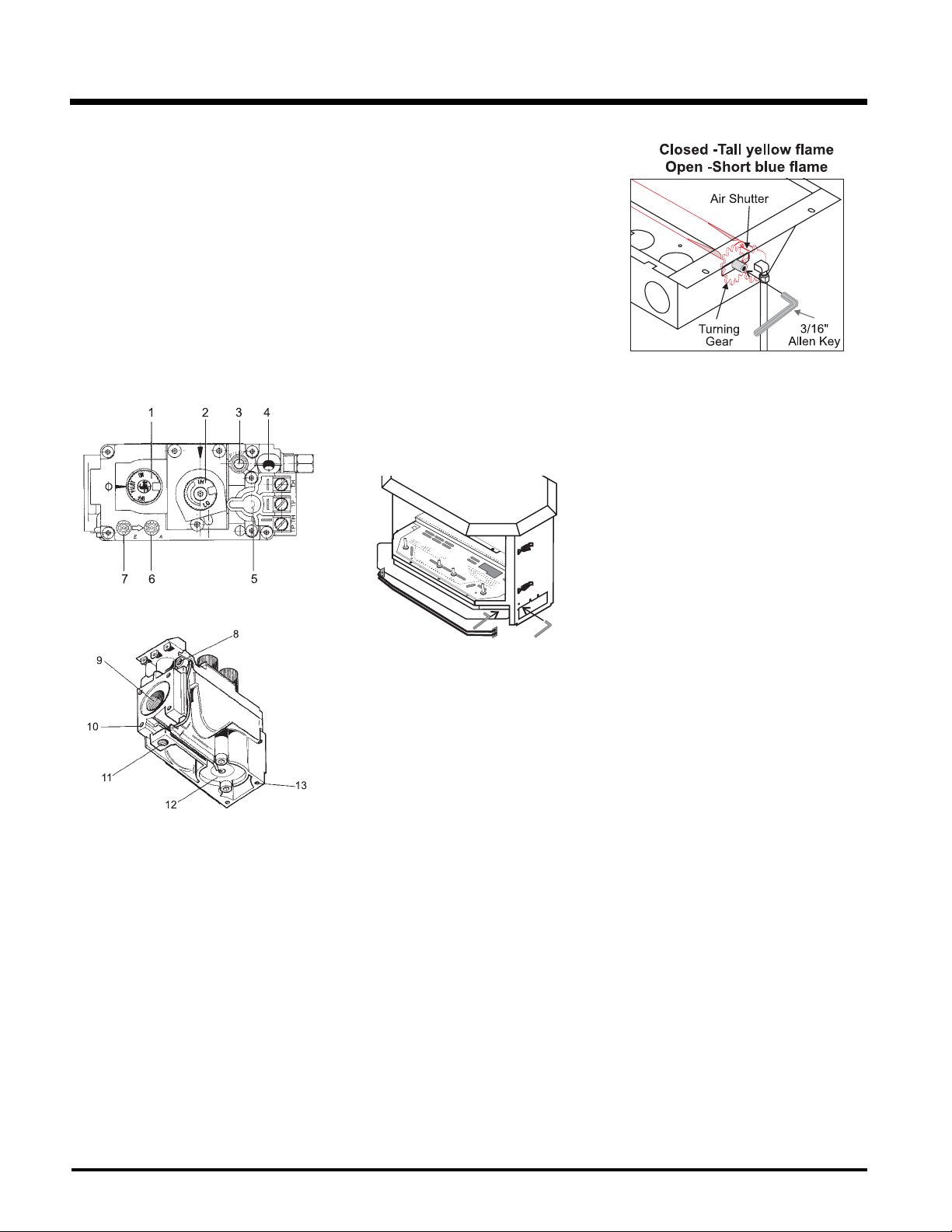

Test the pilot. Must be as per diagram. Refer

to "Pilot Adjustment" section.

5) If necessary, see the "Conversion from NG

to LPG" section and "Conversion to Lower BTU Rating" section.

6) Test Gas Pressure. Refer to "Gas Pipe

Pressure Testing" section .

7) Install standard and optional features.

Refer to the following sections where applicable:

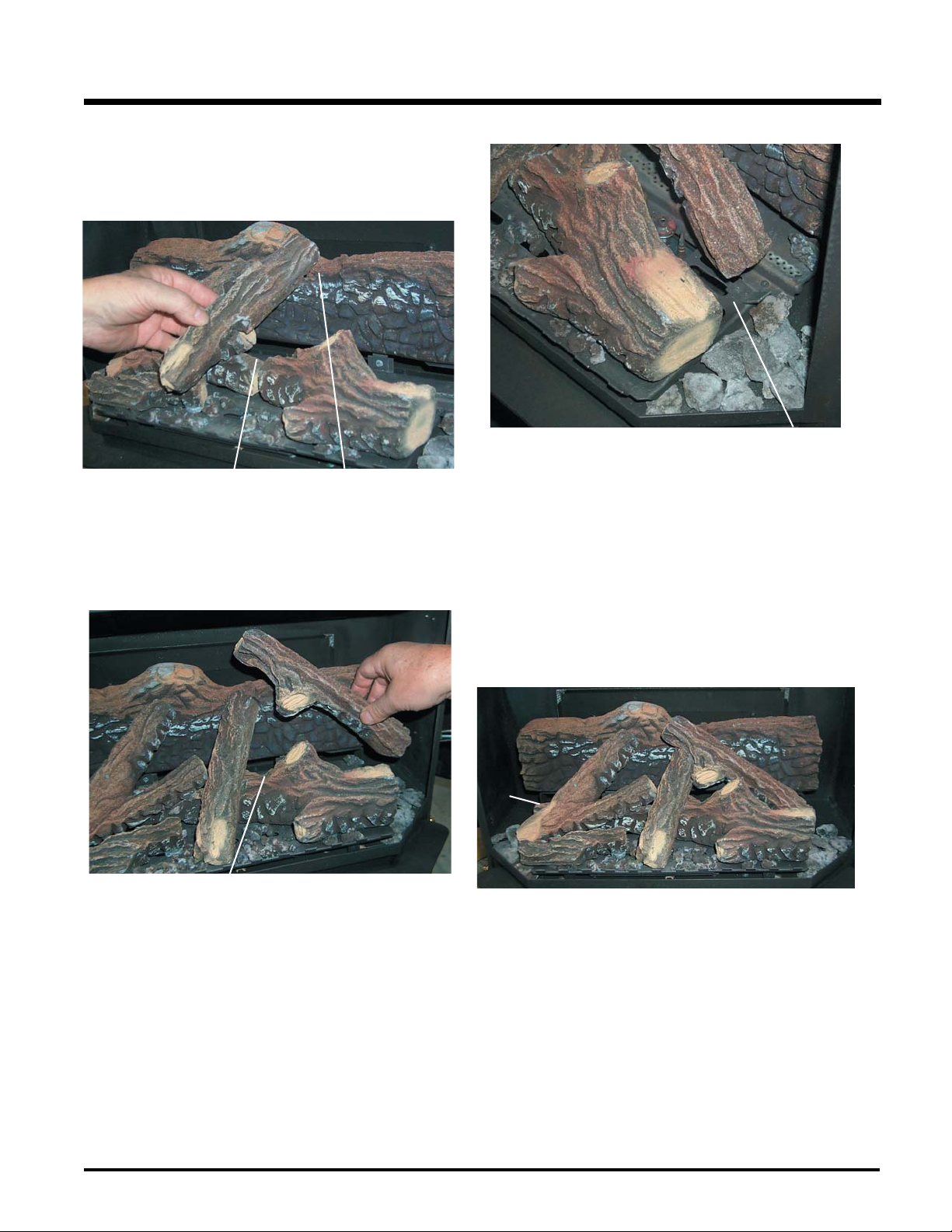

a. Log Set b. Front Door c. Wall Thermostat d. Remote Control

8) Final check. Refer to the "Final Check"

section.

Before leaving this unit with the customer, the installer must ensure that the appliance is ﬁ ring correctly and operation fully explained

to customer.

This includes:

1) Clocking the appliance to ensure the correct

ﬁ ring rate (rate noted on label) after burning appliance for 15 minutes.

2) If required, adjusting the primary air to ensure

that the ﬂ ame does not carbon. First allow the unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that causes sooting or carboning that results in damage is not the responsibility of the manufacturer.

CLEARANCES TO

COMBUSTIBLES

The clearances listed are MINIMUM distances. Measure the clearance to both the appliance and the chimney connector. The farthest

distance is correct if the two clearances do not coincide.

For example, if the appliance is set as indicated in one of the ﬁ gures but the connector is too close, move the stove until the correct clearance to the connector is obtained.

This appliance may be installed only with the clearances as shown in the situations pictured.

Do not combine clearances from one type of installation with another in order to achieve closer clearances.

This unit can be installed on a solid combustible surface like a wood ﬂ oor. This unit can also be installed directly on carpeting or vinyl when the bottom pedestal cover plate (provided with unit) is installed.

Use the minimum clearances shown in the diagrams below:

U39-NG1 & U39-LP1 Clearances

A Side Wall to Unit 7-1/2" / 190 mm B Back Wall to Unit 6" / 150 mm E Side Wall to Unit 2" / 50 mm

U39-NG1 & U39-LP1 Reference

Dimensions

C Back Wall to Flue Centerline 11"/280 mm D Side Wall to Flue Centerline 20-1/2"/521 mm F Side Wall to Flue Centerline 11"/280 mm Minimum ceiling height is 36" / 914 mm from top of unit.

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 8

INSTALLATION

Minimum ceiling

height is 36"/914mm

from top of unit.

A) Cross Corner B) Room Divider C) Island D) Flat on Wall E) Flat on Wall Corner F) Flush with Wall/ Alcove

For Vent Termination requirements, see "Exterior Vent termination Locations" section.

LOUVER

INSTALLATION

1) Attach the top & bottom louvers to the

side stove panel using 2 screws per side.

VENTING

INTRODUCTION

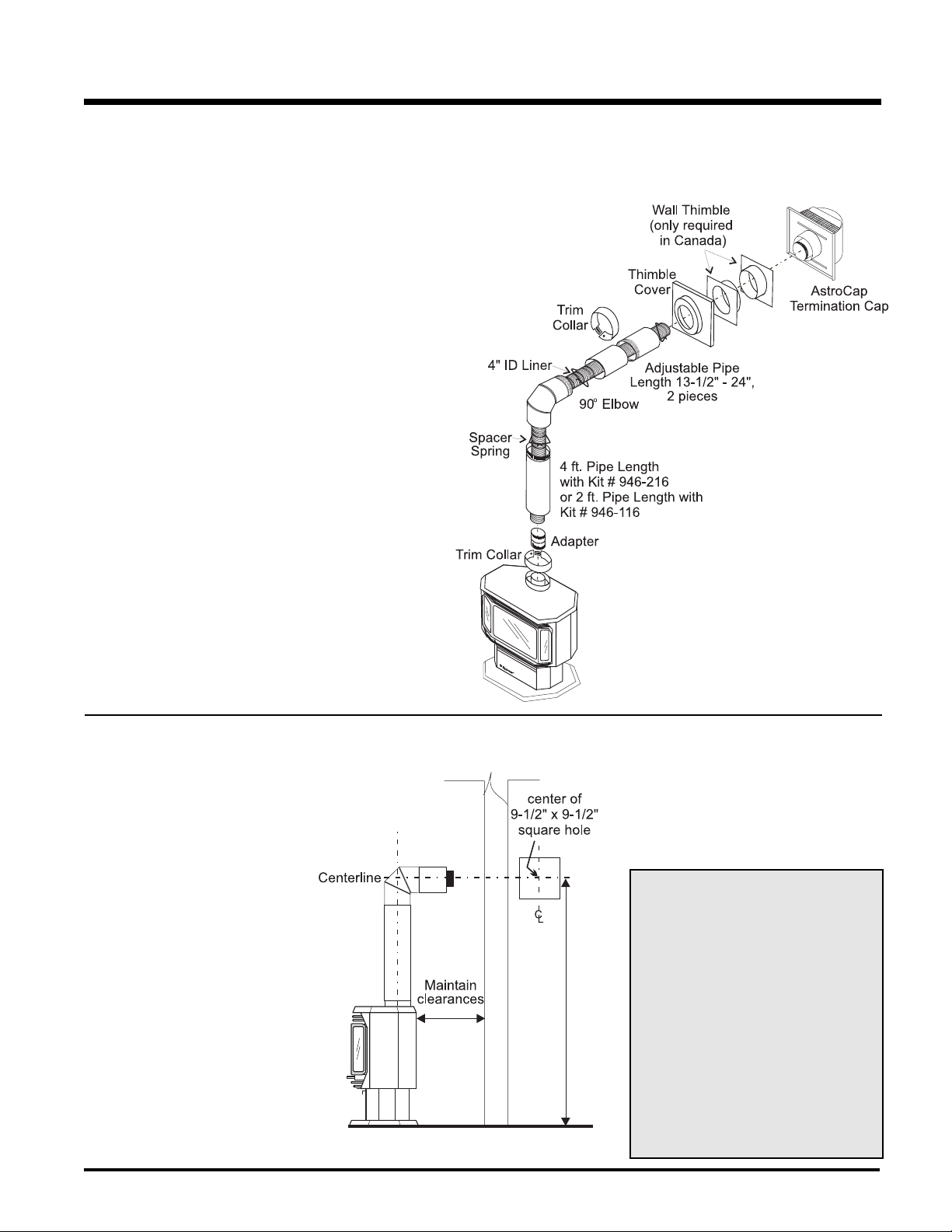

The DV Stove Horizontal Vent Kit and the Simpson Dura-Vent Direct Vent System Model DV-GS venting systems, in combination with the ULTIMATE Direct Vent Freestanding Gas Stove, U39-NG1, and U39-LP1, have been tested and listed as direct vent heater systems by Warnock Hersey. If converting a Class-A Metal Chimney or Masonry Chimney to a Direct Vent system, see instructions in "Converting a Class-A Metal Chimney or Masonry Chimey to a Direct Vent System" section.

These units use the "balanced ﬂ ue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer pipe draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.

Note: These flue pipes must not be

connected to any other appliance.

The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not cut

or weakened during installation.

2) Ensure proper grounding using the #8 ground

lug provided.

3) Appliance must be anchored to the ﬂ oor with

the supplied anchoring methods.

LOCATING YOUR

ULTIMATE GAS STOVE

When selecting a location for your stove, ensure that the clearances listed above are met as well as ensuring that there is adequate accessibility for servicing and proper operation.

Read all instructions carefully before starting the

IMPORTANT

installation. Failure to follow these instructions may create a ﬁ re or other safety hazard, and will void the warranty. Be sure to check the venting and clearance to combustible requirements. Consult your local building codes before beginning installation.

The location of the termination cap must conform to the requirements in the "Exterior Vent Terminal Locations" section.

COMBUSTION AND

VENTILATION AIR

The combustion air from this appliance is drawn from outside the building through the outer ﬂ ue.

Extra provision for combustion air inside the room is not required.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 9

EXTERIOR VENT TERMINAL LOCATIONS

INSTALLATION

with Dura-Vent termination cap (min. 12"/30cm)

horizontally from the centerline of the regulator.

H= Not to be installed above a meter/regulator assembly within (3'/90cm)

air inlet to any other appliance *(12"/30cm)

J= Clearance to service regulator vent outlet *(min. 36"/90cm)

K= Clearance to non-mechanical air supply inlet to building or the combustion

property *(min. 84"/2.1m)

L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m)

M= **Clearance above paved sidewalk or a paved driveway located on public

N= Clearance under veranda, porch, deck, or balcony *(min. 12"/30cm)***

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

12"/30cm)

A= Clearance above grade, veranda, porch, deck, or balcony *(min.

B= Clearance to window or door that may be opened *(12"/30cm)

horizontal distance of (24"/60cm) from the centerline of the terminal (min.

18"/46cm) check with local code.

C= Clearance to permanently closed window *(min. 12"/30cm)

D= Vertical clearance to ventilated sofﬁ t located above the terminal within a

with Dura-Vent termination cap (min. 12"/30cm)

E= Clearance to unventilated sofﬁ t (min. 12"/30cm)

F= Clearance to outside corner: with AstroCap Termination Cap (min. 6"/15cm),

Note: * As speciﬁ ed in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.

G= Clearance to inside corner: with AstroCap Termination Cap (min. 6"/15cm),

**A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.

Page 10

INSTALLATION

4” X 6-5/8” RIGID PIPE CROSS REFERENCE CHART

Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.

Description

6” Pipe Length, Galvanized 6” Pipe Length, Black 7” Pipe Length, Galvanized 7” Pipe Length, Black 9” Pipe Length, Galvanized 9” Pipe Length, Black 12” Pipe Length, Galvanized 12” Pipe Length, Black 18” Pipe Length, Galvanized 18” Pipe Length, Black 24” Pipe Length, Galvanized 24” Pipe Length, Black 36” Pipe Length, Galvanized 36” Pipe Length, Black 48” Pipe Length, Galvanized 48” Pipe Length, Black 60” Pipe Length, Galvanized 60” Pipe Length, Black

Adjustable Length 3”-10”, Galvanized Adjustable Length 3”-10”, Black Adjustable Length 11”-14”, Galvanized Adjustable Length 11”-14”, Black Adjustable Length 17”-24”, Galvanized Adjustable Length 17”-24”, Black Adjustable Length 7”, Galvanized Adjustable Length 7”, Black Extension Pipe 8-1/2”, Galvanized Extension Pipe 8-1/2”, Black Adjustable Length 12”, Galvanized Adjustable Length 12”, Black Extension Pipe 16”, Galvanized Extension Pipe 16”, Black

Simpson

Direct Vent Pro

46DVA-06 908 4DT-6 N/A 4D6 SV4L6

46DVA-06B 908B 4DT-6B N/A 4D6B SV4LB6

N/A N/A N/A 4D7 N/A N/A

N/A N/A N/A 4D7B N/A N/A

46DVA-09 907 4DT-9 N/A N/A N/A

46DVA-09B 907B 4DT-9B N/A N/A N/A

46DVA-12 906 4DT-12 4D12 4D12 SV4L12

46DVA-12B 906B 4DT-12B 4D12B 4D12B SV4LB12

46DVA-18 N/A 4DT-18 N/A 4D18 SV4LA

46DVA-18B N/A 4DT-18B N/A 4D18B SV4LA

46DVA-24 904 4DT-24 4D2 4D24 SV4L24

46DVA-24B 904B 4DT-24B 4D2B 4D24B SV4LB24

46DVA-36 903 4DT-36 4D3 4D36 SV4L36

46DVA-36B 903B 4DT-36B 4D3B 4D36B SV4LB36

46DVA-48 902 4DT-48 4D4 4D48 SV4L48

46DVA-48B 902B 4DT-48B 4D4B 4D48B SV4LB48

46DVA-60 N/A N/A N/A N/A N/A

46DVA-60B N/A N/A N/A N/A N/A

N/A N/A N/A N/A 4DAL N/A

N/A N/A N/A N/A 4DALB N/A

Disc - See 46DV-08A N/A 4DT-AJ N/A N/A N/A

Disc - See 46DV-08AB 911B 4DT-AJB N/A N/A N/A

Disc - See 46DV-16A 917 - N/A from FPI N/A N/A N/A N/A

Disc - See 46DV-16AB 917B N/A N/A N/A SV4LBA24

N/A N/A N/A 4D7A N/A N/A

N/A N/A N/A 4D7AB N/A N/A

46DVA-08A N/A N/A N/A N/A N/A

46DVA-08AB N/A N/A N/A N/A N/A

N/A N/A N/A 4D12A N/A SV4LA12

N/A N/A N/A 4D12AB N/A SV4LBA12

46DVA-16A N/A N/A N/A N/A N/A

46DVA-16AB N/A N/A N/A N/A N/A

Simpson

Direct Vent GS

Discontinued

Selkirk

Direct-Temp™

American Metal

Products

Amerivent Direct

Metal-Fab

Sure Seal

Security

Secure Vent

45º Elbow, Galvanized 45º Elbow, Black 45º Elbow, Swivel, Galvanized

45º Elbow, Swivel, Black

90º Elbow, Galvanized 90º Elbow, Black 90º Elbow, Swivel, Galvanized

90º Elbow, Swivel, Black

90º Starter Elbow, Swivel, Galvanized* Adaptor*

Ceiling Support Cathedral Support Box Wall Support/Band Offset Support Wall Thimble, Black Wall Thimble Support Box/Ceiling Support Firestop Spacer Trim Plate, Black Masonry Chimney Flashing Brass Trim for Wall Thimble/Ceiling Support

46DVA-E45 945 4DT-EL45 4D45L N/A N/A

46DVA-E45B 945B 4DT-EL45B 4D45LB N/A N/A

Disc - See 46DVA-E45 945G N/A N/A 4D45L SV4E45 Disc - See 46DVA-

E45B 46DVA-E90 990 4DT-EL90S 4D90LS N/A N/A

46DVA-E90B 990B

Disc - See 46DVA-E90 990G N/A N/A 4D90L SV4E90-1 Disc - See 46DVA-

E90B N/A N/A N/A N/A 4D90A N/A

N/A N/A N/A N/A 4DDA N/A

N/A 949 - N/A from FPI 4DT-CS 4DFSP 4DSP SV4SD

46DVA-CS 941 4DT-CSS 4DRSB 4DRS SV4CSB

46DVA-WS 988 4DT-WS/B 4DWS 4DWS SV4BM

46DVA-ES - N/A from FPI

46DVA-WT 942 4DT-WT 4DWT 4DWT SV4RSM

46DVA-DC N/A N/A N/A N/A SV4PF

46DVA-FS 963 4DT-FS 4DFSP 4DFS SV4BF

N/A N/A 4DT-TP 4DFPB 4DCP SV4LA

N/A N/A N/A N/A N/A N/A

DISC. 3951 N/A N/A N/A N/A

945BG N/A N/A 4D45LB SV4EB45

4DT-EL90SB

990BG N/A N/A 4D90LB SV4EB90-1

989 - N/A from FPI 4DT-OS N/A N/A SV4SU

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

4D90LBS N/A SV4EBR90-1

Page 11

INSTALLATION

4” x 6-5/8” Rigid Pipe Cross Reference Chart (Cont.)

Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.

Description

Attic Insulation Shield 12” Attic Insulation Shield - Cold Climates 36”

Simpson

Direct Vent Pro

46DVA-IS - N/A from FPI

N/A N/A N/A 4DAIS36 N/A N/A

Simpson

Direct Vent GS

Discontinued

N/A N/A 4DAIS12 N/A SV4RSA

Selkirk

Direct-Temp™

American Metal

Products

Amerivent Direct

Metal-Fab

Sure Seal

Security

Secure Vent

Basic Horizontal Termination Kit (A)

Horizontal Termination Kit (B)

Vertical Termination Kit

High Wind Vertical Cap High Wind Horizontal Cap Horizontal Square Termination Cap Vertical Termination Cap Storm Collar

Adjustable Flashing, 0/12-6/12 Adjustable Flashing, 6/12-12/12

Vinyl Siding Standoff Vinyl Siding Shield Plate

Snorkel Termination 14” Snorkel Termination 36”

Restrictor Disk Extended Vertical Termination Cap Chimney Conversion Kit A Chimney Conversion Kit B Chimney Conversion Kit C Chimney Conversion Kit Masonry Mansonry Chimney Conversion Kit

(includes: Cap Adapter 18”x18” Flashing)

Wall Firestop Colinear Flex Connectors

FPI

946-506/P Vent Guard (Optional) for AstropCap 946-205 Vinyl Siding Shield for Riser Vent Terminal

510-994 Rigid Pipe Adapter (Must use with all Rigid Piping) 946-208/P Vent Guard (Optional) for Riser Vent Terminal

640-530/P Riser Vent Terminal 946-523/P AstroCap Horizontal Cap

DISC. 970 4DT-HKA 4DHTK2 4DHTKA SV - SHK 46DVA-KHA

(Changed Components) DISC. 978 4DT-VKC 4DVTK 4DVTK SV - FK

46DVA-VCH 991 N/A N/A N/A N/A

46DVA-HC 985 N/A N/A N/A N/A

Disc - See 46DVA-HC 984 4DT-HHC 4DHC 4DHT SV4CHC-1

46DVA-VC 980 4DT-HVC 4DVC 4DVT SV4CGV-1

46DVA-SC 953 4DT-SC 4DSC 4DSC SV4FC

46DVA-F6 943 4DT-AF6 4DF 4DF SV4FA

46DVA-F12 943S 4DT-AF12 4DF12 4DF-12 SV4FB

46DVA-VSS 950 4DT-VS N/A 4DVS SV4VS

N/A N/A 4DT-VSP N/A N/A SV4VS

46DVA-SNK14 982 4DT-ST14 4D12S 4DST14 SV4STC14

N/A 981 4DT-ST36 4D36S 4DST36 SV4STC36

46DVA-RD 929 N/A N/A N/A N/A

46DVA-VCE 930 N/A N/A N/A N/A

46DVA-KCA 931 N/A N/A N/A N/A

46DVA-KCB 932 N/A N/A N/A N/A

46DVA-KCC 933 N/A N/A N/A N/A

46DVA-KMC 934 N/A N/A N/A N/A

46DVA-KCT 935 N/A N/A N/A N/A

46DVA-WFS 947 N/A N/A N/A N/A

46DVA-ADF 923F N/A N/A N/A N/A

971 4DT-HKB 4DHTK1 4DHTKB SV - HK

946-206 Vinyl Siding Standoff for AstroCap

*NOTE: When using Metal-Fab Sure Seal Rigid Piping please note that either the Adaptor (4DDA) or 90º Starter Elbow (4D90A) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).

Offset Pipe Selection:

Use this table to determine offset pipe lengths.

Pipe Length

0”(0mm) 4-7/8”(124mm) 13-3/8”(340mm)

6”(152mm) 8”(203mm) 16-1/2”(419mm)

9”(229mm) 10-1/8”(257mm) 18-5/8”(473mm)

12”(305mm) 12-1/4”(311mm) 20-3/4”(527mm)

24”(610mm) 20-5/8”(524mm) 29-1/8”(740mm)

36”(914mm) 29”(737mm) 37-1/2”(953mm)

48”(1219mm) 37-7/16”(951mm) 45-15/16”(1167mm)

NOTE: Horizontal runs of vent must be level, or have a 1/4 inch rise for every 1 foot of run towards the termination. Never allow the vent to run downward. This could cause high temperatures and may present a possible ﬁ re hazard.

4” x 6-5/8” Venting

Run (X) Rise (Y)

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

For speciﬁ c instructions or details on particular venting components please visit the following websites:

Simpson Direct Vent Pro: www.duravent.com

Selkirk Direct-Temp: www.selkirkcorp.com

American Metal Products Amerivent Direct:

www.americanmetalproducts.com

Metal-Fab Sure Seal: www.mtlfab.com

Security Secure Vent: www.securitychimneys.com

Page 12

INSTALLATION

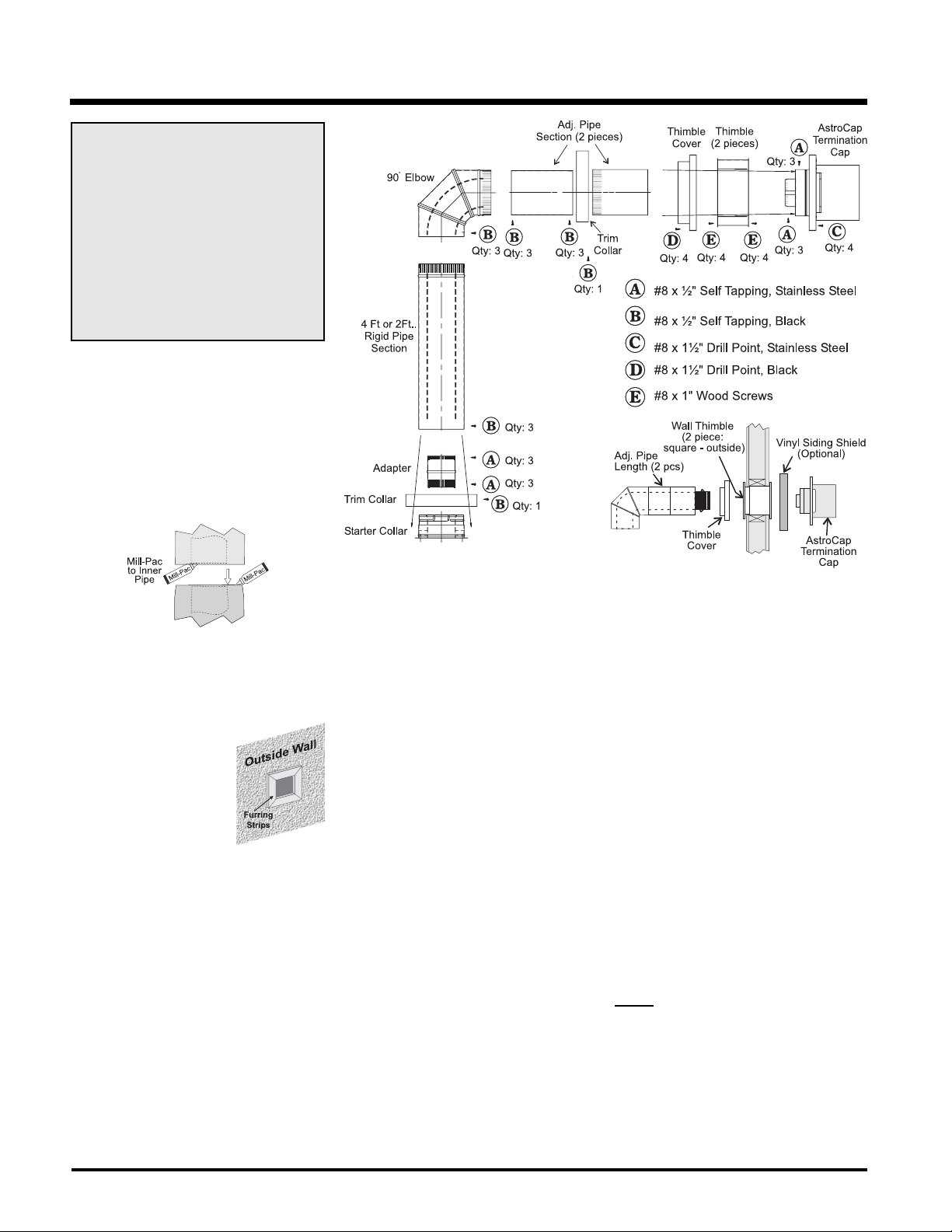

Alternate Horizontal Termination Caps

RIGID PIPE VENTING SYSTEMS

Horizontal or Vertical Terminations

WARNING:

Do not combine venting components from different venting systems.

However use of the the AstroCapTM and FPI Riser is acceptable with all systems.

This product has been evaluated by Intertek for using a Rigid Pipe Adaptor in conjunction with Duravent Direct-Vent GS, Selkirk Direct-Temp, Ameri Vent Direct venting and Security Secure Vent systems. Use of these systems with the Rigid Pipe adaptor is deemed acceptable and does not affect the Intertek WHI listing of components.

The FPI AstroCap American Metal Products Ameri Vent Direct Vent, Security Secure Vent®, Selkirk Direct-Temp. AstroCapTM is a proprietary trademark of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent GS are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

and FPI Riser Vent terminal are certiﬁ ed for installations using FPI venting systems as well as Simpson Dura-Vent® Direct Vent GS,

When using Rigid Vent other than

Simpson Dura-Vent, 3 screws must be

used to secure rigid pipe to adaptor.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 13

INSTALLATION

PRECAUTIONS

These venting systems are engineered products that have been designed and tested for use with the U39-NG1, and U39-LP1. The warranty will be voided and serious ﬁ re, health or other safety hazards may result from any of the following actions:

1) Installation of any damaged Direct Vent

component

2) Unauthorized modiﬁ cation of the Direct

Vent System

3) Installation of any component part not

manufactured or approved by Simpson Dura-Vent or Fireplace Products International Ltd.

4) Installation other than as instructed

by Simpson Dura-Vent and Fireplace Products International Ltd.

Warning: Always maintain required clearances (air spaces) to nearby combustibles to prevent a ﬁ re hazard. Do not ﬁ ll air spaces with insulation.

RIGID PIPE VENTING ARRANGEMENTS

Horizontal Terminations for All

Venting Systems

The shaded areas in the diagram below show all allowable combinations of vertical runs with horizontal terminations. Maximum one 90O elbow (two 45o elbows equal one 90o elbow).

Propane and Natural Gas:

Residential, Manufactured and

Mobile Homes Installations

The venting arrangements diagrammed below, have a min. of 75% (ﬂ ue loss) efﬁ ciency with Fan Off, as required for manufactured homes. (Actual efﬁ ciency may be as high as 85%)

May be installed in Manufactured (Mobile)

Homes after ﬁ rst sale.

Vertical Termination Systems for

Residential Manufactured and

Mobile Homes

The shaded area in the diagram below shows all allowable combinations of straight vertical and offset to vertical runs with vertical terminations. Maximum two 45o elbows.

If the vent is ENCLOSED in a chase (min. size 9" x 9") maintain a 1-1/4" clearance to combustibles.

May be installed in Manufactured (Mobile)

Homes after ﬁ rst sale.

Be sure to check the vent termination clearance requirements from decks, windows, sofﬁ ts, gas regulators, air supply inlets and public walkways as speciﬁ ed in the "Exterior Vent Terminal Locations" section in your local building codes.

The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each

direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.

SAFETY

PRECAUTIONS FOR

THE INSTALLER

1) Wear gloves and safety glasses for

protection.

2) Exercise extreme caution when using

ladders or on roof tops.

3) Be aware of electrical wiring locations

in walls and ceilings.

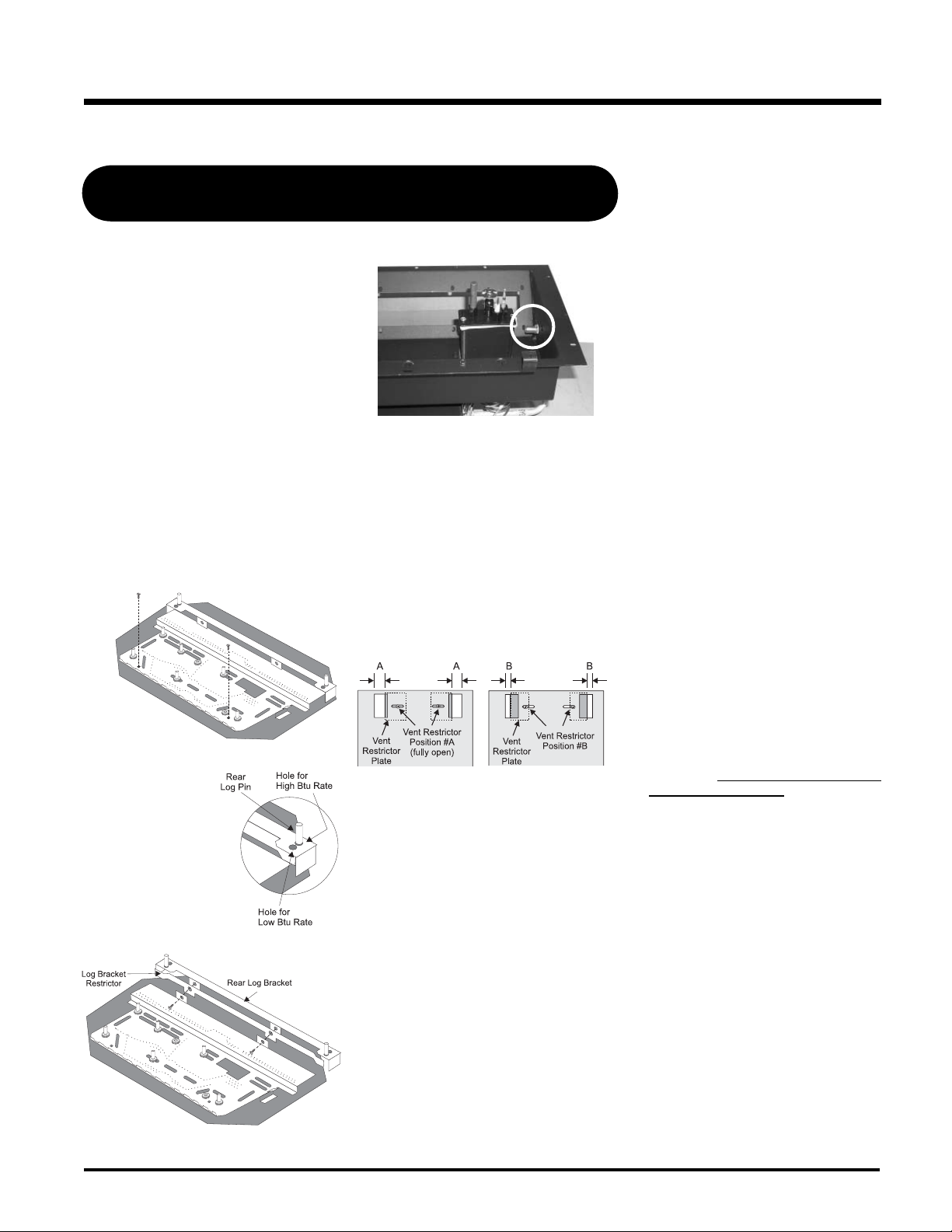

To set the Vent restriction as indicated in the diagram, simply loosen the screws and push the vent restrictor plate to the correct position. Tighten the screws.

Vent Restrictor Position

Vent Restrictor setting at

38,000 Btu/h

Vent Restrictor setting at

30,000 Btu/h

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 14

INSTALLATION

Horizontal Venting with Two (2) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H + H1

A) 3' Min. 2' Max. B) 5' Min. 3' Max. C) 8' Min. 4' Max.

With these options, maximum total pipe length is 30 feet with minimum of 8 feet total vertical and maximum 4 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Lengths do not include elbow indicated

Vent restrictor position A (fully open), Refer to the "Venting Arrangement" section.

Vertical Venting with Two (2) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H V1 V + V1 A) 1' Min. 1' Max. 1' Min. 2' Min. B) 1' Min. 2' Max. 2' Min. 3' Min. C) 2' Min. 3' Max. 2' Min. 4' Min. D) 2' Min. 4' Max. 2' Min. 4' Min.

With these options, max. total pipe length is 30 feet with min. of 4 feet total vertical and max. 4 feet total horizontal.

Please note min. 1 foot between 90 required.

Lengths do not include elbow indicated

Vent restrictor position A (fully open). Refer to the "Venting Arrangement" section.

elbows is

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 15

INSTALLATION

DV STOVE HORIZONTAL VENT KIT (# 946-116 & #946-216)

DV Stove Horizontal Vent Kit (2 ft. Part # 946-116 or 4 ft. Part # 946-216) includes all the parts needed to install the U39 with minimum horizontal

and vertical vent dimensions. For installations that require longer vertical and/or horizontal vents see the "Dura-vent Termiantion Kit and Component" sections.

Qty. Description

1) 1 Rigid Pipe Section (Kit # 946-116: 2 ft. (1.2m) length,

Kit # 946-216: 4 ft. (1.2m) length), 6-1/2" (165mm) inside diameter

2) 1 Flex Liner, compressed aluminium 2 ply liner, 4" (102mm) inside diameter

3) 4 spring spacers

4) 1 90 deg. Elbow

5) 1 Adjustable pipe section 13-1/2" to 24" (343mm x 610mm), 2 pieces

6) 1 Thimble Cover

7) 1 Wall Thimble (2 pcs.)

8) 1 Adapter

9) 1 AstroCap Termination Cap

10) 2 Trim Collar

11) 1 tube of Mill-Pac, high temperature sealant

12) 12 Screws, #8 x 1/2" Self tapping, Stainless Steel

13) 13 Screws, #8 x 1/2" Self tapping, Black

14) 4 Screws #8 x 1-1/2" Drill Point, Black

15) 4 Screws #8 x 1-1/2" Drill Point, Stainless Steel

16) 8 Wood screws #8 x 1"

Optional:

946-206 Vinyl Siding Standoff for AstroCap

Note:

a) Liner sections should be continuous without any joints or

seams.

b) This is an approved system, therefore components in this

system must not be substituted for any other manufacturer's products.

DV STOVE HORIZONTAL VENT KIT INSTALLATION

Review the following sequence of instructions which are typical of most installations. The sequence may vary depending on wall thickness. Refer to vent

location and clearance dimensions in "Exterior Vent Termination Locations" to "DV Stove Horizontal Vent Kit" sections.

1) Set the unit in its desired location. Check to determine if wall studs will be in the way of the venting system, adjust location until all clearances are met and there are no obstructions.

and clear to prevent accidental blockage of venting system. When using snow blowers, make sure snow is not directed towards vent termination area.

2) Assemble a trial ﬁ t to determine the vertical

center-line for the vent termination.

a) Cut a 9-1/2" x 9-1/2" (241mm x 241

mm) square hole on both the interior and exterior wall.

b) Install wall thimbles on both interior

and exterior wall with 4 wood screws (#8 x 1") per thimble.

Note: A 1-1/2" (3 8mm ) cl earance

around the outer pipe must be maintained except that only a 1" (25mm) clearance is needed at the termination end.

IMPORTANT: Do not locate termination hood where excessive snow or ice buildup may occur. Be sure to check vent termination area after snow falls,

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

c) Attach the 2 piece adjustable pipe

section to the vent terminal and slide into position from the exterior.

The larger diameter end of the adjustable pipe goes to the vent terminal.

Minimum Installation Height:

U39: 59-3/4" ( 1518mm)

d) Install the 90

adjustable pipe to determine the vertical centerline of the starter collar on the unit.

elbow onto the

Page 16

INSTALLATION

Note: if the centerline cannot be met,

the adjustable sections will have to be cut.

e) Cut the 2 ft. or 4 ft. section of rigid pipe

to length. Ensure that the pipe length when cut will seat onto both the starter collar and the 90

section of rigid pipe seats into the 90o elbow. Only cut the uncrimped side of pipe.

Dismantle all pipe sections including vent

terminal.

3) Attach the 4" dia. ﬂ ex liner to the vent terminal ensuring that the ﬂ ex overlaps the collar of the vent terminal by a minimum of 1-3/8"(35mm). Use Mill-Pac to seal and secure with 3 of the #8 x 1/2" screws (stainless steel).

4) Attach the adjustable pipe section to the vent terminal using Mill-Pac and attach with 3 of the #8 x 1/2" screws (stainless steel).

elbow. Crimped

Note: The pipe seam should be facing

down.

Note: To make the installation more

aesthetically pleasing, we recommend framing out a square that the cap can be mounted on.

Note: I f installing

termination on a siding covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding. For vinyl siding standoff installation refer to the Dura-Vent Termination instructions.

5) Slide the partially connected pipe and vent terminal assembly through the wall thimbles (from the exterior into the interior) and secure the cap to the exterior wall with 4 of the supplied screws (#8 x 1-1/2" drill point, stainless steel). Note: pilot holes will need to be drilled through the wall thimble on all 4 corners.

Note: The four screws provided for the

vent cap should be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

6) A bead of non-hardening mastic should be run around both the termination and vinyl siding standoff to prevent water from entering and to make a tight seal between the cap and the standoff.

7) Stretch the 4" dia. ﬂ ex liner out fully and get a trial ﬁ t of the liner onto the 4" dia. starter collar.

8) Cut the 4" dia. ﬂ ex liner to the desired size.

Hint: leave an extra 12" to 16" of length, this

will make the ﬁ nal assembly easier to work with.

9) Secure the 4" dia. ﬂ ex liner to the 4" adapter with Mill-Pac and 3 of the #8 x 1/2" screws (stainless steel).

10) Slide the decorative Thimble Cover over the pipe sections and secure with 4 screws (#8 x 1-1/2" drill point, black) to the wall.

11) Slide the 90o elbow (crimp end up) and the 2 ft. or 4 ft. pipe section (crimp end up) over the 4" dia. ﬂ ex liner.

12) Slide the trim collar over the adjustable pipe sections to cover the joint of the telescopic section.

13) Install the spring spacers onto the pipe sections.

14) Secure the 4" dia. ﬂ ex liner with adapter onto the stove collar. Put a bead of Mill-Pac around the appliance adapter and secure with 3 screws (#8 x 1/2, stainless steel).

15) Attach the pipe section onto the starter collar by sealing with Mill-Pac and/or high temperature silicone and securing with 3 of the #8 x 1/2" (black) screws. Pipe seams should be facing the wall.

16) Attach the 90o elbow onto the pipe section by sealing with Mill-Pac and/or high temperature silicone and securing with 3 of the #8 x 1/2" screws (black).

17) Slide the adjustable pipe section onto the 90o elbow. The ﬂ ex may have to be compressed back in order for the adjustable pipe to properly mate to the elbow. Seal with MillPac and/or high temperature silicone and secure with 3 of the #8 x 1/2" screws (black). Pipe seams facing down.

18) Install the trim collar over the starter collar and secure with a #8 x 1/2" screw (black).

If the pipe needs to be touched up, use only Stove Brite High Temperature Metallic Black Stove Paint.

NOTE: For best results and optimum performance with each approved venting system, it is highly recommended to apply “Mill-Pac” sealant (supplied) to every inner pipe connection. Failure to do so may result in drafting or performance issues not covered under warranty. Silicone (red RTV) is optional.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 17

INSTALLATION

DURA-VENT

TERMINATION KIT

Planning Your Dura-Vent

Installation

There are two basic types of Dura-Vent Direct Vent System installations: horizontal termination and vertical termination. Conﬁ rm the maximum horizontal run and maximum vertical rise from the diagrams in the "Rigid Pipe Venting Arrangements" section.

When planning your installation, it will be necessary to select the proper length of vent pipe for your particular requirements. For horizontal installations, determine the minimum clearance from the rear of the unit to the wall. It is also important to note the wall thickness. (The wall thimble is suitable for 2 x 4 or 2 x 6 wall construction.) Select the amount of vertical rise desired for "vertical-to-horizontal" type installations.

Warning: Always maintain required clearances (air spaces) to nearby combustibles to prevent a ﬁ re hazard. Do not ﬁ ll air spaces with insulation.

DURA-VENT VENTING

COMPONENTS

You will require the following components with your new Regency® Direct Vent Freestanding Gas Stove. Please review your product to make sure you have everything you need. In the event that you are missing any part, contact your dealer.

Note: These are the minimum pieces

required. Other parts may be required for your particular installation. See the "Dura-vent Horizontal Kit" section for a list of vent parts.

If installing termination on a siding covered wall, a vinyl siding standoff or furring strips can be used in order to ensure that the termination is not recessed into siding.

The vinyl siding standoff is required for walls with vinyl siding.

Minimum components for a Dura-Vent Horizontal Installation:

A) Dura-Vent Horizontal Termination Kit B) Wall Thimble (required for combus tible walls)

Minimum components for a Dura-Vent Vertical Termination:

C) Dura-Vent Vertical Termination Kit See the "Rigid Pipe Venting Arrangments" section for pipe lengths.

The Simpson Dura-Vent Direct Vent System offers a complete line of component parts for installation of both horizontal and vertical installation. Many items are offered in decorative black, as well as galvanized finish. The galvanized pipe and fittings are used for concealed locations such as attics or where corrosion is a factor, such as above the roof line. Decorative brass trim kits are available for both wall thimbles and ceiling support boxes.

The minimum clearance requirements between the outer wall of the vent pipe and nearby combustible surfaces is 1-1/4 inch. Be sure to check the vent termination clearance requirements from decks, windows, sofﬁ ts, gas regulators, air supply inlets and public walkways as speciﬁ ed in the "Exterior Vent Terminal Locations" section and in your local building codes.

To determine the length of vent pipe required for vertical installations, measure the distance from the unit ﬂ ue outlet to the ceiling, the ceiling thickness, the vertical rise in an attic or second storey, and allow for sufﬁ cient vertical height above the roof line.

For multi-storey applications, ﬁ re stops are required at each ﬂ oor level. If an offset is needed, additional pipe, elbows and supports will be required.

Dura-Vent Basic

Horizontal Kit # 970

1 90o Elbow 1 Wall Thimble Cover 1 Horiz. Sq. Term. Cap

Alternate Horizontal

Termination Caps

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 18

INSTALLATION

DURA-VENT

HORIZONTAL

TERMINATIONS

1) Set the unit in its desired location. Check

to determine if wall studs or roof rafters are in the way when the venting system is attached. If this is the case, you may want to adjust the location of the unit.

2) Direct Vent pipe and ﬁ ttings are designed

with special twist-lock connections to connect the venting system to the appliance ﬂ ue outlet. A twist-lock appliance adaptor is installed on the unit at the factory. Assemble the desired combination of pipe and elbows to the appliance adaptor with pipe seams oriented towards the wall or ceiling, as much out of view as possible. The ﬁ nal positioning of the pipe and 90o elbow assembly is determined by the mounting orientation of the adaptor on the stove and twist-locked for a solid connection.

Note:

a) Twist-lock procedure: Four indentations,

located on the female ends of pipes and ﬁ ttings, are designed to slide straight onto the male ends of adjacent pipes and ﬁ ttings, by orienting the four pipe indentations so they match and slide in to the four entry slots on the male ends (diagram 1). Push the pipe sections completely together, then twist-lock one section clockwise approximately one-quarter turn, until the two sections are fully locked. The female locking lugs will not be visible from the outside on the Black Pipe or ﬁ ttings. They may be located by examining the inside of the female ends.

NOTE: For best results and optimum

performance with each approved venting system, it is highly recommended to apply “Mill-Pac” sealant (supplied) to every inner pipe connection. Failure to do so may result in drafting or performance issues not covered under warranty. Silicone (red RTV) is optional.

Hint: Apply silicone to female end.

Diagram 1

b) Horizontal runs of vent must be

supported every three feet. Wall straps are available for this purpose.

Note:

a) The horizontal run of vent should have

a 1/4 inch rise for every 1 foot of run towards the termination. Never allow the vent to run downward. This could cause high temperatures and may present the possibility of a ﬁ re.

b) The location of the horizontal vent

termination on an exterior wall must meet all local and national building codes, and must not be blocked or obstructed. See instructions in the "External Vent Terminal Locations" section.

c) Snorkel Terminations: For installations requiring a vertical rise

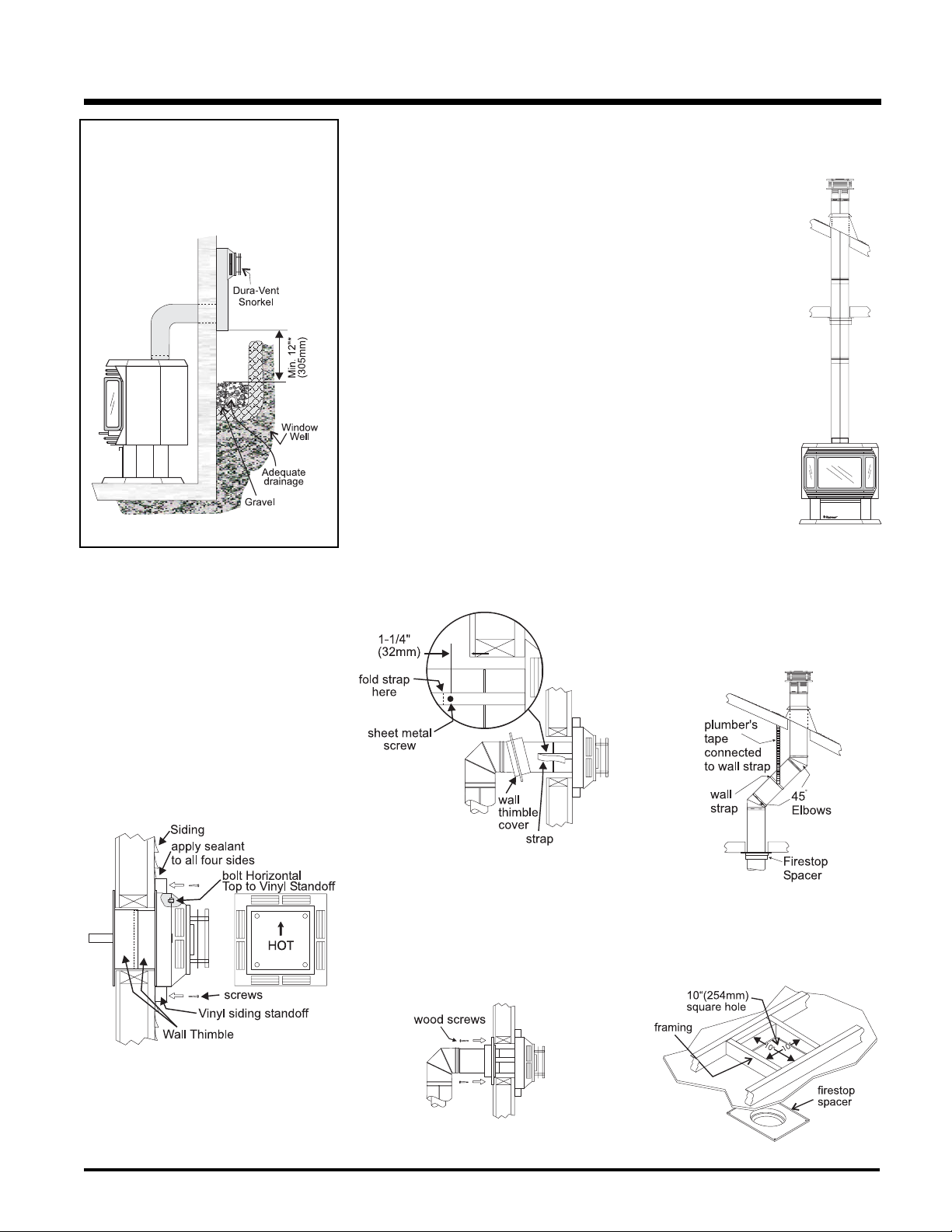

on the exterior of the building, 14-inch and 36-inch tall Snorkel Terminations as shown in Dia. 3 are available, as well as the standard Riser Vent, see Dia. 3a. Follow the same installation procedures as used for standard Horizontal Termination. NEVER install the snorkel upside down.

*Dia 3, 3a & 4: As speciﬁ ed in CGA B149 Installation Code. Local codes or regulations may require different clearances.

3) With the pipe attached to the stove, slide

the stove into its correct location, and mark the wall for a 10" x 10" (inside dimensions) square hole. The center of the square hole should line up with the centerline of the horizontal pipe, as shown in diagram

2. Cut and frame the 10 inch square hole in the exterior wall where the vent will be terminated. If the wall being penetrated is constructed of non-combustible material, i.e. masonry block or concrete, a 7" diameter hole is acceptable.

Diagram 2

Diagram 3

NOTE: For Snorkel terminations in ABOVE grade installations, follow national or local code requirements.

Note: Riser Vent

U39: 59-3/4" (1518mm)

Diagram 3a

is only for use in above grade terminations.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 19

INSTALLATION

Below Grade Installation

If the Snorkel Termination must be installed below grade, i.e. basement application, proper drainage must be provided to prevent water from entering the Snorkel Termination. Refer to Dia.

4. Do not attempt to enclose the Snorkel within the wall, or any other type of enclosure.

Diagram 4

4) If installing the vent termination to a wall with

vinyl siding, the Vinyl Siding Standoff must be used. Attach the Vinyl Siding Standoff to the Horizontal Vent Termination, but ﬁ rst run a bead of non-hardening mastic around its outside edges, so as to make a seal between vent cap and the standoff. Install the Vinyl Siding Standoff (Part # 950) between the vent cap and the exterior wall and attach with the four wood screws provided. Seal around the Vinyl Siding Standoff on all four sides. Diagram 5. The arrow on the vent cap should be pointing up. Insure that the 1-1/4" clearances to combustible materials are maintained. See diagram 5.

Note: If installing termination on a siding

covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding. The four wood screws provided should be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

5) Before connecting the horizontal run of vent

pipe to the vent termination, slide the black decorative wall thimble cover over the vent pipe, then slide the Wall Thimble (Part #

942) over the vent pipe.

6) Slide the appliance and vent assembly

towards the wall carefully inserting the vent pipe into the vent cap assembly. It is important that the vent pipe extends into the vent cap a sufﬁ cient distance so as to result in a minimum pipe overlap of 1-1/4 inches. Secure the connection between the vent pipe and the vent cap by attaching the two sheet metal strips extending from the vent cap assembly into the outer wall of the vent pipe. Use the two sheet metal screws provided to connect the strips to the pipe. Bend any remaining portion of the sheet metal strip back towards the vent cap, so it will be concealed by the decorative wall thimble cover. See diagram 6.

DURA-VENT VERTICAL

TERMINATIONS

1) Maintain the 1-1/4"

clearances (air spaces) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafter, or other nearby combustible surfaces. Do not pack air spaces with insulation. Check the "Rigid Pipe Venting Arrangments" section for the maximum vertical rise of the venting system and the maximum horizontal offset limitations.

2) Set the gas appliance

in its desired location. Drop a plumb bob down from the ceiling to the position of the appliance ﬂ ue exit, and mark the location where the vent will penetrate the ceiling.

Drill a small hole at his point. Next, drop a plumb bob from the roof to the hole previously drilled in the ceiling, and mark the spot where the vent will penetrate the roof. Determine if ceiling joists, roof rafters or other framing will obstruct the venting system. You may wish to relocate the appliance or to offset, as shown in diagram 9 to avoid cutting load bearing members.

Diagram 8

Diagram 6

7) Install the Wall Thimble in the center of the

10" square and attach with wood screws.

8) Slide the decorative wall thimble up to the

wall surface being careful not to scratch the paint and attach with screws provided. Apply decorative brass or chrome trim if desired. See diagram 7.

Diagram 5

Diagram 7

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Diagram 9

3) To install the Round Support Box/Wall

Thimble in a ﬂ at ceiling, cut a 10 inch square hole in the ceiling centred on the hole drilled in Step 2. Frame the hole as shown in diagram 10.

Diagram 10

Page 20

INSTALLATION

4) Assemble the desired lengths of black pipe

and elbows necessary to reach from the appliance adaptor up though the Round Support Box. Insure that all pipes and elbow connections are in the fully twist-locked position and sealed.

5) Cut a hole in the roof centred on the small

drilled hole placed in the roof in Step 2. The hole should be of sufﬁ cient size to meet the minimum requirements for clearance to combustibles of 1-1/4". Slip the ﬂ ashing under the shingles (shingles should overlap half the ﬂ ashing) as per diagram 11.

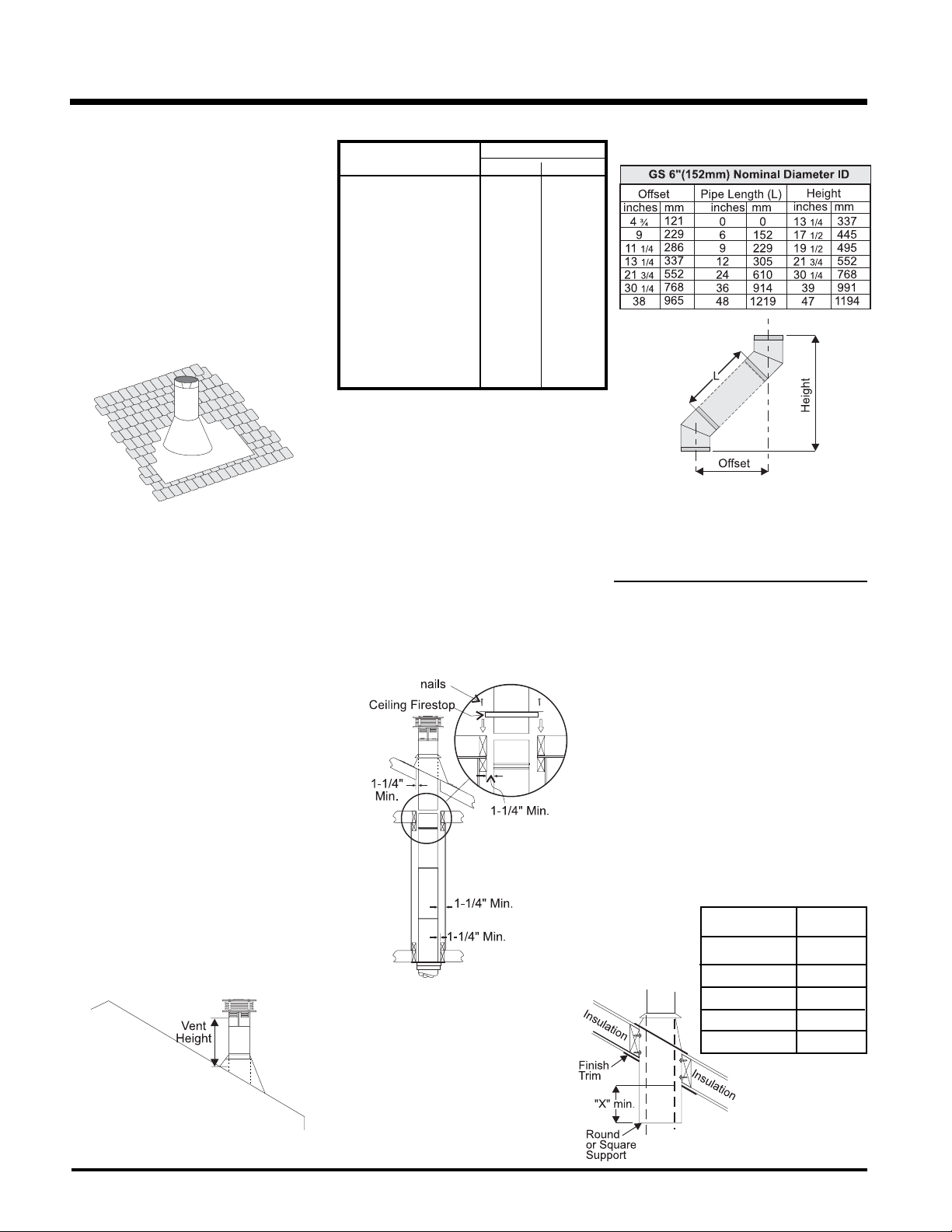

Diagram 11: The upper half of the ﬂ ashing is

installed under the rooﬁ ng material and not

nailed down until the chimney is installed. This

allows for small adjustments.

6) Continue to assemble pipe lengths.

Note: If an offset is necessary in the attic to

avoid obstructions, it is important to support the vent pipe every 3 feet, to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose. See diagram 7.

Galvanized pipe and elbows may be utilized

in the attic as well as above the rooﬂ ine. The galvanized ﬁ nish is desirable above the rooﬂ ine due to its higher corrosion resistance.

Continue to add pipe sections through the

ﬂ ashing until the height of the vent cap meets the minimum height requirements speciﬁ ed in diagram 12 or local codes. Note that for steep roof pitches, the vertical height must be increased. A poor draft, or down drafting can result from high wind conditions near big trees or adjoining roof lines, in these cases, increasing the vent height may solve the problem.

Roof Pitch Minimum Vent Height

Feet Meters

ﬂ at to 7/12 2 0.61

over 7/12 to 8/12 2 0.61

over 8/12 to 9/12 2 0.61

over 9/12 to 10/12 2.5 0.76

over 10/12 to 11/12 3.25 0.99

over 11/12 to 12/12 4 1.22

over 12/12 to 14/12 5 1.52

over 14/12 to 16/12 6 1.83

over 16/12 to 18/12 7 2.13

over 18/12 to 20/12 7.5 2.29

over 20/12 to 21/12 8 2.44

7) Ensure vent is vertical and secure the base

of the ﬂ ashing to the roof with rooﬁ ng rails, slide storm collar over the pipe section and seal with a mastic.

8) Install the vertical termination cap by twist

locking it.

Notes:

a) For multistorey vertical installations,

a Ceiling Fire stop (Part # 963) is required at the second ﬂ oor, and any subsequent ﬂ oor. Diagram 13. The opening should be framed to 10 " x 10" inside dimensions, in the same manner as shown in diagram 10.

Diagram 13

Offset Chart

b) Any occupied areas above the ﬁ rst ﬂ oor,

including closets and storage spaces, through which the vertical vent passes, must be enclosed.

CATHEDRAL CEILINGS

Round Support (RDS) &

Square Support (SQS)

If your home has a cathedral ceiling (no attic space between the ceiling and the roof), install the chimney and support as follows.

1) Situate the chimney in a convenient location as near as possible to the appliance outlet. Cut and frame a hole in the roof for the support. The sides of this hole must be vertical with 1 1/4" clearance.

2) Place the support in the opening. Lower it to the correct height as determined by the table and diagram below.

Slope "X"

0/12 - 2/12 4"

2/12 - 7/12 5-1/2"

7/12 - 12/12 6-3/4"

12/12 - 24/12 7-1/2"

24/12+ 12-1/2"

Diagram 12

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 21

INSTALLATION

Using a level, make sure the support is

vertical. If the support extends above the roof, cut it ﬂ ush with the top of the roof. Nail the support to the frame opening using (8) 3" spiral nails or #8 x 1-1/2" screws.

Note: If you are using a 6" square support

you may ﬁ nd it difﬁ cult to screw it in place because it is fairly small inside.

Simpson Dura-Vent has provided angle

brackets with this support which can be screwed to the outside of the support box and nailed to surrounding framing as required. Use a minimum of four #8 x 1/2" screws per bracket. In some cases these brackets may need to be trimmed (e.g.: to ﬁ t under a ﬂ ashing). Place the Finish Collar around the support and fasten it to the ceiling using the screws provided.

3) Use appropriate roof ﬂ ashing. Place the

ﬂ ashing under the upper shingles and on top of the lower shingles approximately half of the ﬂ ashing should be under the shingles.

4) Assemble the desired lengths of Black Pipe

and Elbows necessary to reach from the appliance adaptor up through the support box and ﬂ ashing to proper height as per Dia. 12, local codes or the "Rigid Pipe Venting Arrangements" section. Ensure that all pipe and elbow connections are in their fully twist lock position.

5) Ensure vent is vertical and secure ﬂ ashing to

the roof with rooﬁ ng nails. Slide the storm collar over the pipe section and seal with a mastic.

6) Twist lock the vent cap on to the last

section.

Support Extensions - Round

(RDSE) or Square (SQSE)

Steep pitched cathedral ceilings may require the use of a support extension. This piece ﬁ ts down inside the support and can be adjusted to increase the support's length by up to 22". The extension is attached to the support using the eight metal screws provided. Be sure there is at least a 2 inch overlap where the extension joins the support.

CONVERTING A

CLASS-A METAL

CHIMNEY OR

MASONRY CHIMNEY

TO A DIRECT VENT

SYSTEM

General

There are two different types of direct vent conversion systems listed below. Follow the appropriate directions for your installation.

A) Through an existing factory built metal

chimney going through the ceiling: A typical conversion of this type is shown in diagram

1. The concept of direct vent conversion is to connect an adaptor to an Underwriters Laboratories (UL) listed 4 inch diameter aluminum ﬂ ex pipe which is then passed down through the center of the existing metal chimney system. Three sizes of Top Adaptors are available from Simpson Dura-Vent. The Retro Connector (909B) is attached to the bottom of the ﬂ ex pipe. The Top Adaptor and the Retro Connector are attached to the existing chimney with sheet metal screws. The appliance is then connected to the chimney with appropriate black direct vent pipe and an adjustable length section.

B) Through the wall of an existing masonry

chimney: A typical conversion of an existing masonry chimney is shown in Diagram 6. A Top Adaptor (985K) and Flashing are used at the top of the masonry chimney. The 4 inch aluminum liner is connected to the adaptor and is passed down the chimney and out through the masonry wall and attached to the Retro Connector (909B). The Retro Connector is attached to the masonry wall and then connected to the direct vent pipe leading to the appliance.

Prior to installation and connection of the vent system to a factory-built or masonry chimney, the chimney must be inspected and thoroughly cleaned by a qualiﬁ ed service person, such as a certiﬁ ed chimney sweep or home inspection service.

The direct vent system must not be connected to a damaged factory-built or masonry chimney.

For factory built, zero clearance, and masonry chimneys cleanout doors and caps or plugs for cleanout tee ﬁ ttings and ash dumps shall be secured in place and sealed before installing a Direct Vent system within the chimney.

If the appliance shuts off during operation, contact a qualified service person to determine if a negative pressure and/or leaky chimney condition exists. Do not operate the appliance until the problem is corrected.

Approved for US Installations Only The use of an existing chimney as an air intake is not covered under the ANSI Z21.88b1999, CSA 2.33b-M99 test methods and the resulting ITS/WHI product certiﬁ cation. The code Authority Having Jurisdiction must be consulted prior to proceeding with this installation method.

Converting a Factory Built Metal

Chimney

1) Remove the existing chimney cap.

2) Measure the distance from the top end of the chimney to the bottom of the ceiling support box, add 3" (76mm) to this measurement, and cut a section of the 4" ﬂ ex pipe to that length (the ﬂ ex should already be extended to its nominal length).

Diagram 1

3) Connect the end of the ﬂ ex pipe section to the underside of the Top Adaptor using 3 sheet metal screws.

Diagram 2.

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Diagram 2

Page 22

INSTALLATION

4) Pass the ﬂ ex pipe down through the center of the chimney system, and center the adaptor on the top of the chimney pipe. Drill four 1/8" diameter holes through the adaptor and into the chimney top. Insure that you are in fact, drilling into the metal on the chimney. Twist-lock the Termination Cap (Part# 980 or 991) onto the Adaptor. (Diagram 3 and

4).

Diagram 3

Diagram 4

5) Pull the ﬂ ex pipe down through the ceiling support box, until it protrudes approximately 3" (76mm). Connect the ﬂ ex pipe to the Retro Connector by slipping it into the

4-3/4" diameter sleeve on the top side of

the Connector. Use 3 sheet metal screws to assemble these two parts.

6) Push the ﬂ ex pipe back up into the ceiling support box, center the Retro Connector, and attach it to the support box, or decorative sleeve for double wall solid packed pipe, with the sheet metal screws (supplied). The holes in the Retro Connector are prepunched. Diagram 5.

Diagram 5

7) The connection between the appliance and the Retro Connector may be completed with sections of black direct vent pipe, together with an adjustable length.

Converting a Masonry Chimney

Important: The existing masonry flue opening needs to have an area of at least a 36 sq. in. to insure proper intake/exhaust ﬂ ow.

1) Before cutting any holes, assemble the desired sections of black direct vent pipe to determine the center of the masonry penetration.

Diagram 6

2) Once the center point of the penetration has been determined, cut a 6" (152mm) dia. hole in the masonry. Be careful, if the hole is too large, the Retro Connector might not mount properly, and if the hole is too small, then the appliance might starve for intake air. If there is a frame wall in front of the masonry wall, cut and frame a 10" (254mm) clear square opening in the wall (centered around the 6" (152mm) masonry opening). IF there is sheet rock only (no studs) in front of the masonry, the 10" (254mm) clear opening is still needed, but does not need to be framed. This allows the Retro Connector to mount directly on the masonry and provide clearance to the combustibles. Diagram

11.

3) Secure the Flashing (Part # 705C) to the top of the masonry chimney using a bead of non-hardening sealant-adhesive. If the Flashing is larger than the top of the chimney, then cut and fold ﬂ ashing as needed to ﬁ t chimney. Diagram 7.

Diagram 7

4) To determine the length of ﬂ ex required, measure from 3" (76mm) above the top of the Flashing down to the level of the opening. Add to this measurement the distance from the center of the chimney to out through the wall. Cut a piece of 4" ﬂ ex to this length (the ﬂ ex should already be extended to its nominal length).

5) Connect the 4" ﬂ ex liner to the Top Adaptor (Part # 985K) using 3 sheet metal screws. Diagram 2.

6) Feed the 4" ﬂ ex liner through the Flashing into the chimney. Continue to feed the liner out through the opening in the masonry wall.

7) Secure the Top Adaptor to the Flashing. Use 3 sheet metal screws through the side of the adaptor into the ﬂ ange on the Flashing (diagram 8). Twist lock the Termination Cap (Part # 980 or 991) on to the Top Adaptor.

Diagram 8

8) Attach the ﬂ ex to the Retro Connector. Use 3 sheet metal screws to attach the ﬂ ex liner to the Connector. Diagram 9. Mount the Retro Connector to the masonry wall using masonry bolts. Re-drill larger holes on connector as needed. Be careful to insure that the connector is centered in the opening and the mounting holes line up with the masonry wall.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 23

INSTALLATION

Diagram 9

9) Slide the Wall Thimble Cover (Part # 940) over the Retro Connector and secure with masonry bolts. Diagram 10. If you have a framed wall in front of the masonry, use wood screws to mount the Wall Thimble Cover to the framed wall, over the Retro Connector and the 10" (254mm) square framed opening. Diagram 11. If needed, add a section of direct vent pipe to the Retro Connector in order to extend through the opening in the Wall Thimble Cover.

Diagram 10

System Data

U39 with 40,000 BTU

U39-NG1: For 0 to 2000 feet altitude

U39-LP1: For 0 to 4500 feet altitude

Burner Inlet Oriﬁ ce Sizes: Natural Gas Propane Burner #32 #50

Max. Input - Natural Gas/Propane 38,000 Btu/h

Min. Input - Natural Gas/Propane 20,000 Btu/h

Supply Pressure Natural Gas min. 5" w.c. Propane min. 12" w.c.

Manifold Pressure

Natural Gas 3.8" +/- 0.2" w.c. Propane 11" +/- 0.2" w.c.

Electrical: 120 V. 1.13A 60Hz. Circulation: Variable speed fan, 125/75 CFM. Log Set: Ceramic ﬁ ber, 7 per set.

System Data:

HIGH ELEVATION - U39-NG1

For 2,000 - 4,500 feet altitude

Burner Inlet Oriﬁ ce Sizes:

Natural Gas Burner #33

Max. Input Rating 36,100 Btu/h Min. Input Rating 19,000 Btu/h

System Data

U39 Converted to 30,000 Btu

For 0 to 4500 feet altitude

Burner Inlet Oriﬁ ce Sizes: Natural Gas Propane Burner #37 #52

Max. Input - Natural Gas/Propane 30,000 Btu/h

GAS CONNECTION

The gas connection is a 3/8" NPT 90o elbow. The gas line can be rigid pipe or to make installation easier, use a listed ﬂ exible connector and/or copper tubing if allowed by local codes. Since some municipalities have additional local codes it is always best to consult with your local authorities and the CAN/CGA B149 installation codes.

For USA installations follow local codes and/or the current National Fuel Gas Code, ANSI Z223.1.

When using copper or ﬂ ex connectors use only approved ﬁ ttings. Always provide a union so that gas lines can be easily disconnected for burner and/or valve servicing. Flare nuts for copper lines and ﬂ ex connectors are usually considered to meet this requirement.

Important: Always check for gas leaks with a soap and water solution or gas leak detector. Do not use open ﬂ ame for leak testing.

Note: Prior to any pressure testing of the gas

supply piping system that exceeds test pressures of 1/2 psig, this appliance must be disconnected from the piping system. If test pressures equal to or less than 1/2 psig are used then this appliance must be isolated from the piping system by closing its individual manual shut-off valve during the testing.

HIGH ELEVATION

This unit (at 38,000 Btu/h) is approved in Canada for altitude 2000 ft. to 4500 ft. (CAN/CGA-2.17M91) with the oriﬁ ce kit Part # 621-975. For Natural Gas installations above 4500 ft. follow current CAN/CGA-B149.1.

In U.S.A., for installations above 2000 ft. refer to current ANSI Z223.1 Sc8-8.1.2a appendix F, for resizing oriﬁ ce.

Min. Input - Natural Gas/Propane 15,000 Btu/h

Supply Pressure Natural Gas min. 5" w.c. Propane min. 12" w.c.

Diagram 11

10) The connection between the appliance and the Retro Connector may be completed with a section of black direct vent pipe, together with an adjustable length pipe section.

Manifold Pressure

Natural Gas 3.8" +/- 0.2" w.c. Propane 11" +/- 0.2" w.c.

Electrical: 120 V. 1.13A 60Hz. Circulation: Variable speed fan, 125/75

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 24

INSTALLATION

CONVERSION KIT# 731-969 FROM NG TO LP

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER

IF IN DOUBT DO NOT DO THIS CONVERSION !!

Each Kit contains one LPG Conversion Kit and one DC Sparker Kit.

LPG Conversion Kit Contains: Qty. Part # Description

1 904-529 5/32" Allen Key 1 904-641 Burner Oriﬁ ce #50 1 918-590 Label "Converted to LPG" 1 908-528 Red "LPG" label 1 910-037 LPG Injector (Pilot Oriﬁ ce) 1 918-485 Instruction Sheet

DC Sparker Kit Contains: Qty. Part # Description

1 820-475 Bracket DC Sparker 1 820-476 Bracket DC Sparker 1 904-153 Washer #8 External

Star 1 904-330 Nut 8-32 Hex 1 904-438 Plug Nylon 0.750 Hole,

Black 2 904-531 Bushing Split Plastic

0.500 in. 1 904-543 Screw 8-32 x 3/4 Pan Head 2 904-553 Screw #8 x 1/2

Type "B", Black Oxide

1 910-073 Spark Generator

Battery Holder

1 910-074 Spark Generator

Switch C/W Wire

1 910-078 Battery Size AA

Energizer En91 2 910-199 Clip Wire Holder 1 910-903 Wire Fan To Power

Cord, Ground 30 in. 904-781 Velcro Hook, Black

904-782 Velcro Hook, Black

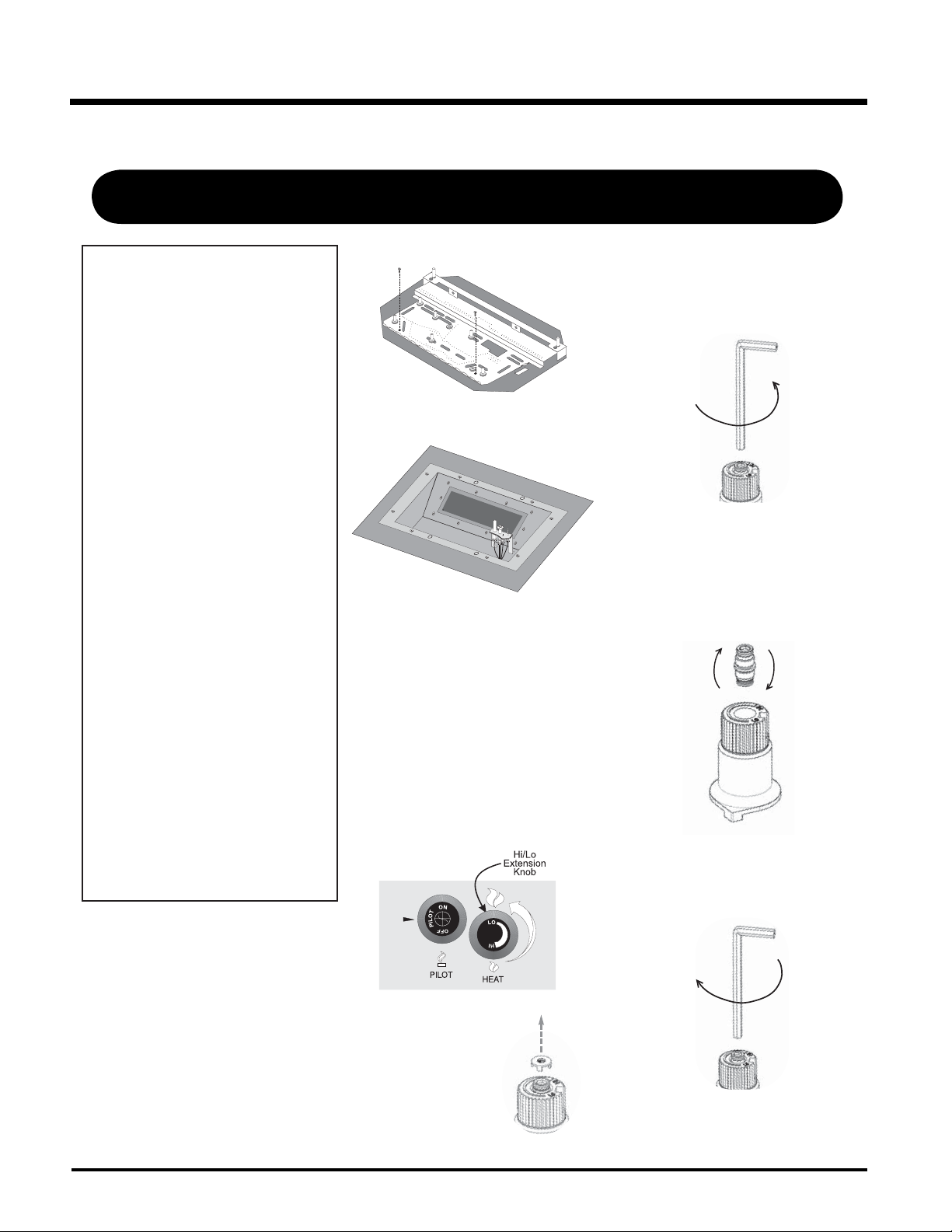

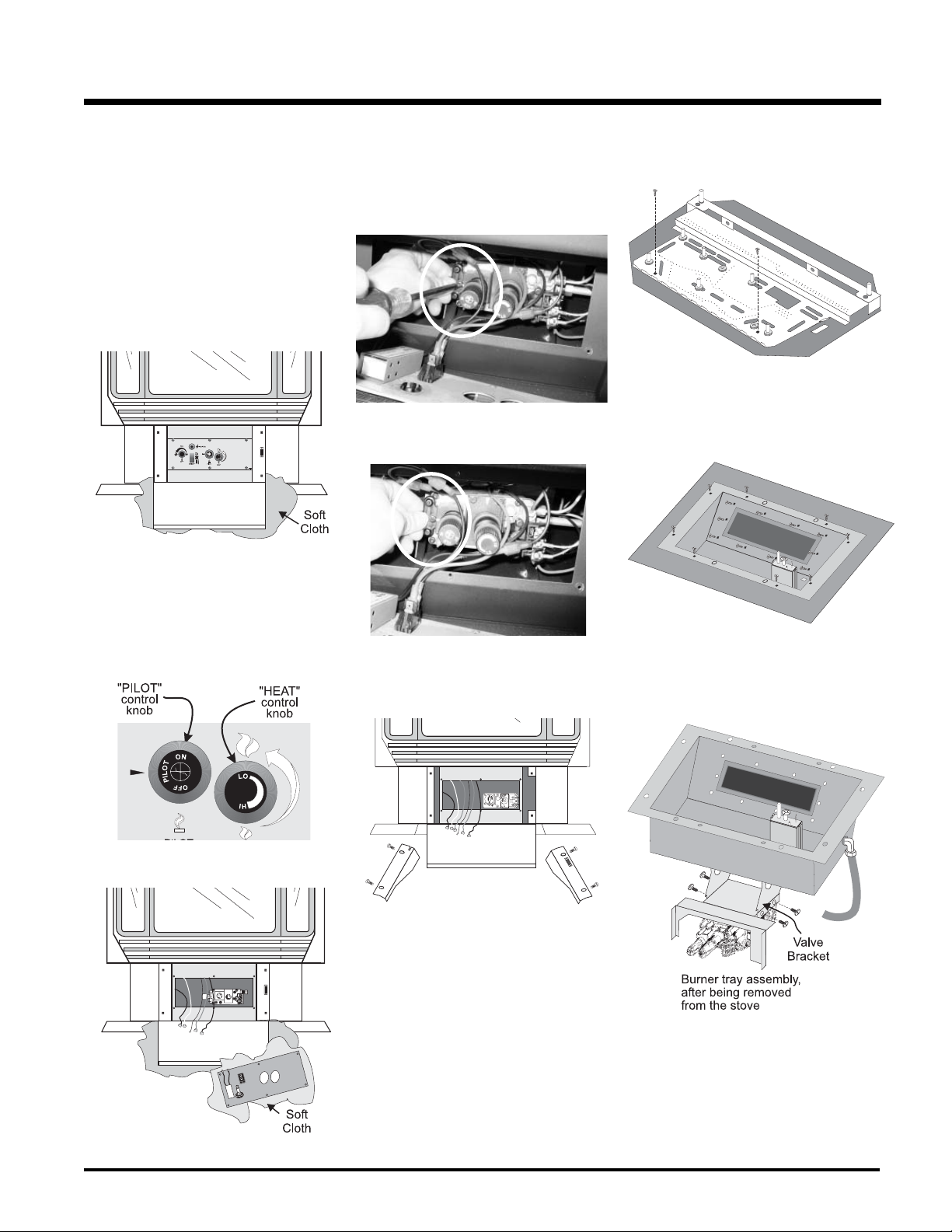

3) Remove burner. See diagram below.

Note: Use a magnetic type screwdriver

if possible.

Pilot assembly is now accessible

for steps 4) to 10).

4) Open pedestal door and remove the

gold chain from door which will allow door to fall.

5) Remove lighting panel by removing the

6 Phillips head screws and put to the side.

6) Remove hi-low extension knob.

7) Turn control knob to the “OFF” position.

8) Pull off the Hi/Lo gas extension knob to

access the oriﬁ ce.

10) Insert a 5/32” or 4mm Allen wrench into

the hexagonal key-way of the screw (Fig. 2), rotate it counter-clockwise until it is free and extract it.

Fig.2

11) Check that the screw is clean and if

necessary remove dirt.

12) Flip the screw (Fig. 3).

Fig.3

13) Using the Allen wrench as shown in

Fig.4, rotate the screw clockwise until snug, do not overtighten.

Installation of LPG Conversion Kit:

1) Shut off the gas supply.

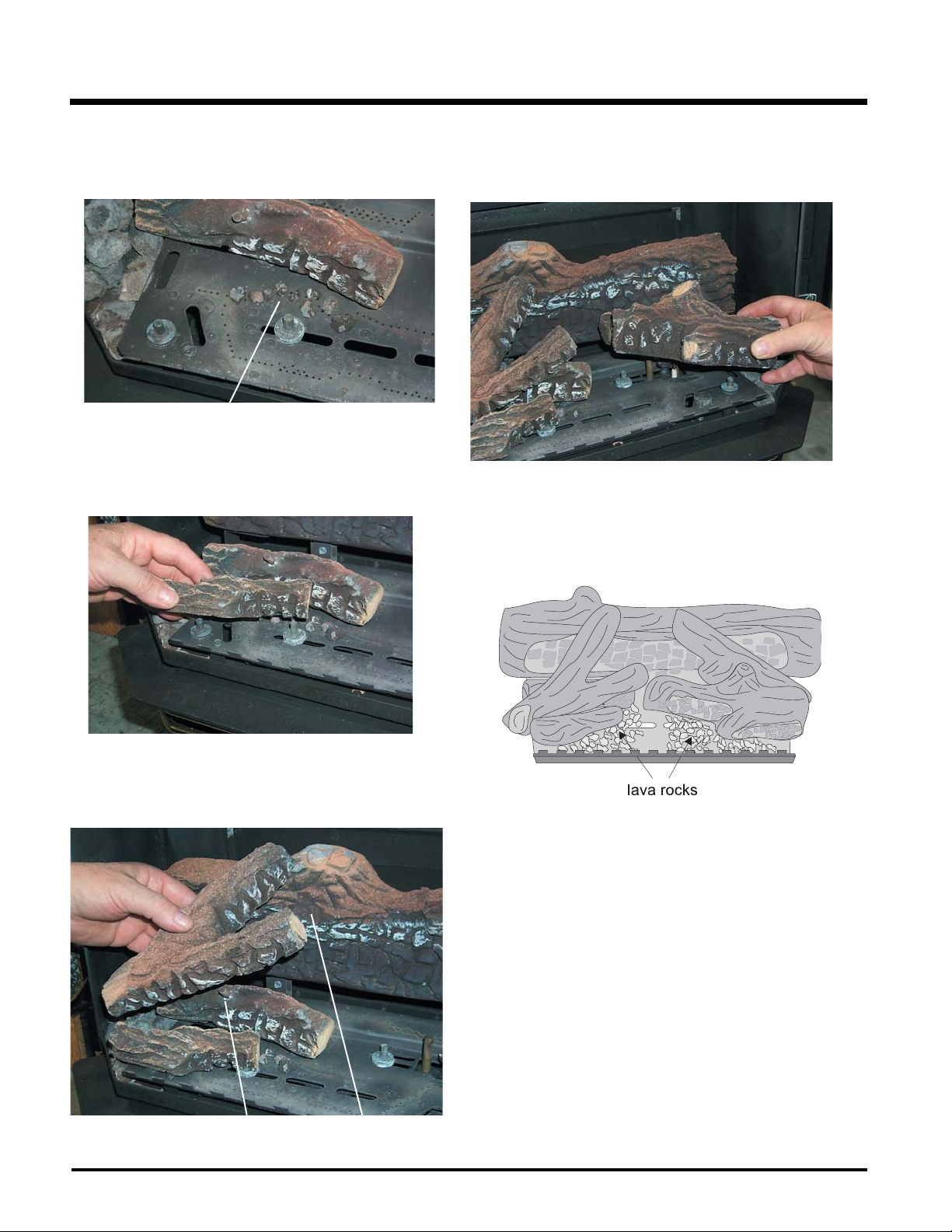

2) Open the front door and carefully

remove the logs and lava rock.

9) Remove the black

protection cap by hand from the high-low knob (Fig.1).

Regency

Fig.4

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 25

INSTALLATION

WARNING!

Do not over tighten the screw.

Recommended to grip the

wrench by the short side.

14) Verify that if the conversion is from

NG to LPG, the screw must be reassembled with the red o-ring visible (Fig. 5).

Red o-ring visible

LPG Configuration

Fig.5

15) Re-assemble the black protection cap

(Fig. 6).

17) Unscrew the pilot oriﬁ ce with the allen

key and replace with the LPG pilot oriﬁ ce in the kit.

18) Remove burner oriﬁ ce with a 1/2"

wrench while using a 9/16" wrench to hold onto the elbow behind the oriﬁ ce, then discard the oriﬁ ce.

2) Remove the front control panel by

unscrewing the 6 screws.

3) Unplug the Piezo Ignitor wire and

remove Piezo Ignitor from the control panel.

Fig. 6

WARNING!

Also check that the pilot

and main burner injectors are

appropriate for the gas type.

16) Pull off the pilot cap to expose the pilot

oriﬁ ce.

Burner Oriﬁ ce

19) Reinstall new burner oriﬁ ce LPG

stamped #50 and tighten.

20) Reverse steps 3) to 2).

21) Attach the label "This unit has been

converted to LPG" near or on top of the Serial # decal.

22) Replace yellow "NG" label with red

"LPG" label.

ONLY REQUIRED FOR THE U38

Installation of the DC Sparker:

1) Remove the back pedestal cover by

unscrewing the 4 screws.

4) Plug up the Piezo Ignitor mounting hole

with the plastic plug.

5) Connect the DC spark generator wires

to the SIT Valve with the screw, which is provided in the kit.

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 26

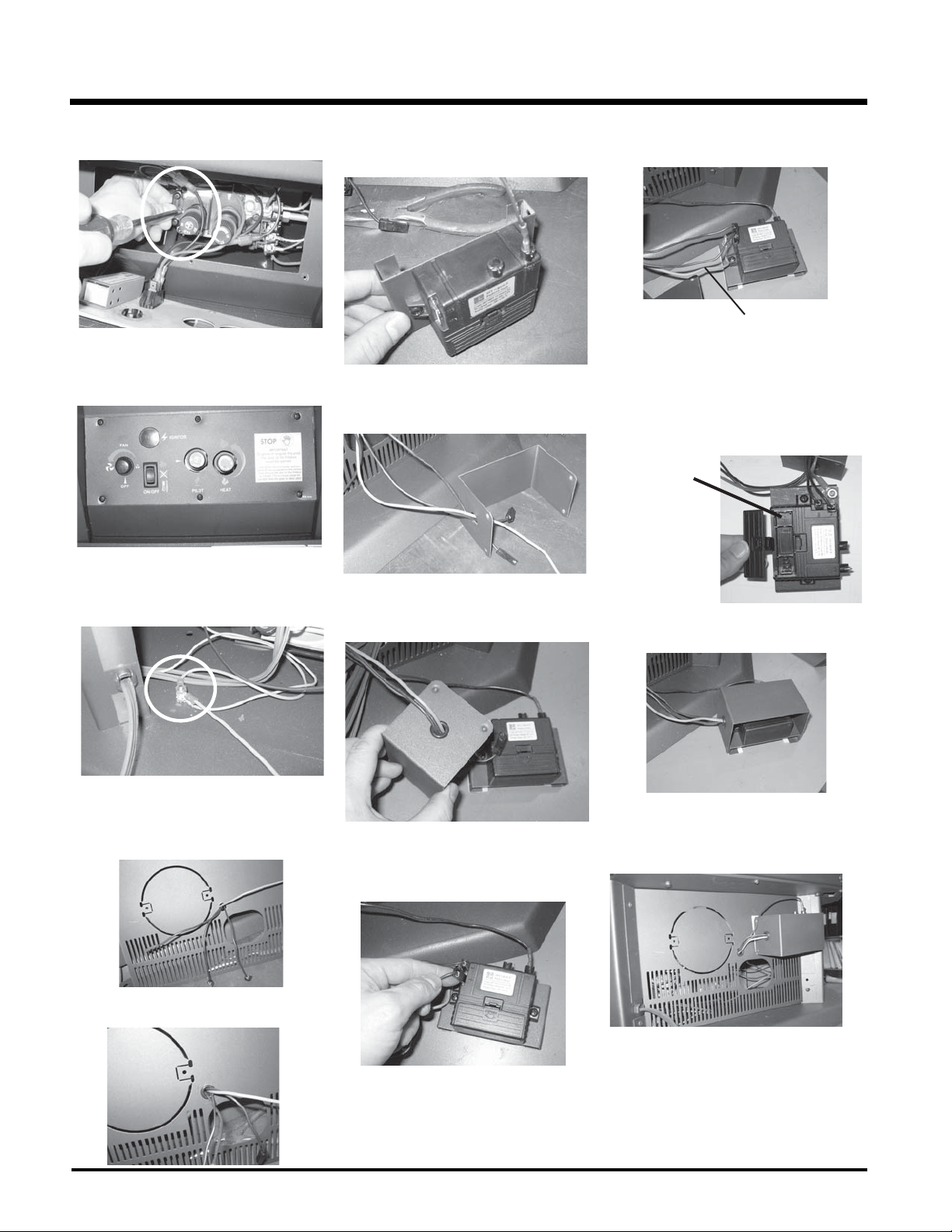

INSTALLATION

6) Secure with screw.

7) Reversing step 2 and secure the control

panel back onto the stove pedestal with the screws.

8) Attach one end of the green ground wire

to the grounding stud on the inside of the pedestal.

11) Attach the Piezo Ignition Wire to the

back of the DC Sparker box.

12) The ground wire and DC Sparker

ignition go through the hole on the heat shield.

13) Apply the plastic bushing to the heat

shield hole.

15) Attach the green ground wire.

green ground wire

16) Install the supplied battery into the DC Sparker

Box by opening the battery compartment.

NOTE: The battery in the DC Sparker Box will

need to be replaced annually.

Battery

Compartment

17) Place the heat shield over the DC Sparker.

9) The Ground Wire, DC Sparker Ignition

Wire and Piezo Spark Wire all go through the hole located on the pedestal back cover.

10) Put on the plastic split bushing.

14) Connect the DC Sparker Ignition Wire to

the DC Sparker.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

18) We recommend mounting the DC Sparker

box onto the pedestal back cover.

19) Check for gas leaks.

20) Check inlet and outlet pressures.

21) Check operation of ﬂ ame control.

22) Check for proper ﬂ ame appearance and glow

on logs.

Page 27

INSTALLATION

CONVERSION TO LOWER BTU RATING

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS

FITTER IF IN DOUBT DO NOT DO THIS CONVERSION !!

Natural Gas Conversion Kit 730-920 Contains:

Qty. Part # Description 1 904-240 Burner Oriﬁ ce #37 (Natural Gas) 1 918-034 Decal "Converted to 30,000 Btu" 1 918-033 Instruction Sheet

Propane Conversion Kit 730-922 Contains:

Qty. Part # Description 1 904-390 Burner Oriﬁ ce #52 (Propane) 1 918-034 Decal "Converted to 30,000 Btu" 1 918-033 Instruction Sheet

Additional Piece (pkg. with unit):

1 Log Bracket Restrictor

1) Shut off the gas supply.

2) Open the front door. Carefully remove the logs and lava rock.

3) Remove burner. See diagram below.

Note: Use a

magnetic type

screwdriver if

possible.

4) Unscrew the 2 Rear

Log Pins and move to the front hole position.

5) Remove Rear Log

Bracket and slide the Log Bracket Restrictor between the Rear Log Bracket

and the burner, secure with the 2 screws.

6) Remove burner oriﬁ ce with a 1/2" wrench and discard.

Burner Oriﬁ ce

7) Reinstall new burner oriﬁ ce (NG stamped #37 or LP stamped #52) and tighten.

8) Reverse steps 3) and 2).

9) Adjust Vent restrictor setting: To set the Vent restriction as indicated in the diagram, simply loosen the screws and push the vent restrictor plate to the correct position. Tighten the screws.

Unit Btu/h Restrictor Opening

U39 38,000 A 1-3/4" (44mm)

30,000 B 1-1/4" (32mm)

Vent Restrictor set-

ting at High Btu/h

10) Attach the label "This unit has been converted to..." on top of the Serial # decal over the higher Btu information.

11) Check for gas leaks.

12) Check inlet and outlet pressures.

13) Check operation of ﬂ ame control. Check for proper ﬂ ame appearance and glow on logs.

Vent Restrictor set-

ting at Low Btu/h

GAS PIPE PRESSURE

TESTING

The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig. (3.45 kPa). Disconnect piping from valve at pressures over 1/2 psig.

The manifold pressure is controlled by a regulator built into the gas control, and should be checked at the pressure test point.

Note: To properly check gas pressure, both

inlet and manifold pressures should be checked using the valve pressure ports on the valve.

1) Make sure the valve is in the "OFF"

position.

2) Loosen the "IN" and/or "OUT" pressure

tap(s), turning counterclockwise with a 1/8" wide ﬂ at screwdriver.

3) Attach manometer to "IN" and/or "OUT"

pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON"

position. Read manometer.

5) The pressure check should be carried out

with the unit burning and the setting should be within the limits speciﬁ ed on the safety label.

6) When ﬁ nished reading manometer, turn

off the gas valve, disconnect the hose and tighten the screw (clockwise) with a 1/8" ﬂ at screwdriver. Note: Screw should be snug,

but do not over tighten

Position the Log Bracket Restrictor between

the Rear Log Bracket and the burner.

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 28

INSTALLATION

Valve Description

1) Gas on/off knob

2) Manual high/low adjustment

3) Pilot Adjustment

4) Thermocouple Connection

5) Main Operator

6) Outlet Pressure Tap (Manifold Pressure)

7) Inlet Pressure Tap (Supply Pressure)

8) Pilot Outlet

9) Main Gas Outlet

10) Flange Securing Screw Holes

11) Alternative TC Connection Point

12) Thermoelectric Unit

13) Additional Valve Mounting Hole

AERATION

ADJUSTMENT

The burner aeration is factory set but may need adjusting due to either the local gas supply or altitude.

U39 with 38,000 Btu/h U39-NG1 Natural Gas: 1/4" open U39-LP1 Propane: 1/2" open

U39 with 30,000 Btu/h

U39-NG1 Natural Gas 3/16" open U39-LP1 Propane 3/8" open

The aeration adjustment gears are located on the right side of the burner box and can be accessed from the side or from the front when the louvers are removed.

Clockwise to open,

counter-clockwise to close.

Caution: Carbon will be produced if the air shutter is closed too much.

Note: An y damage due to carboning

resulting from improperly setting the aeration controls is NOT covered under warranty.

Note: Aeration Adjustment should only be

performed by an authorized Regency® Installer at the time of installation or service.

To adjust the aeration: use the allen key to turn the turning gear which will adjust the air shutter. Open the air shutter for a blue ﬂ ame or close it for a yellower ﬂ ame.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 29

LOG SET INSTALLATION

INSTALLATION

Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until they are replaced. Broken logs can interfere with the pilot operation.

The gas log kit contains the following:

a) 02-65 Rear Log b) 02-56 Middle Left Log c) 02-44 Front Left Log d) 02-46 Left Top Log e) 02-45 Front Right Log f) 02-47 Center Log g) 02-48 Middle Right Log h) 902-151 Embers i) 902-154 Lava j) 946-669 Platinum Embers

(supplied w/packaged manual)

2) Sprinkle the embers on the left and right sides of the

ﬁ rebox base.

Embers Embers

3) Place Rear Log A)02-65 on the two pins on the rear

log support.

A)02-65

The "02" refer numbers (i.e. 02-65) are

molded into the rear of each log.

Note: Install Optional Brick Panels prior to installing logs.

1) Carefully remove the logs from the box and unwrap them. The logs are fragile, handle with care - do not force into position.

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Pins on Rear Log Support

4) Place the Middle Left Log B)02-56 on the two pins

as shown.

B)02-56

Page 30

INSTALLATION

5) Sprinkle some lava rock just in front of B)

02-56 on the burner holes.

B)02-56

Lava Rock

6) Place Front Left Log C)02-44 onto the 2 front pins

as shown.

C)02-44

8) Place Front Right Log E)02-45 on the two pins as

shown.

E)02-45

9) Place the lava rock in the area between the left and

right logs, leaving a space in the middle for

log (F) 02-47.

7) Place the Left Top Log D)02-46 on the pin on Log

B)02-56 and on top of the cutout on Log A)02-65.

A)02-65

D)02-46

B)02-56

C)02-44

Cutout

10) Separate platinum embers and place around the

lava rock on the burner. Avoid stacking platinum embers.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 31

11) Place the notch in Center Log F)02-47 over Log E)02-45 and across the cutout on Log A)02-

65.

F)02-47

A)02-65

INSTALLATION

G)02-48

E)02-45

Notch

12) Position notch in Front Right Log G)02-48 on Log

F)02-47 and push the bottom right edge against the bracket on the burner tray.

G)02-48

A)02-65

F)02-47

Cutout

E)02-45

Side

View

Bracket

The bottom right edge of Log G)02-48

must sit snugly against the bracket

13) Test ﬁ re to ensure proper light off (make sure ﬂ ame

ﬂ ows smoothly from one end of burner to the other. If there is any ﬂ ame hesitation, check that area for any blockage of the burner port.

A)02-65

G)02-48

B)02-56

D)02-46

C)02-44

F)02-47

E)02-45

Notch

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 32

INSTALLATION

WIRING DIAGRAM

This heater does not require a 120V A.C. supply for operation. In case of a power failure, the burner switch and the optional remote control/ thermostat will continue to operate. However, a 120V A.C. power supply is needed for the fan/blower operation.

Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous

WARNING: Electrical Grounding Instructions This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 33

INSTALLATION

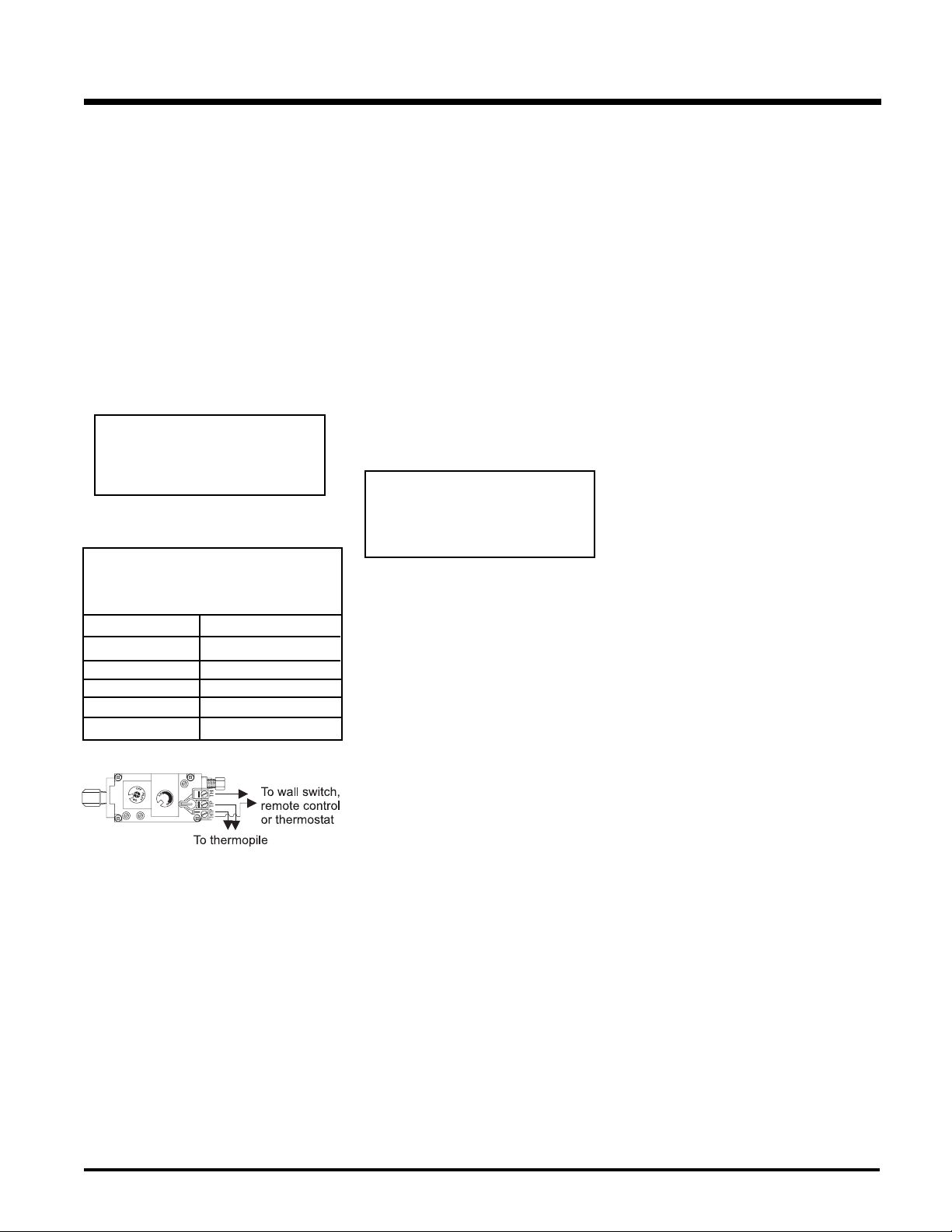

OPTIONAL WALL

THERMOSTAT

A wall thermostat may be installed if desired. Connect the wires as per the wiring diagrams. Note that the wires are connected to the "TH" on the gas valve. Use table below to determine the maximum wire length:

Note: Preferable if the thermostat is installed on an interior wall.

Regency® offers an optional programmable thermostat but any 250-750 millivolt rated nonanticipator type thermostat that is CSA, ULC or UL approved may be used.

CAUTION

Do not connect the millivolt

wall thermostat wires

to the 120V wires.

Thermostat Wire Table

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

14 GA. 16 GA. 18 GA. 20 GA. 22 GA.

50 Ft. 32 Ft. 20 Ft. 12 Ft.

9 Ft.

OPTIONAL REMOTE

CONTROL

Use the Regency® Remote Control Kit approved for this unit. Use of other systems may void your warranty.

The remote control kit comes with a hand held transmitter, a receiver and a wall mounting plate.

1) Choose a convenient location on the wall

to install the receiver and the receptacle box (protection from extreme heat is very important). Run wires from the ﬁ replace to that location, use Thermostat Wire Table.

2) Connect the wires as per the wiring diagram

above.

CAUTION

Do not connect the millivolt

remote control wires to

the 120V wires.

3) Install 3 AAA alkaline batteries in transmitter

and 4 AA alkaline batteries in the receiver. Install the receiver and its cover in the wall. Switch the remote receiver to "remote" mode. The remote control is now ready for operation.

FINAL CHECK

Before leaving this unit with the customer, the installer must ensure that the appliance is ﬁ ring correctly. This includes:

1) Clocking the appliance to ensure the

correct ﬁ ring rate (rate noted on label) at 15 minutes.

2) If required, adjusting the primary air to ensure

that the ﬂ ame does not carbon. First allow the unit to burn for 15 min. to stabilize.

3) Check for proper draft.

CAUTION Any alteration to the product that causes sooting or carboning that results in damage to the exterior facia is not the responsibility of the manufacturer.

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 34

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

Before operating this appliance, proceed through the following check list.

1) Read and understand these Instructions

before operating this appliance.

2) Check to see that all wiring is correct and

enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the three pieces of door glass

are properly positioned. Never operate the appliance with any of the glass removed or with the door open.

5) Verify that all venting and the cap is

unobstructed.

6) Verify log placement. If the pilot cannot be

seen when lighting the unit - the logs or the embers have been incorrectly positioned.

7) The unit should never to turned off and on

without a minimum of a 60 second wait.

LIGHTING

PROCEDURE

IMPORTANT

To ignite or reignite the pilot, the

door to the ﬁ rebox must be opened.

Only when the pilot holds, without pressure being applied to the control knob, should the door to the ﬁ rebox be closed. The unit must never be operated with the glass or door open.

1) Push in gas control knob slightly and turn

to "PILOT" position.

2) Push in control knob all the way and hold in

until the pilot lights up. Continue to hold the control knob in for about 20 seconds after the pilot is lit. Release knob.

3) Push in gas control knob slightly and turn

to "ON" position.

4) Turn ON the ﬂ ame switch.

SHUTDOWN

INSTRUCTIONS

1) Use the Burner ON/OFF switch, thermostat

or remote control to turn off the burner.

2) Push in the PILOT knob slightly and turn

clockwise to off. Do not force.

3) Turn off all electric power to the appliance

if service is to be performed.

FIRST FIRE

The FIRST FIRE in your stove is part of the paint curing process. To ensure that the paint is properly cured, it is recommended that you burn your ﬁ replace for at least four (4) hours the ﬁ rst time you use it with the fan on. When ﬁ rst operated, the unit will release an odour caused by the curing of the paint and the burning off of any oils remaining from manufacturing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate the room for a couple of hours. The glass may require cleaning.

DO NOT ATTEMPT TO CLEAN THE GLASS WHILE IT IS STILL HOT!

Note: When the glass is cold and the

appliance is lit, it may cause condensation and fog the glass. This condensation is normal and will disappear in a few minutes as the glass heats up.

DO NOT BURN THE APPLIANCE WITHOUT THE GLASS FRONT IN PLACE.

During the ﬁ rst few ﬁ res, a white ﬁ lm may develop on the glass front as part of the curing process. The glass should be cleaned or the ﬁ lm will bake on and become very difﬁ cult to remove. Use a non-abrasive cleaner and NEVER clean the glass while it is hot.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 35

OPERATING INSTRUCTIONS

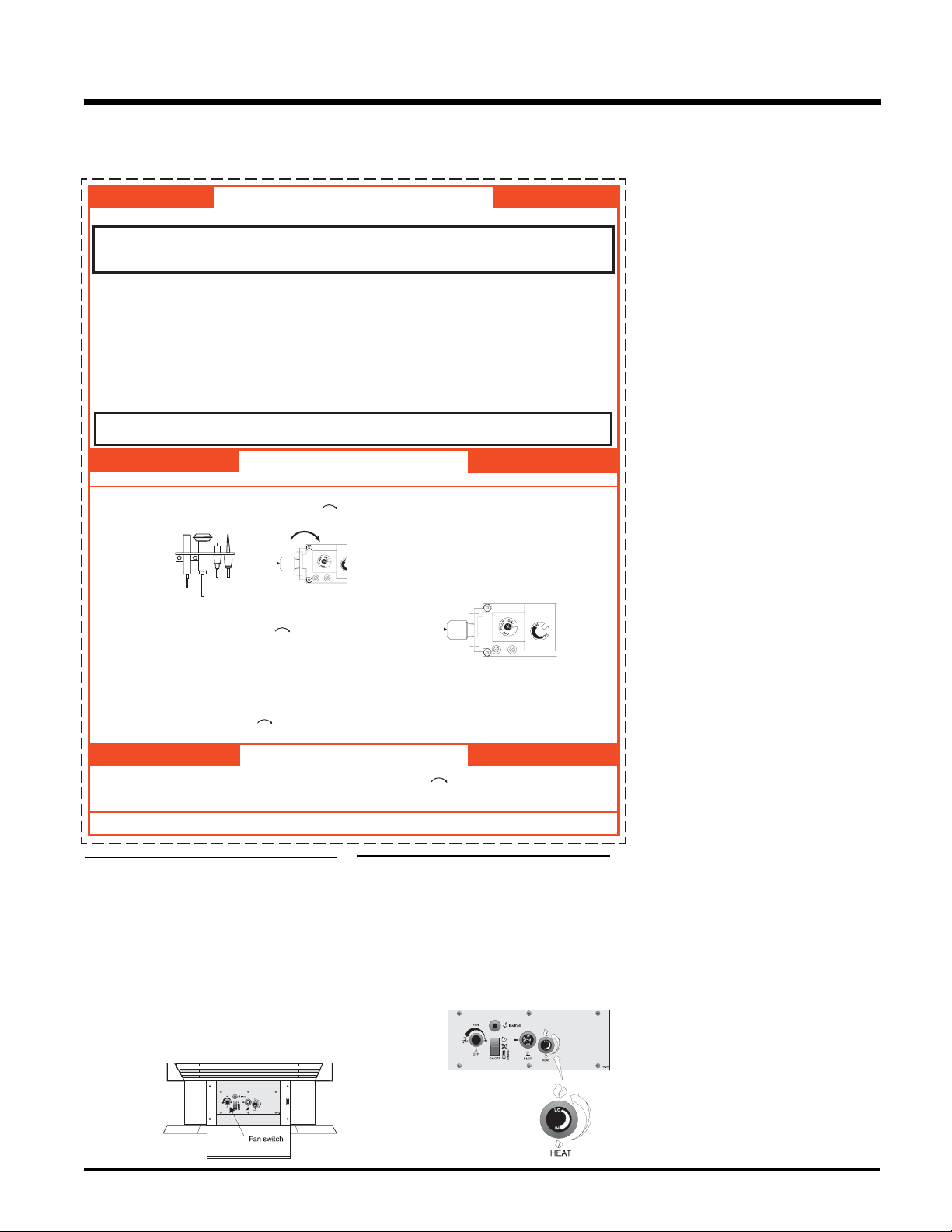

Copy Of Lighting Plate Instructions

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/

NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1. (Australia: AS5601-2004, New Zealand: NZS 5261)

WARNING: If you do not follow these instructions exactly, a ﬁ re or explosion may result causing property damage, personal injury or loss of life. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualiﬁ ed installer, service agency or gas supplier.

A) This appliance has a pilot which must be lighted by hand, following the instructions below exactly. B) BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the ﬂ oor because some gas is heavier than

air and will settle on the ﬂ oor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance

- Do not touch any electric switch, do not use any phone in your building

- Immediately call your gas supplier from a neighbors phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the ﬁ re department. C) Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not push in or turn by hand, don’t try to

repair it, call a qualiﬁ ed service technician. Force or attempted repair may result in a ﬁ re or explosion.

D) Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and

to replace any part of the control system and any gas control which has been under water.

E) This appliance needs fresh air for safe operation and must be installed so there are provisions for adequate combustion and ventilation air.

CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface temperatures keep children, clothing and furniture, gasoline and other liquids having fammable vapors away. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.

FOR UNITS NOT EQUIPPED WITH ELECTRIC SPARK:

Push in gas control knob slightly and turn clockwise “OFF”. Knob cannot be turned from “PILOT” to “OFF” unless knob is pushed in slightly. Do not force.

PILOT BURNER VEILLEUSE

THERMOPILE ELEMENT THERMOELECTRIQUE

2) Wait ﬁ ve (5) minutes to clear out any gas. If you then smell gas STOP! follow “B” in the safety information above on this label. If you don’t smell gas, go to the next step.

3) Turn knob on gas control counterclockwise to “PILOT”.

4) Push in control knob all the way and hold in. Immediately push black button on spark igniter until pilot lights. Continue to hold the control knob in for about 1/2 minute after the pilot is lit. Release knob and it will pop back up. Pilot should remain lit. If it goes out, repeat steps 3) and 4).

If knob does not pop up when released, stop and immediately call

your service technician or gas supplier.

If the pilot will not stay lit after several tries, turn the gas control

knob to “OFF” and call your service technician or gas supplier.

5) Turn gas control knob counterclockwise to “ON”.

6) Use rocker switch to operate main burner.

1) Turn off the flame switch.

2) Push in the gas control knob slightly and turn clockwise to “OFF”. Do not force.

3) Turn off all electric power to the appliance if service is to be performed. You may shut off the pilot during prolonged non use periods to conserve fuel.

AUTOMATIC

CONVECTION FAN

OPERATION

The fan operates automatically - turn the knob on the pedestal control panel to adjust to the desired speed. The fan will turn on as the stove comes up to operating temperature. After the unit has been turned off and cools to below a useful heat output range the fan will shut off automatically.

FOR YOUR SAFETY READ BEFORE LIGHTING

LIGHTING INSTRUCTIONS

STOP! Read the safety information above on this label.

1) Push in gas control knob slightly and turn to “PILOT” position.

OFF

2) Push in control knob all the way and hold in until the pilot lights

Gas Inlet

3) Push in gas control knob slightly and turn to "ON" position.

4) Turn ON the ﬂ ame switch.

FOR ALL PROPANE UNITS AND

UNITS EQUIPPED WITH ELECTRIC SPARK BOXES:

up. Continue to hold the control knob in for about 20 seconds after the pilot is lit. Release knob.

Gas Inlet

TO TURN OFF GAS APPLIANCE

DO NOT REMOVE THIS INSTRUCTION PLATE

Adjusting Flame Height

Your heater has an adjustable ﬂ ame to tailor the look and heat output to your speciﬁ c needs. It is adjusted by turning the ﬂ ame adjustment dial on the gas control valve.

Turn clockwise to adjust the ﬂ ame higher, counterclockwise for a lower ﬂ ame.

918-474a

NORMAL

OPERATING

SOUNDS OF

GAS APPLIANCES

It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there are various gauges and types of steel used within your appliance. Listed below are some examples. All are normal operating sounds and should not be considered as defects in your appliance.

Blower:

Regency® gas appliances use high tech blowers to push heated air farther into the room. It is not unusual for the fan to make a "whirring" sound when ON. This sound will increase or decrease in volume depending on the speed setting of your fan speed control.

Burner Tray:

The burner tray is positioned directly under the burner tube(s) and logs and is made of a different gauge material from the rest of the ﬁ rebox and body. Therefore, the varying thicknesses of steel will expand and contract at slightly different rates which can cause "ticking" and "cracking" sounds. You should also be aware that as there are temperature changes within the unit these sounds will likely re-occur. Again, this is normal for steel ﬁ reboxes.

Blower Thermodisc:

When this thermally activated switch turns ON it will create a small "clicking" sound. This is the switch contacts closing and is normal.

Pilot Flame: While the pilot ﬂ ame is on it can make a very slight "whisper" sound.

Gas Control Valve: As the gas control valve turns ON and OFF, a dull clicking sound may be audible, this is normal operation of a gas regulator or valve.

Unit Body/Firebox: Different types and thicknesses of steel will expand and contract at different rates resulting in some "cracking" and "ticking" sounds will be heard throughout the cycling process.

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 36

MAINTENANCE

INSTRUCTIONS

1) Always turn off the valve before cleaning.

For relighting, refer to lighting instructions. Keep the burner and control compartment clean by brushing and vacuuming at least once a year. When cleaning the logs, use a soft clean paint brush as the logs are fragile and easily damaged.

2) Clean glass (never when unit is hot),

appliance, louvers, and door with a damp cloth. Never use an abrasive cleaner. The gold louvers (and optional gold door) may be scratched if abrasives are used to clean them.

The heater is ﬁ nished in a heat resistant

paint and should only be reﬁ nished with heat resistant paint (not with wall paint). Regency® uses StoveBright Paint - Metallic Black #6309.

3) Make a periodic check of burner for proper

position and condition. Visually check the ﬂ ame of the burner periodically, making sure the ﬂ ames are steady; not lifting or ﬂ oating. If there is a problem, call a qualiﬁ ed service person.

4) Caution: Label all wires prior to disconnection

when servicing controls. Wiring errors can cause improper and dangerous operation.

5) The appliance and venting system must be

inspected before use, and at least annually, by a qualiﬁ ed ﬁ eld service person, to ensure that the ﬂ ow of combustion and ventilation air is not obstructed.

During the annual service call, the burners

should be removed from the burner tray and cleaned. Replace the embers but do not block the pilot.

6) Keep the area near the appliance clear and

free from combustible materials, gasoline, and other ﬂ ammable vapours and liquids.

WARNING: CHILDREN AND

ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURE AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.

DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO INSPECT THE APPLIANCE AND TO REPLACE ANY PART OF CONTROL SYSTEM AND ANY GAS CONTROL WHICH HAS BEEN UNDER WATER.

CAUTION: ANY SAFETY SCREEN OR GUARD REMOVED FOR SERVICING AN APPLIANCE MUST BE REPLACED PRIOR TO OPERATING THE APPLIANCE.

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

7) Each time the appliance is lit, it may cause

condensation and fog the glass. This condensation and fog is normal and will disappear in a few minutes as the glass heats up.

Never operate the appliance without the

glass properly secured in place or with the door open.

8) Periodically check the pilot ﬂ ames. Correct

ﬂ ame pattern has three strong blue ﬂ ames: 1 ﬂ owing around the thermopile and 1 around the thermocouple, and 1 ﬂ owing across the rear of the burner (it does not have to be touching the burner).

Note: If you have an incorrect ﬂ ame pattern,

contact your Regency® dealer for further instructions.

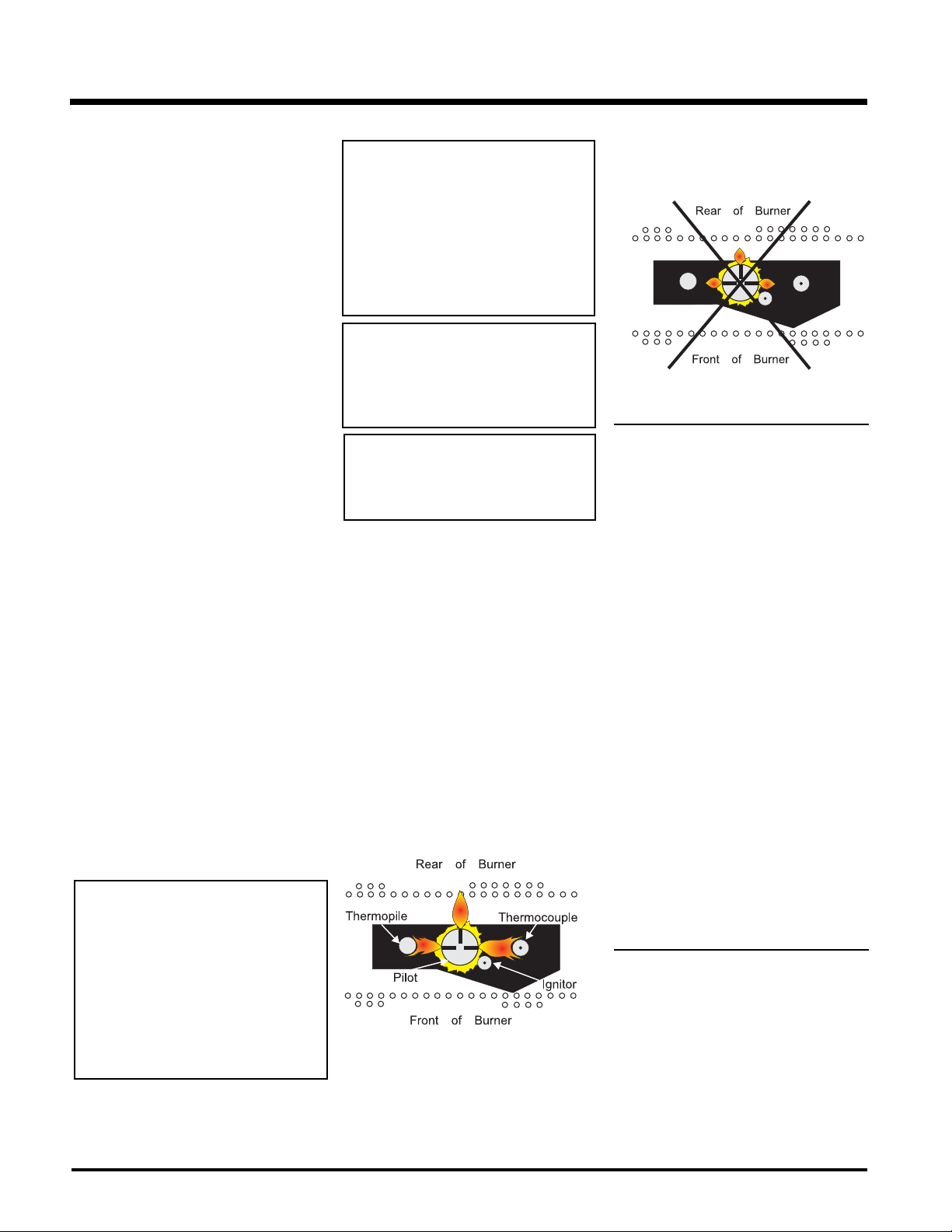

Top View of pilot ﬂ ame

Incorrect ﬂ ame pattern will have small, probably yellow ﬂ ames, not coming into proper contact with the rear of the burner or thermopile.

Top View of pilot ﬂ ame

GENERAL VENT

MAINTENANCE

Conduct an inspection of the venting system semi-annually. Recommended areas to inspect as follows:

1) Check the Venting System for corrosion in

areas that are exposed to the elements. These will appear as rust spots or streaks, and in extreme cases, holes. These components should be replaced immediately.

2) Remove the Cap, and shine a ﬂ ashlight down

the Vent. Remove any bird nests, or other foreign material.

3) Check for evidences of excessive

condensation, such as water droplets forming in the inner liner, and subsequently dripping out the joints, Continuous condensation can cause corrosion of caps, pipe, and ﬁ ttings. It may be caused by having excessive lateral runs, too many elbows, and exterior portions of the system being exposed to cold weather.

4) Inspect joints, to verify that no pipe

sections or ﬁ ttings have been disturbed, and consequently loosened. Also check mechanical supports such as Wall Straps, or plumbers' tape for rigidity.

GOLD-PLATED DOORS

The 24 carat gold plated ﬁ nish on the door requires little maintenance, and need only be cleaned with a damp cloth. DO NOT use abrasive materials or chemical cleaners, as they may harm the ﬁ nish and void the warranty. Clean any ﬁ ngerprints off before turning the unit on. If the

door starts to discolour, check the gasket seal and replace if necessary.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 37

MAINTENANCE

LOG REPLACEMENT

The unit should never be used with broken logs. Turn off the gas valve and allow the unit to cool before opening door to carefully remove the logs. The pilot light generates enough heat to burn someone. If for any reason a log should need replacement, you must use the proper replacement log. The position of these logs must be as shown in the diagram under Log Installation.

Note: Improper positioning of logs may

create carbon build-up and will alter the unit’s performance which is not covered under warranty.

DOOR GASKET

If the door gasket requires replacement use 7/8" diameter oval door gasket (Part # 650-920).

LATCH ADJUSTMENT

The door latch may require adjustment as the door gasket material compresses after a few ﬁ res and after glass replacement. Turn the adjustable catch to tighten or loosen the latch.

Note: Wearing gloves will protect your hands

while handling glass.

Panel Glass Replacement

1) Remove the door from the unit and place on

a soft surface to prevent scratching.

2) Pull out the door gasket.

3) Remove the nuts holding the glass retainers

in place.

4) Remove the glass retainers (sides, top and

bottom) and the door catch plate.

5) Replace the glass. The glass must have gasketing around it.

6) Reverse the previous steps, replace the

retainers and fasten with the nuts but do not overtighten, as this can break the glass. Note: the door catch plate ﬁ ts on top of the left side retainer.

7) Put gasket glue on the retainers, but do not put glue on the screws. Replace the door gasket, the two ends butt tight together on the bottom edge of the door.

8) Replace door on the stove and check the seal.

Mitred Glass Replacement

Removing Glass

1) Remove the door from the unit and place

on a soft surface to prevent scratching.

2) Pull out the door gasket.

3) Remove the 24 nuts holding the glass

retainers in place. Do not remove the nuts underneath the retainers.

4) Remove the door catch plate.

5) Remove glass retainers on sides ﬁ rst (3 each

side) then remove two center retainers.

Note: Center glass retainers are glued to

center glass.

6) Remove glass from extrusions. When

removing center glass, leave white insulation in place.

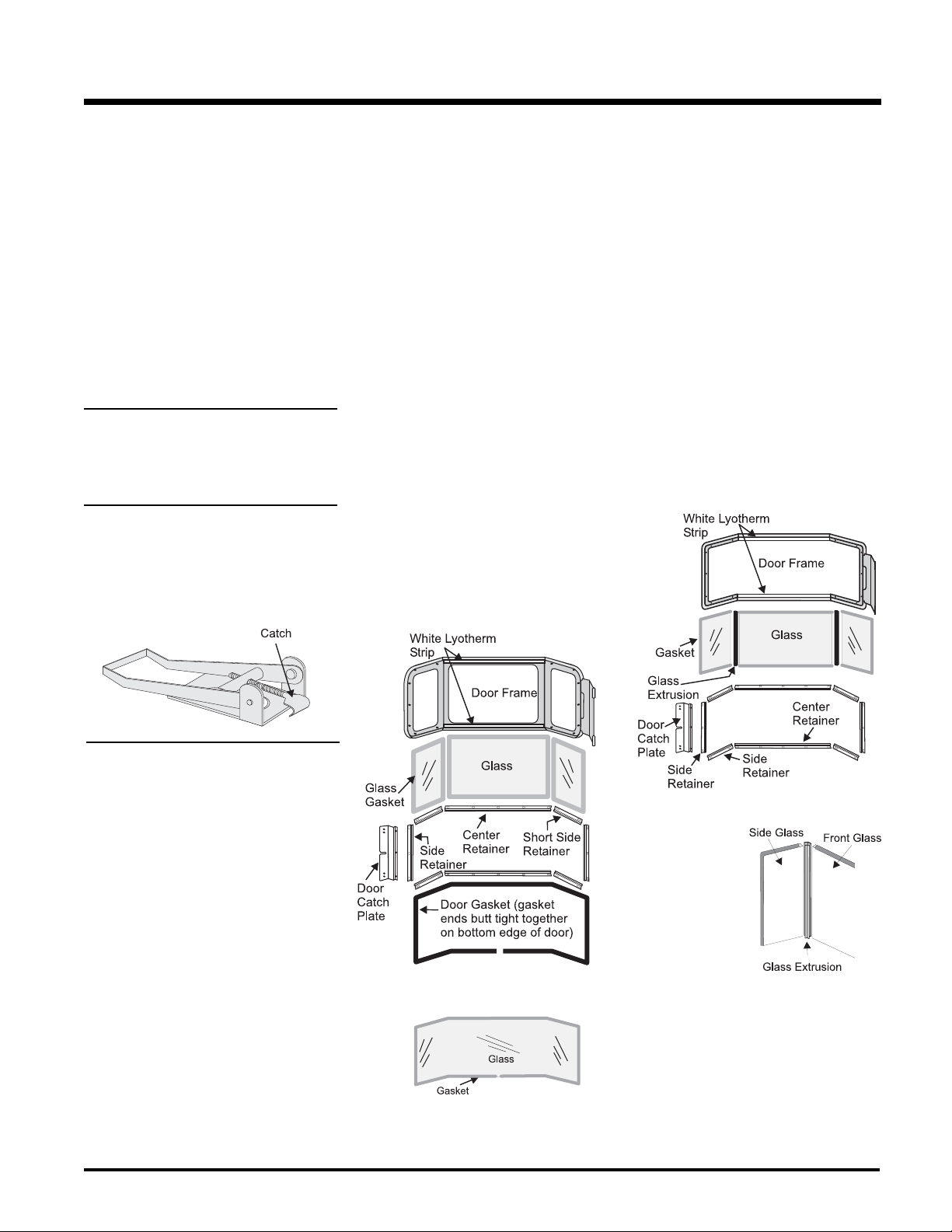

GLASS

REPLACEMENT

Your ULTIMATE stove is supplied with high temperature, 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. In the event that you break your glass by impact, purchase your replacement door from an authorized Regency our step-by-step instructions for replacement. The glass is not sold separately, as it must be properly sealed in the door frame.

Replacement Part # 940-325/P U39 Wraparound Glass 940-322/P U39 Panel Center Glass 940-323/P U39 Panel Side Glass

WARNING: Do not operate appliance with glass panels removed, cracked or broken. Replacement of the glass should be done by a licensed or qualiﬁ ed service person.

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

dealer only, and follow

Panel Glass Door Assembly

Wraparound Assembly Door (same glass retainers as the

Panel Assembly)

Installing Glass

1) Install both center

and side glass onto extrusions as per diagram.

2) Place glass assembly into door frame.

3) Install retainers by placing 1 drop of glue

where previously glued and put in place.

4) Install side retainers.

5) Install door catch plate.

6) Install the 24 nuts loosely, do not tighten

yet.

Page 38

MAINTENANCE

7) Tighten side panels nuts using the following

procedure:

a. tighten top & bottom outside corner nuts

(2) b. tighten inside nuts (3) c. tighten top & bottom inside corners (2)

8) Tighten the 10 nuts on center glass

retainer.

9) Repeat step 7 for other side panel.

10) Replace new gasket by gluing it in place.

11) Install door onto stove and check the seal.

FAN MAINTENANCE

If your fan requires maintenance or replacement, access to the fan is through the plate on the rear wall of the ﬁ rebox. NOTE: the unit MUST NOT

be operated without the fan access panel securely in place and correctly sealed.

IMPORTANT: These fans collect a lot of

dust from within your home. Ensure

you maintain these fan motors on a

regular basis by vacuuming out the

fan squirrel cages, around the motor,

and around the grills on the back of

the stove.

IMPORTANT

Disconnect power supply

before servicing

WARNING:

Electrical Grounding

Instructions This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.

To Remove U39 Fan:

1) Unplug or disconnect power source to

stove.

2) Remove all logs and the rear log support,

then remove the 10 screws holding the access panel in place.

3) Unclip the black and white wires from the

fan motor.

4) Open both side doors and gently pull the

ﬂ ex pipe away from the center, otherwise the fan can catch on the ﬂ ex pipe during installation and tear the pipe. Do not tear or damage the ﬂ ex pipe.

Alternate Fan Access:

If the rear access cover is accessible, it can be removed to provide access to the fan.

5) Lift fan off of the 2 pins, tip back and pull

through ﬁ rebox opening. Disconnect the green ground wire from the right side of the fan as soon as you can reach it.

Replacing U39 Fan:

Reverse the above steps (1 - 5). If necessary install a new gasket before replacing the fan access panel. Make sure the fan wires and the ground wire are reattached.

Hint for pushing fan down onto pins - rub a bit of dish soap on the grommet so it will slide more easily onto the pin. Check to make sure the fan is seated properly on the pins - try to move the fan back and forth, there should be no noise, if there is check that the grommets haven't come loose.

DC SPARKER BATTERY

REPLACEMENT

The battery in the DC Spark box needs to be replaced annually.

1) Remove the DC Spark box from the back

of the pedestal cover by removing the heat shield.

2) Remove the Heat Shield from the DC

Spark Box.

3) Place 1 AA battery into the DC Spark Box

by opening the battery compartment.

Regency

4) Reverse steps to put back in place.

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 39

REMOVING VALVE

MAINTENANCE

If your valve requires maintenance or replacement, use the following instructions:

Note: Always close off the gas supply

before removing the valve.

1) Open front pedestal door. You may want

to put a soft cloth on the base of the unit so that when the pedestal door is open it doesn't scratch the paint.

2) Undo the six screws holding the control

panel in place.

3) Disconnect all wires from the back of the

panel and then remove panel. You should lay the panel on a soft cloth so it doesn't get marked up. See diagram below.

4) Remove the screw that holds the DC

spark generator wires in place on the valve.

5) Disconnect the DC spark generator wires

from the valve.

6) Remove the two outside frame pieces by

removing two screws per side. See diagram below.

Note: Use a magnetic type screwdriver if

possible.

10) Remove all 18 screws holding the burner

tray assembly in place.

11) Carefully lift the burner tray assembly out.

12) To replace the burner tray assembly, simply

reverse these instructions.

7) At this point you should disconnect the gas

at the valve. You can access it through the front now that the control panel is off, or you can access it through the rear pedestal cover plate.

8) Carefully remove the logs and lava rock.

9) Remove burner.

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 40

PARTS LIST

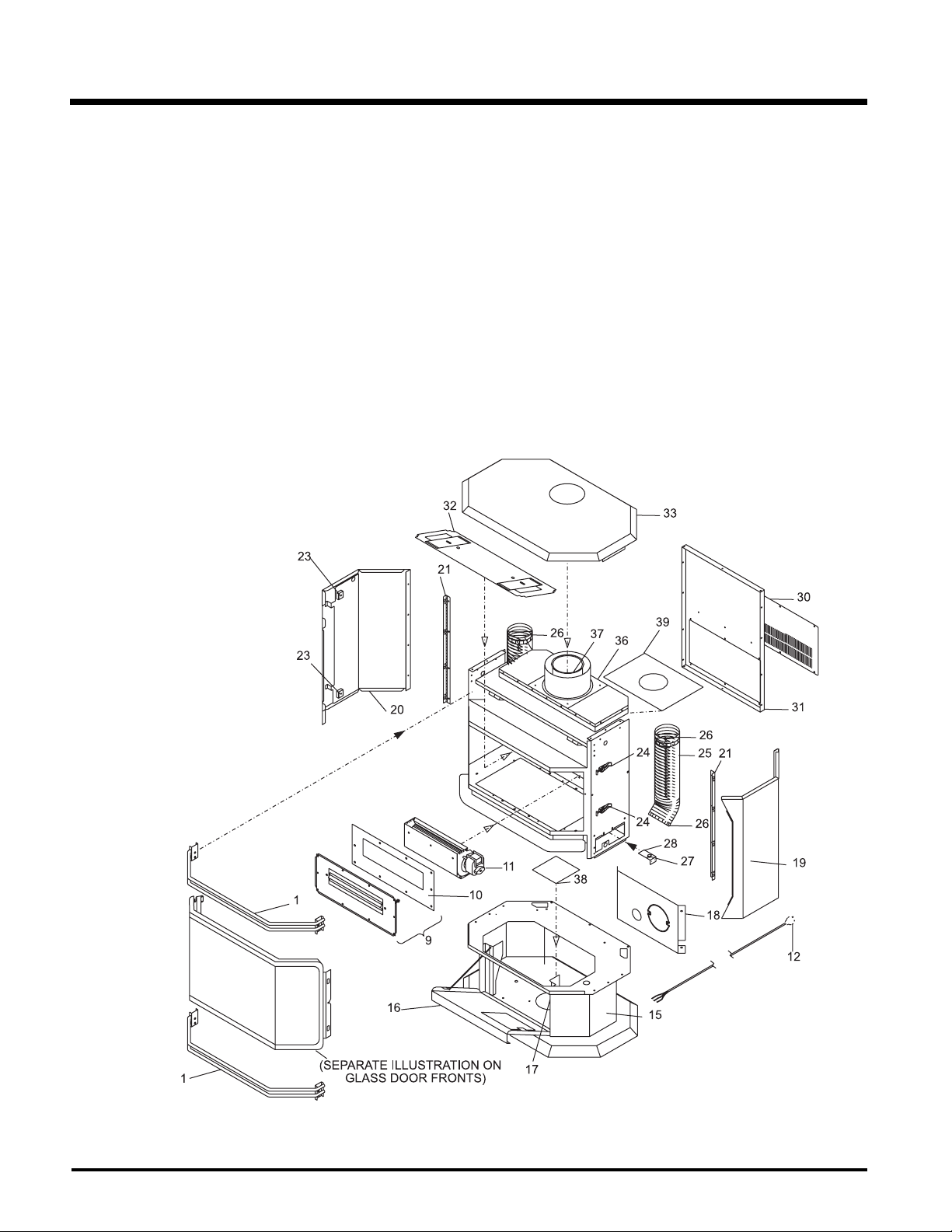

MAIN ASSEMBLY

Part # Description Part # Description

1) 560-920 Louver Assy - Gold 560-921 Louver Assy - Brush Nickel 560-922 Louver Assy - Black

9) 730-560 Relief Door Assembly

10) 730-034 Mounting Plate Gasket

11) 730-517/P Fan Assembly 910-331/P Fan Motor (120 Volt)

12) 910-794 Power Cord (120 Volt)

15) * Pedestal Assembly

16) 730-039 Pedestal Door

17) 904-257 Pedestal Door Magnet

18) 560-025 Pedestal Back

19) 730-530 Short Side Panel Door Assy (Right Side)

20) 730-525 Short Side Panel Door Assy (Left Side)

21) 560-031 Hinge for Side Panel

23) 904-258 Side Panel Door Magnet

24) 948-255 Door Latch c/w Hook

25) * Flex Pipe 3" ID

26) * Hose Clamp

27) 910-233 Thermodisc - Fan Auto/On/Off

28) * Mounting Bracket - Thermodisc

30) 630-021 Fan Access Panel

31) 730-019 Rear Panel

32) 730-565 Firebox Bafﬂ e/Restrictor Assy

33) 630-520 False Top Assembly

36) 936-194 Gasket-Starter Collar/Air Passage

37) * Gasket-Flue Collar/Starter Collar

38) 820-058 Pedestal Base Cover

39) * Gasket - Air Passage

910-073 Spark Generator Battery Holder 910-074 Spark Generator Switch c/w Wire

948-216 Logo Plate 918-531 Manual

*Not available as a replacement part.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 41

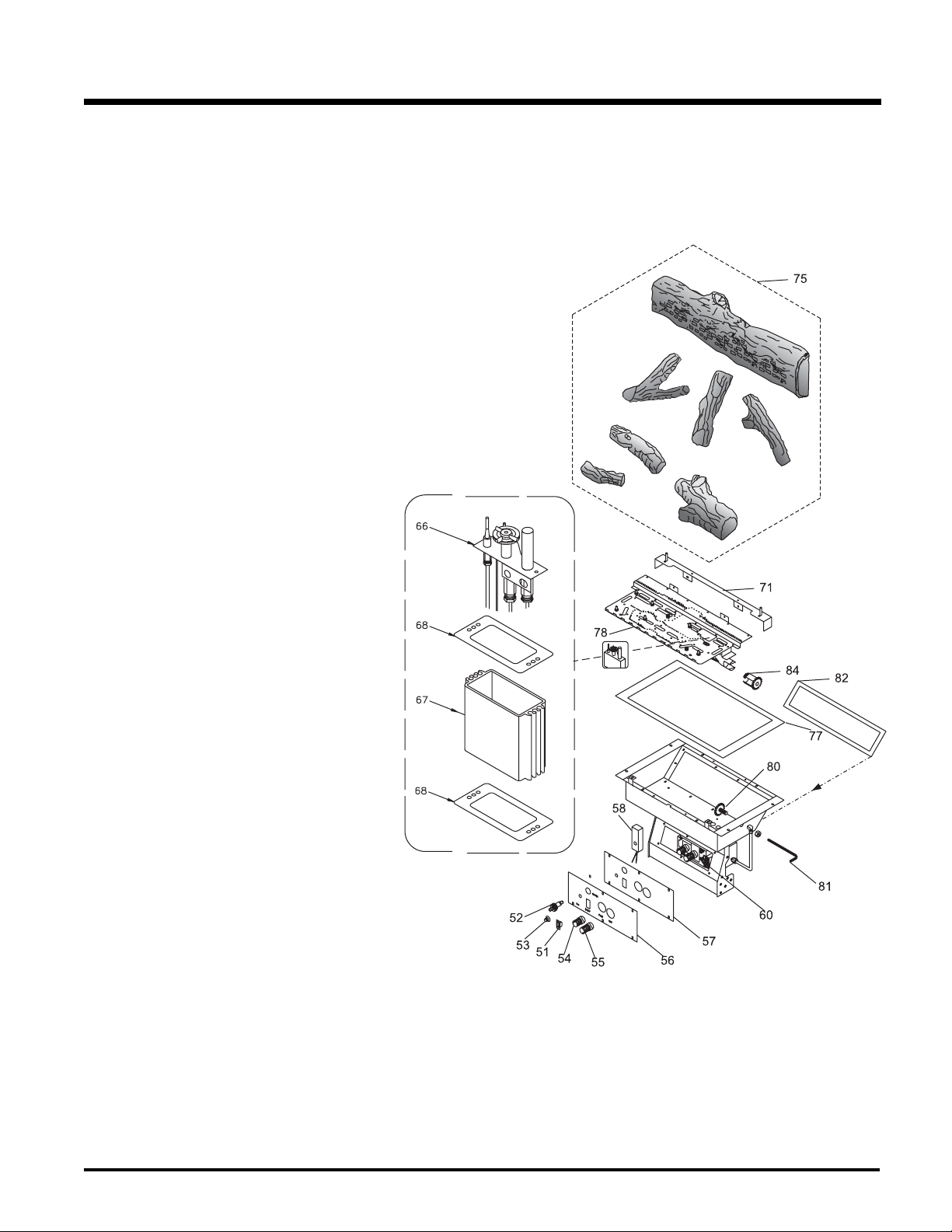

BURNER & LOG ASSEMBLY

Part # Description

51) 910-241 Burner ON/OFF Switch (3-way)

52) 910-190 Piezo Ignitor & Nut

53) 904-586 Knob for Fan Speed Control

54) 910-373 Knob - Pilot Valve Extension

55) 910-372 Flame Adjusting Knob

56) 908-646 Control Panel Decal

57) 650-220 Control Panel Plate

58) 910-330 Fan Speed Control (120 V)

730-574/P Valve Assembly - Natural Gas 730-576/P Valve Assembly - Propane

60) 910-478 Valve S.I.T. - NG/LP

66) 910-038 Pilot Assy - S.I.T. - 3 Flame NG 910-039 Pilot Assy - S.I.T. - 3 Flame LP

904-240 #37 Oriﬁ ce - N.G. at 30,000 Btu/h 904-688 #32 Oriﬁ ce - N.G. at 38,000 Btu/h 904-390 #52 Oriﬁ ce - Propane at 30,000 Btu/h 904-641 #50 Oriﬁ ce - Propane at 38,000 Btu/h 936-170 Oriﬁ ce Gasket

PARTS LIST

67) * Pilot Holder

68) W840470 Pilot Assembly Gasket

71) 730-528 Rear Log Bracket

75) 730-935 Log Set

77) 630-008 Gasket - Burner Tray/Firebox

78) 730-550 Burner Assembly (NG/LP)

80) 260-565 Air Shutter Gear Assembly - Female

81) 904-565 Hex Key 3/16" AF

82) 630-009 Gasket-Burner Tray/Air Passage

84) * Air Shutter Gear Assembly - Male

*Not available as a replacement part.

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 42

PARTS LIST

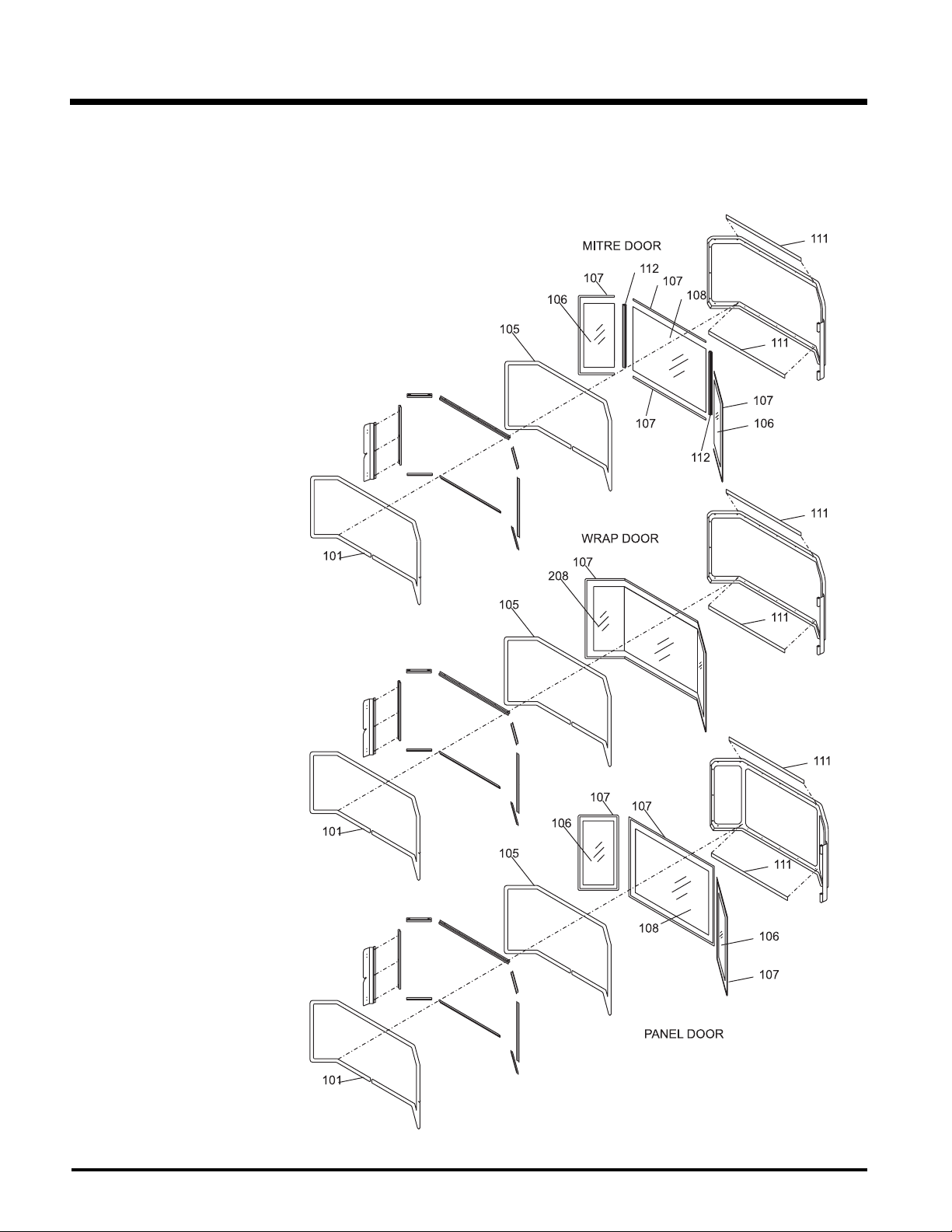

DOOR ASSEMBLIES

Part # Description

730-923 Brush Nickel Mitred Door - Complete 730-924 Gold Mitred Door - Complete 730-926 Black Mitred Door - Complete 730-932 Gold Wrap Door - Complete 730-928 Gold Panel Door - Complete

101) 650-920 Door Gasket Kit

105) * Ceramic Paper

106) 940-323/P Side Glass

107) 936-243 Glass Gasket

108) 940-322/P Centre Glass

111) * Door Frame Fibre Paper

112) 750-015 Door Glass Extrusion

208) 940-325/P Wrap Glass

*Not available as a replacement part.

Regency

U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 43

WARRANTY

Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a Regency Product. This warranty is not transferable.

The Warranty: Limited Lifetime

The combustion chamber, heat exchanger, burner tubes/pans, logs and gold plating (against defective manufacture only) are covered under the Limited Lifetime Warranty for ﬁ ve (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for ﬁ ve (5) years and parts only thereafter from date of purchase.

Special Finishes - One year on brushed nickel, louvers and doors. You can expect some changes in color as the product "ages" with constant heating and cooling. FPI warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors and marks, ie. ﬁ nger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly components, and gas valves are covered for two years parts and one year subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered repairs and continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replacement.

FPI venting components (Direct Vent units) are covered parts and subsidized labour* for three (3) years from date of purchase.

Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty.

Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect.

The authorized selling dealer is responsible for all in-ﬁ eld service work carried out on your Regency product. FPI will not be liable for results or costs of workmanship from unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the ﬁ eld which is claimed to be defective.

All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim.

At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured. ie. as products evolve, ﬁ eld modiﬁ cations or upgrades will not be performed.

FPI will not be liable for travel costs for service work.

Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.

Embers, glass and door gaskets, door handles and paint are not covered under the terms of this warranty policy.

Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.

The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by mechanical systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.

FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.

Performance problems due to operator error will not be covered by this warranty policy.

Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your warranty on this product.

Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.

* Subsidy according to job scale as predetermined by FPI.

Regency® U39 ULTIMATE Direct Vent Freestanding Gas Stove

Page 44

Regency® ﬁ replace products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our door.

Fireplace Products International Ltd. is pleased to extend this Limited Lifetime Warranty to the original purchaser of a Regency® Product.

See the inside back cover for details.

http://www.regency-ﬁ re.com

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________

___________________________________________________________________

Installer: ___________________________________________________________

Phone #: ___________________________________________________________

Date Installed: ______________________________________________________

Serial No.: __________________________________________________________

Printed in Canada

Regency U39-NG1, U39-LP1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
