ULTIMATE U37 Rear Vent

Direct Vent Freestanding Gas Stove

Owners &

Installation Manual

MODELS: U37-NG Natural Gas U37-LP Propane

WARNING: If the information in these instructions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

Tested by:

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4918-025a

FOR YOUR SAFETY What to do if you smell gas:

Do not try to light any appliance Do not touch any electrical switch: do not use any phone in your building. Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's instructions. If you cannot reach your gas supplier, call the fire department.

01/09/06

REGENCY

ULTIMATE Rear Vent Direct Vent

Freestanding Gas Stove

To the New Owner:

Congratulations! You are the owner of a state-of-the-art ULTIMATE Rear Vent Direct Vent Gas Stove by FPI Fireplace Products International. The Regency Gas Series of hand crafted appliances has been designed to provide you with all the warmth and charm of a woodstove, at the flick of a switch. The models U37-NG, and U37-LP of this series has been approved by Warnock Hersey for both safety and efficiency. As it also bears our own mark, it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with these instructions and the many features of your ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove.

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards: ANSI Z21.88b2003/CSA 2.33b-2003, and CAN/CGA-2.17-M91.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This Regency Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the unit.

This Regency Mobile/Manufactured Home listed appliance comes equipped with a dedicated #8 ground lug to which an 8 gauge copper wire from the steel chassis ground must be attached.

2 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

TABLE OF CONTENTS

Page Page

Specifications diagram ............................................. 2

Safety Label ............................................................ 4

Installation

Specifications .......................................................... 5

Before You Start ...................................................... 5

General Safety Information ........................................ 5

Installation Checklist ................................................ 6

Manufactured Mobile Home Requirements.................. 6

Clearances to Combustibles ..................................... 6

Locating Your ULTIMATE Gas Stove .......................... 6

Combustion and Ventilation Air ................................. 6

Venting .................................................................. 6

Exterior Vent Terminal Locations ............................... 7

Venting Installation Precautions ................................ 8

Safety Precautions for the Installer ............................ 8

Planning Your Venting Installation ............................. 8

Rigid Pipe Venting Components List .......................... 9

Venting Arrangements - Vertical Terminations

for both Residential & Manufactured

Homes/Mobile Homes ......................................10

Vent Restrictor Position..........................................10

Venting: Residential and Manufactured

Homes/Mobile Homes Installation......................11

Horizontal Installations ...........................................11

Vertical Termination with Co-linear Flex System .......13

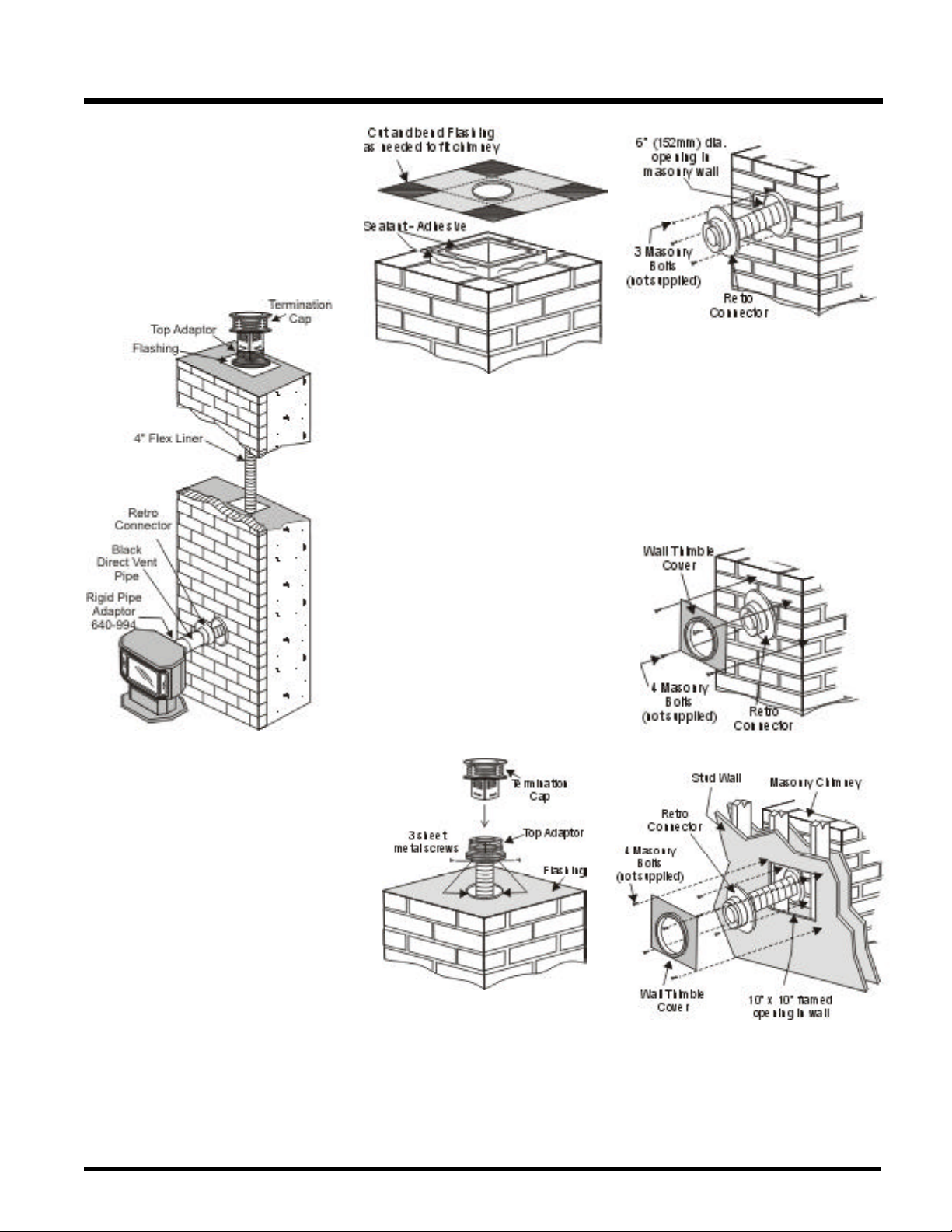

Converting a Class-A Metal Chimney or Masonry

Chimney to a Direct Vent System .....................14

Conversion from Natural Gas to Propane ..................16

Gas Connection .....................................................17

System Data Chart - U37........................................17

High Elevation........................................................17

Aeration Adjustment ...............................................17

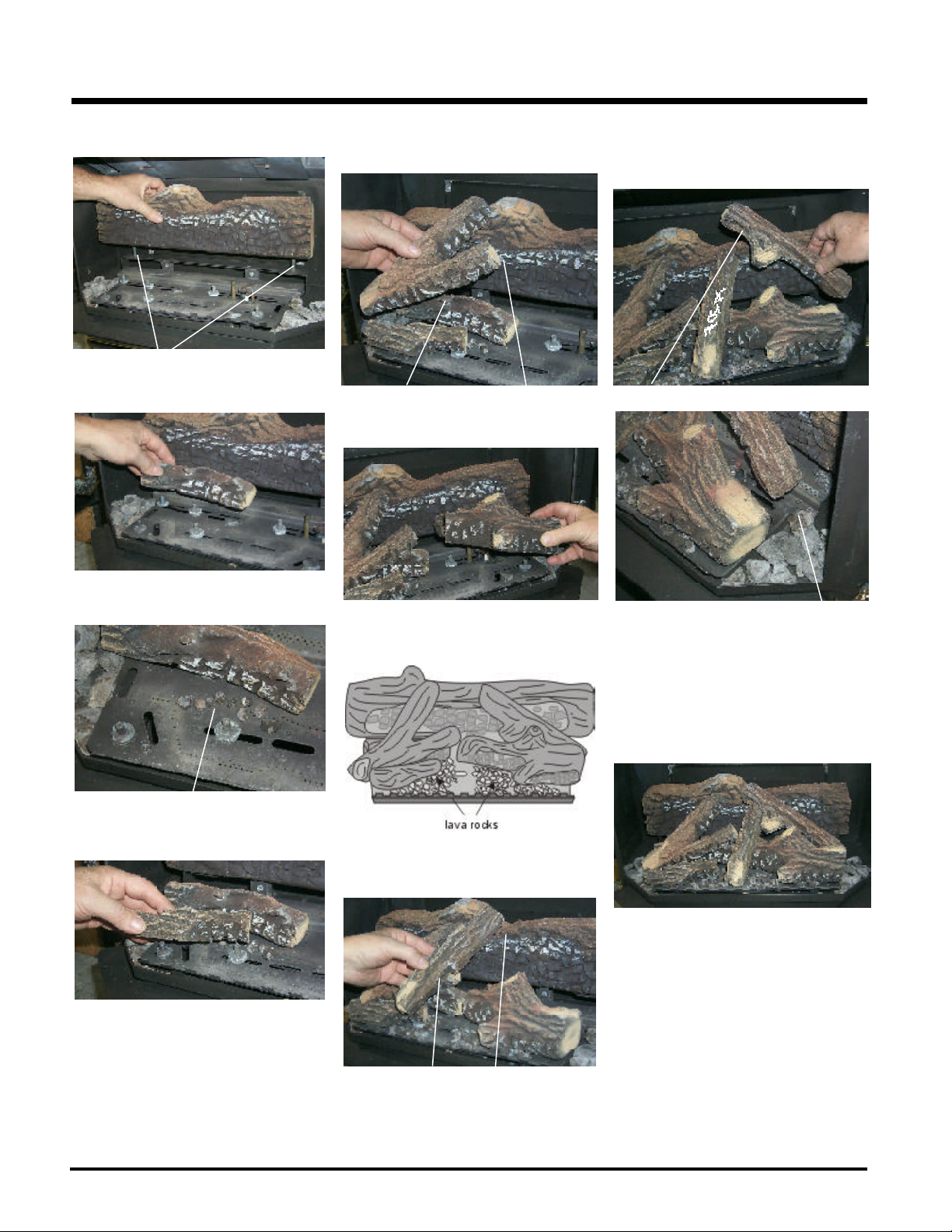

Log Installation ......................................................17

Door Installation .....................................................19

Gas Pipe Pressure Testing .....................................19

Valve Description ...................................................19

Louver Installation ..................................................20

Optional Wall Thermostat .......................................20

Optional Remote Control Installation ........................20

Final Check ...........................................................20

Wiring Diagram ......................................................21

Operating Instructions

Operating Instructions ............................................22

Lighting Procedure .................................................22

Shutdown Procedure ..............................................22

First Fire ...............................................................22

Convection Fan Operation .......................................22

Normal Operating Sounds of Gas Appliances ...........22

Copy of Lighting Plate Instructions ...........................23

Maintenance

Maintenance Instructions ........................................24

General Vent Maintenance ......................................24

Log Replacement ...................................................24

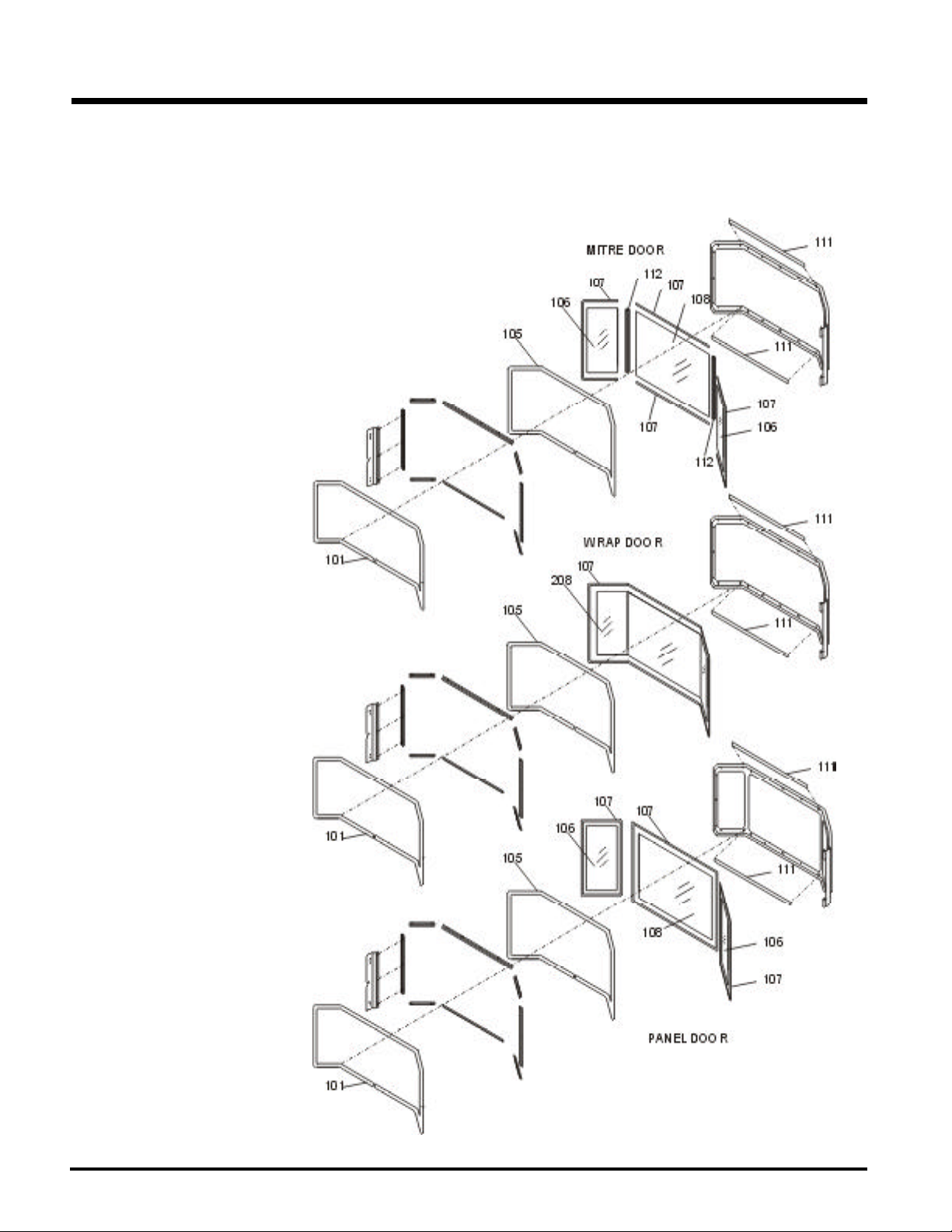

Gold Plated Doors ..................................................24

Door Gasket ..........................................................24

Latch Adjustment ...................................................25

Glass Replacement ................................................25

Fan Maintenance ...................................................26

Removing Valve .....................................................26

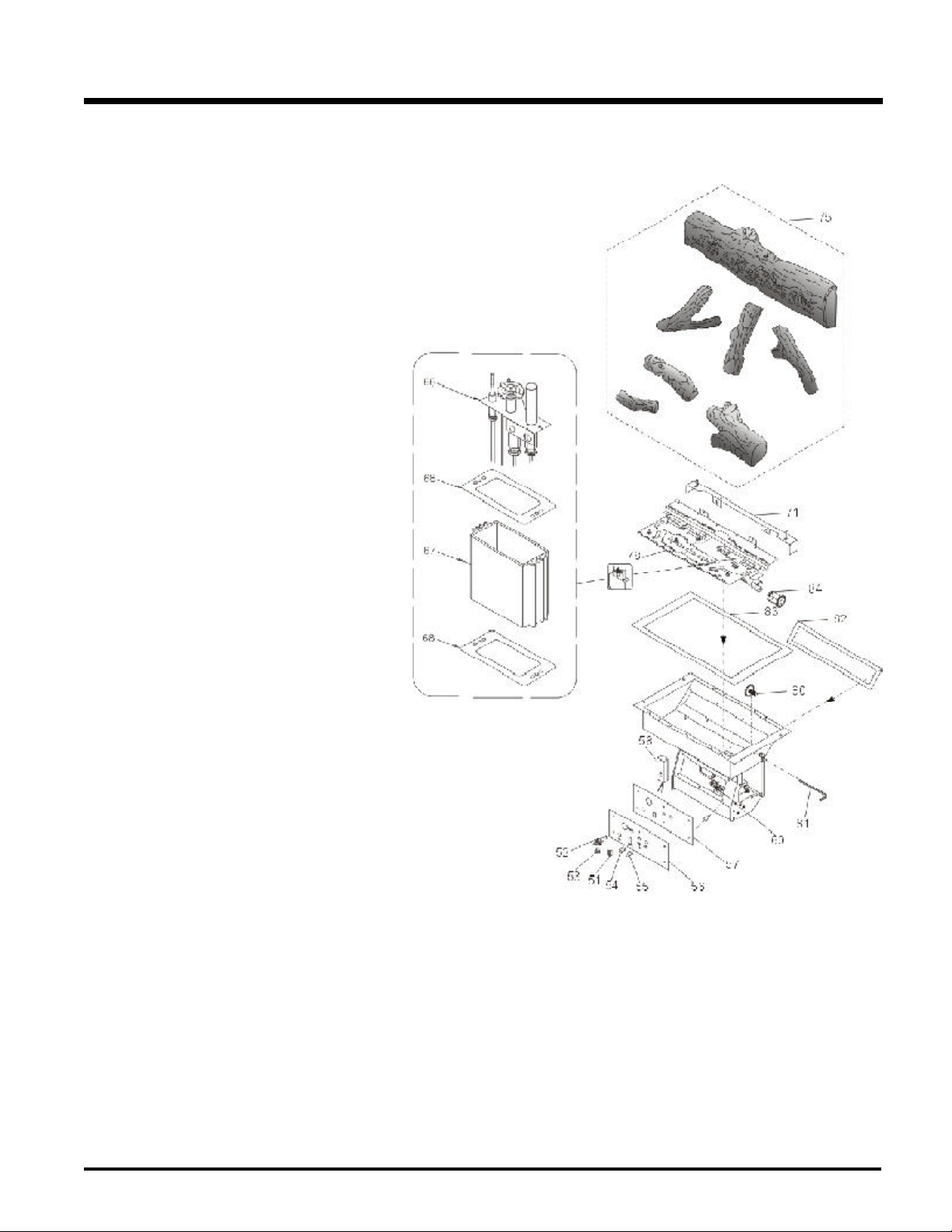

Replacement Parts List ..........................................28

Warranty

Warranty ...............................................................31

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 3

SAFETY LABEL

This is a copy of the label that accompanies each ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove. We have printed a copy of

the contents here for your review. The safety label is located on the inside of the drop down pedestal door.

Copy of Safety Label for U37

NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

For the State of Massachusetts, installation and repair must be done by a plumber or gasfitter licensed in the Commonwealth of Massachusetts.

For the State of Massachusetts, flexible connectors shall not exceed 36 inches in length.

For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.

4 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

INSTALLATION

IMPORTANT:

SAVE THESE

INSTRUCTIONS

The ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove must be installed in accordance with these instructions. Carefully read all the instructions in this manual first. Consult the building authority having jurisdiction to determine the need for a permit prior to starting the installation.

Note: Failure to follow the instructions

could cause a malfunction of the heater which could result in death, serious bodily injury, and/or property damage. Failure to follow these instructions may also void your fire insurance and/or warranty.

SPECIFICATIONS

Fuels: U37-NG is approved for use with

natural gas. U37-LP is approved for use with liquefied petroleum gases (propane).

Electrical: 120 V A.C. system. Circulation Fan: Variable speed, 125/75. Log Sets: Ceramic fibre, 7 per set. Vent System:

Axial (6-5/8" outer / 4" inner liner) rigid flue and Riser Vent Terminal.

BEFORE YOU START

Safe installation and operation of this appliance requires common sense, however, we are required by the Canadian Safety Standards and ANSI Standards to make you aware of the following:

INSTALLATION AND REPAIRS SHOULD BE DONE BY A QUALIFIED SERVICE PERSON. THIS APPLIANCE SHOULD BE INSTALLED, REPAIRED, INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY A QUALIFIED SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, ETC. IT IS IMPERATIVE THAT THE CONTROL COMPARTMENT, BURNERS AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS APPLIANCE CORRECTLY WILL VOID YOUR WARRANTY AND MAY CAUSE A SERIOUS HOUSE FIRE.

CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

1) Provide adequate clearances for servic-

ing, proper operation and around the air openings into the combustion chamber.

2) The appliance must be installed on a flat, solid, continuous surface (e.g. wood, metal, concrete). This may be the floor, or it can be raised up on a platform to enhance its visual impact. The appliance may be installed on carpeting, tile, wood flooring or other combustible material, because the appliance's metal pedestal base extends the full width and depth of the appliance. The ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove can be installed in a wide variety of ways and will fit nearly any room layout. It may be installed in a recessed position, framed out into the room, or across a corner.

3) The ULTIMATE Rear Vent Direct Vent Freestanding Gas Stove is approved for manufactured home installations, see pages 6 to 9 for the required vent arrangements. If installed into a manufactured home the unit must be bolted down to the floor.

4) We recommend that you plan your installation on paper using exact measurements for clearances and floor protection before actually installing this appliance. Have a qualified building inspector review your plans before installation.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform

with local Canadian Electrical Code.

2) The appliance when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes with the current National Electrical Code, ANSI/ NFPA 70 or CSA C22.1 Canadian Electrical Code.

3) The appliance should be inspected for shipping damage before use and serviced

annually by a professional service person. More frequent cleaning may be re-

quired due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments, and circulating air passageways of the appliance be kept clean and free from excessive lint from carpeting.

4) See general construction and assembly instructions. The appliance and vent should be enclosed when installed in or passing through a living area, where children may come in contact with it.

5) This appliance must be connected to the specified vent and termination cap to the outside of the building envelope. Never vent to another room or inside a building. Make sure that the vent is fitted as per the instructions starting on page 6.

6) Inspect the venting system annually for blockage and any signs of deterioration.

7) Venting terminals shall not be recessed into a wall or siding.

8) Any safety glass removed for servicing must be replaced prior to operating the appliance.

9) To prevent injury, do not allow anyone who is unfamiliar with the operation to use the fireplace.

Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 5

INSTALLATION

CHECKLIST

1) Check Clearances to Combustibles (page

6), location of unit (page 6) and venting requirements (pages 6-10).

2) Install venting: Check all venting requirements, pages 8-14.

3) Make gas connections, page 17. Test the pilot. Must be as per diagram, pages 17 &

24.

4) If necessary, convert from Natural Gas to Propane (page 16).

5) Install log set, page 17.

6) Install Front Door Front, page 19.

7) Test Gas Pressure, page 19.

8) Install Louvers, page 20.

9) Install optional Remote Control, or Wall Ther-

mostat, page 20.

10)Final check, page 20.

Before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly and operation fully explained to

customer.

CLEARANCES TO

COMBUSTIBLES

The clearances listed are MINIMUM distances. Measure the clearance to both the appliance and the chimney connector. The farthest

distance is correct if the two clearances do not coincide. For example, if the appliance

is set as indicated in one of the diagrams but the connector is too close, move the stove until the correct clearance to the connector is obtained.

This appliance may be installed only with the clearances as shown in the situations pictured.

Do not combine clearances from one type of installation with another in order to achieve closer clearances.

This unit can be installed on a solid combustible surface like a wood floor. This unit can also be installed directly on carpeting or vinyl when the bottom pedestal cover plate (provided with unit ) is installed.

Use the minimum clearances shown in the diagrams below:

U37-NG & U37-LP Clearances

A Side Wall to Unit 7-1/2" / 190 mm B Back Wall to Unit 3" / 76 mm E Side Wall to Unit 4-1/2" / 114 mm

LOCATING YOUR

ULTIMATE GAS STOVE

When selecting a location for your stove, ensure that the clearances listed above are met as well as ensuring that there is adequate accessibility for servicing and proper operation.

For Vent Termination requirements, see page 7. This appliance is Listed for bedroom installa-

tions when used with a Listed Millivolt Thermostat. Some areas may have further requirements, check local codes before installation.

This appliance is Listed for Alcove installations, maintain minimum Alcove clearances as follows, minimum ceiling height of 66"(1.7m), minimum width of 41"(1.0m) and a maximum depth of 36"(0.9m).

This includes:

1) Clocking the appliance to ensure the cor-

rect firing rate (rate noted on label) after burning appliance for 15 minutes.

2) If required, adjusting the primary air to ensure that the flame does not carbon. First allow the unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that causes sooting or carboning that results in damage is not the responsibility of the manufacturer.

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not cut

or weakened during installation.

2) Ensure proper grounding using the #8 ground lug provided.

3) Appliance must be anchored to the floor with the supplied anchoring methods.

U37-NG & U37-LP

Reference Dimensions

C Floor to Flue Centerline 25" / 635 mm D Side Wall to Flue Centerline20-1/2" / 521 mm

Minimum ceiling height is 36" / 914 mm from top of unit.

A) Cross Corner B) Flush with Wall/Alcove C) Flat on Wall Corner D) Flat on Wall

COMBUSTION AND

VENTILATION AIR

The combustion air from this appliance is drawn from outside the building through the outer flue.

Extra provision for combustion air inside the room is not required.

VENTING

The Regency Direct Vent System (Horizontal Termination Kit (640-944) and the Vertical Termination with the Co-linear Flex System in combination with the ULTIMATE Direct VentRear Freestanding Gas Stoves (U37-NG and U37-LP) have been tested and listed as direct vent heater systems by Warnock Hersey.

The Horiz. Termination Kit (640-944) includes everything required for a straight through the wall installation, or add a 45o elbow for a corner installation. If a snorkel termination is required, the Simpson Dura-Vent Direct Vent System Model DVGS terminals are available.

6 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

INSTALLATION

EXTERIOR VENT TERMINAL LOCATIONS

(3'/90cm) horizontally from the centerline of the regulator.

or the combustion air inlet to any other appliance *(12"/30cm) #(9"/23cm)

#3' (91cm) above if within 10' (3m) horizontally.

on public property *(min. 84"/2.1m)

12"/30cm)***

H= Not to be installed above a meter/regulator assembly within

J= Clearance to service regulator vent outlet *(min. 36"/90cm)

K= Clearance to non-mechanical air supply inlet to building

L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m)

M= **Clearance above paved sidewalk or a paved driveway located

N= Clearance under veranda, porch, deck, or balcony *(min.

Note: * As specified in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.

**A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.

***Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.

# In accordance with the current ANSI Z223.1/NFPA 54, National Gas Code

distance of (24"/60cm) from the centerline of the terminal (min. 22"/55cm) check with

local code.

A= Clearance above grade, veranda, porch, deck, or balcony *(min. 12"/30cm)

B= Clearance to window or door that may be opened *(12"/30cm) #(9"/23cm)

C= Clearance to permanently closed window *(min. 12"/30cm)

D= Vertical clearance to ventilated soffit located above the terminal within a horizontal

E= Clearance to unventilated soffit (min. 12"/30cm)

F= Clearance to outside corner (12"/30cm)

G= Clearance to inside corner (12"/30cm)

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 7

INSTALLATION

IMPORTANT

Read all instructions carefully before starting the installation. Failure to follow these instructions may create a fire or other safety hazard, and will void the warranty. Be sure to check the venting and clearance to combustible requirements on pages 6 to 10. Consult your local building codes before beginning installation.

The location of the termination cap must conform to the requirements in the Exterior Vent Terminal Locations diagram on page 7.

VENTING INSTALLATION PRECAUTIONS

The Regency Direct Vent System and the Vertical Termination with the Co-linear Flex System are engineered products that have been designed and tested for use with the U37-NG, and U37-LP . The Regency warranty will be voided and serious fire, health or other safety hazards may result from any of the following actions:

1) Installation of any damaged Direct Vent component

2) Unauthorized modification of the Direct Vent System

3) Installation of any component part not manufactured or approved by Regency Industries Ltd.

4) Installation other than as instructed by Regency Industries Ltd.

Warning: Always maintain required clearances (air spaces) to nearby combustibles to prevent a fire hazard. Do not fill air spaces with insulation.

The minimum clearance requirements between the outer wall of the vent pipe and nearby combustible surfaces is 1-1/4 inch. Be sure to check the vent termination clearance requirements from decks, windows, soffits, gas regulators, air supply inlets and public walkways as specified on page 7 and in your local building codes.

The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance.

Each direct vent gas appliance must use its own separate vent system. Common vent systems are prohibited.

SAFETY

PRECAUTIONS FOR

THE INSTALLER

1) Wear gloves and safety glasses for pro-

tection.

2) Exercise extreme caution when using ladders or on roof tops.

3) Be aware of electrical wiring locations in walls and ceilings.

PLANNING YOUR VENTING INSTALLATION

See page 7 for Exterior Vent Termination requirements. .

When planning your installation, it will be necessary to select the proper length of vent pipe for your particular requirements. Determine the minimum clearance to combustibles from the rear of the unit to the wall. It is also important to note the wall thickness. Before cutting the vent hole through the wall ensure that ALL vent and termination clearances (see page 7) will be met.

NOTE: Ensure compliance with the outside vent terminal location before cutting hole as both dimensions must be met.

*If this is an outside corner, the minimum distance between the vent and the outside corner is 12" (30cm). See "F" on the diagram on page 7.

For corner installation, Restrictor must be set at 1-1/4" open.

For straight rear installation, Restrictor must be set at 1-1/8" open.

8 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

INSTALLATION

RIGID PIPE VENTING COMPONENTS LIST

All Simpson Dura-Vent components are available directly from FPI.

Description Simpson Dura-Vent Selkirk Amerivent

Direct VentGS

6" Pipe Length, Galvanized 908 4DT-6 N/A 6" Pipe Length, Black 908B 4DT-6B N/A 7" Pipe Length, Galvanized N/A N/A 4D7 7" Pipe Length, Black N/A N/A 4D7B 9" Pipe Length, Galvanized 907 4DT-9 N/A 9" Pipe Length, Black 907B 4DT-9B N/A 12" Pipe Length, Galvanized 906 4DT-12 4D12 12" Pipe Length, Black 906B 4DT-12B 4D12B 18" Pipe Length, Galvanized N/A 4DT-18 N/A 18" Pipe Length, Black N/A 4DT-18B N/A 24" Pipe Length, Galvanized 904 4DT-24 4D2 24" Pipe Length, Black 904B 4DT-24B 4D2B 36" Pipe Length, Galvanized 903 4DT-36 4D3 36" Pipe Length, Black 903B 4DT-36B 4D3B 48" Pipe Length, Galvanized 902 4DT-48 4D4 48" Pipe Length, Black 902B 4DT-48B 4D4B

Adjustable Length, 11"-14", Galv. 911 4DT-AJ N/A Adjustable Length, 11"-14", Black 911B 4DT-AJB N/A Adjustable Length, 17"-24", Black 917B N/A N/A Adjustable Length, 7" Galvinized N/A N/A 4D7A Adjustable Length, 7" Black N/A N/A 4D7AB Adjustable Length, 12" Galvinized N/A N/A 4D12A Adjustable Length, 12" Black N/A N/A 4D12AB

Direct-Temp

Direct Vent

45O Elbow, Galvinized 945 4DT-EL45 4D45L 45O Elbow, Black 945B 4DT-EL45B 4D45LB 45O Elbow, Swivel, Galvinized 945G N/A N/A 45O Elbow, Swivel, Black 945BG N/A N/A 90O Elbow, Galvinized 990 4DT-EL90S 4D90LS 90O Elbow, Black 990B 4DT-EL90SB 4D90LBS 90O Elbow, Swivel, Galvinized 990G N/A N/A 90O Elbow, Swivel, Black 990BG N/A N/A

Ceiling Support 949 - n/a from FPI 4DT-CS 4DFSP Cathedral Support Box 941 4DT-CSS 4DRSB Wall Support/Band 988 4DT-WS/B 4DWS Offset Support 989 - n/a from FPI 4DT-OS N/A Wall Thimble, Black 942 4DT-WT 4DWT Wall Thimble Support Box/Ceiling Support 940 N/A N/A Firestop Spacer 963 4DT-FS 4DFSP Trim Plate, Black N/A 4DT-TP 4DFPB Brass Trim for Wall Thimble/Ceiling Support 3951 N/A N/A

Attic Insulation Shield 12" N/A N/A 4DAIS12 Attic Insulation Shield - Cold Climates 36" N/A N/A 4DAIS36

Basic Horizontal Termination Kit (A) 970 4DT-HKA 4DHTK2 Horizontal Termination Kit (B) 971 4DT-HKB 4DHTK1 Vertical Termination Kit 978 4DT-VKC 4DVTK

High Wind Vertical Cap 991 N/A N/A High Wind Horizontal Cap 985 N/A N/A Horizontal Square Termination Cap 984 4DT-HHC 4DHC Verical Termination Cap 980 4DT-HVC 4DVC Storm Collar 953 4DT-SC 4DSC

Adjustable Flashing, 0/12-6/12 943 4DT-AF6 4DF Adjustable Flashing, 6/12-12/12 943S 4DT-AF12 4DF12

Vinyl Siding Standoff 950 4DT-VS N/A Vinyl Siding Shield Plate N/A 4DT-VSP N/A

Snorkel Termination 14" 982 4DT-ST14 4D12S Snorkel Termination 36" 981 4DT-ST36 4D36S

946-506/P Vent Guard (Optional) 640-530/P Riser Vent Terminal 640-994 U37 Rigid Pipe Adaptor

946-208/P Vent Guard (Optional) - Riser Vent Terminal 946-523/P AstroCap Horizontal Cap 946-206 Vinyl Siding Standoff - AstroCap

946-205 Vinyl Siding Shield for Riser Vent Terminal

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 9

INSTALLATION

RIGID PIPE VENTING - VERTICAL TERMINA TIONS

FOR BOTH RESIDENTIAL & MANUFACTURED HOMES/MOBILE HOMES

Vertical Terminations

with Co-linear Flex System

The shaded area in the diagram shows the allowable vertical terminations installed in a masonry chimney. All vertical vent

installations require the Vent Restrictor to be set to 1-1/4" (32mm) open.

Straight Vertical Terminations

WARNING:

Do not combine venting components from different venting systems.

However use of the the AstroCapTM and FPI Riser is acceptable with all systems.

This product has been evaluated by Intertek for using a Dura-Vent Flue Adaptor in conjunction with Selkirk Direct-Temp and Ameri Vent Direct venting systems. Use of these systems with the Direct Vent GS starting collar is deemed acceptable and does not affect the Intertek WHI listing of components.

Vertical Terminations

using Rigid Piping Systems

The shaded areas in the two diagrams below show all allowable combinations of straight vertical and offset to vertical runs with vertical terminations. Maximum one 90 elbow . All vertical and offset to vertical vent installations require

Vent Restrictor to be set to 1-1/4" (32mm) open. If the vent is ENCLOSED in a chase (min. size 9" x 9") maintain a 1-1/4" (32mm) clearance to combustibles.

Offset to Vertical Terminations

If using a Rigid Pipe Venting System a rigid pipe adaptor #640-994 is required.

When using piping other than Simpson

Dura-Vent, 3 screws must be used to

secure rigid pipe to adaptor.

The FPI AstroCap certified for installations using FPI venting systems as well as Simpson Dura-Vent®, Direct Vent GS, American Metal Products, Ameri Vent Direct vent and Selkirk Direct-Temp. FPITM, and FPI AstroCapTM are the proprietary trademarks of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent GS are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

and FPI Riser Vent terminal is

Vent Restrictor Position

To set the Vent restriction as indicated in the diagram, simply loosen the screws and push the vent restrictor plate to the correct position. Tighten the screws.

10 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

INSTALLATION

RESIDENTIAL AND MANUFACTURED HOMES/

MOBILE HOMES INSTALLATIONS

You will require the following components with your new Regency Rear Vent Direct Vent Freestanding Gas Stove. Please review your product to make sure you have everything you need. In the event that you are missing any part, contact your dealer. Decorative brass or chrome trim kits are available from Simpson Dura-Vent for their wall thimbles, as well as a square wall thimble cover.

Note: These are the minimum pieces required.

Other parts may be required for your particular installation.

Minimum components for a Horizontal Installation:

640-944 Horizontal Termination Kit which includes:

Optional Components:

946-204 45o Elbow - 6-5/8" Black pipe and 4" 946-205 Vinyl Siding Shield for Riser Vent 946-208/P Vent Guard

940 Square Wall Thimble Cover* 981 Snorkel Termination (36")* 982 Snorkel Termination (14")* 942 Wall Penetration

* Simpson Dura-Vent components

1 946-201 6-5/8" Dia. x 18" Black Pipe 1 946-207 4" Dia. x 18" Aluminum Vent 1 640-530 Riser Vent Terminal 1 946-202 Wall Penetration Heat Shield (Wall Thimble) (2 pcs) 1 640-545 Decorative Wall Trim (Black) 1 948-128 Tube Mill-Pac

Screws

Aluminum Vent Terminal

Heat Shield*

Alternate Snorkel Termination Cap

Part # 982 (14") Part # 981 (36")

HORIZONTAL INSTALLATIONS

1) Set the unit in its desired location. Check to

determine if wall studs are in the way when the venting system is attached. If this is the case, you may want to adjust the location of the unit.

2) Assemble the desired combination of pipe and elbow to the appliance adapter with pipe seams oriented down. Offset the pipe seams as double seams in one place will cause the outer pipe to take an oval shape. Kit comes complete with 18" of straight vent

- 6-5/8" dia. black outer pipe and 4" dia. inner vent.

3) With the pipe attached to the stove, slide the stove into its correct location, and mark the wall for a 9-1/2" (inside dimensions) round hole. The center of the round hole should line up with the centerline of the horizontal pipe, as shown in diagram 1. Cut and frame the 9-1/2 round hole in the exterior wall where the vent will be terminated. If the wall being penetrated is constructed of noncombustible material, i.e. masonry block or concrete, a 7" diameter hole is acceptable.

Diagram 1

Note: a) The horizontal run of vent should have

a 1/4 inch rise for every 1 foot of run towards the termination. Never allow the vent to run downward. This could cause high temperatures and may present the possibility of a fire.

b) The location of the horizontal vent ter-

mination on an exterior wall must meet all local and national building codes, and must not be blocked or obstructed. For External Vent Terminal Locations, see diagram on page 7.

c) Snorkel Terminations:

For installations requiring a vertical rise on the exterior of the building, 14-inch and 36-inch tall Snorkel Terminations as shown in Dia. 2 are available, as well as the standard Riser Vent. Follow the same installation procedures as used for standard Horizontal Termination. NEVER install the snorkel upside down.

Diagram 2a

*Dia 2a & 2b: As specified in CGA B149 Installation Code. Local codes or regulations may require different clearances.

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 11

INSTALLATION

Diagram 2b

NOTE: For Snorkel terminations in ABOVE

grade installations, follow national or local code requirements.

Below Grade Snorkel Installation

If the Snorkel Termination must be installed below grade, i.e. basement application, proper drainage must be provided to prevent water from entering the Snorkel Termination. Refer to DuraVent Installation instructions for details.. Do not attempt to enclose the Snorkel within the wall, or any other type of enclosure.

4) Install wall penetration heat shield in the center of the 9-1/2" round hole and attach with wood screws. The four wood screws provided should be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings. Dia. 3.

Diagram 4

8) Connect all pipe sections to unit and install into wall:

a) Measure pipe length required and cut to

length. Hint: use the cut end of the 6-5/ 8" dia. outer pipe at the vent terminal end.

b) Push the pipe sections completely to-

gether, the minimum pipe overlap is 1-1/4". Secure all outer pipe joints by using at least two screws. Locate the screws at the bottom of the pipe so that the screw heads are hidden on the final installation. Apply sealant "Mill-Pac" to inner pipe and high temp silicone sealant or "Mill-Pac" to outer pipe on every joint.

Use two aluminum screws provided to connect the strips to the pipe section. Bend any remaining portion of the sheet metal strip back towards the vent cap and cut off any excess, it will be concealed by the decorative wall thimble cover. See diagram 5.

Diagram 5

8) Slide the decorative wall thimble up to the wall surface being careful not to scratch the paint. See diagram 5.

9) Back outside: Apply sealant to the 4" inner flue and slide the Riser Vent Front into the Backing Plate and fasten with 8 screws.

IMPORTANT: When connecting the pipe to the Riser Vent, apply Mill-Pac to the inner pipe on the Riser Vent Terminal, around the bead. Ensure that the vent pipe is pushed past the bead for a secure fit.

Hint: Apply sealant to female end.

c) Before connecting the vent pipe to the

vent termination, slide the black decorative wall thimble cover over the vent

Diagram 3

5) If installing termination on a siding covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding. Dia. 3.

6) Take the Riser Vent terminal and separate the Backing Plate from the Riser Vent Front by removing 8 screws as shown in diagram 4.

7) Install the Backing Plate into the wall penetration heat shield and attach using 4 screws. Dia. 4.

12 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

pipe, then slide the Wall Penetration Heat Shield (Part # 946-202) over the vent pipe. Dia. 3.

d) Slide the appliance and vent assembly

towards the wall carefully inserting the vent pipe into the riser vent terminal assembly. It is important that the vent pipe extends into the Riser Vent Backing Plate a sufficient distance so as to result in a minimum pipe overlap of 1-1/4 inches. Secure the connection between the vent pipe and the vent cap by attaching the two sheet metal strips extending from the Riser Vent Backing Plate into the outer wall of the vent pipe.

10)Seal around the outer edge of the Riser Vent Backing Plate.

VERTICAL TERMINA TION WITH

CO-LINEAR FLEX SYSTEM

INSTALLATION

THE APPLIANCE MUST NOT BE CONNECTED TO A CHIMNEY FLUE SERVING

This appliance is designed to be attached to two 3" (76mm) co-linear aluminium flex running the full length of the chimney. See the Venting Arrangements chart on page 10 for minimum and maximum flue lengths.See chart below for minimum distances from roof. Periodically check that the vent is unrestricted.

Masonry chimneys may take various contours which the flexible liner will accommodate. However, keep the flexible liner as straight as possible , avoid unnecessary bending.

The Air Intake pipe must be attached to the inlet air collar of the termination cap.

Required Parts:

Part # Description

946-529 Co-linear DV Vertical Termination Cap 948-305 3" Flex - 35 ft. 640-994 U37 Rigid Pipe Adaptor 946-563 Co-Axial to Co-Linear Adapter Kit

which contains the following: Co-linear Flex Adapter (270-585) Outer Pipe (946-257) Inner Pipe Adapter (946-219)

Alternate Approved Caps

980 Vertical Termination Cap 991 High Wind Cap 923GK 3" Co-linear Adapter

with flashing

A SEPARATE SOLID FUEL BURNING APPLIANCE.

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 13

INSTALLATION

CONVERTING A

CLASS-A METAL

CHIMNEY OR

MASONRY CHIMNEY

T O A DIRECT VENT

SYSTEM

General

There are two different types of direct vent conversion systems listed below. Follow the appropriate directions for your installation.

A) Through an existing factory built metal chim-

ney going through the ceiling: A typical conversion of this type is shown in diagram

1. The concept of direct vent conversion is to connect an adaptor to an Underwriters Laboratories (UL) listed 4 inch diameter aluminum flex pipe which is then passed down through the center of the existing metal chimney system. Three sizes of Top Adaptors are available from Simpson DuraVent. The Retro Connector (909B) is attached to the bottom of the flex pipe. The Top Adaptor and the Retro Connector are attached to the existing chimney with sheet metal screws. The appliance is then connected to the chimney with appropriate black direct vent pipe and an adjustable length section.

B) Through the wall of an existing masonry

chimney: A typical conversion of an existing masonry chimney is shown in Diagram

6. A Top Adaptor (985K) and Flashing are used at the top of the masonry chimney. The 4 inch aluminum liner is connected to the adaptor and is passed down the chimney and out through the masonry wall and attached to the Retro Connector (909B). The Retro Connector is attached to the masonry wall and then connected to the direct vent pipe leading to the appliance.

If the appliance shuts off during operation, contact a qualified service person to determine if a negative pressure and/or leaky chimney condition exists. Do not operate the appliance until the problem is corrected.

Approved for US Installations Only The use of an existing chimney as an air

intake is not covered under the ANSI Z21.88b-2003/CSA 2.33b-2003 test methods and the resulting ITS/WHI product certification. The code Authority Having Jurisdiction must be consulted prior to proceeding with this installation method.

Converting a Factory Built Metal

Chimney

1) Remove the existing chimney cap.

2) Measure the distance from the top end of the chimney to the bottom of the ceiling support box, add 3" (76mm) to this measurement, and cut a section of the 4" flex pipe to that length (the flex should already be extended to its nominal length).

4) Pass the flex pipe down through the center of the chimney system, and center the adaptor on the top of the chimney pipe. Drill four 1/8" diameter holes through the adaptor and into the chimney top. Insure that you are in fact, drilling into the metal on the chimney. Twist-lock the Termination Cap (Part# 980 or 991) onto the Adaptor. (Diagram 3 and 4).

Diagram 3

Diagram 4

5) Pull the flex pipe down through the ceiling support box, until it protrudes approximately 3" (76mm). Connect the flex pipe to the Retro Connector by slipping it into the 4-3/4" diameter sleeve on the top side of the Connector. Use 3 sheet metal screws to assemble these two parts.

6) Push the flex pipe back up into the ceiling support box, center the Retro Connector, and attach it to the support box, or decorative sleeve for double wall solid packed pipe, with the sheet metal screws (supplied). The holes in the Retro Connector are pre-punched. Diagram 5.

Prior to installation and connection of the vent system to a factory-built or masonry chimney, the chimney must be inspected and thoroughly cleaned by a qualified service person, such as a certified chimney sweep or home inspection service.

The direct vent system must not be connected to a damaged factory-built or masonry chimney.

For factory built, zero clearance, and masonry chimneys cleanout doors and caps or plugs for cleanout tee fittings and ash dumps shall be secured in place and sealed before installing a Direct Vent system within the chimney.

14 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

3) Connect the end of the flex pipe section to the underside of the Top Adaptor using 3 sheet metal screws. Diagram 2.

Diagram 1

Diagram 5

7) The connection between the appliance and the Retro Connector may be completed with sections of black direct vent pipe, together with an adjustable length.

Diagram 2

Converting a Masonry Chimney

Important: The existing masonry flue opening needs to have an area of at least a 36 sq. in. to insure proper intake/exhaust flow.

1) Before cutting any holes, assemble the desired sections of black direct vent pipe to determine the center of the masonry penetration.

Diagram 7

4) To determine the length of flex required, measure from 3" (76mm) above the top of the Flashing down to the level of the opening. Add to this measurement the distance from the center of the chimney to out through the wall. Cut a piece of 4" flex to this length (the flex should already be extended to its nominal length).

INSTALLATION

Diagram 9

9) Slide the Wall Thimble Cover (Part # 940) over the Retro Connector and secure with masonry bolts. Diagram 10. If you have a framed wall in front of the masonry, use wood screws to mount the Wall Thimble Cover to the framed wall, over the Retro Connector and the 10" (254mm) square framed opening. Diagram 11. If needed, add a section of direct vent pipe to the Retro Connector in order to extend through the opening in the Wall Thimble Cover.

Diagram 6

2) Once the center point of the penetration has been determined, cut a 6" (152mm) dia. hole in the masonry. Be careful, if the hole is too large, the Retro Connector might not mount properly, and if the hole is too small, then the appliance might starve for intake air. If there is a frame wall in front of the masonry wall, cut and frame a 10" (254mm) clear square opening in the wall (centered around the 6" (152mm) masonry opening). IF there is sheet rock only (no studs) in front of the masonry, the 10" (254mm) clear opening is still needed, but does not need to be framed. This allows the Retro Connector to mount directly on the masonry and provide clearance to the combustibles. Diagram 11.

3) Secure the Flashing (Part # 705C) to the top of the masonry chimney using a bead of non-hardening sealant-adhesive. If the Flashing is larger than the top of the chimney, then cut and fold flashing as needed to fit chimney. Diagram 7.

5) Connect the 4" flex liner to the Top Adaptor (Part # 985K) using 3 sheet metal screws. Diagram 2.

6) Feed the 4" flex liner through the Flashing into the chimney. Continue to feed the liner out through the opening in the masonry wall.

7) Secure the Top Adaptor to the Flashing. Use 3 sheet metal screws through the side of the adaptor into the flange on the Flashing (diagram 8). Twist lock the Termination Cap (Part # 980 or 991) on to the Top Adaptor.

Diagram 8

8) Attach the flex to the Retro Connector. Use 3 sheet metal screws to attach the flex liner to the Connector. Diagram 9. Mount the Retro Connector to the masonry wall using masonry bolts. Re-drill larger holes on connector as needed. Be careful to insure that the connector is centered in the opening and the mounting holes line up with the masonry wall.

Diagram 10

Diagram 11

10)The connection between the appliance and the Retro Connector may be completed with a section of black direct vent pipe, together with an adjustable length pipe section.

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 15

INSTALLATION

Conversion Kit from Natural Gas to Propane

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER

IF IN DOUBT DO NOT DO THIS CONVERSION !!

Conversion Kit # 680-969 Contains: Qty. Part # Description

1 910-018 SIT Conversion Kit-

50% Turndown LP 1 910-037 LP Injector (Pilot Orifice) 1 904-390 Burner Orifice #52 1 908-528 Red "PROPANE" label 1 908-255 Label "Converted to Propane" 1 918-031 Instruction Sheet

1) Shut off the gas supply.

2) Open the front door and carefully remove

the logs and lava rock.

3) Remove burner. See diagram below.

Note: Use a magnetic type screwdriver if

possible.

7) Unscrew the pilot orifice with the allen key and replace with the LP pilot orifice in the kit.

8) Remove burner orifice with a 1/2" wrench and discard. Use a wrench to hold on to the elbow behind the orifice.

Burner Orifice

9) Reinstall new burner orifice LP stamped #50 and tighten.

10)Reverse steps 3) to 2).

Pilot assembly is now accessible for steps

4) to 9).

4) Remove and discard the 3 pressure regulator mounting screws (A), pressure regulator tower (B) and diaphragm (C).

5) Insure that the rubber gasket (D) is properly positioned and install the new HI/LO pressure regulator assembly to the valve using the new screws (E) supplied with the kit. Tighten screws securely.

6) Pull off the pilot cap to expose the pilot orifice.

16 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

11)Attach the Conversion label "This unit has been converted to Propane" on top of the Serial # decal.

12)Replace yellow "Natural Gas" label with red "Propane" label

13)Check for gas leaks.

14)Check inlet and outlet pressures.

15)Check operation of flame control.

16)Check for proper flame appearance and glow on logs.

Installer Notice: These instructions must be left with the appliance.

INSTALLATION

GAS CONNECTION

The gas connection is a 3/8" NPT 90o elbow. The gas line can be rigid pipe or to make installation easier, use a listed flexible connector and/or copper tubing if allowed by local codes. Since some municipalities have additional local codes it is always best to consult with your local authorities and the CAN/CGA B149 installation codes. For USA installations follow local codes and/or the current National Fuel Gas Code, ANSI Z223.1.

When using copper or flex connectors use only approved fittings. Always provide a union so that gas lines can be easily disconnected for burner and/or valve servicing. Flare nuts for copper lines and flex connectors are usually considered to meet this requirement.

Important: Always check for gas leaks with a soap and water solution or gas leak detector. Do not use open flame for leak testing.

Note: Prior to any pressure testing of

the gas supply piping system that exceeds test pressures of 1/2 psig, this appliance must be disconnected from the piping system. If test pressures equal to or less than 1/2 psig are used then this appliance must be isolated from the piping system by closing its individual manual shut-off valve during the testing.

AERA TION

ADJUSTMENT

The burner aeration is factory set but may need adjusting due to either the local gas supply, air supply or altitude.

Natural Gas: 1/4" open Propane: 3/8" open

The aeration adjustment gears are located on the right side of the burner box and can be accessed from the side or from the front when the louvers are removed.

To adjust the aeration: use the allen key to turn the turning gear which will adjust the air shutter. Open the air shutter for a blue flame or close it for a yellower flame. The factory setting should be sufficient for most installations.

LOG SET

INSTALLATION

Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until they are replaced. Broken logs can interfere with the pilot operation.

The gas log kit contains the following:

a) 02-65 Rear Log 902-267 b) 02-56 Middle Left Log 902-230 c) 02-44 Front Left Log 902-228 d) 02-46 Left Top Log 902-231 e) 02-45 Front Right Log 902-229 f) 02-47 Center Log 902-232 g) 02-48 Middle Right Log 902-226 h) Embers 902-151 i) Lava 902-154

The "02" refer numbers (i.e. 02-65) are

molded into the rear of each log.

System Data - U37

For 0 to 4500 feet altitude Burner Inlet Orifice Sizes:

Natural Gas Propane

Burner #37 #52

Max. Input Rating 30,000 Btu/h Min. Input Rating 15,000 Btu/h

Supply Pressure

Natural Gas min. 5.0" w.c. Propane min. 12.0" w.c.

Manifold Pressure

Natural Gas 3.8" +/- 0.2" w.c. Propane 11" +/- 0.2" w.c.

HIGH ELEV ATION

This unit is approved in Canada for altitude 0 ft. to 4500 ft. (CAN/CGA-2.17-M91). For Natural Gas installations above 4500 ft. follow current CAN/ CGA-B149.1.

Clockwise to open,

counter-clockwise to close.

Caution: Carbon will be produced if the air shutter is closed too much.

Note: Any damage due to carboning re-

sulting from improperly setting the aeration controls is NOT covered under warranty.

Note: Aeration Adjustment should only

be performed by an authorized Regency Installer at the time of installation or service.

1) Carefully remove the logs from the box and

unwrap them. The logs are fragile, handle with care - do not force into position.

2) Sprinkle the embers on the left and right sides of the firebox base.

Embers. Embers

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 17

INSTALLATION

3) Place Rear Log A)02-65 on the two pins on

the rear log support.

A)02-65

Pins on Rear Log Support

4) Place the Middle Left Log B)02-56 on the two pins as shown.

B)02-56

7) Place the Left Top Log D)02-46 on the pin on Log B)02-56 and on top of the cutout on Log A)02-65.

A)02-65

D)02-46

B)02-56

C)02-44

8) Place Front Right Log E)02-45 on the two pins as shown.

Cutout

E)02-45

11)Position notch in Front Right Log G)02-48 on Log F)02-47 and push the bottom right edge against the bracket on the burner tray.

G)02-48

A)02-65

E)02-45

Notch

G)02-48

E)02-45

5) Sprinkle some lava rock just in front of B) 02-56 on the burner holes.

B)02-56

lava rock

6) Place Front Left Log C)02-44 onto the 2 front pins as shown.

C)02-44

9) Place the lava rock in the area between the left and right logs, leaving a space in the middle for log (F) 02-47.

10)Place the notch in Center Log F)02-47 over

Log E)02-45 and across the cutout on Log A)02-65.

F)02-47

E)02-45

Side View

Bracket

The bottom right edge of Log G)02-48 must

sit snugly against the bracket

12)Test fire to ensure proper light off (make sure flame flows smoothly from one end of burner to the other. If there is any flame hesitation, check that area for any blockage of the burner port.

A)02-65

G)02-48

D)02-46

B)02-56

C)02-44

F)02-47

E)02-45

CutoutNotch

18 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

INSTALLATION

DOOR INSTALLATION

(Packaged Separately)

1) Open the two side panels.

2) Slide the door

onto the two hinge pins making sure the two pieces are flush together. See diagram

3) Close the door. The latch plate must be centered around the alignment pin. See diagram 2. If the latch plate interferes with the corner of the stove you may want to angle the plate slightly so the door closes easier.

Diagram 1

GAS PIPE PRESSURE TESTING

The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig. (3.45 kPa). Disconnect piping from valve at pressures over 1/2 psig.

The manifold pressure is controlled by a regulator built into the gas control, and should be checked at the pressure test point.

Note: To properly check gas pressure,

both inlet and manifold pressures should be checked using the valve pressure ports on the valve.

1) Make sure the valve is in the "OFF" position.

2) Loosen the "IN" and/or "OUT" pressure

tap(s), turning counterclockwise with a 1/ 8" wide flat screwdriver.

3) Attach manometer to "IN" and/or "OUT" pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON" position. Read manometer.

6) When finished reading manometer, turn off the gas valve, disconnect the hose and tighten the screw (clockwise) with a 1/8" flat screwdriver. Note: Screw should be

snug, but do not over tighten

Valve Description

1) Gas cock knob

2) Manual high/low adjustment

3) Pilot Adjustment

4) Thermocouple Connection

5) Main Operator

6) Outlet Pressure Tap (Manifold Pressure)

7) Inlet Pressure Tap (Supply Pressure)

8) Pilot Outlet

9) Main Gas Outlet

10)Flange Securing Screw Holes

11)Alternative TC Connection Point

12)Thermoelectric Unit

13)Additional Valve Mounting Hole

Diagram 2

4) The latches should already be at the proper setting. If they are too hard or too easy to close, you may want to adjust them by loosening the locking nut and turning the latch catch. See diagram 3.

5) Remove the blue plastic protective coating from the glass.

6) Test the seal around the door by placing a piece of paper between the unit and the door, close the door and try to pull the paper out. If it slips out easily, then the door is not properly sealed. Tighten or loosen the latch by turning the latch catch inward or outward. See diagram 3.

Note: The door latch may require ad-

justment as the door gasket material compresses after a few fires and after glass replacement. Turn the latch catch inward or outward.

5) The pressure check should be carried out

with the unit burning and the setting should be within the limits specified on the safety label.

Diagram 3

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 19

INSTALLATION

LOUVER

INSTALLATION

Attach the top & bottom louvers to the side stove panel using 2 screws per side.

OPTIONAL WALL

THERMOSTAT

A wall thermostat may be installed if desired. Connect the wires as per the wiring diagrams. Note that the wires are connected to the "TH" on the gas valve. Use table below to determine the maximum wire length:

Note: Preferable if the thermostat is installed on an interior wall.

Regency offers an optional programmable thermostat but any 250-750 millivolt rated nonanticipator type thermostat that is CSA, ULC or UL approved may be used.

CAUTION

Do not connect the millivolt

wall thermostat wires

to the 120V wires.

Thermostat Wire Table

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

OPTIONAL REMOTE

CONTROL

Use the Regency Remote Control Kit approved for this unit. Use of other systems may void your warranty.

The remote control kit comes with a hand held transmitter, a receiver and a wall mounting plate.

1) Choose a convenient location on the wall to install the receiver and the receptacle box (protection from extreme heat is very important). Run wires from the fireplace to that location, use Thermostat Wire Table.

2) Connect the wires as per the wiring diagram above.

CAUTION

Do not connect the millivolt remote

control wires to the 120V wires.

3) Install 3 AAA alkaline batteries in transmitter

and 4 AA alkaline batteries in the receiver. Install the receiver and its cover in the wall. Switch the remote receiver to "remote" mode. The remote control is now ready for operation.

FINAL CHECK

Before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly. This includes:

14 GA. 16 GA. 18 GA. 20 GA. 22 GA.

50 Ft. 32 Ft. 20 Ft. 12 Ft.

9 Ft.

1) Clocking the appliance to ensure the correct firing rate (rate noted on label) at 15 minutes.

2) If required, adjusting the primary air to ensure that the flame does not carbon. First allow the unit to burn for 15 min. to stabilize.

CAUTION Any alteration to the product that causes sooting or carboning that results in damage to the exterior facia is not the responsibility of the manufacturer.

20 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

WIRING DIAGRAM

INSTALLATION

This heater does not require a 120V A.C. supply for operation. In case of a power failure, the burner switch and the optional remote control/ thermostat will continue to operate. However, a 120V A.C. power supply is needed for the fan/ blower operation.

Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

WARNING: Electrical Grounding Instructions This appliance is equipped with a three pronged (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 21

OPERATING INSTRUCTIONS

OPERA TING

INSTRUCTIONS

1) Read and understand these instructions

before operating this appliance.

2) Check to see that all wiring is correct and enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass in the door frame is

properly positioned. Never operate the appliance with the glass removed.

5) Verify that the venting and cap are unobstructed.

6) Verify log placement. If the pilot cannot be seen when lighting the unit - the logs have been incorrectly positioned.

7) The unit should never be turned off, and on again without a minimum of a 60 second wait.

LIGHTING

PROCEDURE

IMPORTANT

To ignite or reignite the pilot,

the door to the firebox must

be opened.

Only when the pilot holds, without pressure being applied to the control knob, should the door to the firebox be closed. The unit must never be operated with the glass or door open.

IMPORTANT: Gas cock knob cannot be turned from "PILOT" to "OFF" unless it is partially depressed.

1) Turn stove OFF using the Burner "ON/OFF"

switch, remote or thermostat.

2) Turn gas control knob so indicator points to "OFF" position and allow 5 minutes for any gas in the combustion chamber to escape.

3) Turn gas control knob counterclockwise so indicator points to the "PILOT" position. Depress the gas control knob fully. Depress the igniter button several times until the pilot lights. After approximately one minute, release the gas control knob. The pilot flame should continue to burn. If the pilot does not remain lit, repeat operation allowing a longer period before releasing gas control knob.

4) When the pilot stays lit, turn the gas knob further counterclockwise to the "ON" position.

5) Use the thermostat or remote control to turn on the unit.

6) Rotate the flame height regulator to adjust the flame height higher or lower.

SHUTDOWN

PROCEDURE

1) Use the thermostat or remote control to turn

off the main burner.

2) Turn the main gas control clockwise to the "OFF" position to turn off the pilot (push knob in slightly).

3) Turn off all electric power to appliance if service is to be performed.

FIRST FIRE

The first fire in your stove is part of the paint curing process. To ensure that the paint is properly cured, it is recommended that you burn your fireplace for at least four (4) hours the first time you use it with the fan on. When first operated, the unit will release an odour caused by the curing of the paint, the burning off of any oils remaining from manufacturing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate the room for a couple of hours.

The glass panel may require cleaning after the unit has cooled down.

DO NOT ATTEMPT TO CLEAN THE GLASS WHILE IT IS HOT.

Note: When the glass is cold and the

appliance is lit, it may cause condensation and fog the glass. This condensation is normal and will disappear in a few minutes as the glass heats up.

DO NOT BURN THE APPLIANCE WITHOUT THE GLASS FRONT IN PLACE.

During the first few fires, a white film may develop on the glass front as part of the curing process. The glass should be cleaned or the film will bake on and become very difficult to remove. Use a non-abrasive cleaner and NEVER clean the glass while it is hot.

CONVECTION FAN

OPERA TION

The fan operates automatically - turn the knob on the pedestal control panel to adjust to the desired speed. The fan will turn on as the stove comes up to operating temperature. After the unit has been turned off and the unit cooled to below a useful heat output range the fan will shut off automatically.

NORMAL OPERA TING

SOUNDS OF GAS

APPLIANCES

It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there are various gauges and types of steel used within your appliance. Listed below are some examples. All are normal operating sounds and should not be considered as defects in your appliance.

Blower:

Regency gas appliances use high tech blowers to push heated air farther into the room. It is not unusual for the fan to make a "whirring" sound when ON. This sound will increase or decrease in volume depending on the speed setting of your fan speed control.

Burner Tray:

The burner tray is positioned directly under the burner tube(s) and logs and is made of a different gauge material from the rest of the firebox and body. Therefore, the varying thicknesses of steel will expand and contract at slightly different rates which can cause "ticking" and "cracking" sounds. You should also be aware that as there are temperature changes within the unit these sounds will likely re-occur.

22 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

OPERATING INSTRUCTIONS

Again, this is normal for steel fireboxes.

Blower Thermodisc:

When this thermally activated switch turns ON it will create a small "clicking" sound. This is the switch contacts closing and is normal.

COPY OF THE LIGHTING PLATE INSTRUCTIONS

Pilot Flame:

While the pilot flame is on it can make a very slight "whisper" sound.

Gas Control Valve:

As the gas control valve turns ON and OFF, a dull clicking sound may be audible, this is normal operation of a gas regulator or valve.

Unit Body/Firebox:

Different types and thicknesses of steel will expand and contract at different rates resulting in some "cracking" and "ticking" sounds will be heard throughout the cycling process.

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 23

MAINTENANCE

INSTRUCTIONS

1) Always turn off the valve before cleaning.

For relighting, refer to lighting instructions. Keep the burner and control compartment clean by brushing and vacuuming at least once a year. When cleaning the logs, use a soft clean paint brush as the logs are fragile and easily damaged.

2) Clean glass (never when unit is hot), appliance, louvers, and door with a damp cloth. Never use an abrasive cleaner. The gold louvers (and optional gold door) may be scratched if abrasives are used to clean them.

The heater is finished in a heat resistant paint and should only be refinished with heat resistant paint (not with wall paint). Regency uses StoveBright Paint - Metallic Black #6309.

3) Make a periodic check of burner for proper position and condition. Visually check the flame of the burner periodically, making sure the flames are steady; not lifting or floating. If there is a problem, call a qualified service person.

4) The appliance and venting system must be inspected before use, and at least annually, by a qualified field service person, to ensure that the flow of combustion and ventilation air is not obstructed.

During the annual service call, the burners should be removed from the burner tray and cleaned. Replace the embers but do not block the pilot.

5) Keep the area near the appliance clear and free from combustible materials, gasoline, and other flammable vapours and liquids.

SYSTEM AND ANY GAS CONTROL WHICH HAS BEEN UNDER WATER.

CAUTION: ANY SAFETY SCREEN OR GUARD REMOVED FOR SERVICING AN APPLIANCE MUST BE REPLACED PRIOR TO OPERATING THE APPLIANCE.

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

6) Each time the appliance is lit, it may cause

condensation and fog the glass. This condensation and fog is normal and will disappear in a few minutes as the glass heats up.

Never operate the appliance without

the glass properly secured in place or with the door open.

7) Periodically check the pilot flames. Correct

flame pattern has three strong blue flames: 1 flowing around the thermopile and 1 around the thermocouple, and 1 flowing across the rear of the burner (it does not have to be touching the burner).

Note: If you have an incorrect flame

pattern, contact your Regency dealer for further instructions.

GENERAL

VENT MAINTENANCE

Conduct an inspection of the venting system semi-annually. Recommended areas to inspect as follows:

1) Check the Venting System for corrosion in areas that are exposed to the elements. These will appear as rust spots or streaks, and in extreme cases, holes. These components should be replaced immediately.

2) Check for evidences of excessive condensation, such as water droplets forming in the inner liner, and subsequently dripping out the joints, Continuous condensation can cause corrosion of caps, pipe, and fittings. It may be caused by having exterior portions of the system being exposed to cold weather.

3) Inspect joints, to verify that no pipe sections or fittings have been disturbed, and consequently loosened.

LOG REPLACEMENT

The unit should never be used with broken logs. Turn off the gas valve and allow the unit to cool before opening door to carefully remove the logs. The pilot light generates enough heat to burn someone. If for any reason a log should need replacement, you must use the proper replacement log. The position of these logs must be as shown in the diagram under Log Installation.

Note: Improper positioning of logs may

create carbon build-up and will alter the unit’s performance which is not covered under warranty.

WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURE AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.

Top View of pilot flame

Incorrect flame pattern will have small, probably yellow flames, not coming into proper contact with the rear of the burner or thermopile.

GOLD-PLATED DOORS

The 24 carat gold plated finish on the door requires little maintenance, and need only be cleaned with a damp cloth. DO NOT use abrasive materials or chemical cleaners, as they may harm the finish and void the warranty. Clean any fingerprints off before turning the unit on. If the door starts to discolour,

check the gasket seal and replace if necessary.

DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WA-

DOOR GASKET

TER. IMMEDIATELY CALL A QUALIFIED SERVICE TECHNICIAN TO INSPECT THE APPLIANCE AND TO REPLACE ANY PART OF CONTROL

24 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

Top View of pilot flame

If the door gasket requires replacement use 7/8" diameter oval door gasket (Part # 650-920).

MAINTENANCE

LATCH ADJUSTMENT

The door latch may require adjustment as the door gasket material compresses after a few fires and after glass replacement. Turn the handle on the adjustable catch to tighten or loosen the latch.

GLASS REPLACEMENT

Your Regency stove is supplied with high temperature, 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. In the event that you break your glass, purchase your replacement from an authorized Regency dealer only, and follow the step-by-step instructions for replacement.

Never operate your unit with broken glass.

WARNING: Do not operate appliance with the glass front removed, cracked or broken. Replacement of the glass should be done by a licensed or qualified service person.

MITRED DOOR

Removing Glass:

Note: Wearing gloves will protect your

hands while handling glass.

Installing Glass

1) Install both center and side glass onto

extrusions as per diagram.

2) Place glass assembly into door frame.

3) Install retainers by placing 1 drop of glue

where previously glued and put in place.

4) Install side retainers.

5) Install door catch plate.

6) Install the 24 nuts loosely, do not tighten

yet.

7) Tighten side panels nuts using the following procedure:

a. tighten top & bottom outside corner

nuts (2) b. tighten inside nuts (3) c. tighten top & bottom inside corners (2)

PANEL DOOR

1) Remove the door from the unit and place on

a soft surface to prevent scratching.

2) Pull out the door gasket.

3) Remove the nuts holding the glass retain-

ers in place.

4) Remove the glass retainers (sides, top and bottom) and the door catch plate.

5) Replace the glass. The glass must have gasketing around it.

6) Reverse the previous steps, replace the

retainers and fasten with the nuts but do not overtighten, as this can break the glass. Note: the door catch plate fits on top of the left side retainer.

7) Put gasket glue on the retainers, but do not put glue on the screws. Replace the door gasket, the two ends butt tight together on the bottom edge of the door.

8) Replace door on the stove and check the seal.

1) Remove the door from the unit and place on a soft surface to prevent scratching.

2) Pull out the door gasket.

3) Remove the 24 nuts holding the glass retain-

ers in place. Do not remove the nuts underneath the retainers.

4) Remove the door catch plate.

5) Remove glass retainers on sides first (3

each side) then remove two center retainers.

Note: Center glass retainers are glued

to center glass.

6) Remove glass from extrusions. When re-

moving center glass, leave white insulation in place.

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 25

8) Tighten the 10 nuts on center glass retainer.

9) Repeat step 7 for other side panel.

10)Replace new gasket by gluing it in place.

11)Install door onto stove and check the seal.

MAINTENANCE

FAN MAINTENANCE

If your fan requires maintenance or replacement, access to the fan is through the plate on the rear wall of the firebox. NOTE: the unit

MUST NOT be operated without the fan access panel securely in place and correctly sealed.

IMPORTANT:These fans collect a lot of dust from within your home. Ensure you maintain these fan motors on a regular basis by vacuuming out the fan squirrel cages, around the motor, and around the grills on the back of the stove.

IMPORTANT

Disconnect power supply

before servicing

4) Lift fan off of the 2 pins, tip back and pull

through the opening. Disconnect the green ground wire from the right side of the fan as soon as you can reach it.

Replacing Fan:

Reverse the above steps (1 - 4). Make sure the fan wires and the ground wire are reattached.

REMOVING VALVE

If your valve requires maintenance or replacement, use the following instructions:

Note: Always close off the gas supply

before removing the valve.

1) Open front pedestal door. You may want

to put a soft cloth on the base of the unit so that when the pedestal door is open it doesn't scratch the paint. See diagram below.

To remove fan:

1) Unplug or disconnect power source to

stove.

2) Remove the rear access panel on the back of the stove. The fan can only be accessed from the back of the stove.

Hint for pushing fan down onto pins - rub a bit of dish soap on the grommet so it will slide more easily onto the pin. Check to make sure the fan is seated properly on the pins - try to move the fan back and forth, there should be no noise, if there is check that the grommets haven't come loose.

2) Undo the six screws holding the control panel in place.

3) Disconnect all wires from the back of the control panel and then remove panel. You should lay the panel on a soft cloth so it doesn't get marked up. See diagram above.

3) Unclip the black and white wires from the fan motor.

26 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

MAINTENANCE

4) Remove the two outside frame pieces by

removing two screws per side. See diagram below.

5) At this point you should disconnect the gas at the valve. You can access it through the front now that the control panel is off, or you can access it through the rear pedestal cover plate.

6) Carefully remove the logs and embers.

7) Remove burner. See diagram below.

Note: Use a magnetic type screwdriver

if possible.

9) Carefully lift the burner tray assembly out.

Be careful not to tear gaskets when lifting out the valve tray; these gaskets seal the valve from the exterior of the firebox.

10)To replace the burner tray assembly, simply reverse these instructions.

8) Remove all 18 screws holding the burner tray assembly in place.

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 27

PARTS LIST

U37 MAIN ASSEMBLY

Part # Description Part # Description

1) 560-920 Louver Assy - Gold 560-921 Louver Assy - Brush Nickel 560-922 Louver Assy - Black

9) 730-560 Relief Door Assembly

10) 730-034 Mounting Plate Gasket

11) 730-517/P Fan Assembly (120 V) 910-331/P Fan Motor

12) 910-794 Power Cord (120 V)

15) * Pedestal Assembly

16) 730-039 Pedestal Door

17) 904-257 Pedestal Door Magnet

18) 560-025 Pedestal Back

19) 730-530 Side Panel Door Assy (Right Side)

20) 730-525 Side Panel Door Assy (Left Side)

21) 560-031 Side Panel Door Hinge

23) 904-258 Side Panel Door (c/w Hook) Magnet

24) 948-255 Door Latch

25) * Flex Pipe (3" ID)

26) * Clamp for Flex Pipe

27) 910-233 Thermodisc

28) * Mounting Bracket - Thermodisc

29) * Air Deflector

30) 680-019 Rear Panel

31) 630-021 Fan Access Panel

32) 730-565 Firebox Baffle

33) 640-520 False Top Assembly

38) 820-058 Pedestal Base Cover

45) 946-204 45o Elbow 640-944 Horizontal Termination Venting Kit

640-530/P Riser Terminal 948-216 Logo Plate 918-025 Manual

*Not available as a replacement part.

28 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

U37 BURNER & LOG ASSEMBLY

Part # Description

51) 910-241 Burner ON/OFF Switch (3-way)

52) 910-190 Piezo Ignitor & Nut

53) 904-586 Knob - Fan Control Switch

54) 910-373 Knob - Pilot Valve Extension

55) 910-372 Flame Adjusting Knob

56) 908-646 Control Panel Decal

57) 650-220 Control Panel Plate

58) 910-330 Fan Speed Control (120 V) 680-574/P Valve Assembly - Natural Gas

680-576/P Valve Assembly - Propane

60) 910-378 Valve - S.I.T. - NG 910-380 Valve - S.I.T. - LP

66) 910-038 Pilot Assy - S.I.T. - 3 Flame NG 910-039 Pilot Assy - S.I.T. - 3 Flame LP 904-240 #37 Orifice - N.G. 904-390 #52 Orifice - Propane 936-170 Orifice Gasket

67) * Pilot Holder

68) W840470 Pilot Assembly Gasket

71) 730-528 Rear Bracket Assembly

75) 730-935 Log Set

PARTS LIST

78) 730-550 Burner Assy - NG/LP

80) 260-565 Air Shutter Gear Assembly (Female)

81) 904-565 Hex Key 3/16" AF

82) 630-009 Gasket - Burner Tray / Air Passage

83) 630-008 Gasket - Burner Tray / Firebox

84) * Air Shutter Gear Assembly (Male)

*Not available as a replacement part.

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 29

PARTS LIST

Part # Description

730-923 Brush Nickel Mitred Door - Complete 730-924 Gold Mitred Door - Complete 730-926 Black Mitred Door - Complete 730-932 Gold Wrap Door - Complete 730-928 Gold Panel Door - Complete

101) 650-920 Door Gasket Kit

105) * Ceramic Paper

106) 940-323/P Side Glass

107) 936-243 Glass Gasket

108) 940-322/P Centre Glass

111) * Door Frame Fibre Paper

112) 750-015 Door Glass Extrusion

208) 940-325/P Wrap Glass *Not available as a replacement part.

U37 DOOR ASSEMBLIES

30 U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater

WARRANTY

Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a Regency Product. This warranty is not transferable.

The Warranty: Limited Lifetime

The combustion chamber, heat exchanger, burner tubes/pans, logs and gold plating (against defective manufacture only) are covered under the Limited Lifetime Warranty for five (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for five (5) years and parts only thereafter from date of purchase. Special Finishes - One year on brushed nickel, louvers and doors. You can expect some changes in color as the product "ages" with constant heating and cooling. FPI

warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors and marks, ie. finger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly components, and gas valves are covered for one year parts and subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered repairs and continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replacement.

FPI venting components (Direct Vent units) are covered parts and subsidized labour* for three (3) years from date of purchase. Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect.

The authorized selling dealer is responsible for all in-field service work carried out on your Regency product. FPI will not be liable for results or costs of workmanship from unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the field which is claimed to be defective. All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer

name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim. At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured.

ie. as products evolve, field modifications or upgrades will not be performed. FPI will not be liable for travel costs for service work. Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.

Embers, glass and door gaskets, door handles and paint are not covered under the terms of this warranty policy. Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.

The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by mechanical systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.

FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance. Performance problems due to operator error will not be covered by this warranty policy.

Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from Regency, may nullify your warranty on this product.

Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.

* Subsidy according to job scale as predetermined by FPI.

U37 Regency ULTIMATE Rear Vent Direct Vent Freestanding Gas Heater 31

Regency fireplace products are designed

with reliability and simplicity in mind. In

addition, our internal Quality Assur-

ance Team carefully inspects each

unit thoroughly before it leaves our

door.

Fireplace Products International

Ltd. is pleased to extend this Limit-

ed Lifetime Warranty to the original

purchaser of a Regency Product.

See the inside back cover for details.

http://www.regency-fire.com

Installer: Please complete the following information

Dealer Name & Address: ________________________________________________

______________________________________________________________________ Installer: ______________________________________________________________ Phone #: ______________________________________________________________ Date Installed: _________________________________________________________ Serial No.:_____________________________________________________________

Printed in Canada

Regency U37-NG, U37-LP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
