Regency U32S-LP5, U32S-NG5 User Manual

U32 Sunrise

™

Gas Insert

Owners &

Installation Manual

www.regency-fi re.com

WARNING:
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer to
this manual. For assistance or additional information consult
an authorized installer, service agency or the gas supplier.

FOR YOUR SAFETY
Do not store or use gasoline or other fl ammable vapours and
liquids in the vicinity of this or any other appliance.

Installation and service must be performed by an authorized
installer, service agency or the gas supplier.

918-788

Tested by:

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

MODELS: U32S-NG5 Natural Gas

U32S-LP5 Propane

FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:

do not use any phone in your
building.

Immediately call your gas supplier

from a neighbour's phone. Follow
the gas supplier's instructions.

If you cannot reach your gas

supplier, call the fi re department.

11/03/08

TO THE NEW OWNER

Congratulations! You are the owner of a state-of-the-art Gas Insert by FPI.

The U32 Sunrise Gas Insert has been designed to provide you with all the warmth and charm of a fi replace,
at the fl ick of a switch. The U32S-NG5 and U32S-LP5 have been approved by Warnock Hersey/Intertek for
both safety and effi ciency. As it also bears our own mark, it promises to provide you with economy, comfort
and security for many trouble free years to follow.

Please take a moment now to acquaint yourself with these instructions and the many features of your FPI
Fireplace.

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This FPI product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards: CAN/
CGA-2.17-M91, and ANSI Z21.88b-2007/CSA 2.33b-2007.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for
Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard
in Canada. See section "Manufactured Mobile Home Additional Requirements" for additional requirements.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of
local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the
U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This FPI Mobile/Manufactured Home Listed appliance comes

factory equipped with a means to secure the unit.

This FPI Mobile/Manufactured Home listed appliance comes
equipped with a dedicated #8 ground lug to which an 18 gauge
copper wire from the steel chassis ground must be attached.

2 U32S-5 FPI Direct Vent Gas Insert

TABLE OF CONTENTS

SAFETY LABEL

Safety Label...................................................................4

REQUIREMENTS

MA Code - CO Detector.................................................5

UNIT DIMENSIONS

Unit Dimensions..............................................................6

INSTALLATION

Important Message ...................................................... 7

For Your Safety ..............................................................7

Specifi cations ................................................................7

Gas Pressure Testing ....................................................7

Installation Into A Solid Fuel Burning Fireplace Or

Factory Built Fireplace ................................................... 7

Before You Start ............................................................7

Installation Checklist ...................................................... 8

Manufactured Mobile Home Additional Requirements .. 8

Materials Required ........................................................8

Minimum Fireplace Dimensions ....................................8

Clearances To Combustibles ......................................... 8

Combustible Mantel Clearances....................................9

Gas Connection ............................................................ 9

Venting...........................................................................9

Flue Liner Installation ..................................................10

Gas Pipe Pressure Testing .......................................... 10

Gas Insert Aeration System .........................................10

Conversion from NG to LP ........................................11

Optional Wall Thermostat ...........................................14

Optional Remote Control ............................................14

Final Check..................................................................14

Wiring Diagrams ..........................................................15

Glass Crystal or Ceramic Stone Installation.................17

Standard Flush Door ...................................................18

Faceplate and Door Frame Installation .......................19

Optional Hearth Trim Installation .................................21

OPERATING INSTRUCTIONS

Operating Instructions ................................................22

Lighting Procedure ......................................................22

Shutdown Procedure ...................................................22

First Fire ......................................................................22

Automatic Convection Fan Operation..........................22

Normal Operating Sounds Of Gas Appliances ............22

Maintenance Instructions............................................23

Copy Of Lighting Instruction Plate ...............................23

MAINTENANCE

General Vent Maintenance ..........................................24

Glass Gasket ...............................................................24

Door Glass ..................................................................24

Fan Maintenance .........................................................25

Fan Removal ............................................................... 25

Valve Assembly Replacement .....................................28

PARTS LIST

Main Assembly ............................................................30

Burner Assembly .........................................................31

Faceplate and Door Frame..........................................32

WARRANTY

The Warranty: Limited Lifetime ...................................35

3U32S-5 FPI Direct Vent Gas Insert

SAFETY LABEL

This is a copy of the label that accompanies each U32S-5 Gas Insert.
We have printed a copy of the contents here for your review. The safety
label is located on a plate inside the base of the unit visible when the
bottom louver is opened.

NOTE: FPI units are constantly being improved. Check the label

on the unit and if there is a difference, the label on the unit is the
correct one.

For the State of Massachusetts, installation and repair must be done by a plumber or gasfi tter licensed in the Commonwealth of
Massachusetts.

For the State of Massachusetts, fl exible connectors shall not exceed 36 inches in length.

For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.

The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm with
battery back up in the same room where the gas appliance is installed.

4 U32S-5 FPI Direct Vent Gas Insert

REQUIREMENTS

MA Code - CO Detector

(for the State of Massachusetts only)

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.

(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.

5U32S-5 FPI Direct Vent Gas Insert

UNIT DIMENSIONS

6 U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The FPI Gas Insert must be installed in
accordance with these instructions. Carefully
read all the instructions in this manual fi rst.
Consult the building authority having jurisdiction
to determine the need for a permit prior to starting
the installation.

NOTE: Failure to follow the instructions could
cause a malfunction of the heater which could
result in death, serious bodily injury, and/or
property damage. Failure to follow these
instructions may also void your fi re insurance
and/or warranty.

FOR YOUR SAFETY

This appliance requires air for proper combustion.
Always provide adequate combustion and
ventilation air. Follow instructions and
information in CAN/CGA B149 (in Canada) or
the National Fuel Gas Code ANSI Z223.1 (in the
USA), regarding requirements for combustion
and ventilation air.

SPECIFICATIONS

At pressures over 1/2 psig, the pipe to the unit
must be disconnected.

Gas Input Capacity:
Natural Gas 24,500 Btu/h
Propane 20,500 Btu/h

Min. Input

Natural Gas 16,500 Btu/h
Propane 17,000 Btu/h

Fuels: Approved for use with both natural gas,
and propane. Approved as is for use at 0' to
4,500' (0-1370m).

Electrical: 120V A.C. system.

Circulation Fan: Variable speed, 110 CFM.

Vent System: 3" co-linear aluminum fl ex.

The effi ciency rating of the appliance is a
product thermal effi ciency rating determined
under continuous operating conditions and
was determined independent of any installed
system.

GAS PRESSURE

TESTING

The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut off valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than
1/2 psig. (3.45 kPa).

INSTALLATION INTO A

SOLID FUEL BURNING

FIREPLACE OR

FACTORY BUILT

FIREPLACE

The U32S Gas Insert has been tested and
approved to be vented into any masonry fi replace
or approved solid fuel burning factory built

fi replace that will allow the insert to physically
fi t into the fi rebox. Refer to "Minimum Fireplace

Dimensions" section for minimum fi replace
clearances.

If the factory built fi replace* height is too low for
your Insert, you may remove the smoke baffl e
plate, damper, refractory (fi rebricks), glass
doors, screen rails, screen mesh and log grates
from the factory built fi replace as long as these
items are saved and are reinstalled in the event
that the Insert is removed.

Smoke shelves, shields and baffl es may be
removed if attached by mechanical fasteners.
If any part is removed it must not weaken the
structural integrity of the factory built fi replace.

NOTE: Any alterations made to the listed solid
fuel burning factory built fi replace may void the
listing of the fi replace.

*Check with your local inspector before
commencing with this installation.

Installer must mechanically attach the supplied
label to the inside of the fi rebox of the fi replace
into which the gas fi replace insert is installed.

"WARNING: This fi replace has been converted
for use with a gas fi replace insert only and
cannot be used for burning wood or solid fuels
unless all original parts have been replaced,
and the fi replace re-approved by the authority
having jurisdiction."

BEFORE YOU START

Safe installation and operation of this appliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of
the following:

General Safety Information

1) The appliance installation must conform

with local codes or in the absence of local
codes, with CAN/CGA B149 (in Canada) or
the National Fuel Gas Code ANSI Z223.1 in
the U.S.A. This appliance should be installed
by a qualifi ed gas fi tter technician only.

2) Installation and repair should be done
by a qualifi ed service person.

3) The appliance should be inspected before

use and at least annually by a professional
service person. More frequent cleaning
may be required due to excessive lint from
carpeting, bedding material, animal hair, etc.
It is imperative that control compartments,
burners and circulating air passageways of
the appliance be kept clean.

4) See general construction and assembly
instructions. This appliance may only be
installed in a vented, noncombustible
fi replace.

5) This appliance is Listed for bedroom
installations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.

6) Always connect this insert to a vent system
venting to the outside of the building
envelope. Never vent to another room or
inside a building. Make sure that the vent
is properly sized and is of adequate height
to provide the proper draft.

7) Inspect the venting system annually for
blockage and any signs of deterioration.

8) Any glass removed for servicing must be
replaced prior to operating the appliance.

9) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fi replace.

10) Due to high temperatures, the appliance
should be located out of high traffi c areas
and away from furniture and draperies.
Children and adults should be alerted to
the hazards of high surface temperatures,
especially the fi replace glass and gold
trims, and should stay away to avoid burns
or clothing ignition. Young children should
be carefully supervised when they are in
the same room as the appliance. Clothing
or other fl ammable material should not be
placed on or near the appliance.

Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.

7U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

INSTALLATION

CHECKLIST

Before installing vent system ensure that the
damper plate is open and secure to prevent the
damper plate from falling down and crushing
the liner.

The FPI Gas Insert is installed as listed.

1) Check all clearances to combustibles, (Refer

to sections "Minimum Fireplace Dimensions
and Clearances to Combustibles)

2) Make the gas connection. (Refer to section

"Gas Connection")

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not cut

or weakened during installation.

2) Ensure proper grounding using the #8

ground lug provided.

3) Appliance must be anchored to the fl oor

with the supplied anchoring methods.

CLEARANCES TO

COMBUSTIBLES

Minimum Clearances to Combustibles

From Unit
Sides A 10" / 255 mm
Ceiling B 47.5" / 1205 mm
Mantel C 13" / 330mm

Max. Mantle Depth G 12" / 305 mm

Min. Alcove Width K 48" / 1220 mm
Max. Alcove Depth L 36" / 915 mm

3) Install the 3" flue liner to the sliding

connector plate. (Refer to section "Flue Liner
Installation.")

4) Slide the unit half way into the fi replace.

5) Pull the vent connector plate through the

tapered brackets and fasten to the front plate.
Refer to section "Flue Liner Installation.")

6) Slide the unit fully into the fi replace.

7) Test gas pressure (Refer to section "Gas

Pipe Pressure Testing"). Check aeration
system (Refer to section "Gas Insert Aeration
System").

8) Install standard and optional features. Refer

to the following sections:

a. LP Conversion Kit
b. Glass Crystals
c. Optional Ceramic Spa Stones
d. Standard Flush Door
e. Contemporary Faceplate & Door Frame
f. Wall Thermostat
g. Remote Control

9) Final check: Before leaving this unit with the

customer, the installer must ensure that the
appliance is fi ring correctly. This includes:

MATERIALS REQUIRED

No electrical power supply is required for the gas
control to operate. A 120 Volt AC power cord is
hooked up to the fan. Plug the 3 wire cord into
a suitable receptacle. Do not cut the ground
terminal off under any circumstances. When
connected with 120 volts, the appliance must be
electrically grounded in accordance with local
codes, current version of CSA C22.1 (in Canada)
or in the absence of local codes, with the National
Electrical Code ANSI/NFPA 70-1987.

NOTE: This unit is equipped with a heat

sensor thermodisc which will
prevent the blower from operating
until the unit reaches the correct
temperature.

MINIMUM FIREPLACE

DIMENSIONS

The minimum fi replace clearances & dimensions
for the FPI gas insert are shown in the following
diagrams:

A

B

G

L

A

C

K

a) Clocking the appliance to ensure the

correct fi ring rate.

b) Adjusting the primary air, if required, to

ensure that the fl ame does not carbon.
See "Gas Insert Aeration System"
section.

c) Ensuring that the appliance is venting

correctly.

Max. Lentil

Bar Depth

A

9" 22" 14" 22-1/2" 26-1/2"

8 U32S-5 FPI Direct Vent Gas Insert

B

C

D

E

HeightBDepthCWidth

(rear)

D

Width
(front)

E

INSTALLATION

p

COMBUSTIBLE MANTEL

CLEARANCES

G

6

17"

20“

to floor

810

12" Mantel

4

13"

Top of

Unit

Side View

47”

(1194mm)

to ceiling

12

18
16

14
12
10

8
6
4
2

0

Due to the extreme heat this fi replace emits,
the mantel clearances are critical.

Note: A non-combustible mantel may be

installed at a lower height if the
framing is made of metal studs
covered with a non-combustible
board.

Mantel can be installed anywhere in shaded area
or higher using the above scale.

Note: Ensure the paint that is used

on the mantel and the facing is
"heat resistant" or the paint may
discolour.

2

3-1/2"
Mantel

0

GAS CONNECTION

GAS CONNECTION WARNING:
Only persons licensed to work

with gas piping may make the

necessary gas connections

to this appliance.

1) If the appliance is to be installed into an

existing chimney system, thoroughly clean
the masonry or factory built fi replace.

2) The appliance is provided with an opening on

the left hand side of the control compartment.
A 3/8" NPT gas supply pipe must be brought
near this inlet hole.

3) Locate the center point where the vent

will pass through the chimney above the
appliance. Move the appliance into the

To

Faceplate

exact location where it is to be installed.
Ensure that the Insert is level.

C

L

Gas
Inlet

VENTING

THE APPLIANCE MUST NOT BE

CONNECTED TO A

CHIMNEY FLUE SERVING A

SEPARATE SOLID FUEL

BURNING APPLIANCE.

Alternate Approved Caps

46dva-VC Vertical Termination Cap
46dva-VCH High Wind Cap
46dva-GK 3" Co-linear Adaptor with fl ashing

In areas of consistently high winds, we
recommend using the Simpson Dura-Vent
System (46dva-GK adapter and 46dva-VCH
high-wind cap).

The Air Intake pipe must be attached to the
inlet air collar of the termination cap.

This appliance is designed to be attached to
two 3" (76mm) co-linear aluminium fl ex running
the full length of the chimney. The fl ue length
must be a minimum length of 8 ' (2.44m) and
a maximum of 35' (10.7m). See chart below for
minimum distances from roof. Periodically check
that the vent is unrestricted.

Masonry chimneys may take various contours
which the fl exible liner will accommodate.
However, keep the fl exible liner as straight as
possible, avoid unnecessary bending.

The Air Intake pipe must be attached to the inlet
air collar of the termination cap.

Part # Description

948-305 3" Flex - 35 ft.
946-529 Co-linear DV Vertical
Termination Cap

9U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

FLUE LINER

INSTALLATION

1) Cut the fl ex liner as required.

2) Mark the end of one liner to indicate
Inlet.

3) Connect the other end of the above liner to

the inlet side of the termination adaptor, seal
connection with high temperature silicone.
Secure with gear clamp.

5) The pressure check should be carried out

with the unit burning and the setting should
be within the limits specifi ed on the safety
label.

6) When fi nished reading manometer, turn

off the gas valve, disconnect the hose and
tighten the screw (clockwise) with a 1/8"

fl at screwdriver. Note: Screw should be
snug, but do not over tighten.

GAS INSERT

AERATION SYSTEM

4) Connect the 2nd liner to the exhaust side

of the adaptor, seal connection with high
temperature silicone. Secure with gear
clamp.

5) Install fl ashing.

6) Insert both liners into chimney, passing

through the damper opening.

7) Install termination cap.

8) Connect the marked end of the liner to

the inlet collar of the vent connector plate
marked with an "I", seal connection with
high temperature silicone. Secure with gear
clamp.

9) Connect the 2nd liner to the exhaust collar

marked with an "E", seal connection with
high temperature silicone. Secure with gear
clamp.

NOTES:

1) Final gas connection should be made after

unit is in place to avoid damage to line when
pushing the unit into position.

2) Mill-pac may be used instead of high

temperature silicone and screws may be
used instead of gear clamps at connections
of liner to inlet and vent collars.

Be careful not to damage thermal insula-

tion when sliding on vent connector plate.

This could cause blockage.

GAS PIPE

PRESSURE TESTING

The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-off valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig. (3.45
kPa). Disconnect piping from valve at pressures
over 1/2 psig.

The manifold pressure is controlled by a
regulator built into the gas control, and should
be checked at the pressure test point.

Note: To properly check gas pressure, both

inlet and manifold pressures should
be checked using the valve pressure
ports on the valve.

1) Make sure the valve is in the "OFF"

position.

2) Loosen the "IN" and/or "OUT" pressure

tap(s), turning counterclockwise with a 1/8"
wide fl at screwdriver.

3) Attach manometer to "IN" and/or "OUT"

pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON"

position.

The burner aeration is factory set but may need
adjusting due to either the local gas suppply or
altitude. Open the air shutter for a blue fl ame
or close for a yellow fl ame.

The burner assembly will need to be removed
in order to adjust burner aeration if required.
See steps 1-4 in 'Conversion from NG to LP.

Minimum Air shutter Opening

Glass

Crystals

Natural Gas 3/8" 1/8"

Propane 1/2" 3/8"

CAUTION: Carbon will be produced if air
shutter is closed too much.

Note: Any damage due to carboning
resulting from setting the aeration
controls improperly is NOT covered under
warranty.

Note: Aeration Adjustment should only

be performed by an authorized FPI
Installer at the time of installation
or service.

Ceramic

Stones

10 U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

CONVERSION KIT # 434-969 FROM NG TO LP

U32S-5 using SIT 820 NOVA Gas Valve

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER

IF IN DOUBT DO NOT DO THIS CONVERSION !!

Each Kit contains one LP
Conversion Kit and one DC
Sparker Kit.

LP Conversion Kit Contains:
Qty. Part # Description

1 904-163 Burner Orifi ce #54
1 918-590 Decal "Converted to

LPG"
1 908-528 Red "LPG" label
1 904-529 5/32" Allen Key
1 910-037 LPG Injector

(Pilot Orifi ce)
1 918-480 Instruction Sheet

DC Sparker Kit Contains:
Qty. Part # Description

1 820-475 Bracket DC Sparker
1 820-476 Bracket DC Sparker
1 904-153 Washer #8 External Star
1 904-330 Nut 8-32 Hex
1 904-438 Plug Nylon 0.750 Hole,
Black (for H25 only)
1 904-531 Bushing Split Plastic

0.500 in.

1 904-543 Screw 8-32 x 3/4 Pan

Head

2 904-553 Screw #8 x 1/2 Type

"B", Black Oxide

1 910-073 Spark Generator

Battery Holder

1 910-074 Spark Generator

Switch C/W Wire

1 910-078 Battery Size AA

Energizer En91
2 910-199 Clip Wire Holder
1 910-903 Wire Fan To Power Cord

Ground 30 in.
904-781 Velcro Hook, Black
904-782 Velcro Hook, Black

1) Turn off the gas supply.

2) Remove the glass door.

b) Swing the door out 45 degrees from

the bottom and lift up and out.

3) Remove the burner by undoing the 2
screws as shown below.

Burner

4) After screws have been removed,
slide the burner to the left, then lift out
carefully.

5) Remove the base cover by lifting up
from the back, then maneover it out.

Lift up from the back.

6) Remove burner orifi ce with a 1/2" wrench

and discard.

Burner Orifi ce

7) Install the new LP burner orifi ce stamped
#54 and tighten.

a) Release the two hooks from the

bottom of the glass door.

8) Remove the pilot shield by removing the
2 screws as shown below.

Base Cover

11U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

Pilot Cap

9) Pull off the pilot cap to expose the pilot
orifi ce.

10) Unscrew the pilot orifi ce with the
supplied allen key and replace it with the

LP pilot orifi ce and re-install the pilot cap
and the pilot shield.

15) Insert a 5/32” or 4mm Allen wrench into
the hexagonal key-way of the screw
(Fig. 2), rotate it counter-clockwise until
it is free and extract it.

Fig.2

16) Check that the screw is clean and if
necessary remove dirt.

17) Flip the screw (Fig. 3).

WARNING!

Do not overtighten the screw.

Recommended to grip

the wrench by the short side.

19) Verify that if the conversion is from

NG to LPG, the screw must be re­assembled with the red o-ring visible
(Fig. 5).

Red o-ring visible

Fig.5

20) Re-assemble the black protection cap
(Fig. 6).

LPG Configuration

11) Re-install base cover.

12) Re-install the burner.

NOTE: Before re-installing the burner,

ensure the LP areation setting is set
at 1/2" min. when using glass crystals

and 1/8" min. when using ceramic

stones.

13) Turn control knob to the “OFF” position.

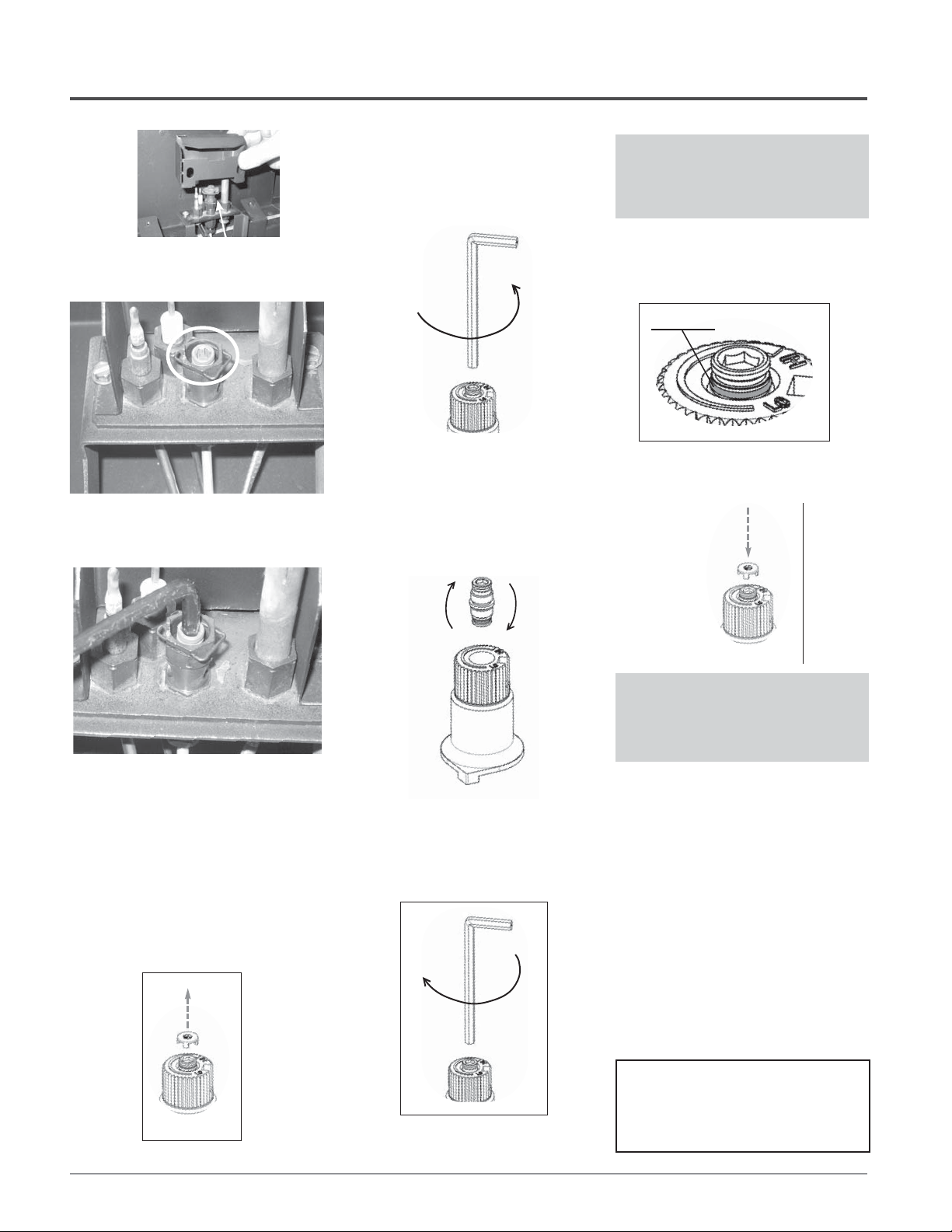

14) Remove the black protection cap by

hand from the high-low knob (Fig.1).

Fig. 1

Fig.3

18) Using the Allen wrench as shown in
Fig.4, rotate the screw clockwise until
snug, do not overtighten.

Fig.4

Fig. 6

WARNING!

Also check that the pilot and

main burner injectors

are appropriate for the gas type.

21) See DC Sparker installation in the

instruction manual.

22) Attach the label "This unit has been
converted to LPG" near or on top of the
serial # decal.

23) Replace yellow "NG" label with red
"LPG" label.

24) Check for gas leaks.

25) Check inlet and outlet pressures.

26) Reverse Step 2.

27) Check operation of fl ame control.

Installer Notice:

These instructions must be left

with the appliance.

12 U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

Installation of the DC Sparker

1) Locate the Piezo Ignitor situated at the

side of valve.

Piezo ignitor

2) Remove the Piezo Ignitor by unscrewing
the nut at the back of the mounting
bracket.

Ignitor

Wire

Piezo

Ignitor

3) Disconnect the ignitor wire from the
Piezo Ignitor and connect it to the DC
Sparker.

DC

Sparker

6) Connect one end of the supplied green
ground wire to the lug with the nut and
washer from the kit.

Ground

wire from

kit

7) Install the 1/2" bushing to the heat
shield.

8) Run the other end of the ground wire
and DC spark generator wires through
the bushing on the heat shield.

Heat Shield

11) Install the supplied battery into the DC
Sparker Box by opening the battery
compartment.

NOTE: The battery in the DC Sparker

Box will need to be replaced annually.

Battery

Compartment

12) Mount the heat shield to the DC Sparker.

Secure into place with the velcro, which
is provided in the kit.

13) Find a location which is not too hot and is

easy to reach for changing the battery.

Note: It should be kept away from the

chain.

Ignitor

Wire

4) Connect the DC spark generator wires
to the SIT Valve with the screw, which is
provided in the kit.

5) Locate the ground lug at the receptical
box, left of the unit.

Chain

9) Plug the DC spark generator wires to the
DC Sparker.

14) Tie up the loose wire with the wire clip.

10) Connect the ground wire to the DC

Sparker mounting bracket.

13U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

OPTIONAL WALL THERMOSTAT

A wall thermostat may be installed if desired, follow the wiring diagram
below. FPI offers an optional programmable thermostat but any 250­750 millivolt rated non-anticipator type thermostat that is CSA, ULC or
UL approved may be used.

CAUTION

Do not connect the millivolt wall thermostat wires

to the 120V wires.

Thermostat Wire Table

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

14 GA.
16 GA.
18 GA.
20 GA.
22 GA.

50 Ft.
32 Ft.
20 Ft.
12 Ft.

9 Ft.

OPTIONAL REMOTE CONTROL

FINAL CHECK

Before leaving this unit with the customer, the installer must ensure that
the appliance is fi ring correctly. This includes:

1) Clocking the appliance to ensure the correct fi ring rate (rate noted

on label) at 15 minutes.

2) If required, adjusting the primary air to ensure that the fl ame does

not carbon. First allow the unit to burn for 15 min. to stabilize.

3) Check for proper draft.

CAUTION

Any alteration to the product that causes sooting
or carboning that results in damage to the exterior
facia is not the responsibility of the manufacturer.

Use the FPI Remote Control Kit approved for this unit. Use of other
systems may void your warranty.

The remote control kit comes with a hand held transmitter, a receiver and
a wall mounting plate.

1) Choose a convenient location on the wall to install the receiver and

the receptacle box (protection from extreme heat is very important).
Run wires from the fi replace to that location. Use Thermostat Wire
Table.

2) Connect the wires as per the wiring diagrams in this manual.

CAUTION

Do not connect the millivolt

remote control

the 120V wires.

3) Install 3 AAA alkaline batteries in transmitter and 4 AA alkaline bat-

teries in the receiver. Install the receiver and its cover in the wall.
Switch the remote receiver to "remote" mode. The remote control is
now ready for operation.

14 U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

WIRING DIAGRAMS

This heater does not require a 120V A.C. supply for operation. In case of a power failure, the burner switch and the optional remote control/
thermostat will continue to operate. However, a 120V A.C. power supply is needed for the fan/blower operation.

Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.

For NATURAL GAS Units and Units NOT Equipped with DC Spark Boxes

Green

Fan

Black

BlackBlack

Control

Pilot

Assembly

Thermopile

Gas Pilot

Electrode

120V AC

Thermocouple

To
Thermocouple IN

Neutral

Live

Minimum Convection

Air Temp. Switch

Ground

Ground

ON OFF

Red

Rotary Speed

Gas
In

Thermocouple

O

N

T

O

L

I
P

F

F

O

"S.I.T" Valve

In

I

H

L

O

Regency

Remote Transmitter

(Optional)

White

Brown

Piezo
Ignitor

ONOFF

Remote

Receiver

(Optional)

(Millivolt)

Thermostat

(Optional)

(Millivolt)

Black

Red

CAUTION: Label all wires prior
to disconnection when servicing
controls. Wiring errors can cause
improper and dangerous operation.

WARNING:
Electrical Grounding Instructions
This appliance is equipped with a three pronged (grounding) plug for your protection
against shock hazard and should be plugged directly into a properly grounded three­prong receptacle. Do not cut or remove the grounding prong from this plug.

ON

OFF

Burner

15U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

For PROPANE Units and Units Equipped with DC Spark Boxes*

*For installation of the DC Spark Box refer to the LP Conversion instructions in this manual.

16 U32S-5 FPI Direct Vent Gas Insert

GLASS CRYSTAL OR OPTIONAL CERAMIC STONES

INSTALLATION ON BURNER

Spread the supplied Glass Crystals (or optional Ceramic
Spa Stones) evenly over the burner. Ensure the crystals (or
stones) do not overlap too much as this will effect the fl ame
pattern.

NOTE: When installing, use either the supplied Glass Crystals or
optional Ceramic Spa Stones - DO NOT combine the two. Only
the supplied approved Cobalt Blue Glass or optional 70 pieces
of Ceramic Spa Stone are to be used with this fi replace. Use
of any other type of glass crystals or stones can alter the unit's
performance, any damage caused by the use of any unapproved
glass or stones will not be covered under warranty.

INSTALLATION

Burner shown with Glass Crystals

NOTE: When using Ceramic Stones, DO NOT cover burner
ports that lead to pilot fl ame.

Colbalt Glass Crystals/Ceramic Spa Stones Quantity

Colbalt Crystals Ceramic Spa Stones

P33S 1 bag 70*

E33S 1 bag 70

U32S 1 bag 70

L676S 1 bag 70

*Recommended to use only 50 of the 70 ceramic stones on the
P33S burner.

Minimum Air shutter Opening

Glass Crystals Ceramic Stones

Natural Gas 3/8" 1/8"

Propane 1/2" 3/8"

Burner shown with optional Ceramic Stones

17U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

STANDARD

FLUSH DOOR

The standard fl ush door comes with a black frame. To install the frame,

simply hook the top door fl ange onto the top of the unit and swing the
door towards the unit, diagram 1. Be careful that the glass gasket does
not roll up; there must be a gap between the gasket and the door lip to
ensure that the door sits securely on the unit. Diagram 2.

Use the hook to pull the spring out until you can put the hook into the slot
on the bottom door bracket. Repeat for 2nd spring. See diagram 3.

To remove the fl ush door, reverse the above steps.

IMPORTANT NOTE: The chain must rest on TOP of the gas inlet
pipe never under it.

Diagram 3

Diagram 1a

Diagram 1b

Diagram 2

18 U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

FACEPLATE AND DOOR FRAME INSTALLATION

Kit# 425-914 Contents List:

1 Complete Faceplate with Switches
1 Door Frame
1 Bottom Louver
2 Hinges
2 Bottom Louver Brackets
4 Pan Head Screws
1 Wire Clip
1 Instruction Sheet

1) Bring the faceplate up in front of the unit and connect the red &

black ON/OFF wires from the unit to the ON/OFF switch on the
back of the left side of the faceplate.

2) Connect the grey coated female ends of the black & red fan wires

from the unit to the male ends of the fan rheostat on the left side of
the faceplate as shown.

Note: Ensure that the fl anges on the sides of the fi rebox are on the
outside, when installing the faceplate (see below).

Faceplate

Flange on fi rebox

4) Fold down the 2 hinges on the bottom frame to a fl at position.
The bottom frame is installed with a friction fi t - the opening in the
corner of each hinge slides over the metal lip located on the fl oor of
the unit.

Note: Ensure the bottom frame is positioned properly before

installing, by making sure there is equal spacing on either side.

Openings on hinge

Metal Lip

Fan Rheostat

3) Position faceplate on unit lining up screw holes on faceplate with

screw holes on unit - secure with 4 screws.

5) Push both bottom frame hinges down on the metal lip until

they are fully seated.

6) Flip bottom louver up to close.

19U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

7) Install the door frame by hooking the top fl ange over the top of the glass door.

8) Lower the door frame gently into place.

9) Run supplied 120V power cord along front face of masonry fi replace and plug into nearest receptacle.

10) Slide unit into fi nal position.

Completed Faceplate & Door Frame Installation

20 U32S-5 FPI Direct Vent Gas Insert

INSTALLATION

OPTIONAL HEARTH TRIM INSTALLATION

The Hearth Trim is an option that can be used to fi nish off the installation when the bottom of the fi replace is higher
than the hearth or to raise the fi replace. The faceplate is assembled fi rst and then the hearth trim is attached to the
faceplate. There are 2 Hearth Trim options; a 2" and a 4".

2" Hearth Trim Installation:

1) Attach the Hearth Trim to the bottom of the faceplate side

panels with the screws provided (3 per side) as shown in
diagram 1. The holes in the Hearth Trim are oblong so the
trim can be adjusted inwards or outwards as needed to suit
fi nishing.

NOTE: Don't tighten the screws down completely at this point,

do a trial fi t to the unit, make any necessary adjustments,
when trim fi ts properly, tighten the screws.

4" Hearth Trim Installation:

1) Secure the two 2" hearth trim pieces together as shown in

diagram 2. Secure using the 2 screws provided.

2) Attach the now 4" Hearth Trim to the bottom of the faceplate
side panels with the screws provided (3 per side) as shown
in diagram 1. The holes in the Hearth Trim are oblong so
the trim can be adjusted inwards or outwards as needed to
suit fi nishing.

Diagram 2

Diagram 1

21U32S-5 FPI Direct Vent Gas Insert

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

Before operating this appliance, proceed through
the following check list.

1) Read and understand these Instructions
before operating this appliance.

2) Check to see that all wiring is correct and
enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass door is in place. Never

operate the appliance with the door glass
removed.

5) Verify that all venting and the cap is
unobstructed.

6) Verify log placement. If the pilot cannot be
seen when lighting the unit - the logs or the
embers have been incorrectly positioned.

7) The unit should never be turned off and on
again without a minimum of a 60 second
wait.

8) When lighting the appliance, the inside of
the glass may fog up. This will burn off after
a few minutes of operation.

DO NOT BURN THE APPLIANCE
WITH THE GLASS ASSEMBLY
REMOVED.

LIGHTING

PROCEDURE

IMPORTANT
To ignite or reignite the pilot, you must fi rst
release the tension springs below the door.

Only when the pilot holds, without pressure
being applied to the control knob, reapply the
tension springs to the door. The unit must
not be operated with the tension springs
unattached.

NOTE: For all propane units and units equipped
with electric spark boxes, see "Copy of Lighting
Plate Instructions" section for more details.

IMPORTANT: Gas on/off knob cannot be
turned from "PILOT" to "OFF" unless it is
partially depressed.

1) Open the bottom louver assembly

2) If the control knob is in the "OFF" position

proceed to Step 5.

3) Push in gas control knob slightly and turn

clockwise to "OFF". Knob cannot be turned
from "PILOT" to "OFF" unless knob is pushed
in slightly. Do not force.

4) Wait fi ve minutes to allow gas, that may

have accumulated in the main burner
compartment, to escape. If you do smell
gas, follow the instructions on the front of
this manual. If you don't smell gas continue
on to the next step.

5) Turn the gas control counter clockwise to

"PILOT".

6) Push in control knob all the way and hold

in. Continually push and release the black
button on spark igniter until pilot lights.
Continue to hold the control knob in for
approximately one minute, then release
the gas control knob. The pilot fl ame should
continue to burn. If the pilot does not remain
lit, repeat operation allowing a longer period
before releasing gas control knob.

7) Turn gas control knob counter clockwise to

"ON".

8) Use the rocker switch to operate main

burner.

9) Rotate the variable fl ame control to adjust

the fl ame height higher or lower.

10) Close the bottom louver assembly.

SHUTDOWN

PROCEDURE

1) Use the rocker switch to turn off the main

burner.

2) Open the bottom louver assembly.

3) Push in the gas control knob slightly and

turn clockwise to "OFF". Do not force.

4) Disconnect all electric power and gas to the

appliance if service is to be performed.

FIRST FIRE

The fi rst fi re in your insert is part of the paint
curing process. To ensure that the paint is
properly cured, it is recommended that you
burn your fi replace for at least four (4) hours
the fi rst time you use it with the fan on. When
fi rst operated, the unit will release an odour
caused by the curing of the paint, the burning
off of any oils remaining from manufacturing.
Smoke detectors in the house may go off at
this time. Open a few windows to ventilate the
room for a couple of hours.

The glass panel may require cleaning
after the unit has cooled down.

DO NOT ATTEMPT TO CLEAN THE
GLASS WHILE IT IS HOT.

Note: When the glass is cold and the

appliance is lit, it may cause
condensation and fog the glass.
This condensation is normal and
will disappear in a few minutes as
the glass heats up.

DO NOT BURN THE APPLIANCE
WITHOUT THE GLASS FRONT IN
PLACE.

During the fi rst few fi res, a white fi lm
may develop on the glass front as part
of the curing process. The glass should
be cleaned or the fi lm will bake on and
become very diffi cult to remove. Use a
non-abrasive cleaner and NEVER clean
the glass while it is hot.

AUTOMATIC

CONVECTION FAN

OPERATION

The fan operates automatically, turn the knob on
the side of the faceplate to adjust to the desired
speed. The fan will turn on as the insert comes
up to operating temperature. After the unit has
been turned off and the unit cooled to below a
useful heat output range the fan will shut off
automatically.

NORMAL OPERATING

SOUNDS OF

GAS APPLIANCES

It is possible that you will hear some sounds
from your gas appliance. This is perfectly normal
due to the fact that there are various gauges
and types of steel used within your appliance.
Listed below are some examples. All are normal
operating sounds and should not be considered
as defects in your appliance.

Blower:

FPI gas appliances use high tech blowers to
push heated air farther into the room. It is not
unusual for the fan to make a "whirring" sound
when ON. This sound will increase or decrease
in volume depending on the speed setting of
your fan speed control.

Burner Tray:

The burner tray is positioned directly under
the burner tube(s) and crystals and is made
of a different gauge material from the rest of
the fi rebox and body. Therefore, the varying
thicknesses of steel will expand and contract at

22 U32S-5 FPI Direct Vent Gas Insert

OPERATING INSTRUCTIONS

slightly different rates which can cause "ticking"
and "cracking" sounds. You should also be aware
that as there are temperature changes within
the unit these sounds will likely re-occur. Again,
this is normal for steel fi reboxes.

Blower Thermodisc:

When this thermally activated switch turns ON
it will create a small "clicking" sound. This is the
switch contacts closing and is normal.

Pilot Flame:
While the pilot fl ame is on it can make a very
slight "whisper" sound.

Gas Control Valve:
As the gas control valve turns ON and OFF, a
dull clicking sound may be audible, this is normal
operation of a gas regulator or valve.

Unit Body/Firebox:
Different types and thicknesses of steel will
expand and contract at different rates resulting
in some "cracking" and "ticking" sounds will be
heard throughout the cycling process.

MAINTENANCE

INSTRUCTIONS

1) Always turn the gas valve to off before

cleaning. For relighting, refer to lighting
instructions. Keep the burner and control
compartment clean by brushing and
vacuuming at least once a year. When
cleaning the logs, use a clean soft paint
brush as the logs are fragile and easily
damaged.

2) Clean (never when unit is hot) appliance,

door and faceplate with a damp cloth. Never
use an abrasive cleaner. The fi nishes on the
door frame and faceplate may be scratched
if abrasives are used to clean them.

The heater is fi nished in a heat resistant

paint and should only be refi nished with heat
resistant paint (not with wall paint). FPI uses
StoveBrite Paint - Metallic Black #6309.

3) Make a periodic check of burner for proper

position and condition. Visually check the
fl ame of the burner periodically, making sure
the fl ames are steady; not lifting or fl oating.
If there is a problem, call a qualifi ed service
person.

4) The appliance and venting system must be

inspected before use, and at least annually,
by a qualifi ed fi eld service person, to ensure
that the fl ow of combustion and ventilation
air is not obstructed.

During the annual service call, the burners

should be removed from the burner tray
and cleaned. Replace the embers but do
not block the pilot.

5) Keep the area near the appliance clear and

free from combustible materials, gasoline
and other fl ammable vapours and liquids.

COPY OF LIGHTING INSTRUCTION PLATE

FOR YOUR SAFETY READ BEFORE LIGHTING

NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1. (Australia: A S5601-2004, New Zealand: NZS 5261)

WARNING: If you do not follow these instructions exactly, a fireor explosion may result causing property damage,

or additional information consult a qualified installer, service agency or gas supplier.

A) This appliance has a pilot which must be lighted by hand, following the instructions below exactly
B) BE FORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the fl

air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance

- Do not touch any electric switch, do not use any phone in your building

- Im mediately call your gas supplier from a neighbors phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the fire department.

C) Us

repair it, call a qualified service technician. Force or attempted repair may result in a fire or explosion.

D) Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and

to replace any part of the control system and any gas control which has been under water.

E) Thisappliance needs fresh air for safe operation and must be installed so there are provisions adequate combustion + ventilation air.

LIGHTING INSTRUCTIONS

FOR UNITS NOT EQUIPPED WITH ELECTRIC SP

1)

Push in gas control knob slightly and turn clockwise
“OFF”. Knob cannot be turned from “PILOT” to “OFF” unless
knob is pushed in slightly. Do not force.

PILOT BURNER
VEILLEUSE

THERMOPILE
ELEMENT
THERMO­ELECTRIQUE

2) Wait fi ve (5) minutes to clear out any gas. If you then smell gas
STOP! follow “B” in the safety information above on this label. If
you don’t smell gas, go to the next step.

3) Turn knob on gas control counterclockwise to “PILOT”.

4) Push in control knob all the way and hold in. Immediately push
black button on spark igniter until pilot lights. Continue to hold the
control knob in for about 1/2 minute after the pilot is lit. Release
knob and it will pop back up. Pilot should remain lit. If it goes out,
repeat steps 3) and 4).

knob does not pop up when released, stop and immediately call

If
your service technician or gas supplier.

If the pilot will not stay lit after several tries, turn the gas control

knob to “OFF” and call your service technician or gas supplier.

5) Turn gas control knob counterclockwise to “ON”.

6) Us e rocker switch to operate main burner.

STOP! Read the safety information above on this label.

ARK:

UNITS EQUIPPED WITH ELECTRIC SPARK BOXES:

to

1) Push in gas control knob slightly and turn to “PILOT” position.

OFF

2) Push in control knob all the way and hold in until the pilot lights

3) Push in gas control knob slightly and turn to "ON" position.

4) Turn ON the flame switch.

FOR ALL PROP

up. Continue to hold the control knob in for about 20 seconds
after the pilot is lit. Release knob.

TO TURN OFF GAS APPLIANCE

1) Turn off

the flame switch.

2) Push in the gas control knob slightly a

3) Turn off all electric power to the applianc
You may shut off

the pilot during prolonged non use periods to conserve fuel.

nd turn clockwise to “OFF”. Do not force.

e if service is to be perfor

med.

DO NOT REMOVE THIS INSTRUCTION PLATE

WARNING: CHILDREN AND ADULTS
SHOULD BE ALERTED TO THE
HAZARDS OF HIGH SURFACE
TEMPERATURE AND SHOULD STAY

6) Each time the appliance is lit, it may cause

condensation and fog the glass. This
condensation and fog is normal and will
disappear in a few minutes as the glass
heats up.

AWAY TO AVOID BURNS OR CLOTHING
IGNITION. YOUNG CHILDREN SHOULD
BE CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.

CAUTION: ANY SAFETY SCREEN OR
GUARD REMOVED FOR SERVICING AN
APPLIANCE MUST BE REPLACED PRIOR
TO OPERATING THE APPLIANCE.

CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED

ON OR NEAR THE APPLIANCE.

Never operate the appliance without the

glass properly secured in place or with
the door open.

7) Do not use this appliance if any part has been

under water. Immediately call a qualifi ed
service technician to inspect the appliance
and to replace nay part of the control system
and any gas control which has been under
water.

8) Periodically check the pilot fl ames. Correct

fl ame pattern has three strong blue fl ames: 1
fl owing around the thermopile and 1 around

the thermocouple, and 1 fl owing across the
rear of the burner (it does not have to be
touching the burner).

.

oor because some gas is heavier than

l

appliance.

ANE UNITS

try to

. Keep burner

AND

918-474b

1/

23U32S-5 FPI Direct Vent Gas Insert

MAINTENANCE

Top View of pilot fl ame

Incorrect fl ame pattern will have small, probably
yellow fl ames, not coming into proper contact
with the rear of the burner or thermopile.

Top View of pilot fl ame

If you have an incorrect fl ame pattern, contact
your FPI dealer for further instructions.

GENERAL VENT

MAINTENANCE

Conduct an inspection of the venting system
semi-annually. Recommended areas to inspect
as follows:

1) Check the Venting System for corrosion in

areas that are exposed to the elements.
These will appear as rust spots or
streaks, and in extreme cases, holes.
These components should be replaced
immediately.

2) Remove the Termination Cap, and shine a

fl ashlight down the Vent. Remove any bird
nests, or other foreign material.

3) Check for evidences of excessive

condensation, such as water droplets forming
in the inner liner, and subsequently dripping
out the joints, Continuous condensation can
cause corrosion of caps, pipe, and fi ttings.
It may be caused by having excessive
lateral runs, too many elbows, and exterior
portions of the system being exposed to
cold weather.

4) Inspect joints, to verify that no pipe

sections or fi ttings have been disturbed,
and consequently loosened. Also check
mechanical supports such as Wall Straps,
or plumbers' tape for rigidity.

DOOR GLASS

Your FPI insert is supplied with high temperature,
5 mm Neoceram ceramic glass that will withstand
the highest heat that your unit will produce. If
your glass requires cleaning, we recommend
using an approved glass cleaner available at
all authorized dealers. Do not use abrasive
materials. Do not clean the glass when hot.

In the event that you break your glass by impact,
purchase your replacement from an authorized
FPI dealer only, and follow our step-by-step
instructions for replacement.

Warning: Do not operate appliance
with glass panels removed, cracked
or broken. Replacement of the glass
should be done by a licensed or
qualifi ed service person.

Caution: Wear gloves when removing
damaged or broken glass.

Flush Glass Replacement

Remove the fl ush door front (as per instructions
in section "Standard Flush Door"). Remove the
4 glass clips from each corner. Slide in the new
replacement glass. Push the 4 glass clips back
onto the frame.

GLASS GASKET

If the glass gasket requires replacement use
glass gasket (Part # 936-155).

24 U32S-5 FPI Direct Vent Gas Insert

MAINTENANCE

FAN MAINTENANCE

If your fan requires maintenance or replacement, access to the fan is
through the plate on the rear wall of the fi rebox. NOTE: the unit MUST

NOT be operated without the fan access panel securely in place.

Caution: Label all wires prior to disconnecting when servicing
controls. Wiring errors can cause improper and dangerous

operation. Verify proper operation after servicing.

FAN REMOVAL

5) Remove the glass door.

a) Remove the 2 hooks shown below at the bottom of the glass

door

b) Swing the door out 45o from the bottom and lift up and

out.

7) Remove the burner by undoing the 2 screws shown.

a) Carefully slide the burner to the left.

b) Then lift the burner up and out carefully, ensuring not to spill

the glass crystals.

.

1) Turn the unit off and allow it to cool down to room temperature.

2) Disconnect the power source and turn off the gas supply to the

insert.

3) Open the bottom louver.

4) Remove the door frame by lifting out from the bottom and lift up off

the glass door.

Door Frame

Glass Door

Burner

25U32S-5 FPI Direct Vent Gas Insert

MAINTENANCE

9) Remove the base cover by lifting up from the back and maneover

out.

Base Cover

10) Remove the back panel by manoeuvring it up and out of the fi rebbox.

as shown below.

14) Remove the fan access plate by undoing the 10 screws shown.

Fan access plate

11) Remove 1 screw holding the clip securing the right side panel

12) Remove the side panel.

15) Remove the 3 screws securing the burner bracket as shown
below.

16) Move the pilot assembly out of the way - be careful of the wires
leading from the pilot assembly.

13) Repeat above 2 steps to remove the left side panel.

26 U32S-5 FPI Direct Vent Gas Insert

Pilot assembly wires

MAINTENANCE

17) Remove the burner bracket.

18) Remove the Fan Air Duct by removing the 2 screws, squeeze the

sides together to remove.

20) Lift Fan Assembly off of the 2 pins, tip foreward and pull through
fi rebox opening.

21) Disconnect green ground wire from power cord.

19) Unplug the 2 wires from the fan motor from inside the stove

(located on the left side of the motor).

REPLACING THE FAN

Scrape off the old gasket from the Fan Access Panel, replace and

reverse above steps to replace fan

Hint: When pushing fan down onto pins - rub a dab of dishsoap on

the grommet so it will slide more easily onto the pin.

Check to make sure the fan is seated properly on the pins, this is

very important - try to move the fan back and forth, there shouldn't
be any noise, if there is noise, check to see if the grommets have
come loose.

27U32S-5 FPI Direct Vent Gas Insert

MAINTENANCE

VALVE ASSEMBLY REPLACEMENT

1) Turn the unit off and allow it to cool down to room temperature.

2) Disconnect the power source and turn off the gas supply to the

insert.

3) Open the bottom louver.

4) Remove the door frame by lifting out from the bottom and lift up off

the glass door.

Burner

8) Remove the base cover by lifting up from the back and maneover

out.

Door Frame

5) Remove the glass door.

a) Remove the 2 hooks shown below at the bottom of the glass

door.

b) Swing the door out 45o from the bottom and lift up and

out.

6) Remove the burner by undoing the 2 screws shown. Carefully slide

the burner to the left. Then lift the burner up and out ensuring not to
spill glass crystals.

7) Carefully set aside the burner and glass crystals.

Glass Door

Base Cover

9) Disconnect the ON/OFF connector wires from the valve.

NOTE: For LP units disconnect the DC Sparker ignitor wire from the

valve.

ON/OFF Wires

28 U32S-5 FPI Direct Vent Gas Insert

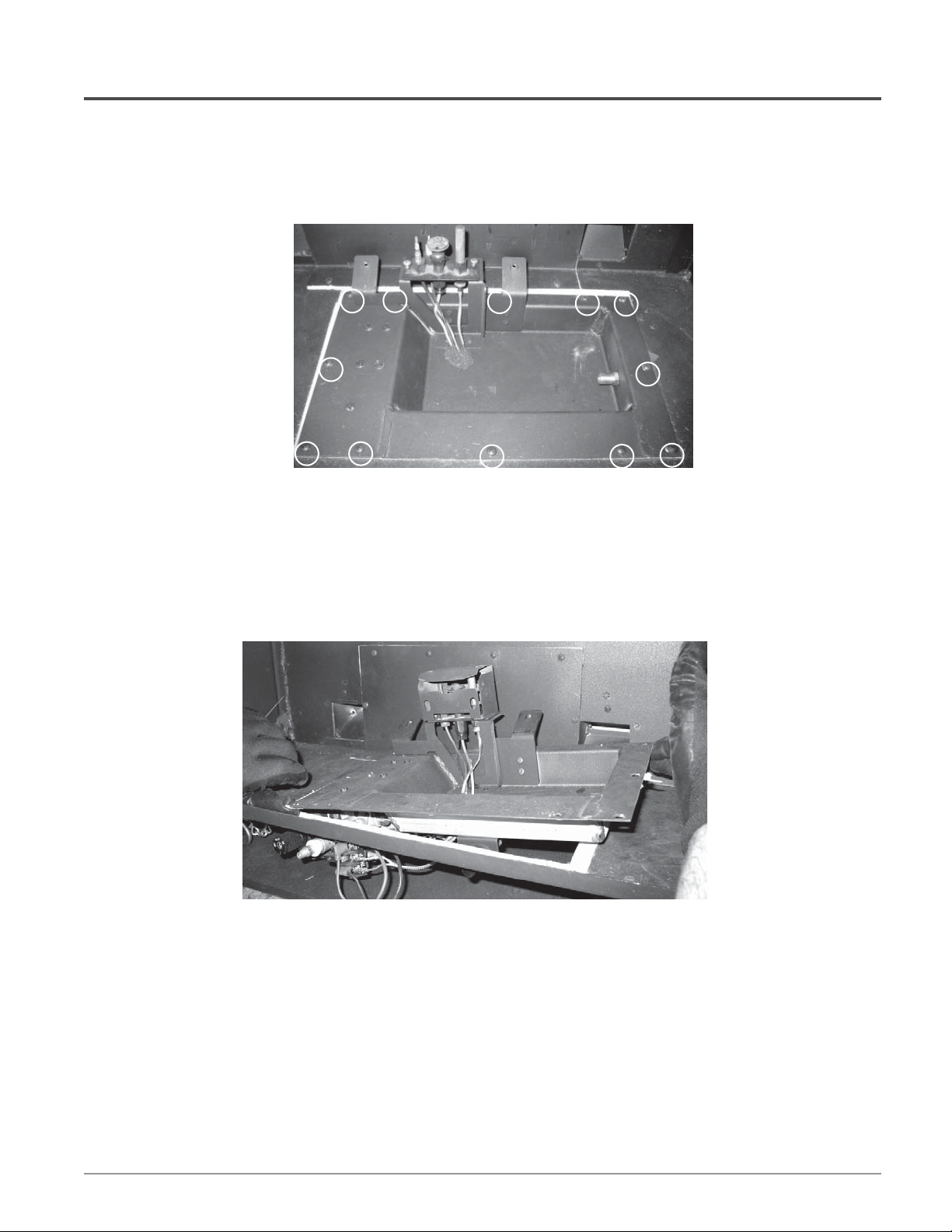

10) Remove the valve tray by undoing the 12 screws as shown below.

11) Slightly lift out valve tray.

MAINTENANCE

12) Disconnect the inlet gas line.

13) Replace valve assembly and gasket, then reverse steps to reinstall new valve assembly.

29U32S-5 FPI Direct Vent Gas Insert

PARTS LIST

MAIN ASSEMBLY

Part # Description Part # Description

1) 420-122 Fan Access Panel

2) 420-142 Gasket - Fan Access Panel
422-518/P Fan Assembly:

3) 910-215/P Fan Motor (120 V)

5) 910-750 Power Cord (120 V)
910-752 Wire Harness (intermediate)

7) 910-142 Thermodisc-Fan Auto ON/OFF

8) * Fan Switch Cover

9) * Thermodisc Bracket

10) 420-140 Flue Restrictor

12) 425-017 Left/Right Panels
425-015 Rear Panel

13) * Levelling Bolt 5/16 x 3" Hex Hd

14) 948-045 Jack Chain

15) 948-247 Spring Lever Handle

16) 948-025 Door Extension Spring

17) * Wire Holder Clip

18) * Strain Relief

19) * Grommet for Power Cord
514-969 Conversion Kit to Propane

25

27

25

24

28

26

20) 420-157 Gasket - Transition Box Bottom

21) 420-054 Gasket - Transition Box Top

22) * Stove Top

23) 420-048 Thermal Insulation

24) * Adaptor Stop

25) * Adaptor Holding Brkt-Left

26) * Adaptor Holding Brkt-Right

27) 320-518 Flue Adaptor Assy

28) * Insulation Hold Down Brkt

29) 420-170 Top Fan Air Channel

30) 420-171 Upper Fan Air Channel

31) 420-172 Lower Fan Air Channel

32) Complete Flush Door Assembly
940-307/P Flush Glass
904-691 U Clip
936-155 Tadpole Glass Gasket

918-788 Manual

*Not available as a replacement part.

10

23

21

21

29

20

19

18

17

7

8

5

30

31

3

2

1

15

14

13

12

32

30 U32S-5 FPI Direct Vent Gas Insert

BURNER ASSEMBLY

PARTS LIST

Part # Description

1) 910-568 Valve - SIT NG / LP

2) 904-430 Burner Orifi ce Nat. Gas #42
904-163 Burner Orifi ce LP # 54

3) 425-010 Pilot Holder

4) 434-031 Pilot Shield Hood

5) 425-007 Valve Tray
425-574/P Valve Assembly NG
425-576/P Valve Assembly LP

6) 425-008 Sunrise burner bracket

7) 420-201 Right Valve Bracket

8) 420-202 Left Valve Bracket

9) 910-038 Pilot Assembly 3 Flame - NG
910-039 Pilot Assembly 3 Flame - LP

10) 910-341 Thermopile

11) 910-336 Thermocouple

12) 910-030 Electrode (not shown)

13) 425-525 U32S Sunrise burner assembly

*Not available as a replacement part.

10

11

13

4

9

3

6

8

2

5

1

31U32S-5 FPI Direct Vent Gas Insert

PARTS LIST

1) 425-512 Door Bottom Assembly

2) 425-513 Frame Inside

3) 425-514 Faceplate Outside

4) 425-942 Hearth Trim

FACEPLATE AND DOORFRAME

3

2

1

4

32 U32S-5 FPI Direct Vent Gas Insert

NOTES

33U32S-5 FPI Direct Vent Gas Insert

NOTES

34 U32S-5 FPI Direct Vent Gas Insert

WARRANTY

Regency® Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit
thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a
Regency® Product. This warranty is not transferable.

The Warranty: Limited Lifetime

The combustion chamber, heat exchanger, burner tubes/pans, logs, glass crystals, ceramic spa stones, pebbles, brick panels and gold plating (against defective manufacture
only) are covered under the Limited Lifetime Warranty for fi ve (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for fi ve (5) years and parts only thereafter from date of purchase.

External casting, surrounds and grills are covered against cracks and warps resulting from manufacturer defects, parts and subsidized labour* for three (3) years from the date
of purchase and parts only thereafter.

Special Finishes - One year on stainless steel panels, nickel overlays,nickel faceplates, brushed nickel and antique copper full screens and doors. You can expect some changes
in color as the product "ages" with constant heating and cooling. FPI warranties the product for any manufacturing defects on the original product. However, the manufacturers
warranty does not cover changing colors and marks, ie. fi nger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered
by warranty.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly components,
and gas valves are covered for two years parts and one year subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered repairs and
continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replacement.

FPI venting components are covered parts and subsidized labour* for three (3) years from date of purchase.

Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty.

Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any
item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided
that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

Porcelain/Enamel - Absolute perfection is either guaranteed nor commercially possible. Any chips must be reported and inspected by an authorized dealer within three days of
installation. Reported damage after this time will be subject to rejection.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated
for manufacturer defect.

The authorized selling dealer is responsible for all in-fi eld service work carried out on your Regency
unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the fi eld which is claimed to be defective.

All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name,
purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim.

At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured.
ie. as products evolve, fi eld modifi cations or upgrades will not be performed.

FPI will not be liable for travel costs for service work.

Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.

Embers, rockwool, gaskets, door handles and paint are not covered under the terms of this warranty policy.

Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.

The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence
or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by mechanical
systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.

FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.

Performance problems due to operator error will not be covered by this warranty policy.

Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your warranty
on this product.

Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior faceplate is not the responsibility of FPI.

* Subsidy according to job scale as predetermined by FPI.

®

product. FPI will not be liable for results or costs of workmanship from

35U32S-5 FPI Direct Vent Gas Insert

FPI fi replaces are designed with reliability and simplicity
in mind. In addition, our internal Quality Assurance Team
carefully inspects each unit thoroughly before it leaves
our door.

FPI Fireplace Products International Ltd. is pleased to extend
this Limited Lifetime Warranty to the original
purchaser of a FPI Product.

See the inside back cover for details.

Register your Regency® online at

http://www.regency-fi re.com

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________

___________________________________________________________________

Installer: ___________________________________________________________

Phone #: ___________________________________________________________

Date Installed: ______________________________________________________

Serial No.: __________________________________________________________

FPI, Regency® and Sunrise™ are trademarks of FPI Fireplace Products International Ltd.
© Copyright 2009, FPI Fireplace Products International Ltd. All rights reserved.

36 U32S-5 FPI Direct Vent Gas Insert

Printed in Canada
