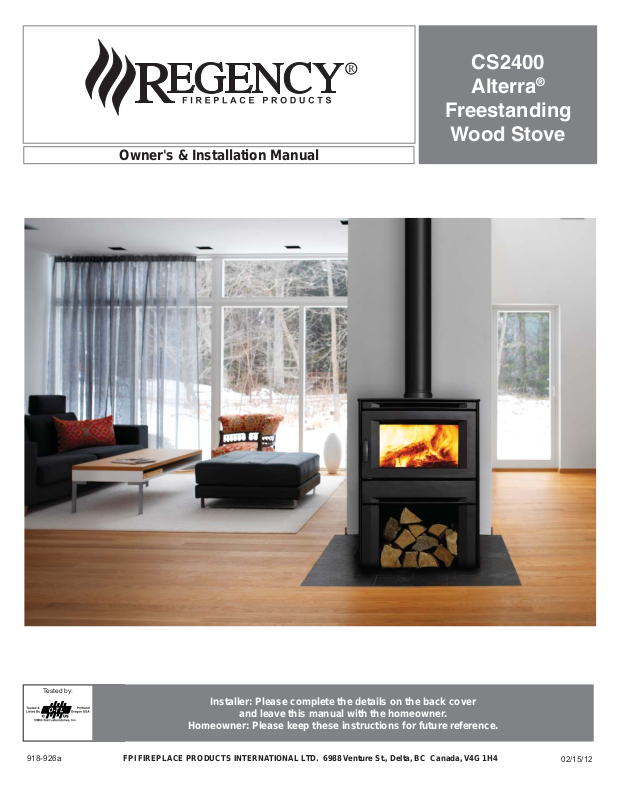

CS2400
Owner's & Installation Manual
Alterra
®
Freestanding
Wood Stove
Tested by:
918-926a
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
02/15/12
Thank-you for purchasing a
REGENCY FIREPLACE PRODUCT.
The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have
any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area.
Keep those REGENCY FIRES burning.
SAFETY NOTES:
If this wood stove is not properly installed, a house fi re may result. For your safety, follow the installation instructions, contact
local building or fi re offi cials about restrictions and installation inspection requirements in your area.
This appliance needs fresh air for safe operation and must be installed with adequate combustion air available to the room in
which it is to be operating. Air starvation or icing of the chimney system may result.
2
2
Regency CS2400 Freestanding Wood Stove
This is a copy of the label for reference only, that accompanies
HOT WHILE IN OPERATION DO NOT TOUCH. KEEP CHIL-
DREN, CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS. READ NAMEPLATE
AND INSTRUCTIONS.
CHAUD LORS DE FONCTIONNEMENT.
NE TOUCHER PAS. GARDEZ LES ENFANTS, VÊTEMENTS
ET MEUBLES AU LOIN.
LE CONTACT AVEC LE PEAU PEUT OCCASIONER
DES BRÛLURES CUTANÉES.LIRE CETTE ÉTIQUETTE.
DO NOT REMOVE THIS LABEL
LISTED SPACE HEATER, SOLID FUEL TYPE, ALSO
SUITABLE FOR MOBILE HOME INSTALLATION
MODEL:
REGENCY FREESTANDING STOVE - CS2400
TESTED TO: ULC S627-00 / UL 1482-2010 REPORT NO:219-S-02d-2
FLOOR
PROTECTION*
K 405mm /16 in
L 150mm / 6in
M 150mm / 6in
CERTIFIED TO COMPLY WITH JULY 1990,
PARTICULATE EMISSION STANDARDS.
UNITED STATES ENVIRONMENTAL
PROTECTION AGENCY
MINIMUM ALCOVE CEILING HEIGHT: 2.15 M / 7 FT MAXIMUM ALCOVE DEPTH 915 MM / 36 IN.
MINIMUM CLEARANCES FOR HORIZONTAL CONNECTOR TO CEILING: 455 MM / 18"
HAUTEUR MINIMALE DU PLAFOND DE L’ALCÔVE : 2,15 M / 7PI. PROFONDEUR MAXIMALE DE L’ALCÔVE : 915 MM / 36 PO.
FOR USE WITH SOLID WOOD FUEL ONLY. USE OF OTHER FUELS MAY DAMAGE HEATER AND CREATE A HAZARDOUS CONDITION. DO NOT OBSTRUCT COMBUSTION
AIR OPENINGS. OPERATE ONLY WITH FIREBRICKS IN PLACE. RISK OF SMOKE AND FLAME SPILLAGE, OPERATE ONLY WITH DOORS FULLY CLOSED. IF INSTALLED IN
A MOBILE HOME OPERATE ONLY WITH DOORS FULLY CLOSED - OPEN FEED DOOR TO FEED FIRE ONLY. WHEN OPERATED WITH DOORS OPEN THE MANUFACTURER
SUPPLIED SCREEN MUST BE USED. DO NOT USE GRATE OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. DO NOT OVERFIRE - IF HEATER OR CHIMNEY
CONNECTOR GLOWS YOU ARE OVERFIRING. INSPECT AND CLEAN CHIMNEY AND CONNECTOR FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP
MAY OCCUR RAPIDLY. KEEP FURNISHINGS AND OTHER COMBUSTIBLE MATERIAL AWAY FROM HEATER. REPLACE GLASS ONLY WITH NEOCERAM GLASS. COMBUSTIBLE
FLOOR MUST BE PROTECTED BY NON-COMBUSTIBLE MATERIAL EXTENDING BENEATH THE HEATER AND TO THE FRONT AND SIDES AS INDICATED OR TO THE NEAREST
PERMITTED COMBUSTIBLE MATERIAL.
OPTIONAL COMPONENT: FAN (846-515), ELECTRICAL RATING: VOLTS 115, 60 HZ, 2 AMPS, ASH DRAWER (220-516), ASHLIP (076-022), SIDE SHIELD (140-013/014)
DANGER: RISK OF ELECTRIC SHOCK. DISCONNECT POWER BEFORE SERVICING UNIT. DO NOT ROUTE POWER CORD UNDER OR IN FRONT OF APPLIANCE.
COMPONENTS REQUIRED FOR MOBILE HOME INSTALLATION: OUTSIDE AIR KIT AND ONE OF THE FOLLOWING DOUBLE WALL CONNECTOR
IN CANADA: LISTED SECURITY MODEL DP, OR OLIVER MACLEOD PRO-VENT PV DOUBLE WALLED CONNECTOR WITH LISTED CHIMNEY SYSTEM: SECURITY MODEL
S2100, ICC EXCEL 2100, SELKIRK SENTINAL CF.
IN USA: LISTED DOUBLE WALL CONNECTORS SECURITY MODEL DP, SELKIRK MODEL DS, OLIVER MACLEOD PRO VENT PV, SIMPSON DURA VENT MODEL DVL, GSW
SUPER PIPE 6, METAL-FAB DOUBLE WALL. CONNECTED TO ONE OF THE FOLLOWING COMPATIBLE CHIMNEY SYSTEMS SECURITY MODEL S2100 OR MODEL ASHT, SELKIRK
MODEL SSII, OLIVER MACLEOD PRO JET 3103, SIMPSON DURA PLUS, GSW MODEL SC OR METAL-FAB TEMP/GUARD, AMERI-TEC HS, ICC EXCEL 2100 . USE CHIMNEY
COMPONENTS AS SPECIFIED IN INSTALLATION INSTRUCTIONS.
DÉGAGEMENT MINIMAL DU PLAFOND POUR UN CONNECTEUR HORIZONTAL : 455 MM / 18 PO.
L’ESPACE AU-DESSOUS DU POÊLE NE DOIT PAS ÊTRE OBSTRUÉ. UTILISER SEULEMENT AVEC LES BRIQUES RÉFRACTAIRES EN PLACE.
POUR UTILISATION AVEC BOIS SOLIDE SEULEMENT. L’UTILISATION D’AUTRES COMBUSTIBLES PEUT ENDOMMAGER LE POÊLE ET CRÉER UNE CONDITION DANGEREUSE.
NE PAS OBSTRUER LES OUVERTURES D’AIR DE COMBUSTION. UTILISER SEULEMENT AVEC LA PORTE FERMÉE – OUVRIR LA PORTE DE CHARGEMENT POUR ALIMENTER
LE FEU SEULEMENT. NE PAS UTILISER DE GRILLE À BÛCHES NI SURÉLEVER LE FEU. MONTER LE FEU DE BOIS DIRECTEMENT SUR L’ÂTRE. NE PAS SURCHAUFFER – SI
LE POÊLE OU LE CONNECTEUR DE CHEMINÉE SE MET À ROUGIR, VOUS SURCHAUFFEZ. INSPECTEZ ET NETTOYEZ FRÉQUEMMENT LA CHEMINÉE ET LE CONNECTEUR.
EN CERTAINES CONDITIONS D’UTILISATION, UN DÉPÔT DE CRÉOSOTE PEUT SE FORMER RAPIDEMENT. GARDEZ LES MEUBLES ET AUTRES MATÉRIAUX COMBUSTIBLES
ÉLOIGNÉS DU POÊLE. REMPLACEZ LA VITRE SEULEMENT PAR DU VERRE EN NEOCERAM. LE PLANCHER COMBUSTIBLE DOIT ÊTRE PROTÉGÉ PAR DES MATÉRIAUX NON
COMBUSTIBLES DÉPASSANT DU DESSOUS, DU DEVANT ET DES CÔTÉS DU POÊLE, TEL QU’INDIQUÉ, OU JUSQU’AU MATÉRIAU COMBUSTIBLE LE PLUS PRÈS PERMIS.
COMPOSANTS EN OPTION : VENTILATEUR (846-515), ALIMENTATION ÉLECTRIQUE : 115 VOLTS, 60 HZ, 2 AMP., ASH DRAWER, SIDE SHIELD, ASHLIP
COMPOSANTS EXIGÉS POUR INSTALLATION DANS UNE MAISON MOBILE : KIT DE PRISE D’AIR EXTÉRIEUR ET L’UN DES CONNECTEURS DE CHEMINÉE À DOUBLE PAROI
SUIVANTS :
AU CANADA : CONNECTEURS DE CHEMINÉE HOMOLOGUÉS À DOUBLE PAROI : SECURITY MODÈLE DP, OU OLIVER MACLEOD PRO-VENT PV, AVEC SYSTÈME DE CHEMINÉE
HOMOLOGUÉ : SECURITY MODÈLE S2100, ICC EXCEL 2100.
AUX ÉTATS-UNIS : CONNECTEURS DE CHEMINÉE HOMOLOGUÉS À DOUBLE PAROI : SECURITY MODÈLE DP, SELKIRK MODEL DS, OLIVER MACLEOD PRO VENT PV, SIMPSON
DURA VENT MODÈLE DVL, GSW SUPER PIPE 6, METAL-FAB À DOUBLE PAROI. CONNECTÉ À L’UN DES SYSTÈMES DE CHEMINÉE COMPATIBLES SUIVANTS : SECURITY
MODÈLE S2100 OU MODÈLE ASHT, SELKIRK MODÈLE SSII, OLIVER MACLEOD PRO JET 3103, SIMPSON DURA PLUS, GSW MODÈLE SC OU METAL-FAB TEMP/GUARD, AMERITECHS, ICC EXCEL 2100. UTILISER LES COMPOSANTS DE CHEMINÉE SPÉCIFIÉS DANS LES INSTRUCTIONS D’INSTALLATION.
MADE IN CANADA
JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC
CAUTION / ATTENTION:
DATE OF MANUFACTURE
2010
2012
2011
918-927
MANUFACTURED BY: FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
6988 VENTURE ST.
DELTA, BC V4G 1H4
duplicate serial number
370
370
* In Canada, fl oor pro-
tection must extend 18"
(457mm) to the front
and 8" (203mm) to each
side of the stove.
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS
MEASURE
FROM
SIDE SHIELDS/
BACK SHIELDS
FLUE
CENTRE-LINE
RESIDENTIAL INSTALLATION USING
SINGLE WALL CONNECTOR
SIDEWALL
BACKWALL
CORNER
A 18" 457mm
B 12" 305mm
C 6-1/2" 165mm
D 31" 787mm
E 20-3/8 " 518mm
F 19-3/16" 487mm
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - MOBILE HOME
SIDEWALL
BACKWALL
CORNER
A 15" 381mm
B 6.5" 165 mm
C 6" 152mm
D 28" 711mm
E 14-7/8"" 378mm
F 18-11/16" 475mm
INSTALLER ET UTILISER SEULEMENT SELON LES INSTRUCTIONS D’INSTALLATION ET D’UTILISATION DU FABRICANT.
CONTACTER LES RESPONSABLES DU BÂTIMENT OU DU SERVICE-INCENDIE DE VOTRE RÉGION POUR CONNAÎTRE LES RESTRICTIONS ET EXIGENCES D’INSPECTION DANS VOTRE RÉGION.
UTILISER UN CONNECTEUR D’UN DIAMÈTRE MINIMAL DE 150 MM (6 PO) 24 MSG EN ACIER NOIR OU 26 MSG EN ACIER BRONZÉ AVEC CHEMINÉE PRÉFABRIQUÉE HOMOLOGUÉE
CONÇUE POUR UTILISATION AVEC COMBUSTIBLES SOLIDES OU UNE CHEMINÉE DE MAÇONNERIE.
VOIR LE CODE DU BÂTIMENT LOCAL ET LES INSTRUCTIONS DU FABRICANT CONCERNANT LES PRÉCAUTIONS EXIGÉES POUR INSTALLER UNE CHEMINÉE TRAVERSANT UN MUR OU
PLAFOND EN MATÉRIAUX COMBUSTIBLES. NE FAITES PAS TRAVERSER LE CONNECTEUR DE CHEMINÉE DANS UN MUR OU PLAFOND EN MATÉRIAUX COMBUSTIBLES. NE RACCORDEZ PAS
CE POÊLE À BOIS À UN CONDUIT DE CHEMINÉE DESSERVANT UN AUTRE APPAREIL.
CERTIFICATION DU MAISON MOBILE, APPAREIL DE CHAUFFAGE AMBIANT HOMOLOGUÉ À COMBUSTIBLE SOLIDE, CONVENANT AUSSI POUR INSTALLATION DANS UNE MAISON MOBILE
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - RESIDENTIAL CLOSE CLEARANCE
SIDEWALL
BACKWALL
CORNER
A 15" 381mm
B 6.5" 165 mm
C 6" 152mm
D 28" 711mm
E 14-7/8"" 378mm
F 18-11/16" 475mm
INSTALLATION USING LISTED DOUBLE WALL
CONNECTOR - ALCOVE
SIDEWALL
BACKWALL
G 15" 381mm
H 6-1/2" 165mm
I 28" 711mm
J 14-7/8" 378mm
INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT
RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA. USE 150 MM (6 IN.) DIAMETER MINIMUM 24 MSG BLACK OR 26 MSG BLUED STEEL CONNECTOR WITH LISTED UL103
HT FACTORY-BUILT CHIMNEY SUITABLE FOR USE WITH SOLID FUELS OR MASONRY CHIMNEY.
SEE LOCAL BUILDING CODE AND MANUFACTURER'S INSTRUCTIONS FOR PRECAUTIONS REQUIRED FOR PASSING A CHIMNEY THROUGH A COMBUSTIBLE WALL OR CEILING. DO
NOT PASS CHIMNEY CONNECTOR THROUGH COMBUSTIBLE WALL OR CEILING. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
MOBILE HOME CERTIFICATION, "ROOM HEATER SOLID FUEL TYPE, ALSO FOR USE IN MOBILE HOMES."
each CS2400 Wood Stove. We have included a copy of the
contents here for your review.
NOTE: Regency units are constantly being improved. Check
the label on the unit and if there is a difference, the label on
the unit is the correct one.
SAFETY LABEL
Regency CS2400 Freestanding Wood Stove
3
TABLE OF CONTENTS
SAFETY LABEL
DIMENSIONS
Unit Dimensions ............................................................5
Installation
Checklist ........................................................................ 6
Residential ....................................................................6
INSTALLATION
Installation .....................................................................6
Modular Installation Options ..........................................6
Room Air Important........................................................ 6
Minimum Clearance To Combustible Materials ............. 7
Step By Step Chimney And Connector Installation .......9
Masonry Chimney........................................................10
Masonry Fireplace .......................................................10
Factory built chimney...................................................10
Combustible Wall Chimney Connector Pass-throughs 11
Recommended Heights For Woodstove Flue ..............12
Mobile Home Installation .............................................13
Pipe Shield Installation ................................................13
Listed Components For Mobile Home Installation .......14
Listed Components For Mobile Home Installation .......14
Stainless steel smoke defl ector Installation .................15
Flue Baffl e & Secondary Air Tube Installation .............16
Brick Installation ..........................................................16
Door Handle ................................................................16
Side panel Installation .................................................17
Ash drawer option........................................................18
Lower Surround door reversal ....................................19
Cast Door reversal..............................................20
Wood Storage .............................................................21
Ashlip Installation.........................................................21
Optional outdoor Air kit installation ..............................22
Blower/Fan installation ................................................23
Fan Operation..............................................................23
Fan wiring ....................................................................23
MAINTENANCE
Maintenance ................................................................ 27
Door catch Adjustment ................................................27
Door Gasket ................................................................27
Glass Maintenance ......................................................27
Glass Replacement .....................................................27
PARTS LIST
Main assembly.............................................................28
Fan assembly ..............................................................29
Fire brick / air tube / baffl e ...........................................29
WARRANTY
Warranty ......................................................................31
OPERATING INSTRUCTIONS
Operating Instructions .................................................24
First Fire ......................................................................24
Draft Control ................................................................24
Ash Disposal................................................................25
Safety Guidelines And Warnings ................................. 26
Fan maintenance .........................................................26
4
Regency CS2400 Freestanding Wood Stove
optional fan
to
”
28-7/8”
26-5/16
23-3/8”
DIMENSIONS
UNIT DIMENSIONS
26-3/8”
21-1/2”
27-5/16”
to rear shield
44-7/8”
41-1/8”
39-1/8”
17-3/16”
25-15/16”
6" fl ue collar
8-5/16”
Shown with
optional fan
installed.
air
17-1/8”
CL for outside
26-5/16”
Regency CS2400 Freestanding Wood Stove
5
INSTALLATION
INSTALLATION
CHECKLIST
1) Locate appliance:
a) Refer to "Residential Installation" section.
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Alcove Clearance (Refer to "Alcove
Clearance" section)
d) Chimney Requirements (Refer to "Masonry
Chimney , Factory Built Chimney, &
Combustible Wall Chimney Connector
Pass-Throughs" section)
2) Minimum Flue Height (Refer to "Minimum Flue
Height" section)
3) Mobile Home Installation (Refer to "Mobile Home
Installation" section).
4) Install standard and optional features. Refer to
the following sections:
a. Baffl e and Tube
b. Brick Installation
c. Side Panel Installation
d. Ash Drawer Installation
e. Ashlip Installation
f. Outside Air Kit
8) Final check.
RESIDENTIAL
INSTALLATION
1) Read all instructions before installing your Re-
gency Stove. Install and use only in accordance
with these installation and operating instructions.
Failure to do so may result in property damage,
bodily injury or death. Be aware that local Codes
and Regulations may override some items in this
manual. Check with your local inspector.
2) Select a position for your Regency Stove. Consult
the minimum clearance chart for your model and
set the stove in place. For close clearance installation use listed double wall connector systems
(refer to Combustible Wall Chimney Connector
Pass - Throughs).
3) To insure vertical alignment, suspend a plumb bob
from the ceiling over the exact center of your stove
fl ue and mark a spot on the ceiling to indicate the
center of the chimney.
4) Check that the area above the ceiling is clear for
cutting. Re-confi rm the clearance from the stove
to combustibles to insure that they are within the
prescribed limits.
5) Install chimney according to chimney manufac-
turers instructions. Specifi cation of the chimney
as a type of suitable for solid fuel with warning
that it and the required chimney connector must
be in good condition. The performance of your
woodstove is governed to a very large part by the
chimney system. Too short a chimney can cause
diffi cult start-up, dirty glass, back smoking when
door is open, and even reduced heat output. Too
tall a chimney may prompt excessive draft which
can result in very short burn times and excessive
heat output. The use of an inexpensive fl ue pipe
damper may be helpful in reducing excessive draft.
When room heater is not properly installed, a
house fi re may result. To reduce risk of fi re, follow
the installation instructions. Contact local building
or fi re offi cials about restrictions and installation
inspection requirements in your area.
CAUTION: The chimney should be the same size
as the fl ue outlet on the stove. The chimney must be
listed as suitable for use with solid fuels. For other
types of chimneys check with your local building
code offi cials. Do not confuse a chimney with a
type “B” Venting System used for gas appliances
as suitable for a wood burning appliance (refer to
the Mobile Home installations section).
6) Mark the location of the unit base on the fl oor, then
move the stove aside and mark the position of the
fl oor protector.
WARNING: Do not install in a sleeping room.
7) The fl oor protector must be of non-combustible
material and must extend 16" in front of the door
opening and 6" to the sides and rear of the unit and
if venting horizontally, beneath the chimney and
extending at least 2" to each side. Some areas
may require a larger size fl oor protector. See your
NOTE: In Canada, fl oor protection must
extend 18" to the front and 8" to
each side of the stove.
local inspector. For outside air installation refer to
Mobile Home section.
8) When the fl oor protection is complete, position
the stove with the fl ue collar centered under the
installed chimney.
9) In seismically active areas, Regency recommends
that your unit is secured to the fl oor by using the
bolt down holes inside the pedestal (the same ones
used in Mobile Home installations).
10) For residential installations using "C" Vent (single
wall) the chimney connector must be at least 24
gauge steel. Do not use galvanized pipe. For
Mobile Home installation refer to the Mobile Home
installation section.
11) Do not connect this unit to a chimney serving
another appliance unless approved by your local
building authority.
12) A chimney connector cannot pass through an attic
or roof space, closet or similar concealed space,
or a fl oor, ceiling, wall or partition of combustible
construction. In Canada, if passage through a wall,
or partition of combustible construction is desired,
the installation shall conform to CAN/CSA-B365,
Installation Code for Solid-Fuel-Burning Appliances
and Equipment.
13) Your Regency Wood stove is not to be connected
to any air distribution duct.
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
ROOM AIR
IMPORTANT
Mobile home installations require the use of outside air.
See mobile home installation page for further details.
MODULAR INSTALLATION OPTIONS
OPTIONS: These can be installed at time of installation or added later:
Modular Option Considerations when choosing options
Blower/Fan Adding the blower will increase the area heated by the stove, it can move warm air beyond the room where the stove is installed.
Ash Drawer Kit Adding the Ash Drawer Kit makes cleaning ashes out of the stove easier and cleaner.
Side Shields Choice of black or stainless side shields. One set of side shields must be installed on unit.
Ashlip To help contain displaced ashes.
Optional ember pro-
tection steel plate
6
Optional Ember Protection Floor Mat
Regency CS2400 Freestanding Wood Stove
INSTALLATION
MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS
MEASUREMENTS "FROM UNIT" ARE FROM THE SIDE SHIELDS OF THE STOVE TO A SIDE WALL OR TO A CORNER, AND
FROM THE REAR HEAT SHIELD TO A BACK WALL
BE
A
F
D
C
F
C
NOTE: Be aware that local Codes and Regulations may override some clearances listed in this manual.
Check with your local inspector.
Residential Installation “C” Vent (Single Wall)
Unit From Unit From Corner From Flue Center-line
CS2400
Residential Close Clearance (To be installed with required pipe components)
When the stove is installed as a close clearance residential unit, a listed double wall connector is required from
the stove collar to the ceiling level.
CS2400
Mobile Home Close Clearance (To be installed with required pipe components)
"C" Vent single wall pipe is not approved for Mobile Home installations. (Refer to Mobile Home Instructions.)
CS2400
AB C D E F
18" 12" 6.5" 31" 20-3/8" 19-3/16"
From Unit From Corner From Flue Center-line
AB C D E F
15" 6.5" 6" 28" 14-7/8" 18-11/16"
From Unit From Corner From Flue Center-line
AB C D E F
15" 6.5" 6" 28" 14-7/8" 18-11/16"
Regency CS2400 Freestanding Wood Stove
7
INSTALLATION
Z
6"
6"
16"
Y
Y
X
X
6"
for angled corners
6"
16"
6"
6"
Z
Fuel Door
Opening
MINIMUM ALCOVE CLEARANCE TO COMBUSTIBLE MATERIALS
MEASUREMENTS "FROM UNIT" ARE FROM THE SIDE SHIELDS OF THE STOVE TO A SIDE WALL OR TO A CORNER, AND
FROM THE REAR HEAT SHIELD TO A BACK WALL
The Regency Freestanding models have been alcove approved and must be installed
with a listed double wall connector to the ceiling level.
Note: Minimum alcove ceiling height - 84"
Maximum depth of alcove - 36"
Minimum Alcove Clearance to Combustible Materials
Unit From Back Shield
+ Side Shields.
CS2400
GH I J K L
15" 6.5" 28" 14-7/8" 56" 47-1/2"
From Flue
Center-Line
Min.
Width
Min. Hearth
to Rear Wall
Floor Protection
A combustible fl oor must be protected by a non-combustible material (like tile,
concrete board, or certifi ed to UL-1618 or as defi ned by local codes) extending
beneath the heater and a minimum of 6" from each side and minimum 16" from
the fuel door opening of the stove and minimum 6" (or the rear clearance to
combustibles whichever is smaller) from the rear of the stove.
NOTE: In Canada, fl oor protection must extend 18" to the front and 8" to
each side of the stove.
Minimum Overall Width (X) of Floor
Protector for all installations:
US 38-3/8"
Canada 42-3/8"
Note: If venting horizontally, fl oor protection must extend under the chimney connector and 2" inches beyond each side.
Minimum Overall Depth (Y) of Floor Protector
8
Unit Residential
"C" Vent
CS2400
USA
Canada
YZ
47-5/16" 6" 47-5/16" 6" 47-5/16" 6" 47-5/16" 6"
51-5/16" 8" 51-5/16" 8" 51-5/16" 8" 51-5/16" 8"
Residential
Close Clearance
Y
Z
Mobile Home
Close Clearance
Y
Alcove
Z
YZ
Regency CS2400 Freestanding Wood Stove
INSTALLATION
STEP BY STEP
CHIMNEY AND
CONNECTOR
INSTALLATION
Note: These are a generic set of chimney
installation instructions. Always follow
the manufacturers own instructions
explicitly. Check the Minimum Recommended Flue Heights section (Table 1).
1) With your location already established, cut and
frame the roof hole. It is recommended that no
ceiling support member be cut for chimney and
support box installation. If it is necessary to cut
them, the members must be made structurally
sound.
2) Install radiant shield and support from above.
3) Stack the insulated pipe onto your fi nish support
to a minimum height of 3 feet above the roof
penetration, or 2 feet above any point within 10
feet measured horizontally. There must be at
least 3 feet of chimney above the roof level.
8) To complete your chimney installation, install
the double wall connector pipe from the stove’s
fl ue collar to the chimney support device.
9) If you are using a horizontal connector, the
chimney connector should be as high as possible while still maintaining the 18" (457mm)
minimum distance from the horizontal connector to the ceiling.
10) NOTE: Residential Close Clearance and
Alcove installations require a listed double
wall connector from the stove collar to the
ceiling level.
The diagrams below illustrate one way to install
your unit into a standard ceiling or with a horizontal connector. Check with your dealer or installer
for information on other options available to you.
Note: Increasing the chimney height above
this minimum level will sometimes help
your unit to “breathe” better by allowing
a greater draft to be created. This greater
draft can decrease problems such as,
diffi cult start-ups, back-smoking when
door is open, and dirty glass. It might be
suffi cient to initially try with the minimum
required height, and then if problems
do arise add additional height at a later
date.
4) Slide the roof fl ashing over your chimney and
seal the fl ashing to the roof with roofi ng com-
pound. Secure the fl ashing to your roof with
nails or screws.
5) Place the storm collar over the fl ashing, sealing
the joints with a silicone caulking.
6) Fasten the raincap with spark screens (if re-
quired) to the top of your chimney.
7) For optimum effi ciency when installing into a
masonry chimney, size accordingly, i.e. the 6"
(152mm) fl ue dia. is 28.28 sq.in.
Standard Ceiling Installation
Horizontal Installation
Regency CS2400 Freestanding Wood Stove
9
INSTALLATION
MASONRY
CHIMNEY
Ensure that a masonry chimney meets the minimum
standards of the National Fire Protection Association
(NFPA) by having it inspected by a professional. Make
sure there are no cracks, loose mortar or other signs of
deterioration and blockage. Have the chimney cleaned
before the stove is installed and operated. When connecting the stove through a combustible wall to a masonry
chimney, special methods are needed.
Ensure that an effective vapour barrier at the location
where the chimney or other component penetrates to
the exterior of the structure.
When referencing installation or connection to
masonry fi replaces or chimneys, the masonry
construction must or shall be code complying.
MASONRY
FIREPLACE
There are listed kits available to connect a stove
to a masonry fi replace. The kit is an adapter that
is installed at the location of the fi replace damper.
The existing damper may have to be removed to
allow installation.
Ensure that an effective vapour barrier at the location
where the chimney or other component penetrates
to the exterior of the structure.
When referencing installation or connection to
masonry fi replaces or chimneys, the masonry
construction must or shall be code complying.
FACTORY
BUILT CHIMNEY
When a metal prefabricated chimney is used, the manufacturer's installation instructions must be followed. You must also purchase and install the ceiling support
package or wall pass-through and "T" section package, fi restops (where needed), insulation shield, roof fl ashing, chimney cap, etc. Maintain proper clearance
to the structure as recommended by the manufacturer. The chimney must be the required height above the roof or other obstructions for safety and proper
draft operation. The space heater is to be connected to a factory-built chimney conforming to CAN/ULC-S629, Standard for 6500C Factory-Built Chimneys.
10
Regency CS2400 Freestanding Wood Stove
COMBUSTIBLE WALL CHIMNEY
CONNECTOR PASS-THROUGHS
Method A: 12" (304.8 mm) Clearance to Combustible Wall Member:
Using a minimum thickness 3.5" (89 mm) brick and a 5/8" (15.9 mm)
minimum wall thickness clay liner, construct a wall pass-through. The
clay liner must conform to ASTM C315 (Standard Specifi cation for
Clay Fire Linings) or its equivalent. Keep a minimum of 12" (304.8
mm) of brick masonry between the clay liner and wall combustibles.
The clay liner shall run from the brick masonry outer surface to the
inner surface of the chimney fl ue liner but not past the inner surface.
Firmly grout or cement the clay liner in place to the chimney fl ue liner.
Method B: 9" (228.6 mm) Clearance to Combustible Wall Member:
Using a 6" (152.4 mm) inside diameter, listed, factory-built Solid-Pak
chimney section with insulation of 1" (25.4 mm) or more, build a wall
pass-through with a minimum 9" (228.6 mm) air space between the
outer wall of the chimney length and wall combustibles. Use sheet metal
supports fastened securely to wall surfaces on all sides, to maintain the
9" (228.6 mm) air space. When fastening supports to chimney length,
do not penetrate the chimney liner (the inside wall of the Solid-Pak
chimney). The inner end of the Solid-Pak chimney section shall be
fl ush with the inside of the masonry chimney fl ue, and sealed with a
non-water soluble refractory cement. Use this cement to also seal to
the brick masonry penetration.
Minimum
12 in. (304.8mm)
to combustibles
INSTALLATION
Minimum chimney clearance to brick
and combustibles 2 in. (50.8mm)
Minimum clearance
12 in. (304.8mm)
of brick
Chimney
Chimney Flue
Masonry chimney
connector
Fire clay
liner
Method C: 6" (152.4 mm) Clearance to Combustible Wall Member:
Starting with a minimum 24 gage (.024" [.61 mm]) 6" (152.4 mm) metal
chimney connector, and a minimum 24 gage ventilated wall thimble
which has two air channels of 1" (25.4 mm) each, construct a wall
pass-through. There shall be a minimum 6" (152.4) mm separation
area containing fi berglass insulation, from the outer surface of the wall
thimble to wall combustibles. Support the wall thimble, and cover its
opening with a 24-gage minimum sheet metal support. Maintain the
6" (152.4 mm) space. There should also be a support sized to fi t and
hold the metal chimney connector. See that the supports are fastened
securely to wall surfaces on all sides. Make sure fasteners used to
secure the metal chimney connector do not penetrate chimney fl ue liner.
Method D: 2" (50.8 mm) Clearance to Combustible Wall Member:
Start with a solid-pak listed factory built chimney section at least 12"
(304 mm) long, with insulation of 1" (25.4 mm) or more, and an inside
diameter of 8" (2 inches [51 mm] larger than the 6" [152.4 mm] chimney
connector). Use this as a pass-through for a minimum 24-gage single
wall steel chimney connector. Keep solid-pak section concentric with
and spaced 1" (25.4 mm) off the chimney connector by way of sheet
metal support plates at both ends of chimney section. Cover opening
with and support chimney section on both sides with 24 gage minimum
sheet metal supports. See that the supports are fastened securely to
wall surfaces on all sides. Make sure fasteners used to secure chimney
fl ue liner.
Regency CS2400 Freestanding Wood Stove
11
INSTALLATION
TABLE 1
MINIMUM RECOMMENDED FLUE HEIGHTS IN FEET
(Measured from the top of the unit)
# OF ELBOWS
ELEVATION (FT)
ABOVE SEA LEVEL
0 2 x 15o 4 x 15o 2 x 30o4 x 30o2 x 45o 4 x 45
0-1000 12.0 13.0 14.0 15.0 18.0 16.0 20.0
1000-2000 12.5 13.5 14.5 15.5 19.0 16.5 21.0
2000-3000 13.0 14.0 15.0 16.0 19.5 17.0 21.5
3000-4000 13.5 14.5 15.5 17.0 20.0 18.0 22.5
4000-5000 14.0 15.0 16.0 17.5 21.0 18.5 23.0
5000-6000 14.5 15.5 17.0 18.0 21.5 19.0 24.0
6000-7000 15.0 16.0 17.5 18.5 22.5 20.0 25.0
7000-8000 15.5 16.5 18.0 19.0 23.0 20.5 25.5
8000-9000 16.0 17.0 18.5 20.0 24.0 21.0 26.5
9000-10000 16.5 17.5 19.0 20.5 24.5 22.0 27.0
NOTE: No more than two offsets (four elbows) allowed. Two 45o elbows equal one 90o elbow.
RECOMMENDED
HEIGHTS FOR
WOODSTOVE FLUE
o
Simple rules on draft. See Table 1.
1) At sea level minimum height is 12' straight.
2) Add the following vertical height to compensate
for:
45 deg. elbow = 1 ft.
90 deg. elbow = 2 ft.
"T" = 3 ft.
Each foot of horizontal run = 2 ft.
3) Add 4% overall for each 1000' above sea level.
Example: a)
1-1/2 ft. of horizontal run = 3 ft.
one "T" = 3 ft.
Total Addition (at sea level) = 6 ft.
Example: b)
One 90 deg. elbow = 2 ft.
2 ft. of horizontal run = 4 ft.
one "T" = 3 ft.
Total Addition (at sea level) = 9 ft.
Elevation Example a) Example b)
0' 18' 21'
1000' 18.72' 21.84'
2000' 19.44' 22.68'
5000' 21.60' 25.20'
8000' 23.76' 27.72'
Recommended Flue Height
12
Regency CS2400 Freestanding Wood Stove
MOBILE HOME INSTALLATION
Once you have properly marked the position of your unit and the fl oor protec-
tion as outlined in the Residential Installation items #1 through #8, a supply of
fresh air has to be supplied to your unit. Cut a minimum 4 inch diameter hole
through your outside wall. Use 4" duct pipe with a mesh grill to pipe fresh air
into the back shield area. Place your unit in position and secure it to the fl oor
using two lag bolts 3/8" x 3-1/2" through the two holes inside the pedestal base.
See page 9 for installation instructions.
For Mobile Home units installed in the U.S; the unit must be grounded using
a #8 ground wire with approved termination and star washer.
INSTALLATION
It is important to maintain the structural integrity of the Mobile Home
CAUTION:
fl oor, walls and roof when installing your unit.
WARNING:
Minimum height requirements
must be met. Safe removal of
the chimney system must be
adhered to when transporting
the mobile home.
WARNING: Operate only with door fully
closed - open feed door to feed fi re only.
WARNING:
Source of fresh air into the room or space heater shall be provided
when required.
PIPE SHIELD INSTALLATION
(For use with both "C" Vent (Single Wall) and residential - Close clearance).
Secured to fl oor with 2 lag bolts.
4" outside air kit
1) Bend the tabs on the rear heat shield outwards 90 degrees.
2) Secure the tabs on the top of the rear heat shield with ¼” hex screws,
supplied.
.
Regency CS2400 Freestanding Wood Stove
Left and right tabs - bent at 90°
Installed Pipe Shield
13
INSTALLATION
LISTED COMPONENTS FOR
MOBILE HOME INSTALLATION
The Regency CS2400 is approved for installation in a Mobile Home if one of the following pipe systems is used. A chimney complying with the requirements for
type HT chimney, factory built, Residential type and Building Heating appliance, (UL103, ULCS629, OR2) code- approved masonry chimney with a fl ue liner
U.S. Installation*
LISTED COMPONENTS
FOR MOBILE HOME
INSTALLATION
The Regency CS2400 Freestanding unit is approved for installation in a Mobile Home if one
of the following pipe systems is used.
AMERI-TEC HS
Qty.Part # Description
1 6DCC Connector
1 6HSRS-12 Roof Support
(6PLRS-12-BK)
1 6F Flashing
1 6HS-36 Chimney Length
1 6HS-18 Chimney Length
1 6HS-RCS Rain Cap (6PL-MPC)
U.S. Installation*
METALBESTOS SSII
Qty. Part # Description
1 6DS-VK Connector Kit
1 6TMH Shield/Support
1 6TAF-6 Flashing
1 6T-36 Chimney Length
1 6T-18 Chimney Length
1 6T-CT Rain Cap
PRO-JET 3103
Qty.Part # Description
1 PV06-TK Connector
1 CSB Shield/Support
1 RRS Radiation Shield
1 LFR03 Flashing
1 SL3 Chimney Length
1 SL1 Chimney Length
1 RCSA Rain Cap
SECURITY ASHT
Qty.Part # Description
1 DL42A-6 Connector Kit
1 6SS Shield/Support
1 6FAMH Flashing
1 6L3 Chimney Length
1 6L1 Chimney Length
1 CPE Rain Cap
SECURITY S2100
Qty.Part # Description
1 DL42A-6 Connector Kit
1 6XSF Support
1 6XFA Flashing
1 6XL3 Chimney Length
1 6XL18 Chimney Length
1 6XCPE Rain Cap
METAL-FAB TEMP/GUARD 2100
Qty.Part # Description
1 6DWBK Connector
1 6TGRS Roof Support
1 6TGG36 Chimney Length
1 6TGG12 Chimney Length
1 6TGF Flashing
1 6TGC Rain Cap
SIMPSON DURA-PLUS
Qty.Part # Description
1 6DVL8693 Connector Kit
1 6DP-MH9096 Mobile Home Kit
ICC EXCEL 2100
Qty.Part # Description
1 6CL48 48" Chimney length (also in
12", 18", 24" lengths.
1 6RC Rain Cap
1 6RCS Spark Screen (for rain cap)
1 6RDS/SQS Round/Square support box
1 6VF Flashing
1 6UBA "Ultrablack" Close Clearance
Connector
Canadian Installations*
SECURITY S2100 (see above for details)
ICC EXCEL 2100 (see above for details)
SELKIRK SENTINAL CF
*The use of alternate pitch fl ashings, support box
extensions, additional chimney lengths, and additional chimney bracing, may be used on each of
the previously listed systems. These parts though
must be from the same system as listed, and must
be a similar and/or complimentary part.
CAUTION: At no time use unlabelled
parts, or substitute parts made for
another chimney system.
Install as per chimney manufacturer's installation instructions.
14
Regency CS2400 Freestanding Wood Stove
STAINLESS STEEL SMOKE DEFLECTOR ADJUSTMENT / REPLACEMENT
The stainless smoke defl ector is located in the upper front area of the fi rebox. The defl ector is held in place with 2 bolts
Prior to the fi rst fi re, ensure defl ector is seated properly and secured with 2 hand tightened bolts.
Smoke defl ector installed with 2 bolts.
INSTALLATION
Smoke defl ector
To replace the defl ector, loosen off both bolts and slide defector upward and out. Install new defector and hand tighten bolts. Ensure positive location of
the defector prior to hand tightening.
WARNING: Operation of the unit with out proper installation of smoke defl ector will void warranty.
Smoke defl ector is installed through the door
opening in location shown in diagram
Ensure defector is seated so bolts are situated
at the top of the keyhole before tightening.
Note: This is a view from the back of the unit
through the top.
Regency CS2400 Freestanding Wood Stove
15
INSTALLATION
FLUE BAFFLE &
SECONDARY AIR TUBE
INSTALLATION
The fl ue baffl e system located in the upper area of the fi rebox is removable to
make cleaning your chimney system easier. The baffl es must be installed prior
to your fi rst fi re. Smoke spillage and draft problems may occur if the baffl es
are improperly positioned. Check the position of the baffl es on a regular basis
as they can be dislodged if too much fuel is forced into the fi rebox.
Freestanding Stove
CS2400
The unit arrives with the 2 baffl es on the fl oor of the fi rebox.
1) If all 4 air tubes are installed continue on to Step 2), if not, follow the
instructions below. Install the air tube into the holes in the side channels.
The notch goes on the right hand side with the air holes facing toward the
door.
Slide the tube into the left hand side, as far as possible and then bring it
back into the hole on the right hand side until it locks into position. If the
tube will not slide in easily, simply use a pair of vise grips or pliers and
tap it into place with a hammer. A tighter fi t will ensure the tube will not
move when the unit is burning.
2) Slide the left baffl e over the air tubes from the front and then push it to the
back.
BRICK INSTALLATION
Firebrick is included to extend the life of your stove and radiate heat more
evenly. Check to see that all fi rebricks are in their correct positions and have
not become misaligned during shipping.
The "AD" brick in the drawings above is the brick covering the Ash Dump hole
that is used when the Ash Drawer Kit is installed.
AD Brick
Side View
3) Tilt the left baffl e up on top of the side channel and it will leave enough
room to position the right baffl e in the same manner as Step 1) above.
Then reposition the left baffl e fl at on the air tubes.
Front View
4) Important: push both baffl es so they are tight against the side walls.
DOOR HANDLE
The door handle is stored on a hanger located on the inside left in the
wood storage area.
Front View
Note: When getting the chimney cleaned, push the baffl es forward
toward the front of the stove, this should leave suffi cient access
to the fl ue. If it is not enough space then remove the middle air
tube (reverse the procedure in step 1) above), and baffl e and then
replace everything when cleaning is completed.
16
Handle stored on hangar
in wood storage area.
Regency CS2400 Freestanding Wood Stove
INSTALLATION
SIDE PANEL INSTALLATION
One set of side panels needs to be installed on the stove. When installing stainless steel side panels - follow the handling and cleaning instructions below.
Before installation, panels must be handled and cleaned as per instructions noted below:
Stainless Steel Panels
• Stainless panels must be inspected for scratches and dimples prior to installation. All claims to be recorded at this time.
Claims for damage after installation will not receive consideration.
• To protect the fi nish during installation and handling - cotton gloves MUST be worn at all times while handling the panels (even when
removing protective coating).
• Use a hair dryer to remove the protective coating from the panels.
• Stainless panels will discolor a little during normal operation.
This is normal and should not be considered a defect.
All hand and fi nger marks MUST be cleaned off with a soft cloth and a stainless steel cleaner. Most stainless steel cleaners leave a fi lm/
*
residue on the surface of the panels. Use an ammonia based cleaner (ie. glass cleaner) to remove this fi lm before applying heat to the unit.
Failure to do this will result in burn stains on panels which you will be unable to remove. Not protected by product warranty.
1) Bend the metal tab (located in the top front corner of the side panels to
a 45° angle - with a pair of pliers.
45° bend
Note: Do not bend the tab back and forth - as this will weaken the
metal.
2) Remove cast top - carefully place off to the side.
3) Position the left side panel - so the tab rests on the side panel bracket
on the unit.
** Left panel can be identifi ed by the 2 small holes near the bottom for the
logo plate - see diagram 1.
Side panel
Bracket
4) Install Regency logo on to the
left side panel - by snapping
logo into 2 holes located on
the lower front corner of the
panel.
Diagram 1
5) Ensure the back edge of the side panel is over the top of the two back
shield tabs located at the back of the unit.
Left side
panel
Back Panel
ShieldTabs
6) Secure side panel to the two back shield tabs on unit with screws.
CS2400 shown
Side Panel
Tab
Regency CS2400 Freestanding Wood Stove
Top View
6) Repeat Steps 1-3 and 5-6 to install opposite panel.
17
INSTALLATION
ASH DRAWER OPTION
1) Open the main top door and the center door on the front of the unit.
2) Remove the bricks from the fl oor of the fi rebox.
4) Push the ash plug into the hole inside the fi rebox and replace all the bricks
except for the brick over the ash plug. See brick diagrams in manual.
5) Position ash drawer lid in 'Open' position on the ash drawer lid (towards
the front) as shown below.
Ash drawer
lid
3) Remove the ash dump cover plates (one inside the fi rebox and one on
the underside of the fi rebox - access the lower plate through the center
door - it is directly below the upper ash dump plate.) by removing the
two nuts and bolts holding the 2 plates together from underneath the
stove.
Ash Dump Plates
Ash Plug
6) Slide in ash drawer.
7) Close center door and main top door- once ash drawer is in place.
18
Keep ash removal tool handy for maintenance - see ash disposal in
operating instructions.
Regency CS2400 Freestanding Wood Stove
LOWER SURROUND DOOR REVERSAL
(LEFT TO RIGHT SIDE OPENING)
INSTALLATION
1) The surround door can be reversed - to open to the left. Make sure stove
has cooled, open the door - and remove it from the hinge by removing 2
bolts.
2) Remove and discard the latch on the left side of the unit by removing 2
bolts.
6) Reinstall the door (do not rotate) onto the hinge on the left side with the
2 bolts removed in Step 1.
3) Replace with the latch contained within the manual package. Rotate the
hinge 180° and reinstall on the right side.
4) Rotate both hinge and latch 180° and reinstall - hinge on left side, latch
on right side.
5) Remove and rotate both the male part of the latch 180° - located on the
inside of the lower surround door. Install the latch on the opposite side of
the door.
Door latch - male
portion
Regency CS2400 Freestanding Wood Stove
19
INSTALLATION
CAST DOOR REVERSAL (LEFT TO RIGHT SIDE OPENING)
1) The door can be reversed - so that it will open to the left. Make sure stove
has cooled to room temperature. Open the door to about 45°- then remove
it from the hinge by lifting up and out. Note: Door is heavy.
2) Remove the 2 bolts securing the door hinge to the unit.
Note: Once hinge is removed - reinstall the bolts and ensure they are tight
to prevent air leakage.
3) Remove the 2 bolts securing the door catch assembly to the unit.
6) Remove the glass from the door and fl ip it around 180° - so the painted
strip is at the bottom of the door.
7) Flip the handle around 180° and reattach to the door with 2 botls.
Door
Catch
Door
Hinge
4) Flip the door hinge 180° - install on the left side of the unit with 2 bolts.
5) Reattach the door catch assembly on the right side with 2 bolts from step
3.
Door
Hinge
8) Remove door pins (2) from back side of door by removing 4 bolts. reinstall
on other side of door by rotating 180° and reinstalling door pins.
9) Reattach the door to the door hinge.
20
Door
Catch
Regency CS2400 Freestanding Wood Stove
INSTALLATION
WOOD STORAGE
When storing wood within pedestal- ensure wood does not protrude past door
opening. Do not store newspaper within pedestal.
Note: Please refer to local codes. (B365, NFPA 211) and your local jurisdiction..
3) Manoeuvre ashlip into position on an angle - the tabs on the ashlip rest
behind side walls on unit - see diagrams below.
Tabs on ashlip
Store wood behind opening
ASHLIP INSTALLATION
1) Open lower surround door.
2) Ashlip to be positioned just below the ashdrawer (if installed).
Ashlip to be positioned here
Regency CS2400 Freestanding Wood Stove
Final install of Ashlip
21
INSTALLATION
OPTIONAL OUTDOOR AIR KIT INSTALLATION
1) Remove 4 screws from locations shown below to remove backing
plate.
2) Center the plate / pipe over the opening on the back of the stove.
Secure with 4 self tapping screws.
3) Reinstall the backing plate over the air kit pipe. Secure with 4 screws
removed from step 1.
22
4) Slide cap over end to pipe to complete the installation.
Regency CS2400 Freestanding Wood Stove
round
a n a n
round
reen
eutral
i v e
hite
a n
Switch
anual
Auto
Switch
lack lack
igh (lack)
ow (Red)
lack
an hermodisc
(normally open)
1 A
BLOWER/FAN INSTALLATION
1) Remove the fi ve screws from the back panel of the unit - to remove the
fan cover plate.
2) Slide the fan up into the rear heat shield.
3) After aligning holes, secure the fan to the rear heat shield using the fi ve
screws removed earlier.
4) Secure the bottom of the fan using the two fan clips (in manual package)
and two bottom screws removed in step 1.
Note: The connection cord should not be in contact with any hot
surfaces.
INSTALLATION
Read the operating instructions for the fan before using.
5) Plug fan into a properly grounded three prong receptacle.
Remove back panel
Install fan - under rear
heat shield
FAN OPERATION
Automatic
To operate the fan automatically, push the bottom switch on the side of the fan housing to "AUTO" and the top switch to either "HIGH" or "LOW" for fan speed.
This will allow the fan to turn on as the stove has come up to operating temperature. It will also shut the fan system off after the fi re has gone out and the
unit cooled to below a useful heat output range.
Manual
To manually operate the fan system push the bottom switch to "MAN" and the top switch to either "HIGH" or "LOW". This will bypass the sensing device and
allow full control of the fan.
Switching from "AUTO" to "MAN" or "HIGH" to "LOW" may be done anytime.
FAN WIRING
NOTE: This appliance, when installed,
must be electrically grounded in accordance with local codes or, in the absence
of local codes, with the National Electrical
Code, ANSI/NFPA 70, or the Canadian
Electrical code, CSA C22.1.
This appliance is equipped with a three pronged
(grounding) plug for your protection against shock
hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove
WARNING: Electrical Grounding Instructions
the grounding prong from this plug.
Regency CS2400 Freestanding Wood Stove
Blower/Fan Wiring Diagram
CAUTION: Label all wires prior to disconnection
when servicing controls. Wiring errors can cause
improper and dangerous operation.
23
OPERATING INSTRUCTIONS
OPERATING
INSTRUCTIONS
With your unit now correctly installed and safety
inspected by your local authority, you are now ready
to start a fi re. Before establishing your fi rst fi re, it
is important that you fully understand the operation
of your draft control.
WARNING: To build a fi re in ignorance or to
disregard the information contained in this
section can cause serious permanent damage
to the unit and void your warranty!!
FIRST FIRE
When your installation is completed and inspected
you are ready for your fi rst fi re.
1) Open control fully.
2) Open fi rebox door and build a small fi re using
paper and dry kindling. Secure door on the
fi rebox and wait a few minutes for a good updraft in the fl ue to establish the fi re. (Leaving
the door slightly open will help your fi re start
more rapidly.)
CAUTION: Never leave unit unattended if
door is left open. This procedure is for fi re
start-up only, as unit may overheat if door
is left open for too long.
3) With the draft still in the fully open position add
two or three seasoned logs to your fi re. Form a
trench in the ash bed to allow air to reach the
rear of the fi rebox prior to closing the door.
8) Do not place anything on the stove top during
the curing process. This may result in damage
to your paint fi nish.
9) During the fi rst few days it may be more diffi cult
to start the fi re. As you dry out your fi rebrick and
your masonry fl ue, your draft will increase.
10) For those units installed at higher elevations or
into sub-standard masonry fi replaces, drafting
problems may occur. Consult an experienced
dealer or mason on methods of increasing your
draft.
11) Some cracking and popping noises may be
experienced during the heating up process.
These noises will be minimal when your unit
reaches temperature.
12) Before opening your door to reload, open draft
fully for approximately 10 to 15 seconds until
fi re has been re-established. This will minimize
any smoking.
13) All fuel burning appliances consume oxygen
during operation. It is important that you supply
a source of fresh air to your unit while burning.
A slightly opened window is suffi cient for the
purpose. If you also have a fi replace in your
home, a downdraft may be created by your
Regency Stove causing a draft down your
chimney. If this occurs, slightly open a window
near your unit.
CAUTION: If the body of your unit,
fl ue baffl e or any part of the chimney
connector starts to glow, you are overfi ring. Stop loading fuel immediately
and close the draft control until the
glow has completely subsided.
WARNING
Fireplace Stoves equipped with doors
should be operated only with doors
fully closed. If doors are left partly
open, gas and fl ame may be drawn out
of the fi replace stove opening, creat-
ing risks from both fi re and smoke.
DRAFT CONTROL
Both the primary and air wash drafts are controlled
by the control rod located on the left side of the unit
(when facing the unit). To increase your draft - pull
open, and to decrease - push closed. All units have
a secondary draft system that continually allows
combustion air to the induction ports at the top of
the fi rebox, just below the fl ue baffl e.
Left - Open Right - Closed
4) After about 15 to 20 minutes, when your wood
has begun to burn strongly, adjust your draft
control down to keep the fi re at a moderate
level.
WARNING: Never build a roaring fi re in a
cold stove. Always warm your stove up
slowly!
5) Once a bed of coals has been established, you
may adjust the draft control to a low setting to
operate the unit at its most effi cient mode.
6) During the fi rst few fi res, keep the combustion
rate at a moderate level and avoid a large fi re.
Only after 5 or 6 such fi res can you operate the
stove at its maximum setting, and only after the
metal has been warmed.
7) For the fi rst few days, the stove will give off an
odour from the paint. This is to be expected as
the high temperature paint becomes seasoned.
Windows and/or doors should be left open to
provide adequate ventilation while this temporary condition exists. Burning the stove at a
very high temperature the fi rst few times may
damage the paint. Burn fi res at a moderate level
the fi rst few days.
24
24
14) If you have been burning your stove on a low
draft, use caution when opening the door. After
opening the damper, open the door a crack, and
allow the fi re to adjust before fully opening the
door.
15) The controls of your unit or the air supply pas-
sages should not be altered to increase fi ring
for any reason.
16) If you burn the unit too slowly or at too low a set-
ting your unit will not be operating as effi ciently
as it can. An easy rule of thumb says that if your
glass is clean, then your fl ue is clean and your
exhaust is clean. Burn the stove hot enough
to keep your glass clean and you won't need
to clean your fl ue as often.
NOTE: If using a smoke detector, select an area
in the room where the appliance is located
that will not prematurely set off the smoke
detector.
Regency CS2400 Freestanding Wood Stove
OPERATING INSTRUCTIONS
INSTALLATION
ASH DISPOSAL
During constant use, ashes should be removed
every few days. The Ash Drawer option features
a convenient ash dump for easy removal of ash,
refer to the "Modular Options" section.
Safety Precautions
1) Do not allow ashes to build up to the loading
doors! Only remove ashes when the fi re has
died down. Even then, expect to fi nd a few hot
embers.
2) Please take care to prevent the build-up of ash
around the start-up air housing located inside
the stove box, under the loading door lip.
3) Never start a fi re if the ash plug and ash drawer
are not in place. This will cause overfi ring which
can cause excessive warping of the stove.
Evidence of overfi ring can void the warranty
on your stove.
4) The fi rebricks are brittle and can be damaged
if the plug is replaced carelessly or pieces that
are too large are forced through the hole.
Ash Drawer Operating Guideline
1) Only clean ashes out of the stove when the
stove is cold. Remove the plug by lifting on the
handle using the tool provided. Push the ashes
down the hole into the ash drawer, the large
pieces can be left in the fi rebox and burned
during the next fi re or removed through the
door opening.
3) Open the lower surround door by hooking two
fi ngers in the slot near the left side - pull open
towards the right.
4) When emptying the ash drawer, make sure
the ashes are cold. Ashes should be placed
in a metal container with a tight fi tting lid. The
closed container of ashes should be placed on
a non - combustible fl oor or on the ground, well
away from all combustible materials, pending
fi nal disposal. If the ashes are disposed of by
burial in soil or otherwise locally dispersed, they
should be retained in the closed container until
all cinders have thoroughly cooled. Other waste
should not be placed in the ash container.
5) Before putting the ash drawer back into place,
make sure the ash plug is back in place.
2) Always leave 1/2 to 1 inch of ash in the bottom
of the fi rebox. This helps in easier starting and
a more uniform burn of your fi re. Replace ash
plug when ashes have been removed.
Regency CS2400 Freestanding Wood Stove
2525
MAINTENANCE
SAFETY GUIDELINES AND
WARNINGS
1) Never use gasoline, gasoline type lantern fuels,
kerosene, charcoal lighter fuel, or similar liquids
to start or ‘freshen up’ a fi re in your heater. Keep
all such liquids well away from the heater while
it is in use.
2) Keep the door closed during operation and
maintain all seals in good condition.
3) Do not burn any quantities of paper, garbage, and
never burn fl ammable fl uids such as gasoline,
naptha or engine oil in your stove. Some fuels
(eg. charcoal) can give off CO2, which is harmful
and can cause sickness.
4) If you have smoke detectors, prevent smoke
spillage as this may set off a false alarm.
5) Do not overfi re heater. If the chimney connector,
fl ue baffl e or the stove top begin to glow, you are
overfi ring. Stop adding fuel and close the draft
control. Overfi ring can cause extensive damage
to your stove including warpage and premature
steel corrosion. Overfi ring will void your warranty.
Do not operated stove with access panes, doors
or windows open.
14) Do not store any fuel closer than 2 feet from
your unit. Do not place wood, paper, furniture,
drapes or other combustibles near the appliance. House fi re and property damage may
result if combustible items are stored within
the required clearances.
15) WARNING: Do not operate without either
the Ash Plug properly seated or the Ash
Dump Plates screwed in place, excessive
temperatures will result.
16) Do not operate unit with broken glass.
17) Do not abuse glass door such as slamming
or striking.
18) Caution: Do not build a fi re too close to the
glass as soot and creosote will be created.
FAN MAINTENANCE
TO REMOVE THE FAN:
Reverse Steps 5-2 in fan installation section.
Maintenance: The sealed bearings are lubricated, there is no need to lubricate them further. (Extra lubricant will cause more lint and dust buildup
- causing the bearings to prematurely fail).
Regular cleaning and vacuuming of the fan area
will add to the life of the motor.
IMPORTANT:
These fans collect a lot of dust from within your
home. Ensure you maintain these fan motors
on a regular basis by vacuuming the fan blades
and housing using a soft brush nozzle.
6) Do not permit creosote or soot build-up in the
chimney system. Check and clean chimney at
regular intervals. Failure to do so can result in
a serious chimney fi re.
7) Your Regency stove can be very hot. You may be
seriously burned if you touch the stove while it is
operating, keep children, clothing and furniture
away. Warn children of the burn hazard.
8) The stove consumes air while operating, provide
adequate ventilation with an air duct or open a
window while the stove is in use.
9) Do not connect this unit to a chimney fl ue
serving another appliance.
10) Do not use grates or andirons or other methods
for supporting fuel. Burn directly on the bricks.
11) Open the draft control fully for 10 to 15 seconds
prior to slowly opening the door when refuelling
the fi re.
12) Do not connect your unit to any air distribution
duct.
13) Your woodstove must burn dry, seasoned-
standard fi rewood only. The use of cut
lumber, plywood, “mill ends”, coal, charcoal
etc. is prohibited as this fuel can easily overheat your woodstove. Evidence of excessive
overheating will void your warranty. As well,
a large portion of sawmill waste is chemically
treated lumber, which is illegal to burn in many
areas. Salt drift wood, chemically treated fi re
logs and wet/green wood also must not be
burned in your woodstoves.
26
Regency CS2400 Freestanding Wood Stove
MAINTENANCE
MAINTENANCE
It is very important to carefully maintain your fi re-
place stove, including burning seasoned wood and
maintaining a clean stove and chimney system.
Have the chimney cleaned before the burning
season and as necessary during the season, as
creosote deposits may build up rapidly. Moving
parts of your stove require no lubrication.
CREOSOTE
When wood is burned slowly, it produces tar and
other organic vapors, which when combined with
moisture, form creosote. The creosote vapors
condense in the relatively cool chimney fl ue of
a slow burning fi re. As a result, creosote residue
accumulates on the fl ue lining. When ignited, this
creosote can result in an extremely hot fi re.
WARNING: Things to remember in case of a
chimney fi re:
1. Close all draft and damper controls.
2. CALL THE FIRE DEPARTMENT.
Ways to Prevent and Keep Unit Free of
Creosote
DOOR CATCH
ADJUSTMENT
The door catch may require adjustment as the door
gasket material compresses after a few fi res. Re-
moval of the spacer washer, shown in the diagram
below, will allow the catch to be moved closer to
the door frame, causing a tighter seal. Remove
and replace the nuts, washer and spacer as shown.
http://poorlydressed.failblog.
org/
Spacer washers
GLASS REPLACEMENT
Allow the stove to cool before removing or replacing
glass. Remove the door from the stove and remove
the glass retainer. Use caution when removing
broken glass to avoid injury. When placing the
replacement glass in the door, make sure that the
glass gasketing will properly seal your unit. Replace
the retainer, it should rest on the gasket not the
glass, and tighten securely with a glass clips and
screws. Do not wrench down on the glass as this
may cause breakage.
Do not use substitute materials. If your glass does
break, do not continue to use your unit until it has
been replaced.
1) Burn stove with the draft control wide open
for about 10-15 minutes every morning during
burning season.
2) Burn stove with draft control wide open for
about 10 - 15 minutes every time you apply
fresh wood. This allows the wood to achieve
the charcoal stage faster and burns up any
unburned gas vapours which might otherwise
be deposited within the system.
3) Only burn seasoned wood! Avoid burning wet
or green wood. Seasoned wood has been dried
at least one year.
4) A small hot fi re is preferable to a large smouldering one that can deposit creosote within the
system.
5) Check the chimney at least twice a month during the burning season for creosote build-up.
6) Have chimney system and unit cleaned by
competent chimney sweeps twice a year during
the fi rst year of use and at least once a year
thereafter or when a signifi cant layer of creosote
has accumulated (3 mm/1/8" or more) it should
be removed to reduce the risk of a chimney fi re.
DOOR GASKET
If the door gasket requires replacement, 5/8"
diameter material must be used. A proper high
temperature gasket adhesive is required. A gasket
repair kit, Part # 846-570 is available from your
local Regency dealer.
GLASS MAINTENANCE
Your Regency stove is supplied with 5 mm Neoceram
ceramic glass that will withstand the highest heat
that your unit will produce. In the event that you
break your glass by impact, purchase your replacement from an authorized Regency dealer only, and
follow our step-by-step instructions for replacement.
Allow the stove to cool down before cleaning the
glass, do not clean the glass when it is hot. Do not
use abrasive cleaners.
Regency CS2400 Freestanding Wood Stove
27
MAINTENANCE
Annual Maintenance
Completely clean out entire unit Annually
Inspect air tubes, baffl es and bricks Replace any damaged parts.
Adjust door catch / latch If unable to obtain a tight seal on the door - replace door gasket seal.
Readjust latch after new gasket installed.
Inspect condition and seal of:
Glass Gasket
Door Gasket Perform paper test - replace gasket if required
Paper Test Test the seal on the loading door with a paper bill.
Place a paper bill in the gasketed area of the door on a cold stove–close
the door.
Try to remove the paper by pulling.
The paper should not pull out easily, if it does, try adjusting the door latch,
if that doesn't solve the problem replace the door gasket.
Check and lubricate door hinge + latch Use only high temperature anti seize lube. (ie. never seize)
Check glass for cracks Replace if required.
Clean blower motor Disconnect power supply.
Remove and clean blower.
*DO NOT LUBRICATE*
Inspect and clean chimney Annual professional chimney cleaning recommended.
28
Regency CS2400 Freestanding Wood Stove
MAIN ASSEMBLY
PARTS LIST
Part # Description
1) 156-261 Cast Door
2) 156-524 Surround Door
3) 146-211 Cast Top
4) 156-261 Surround Top/ Bottom
5) 076-011 Front Leg
6) 076-011 Rear Fan Clip
7) 200-917 Fan Assembly
8) 146-003 Side Shield (LH)
9) 146-002 Side Shield (RH)
10) 146-514 Pedestal Assembly
11) 156-523 Door Hinge Assembly
12) 220-516 Ash Drawer Assembly
13) 156-523 Door Catch Assembly
14) 146-517 Heat Shield Assembly
15) 146-517 Back Shield Assembly
16) 146-512 Firebox Assembly
17) 146-011 Top/Bottom Vents
18) 146-008 Side Support
19) 948-216 Regency Logo plate
20) 076-022 Ashlip
21) 820-482 Stainless smoke defl ector
Part # Description
940-369/P Neoceram Glass
918-926 Manual
21
Regency CS2400 Freestanding Wood Stove
20
29
PARTS LIST
Part # Description
1) 076-201 Fan Housing Front
2) 222-022 Fan Housing Bottom
3) 222-036 Sensor Mount
4) 200-227 Fan Bracket Right Hand
5) 200-228 Fan Bracket Left Hand
6) 200-229 Fan Housing Back
7) 910-157/P Fan
8) 910-142 Thermodisc
F AN ASSEMBLY
7
1
Part # Description
1) 020-960 Firebrick Set
2) 033-953 Air Tube - 3/4" (Qty: 4)
3) 020-957 Baffl e (set)
6
RE
B
WHITE
D---L
LACK-
CONN
T.P.30
T.P.LB
115
J2
--HIGH
ECTION
OW
---COM
JAKELI
00RPM
50-150
V
.60HZ
MON
-O44003
NC.
DIAGR
.1.1A
AM
E
T
A
D
5
FIRE BRICK / AIR TUBE / BAFFLE
3
8
3
4
2
1
30
2
Regency CS2400 Freestanding Wood Stove
WARRANTY
Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects
each unit thoroughly before it leaves our door. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the
original purchaser of a Regency Product. This warranty is not transferable.
The Warranty: Lifetime
Covered under the agreement are the following components:
Firebox, ceramic baffl e, vermiculite baffl e, steel baffl es (H2100), convector airmate, castings, ashdrawer, glass (thermal breakage), gold plating (against
defective manufacture), airtubes (against warpage) and door handles.
The above will be covered for parts and subsidized labour for the fi rst fi ve years and parts only thereafter with the exception of the fi reboxes (see below).
FPI is not liable for freight or labor on any wood burning appliance replaced in fi eld.
Electrical components such as blowers, switches and thermodisc's are covered for two years parts and one year subsidized labour* from date of purchase.
Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a
receipt only. Any item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.
Conditions:
Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.
It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI
and evaluated for manufacturer defect.
The authorized selling dealer is responsible for all in-fi eld service work carried out on your Regency product. FPI will not be liable for results or costs of
workmanship from unauthorized service persons or dealers.
At all times FPI reserves the right to inspect product in the fi eld which is claimed to be defective.
All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including
customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.
Exclusions:
This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing, fi rebrick or trim. It does not cover installation and operational related
problems such as over-fi ring, use of corrosive driftwood, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, mountains,
inadequate venting or ventilation, excessive offsets, negative air pressures caused by mechanical systems such as furnaces, fans, clothes dryers etc.
At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit
once manufactured. ie. as products evolve, fi eld modifi cations or upgrades will not be performed.
FPI will not be liable for travel costs for service work.
Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty
policy.
Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.
The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse.
Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.
FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.
Performance problems due to operator error will not be covered by this warranty policy.
Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may
nullify your warranty on this product.
* Subsidy according to job scale as predetermined by FPI.
Regency CS2400 Freestanding Wood Stove
31
Register your Regency® warranty online
www.regency-fi re.com
Reasons to register your product online today!
• View and modify a list of all your registered products.
• Request automatic email notifi cation of new product updates.
• Stay informed about the current promotions, events, and special
offers on related products.
Installer: Please complete the following information
Dealer Name & Address: ______________________________________________
___________________________________________________________________
Installer: ___________________________________________________________
Phone #: ___________________________________________________________
Date Installed: ______________________________________________________
Serial No.: __________________________________________________________
Regency, Alterra® are trademarks of FPI Fireplace Products International Ltd
© Copyright 2011, FPI Fireplace Products International Ltd. All rights reserved.
Printed in Canada
Loading...
