Regency CS1200 User Manual

Owner's & Installation Manual

CS1200

Alterra™

Freestanding

Wood Stove

Tested by:

918-896

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

07/05/10

Thank-you for purchasing a

REGENCY FIREPLACE PRODUCT.

The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. Should you have
any questions about your product that are not covered in this manual, please contact the REGENCY DEALER in your area.

Keep those REGENCY FIRES burning.

SAFETY NOTES:

If this woodstove is not properly installed, a house fi re may result. For your safety, follow the installation instructions, contact
local building or fi re offi cials about restrictions and installation inspection requirements in your area.

This appliance needs fresh air for safe operation and must be installed with adequate combustion air available to the room in
which it is to be operating. Air starvation or icing of the chimney system may result.

2

Regency CS1200 Wood Cast Insert

This is a copy of the label that accompanies each
CS1200 Wood Stove. We have printed a copy
of the contents here for your review.

NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is
the correct one.

SAFETY LABEL

duplicate serial number

LISTED SPACE HEATER, SOLID FUEL TYPE, ALSO
SUITABLE FOR MOBILE HOME INSTALLATION

MODEL:

REGENCY FREESTANDING STOVE - CS1200

INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT
RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA. USE 150 MM (6 IN.) DIAMETER MINIMUM 24 MSG BLACK OR 25 MSG BLUED STEEL CONNECTOR WITH LISTED FACTORY­BUILT CHIMNEY SUITABLE FOR USE WITH SOLID FUELS OR MASONRY CHIMNEY.
SEE LOCAL BUILDING CODE AND MANUFACTURER'S INSTRUCTIONS FOR PRECAUTIONS REQUIRED FOR PASSING A CHIMNEY THROUGH A COMBUSTIBLE WALL OR CEILING. DO NOT
PASS CHIMNEY CONNECTOR THROUGH COMBUSTIBLE WALL OR CEILING. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

INSTALLER ET UTILISER SEULEMENT SELON LES INSTRUCTIONS D’INSTALLATION ET D’UTILISATION DU FABRICANT.
CONTACTER LES RESPONSABLES DU BÂTIMENT OU DU SERVICE-INCENDIE DE VOTRE RÉGION POUR CONNAÎTRE LES RESTRICTIONS ET EXIGENCES D’INSPECTION DANS VOTRE RÉGION.
UTILISER UN CONNECTEUR D’UN DIAMÈTRE MINIMAL DE 150 MM (6 PO) 24 MSG EN ACIER NOIR OU 26 MSG EN ACIER BRONZÉ AVEC CHEMINÉE PRÉFABRIQUÉE HOMOLOGUÉE
CONÇUE POUR UTILISATION AVEC COMBUSTIBLES SOLIDES OU UNE CHEMINÉE DE MAÇONNERIE.
VOIR LE CODE DU BÂTIMENT LOCAL ET LES INSTRUCTIONS DU FABRICANT CONCERNANT LES PRÉCAUTIONS EXIGÉES POUR INSTALLER UNE CHEMINÉE TRAVERSANT UN MUR OU
PLAFOND EN MATÉRIAUX COMBUSTIBLES. NE FAITES PAS TRAVERSER LE CONNECTEUR DE CHEMINÉE DANS UN MUR OU PLAFOND EN MATÉRIAUX COMBUSTIBLES. NE RACCORDEZ PAS
CE POÊLE À BOIS À UN CONDUIT DE CHEMINÉE DESSERVANT UN AUTRE APPAREIL.

MINIMUM ALCOVE CEILING HEIGHT: 2.15 M / 7 FT MAXIMUM ALCOVE DEPTH 915 MM / 36 IN.
MINIMUM CLEARANCES FOR HORIZONTAL CONNECTOR TO CEILING: 455 MM / 18"
THE SPACE BENEATH THE HEATER MUST NOT BE OBSTRUCTED. OPERATE ONLY WITH FIREBRICKS IN PLACE.
FOR USE WITH SOLID WOOD FUEL ONLY. USE OF OTHER FUELS MAY DAMAGE HEATER AND CREATE A HAZARDOUS CONDITION. DO NOT OBSTRUCT COMBUSTION
AIR OPENINGS. OPERATE ONLY WITH FIREBRICKS IN PLACE. OPERATE ONLY WITH DOOR CLOSED - OPEN FEED DOOR TO FEED FIRE ONLY. DO NOT USE GRATE
OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. DO NOT OVERFIRE - IF HEATER OR CHIMNEY CONNECTOR GLOWS YOU ARE OVERFIRING. INSPECT
AND CLEAN CHIMNEY AND CONNECTOR FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY OCCUR RAPIDLY. KEEP FURNISHINGS
AND OTHER COMBUSTIBLE MATERIAL AWAY FROM HEATER. REPLACE GLASS ONLY WITH NEOCERAM GLASS. COMBUSTIBLE FLOOR MUST BE PROTECTED BY
NON-COMBUSTIBLE MATERIAL EXTENDING BENEATH THE HEATER AND TO THE FRONT AND SIDES AS INDICATED OR TO THE NEAREST PERMITTED COMBUSTIBLE
MATERIAL.
OPTIONAL COMPONENT: FAN, ELECTRICAL RATING: VOLTS 115, 60 HZ, 2 AMPS, ASH DRAWER, SIDE SHIELD, ASHLIP
COMPONENTS REQUIRED FOR MOBILE HOME INSTALLATION: OUTSIDE AIR KIT AND ONE OF THE FOLLOWING DOUBLE WALL CONNECTOR
IN CANADA: LISTED SECURITY MODEL DP, OR OLIVER MACLEOD PRO-VENT PV DOUBLE WALLED CONNECTOR WITH LISTED CHIMNEY SYSTEM: SECURITY MODEL
S2100, ICC EXCEL 2100 .
IN USA: LISTED DOUBLE WALL CONNECTORS SECURITY MODEL DP, SELKIRK MODEL DS, OLIVER MACLEOD PRO VENT PV, SIMPSON DURA VENT MODEL DVL,
GSW SUPER PIPE 6, METAL-FAB DOUBLE WALL. CONNECTED TO ONE OF THE FOLLOWING COMPATIBLE CHIMNEY SYSTEMS SECURITY MODEL S2100 OR MODEL
ASHT, SELKIRK MODEL SSII, OLIVER MACLEOD PRO JET 3103, SIMPSON DURA PLUS, GSW MODEL SC OR METAL-FAB TEMP/GUARD, AMERI-TEC HS, ICC EXCEL
2100 . USE CHIMNEY COMPONENTS AS SPECIFIED IN INSTALLATION INSTRUCTIONS.

HAUTEUR MINIMALE DU PLAFOND DE L’ALCÔVE : 2,15 M / 7PI. PROFONDEUR MAXIMALE DE L’ALCÔVE : 915 MM / 36 PO.
DÉGAGEMENT MINIMAL DU PLAFOND POUR UN CONNECTEUR HORIZONTAL : 455 MM / 18 PO.
L’ESPACE AU-DESSOUS DU POÊLE NE DOIT PAS ÊTRE OBSTRUÉ. UTILISER SEULEMENT AVEC LES BRIQUES RÉFRACTAIRES EN PLACE.
POUR UTILISATION AVEC BOIS SOLIDE SEULEMENT. L’UTILISATION D’AUTRES COMBUSTIBLES PEUT ENDOMMAGER LE POÊLE ET CRÉER UNE CONDITION
DANGEREUSE. NE PAS OBSTRUER LES OUVERTURES D’AIR DE COMBUSTION. UTILISER SEULEMENT AVEC LA PORTE FERMÉE – OUVRIR LA PORTE DE CHARGEMENT
POUR ALIMENTER LE FEU SEULEMENT. NE PAS UTILISER DE GRILLE À BÛCHES NI SURÉLEVER LE FEU. MONTER LE FEU DE BOIS DIRECTEMENT SUR L’ÂTRE. NE
PAS SURCHAUFFER – SI LE POÊLE OU LE CONNECTEUR DE CHEMINÉE SE MET À ROUGIR, VOUS SURCHAUFFEZ. INSPECTEZ ET NETTOYEZ FRÉQUEMMENT LA
CHEMINÉE ET LE CONNECTEUR. EN CERTAINES CONDITIONS D’UTILISATION, UN DÉPÔT DE CRÉOSOTE PEUT SE FORMER RAPIDEMENT. GARDEZ LES MEUBLES
ET AUTRES MATÉRIAUX COMBUSTIBLES ÉLOIGNÉS DU POÊLE. REMPLACEZ LA VITRE SEULEMENT PAR DU VERRE EN NEOCERAM. LE PLANCHER COMBUSTIBLE
DOIT ÊTRE PROTÉGÉ PAR DES MATÉRIAUX NON COMBUSTIBLES DÉPASSANT DU DESSOUS, DU DEVANT ET DES CÔTÉS DU POÊLE, TEL QU’INDIQUÉ, OU JUSQU’AU
MATÉRIAU COMBUSTIBLE LE PLUS PRÈS PERMIS.
COMPOSANTS EN OPTION : VENTILATEUR (846-515), ALIMENTATION ÉLECTRIQUE : 115 VOLTS, 60 HZ, 2 AMP., ASH DRAWER, SIDE SHIELD, ASHLIP
COMPOSANTS EXIGÉS POUR INSTALLATION DANS UNE MAISON MOBILE : KIT DE PRISE D’AIR EXTÉRIEUR ET L’UN DES CONNECTEURS DE CHEMINÉE À DOUBLE
PAROI SUIVANTS :
AU CANADA : CONNECTEURS DE CHEMINÉE HOMOLOGUÉS À DOUBLE PAROI : SECURITY MODÈLE DP, OU OLIVER MACLEOD PRO-VENT PV, AVEC SYSTÈME DE
CHEMINÉE HOMOLOGUÉ : SECURITY MODÈLE S2100, ICC EXCEL 2100.
AUX ÉTATS-UNIS : CONNECTEURS DE CHEMINÉE HOMOLOGUÉS À DOUBLE PAROI : SECURITY MODÈLE DP, SELKIRK MODEL DS, OLIVER MACLEOD PRO VENT PV,
SIMPSON DURA VENT MODÈLE DVL, GSW SUPER PIPE 6, METAL-FAB À DOUBLE PAROI. CONNECTÉ À L’UN DES SYSTÈMES DE CHEMINÉE COMPATIBLES SUIVANTS
: SECURITY MODÈLE S2100 OU MODÈLE ASHT, SELKIRK MODÈLE SSII, OLIVER MACLEOD PRO JET 3103, SIMPSON DURA PLUS, GSW MODÈLE SC OU METAL-FAB
TEMP/GUARD, AMERI-TECHS, ICC EXCEL 2100. UTILISER LES COMPOSANTS DE CHEMINÉE SPÉCIFIÉS DANS LES INSTRUCTIONS D’INSTALLATION.

TESTED TO: ULC S627-00 / UL 1482-2006 WN # 16599

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS

MEASURE

FROM

SIDEWALL
BACKWALL
CORNER

SIDEWALL
BACKWALL
CORNER

UNITED STATES ENVIRONMENTAL

SIDE SHIELDS/

BACK SHIELDS

RESIDENTIAL INSTALLATION USING

SINGLE WALL CONNECTOR

A 13" 330mm
B 11" 280mm
C 8" 205mm

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - MOBILE HOME

A 11" 330mm
B 7" 180mm
C 7" 180mm

CENTRE-LINE

D 26-3/8" 669mm
E 18-1/2" 470mm
F 20-3/4" 527mm

D 24-1/2" 622mm
E 14.5" 368mm
F 19-3/4" 510mm

PROTECTION AGENCY

FLUE

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - RESIDENTIAL CLOSE CLEARANCE

SIDEWALL
BACKWALL
CORNER

SIDEWALL
BACKWALL

MANUFACTURED BY: FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
6988 VENTURE ST.
DELTA, BC V4G 1H4

A 11" 330mm
B 7" 180mm
C 7" 180mm

INSTALLATION USING LISTED DOUBLE WALL

CONNECTOR - ALCOVE

G 11" 330mm
H 7" 180mm

CERTIFIED TO COMPLY WITH JULY 1990,

PARTICULATE EMISSION STANDARDS.

366

DO NOT REMOVE THIS LABEL

366

K 405 mm / 16 in

D 24-1/2" 622mm
E 14.5" 368mm
F 19-3/4" 510mm

I 24-1/2" 622mm
J 14.1/2" 368mm

* In Canada, fl oor pro-

L 150 mm / 6 in
M 150 mm / 6in

tection must extend 18"
to the front and 8" to
each side of the stove.

FLOOR

PROTECTION*

JAN FEB MAR APR MAY JUN JUL AUG SEPT OCT NOV DEC

MADE IN CANADA

Regency CS1200 Freestanding Wood Stove

CAUTION / ATTENTION:

HOT WHILE IN OPERATION DO NOT TOUCH. KEEP CHILDREN,

CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE

SKIN BURNS. READ NAMEPLATE AND INSTRUCTIONS.

NE PAS TOUCHER. GARDEZ LES ENFANTS, VÊTEMENTS ET MEUBLES AU LOIN.

UN CONTACT AVEC LE PEAU PEUT OCCASIONER DES BRULURES.BRÛLURES

CHAUD LORS DE FONCTIONNEMENT.

CUTANÉES.

LIRE CETTE ÉTIQUETTE.

918-897

2012

2011

DATE OF MANUFACTURE

2010

3

TABLE OF CONTENTS

SAFETY LABEL

Copy of the Safety Label ...............................................3

DIMENSIONS

Unit Dimensions ............................................................5

INSTALLATION

Residential Installation...................................................6

Room Air .......................................................................6

Important .......................................................................6

Modular Installation Options ..........................................6

Minimum Clearance To Combustible Materials .............7

Step By Step Chimney And Connector Installation .......9

Masonry Chimney........................................................10

Masonry Fireplace .......................................................10

Factory built chimney...................................................10

Combustible Wall Chimney Connector Pass-throughs 11

Recommended Heights For Woodstove Flue ..............12

Mobile Home Installation .............................................13

Listed Components For Mobile Home Installation .......14

Baffl e and tube Installation ..........................................15

Brick Installation ..........................................................15

Door Handle ................................................................15

Side panel Installation .................................................16

Ash drawer option........................................................17

Lower Surround reversal .............................................18

Door reversal ...............................................................19

Wood Storage ..............................................................20

Ashlip Installation.........................................................20

Blower/Fan installation ................................................21

Fan Operation..............................................................21

Fan wiring ....................................................................21

MAINTENANCE

Maintenance ................................................................25

Door Catch Adjustment................................................25

Door Gasket ................................................................25

Glass Maintenance ......................................................25

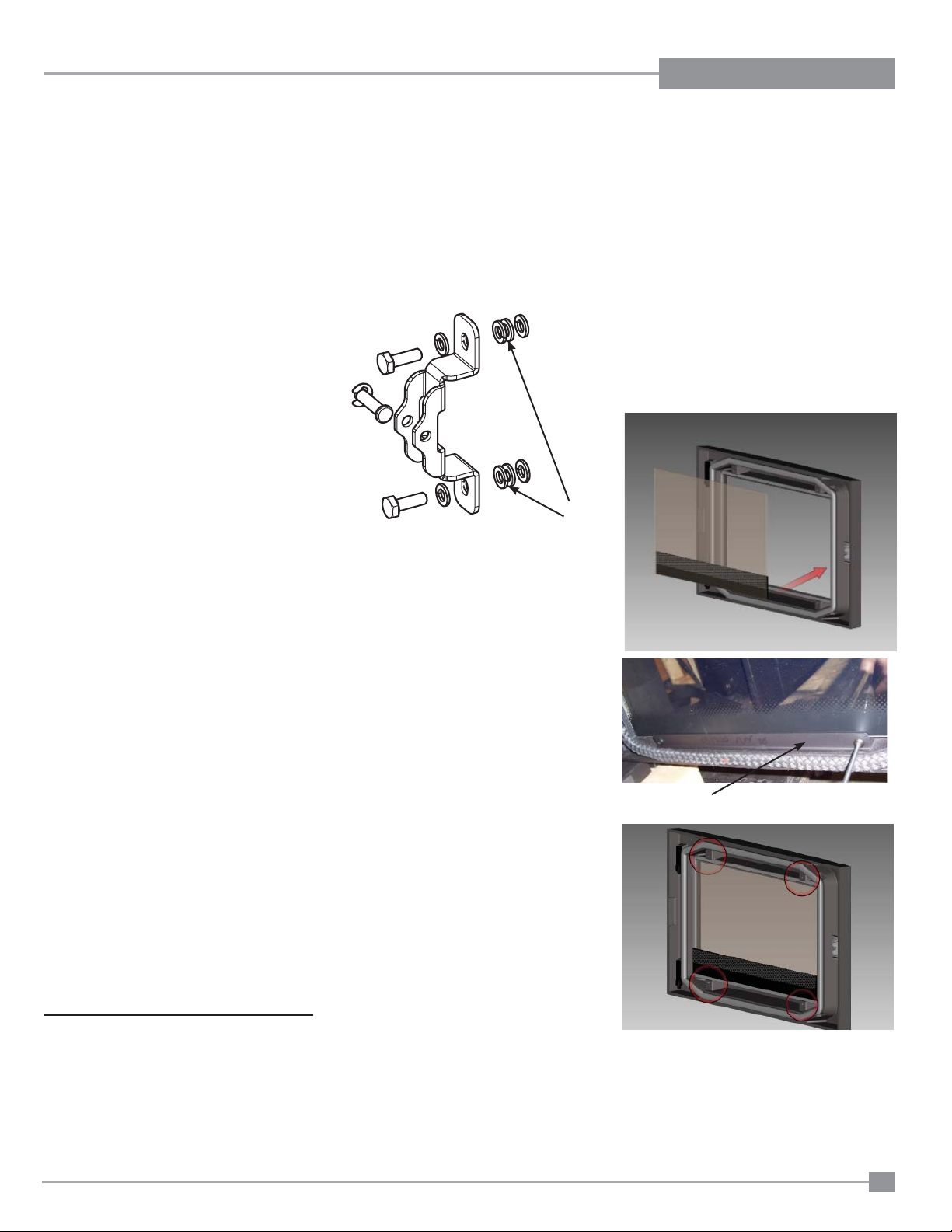

Glass Replacement .....................................................25

PARTS LIST

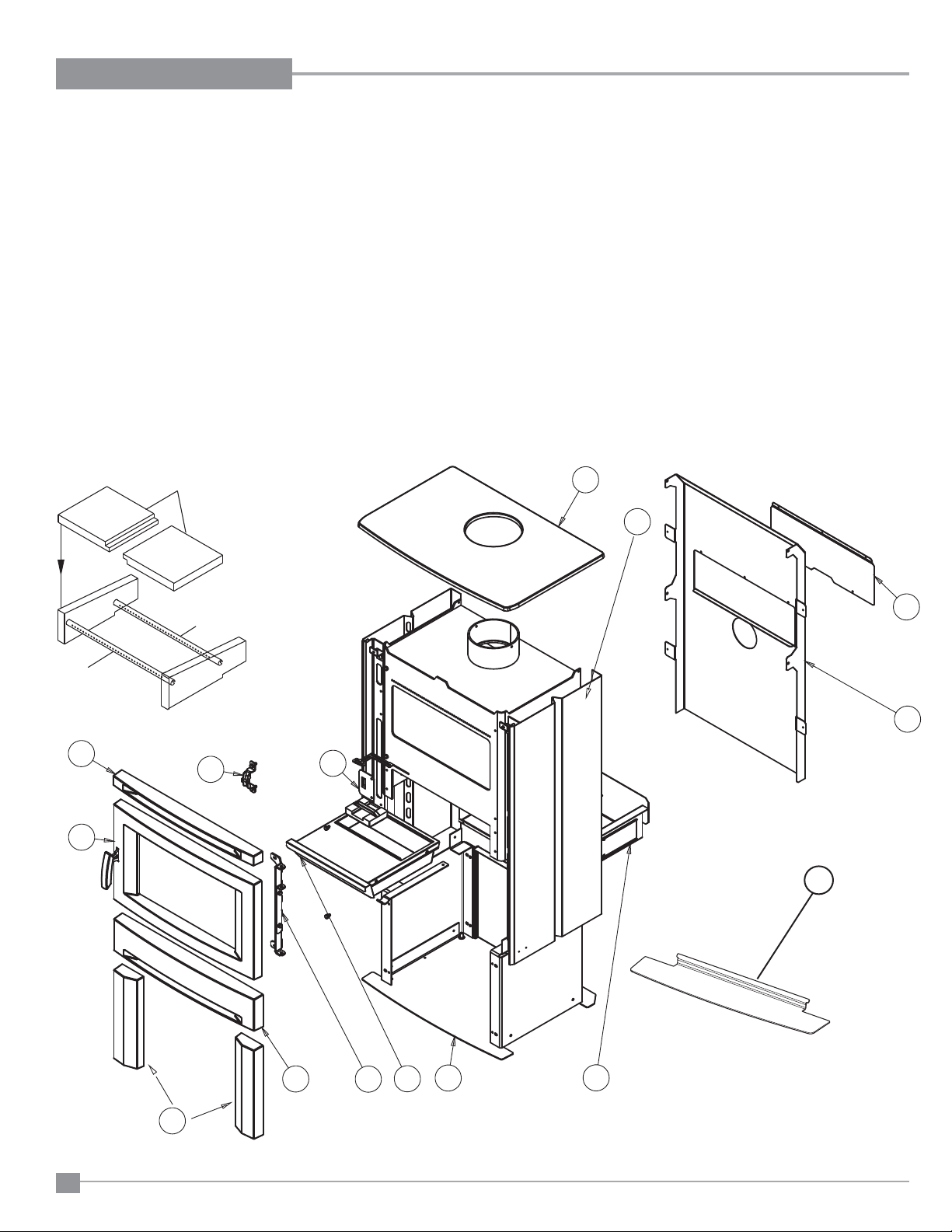

Main assembly.............................................................26

Fan assembly ..............................................................27

Fire brick ......................................................................27

WARRANTY

Warranty ......................................................................31

OPERATING INSTRUCTIONS

Operating Instructions .................................................22

First Fire ......................................................................22

Draft Control ................................................................22

Ash Disposal................................................................23

Safety Guidelines And Warnings .................................24

4

Regency CS1200 Freestanding Wood Stove

27-1/8” (689mm)

DIMENSIONS

UNIT DIMENSIONS

Shown with optional
blower installed.

21-3/4” (552mm)

9-15/16”

(250mm)

17-1/8” (436mm)

A

7-5/16”

(186mm)

9-15/16”

(250mm)

6" fl ue collar

”(1105mm)

39-9/16

14-7/16”

(367mm)

A

17-1/8” (436mm)

26-3/4”(680mm)

Regency CS1200 Freestanding Wood Stove

37-13/16” (961mm)

19-1/16” (485mm)

air

CL for outside

17-1/8” (435mm)

5

INSTALLATION

RESIDENTIAL

INSTALLATION

1) Read all instructions before installing your Re-

gency Stove. Install and use only in accordance
with these installation and operating instructions.
Be aware that local Codes and Regulations may
override some items in this manual. Check with
your local inspector.

2) Select a position for your Regency Stove. Consult
the minimum clearance chart for your model and
set the stove in place. For close clearance instal­lation use listed double wall connector systems
(refer to Combustible Wall Chimney Connector
Pass - Throughs).

3) To insure vertical alignment, suspend a plumb
bob from the ceiling over the exact center of
your stove fl ue and mark a spot on the ceiling to
indicate the center of the chimney.

4) Check that the area above the ceiling is clear for
cutting. Re-confi rm the clearance from the stove
to combustibles to insure that they are within the
prescribed limits.

5) Install chimney according to chimney manu­facturers instructions. The performance of your
woodstove is governed to a very large part by the
chimney system. T oo short a chimney can cause
diffi cult start-up, dirty glass, backsmoking when
door is open, and even reduced heat output. T oo
tall a chimney may prompt excessive draft which
can result in very short burn times and excessive
heat output. The use of an inexpensive fl ue pipe
damper may be helpful in reducing excessive
draft.

other types of chimneys check with your local build­ing code offi cials. Do not confuse a chimney with a
type “B” Venting System used for gas appliances
as suitable for a wood burning appliance (refer to
the Mobile Home installations section).

6) Mark the location of the unit base on the fl oor, then
move the stove aside and mark the position of the
fl oor protector .

7) The fl oor protector must be of non-combustible
material and must extend 16" in front of the door
opening and 6" to the sides and rear of the unit.
Some areas may require a larger size fl oor protector .
See your local inspector. For outside air installation
refer to Mobile Home section.

NOTE: In Canada, fl oor protection must

extend 18" to the front and 8" to
each side of the stove.

8) When the fl oor protection is complete, position the

stove with the fl ue collar centered under the installed
chimney.

9) In seismically active areas, Regency recommends
that your unit is secured to the fl oor by using the
bolt down holes inside the pedestal (the same ones
used in Mobile Home installations).

10) For residential installations using "C" Vent (single
wall) the chimney connector must be at least 24
gauge steel. Do not use galvanized pipe. For Mobile
Home installation refer to the Mobile Home instal­lation section.

11) Do not connect this unit to a chimney serving another
appliance unless approved by your local building
authority.

12) A chimney connector cannot pass through an attic
or roof space, closet or similar concealed space,
or a fl oor, ceiling, wall or partition of combustible
construction. In Canada, if passage through a wall,
or partition of combustible construction is desired,
the installation shall conform to CAN/CSA-B365,
Installation Code for Solid-Fuel-Burning Appli­ances and Equipment.

13) Your Regency Wood stove is not to be connected
to any air distribution duct.

Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.

ROOM AIR

IMPORTANT

Mobile home installations require the use of outside air.
See mobile home installation page for further details.

CAUTION: The chimney should be the same size

as the fl ue outlet on the stove. The chimney must
be listed as suitable for use with solid fuels. For

MODULAR INSTALLATION OPTIONS

OPTIONS: These can be installed at time of installation or added later:

Modular Option Considerations when choosing options

Blower/Fan Adding the blower will increase the area heated by the stove, it can move warm air beyond the room where the stove is installed.

Ash Drawer Kit Adding the Ash Drawer Kit makes cleaning ashes out of the stove easier and cleaner.

Side Shields Choice of black or stainless side shields. One set of side shields must be installed on unit.

Ashlip To help contain displaced ashes.

6

Regency CS1200 Freestanding Wood Stove

INSTALLATION

MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS

MEASUREMENTS "FROM UNIT" ARE FROM THE SIDE SHIELDS OF THE STOVE TO A SIDE WALL OR TO A CORNER, AND

FROM THE REAR HEAT SHIELD TO A BACK WALL

BE

A

F

D

C

F

C

NOTE: Be aware that local Codes and Regulations may override some clearances listed in this manual.
Check with your local inspector.

Residential Installation “C” Vent (Single Wall)

Unit From Unit From Corner From Flue Center-line

CS1200

Residential Close Clearance (To be installed with required pipe components)
When the stove is installed as a close clearance residential unit, a listed double wall connector is required from
the stove collar to the ceiling level.

CS1200

Mobile Home Close Clearance (To be installed with required pipe components)
"C" Vent single wall pipe is not approved for Mobile Home installations. (Refer to Mobile Home Instructions.)

CS1200

ABCDEF

13" 11" 8" 26-3/8" 18-1/2" 20-3/4"

From Unit From Corner From Flue Center-line

ABCDEF

11" 7" 7" 24-1/2" 14.5" 19-3/4"

From Unit From Corner From Flue Center-line

ABCDEF

11" 7" 7" 24-1/2" 14.5" 19-3/4"

Regency CS1200 Freestanding Wood Stove

7

INSTALLATION

Z

6"

6"

16"

Y

Y

X

X

6"

for angled corners

6"

16"

6"

6"

Z

MINIMUM ALCOVE CLEARANCE TO COMBUSTIBLE MATERIALS

MEASUREMENTS "FROM UNIT" ARE FROM THE SIDE SHIELDS OF THE STOVE TO A SIDE WALL OR TO A CORNER, AND

FROM THE REAR HEAT SHIELD TO A BACK WALL

The Regency Freestanding models have been alcove approved and must be installed
with a listed double wall connector to the ceiling level.

Note: Minimum alcove ceiling height - 84"
Maximum depth of alcove - 36"

Minimum Alcove Clearance to Combustible Materials

Unit From Back Shield

+ Side Shields.

CS1200

GH I J K L

11" 7" 24-1/2" 14-1/2" 49-1/8" 39-1/4"

From Flue

Center-Line

Min.

Width

Min. Hearth
to Rear Wall

Floor Protection

A combustible fl oor must be protected by a non-combustible material (like tile,
concrete board, or certifi ed to UL-1618 or as defi ned by local codes) extend-
ing beneath the heater and a minimum of 6" from each side and minimum
16" from the front face of the stove and minimum 6" (or the rear clearance to
combustibles whichever is smaller) from the rear of the stove.

Minimum Overall Width (X) of Floor
Protector for all installations:

US 38-3/4"
Canada 42-3/4"

NOTE: In Canada, fl oor protection must extend 18" to the front and 8" to each side of the stove.

Minimum Overall Depth (Y) of Floor Protector

Unit Residential

"C" Vent

CS1200

USA

Canada

YZ

39" 6" 39 6" 39" 6" 39" 6"

43" 8" 43" 8" 43" 8" 43" 8"

Residential

Close Clearance

Y

Mobile Home

Alcove

Close Clearance

Z

Y

Z

YZ

8

Regency CS1200 Freestanding Wood Stove

INSTALLATION

STEP BY STEP

CHIMNEY AND

CONNECTOR

INSTALLATION

Note: These are a generic set of chimney

installation instructions. Always follow
the manufacturers own instructions
explicitly. Check the Minimum Recom­mended Flue Heights section (Table 1).

1) With your location already established, cut and

frame the roof hole. It is recommended that no
ceiling support member be cut for chimney and
support box installation. If it is necessary to cut
them, the members must be made structurally
sound.

2) Install radiant shield and support from above.

3) Stack the insulated pipe onto your fi nish support

to a minimum height of 3 feet above the roof
penetration, or 2 feet above any point within 10
feet measured horizontally. There must be at
least 3 feet of chimney above the roof level.

8) To complete your chimney installation, install
the double wall connector pipe from the stove’s
fl ue collar to the chimney support device.

9) If you are using a horizontal connector, the
chimney connector should be as high as pos­sible while still maintaining the 18" (457mm)
minimum distance from the horizontal con­nector to the ceiling.

10) NOTE: Residential Close Clearance and
Alcove installations require a listed double
wall connector from the stove collar to the
ceiling level.

The diagrams below illustrate one way to install
your unit into a standard ceiling or with a horizon­tal connector. Check with your dealer or installer
for information on other options available to you.

Note: Increasing the chimney height above

this minimum level will sometimes help
your unit to “breathe” better by allowing
a greater draft to be created. This greater
draft can decrease problems such as,
diffi cult start-ups, back-smoking when
door is open, and dirty glass. It might be
suffi cient to initially try with the minimum
required height, and then if problems
do arise add additional height at a later
date.

4) Slide the roof fl ashing over your chimney and

seal the fl ashing to the roof with roofi ng com-
pound. Secure the fl ashing to your roof with
nails or screws.

5) Place the storm collar over the fl ashing, sealing
the joints with a silicone caulking.

6) Fasten the raincap with spark screens (if re­quired) to the top of your chimney.

7) For optimum effi ciency when installing into a
masonry chimney, size accordingly, i.e. the 6"
(152mm) fl ue dia. is 28.28 sq.in.

Standard Ceiling Installation

Horizontal Installation

Regency CS1200 Freestanding Wood Stove

9

INSTALLATION

MASONRY

CHIMNEY

Ensure that a masonry chimney meets the minimum
standards of the National Fire Protection Association
(NFPA) by having it inspected by a professional. Make
sure there are no cracks, loose mortar or other signs of
deterioration and blockage. Have the chimney cleaned
before the stove is installed and operated. When connect­ing the stove through a combustible wall to a masonry
chimney, special methods are needed.

Ensure that an effective vapour barrier at the location
where the chimney or other component penetrates to
the exterior of the structure.

When referencing installation or connection to
masonry fi replaces or chimneys, the masonry
construction must or shall be code complying.

MASONRY

FIREPLACE

There are listed kits available to connect a stove
to a masonry fi replace. The kit is an adapter that
is installed at the location of the fi replace damper .
The existing damper may have to be removed to
allow installation.

Ensure that an effective vapour barrier at the location
where the chimney or other component penetrates
to the exterior of the structure.

When referencing installation or connection to
masonry fi replaces or chimneys, the masonry
construction must or shall be code complying.

FACTORY

BUILT CHIMNEY

When a metal prefabricated chimney is used, the manufacturer's installation instructions must be followed. Y ou must also purchase and install the ceiling support
package or wall pass-through and "T" section package, fi restops (where needed), insulation shield, roof fl ashing, chimney cap, etc. Maintain proper clearance
to the structure as recommended by the manufacturer. The chimney must be the required height above the roof or other obstructions for safety and proper
draft operation. The space heater is to be connected to a factory-built chimney conforming to CAN/ULC-S629, Standard for 6500C Factory-Built Chimneys.

10

Regency CS1200 Freestanding Wood Stove
