www.regency-fi re.com
Owners & Installation Manual
WOOD
Fireplace
Insert
Tested by:
918-171a
MODELS: I2400M
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
01/06/10
WARNING
HOT GLASS
CAUSE BURNS
DO NOT TOUCH
UNTIL COOLED
NEVER
TO TOUCH GLASS
CHILDREN AND ADULTS SHOULD BE ALERTED TO
THE HAZARDS OF HIGH SURFACE TEMPERATURES,
ESPECIALLY THE FIREPLACE GLASS, AND SHOULD
ST AY AWA Y TO AVOID BURNS OR CLOTHING IGNITION.
ALLOW CHILDREN
WILL
GLASS
Thank-you for purchasing a
REGENCY FIREPLACE PRODUCT.
The pride of workmanship that goes into each of our products will give you years of trouble-free
enjoyment. Should you have any questions about your product that are not covered in this manual,
please contact the REGENCY DEALER in your area.
Keep those REGENCY FIRES burning.
SAFETY NOTE: If this Insert is not properly installed, a house fi re may result. For your safety,
follow the installation instructions, contact local building, fi re offi cials, or authority having jurisdiction
about restrictions and installation inspection requirements in your area.
The authority having jurisdiction should be consulted before installation to determine the need to
obtain a permit.
Regency I2400M 2
THE REGENCY
I2400 WOOD INSERT
TABLE OF CONTENTS
SAFETY LABEL
Safety Label ..................................................................4
UNIT DIMENSIONS
Unit Dimensions ...........................................................5
INSTALLATION
Before InstallingYour Insert ...........................................6
Chimney Specifi cations .................................................6
Wood Insert Specifi cations ............................................6
Installing Your Insert ......................................................7
Optional Flue Connector Kit ..........................................7
Masonry And Factory Built Fireplace Clearances .........8
How To Determine If Alternate
Floor Protection Materials Are Acceptable.....................8
Flue Connector Bracket .................................................9
Installation Into a Masonry Fireplace .............................9
Installation Into a Factory Built Fireplace.......................9
Installation of the Faceplate and Trim..........................10

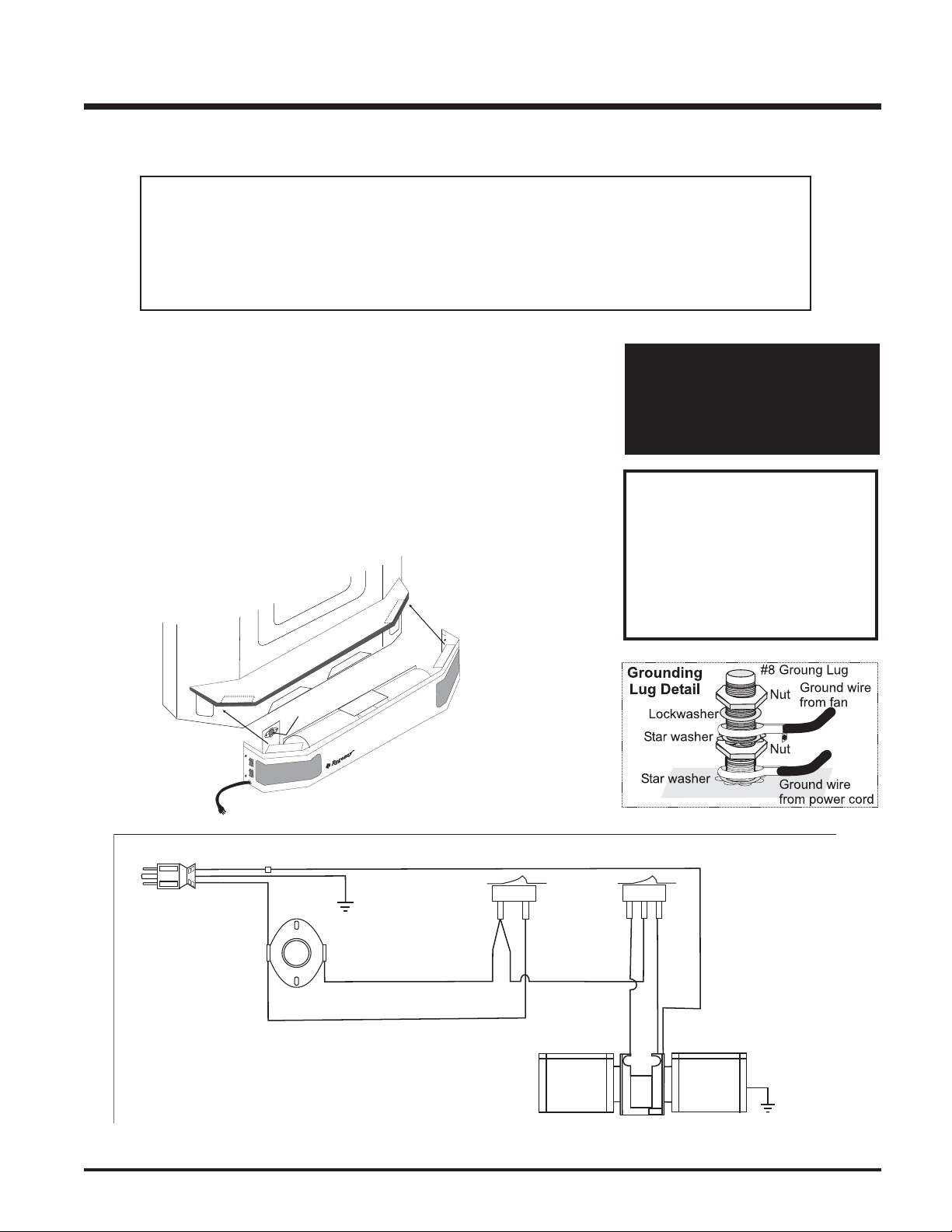

Installation of the Fan/blower.......................................11
Floor Protection ...........................................................12
Firebrick Assembly ......................................................12
Draft Control ................................................................12
Flue Baffl e & Secondary Air Tube Installation .............12
Door Handle ................................................................12
Screen Door ................................................................12
First Fire ......................................................................13
OPERATING INSTRUCTIONS
Some Safety Guidelines ..............................................13
Wood Storage ..............................................................14
Ash Disposal................................................................14
Fan Operation .............................................................14
Creosote ......................................................................14
MAINTENANCE
Maintenance of Gold-Plated Doors .............................15
Door Gasket ................................................................15
Door Latch Adjustment ................................................15
Glass Cleaning ............................................................15

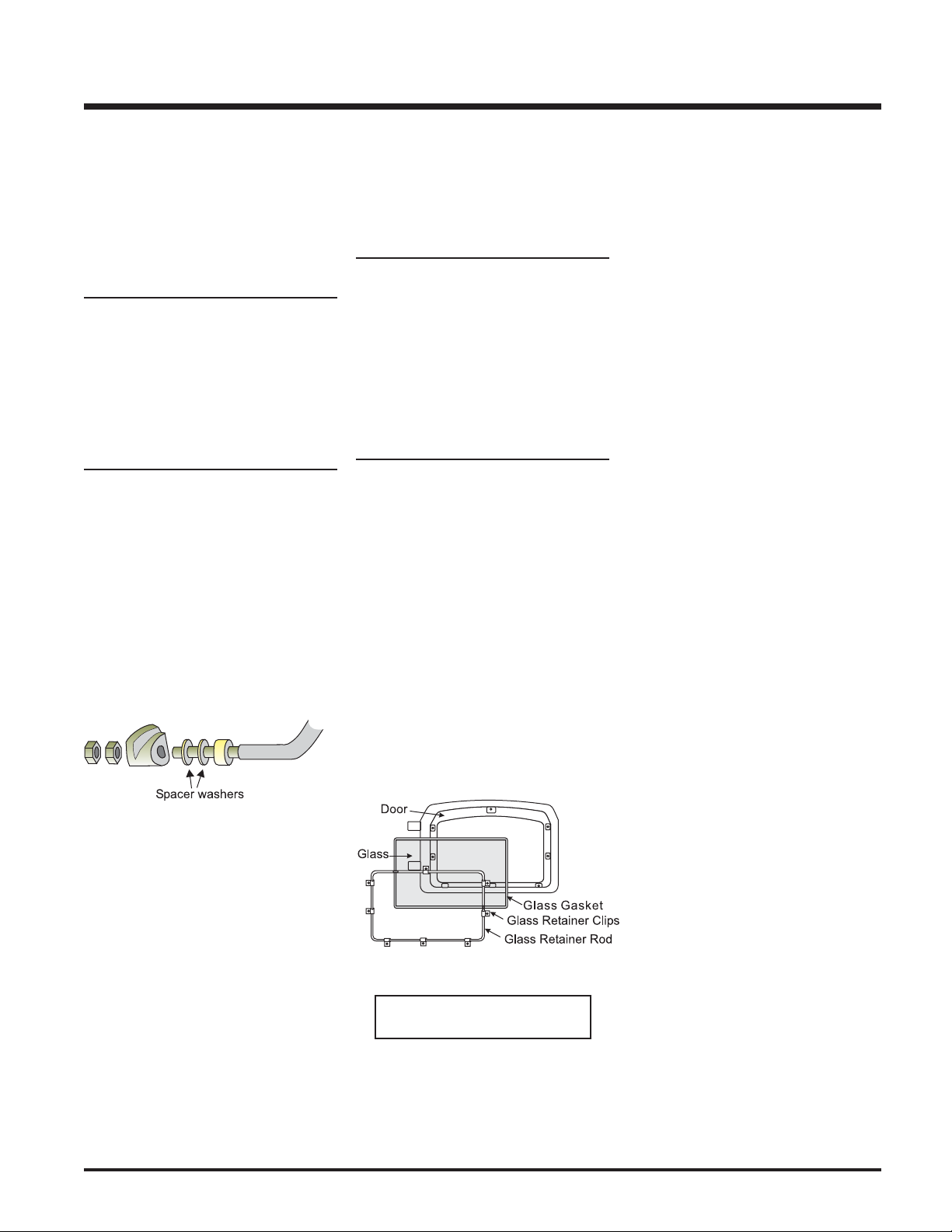

Glass Replacement .....................................................15
Glass Removal ............................................................15
PARTS LIST

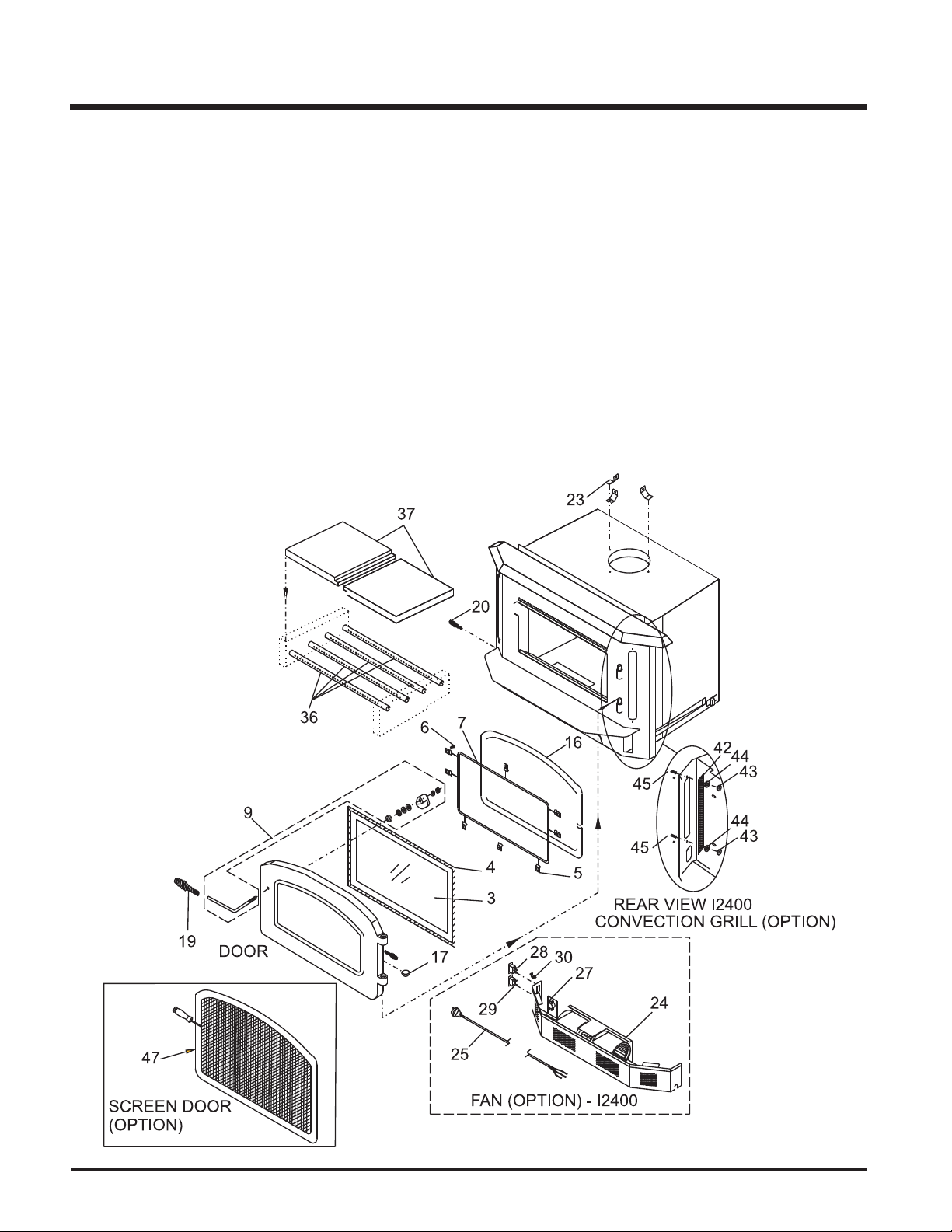

Main Assembly & Options............................................16
Faceplates ..................................................................17

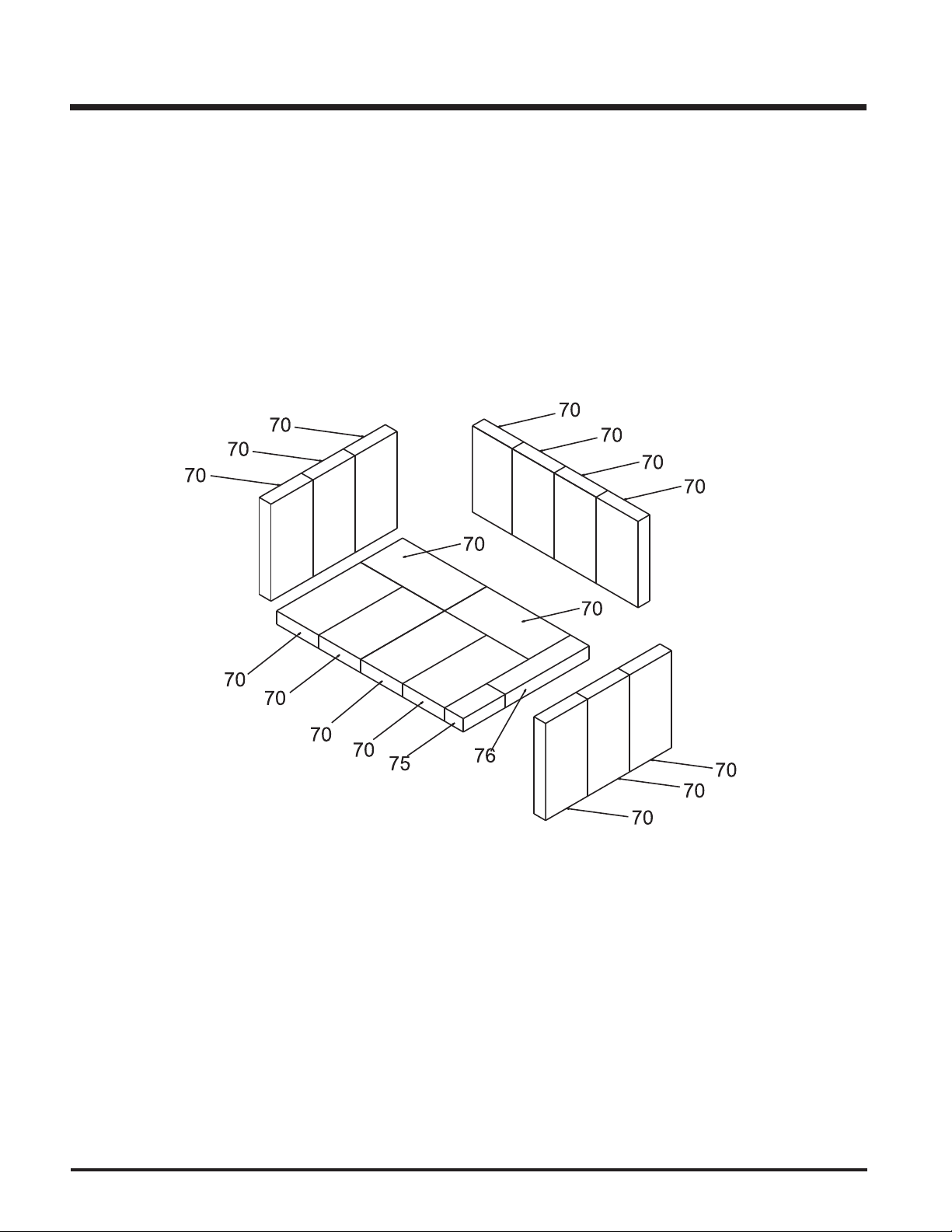

Brick Panels ................................................................18
WARRANTY
Warranty .....................................................................19
Regency I2400M 3
SAFETY LABEL
UNITED STATES ENVIRONMENTAL
PROTECTION AGENCY
CERTIFIED TO COMPLY WITH
July 1990, PARTICULATE
EMISSION STANDARDS.
MANUFACTURED BY FPI LTD.
SIGNATURE
Jan Feb Mar Apr May June
July Aug Sept Oct Nov Dec
2009
2010
2011
DATE OF
MANUFACTURE
INSTALL AND USE ONLY IN ACCORDANCE WITH THE MANUFACTURER'S INSTALLATION AND OPERATING INSTRUCTIONS. INSTALL AND USE ONLY IN MASONRY
FIREPLACE OR FACTORY BUILT FIREPLACE. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN
YOUR AREA.
LISTED FACTORY BUILT FIREPLACE INSERT
CERTIFIED FOR USE IN CANADA AND U.S.A.
MODEL:
I2400M
TESTED TO: ULC-S628-93 / UL-1482 / UL-737
REPORT NO.: 219-S-03-2
THE I2400M MEETS UL-737 STANDARD FOR FIREPLACE STOVES WHEN A FIRESCREEN IS PROVIDED.
DO NOT REMOVE THIS LABEL
246
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS (MEASURED FROM INSERT BODY)
ADJACENT SIDEWALL A) 11 in / 280 mm
MANTLE B) 20 in / 508 mm
TOP FACING C) 12 in / 305 mm
SIDE FACING D) 8 in / 200 mm
COMPONENTS REQUIRED FOR INSTALLATION: 6IN / 150MM STAINLESS STEEL LINER.
OPTIONAL COMPONENT: FAN (142-917), ELECTRICAL RATING: VOLTS 115, 60 HZ, 0.6 AMPS, SCREEN DOOR (846-102)
DANGER: RISK OF ELECTRIC SHOCK. DISCONNECT POWER BEFORE SERVICING UNIT. DO NOT ROUTE POWER CORD UNDER OR IN FRONT OF APPLIANCE. DO NOT CONNECT THIS UNIT
TO A CHIMNEY FLUE SERVICING ANOTHER APPLIANCE. DO NOT REMOVE BRICKS OR MORTAR IN MASONRY FIREPLACE. FOR USE WITH SOLID WOOD FUEL ONLY. DO NOT USE GRATE
OR ELEVATE FIRE. BUILD WOOD FIRE DIRECTLY ON HEARTH. RISK OF SMOKE AND FLAME SPILLAGE, OPERATE ONLY WITH DOORS FULLY OPEN OR FULLY CLOSED. IF INSTALLED IN
A MOBILE HOME OPERATE ONLY WITH DOORS FULLY CLOSED - OPEN FEED DOOR TO FEED FIRE ONLY. WHEN OPERATED WITH DOORS OPEN THE MANUFACTURER SUPPLIED SCREEN
MUST BE USED. REPLACE GLASS ONLY WITH CERAMIC GLASS (5MM). INSPECT AND CLEAN CHIMNEY FREQUENTLY. UNDER CERTAIN CONDITIONS OF USE CREOSOTE BUILDUP MAY
OCCUR RAPIDLY. DO NOT OVERFIRE, IF INSERT GLOWS YOU ARE OVER-FIRING.
CAUTION
HOT WHILE IN OPERATION
DO NOT TOUCH. KEEP CHILDREN,
CLOTHING AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN BURNS.
READ ABOVE INSTRUCTIONS.
INSTALL ONLY ON A NON-COMBUSTIBLE HEARTH RAISED (F) 0.5IN / 13MM ABOVE AN
ADJACENT COMBUSTIBLE FLOOR. COMBUSTIBLE FLOOR MUST BE PROTECTED BY NON-
COMBUSTIBLE MATERIAL EXTENDING (E) 18 IN / 457 MM TO FRONT AND (G) 8 IN / 205 MM
TO SIDES FROM FUEL DOOR. 0.5" FLOOR PROTECTION NEEDS TO BE WITH k=0.84.
MADE IN CANADA 918-176c
(Duplicate Serial #) 246
Manufactured By
:
FIREPLACE PRODUCTS INTERNATIONAL LTD.
6988 VENTURE ST., DELTA, BC V4G 1H4
This is a copy of the label that accompanies
your Regency Insert. We have printed a copy
of the contents here for your review.
NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
SAFETY LABEL FOR I2400M
Regency I2400M 4
UNIT DIMENSIONS
Regency I2400M 5
INSTALLATION
Regency Inserts are constructed with the highest quality materials and assembled under strict
quality control procedures that insure years of
trouble free and reliable performance.
It is important that you read this manual thoroughly and fully understand the safe installation and operating procedures. The more
you understand the way your Regency Insert
operates, the more enjoyment you will experience from knowing that your unit is operating
at peak performance.
BEFORE INSTALLING
YOUR INSERT
1) Please read this entire manual before you
install and use your new wood insert. Failure
to follow instructions may result in property
damage, bodily injury or even death. Install
and use only in accordance with manufacturer’s installation and operating instructions.
2) Check your local building codes - Building
Inspection Department. You may require
a permit before installing your insert. Be
aware that local codes and regulations may
override some items in the manual.
WARNING: Careless installation is the
major cause of safety hazard. Check all
local building and safety codes before
installation of unit.
3) Notify your home insurance company that
you plan to install a fi replace insert or hearth
heater.
4) Your fi replace insert is heavy and requires
two or more people to move it safely. The
insert can be badly damaged by mishandling.
5) If your existing fi replace damper control
will become inaccessible once you have
installed your Regency Insert, you should
either remove or secure it in the open position.
6) Inspect your fi replace and chimney prior
to installing your insert to determine that it
is free from cracks, loose mortar or other
signs of damage. If repairs are required,
they should be completed before installing
your insert. Do not remove bricks or mortar
from your masonry fi replace.
7) Do not connect the insert to a chimney
system servicing another appliance or
an air distribution duct.
CHIMNEY
SPECIFICATIONS
Before installing, check and clean your chimney
system thoroughly. If in doubt about its condition, seek professional advice. Your Regency
Insert is designed for installation into a masonry
fi replace that is constructed in accordance with
the requirements of "The Standard for Chimneys,
Fireplaces, Vents, and Solid Fuel Burning Appliance", N.F.P.A. 211, the National Building
Code of Canada, or the applicable local code
requirements.
The appliance, when installed, must be electrically grounded in accordance with local codes or,
in the absence of local codes, with the National
Electrical Code, ANSI/NFP A 70, or the Canadian
Electrical code, CSA C22.1.
Regency Inserts are designed with a 6" (152mm)
fl ue.
Requirements for Installing
Solid-fuel Inserts in Factory-built
Fireplaces.
1) The insert must be tested and meet the
requirements of UL 1482 (U.S.) and or ULC
S628 (Canada) when tested in a masonry
fi replace built per ULC S628.
2) The factory-built fi replace must be listed per
UL 127 or ULC S610.
3) Clearances obtained from the masonry fi re-
place tests are also relevant for installation
in factory-built fi replaces.
4) Installation must include a full height listed
chimney liner type HT requirements (2100
degree F.) per UL 1777 (U.S.) or ULC
S635 (Canada). The liner must be securely
attached to the insert fl ue collar and the
chimney top.
5) Means must be provided to prevent room
air passage to the chimney cavity of the
fi replace. This may be accomplished by
sealing the damper area around the chimney
liner, or sealing the fi replace front.
6) Alteration of the fi replace in any manner is not
permitted with the following exceptions;
a. external trim pieces which do not affect
the operation of the fi replace may be
removed providing they can be stored
on or within the fi replace for re-assembly
if the insert is removed.
7) Circulating air chambers (i.e. in a steel
fi replace liner or metal heat circulator) shall
not be blocked.
8) Means must be provided for removal of the
insert to clean the chimney fl ue.
9) Inserts that project in front of the fi replace
must be supplied with appropriate supporting
means.
10) Installer must mechanically attach the supplied label to the inside of the fi rebox of the
fi replace into which the insert is installed.
"WARNING: This fi replace has been converted
for use with a wood insert only and cannot be
used for burning wood or solid fuels unless
all original parts have been replaced, and the
fi replace re-approved by the authority having
jurisdiction."
In order for a solid-fuel insert to be certifi ed
for use in factory-built fi replaces, the above
information must be clearly stated in the installation manual and appropriate markings. Final
approval is contingent on the authority having
jurisdiction.
WOOD INSERT
SPECIFICATIONS
Your fi replace opening requires the following
minimum sizes:
Height: 21.5"
Width: 25"
Depth: 17"
Two faceplates are available to seal the fi replace
opening:
Standard Oversize
40" W x 30" H 48" W x 33" H
Emissions from burning wood or gas could
contain chemicals known to the State of California to cause cancer, birth defects or other
reproductive harm.
b. the chimney damper may be removed
to install the chimney liner.
Regency I2400M 6
INSTALLATION
INSTALLING YOUR
INSERT
Your insert is very heavy and will require two
or three people to move it into position. The
insert can be made a little lighter by removing
the cast iron door by opening it and lifting it
off its hinges. Be sure to protect your hearth
extension with a heavy blanket or carpet scrap
during the installation.
Convection Grills
The convection grills are installed before the
unit is positioned inside the fi replace.
Position the grill on the inside bodyface side and
fasten using the bolts, washers and nuts provided
(2 per side) as shown in the diagrams.
OPTIONAL FLUE
CONNECTOR KIT
The Straight Flue Adaptor (Part #846-504)
shown here, may be used to produce a secure
connection between your fl ue connector and the
insert collar. Detailed installation instructions are
included with the kit.
View from Rear of Insert
Note: The grill has a front and rear, the holes
on the front side have rounded edges
and the rear holes have fl at edges.
Regency I2400M 7
INSTALLATION
MASONRY AND FACTORY BUILT FIREPLACE CLEARANCES
The minimum required clearances to combustible materials when installed into a masonry or factory built fi replace are listed below.
Adjacent Mantle** Top Side Minimum Minimum Minimum
Unit Side Wall (to Top) Facing Facing Hearth Hearth Hearth Side
(to Side) (to Top) (to Side) Extension* Thickness* Extension
A B C D E F G
Medium Flush
Insert (I2400) 11"/280mm 20"/508mm 12"/305mm 8"/200mm 18"/455mm 0.5"/13mm 8"/200mm
Side and Top facing is a maximum of 1.5" thick.
Floor protection must be non-combustible, insulative material with an R value of 1.1 or greater.
* Hearth thickness of 0.5" with k value = 0.84",
r value = 0.6 or greater.
** A non-combustible mantel may be installed
at a lower height if the framing is made of
metal studs covered with a non-combustible
board.
** Max. mantle depth is 10" (254mm).
Thermal fl oor protection is not required if the unit is
raised 3.5" minimum (measured from the bottom of
the stove). However, standard ember fl oor protec-
tion is required. It will need to be a non-combustible
material that covers 16" (406 mm) in the US and
18" (450 mm) in Canada to the front of the unit and
8" (200 mm) to the sides.
If the unit is not raised, thermal fl oor protection
required is 18" (450 mm) in the US and Canada.
All fl oor protection must be non-combustible (i.e.,
metals, brick, stone, mineral fi ber boards, etc.) Any
organic materials (i.e. plastics, wood paper products, etc.) are combustible and must not be used.
The fl oor protection specifi ed includes some form
of thermal designation such as R-value (thermal
resistance) or k-factor (thermal conductivity).
HOW TO DETERMINE IF ALTERNATE
FLOOR PROTECTION MATERIALS ARE ACCEPTABLE
The specifi ed fl oor protector should be 3/8"
(18mm) thick material with a K - factor of
0.84.
The proposed alternative is 4" (100mm) brick
with a C-factor of 1.25 over 1/8" (3mm) mineral
board with a K-factor of 0.29.
Step (a):
Use formula above to convert specifi cation
to R-value.
R = 1/k x T = 1/0.84 x .75 = 0.893.
Clearance diagram for Installations
Minimum Hearth Extension for the front
(E) and sides (G) are measured from the
fuel door opening.
Step (b):
Calculate R of proposed system.
4" brick of C = 1.25, therefore
Rbrick = 1/C = 1/1.25 = 0.80
1/8" mineral board of k = 0.29, therefore
Rmin.bd. = 1/0.29 x 0.125 = 0.431
Total R = Rbrick + Rmineral board =
0.8 + 0.431 = 1.231.
Step (c):
Compare proposed system R of 1.231 to
specifi ed R of 0.893. Since proposed system
R is greater than required, the system is
acceptable.
DEFINITIONS
Thermal Conductance:
C = Btu = W
(hr)(ft
Thermal Conductivity:
k = (Btu)(inch) = W = Btu
(hr)(ft3)(oF) (m)(K) (hr)(ft)(oF)
Thermal Resistance:
R = (ft2)(hr)(oF) = (m2)(K)
Btu W
2 )(o
F) (m2))(K)
Regency I2400M 8
INSTALLATION
FLUE CONNECTOR
BRACKET
Package contains: 3 brackets and 6 screws.
These brackets are to be used to hold the fl ue
liner (not supplied) to the Insert and keep the
connection. The brackets are screwed into the
top of the Insert in the pre-punched holes and
then screwed into the fl ue liner.
INSTALLATION INTO A
MASONRY FIREPLACE
The insert must be installed as per the requirements of your local inspection authority. Three
methods of fl ue connection are acceptable in
most areas in the US, however a full fl ue liner
is required in Canada.
1) Positive fl ue connection, where a large
blocking plate and a short connector pipe
is used.
2) Direct fl ue connection, where a smaller
blocking plate and a connector pipe to the
fi rst fl ue liner tile is used.
3) Full fl ue liner, where a stainless steel rigid
or fl exible liner pipe is routed from the insert
outlet collar to the top of the chimney.
Regency highly recommends the use of a full
liner as the safest installation and provides the
most optimum performance. Y our retailer should
be able to help you decide which system would
be the best for your application.
1) Positive Flue
Connection
with Cleanout
3a) Full Flue Liner
(No Cleanout Required)
Note: A clean-out door is sometimes
required, by your inspector, to be
installed when either the Positive fl ue
connection or Direct fl ue connection
method is used.
The use of one of the connection methods listed
on this page not only increases the safety of your
insert by directing the hot gases up the fl ue, but
will also help increase the unit's effi ciency and
decrease creosote deposits in the chimney.
When a connected fl ue or liner is in use, the
insert is able to “breathe” better by allowing a
greater draft to be created. The greater draft can
decrease problems such as, diffi cult start-ups,
smoking out the door, and dirty glass.
2) Direct Flue
Connection
with Cleanout
STEP-BY-STEP
INSTALLATION INTO A
FACTORY BUILT
FIREPLACE
1) When installed in a factory built fi replace, a
full stainless steel rigid or fl exible fl ue liner
is mandatory, for both safety and performance purposes. When a fl ue or liner is in
use, the insert is able to breathe better by
allowing a greater draft to be created. The
greater draft can decrease problems such
as, diffi cult start-ups, smoking out the door,
and dirty glass.
2) In order to position the fl ue liner, the exist-
ing rain cap must be removed from your
chimney system. In most cases the fl ue
damper should also be removed to allow
passage of the liner.
3) In most cases opening the existing spark
screens fully should give enough room for
the insert installation. If it does not, remove
and store.
4) If the fl oor of your fi replace is below the
level of the fi replace opening, adjust the
insert's levelling bolts to accommodate the
difference. When additional shimming is
required, use non-combustible masonry or
steel shims.
5) Measure approximately the alignment of
the fl ue liner with the position of the smoke
outlet hole on the insert to check for possible offset. If an offset is required, use a
proper stainless steel unit available with the
chimney liner.
6) Once the above items have been checked,
slide your insert into position after fi rst po-
sitioning the fl ue liner and offset if required.
(Re-install raincap at completion of installation).
NOTE: Refer to "Requirements for Installing
Solid-fuel Inserts in Factory-built Fireplaces" section for the requirements
for installing solid fuel inserts in factory
built fi replaces.
Flush Inserts
Regency I2400M 9
INSTALLATION
STEP-BY-STEP INSTALLATION
OF THE FACEPLATE AND TRIM
Prior to sliding your insert into its fi nal position
and attaching the connector or liner pipe, the
faceplate side panel plates must be installed
as follows:
1) Slide the spring nuts (supplied) over the
slots in the insert’s side convection panels
(the spring nuts may need to be squeezed
with a pair of pliers fi rst, to help them stay
in position).
2) Screw the side faceplate panels, (item A in
the diagram) one to each side.
3) Using the top panel (item B in the diagram)
as a gauge, check that the side panels are
within approximately 1/4" of the overall width.
If the difference is greater than this, use
the supplied washers to attain the required
width.
4) The unit may now be slid into fi nal position
and attached to the connection system.
5) Once connection is made, the insulation strips
should be installed between the insert faceplates and the fi replace face. The faceplate
top may now be installed (with insulation
strip behind) by aligning its brackets with the
top fl ange on the side shields and the angle
iron bar on the insert top. The faceplate trim
may be installed to the edge
of the faceplate at this time.
Note: It may be easier to install the insula-
tion, faceplate top and faceplate trim
with the unit pulled slightly away from
the fi replace face. If this is done, be
very careful not to disturb the connector when shifting the unit to its
fi nal position.
Now that your insert is installed, check once
more that all the clearances from the unit to
any combustible materials are correct as listed
earlier.
Faceplate Assembly
Regency I2400M 10
Thermo Switch Sensor
INSTALLATION
STEP-BY-STEP INSTALLATION
OF THE FAN/BLOWER
Installer: Please record unit serial number here before installing blower.
Serial No.______________________________
Y our fan should only be installed once the unit is
in place in order to prevent any damage to the
fan. To attach, follow the instructions provided
with the fan.
1) Align the fan support with the offset clip
on the bottom of the ashlip.
2) Slide the supports into the clips. The tension
holding the clips in place may be adjusted by
increasing or decreasing the offset spacing
of the clips.
3) Ensure that the power cord is not in
contact with any hot stove surfaces.
NOTE: DO NOT ROUTE POWER CORD
UNDER OR IN FRONT OF UNIT.
4) Push the Regency logo plate into the two
holes in the front bottom left corner of the
fan.
Do not turn fan ON until your insert has
reached operating temperature or at least
30 minutes after starting fi re.
CAUTION: Label all wires prior
to disconnection when servicing controls. Wiring errors can
cause improper and dangerous
operation.
WARNING:
Electrical Grounding Instructions
This appliance is equipped with a
three pronged (grounding) plug for
your protection against shock hazard
and should be plugged directly into
a properly grounded three-prong
receptacle. Do not cut or remove the
grounding prong from this plug.
Neutral
120V AC
Live
60 Hz
Fan Thermodisc
(normally open)
Regency I2400M 11
Ground
Green
Black Black
Black
Manual/
Auto
Switch
Blower/Fan Wiring Diagram
Fan
Switch
High (Black)
Fan Fan
White
Low (Red)
Ground
INSTALLATION
FLOOR PROTECTION
Please check to ensure that your fl oor protection
and hearth will meet the standards for clearance
to combustibles. Y our hearth extension must be
made from a non-combustible material.
FIREBRICK ASSEMBLY
Firebrick is included to extend the life of your
insert and radiate heat more evenly. Check to
see that all fi rebricks are in their correct posi-
tions and have not become misaligned during
shipping.
ensure the tube will not move when the unit
is burning. Though there are four air tubes
in the medium units.
2) Slide the left baffl e over the air tubes from
the front and then push it to the back.
Side View
3) Tilt the left baffl e up on top of the side chan-
nel and it will leave enough room to position
the right baffl e in the same manner as Step
1) above. Then reposition the left baffl e fl at
on the air tubes.
DRAFT CONTROL
Before establishing your fi rst fi re, it is important
that your fully understand the operation of you
draft control. The draft rod is on the left side of
the Inserts and it controls the intensity of the fi re
by increasing or decreasing the amount of air
allowed into the fi rebox. To increase your draft
- pull open, and to decrease - push closed.
Pull Open Push Closed
As well as a primary and glass wash air system,
the unit has a full secondary draft system that
allows air to the induction ports at the top of the
fi rebox, just below the fl ue baffl e.
WARNING: T o build a fi re in ignorance or to
disregard the informa tion contained in this
section can cause serious permanent damage to the unit and void your warranty.
SCREEN DOOR
FLUE BAFFLE &
SECONDARY AIR TUBE
INSTALLATION
The fl ue baffl e system located in the upper area
of the fi rebox is removable to make cleaning your
chimney system easier. The baffl es must be
installed prior to your fi rst fi re. Smoke spill-
age and draft problems may occur if the
baffl es are improperly positioned. Check
the position of the baffl es on a regular basis as
they can be dislodged if too much fuel is forced
into the fi rebox.
The unit arrives with the 2 baffl e plates on the
fl oor of the fi rebox.
1) If all 4 air tubes are installed continue on
to Step 2), if not, follow the instructions
below. Install the air tube into the holes in
the side channels. The notch goes on the
right hand side with the air holes facing
toward the door. Slide the tube into the left
hand side, as far as possible and then bring
it back into the hole on the right hand side.
Use a pair of vise grips or pliers and tap it
into place with a hammer. A tighter fi t will
Front View
4) Important: push both baffl es so they are
tight against the side walls.
Front View
DOOR HANDLE
Attach spring handle by rotating counter clockwise onto rod. Ensure that the rod fi ts into the
entire length of the spring handle.
Hook screen to the inside on the right side
of the fi rebox door opening. Lock in place by
turning handle.
Hooks
Back Side of Screen Shown
NOTE: The handle must be positioned at 10
o'clock when closed to avoid the handle from
getting hot and to ensure the screen stays in
place.
Handle at 10 o'clock position.
Handle Lock
Regency I2400M 12
OPERATING INSTRUCTIONS
SOME SAFETY
GUIDELINES
1) Never use gasoline, gasoline type lantern
fuels, kerosene, charcoal lighter fuel, or
similar liquids to start or ‘freshen up’ a fi re
in your heater. Keep all such liquids well
away from the heater while it is in use.
2) Keep the door closed during operation and
maintain all seals in good condition.
3) Do not burn large quantities of paper in your
insert.
4) If you have smoke detectors, prevent smoke
spillage as this may set off a false alarm.
5) Do not overfi re your insert. If the insert begin
to glow, you are overfi ring. Stop adding
fuel and close the draft control. Overfi ring
can cause extensive damage to your stove
including warpage and premature steel corrosion. Overfi ring will void your warranty.
6) Do not permit creosote or soot buildup in the
chimney system. Check and clean chimney
at regular intervals.
7) Your Regency Insert can be very hot. You
may be seriously burned if you touch the
insert while it is operating. Warn children
of the burn hazard.
8) The insert consumes air while operating,
provide adequate ventilation with an air
duct or open a window while the insert is in
use.
9) Do not use grates, irons or other methods
for supporting fuel. Burn directly on the
bricks.
10) Open the draft control fully for 10 to 15
seconds prior to slowly opening the door
when refuelling the fi re.
11) Do not connect your unit to any air distribution duct.
12) Your insert should burn dry, standard fi re-
wood only. The use of “mill ends” is discouraged as this fuel can easily overheat your
insert. Evidence of excessive overheating
will void your warranty. As well, a large portion of sawmill waste is chemically treated
lumber, which is illegal to burn in many areas.
Chemically treated fi re logs also must not
be burned in your insert.
13) Do not store any fuel closer than 2 feet from
your unit.
14) Do not burn salt drift wood as it will corrode
your unit and void the warranty.
15) Do not operate the unit if the glass is broken
or missing. Do not operate the unit if the
gasketing is worn out and not sealing the
door or the glass.
It is very important to carefully maintain your
insert, including burning seasoned wood and
maintaining a clean stove and chimney system.
Have the chimney cleaned before the burning
season and as necessary during the season, as
creosote deposits may build up rapidly. Moving
parts of your insert require no lubrication.
WARNING
Fireplace Stoves equipped with doors
should be operated only with doors fully
open or doors fully closed. If doors are
left partly open, gas and fl ame may be
drawn out of the fi replace stove open-
ing, creating risks from both fi re and
smoke.
When operated with doors open the
manufacturer supplied screen must
be used.
FIRST FIRE
When your installation is completed and inspected, you are ready for your fi rst fi re.
1) Open draft control fully.
2) Open fi rebox door and build a small fi re using
paper and dry kindling on the fi rebrick hearth,
wait a few minutes for a good updraft in the
fl ue to establish the fi re. Leaving the door
slightly open will help your fi re start more
rapidly.
CAUTION: Never leave unit unattended if door is left open. This
procedure is for fi re start-up only,
as unit may over-heat if door is left
open for too long.
3) With the draft still in the fully open position,
add two or three seasoned logs to your fi re.
Form a trench in the ash bed to allow air to
reach the rear of the fi rebox prior to closing
the door.
4) After about 15 to 20 minutes, when your
wood has begun to burn strongly, adjust
your draft control down to keep the fi re at a
moderate level.
WARNING: Never build a roaring
fi re in a cold stove. Always warm
your stove up slowly!
5) Once a bed of coals has been established,
you may adjust the draft control to a low
setting to operate the unit in its most effi cient
mode.
6) During the fi rst couple of hours, keep the
combustion rate at a moderate level and
avoid a large fi re until the paint is cured.
Only then can you operate the insert at its
maximum setting, and only after the metal
has been warmed.
7) For the fi rst few hours, the insert will give off
an odor from the paint. This is to be expected
as the high temperature paint becomes seasoned. Windows and/or doors should be left
open to provide adequate ventilation while
this temporary condition exists. Burning the
insert at a very high temperature the fi rst few
times may damage the paint. Burn fi res at
a moderate level the fi rst few days.
8) Do not place anything on the insert top
during the curing process. This may result
in damage to your paint fi nish.
Regency I2400M 13
OPERATING INSTRUCTIONS
9) During the fi rst few hours it may be more
diffi cult to start the fi re. As you dry out
your fi re brick and your masonry fl ue (if
applicable), your draft will increase.
10) For those units installed at higher elevations
or into sub-standard masonry fi replaces,
drafting problems may occur. Consult an
experienced dealer or mason on methods
of increasing your draft.
11) Some cracking and popping noises may be
experienced during the heating up process.
These noises will be minimal when your unit
reaches temperature.
12) Before opening your door to reload, open
draft fully for approximately 10 to 15 seconds
until fi re has been re-established. This will
minimize any smoking.
13) All fuel burning appliances consume oxygen
during operation. It is important that you
supply a source of fresh air to your unit
while burning. A slightly opened window is
suffi cient for this purpose.
CAUTION: If the body of your unit
starts to glow you are overfi ring.
Stop loading fuel immediately and
close the draft control until the glow
has completely subsided.
14) Green or wet wood is not recommended for
your unit. If you must add wet or green fuel,
open the draft control fully until all moisture
has been dispersed by the intense fi re.
Once all moisture has been removed, the
draft control may be adjusted to maintain
the fi re.
15) If you have been burning your insert on a
low draft, use caution when opening the
door. After opening the damper, open the
door a crack, and allow the fi re to adjust
before fully opening the door.
16) The controls of your unit should not be
altered to increase fi ring for any reason.
WOOD STORAGE
Store wood under cover, such as in a shed, or
covered with a tarp, plastic, tar paper, sheets
of scrap plywood etc., as uncovered wood can
absorb water from rain or snow, delaying the
seasoning process.
ASH DISPOSAL
During constant use, ashes should be removed
every few days. Please take care to prevent the
build-up of ash around the start-up air housing
located inside the fi rebox, under the loading
door lip.
DO NOT ALLOW ASHES TO BUILD UP TO
THE LOADING DOORS.
Only remove ashes when the fi re has died down.
Even then, expect to fi nd a few hot embers.
Always leave 1 to 2 inches of ash in the bottom
of the fi rebox. This helps in easier starting and
a more uniform burn of your fi re.
Ashes should be placed in a metal container with
a tight fi tting lid. The closed container of ashes
should be placed on a noncombustible fl oor or
on the ground, well away from all combustible
materials, pending fi nal disposal. If the ashes
are disposed of by burial in soil or otherwise
locally dispersed, they should be retained in the
closed container until all cinders have thoroughly
cooled. Other waste should not be placed in the
ash container.
FAN OPERATION
The fan is to be operated only with the draft
control rod pulled out at least 1/2" from the
fully closed position. The fan is not to be operated when the draft control rod is in the closed
position (pushed in). The fully closed position is
the low burn setting.
The fan unit must not be turned on until a fi re
has been burning for at least 30 minutes and
the unit is hot enough. As well, after each fuel
loading the fan must be shut off until 30 minutes
has elapsed.
To operate fan automatically, push switch on
side of fan housing to "Auto" and second switch
to either "High" or "Low" for fan speed. The
automatic temperature sensor will engage the
blower when the unit is at temperature and will
shut off the blower once the fi re has gone out
and the unit has cooled to below a useful heat
output range.
To manually operate the fan system, push the
fi rst switch to "Man" and second switch to either
"high" or "Low". This will bypass the sensing
device and allow full control of the fan. Switching
from "Auto" to "Manual" or "High" to "Low" may
be done at any time.
CREOSOTE
When wood is burned slowly, it produces tar and
other organic vapors, which form creosote when
combined with moisture. The creosote vapors
condense in the relatively cool chimney fl ue of a
slow-burning fi re. As a result, creosote residue
accumulates on the fl ue lining. When ignited, this
creosote can make an extremely hot fi re.
Removal for Cleaning
Removal of your insert for cleaning purposes
is usually not required if a proper installation
has been done. In the event that removal is required, be sure not to damage any parts needed
for re-installation. In most cases removal and
replacement of the baffl e system should allow
full access for cleaning.
WARNING: Things to remember in case
of chimney fi re:
1) Close draft control
2) Call the Fire Department
Ways to Prevent and
Keep Unit Free of Creosote
1) Burn insert with draft control wide open for
about 45 minutes every morning during burning season. This helps to prevent creosote
deposits within the heating system.
2) Burn insert with draft control wide open for
about 10 - 15 minutes every time you add
fresh wood. This allows the wood to achieve
the charcoal stage faster and burns up any
wood vapors which might otherwise be
deposited within the system.
3) Only burn seasoned wood! Do not burn
wet or green wood. Seasoned wood that
has been dried at least one year must be
used.
4) A small hot fi re is preferable to a large
smouldering one that can deposit creosote
within the system.
5) Check the chimney at least twice a month
during the burning season for creosote
build-up.
6) Have chimney system and unit cleaned
by competent chimney sweeps twice a
year during the fi rst year of use and at
least once a year thereafter or when a
signifi cant layer of creosote has accu-
mulated (3mm / 1/8" or more) it should be
removed to reduce the risk of a chimney
fi re.
Regency I2400M 14
MAINTENANCE
MAINTENANCE OF
GOLD-PLATED DOORS
The gold electroplated fi nish on the doors
requires little maintenance, and need only be
cleaned with a damp cloth. DO NOT use abrasive
materials or chemical cleaners, as they may
harm the fi nish and void the warranty.
DOOR GASKET
If the door gasket requires replacement, 7/8"
diameter material must be used. A proper high
temperature gasket adhesive is required. A
gasket repair kit, Part # 846-570 is available
from your local Regency dealer.
DOOR LATCH
ADJUSTMENT
The door latch may require adjustment as the
door gasket material compresses after a few
fi res. Removal of the spacer washer, shown
in the diagram below, will allow the latch to
be moved closer to the door frame, causing
a tighter seal. Remove and replace the nuts,
washer as shown.
GLASS CLEANING
Only clean your glass window when it is cool.
Your local retailer can supply you with special
glass cleaner if plain water and a soft cloth does
not remove all deposits.
GLASS REPLACEMENT
Your Regency Insert is supplied with 5 mm.
Neoceram ceramic glass (Part #846-304) that
will withstand the highest heat that your unit will
produce. In the event that you break your glass
by impact - purchase your replacement from an
authorized Regency dealer only, and follow our
step-by-step instructions.
GLASS REMOVAL
Allow the stove to cool before removing or replacing glass. Remove the door from the insert and
remove the glass retainer. Use caution when
removing broken glass to prevent injury.
When placing the replacement glass in the
door, make sure that the glass gasketing will
properly seal your unit. Replace the retainer
and tighten securely, but do not wrench down
on the glass as this may cause breakage. Do
not substitute materials. If your glass door does
break, do not continue to use your unit until it
has been replaced.
Avoid impact on glass doors such
as striking or slamming shut.
Regency I2400M 15
PARTS LIST
MAIN ASSEMBLY & OPTIONS - I2400M
Part # Description
1) 850-152 Door Assy - Large Gold
850-151 Door Assy - Large Black
850-153 Door Assy - Large Nickel Accent
850-154 Door Assy - Large Gold Accent
2) 846-304 Glass - Replacement
4) 936-243 7/8" Adhesive Tape Gasket
5) 846-920 Glass Retainer Clips (8/set)
6) * Screw 1/4-20 x 3/8"
7) 948-172/P Glass Retainer - Large
9) 846-973 Door Handle Assembly
16) 846-570 Door Gasket Kit
17) 846-918 Hinge Caps - Gold Plated
(2/set)
948-079 Hinge Caps - Nickel (each)
19) 948-101 Spring Handle - Large Gold
20) 948-102 Spring Handle - Small Gold
948-135 Spring Handle - Large Nickel
948-136 Spring Handle - Small Nickel
23) 846-235 Flue Brackets Package
Part # Description
142-917 Fan Assembly
24) 910-157/P Fan Motor 120 Volts
25) 910-678 Power Cord 120 Volts
27) 910-142 Fan Thermodisc
28) 910-140 Fan Speed Hi / OFF / Low
Switch (3-way)
29) 910-138 Auto / Manual On /
OFF Switch
30) * Grommet Strain Relief
36) 033-953 Air Tube 3/4" (Qty:4) (each)
37) 020-957 Baffl e (2/set)
Part # Description
42) 163-932 Convection Grill - Gold (Opt)
163-930 Convection Grill - Blk (Opt)
43) * Hex Nut 10-24 Zinc Coated
44) * Washer #10 Flat
45) * Bolt, 10-24 x 3/4"
Blk Carriage
47) 846-102 Screen Door
948-223 Regency Logo - Nickel
948-216 Regency Logo - Gold
918-171 Manual
*Not available as a replacement part.
Regency I2400M 16
Part # Description
140-911 Faceplate & Trim Set - Regular
180-570 Black Trim Regular (set of 3)
285) * Trim Right Regular
286) * Trim Top Regular
287) * Trim Left Regular
288) * Faceplate Side Regular
289) * Faceplate T op Regular
140-913 Faceplate & Trim Set - Oversize
180-572 Black Trim Oversize (set of 3)
295) * Trim Right Oversize
296) * Trim Top Oversize
297) * Trim Left Oversize
298) * Faceplate Side Oversize
299) * Faceplate T op Oversize
*Not available as a replacement part.
PARTS LIST
FACEPLATES - I2400M
297
299
298
OVERSIZE
296
298
286
295
285
289
288
287
288
REGULAR
Regency I2400M 17
PARTS LIST
BRICK PANELS - I2400M
Part # Description
180-960 Firebrick - Complete Set
70) 902-111 Brick Regular Full Size: 1-1/4" x 4-1/2" x 9"
75) * Brick Partial: 1-1/4 x 4-1/2" x 2"
76) * Brick Partial: 1-1/4" x 2" x 9"
Regency I2400M 18
WARRANTY
Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects
each unit thoroughly before it leaves our door. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the
original purchaser of a Regency Product. This warranty is not transferable.
The Warranty: Lifetime
Covered under the agreement are the following components:
Firebox, ceramic baffl e, vermiculite baffl e, steel baffl es (H2100), convector airmate, castings, ashdrawer, glass (thermal breakage), gold plating (against
defective manufacture), airtubes (against warpage) and door handles.
The above will be covered for parts and subsidized labour for the fi rst fi ve years and parts only thereafter with the exception of the fi reboxes (see below).
FPI is not liable for freight or labor on any wood burning appliance replaced in fi eld.
Electrical components such as blowers, switches and thermodisc's are covered for two years parts and one year subsidized labour* from date of purchase.
Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a
receipt only. Any item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.
Conditions:
Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.
It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI
and evaluated for manufacturer defect.
The authorized selling dealer is responsible for all in-fi eld service work carried out on your Regency product. FPI will not be liable for results or costs of
workmanship from unauthorized service persons or dealers.
At all times FPI reserves the right to inspect product in the fi eld which is claimed to be defective.
All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including
customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.
Exclusions:
This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing, fi rebrick or trim. It does not cover installation and operational related
problems such as over-fi ring, use of corrosive driftwood, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, mountains,
inadequate venting or ventilation, excessive offsets, negative air pressures caused by mechanical systems such as furnaces, fans, clothes dryers etc.
At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit
once manufactured. ie. as products evolve, fi eld modifi cations or upgrades will not be performed.
FPI will not be liable for travel costs for service work.
Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty
policy.
Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.
The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse.
Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.
FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.
Performance problems due to operator error will not be covered by this warranty policy.
Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may
nullify your warranty on this product.
* Subsidy according to job scale as predetermined by FPI.
Regency I2400M 19
Regency fi replace products are designed
with reliability and simplicity in mind. In
addition, our internal Quality Assur-
ance Team carefully inspects each
unit thoroughly before it leaves our
door.
Fireplace Products Interna-
tional Ltd. is pleased to extend
this
Limited Lifetime Warranty to the origi-
nal purchaser of a Regency Product.
See the inside back cover for details.
Register your Regency online at
http://www.regency-fi re.com
Installer: Please complete the following information
Dealer Name & Address: ______________________________________________
___________________________________________________________________
Installer: ___________________________________________________________
Phone #: ___________________________________________________________
Date Installed: ______________________________________________________
Serial No.: __________________________________________________________
Regency and Classic are trademarks of FPI Fireplace Products International Ltd.
© Copyright 2008, FPI Fireplace Products International Ltd. All rights reserved.
Printed in Canada
Printed in Canada
Loading...
