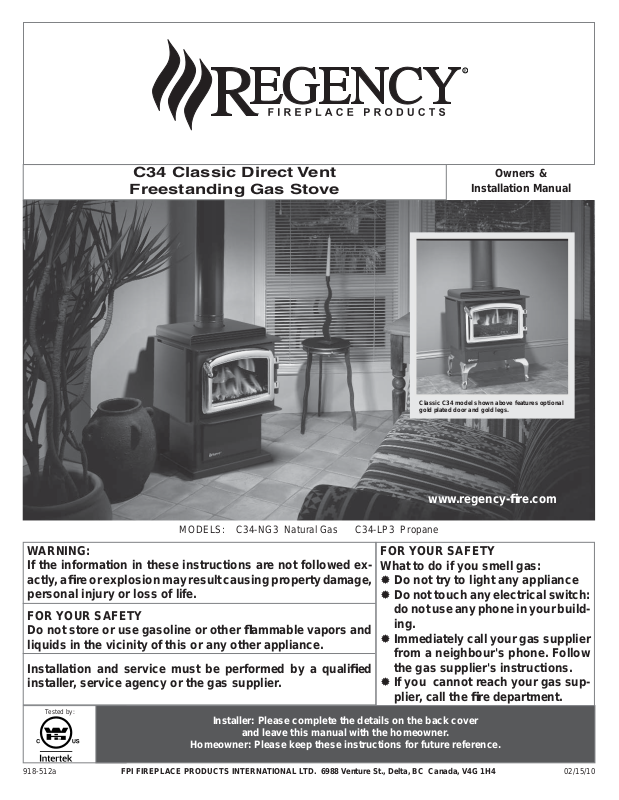

Regency Classic C34 Installation Manual

Download

C34 Classic Direct Vent

Freestanding Gas Stove

Owners &

Installation Manual

Classic C34 model shown above features optional gold plated door and gold legs.

MODELS: C34-NG3 Natural Gas C34-LP3 Propane

WARNING: If the information in these instructions are not followed exactly , a ﬁ re or explosion may result causing property damage, personal injury or loss of life.

FOR YOUR SAFETY Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁ ed installer, service agency or the gas supplier.

Tested by:

918-512a

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

www.regency-ﬁ re.com

FOR YOUR SAFETY What to do if you smell gas:

Do not try to light any appliance Do not touch any electrical switch:

do not use any phone in your building.

Immediately call your gas supplier

from a neighbour's phone. Follow the gas supplier's instructions.

If you cannot reach your gas sup-

plier, call the ﬁ re department.

02/15/10

REGENCY

Classic Direct Vent Freestanding Gas Stove

To the New Owner:

Congratulations! You are the owner of a state-of-the-art Gas Stove by Fireplace Products International Ltd. The Regency® Gas Series of hand crafted appliances has been designed to provide you with all the warmth and charm of a woodstove, at the ﬂ ick of a switch. The models C34-NG1 and C34-LP1 of this series have been approved by Warnock Hersey for both safety and efﬁ ciency. As it also bears our own mark, it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with these instructions and the many features of your CLASSIC Direct Vent Freestanding Gas Stove.

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency® product has been tested and listed by Warnock Hersey as a Direct Vent Room Heater to the following standards: CAN/CGA-2.17M91, ANSI Z21.88a-2007/CSA 2.33a-2007.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This Regency® Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the unit.

This Regency® Mobile/Manufactured Home listed appliance comes equipped with a dedicated #8 ground lug to which an 8 gauge copper wire from the steel chassis ground must be attached.

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

DIMENSIONS

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 3

TABLE OF CONTENTS

SAFETY LABEL

Serial No. Decal.............................................................5

REQUIREMENTS

MA Code - CO Detector

(for state of Massachusetts only)...................................6

INSTALLATION

Important Message ......................................................7

Speciﬁ cations ................................................................7

Before You Start ............................................................7

General Safety Information............................................7

Installation Checklist ......................................................7

Locating Your Gas Stove ...............................................7

Manufactured Mobile Home Additional Requirements ..7

Combustion and Ventilation Air......................................7

Clearances to Combustibles..........................................8

Optional Fan Installation ................................................9

Pedestal Assembly ......................................................10

Leg and Bottom Shield Assembly ................................10

Venting Introduction .....................................................11

Installation Precautions ...............................................11

Safety Precautions for the Installer..............................11

Vent Restrictor Position ...............................................11

Exterior Vent Terminal Locations .................................12

4” x 6-5/8” Rigid Pipe Cross Reference Chart .............13

Rigid Pipe Venting Systems ........................................16

Venting Arrangements ................................................17

Horizontal Terminations for

All Venting Systems .............................................17

Vertical Termination Systems for

Residential Manufactured and Mobile Homes .....17

DV Stove Horizontal Vent Kit .......................................18

Dura-Vent Termination Kit ............................................20

Dura-Vent Horizontal Installations ...............................21

Vertical Termination .....................................................22

Cathedral Ceilings .......................................................23

Converting Class-A Metal Chimney

or Masonry Chimney to Direct Vent System ................24

System Data ................................................................26

Gas Connection ...........................................................26

High Elevation .............................................................26

Gas Pipe Pressure Testing ..........................................26

Installation of the DC Sparker......................................27

Valve Description .........................................................27

Log Installation ............................................................28

Door and Glass Frame ................................................28

Door Handle ................................................................29

Remote Control Installation .........................................29

Remote Wall Switch ....................................................29

Wall Thermostat ..........................................................29

Final Check..................................................................29

Wiring Diagrams ..........................................................30

OPERATING INSTRUCTIONS

Operating Instructions .................................................32

Lighting Procedure ......................................................32

Shutdown Procedure ...................................................32

First Fire ......................................................................32

Pilot Adjustment ...........................................................32

Copy of the Lighting Plate Instructions .......................33

Aeration Adjustment ....................................................33

MAINTENANCE

Normal Operating Sounds of Gas Appliances .............34

Thermopile / Thermocouple .........................................34

Maintenance Instructions.............................................34

General Vent Maintenance ..........................................34

Log Replacement ........................................................34

Gold-Plated Doors .......................................................35

Glass Gasket ...............................................................35

Glass Replacement .....................................................35

Removing Valve Assembly ..........................................35

Installing Valve Assembly ............................................35

PARTS LIST

Main Assembly ............................................................36

Burner Assembly & Log Set.........................................37

Base Options ...............................................................38

WARRANTY

Warranty .....................................................................39

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

SAFETY LABEL

This is a copy of the label that accompanies each CLASSIC Direct Vent Freestanding Gas Stove. We have printed a copy of the contents here for your review. The safety label is located

NOTE: Regency improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

units are constantly being

on the back panel.

DUPLICATE SERIAL NO.

Listed:

VENTED GAS FIREPLACE HEATER / FOYER AU GAZ À ÉVACUATION

Certified for/Certifi e pour: Tested to: WN# 16477

MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE

NATURAL GAS STOVE:

Model/Modele:

C34-NG3

Minimum supply pressure Manifold pressure high Manifold pressure low Orifice size Minimum input Maximum input Altitude

PROPANE GAS STOVE:

Model/Modele:

C34-LP3

Minimum supply pressure Manifold pressure high Manifold pressure low Orifice size Minimum input Maximum input Altitude

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1. This appliance must be installed in accordance with the Standard CAN/CSA Z240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the United States, or when such a standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard orANSIA119.2 ouNFPA501C Standard forRecreational Vehicles This appliance isonly for use withthe type ofgas indicated on therating plate and may beinstalled in an aftermarket, permanently located, manufactured(mobile) home where not prohibitedby localcodes. See owner'smanual fordetails. Installer l'appareilselon lescodes ou règlementslocaux, ou,en l'absence detels règlements,selon les codesd'installation ANSIZ223.1, NationalFuel Gas Codeou CSA-B149.1 en vigueur. Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety Standard. Si ces normes ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ouANSIA119.2 ouNFPA501C Standard forRecreational Vehicles. Cet appareil doit être utilize uniquementavec le type de gaz indiqué sur la plaque signalétique. Cetappareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si les règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet appareil ne peut pas être utilisé avec d'autres gazsauf siune trousse deconversion certifiéeest fournie.

This ventedgas fireplaceheater is notfor usewith air filters. Ne pasutiliser defiltre à airavec cefoyer au gazà évacuation.

For usewith glassdoors certified withthe applianceonly

VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS.

CGA-2-17-M91, ANSI Z21.88a-2007 / CSA 2.33a-2007

Model C34-NG3

Model C34-LP3

CANADA and U.S.A.

5" WC (1.25kpa)

3.8" WC (0.94kpa)

1.1" WC (0.27kpa) #36 (2.71mm) 16000 BTUH (4.69 kw/h) 32000 BTUH (9.38 kw/h) 0-4500 ft/pi (0-1372m)

12" WC (2.98 kpa) 11" WC (2.73 kpa)

2.9" WC (0.72 kpa) #52 (1.61mm) 16000 BTUH (4.69 kw/h) 32000 BTUH (9.38 kw/h) 0-4500 ft/pi (0-1372m)

Pour utilisationuniquement avecles portes enverre certifiéesavec l'appareil

APPAREIL FONCTIONNANT AU PROPANE CONCU POUR ETRE POELE:

Pression d'allimentation minimum Pression à la tubulure d' chappement lev e Pression à la tubulure d' chappement basse Grandeur de l'injecteur

Calorifique

D bit minimum selon

D bit Calorifique maximum selon l'altitude

APPAREIL FONCTIONNANT AU PROPANE CONCU POUR ETRE POELE:

Pression d'allimentation minimum Pression à la tubulure d' chappement lev e Pression à la tubulure d' chappement basse Grandeur de l'injecteur

Calorifique

D bit minimum selon

Calorifique

D bit maximum selon l'altitude

NE PAS UTILISER AVEC DUCOMBUSTIBLE SOLIDE.FOYER AU GAZ À ÉVACUATION -

Modéle C34-NG3

ééé é

Modéle C34-LP3

ééé é

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE

297

Serial No./ No de serie

297

Minimum Clearances to Combustibles /

Degagement Minimum

De Materiaux Combustibles

Back wall

Side wall

Back wall

A 10"/250mm B 6"/150mm

Side wall

Minimum ceiling height from

top of unit:36"/914mm

Minimum plafond hauteur en

haut de l'appareil: 36"/914mm

Minimum clearance to vent 1.25“/32mm

Please check that the door is properly sealed.

Electrical supply / Électrique 115VAC, 1.13 A, 60Hz.

FPI Fireplace Products International Ltd.

Made in Canada/

Fabrique au Canada

Delta, BC, Canada

E 1.5"/38mm

DOOR SEAL:

918-490a

For the State of Massachusetts, installation and repair must be done by a plumber or gasﬁ tter licensed in the Commonwealth of Massachusetts.

For the State of Massachusetts, ﬂ exible connectors shall not exceed 36 inches in length.

For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.

The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm with battery back up in the same room where the gas appliance is installed.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 5

REQUIREMENTS

MA Code - CO Detector

(for the State of Massachusetts only)

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies "special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

INSTALLATION

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The CLASSIC Direct Vent Freestanding Gas Stove must be installed in accordance with these instructions. Carefully read all the instructions in this manual ﬁ rst. Consult the building authority having jurisdiction to determine the need for a permit prior to starting the installation.

THIS APPLIANCE SHOULD BE INSTALLED, REPAIRED, INSPECTED BEFORE USE AND AT LEAST ANNUALL Y BY A QUALIFIED SER VICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, ETC. IT IS IMPERA TIVE THA T THE CONTROL COMPARTMENT, BURNER AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.

- WARNING Failure to follow the instructions could cause a malfunction of the heater which could result in death, serious bodily injury, and/or property damage. Failure to follow these instructions may also void your ﬁ re insurance and/or warranty.

Note: These instructions take precedence

over Simpson Dura-Vent instructions

SPECIFICATIONS

Fuels: C34-NG is approved for use with

natural gas. C34-LP is approved for use with liqueﬁ ed petroleum gases (propane).

Electrical: 120V. A.C. system. Optional circulation fan: Two speed,

125/75 CFM.

Log Sets: Ceramic ﬁ bre, 4 per set. Vent System: Coaxial (6 5/8" outer/ 4" inner

liner) rigid ﬂ ue and termination cap.

DUE TO HIGH TEMPERA TURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS APPLIANCE CORRECTLY MAY CAUSE A SERIOUS HOUSE FIRE AND WILL VOID YOUR WARRANTY.

CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERA TURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD ST AY A WAY TO AVOID BURNS OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.

CLOTHING OR OTHER FLAMMABLE MA TERIAL SHOULD NOT BE PLACED

ON OR NEAR THE APPLIANCE.

SHOULD OVERHEATING OCCUR, OR THE GAS SUPPL Y FAIL TO SHUT OFF, SHUT OFF THE MANUAL GAS VALVE TO THE APPLIANCE BEFORE SHUTTING OFF THE ELECTRICAL SUPPLY.

- WARNING Risk of ﬁ re or electric shock. Only qualiﬁ ed service personnel shall be used to install and provide maintenance of this appliance.

BEFORE YOU ST ART

Safe installation and operation of this appliance requires common sense, however, we are required by the Canadian Safety Standards and ANSI Standards to make you aware of the following:

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 7

1) Provide adequate clearances for servicing, proper operation and around the air openings into the combustion chamber.

2) The appliance may be installed on a ﬂ at, solid, continuous surface (e.g. wood, metal, concrete). This may be the ﬂ oor, or it can be raised up on a platform to enhance its visual impact. If the appliance is going to be installed on carpeting, see clearances to combustibles in "Clearances to Combustibles" section.

The CLASSIC Direct Vent Freestanding Gas

Stove can be installed in a wide variety of ways and will ﬁ t nearly any room layout. It may be installed in a recessed position, framed out into the room, or across a

corner. This appliance is Listed for Alcove installations, maintain minimum Alcove clearances as follows, minimum ceiling height of 65-11/16", minimum width of 48" and a maximum depth of 36".

3) The CLASSIC Direct Vent Freestanding Gas Stove is approved for alcove installations, which meet the clearances listed in "Clearances to Combustibles" section. This unit can be installed in a bedroom, when installed with a millivolt thermostat. This unit is approved for manufactured home installations, see "Venting Arrangements" section for the required vent arrangements. If installed into a manufactured or mobile home the unit must be bolted down to the ﬂ oor.

4) We recommend that you plan your installation on paper using exact measurements for clearances and ﬂ oor protection before actually installing this appliance. Have a qualiﬁ ed building inspector review your plans before installation.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform

with local codes or, in the absence of local codes, with the current Canadian or National Electrical Codes, CAN1-B149 or ANSI Z223.1 Installation Codes.

2) The appliance when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes with the current National Electrical Code, ANSI/NFPA 70 or CSA C22.1 Canadian Electrical Code.

3) The appliance should be inspected for shipping damage before use and serviced annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments, and circulating air passageways of the appliance be kept clean.

4) See general construction and assembly instructions. The appliance and vent should be enclosed when installed in or passing through a living area.

5) This appliance must be connected to the speciﬁ ed vent and termination cap to the outside of the building envelope.

6) Never vent to another room or inside a building. Make sure that the vent is ﬁ tted as per the instructions starting in "Venting Introduction" section.

7) Inspect the venting system annually for blockage and any signs of deterioration.

INSTALLATION

8) Venting terminals shall not be recessed into

a wall or siding.

9) Any safety glass removed for servicing must be replaced prior to operating the appliance.

10) To prevent injury, do not allow anyone who is unfamiliar with the operation to use the ﬁ replace.

Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

INSTALLATION

CHECKLIST

1) Locate your appliance. Refer to the

following sections:

a. Locating Your Classic Gas Stove b. Clearances to Combustibles c. Venting. See "Exterior Vent Terminal

Locations" to " Venting Arrangments" sections.

2) Install Optional Fan. Refer to "Optional Fan Installation" section.

3) Assemble stove base - pedestal or bottom shield and legs. Refer to "Pedestal Assembly" or "Leg and Bottom Shield Assembly" sections.

4) Choose a venting option and Install accordingly. Refer to the following sections where applicable:

a. DV Stove Horizontal Vent Kit b. Dura-Vent Termination kits c. Vent Restrictor setting d. Converting CLass-A Metal Chimney or Masonry Chimney to Direct Vent System.

Before leaving this unit with the customer, the installer must ensure that the appliance is ﬁ r- ing correctly and operation fully explained to customer.

This includes:

1) Clocking the appliance to ensure the correct

ﬁ ring rate (rate noted on label) after burning appliance for 15 minutes.

2) If required, adjusting the primary air to ensure that the ﬂ ame does not carbon. First allow the unit to burn for 15-20 min. to stabilize.

3) Check for proper draft.

CAUTION: Any alteration to the product that

causes sooting or carboning that results in damage is not the responsibility of the manufacturer.

LOCATING YOUR

GAS STOVE

When selecting a location for your stove, ensure that the clearances on this page are met as well as ensuring that there is adequate accessibility for servicing and proper operation.

A) Cross Corner B) Room Divider C) Island D) Flat on Wall E) Flat on Wall Corner F) Flush with Wall/Alcove

For Vent T ermination requirements, see "Exterior Vent Terminal Locations" section.

COMBUSTION AND

VENTILA TION AIR

The combustion air from this appliance is drawn from outside the building through the outer

ﬂ ue. Extra provision for combustion air is not required.

CLEARANCES TO

COMBUSTIBLES

The clearances listed below are MINIMUM distances. Measure the clearance to both the appliance and the chimney connector. The farthest distance is correct if the two clearances do not coincide. For example, if the appliance is set as indicated in one of the diagrams but the back is too close, move the stove until the correct clearance to the back is obtained.

This unit can be installed on a solid combustible surface like a wood ﬂ oor. This unit can also be installed directly on carpeting or vinyl when the bottom pedestal cover plate (provided with the unit) is installed.

This appliance may be installed only with the clearances as shown in the situations pictured. Do not combine clearances from one type of installation with another in order to achieve closer clearances.

Use the minimum clearances shown in the diagrams below:

C34 Clearance to Combustibles

A Side Wall to Unit 10" / 250 mm B Back Wall to Unit 6" / 150 mm E Side Wall to Unit 1.5" / 38 mm

C34 Reference Dimensions

C Back Wall to Flue Centerline 13" / 330 mm D Side Wall to Flue Centerline 22" / 559 mm F Side Wall to Flue Centerline 14" / 356 mm

5) Make gas and electrical connections. Refer to "Gas Connection" section. Test the pilot. Must be as per diagram in "Pilot Adjustment" section.

6) Test gas pressure. Refer to "Gas Pipe Pressure Testing" section.

7) Install standard and optional features. Refer to the following sections where applicable:

a. Log Installation b. Door and Glass Frame c. Door Handle d. Remote Control e. Remote Wall switch f. Wall Thermostat

8) Final check. Refer to "Final Check" section.

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not cut

or weakened during installation.

2) Ensure proper grounding using the #8 ground lug provided. See "Optional Fan Installation" section.

3) Appliance must be anchored to the ﬂ oor. See "Pedestal Assembly" & "Leg and Bottom" sections.

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

Minimum ceiling height is 36" / 914 mm from top of unit.

Minimum clearance to vent 1-1/4" (32mm).

INSTALLATION

OPTIONAL FAN INSTALLATION

For pedestal unit: To install the fan in an

installed stove-access from front through the pedestal by following the directions below. If the stove is not installed - access through rear and follow steps 4 to 17.

For leg unit: remove 7 screws, remove bottom

access panel and install fan assembly, follow steps 4 to 17.

IMPORTANT

Disconnect power supply

before servicing

1) Open pedestal door and remove door cover plate by removing 4 screws. See diagram

2) Remove valve cover plate by removing 2 screws.

3) Remove wire from piezo ignitor.

4) Screw the four 8-32 x 3/4 screws provided

into the nutserts as shown in diagram 3. Do not tighten screws.

5) Push all the fan wires through the hole on the fan assembly. See diagram 2.

Diagram 2

6) Put power cord (shown in diagram 3) through

the hole and pull through to the front of the unit for easier installation of ground wire.

9) Lift the fan assembly in through the pedestal and up through the cut out as shown in diagrams 3 and 4.

Diagram 3

Diagram 1

Caution: Ensure that the wires do not touch any hot surfaces.

7) Place the fan assembly partially in door

cover plate hole. See diagram 2.

8) Attach the 2 ground wires (green) to the ground lug as per diagram 2.

Note: Ground lug is located on the bottom

of the fan assembly. See diagram

Diagram 4

Note: The #8 ground lug is a dedicated ground for mobile home use only.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 9

INSTALLATION

10) Put the insulation gasket on the back of

the fan. Line up the keyhole slots with the matching screws and pull back slightly to lock into place. While holding fan assembly in place, tighten screws.

11) Remove the dummy plug from the right side of the bottom shield or pedestal and install the supplied fan switch.

12) Attach the hot wire from power cord to the thermodisc.

13) Slide thermodisc under the thermodisc bracket.

14) Connecting wires to the 3 way switch:

a. Connect the red wire from the fan to the

top of the 3 way switch.

b. Connect black wire from fan to the bottom

of the 3 way switch.

c. Connect white jumper wire to middle of

the three way switch. See wiring diagram below.

15) Connect white wire from fan motor to neutral on the power cord.

16) Pull power wire back and put strain relief grommet in place as per diagram 4.

PEDEST AL ASSEMBLY

1) For easier assembly, tip the stove on its back

(preferably onto a soft surface to prevent scratching).

2) Unscrew the 4 bolts in the underside of the stove. Align the holes in the corners of the pedestal top with the corresponding holes in the base of the stove. Use washers which are supplied with the pedestal as shown in diagram. Reinstall bolts.

LEG AND BOTTOM

SHIELD ASSEMBLY

These instructions apply to the steel leg, painted cast leg and the gold plated cast leg. It will be easier to attach the legs to the stove if it is tipped on its back (preferably on a soft surface to prevent scratching).

1) Remove the 4 bolts in the underside of the base and discard.

2) Slide the bolt and washer (supplied with the bottom shield) through the leg, then slide the bottom shield in between the leg and the base of the stove. Tighten the bolts.

3) Hook up the Burner ON/OFF switch.

4) Level the stove by adjusting the levelling

bolts in the bottom of each leg.

17) Reverse steps 3-1 to complete installation.

Fan Removal

1) Disconnect the power to the fan.

2) Allow the stove to cool to room tempera-

ture.

3) Open the pedestal door and remove the screws on the door cover plate. (Leg units: remove the bottom access panel.)

4) Loosen the screws of the nutserts.

5) Remove the fan assembly from the key slots

at the fan base and pull fan out through the rectangular opening. (Diagram 3).

6) Turn fan 90 degrees. (Diagram 2). (Pedestal units only).

7) Disconnect the green ground wires to the grounding lug.

8) Disconnect the white wire of the fan from the power cord.

9) Disconnect the red wire and black wire (from fan to Fan Switch).

3) Hook up wires to Burner ON/OFF switch and valve assembly (be careful not to pinch wires). See diagram above.

4) Push the Regency® logo into the two holes in the front bottom left corner of the pedestal cover plate.

Note: Any paint touch up should be done

prior to placing logo on pedestal.

Anchoring Brackets Hold Down Package Part# 846-585

10) T ake fan out from the stove body. (Diagram

1).

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

INSTALLATION

VENTING

INTRODUCTION

The DV Stove Horizontal Vent Kit and the Simpson Dura-Vent Direct Vent venting systems, in combination with the Classic Direct Vent Freestanding Gas Stove, C34-NG and C34-LP , have been tested and listed as direct vent heater systems by Warnock Hersey.

If converting a Class-A Metal Chimney or Masonry Chimney to a Direct Vent system, see instructions in "Converting Class-A Metal Chimney or Masonry Chimney to Dreict Vent System" section.

The C34 uses the "balanced ﬂ ue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer pipe draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.

Note: These ﬂ ue pipes must not be con-

nected to any other appliance.

The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.

IMPORTANT

Read all instructions carefully before starting the installation. Failure to follow these instructions may create a ﬁ re or other safety hazard, and will void the warranty. Be sure to check the venting and clearance to combustible requirements. Consult your local building codes before beginning installation.

INSTALLATION PRECAUTIONS

These venting systems are engineered products that have been designed and tested for use with the C34-NG and the C34-LP . The warranty will be voided and serious ﬁ re, health or other safety hazards may result from any of the following actions:

1) Installation of any damaged Direct Vent component

2) Unauthorized modiﬁ cation of the Direct Vent System

3) Installation of any component part not manufactured or approved by Simpson Dura-Vent or Fireplace Products International Ltd.

4) Installation other than as instructed by Simpson Dura-Vent and Fireplace Products International Ltd.

Warning: Always maintain required clearances (air spaces) to nearby combustibles to prevent a ﬁ re hazard. Do not ﬁ ll air spaces with insulation.

Be sure to check the vent termination clearance requirements from decks, windows, sofﬁ ts, gas regulators, air supply inlets and public walkways as speciﬁ ed in the "Exterior Vent Terminal Locations" section and in your local building codes.

The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance must use

it's own separate vent system. Common vent systems are prohibited.

VENT RESTRICTOR

POSITION

Vent restriction is required for certain venting installations, see the diagrams in "Venting Arrangment" section to determine if they are required for your installation.

The vent restrictor has three settings: "C" Center (factory setting), "L" Left, and "R" Right. Simply loosen the screws and push the vent restrictor plate to the correct position. Tighten the screws.

The location of the termination cap must conform to the requirements in the Exterior Vent T erminal Locations diagram in "Exterior Vent Terminal Locations" section.

SAFETY

PRECAUTIONS

FOR THE INSTALLER

1) Wear gloves and safety glasses for protec-

tion.

2) Exercise extreme caution when using ladders or on roof tops.

3) Be aware of electrical wiring locations in walls and ceilings.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 11

INSTALLATION

EXTERIOR VENT TERMINAL LOCATIONS

Minimum Clearance Requirements

A Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)

B Clearance to window or door that may be opened 12"(30cm) 9" (23cm)

C Clearance to permanently closed window **

D Vertical clearance to ventilated sofﬁ t located above the terminal within a horizontal distance of 2 feet (61cm) 18"(46cm) 18"(46cm)

E Clearance to unventilated sofﬁ t 12"(30cm) 12"(30cm)

F Clearance to outside corner: with AstroCap Termination Cap. 6"(15cm) 6"(15cm)

Clearance to outside corner: with all other approved Termination Caps. 12"(30cm) 12"(30cm)

G Clearance to inside corner: with AstroCap Termination Cap 6"(15cm) 6"(15cm)

Clearance to inside corner: with all other approved Termination Caps. 12"(30cm) 12"(30cm)

H Clearance to each side of center line extended above meter/regulator assembly 36"(90cm)

J Clearance to service regulator vent outlet 36"(90cm) *

K Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)

L Clearance to a mechanical air supply inlet 72"(1.8m) 36"(90cm)

M Clearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)

N Clearance under veranda, porch, deck, or balcony 12"(30cm)

In accordance with current CSA B149.1, Natural Gas and Propane Installation Code

In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code

┼

A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings

‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the ﬂ oor

Clearance in accordance with local installation codes and the requirements of the gas supplier

3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly

3 feet (91cm) above - if within 10 feet (3m) horizontally

Canada

┼

‡

USA

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

INSTALLATION

4” X 6-5/8” RIGID PIPE CROSS REFERENCE CHART

Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.

Components from different Manufacturers may not be mixed. Not all rigid pipe components are available directly from Regency.

Description

6” Pipe Length-Galvanized 46DVA-06 4DT-6 N/A 4D6 SV4L6 TC-4DL6

6” Pipe Length-Black 46DVA-06B 4DT-6B N/A 4D6B SV4LB6 TC-4DL6B

7” Pipe Length-Galvanized N/A N/A 4D7 N/A N/A N/A

7” Pipe Length-Black N/A N/A 4D7B N/A N/A N/A

9” Pipe Length-Galvanized 46DVA-09 4DT-9 N/A N/A N/A N/A

9” Pipe Length-Black 46DVA-09B 4DT-9B N/A N/A N/A N/A

12” Pipe Length-Galvanized 46DVA-12 4DT-12 4D12 4D12 SV4L12 TC-4DL1

12” Pipe Length-Black 46DVA-12B 4DT-12B 4D12B 4D12B SV4LB12 TC-4DL1B

18” Pipe Length-Galvanized 46DVA-18 4DT-18 4D18 4D18 SV4LA TC-4DL18

18” Pipe Length-Black 46DVA-18B 4DT-18B 4D18B 4D18B SV4LA TC-4DL18B

24” Pipe Length-Galvanized 46DVA-24 4DT-24 4D24 4D24 SV4L24 TC-4DL2

24” Pipe Length-Black 46DVA-24B 4DT-24B 4D24B 4D24B SV4LB24 TC-4DL2B

36” Pipe Length-Galvanized 46DVA-36 4DT-36 4D36 4D36 SV4L36 TC-4DL3

36” Pipe Length-Black 46DVA-36B 4DT-36B 4D36B 4D36B SV4LB36 TC-4DL3B

48” Pipe Length-Galvanized 46DVA-48 4DT-48 4D48 4D48 SV4L48 TC-4DL4

48” Pipe Length-Black 46DVA-48B 4DT-48B 4D48B 4D48B SV4LB48 TC-4DL4B

60” Pipe Length-Galvanized 46DVA-60 4DT-60 N/A N/A N/A N/A

60” Pipe Length-Black 46DVA-60B 4DT-60B N/A N/A N/A N/A

Adjustable Length 3”-10”-Galvanized N/A N/A N/A 4DAL N/A TC-4DLT

Adjustable Length 3”-10”-Black N/A N/A N/A 4DALB N/A TC-4DLTB

Adjustable Length 7”-Galvanized N/A N/A 4D7A N/A N/A N/A

Adjustable Length 7”-Black N/A N/A 4D7AB N/A N/A N/A

Extension Pipe 8-1/2”-Galvanized 46DVA-08A N/A N/A N/A N/A N/A

Extension Pipe 8-1/2”-Black 46DVA-08AB N/A N/A N/A N/A N/A

Adjustable Length 12”-Galvanized N/A N/A 4D12A N/A SV4LA12 N/A

Adjustable Length 12”-Black N/A N/A 4D12A N/A SV4LBA12 N/A

Extension Pipe 16”-Galvanized 46DVA-16A N/A N/A N/A N/A N/A

Extension Pipe 16”-Black 46DVA-16AB N/A N/A N/A N/A N/A

4” X 6- 5/8” RIGID PIPE CROSS REFERENCE CHART

Simpson

Direct Vent Pro

Selkirk

Direct Temp™

American Metal

Products®

Amerivent Direct

Metal-Fab™

Sure Seal

Security

Secure- Vent®

ICC Excel

Direct

45º Elbow-Galvanized 46DVA-E45 4DT-EL45 4D45L N/A N/A TE-4DE45

45º Elbow-Black 46DVA-E45B 4DT-EL45B 4DT-EL45B N/A N/A TE-4DE45B

45º Elbow Swivel-Galvanized See 46DVA-E45 N/A N/A 4D45L SV4E45 N/A

45º Elbow Swivel-Black See 46DVA-E45B N/A N/A 4D45LB SV4EB45 N/A

90º Elbow-Galvanized 46DVA-E90 4DT-EL90S 4DT-EL90S N/A N/A TE-4DE90

90º Elbow-Black 46DVA-E90B 4DT-EL90SB 4DT-EL90SB N/A SV4EBR90-1 TE-4DE90B

90º Elbow, Swivel-Galvanized See 46DVA-E90 N/A N/A 4D90L SV4E90-1 N/A

90º Elbow, Swivel-Black See 46DVA-E90B N/A N/A 4D90LB SV4EB90-1 N/A

90º Starter Elbow, Swivel-Galvanized N/A N/A N/A 4D90A N/A N/A

Adaptor* N/A N/A N/A 4D90L N/A N/A

Ceiling Support N/A 4DT-CS 4DFSP 4DSP SV4SD TE-4DE45

Cathedral Support Box 46DVA-CS 4DT-CSS 4DRSB 4DRS SV4CSB TE-4DE45B

Wall Support/Band 46DVA-WS 4DT-WS/B 4DWS 4DWS SV4BM N/A

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 13

INSTALLATION

Description

Attic Insulation Shield 12” 46DVA-IS N/A@ FPI N/A 4DAIS12 N/A SV4RSA N/A

Attic Insulation Shield -

Basic Horizontal Termination Kit (A) Disc. 4DT-HKA 4DHTK2 4DHTKA SV-SHK N/A

Horizontal Termination Kit (B) 46DVA-KHA

Vertical Termination Kit Disc. 4DT-VKC 4DHTK 4DHTK SV-FK N/A

High Wind Vertical Cap 46DVA-VCH N/A N/A N/A N/A TM-4VT

High Wind Horizontal Cap 46DVA-HC N/A N/A N/A N/A TM-4DHT

Horizontal Square Termination Cap See

Vertical Termination Cap N/A 4DT-HVC 4DVC 4DVT SV4CGV-1 TM-4VT

Storm Collar 46DVA-08A 4DT-SC 4DSC 4DSC SV4FC TM-SC

Adjustable Flashing 0/12-6/12 N/A 4DT-ST14 4D12S 4DST14 SV4STC14 TF-4FA

Adjustable Flashing 6/12-12/12 N/A 4DT-ST36 4D36S 4DST36 SV4STC36 TF-4FB

Vinyl Siding Standoff 46DVA-VSS 4DT-VS N/A 4DVS SV4VS TM-VSS

Vinyl Siding Shield Plate N/A 4DT-VSP N/A N/A SV4VS N/A

Snorkel Termination 14” 46DVA-VCH N/A N/A N/A N/A TM-4ST14

Snorkel Termination 36” 46DVA-HC N/A N/A N/A N/A TM-4ST36

Restrictor Disk 46DVA-RD N/A N/A N/A N/A TM-4DS

Extended Vertical Termination Cap 46DVA-VCE N/A N/A N/A N/A N/A

Chimney Conversion Kit A (USA only) 46DVA-KCA N/A N/A N/A N/A TM-4CA6

Chimney Conversion Kit B (USA only) 46DVA-KCB N/A N/A N/A N/A TM-4CA7

Chimney Conversion Kit C (USA only) 46DVA-KCC N/A N/A N/A N/A TM-4CA8

Chimney Conversion Kit Masonry (USA only)

Wall Firestop 46DVA-WFS N/A N/A N/A N/A TM-4TR

Colinear Flex Connectors 46DVA-ADF N/A N/A N/A N/A N/A

Cold Climates 36” N/A N/A 4DAIS12 N/A N/A TM-4AS

Simpson

Direct Vent Pro

(Changed Components)

46DVA-HC 4DT-HHC 4DHC 4DHT SV4CHC-1 TM-4HT

46DVA-KMC N/A N/A N/A N/A N/A

Selkirk

Direct Temp™

4DT-HKB 4DHTK1 4DHTKB SV-HK N/A

American Metal

Products®

Amerivent Direct

Metal-Fab™

Sure Seal

Security

Secure- Vent®

ICC Excel

Direct

FPI

946-506/P Vent Guard (Optional) for AstroCap 946-205 Vinyl Siding Shield for Riser Vent Terminal

510-994 Rigid Pipe Adaptor (Must use with all rigid piping) 946-208/P Vent Guard (Optional) for Riser Vent Terminal

640-530/P Riser Vent Terminal 946-523/P AstroCap Horizontal Cap

946-605 Starter Collar Increaser 4” x 6-5/8” to 5” x 8” 946-206 Vinyl Siding Standoff for AstroCap

Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).

Offset Pipe Selection: Use this table to determine offset pipe lengths.

Pipe Length

(L)

0” (0mm) 4-7/8” (124mm) 13-7/8” (340mm) Simpson Direct Vent Pro: www.duravent.com

6” (152mm) 8” (203mm) 16-1/2” (419mm) Selkirk Direct-Temp: www.selkirkcorp.com

9” (229mm) 10-1/8” (257mm) 18-5/8” (473mm) American Metal Products: www.americanmetalproducts.com

12” (305mm) 12-1/4” (311mm) 20-3/4” (527mm) Metal-Fab Sure Seal: www.mtlfab.com

24” (610mm) 20-5/8” (524mm) 29-1/8” (740mm) Security Secure Vent: www.securitychimneys.com

36” (914mm) 29” (737mm) 37-1/2” (953mm) Industrial Chimney Company: www.icc-rsf.com

48” (1219mm) 37-7/16” (951mm) 45-15/16” (1167mm)

Note: Horizontal runs of vent must be level, or have a 1/4” rise for every 1 foot of run towards the termination. Never allow the vent to run downward - this could cause high temperatures and may present a possible ﬁ re hazard.

4” x 6-5/8” Venting For speciﬁ c instructions on venting components - visit the

Run (X) Rise (Y)

Regency

manufacturers website listed below.

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

INSTALLATION

RIGID PIPE VENTING SYSTEMS

Horizontal or Vertical Terminations

Alternate

Horizontal

Termination

Caps

WARNING:

Do not combine venting components from different venting systems.

However use of the the AstroCapTM and FPI Riser is acceptable with all systems.

This product has been evaluated by Intertek for use with Duravent Direct-Vent , Selkirk DirectTemp, Ameri Vent Direct venting and Security Secure Vent systems.

Vertical

Termination

Cap

Storm Collar

Flashing

Ceiling Firestop

Pipe Length

90 Elbow

24" Pipe

Length

Vinyl Siding

Standoff (Optional)

Horizontal

Termination Cap

# 946-523/P

Wall Thimble

Adj.Pipe Length

11" - 14-5/8"

When using Rigid Vent other than

Simpson Dura-Vent, 3 screws must be

used to secure rigid pipe to unit.

The FPI AstroCap can Metal Products Ameri Vent Direct Vent, Security Secure Vent®, Selkirk Direct-Temp. AstroCapTM is a proprietary trademark of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 15

and FPI Riser Vent terminal are certiﬁ ed for installations using FPI venting systems as well as Simpson Dura-Vent® Direct Vent, Ameri-

INSTALLATION

VENTING ARRANGEMENTS

HORIZONTAL TERMINATIONS FOR

ALL VENTING SYSTEMS

The shaded areas in the diagram below show all allowable combinations of vertical runs with horizontal term-inations. Maximum one 90O elbow (two 45o elbows equal one 90o elbow).

Propane and Natural Gas: Residential, Manufactured

and Mobile Homes Installations

The venting arrangements diagrammed below, have a min. of 75% (ﬂ ue loss) efﬁ ciency with Fan Off, as required for manufactured homes. (Actual efﬁ ciency may be as high as 85%)

May be installed in Manufactured (Mobile) Homes after ﬁ rst sale.

VENTING ARRANGEMENTS

VERTICAL TERMINATION SYSTEMS

FOR RESIDENTIAL MANUFACTURED

AND MOBILE HOMES

The shaded area in the diagram below shows all allowable combinations of straight vertical and offset to vertical runs with vertical terminations. Maximum two 45o elbows.

All vertical and offset to vertical vent installations require Vent Restrictor Position "R" (Right). If the vent is ENCLOSED in a chase (min. size 9" x 9") maintain a 1-1/4" clearance to combustibles.

May be installed in Manufactured (Mobile) Homes after ﬁ rst sale.

Straight Vertical and Offset to Vertical Terminations

use Vent Restrictor Position "R" (Right)

NOTE: See "Vent Restrictor Position" section for installation instructions for the Vent Restrictor Position.

Venting Arrangements Examples:

Example A) Venting has a horizontal termination. A 7 ft. vertical run with 6 ft. horizontal run does not fall within the shaded area, and therefore is an allowable installation with

Example B) Offset to Vertical Vent. A 15 ft. vertical run with 4 ft. horizontal offset distance falls within the shaded area and is an allowable installation with Vent

the factory set vent restrictor position of "C".

Restrictor Position "R" (Right).

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

INSTALLATION

One 90o elbow = Two 45o elbows.

Option V H + H1

A) 4' Min. 6' Max. B) 5' Min. 7' Max. C) 6' Min. 8' Max.

With these options, maximum total pipe length is 30 feet with minimum of 6 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Lengths do not include elbow indicated.

Vent restrictor position C (fully open), refer to "Vent Restrictor Position" section.

Horizontal Venting with Two (2) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H V + V1 A) 1' Min. 4' Max. 2' Min. B) 2' Min. 5' Max. 3' Min. C) 3' Min. 6' Max. 4' Min. D) 4' Min. 7' Max. 5' Min. E) 5' Min. 8' Max. 6' Min.

Lengths do not include elbow indicated. Vent restrictor position C (fully open), refer to "Vent Restrictor

Position" section

Vertical Venting with Two (2) 90o Elbows

With these options, max. total pipe length is 30 feet with min. of 6 feet total vertical and max. 8 feet total horizontal.

Please note min. 1 foot between 90o elbows is required.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 17

DV STOVE HORIZONTAL VENT KIT

DV 2 ft. Stove Vent Kit (Part # 946-116) and DV 4 ft. Stove Vent Kit (946-216) include all the parts needed to install the C34 with minimum horizontal and vertical vent dimensions. For installations that require longer vertical and/or horizontal vents use the Dura-Vent system as shown in "Dura-V ent T ermination Kit" & "Dura-V ent V enting Components" section.

Qty. Description

1) 1 Rigid Pipe Section (Kit # 946-116: 2 ft. (1.2m) length,

Kit # 946-216: 4 ft. (1.2m) length), 6-1/2" (165mm) inside diameter

2) 1 Flex Liner, compressed aluminium 2 ply liner, 4" (102mm) inside diameter

3) 4 spring spacers

4) 1 90 deg. Elbow

5) 1 Adjustable pipe section 13-1/2" to 24" (343mm x 610mm), 2 pieces

6) 1 Thimble Cover

7) 1 Wall Thimble (2 pcs.)

8) 1 Adapter

9) 1 AstroCap Termination Cap

10) 2 Trim Collar

11) 1 tube of Mill-Pac, high temperature sealant

12) 12 Screws, #8 x 1/2" Self tapping, Stainless Steel

13) 14 Screws, #8 x 1/2" Self tapping, Black

14) 4 Screws #8 x 1-1/2" Drill Point, Black

15) 4 Screws #8 x 1-1/2" Drill Point, Stainless Steel

16) 8 Wood screws #8 x 1"

INSTALLATION

Optional:

946-206 Vinyl Siding Standoff for AstroCap

Note: a) Liner sections should be continuous without any joints or seams. b) This is an approved system, therefore components in this system must not be

substituted for any other manufacturer's products.

DV STOVE HORIZONTAL VENT KIT (#946-116 & #946-216) INSTALLATION

Review the following sequence of instructions which are typical of most installations. The sequence may vary depending on wall thickness.

See "Locating Y our Gas Stove" to "Exterior Vent Terimnal Locations" sections for vent location and clearance dimensions.

1) Set the unit in its desired location. Check to determine if wall studs will be in the way of the venting system, adjust location until all clearances are met and there are no obstructions.

Note: A 1-1/2"(38mm) clearance around the

outer pipe must be maintained except that only a 1" (25mm) clearance is needed at the termination end.

IMPORTANT: Do not locate termination hood where excessive snow or ice buildup may occur. Be sure to check vent termination area after snow falls, and clear to prevent accidental blockage of venting

system. When using snow blowers, make sure snow is not directed towards

vent termination area.

2) Assemble a trial ﬁ t to determine the verti- cal center-line for the vent termination.

a) Cut a 9-1/2" x 9-1/2" (241mm x 241

mm) square hole on both the interior and exterior wall.

b) Install wall thimbles on both interior

and exterior wall with 4 wood screws (#8 x 1") per thimble.

c) Attach the 2 piece adjustable pipe sec-

tion to the vent terminal and slide into position from the exterior. The larger

diameter end of the adjustable pipe goes to the vent terminal.

d) Install the 90o elbow onto the adjust-

able pipe to determine the vertical centerline of the starter collar on the unit.

Note: if the centerline cannot be

met, the adjustable sections will have to be cut.

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

INSTALLATION

e) Cut the 2 ft. or 4 ft. section of rigid pipe

to length. Ensure that the pipe length when cut will seat onto both the starter collar and the 90

section of rigid pipe seats into the 90o elbow. Only cut the uncrimped side of pipe.

Dismantle all pipe sections including vent

terminal.

3) Attach the 4" dia. ﬂ ex liner to the vent terminal ensuring that the ﬂ ex overlaps the collar of the vent terminal by a minimum of 1-3/8"(35mm). Use Mill-Pac to seal and secure with 3 of the #8 x 1/2" screws (stainless steel).

4) Attach the adjustable pipe section to the vent terminal using Mill-Pac and/or high temperature silicone and attach with 3 of the #8 x 1/2" screws (stainless steel).

elbow. Crimped

Note: The four screws provided for the

Hint: Apply the sealant (Mill-Pac and/or high temperature silicone) to the outer pipe before connecting the inner pipe.

Note: The pipe seam should be facing

down.

Note: To make the installation more aesthet-

ically pleasing, we recommend framing out a square that the cap can be mounted on.

Note: If installing termination on a siding

covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding. For vinyl siding standoff installation refer to the Dura-Vent Termination instructions.

5) Slide the partially connected pipe and vent terminal assembly through the wall thimbles (from the exterior into the interior) and secure the cap to the exterior wall with 4 of the supplied screws (#8 x 1-1/2" drill point, stainless steel). Note: pilot holes will need to be drilled through the wall thimble on all 4 corners.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 19

vent cap should be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

6) A bead of non-hardening mastic should be run around both the termination and vinyl siding standoff to prevent water from entering and to make a tight seal between the cap and the standoff.

7) Stretch the 4" dia. ﬂ ex liner out fully and get a trial ﬁ t of the liner onto the 4" dia. starter collar.

8) Cut the 4" dia. ﬂ ex liner to the desired size.

Hint: leave an extra 12" to 16" of length,

this will make the ﬁ nal assembly easier to work with.

9) Secure the 4" dia. ﬂ ex liner to the 4" adapter with Mill-Pac and 3 of the #8 x 1/2" screws (stainless steel).

10) Slide the decorative Thimble Cover over the pipe sections and secure with 4 screws (#8 x 1-1/2" drill point, black) to the wall.

Slide the trim collar over the adjustable pipe

sections to cover the joint of the telescopic section.

11) Slide the 90 2 ft. or 4 ft. pipe section (crimp end up) over the 4" dia. ﬂ ex liner.

elbow (crimp end up) and the

12) Install the spring spacers onto the pipe sections.

13) Secure the 4" dia. ﬂ ex liner with adapter onto the stove collar. Put a bead of Mill-Pac around the appliance adapter and secure with 3 screws (#8 x 1/2, stainless steel).

14) Attach the pipe section onto the starter collar by sealing with Mill-Pac and/or high temperature silicone and securing with 3 of the #8 x 1/2" (black) screws. Pipe seams should be facing the wall.

15) Attach the 90o elbow onto the pipe section by sealing with Mill-Pac and/or high temperature silicone and securing with 3 of the #8 x 1/2" screws (black).

16) Slide the adjustable pipe section onto the 90o elbow. The ﬂ ex may have to be com- pressed back in order for the adjustable pipe to properly mate to the elbow. Seal with Mill-Pac and/or high temperature silicone and secure with 3 of the #8 x 1/2" screws (black). Pipe seams facing down.

17) Install the trim collar over the starter collar and secure with a #8 x 1/2" screw (black).

If the pipe needs to be touched up, use only Stove Brite High Temperature Metallic Black Stove Paint.

NOTE: All inner joints must be sealed with

Mill-Pac. All outer joints may be sealed with high temperature silicone.

INSTALLATION

DURA-VENT

TERMINATION KIT

Planning Y our Dura-Vent

Installation

There are two basic types of Dura-Vent Direct Vent System installations: horizontal termination and vertical termination. Conﬁ rm the maximum horizontal run and maximum vertical rise from the diagrams in "Venting Arrangments" section.

When planning your installation, it will be necessary to select the proper length of vent pipe for your particular requirements. For horizontal installations, determine the minimum clearance from the rear of the unit to the wall. It is also important to note the wall thickness. (The wall thimble is suitable for 2 x 4 or 2 x 6 wall construction.) Select the amount of vertical rise desired for "vertical-to-horizontal" type installations.

Warning: Always maintain required clearances (air spaces) to nearby combustibles to prevent a ﬁ re hazard. Do

not ﬁ ll air spaces with insulation.

The minimum clearance of 1-1/4" (32mm) is required between the outer wall of the vent pipe and nearby combustible surfaces. Be sure to check the vent termination clearance requirements from decks, windows, sofﬁ ts, gas regulators, air supply inlets and public walkways as speciﬁ ed in the "Exterior Vent T erminal Locations" section and in your local building codes.

If installing termination on a siding covered wall, a vinyl siding standoff or furring strips can be used in order to ensure that the termination is not recessed into siding.

The vinyl siding standoff is required for walls with vinyl siding.

Basic

Horizontal Kit

Elbow

1 90 1 Wall Thimble Cover 1 Horiz. Sq. Term. Cap

To determine the length of vent pipe required for vertical installations, measure the distance from the unit ﬂ ue outlet to the ceiling, the ceiling thickness, the vertical rise in an attic or second storey, and allow for sufﬁ cient vertical height above the roof line.

For multi-storey applications, ﬁ re stops are required at each ﬂ oor level. If an offset is needed, additional pipe, elbows and supports will be required.

Y ou will require the following Dura-Vent venting components with your new CLASSIC Direct Vent Freestanding Gas Stove. Please review your product to make sure you have everything you need. In the event that you are missing any part, contact your dealer.

Note: These are the minimum components

required. Other parts may be required for your particular installation. See "Rigid Pipe Venting Components List" section.

Alternate Horizontal

Termination Caps

Alternate Snorkel

Termination Cap

Alternate Horizontal Riser Vent Terminal Part# 640-530/P

The FPI AstroCap tems as well as Simpson Dura-Vent® Direct Vent , American Metal Products Ameri Vent Direct Vent, Security Secure Vent®, Selkirk Direct-Temp. AstroCapTM is a proprietary trademark of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

and FPI Riser Vent terminal are certiﬁ ed for installations using FPI venting sys-

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

INSTALLATION

DURA-VENT

HORIZONTAL

INSTALLATIONS

1) Set the unit in its desired location. Check

to determine if wall studs or roof rafters are in the way when the venting system is attached. If this is the case, you may want to adjust the location of the unit.

2) Direct Vent pipe and ﬁ ttings are designed with special twist-lock connections to connect the venting system to the appliance ﬂ ue outlet. A twist-lock appliance adaptor is installed on the unit at the factory. Assemble the desired combination of pipe and elbows to the appliance adaptor with pipe seams oriented towards the wall or ceiling, as much out of view as possible. The ﬁ nal positioning of the pipe and 90o elbow assembly is determined by the mounting orientation of the adaptor on the stove and twist-locked for a solid connection.

3) With the pipe attached to the stove, slide the stove into its correct location, and mark the wall for a 10" x 10" (inside dimensions) square hole. The center of the square hole should line up with the center-line of the horizontal pipe, as shown in diagram 2. Cut and frame the 10 inch square hole in the exterior wall where the vent will be terminated. If the wall being penetrated is constructed of non-combustible material, i.e. masonry block or concrete, a 7" diameter hole is acceptable.

*Diagram 3, 3a & 4: As specified in CGA B149 Installation Code. Local codes or regulations may require different clearances.

Diagram 3

Note: Riser Vent is only for use in above grade terminations.

Note: a) Twist-lock procedure: Four indentations,

located on the female ends of pipes and ﬁ ttings, are designed to slide straight onto the male ends of adjacent pipes and ﬁ ttings, by orienting the four pipe indentations so they match and slide in to the four entry slots on the male ends (diagram 1). Push the pipe sections completely together, then twist-lock one section clockwise approximately one-quarter turn, until the two sections are fully locked.

The female locking lugs will not be

visible from the outside on the Black Pipe or ﬁ ttings. They may be located by examining the inside of the female ends. Apply sealant "Mill-Pac" to inner pipe and high temperature silicone sealant to outer pipe on every twist-lock joint.

Diagram 1

Hint: Apply silicone to female end.

b) Horizontal runs of vent must be sup-

ported every three feet. Wall straps are available for this purpose.

Diagram 2

Note:

a) The horizontal run of vent must be

level, or have a 1/4 inch rise for every 1 foot of run towards the termination. Never allow the vent to run downward. This could cause high temperatures and may present the possibility of a ﬁ re.

b) The location of the horizontal vent

termination on an exterior wall must meet all local and national building codes, and must not be blocked or obstructed. See diagram 10 in "External Vent Terminal Locations" section.

c) Snorkel Terminations: For installations requiring a vertical rise

on the exterior of the building, 14-inch and 36-inch tall Snorkel Terminations as shown in Diagram 3 are available, as well as the standard Riser Vent, see Diagram 3a. Follow the same installation procedures as used for standard Horizontal Termination. NEVER install the snorkel upside down.

Diagram 3a

Below Grade Installation

If the Snorkel Termination must be installed below grade, i.e. basement application, proper drainage must be provided to prevent water from entering the Snorkel T ermination. Refer to Diagram 4. Do not attempt to enclose the Snorkel within the wall, or any other type of enclosure.

Diagram 4

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 21

INSTALLATION

4) Attach the Vinyl Siding Standoff (if required)

to the Horizontal Vent Termination, but ﬁ rst run a bead of non-hardening mastic around its outside edges, so as to make a seal between vent cap and the standoff. Install the Vinyl Siding Standoff between the vent cap and the exterior wall and attach with the four wood screws provided. Seal around the Vinyl Siding Standoff on all four sides. Diagram 5. The arrow on the vent cap should be pointing up. Insure that the 1-1/4" clearances to combustible materials are maintained. See diagram 5.

Diagram 5

Diagram 6

7) Install Wall Thimble in the center of the 10" square and attach with wood screws (in Canada).

8) Slide the decorative wall thimble up to the wall surface being careful not to scratch the paint and attach with screws provided. Apply decorative brass or chrome trim if desired. See diagram 7.

the roof. Determine if ceiling joists, roof rafters or other framing will obstruct the venting system. You may wish to relocate the appliance or to offset, as shown in diagram 9 to avoid cutting load bearing members.

3) To install the Round Support Box/W all Thimble in a ﬂ at ceiling, cut a 10 inch square hole in the ceiling centered on the hole drilled in Step 2. Frame the hole as shown in diagram

Diagram 9

Note: If installing termination on a siding

covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding. The four wood screws provided should be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

5) Before connecting the horizontal run of vent

pipe to the vent termination, slide the black decorative wall thimble cover over the vent pipe, then slide the Wall Thimble over the vent pipe.

6) Slide the appliance and vent assembly towards the wall carefully inserting the vent pipe into the vent cap assembly. It is important that the vent pipe extends into the vent cap a sufﬁ cient distance so as to result in a minimum pipe overlap of 1-1/4 inches. Secure the connection between the vent pipe and the vent cap by attaching the two sheet metal strips extending from the vent cap assembly into the outer wall of the vent pipe. Use the two sheet metal screws provided to connect the strips to the pipe section. Bend any remaining portion of the sheet metal strip back towards the vent cap, so it will be concealed by the decorative wall thimble cover. See diagram 6.

Diagram 7

VERTICAL

TERMINATION

1) Maintain the 1-1/4" clearances

(air spaces) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafter, or other nearby combustible surfaces.

Do not pack air spaces with

insulation. Check "Venting Arrangments" section for the maximum vertical rise of the venting system and the maximum horizontal offset limitations.

2) Set the gas appliance in its desired location. Drop a plumb bob down from the ceiling to the position of the appliance ﬂ ue exit, and mark the location where the vent will penetrate the ceiling. Drill a small hole at his point. Next, drop a plumb bob from the roof

to the hole previously drilled in the ceiling, and mark the spot where the vent will penetrate

Diagram 8

10.

4) Assemble the desired lengths of black pipe and elbows necessary to reach from the appliance adaptor up though the Round Support Box. Ensure that all pipes and elbow connections are in the fully twist-locked position and sealed.

5) Cut a hole in the roof centered on the small drilled hole placed in the roof in Step 2. The hole should be of sufﬁ cient size to meet the minimum requirements for clearance to combustibles of 1-1/4". Slip the ﬂ ashing under the shingles (shingles should overlap

Diagram 11: The upper half of the ﬂ ashing is

installed under the rooﬁ ng material and not

nailed down until the chimney is installed. This

allows for small adjustments.

half the ﬂ ashing) as per diagram 11.

6) Continue to assemble pipe lengths.

Note: If an offset is necessary in the attic to

avoid obstructions, it is important to

Diagram 10

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

INSTALLATION

support the vent pipe every 3 feet, to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose. See diagram 9.

Galvanized pipe and elbows may be utilized

in the attic as well as above the rooﬂ ine. The galvanized ﬁ nish is desirable above the rooﬂ ine due to its higher corrosion resist- ance.

Continue to add pipe sections through the

ﬂ ashing until the height of the vent cap meets the minimum height requirements speciﬁ ed in diagram 12 or local codes. Note that for steep roof pitches, the vertical height must be increased. A poor draft, or down drafting can result from high wind conditions near big trees or adjoining roof lines, in these cases, increasing the vent height may solve the problem.

Diagram 12

Diagram 13

Offset Chart

Slope "X" 0/12 - 2/12 4"

2/12 - 7/12 5-1/2" 7/12 - 12/12 6-3/4" 12/12 - 24/12 7-1/2" 24/12+ 12-1/2"

Using a level, make sure the support is

vertical. If the support extends above the roof, cut it ﬂ ush with the top of the roof. Nail the support to the frame opening using (8) 3" spiral nails or #8 x 1-1/2" screws.

Roof Pitch Minimum Vent Height Feet Meters ﬂ at to 7/12 2 0.61 over 7/12 to 8/12 2 0.61 over 8/12 to 9/12 2 0.61 over 9/12 to 10/12 2.5 0.76 over 10/12 to 11/12 3.25 0.99 over 11/12 to 12/12 4 1.22 over 12/12 to 14/12 5 1.52 over 14/12 to 16/12 6 1.83 over 16/12 to 18/12 7 2.13 over 18/12 to 20/12 7.5 2.29 over 20/12 to 21/12 8 2.44

7) Ensure vent is vertical and secure the base of the ﬂ ashing to the roof with rooﬁ ng rails, slide storm collar over the pipe section and seal with a mastic.

CATHEDRAL CEILINGS

Round Support (RDS) & Square

Support (SQS)

8) Install the vertical termination cap by twist

locking it.

Notes: a) For multistorey vertical installations, a

Ceiling Fire stop (Part# 963) is required at the second ﬂ oor, and any subsequent ﬂ oor. See diagram 13. The opening should be framed to 10 " x 10" inside dimensions, in the same manner as shown in diagram 10.

b) Any occupied areas above the ﬁ rst ﬂ oor ,

including closets and storage spaces, through which the vertical vent passes, must be enclosed.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 23

If your home has a cathedral ceiling (no attic space between the ceiling and the roof), install the chimney and support as follows.

1) Situate the chimney in a convenient location as near as possible to the appliance outlet. Cut and frame a hole in the roof for the support. The sides of this hole must be vertical with 1-1/4" clearance.

2) Place the support in the opening. Lower it to the correct height as determined by the table and diagram below.

Note: If you are using a 6" square support

you may ﬁ nd it difﬁ cult to screw it in place because it is fairly small inside.

Simpson Dura-Vent has provided angle

brackets with this support which can be screwed to the outside of the support box and nailed to surrounding framing as required. Use a minimum of four #8 x 1/2" screws per bracket. In some cases these brackets may need to be trimmed (e.g.: to ﬁ t under a ﬂ ashing). Place the Finish Collar around the support and fasten it to the ceiling using the screws provided.

3) Use appropriate roof ﬂ ashing. Place the ﬂ ashing under the upper shingles and on top

of the lower shingles approximately half of the ﬂ ashing should be under the shingles.

4) Assemble the desired lengths of Black Pipe and Elbows necessary to reach from the appliance adaptor up through the support box and ﬂ ashing to proper height as per Diagram 12, local codes or "Exterior Vent Terminal Locations" section. Ensure that all pipe and elbow connections are in their fully twist lock position.

5) Ensure vent is vertical and secure ﬂ ashing to the roof with rooﬁ ng nails. Slide the storm collar over the pipe section and seal with a mastic.

6) Twist lock the vent cap on to the last section.

INSTALLATION

Support extensions - Round

(RDSE) or square (SQSE)

Steep pitched cathedral ceilings may require the use of a support extension. This piece ﬁ ts down inside the support and can be adjusted to increase the support's length by up to 22". The extension is attached to the support using the eight metal screws provided. Be sure there is at lease a 2 inch overlap where the extension joins the support.

CONVERTING

CLASS-A METAL

CHIMNEY OR

MASONRY CHIMNEY TO

DIRECT VENT SYSTEM

General

There are two different types of direct vent conversion systems listed below. Follow the appropriate directions for your installation.

A) Through an existing factory built metal

chimney going through the ceiling: A typical conversion of this type is shown in diagram

1. The concept of direct vent conversion is to connect an adaptor to an Underwriters Laboratories (UL) listed 4 inch diameter aluminum ﬂ ex pipe which is then passed down through the center of the existing metal chimney system. Three sizes of T op Adaptors are available from Simpson Dura-Vent. The Retro Connector is attached to the bottom of the ﬂ ex pipe. The Top Adaptor and the Retro Connector are attached to the existing chimney with sheet metal screws. The appliance is then connected to the chimney with appropriate black direct vent pipe and an adjustable length section.

B) Through the wall of an existing masonry

chimney: A typical conversion of an existing masonry chimney is shown in Diagram

6. A Top Adaptor and Flashing are used at the top of the masonry chimney. The 4 inch aluminum liner is connected to the adaptor and is passed down the chimney and out through the masonry wall and attached to the Retro Connector . The Retro Connector is attached to the masonry wall and then connected to the direct vent pipe leading to the appliance.

The direct vent system must not be connected to a damaged factory-built or masonry chimney.

For factory built, zero clearance, and masonry chimneys cleanout doors and caps or plugs for cleanout tee ﬁ ttings and ash dumps shall be secured in place and sealed before installing a Direct Vent system within the chimney.

If the appliance shuts off during operation, contact a qualiﬁ ed service person to de- termine if a negative pressure and/or leaky chimney condition exists. Do not operate the appliance until the problem is corrected.

Appoved for US Installations Only The use of an existing chimney as an air intake is not covered under theANSI Z21.88a-2007 / CSA 2.33a-2007 test methods and the resulting ITS/WHI product certiﬁ ca- tion. The code Authority Having Jurisdiction must be consulted prior to proceeding with this installation method.

Converting a Factory Built Metal

Chimney

1) Remove the existing chimney cap.

2) Measure the distance from the top end of the chimney to the bottom of the ceiling support box, add 3" (76mm) to this measurement, and cut a section of the 4" ﬂ ex pipe to that length (the ﬂ ex should already be extended to its nominal length).

3) Connect the end of the ﬂ ex pipe section to the underside of the T op Adaptor using 3 sheet metal screws. Diagram 2.

Diagram 2

4) Pass the ﬂ ex pipe down through the center of the chimney system, and center the adaptor on the top of the chimney pipe. Drill four 1/8" diameter holes through the adaptor and into the chimney top. Insure that you are in fact, drilling into the metal on the chimney. Twist-lock the T ermination Cap onto the Adaptor. (Diagram 3 and 4).

Diagram 3

Diagram 4

5) Pull the ﬂ ex pipe down through the ceiling support box, until it protrudes approximately 3" (76mm). Connect the ﬂ ex pipe to the Retro Connector by slipping it into the

4-3/4" diameter sleeve on the top side of

the Connector. Use 3 sheet metal screws to assemble these two parts.

6) Push the ﬂ ex pipe back up into the ceiling support box, center the Retro Connector, and attach it to the support box, or decorative sleeve for double wall solid packed pipe, with the sheet metal screws (supplied). The holes in the Retro Connector are prepunched. Diagram 5.

Prior to installation and connection of the vent system to a factory-built or masonry chimney, the chimney must be inspected and thoroughly cleaned by a qualiﬁ ed service person, such as a certiﬁ ed chimney sweep or home inspection service.

Diagram 1

Regency

Diagram 5

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

INSTALLATION

7) The connection between the appliance and the Retro Connector may be completed with sections of black direct vent pipe, together with an adjustable length.

Converting a Masonry Chimney

Important: The existing masonry ﬂ ue open- ing needs to have an area of at least a 36 sq. in. to insure proper intake/exhaust ﬂ ow.

1) Before cutting any holes, assemble the desired sections of black direct vent pipe to determine the center of the masonry penetration.

Diagram 7

4) To determine the length of ﬂ ex required, measure from 3" (76mm) above the top of the Flashing down to the level of the opening. Add to this measurement the distance from the center of the chimney to out through the wall. Cut a piece of 4" ﬂ ex to this length (the ﬂ ex should already be extended to its nominal length).

Diagram 9

9) Slide the Wall Thimble Cover over the Retro Connector and secure with masonry bolts. Diagram 10. If you have a framed wall in front of the masonry, use wood screws to mount the Wall Thimble Cover to the framed wall, over the Retro Connector and the 10" (254mm) square framed opening. Diagram

11. If needed, add a section of direct vent pipe to the Retro Connector in order to extend through the opening in the Wall Thimble Cover.

Diagram 6

2) Once the center point of the penetration has been determined, cut a 6" (152mm) dia. hole in the masonry. Be careful, if the hole is too large, the Retro Connector might not mount properly, and if the hole is too small, then the appliance might starve for intake air. If there is a frame wall in front of the masonry wall, cut and frame a 10" (254mm) clear square opening in the wall (centered around the 6" (152mm) masonry opening). If there is sheet rock only (no studs) in front of the masonry, the 10" (254mm) clear opening is still needed, but does not need to be framed. This allows the Retro Connector to mount directly on the masonry and provide clearance to the combustibles. Diagram 11.

3) Secure the Flashing to the top of the masonry chimney using a bead of non-hardening sealant-adhesive. IF the Flashing is larger than the top of the chimney, then cut and fold ﬂ ashing as needed to ﬁ t chimney. Diagram

5) Connect the 4" ﬂ ex liner to the Top Adaptor using 3 sheet metal screws. Diagram 2.

6) Feed the 4" ﬂ ex liner through the Flashing into the chimney. Continue to feed the liner out through the opening in the masonry wall.

7) Secure the T op Adaptor to the Flashing. Use 3 sheet metal screws through the side of the adaptor into the ﬂ ange on the Flashing (diagram 8). Twist lock the Termination Cap on to the Top Adaptor.

8) Attach the ﬂ ex to the Retro Connector. Use

Diagram 8

3 sheet metal screws to attach the ﬂ ex liner to the Connector. Diagram 9. Mount the Retro Connector to the masonry wall using masonry bolts. Re-drill larger holes on connector as needed. Be careful to insure that the connector is centered in the opening and the mounting holes line up with the masonry wall.

Diagram 10

Diagram 11

10) The connection between the appliance and the Retro Connector may be completed with a section of black direct vent pipe, together with an adjustable length pipe section.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 25

INSTALLATION

SYSTEM DATA

(For 0 to 4,500 feet altitude)

Oriﬁ ce Sizes: Burner Natural Gas #36 Burner Propane #52

Max. Input Rating

Natural Gas 32,000 Btu/h Propane 32,000 Btu/h

Min. Input Rating

Natural Gas 16,000 Btu/h Propane 16,000 Btu/h

Supply Pressure

Natural Gas min. 5.0" w.c max. 8.0" w.c. Propane min. 12.0" w.c. max. 13.0" w.c.

Manifold Pressure High

Natural Gas 3.8" +/- 0.2" w.c. Propane 11" +/- 0.2" w.c.

Manifold Pressure Low

Natural Gas 1.1" +/- 0.2" w.c. Propane 2.9" +/- 0.2" w.c.

Electrical: 120V, 1.13A, 60 Hz. Circulation Fan: 2 speed 75/125 CFM. Log Set: Ceramic ﬁ ber, 4 per set.

Output capacity:

The efﬁ ciency rating of the appliance is a product thermal efﬁ ciency rating determined under continuous operating conditions and was determined independently of any installed

GAS CONNECTION

The gas connection is a 3/8" NPT rigid pipe. This pipe is supplied separately and must be installed at the left rear of the unit. See "Unit Dimensions" section for diagram. The gas line can be rigid pipe or to make installation easier, use a listed ﬂ exible connector and manual shut- off valve if allowed by local codes, or copper if approved. For minimum and maximum supply pressure see the System Data table.

Note: During any pressure testing of the

gas supply piping system that exceeds test pressures of 1/2 psig, this appliance and its individual shut-off valve must be disconnected from the piping system. If test pressures equal to or less than 1/2 psig are used then this appliance must be isolated from the piping system by closing its individual manual shut-off valve during the testing.

HIGH ELEVATION

This unit is approved in Canada for altitude 0 to 4500 ft. (CAN1 2.17-M90) with the oriﬁ ce supplied.

GAS PIPE PRESSURE

TESTING

The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig. (3.45 kPa). Disconnect piping from valve at pressures over 1/2 psig (14" w.c.).

The manifold pressure is controlled by a regulator built into the gas control, and should be checked at the pressure test point.

Note: To properly check gas pressure, both

inlet and manifold pressures should be checked using the valve pressure ports on the valve.

1) Make sure the valve is in the "OFF" posi-

tion.

2) Loosen the "IN" (# 7) and/or "OUT" (# 6) pressure tap(s), turning counterclockwise with a 1/8" wide ﬂ at screwdriver.

3) Attach manometer to "IN" and/or "OUT" pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON" position.

5) The pressure check should be carried out with the unit burning and the setting should be within the limits speciﬁ ed on the safety label.

Regency

6) When ﬁ nished reading manometer, turn off the gas valve, disconnect the hose and tighten the screw (clockwise) with a 1/8" ﬂ at screwdriver. Screw should be snug, but do

not over tighten.

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

INSTALLATION

INSTALLATION OF THE

DC SPARKER

1) Attach the ground wire to the grounding

stub.

Before

After

2) Loop the 2 DC Spark generating wires as well as the ground wire through the hole provided.

With Pedestal:

Select the hole to be used (depending

on which side you prefer to install the DC Sparker box).

4) Loop the wires through the heat shield.

5) Install the plastic bushing over the outside of the hole to protect the wires from the sharp edges.

6a) Attach the ground wire to the DC spark

mounting bracket.

6b) Next, attach the DC sparker generator wires

to the DC sparker.

DC spark generating wires

ground wire

7) Install the supplied battery into the DC Sparker Box by opening the battery compartment.

Piezo ignition wires

8) Attach the heat shield to the DC Sparker, then mount this onto either the Pedestal or the Bottom Shield.

Note: We recommend attaching the DC

sparker box to the bottom rear of the unit (away from the heat source). Ensure this a convenient location, easily accessible for battery replacement.

VALVE DESCRIPTION

1) Gas on/off knob

2) Manual high/low adjustment

3) Pilot Adjustment

4) Thermocouple Connection

5) Main Operator

6) Outlet Pressure Tap

7) Inlet Pressure Tap

8) Pilot Outlet

9) Main Gas Outlet

10) Flange Securing Screw Holes

11) Alternative TC Connection Point

12) Thermoelectric Unit

13) Additional Valve Mounting Hole

NOTE: The battery in the DC Sparker Box

will need to be replaced annually.

With Bottom Shield:

Battery

Compartment

3) Attach the Piezo Ignition wire to the DC Sparker box.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 27

INSTALLATION

LOG INSTALLATION

WARNING: Dangerous operating conditions may occur if these logs are not positioned in their approved locations. Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until they are replaced. Broken logs can interfere with

the pilot and burner operation.

The gas log kit contains the following: a) Front Log

b) Rear Log c) Small Cross Logs (2) d) Bag of embers e) Bag of rockwool f) Bag of platinum embers (supplied with

packaged manual)

1) Remove securing screw from bracket as shown.

Door

Screws

Diagram 2

6) Place the front log in the front of the unit, aligning the holes on the underside of the log with the log support pins in the front of the unit. Carefully push the log down onto the pins. See diagram 3.

7) Place the cross logs on top of the larger logs aligning the holes on the underside of the cross log with the log pins in the larger logs. See diagrams 3 & 4. Carefully push the cross logs onto the pins.

9) Separate platinum embers and place on the mesh ember tray along side embers. Avoid stacking platinum embers.

Diagram 5

Note: If the ﬂ ame hesitates at any point,

check the area of hesitation and see if there is an ember or rock wool blocking a burner port or ports. If so, move the obstruction and then check the ﬂ ame ﬂ ow again.

10) Replace the glass. Secure door in the closed

position using the door securing bracket and the screw provided, Figure 1. See door and glass frame instructions.

Diagram 1

DO NOT TRY TO TURN DOOR

HANDLE! IT IS NOT DE-

SIGNED TO BE MOVED.

Note: The door must be kept closed at all

times, except during maintenance. The unit must never be operated without the glass in the door, or with the door open.

2) Remove the glass frame from the stove by

removing four screws (support glass so it doesn't fall out). See diagram 1.

3) Ensure that the front and rear deﬂ ectors are installed.

4) Remove the logs from the box and carefully unwrap them. The logs are fragile, handle

with care. Do not force into position.

5) Place the rear log on the rear log support

pins in the back of the unit. The ﬂ at side of the log facing the back of the unit. Carefully push the log down onto the pins. See diagram

Diagram 3

Diagram 4

8) Distribute the embers along the mesh ember tray but do not cover the burner ports. (Burner ports are the little holes on the top of the burner tube.) Pull off ember size pieces from the rockwool. Gently place the pieces on top of the embers. See diagram 5.

Do not put the rock wool directly on the

burner. Before putting the glass back on, turn the unit on as per lighting instructions pg. 29. Watch the ﬂ ame to see if it ﬂ ows smoothly around from one end to the other. (Use Extreme Caution and ensure proper light off of burner.)

Note: Door securing bracket is there for

safety.

DOOR AND GLASS

FRAME

The glass frame fastens with four screws. See diagram 1.

Door

Screws

Diagram 1

Note: The unit must never be operated

without the glass in place. (One exception is made during the log and ember installation.)

2) The securing bracket keeps the door

closed.

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

INSTALLATION

DOOR HANDLE

Attach spring handle by rotating counter clockwise onto rod. Ensure that the spring ﬁ ts into the entire length of the rod.

DO NOT TRY TO TURN

DOOR HANDLE!

IT IS NOT DESIGNED

TO BE MOVED.

REMOTE CONTROL

INSTALLATION

Use the Regency® Remote Control Kit approved for this unit. Use of other systems may void your warranty.

The remote control kit comes with a hand held transmitter, a receiver and a wall mounting plate.

1) Choose a convenient location on the wall to install the receiver (protection from ex- treme heat is very important). Run wires from the ﬁ replace to that location. Use the Thermostat Wire Table.

2) Connect the two wires to the gas valve. See diagram below.

CAUTION

Do not wire millivolt remote con-

trol wires to the

120V AC wires

3) Install 3 AAA alkaline batteries in transmitter

and 4 AA alkaline batteries in the receiver. Install the receiver and its cover in the wall. Switch the remote receiver to "remote" mode. The remote control is now ready for operation.

REMOTE

WALL SWITCH

1) Run the wire through the opening in the rear

of the unit. Be careful not to damage any wires.

Note: We recommend a maximum of 15' of

wire but if you wish to go with a longer run use the Thermostat Wire Table.

2) Connect the wire to the wall switch and install

into receptacle box.

CAUTION

Do not wire millivolt wall switch

for gas appliance to the 120V AC

wires

WALL THERMOSTAT

INSTALLATION

Regency® offers an optional programmable thermostat but any 250-750 millivolt rated nonanticipator type thermostat that is CSA, ULC or UL approved may be used.

Connect the wires as per the wiring diagram. Use the Thermostat Wire T able to determine the maximum wire length.

CAUTION

Do not wire millivolt wall thermo-

stat wires to the 120V AC wires

Note: Preferable if the thermostat is in-

stalled on an interior wall.

Thermostat Wire Table

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

14 GA. 16 GA. 18 GA. 20 GA. 22 GA.

50 Ft. 32 Ft. 20 Ft. 12 Ft.

9 Ft.

FINAL CHECK

Before leaving this unit with the customer, the installer must ensure that the appliance is ﬁ ring correctly. This includes:

1) Clocking the appliance to ensure the correct ﬁ ring rate (rate noted on label) at 15 minutes.

2) If required, adjusting the primary air to ensure that the ﬂ ame does not carbon. First allow the unit to burn for 15 min. to stabilize.

3) Check for proper draft.

Any alteration to the product that causes sooting or carboning that results in damage to the unit is not the responsibility of the manufacturer and will not be covered by the warranty.

CAUTION

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 29

WIRING DIAGRAMS

INSTALLATION

WARNING:

Electrical Grounding

Instructions

This appliance is equipped with

a three pronged (grounding)

plug for your protection against

shock hazard and should be

plugged directly into a properly

grounded three-prong recepta-

cle. Do not cut or remove the

grounding prong from this plug.

For NATURAL GAS Units and Units NOT Equipped with DC Spark Boxes

This heater does not require a 120V A.C. supply for operation. In case of a power failure, the burner switch and the optional remote control/ thermostat will continue to operate.

However, a 120V A.C. power supply is needed for the fan/blower operation.

CAUTION: Ensure that the wires do not touch a hot surface and are away from sharp edges.

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

INSTALLATION

For PROPANE Units and Units Equipped with DC Spark Boxes*

*For installation of the DC Spark Box refer to instructions in this manual.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 31

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

1) Read and understand these instructions

before operating this appliance.

2) Check to see that all wiring is correct and enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass in the door frame is

properly positioned. Never operate the appliance with the glass removed.

5) Verify that the venting is unobstructed.

6) Verify log placement. If the pilot cannot be

seen when lighting the unit - the logs have been incorrectly positioned.

7) The unit should never be turned off, and on again without a minimum of a 60 second wait for purging.

IMPORTANT: Gas on/off knob cannot be turned from "PILOT" to "OFF" unless it is partially depressed.

1) Turn burner OFF using "ON/OFF" switch.

2) Turn gas control knob so indicator points to

"OFF" position and allow 5 minutes for any gas in the combustion chamber to escape.

3) Turn gas control knob counterclockwise so indicator points to the "PILOT" position. Depress the gas control knob fully. Depress the igniter button several times until the pilot lights. After approximately one minute, release the gas control knob. The pilot ﬂ ame should continue to burn. If the pilot does not remain lit, repeat operation allowing a longer period before releasing gas control knob.

4) When the pilot stays lit, turn the gas knob further counterclockwise to the "ON" position.

5) Use the ON/OFF switch, wall switch, thermostat or remote control to turn on the unit.

6) Rotate the ﬂ ame height regulator (Hi/Lo) to adjust the ﬂ ame height higher or lower.

SHUTDOWN

PROCEDURE

Note: When the glass is cold and the appli-

ance is lit, it may cause condensation and fog the glass. This condensation is normal and will disappear in a few minutes as the glass heats up.

DO NOT BURN THE APPLIANCE WITHOUT THE GLASS FRONT IN PLACE.

During the ﬁ rst few ﬁ res, a white ﬁ lm may develop on the glass front as part of the curing process. The glass should be cleaned or the ﬁ lm will bake on and become very difﬁ cult to remove. Use a non-abrasive cleaner and NEVER clean the glass while it is hot.

PILOT ADJUSTMENT

Periodically check the pilot ﬂ ames. Correct

ﬂ ame pattern has three strong blue ﬂ ames: 1 ﬂ owing around the thermopile, 1 around the

thermocouple and 1 ﬂ owing across the burner (it does not have to be touching the burner).

Note: If you have an incorrect ﬂ ame pat-

tern, contact your Regency® dealer for further instructions.

Note: Clean ﬁ ngerprints off the gold before

lighting stove.

LIGHTING

PROCEDURE

IMPORTANT

To ignite or reignite the pilot,

remove one glass panel/door.

Only when the pilot holds, without pressure being applied to the control knob, resecure the glass panel to the unit. The unit must not be operated with the glass removed.

NOTE: For all propane units and units

equipped with electric spark boxes, see "Copy of Lighting Plate Instructions" section for more details.

1) Use the ON/OFF switch, wall switch, ther-

mostat or remote control to turn off the burner.

2) Push in the PILOT knob slightly and turn clockwise to off. Do not force.

3) Turn off all electric power to the appliance if service is to be performed.

FIRST FIRE

The ﬁ rst ﬁ re in your stove is part of the paint curing process. To ensure that the paint is properly cured, it is recommended that you burn your ﬁ replace for at least four (4) hours the ﬁ rst time you use it with the fan on. When ﬁ rst operated, the unit will release an odour caused by the curing of the paint, the burning off of any oils remaining from manufacturing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate the room for a couple of hours.

The glass panel may require cleaning after the unit has cooled down. DO NOT ATTEMPT TO

CLEAN THE GLASS WHILE IT IS HOT.

Top View of pilot ﬂ ame

Incorrect ﬂ ame pattern will have small, prob- ably yellow ﬂ ames, not coming into proper contact with the rear burner or thermopile or thermocouple.

Top View of pilot ﬂ ame

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

OPERATING INSTRUCTIONS

COPY OF THE LIGHTING PLATE INSTRUCTIONS

FOR YOUR SAFETY READ BEFORE LIGHTING

NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1. (Australia: A S5601-2004, New Zealand: NZS 5261)

WARNING: If you do not follow these instructions exactly, a ﬁreor explosion may result causing property damage,

or additional information consult a qualiﬁed installer, service agency or gas supplier.

A) This appliance has a pilot which must be lighted by hand, following the instructions below exactly B) BE FORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the ﬂ

air and will settle on the ﬂoor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance

- Do not touch any electric switch, do not use any phone in your building

- Immediately call your gas supplier from a neighbors phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the ﬁre department.

C) Us

repair it, call a qualiﬁed service technician. Force or attempted repair may result in a ﬁre or explosion.

D) Do not use this appliance if any part has been under water. Immediately call a qualiﬁed service technician to inspect the appliance and

to replace any part of the control system and any gas control which has been under water.

E) This appliance needs fresh air for safe operation and must be installed so there are provisions adequate combustion + ventilation air.

oor because some gas is heavier than

try to

LIGHTING INSTRUCTIONS

STOP! Read the safety information above on this label.

FOR UNITS NOT EQUIPPED WITH ELECTRIC SP

Push in gas control knob slightly and turn clockwise “OFF”. Knob cannot be turned from “PILOT” to “OFF” unless knob is pushed in slightly. Do not force.

PILOT BURNER VEILLEUSE

THERMOPILE ELEMENT THERMOELECTRIQUE

2) Wait ﬁ ve (5) minutes to clear out any gas. If you then smell gas STOP! follow “B” in the safety information above on this label. If you don’t smell gas, go to the next step.

3) Turn knob on gas control counterclockwise to “PILOT”.

4) Push in control knob all the way and hold in. Immediately push black button on spark igniter until pilot lights. Continue to hold the control knob in for about 1/2 minute after the pilot is lit. Release knob and it will pop back up. Pilot should remain lit. If it goes out, repeat steps 3) and 4).

knob does not pop up when released, stop and immediately call

your service technician or gas supplier.

If the pilot will not stay lit after several tries, turn the gas control

knob to “OFF” and call your service technician or gas supplier.

5) Turn gas control knob counterclockwise to “ON”.

6) Use rocker switch to operate main burner.

ARK:

OFF

TO TURN OFF GAS APPLIANCE

1) Turn off

the flame switch.

2) Push in the gas control knob slightly a

3) Turn off all electric power to the applianc You may shut off

the pilot during prolonged non use periods to conserve fuel.

nd turn clockwise to “OFF”. Do not force.

e if service is to be perfor

UNITS EQUIPPED WITH ELECTRIC SPARK BOXES:

1) Push in gas control knob slightly and turn to “PILOT” position.

2) Push in control knob all the way and hold in untilthe pilot lights up. Continue to hold the control knob in for about 20 seconds after the pilot is lit. Release knob.

3) Push in gas control knob slightly and turn to "ON" position.

4) Turn ON the ﬂame switch.

FORALL PROP

med.

ANE UNITS

. Keep burner

appliance.

AND

DO NOT REMOVE THIS INSTRUCTION PLATE

918-474b

AERA TION ADJUSTMENT

Natural Gas 5/16"

This adjustment is performed by the installer and is primarily used in installations at high eleva-

Caution: Carbon will be produced if air shutter is closed too much.

tions. Push in for a yellow ﬂ ame, or pull out for a bluer ﬂ ame. The burner aeration is factory set but may need adjusting due to either the local gas supply or altitude.

Note: Aeration Adjustment should only be

performed by an authorized Regency Installer at the time of installation or

service.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 33

Propane 5/8"

MAINTENANCE

NORMAL OPERATING

SOUNDS OF

GAS APPLIANCES

It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there are various gauges and types of steel used within your appliance. Listed below are some examples. All are normal operating sounds and should not be considered as defects in your appliance.

Blower:

Regency® gas appliances use high tech blowers to push heated air farther into the room. It is not unusual for the fan to make a "whirring" sound when ON. This sound will increase or decrease in volume depending on the speed setting of your fan speed control.

Burner Tray:

The burner tray is positioned directly under the burner tube(s) and logs and is made of a different gauge material from the rest of the ﬁ rebox and body. Therefore, the varying thicknesses of steel will expand and contract at slightly different rates which can cause "ticking" and "cracking" sounds. Y ou should also be aware that as there are temperature changes within the unit these sounds will likely re-occur. Again, this is normal for steel ﬁ reboxes.

Blower Thermodisc:

When this thermally activated switch turns ON it will create a small "clicking" sound. This is the switch contacts closing and is normal.

Pilot Flame: While the pilot ﬂ ame is on it can make a very slight "whisper" sound.

Gas Control Valve: As the gas control valve turns ON and OFF, a dull clicking sound may be audible, this is normal operation of a gas regulator or valve.

Unit Body/Firebox: Different types and thicknesses of steel will expand and contract at different rates resulting in some "cracking" and "ticking" sounds will be heard throughout the cycling process.

THERMOPILE /

THERMOCOUPLE

1) Loosen the thermocouple or thermopile with

a 7/16" wrench at bracket.

2) Disconnect thermocouple by loosening nut from the valve with a 9mm wrench. Disconnect thermopile by loosening 2 screws marked TP on the valve.

3) Drop the thermocouple or thermopile down from the bracket and pull it out of the unit.

4) Reinstall the new ones in reverse order.

MAINTENANCE

INSTRUCTIONS

1) Always turn off the gas valve before cleaning.

For relighting, refer to lighting instructions. Keep the burner and control compartment clean by brushing and vacuuming at least once a year.

When cleaning the logs, use a soft clean

paint brush as the logs are fragile and easily damaged.

2) Clean appliance and door with a damp cloth (never when unit is hot). Never use an abrasive cleaner.

The heater is ﬁ nished in a heat resistant paint and should only be reﬁ nished with heat resist- ant paint. Regency® uses Stove Brite Paint

- Metallic Black #6309.

3) The glass should be cleaned with a gas ﬁ replace glass cleaner when it starts to turn milky.

4) Make a periodic check of burner for proper position and condition. Visually check the ﬂ ame of the burner periodically, making sure the ﬂ ames are steady; not lifting or ﬂ oating. If there is a problem, call a qualiﬁ ed service person.

5) The appliance and venting system must be inspected before use, and at least annually, by a qualiﬁ ed ﬁ eld service person, to ensure that the ﬂ ow of combustion and ventilation air is not obstructed.

During the annual service call, the burners

should be removed from the burner tray and cleaned. Replace the embers and rock wool.

6) Keep the area near the appliance clear and free from combustible materials, gasoline and other ﬂ ammable vapours and liquids.

CAUTION: ANY SAFETY SCREEN OR GUARD REMOVED FOR SERVICING AN APPLIANCE MUST BE REPLACED PRIOR TO OPERATING THE APPLIANCE.

NEVER OPERATE THE APPLIANCE WITHOUT THE GLASS PROPERLY SECURED IN PLACE.

GENERAL VENT

MAINTENANCE

Conduct an inspection of the venting system semiannually. Recommended areas to inspect are:

1) Check areas of the Venting System which are exposed to the elements, for corrosion. These will appear as rust spots or streaks, and in extreme cases, holes. These components should be replaced immediately.

2) Remove the Cap, and shine a ﬂ ashlight down the Vent. Remove any birds nests, or other foreign material.

3) Check for evidence of excessive condensation, such as water droplets forming in the inner liner, and subsequently dripping out the joints, Continuous condensation can cause corrosion of caps, pipe, and ﬁ ttings. It may be caused by having excessive lateral runs, too many elbows, and exterior portions of the system being exposed to cold weather.

4) Inspect joints, to verify that no pipe sections or ﬁ ttings have been disturbed, and conse- quently loosened. Also check mechanical supports such as Wall Straps for rigidity.

LOG REPLACEMENT

The unit should never be used with broken logs. Turn off the gas valve and allow the unit to cool before opening door to carefully remove the logs. The pilot light generates enough heat to burn someone. If for any reason a log should need replacement, use only Regency® replacement logs. The position of these logs must be as shown in the diagram under Log Installation.

Note: Improper positioning of logs may

create carbon buildup and will alter the unit’s performance which is not covered under warranty.

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

MAINTENANCE

GOLD-PLATED DOORS

The 24 carat gold plated ﬁ nish on the door requires little maintenance, and need only be cleaned with a damp cloth. DO NOT use abrasive materials or chemical cleaners, as they may harm the ﬁ nish and void the warranty.

Clean any ﬁ ngerprints off before turning the unit on.

GLASS GASKET

If the front glass requires replacement use a front glass gasket (Part # 936-243).

GLASS

REPLACEMENT

Y our CLASSIC stove is supplied with high temperature, 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. In the event that you break your glass by impact, purchase your replacement glass from an authorized Regency® dealer only.

Diagram 1

To remove valve from valve assembly, continue.

11) Remove two (2) thermopile wires.

12) Remove thermocouple with a 9 mm (metric)

wrench.

13) Remove pilot nut with an 11 mm wrench.

14) Remove valve to oriﬁ ce nut with a 13/16"

wrench.

15) Remove inlet pipe with pipe wrench. Note orientation of 90

16) Remove two (2) phillips head M5 screws on each side of the valve.

17) Remove valve and remove gas out 90o brass ﬁ tting. Note orientation of ﬁ tting.

See diagram in "Optional Fan Installation" section for more detail.

elbow.

INSTALLING

V ALVE ASSEMBLY

REMOVING VALVE

ASSEMBLY

1) Shut off gas supply.

2) If optional fan is installed, disconnect power

source to stove.

3) Remove access panel. a) Front panel on pedestal model. See

diagram 1.

b) Panel from bottom of leg shield. See

diagram 2.

Diagram 2

6) Disconnect gas line to stove.

7) Disconnect 3/8" NPT pipe from 90 on valve.

8) Disconnect the two (2) switch wires from valve.

9) Remove oriﬁ ce.

10) Loosen four (4) phillips head M5 valve mount-

ing screws from underside of ﬁ rebox. Drop valve assembly down.

elbow

1) To install a new valve assembly, reverse instructions for removing valve. See assembly steps 1-10.

2) Check for leaks and manifold pressure. See Gas Pressure Test instructions.

3) To reinstall valve, reverse instructions for

removing valve assembly, steps 11-17.

Note: Access panel only has to be loosened

to be taken out.

4) Remove front cover with piezo igniter by

removing two (2) sheet metal screws.

5) Disconnect piezo wire.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 35

MAIN ASSEMBLY

Part # Description

1) 490-550 Door Assembly-Gold (no glass) 490-552 Door Assembly-Black (no glass) 490-941 Small Door - Black 490-942 Small Door - Gold 490-943 Small Door - Nickel Accent 490-944 Small Door - Gold Accent

3) 846-302 Small Glass

4) 936-240 Glass Gasket (1/8")

5) * Nut - 3/8 N/C Jam

6) 490-028 Glass Frame

7) 948-074/15 Door Handle

PARTS LIST

12) 936-233 Door Gasket

13) 846-918 Hinge Cap (set of 2)

14) * Screw 10-24 x 3/4"

17) 471-031 Door Retainer Clip

19) 948-101 Spring Handle (Large)

20) 490-917 Complete Fan Assembly (Optional) 910-157/P Blower Motor (120V)

21) 910-142 Fan Auto on/off Thermodisc

22) 910-794 Power Cord (120V)

24) * Gasket - Air Passage

25) * Flex Pipe - 3" ID

26) * Stainless Steel Hose Clamp

27) 936-197 Gasket - Flue Collar/Starter Collar

28) 936-194 Gasket - Starter Collar/Air Passage

30) W260260 Relief Frame Gasket

31) 942-117 Top Relief Plate Frame

32) W260280 Top Relief Plate Gasket

33) 290-021 Air Bafﬂ e Plate

35) * Capscrew 1/4 x 1-3/4" NC

37) * Upper Air Passage Assembly

38) 490-081 Flue Restrictor

40) 490-520 Top Assembly

41) 490-042 Rear Panel 918-512 Manual *Not available as a replacement part.

FAN ASSEMBLY (OPTIONAL)

DOOR

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

PARTS LIST

BURNER ASSEMBLY & LOG SET

Part # Description

52) 910-190 Piezo Ignitor & Nut

53) * Control Panel

54) * Control Panel Decal 492-562/P Valve Assembly - S.I.T. - Nat. Gas

492-563/P Valve Assembly - S.I.T. - Propane

63) 910-478 Valve - S.I.T. - NG/LP

66) 910-034 Pilot Assy 3 Flame-S.I.T. -NG 910-035 Pilot Assy 3 Flame-S.I.T. -LP

67) 904-604 #36 Oriﬁ ce (NG) 904-390 #52 Oriﬁ ce (LP) 936-170 Oriﬁ ce Gasket

68) 936-175 Gasket - Top Plate

69) 948-280 Burner c/w Air Cap - NG/LP Complete Burner Tray Assy-NG/LP

71) * Clamp for Burner

72) 490-023 Front Log Deﬂ ector - NG/LP

78) 490-067 Deﬂ ector-Top Rear Log - NG

79) 490-068 Deﬂ ector-Top Rear Log - LP 490-932 Complete Log Set

80) * Front Log

81) * Rear Log

82) * Top Log 902-151 Ember 902-153 Rockwool

93) 904-537 Gas Inlet Pipe (12") *Not available as a replacement part.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 37

BASE OPTIONS

Part # Description Part # Description

490-921 Complete Floor Shield

100) 948-216 Regency

102) 904-257 Magnetic Catch (Large)

103) * 11" Pedestal Hinge

108) 910-246 Burner ON/OFF Switch

109) 910-140 Fan HIGH/OFF/LOW Switch

110) 910-327 Strain Relief for Power Cord

121) 490-005 Access Panel

140) 850-127 Cast Legs - Gold (4/set) 850-126 Cast Legs - Black (4/set) 850-128 Cast Legs - Brush Nickel (4/set)

Logo

490-926 Complete Pedestal

100) 948-216 Regency® Logo

102) 904-257 Magnetic Catch (Large)

103) * 11" Pedestal Hinge

108) 910-246 Burner ON/OFF Switch

109) 910-140 Fan HIGH/OFF/LOW Switch

110) 910-327 Strain Relief for Power Cord

123) 490-070 Pedestal Blanking Plate

124) 820-058 Pedestal Cover Plate

125) 490-002 Rear Cover Plate *Not available as a replacement part.

PARTS LIST

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

WARRANTY

Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a Regency Product. This warranty is not transferable.

The Warranty: Limited Lifetime

The combustion chamber, heat exchanger, burner tubes/pans, logs and gold plating (against defective manufacture only) are covered under the Limited Lifetime Warranty for ﬁ ve (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for ﬁ ve (5) years and parts only thereafter from date of purchase.

Special Finishes - One year on brushed nickel, louvers and doors. You can expect some changes in color as the product "ages" with constant heating and cooling. FPI warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors and marks, ie. ﬁ nger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly components, and gas valves are covered for two years parts and one year subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered repairs and continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replacement.

FPI venting components (Direct Vent units) are covered parts and subsidized labour* for three (3) years from date of purchase.

Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty.

Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect.

The authorized selling dealer is responsible for all in-ﬁ eld service work carried out on your Regency product. FPI will not be liable for results or costs of workmanship from unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the ﬁ eld which is claimed to be defective.

All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim.

At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured. ie. as products evolve, ﬁ eld modiﬁ cations or upgrades will not be performed.

FPI will not be liable for travel costs for service work.

Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.

Embers, glass and door gaskets, door handles and paint are not covered under the terms of this warranty policy.

Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.

The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by mechanical systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.

FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.

Performance problems due to operator error will not be covered by this warranty policy.

Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your warranty on this product.

Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.

* Subsidy according to job scale as predetermined by FPI.

Regency® CLASSIC C34-3 Direct Vent Freestanding Gas Stove 39

Regency® ﬁ replace products are designed with

reliability and simplicity in mind. In addition,

our internal Quality Assurance Team care-

fully inspects each unit thoroughly before

it leaves our door.

Fireplace Products International Ltd.

is pleased to extend this

Limited Lifetime Warranty to the original

purchaser of a Regency® Product.

See the inside back cover for details.

http://www.regency-ﬁ re.com

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: __________________________________________________________

Regency

CLASSIC C34-3 Direct Vent Freestanding Gas Stove

Printed in Canada

Regency Classic C34 Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
