OWNER/OPERATOR MANUAL
CHAINSAWS
T2040-93110(010)
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
WARNING
Before using our products, please
read this manual carefully to
understand the proper use of your
unit.
WARNING
APPLICABLE SERIAL NUMBERS : 010101 and up
G2500TS
SAFETY FIRST
Instructions contained in warnings within this
manual marked with a symbol concern
critical points which must be taken into
consideration to prevent possible serious
bodily injury, and for this reason you are
requested to read all such instructions
carefully and follow them without fail.
■ WARNINGS IN THE MANUAL
This mark indicates instructions which must be
followed in order to prevent accidents which could
lead to serious bodily injury or death.
This mark indicates instructions which must be
followed, or it leads to mechanical failure,
breakdown, or damage.
This mark indicates hints or directions useful in the
use of the product.
NOTE
CONTENTS
1. Parts location …………………………………4
2. Specifications …………………………………4
3. Symbols on the machine ……………………5
4. For safe operation ……………………………6
5. Installing guide bar and saw chain …………8
6. Fuel and chain oil……………………………10
7. Operation ……………………………………12
8. Sawing ………………………………………16
9. Maintenance …………………………………19
10. Storage ………………………………………25
11. Troubleshooting guide………………………26
12. Parts list………………………………………27
WARNING
IMPORTANT
2. Specifications
■ G2500TS
Power unit :
Dis placement ····················································································· 1.6(25.4) cu-in(cm3)
Fuel ············································································· Mixture(Gasoline 32 : 2-cycle oil 1)
Fuel tank capacity ················································································· 7.78(0.23) fl.oz( )
Chain oil ························································································ Motor oil SAE #10W-30
Oil tank capacity ···················································································· 5.42(0.16) fl.oz( )
Carburetor ································································································· Diaphragm type
lgnition system ··································································································· Solid-state
Spark plug ···························································································· Champion RCJ-7Y
Oil feeding system ····································································· Mechanical plunger pump
Sprocket : Pitch – No. of teeth ··························································· 3/8in(9.38mm) – 6T
Dimensions : L – W – H ············································ 10.4(260)x8.8(220)x8.8(220) in(mm)
Dry weight ································································································ 6.4(2.85) lbs(kg)
Cutting attachment :
Guide bar : Type – Size ····················································· Sprocket nose – 12(30) in(cm)
Saw chain : Type – Pitch – Gauge ···················
Oregon 91VG – 3/8(9.375) – 0.050(1.25) in(mm)
Specifications are subject to change without notice.
1. Parts location
❲4❳
1. Guide Bar
2. Saw Chain
3. Front Guard
4. Front Handle
5. Rear Handle
6. Fuel Tank Cap
7. Oil Tank Cap
3. Symbols on the machine
❲5❳
Made in Japan
RedMax
IMPORTANT ENGINE INFORMATION
THIS ENGINE CONFORMS TO US EPA
PH1 FOR SMALL OFF-ROAD ENGINES.
ENGINE FAMILY : YKZXS.0254DE:EM
ENGINE DISPLACEMENT : 25.4cc
REFER TO OWNER'S MANUMAL FOR MAINTENANCE SPECIFICATIONS AND ADJUSTMENTS.
MANUFACTURED :
INFORMATION IMPORTANTE CONCERNANT LE MOTEUR
Ce moteur conformc aux normcs U.S. EPA
PH1 pour les petits moteurs tout-terrain.
Type de moteur :
YKZXS.0254DE:EM
Cylindrée du moteur :
25.4
cc
Se référer au Manuel de l'utilisateur pour les
spécifications d'entretien et les réglages.
Made in Japan
RedMax
Manufacturé :
For safe operation and maintenance, symbols are carved in relief on
the machine. According to these indications, please be careful not to
make a mistake.
(a).The port to refuel the "MIX GASOLINE"
Position: Upper-front at the left side of the power unit (near the
fuel cap )
(b).The port to refuel the chain oil
Position: Lower-front at the left side of the power unit (near the
oil cap)
(c). Flipping the switch to the "O" position, immediately the engine
stops.
Position: Front at the top of the rear handle (near the switch)
(d).Starting the engine, if you pull out the choke knob (at the back-
right of the rear handle) to the point of the arrow, you can set the
starting mode as follows
• First-stage position – starting mode when the engine is warm.
• Second-stage position – starting mode when the engine is
cool.
Position: Upper-right of the chain cover
(e).If you turn the rod by screwdriver follow the arrow to the "MAX"
position, the chain oil flow more, and if you turn to the "MIN"
position, less.
Position: Bottom of the power unit
(f). The screw under the "H" stamp is The High-speed adjustment
screw.
The screw under the "L" stamp is The Slow-speed adjustment
screw.
The screw at the left of the "T" stamp is the Idle adjustment
screw.
Position: Left side of the rear handle
(g).It shows the directions that the chain brake is released (for the
white arrow) and activated (for the black arrow).
Position: Front of the chain cover
❲6❳
4. For safe operation
1. Never operate a chain saw when you are
fatigued, ill, or upset, or under the
influence of medication that may make
you drowsy, or if you are under the
influence of alcohol or drugs.
2. Use safety footwear, snug fitting clothing
and eye, hearing and head protection
devices.
3. Always use caution when handling fuel.
Wipe up all spills and then move the
chain saw at least ten(10)feet (three(3)
m) from the fueling point before starting
the engine.
3a) Eliminate all sources of sparks or
flame (ie. smoking, open flames, or
work that can cause sparks) in the
areas where fuel is mixed, poured, or
stored.
3b)Do not smoke while handling fuel or
while operating the chain saw.
4. Do not allow other persons to be near
the chain saw when starting the engine
or cutting a wood. Keep bystanders and
animals out of the work area. Children,
pets, and bystanders should be a
minimum of 30feet (10m) away when
you start or operate the chain saw.
5. Never start cutting until you have a clear
work area, secure footing, and planned
retreat path from the falling tree.
6. Always hold the chain saw firmly with
both hands when the engine is running.
Use a firm grip with thumb and fingers
encircling the chain saw handles.
7. Keep all parts of your body away from
the saw chain when the engine is
running.
8. Before you start the engine, make sure
the saw chain is not contacting anything.
9. Always carry the chain saw with the
engine stopped, the guide bar and saw
chain to the rear, and the muffler away
from your body.
10. Always inspect the chain saw before
each use for worn, Ioose, or changed
parts. Never operate a chain saw that is
damaged, improperly adjusted, or is not
completely and securely assembled. Be
sure that the saw chain stops moving
when the throttle control trigger is
released.
11. All chain saw service, other than the
items listed in the Operator’s Manual,
should be performed by competent chain
saw service personnel. (e.g., if improper
tools are used to remove the flywheel, or
if an improper tool is used to hold the
flywheel in order to remove the clutch,
structural damage to the flywheel could
occur which could subsequently cause
the flywheel to disintegrate).
12. Always shut off the engine before setting
it down.
13. Use extreme caution when cutting small
size brush and saplings because slender
material may catch the saw chain and be
whipped toward you or pull you off
balance.
14.When cutting a limb that is under
tension, be alert for spring back so that
you will not be struck when the tension in
the wood fibers is released.
15. Keep the handles dry, clean and free of
oil or fuel mixture.
❲7❳
4. For safe operation
16. Operate the chain saw only in well
ventilated areas. Never start or run the
engine inside a closed room or building.
Exhaust fumes contain dangerous
carbon monoxide.
17. Do not operate a chain saw in a tree
unless specially trained to do so.
18. Guard against kickback. Kickback is the
upward motion of the guide bar which
occurs when the saw chain at the nose
of the guide bar contacts an object.
Kickback can lead to dangerous loss of
control of the chain saw.
19. When transporting your chain saw, make
sure the appropriate guide bar scabbard
is in place.
20. This chain saw is equipped with a spark
arrester built-in muffler. Periodically
check the arrester to keep it in good
order.
KICKBACK SAFETY PRECAUTIONS FOR
CHAIN SAW USERS
– WARNING –
● Kickback may occur when the nose or tip of the guide bar touches an object, or when the
wood closes in and pinches the saw chain in the cut. Tip contact in some cases may
cause a lightning fast reverse reaction, kicking the guide bar up and back towards the
operator. Pinching the saw chain along the top of the guide bar may push the guide bar
rapidly back towards the operator. Either of these reactions may cause you to lose
control of the saw which could result in serious personal injury.
● Do not rely exclusively on the safety devices built into your saw. As a chain saw user you
should take several steps to keep cutting jobs free from accident or injury.
(1) With a basic understanding of kickback you can reduce or eliminate the element of
surprise. Sudden surprise contributes to accidents.
(2) Keep a good grip on the saw with both hands, the right hand on the rear handle, and
the left hand on the front handle, when the engine is running. Use a firm grip with
thumbs and fingers encircling the chain saw handles. A firm grip will help you reduce
kickback and maintain control of the saw. Don’t let go.
(3) Make certain that the area in which you’re cutting is free from obstructions. Do not let
the nose of the guide bar contact a log, branch, or any other obstruction which could
be hit while you are operating the saw.
(4) Cut at high engine speeds.
(5) Do not overreach or cut above shoulder height.
(6) Follow manufacturers sharpening and maintenance instructions for saw chain.
(7) Only use replacement bars and chains specified by the manufacturer or the
equivalent.
A standard saw unit package contains the items as
shown below. (SE1)
(1)Power unit
(2)Guide bar
(3)Saw chain
(4)Plug wrench
Open the box and install the guide bar and the saw
chain on the power unit as follows.
The saw chain has very sharp edges. Use
protective gloves for safety.
1. Pull the guard towards the front handle to check
that the chain brake is not on.
2. Loosen a nut and remove the chain cover.
3.Fix the hanger on the rear of power unit by
screw. (SE2)
(1)Hanger
4. Mount the guide bar then fit the saw chain
around the bar and sprocket.(SE3)
Pay attention to the correct direc-tion of the
saw chain
5. Fit the chain tensioner nut into the lower hole of
the guide bar, then install the chain cover, and
fasten the mounting nut to finger tightness.
(SE3)(SE4)
(1)Hole
(2)Moving direction
(3)Chain tensioner nut
When installing the chain cover, be sure to fit
the hook completely at the rear end of the
cover.
WARNING
5. Installing guide bar and saw chain
❲8❳
SE1
SE2
SE3
SE4
WARNING
WARNING
5. Installing guide bar and saw chain
❲9❳
SE5
SE6
6. While holding up the tip of the bar,adjust the
chain tension by turning the tensioner screw until
the tie straps just touch the bottom side of the
bar rail. (SE5)
(1)Chain tension adjusting screw
(a)Loosen
(b)Tighten
7. Tighten the mounting nut securely with the bar
tip held up (TORQUE: 11.8~14.7 N.m./120~150
kg-cm). Then check the chain for smooth
rotation and correct tension while moving it by
hand. If necessary, readjustment. (SE6)
(1)Tighten
It is very important to maintain the proper chain
tension. Rapid wear of the guide bar or the
chain coming off easily can be caused by
improper tension. Especially when using a new
chain, take good care of it since it should
expand when first used.
WARNING
❲10❳
6. Fuel and chain oil
■ FUEL
The RedMax engines are lubricated by oil specially
formulated for air-cooled 2-cycle gasoline engine
use. If RedMax oil is not available, use an antioxidant added quality oil expressly labeled for aircooled 2-cycle engine use.
RECOMMENDED MIXING RATIO
GASOLINE 32 : OIL 1
Exhaust emission are controlled by the
fundamental engine parameters and
components (eq., carburation, ignition timing
and port timing) without addition of any major
hardware or the introduction of an inert
material during combustion.
These engines are certified to operate on
unleaded gasoline.
The fuel is highly flammable. Do not smoke or
bring any flame or sparks near fuel.
■ HOW TO MIX FUEL
1. Measure out the quantities of gasoline and oil to
be mixed.
2. Put some of the gasoline into a clean, approved
fuel container.
3. Pour in all of the oil and agitate well.
4. Pour in the rest of gasoline and agitate again for
at least one minute.
5. Put a clear indication on the outside of the
container to avoid mixing up with gasoline or
other containers.
FOR YOUR ENGINE LIFE, AVOID;
1. FUEL WITH NO OIL(RAW GASOLINE) – It will
cause severe damage to the engine inner parts
very quickly.
2. GASOHOL – It can cause deterioration of rubber
and/or plastic parts and disruption of engine
lubrication.
3. OIL FOR 4-CYCLE ENGINE USE or WATER
COOLED 2-CYCLE ENGINE USE – It can
cause spark plug fouling, exhaust port blocking,
or piston ring sticking.
WARNING
6. Fuel and Chain oil
■ CHAIN OIL
Use motor oil SAE 10W-30 all year round, or SAE
30-40 in summer and SAE 20 in winter.
Do not use waste or regenerated oil that can cause
damage to the oil pump.
NOTE
❲11❳
❲12❳
■ STARTING ENGINE
1.Feed fuel and chain oil into their respective
tanks and tighten the caps securely. (OP1)
(1)Fuel
(2)Chain oil
2. Continuously push the priming bulb until fuel
comes in the bulb. (OP2)
3. Put the switch to the "I" position. (OP3)
(1)Switch
4. Pull out the choke knob to the second-stage
position. The choke will close and the throttle
lever will then be set in the starting position.
(OP4,5)
(1)Throttle lever
(2)Throttle interlock
(3)Choke knob
(a)when the engine is cool
(b)when the engine is warm up
(c)after the engine starts
When restarting immediately after stopping the
engine. Choke knob in the first-stage position
(choke open and throttle lever in the starting
position)
NOTE
7. Operation
OP1
OP2
OP3
OP4
OP5
OP8
7. Operation
Once the choke knob has been pulled out, it will
not return to the operating position even if you
press down on it with your finger. When you wish
to return the choke knob to the operating position,
pull out the throttle lever instead.
5. While holding the saw unit securely on the
ground, pull the starter rope vigorousl y. (OP6)
6. When firing occur, push in the choke knob and
pull the starter again to start the engine.
7. Allow the engine to warm up with the throttle
lever pulled slightly.
Before you start the engine, make sure the saw
chain is not contacting anything.
■ CHECKING OIL SUPPLY
After starting the engine, run the chain at medium
speed and see if chain oil is scattered off as shown
in the figure. (OP7)
(1)Chain oil
The chain oil flow can be changed by inserting a
screwdriver in the hole on bottom of the clutch
side. Adjust according to your work conditions.
(OP8)
(1)Chain oil flow adjusting shaft
(a)Rich
(b)Lean
The oil tank should become nearly empty by the
time fuel is used up. Be sure to refill the oil tank
every time when refueling the saw.
NOTE
OP6
OP7
❲13❳
NOTE
WARNING
❲14❳
■ ADJUSTING CARBURETOR (OP9)
The carburetor on your unit has been factory
adjusted, but may require fine tuning due to
change in operating conditions.
Before adjusting the carburetor, make sure that
provided are clean air/fuel filters and fresh,
properly mixed fuel.
When adjusting, take the following steps:
Be sure to adjust the carburetor with the bar chain
attached.
1. H and L needles are restricted within the number
of turn as shown below.
H needle –1/4
L needle –1/4
2. Start engine and allow it to warm up in low
speed for a few minutes.
3. Turn idle adjusting screw (T) counter-clockwise
so that saw chain does not turn. If idling speed is
too slow, turn the screw clockwise.
4. Make a test cut adjust the H needle for best
cutting power, not for maximum speed.
(1)L needle
(2)H needle
(3)Idle adjusting screw
■ CHAIN BRAKE (OP10)
The chain brake is a device which stops the chain
instantaneously if the chain saw recoils due to
kickback.
Normally, the brake is activated automatically by
inertial force. It can also be activated manually by
pushing the brake lever (left-hand guard) down
toward the front.
When the brake operates, a yellow cone pops up
from the base of the brake lever.
Releasing the Brake
Pull the brake lever up toward the left-hand handle
until it clicks into place.
NOTE
7. Operation
OP9
❲15❳
7. Operation
OP10
OP11
• When the brake operates, release the throttle
lever to slow down the engine speed.
Continuous operation with the brake
engaged will generate heat from the clutch
and may cause trouble.
• At machine inspection prior to each job,
check the operating condition of the brake
following the steps below.
1. Start the engine and grasp the handle securely
with both hands.
2. Pulling the throttle lever to maintain the chain
operation, push the brake lever (left-hand guard)
down toward the front using the back of your left
hand.
3. When the brake operates and the chain is
stopped, release the throttle lever.
4. Release the brake.
(1)Releases the brake.
(2)Activates the brake.
■ STOPPING ENGINE
1. Release the throttle lever to allow the engine
idling for a few minutes
2. Put the switch to the "O" position. (OP11)
(1)Switch
WARNING
❲16❳
8. Sawing
SA1
• Before proceeding to your job, read "For
Safe Operation" section It is recommended
to first practice sawing easy logs. This also
helps you get accustomed to your unit.
• Always follow the safety regulations. The
chain saw must only be used for cutting
wood. It is forbidden to cut other types of
material. Vibrations and kickback vary with
different materials and the requirements of
the safety regulations would not be
respected. Do not use the chain saw as a
lever for lifting, moving or splitting objects.
Do not lock it over fixed stands. It is
forbidden to hitch tools or applications to the
P.t.o. that are not specified by the
manufacturer.
• It is not necessary to force the saw into the
cut. Apply only light pressure while running
the engine at full throttle.
• When the saw chain is caught in the cut, do
not attempt to pull it out by force, but use a
wedge or a lever to open the way.
■ Guard against kickback (SA1)
• This saw is equipped with a chain brake that will
stop the chain in the event of kickback if
operating properly. You must check the chain
brake operation before each usage by running
the saw at full the throttle for I -2 seconds and
pushing the front hand guard forward. The chain
should stop immediately with the engine at full
speed. If the chain is slow to stop or does not
stop, replace the brake band and clutch drum
before use.
• It is extremely important that the chain brake be
checked for proper operation before each use
and that the chain be sharp in order to maintain
the kickback safety level of this saw. Removal of
the safety devices, inadequate maintenance, or
incorrect replacement of the bar or chain may
increase the risk or serious personal injury due
to kickback.
WARNING
SA3
■ FELLING A TREE (SA2)
When you fell a tree, be sure to warn your
neighboring workers of the danger.
1. Decide the felling direction considering the
wind, Iean of the tree, location of heavy
branches, ease of job after felling, and
other factors .
2. While clearing the area around the tree,
arrange a good foothold and retreat path.
3. Make a notch cut one-third of the way into
the tree on the felling side.
4. Make a felling cut from the opposite side
of the notch and at a level slightly higher
than the bottom of the notch.
■ LOGGING AND LIMBING
1. Always ensure your foothold as well as
stability of the tree.
2. Be alert to the rolling over of a cut log.
3. Read the instructions in “For safe
operation” to avoid kickback of the
saw.
Before starting work, check the direction of
bending force inside the log to be cut.
Always finish cutting from the opposite side
of bending direction to prevent the guide bar
from being caught in the cutaway.
● Cutting an unpillowed log
Saw down halfway, then roll the log over and
cut from the opposite side. (SA3)
WARNING
8. Sawing
SA2
❲17❳
WARNING
❲18❳
● Cutting a pillowed log
In the area A in the picture right above, saw up
from the bottom one-third and finish by sawing
down from the top. In the area B, saw down from
the top one-third and finish by sawing up from the
bottom. (SA4)
● Limbing a felled tree
Be alert to the spring back of a cut limb.
First check which way the limb is bent. Then make
a shallow cut into the compressed side to prevent
the limb from being torn. Cut through from the
tensed side. (SA5)
● Pruning
1. Do not use an unstable foothold or a
stepladder.
2. Do not overreach.
3. Do not cut above shoulder height.
4. Always use both hands to grip the saw.
Cut up from the bottom, finish down from the top.
(SA6)
WARNING
8. Sawing
SA4
SA5
SA6
WARNING
9. Maintenance
Make sure the engine is stopped .
■ DAILY CHECK POINTS
1. Air filter
Loosen the knob and remove the air cleaner cover.
Take off the filter elements and tap off attached
sawdust. When they are extremely dirty,
shakewash with gasoline. Dry them completely
before reinstalling. (MA1)
2. Oiling port
Dismount the guide bar and check the oiling port
for clogging. (MA2)
(1)Oiling port
3. Guide bar
Remove sawdust in the bar groove and the oiling
port. (MA3)
(1)Groove
(2)Oiling port
(Type: Sprocket nose)
Grease the nose sprocket from the feeding port on
the tip of the bar. (MA4)
(1)Grease port
(2)Sprocket
4. Others
Check for fuel leakage and loose fastenings or
damage to major parts, especially handle joints
and guide bar mounting. If any defects are found,
make sure to have them repaired before operating
again
WARNING
MA1
MA4
MA3
MA2
❲19❳
❲20❳
9. Maintenance
This saw is equipped with one of the following
low kickback bar/chain combinations:
RedMax Part Number
Bar Size Guide Bar Saw Chain
12inch (30cm) G2512 91VG45X
For replacement, use only above bar and chain,
or the following;
OREGON BAR
12 inch S/N DOUBLE GUARD BAR,
Mount code #A041. (120 SDEA 041)
GB BAR
12 inch MINI LAMINATED BAR (PO12-50CR)
OREGON CHAIN
91VG
■ PERIODICAL CHECK POINTS
1. Cylinder fins
1. Remove the starter case.
2. Remove sawdust between the cylinder fins.
(MA5)
(1)Cylinder fin
2. Fuel filter
1. Using a wire hook, take out the fuel filter from
the feeding port. (MA6)
2. Wash the filter with gasoline.
Replace with new one if clogged with dirt
completely.
When returning the filter, use a pinch not to be
folded the suction pipe.
3. Oil filter
1. With a wire hook, take out the oil filter from
the feeding port. (MA7)
2. Wash the filter with gasoline.
WARNING
MA7
MA6
MA5
WARNING
When returning the filter, use a pinch not to be
folded the suction pipe.
4. Spark plug
Clean the electrodes with a wire brush and adjust
the gap to 0.6mm. (MA8)
Replacement plug:
Champion RCJ-7Y
After spark plug maintenance, reinstall the plug
and plug cap firmly. (TORQUE: 14.7~17.6
N.m./150~180 kg-cm) Or it may cause the fire
accident. (MA9)
(1)Plug
(2)Plug cap
5. Sprocket
Check for extensive wear, and replace it when the
teeth are worn over 1.0mm. (MA10)
6. Guide bar
The bar rail should always be a square. Check for
wear of the bar rail. Apply a ruler to the bar and the
outside of a cutter. If a gap is observed between
them, the rail is normal. Otherwise, the bar rail is
worn. Such a bar needs to be corrected or
replaced.(MA11)
(1)Ruler
(2)Gap
(3)No gap
(4) Chain tilts
WARNING
9. Maintenance
MA9
MA10
MA11
MA8
❲21❳
WARNING
❲22❳
9. Maintenance
7. Saw Chain
It is very important for smooth and safe
operation to keep the cutters always sharp.
Your cutters need to be sharpened when:
• Sawdust becomes powder-like.
• You need extra force to saw in.
• The cut way does not go straight.
• Vibration increases.
• Fuel consumption increases.
Cutter setting standards:
Be sure to wear safety gloves.
Before filing:
• Make sure the saw chain is held securely.
• Make sure the engine is stopped.
• Use a round file of proper size for your chain.
Chain type: 91VG
File size: 5/32 in (4.0mm)
Place your file on the cutter and push straight
forward. Keep the file position as illustrated.
(MA12)
After every cutter has been set, check the depth
gauge and file it to the proper level as illustrated.
(MA13)
Be sure to round off the front edge to reduce
the chance of kickback or tie-strap breakage.
(1)Appropriate gauge checker
(2)Make the shoulder round
(3)Depth gauge standard
WARNING
MA13
MA12
WARNING
WARNING
9. Maintenance
Make sure every cutter has the same length and
edge angles as illustrated. (MA14)
(4)Cutter length
(5)Filing angle
(6)Side plate angle
(7)Top plate cutting angle
8. Way of the cooling air
• The engine metal parts can burn your skin.
Never touch the cylinder, muffler or ignition
plug etc. during operation or right after
stopping the engine.
• Before starting the engine, check around the
muffler and take off sawdust. If you do not, it
will cause the overheating and a fire. For
preventing the trouble, please keep clean
around the muffler.
This engine is air-cooled. Dust clogging between
the inlet port of the cooling air and cylinder fins will
cause overheating of the engine. Periodically
check and clean the cylinder fins after removing
the air cleaner and the cylinder cover. (MA15)
(1)Inlet port of the cooling air
When installing the cylinder cover, make sure that
switch wires and grommets are positioned correctly
in place.
IMPORTANT
❲23❳
MA14
MA15
WARNING
❲24❳
9. Maintenance
9. Muffler (MA16)
If you do not attach the muffler correctly, after
engine starts, the muffler will be loosen and the
hightemperature exhaust gas spout. After
cleaning the muffler, pay attention to fit up the
muffler according to the explanation as follows.
1. Muffler body, muffler cover and baffle will be
combined correctly.
2. Be sure the gasket is not broken. If it is broken,
change to the new one.
3. Before tightening the screw, rub the gross on it.
4. After making a test run, re-tighten the screw
(TORQUE: 4.9~5.9 N.m./50~60 kg-cm)
Right after stopping the engine, do not touch
the muffler with one's bare hands. It will cause
to burn your hands.
If carbon clogs between the muffler, it will cause
the poor-output and the trouble in starting. After
each 100 hours, check and clean inside the
muffler.
Spark arrester
RedMax engines are equipped with a spark
arresting screen at the exhaust port. Periodically
check and keep it in good condition. In the State of
California it is required by law (Section 4442 of the
California Public Resources Code) to have a spark
arrester when a gas powered tool is used in any
forest covered, brush covered, or grass covered
unimproved land. (MA16)
(1)Gasket
(2)Spark arrester
WARNING
MA16
WARNING
❲25❳
10. Storage
1. Empty the fuel tank and run the engine out of
fuel.
2. Empty the oil tank.
3. Clean the entire unit.
4. Store the unit in a dry place out of the reach of
children.
❲26❳
11. Troubleshooting Guide
Case 1. Starting failure:
Make sure the icing prevention system is not working.
Case 2. Lack of power/Poor acceleration/Rough idling
Case 3. Oil does not come out
Check fuel for water or
substandard mixture.
Check for engine flooding.
Check the spark.
Check fuel for water or
substandard mixture.
Check air filter and fuel
filter for clogging.
Check carburetor for
inadequate adjustment.
Check oil for
substandard quality.
Check oil passage
and ports for clogging.
Replace with proper fuel.
Remove and dry the spark plug.
Then pull the starter again with no choke.
Replace with a new plug.
Replace with proper fuel.
Clean.
Readjust speed needles.
Replace.
Clean.
When your unit seems to need further service, please consult with our
service shop in your area.
➜
➜
➜
➜
➜
➜
➜
➜
➜➜
➜➜ ➜
❲27❳
12. Parts list
NOTE :
1. Use KOMATSU ZENOAH genuine parts as specified in the parts list for repair and/or
replacement.
2. KOMATSU ZENOAH does not warrant the machines, which have been damaged by the
use of any parts other than those specified by the company.
3. When placing parts orders for repair and/or replacement, check if the model name and the
serial number are applicable to those specified in the parts list, then use parts number
described in the parts list.
4. The contents described in the parts list may change due to improvement.
5. The parts for the machine shall be supplied seven (7) years after the machine is
discontinued. [It is possible that some specific parts may be subject to change of their
delivery term and list price within the limit of ten (7) years after the machine is
discontinued. It is also possible that some parts may be available even after the limit of
seven (7) years.]
CHAINSAWS
Oct. 2000
G2500TS
APPLICABLE SERIAL NUMBERS : 010101 and up
❲
28
❳
12. Parts list
Fig.1 POWER UNIT G2500TS (S/N 010101 and up)
G2500TS
❲
29
❳
Fig.1 POWER UNIT (S/N 010101 and up)
G2500TS
1 2841-12101 CYLINDER COMP 1
2 2841-12120 • ELBOW 1
3 2841-12210 PIPE 1
4 3310-82230 CLIP 1
5 3350-34320 ELBOW 1
6 2841-21110 CRANKCASE 1
7 01252-30520 BOLT, hexagon hole 4 M5x20
8 2841-41112 PISTON 1
9 2841-41210 RING, piston 1
10 1600-41310 PIN 1
11 1260-41320 RING, snap 2
12 1140-41330 BEARING 1
13 1101-41340 WASHER 2
14 2841-42001 SHAFT COMP 1
15 1155-21240 BEARING 2
16 2841-21210 OIL SEAL 1
17 2841-21220 OIL SEAL 1
18 1650-43230 NUT 1 M8x1.0
19 1000-43240 KEY 1
20 2841-06010 PIPE SET 1
21 2841-14120 PLATE 1
22 0263-30416 SCREW 2 M4x16
23 T2040-15100 MUFFLER ASSY 1
24 T2040-15140 • SPARK ARRESTER 1
25 3304-15210 GASKET 1
26 2670-82210 SCREW 2
27 T2040-15310 MUFFLER COVER 1
28 2841-71101 ROTOR ASSY 1
29 2841-71120 • PAWL 2
30 1260-71240 • SPRING 2
31 2850-71140 • SCREW 2
32 2850-71151 • WASHER 2
33 2841-71200 MODULE ASSY 1
34 2841-71220 • CORD 1
35 2616-71320 • CAP 1
36 2850-72110 • CAP 1
37 1400-72121 • SPRING 1
38 1140-72110 • GROMMET 1
39 5500-72150 SPACER 2
40 3350-14150 BOLT, hexagon hole 2 M4x25
41 1630-73110 SPARK PLUG 1 RCJ7Y
42 2850-74102 SWITCH ASSY 1
43 2850-74213 CORD 1
44 2841-74220 CORD 1
45 2841-31103 CASE COMP 1
46 2841-31140 • SCREW 2
47 2870-31750 SCREW 4 M5x16
48 2841-31201 PIPE ASSY 1
49 2841-31210 • PIPE 1
50 2841-31251 • GROMMET 1
51 1850-85300 • FILTER 1
52 1260-85460 • CLIP 1
53 2850-34501 BREATHER ASSY 1
54 3317-85120 GROMMET 1
55 2850-81900 PUMP 1
Key# PART NUMBER DESCRIPTION
Q'TY
/UNIT
NOTE
56 2841-31260 PIPE 1
57 2841-31800 CAP ASSY 2
58 2630-31820 • GASKET 2
59 3330-23121 VALVE 1
60 2841-31410 SEAL 1
61 2841-31911 COVER 1
62 2630-31950 SCREW, tapping 2
ø4.3x16
63 2841-31920 MAT 1
64 2841-37111 PIPE 2
65 2841-37121 PIPE 1
66 2841-37150 JOINT 2
67 2841-31300 PIPE COMP 1
68 2841-31311 • PIPE 1
69 3310-57320 • JOINT 1
70 2841-31330 • PIPE 1
71 3310-57340 • CLIP 1
72 2670-23131 • FILTER 1
73 1260-41320 • RING 1
74 2841-55103 OIL PUMP ASSY 1
75 2841-55112 • OIL PUMP 1
76 2850-55121 • WORM 1
77 0263-30416 SCREW 2 M4x16
78 2850-55211 WASHER 1
79 2670-55220 SEAL 1
80 2841-55250 PIPE 1
81 2841-55310 COVER 1
82 2630-31950 SCREW, tapping 2
ø4.3x16
83 2475-51110 DRUM 1
84 2841-51201 CLUTCH ASSY 1
85 2841-51220 • SHOE 2
86 2841-51230 • SPRING 2
87 2841-51242 • BOSS 1
88 2841-51210 PLATE 1
89 3310-51310 BEARING 1
90 T2040-31950 LABEL (EPA) 1
91 2841-82510 ROD 1
92 2841-82411 ROD 1
93 2841-82421 GROMMET 1
94 T2040-81000 CARBRETOR ASSY 1 WT-596
95 2841-82210 SEAL 1
96 2841-82111 PLATE 1
97 2841-82120 PLATE 1
98 0263-30545 SCREW 2 M5x45
99 2841-83111 CLEANER 1
100 2841-83120 ELEMENT 1
101 2841-83302 COVER COMP 1
102 2841-83320 • KNOB 1
103 2630-53412 CATCHER 1
104 2630-32170 SCREW, tapping 1
ø5.4x20
105 2841-53310 PLATE 1
108 2841-75001 STARTER ASSY 1
109 2841-75101 • CASE COMP 1
110 2841-75210 • REEL 1
Key# PART NUMBER DESCRIPTION
Q'TY
/UNIT
NOTE
111 2841-75300 • SPRING COMP 1
112 1850-75160 • ROPE 1
113 3330-75421 • KNOB 1
114 1140-51230 • WASHER 1
115 2630-75510 • SCREW, tapping 1
ø5.4x14
116 2841-75611 • COVER 1
117 2841-75710 • PIPE 1
118 2630-31950 • SCREW, tapping 1
ø4.3x16
119 2630-31950 SCREW, tapping 4
ø4.3x16
120 T2040-75130 LABEL 1
121 2841-54003 BRAKE ASSY 1
122 2841-54113 • COVER 1
123 2841-54121 • GUARD 1
124 2872-54120 • SPRING 1
125 0263-80530 • SCREW 1 M5x30
126 2872-54140 • SPACER 1
127 2850-54211 • SPACER 1
128 2851-54221 • WEIGHT 1
129 2841-54230 • SPRING 1
130 2851-54270 • SPRING 1
131 01641-20508 • WASHER 1
132 3310-53331 • NUT, nylon 1 M5
133 2851-54301 • LEVER COMP 1
134 2851-54350 • ROLLER 1
135 2670-54410 • ARM 1
136 2841-54510 • BAND 1
137 3356-24140 • ROLLER 1
138 2670-54610 • SPRLNG 1
139 2841-54620 • COVER 1
140 2630-33610 • SCREW, tapping 4
ø4.3x12
141 2841-53211 • PLATE 1
142 2841-53240 • SCREW 1
143 2810-53221 • NUT 1
144 2671-53230 • GEAR 1
145 3350-53410 NUT 1 M8
146 T2040-53120 LABEL 1
147 T2040-54910 LABEL, warning 1
148 2841-32100 HANDLE ASSY 1
149 2841-32150 • STOPPER 1
150 2841-35110 • DAMPER 1
151 2630-75510 • SCREW, tapping 1
ø5.4x14
152 2630-75510 SCREW, tapping 2
ø5.4x14
153 2841-33100 HANDLE COMP 1
154 3356-33311 • LEVER THROTTLE 1
155 3356-33321 • SPRING 1
156 04025-00524 • SPRING PIN 1
157 2841-35180 STOPPER 1
158 3356-33352 ARM 1
159 2841-34110 COVER 1
160 2630-31950 SCREW, tapping 1
ø4.3x16
161 2841-35110 DAMPER 2
162 2841-35120 BOLT 3
163 2841-35150 CAP 3
164 2841-98210 HANGER 1
165 2630-33610 SCREW 1
Key# PART NUMBER DESCRIPTION
Q'TY
/UNIT
NOTE
❲30❳
12. Parts list

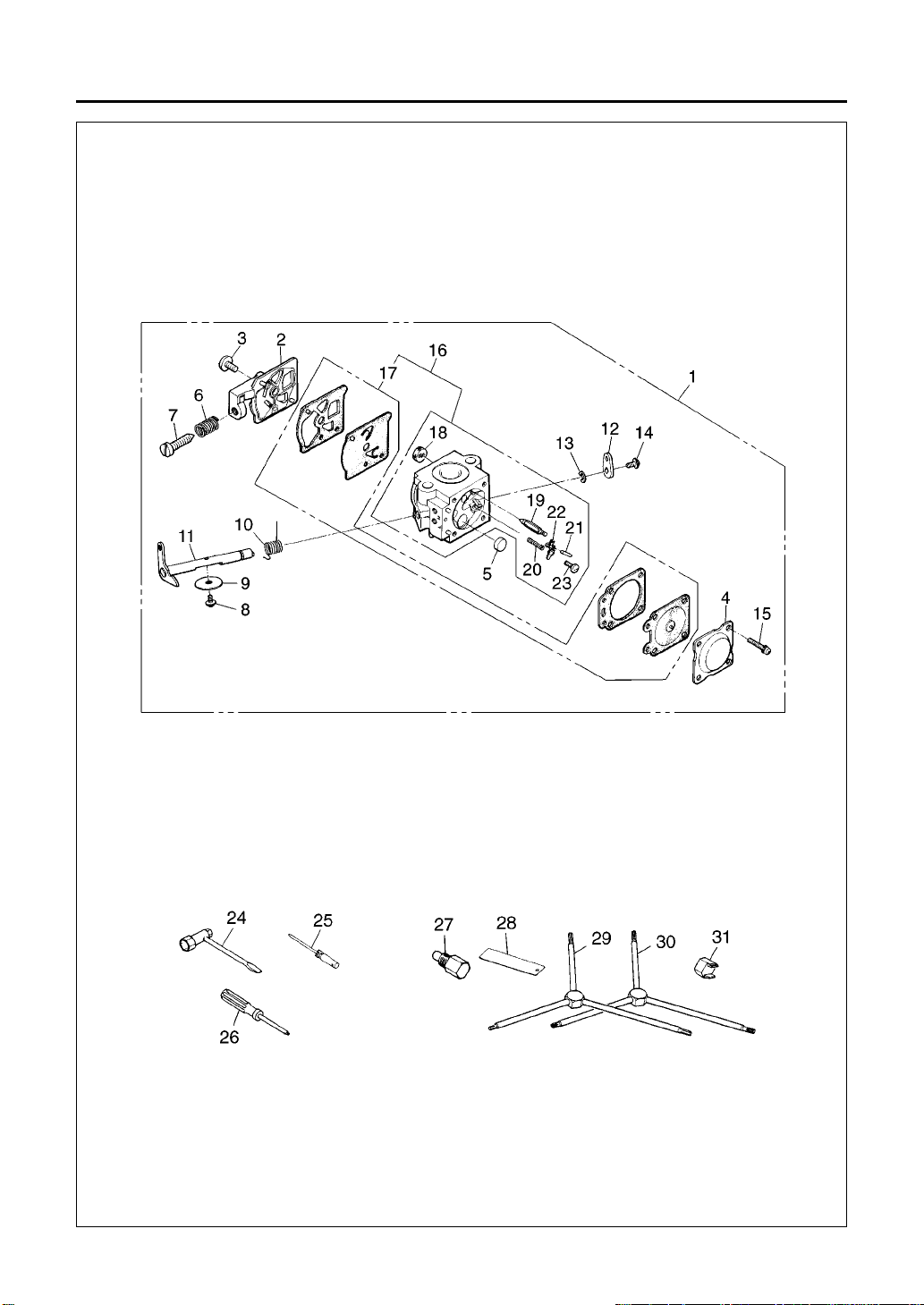

Fig.2 CARBBURETOR COMPONENTS & ACCESSORIES (S/N 010101 and up)
G2500TS
❲31❳
Fig.2 CARBBURETOR COMPONENTS & ACCESSORIES (S/N 010101 and up)
G2500TS
Key# PART NUMBER DESCRIPTION
Q'TY
/UNIT
NOTE
1 T2040-81000 CARBURETOR ASS'Y
2 2630-81120 • PUMP COVER 1
3 3310-81130 • SCREW 1
4 3310-81280 • COVER 1
5 1480-81420 • PLUG 1
6 3350-81380 • SPRING 1
7 2630-81330 • SCREW 1
8 2880-81470 • SCREW 1
9 3310-81341 • VALVE 1
10 2670-81410 • SPRING 1
11 T2040-81370 • SHAFT ASS'Y 1
12 2841-81440 • LEVER 1
13 1148-81390 • RING 1
14 3310-81360 • SCREW 1
15 3310-81351 • SCREW 4
16 2841-06030 • REBUILT KIT 1
17 2850-06020 • • GASKET KIT 1
18 –––––––––– • • SCREEN 1
19 –––––––––– • • VALVE, inlet 1
20 –––––––––– • • SPRING 1
21 –––––––––– • • PIN 1
22 –––––––––– • • LEVER 1
23 –––––––––– • • SCREW 1
24 3320-91140 WRENCH 1
25 2670-91150 DRIVER 1
26 1030-91340 DRIVER 1
27 3350-96220 STOPPER 1 PISTON (OP)
28 3350-96240 GAUGE 1 AIR GAP (OP)
29 3304-97611 WRENCH 1 HEXAGON (OP)
30 2670-96410 WRENCH 1 TORX (OP)
31 2841-96110 WRENCH 1 CLUTCH (OP)
THE CALIFORNIA AIR RESOURCES BOARD AND KOMATSU ZENOAH Co. ARE PLEASED TO
EXPLAIN THE EMISSION CONTROL SYSTEM WARRANTY ON YOUR 1995 AND LATER LAWN AND
GARDEN EQUIPMENT ENGINE. IN CALIFORNIA, NEW UTILITY AND LAWN AND GARDEN
EQUIPMENT ENGINES MUST BE DESIGNED, BUILT AND EQUIPPED TO MEET THE STATE'S
STRINGENT ANTI-SMOG STANDARDS.
KOMATSU ZENOAH Co, MUST WARRANT THE EMISSION CONTROL SYSTEM ON YOUR LAWN AND
GARDEN EQUIPMENT ENGINE FOR THE PERIODS OF TIME LISTED BELOW PROVIDED THERE HAS
BEEN NO ABUSE, NEGLECT OR IMPROPER MAINTENANCE OF YOUR LAWN AND GARDEN
EQUIPMENT ENGINE.
YOUR EMISSION CONTROL SYSTEM. MAY INCLUDE PARTS SUCH AS THE CARBURETOR, THE
IGNITION SYSTEM, AND CATALYTIC CONVERTER. ALSO INCLUDED MAY BE THE HOSES, BELTS,
CONNECTORS AND OTHER EMISSION-RELATED ASSEMBLIES.
WHERE A WARRANTABLE CONDITION EXISTS, KOMATSU ZENOAH Co. WILL REPAIR YOUR LAWN
AND GARDEN EQUIPMENT ENGINE AT NO COST TO YOU INCLUDING DIAGNOSIS, PARTS AND
LABOR.
MANUFACTURER'S WARRANTY COVERAGE:
THE 1995 AND LATER UTILITY AND LAWN AND GARDEN EQUIPMENT ENGINES ARE
WARRANTED FOR TWO YEARS. IF ANY EMISSION-RELATED PART ON YOUR ENGINE IS
DEFECTIVE, THE PART WILL BE REPAIRED OR REPLACED BY KOMATSU ZENOAH Co.
OWNER'S WARRANTY RESPONSIBILITIES:
—AS THE LAWN AND GARDEN EQUIPMENT ENGINE OWNER, YOU ARE RESPONSIBLE FOR
THE PERFORMANCE OF THE REQUIRED MAINTENANCE LISTED IN YOUR OWNER'S
MANUAL. KOMATSU ZENOAH Co. RECOMMENDS THAT YOU RETAIN ALL RECEIPTS
COVERING MAINTENANCE ON YOUR LAWN AND GARDEN ENGINE, BUT KOMATSU
ZENOAH Co. CAN NOT DENY WARRANTY SOLELY FOR THE LACK OF RECEIPTS OR FOR
YOUR FAILURE TO ENSURE THE PERFORMANCE OF ALL SCHEDULED MAINTENANCE.
—AS THE LAWN AND GARDEN EQUIPMENT ENGINE OWNER, YOU SHOULD BE AWARE,
HOWEVER, THAT KOMATSU ZENOAH Co. MAY DENY YOU WARRANTY COVERAGE IF
YOUR LAWN AND GARDEN EQUIPMENT ENGINE OR A PART HAS FAILED DUE TO ABUSE,
NEGLECT, IMPROPER MAINTENANCE OR UNAPPROVED MODIFICATION.
—YOU ARE RESPONSIBLE FOR PRESENTING YOUR LAWN AND GARDEN EQUIPMENT
ENGINE TO A KOMATSU ZENOAH Co. DISTRIBUTION CENTER AS SOON AS A PROBLEM
EXISTS. THE WARRANTY REPAIRS SHOULD BE COMPLETED IN A REASONABLE AMOUNT
OF TIME, NOT TO EXCEED 30 DAYS.
IF YOU HAVE ANY QUESTIONS REGARDING YOU WARRANTY RIGHTS AND RESPONSIBILITIES,
YOU SHOULD CONTACT KOMATSU ZENOAH AMERICA INC. AT (770)-381-5147.
CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS
EMISSION-RELATED PARTS, FOR TWO (2) YEARS FROM THE DATE OF ORIGINAL DELIVERY OF THE MODEL
G2500TS UNIT, KOMATSU ZENOAH AMERICA INC. (THE COMPANY),
THROUGH ANY RedMax DEALER, WILL REPAIR OR REPLACE, FREE OF CHARGE, FOR THE ORIGINAL AND EACH
SUBSEQUENT PURCHASER, ANY PART OR PARTS FOUND TO BE DEFECTIVE IN MATERIAL AND/OR
WORKMANSHIP. EMISSION-RELATED PARTS ARE:
THE CARBURETOR ASSY, COIL ASSY, ROTOR, SPARKPLUG,
AIR FILTER, FUEL FILTER, INTAKE MANIFOLD, AND THE GASKETS
ALL OTHER PARTS EXCEPT ABOVE PARTS, FOR ONE (1) YEAR OF HOME USE [ NINETY (90) DAYS FOR ANY
OTHER USE ] FROM THE DATE OF ORIGINAL ANY DELIVERY OF THE MODEL G2500TS UNIT, THE COMPANY,
THROUGH ANY RedMax DEALER, WILL REPAIR OR REPLACE, FREE OF CHARGE, FOR THE ORIGINAL PURCHASER,
ANY PART OF PARTS FOUND TO BE DEFECTIVE IN MATERIAL AND/OR WORKMANSHIP. THIS IS THE EXCLUSIVE
REMEDY.
THE PURCHASER SHALL BEAR COSTS OF TRANSPORTING THE UNIT TO AND FROM THE RedMax DEALER.
THE PURCHASER SHALL NOT BE CHARGED FOR DIAGNOSTIC LABOR WHICH LEADS TO THE DETERMINATION
THAT A WARRANTED PART IS DEFECTIVE, IF THE DIAGNOSTIC WORK IS PERFORMED AT THE RedMax DEALER.
THE PURCHASER OR OWNER IS RESPONSIBLE FOR THE PERFORMANCE OF THE REQUIRED MAINTENANCE AS
DEFINED BY THE MANUFACTURER IN THE OWNER/OPERATOR MANUAL.
ANY WARRANTED PART WHICH IS NOT SCHEDULED FOR REPLACEMENT AS REQUIRED MAINTENANCE, OR
WHICH IS SCHEDULED ONLY FOR REGULAR INSPECTION TO THE EFFECT OF "REPAIR OR REPLACE AS
NECESSARY" SHALL BE WARRANTED FOR THE WARRANTY PERIOD.ANY WARRANTED PART WHICH IS
SCHEDULED FOR REPLACEMENT AS REQUIRED MAINTENANCE SHALL BE WARRANTED FOR THE PERIOD OF
TIME UP TO THE FIRST SCHEDULED REPLACEMNET POINT FOR THE PART.
ANY REPLACEMENT PART THAT IS EQUIVALENT IN PERFORMANCE AND DULABILITY MAY BE USED IN NONWARRANTY MAINTENANCE OR REPAIRS, AND SHALL NOT REDUCE THE WARRANTY OBLIGATION OF THE
COMPANY.
THE COMPANY IS LIABLE FOR DAMAGES TO OTHER ENGINE COMPONENTS CAUSED BY THE FAIRURE OF A
WARRANTED PARTS STILL UNDER WARRANTY.
THE WARRANTY DOES NOT APPLY TO THOSE UNITS WHICH HAVE BEEN DAMAGED BY NEGLIGENCE OF
INSTRUCTION LISTED IN THE OWNER/OPERATOR MANUAL FOR PROPER USE AND MAINTENANCE OF THE UNITS,
ACCIDENT MISHANDLING, ALTERATION, ABUSE, IMPROPER LUBULICATION, USE OF ANY PARTS OR ACCESSARIES
OTHER THAN THOSE SPECIFIED BY THE COMPANY, OR OTHER CAUSES BEYOND THE CONPANY'S CONTROL.
THIS WARRANTY DOES NOT COVER THOSE PARTS REPLACED BY NORMAL WEAR OR HARMLESS CHANGES IN
THEIR APPEARANCE.
THERE ARE NO OTHER EXPRESS WARRANTIES.
IMPLIED WARRANTIES INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE LIMITED TO ONE (1) YEAR OF HOME USE [ NINETY (90) DAYS FOR ANY OTHER USE ] FROM THE ORIGINAL
DELIVERY DATE.
LIABILITIES FOR INCIDENTAL OR CONSEQUENTIAL DAMAGE UNDER ANY AND ALL WARRANTIES
ARE EXCLUDED.
SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS OR EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMINATION OR EXCLUSION MAY
NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
IF YOU NEED TO OBTAIN INFORMATION ABOUT THE NEAREST SERVICE CENTER, PLEASE CALL KOMATSU
ZENOAH AMERICA INC. AT (770)-381-5147.
IMPORTANT: YOU WILL RECEIVE A WARRANTY REGISTRATION CARD AT TIME OF PURCHASE.PLEASE FILL
OUT THE CARD AND SEND IT TO RedMax / KOMATSU ZENOA AMERICA WITHIN SEVEN (7) DAYS.BE SURE TO KEEP
A COPY FOR YOUR RECORDS.
RedMax CHAINSAW
MODEL G2500TS
1-YEAR LIMITED WARRANTY
KOMATSU ZENOAH AMERICA INC.
4344 Shackleford Road Suite 500
Norcross, Georgia 30093
© Printed in Japan
Pièces en rapport avec les émissions de gaz d'échappement : KOMATSU ZENOAH AMERICA INC., par
l'intermédiaire de n'importe quel revendeur RedMax, réparera gratuitement ou remplacera gratuitement pour
l'acheteur initial et chaque acheteur successif toute(s) pièce(s) se révélant de constitution et/ou de montage
défectueux pendant deux (2) ans à compter de la date initiale de livraison d’une unité du modèle G2500TS. Les
pièces en rapport avec les émissions de gaz d'échappement sont:
l'assemblage carburateur, l'assemblage bobine, le rotor, la bougie,
le filtre à air, le filtre à carburant, la tubulure d'admission et les joints
Toutes autres pièces exceptées celles mentionnées ci-dessus : La société, par l'intermédiaire de n'importe quel
revendeur RedMax, réparera gratuitement ou remplacera gratuitement pour l'acheteur initial toute(s) pièce (s) se
révélant de constitution et/ou de montage défectueux pendant un (1) ans en cas d’utilisation privée [ quatre-vingt-dix
(90) jours pour toute autre utilisation] à compter de la date de livraison initiale d’une unité du modèle G2500TS.
Telles sont les limites de la garantie.
Le coût du transport de l'unité jusqu'au revendeur RedMax et depuis celui-ci sera à la charge de l'acheteur.
L'acheteur ne supportera pas le coût de main d'oeuvre du diagnostic qui amène à la conclusion qu'une pièce
garantie est défectueuse, si ce diagnostic est effectué chez le revendeur RedMax.
L’acheteur ou propriétaire a pour responsabilité d’effectuer l’entretien obligatoire tel que défini par le fabricant dans le
manuel du propriétaire/de l'utilisateur.
Toute pièce garantie dont le remplacement n'est pas prévu dans le cadre de l’entretien obligatoire, ou pour laquelle
est seulement prévue une inspection périodique pour "remplacement ou réparation si nécessaire" sera garantie pour
la période de garantie. Toute pièce garantie arrivée à l’échéance de son premier remplacement prévu sera garantie
jusqu’à celui-ci.
Toute pièce de rechange équivalente en performance ou en durabilité peut être utilisée pour l’entretien hors-garantie
ou les réparations hors-garantie, et ce sans réduire l’obligation de garantie incombant à la société.
La société sera tenue responsable des dommages aux autres composants du moteur causés par la défaillance de
pièce(s) garantie(s) en période de garantie.
La garantie ne s'applique pas aux unités endommagées par suite de: négligence dans la mise en oeuvre des
instructions spécifiées dans le manuel du propriétaire/de l'utilisateur en vue d’une utilisation et d’un entretien correct,
fausse manœuvre accidentelle, modification, utilisation abusive, lubrification incorrecte, utilisation de pièces ou
d’accessoires autres que ceux spécifiés par la société, ou autres causes hors du contrôle de la société.
Cette garantie ne couvre pas les pièces remplacées en raison de leur usure normale ou de changements
d’apparence sans effets.
Il n'existe aucune autre garantie explicite.
Les garanties implicites, celles de négociabilité du produit et de son adaptabilité à un usage défini incluses, sont
limitées à un (1) ans pour un usage privé [ quatre-vingt-dix (90) jours pour toute autre utilisation] à compter de la
date initiale de livraison.
Les responsabilités pour les dommage conséquents ou incidents sont exclues de toutes les garanties.
Certaines provinces n'autorisant pas les limitations à la durée des garanties implicites, ou les exclusions ou
limitations relatives aux dommages incidents ou conséquents, la limitation indiquée ci-dessus peut ne pas vous être
applicable.
Cette garantie vous donne des droits juridiques spécifiques, et vous pouvez également jouir d’autres droits variant
d'une province à l'autre.
Si vous désirez obtenir des informations sur le centre de service le plus proche, veuillez appeler KOMATSU
ZENOAH AMERICA INC. au (770)-381-5147
Note importante: vous recevrez une carte d'enregistrement de garantie au moment de l'achat. Veuillez la remplir et
l'adresser à RedMax / KOMATSU ZENOAH AMERICA sous sept (7) jours en prenant soin de conserver une copie
pour vous.
RedMax CHAINSAW
Modèle G2500TS
Garantie limitée à 1 ans
KOMATSU ZENOAH AMERICA INC.
4344 Shackleford Road Suite 500
Norcross, Georgia 30093
KOMATSU ZENOAH AMERICA INC.
4344 Shackleford Road Suite 500
Norcross, Georgia 30093
© Printed in Japan
Loading...
