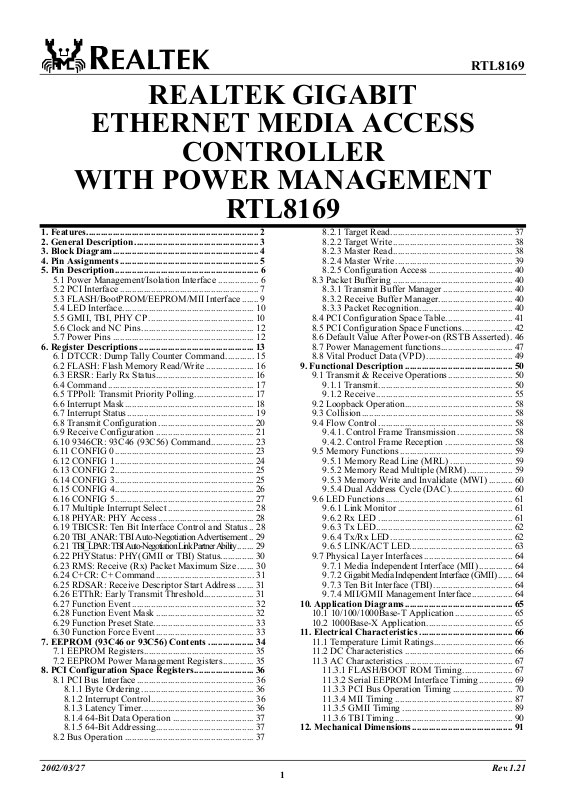

Page 1
REALTEK GIGABIT
ETHERNET MEDIA ACCESS
CONTROLLER
WITH POWER MANAGEMENT
RTL8169
1. Features........................................................................ 2
2. General Description .................................................... 3
3. Block Diagram............................................................. 4
4. Pin Assignments .......................................................... 5
5. Pin Description ............................................................ 6
5.1 Power Management/Isolation Interface ................. 6
5.2 PCI Interface .......................................................... 7
5.3 FLASH/BootPROM/EEPROM/MII Interface ....... 9
5.4 LED Interface....................................................... 10
5.5 GMII, TBI, PHY CP ............................................ 10
5.6 Clock and NC Pins............................................... 12
5.7 Power Pins ........................................................... 12
6. Register Descriptions ................................................ 13
6.1 DTCCR: Dump Tally Counter Command............ 15
6.2 FLASH: Flash Memory Read/Write .................... 16
6.3 ERSR: Early Rx Status......................................... 16
6.4 Command............................................................. 17
6.5 TPPoll: Transmit Priority Polling......................... 17
6.6 Interrupt Mask...................................................... 18
6.7 Interrupt Status..................................................... 19
6.8 Transmit Configuration........................................ 20
6.9 Receive Configuration ......................................... 21
6.10 9346CR: 93C46 (93C56) Command.................. 23
6.11 CONFIG 0.......................................................... 23
6.12 CONFIG 1.......................................................... 24
6.13 CONFIG 2.......................................................... 25
6.14 CONFIG 3.......................................................... 25
6.15 CONFIG 4.......................................................... 26
6.16 CONFIG 5.......................................................... 27
6.17 Multiple Interrupt Select .................................... 28
6.18 PHYAR: PHY Access ........................................ 28
6.19 TBICSR: Ten Bit Interface Control and Status .. 28
6.20 TBI_ANAR: TBI Auto-Negotiation Advertisement .. 29
6 .2 1 TBI_LPAR: TBI Auto-Negotiation Link Partner Ability ....... 29
6.22 PHYStatus: PHY(GMII or TBI) Status.............. 30
6.23 RMS: Receive (Rx) Packet Maximum Size....... 30
6.24 C+CR: C+ Command......................................... 31
6.25 RDSAR: Receive Descriptor Start Address....... 31
6.26 ETThR: Early Transmit Threshold..................... 31
6.27 Function Event ................................................... 32
6.28 Function Event Mask ......................................... 32
6.29 Function Preset State.......................................... 33
6.30 Function Force Event ......................................... 33
7. EEPROM (93C46 or 93C56) Contents ................... 34
7.1 EEPROM Registers.............................................. 35
7.2 EEPROM Power Management Registers............. 35
8. PCI Configuration Space Registers......................... 36
8.1 PCI Bus Interface ................................................. 36
8.1.1 Byte Ordering ............................................... 36
8.1.2 Interrupt Control........................................... 36
8.1.3 Latency Timer............................................... 36
8.1.4 64-Bit Data Operation .................................. 37
8.1.5 64-Bit Addressing......................................... 37
8.2 Bus Operation ...................................................... 37
RTL8169
8.2.1 Target Read................................................... 37
8.2.2 Target Write.................................................. 38
8.2.3 Master Read.................................................. 38
8.2.4 Master Write................................................. 39
8.2.5 Configuration Access ................................... 40
8.3 Packet Buffering .................................................. 40
8.3.1 Transmit Buffer Manager............................. 40
8.3.2 Receive Buffer Manager............................... 40
8.3.3 Packet Recognition....................................... 40
8.4 PCI Configuration Space Table............................ 41
8.5 PCI Configuration Space Functions..................... 42
8.6 Default Value After Power-on (RSTB Asserted). 46
8.7 Power Management functions.............................. 47
8.8 Vital Product Data (VPD).................................... 49
9. Functional Description ............................................. 50
9.1 Transmit & Receive Operations........................... 50
9.1.1 Transmit........................................................ 50
9.1.2 Receive ......................................................... 55
9.2 Loopback Operation............................................. 58
9.3 Collision............................................................... 58
9.4 Flow Control ........................................................ 58
9.4.1. Control Frame Transmission ....................... 58
9.4.2. Control Frame Reception ............................ 58
9.5 Memory Functions ............................................... 59
9.5.1 Memory Read Line (MRL) .......................... 59
9.5.2 Memory Read Multiple (MRM)................... 59
9.5.3 Memory Write and Invalidate (MWI) .......... 60
9.5.4 Dual Address Cycle (DAC).......................... 60
9.6 LED Functions..................................................... 61
9.6.1 Link Monitor ................................................ 61
9.6.2 Rx LED ........................................................ 61
9.6.3 Tx LED......................................................... 62
9.6.4 Tx/Rx LED................................................... 62
9.6.5 LINK/ACT LED........................................... 63
9.7 Physical Layer Interfaces ..................................... 64
9.7.1 Media Independent Interface (MII).............. 64
9.7.2 Gigabit Media Independent Interface (GMII) ...... 64
9.7.3 Ten Bit Interface (TBI) ................................. 64
9.7.4 MII/GMII Management Interface................. 64
10. Application Diagrams............................................. 65
10.1 10/100/1000Base-T Application........................ 65
10.2 1000Base-X Application.................................... 65
11. Electrical Characteristics ....................................... 66
11.1 Temperature Limit Ratings................................. 66
11.2 DC Characteristics ............................................. 66
11.3 AC Characteristics ............................................. 67
11.3.1 FLASH/BOOT ROM Timing..................... 67
11.3.2 Serial EEPROM Interface Timing .............. 69
11.3.3 PCI Bus Operation Timing ......................... 70
11.3.4 MII Timing ................................................. 87
11.3.5 GMII Timing .............................................. 89
11.3.6 TBI Timing ................................................. 90
12. Mechanical Dimensions.......................................... 91
2002/03/27 Rev.1.21
1
Page 2
1. Features
208 pin QFP
Supports descriptor-based buffer management
Supports Microsoft* NDIS5 Checksum Offloads (IP,
TCP, UDP), and Largesend Offload
Supports IEEE 802.1Q VLAN tagging
Supports Transmit (Tx) Priority Queue for QoS, CoS
applications
Supports major Tally Counters
10Mbps, 100Mbps, and 1000Mbps operation at
MII/GMII, and 1000Mbps at TBI interfaces
Supports 10Mbps, 100Mbps, and 1000Mbps N-way
Auto-negotiation operation
PCI local bus single-chip Fast Ethernet controller
Compliant to PCI Revision 2.2
Supports both Little-Endian and Big-Endian
Supports 16.75MHz-66MHz PCI clock
Supports both 32-bit and 64-bit PCI bus
Supports PCI target fast back-to-back transaction
Supports Memory Read Line, Memory Read
Multiple, Memory Write and Invalidate, and
Dual Address Cycle
Provides PCI bus master data transfers and PCI
memory space or I/O space mapped data
transfers of the RTL8169 operational registers
Supports PCI VPD (Vital Product Data)
Supports ACPI, PCI power management
Supports optional PCI multi-function with
additional slave mode only functions
Supports CardBus. The CIS can be stored in 93C56 or
expansion ROM
Supports Boot ROM interface. Up to 128K bytes Boot
ROM interface for both EPROM and Flash memory
can be supported
Supports 125MHz OSC as the internal clock source or
125MHz clock provided from external PHYceiver
Compliant to PC97, PC98, PC99 and PC2001 standards
RTL8169
Supports Wake-On-LAN function and remote wake-up
(Magic Packet*, LinkChg and Microsoft
frame)
Supports 4 Wake-On-LAN (WOL) signals (active high,
active low, positive pulse, and negative pulse)
Supports auxiliary power-on internal reset, to be ready
for remote wake-up when main power still remains off
Supports auxiliary power auto-detect, and sets the
related capability of power management registers in PCI
configuration space
Advanced power saving mode when LAN function or
wakeup function is not used
3.3V and 1.8V power supplies needed
5V tolerant I/Os
Includes a programmable, PCI burst size and early
Tx/Rx threshold
Supports a 32-bit general-purpose timer with the
external PCI clock as clock source, to generate
timer-interrupt
Contains two large independent transmit (8KB) and
receive (48KB) FIFO devices
Uses 93C46 (64*16-bit EEPROM) or 93C56
(128*16-bit EEPROM) to store resource configuration,
ID parameter, and VPD data. The 93C56 can also be
used to store the CIS data structure for CardBus
applications
Supports LED pins for various network activity
indications
Supports both digital and external analog loopback
Half/Full duplex capability (only Full duplex operation
at 1000Mbps)
Supports Full Duplex Flow Control (IEEE 802.3x)
* Third-party brands and names are the property of their
respective owners.
These specifications are subject to change without notice.
®
wake-up
2002/03/27 Rev.1.21
2
Page 3
RTL8169
2. General Description
The Realtek RTL8169 is a highly integrated, high performance PCI Gigabit Ethernet Media Access Controller for use in network
adapters for servers and personal computers. The RTL8169 fully implements the 33/66MHz, 32/64-bit PCI v2.2 bus interface for
host communications with power management and is compliant with the IEEE 802.3 specification for 10/100Mbps Ethernet and
the IEEE 802.3z specification for 1000Mbps Ethernet. The RTL8169 supports the auxiliary power auto-detect function, and will
auto-configure related bits of the PCI power management registers in PCI configuration space.
It also supports the Advanced Configuration Power management Interface (ACPI), PCI power management for modern
operating systems that are capable of Operating System directed Power Management (OSPM) to achieve the most efficient
power management system possible.
In addition to the ACPI feature, the RTL8169 also supports remote wake-up (including AMD Magic Packet, LinkChg, and
Microsoft
through the application of auxiliary power. When the auxiliary power is applied and the main power remains off, the RTL8169 is
ready and waiting for the Magic Packet or Link Change to wake the system up. Also, the LWAKE pin provides four different
output signals including active high, active low, positive pulse, and negative pulse. The versatility of the RTL8169 LWAKE pin
provides motherboards with Wake-On-LAN (WOL) functionality.
The PCI specification is inherently little-endian. The RTL8169 contains the ability to do little-endian to big-endian swaps. It is
also possible that the RTL8169 can be used as a basis for a RISC CPU platform which expect the data to be in a big-endian
format. This feature allows for maximum flexibility.
PCI Vital Product Data (VPD) is also supported to provide the information that uniquely identifies hardware (i.e., the RTL8169
LAN card). The information may consist of part number, serial number, and other detailed information.
The RTL8169 is fully compliant to Microsoft
supports IEEE802.1Q Virtual bridged Local Area Network (VLAN). All the above RTL8169 features contribute to lowering
CPU utilization, which is a benefit in operation as a server network card. Also, the RTL8169 boosts its PCI performance by
supporting PCI Memory Read Line & Memory Read Multiple when transmitting, and Memory Write and Invalidate when
receiving. To be better qualified as a server card, the RTL8169 also supports the PCI Dual Address Cycle (DAC) command,
when the assigned buffers reside at a physical memory addresses higher than 4 Gigabytes. For QoS, CoS requirements, the
RTL8169 supports hardware high priority queues to reduce software implementation effort and significantly improve
performance.
The RTL8169 keeps network maintenance costs low and eliminates usage barriers. It is the easiest way to upgrade a network
from 10/100Mbps to 1000Mbps. It also supports full-duplex operation, making possible 2000Mbps of bandwidth at no
additional cost. For special applications, the RTL8169 also supports a TBI interface, which can be used to provide a connection
to a Fiber channel, using a Fiber transceiver.
®
wake-up frame) in both ACPI and APM environments. The RTL8169 is capable of performing an internal reset
®
NDIS5 (IP, TCP, UDP) Checksum and Segmentation Task-offload features, and
2002/03/27 Rev.1.21
3
Page 4

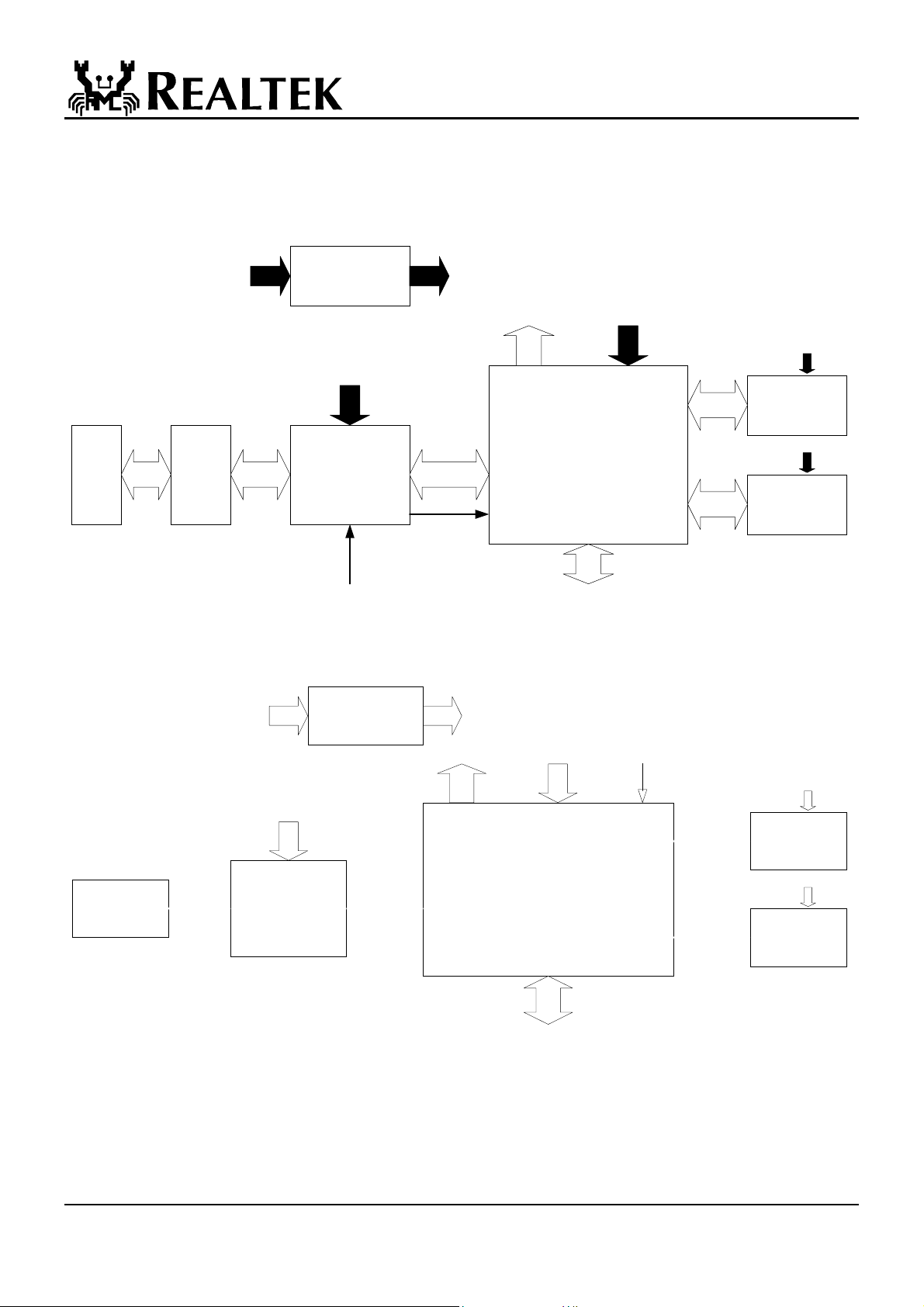

3. Block Diagram
RTL8169
MAC
Boot ROM
Interface
Power Control Logic
Interrupt
Control
Logic
EEPROM
Interface
Early Interrupt
Threshold
Register
Early Interrupt
Control Logic
LED Driver
Register
Packet Type
Packet Length
Discriminator
PCI Interface
PCI Interface + Register
FIFO
FIFO
Control
Logic
Transmit/
Receive
Logic
Interface
Interface
MII/GMII/TBI
2002/03/27 Rev.1.21
4
Page 5
4. Pin Assignments
RTL8169
131 VDD33
132 RSTPHYB
133 TBILBK
134 GND
135 TXD7
136 TXD6
137 TXD5
138 TXD4
139 TXD3
140 TXD2
141 TXD1
142 TXD0
143 TXEN
144 VDD33
145 GTXCLK
146 TX8
147 TXCLK
148 CRS
149 GND
150 GND
151 COL
152 RXER
153 NC
154 RXCLK1
155 NC
156 RXCLK
157 RXDV
158 RXD0
159 RXD1
160 RXD2
161 RXD3
162 RXD4
163 RXD5
164 RXD6
165 RXD7
166 VDD18
167 VDD33
168 CLOCK125
169 MDC
170 MDIO
171 GND
172 ISOLATEB
173 M66EN
174 INTAB
175 RSTB
176 CLK
177 GNTB
178 REQB
179 VDD33
180 AD31
181 AD30
182 AD29
183 AD28
184 GND
185 AD27
186 AD26
187 AD25
188 AD24
189 VDD33
190 CBE3B
191 IDSEL
192 AD23
193 AD22
194 AD21
195 GND
196 AD20
197 AD19
198 AD18
199 AD17
200 VDD33
201 AD16
202 CBE2B
203 FRAMEB
204 IRDYB
205 TRDYB
206 GND
207 DEVSELB
208 STOPB
RTL8169
130 OEB
129 WEB
128 ROMCSB
127 MD0
126 MD1
125 MD2
124 MD3
123 MD4
122 MD5
121 MD6
120 VDD18
119 MD7
118 LED0
117 GND
116 LED1
115 LED2
114 LED3
113 VDD33
112 MA16
111 MA15
110 MA14
109 MA13
108 NC
107 MA12
106 NC
105 MA11
104 MA10
103 NC
102 MA9
101 MA8
100 MA7
99 MA6
98 GND
97 MA5
96 MA4
95 MA3
94 GND
93 EECS
92 MA2
91 MA1
90 MA0
89 VDD33
88 LWAKE
87 PMEB
86 CLKRUNB
85 AD32
84 AD33
83 AD34
82 GND
81 AD35
80 AD36
79 AD37
78 AD38
77 VDD33
76 AD39
75 AD40
74 AD41
73 AD42
72 GND
71 GND
70 AD43
69 AD44
68 VDD18
67 AD45
66 AD46
65 VDD33
64 AD47
63 AD48
62 AD49
61 AD50
60 GND
59 AD51
58 AD52
57 AD53
56 AD54
55 VDD33
54 AD55
53 AD56
1 PERRB
2NC
3 SERRB
4NC
5 PAR
6NC
7 CBE1B
8 VDD33
9 AD15
10 AD14
11 AD13
12 AD12
13 GND
14 AD11
15 AD10
16 AD9
17 AD8
18 VDD33
19 CBE0B
20 AD7
21 AD6
22 AD5
23 GND
24 AD4
25 AD3
26 AD2
52 AD57
51 NC
50 AD58
49 NC
48 GND
47 NC
46 AD59
45 NC
44 AD60
43 AD61
42 AD62
41 VDD33
40 AD63
39 PAR64
38 CBE4B
37 CBE5B
36 GND
35 CBE6B
34 CBE7B
33 GND
32 REQ64B
31 ACK64B
30 VDD33
29 AD0
28 AD1
27 VDD18
2002/03/27 Rev.1.21
5
Page 6
RTL8169
5. Pin Description
In order to reduce pin count, and therefore size and cost, some pins have multiple functions. In those cases, the functions are
separated with a “/” symbol. Refer to the Pin Assignment diagram for a graphical representation.
5.1 Power Management/Isolation Interface
Symbol Type Pin No Description
PMEB
(PME#)
ISOLATEB
(ISOLATE#)
LWAKE/
CSTSCHG
O/D 87
I 172
O 88
Power Management Event: Open drain, active low. Used by the
RTL8169 to request a change in its current power management state
and/or to indicate that a power management event has occurred.
LAN WAKE-UP Signal (When CardB_En=0, bit2 Config3): This
signal is used to inform the motherboard to execute the wake-up
process. The motherboard must support Wake-On-LAN (WOL). There
are 4 choices of output, including active high, active low, positive pulse,
and negative pulse, that may be asserted from the LWAKE pin. Please
refer to LWACT bit in CONFIG1 register and LWPTN bit in CONFIG4
register for the setting of this output signal. The default output is an
active high signal. Once a PME event is received, the LWAKE and
PMEB assert at the same time when the LWPME (bit4, CONFIG4) is
set to 0. If the LWPME is set to 1, the LWAKE asserts only when the
PMEB asserts and the ISOLATEB is low.
CSTSCHG Signal (When CardB_En=1, bit2 Config3): This signal is
used in CardBus applications only and is used to inform the
motherboard to execute the wake-up process whenever a PME event
occurs. This is always an active high signal, and the setting of LWACT
(bit 4, Config1), LWPTN (bit2, Config4), and LWPME (bit4, Config4)
means nothing in this case.
This pin is a 3.3V signaling output pin.
Isolate Pin: Active low. Used to isolate the RTL8169 from the PCI bus.
The RTL8169 does not drive its PCI outputs (excluding PME#) and
does not sample its PCI input (including RST# and PCICLK) as long as
the Isolate pin is asserted.
2002/03/27 Rev.1.21
6
Page 7
5.2 PCI Interface
Symbol Type Pin No Description
AD63-0 T/S 40, 42-44, 46, 50,
52-54, 56-59, 61-64,
66-67, 69-70, 73-76,
78-81, 83-85, 180-183,
185-188, 192-194,
196-199, 201, 9-12,
14-17, 20-22, 24-26,
28-29
C/BE7-0B T/S 34-35, 37-38, 190, 202,
7, 19
CLK I 176
CLKRUNB I/O 86
DEVSELB S/T/S 207
FRAMEB S/T/S 203
cont...
AD31-0: Low 32-bit PCI address and data multiplexed pins. The
address phase is the first clock cycle in which FRAMEB is asserted. During
the address phase, AD31-0 contains a physical address (32 bits). For I/O,
this is a byte address, and for configuration and memory, it is a double-word
address. The RTL8169 supports both big-endian and little-endian byte
ordering. Write data is stable and valid when IRDYB is asserted. Read data
is stable and valid when TRDYB is asserted. Data I is transferred during
those clocks where both IRDYB and TRDYB are asserted.
AD63-32: High 32-bit PCI address and data multiplexed pins.
During an address phase (when using the DAC command or when
REQ64B is asserted), the upper 32-bits of a 64-bit address are
transferred; otherwise, these bits are reserved, and are stable and
indeterminate. During a data phase, an additional 32-bits of data are
transferred when a 64-bit transaction has been negotiated by the
assertion of REQ64B and ACK64B.
PCI bus command and byte enables multiplexed pins. During the
address phase of a transaction, C/BE3-0 define the bus command.
During the data phase, C/BE3-0 are used as Byte Enables. The Byte
Enables are valid for the entire data phase and determine which byte
lanes carry meaningful data. C/BE0 applies to byte 0, and C/BE3
applies to byte 3.
During an address phase (when using DAC commands or when
REQ64B is asserted), the actual bus command is transferred on
C/BE7-4; otherwise, these bits are reserved and indeterminate. During a
data phase, C/BE7-4 are Byte Enables indicating which byte lanes carry
meaningful data when a 64-bit transaction has been negotiated by the
assertion of REQ64B and ACK64B. C/BE4 applies to byte 4 and
C/BE7 applies to byte 7.
PCI clock: This clock input provides timing for all PCI transactions and
is input to the PCI device. Supports up to a 66MHz PCI clock.
Clock Run: This signal is used by the RTL8169 to request starting (or
speeding up) the clock, CLK. CLKRUNB also indicates the clock
status. For the RTL8169, CLKRUNB is an open drain output as well as
an input. The RTL8169 requests the central resource to start, speed up,
or maintain the interface clock by the assertion of CLKRUNB. For the
host system, it is an S/T/S signal. The host system (central resource) is
responsible for maintaining CLKRUNB asserted, and for driving it high
to the negated (deasserted) state.
Device Select: As a bus master, the RTL8169 samples this signal to
insure that a PCI target recognizes the destination address for the data
transfer. As a target, the RTL8169 asserts this signal low when it
recognizes its target address after FRAMEB is asserted.
Cycle Frame: As a bus master, this pin indicates the beginning and
duration of an access. FRAMEB is asserted low to indicate the start of a
bus transaction. While FRAMEB is asserted, data transfer continues.
When FRAMEB is deasserted, the transaction is in the final data phase.
As a target, the device monitors this signal before decoding the address
to check if the current transaction is addressed to it.
RTL8169
2002/03/27 Rev.1.21
7
Page 8
GNTB I 177
ACK64B S/T/S 31
REQB T/S 178
REQ64B S/T/S 32
IDSEL I 191
INTAB O/D 174
IRDYB S/T/S 204
TRDYB S/T/S 205
PAR T /S 5
PAR64 T/S 39
cont...
RTL8169
Grant: This signal is asserted low to indicate to the RTL8169 that the
central arbiter has granted the ownership of the bus to the RTL8169.
This input is used when the RTL8169 is acting as a bus master.
Acknowledge 64-bit Transfer: This signal is asserted low by the
device that has positively decoded its address as the target of the current
access, indicates the target is willing to transfer data using 64 bits.
ACK64B has the same timing as DEVSELB.
Request: The RTL8169 will assert this signal low to request the
ownership of the bus from the central arbiter.
Request 64-bit Transfer: The RTL8169 asserts this signal low to
indicate that it wants to perform a 64-bit data transfer.
If the RTL8169 sees the REQ64B asserted on the rising edge of PCI
RSTB, the RTL8169 is on 64-bit slot and is capable of 64-bit
transaction. Otherwise, the RTL8169 is on 32-bit slot.
Initialization Device Select: This pin allows the RTL8169 to identify
when configuration read/write transactions are intended for it.
Interrupt A: Used to request an interrupt. It is asserted low when an
interrupt condition occurs, as defined by the Interrupt Status, Interrupt
Mask.
Initiator Ready: This indicates the initiating agent’s ability to complete
the current data phase of the transaction.
As a bus master, this signal will be asserted low when the RTL8169 is
ready to complete the current data phase transaction. This signal is used
in conjunction with the TRDYB signal. Data transaction takes place at
the rising edge of CLK when both IRDYB and TRDYB are asserted
low. As a target, this signal indicates that the master has put data on the
bus.
Target Ready: This indicates the target agent’s ability to complete the
current phase of the transaction.
As a bus master, this signal indicates that the target is ready for the data
during write operations and with the data during read operations. As a
target, this signal will be asserted low when the (slave) device is ready
to complete the current data phase transaction. This signal is used in
conjunction with the IRDYB signal. Data transaction takes place at the
rising edge of CLK when both IRDYB and TRDYB are asserted low.
Parity: This signal indicates even parity across AD31-0 and C/BE3-0
including the PAR pin. PAR is stable and valid one clock after each
address phase. For data phase, PAR is stable and valid one clock after
either IRDYB is asserted on a write transaction or TRDYB is asserted
on a read transaction. Once PAR is valid, it remains valid until one clock
after the completion of the current data phase. As a bus master, PAR is
asserted during address and write data phases. As a target, PAR is
asserted during read data phases.
Parity Upper Double Word: This signal indicates even parity across
AD63-32 and C/BE7-4 including the PAR64 pin. PAR64 is valid one
clock after each address phase on any transaction in which REQ64B is
asserted. PAR64 is stable and valid for 64-bit data phase one clock after
either IRDYB is asserted on a write transaction or TRDYB is asserted
on a read transaction. As a bus master, PAR64 is asserted during address
and write data phases. As a target, the RTL8169 only supports 32-bit
transfers, so it will not assert PAR64.
2002/03/27 Rev.1.21
8
Page 9
M66EN I 173
PERRB S/T/S 1
SERRB O/D 3
STOPB S/T/S 208
RSTB I 175
66MHZ_ENABLE: This pin indicates to the RTL8169 whether the bus
segment is operating at 66 or 33MHz. When this pin (active high) is
asserted, the current PCI bus segment that the RTL8169 resides on
operates in 66-MHz mode. If this pin is deasserted, the current PCI bus
segment operates in 33-MHz mode.
Parity Error: This pin is used to report data parity errors during all PCI
transactions except a Special Cycle. PERRB Is driven active (low) two
clocks after a data parity error is detected by the device receiving data,
and the minimum duration of PERRB is one clock for each data phase
with parity error detected.
System Error: If an address parity error is detected and Configuration
Space Status register bit 15 (detected parity error) is enabled, the
RTL8169 asserts the SERRB pin low and bit 14 of Status register in
Configuration Space.
Stop: Indicates that the current target is requesting the master to stop the
current transaction.
Reset: When RSTB is asserted low, the RTL8169 performs an internal
system hardware reset. RSTB must be held for a minimum of 120 ns
periods.
RTL8169
5.3 FLASH/BootPROM/EEPROM/MII Interface
Symbol Type Pin No Description
MA[16:9], MA7,
MA[5:3]
MA8
MA6
MA2/EESK O 92
MA1/EEDI O 91
MA0/EEDO O, I 90
EECS O 93
MD7-0 I/O 119, 121-127 Boot PROM data bus during Boot PROM mode.
O
O, I
O, I
112-109, 107,
105-104, 102, 100,
97-95
101
99
Boot PROM Address Bus: These pins are used to access up to a
128k-byte flash memory or EPROM.
MA16-3: Output pins to the Boot PROM address bus.
MA8: Input pin as Aux. Power detect pin to detect if Aux. Power exists
or not, when initial power-on. Besides connecting this pin to Boot
PROM, it should be pulled high to the Aux. Power via a resistor to
detect Aux. power. If this pin is not pulled high to Aux. Power, the
RTL8169 assumes that no Aux. power exists. To support wakeup from
ACPI D3cold or APM power-down, this pin must be pulled high to aux.
power via a resistor.
MA6/9356SEL: Input pin as 9356 select pin at initial power-up. When
this pin is pulled high with a 10KΩ resistor, the 93C56 EEPROM is
used to store the resource data and CIS for the RTL8169. The RTL8169
latches the status of this pin at power-up to determine what EEPROM
(93C46 or 93C56) is used, afterwards, this pin is used as MA6
MA2-0: The MA2-0 pins are switched to EESK, EEDI, EEDO in
93C46 (93C56) programming or auto-load mode.
EEPROM Chip Select: 93C46 (93C56) chip select
ROMCSB O 128
OEB O 130
WEB O 129
2002/03/27 Rev.1.21
ROM Chip Select: This is the chip select signal of the Boot PROM.
Output Enable: This enables the output buffer of the Boot PROM or
Flash memory during a read operation.
Write Enable: This signal strobes data into the Flash memory during a
write cycle.
9
Page 10
5.4 LED Interface
Symbol Type Pin No Description
LED3-0 O 114-116, 118
LED pins (Active low)
1000BaseT mode:
RTL8169
LEDS1-
00 01 10 11
0
LED0
LED1
LED2
LED3
TBI mode:
LEDS1-
Tx/Rx ACT(Tx/Rx) Tx LINK10/ACT
LINK100 LINK10/100/
1000
LINK10 FULL Rx FULL
LINK1000 - FULL LINK1000/ACT
LINK10/100/
1000
00 01 10 11
0
LED0
LED1
LED2
LED3
During power down mode, the LED signals are logic high.
ACT ACT Tx -
- LINK LINK -
- FULL Rx FULL
LINK - FULL LINK
5.5 GMII, TBI, PHY CP
Gigabit Media Independent Interface, Ten Bit Interface, PHY Control Pin
Symbol Type Pin No Description
GTxCLK O 145
TxCLK I 147
TxEN/
O 143
Tx[9]
Tx[8] O 146
cont...
Gigabit Tx clock: In GMII mode (1000Mbps Tx clock), GTxCLK is a
continuous clock used for operation at 1000Mbps. GTxCLK provides
the timing reference for the transfer of the TxEN, TxER, and TxD
signals. The values of TxEN, TxER, and TxDs are sampled by the PHY
on the rising edge of GTxCLK.
In GMII mode or TBI mode, the GTxCLK can be used as a 125MHz
reference clock, and it used as the 125MHz transmit clock to an external
PMD and is the reference for transmit TBI signaling.
Transmit Clock (MII mode only): TxCLK is a continuous clock that
provides a timing reference for the transfer of TxD[3:0], TxEN. In MII
mode, it uses the 25MHz or 2.5MHz supplied by the external PMD
device.
Transmit Enable: In GMII mode (or MII mode), the assertion of TxEN
indicates that the RTL8169 is presenting data on the GMII (or MII) for
transmission. TxEn is asserted synchronously with the first octet (or
nibble) of the preamble and remains asserted while all octets (or
nibbles) to be transmitted are presented to the GMII (or MII).
This signal is synchronous to TxCLK and provides precise framing for
data carried on TXD3-0/TXD7-0 for the external PMD. It is asserted
when TXD3-0/TXD7-0 contains valid data to be transmitted.
Tx[9]: In TBI mode, Tx[9] is the MSB of the 10-bit vector representing
one transmission code-group. Tx[0] is the first bit to be transmitted, and
Tx[9] is the last bit to be transmitted.
Tx[8] (TBI mode only): In TBI mode, Tx[8] is one of the 10-bit vector
representing one transmission code-group.
LINK100/ACT
2002/03/27 Rev.1.21
10
Page 11
TxD[7:0]/
Tx[7:0]
RxCLK/
RxCLK0
RxCLK1 I 154
RxER/
Rx[9]
RxDV/
Rx[8]
RxD[7:0]/
Rx[7:0]
COL I 151
cont...
O 135-142
I 156
I 152
I 157
I 165-158
Transmit Data: In GMII mode, TxD[7:0] is a bundle of eight data
signals, representing a data byte on GMII for PHY to transmit. In MII
mode, only TxD[3:0] represent a data nibble on MII for PHY to
transmit. TxD[7:0] or TxD[3:0] transition synchronously with respect
to GTxCLK or TxCLK.
Tx[7:0]: In TBI mode, TxD[7:0] is part of the 10-bit vector (TxD[9:0])
representing one transmission code-group.
Receive Clock(0): RxCLK: In GMII mode or MII mode, the receive
clock is a continuous clock that provides the timing reference for the
transfer of the RxDV, RxER, and RxD from PHY device. RxDV, RxER,
and RxD are sampled on the rising edge of RxCLK.
RxCLK0: In TBI mode, the 62.5MHz receive clock is a continuous
clock and provides timing reference for the RTL8169 to latch
odd-numbered receive code-groups from PHY device.
Receive Clock1: RxCLK1: In TBI mode, the 62.5MHz receive clock is
a continuous clock and provides timing reference for the RTL8169 to
latch even-numbered receive code-groups from PHY device.
Receive Coding Error: In GMII or MII mode, this pin is asserted
synchronously with respect to RxCLK, to indicate that the PHY device
detected a symbol that is not part of the valid data or delimiter set
somewhere in the frame being received. The RxER may be asserted for
one or more clock cycles.
Rx[9]: In TBI mode, Rx[9] is the MSB of the 10-bit vector representing
one receive code-group. Rx[0] is the first bit received, and Rx[9] is the
last bit received.
Receive Data Valid: In GMII or MII mode, this input pin is asserted
synchronously with respect to RxCLK, to indicate that the PHY is
presenting recovered, decoded, and valid data to the RTL8169. RxDV
remains asserted while valid data is being presented by the PHY.
Rx[8]: In TBI mode, Rx[8] is a bit of the 10-bit vector representing one
receive code-group. Rx[0] is the first bit received, and Rx[9] is the last
bit received.
Receive Data: In GMII mode, RxD[7:0] is a bundle of eight data
signals, representing a data byte transmitted from PHY to the RTL8169
on GMII. In MII mode, only RxD[3:0] represent a data nibble
transmitted from PHY to the RTL8169 on MII. RxD[7:0] or RxD[3:0]
transition synchronously with respect to RxCLK.
Rx[7:0]: In TBI mode, RxD[7:0] is part of the 10-bit vector (RxD[9:0])
representing one receive code-group.
Collision Detected: In GMII or MII mode, this input pin is asserted
high by PHY to indicate the detection of a collision on the twisted pair
medium, and remains asserted while the collision condition persists. In
full duplex mode, this pin’s status is ignored by the RTL8169. The COL
transitions asynchronously with respect to RxCLK, GTxCLK, or
TxCLK.
In TBI mode, this pin’s status is ignored by the RTL8169.
RTL8169
2002/03/27 Rev.1.21
11
Page 12
CRS I 148
MDC O 169
MDIO I/O 170
TBILBK O 133
RSTPHYB O 132
Carrier Sense: In GMII or MII mode, this pin is asserted high by the
GMII/MII PHY device whenever the transmit or receive medium is not
idle, and is deasserted when both transmit and receive media are idle.
The CRS remains asserted throughout the duration of a collision
condition. The CRS transitions asynchronously with respect to RxCLK,
GTxCLK, or TxCLK.
In TBI mode, this pin’s status is ignored by the RTL8169.
Management Data Clock: In GMII or MII mode, it is a synchronous
clock to the MDIO management data input/output serial interface (about
3.125MHz) which may be asynchronous to transmit and receive clocks.
In TBI mode, this pin is a reserved pin.
Management Data Input/Output: Bi-directional signal used to
transfer or receive control and status information from the PHY device.
MDIO is driven and sampled synchronously with respect to MDC.
In TBI mode, this pin is a reserved pin.
TBI LoopBack: The RTL8169 asserts this pin high when the TBI is in
loopback mode.
PHY Reset pin: An active low signal used by the RTL8169 to force
hardware reset to external PHYceiver at initial power-on.
RTL8169
5.6 Clock and NC Pins
Symbol Type Pin No Description
Clock125 I 168
NC - 2, 4, 6, 45, 47, 49, 51,
103, 106, 108, 153,
155,
125MHz clock input: The 125MHz reference clock for the RTL8169
comes from either external PHYceiver or 125MHz OSC.
Reserved
5.7 Power Pins
Symbol Type Pin No Description
VDD33 P 8, 18, 30, 41, 55, 65,
77, 89, 113, 131, 144,
167, 179, 189, 200
VDD18 P 27, 120, 68, 166
GND P 13, 23, 36, 48, 60, 71,
82, 98, 117, 134, 150,
171, 184, 195, 206, 33,
94, 72, 149
+3.3V
+1.8V
Ground
2002/03/27 Rev.1.21
12
Page 13
6. Register Descriptions
The RTL8169 provides the following set of operational registers mapped into PCI memory space or I/O space.
RTL8169
Offset
0000h R/W IDR0
0001h R/W IDR1
0002h R/W IDR2
0003h R/W IDR3
0004h R/W IDR4
0005h R/W IDR5
0006h-0007h - -
0008h R/W MAR0
0009h R/W MAR1
000Ah R/W MAR2
000Bh R/W MAR3
000Ch R/W MAR4
000Dh R/W MAR5
000Eh R/W MAR6
000Fh R/W MAR7
0010h-0017h R/W DTCCR
0018h-001Fh - 0020h-0027h R/W TNPDS
0028h-002Fh R/W THPDS
0030h-0033h R/W FLASH
0034h-0035h R ERBCR
0036h R ERSR
0037h R/W CR
0038h W TPPoll
0039h-003Bh - -
003Ch-003Dh R/W IMR
003Eh-003Fh R/W ISR
0040h-0043h R/W TCR
0044h-0047h R/W RCR
0048h-004Bh R/W TCTR
004Ch-004Fh R/W MPC
0050h R/W 9346CR
0051h R/W CONFIG0
0052h R/W CONFIG1
0053h R/W CONFIG2
0054h R/W CONFIG3
cont...
R/W Tag Description
ID Register 0: The ID registers 0-5 are only permitted to write by
4-byte access. Read access can be byte, word, or double word access.
The initial value is autoloaded from EEPROM EthernetID field.
ID Register 1
ID Register 2
ID Register 3
ID Register 4
ID Register 5
Reserved
Multicast Register 0: The MAR registers 0-7 are only permitted to
write by 4-bye access. Read access can be byte, word, or double word
access. Driver is responsible for initializing these registers.
Multicast Register 1
Multicast Register 2
Multicast Register 3
Multicast Register 4
Multicast Register 5
Multicast Register 6
Multicast Register 7
Dump Tally Counter Command Register (64-byte alignment)
Reserved
Transmit Normal Priority Descriptors: Start address (64-bit).
(256-byte alignment)
Transmit High Priority Descriptors: Start address (64-bit).
(256-byte alignment)
Flash memory read/write register
Early Receive (Rx) Byte Count Register
Early Rx Status Register
Command Register
Transmit Priority Polling register
Reserved
Interrupt Mask Register
Interrupt Status Register
Transmit (Tx) Configuration Register
Receive (Rx) Configuration Register
Timer CounT Register: This register contains a 32-bit
general-purpose timer. Writing any value to this 32-bit register will
reset the original timer and begin the count from zero.
Missed Packet Counter: This 24-bit counter indicates the number of
packets discarded due to Rx FIFO overflow. After a s/w reset, MPC is
cleared. Only the lower 3 bytes are valid.
When any value is written to MPC, it will be reset.
93C46 (93C56) Command Register
Configuration Register 0
Configuration Register 1
Configuration Register 2
Configuration Register 3
2002/03/27 Rev.1.21
13
Page 14
0055h R/W CONFIG4
0056h R/W CONFIG5
0057h - -
0058h-005Bh
005Ch-005Dh R/W MULINT
005Eh-005Fh - -
0060h-0063h R/W PHYAR
0064h-0067h R/W TBICSR0
0068h-0069h R/W TBI_ANAR
006Ah-006Bh R TBI_LPAR
006Ch
006Dh-0081h
0082-0083h - 0084h–008Bh R/W Wakeup0
008Ch–0093h R/W Wakeup1
0094h–009Bh R/W Wakeup2LD
009Ch–00A3h R/W Wakeup2HD
00A4h–00ABh R/W Wakeup3LD
00ACh–00B3h R/W Wakeup3HD
00B4h–00BBh R/W Wakeup4LD
00BCh–00C3h R/W Wakeup4HD
00C4h-00C5h R/W CRC0
00C6h-00C7h R/W CRC1
00C8h-00C9h R/W CRC2
00CAh-00CBh R/W CRC3
00CCh-00CDh R/W CRC4
00CEh-00D9h - 00DAh-00DBh R/W RMS
00DCh-00DFh - -
00E0h-00E1h R/W C+CR
00E2h-00E3h - -
00E4h-00EBh R/W RDSAR
00ECh R/W ETThR
00EDh-00EFh - -
00F0h-00F3h R/W FER
00F4h-00F7h R/W FEMR
00F8h-00FBh R FPSR
00FCh-00FFh W FFER
R /W
R
-
TimerInt
PHYStatus
-
RTL8169
Configuration Register 4
Configuration Register 5
Reserved
Timer Interrupt Register: Once having written a nonzero value to
this register, the Timeout bit of ISR register will be set whenever the
TCTR reaches to this value. The Timeout bit will never be set as long
as TimerInt register is zero.
Multiple Interrupt Select
Reserved
PHY Access Register
TBI Control and Status Register
TBI Auto-Negotiation Advertisement Register
TBI Auto-Negotiation Link Partner Ability Register
PHY(GMII, MII, or TBI) Status Register
Reserved
Reserved
Power Management wakeup frame0 (64bit)
Power Management wakeup frame1 (64bit)
Power Management wakeup frame2 (128bit), low D-Word
Power Management wakeup frame2, high D-Word
Power Management wakeup frame3 (128bit), low D-Word
Power Management wakeup frame3, high D-Word
Power Management wakeup frame4 (128bit), low D-Word
Power Management wakeup frame4, high D-Word
16-bit CRC of wakeup frame 0
16-bit CRC of wakeup frame 1
16-bit CRC of wakeup frame 2
16-bit CRC of wakeup frame 3
16-bit CRC of wakeup frame 4
Reserved
Rx packet Maximum Size
Reserved
C+ Command Register
Reserved
Receive Descriptor Start Address Register (256-byte alignment)
Early Transmit Threshold Register
Reserved
Function Event Register (Cardbus only)
Function Event Mask Register (CardBus only)
Function Present State Register (CardBus only)
Function Force Event Register (CardBus only)
2002/03/27 Rev.1.21
14
Page 15
6.1 DTCCR: Dump Tally Counter Command
(Offset 0010h-0017h, R/W)
Bit R/W Symbol Description
63:6 R/W CntrAddr
5:4 - - Reserved
3 R/W Cmd
2:0 - -
Starting address of the 12 Tally Counters being dumped to. (64-byte alignment
address, 64 bytes long)
Offset of
starting
address
0 TxOk 64-bit counter of Tx Ok packets.
8 RxOk 64-bit counter of Rx Ok packets.
16 TxER 64-bit packet counter of Tx errors including Tx
24 RxEr 32-bit packet counter of Rx errors including CRC
28 MissPkt 16-bit counter of missed packets (CRC Ok)
30 FAE 16-bit counter of Frame Alignment Error packets
32 Tx1Col 32-bit counter of those Tx Ok packets with only 1
36 TxMCol 32-bit counter of those Tx Ok packets with more
40 RxOkPhy 64-bit counter of all Rx Ok packets with physical
48 RxOkBrd 64-bit counter of all Rx Ok packets with broadcast
56 RxOkMul 32-bit counter of all Rx Ok packets with multicast
60 TxAbt 16-bit counter of Tx abort packets.
62 TxUndrn 16-bit counter of Tx underrun and discard packets
Command: When set, the RTL8169 begins dumping 13 Tally counters to the address
specified above.
When this bit is reset by the RTL8169, the dumping has been completed.
Reserved
Counter Description
abort, carrier lost, Tx underrun, and out of window
collision.
error packets (should be larger than 8 bytes) and
missed packets.
resulted from Rx FIFO full.
(MII mode only)
collision happened before Tx Ok.
than 1, and less than 16 collisions happened before
Tx Ok.
address matched destination ID.
destination ID.
destination ID.
(only possible on jumbo frames).
RTL8169
2002/03/27 Rev.1.21
15
Page 16
6.2 FLASH: Flash Memory Read/Write
(Offset 0030h-0033h, R)
Bit R/W Symbol Description
31:24 R/W MD7-MD0
23:21 - - Reserved
20 W ROMCSB
19 W OEB
18 W WEB
17 W SWRWEn
16:0 W MA16-MA0
Flash Memory Data Bus: These bits set and reflect the state of the
MD7 - MD0 pins during the write and read process respectively.
Chip Select: This bit sets the state of the ROMCSB pin.
Output Enable: This bit sets the state of the OEB pin.
Write Enable: This bit sets the state of the WEB pin.
Enable software access to flash memory:
1: Enable read/write access to flash memory via software and
disable the EEPROM access during flash memory access via
software.
0: Disable read/write access to flash memory via software.
Flash Memory Address Bus: These bits set the state of the MA16-0
pins.
6.3 ERSR: Early Rx Status
RTL8169
(Offset 0036h, R)
Bit R/W Symbol Description
7:4 - -
3 R ERGood
2 R ERBad
1 R EROVW
0 R EROK
Reserved
Early Rx Good packet: This bit is set whenever a packet is completely
received and the packet is good. Writing a ‘1’ will clear this bit.
Early Rx Bad packet: This bit is set whenever a packet is completely
received and the packet is bad. Writing a ‘1’ will clear this bit.
Early Rx OverWrite: This bit is set when the RTL8169's local address
pointer is equal to CAPR. In the early mode, this is different from buffer
overflow. It happens when the RTL8169 detects an Rx error and wants
to fill another packet data from the beginning address of that error
packet. Writing a ‘1’ will clear this bit.
Early Rx OK: The power-on value is 0. It is set when the Rx byte count
of the arriving packet exceeds the Rx threshold. After the whole packet
is received, the RTL8169 will set ROK or RER in ISR and clear this bit
simultaneously. Setting this bit will invoke a ROK interrupt.
2002/03/27 Rev.1.21
16
Page 17
6.4 Command
(Offset 0037h, R/W)
Bit R/W Symbol Description
7:5 - -
4 R/W RST
3 R/W RE
2 R/W TE
1:0 - -
Reserved
Reset: Setting this bit to 1 forces the RTL8169 into a software reset
state which disables the transmitter and receiver, reinitializes the FIFOs,
and resets the system buffer pointer to the initial value (the start address
of each descriptor group set in TNPDS, THPDS and RDSAR registers).
The values of IDR0-5, MAR0-7 and PCI configuration space will have
no changes. This bit is 1 during the reset operation, and is cleared to 0
by the RTL8169 when the reset operation is complete.
Receiver Enable
Transmit Enable
Reserved
6.5 TPPoll: Transmit Priority Polling
(Offset 0038h, R/W)
Bit R/W Symbol Description
7 W HPQ
6 W NPQ
5:1 - -
0 W FSWInt
High Priority Queue polling: Writing a ‘1’ to this bit will notify the
RTL8169 that there is a high priority packet(s) waiting to be
transmitted. The RTL8169 will clear this bit automatically after all
high priority packets have been transmitted.
Writing a ‘0’ to this bit has no effect.
Normal Priority Queue polling: Writing a ‘1’ to this bit will notify
the RTL8169 that there is a normal priority packet(s) waiting to be
transmitted. The RTL8169 will clear this bit automatically after all
normal priority packets have been transmitted.
Writing a ‘0’ to this bit has no effect.
Reserved
Forced Software Interrupt: Writing a ‘1’ to this bit will trigger an
interrupt, and the SWInt bit (bit8, ISR, offset3Eh-3Fh) will set.
The RTL8169 will clear this bit automatically after the SWInt bit (bit8,
ISR) is cleared.
Writing a ‘0’ to this bit has no effect.
RTL8169
2002/03/27 Rev.1.21
17
Page 18
6.6 Interrupt Mask
(Offset 003Ch-003Dh, R/W)
Bit R/W Symbol Description
15 R/W SERR
14 R/W TimeOut
13:10 - -
9 - 8 R/W SWInt
7 R/W TDU
6 R/W FOVW
5 R/W PUN/LinkChg
4 R/W RDU
3 R/W TER
2 R/W TOK
1 R/W RER
0 R/W ROK
System Error Interrupt:
1: Enable; 0: Disable.
Time Out Interrupt:
1: Enable; 0: Disable.
Reserved
Reserved
Software Interrupt:
1: Enable; 0: Disable.
Tx Descriptor Unavailable Interrupt:
1: Enable; 0: Disable.
Rx FIFO Overflow Interrupt:
1: Enable; 0: Disable.
Packet Underrun/Link Change Interrupt:
1: Enable; 0: Disable.
Rx Buffer Overflow/Rx Descriptor Unavailable Interrupt:
1: Enable; 0: Disable.
Tx Error Interrupt:
1: Enable; 0: Disable.
Tx Ok:
Transmit (Tx) OK: Indicates that a packet transmission is completed
successfully.
1: Enable; 0: Disable.
Rx Error Interrupt:
1: Enable; 0: Disable.
Rx OK Interrupt:
1: Enable; 0: Disable.
RTL8169
2002/03/27 Rev.1.21
18
Page 19
6.7 Interrupt Status
(Offset 003Eh-003Fh, R/W)
Bit R/W Symbol Description
15 R/W SERR
14 R/W TimeOut
13:10 - -
9 - -
8 R/W SWInt
7 R/W TDU
6 R/W FOVW
5 R/W PUN/LinkChg
4 R/W RDU
3 R/W TER
2 R/W TOK
1 R/W RER
0 R/W ROK
Writing 1 to any bit in the ISR will reset that bit.
System Error: This bit is set to 1 when the RTL8169 signals a system
error on the PCI bus.
Time Out: This bit is set to 1 when the TCTR register reaches the value
of the TimerInt register.
Reserved
Reserved
Software Interrupt: This bit is set to 1 whenever a ‘1’ is written by
software to FSWInt (bit0, offset D9h, TPPoll register).
Tx Descriptor Unavailable: When set, this bit indicates that the Tx
descriptor is unavailable.
Rx FIFO Overflow: This bit set to 1 is caused by RDU, poor PCI
performance, or overloaded PCI traffic.
Packet Underrun/Link Change: This bit is set to 1 when CAPR is
written but the Rx buffer is empty, or when link status is changed.
Rx Descriptor Unavailable: When set to 1, this bit indicates that the
Rx descriptor is unavailable.
The MPC (Missed Packet Counter, offset 4Ch-4Fh) indicates the
number of packets discarded after Rx FIFO overflowed.
Transmit (Tx) Error: This bit set to 1 indicates that a packet
transmission was aborted, due to excessive collisions, according to the
TXRR's setting in the TCR register.
Transmit (Tx) OK: When set to 1, this bit indicates that a packet
transmission has been completed successfully.
Receive (Rx) Error: When set to 1, this bit indicates that a packet has
either a CRC error or a frame alignment error (FAE). A Rx error packet
of CRC error is determined according to the setting of RER8, AER, AR
bits in RCR register (offset 44h-47h).
Receive (Rx) OK: In normal mode, this bit set to 1 indicates the
successful completion of a packet reception. In early mode, this bit set
to 1 indicates that the Rx byte count of the arriving packet exceeds the
early Rx threshold.
RTL8169
2002/03/27 Rev.1.21
19
Page 20
6.8 Transmit Configuration
(Offset 0040h-0043h, R/W)
Bit R/W Symbol Description
31 - -
30:26 R HWVERID0
25:24 R/W IFG1, 0
23 R HWVERID1
22:20 -
19 R/W IFG2
18:17 R/W LBK1, LBK0
16 R/W CRC
15:11 - -
cont...
Reserved
Hardware Version ID0:
Bit30 Bit29 Bit28 Bit27 Bit26 Bit23
RTL8139 1 1 0 0 0 0
RTL8139A 1 1 1 0 0 0
RTL8139A-G 1 1 1 0 0 1
RTL8139B 1 1 1 1 0 0
RTL8130 1 1 1 1 1 0
RTL8139C 1 1 1 0 1 0
RTL8139C+ 1 1 1 0 1 1
RTL8100 1 1 1 1 0 1
RTL8169 0 0 0 0 0 0
Reserved All other combination
InterFrameGap Time: This field allows adjustment of the interframe
gap time to be longer than the standards of 9.6 µs for 10Mbps, 960 ns
for 100Mbps, and 96 ns for 1000Mbps. The time can be programmed
from 9.6 µs to 14.4 µs (10Mbps), 960ns to 1440ns (100Mbps), and 96ns
to 144ns (1000Mbps).
The setting of the inter frame gap is:
IFG[2:0] IFG@1000MHz
(ns)
0 1 1 96 960 9.6
1 0 1 96 + 8 960 + 8 * 10 9.6 + 8 * 0.1
1 1 1 96 + 16 960 + 16 * 10 9.6 + 16 * 0.1
0 0 1 96 + 24 960 + 24 * 10 9.6 + 24 * 0.1
0 1 0 96 + 48 960 + 48 * 10 9.6 + 48 * 0.1
-Other values are reserved.
Hardware Version ID1: Please see HWVERID0.
Reserved
InterFrameGap2
Loopback test: There will be no packets on the (G)MII or TBI interface
in Digital loopback mode, provided the external phyceiver is also set in
loopback mode. The digital loopback function is independent of the
current link status.
For analog loopback tests, software must force the external phyceiver
into loopback mode while the RTL8169 operates normally.
00 : Normal operation
01 : Digital loopback mode
10 : Reserved
11 : Reserved
Append CRC: Setting this bit to 1 means that there is no CRC
appended at the end of a packet. Setting to 0 means that there is a CRC
appended at the end of a packet.
Reserved
IFG@100MHz
(ns)
RTL8169
IFG@10MHz
(µs)
2002/03/27 Rev.1.21
20
Page 21
10:8 R/W MXDMA2, 1, 0
7:0 - -
The TCR register can only be changed after having set TE (bit2, Command register, offset 0037h).
Max DMA Burst Size per Tx DMA Burst: This field sets the maximum
size of transmit DMA data bursts according to the following table:
000 = 16 bytes
001 = 32 bytes
010 = 64 bytes
011 = 128 bytes
100 = 256 bytes
101 = 512 bytes
110 = 1024 bytes
111 = Unlimited
Reserved
6.9 Receive Configuration
(Offset 0044h-0047h, R/W)
Bit R/W Symbol Description
31:25 - -
24 R/W MulERINT
23:17 - -
16 R/W RER8 When this bit is set to 1, the RTL8169 will calculate the CRC of any
15:13 R/W RXFTH2, 1, 0
12:11 - -
cont...
Reserved
Multiple Early Interrupt Select: When this bit is set to 1, any received
packets invoke an early interrupt according to the
MULINT<MISR[11:0]> setting in early mode.
Reserved
received packed with a length larger than 8 bytes.
When this bit is cleared, the RTL8169 only calculates the CRC of any
received packet with a length larger than 64-bytes. The power-on
default is zero.
If AER or AR is set, the RTL8169 always calculates the CRC of any
incoming packet with a packet length larger than 8 bytes. The RER8 is
in a “Don’t care” state in this situation.
Rx FIFO Threshold: Specifies the Rx FIFO Threshold level. When the
number of the received data bytes from a packet, which is being
received into the Rx FIFO of the RTL8169, has reached this level (or the
FIFO contains a complete packet), the receive PCI bus master function
will begin to transfer the data from the FIFO to the host memory. This
field sets the threshold level according to the following table:
000 = Reserved
001 = Reserved
010 = 64 bytes
011 = 128 bytes
100 = 256 bytes
101 = 512 bytes
110 = 1024 bytes
111 = no Rx threshold. The RTL8169 begins the transfer of data after
having received a whole packet in the FIFO.
Reserved
RTL8169
2002/03/27 Rev.1.21
21
Page 22
10:8 R/W MXDMA2, 1, 0
7 - 6 R 9356SEL This bit reflects what type of EEPROM is used.
5 R/W AER
4 R/W AR
3 R/W AB
2 R/W AM
1 R/W APM
0 R/W AAP
RTL8169
Max DMA Burst Size per Rx DMA Burst: This field sets the
maximum size of the receive DMA data bursts according to the
following table:
000 = Reserved
001 = Reserved
010 = 64 bytes
011 = 128 bytes
100 = 256 bytes
101 = 512 bytes
110 = 1024 bytes
111 = Unlimited
Reserved
1: The EEPROM used is 9356.
0: The EEPROM used is 9346.
Accept Error Packet:
When set to 1, all packets with CRC error, alignment error, and/or
collided fragments will be accepted.
When set to 0, all packets with CRC error, alignment error, and/or
collided fragments will be rejected.
Accept Runt: This bit set to 1 allows the receiver to accept packets that
are smaller than 64 bytes. The packet must be at least 8 bytes long to be
accepted as a runt.
Accept Broadcast Packets: 1: Accept, 0: Reject
Accept Multicast Packets: 1: Accept, 0: Reject
Accept Physical Match Packets: 1: Accept, 0: Reject
Accept All Packets with Destination Address: 1: Accept, 0: Reject
2002/03/27 Rev.1.21
22
Page 23
6.10 9346CR: 93C46 (93C56) Command
(Offset 0050h, R/W)
Bit R/W Symbol Description
7:6 R/W EEM1-0
5:4 - -
3 R/W EECS
2 R/W EESK
1 R/W EEDI
0 R EEDO
Operating Mode: These 2 bits select the RTL8169 operating mode.
EEM1 EEM0 Operating Mode
0 0 Normal (RTL8169 network/host communication mode)
0 1 Auto-load: Entering this mode will make the RTL8169
load the contents of the 93C46 (93C56) as when the
RSTB signal is asserted. This auto-load operation will
take about 2 ms. Upon completion, the RTL8169
automatically returns to normal mode (EEM1 = EEM0 =
0) and all of the other registers are reset to default values.
1 0 93C46 (93C56) programming: In this mode, both network
and host bus master operations are disabled. The 93C46
(93C56) can be directly accessed via bit3-0 which now
reflect the states of EECS, EESK, EEDI, & EEDO pins
respectively.
1 1 Config register write enable: Before writing to CONFIGx
registers, the RTL8169 must be placed in this mode. This
will prevent RTL8169 configurations from accidental
change.
Reserved
These bits reflect the state of the EECS, EESK, EEDI & EEDO pins in
auto-load or 93C46 (93C56) programming mode and are valid only
when the Flash bit is cleared.
Note: EESK, EEDI and EEDO is valid after boot ROM complete.
RTL8169
6.11 CONFIG 0
(Offset 0051h, R/W)
Bit R/W Symbol Description
7:3 - 2-0 R BS2, BS1, BS0
Reserved
Select Boot ROM Size
BS2 BS1 BS0 Description
0 0 0 No Boot ROM
0 0 1 8K Boot ROM
0 1 0 16K Boot ROM
0 1 1 32K Boot ROM
1 0 0 64K Boot ROM
1 0 1 128K Boot ROM
1 1 0 unused
1 1 1 unused
2002/03/27 Rev.1.21
23
Page 24
6.12 CONFIG 1
(Offset 0052h, R/W)
Bit R/W Symbol Description
7:6 R/W LEDS1-0 Refer to the LED PIN definition. These bits initial value com from
93C46/93C56.
5 R/W DVRLOAD
4 R/W LWACT
3 R MEMMAP
2 R IOMAP
1 R/W VPD
0 R/W PMEn
Driver Load: Software maybe use this bit to make sure that the driver has been
loaded. Writing 1 is 1. Writing 0 is 0. When the command register bits IOEN,
MEMEN, BMEN of PCI configuration space are written, the RTL8169 will clear
this bit automatically.
LWAKE Active Mode: The LWACT bit and LWPTN bit in CONFIG4 register
are used to program the LWAKE pin’s output signal. According to the
combination of these two bits, there may be 4 choices of LWAKE signal, i.e.,
active high, active low, positive (high) pulse, and negative (low) pulse. The
output pulse width is about 150 ms. In CardBus application, the LWACT and
LWPTN have no meaning.
The default value of each of these two bits is 0, i.e., the default output signal of
LWAKE pin is an active high signal.
0 Active high* Active low
* Default value.
Memory Mapping: The operational registers are mapped into PCI memory space.
I/O Mapping: The operational registers are mapped into PCI I/O space.
Vital Product Data: Set to enable Vital Product Data. The VPD data is stored in
93C46 or 93C56 from within offset 40h-7Fh.
Power Management Enable:
PMEn setting:
LWAKE output
LW PT N
1 Positive pulse Negative pulse
Writable only when 93C46CR register EEM1=EEM0=1
Let A denote the New_Cap bit (bit 4 of the Status Register) in the PCI
Configuration space offset 06h.
Let B denote the Cap_Ptr register in the PCI Configuration space offset 34h.
Let C denote the Cap_ID (power management) register in the PCI
Configuration space offset 0DCh.
Let D denote the power management registers in the PCI Configuration space
offset from 0DDh to 0E1h.
Let E denote the Next_Ptr (power management) register in the PCI
Configuration space offset 0DDh.
0: A=B=C=E=0, D is invalid
1: A=1, B=0DCh, C=01h, D is valid, E is valid and depends on whether VPD
is enabled or not.
LWACT
0 1
RTL8169
2002/03/27 Rev.1.21
24
Page 25
6.13 CONFIG 2
(Offset 0053h, R)
Bit R/W Symbol Description
7:5 - -
4 R Aux_Status
3 R PCIBusWidth
2:0 R PCICLKF2-0
Reserved
Auxiliary Power Present Status:
1: The Aux. Power is present.
0: The Aux. Power is absent.
The value of this bit is fixed after each PCI reset.
PCI Bus Width:
1: 64-bit slot
0: 32-bit slot
PCI clock frequency:
RTL8169
6.14 CONFIG 3
(Offset 0054h, R/W)
Bit R/W Symbol Description
7 R GNTSel
6 - 5 R/W Magic
cont...
Grant Select: Select the Frame’s asserted time after the Grant signal
has been asserted. The Frame and Grant are the PCI signals.
1: delay one clock from GNT assertion.
0: No delay
Reserved
Magic Packet: This bit is valid when the PWEn bit of CONFIG1
register is set. The RTL8169 will assert the PMEB signal to wakeup the
operating system when the Magic Packet is received.
Once the RTL8169 has been enabled for Magic Packet wakeup and has
been put into an adequate state, it scans all incoming packets addressed to
the node for a specific data sequence, which indicates to the controller that
this is a Magic Packet frame. A Magic Packet frame must also meet the
basic requirements: Destination address + Source address + data + CRC
The destination address may be the node ID of the receiving station or a
multicast address, which includes the broadcast address.
The specific sequence consists of 16 duplications of 6 byte ID registers,
with no breaks or interrupts. This sequence can be located anywhere within
the packet, but must be preceded by a synchronization stream, 6 bytes of
FFh. The device will also accept a multicast address, as long as the 16
duplications of the IEEE address match the address of the ID registers.
If the Node ID is 11h 22h 33h 44h 55h 66h, then the format of the Magic
frame looks like the following:
Destination address + source address + MISC + FF FF FF FF FF FF +
MISC + 11 22 33 44 55 66 + 11 22 33 44 55 66 + 11 22 33 44 55 66 + 11
22 33 44 55 66 + 11 22 33 44 55 66 + 11 22 33 44 55 66 + 11 22 33 44
55 66 + 11 22 33 44 55 66 + 11 22 33 44 55 66 + 11 22 33 44 55 66 + 11
22 33 44 55 66 + 11 22 33 44 55 66 + 11 22 33 44 55 66 + 11 22 33 44
55 66 + 11 22 33 44 55 66 + 11 22 33 44 55 66 + MISC + CRC
PCICLKF2-0 MHz
000 33
001 66
Other values Reserved
2002/03/27 Rev.1.21
25
Page 26
4 R/W LinkUp
3 R CardB_En
2 R CLKRUN_En
1 R FuncRegEn
0 R FBtBEn
6.15 CONFIG 4
RTL8169
Link Up: This bit is valid when the PWEn bit of the CONFIG1 register
is set. The RTL8169, in an adequate power state, will assert the PMEB
signal to wakeup the operating system when the cable connection is
reestablished.
Card Bus Enable:
1: Enable CardBus related registers and functions.
0: Disable CardBus related registers and functions.
CLKRUN Enable:
1: Enable CLKRUN.
0: Disable CLKRUN.
Functions Registers Enable (CardBus only):
1: Enable the 4 Function Registers (Function Event Register,
Function Event Mask Register, Function Present State Register, and
Function Force Event Register) for CardBus application.
0: Disable the 4 Function Registers for CardBus application.
Fast Back to Back Enable: 1: Enable; 0: Disable.
(Offset 0055h, R/W)
Bit R/W Symbol Description
7:5 - -
4 R/W LWPME
3 - 2 R/W LWPTN
1:0 - -
Reserved
LANWAKE vs PMEB:
1: The LWAKE can only be asserted when the PMEB is asserted and
the ISOLATEB is low.
0: The LWAKE and PMEB are asserted at the same time.
In CardBus applications, this bit has no meaning.
Reserved
LWAKE Pattern: Please refer to the LWACT bit in CONFIG1 register.
Reserved
2002/03/27 Rev.1.21
26
Page 27
RTL8169
6.16 CONFIG 5
(Offset 0056h, R/W)
This register, unlike other Config registers, is not protected by 93C46 Command register. I.e. there is no need to enable the
Config register write prior to writing to Config5.
Bit R/W Symbol Description
7 - 6 R/W BWF
5 R/W MWF
4 R/W UWF
3:2 - -
1 R/W LANWake
0 R/W PME_STS
Bit1 and bit0 are auto-loaded from the EEPROM Config5 byte to the RTL8169 Config5 register.
Reserved
Broadcast Wakeup Frame:
1: Enable Broadcast Wakeup Frame with mask bytes of only DID
field = FF FF FF FF FF FF.
0: Default value. Disable Broadcast Wakeup Frame with mask bytes
of only DID field = FF FF FF FF FF FF.
The power-on default value of this bit is 0.
Multicast Wakeup Frame:
1: Enable Multicast Wakeup Frame with mask bytes of only DID
field, which is a multicast address.
0: Default value. Disable Multicast Wakeup Frame with mask bytes
of only DID field, which is a multicast address.
The power-on default value of this bit is 0.
Unicast Wakeup Frame:
1: Enable Unicast Wakeup Frame with mask bytes of only DID
field, which is its own physical address.
0: Default value. Disable Unicast Wakeup Frame with mask bytes
of only DID field, which is its own physical address.
The power-on default value of this bit is 0.
Reserved
LANWake Signal Enable/Disable:
1: Enable LANWake signal.
0: Disable LANWake signal.
PME_Status bit: Always sticky/can be reset by PCI RST# and
software.
1: The PME_Status bit can be reset by PCI reset or by software.
0: The PME_Status bit can only be reset by software.
2002/03/27 Rev.1.21
27
Page 28
RTL8169
6.17 Multiple Interrupt Select
(Offset 005Ch-005Dh, R/W)
Bit R/W Symbol Description
15:12 - -
11:0 R/W MISR11-0
When MulERINT=1, any received packet invokes an early interrupt according to the MISR[11:0] setting in early mode.
Reserved
Multiple Interrupt Select: Indicates that the RTL8169 will make a
receive interrupt after the RTL8169 has transferred the data bytes
specified in this register into the system memory. If the value of this
register is zero, there will be no early receive interrupts before the whole
received packet is transferred to system memory. Bit1, 0 must be zero.
6.18 PHYAR: PHY Access
(Offset 0060h-0063h, R/W)
PHY address is fixed at 00001.
Bit R/W Symbol Description
31 R/W Flag
30:21 - 20:16 R/W RegAddr4-0
15:0 R/W Data15-0
Flag bit, used as PCI VPD access method:
1: Write data to MII register, and turn to 0 automatically whenever
the RTL8169 has completed writing to the specified MII register.
0: Read data from MII register, and turn to 1 automatically whenever
the RTL8169 has completed retrieving data from the specified MII
register.
Reserved
5-bit GMII/MII register address.
16-bit GMII/MII register data.
6.19 TBICSR: Ten Bit Interface Control and Status
(Offset 0064h-0067h, R/W)
Bit R/W Symbol Description
31 R/W ResetTBI
30 R/W TBILoopBack
29 R/W TBINWEn
28 R/W TBIReNW
27:26 - -
25 R TBILinkOk
24 R TBINWComplete
23:20 TXOSETST3-0
19 - -
18:16 ANST2-0
15:13 - -
12:8 RXST4-0
7:4 SYNCST3-0
3:0 TXCGST3-0
Reset TBI: This bit, when set, indicates to the TBI to reset the
interfacing PHY device. This bit is cleared when the reset process is
completed.
TBI Loopback Enable: This bit, when set, indicates to the TBI that
the interfacing PHY device is in loopback mode.
TBI Auto-negotiation Enable: This bit, when set, enables the
auto-negotiation function for the TBI interface.
TBI Restart Auto-negotiation: This bit, when set, restarts the
auto-negotiation. This bit is cleared when the auto-negotiation
completes.
Reserved
TBI Link Ok: This bit, when set, indicates that the channel
connecting to the link partner is established.
TBI Nway Complete: This bit, when set, indicates that the
auto-negotiation process has completed in TBI mode.
Reserved: For Realtek internal testing.
Reserved
Reserved: For Realtek internal testing.
Reserved
Reserved: For Realtek internal testing.
Reserved: For Realtek internal testing.
Reserved: For Realtek internal testing.
2002/03/27 Rev.1.21
28
Page 29
6.20 TBI_ANAR: TBI Auto-Negotiation Advertisement
(Offset 0068h-0069h, R/W)
Bit R/W Symbol Description
15:14 - 13:12 R/W RF2, RF1
Reserved. Always 0.
Remote Fault Bits: These 2 bits indicate that a fault or error condition
has occurred. The default value is 00.
RF1 RF2 Description
0 0 No error, link Ok (default)
0 1 Offline
1 0 Link_Failure
1 1 Auto-Negotiation Error
RTL8169
11:9 - -
8:7 R/W PS2(ASM_DIR),
PS1(PAUSE)
6 - -
5 R FullDup
4:0 - -
Reserved. Always 0.
Asymmetric Pause: When this bit is set, the value of bit7 (Pause)
indicates the direction PAUSE frames are supported.
PS1 PS2 Capability
0 0 No Pause.
0 1 Asymmetric PAUSE toward link
partner.
1 0 Symmetric PAUSE.
1 1 Both symmetric PAUSE and
asymmetric PAUSE toward local
device.
Reserved.
Full Duplex: This bit is always set. Full duplex capability is
advertised toward the link partner in NWay mode.
Reserved
6.21 TBI_LPAR: TBI Auto-Negotiation Link Partner Ability
(Offset 006Ah-006Bh, R)
Bit R/W Symbol Description
15 R NextPage
14 R Ack
13:12 R RF2, RF1
Next Page Exchange Required: When set, this bit indicates that the
link partner has a next page to transmit.
Acknowledge: When set, this bit indicates that the link partner has
successfully received at least 3 consecutive and matching pages
(ignoring the Ack bit in the received pages).
Remote Fault bits: These 2 bits indicate that a fault or error condition
has occurred. The default value is 00.
RF1 RF2 Description
0 0 No error, link Ok (default)
0 1 Offline
1 0 Link_Failure
1 1 Auto-Negotiation Error
11:9 - -
cont...
2002/03/27 Rev.1.21
Reserved
29
Page 30
8:7 R PS2(ASM_DIR),
PS1(PAUSE)
RTL8169
Asymmetric Pause: When this bit is set, the value of bit7 (Pause)
indicates the direction that PAUSE frames are supported by the link partner.
PS1 PS2 Capability
0 0 No Pause.
0 1 Asymmetric PAUSE toward link
partner.
1 0 Symmetric PAUSE.
1 1 Both symmetric PAUSE and
asymmetric PAUSE toward local
device.
6 R HalfDup
5 R FullDup
4:0 - -
Half Duplex: When set, the link partner supports half duplex.
Full Duplex: When set, the link partner supports full duplex.
Reserved
6.22 PHYStatus: PHY(GMII or TBI) Status
(Offset 006Ch, R)
Bit R/W Symbol Description
7 R EnTBI
6 R TxFlow
5 R RxFlow
4 R 1000MF Link speed is 1000Mbps and in full-duplex. (GMII mode only)
3 R 100M Link speed is 100Mbps. (GMII or MII mode only)
2 R 10M Link speed is 10Mbps. (GMII or MII mode only)
1 R LinkSts Link Status. 1: Link Ok, 0: No Link.
0 R FullDup
- MII registers polling cycle: 320ns * (32 MDC clock + 32 MDC clock) * 6 registers
TBI Enable: This bit is autoloaded from the EEPROM.
1: TBI mode, 0: GMII(MII) mode.
Transmit Flow Control: 1: Enabled, 0: Disabled.
Receive Flow Control: 1: Enabled, 0: Disabled.
Full-Duplex Status: 1: Full-duplex mode, 0: Half-duplex mode.
6.23 RMS: Receive (Rx) Packet Maximum Size
(Offset 00DAh-00DBh, R)
Bit R/W Symbol Description
15:14 - -
13:0 R/W RMS
2002/03/27 Rev.1.21
Reserved
Rx packet Maximum Size:
i. This register should be always set to a value other than 0, in
order to receive packets.
ii. The maximum size supported is 2
30
14
-1, i.e., 16K-1 bytes.
Page 31
6.24 C+CR: C+ Command
(Offset 00E0h-00E1h, R/W)
Bit R/W Symbol Description
15:10 - -
9 R/W ENDIAN
8 - 7 - 6 R/W RxVLAN
5 R/W RxChkSum
4 R/W DAC
3 R/W MulRW
2:0 - -
This register is the key before configuring other registers and descriptors.
This register is word access only, byte access to this register has no effect.
Reserved
Endian Mode:
1: Big-endian mode.
0: Little-endian mode.
Reserved (Home LAN Enable, always 0)
Reserved
Receive VLAN De-tagging Enable: 1: Enable; 0: Disable.
Receive Checksum Offload Enable: 1: Enable; 0: Disable.
PCI Dual Address Cycle Enable: When set, the RTL8169 will
perform Tx/Rx DMA using PCI Dual Address Cycle only when the
High 32-bit buffer address is not equal to 0.
1: Enable; 0: Disable (initial value at power-up).
PCI Multiple Read/Write Enable: If this bit is enabled, the setting of
Max Tx/Rx DMA burst size is no longer valid.
1: Enable; 0: Disable.
Reserved
RTL8169
6.25 RDSAR: Receive Descriptor Start Address
(Offset 00E4h-00EBh, R/W)
Bit R/W Symbol Description
63:0 R/W RDSA
Receive Descriptor Start Address: 64-bit address, 256-byte
alignment address.
Bit[31:0]: Offset E7h-E4h, low 32-bit address.
Bit[63:32]: Offset EBh-E8h, high 32-bit address.
6.26 ETThR: Early Transmit Threshold
(Offset 00ECh, R/W)
Bit R/W Symbol Description
7:6 - 5:0 R/W ETTh
Reserved
Early Tx Threshold: Specifies the threshold level in the Tx FIFO to
begin the transmission. When the byte count of the data in the Tx
FIFO reaches this level, (or the FIFO contains at least one complete
packet) the RTL8169 will transmit the packet.
- These fields count from 000001 to 111111 in units of 32 bytes.
- This threshold must be avoided from exceeding 2K bytes.
- 000000 is reserved. Do not set to this value.
2002/03/27 Rev.1.21
31
Page 32
RTL8169
6.27 Function Event
(Offset 00F0h-00F3h, R/W)
Bit R/W Symbol Description
31:16 - -
15 R/W INTR
14:5 - -
4 R/W GWAKE
3:0 - -
This register is valid only when Card_En=1 (bit3, Config3) and FuncRegEn=1 (bit1, Config3).
The Function Event (Offset F0h), Function Event Mask (Offset F4h), Function Present State (Offset F8h), and Function
Force Event (Offset FCh) registers have some corresponding fields with the same names. The GWAKE and INTR bits
of these registers reflect the wake-up event signaled on the SCTCSCHG pin. The operation of CSTCSCHG pin is
similar to PME# pin except that the CSTCSCHG pin is asserted high.
Reserved
Interrupt: This bit is set to 1 when the INTR field in the Function Force
Event Register is set. Writing a 1 may clear this bit. Writing a 0 has no
effect. This bit is not affected by the RST# pin and software reset.
Reserved
General Wakeup: This bit is set to 1 when the GWAKE field in the
Function Present State Register changes its state from 0 to 1. This bit
can also be set when the GWAKE bit of the Function Force Register is
set. Writing a 1 may clear this bit. Writing a 0 has no effect. This bit is
not affected by the RST# pin.
Reserved
6.28 Function Event Mask
(Offset 00F4h-00F7h, R/W)
Bit R/W Symbol Description
31:16 - -
15 R/W INTR
14 R/W WKUP
13:5 - -
4 R/W GWAKE
3:0 - -
This register is valid only when Card_En=1 (bit3, Config3) and FuncRegEn=1 (bit1, Config3).
Reserved
Interrupt mask: When cleared (0), setting of the INTR bit in either
the Function Present State Register or the Function Event Register will
neither cause assertion of the INT# signal while the CardBus PC Card
interface is powered up, nor the system Wakeup (CSTSCHG) while
the interface is powered off.
Setting this bit to 1, enables the INTR bit in both the Function Present
State Register and the Function Event Register to generate the INT#
signal (and the system Wakeup if the corresponding WKUP field in
this Function Event Mask Register is also set).
This bit is not affected by RST#.
Wakeup mask: When cleared (0), the Wakeup function is disabled,
i.e., the setting of this bit in the Function Event Register will not assert
the CSTSCHG signal.
Setting this bit to 1, enables the fields in the Function Event Register to
assert the CSTSCHG signal.
This bit is not affected by RST#.
Reserved
General Wakeup mask: When cleared (0), setting this bit in the
Function Event Register will not cause CSTSCHG pin asserted.
Setting this bit to 1, enables the GWAKE field in the Function Event
Register to assert CSTSCHG pin if bit14 of this register is also set.
This bit is not affected by the RST# pin.
Reserved
2002/03/27 Rev.1.21
32
Page 33
6.29 Function Preset State
(Offset 00F8h-00FBh, R)
Bit R/W Symbol Description
31:16 - -
15 R INTR
14:5 - -
4 R GWAKE
3:0 - -
This register is valid only when Card_En=1 (bit3, Config3) and FuncRegEn=1 (bit1, Config3).
This read-only register reflects the current state of the function.
Reserved
Interrupt: This bit is set when one of the ISR register bits has been set
to 1. This bit remains set (1), until all of the ISR register bits have been
cleared.
This bit is not affected by the RST# pin.
Reserved
General Wakeup: This bit reflects the current state of the Wakeup
event(s), and is just like the PME_Status bit of the PMCSR register.
This bit remains set (1), until the PME_Status bit of the PMCSR
register is cleared.
It is not affected by the RST# pin.
Reserved
RTL8169
6.30 Function Force Event
(Offset 00FCh-00FFh, W)
Bit R/W Symbol Description
31:16 - -
15 W INTR
14:5 - -
4 W GWAKE
3:0 - -
This register is valid only when Card_En=1 (bit3, Config3) and FuncRegEn=1 (bit1, Config3).
Reserved
Interrupt: Writing a 1 sets the INTR bit in the Function Event
Register. However, the INTR bit in the Function Present State Register
is not affected and continues to reflect the current state of the ISR
register.
Writing a 0 to this bit has no effect.
Reserved
General Wakeup: Setting this bit to 1, sets the GWAKE bit in the
Function Event Register. However, the GWAKE bit in the Function
Present State Register is not affected and continues to reflect the
current state of the Wakeup request.
Writing a 0 to this bit has no effect.
Reserved
2002/03/27 Rev.1.21
33
Page 34
RTL8169
7. EEPROM (93C46 or 93C56) Contents
The RTL8169 supports the attachment of an external EEPROM. The 93C46 is a 1K-bit EEPROM, and the 93C56 is a 2K-bit
EEPROM. The EEPROM interface provides the ability for the RTL8169 to read from and write data to an external serial
EEPROM device. Values in the external EEPROM allow default fields in PCI configuration space and I/O space to be
overridden following internal power on reset or software EEPROM autoload command. The RTL8169 will autoload values from
the EEPROM to these fields in configuration space and I/O space. If the EEPROM is not present, the RTL8169 initialization
uses default values for the appropriate Configuration and Operational Registers. Software can read and write to the EEPROM
using “bit-bang” accesses via the 9346CR Register.
Although it is actually addressed by words, its contents are listed below by bytes for convenience. After the initial power on or
autoload command in 9346CR, the RTL8169 performs a series of EEPROM read operations from the 93C46 (93C56) address
00h to 31h.
It is suggested to obtain Realtek approval before changing the default settings of the EEPROM.
Bytes Contents Description
00h 29h
01h 81h
02h-03h VID
04h-05h DID
06h-07h SVID
08h-09h SMID
0Ah MNGNT
0Bh MXLAT
0Ch CONFIGx
These 2 bytes contain ID code words for the RTL8169. The RTL8169 will load the
contents of the EEPROM into the corresponding location if the ID word (8129h) is
correct. Otherwise, the Vendor ID and Device ID of the PCI configuration space are
"10ECh" and "8169h".
PCI Vendor ID: PCI configuration space offset 00h-01h.
PCI Device ID: PCI configuration space offset 02h-03h.
PCI Subsystem Vendor ID: PCI configuration space offset 2Ch-2Dh.
PCI Subsystem ID: PCI configuration space offset 2Eh-2Fh.
PCI Minimum Grant Timer: PCI configuration space offset 3Eh.
PCI Maximum Latency Timer: PCI configuration space offset 3Fh. Set by software to
the number of PCI clocks that the RTL8169 may hold the PCI bus.
Bit3: EnTBI. When set, TBI mode is enabled. Otherwise, the RTL8169 operates in
GMII/MII mode.
Bit 7 6 5 4 3 2 1 0
0Dh CONFIG3
0Eh-13h Ethernet ID
14h CONFIG0
15h CONFIG1
16h-17h PMC
18h 19h CONFIG4
1Ah-1Eh -
cont...
- - - - EnTBI (bit7,
PHYStatus)
RTL8169 Configuration register 3: Operational register offset 59h.
Ethernet ID: After auto-load command or hardware reset, the RTL8169 loads Ethernet
ID to IDR0-IDR5 of the RTL8169's I/O registers.
RTL8169 Configuration register 0: Operational registers offset 51h.
RTL8169 Configuration register 1: Operational registers offset 52h.
Reserved: Do not change this field without Realtek approval.
Power Management Capabilities. PCI configuration space address 52h and 53h.
Reserved
Reserved: Do not change this field without Realtek approval.
RTL8169 Configuration register 4, operational registers offset 5Ah.
Reserved
Do not change this field without Realtek approval. 1Fh CONFIG_5
Bit7-2: Reserved.
Bit1: LANWake signal Enable/Disable
Set to 1: Enable LANWake signal.
Set to 0: Disable LANWake signal.
Bit0: PME_Status bit property
Set to 1: The PME_Status bit can be reset by PCI reset or by software if
D3cold_support_PME is 0. If D3cold_support_PME=1, the PME_Status bit is a
sticky bit.
Set to 0: The PME_Status bit is always a sticky bit and can only be reset by software.
- - -
2002/03/27 Rev.1.21
34
Page 35
RTL8169
20h-2Fh -
30h-31h CISPointer
32h-33h CheckSum
34h-3Eh -
3Fh PXE_Para
40h-7Fh VPD_Data
80h-FFh CIS_Data
Reserved
Reserved: Do not change this field without Realtek approval.
CIS Pointer.
Reserved: Do not change this field without Realtek approval.
Checksum of the EEPROM content.
Reserved: Do not change this field without Realtek approval.
Reserved: Do not change this field without Realtek approval.
PXE ROM code parameter.
VPD data field: Offset 40h is the start address of the VPD data.
CIS data field: Offset 80h is the start address of the CIS data. (93C56 only).
7.1 EEPROM Registers
Offset Name Typ e Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
00h-05h IDR0 – IDR5 R/W*
51h CONFIG0 R - - - - BS2 BS1 BS0
W*
52h CONFIG1 R LEDS1 LEDS0 DVRLOAD LWACT MEMMAP IOMAP VPD PMEN
W*
54h CONFIG3 R GNTDel - Magic LinkUp CardB_En CLKRU
W*
55h CONFIG4
56h CONFIG5
6Ch PHYStatus R EnTBI - - - - - - E1h C+CR R/W - - - - - - Endian -
R/W*
R/W*
- - - - - - - -
LEDS1 LEDS0 DVRLOAD LWACT - - VPD PMEN
FuncReg
N_En
- - Magic LinkUp - - - -
RxFIFOAuto
Clr
- - - - - - LANWake PME_STS
- - LWPME - LWPTN - -
En
FBtBEn
* The registers marked with type = 'W
*'
can be written only if bits EEM1=EEM0=1.
7.2 EEPROM Power Management Registers
Configuration
Space offset
DEh R Aux_I_b1 Aux_I_b0 DSI Reserved PMECLK Version
DFh
Name Type Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
PMC
R PME_D3
PME_D3
cold
PME_D2 PME_D1 PME_D0 D2 D1 Aux_I_b2
hot
2002/03/27 Rev.1.21
35
Page 36
RTL8169
8. PCI Configuration Space Registers
8.1 PCI Bus Interface
The RTL8169 implements the PCI bus interface as defined in the PCI Local Bus Specifications Rev. 2.2. When internal registers
are being accessed, the RTL8169 acts as a PCI target (slave mode). When accessing host memory for descriptor or packet data
transfer, the RTL8169 acts as a PCI bus master.
All of the required pins and functions are implemented in the RTL8169 as well as the optional pin, INTAB for support of interrupt
requests is implemented as well. The bus interface also supports 64-bit and 66Mhz operation in addition to the more common 32-bit
and 33-Mhz capabilities. For more information, refer to the PCI Local Bus Specifications Rev. 2.2, December 18, 1998.
8.1.1 Byte Ordering
The RTL8169 can be configured to order the bytes of data on the PCI AD bus to conform to little-endian or big-endian ordering
through the use of the ENDIAN bit of the C+ Command Register. When the RTL8169 is configured in big-endian mode, all the
data in the data phase of either memory or I/O transaction to or from RTL8169 is in big-endian mode. All data in the data phase
of any PCI configuration transaction to the RTL8169 should be in little-endian mode, regardless if the RTL8169 is set to
big-endian or little-endian mode.
When configured for little-endian mode (ENDIAN bit=0), the byte orientation for receive and transmit data and descriptors in
system memory is as follows:
31 24 23 16 15 8 7 0
Byte 3 Byte 2 Byte 1 Byte 0
C/BE[3]
(MSB)
When configured for big-endian mode (ENDIAN bit=1), the byte orientation for receive and transmit data and descriptors in
system memory is as follows:
31 24 23 16 15 8 7 0
Byte 0 Byte 1 Byte 2 Byte 3
C/BE[3]
(LSB)
C/BE[2] C/BE[1] C/BE[0]
(LSB)
Little-Endian Byte Ordering
C/BE[2] C/BE[1] C/BE[0]
(MSB)
Big-Endian Byte Ordering
8.1.2 Interrupt Control
Interrupts are performed by asynchronously asserting the INTAB pin. This pin is an open drain output. The source of the
interrupt can be determined by reading the Interrupt Status Register (ISR). One or more bits in the ISR will be set, denoting all
currently pending interrupts. Writing 1 to any bit in the ISR register clears that bit. Masking of specific interrupts can be
accomplished by using the Interrupt Mask Register (IMR). Assertion of INTAB can be prevented by clearing the Interrupt
Enable bit in the Interrupt Mask Register. This allows the system to defer interrupt processing as needed.
8.1.3 Latency Timer
The PCI Latency Timer described in LTR defines the maximum number of bus clocks that the device will hold the bus. Once the
device gains control of the bus and issues FRAMEB, the Latency Timer will begin counting down. The LTR register specifies,
in units of PCI bus clocks, the value of the latency timer of the RTL8169. When the RTL8169 asserts FRAMEB, it enables its
latency timer to count. If the RTL8169 deasserts FRAMEB prior to count expiration, the content of the latency timer is ignored.
Otherwise, after the count expires, the RTL8169 initiates transaction termination as soon as its GNTB is deasserted. Software is
able to read or write to LTR, and the default value is 00H.
2002/03/27 Rev.1.21
36
Page 37
RTL8169
8.1.4 64-Bit Data Operation
The RTL8169 samples the REQ64B pin at PCI RSTB deasserted to determine if the bus is 64-bit capable.
8.1.5 64-Bit Addressing
The RTL8169 supports 64-bit addressing (Dual Address Cycle, DAC) as a bus master for transferring descriptor and packet data
information. The DAC mode can be enabled or disabled through software. The RTL8169 only supports 32-bit addressing as a
target.
8.2 Bus Operation
8.2.1 Target Read
A Target Read operation starts with the system generating FRAMEB, Address, and either an IO read (0010b) or Memory Read
(0110b) command. If the 32-bit address on the address bus matches the IO address range specified in IOAR (for I/O reads) or the
memory address range specified in MEM (for memory reads), the RTL8169 will generate DEVSELB 2 clock cycles later
(medium speed). The system must tri-state the Address bus, and convert the C/BE bus to byte enables, after the address cycle. On
the 2nd cycle after the assertion of DEVSELB, all 32-bits of data and TRDYB will become valid. If IRDYB is asserted at that
time, TRDYB will be forced HIGH on the next clock for 1 cycle, and then tri-stated.
If FRAMEB is asserted beyond the assertion of IRDYB, the RTL8169 will still make data available as described above, but will
also issue a Disconnect. That is, it will assert the STOPB signal with TRDYB. STOPB will remain asserted until FRAMEB is
detected as deasserted.

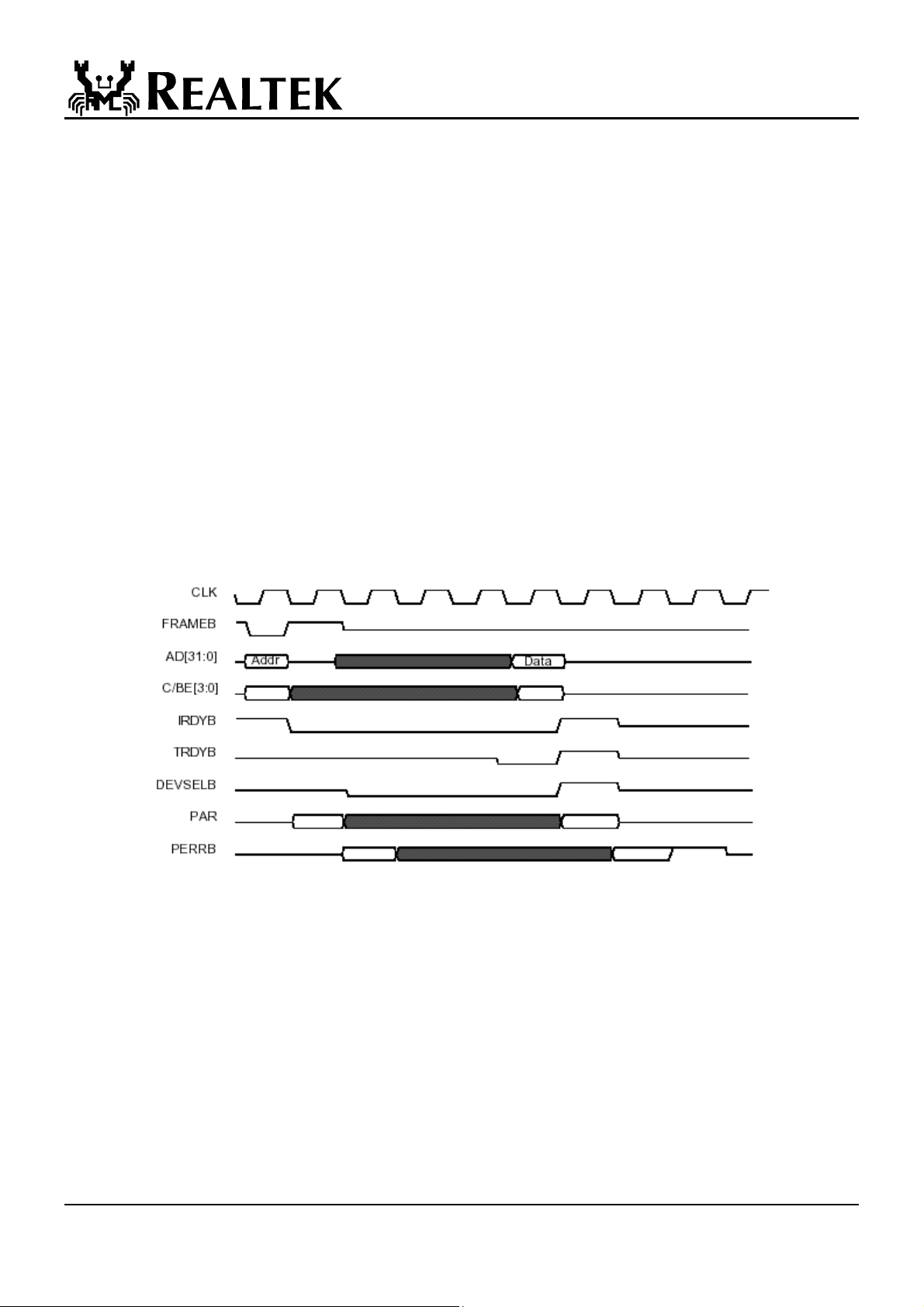

Target Read Operation
2002/03/27 Rev.1.21
37
Page 38
RTL8169
8.2.2 Target Write
A Target Write operation starts with the system generating FRAMEN, Address, and Command (0011b or 0111b). If the upper 24
bits on the address bus match IOAR (for I/O reads) or MEM (for memory reads), the RTL8169 will generate DEVSELB 2 clock
cycles later. On the 2nd cycle after the assertion of DEVSELB, the device will monitor the IRDYB signal. If IRDYB is asserted
at that time, the RTL8169 will assert TRDYB. On the next clock the 32-bit double word will be latched in, and TRDYB will be
forced HIGH for 1 cycle and then tri-stated. Target write operations must be 32-bits wide.
If FRAMEB is asserted beyond the assertion of IRDYB, the RTL8169 will still latch the first double word as described above,
but will also issue a Disconnect. That is, it will assert the STOPB signal with TRDYB. STOPB will remain asserted until
FRAMEB is detected as deasserted.

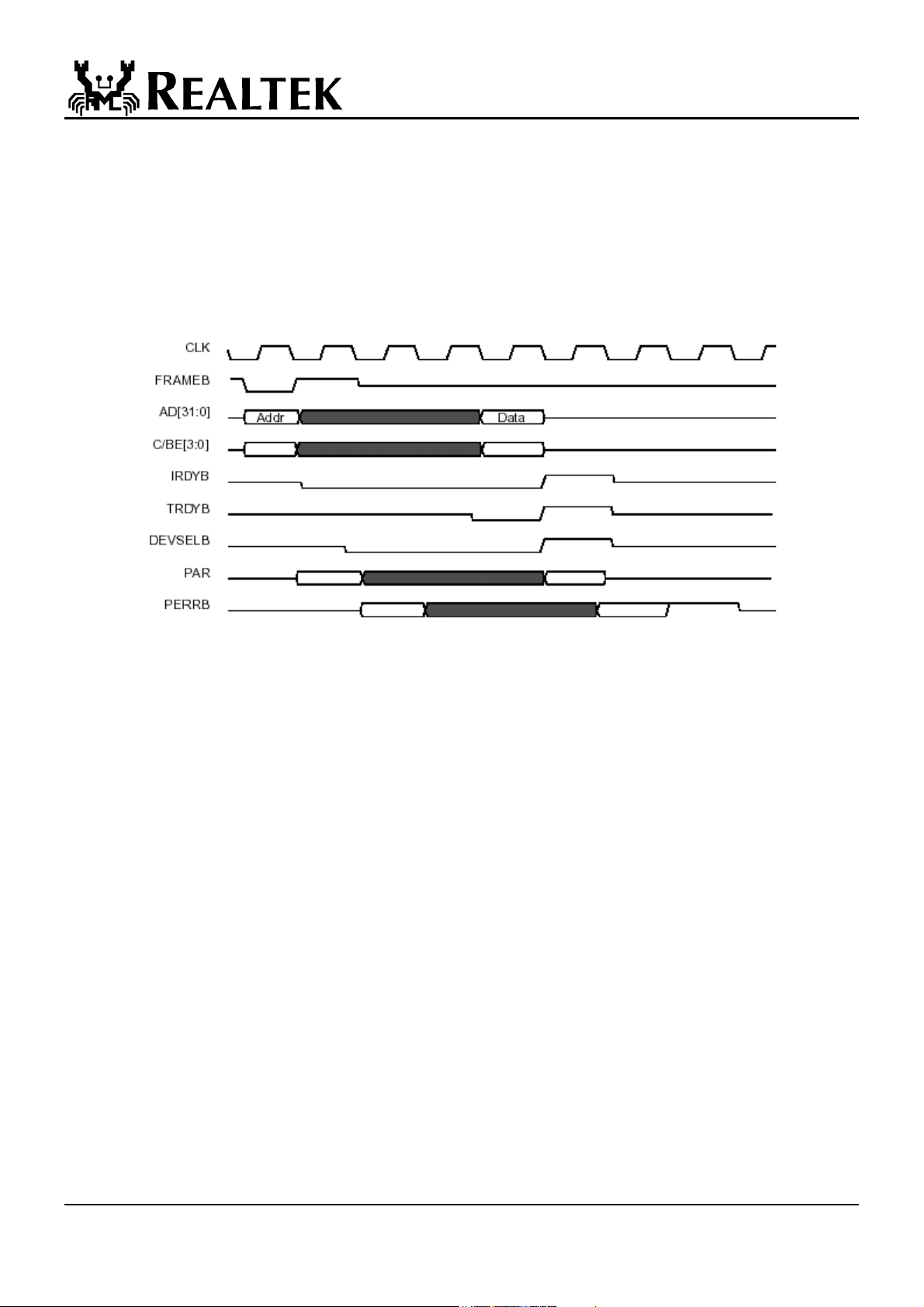

Target Write Operation
8.2.3 Master Read
A Master Read operation starts with the RTL8169 asserting REQB. If GNTB is asserted within 2 clock cycles, FRAMEB,
Address, and Command will be generated 2 clocks after REQB (Address and FRAMEB for 1 cycle only). If GNTB is asserted 3
cycles or later, FRAMEB, Address, and Command will be generated on the clock following GNTB.
The device will wait for 8 cycles for the assertion of DEVSELB. If DEVSELB is not asserted within 8 clocks, the device will
issue a master abort by asserting FRAMEB HIGH for 1 cycle, and IRDYB will be forced HIGH on the following cycle. Both
signals will become tri-state on the cycle following their deassertion.
On the clock edge after the generation of Address and Command, the address bus will become tri-state, and the C/BE bus will contain
valid byte enables. On the clock edge after FRAMEB was asserted, IRDYB will be asserted (and FRAMEB will be deasserted if this
is to be a single read operation). On the clock where both TRDYB and DEVSELB are detected as asserted, data will be latched in (and
the byte enables will change if necessary). This will continue until the cycle following the deassertion of FRAMEB.
On the clock where the second to last read cycle occurs, FRAMEB will be forced HIGH (it will be tri-stated 1 cycle later). On the
next clock edge that the device detects TRDYB asserted, it will force IRDYB HIGH. It, too, will be tri-stated 1 cycle later. This
will conclude the read operation. The RTL8169 will never force a wait state during a read operation.
2002/03/27 Rev.1.21
38
Page 39
RTL8169

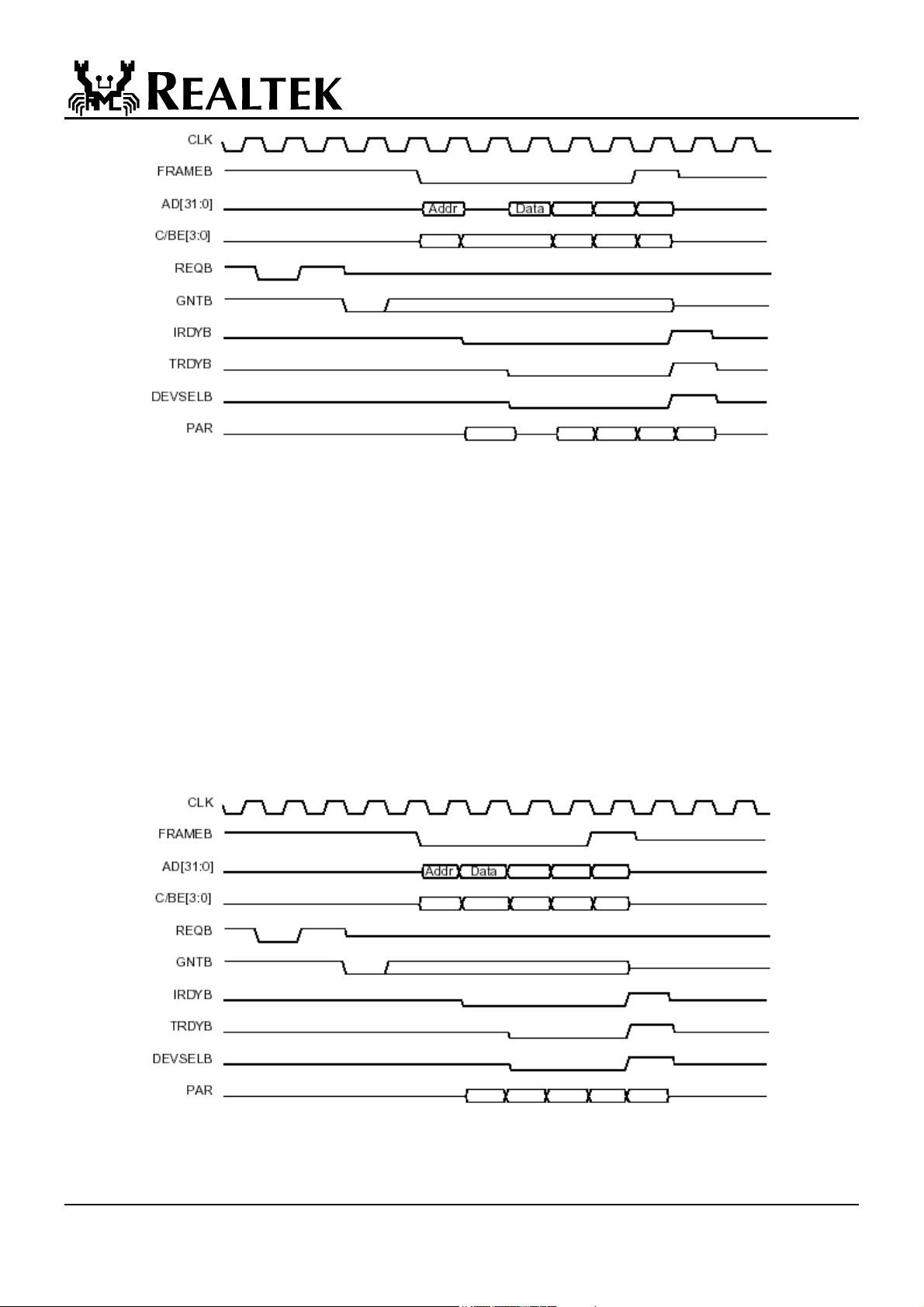

Master Read Operation
8.2.4 Master Write
A Master Write operation starts with the RTL8169 asserting REQB. If GNTB is asserted within 2 clock cycles, FRAMEB,
Address, and Command will be generated 2 clocks after REQB (Address and FRAMEB for 1 cycle only). If GNTB is asserted 3
cycles or later, FRAMEB, Address, and Command will be generated on the clock following GNTB.
The device will wait for 8 cycles for the assertion of DEVSELB. If DEVSELB is not asserted within 8 clocks, the device will
issue a Master Abort by asserting FRAMEB HIGH for 1 cycle. IRDYB will be forced HIGH on the following cycle. Both signals
will become tri-state on the cycle following their deassertion.
On the clock edge after the generation of Address and Command, the data bus will become valid, and the C/BE bus will contain
valid byte enables. On the clock edge after FRAMEB was asserted, IRDYB will be asserted (and FRAMEB will be deasserted if
this is to be a single read operation). On the clock where both TRDYB and DEVSELB are detected as asserted, valid data for the
next cycle will become available (and the byte enables will change if necessary). This will continue until the cycle following the
deassertion of FRAMEB.
On the clock where the second to last write cycle occurs, FRAMEB will be forced HIGH (it will be tri-stated 1 cycle later). On
the next clock edge that the device detects TRDYB asserted, it will force IRDYB HIGH. It, too, will be tri-stated 1 cycle later.
This will conclude the write operation. The RTL8169 will never force a wait state during a write operation.
Master Write Operation
2002/03/27 Rev.1.21
39
Page 40
RTL8169
8.2.5 Configuration Access
Configuration register accesses are similar to target reads and writes in that they are single data word transfers and are initiated
by the system. For the system to initiate a Configuration access, it must also generate IDSEL as well as the correct Command
(1010b or 1011b) during the Address phase. The RTL8169 will respond as it does during Target operations. Configuration reads
must be 32-bits wide, but writes may access individual bytes.
8.3 Packet Buffering
The RTL8169 incorporates two independent FIFOs for transferring data to/from the system interface and from/to the network.
The FIFOs, providing temporary storage of data freeing the host system from the real-time demands of the network.
The way in which the FIFOs are emptied and filled is controlled by the FIFO threshold values in the Transmit Configuration and
Receive Configuration registers. These values determine how full or empty the FIFOs must be before the device requests the
bus. Additionally, there is a threshold value that determines how full the transmit FIFO must be before beginning transmission.
Once the RTL8169 requests the bus, it will attempt to empty or fill the FIFOs as allowed by the respective MXDMA settings in
the Transmit Configuration and Receive Configuration registers.
8.3.1 Transmit Buffer Manager
The buffer management scheme used on the RTL8169 allows quick, simple and efficient use of the frame buffer memory. The
buffer management scheme uses separate buffers and descriptors for packet information. This allows effective transfers of data
to the transmit buffer manager by simply transferring the descriptor information to the transmit queue.
The Tx Buffer Manager DMAs packet data from system memory and places it in the 8KB transmit FIFO, and pulls data from the
FIFO to send to the Tx MAC. Multiple packets may be present in the FIFO, allowing packets to be transmitted with minimum
interframe gap. The way in which the FIFO is emptied and filled is controlled by the ETTH (Early Transmit Threshold) and
RXFTH (Rx FIFO Threshold) values. Additionally, once the RTL8169 requests the bus, it will attempt to fill the FIFO as
allowed by the MXDMA setting.
The Tx Buffer Manager process also supports priority queuing of transmit packets. It handles this by drawing from two separate
descriptor lists to fill the internal FIFO. If packets are available in the high priority queues, they will be loaded into the FIFO
before those of low priority.
8.3.2 Receive Buffer Manager
The Rx Buffer Manager uses the same buffer management scheme as used for transmits. The Rx Buffer Manager retrieves
packet data from the Rx MAC and places it in the 32KB receive data FIFO, and pulls data from the FIFO for DMA to system
memory. Similar to the transmit FIFO, the receive FIFO is controlled by the FIFO threshold value in RXFTH. This value
determines the number of long words written into the FIFO from the MAC unit before a DMA request for system memory
occurs. Once the RTL8169 gets the bus, it will continue to transfer the long words from the FIFO until the data in the FIFO is less
than one long word, or has reached the end of the packet, or the max DMA burst size is reached , as set in MXDMA.
8.3.3 Packet Recognition
The Rx packet filter and recognition logic allows software to control which packets are accepted, based on destination address
and packet type. Address recognition logic includes support for broadcast, multicast hash, and unicast addresses. The packet
recognition logic includes support for WOL, Pause, and programmable pattern recognition.
2002/03/27 Rev.1.21
40
Page 41
RTL8169
8.4 PCI Configuration Space Table
No. Name Type Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
00h VID R VID7 VID6 VID5 VID4 VID3 VID2 VID1 VID0
01h R VID15 VID14 VID13 VID12 VID11 VID10 VID9 VID8
02h DID R DID7 DID6 DID5 DID4 DID3 DID2 DID1 DID0
03h R DID15 DID14 DID13 DID12 DID11 DID10 DID9 DID8
04h Command R 0 PERRSP 0 MWIEN 0 BMEN MEMEN IOEN
W - PERRSP - MWIEN - BMEN MEMEN IOEN
05h R 0 0 0 0 0 0 FBTBEN SERREN
W - - - - - - - SERREN
06h Status R FBBC 0 0 NewCap 0 0 0 0
07h R DPERR SSERR RMABT RTABT STABT DST1 DST0 DPD
W DPERR SSERR RMABT RTABT STABT - - DPD
08h Revision ID R 0 0 0 0 0 0 0 0
09h PIFR R 0 0 0 0 0 0 0 0
0Ah SCR R 0 0 0 0 0 0 0 0
0Bh BCR R 0 0 0 0 0 0 1 0
0Ch CLS R/W 0 0 0 0 0 0 0 0
0Dh LT R R LT R7 LTR6 LT R5 LTR 4 LTR3 LT P2 LTR1 LT R0
W LTR 7 LTR 6 LT R5 LTR 4 LTR3 LT P2 LTR1 LT R0
0Eh HTR R 0 0 0 0 0 0 0 0
0Fh BIST R 0 0 0 0 0 0 0 0
10h IOAR R 0 0 0 0 0 0 0 IOIN
W - - - - - - - 11h R/W IOAR15 IOAR14 IOAR13 IOAR12 IOAR11 IOAR10 IOAR9 IOAR8
12h R/W IOAR23 IOAR22 IOAR21 IOAR20 IOAR19 IOAR18 IOAR17 IOAR16
13h R/W IOAR31 IOAR30 IOAR29 IOAR28 IOAR27 IOAR26 IOAR25 IOAR24
14h MEMAR R 0 0 0 0 0 0 0 MEMIN
W - - - - - - - 15h R/W MEM15 MEM14 MEM13 MEM12 MEM11 MEM10 MEM9 MEM8
16h R/W MEM23 MEM22 MEM21 MEM20 MEM19 MEM18 MEM17 MEM16
17h R/W MEM31 MEM30 MEM29 MEM28 MEM27 MEM26 MEM25 MEM24
18h-2
7h
28h-2
Bh
2Ch SVID R SVID7 SVID6 SVID5 SVID4 SVID3 SVID2 SVID1 SVID0
2Dh R SVID15 SVID14 SVID13 SVID12 SVID11 SVID10 SVID9 SVID8
2Eh SMID R SMID7 SMID6 SMID5 SMID4 SMID3 SMID2 SMID1 SMID0
2Fh R SMID15 SMID14 SMID13 SMID12 SMID11 SMID10 SMID9 SMID8
30h BMAR R 0 0 0 0 0 0 0 BROMEN
31h R BMAR15 BMAR14 BMAR13 BMAR12 BMAR11 0 0 0
32h R/W BMAR23 BMAR22 BMAR21 BMAR20 BMAR19 BMAR18 BMAR17 BMAR16
33h R/W BMAR31 BMAR30 BMAR29 BMAR28 BMAR27 BMAR26 BMAR25 BMAR24
34h Cap_Ptr R 1 1 0 1 1 1 0 0
35h-3
Bh
3Ch ILR R/W IRL7 ILR6 ILR5 ILR4 ILR3 ILR2 ILR1 ILR0
3Dh IPR R 0 0 0 0 0 0 0 1
cont...
CISPtr Cardbus CIS Pointer
W - - - - - - - BROMEN
W BMAR15 BMAR14 BMAR13 BMAR12 BMAR11 - - -
RESERVED
RESERVED
2002/03/27 Rev.1.21
41
Page 42
RTL8169
3Eh MNGNT R 0 0 1 0 0 0 0 0
3Fh MXLAT R 0 0 1 0 0 0 0 0
40h–
5Fh
60h VPDID R 0 0 0 0 0 0 1 1
61h NextPtr R 0 0 0 0 0 0 0 0
62h Flag VPD
Address
63h R/W Flag VPDADDR
VPD Data
64h R/W Data7 Data6 Data5 Data4 Data3 Data2 Data1 Data0
65h R/W Data15 Data14 Data13 Data12 Data11 Data10 Data9 Data8
66h R/W Data23 Data22 Data21 Data20 Data19 Data18 Data17 Data16
67h
68hDBh
DCh PMID R 0 0 0 0 0 0 0 1
DDh NextPtr R 0 1 1 0 0 0 0 0
DEh PMC R Aux_I_b1 Aux_I_b0 DSI Reserved PMECLK Version
DFh R PME_D3
E0h PMCSR R 0 0 0 0 0 0 Power State
W - - - - - - Power State
E1h R PME_Status - - - - - - PME_En
W PME_Status - - - - - - PME_En
E2h-
FFh
R/W VPDADDR7 VPDADDR6 VPDADD
14
R/W Data31 Data30 Data29 Data28 Data27 Data26 Data25 Data24
PME_D3
cold
hot
RESERVED
VPDADD
R5
VPDADD
R13
RESERVED
PME_D2 PME_D1 PME_D0 D2 D1 Aux_I_b2
RESERVED
R4
VPDADD
R12
VPDADD
R3
VPDADD
R11
VPDADD
R2
VPDADD
R10
VPDADD
R1
VPDADD
R9
VPDADD
R0
VPDADD
R8
The above table is based on both VPD and Power Management are enabled.
8.5 PCI Configuration Space Functions
The PCI configuration space is intended for configuration, initialization, and catastrophic error handling functions. The
functions of the RTL8169's configuration space are described below.
VID: Vendor ID. This field will be set to a value corresponding to PCI Vendor ID in the external EEPROM. If there is no
EEPROM, this field will default to a value of 10ECh which is Realtek Semiconductor's PCI Vendor ID.
DID: Device ID. This field will be set to a value corresponding to PCI Device ID in the external EEPROM. If there is no
EEPROM, this field will default to a value of 8129h.
Command: The command register is a 16-bit register used to provide coarse control over a device's ability to generate and
respond to PCI cycles.
Bit Symbol Description
15:10 -
9 FBTBEN
8 SERREN
7 ADSTEP
cont...
Reserved
Fast Back-To-Back Enable: Config3<FBtBEn>=0:Read as 0. Write operation has no effect. The
RTL8169 will not generate Fast Back-to-back cycles. When Config3<FbtBEn>=1, This read/write bit
controls whether or not a master can do fast back-to-back transactions to different devices.
Initialization software will set the bit if all targets are fast back-to-back capable. A value of 1 means
the master is allowed to generate fast back-to-back transaction to different agents. A value of 0 means
fast back-to-back transactions are only allowed to the same agent. This bit’s state after RST# is 0.
System Error Enable: When set to 1, the RTL8169 asserts the SERRB pin when it detects a parity
error on the address phase (AD<31:0> and CBEB<3:0> ).
Address/Data Stepping: Read as 0, and write operations have no effect. The RTL8169 never
performs address/data stepping.
2002/03/27 Rev.1.21
42
Page 43
6 PERRSP
5 VGASNOOP
4 MWIEN
3 SCYCEN
2 BMEN
1 MEMEN
0 IOEN
RTL8169
Parity Error Response: When set to 1, the RTL8169 will assert the PERRB pin on the detection of a
data parity error when acting as the target, and will sample the PERRB pin as the master. When set to
0, any detected parity error is ignored and the RTL8169 continues normal operation.
Parity checking is disabled after hardware reset (RSTB).
VGA palette SNOOP: Read as 0, write operations have no effect.
Memory Write and Invalidate cycle Enable: This is an enable bit for using the Memory Write and
Invalidate command. When this bit is 1, the RTL8169 as a master may generate the command. When
this bit is 0, the RTL8169 may generate Memory Write command instead. State after PCI RSTB is 0.
Special Cycle Enable: Read as 0, write operations have no effect. The RTL8169 ignores all special
cycle operations.
Bus Master Enable: When set to 1, the RTL8169 is capable of acting as a PCI bus master. When set
to 0, it is prohibited from acting as a bus master.
For normal operations, this bit must be set by the system BIOS.
Memory Space Access: When set to 1, the RTL8169 responds to memory space accesses. When set to
0, the RTL8169 ignores memory space accesses.
I/O Space Access: When set to 1, the RTL8169 responds to IO space accesses. When set to 0, the
RTL8169 ignores I/O space accesses.
Status: The status register is a 16-bit register used to record status information for PCI bus related events. Reads to this register
behave normally. Writes are slightly different in that bits can be reset, but not set.
Bit Symbol Description
15 DPERR
14 SSERR
13 RMABT
12 RTABT
11 STABT
10:9 DST1-0
8 DPD
7 FBBC
6 UDF
5 66MHz
4 NewCap
0:3 -
Detected Parity Error: This bit, when set, indicates that the RTL8169 has detected a parity error, even if
parity error handling is disabled in command register PERRSP bit.
Signaled System Error: This bit, when set, indicates that the RTL8169 has asserted the system error pin,
SERRB. Writing a 1 clears this bit to 0.
Received Master Abort: This bit, when set, indicates that the RTL8169 has terminated a master
transaction with master abort. Writing a 1 clears this bit to 0.
Received Target Abort: This bit, when set, indicates that an RTL8169 master transaction was
terminated due to a target abort. Writing a 1 clears this bit to 0.
Signaled Target Abort: This bit is set to 1 whenever the RTL8169 terminates a transaction with a target
abort. Writing a 1 clears this bit to 0.
Device Select Timing: These bits encode the timing of DEVSELB. They are set to 01b (medium),
indicating the RTL8169 will assert DEVSELB two clocks after FRAMEB is asserted.
Data Parity error Detected: This bit is set when the following conditions are met:
* The RTL8169 asserts parity error (PERRB pin) or it senses the assertion of PERRB pin by another device.
* The RTL8169 operates as a bus master for the operation that caused the error.
* The Command register PERRSP bit is set.
Writing a 1 clears this bit to 0.
Fast Back-To-Back Capable: Config3<FbtBEn>=0, Read as 0, write operations have no effect.
Config3<FbtBEn>=1, Read as 1.
User Definable Features Supported: Read as 0, and write operations have no effect. The RTL8169
does not support UDF.
66MHz Capable: Read as 1, and write operations have no effect. The RTL8169 supports 66MHz PCI clock.
New Capability: Config3<PMEn>=0, Read as 0, and write operations have no effect.
Config3<PMEn>=1, Read as 1.
Reserved
RID: Revision ID Register
The Revision ID register is an 8-bit register that specifies the RTL8169 controller revision number.
PIFR: Programming Interface Register
The programming interface register is an 8-bit register that identifies the programming interface of the RTL8169
controller. The PCI specification reversion 2.1 doesn't define any other specific value for network devices. So PIFR = 00h.
2002/03/27 Rev.1.21
43
Page 44
SCR: Sub-Class Register
The Sub-class register is an 8-bit register that identifies the function of the RTL8169. SCR = 00h indicates that the
RTL8169 is an Ethernet controller.
BCR: Base-Class Register
The Base-class register is an 8-bit register that broadly classifies the function of the RTL8169. BCR = 02h indicates that
the RTL8169 is a network controller.
CLS: Cache Line Size
Specifies, in units of 32-bit words (double-words), the system cache line size. The RTL8169 supports cache line size of
8, and 16 longwords (DWORDs). The RTL8169 uses Cache Line Size for PCI commands that are cache oriented, such as
memory-read-line, memory-read-multiple, and memory-write-and-invalidate.
LTR: Latency Timer Register
Specifies, in units of PCI bus clocks, the value of the latency timer of the RTL8169.
When the RTL8169 asserts FRAMEB, it enables its latency timer to count. If the RTL8169 deasserts FRAMEB prior to
count expiration, the content of the latency timer is ignored. Otherwise, after the count expires, the RTL8169 initiates
transaction termination as soon as its GNTB is deasserted. Software is able to read or write, and the default value is 00h.
HTR: Header Type Register
Reads will return a 0, writes are ignored.
RTL8169
BIST: Built-in Self Test
Reads will return a 0, writes are ignored.
IOAR: This register specifies the BASE IO address which is required to build an address map during configuration. It also
specifies the number of bytes required as well as an indication that it can be mapped into IO space. Britain
Bit Symbol Description
31:8 IOAR31-8
7:2 IOSIZE
1 0 IOIN
MEMAR: This register specifies the base memory address for memory accesses to the RTL8169 operational registers. This
register must be initialized prior to accessing any RTL8169's register with memory access.
Bit Symbol Description
31:8 MEM31-8
7:4 MEMSIZE
3 MEMPF
2:1 MEMLOC
0 MEMIN
BASE IO Address: This is set by software to the Base IO address for the operational register map.
Size Indication: Read back as 0. This allows the PCI bridge to determine that the RTL8169 requires
256 bytes of IO space.
Reserved
IO Space Indicator: Read only. Set to 1 by the RTL8169 to indicate that it is capable of being mapped
into IO space.
Base Memory Address: This is set by software to the base address for the operational register map.
Memory Size: These bits return 0, which indicates that the RTL8169 requires 256 bytes of Memory Space.
Memory Prefetchable: Read only. Set to 0 by the RTL8169.
Memory Location Select: Read only. Set to 0 by the RTL8169. This indicates that the base register is
32-bits wide and can be placed anywhere in the 32-bit memory space.
Memory Space Indicator: Read only. Set to 0 by the RTL8169 to indicate that it is capable of being
mapped into memory space.
CISPtr: CardBus CIS Pointer. This field is valid only when CardB_En (bit3, Config3) = 1. The value of this register is
auto-loaded from 93C46 or 93C56 (from offset 30h-31h).
- Bit 2-0: Address Space Indicator
Bit2:0 Meaning
7 The CIS begins in the Expansion ROM space.
6:1 The CIS begins in the memory address governed by one of the six Base
Address Registers. Ex., if the value is 2, then the CIS begins in the memory
address space governed by Base Address Register 2.
0 Not supported. (CIS begins in device-dependent configuration space.)
- Bit27-3: Address Space Offset
- Bit31-28: ROM Image number
2002/03/27 Rev.1.21
44
Page 45
RTL8169
Bit2-0 Space Type Address Space Offset Values
0 Configuration space Not supported.
X; 1≤X≤6
7 Expansion ROM
This read-only register points to where the CIS begins, in one of the following spaces:
i. Memory Space – The CIS may be in any of the memory spaces from offset 100h and up after being auto-loaded from
93C56. The CIS is stored in 93C56 EEPROM physically from offset 80h-FFh.
ii. Expansion ROM space – The CIS is stored in expansion ROM physically within the 128KB max.
SVID: Subsystem Vendor ID. This field will be set to a value corresponding to PCI Subsystem Vendor ID in the external
EEPROM. If there is no EEPROM, this field will default to a value of 10ECh which is Realtek Semiconductor's PCI
Subsystem Vendor ID.
Memory space
0h≤value≤FFFF FFF8h. This is the offset into the memory address space
governed by Base Address Register X. Adding this value to the value in the
Base Address Register gives the location of the start of the CIS. For the
RTL8169, the value is 100h.
0≤image number≤Fh, 0h≤value≤0FFF FFF8h. This is the offset into the
expansion ROM address space governed by the Expansion ROM Base
Register. The image number is in the uppermost nibble of the CISPtr
register. The value consists of the remaining bytes. For the RTL8169, the
image number is 0h.
SMID: Subsystem ID. This field will be set to value corresponding to PCI Subsystem ID in the external EEPROM. If there is no
EEPROM, this field will default to a value of 8129h.
BMAR: This register specifies the base memory address for memory accesses to the RTL8169 operational registers. This
register must be initialized prior to accessing any of the RTL8169's register with memory access.
Bit Symbol Description
31:18 BMAR31-18
17:11 ROMSIZE
10:1 -
0 BROMEN
ILR: Interrupt Line Register
The Interrupt Line Register is an 8-bit register used to communicate with the routing of the interrupt. It is written by the
POST software to set interrupt line for the RTL8169.
Boot ROM Base Address
Boot ROM Size: These bits indicate how many Boot ROM spaces to be supported. The Relationship
between Config 0 <BS2:0> and BMAR17-11 is as follows:
BS2 BS1 BS0 Description
0 0 0 No Boot ROM, BROMEN=0 (R)
0 0 1 8K Boot ROM, BROMEN (R/W), BMAR12-11 = 0 (R), BMAR17-13 (R/W)
0 1 0 16K Boot ROM, BROMEN (R/W), BMAR13-11 = 0 (R), BMAR17-14 (R/W)
0 1 1 32K Boot ROM, BROMEN (R/W), BMAR14-11 = 0 (R), BMAR17-15 (R/W)
1 0 0 64K Boot ROM, BROMEN (R/W), BMAR15-11 = 0 (R), BMAR17-16 (R/W)
1 0 1 128K Boot ROM, BROMEN(R/W), BMAR16-11=0 (R), BMAR17 (R/W)
1 1 0 unused
1 1 1 unused
Reserved (read back 0)
Boot ROM Enable: This is used by the PCI BIOS to enable accesses to Boot ROM.
IPR: Interrupt Pin Register
The Interrupt Pin register is an 8-bit register indicating the interrupt pin used by the RTL8169. The RTL8169 uses INTA
interrupt pin. Read only. IPR = 01h.
MNGNT: Minimum Grant Timer: Read only
Specifies how long a burst period the RTL8169 needs at 33MHz clock rate in units of 1/4 microsecond. This field will be
set to a value from the external EEPROM. If there is no EEPROM, this field will default to a value of 20h.
MXLAT: Maximum Latency Timer: Read only
Specifies how often the RTL8169 needs to gain access to the PCI bus in unit of 1/4 microsecond. This field will be set to
a value from the external EEPROM. If there is no EEPROM, this field will default to a value of 20h.
2002/03/27 Rev.1.21
45
Page 46
RTL8169
8.6 Default Value After Power-on (RSTB Asserted)
PCI Configuration Space Table
No. Name Type Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
00h VID R 1 1 1 0 1 1 0 0
01h R 0 0 0 1 0 0 0 0
02h DID R 0 0 1 0 1 0 0 1
03h R 1 0 0 0 0 0 0 1
04h Command R 0 0 0 0 0 0 0 0
W - PERRSP - MWIEN - BMEN MEMEN IOEN
05h R 0 0 0 0 0 0 0 0
W - - - - - - - SERREN
06h Status R 0 0 0 NewCap 0 0 0 0
07h R 0 0 0 0 0 0 1 0
W DPERR SSERR RMABT RTABT STABT - - DPD
08h Revision ID R 0 0 0 1 0 0 0 0
09h PIFR R 0 0 0 0 0 0 0 0
0Ah SCR R 0 0 0 0 0 0 0 0
0Bh BCR R 0 0 0 0 0 0 1 0
0Ch CLS R/W 0 0 0 0 0 0 0 0
0Dh LTR R 0 0 0 0 0 0 0 0
W LTR7 LTR6 LTR5 LT R4 LT R3 LTP2 LT R1 LTR0
0Eh HTR R 0 0 0 0 0 0 0 0
0Fh BIST R 0 0 0 0 0 0 0 0
10h IOAR R 0 0 0 0 0 0 0 1
11h R/W 0 0 0 0 0 0 0 0
12h R/W 0 0 0 0 0 0 0 0
13h R/W 0 0 0 0 0 0 0 0
14h MEMAR R 0 0 0 0 0 0 0 0
15h R/W 0 0 0 0 0 0 0 0
16h R/W 0 0 0 0 0 0 0 0
17h R/W 0 0 0 0 0 0 0 0
18h
|
27h
28h R 0 0 0 0 0 0 0 0
29h R 0 0 0 0 0 0 0 0
2Ah R 0 0 0 0 0 0 0 0
2Bh
2Ch SVID R 1 1 1 0 1 1 0 0
2Dh R 0 0 0 1 0 0 0 0
2Eh SMID R 0 0 1 0 1 0 0 1
2Fh R 1 0 0 0 0 0 0 1
30h BMAR R 0 0 0 0 0 0 0 0
W - - - - - - - BROMEN
31h R 0 0 0 0 0 0 0 0
W BMAR15 BMAR14 BMAR13 BMAR12 BMAR11 - - 32h R/W 0 0 0 0 0 0 0 0
33h R/W 0 0 0 0 0 0 0 0
34h Cap-Ptr R Ptr7 Ptr6 Ptr5 Ptr4 Ptr3 Ptr2 Ptr1 Ptr0
cont...
-
CISPtr
RESERVED(ALL 0)
R 0 0 0 0 0 0 0 0
2002/03/27 Rev.1.21
46
Page 47
RTL8169
35h
|
3Bh
3Ch ILR R/W 0 0 0 0 0 0 0 0
3Dh IPR R 0 0 0 0 0 0 0 1
3Eh MNGNT R 0 0 1 0 0 0 0 0
3Fh MXLAT R 0 0 1 0 0 0 0 0
40h
|
FFh
-
-
RESERVED(ALL 0)
RESERVED(ALL 0)
8.7 Power Management functions
The RTL8169 is compliant to ACPI (Rev 1.0, 1.0b, 2.0), PCI Power Management (Rev 1.1), and Network Device Class Power
Management Reference Specification (V1.0a), such as to support OS Directed Power Management (OSPM) environment. To
support this, the RTL8169 provides the following capabilities:
The RTL8169 can monitor the network for a Wakeup Frame, a Magic Packet, or a Re-LinkOk, and notify the system via
PME# when such a packet or event occurs. Then, the whole system can be restore to a working state to process the
incoming jobs.
When the RTL8169 is in power down mode (D1 ~ D3):
♦ The Rx state machine is stopped, and the RTL8169 keeps monitoring the network for wakeup events such as Magic
Packet, Wakeup Frame, and/or Re-LinkOk, in order to wake up the system. When in power down mode, the RTL8169
will not reflect the status of any incoming packets in the ISR register and will not receive any packets into the Rx FIFO.
♦ The FIFO status and the packets which are already received into Rx FIFO before entering into power down mode, are
kept by the RTL8169 during power down mode
♦ Transmission is stopped. The action of the PCI bus master mode is stopped, too. The Tx FIFO is kept.
♦ After restoration to a D0 state, the PCI bus master mode continues to transfer the data, which is not yet moved into the
Tx FIFO from the last break. The packet that was not transmitted completely last time is transmitted again.
D3cold_support_PME bit(bit15, PMC register) & Aux_I_b2:0 (bit8:6, PMC register) in PCI configuration space.
If EEPROM D3cold_support_PME bit(bit15, PMC) = 1, the above 4 bits depend on the existence of Aux power.
If EEPROM D3cold_support_PME bit(bit15, PMC) = 0, the above 4 bits are all 0's.
Ex.:
1. If EEPROM D3c_support_PME = 1,
If Aux. power exists, then PMC in PCI config space is the same as EEPROM PMC, i.e. if EEPROM
PMC = C2 F7, then PCI PMC = C2 F7.
If Aux. power is absent, then PMC in PCI config space is the same as EEPROM PMC except the above
4 bits are all 0’s. I.e. if EEPROM PMC = C2 F7, the PCI PMC = 02 76.
In this case, if wakeup support is desired when the main power is off, it is suggested that the
EEPROM PMC be set to: C2 F7 (RT EEPROM default value).
2. If EEPROM D3c_support_PME = 0,
If Aux. power exists, then PMC in PCI config space is the same as EEPROM PMC. I.e. if EEPROM
PMC = C2 77, then PCI PMC = C2 77.
If Aux. power is absent, then PMC in PCI config space is the same as EEPROM PMC except the above
4 bits are all 0’s. I.e. if EEPROM PMC = C2 77, the PCI PMC = 02 76.
In this case, if wakeup support is not desired when the main power is off, it is suggested that the
EEPROM PMC be set to be 02 76.
Link Wakeup occurs only when the following conditions are met:
♦ The LinkUp bit (CONFIG3#4) is set to 1, the PMEn bit (CONFIG1#0) is set to 1, and the PME# can be asserted in
current power state.
♦ The Link status is re-established.
2002/03/27 Rev.1.21
47
Page 48
RTL8169
Magic Packet Wakeup occurs only when the following conditions are met:
♦ The destination address of the received Magic Packet is acceptable to the RTL8169, such as broadcast, multicast, or
unicast address to the current RTL8169 adapter.
♦ The received Magic Packet does not contain a CRC error.
♦ The Magic bit (CONFIG3#5) is set to 1, the PMEn bit (CONFIG1#0) is set to 1, and the PME# can be asserted in current
power state.
♦ The Magic Packet pattern matches, i.e. 6 * FFh + MISC(can be none)+ 16 * DID(Destination ID) in any part of a valid
(Fast) Ethernet packet.
Wakeup Frame event occurs only when the following conditions are met:
♦ The destination address of the received Wakeup Frame is acceptable to the RTL8169, such as broadcast, multicast, or
unicast address to the current RTL8169 adapter.
♦ The received Wakeup Frame does not contain a CRC error.
♦ The PMEn bit (CONFIG1#0) is set to 1.
The 16-bit CRC* (or 16-bit CRC) of the received Wakeup Frame matches with the 16-bit CRC* of the sample
Wakeup Frame pattern given by the local machine’s OS. Or, the RTL8169 is configured to allow direct packet wakeup,
such as broadcast, multicast, or unicast network packet.
16-bit CRC:
The RTL8169 supports 5 wakeup frames that includes 2 normal wakeup frames (covering 64 mask bytes from offset
0 to 63 of any incoming network packet) and 3 long wakeup frames (covering 128 mask bytes from offset 0 to 127 of
any incoming network packet).
The PME# signal is asserted only when the following conditions are met:
The PMEn bit (bit0, CONFIG1) is set to 1.
The PME_En bit (bit8, PMCSR) in PCI Configuration Space is set to 1.
The RTL8169 may assert PME# in current power state, or the RTL8169 is in isolation state, referring to
PME_Support(bit15-11) of the PMC register in PCI Configuration Space.
Magic Packet, LinkUp, or Wakeup Frame has occurred.
* Writing a 1 to the PME_Status (bit15) of PMCSR register in the PCI Configuration Space will clear this bit and cause
the RTL8169 to stop asserting a PME# (if enabled).
When the RTL8169 is in power down mode, ex. D1-D3, the IO, MEM, and Boot ROM spaces are all disabled, after a RST#
assertion, the RTL8169’s power state is restored to D0 automatically, if the original power state is D3
. There is no hardware
cold
delay at the RTL8169’s power state transition. When in ACPI mode, the RTL8169 does not support PME from D0 (This is
Realtek default setting of PMC register autoloaded from EEPROM. The setting may be changed from the EEPROM, if
required.).
The RTL8169 also supports the legacy LAN WAKE-UP function. The LWAKE pin is used to notify legacy motherboards to
execute the wake-up process whenever the RTL8169 receives a wakeup event, such as Magic Packet.
The LWAKE signal is asserted according the following setting.
LWPME bit (bit4, CONFIG4):
1: The LWAKE can only be asserted when the PMEB is asserted and the ISOLATEB is low.
0: The LWAKE is asserted whenever there is wakeup event occurs.
Bit1 of DELAY byte(offset 1Fh, EEPROM):
1: LWAKE signal is enabled
0: LWAKE signal is disabled.
2002/03/27 Rev.1.21
48
Page 49
RTL8169
8.8 Vital Product Data (VPD)
Bit 31 of the VPD is used to issue VPD read/write command and is also a flag used to indicate whether the transfer of data
between the VPD data register and the 93C46/93C56 is completed or not.
1. Write VPD register: (write data to 93C46/93C56)
Set the flag bit to 1 at the same time the VPD address is written to write VPD data to EEPROM. When the flag bit is reset
to 0 by the RTL8169, the VPD data (4 bytes per VPD access) has been transferred from the VPD data register to
EEPROM.
2. Read VPD register: (read data from 93C46/93C56)
Reset the flag bit to 0 at the same time the VPD address is written to retrieve VPD data from EEPROM. When the flag bit
is set to 1 by the RTL8169, the VPD data (4 bytes per VPD access) has been transferred from EEPROM to the VPD data
register.
- Please refer to PCI Configuration Space Table in Section 8.1 and PCI 2.2 Specifications for further information.
- The VPD address does not have to be a DWORD-aligned address as defined in the PCI 2.2 Specifications, but the
VPD data is always consecutive 4-byte data starting from the VPD address specified.
- Realtek reserves offset 40h to 7Fh in EEPROM mainly for VPD data to be stored.
- The VPD function of the RTL8169 is designed to be able to access the full range of the EEPROM (either 93C46 or
93C56).
2002/03/27 Rev.1.21
49
Page 50
RTL8169
9. Functional Description
9.1 Transmit & Receive Operations
The RTL8169 supports a new descriptor-based buffer management that will significantly reduce host CPU utilization and is
more suitable for a server application. The new buffer management algorithm provides capabilities of Microsoft Large-Send
offload, IP checksum offload, TCP checksum offload, UDP checksum offload, and IEEE802.1P, 802.1Q VLAN tagging. The
RTL8169 supports up to 1024 consecutive descriptors in memory for transmit and receive separately, which means there might
be 3 descriptor rings, one is a high priority transmit descriptor ring, another is a normal priority transmit descriptor ring, and the
other is a receive descriptor ring, each descriptor ring may consist of up to 1024 4-double-word consecutive descriptors. Each
descriptor consists of 4 consecutive double words. The start address of each descriptor group should be 256-byte alignment.
Software must pre-allocate enough buffers and configure all descriptor rings before transmitting and/or receiving packets.
Descriptors can be chained to form a packet in both Tx and Rx. Please refer to the Realtek RTL8169 programming guide for
detailed information. Any Tx buffers pointed to by one of Tx descriptors should be at least 4 bytes.
Padding: The RTL8169 will automatically pad any packets less than 64 bytes (including 4 bytes CRC) to 64-byte long (including
4-byte CRC) before transmitting that packet onto network medium.
If a packet consists of 2 or more descriptors, then the descriptors in command mode should have the same configuration, except
EOR, FS, LS bits.
9.1.1 Transmit
This portion implements the transmit portion of 802.3 Media Access Control. The Tx MAC retrieves packet data from the Tx
Buffer Manager and sends it out through the transmit physical layer interface. Additionally, the Tx MAC provides MIB control
information for transmit packets. The Tx MAC supports 4-bit MII, 8-bit GMII, and 10-bit TBI interfaces to physical layer
devices.
The Tx MAC has the capability to insert a 4-byte VLAN tag in the transmit packet. If Tx VLAN Tag insertion is enabled, the
MAC will insert the 4 bytes, as specified in the VTAG register, following the source and destination addresses of the packet. The
VLAN tag insertion can be enabled on a global or per-packet basis.
When operating in 1G mode, the RTL8169 operates in full duplex mode only.
The Tx MAC supports task offloading of IP, TCP, and UDP checksum generation. It can generate the checksums and insert them
into the packet. The checksum generation can be enabled on a global or per-packet basis.
The following information describes what the Tx descriptor may look like, depending on different states in each Tx descriptor.
The minimum Tx buffer should be at least 4 bytes.
2002/03/27 Rev.1.21
50
Page 51
E
O
R
RTL8169
Large-Send Task Offload Tx Descriptor Format (before transmitting, OWN=1, LGSEN=1, Tx command mode 0)
31 30 29 28 27 26 16 15 8 7 6 5 4 3 2 1 0
bit
O
W
N
=
1
RSVD
FS LS L
Large-Send MSS value
G
(11 bits)
S
E
N
=
1
Frame_Length
T
R
A
S
VIDL PRIO C
G
V
C
D
VLAN_TAG
Offset 0
Offset 4
VIDH
FI
TX_BUFFER_ADDRESS_LOW
TX_BUFFER_ADDRESS_HIGH
Offset# Bit# Symbol Description
0 31 OWN
0 30 EOR
0 29 FS
0 28 LS
0 27 LGSEN
0 26:16 MSS
0 15:0 Frame_Length
4 31:18 RSVD
cont...
Ownership: This bit, when set, indicates that the descriptor is owned
by THE NIC, and the data relative to this descriptor is ready to be
transmitted. When cleared, it indicates that the descriptor is owned by
host system. The NIC clears this bit when the relative buffer data is
transmitted. In this case, OWN=1.
End of Descriptor Ring: This bit, when set, indicates that this is the
last descriptor in descriptor ring. When the NIC’s internal transmit
pointer reaches here, the pointer will return to the first descriptor of the
descriptor ring after transmitting the data relative to this descriptor.
First Segment Descriptor: This bit, when set, indicates that this is the
first descriptor of a Tx packet, and that this descriptor is pointing to the
first segment of the packet.
Last Segment Descriptor: This bit, when set, indicates that this is the
last descriptor of a Tx packet, and that this descriptor is pointing to the
last segment of the packet.
Large Send: A command bit; TCP/IP Large send operation enable. The
driver sets this bit to ask the NIC to offload the Large send operation. In
this case, LGSEN=1.
Maximum Segmentation Size: An 11-bit long command field, the
driver passes large send MSS to the NIC through this field.
Transmit Drame Length: This field indicates the length in TX buffer,
in byte, to be transmitted
Reserved
Offset 8
Offset 12
2002/03/27 Rev.1.21
51
Page 52
E
O
R
RTL8169
4 17 TAGC
4 16 RSVD
4 15:0 VLAN_TAG The 2-byte VLAN_TAG contains information, from the upper layer, of
8 31:0 TxBuffL
12 31:0 TxBuffH
Normal (including IP, TCP, UDP Checksum Task Offloads) Tx Descriptor Format (before transmitting, OWN=1,
LGSEN=0, Tx command mode 1)
31 30 29 28 27 26 16 15 8 7 6 5 4 3 2 1 0
bit
O
W
N
=
1
FS LS L
RSVD
R
R
R
R
R
R
R
G
S
S
S
S
S
S
S
S
V
V
V
V
V
V
V
E
D
D
D
D
D
D
D
N
=
0
VLAN tag control bit: 1: Enable; 0: Disable.
1: Add TAG. 0x8100 (Ethernet encoded tag protocol ID, indicating
that this is a IEEE 802.1Q VLAN packet) is inserted after source
address, and 2 bytes are inserted after tag protocol ID from
VLAN_TAG field in transmit descriptor.
0: Packet remains unchanged when transmitting. I.e., the packet
transmitted is the same as it was passed down by upper layer.
Reserved
user priority, canonical format indication, and VLAN ID. Please refer to
IEEE 802.1Q for more VLAN tag information.
VIDH: The high 4 bits of a 12-bit VLAN ID.
VIDL: The low 8 bits of a 12-bit VLAN ID.
PRIO: 3-bit 8-level priority.
CFI: Canonical Format Indicator.
Low 32-bit address of transmit buffer
High 32-bit address of transmit buffer
R
I
U
S
V
D
P
C
S
D
P
C
S
T
A
G
C
T
C
P
C
S
R
S
V
D
Frame_Length
VLAN_TAG
VIDL PRIO C
Offset 0
Offset 4
VIDH
FI
TX_BUFFER_ADDRESS_LOW
TX_BUFFER_ADDRESS_HIGH
2002/03/27 Rev.1.21
52
Offset 8
Offset 12
Page 53
Offset# Bit# Symbol Description
0 31 OWN
0 30 EOR
0 29 FS
0 28 LS
0 27 LGSEN
0 26:19 RSVD
0 18 IPCS
0 17 UDPCS
0 16 TCPCS
0 15:0 Frame_Length
4 31:18 RSVD
4 17 TAGC
4 16 RSVD
4 15:0 VLAN_TAG
8 31:0 TxBuffL
12 31:0 TxBuffH
Ownership: This bit, when set, indicates that the descriptor is owned
by the NIC, and that the data relative to this descriptor is ready to be
transmitted. When cleared, it indicates that the descriptor is owned by
the host system. The NIC clears this bit when the relative buffer data is
transmitted. In this case, OWN=1.
End of descriptor Ring: This bit, when set, indicates that this is the last
descriptor in the descriptor ring. When the NIC’s internal transmit
pointer reaches here, the pointer will return to the first descriptor of the
descriptor ring after transmitting the data relative to this descriptor.
First segment descriptor: This bit, when set, indicates that this is the
first descriptor of a Tx packet, and that this descriptor is pointing to the
first segment of the packet.
Last segment descriptor: This bit, when set, indicates that this is the
last descriptor of a Tx packet, and that this descriptor is pointing to the
last segment of the packet.
Large Send: A command bit; TCP/IP Large send operation enable.
Driver sets this bit to ask NIC to offload Large send operation. In this
case, LGSEN=0.
Reserved
IP checksum offload: A command bit. The driver sets this bit to ask the
NIC to offload the IP checksum.
UDP checksum offload: A command bit. The driver sets this bit to ask
the NIC to offload the UDP checksum.
TCP checksum offload enable: A command bit; The driver sets this
bit to ask the NIC to offload the TCP checksum.
Transmit frame length: This field indicates the length of the TX
buffer, in bytes, to be transmitted
Reserved
VLAN tag control bit: 1: Enable; 0: Disable.
1: Add TAG. 0x8100 (Ethernet encoded tag protocol ID, indicating
that this is an IEEE 802.1Q VLAN packet) is inserted after the
source address, and 2 bytes are inserted after tag protocol ID from
the VLAN_TAG field in transmit descriptor.
0: Packet remains unchanged when transmitting. I.e., the packet
transmitted is the same as it was passed down by upper layer.
Reserved
VLAN Tag: The 2-byte VLAN_TAG contains information, from upper
layer, of user priority, canonical format indicator, and VLAN ID. Please
refer to IEEE 802.1Q for more VLAN tag information.
VIDH: The high 4 bits of a 12-bit VLAN ID.
VIDL: The low 8 bits of a 12-bit VLAN ID.
PRIO: 3-bit 8-level priority.
CFI: Canonical Format Indicator.
Low 32-bit address of transmit buffer
High 32-bit address of transmit buffer
RTL8169
2002/03/27 Rev.1.21
53
Page 54
E
O
R
RTL8169
Tx Status Descriptor (after transmitting, OWN=0, Tx status mode)
After having transmitted, the Tx descriptor turns into a Tx status descriptor.
31 30 29 28 27 26 16 15 8 7 6 5 4 3 2 1 0
bit
O
W
N
=
0
FS LS R
RSVD
S
V
D
R
S
V
D
R
S
V
D
R
S
V
D
R
S
V
D
R
S
V
D
R
R
RSVD
S
S
V
V
D
D
T
R
A
S
G
V
C
D
RSVD
VLAN_TAG
VIDL PRIO C
Offset 0
Offset 4
VIDH
FI
TX_BUFFER_ADDRESS_LOW
TX_BUFFER_ADDRESS_HIGH
Offset# Bit# Symbol Description
0 31 OWN
0 30 EOR
0 29 FS
0 28 LS
0 27:0 RSVD
4 31:18 RSVD
4 17 TAGC
4 16 RSVD
cont...
Ownership: This bit, when set, indicates that the descriptor is owned
by the NIC. When cleared, it indicates that the descriptor is owned by
the host system. NIC clears this bit when the relative buffer data is
already transmitted. In this case, OWN=0.
End of Descriptor Ring: When set, indicates that this is the last
descriptor in descriptor ring. When NIC’s internal transmit pointer
reaches here, the pointer will return to the first descriptor of the
descriptor ring after transmitting the data relative to this descriptor.
First Segment Descriptor: This bit, when set, indicates that this is the
first descriptor of a Tx packet, and that this descriptor is pointing to the
first segment of the packet.
Last Segment Descriptor: This bit, when set, indicates that this is the
last descriptor of a Tx packet, and that this descriptor is pointing to the
last segment of the packet.
Reserved
Reserved
VLAN Tag Control Bit: 1: Enable; 0: Disable.
1: Add TAG. 0x8100 (Ethernet encoded tag protocol ID, indicating
that this is an IEEE 802.1Q VLAN packet) is inserted after source
address, and 2 bytes are inserted after tag protocol ID from
VLAN_TAG field in transmit descriptor.
0: Packet remains unchanged when transmitting. I.e., the packet
transmitted is the same as it was passed down by the upper layer.
Reserved
Offset 8
Offset 12
2002/03/27 Rev.1.21
54
Page 55
RTL8169
4 15:0 VLAN_TAG
8 31:0 TxBuffL
12 31:0 TxBuffH
VLAN Tag: The 2-byte VLAN_TAG contains information, from the
upper layer, of user priority, canonical format indicator, and VLAN ID.
Please refer to IEEE 802.1Q for more VLAN tag information.
VIDH: The high 4 bits of a 12-bit VLAN ID.
VIDL: The low 8 bits of a 12-bit VLAN ID.
PRIO: 3-bit 8-level priority.
CFI: Canonical Format Indicator.
Low 32-bit address of transmit buffer
High 32-bit address of transmit buffer
9.1.2 Receive
The receive portion implements the receive portion of 802.3 Media Access Control. The Rx MAC retrieves packet data from the
receive portion and sends it to the Rx Buffer Manager. Additionally, the Rx MAC provides MIB control information and packet
address data for the Rx Filter. The Rx MAC supports 4-bit MII, 8-bit GMII, and 10-bit TBI interfaces to physical layer devices.
The Rx MAC can detect packets containing a 4-byte VLAN tag, and remove the VLAN tag from the received packet. If Rx
VLAN Tag Removal is enabled, then the 4 bytes following the source and destination addresses will be stripped out. The VLAN
status can be returned in the VLAN Tag field.
The Rx MAC supports IP checksum verification. It can validate IP checksums as well as TCP and UDP checksums. Packets can
be discarded based on detecting checksum errors.
The following information describes what the Rx descriptor may look like, depending on different states in each Rx descriptor.
Any Rx buffers pointed to by one of the Rx descriptors should be to at least 8 bytes in length and to 8-byte alignment in memory.
Rx Command Descriptor (OWN=1)
The driver should pre-allocate Rx buffers and configure Rx descriptors before packet reception. The following describes what
Rx descriptors may look like before packet reception.
31 30 29 28 19 18 17 16 15 13 12 8 7 6 5 4 3 2 1 0
bit
O
W
N
E
O
R
=
1
RSVD
RSVD
RX_BUFFER_ADDRESS_LOW
RX_BUFFER_ADDRESS_HIGH
T
A
V
A
Buffer_Size
VLAN_TAG
VIDL PRIO C
FI
Offset 0
Offset 4
VIDH
Offset 8
Offset 12
2002/03/27 Rev.1.21
55
Page 56
E
O
R
Offset# Bit# Symbol Description
0 31 OWN
0 30 EOR
0 29:14 RSVD
0 13:0 Buffer_Size
4 31:17 RSVD
4 16 TAVA
4 15:0 VLAN_TAG
8 31:0 RxBuffL
12 31:0 RxBuffH
Ownership: This bit, when set, indicates that the descriptor is owned
by the NIC, and is ready to receive a packet. The OWN bit is set by the
driver after having pre-allocated the buffer at initialization, or the host
has released the buffer to the driver. In this case, OWN=1.
End of Rx descriptor Ring: This bit, set to 1 indicates that this
descriptor is the last descriptor of the Rx descriptor ring. Once the
NIC’s internal receive descriptor pointer reaches here, it will return to
the first descriptor of the Rx descriptor ring after this descriptor is used
by packet reception.
Reserved
Buffer Size: This field indicate the receive buffer size in bytes.
Reserved
Tag Available: This bit, when set, indicates that the received packet is
an IEEE802.1Q VLAN TAG (0x8100) available packet.
VLAN Tag: If the TAG of the packet is 0x8100, The RTL8169 MAC
extracts four bytes from after source ID, sets the TAVA bit to 1, and
moves the TAG value of this field in Rx descriptor.
VIDH: The high 4 bits of a 12-bit VLAN ID.
VIDL: The low 8 bits of a 12-bit VLAN ID.
PRIO: 3-bit 8-level priority.
CFI: Canonical Format Indicator.
Low 32-bit Address of Receive Buffer
High 32-bit Address of Receive Buffer
RTL8169
Rx Status Descriptor (OWN=0)
When packet is received, the Rx command descriptor turns to be a Rx status descriptor.
31 30 29 28 27 26 16 15 14 13 12 8 7 6 5 4 3 2 1 0
bit
O
FS LS M
W
N
=
0
RSVD
RX_BUFFER_ADDRESS_LOW
RX_BUFFER_ADDRESS_HIGH
A
R
PAM B
A
R
B
O
V
F
F
O
V
F
R
W
T
R
E
S
R
U
N
T
C
R
C
PI
D
1
PI
D
0
IP
F
T
A
V
A
U
D
P
F
T
C
P
F
Frame_Length Offset 0
VLAN_TAG
VIDL PRIO C
Offset 4
VIDH
FI
Offset 8
Offset 12
2002/03/27 Rev.1.21
56
Page 57
f
Offset# Bit# Symbol Description
0 31 OWN
0 30 EOR
0 29 FS
0 28 LS
0 27 MAR
0 26 PAM
0 25 BAR
0 24 BOVF
0 23 FOVF
0 22 RWT
0 21 RES
0 20 RUNT
0 19 CRC
0 18:17 PID1, PID0
Ownership: This bit, when set, indicates that the descriptor is owned by
the NIC. When cleared, it indicates that the descriptor is owned by the
host system. The NIC clears this bit when the NIC has filled up this Rx
buffer with a packet or part of a packet. In this case, OWN=0.
End of Rx Descriptor Ring: This bit, set to 1, indicates that this
descriptor is the last descriptor of the Rx descriptor ring. Once the
NIC’s internal receive descriptor pointer reaches here, it will return to
the first descriptor of the Rx descriptor ring after this descriptor is used
by packet reception.
First Segment descriptor: This bit, when set, indicates that this is the
first descriptor of a received packet, and this descriptor is pointing to the
first segment of the packet.
Last Segment Descriptor: This bit, when set, indicates that this is the last
descriptor of a received packet, and this descriptor is pointing to the last
segment of the packet.
Multicast Address Packet Received: This bit, when set, indicates that
a multicast packet has been received.
Physical Address Matched: This bit, when set, indicates that the
destination address of this Rx packet matches the value in the
RTL8169’s ID registers.
Broadcast Address Received: This bit, when set, indicates that a
broadcast packet has been received. BAR and MAR will not be set
simultaneously.
Buffer Overflow: This bit, when set, indicates that the receive buffer
has been exhausted before this packet was received.
FIFO Overflow: This bit, when set, indicates that a FIFO overflow has
occurred before this packet was received.
Receive Watchdog Timer Expired: This bit, when set, indicates that
the received packet length exceeded 4096 bytes.
Receive Error Summary: This bit, when set, indicates that at least one
of the following errors has occurred: CRC, RUNT, RWT, FAE. This bit
is valid only when LS (Last segment bit) is set
Runt Packet: This bit, when set, indicates that the received packet
length is smaller than 64 bytes. RUNT packets are able to be received
only when RCR_AR is set.
CRC Error: This bit, when set, indicates that a CRC error has occurred
on the received packet. A CRC packet is able to be received only when
RCR_AER is set.
Protocol ID1, Protocol ID0: These 2 bits indicate the protocol type o
the packet received.
Non-IP
TCP/IP
UDP/IP
IP
PID1 PID0
0 0
0 1
1 0
1 1
RTL8169
0 16 IPF
0 15 UDPF
0 14 TCPF
0 13:0 Frame_Length When OWN=0 and LS =1, these bits indicate the received packet length
4 31:17 RSVD
cont...
2002/03/27 Rev.1.21
IP Checksum Failure: 1: Failure, 0: No failure.
UDP Checksum Failure: 1: Failure, 0: No failure.
TCP Checksum Failure: 1: Failure, 0: No failure.
including CRC, in bytes.
Reserved
57
Page 58
RTL8169
4 16 TAVA
4 15:0 VLAN_TAG
8 31:0 RxBuffL
12 31:0 RxBuffH
Tag Available: When set, the received packet is an IEEE802.1Q VLAN
TAG (0x8100) available packet.
VLAN Tag: If the TAG of the packet is 0x8100, The RTL8169 MAC
extracts four bytes from the after source ID, sets TAVA bit to 1, and
moves the TAG value to this field in the Rx descriptor.
VIDH: The high 4 bits of a 12-bit VLAN ID.
VIDL: The low 8 bits of a 12-bit VLAN ID.
PRIO: 3-bit 8-level priority.
CFI: Canonical Format Indicator.
Low 32-bit Address of Receive Buffer
High 32-bit Address of Receive Buffer
9.2 Loopback Operation
Loopback mode is normally used to verify that the logic operations up to the Ethernet cable/fiber channel function correctly. The
RTL8169 supports both internal and external loopback capabilities. The RTL8169 internal loopback is actually a digital
loopback inside the RTL8169. To test an external loopback, the RTL8169 must operate in normal mode and the external
PHYceiver should be configured in loopback mode.
9.3 Collision
If the RTL8169 is not in full-duplex mode, a collision event occurs when the receive input is not idle while the RTL8169
transmits. If the collision was detected during the preamble transmission, a jam pattern is transmitted after completing the
preamble (including the JK symbol pair when network speed is 100Mbps). The RTL8169 does not support half-duplex mode in
1000Mbps mode. Therefore, there is no collision when the RTL8169 operates in 1000Mbps mode.
9.4 Flow Control
The RTL8169 supports IEEE802.3X flow control to improve performance in full-duplex mode. It detects and sends PAUSE
packets to achieve the flow control task. Results from the N-Way process with the link partner determine if flow control is
supported for the current connection.
9.4.1. Control Frame Transmission
When the RTL8169 is running out of receive descriptors in full duplex mode, it sends a PAUSE packet (with
pause_time=FFFFh) to inform the source station to stop transmission for the specified period of time. Once the receive
descriptors are available again, the RTL8169 sends another PAUSE packet (with pause_time=0000h) to wake up the source
station to restart transmission.
9.4.2. Control Frame Reception
The RTL8169 enters backoff state for the specified period of time when it receives a valid PAUSE packet (with pause_time=n)
in full duplex mode. If the PAUSE packet is received while the RTL8169 is transmitting, the RTL8169 starts to backoff after the
current transmission is completed. The RTL8169 is free to transmit packets when it receives a valid PAUSE packet (with
pause_time=0000h) or the backoff timer(=n*512 bit time) elapses.
The PAUSE operation cannot be used to inhibit transmission of MAC Control frames (e.g. a PAUSE packet). The N-way flow
control capability can be disabled. Please refer to Section 7, EEPROM (93C46 or 93C56) Contents for further information.
2002/03/27 Rev.1.21
58
Page 59
RTL8169
9.5 Memory Functions
9.5.1 Memory Read Line (MRL)
The Memory Read Line command reads more than a longword (DWORD) up to the cache line boundary in a prefetchable
address space. The Memory Read Line command is semantically identical to the Memory Read command except that it
additionally indicates that the master intends to fetch a complete cache line. This command is intended to be used with bulk
sequential data transfers where the memory system and the requesting master might gain some performance advantages by
reading up to a cache line boundary in response to the request rather than a single memory cycle. As with the Memory Read
command, pre-fetched buffers must be invalidated before any synchronization events are passed through this access path.
The RTL8169 performs MRL according to the following rules:
i. Read accesses that reach the cache line boundary use the Memory Read Line command (MRL) instead of the Memory
Read command.
ii. Read accesses that do not reach the cache line boundary use the Memory Read (MR) command.
iii. The Memory Read Line (MRL) command operates in conjunction with the Memory Read Multiple command (MRM).
iv. The RTL8169 will terminate the read transaction on the cache line boundary when it is out of resources on the transmit
DMA. For example, when the transmit FIFO is almost full.
9.5.2 Memory Read Multiple (MRM)
The Memory Read Multiple command is semantically identical to the Memory Read command except that it additionally
indicates that the master may intend to fetch more than one cache line before disconnecting. The memory controller should
continue pipelining memory requests as long as FRAMEB is asserted. This command is intended to be used with bulk sequential
data transfers where the memory system and the requesting master might gain some performance advantage by sequentially
reading ahead one or more additional cache line(s) when a software transparent buffer is available for temporary storage.
The RTL8169 performs MRM according to the following rules,
i. When the RTL8169 reads full cache lines, it will use the Memory Read Multiple command.
ii. If the memory buffer is not cache-aligned, the RTL8169 will use the Memory Read Line command to reach the cache line
boundary first.
Example:
Assume the packet length = 1514 byte, cache line size = 16 longwords (DWORDs), and Tx buffer start address =
64m+4 (m > 0).
;Step1: Memory Read Line (MRL)
;Data: (0-3) => (4-7) => (8-11) =>………... => (56-59) (byte offset of the Tx packet)
;From Address: <64m+4>, <64m+8>, ………., <64m+60> (reach cache line boundary)
;Step2. Memory Read Multiple (MRM)
;Data: (60-63) => (64-67) => (68-71) => ……………………….….. => (1454-1467)
;From Address: <64m+64>, <64m+68>, ……………….…., <64m+64+(16*4)*21+(16-1)*4>
;Step3. Memory Read(MR)
;Data: (1468-1471) => (1472-1475) => ……………………………, => (1510-1513)
;From Address:<64m+64+(16*4)*22>,<64m+64+(16*4)*22+4>,..,<64m+64+(16*4)*22+42>
Step1: Memory Read Multiple (MRM)
Data: (0-3) => (4-7) => (8-11) =>………….. => (1454-1467)
From Address: <64m+4>, <64m+8>, ………., <64m+64+(16*4)*21+(16-1)*4>
Step2. Memory Read(MRL)
Data: (1468-1471) => (1472-1475) => ……………………………, => (1510-1513)
From Address:<64m+64+(16*4)*22>,<64m+64+(16*4)*22+4>,..,<64m+64+(16*4)*22+42>
2002/03/27 Rev.1.21
59
Page 60
RTL8169
9.5.3 Memory Write and Invalidate (MWI)
The Memory Write and Invalidate command is semantically identical to the Memory Write command except that it additionally
guarantees a minimum transfer of one complete cache line; i.e., the master intends to write all bytes within the addressed cache
line in a single PCI transaction unless interrupted by the target. Note: All byte enables must be asserted during each data phase
for this command. The master may allow the transaction to cross a cache line boundary only if it intends to transfer the entire
next line also. This command requires implementation of a configuration register in the master indicating the cache line size and
may only be used with Linear Burst Ordering. It allows a memory performance optimization by invalidating a "dirty" line in a
write-back cache without requiring the actual write-back cycle, thus shortening access time. The RTL8169 uses the MWI
command while writing full cache lines, and the Memory Write command while writing partial cache lines.
The RTL8169 issues MWI command, instead of MW command on Rx DMA when the following requirements are met:
i. The Cache Line Size written in offset 0Ch of the PCI configuration space is 8 or 16 longwords (DWORDs).
ii. The accessed address is cache line aligned.
iii. The RTL8169 has at least 8/16 longwords (DWORDs) of data in its Rx FIFO.
iv. The MWI (bit 4) in the PCI Configuration Command register should be set to 1.
The RTL8169 uses the Memory Write (MW) command instead of the MWI whenever there any one of the above listed
requirements has failed. The RTL8169 terminates the WMI cycle at the end of the cache line when a WMI cycle has started and
at least one of the requirements are no longer held.
Example:
Assume Rx packet length = 1514 byte, cache line size = 16 DWORDs (longwords), and Rx buffer start address =
64m+4 (m > 0).
Step1: Memory Write (MW)
Data: (0-3) => (4-7) => (8-11) => ………... => (56-59) (byte offset of the Rx packet)
To Address: <64m+4>, <64m+8>, …………., <64m+60> (reach cache line boundary)
Step2. Memory Write and Invalidate (MWI)
Data: (60-63) => (64-67) => (68-71) => ……………………..….... => (1454-1457)
To Address: <64m+64>, <64m+68>, ………………..….., <64m+64+(16*4)*21+(16-1)*4>
Step3. Memory Write(MW)
Data: (1458-1461) => (1462-1465) => ……………………..……... => (1512-1513)
To Address: <64m+64+(16*4)*22>, <64m+64+(16*4)*22+4>, , <64m+64+(16*4)*22+42>
9.5.4 Dual Address Cycle (DAC)
The Dual Address Cycle (DAC) command is used to transfer a 64-bit address to devices that support 64-bit addressing when the
address is not in the low 4 GB address space. The RTL8169 is capable of performing DAC, such that it is very competent as a
network server card in a heavy-duty server with the possibility of allocating a memory buffer above a 4GB memory address space.
2002/03/27 Rev.1.21
60
Page 61
RTL8169
9.6 LED Functions
The RTL8169 supports 4 LED signals in 4 different configurable operation modes. The following sections describe the different
LED actions.
9.6.1 Link Monitor
The Link Monitor senses the link integrity or if a station is down, such as LINK10, LINK100, LINK1000, LINK10/100/1000,
LINK10/ACT, LINK100/ACT, or LINK1000/ACT. Whenever link status is established, the specific link LED pin is driven low.
Once a cable is disconnected, the link LED pin is driven high indicating that no network connection exists.

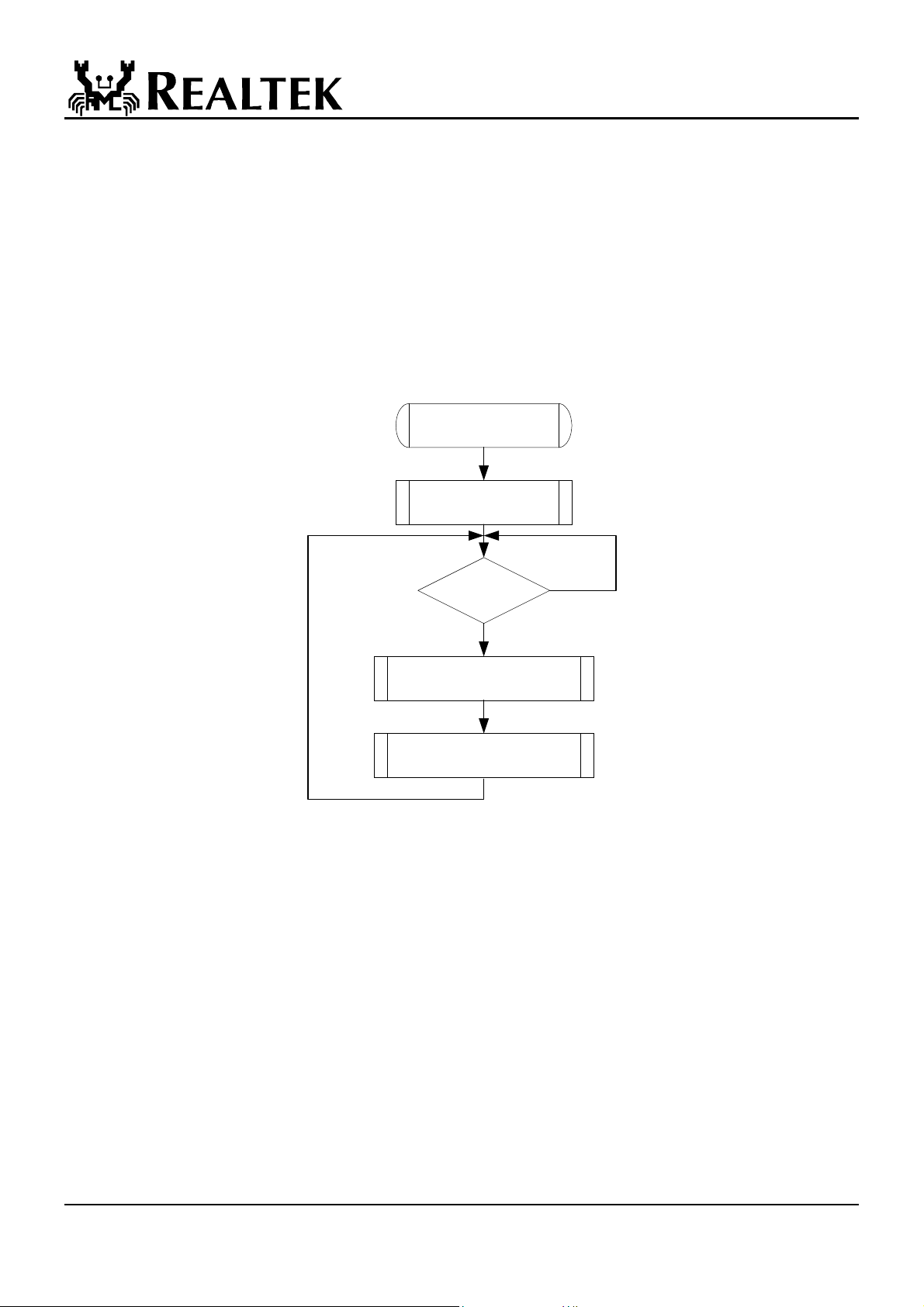

9.6.2 Rx LED
In 10/100/1000Mbps mode, blinking of the Rx LED indicates that receive activity is occurring.
Power On
LED = High
Receiving
Packet?
Yes
LED = High for (100 +- 10) ms
LED = Low for (12 +- 2) ms
No
2002/03/27 Rev.1.21
61
Page 62
9.6.3 Tx LED
In 10/100/1000Mbps mode, blinking of the Tx LED indicates that transmit activity is occurring.
Power On
LED = High
RTL8169
Transmitting
Packet?
Yes
LED = High for (100 +- 10) ms
LED = Low for (12 +- 2) ms
No
9.6.4 Tx/Rx LED
In 10/100/1000Mbps mode, blinking of the Tx/Rx LED indicates that both transmit and receive activity is occurring.
Power On
LED = High
Tx/Rx Packet?
Yes
LED = High for (100 +- 10) ms
LED = Low for (12 +- 2) ms
No
2002/03/27 Rev.1.21
62
Page 63
RTL8169

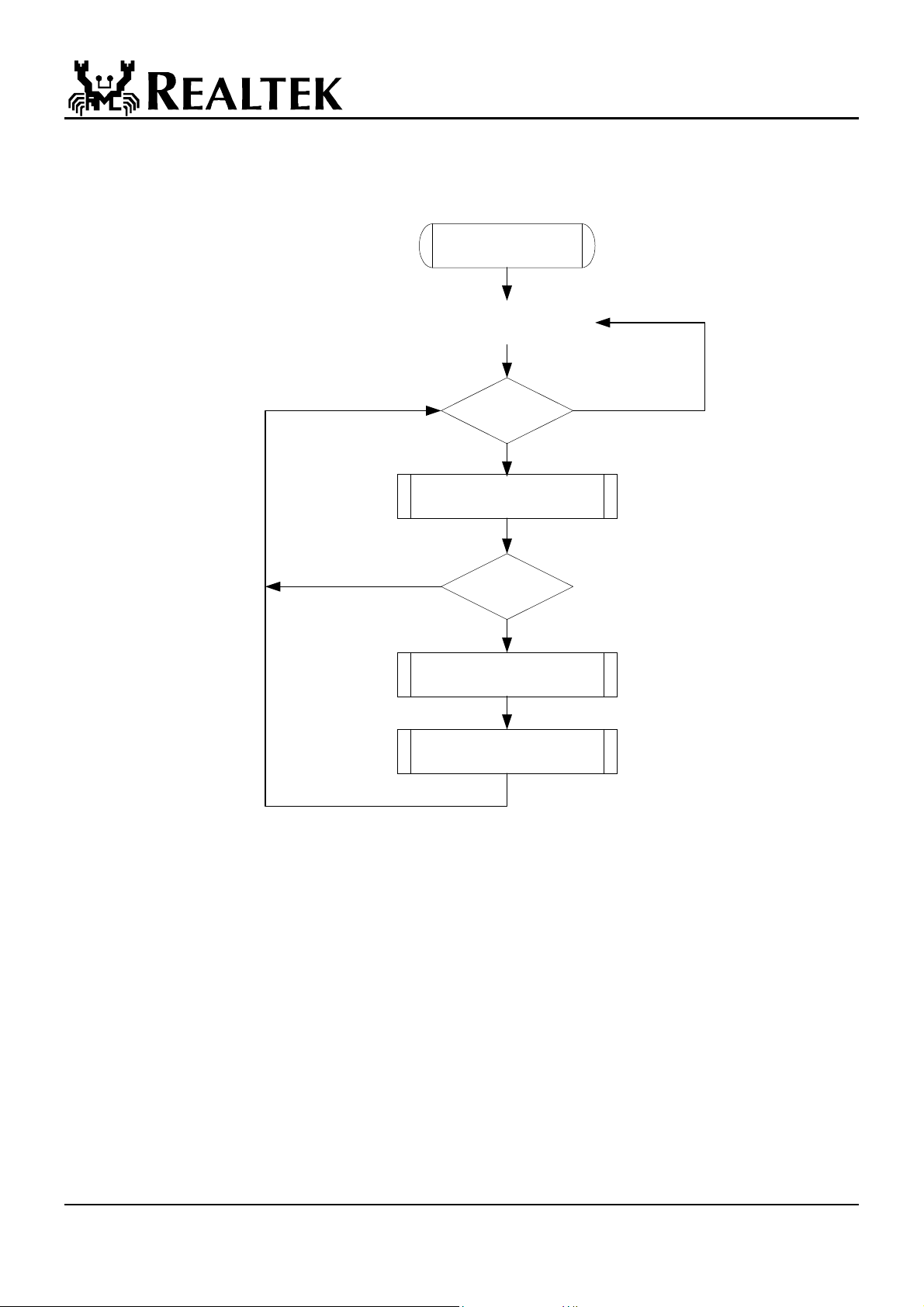

9.6.5 LINK/ACT LED
In 10/100/1000Mbps mode, blinking of the LINK/ACT LED indicates that the RTL8169 is linked and operating properly. This
LED high for extended periods, indicates that a link problem exists.
Power On
LED = High
Link?
Yes
LED = Low
No
Tx/Rx packet?
Yes
LED = High for (100 +- 10) ms
LED = Low for (12 +- 2) ms
No
2002/03/27 Rev.1.21
63
Page 64
RTL8169
9.7 Physical Layer Interfaces
The RTL8169 supports standard media independent MII and GMII for 10Mbps, 100Mbps, and 1000Mbps applications. The
RTL8169 also supports TBI (Ten-Bit Interface) for 1000Base-X applications by connecting to industry standard external
SERDES devices for fiber applications. The RTL8169 only operates in full-duplex mode in 1000Mbps for both GMII and TBI
applications. In addition, a management interface is defined for MII and GMII.
9.7.1 Media Independent Interface (MII)
The RTL81689 supports 10Mbps and 100Mbps physical layer devices through the MII as defined in the IEEE 802.3 (clause 22)
specifications. The MII consists of a transmit data interface (TxEN, TxER, TXD[3:0], and TxCLK), a receive data interface
(RxDV, RxER, RXD[3:0], and RxCLK), 2 status signals (CRS and COL) and a management interface (MDC and MDIO). In
this mode of operation, both Transmit and Receive clocks are supplied by the PHY.
9.7.2 Gigabit Media Independent Interface (GMII)
The RTL81689 can support 1000Mbps physical layer devices through the GMII as defined in the IEEE 802.3 (clause 35)
specifications. The GMII extends from the MII to use 8-bit data interfaces and to operate at a higher frequency. The GMII
consists of a transmit data interface (TxEN, TxER, TXD[7:0], and GTxCLK), a receive data interface (RxDV, RxER, RXD[7:0],
and RxCLK), 2 status signals (CRS and COL) and a management interface (MDC and MDIO). Many of the signals are shared
with the MII interface. One significant difference is the Transmit clock (GTxCLK) is supplied by the RTL81689 instead of the
PHY. The management interface (described later) is the same in both MII and GMII modes
9.7.3 Ten Bit Interface (TBI)
The TBI provides a port for transmit and receive data for interfacing to devices that support the 1000Base-X portion of the 802.3
specifications. This includes 1000Base-FX fiber devices. The port consists of data paths that are 10 bits wide in each direction as
well as control signals. This interface shares pins with the MII and GMII interfaces.
9.7.4 MII/GMII Management Interface
The MII/GMII management interface utilizes a communication protocol similar to a serial EEPROM. Signaling occurs on two
signals: clock (MDC) and data (MDIO). This protocol provides capability for addressing up to 32 individual Physical Media
Dependent (PMD) devices which share the same serial interface, and for addressing up to 32 16-bit read/write registers within
each PMD. The MII management protocol utilizes the following frame format: start bits (SB), opcode (OP), PMD address (PA),
register address (RA), line turnaround (LT) and data, as shown below.
SB OP PA RA LT Data
2 bits 2 bits 5 bits 5 bits
MII Management Frame Format
i. Start bits are defined as <01>.
ii. Opcode bits are defined as <01> for a Write access and <10> for a Read access.
iii. PMD address is the device address.
iv. Register address is address of the register within that device.
v. Line turnaround bits will be <10> for Write accesses and will be <xx> for Read accesses. This allows time for the MII
lines to “turn around”.
vi. Data is the 16 bits of data that will be written to or read from the PMD device.
A reset frame, defined as 32 consecutive 1s (FFFF FFFFh), is also provided. After power up, all MII PMD devices must wait for
a reset frame to be received prior to participating in MII management communication. Additionally, a reset frame may be issued
at any time to allow all connected PMDs to re-synchronize to the data traffic.
2
bits
16 bits
2002/03/27 Rev.1.21
64
Page 65
10. Application Diagrams
10.1 10/100/1000Base-T Application
RTL8169
Main/Aux. Power
RJ45
Magnetics
Regulators
Power 3.3V,
2.5V, 1.8V
External PHY -
Marvell 88E1000
25MHz clock
10.2 1000Base-X Application
Main/Aux. Power
Regulators
Power 3.3V, 2.5V, 1.8V
LED
125MHz
clock
32-/64-bit 33/66MHz PCI
Power 3.3V, 1.8V
LED
3.3V, 1.8V
RTL8169
Interface
Power
Power
3.3V, 1.8V
Power 3.3V
BootROM /
FLASH
Power 3.3VGMII
EEPROM
125MHz
Clock
Power 3.3V
Power 3.3V, ...
BootROM /
FLASH
Power 3.3VTBI
EEPROM
Optical
Transceiver
External 1.25Gb
SERDES
RTL8169
32-/64-bit 33/66MHz PCI
Interface
2002/03/27 Rev.1.21
65
Page 66
RTL8169
11. Electrical Characteristics
11.1 Temperature Limit Ratings
Parameter Minimum Maximum Units
Storage temperature -55 +125
Operating temperature 0 70
11.2 DC Characteristics
Below is a description of the general DC specifications for the RTL8169.
Symbol Parameter Conditions Minimum Typica l Maximum Units
VDD33 3.3V Supply Voltage 3.0 3.3 3.6 V
VDD18 1.8V Supply Voltage 1.71 1.8 1.89 V
Voh
Vol
Vih
Vil
Iin
Ioz
Icc33
I
cc18
Minimum High Level Output Voltage
Maximum Low Level Output Voltage
Minimum High Level Input Voltage 0.5 * Vcc Vcc+0.5 V
Maximum Low Level Input Voltage -0.5 0.3 * Vcc V
Input Current
Tri-State Output Leakage Current
Average Operating Supply Current from
3.3V
Average Operating Supply Current from
1.8V
I
oh = -8mA
I
ol = 8mA
V
in =Vcc or GND
V
out =Vcc or GND
100 mA
70 mA
0.9 * Vcc Vcc V
0.1 * Vcc V
-1.0 1.0 uA
-10 10 uA
°C
°C
2002/03/27 Rev.1.21
66
Page 67
11.3 AC Characteristics
11.3.1 FLASH/BOOT ROM Timing
FLASH/BOOT ROM - Read
MA16-0
ROMCSB
RTL8169
TRC
OEB
WEB
TWRBR
TOES
TCE
TOHZ
TOOLZ
TOH
TCOLZ
MD7-0
TAC C
Symbol Description Minimum Ty pica l Maximum Units
TRC Read Cycle 135 - - ns
TCE Chip Enable Access Time - - 200 ns
TACC Address Access Time - - 200 ns
TOES Output Enable Access Time - - 60 ns
TCOLZ Chip Enable to Output in Low Z 0 - - ns
TOOLZ Output Enable to Output in Low Z 0 - - ns
TOHZ Output Disable to Output in High Z - - 40 ns
TOH Output Hold from Address, ROMCSB, or
OEB
TWRBR Write Recovery time Before Read 6 - - us
0 - 0 ns
2002/03/27 Rev.1.21
67
Page 68

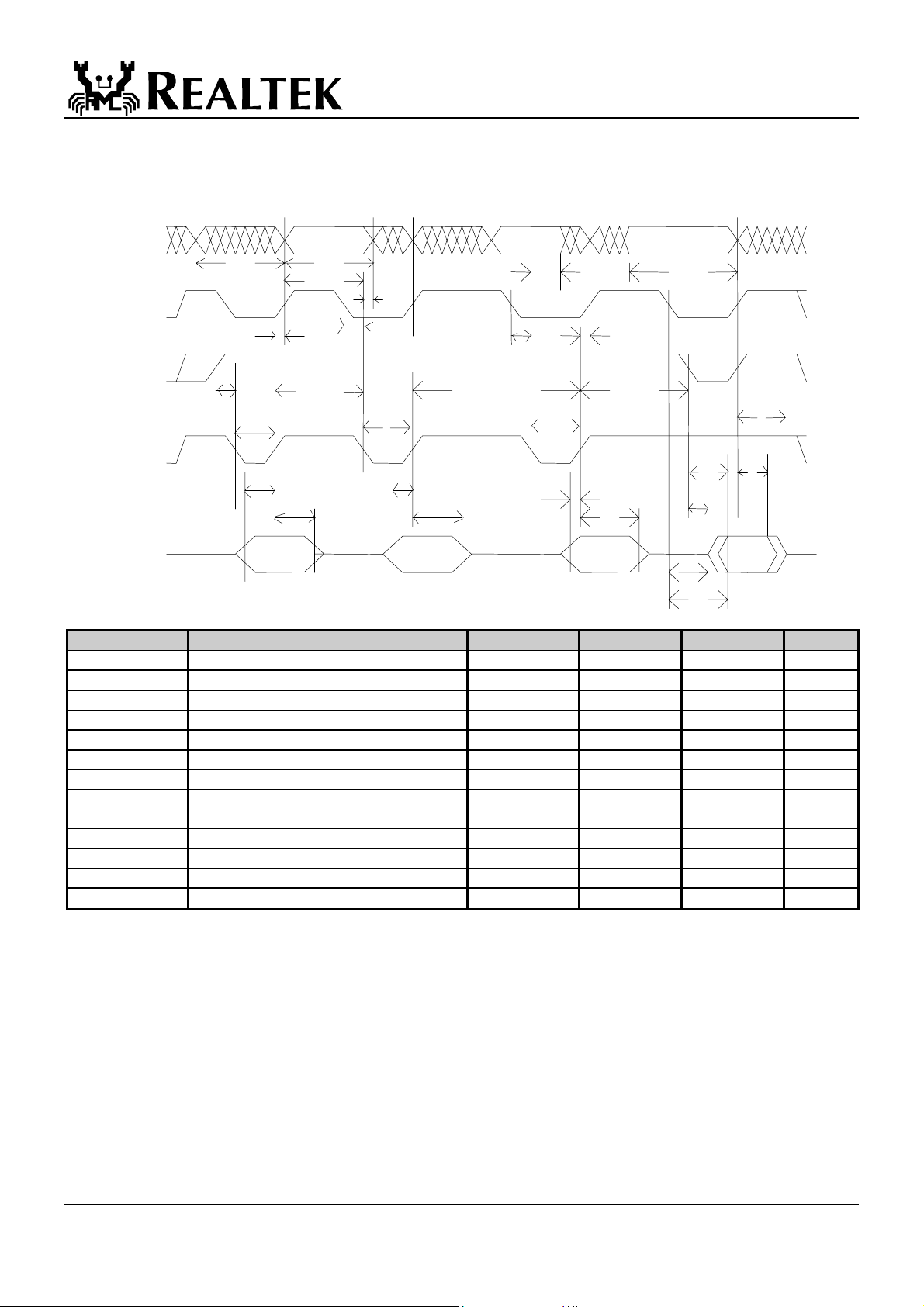

FLASH MEMORY - Write
SETUPMPROGRAM
VCC POWER -UP
& STANDBY
COMMAND
PROGRAM COMMAND
LATCH ADDRESS
& DATA
PROGRAMMING
VERIFY
COMMAND
PROGRAM
VERIFICAT ION
RTL8169
STANDBY/VCC
POWER-DOWN
MA16-0
tWC tWC
tAS
tAH
tAH
tRC
ROMCSB
tCS
tWHWH1
OEB
tGHWL
tCH
tWP
tCS
tWPH
tWP
WEB
tDS
tDH
DATAOUT
MD7-0
=40H
Symbol Description Minimum Ty pica l Maximum Units
TWC Write Cycle Time 135 - - ns
TAS Address Set-up Time 0 - - ns
TAH Address Hold Time 60 - - ns
TDS Data Set-up Time 50 - - ns
TDH Data Hold Time 10 - - ns
TWHGL Write Recovery Time before Read 6 - - us
TGHWL Read Recovery Time before Write 0 - - us
TCS Chip Enable Set-up Time before
Write
TCH Chip Enable Hold Time 0 - - us
TWP Write Pulse Width 50 - - ns
TWPH Write Pulse Width High 20 - - ns
TWHWH1 Duration of Programming Operation 10 - 25 us
tDS
DATAO
UT
tCH
tWHGL
tWP
tDS
tDH
DATAOUT
=C0H
tCOLZ
tOE
tOOLZ
tCE
tDF
tOH
VALID
DATA
IN
20 - - ns
2002/03/27 Rev.1.21
68
Page 69

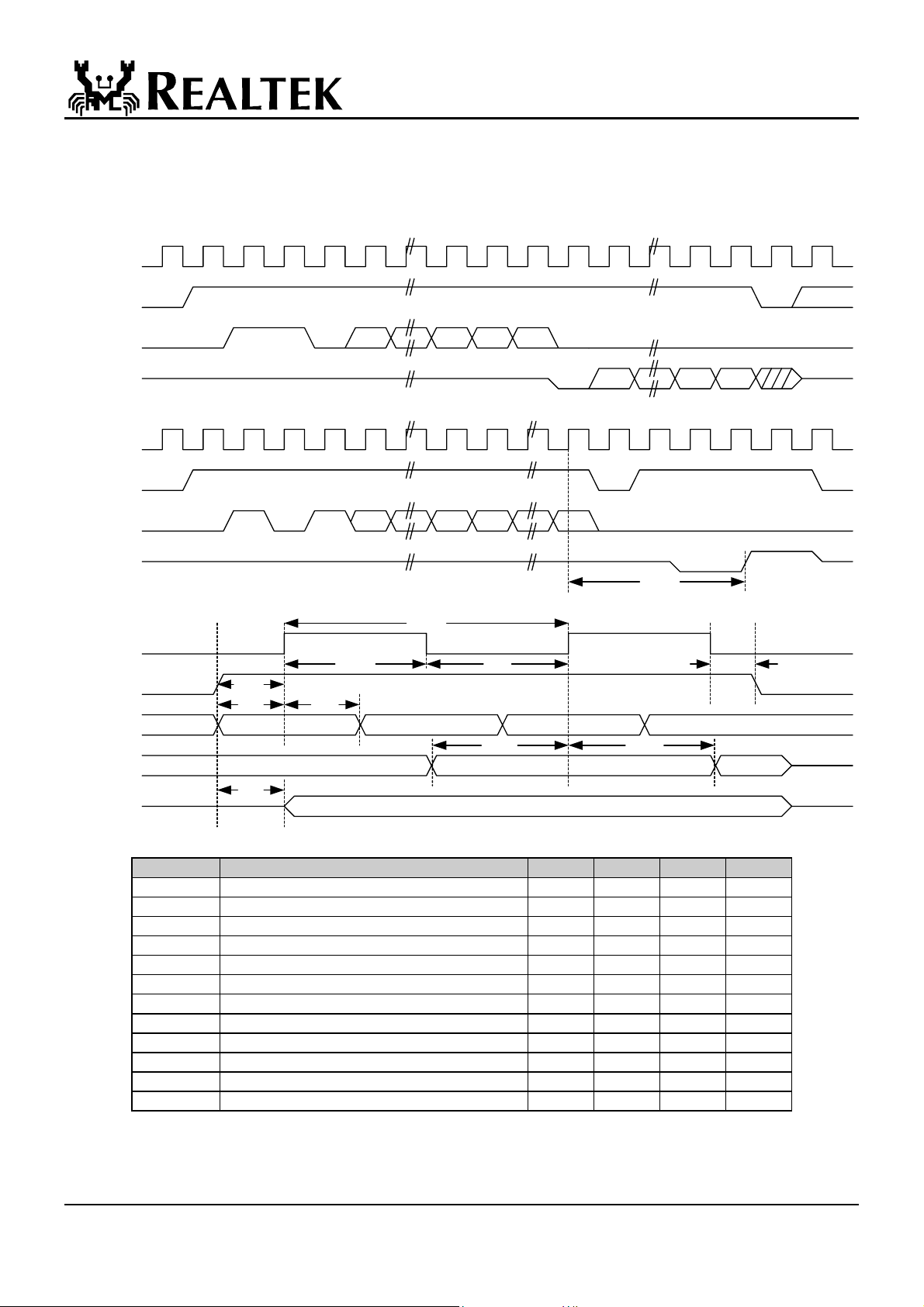

11.3.2 Serial EEPROM Interface Timing
(93C46(64*16)/93C56(128*16))
EESK
RTL8169
EECS
EEDI
EEDO
EESK
EECS
EEDI
EEDO
EESK
EECS
EEDI
EEDO
EEDO
(Read)
(Read)
High Impedance
(Write)
(Write)
High Impedance
(Read)
(Program)
Symbol Parameter Min. Typ ical Max. Unit
tcs Minimum CS Low Time 9346/9356 1000/250 ns
twp Write Cycle Time 9346/9356 10/10 ms
tsk SK Clock Cycle Time 9346/9356 4/1 us
tskh SK High Time 9346/9356 1000/500 ns
tskl SK Low Time 9346/9356 1000/250 ns
tcss CS Setup Time 9346/9356 200/50 ns
tcsh CS Hold Time 9346/9356 0/0 ns
tdis DI Setup Time 9346/9356 400/50 ns
tdih DI Hold Time 9346/9356 400/100 ns
tdos DO Setup Time 9346/9356 2000/500 ns
tdoh DO Hold Time 9346/9356 2000/500 ns
tsv CS to Status Valid 9346/9356 1000/500 ns
110An A2 A0A1
110AnA0
tskh
tcss
tdis tdih
tsv
EEPROM Access Timing Parameters
...
Dn
tsk
tskl
tdos tdoh
STATUS VALID
...
0
Dn D1 D0
tcs
D0
twp
BUSY READY
tcsh
tcs
2002/03/27 Rev.1.21
69
Page 70

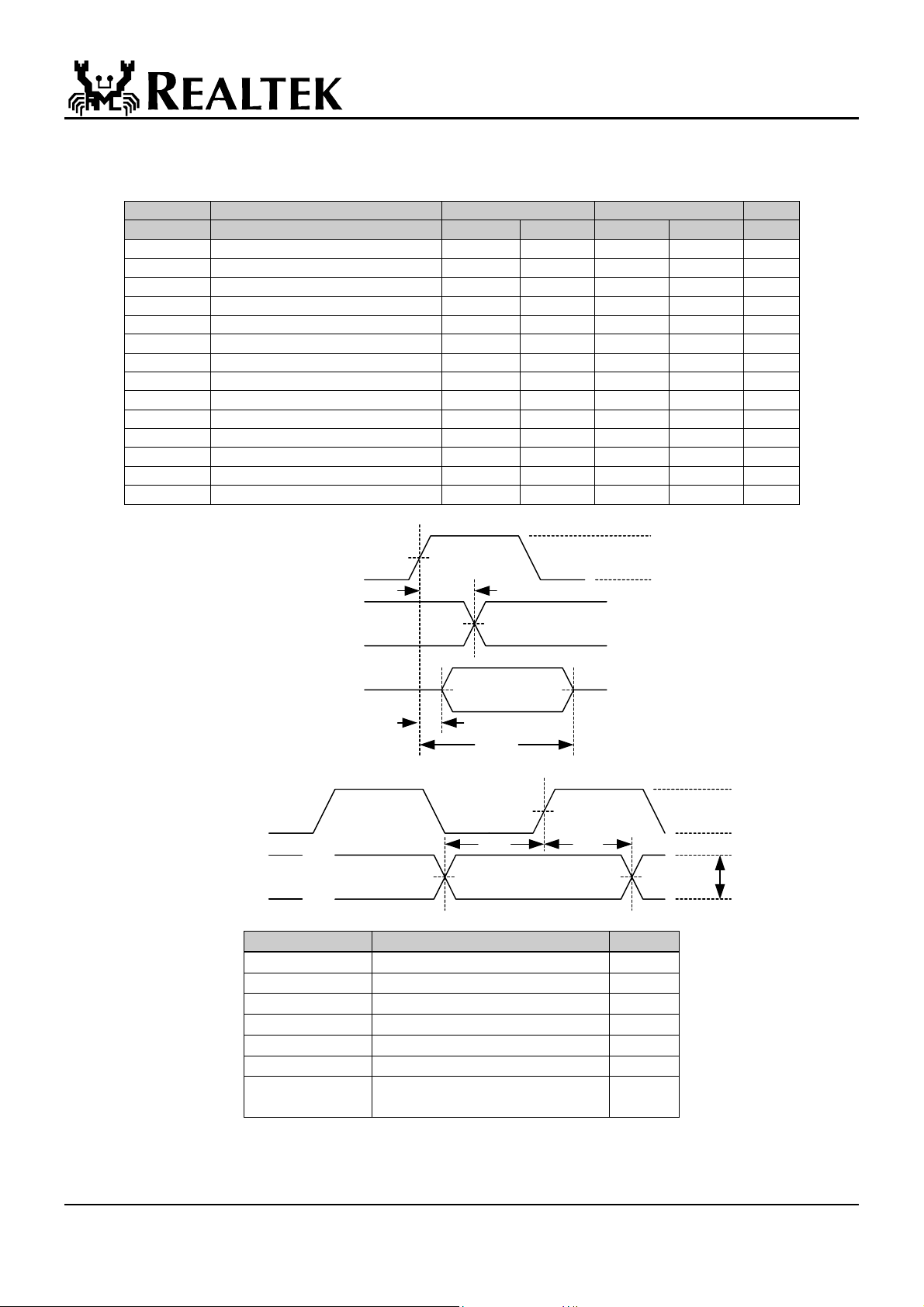

11.3.3 PCI Bus Operation Timing
PCI Bus Timing Parameters
66MHz 33MHz
Symbol Parameter Min Max Min Max Units
T val
T val(ptp)
T on
T off
T su
T su(ptp)
T h
T rst
T rst-clk
T rst-off
Trrsu
Trrh
T rhfa
T rhff
CLK to Signal Valid Delay-bused signals
CLK to Signal Valid Delay-point to point
Float to Active Delay
Active to Float Delay
Input Setup Time to CLK-bused signals
Input Setup Time to CLK-point to point
Input Hold Time from CLK
Reset active time after power stable
Reset active time after CLK STABLE
Reset Active to Output Float delay
REQB to REQ64B Setup Time
RSTB to REQ64B Hold Time
RSTB High to First configuration Access
RSTB High to First FRAMEB assertion
PCI Interface Timing Parameters
CLK
OUTPUT
DELAY
RTL8169
2 6 2 11 ns
2 6 2 12 ns
2 2 ns
14 28 ns
3 7 ns
5 10 ns
0 0 ns
1 1 ms
100 100 us
40 40 ns
10*Tcyc 10*Tcyc ns
0 50 0 50 ns
2^25 2^25 clocks
5 5 clocks
V_th
V_test
T_val
V_trise, V_tfall
V_tl
Tri-State
OUTPUT
T_on
T_off
V_testV_test
Output Timing Measurement Condition
V_th
CLK
INPUT
V_th
V_tl
T_su
V_test inputs valid V_max
V_test
T_h
V_tl
V_test
Input Timing Measurement Conditions
Symbol Level Units
Vth
Vtf
Vtest
Vtrise
Vtfall
Vmax
Input Signal
0.6Vcc V
0.2Vcc V
0.4Vcc V
0.285Vcc V
0.615Vcc V
0.4Vcc V
1 V/ns
Edge Rate
Measurement Condition Parameters
2002/03/27 Rev.1.21
70
Page 71

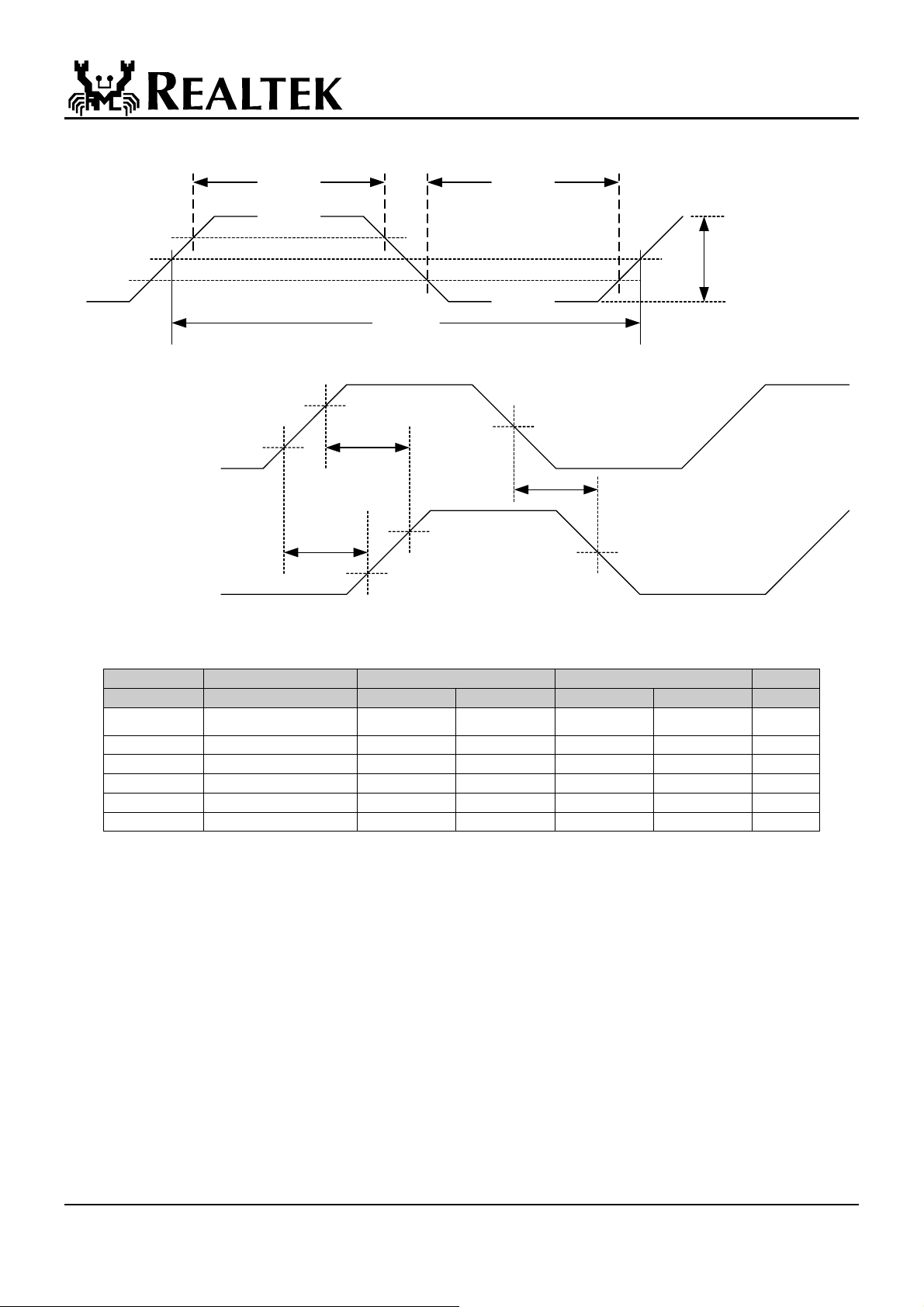

PCI Clock Specification
0.5Vcc
0.4Vcc
0.3Vcc
CLK (@ Device #1)
V_il
T_high T_low
0.6Vcc
0.2Vcc
T_cyc
3.3V Clock Waveform
V_ih
T_skew
T_skew
RTL8169
0.4Vcc, peak-to-peak
(minimum)
V_test
CLK (@ Device #2)
66MHz 33MHz
Symbol Parameter Min Max Min Max Units
Tcyc
Thigh
Tlow
--
--
Tskew
T_skew
CLK Cycle Time
CLK High Time
CLK Low Time
CLK Slew Rate
RST# Slew Rate
CLK Skew
V_ih
V_test
V_il
Clock Skew Diagram
15 30 30
∞
ns
6 11 ns
6 11 ns
1.5 4 1 4 V/ns
50 - 50 - mV/ns
1 2 ns
Clock and Reset Specifications
2002/03/27 Rev.1.21
71
Page 72

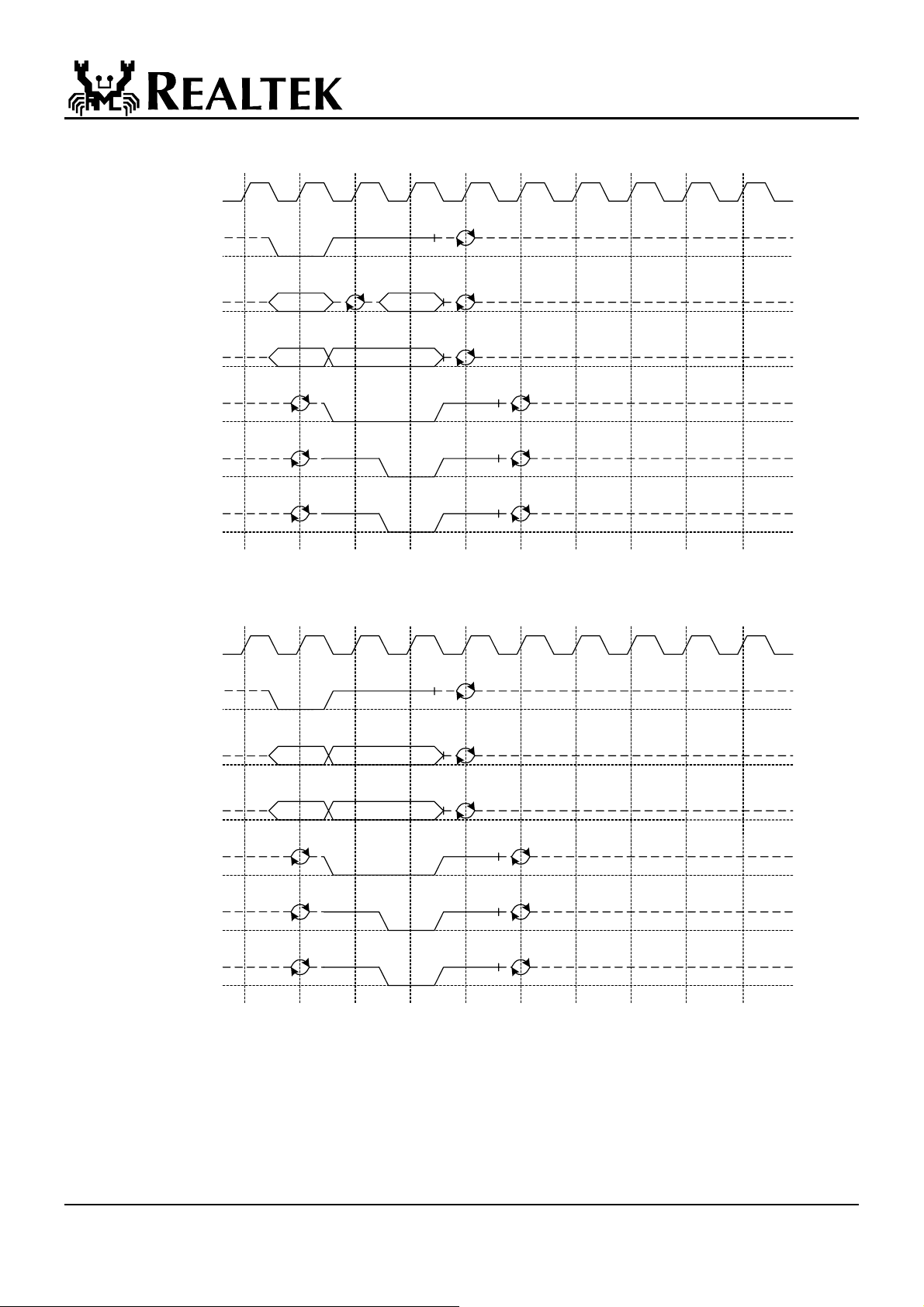

PCI Transactions
CLK
FRAMEB
RTL8169
1
23456789
10
AD31-0
C/BE3-0B
IRDYB
TRDYB
DEVSELB
ADDRESS
BUS CMD BE3-0B
DATA
I/O Read
CLK
FRAMEB
1
23456789
10
AD31-0
C/BE3-0B
IRDYB
TRDYB
DEVSELB
ADDRESS
BUS CMD BE3-0B
DATA
Fig. 11.3.3.3.2 I/O Write
2002/03/27 Rev.1.21
72
Page 73

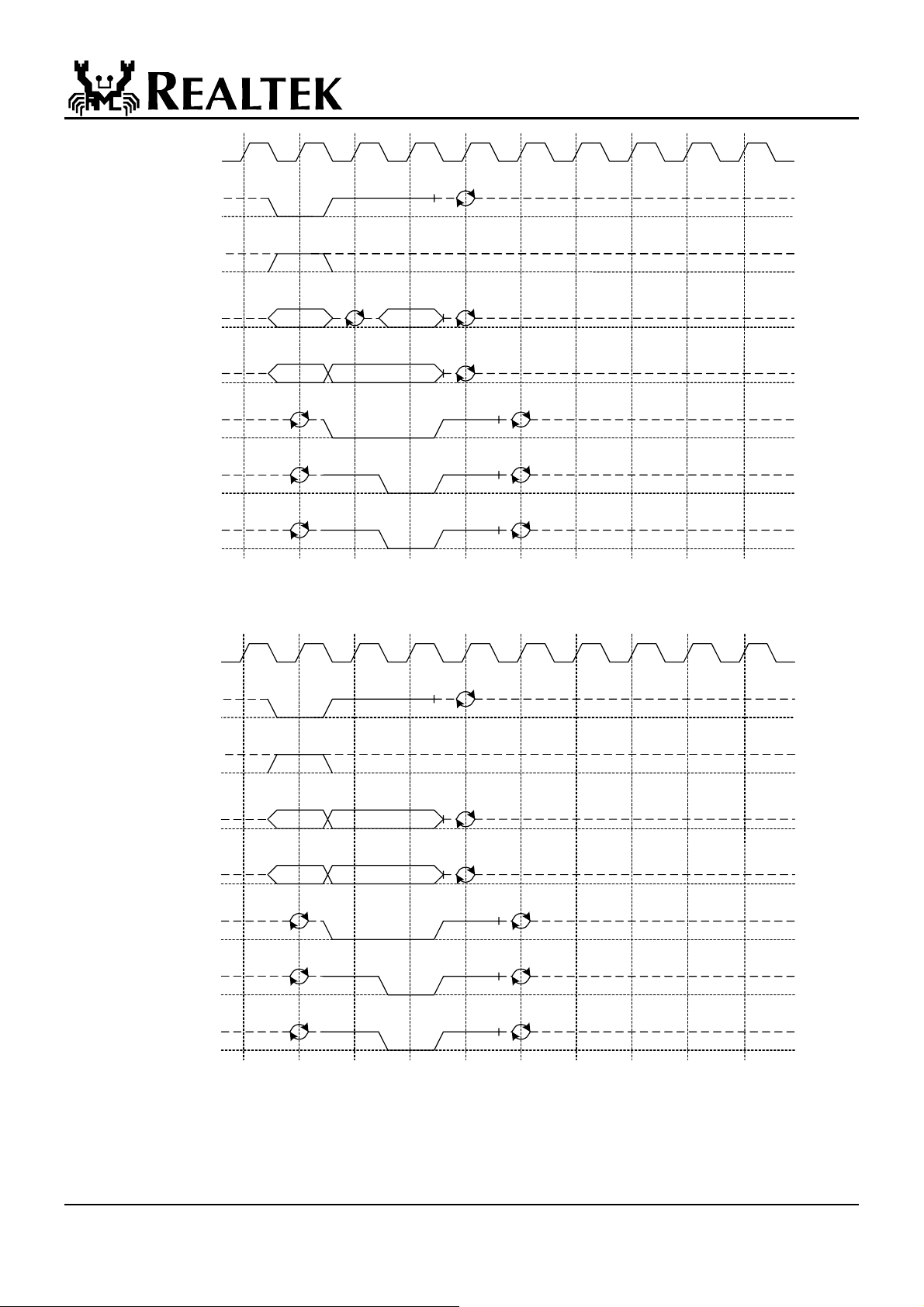

RTL8169
CLK
FRAMEB
IDSEL
1
23456789
10
AD31-0
C/BE3-0B
IRDYB
TRDYB
DEVSELB
ADDRESS
BUS CMD BE3-0B
DATA
Configuration Read
CLK
10
FRAMEB
IDSEL
1
23456789
AD31-0
C/BE3-0B
IRDYB
TRDYB
DEVSELB
ADDRESS
BUS CMD BE3-0B
DATA
Configuration Write
2002/03/27 Rev.1.21
73
Page 74

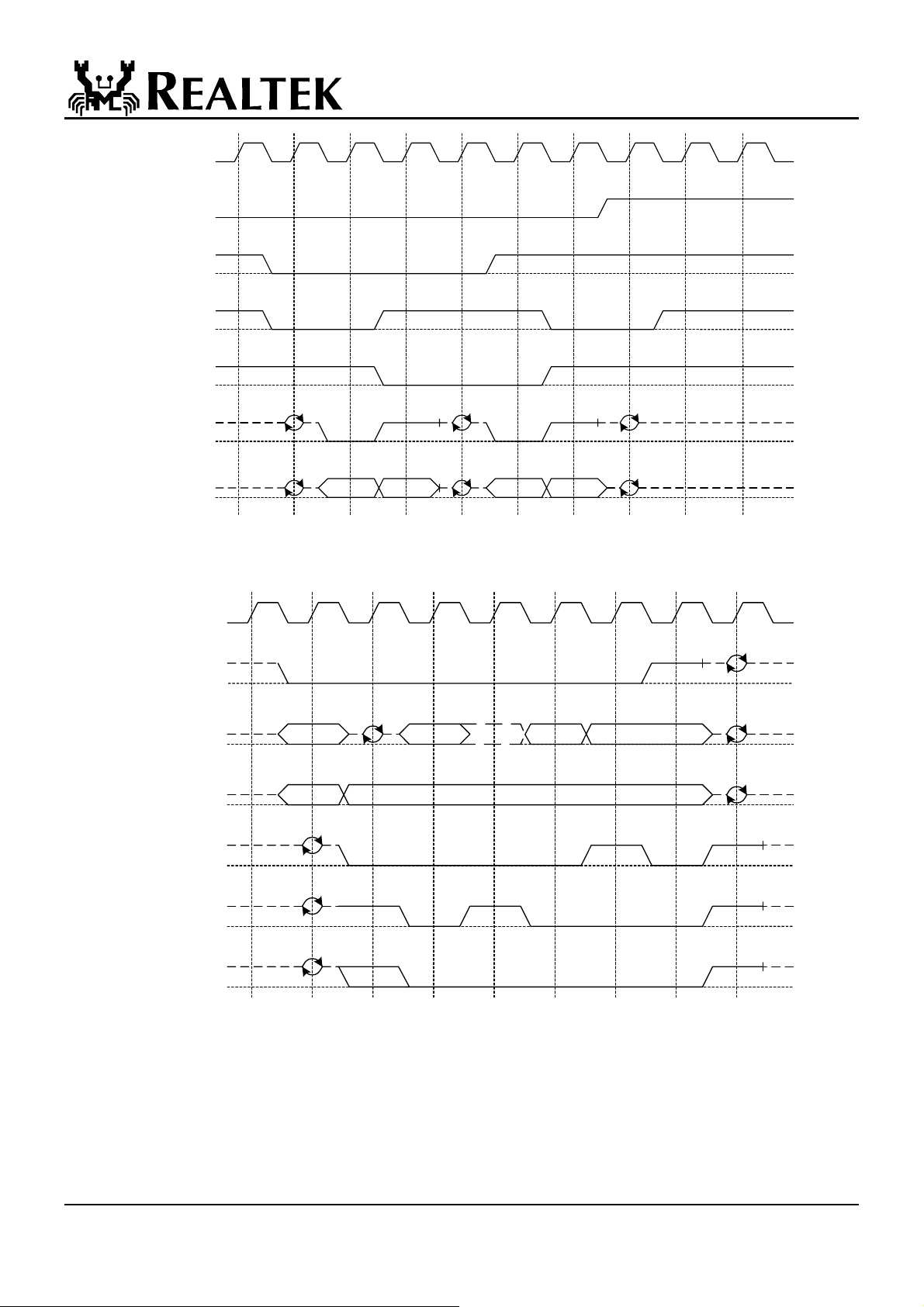

RTL8169
CLK
10
REQB-A
REQB-B
GNTB-A
GNTB-B
FRAMEB
1
23456789
AD
ADDRESS DATA ADDRESS DATA
BUS Arbitration
CLK
1
FRAMEB
AD31-0
C/BE3-0B
IRDYB
TRDYB
23456789
ADDRESS
BUS CMD
DATA-1 DATA-2 DATA-3
BE3-0B
WAIT
DATA TRANSFER
WAIT
DATA TRANSFER
WAIT
DATA TRANSFER
DEVSELB
Memory Read below 4GB (32-bit address, 32-bit data; 32-bit slot)
2002/03/27 Rev.1.21
74
Page 75

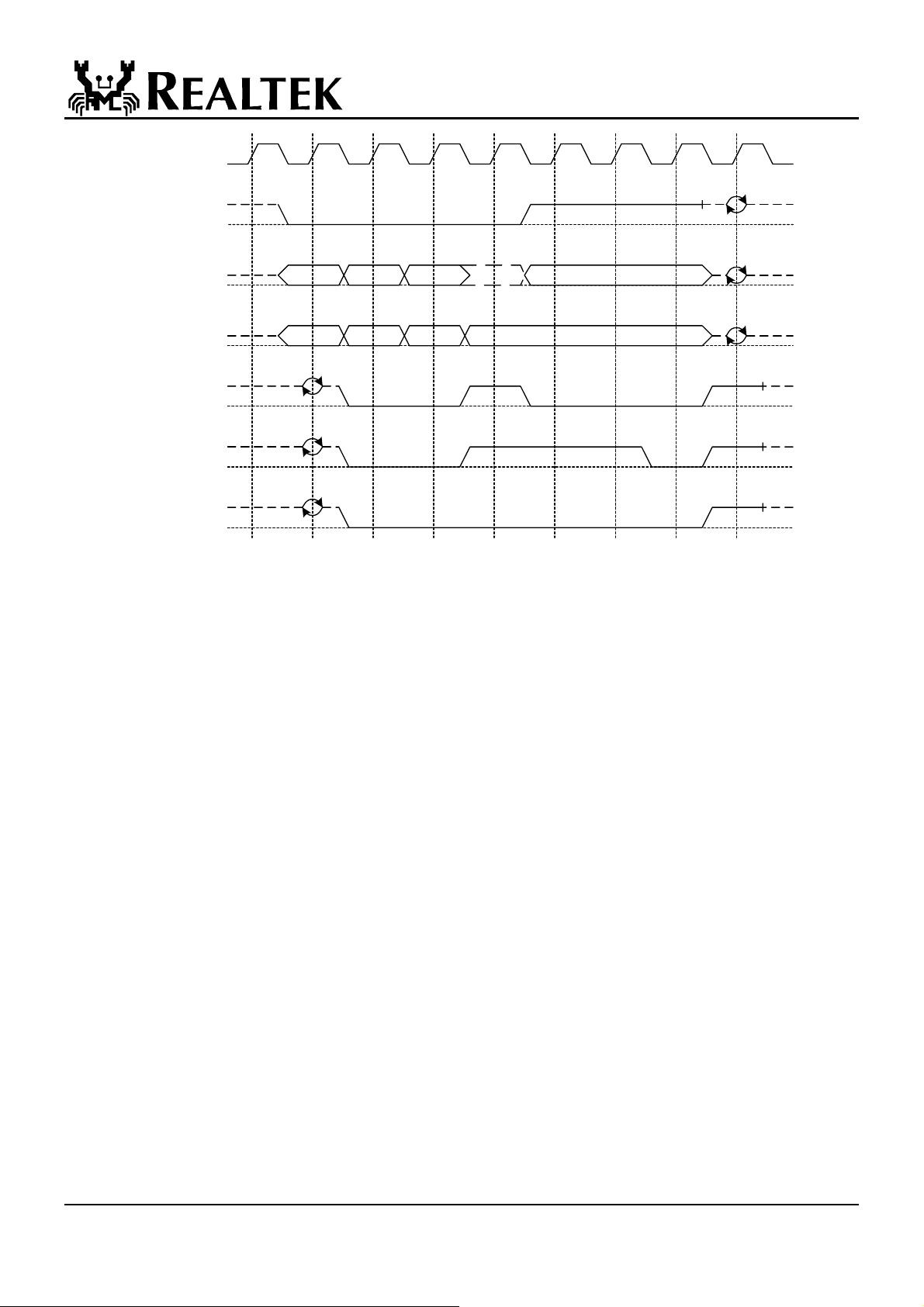

RTL8169
CLK
1
FRAMEB
23456789
AD31-0
C/BE3-0B
ADDRESS
BUS CMD BE3-0B-1 BE3-0B-2
DATA-1 DATA-2 DATA-3
BE3-0B-3
IRDYB
TRDYB
DATA TRANSFER
DATA TRANSFER
WAIT
WAIT
WAIT
DATA TRANSFER
DEVSELB
Memory Write below 4GB (32-bit address, 32-bit data; 32-bit slot)
2002/03/27 Rev.1.21
75
Page 76

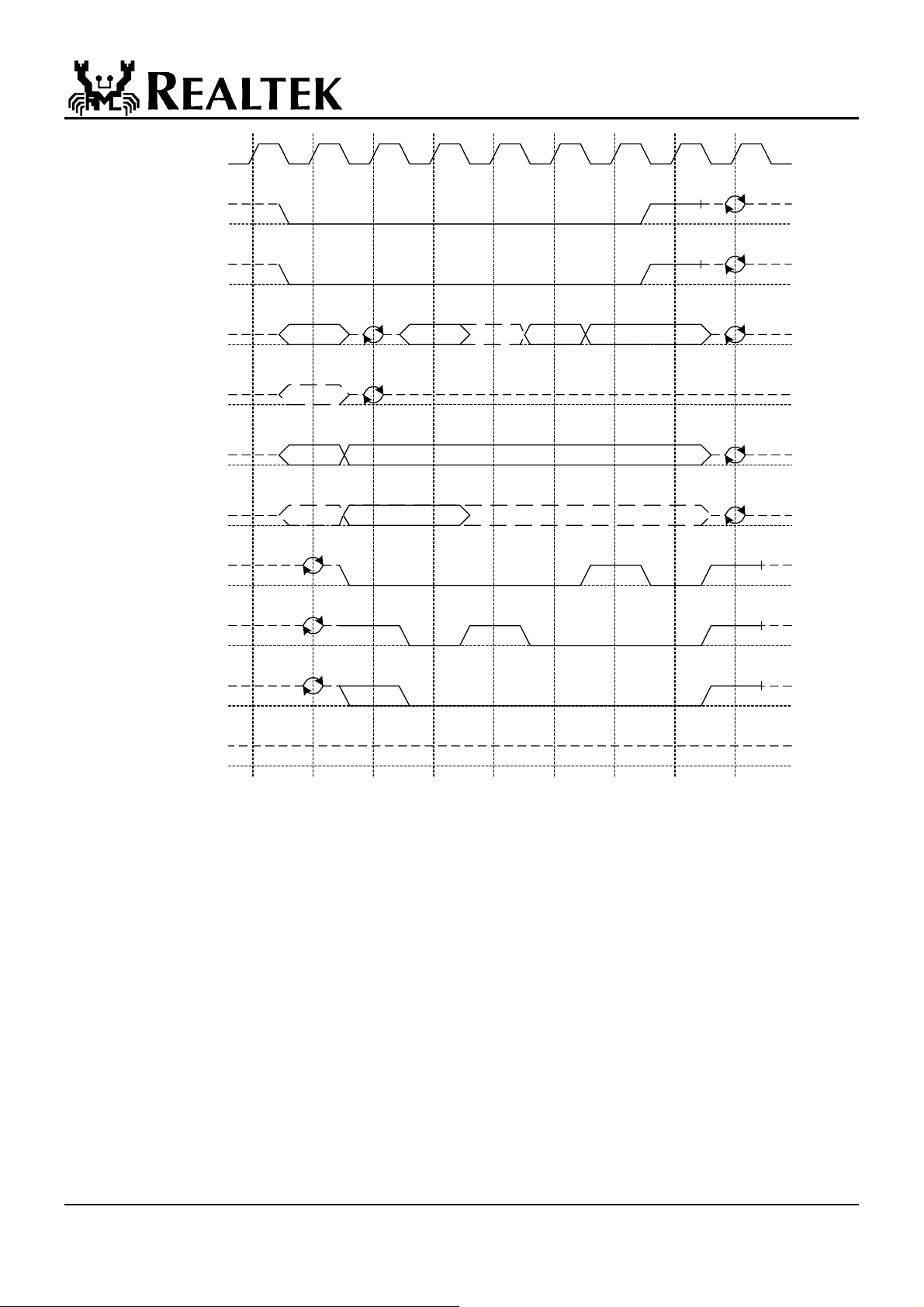

RTL8169
CLK
1
FRAMEB
REQ64B
23456789
AD31-0
AD63-32
C/BE3-0B
C/BE7-4B
IRDYB
TRDYB
DEVSELB
ACK64B
ADDRESS
BUS CMD
DATA-1 DATA-2 DATA-3
BE3-0B
BE7-4B
WAIT
DATA TRANSFER
WAIT
DATA TRANSFER
WAIT
DATA TRANSFER
Memory Read below 4GB (32-bit address, 32-bit data transfer granted; 64-bit slot)
2002/03/27 Rev.1.21
76
Page 77

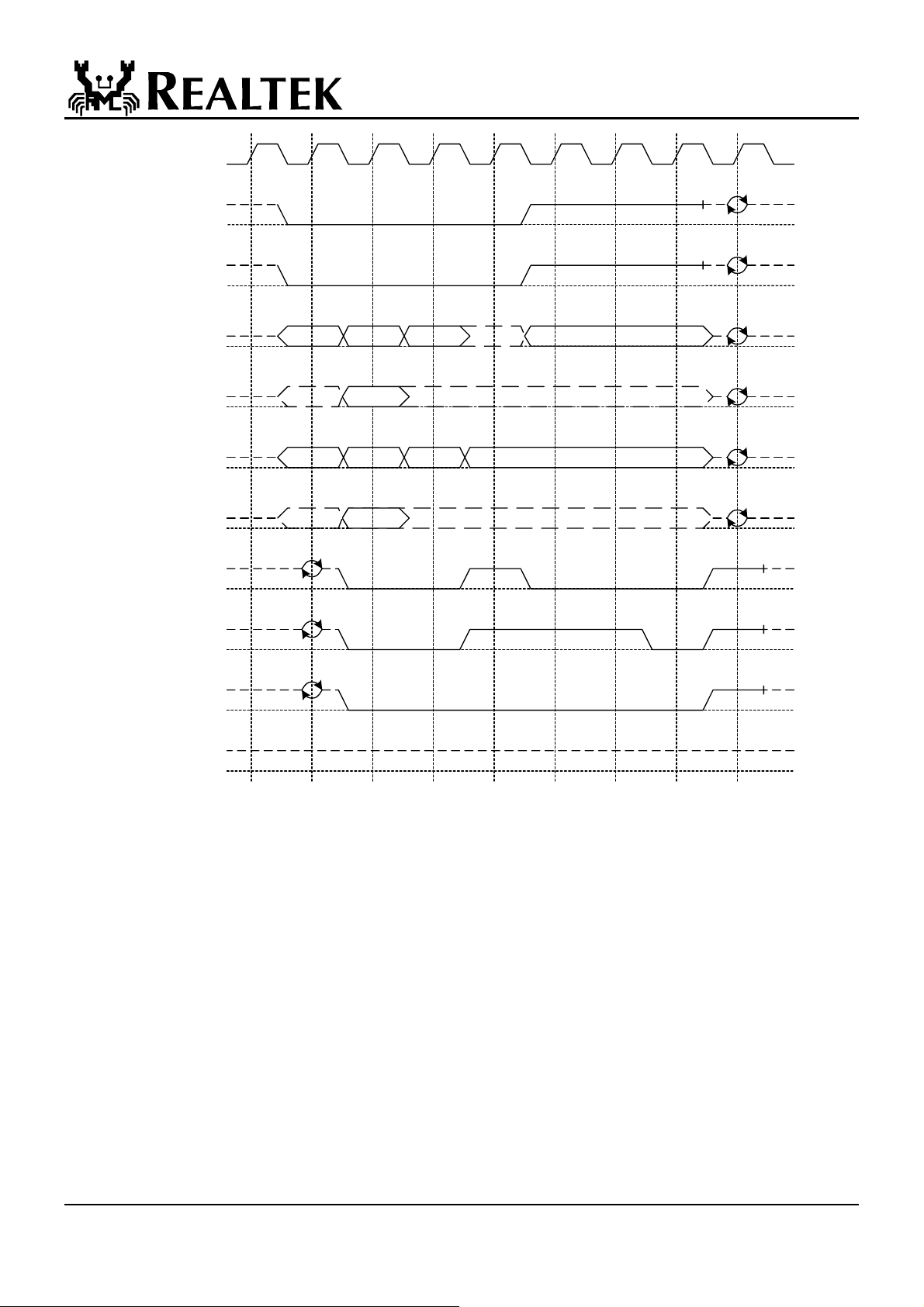

RTL8169
CLK
1
FRAMEB
REQ64B
23456789
AD31-0
AD63-32
C/BE3-0B
C/BE7-4B
IRDYB
TRDYB
DEVSELB
ACK64B
ADDRESS
BUS CMD BE3-0B-1 BE3-0B-2
DATA-1 DATA-2 DATA-3
DATA-2
BE3-0B-3
BE7-4B-1
DATA TRANSFER
DATA TRANSFER
WAIT
WAIT
WAIT
DATA TRANSFER
Memory Write below 4GB (32-bit address, 32-bit data transfer granted; 64-bit slot)
2002/03/27 Rev.1.21
77
Page 78

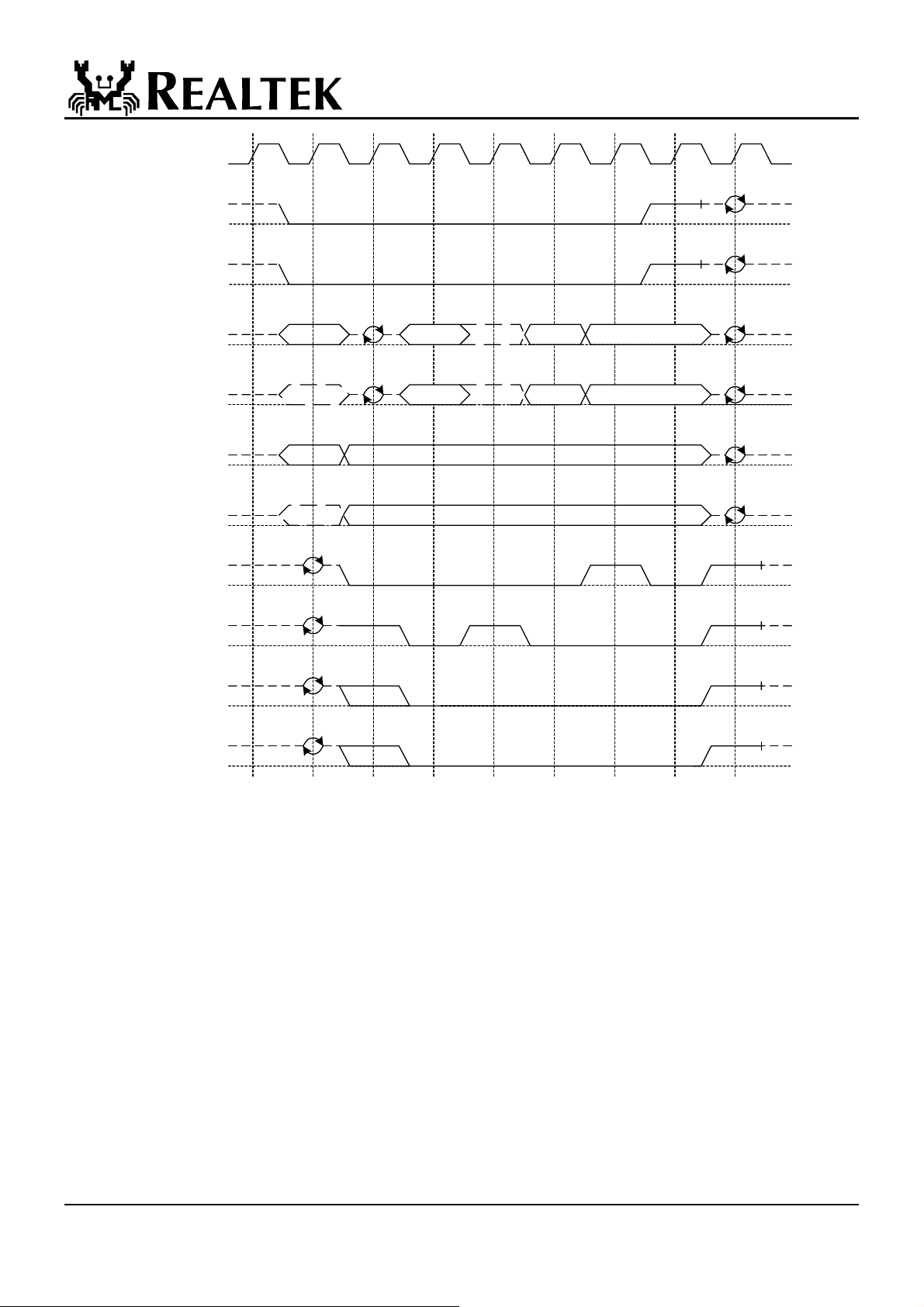

RTL8169
CLK
1
FRAMEB
REQ64B
23456789
AD31-0
AD63-32
C/BE3-0B
C/BE7-4B
IRDYB
TRDYB
DEVSELB
ACK64B
ADDRESS
BUS CMD
DATA-1 DATA-3 DATA-5
DATA-2 DATA-4 DATA-6
BE3-0B
BE7-4B
WAIT
DATA TRANSFER
WAIT
DATA TRANSFER
WAIT
DATA TRANSFER
Memory Read below 4GB (32-bit address, 64-bit data transfer granted; 64-bit slot)
2002/03/27 Rev.1.21
78
Page 79

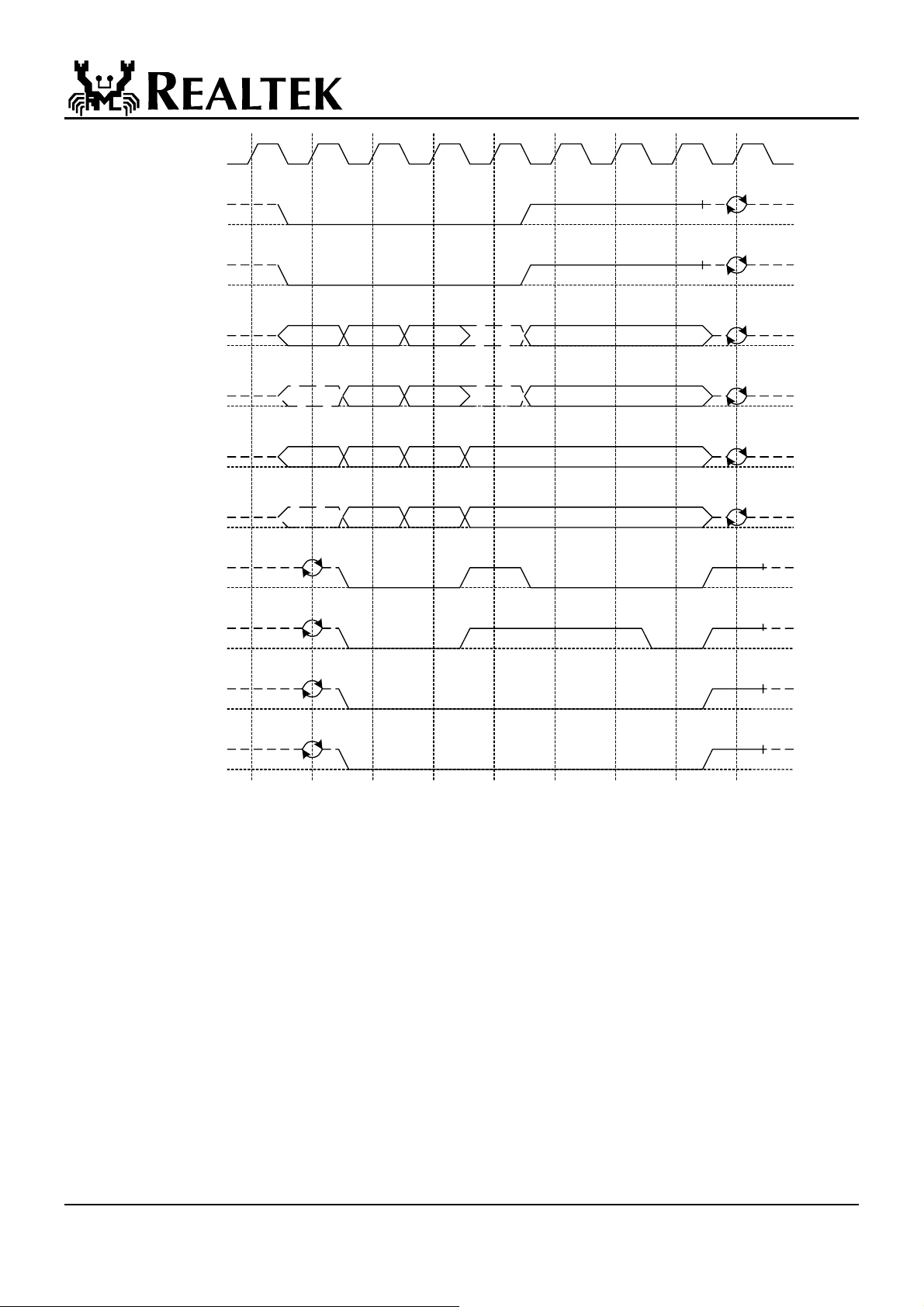

RTL8169
CLK
1
FRAMEB
REQ64B
23456789
AD31-0
AD63-32
C/BE3-0B
C/BE7-4B
IRDYB
TRDYB
DEVSELB
ACK64B
ADDRESS
BUS CMD BE3-0B-1 BE3-0B-2
DATA-1 DATA-3 DATA-5
DATA-2
BE7-4B-1
DATA TRANSFER
WAIT
DATA TRANSFER
DATA-6DATA-4
BE3-0B-3
BE7-4B-3BE7-4B-2
WAIT
WAIT
DATA TRANSFER
Memory Write below 4GB (32-bit address, 64-bit data transfer granted; 64-bit slot)
2002/03/27 Rev.1.21
79
Page 80

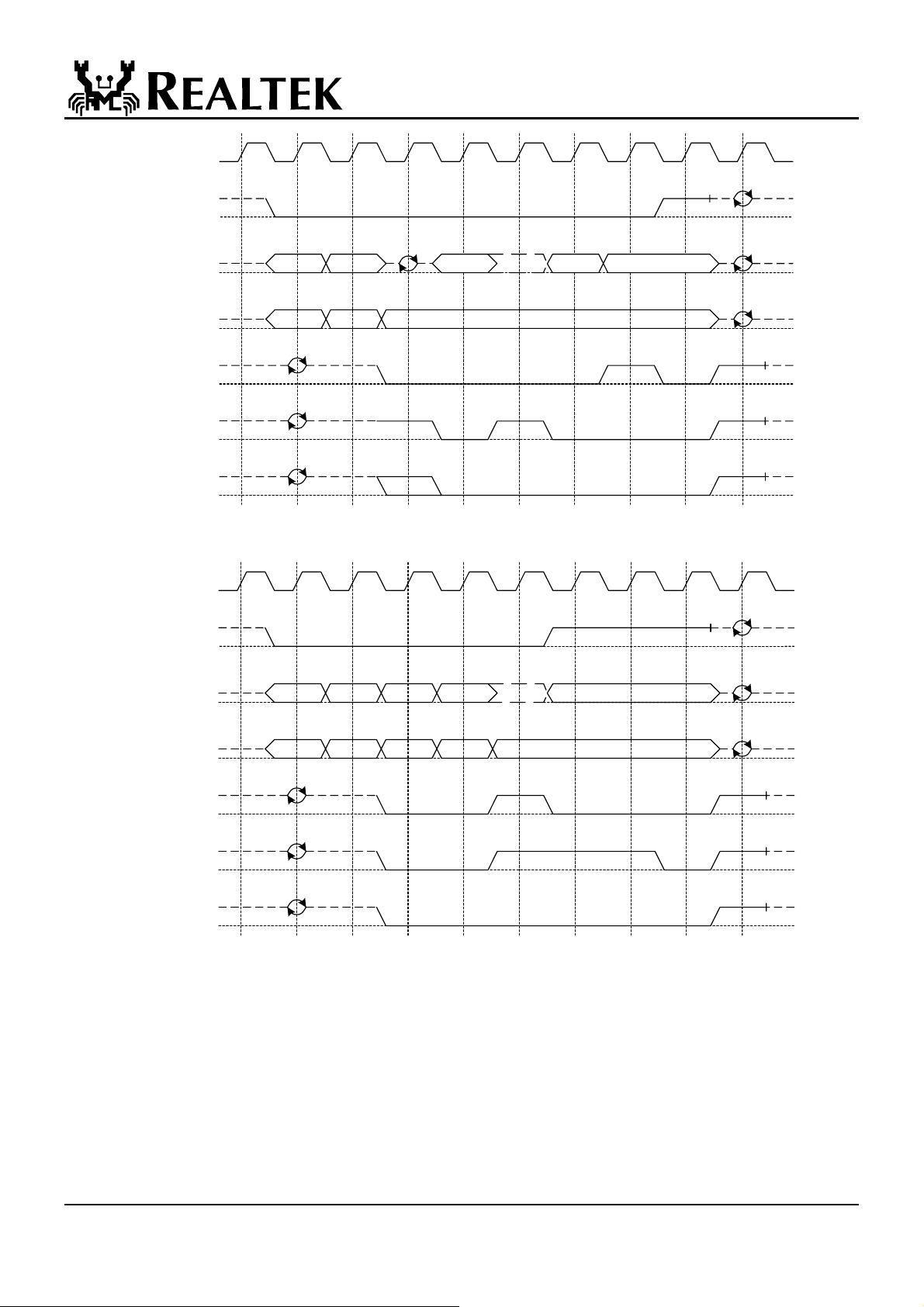

RTL8169
CLK
10
FRAMEB
1
23456789
AD31-0
C/BE3-0B
IRDYB
TRDYB
DEVSELB
CLK
FRAMEB
AD31-0
LO-ADDR
DAC CMD
HI-ADDR
BUS CMD BE3-0B
DATA-1 DATA-2 DATA-3
WAIT
DATA TRANSFER
WAIT
WAIT
DATA TRANSFER
Memory Read above 4GB (DAC, 64-bit address, 32-bit data; 32-bit slot)
1
23456789
LO-ADDR
HI-ADDR
DATA-1 DATA-2 DATA-3
DATA TRANSFER
10
C/BE3-0B
IRDYB
TRDYB
DEVSELB
DAC CMD
BUS CMD
BE3-0B-1 BE3-0B-2
DATA TRANSFER
DATA TRANSFER
WAIT
BE3-0B-3
WAIT
WAIT
Memory Write above 4GB (DAC, 64-bit address, 32-bit data; 32-bit slot)
DATA TRANSFER
2002/03/27 Rev.1.21
80
Page 81
RTL8169
CLK
FRAMEB
REQ64B
1
23456789
10
AD31-0
AD63-32
C/BE3-0B
C/BE7-4B
LO-ADDR
DAC CMD
HI-ADDR
HI-ADDR
BUS CMD BE3-0B
BUS CMD
BE7-4B
DATA-1 DATA-2 DATA-3
WAIT
IRDYB
TRDYB
WAIT
DATA TRANSFER
WAIT
DATA TRANSFER
DEVSELB
ACK64B
Memory Read above 4GB (DAC, 64-bit address, 32-bit data transfer granted; 64-bit slot)
DATA TRANSFER
2002/03/27 Rev.1.21
81
Page 82

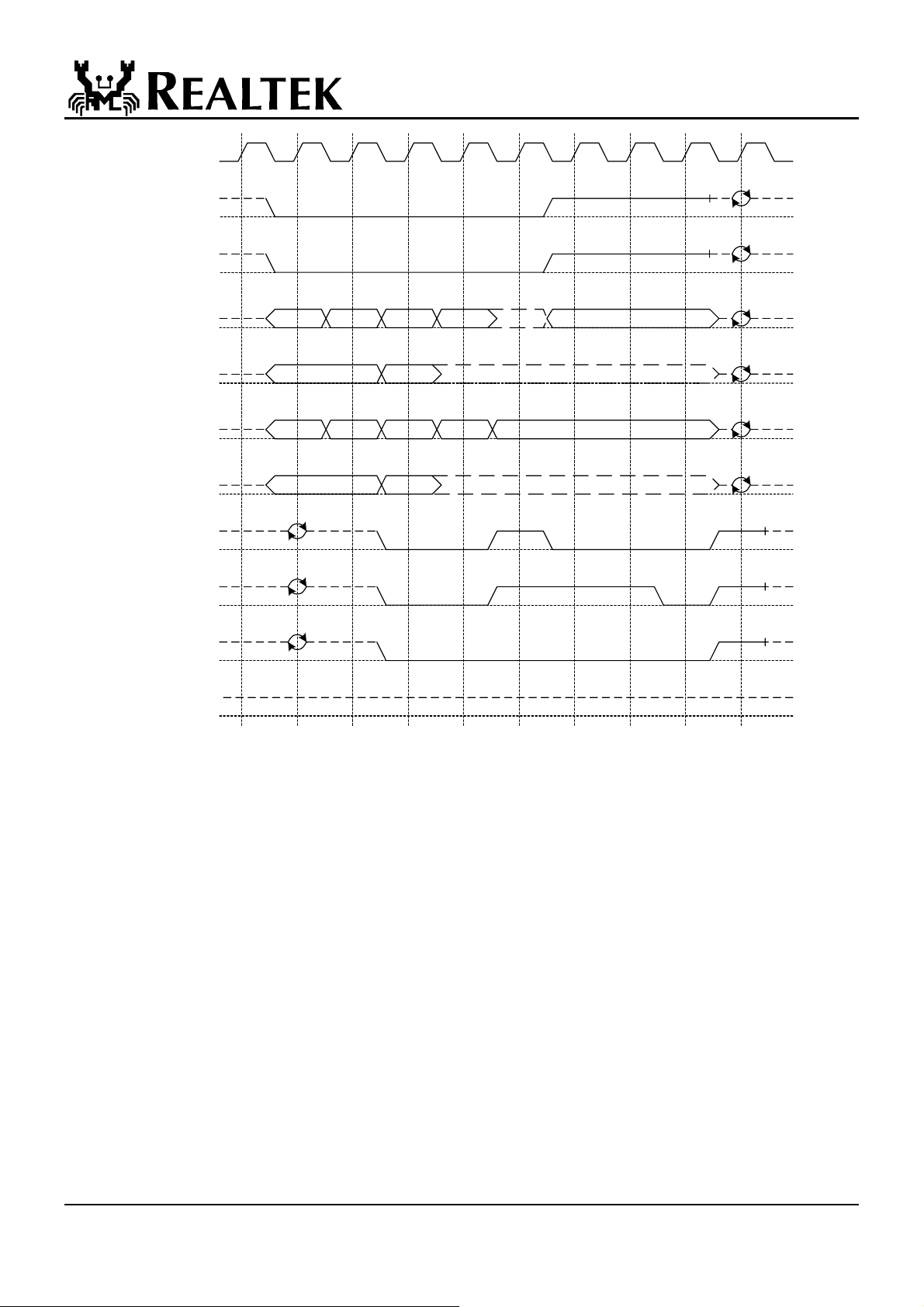

RTL8169
CLK
FRAMEB
REQ64B
1
23456789
10
AD31-0
AD63-32
C/BE3-0B
C/BE7-4B
LO-ADDR
DAC CMD
HI-ADDR
HI-ADDR
BUS CMD
BUS CMD
DATA-1 DATA-2 DATA-3
DATA-2
BE3-0B-1
BE7-4B-1
BE3-0B-2
BE3-0B-3
IRDYB
TRDYB
DATA TRANSFER
DATA TRANSFER
WAIT
WAIT
WAIT
DEVSELB
ACK64B
Memory Write above 4GB (DAC, 64-bit address, 32-bit data transfer granted; 64-bit slot)
DATA TRANSFER
2002/03/27 Rev.1.21
82
Page 83

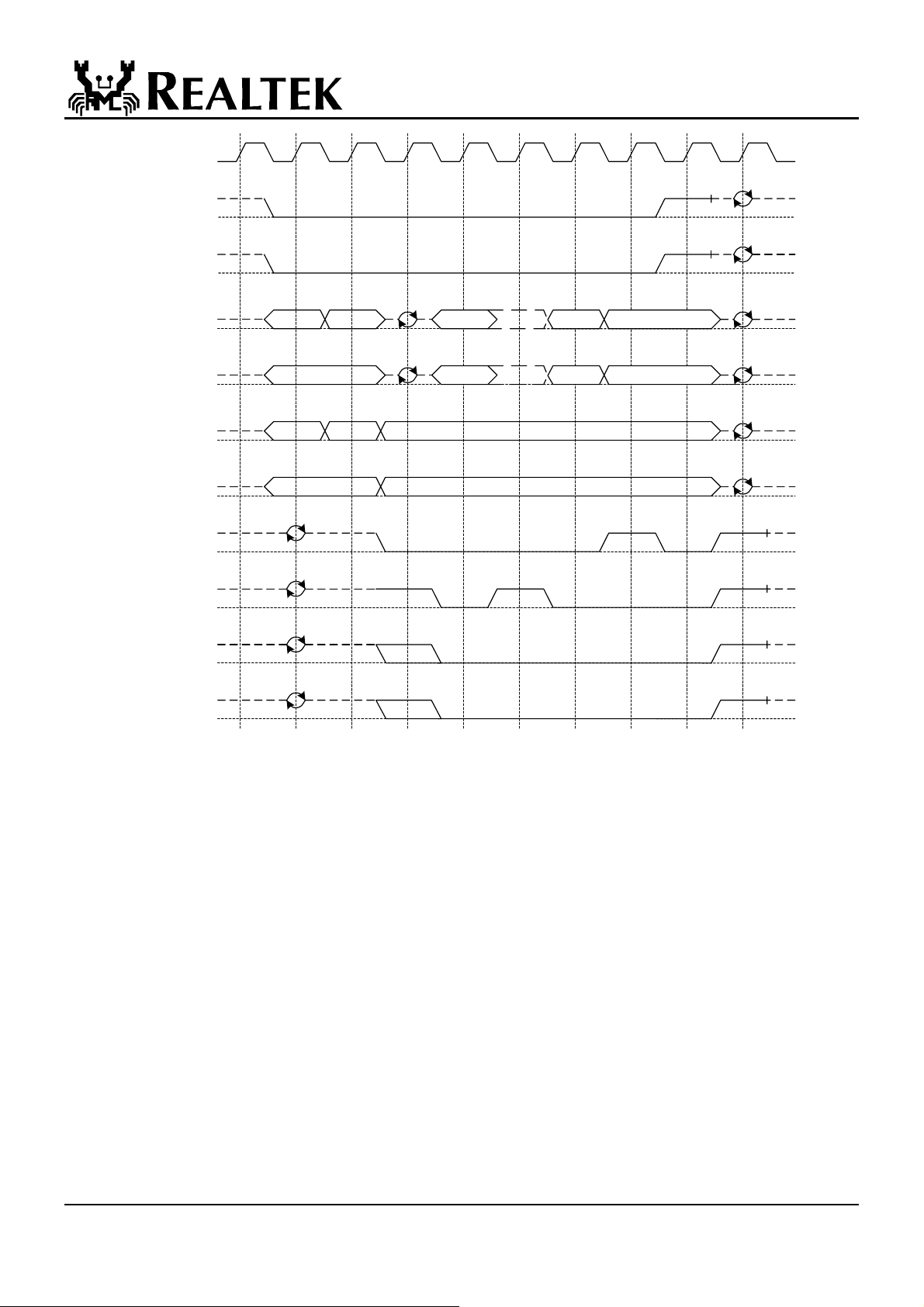

RTL8169
CLK
1
FRAMEB
REQ64B
2345678910
AD31-0
AD63-32
C/BE3-0B
C/BE7-4B
LO-ADDR
HI-ADDR
DAC CMD
BUS CMD
HI-ADDR
BUS CMD
DATA-1 DATA-3 DATA-5
DATA-2 DATA-4 DATA-6
BE3-0B
BE7-4B
WAIT
IRDYB
WAIT
DATA TRANSFER
TRDYB
WAIT
DATA TRANSFER
DEVSELB
ACK64B
Memory Read above 4GB (DAC, 64-bit address, 64-bit data transfer granted; 64-bit slot)
DATA TRANSFER
2002/03/27 Rev.1.21
83
Page 84

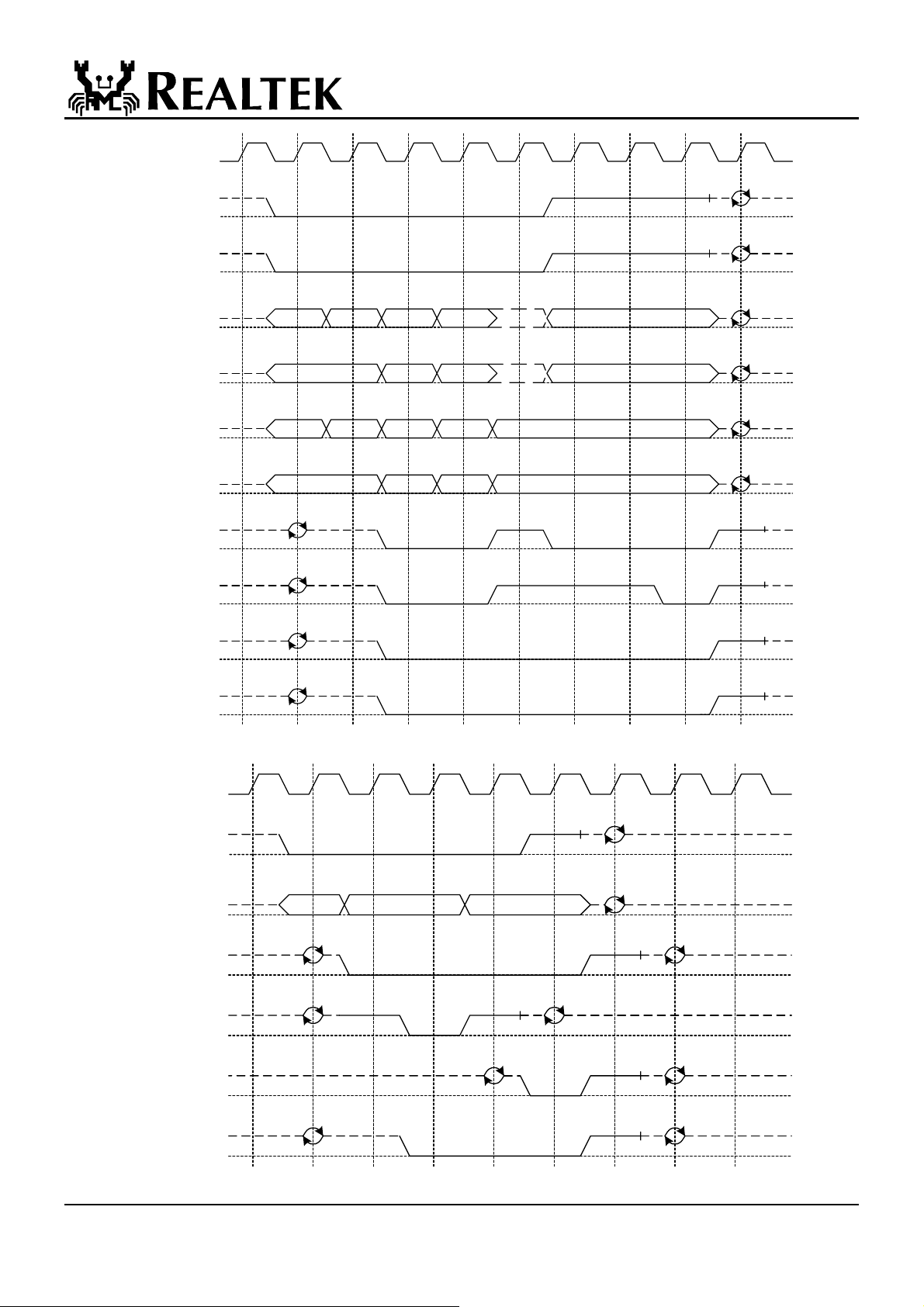

RTL8169
CLK
FRAMEB
REQ64B
1
23456789
10
AD31-0
AD63-32
C/BE3-0B
C/BE7-4B
LO-ADDR DATA-1 DATA-3 DATA-5
DAC CMD
HI-ADDR
HI-ADDR
BUS CMD BE3-0B-1 BE3-0B-2
BUS CMD
DATA-2
BE7-4B-1
DATA-6DATA-4
BE3-0B-3
BE7-4B-3BE7-4B-2
IRDYB
TRDYB
DATA TRANSFER
DATA TRANSFER
WAIT
WAIT
WAIT
DEVSELB
ACK64B
Memory Write above 4GB (DAC, 64-bit address, 64-bit data transfer granted; 64-bit slot)
DATA TRANSFER
CLK
1
23456789
FRAMEB
AD31-0
ADDRESS
DATA-1 DATA-2
IRDYB
TRDYB
STOPB
DEVSELB
Target Initiated Termination - Retry
2002/03/27 Rev.1.21
84
Page 85

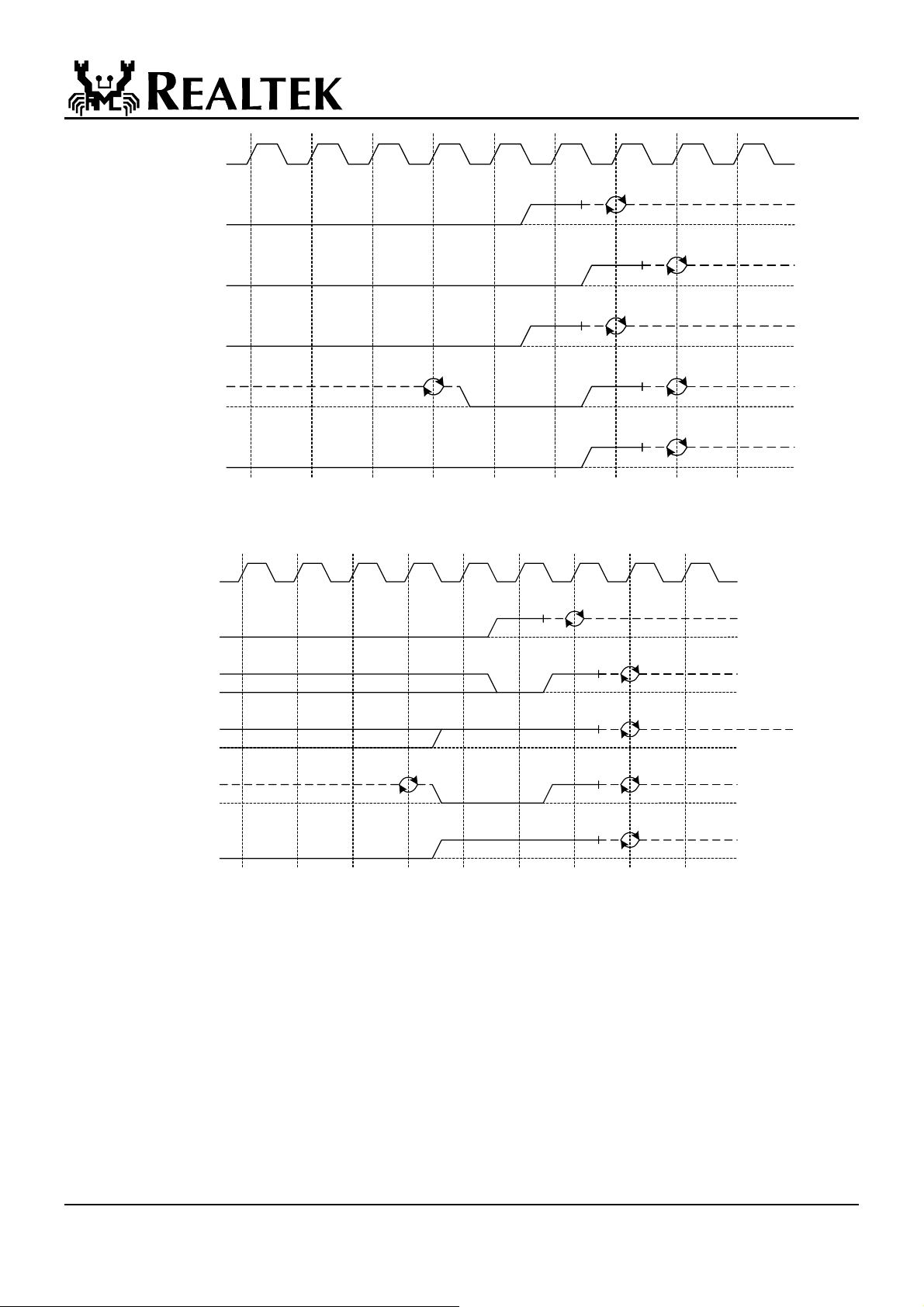

RTL8169
CLK
1
FRAMEB
IRDYB
TRDYB
STOPB
DEVSELB
23456789
Target Initiated Termination - Disconnect
CLK
1
FRAMEB
IRDYB
TRDYB
STOPB
DEVSELB
23456789
Target Initiated Termination - Abort
2002/03/27 Rev.1.21
85
Page 86

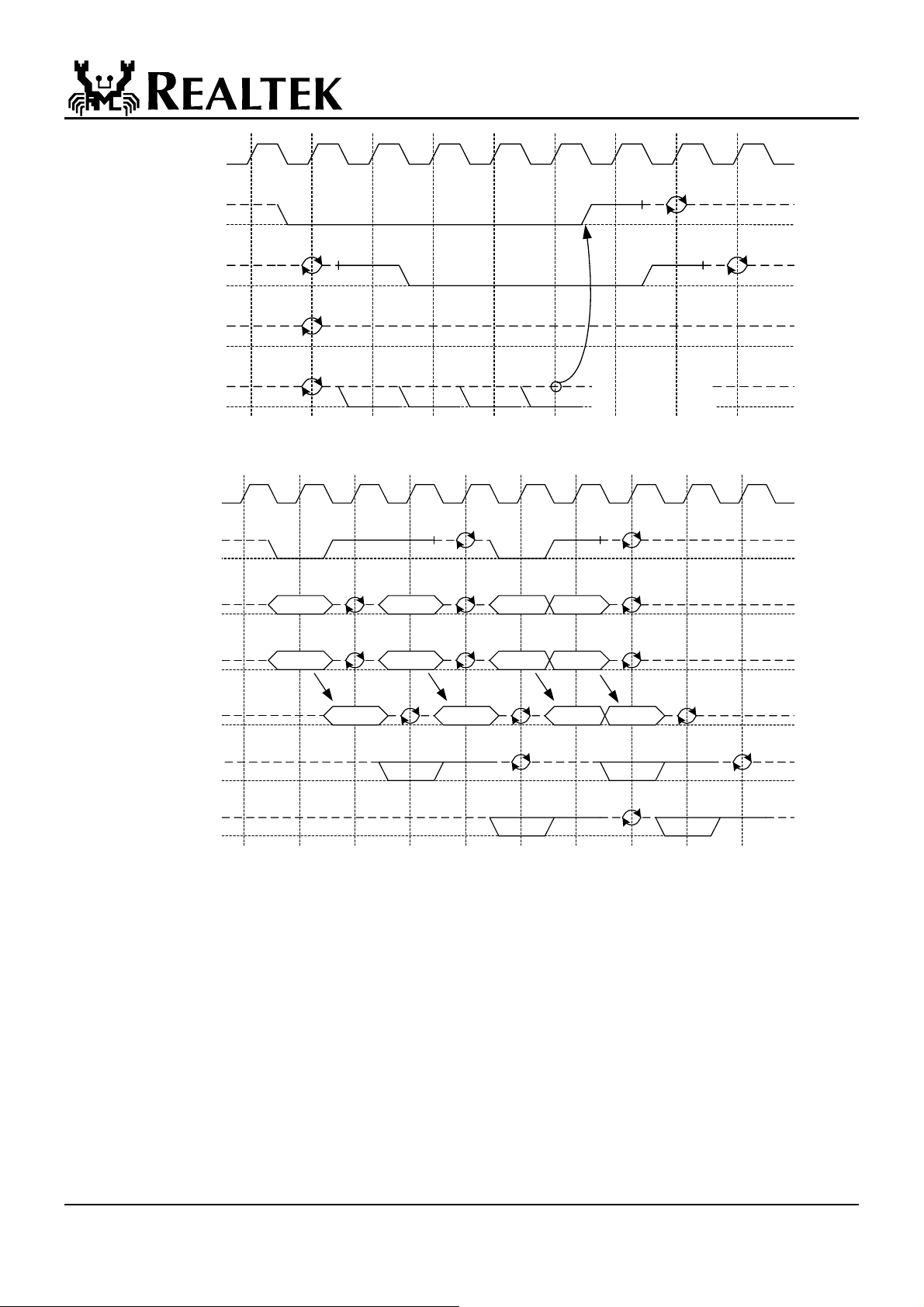

RTL8169
CLK
1
FRAMEB
IRDYB
TRDYB
23456789
DEVSELB
FAST SUBSLOWMED
NO RESPONSE
ACKNOWLEDGE
Master Initiated Termination - Abort
CLK
FRAMEB
AD
C/BE#
PAR/PAR64
SERR#
PERR#
1
23456789
ADDRESS
BUS CMD
DATA
BE# BUS CMD BE#
ADDRESS DATA
10
Parity Operation - One Example
2002/03/27 Rev.1.21
86
Page 87

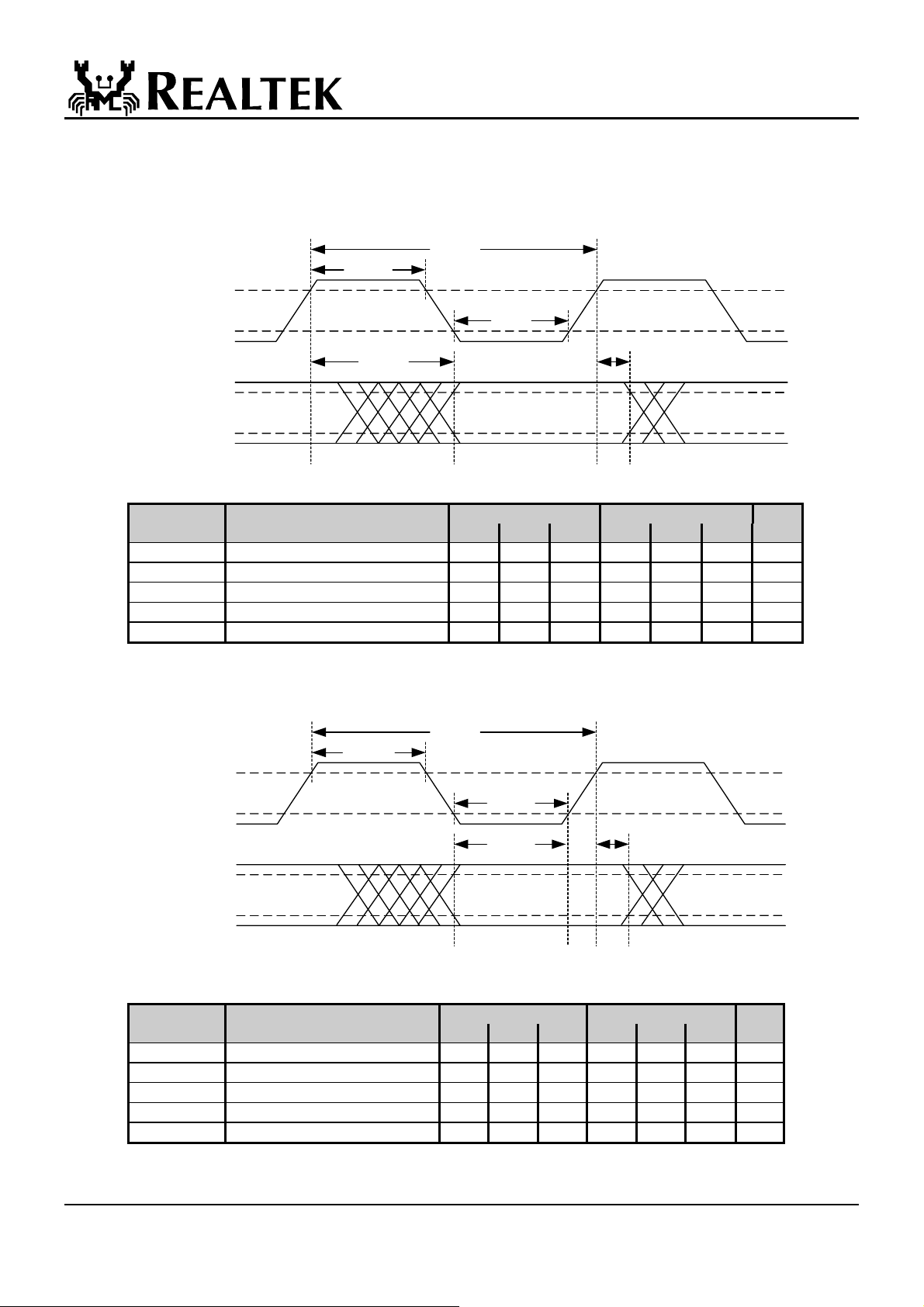

11.3.4 MII Timing
MII Timing – MII PORT - Transmit
tTxCH
TxCLK
TxD[3:0], TxEN
RTL8169
tTxCC
Vih(min)
tTxCL
Vil(max)
tTxRV tTxHT
Vih(min)
Vil(max)
10MHz 100MHz
Symbol Description Min
tTxCC Tx Clock Cycle 400 40 ns
tTxCH Tx Clock High Time 140 260 14 26 ns
tTxCL Tx Clock Low Time 140 260 14 26 ns
tTxRV Tx Clock rise to TxD, TxEN valid 20 20 ns
tTxHD TxD, TxEN Hold Time 5 5 ns
MII Timing – MII PORT - Receive
RxCLK
RxD[3:0], RxDV,
RxER
MII Transmit Timing
Typ ic al
MII Transmit Timing Parameters
tRxCC
tRxCH
tRxCL
tRxSU tRxHT
Max Min
Typ ic al
Max Units
Vih(min)
Vil(max)
Vih(min)
Vil(max)
MII Transmit Timing
10MHz 100MHz
Symbol Description Min
tRxCC Rx Clock Cycle 400 40 ns
tRxCH Rx Clock High Time 140 260 14 26 ns
tRxCL Rx Clock Low Time 140 260 14 26 ns
tRxSU RxD, RxDV, RxER Setup Time 10 20 10 20 ns
tRxHD RxD, RxDV, RxER Hold Time 5 5 ns
MII Transmit Timing Parameters
2002/03/27 Rev.1.21
Typ ic al
87
Max Min
Typ ic al
Max Units
Page 88

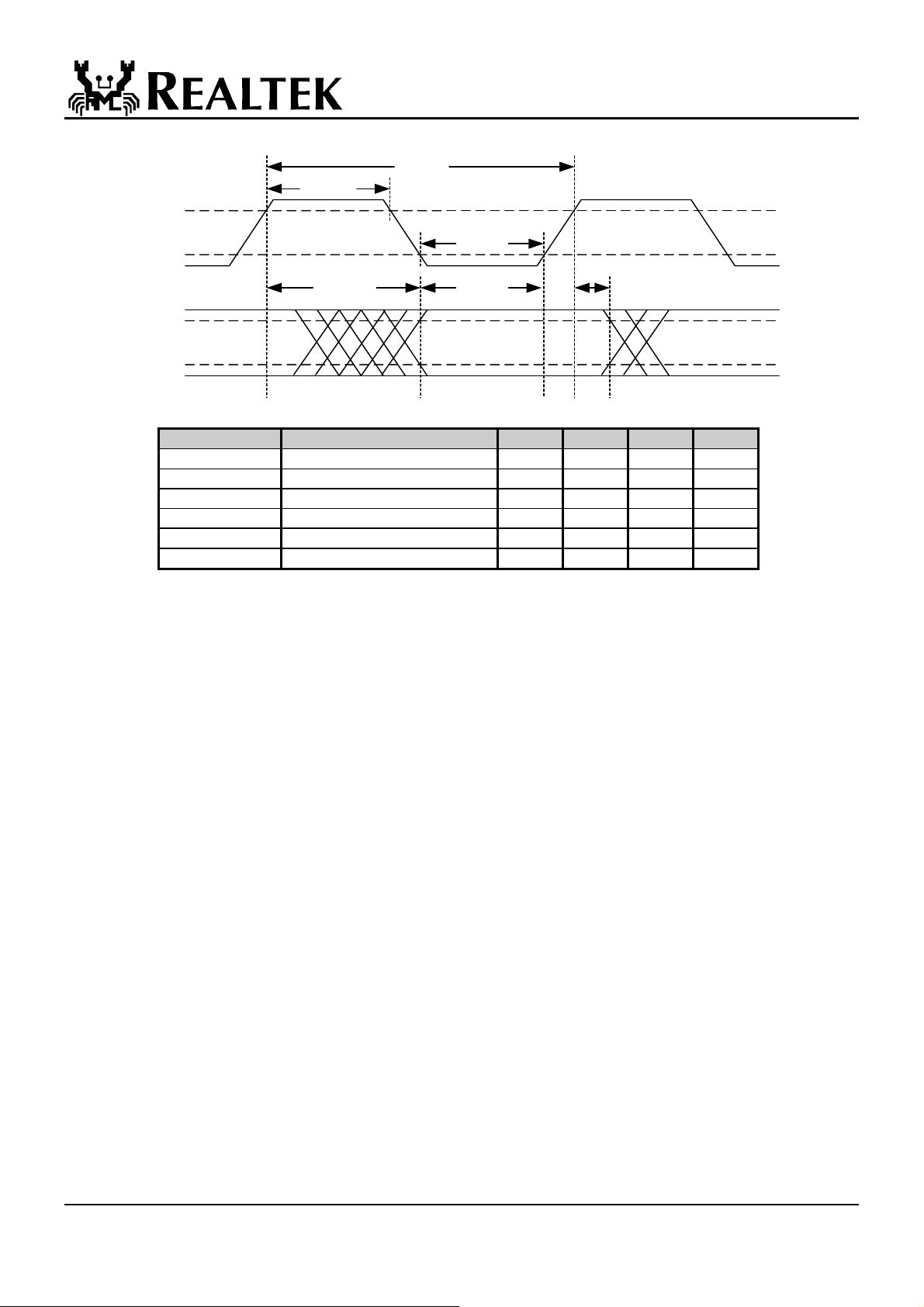

MII Timing – MII Management Port
tMCH
MDC
tMRV
MDIO
RTL8169
tMCC
Vih(min)
tMCL
Vil(max)
tMSU tMHT
Vih(min)
Vil(max)
MII Management Timing
Symbol Description Min
tMCC MDC Cycle Time 50 ns
tMCH MDC High Time 25 ns
tMCL MDC Low Time 25 ns
tMSU MDIO Setup Time 10 ns
tMHT MDIO Hold Time 5 ns
tMRV MDC Clock rise to MDIO valid 40 ns
MII Management Timing Parameters
Typ ic al
Max Units
2002/03/27 Rev.1.21
88
Page 89

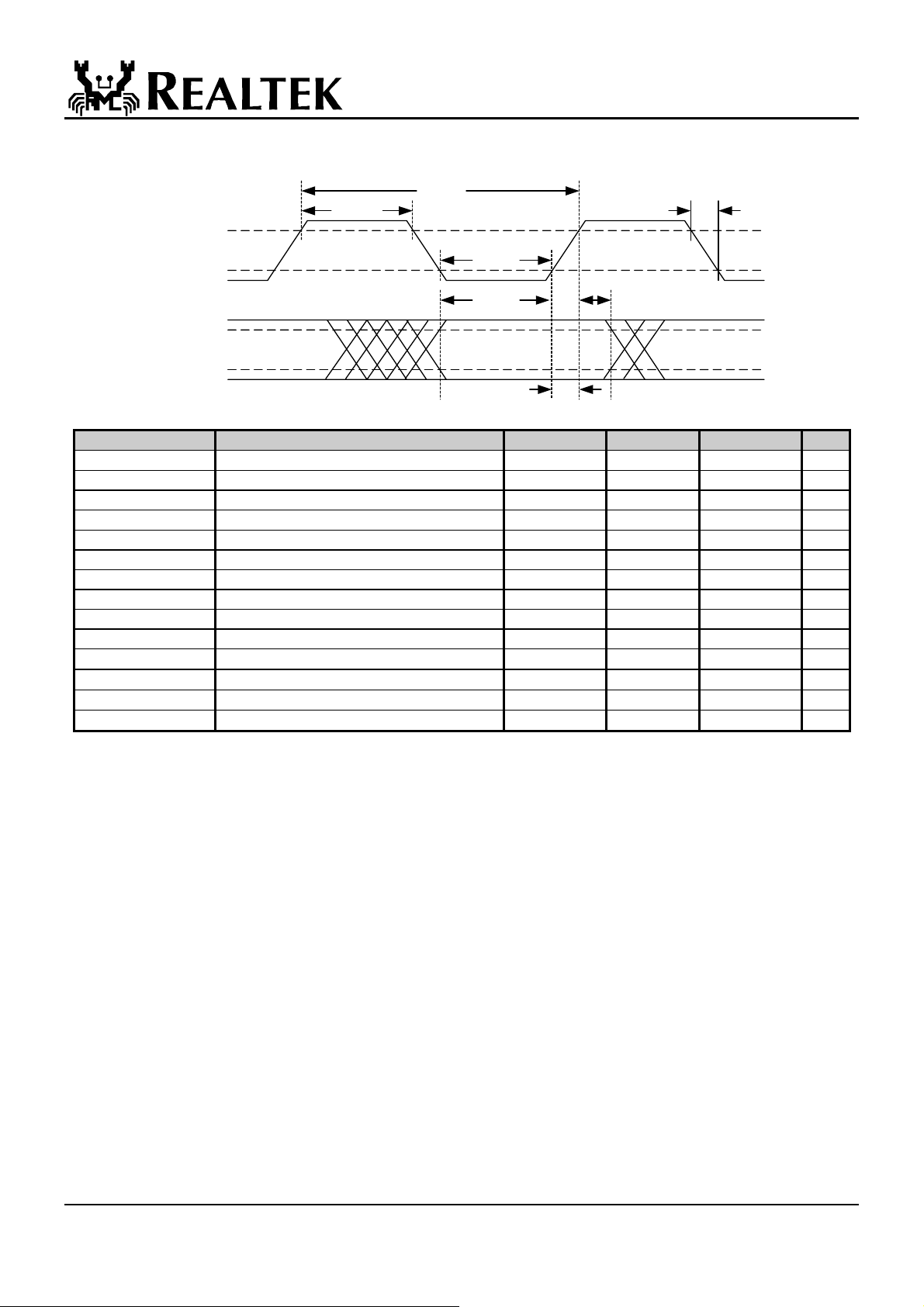

RTL8169
11.3.5 GMII Timing
tGCC
tGCH
RxCLK, GTxCLK
tGCL
tGSUT
tGSUR
tGHTT
tGHTR
RxD[7:0], RxDV,
RxER, TxD[7:0],
TxEN
tR
GMII Timing
Symbol Description Min Typica l Max Units
Vil_ac Input Low Voltage ac 0.7 V
Vih_ac Input High Voltage ac 1.9 V
fGTxCLK, fRxCLK GTxCLK, RxCLK frequency 125 - 100ppm 125 125 + 100ppm MHz
tGCC GTxCLK, RxCLK Cycle Time 7.5 8 8.5 ns
tGCH GTxCLK, RxCLK High Time 2.5 ns
tGCL GTxCLK, RxCLK Low Time 2.5 ns
tR GTxCLK, RxCLK Rise Time 1 ns
tF GTxCLK, RxCLK Fall Time 1 ns
RSR GTxCLK, RxCLK Rising Slew Rate 0.6 V/ns
FSR GTxCLK, RxCLK Falling Slew Rate 0.6 V/ns
tGSUT
tGHTT
tGSUR
tGHTR
TxD, TxEN Setup to ↑ of GTxCLK
TxD, TxEN Hold from ↑ of GTxCLK
RxD, RxDV, RxER Setup to ↑ of RxCLK
RxD, RxDV, RxER Hold from ↑ of RxCLK
GMII Timing Parameters
2.5 ns
0.5 ns
2 ns
0 ns
tF
Vih_ac(min)
Vil_ac(max)
Vih_ac(min)
Vil_ac(max)
2002/03/27 Rev.1.21
89
Page 90

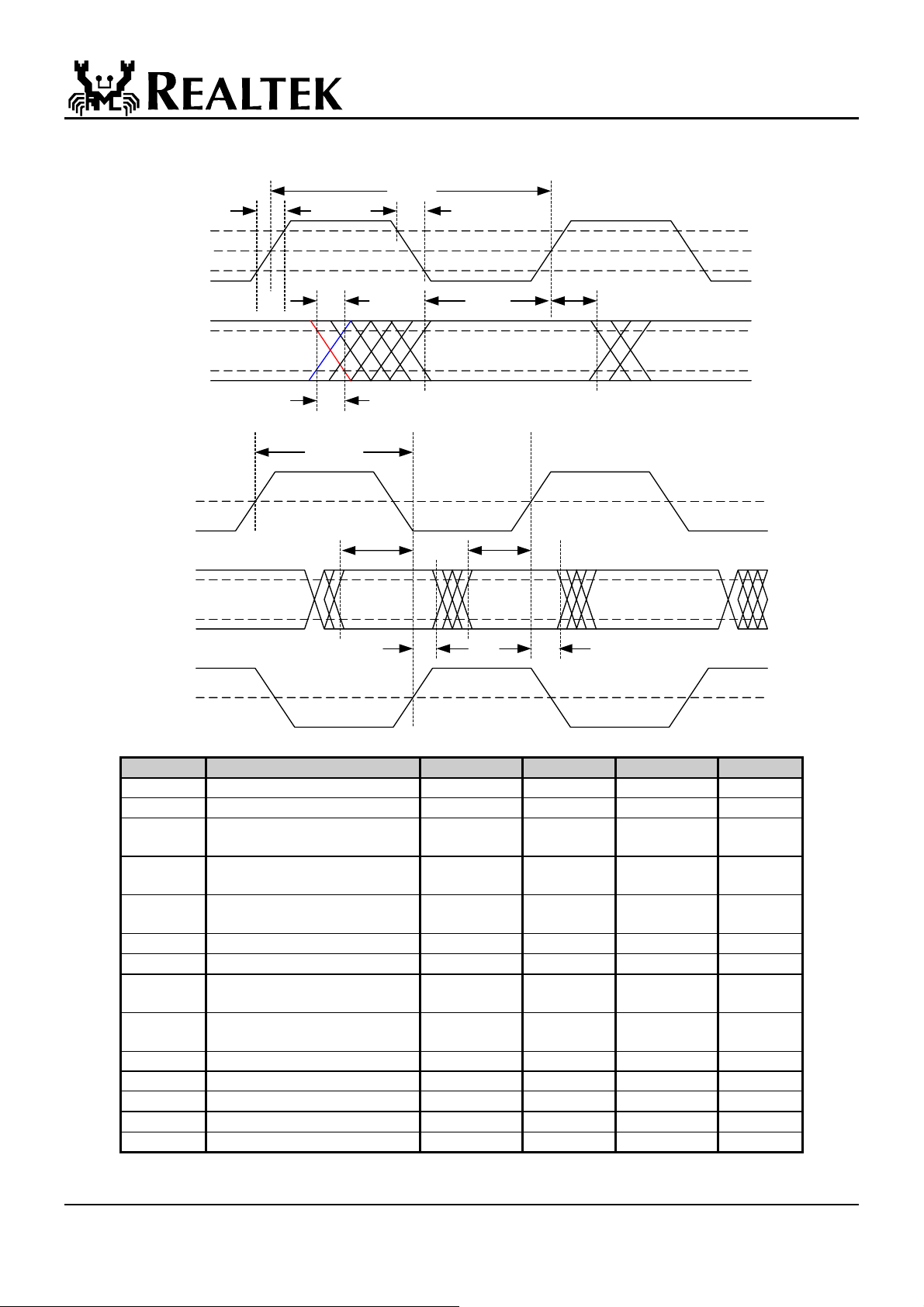

11.3.6 TBI Timing
tRC tFC
GTxCLK
RTL8169
tTxCC
2.0V
1.4V
0.8V
Tx[9:0]
RxCLK0
Rx[9:0]
RxCLK1
tA-B
tRxSU
tRxHT
tRD
tFD
TBI Tx Timing
TBI Rx Timing
tTxSU tTxHT
2.0V
Valid Data
0.8V
1.4V
tRxSU
2.0V
0.8V
tRxHT
1.4V
Symbol Description Min Typi cal Max Units
tTxCC Tx Clock Cycle 8 ns
fGTxCLK GTxCLK frequency 125 – 100ppm 125 125 + 100ppm MHz
tRC Clock Rise Time of GTxCLK,
0.7 2.4 ns
RxCLK0, RxCLK1
tFC Clock Fall Time of GTxCLK,
0.7 2.4 ns
RxCLK0, RxCLK1
tDUTY Clock Duty Cycle of GTxCLK,
40 60 %
RxCLK0, RxCLK1
tTxSU
tTxHT
Data Setup to ↑ of GTxCLK
Data Hold from ↑ of GTxCLK
tRD Data Rise Time of Tx[9:0],
2.0 ns
1.0 ns
0.7 ns
Rx[9:0]
rFD Data Fall Time of Tx[9:0],
0.7 ns
Rx[9:0]
fRxCLKx RxCLK0, RxCLK1 frequency 62.5 MHz
tDRIFT RxCLK0/1 Drift Rate 0.2 us/MHz
tRxSU
tRxHT
Data Setup to ↑ of RxCLK0/1
Data Hold after ↑ of RxCLK0/1
2.5 ns
1.5 ns
tA-B TBI RxCLK Skew 7.5 8.5 ns
TBI Timing Parameters
2002/03/27 Rev.1.21
90
Page 91

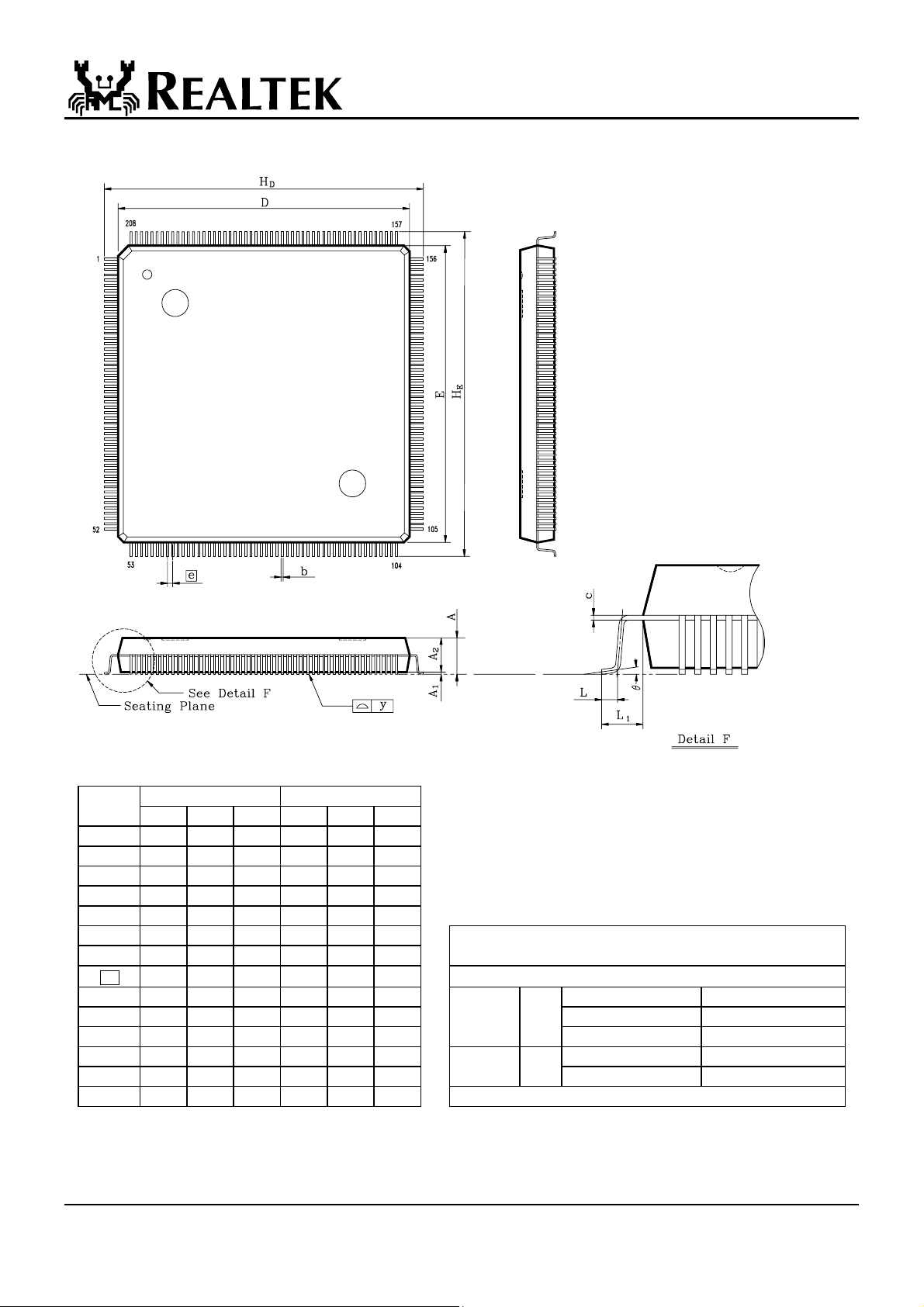

12. Mechanical Dimensions
RTL8169
Note:
Symbol Dimension in inch Dimension in mm 1.Dimensions D & E do not include interlead flash.
Min Typical Max Min Typical Max 2.Dimension b does not include dambar protrusion/intrusion.
A
0.136 0.144 0.152 3.45
A1
0.004 0.010 0.036 0.10
A2
0.119 0.128 0.136 3.02
B
0.004 0.008 0.012 0.10
C
0.002 0.006 0.010 0.04
D
1.093 1.102 1.112 27.75
E
1.093 1.102 1.112 27.75
e
0.012 0.020 0.031 0.30
H
1.169 1.205 1.240 29.70
D
HE
1.169 1.205 1.240 29.70
L
0.010 0.020 0.030 0.25
L1
0.041 0.051 0.061 1.05
Y
Θ
- - 0.004 - - 0.10
0°
-
12° 0°
3.65
0.25
3.24
0.20
0.15
28.00
28.00
0.50
30.60
30.60
0.50
1.30
-
3.Controlling dimension: Millimeter
3.85
4.General appearance spec. should be based on final visual
0.91
Inspection spec.
3.46
0.30
0.26
TITLE : 208L QFP ( 28x28 mm**2 ) FOOTPRINT 2.6mm
28.25
PACKAGE OUTLINE DRAWING
28.25
LEADFRAME MATERIAL:
0.80
APPROVE DOC. NO. 530-ASS-P004
31.50
VERSION 1
31.50
PAGE 22 OF 22
0.75
CHECK DWG NO. Q208 - 1
1.55
DATE APR. 11.1997
12°
REALTEK SEMICONDUCTOR CO., LTD
2002/03/27 Rev.1.21
91
Page 92
RTL8169
Realtek Semiconductor Corp.
Headquarters
1F, No. 2, Industry East Road IX, Science-based
Industrial Park, Hsinchu, 300, Taiwan, R.O.C.
Tel : 886-3-5780211 Fax : 886-3-5776047
WWW: www.realtek.com.tw
2002/03/27 Rev.1.21
92
Loading...
