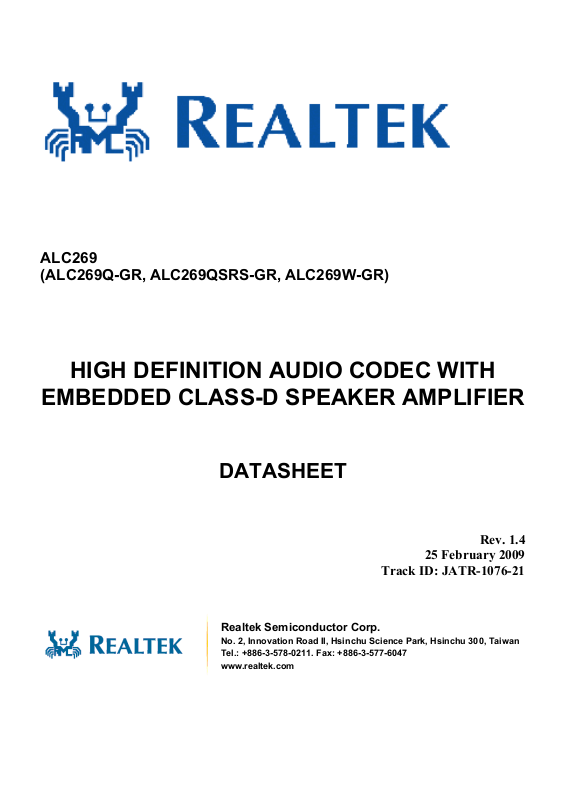

ALC269 (ALC269Q-GR, ALC269QSRS-GR, ALC269W-GR)

HIGH DEFINITION AUDIO CODEC WITH

EMBEDDED CLASS-D SPEAKER AMPLIFIER

DATASHEET

Rev. 1.4

25 February 2009

Track ID: JATR-1076-21

Realtek Semiconductor Corp.

No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com

Page 2

ALC269

Datasheet

©2009 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp.

DISCLAIMER

Realtek provides this document “as is”, without warranty of any kind, neither expressed nor implied, including, but not limited to, the particular purpose. Realtek may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors.

TRADEMARKS

Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are trademarks/registered trademarks of their respective owners.

USING THIS DOCUMENT

This document is intended for the hardware and software engineer’s general information on the Realtek ALC269 codec IC.

Though every effort has been made to ensure that this document is current and accurate, more information may have become available subsequent to the production of this guide. In that event, please contact your Realtek representative for additional information that may help in the development process.

REVISION HISTORY

Revision Release Date Summary

1.0 2008/04/15 First Release

1.1 2008/04/25 Revised Figure 1 Block Diagram, page 5. Revised Table 84 Analog Performance, page 64 (DAC/ADC Full-Scale Input Voltage).

1.2 2008/12/24 Updated analog performance in section 9.3, page 64.

1.3 2009/01/21 Revised Table 77, page 59, Note 2.

1.4 2009/02/25 Added ALC269W-GR part number in section 12, page 71.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

ii Track ID: JATR-1076-21 Rev. 1.4

Page 3

ALC269

Datasheet

Table of Contents

1. GENERAL DESCRIPTION..............................................................................................................................................1

2. FEATURES .........................................................................................................................................................................2

2.1. HARDWARE FEATURES .................................................................................................................................................2

2.2. SOFTWARE FEATURES ..................................................................................................................................................3

3. SYSTEM APPLICATIONS ...............................................................................................................................................4

4. BLOCK DIAGRAM...........................................................................................................................................................5

4.1. ANALOG INPUT/OUTPUT UNIT .....................................................................................................................................6

5. PIN ASSIGNMENTS..........................................................................................................................................................7

5.1. GREEN PACKAGE AND VERSION IDENTIFICATION.........................................................................................................7

6. PIN DESCRIPTIONS.........................................................................................................................................................8

6.1. DIGITAL I/O PINS .........................................................................................................................................................8

6.2. ANALOG I/O PINS ........................................................................................................................................................8

6.3. FILTER/REFERENCE ......................................................................................................................................................9

6.4. POWER/GROUND..........................................................................................................................................................9

7. HIGH DEFINITION AUDIO LINK PROTOCOL........................................................................................................10

7.1. LINK SIGNALS ............................................................................................................................................................10

7.1.1. Signal Definitions ................................................................................................................................................. 11

7.1.2. Signaling Topology ...............................................................................................................................................12

7.2. FRAME COMPOSITION ................................................................................................................................................13

7.2.1. Outbound Frame – Single SDO............................................................................................................................13

7.2.2. Outbound Frame – Multiple SDO ........................................................................................................................14

7.2.3. Inbound Frame – Single SDI................................................................................................................................15

7.2.4. Inbound Frame – Multiple SDI ............................................................................................................................16

7.2.5. Variable Sample Rates..........................................................................................................................................16

7.3. RESET AND INITIALIZATION........................................................................................................................................19

7.3.1. Link Reset .............................................................................................................................................................19

7.3.2. Codec Reset ..........................................................................................................................................................20

7.3.3. Codec Initialization Sequence ..............................................................................................................................21

7.4. VERB AND RESPONSE FORMAT...................................................................................................................................22

7.4.1. Command Verb Format ........................................................................................................................................22

7.4.2. Response Format..................................................................................................................................................22

7.5. POWER MANAGEMENT...............................................................................................................................................23

8. SUPPORTED VERBS AND PARAMETERS ................................................................................................................24

8.1. VERB – GET PARAMETERS (VERB ID=F00H) .............................................................................................................24

8.1.1. Parameter – Vendor ID (Verb ID=F00h, Parameter ID=00h).............................................................................24

8.1.2. Parameter – Revision ID (Verb ID=F00h, Parameter ID=02h) ..........................................................................24

8.1.3. Parameter – Subordinate Node Count (Verb ID=F00h, Parameter ID=04h)......................................................25

8.1.4. Parameter – Function Group Type (Verb ID=F00h, Parameter ID=05h) ...........................................................25

8.1.5. Parameter – Audio Function Capabilities (Verb ID=F00h, Parameter ID=08h)................................................25

8.1.6. Parameter – Audio Widget Capabilities (Verb ID=F00h, Parameter ID=09h) ...................................................26

8.1.7. Parameter – Supported PCM Size, Rates (Verb ID=F00h, Parameter ID=0Ah).................................................27

8.1.8. Parameter – Supported Stream Formats (Verb ID=F00h, Parameter ID=0Bh)..................................................28

8.1.9. Parameter – Pin Capabilities (Verb ID=F00h, Parameter ID=0Ch) ..................................................................28

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

iii Track ID: JATR-1076-21 Rev. 1.4

Page 4

ALC269

Datasheet

8.1.10. Parameter – Amplifier Capabilities (Verb ID=F00h, Input Amplifier Parameter ID=0Dh)...........................29

8.1.11. Parameter – Amplifier Capabilities (Verb ID=F00h, Output Amplifier Parameter ID=12h) .........................29

8.1.12. Parameter – Connect List Length (Verb ID=F00h, Parameter ID=0Eh)........................................................30

8.1.13. Parameter – Supported Power States (Verb ID=F00h, Parameter ID=0Fh)..................................................30

8.1.14. Parameter – Processing Capabilities (Verb ID=F00h, Parameter ID=10h) ..................................................30

8.1.15. Parameter – GPIO Capabilities (Verb ID=F00h, Parameter ID=11h)...........................................................31

8.1.16. Parameter – Volume Knob Capabilities (Verb ID=F00h, Parameter ID=13h)...............................................31

8.2. VERB – GET CONNECTION SELECT CONTROL (VERB ID=F01H) ................................................................................32

8.3. VERB – SET CONNECTION SELECT (VERB ID=701H) .................................................................................................32

8.4. VERB – GET CONNECTION LIST ENTRY (VERB ID=F02H)..........................................................................................33

8.5. VERB – GET PROCESSING STATE (VERB ID=F03H)....................................................................................................35

8.6. VERB – SET PROCESSING STATE (VERB ID=703H).....................................................................................................35

8.7. VERB – GET COEFFICIENT INDEX (VERB ID=DH)......................................................................................................36

8.8. VERB – SET COEFFICIENT INDEX (VERB ID=5H) .......................................................................................................36

8.9. VERB – GET PROCESSING COEFFICIENT (VERB ID=CH) ............................................................................................37

8.10. VERB – SET PROCESSING COEFFICIENT (VERB ID=4H)..............................................................................................37

8.11. VERB – GET AMPLIFIER GAIN (VERB ID=BH) ...........................................................................................................38

8.12. VERB – SET AMPLIFIER GAIN (VERB ID=3H).............................................................................................................40

8.13. VERB – GET CONVERTER FORMAT (VERB ID=AH) ....................................................................................................41

8.14. VERB – SET CONVERTER FORMAT (VERB ID=2H)......................................................................................................42

8.15. VERB – GET POWER STATE (VERB ID=F05H) ............................................................................................................43

8.16. VERB – SET POWER STATE (VERB ID=705H) .............................................................................................................43

8.17. VERB – GET CONVERTER STREAM, CHANNEL (VERB ID=F06H) ...............................................................................44

8.18. VERB – SET CONVERTER STREAM, CHANNEL (VERB ID=706H) ................................................................................44

8.19. VERB – GET PIN WIDGET CONTROL (VERB ID=F07H)...............................................................................................45

8.20. VERB – SET PIN WIDGET CONTROL (VERB ID=707H)................................................................................................45

8.21. VERB – GET UNSOLICITED RESPONSE CONTROL (VERB ID=F08H) ...........................................................................46

8.22. VERB – SET UNSOLICITED RESPONSE CONTROL (VERB ID=708H) ............................................................................46

8.23. VERB – GET PIN SENSE (VERB ID=F09H)..................................................................................................................47

8.24. VERB – EXECUTE PIN SENSE (VERB ID=709H)..........................................................................................................47

8.25. VERB – GET CONFIGURATION DEFAULT (VERB ID=F1CH) ........................................................................................48

8.26. VERB – SET CONFIGURATION DEFAULT BYTES 0, 1, 2, 3 (VERB ID=71CH/71DH/71EH/71FH FOR BYTES 0, 1, 2, 3) .48

8.27. VERB – GET BEEP GENERATOR (VERB ID=F0AH)....................................................................................................49

8.28. VERB – SET BEEP GENERATOR (VERB ID=70AH).....................................................................................................49

8.29. VERB – GET GPIO DATA (VERB ID=F15H)................................................................................................................50

8.30. VERB – SET GPIO DATA (VERB ID=715H).................................................................................................................50

8.31. VERB – GET GPIO ENABLE MASK (VERB ID=F16H).................................................................................................51

8.32. VERB – SET GPIO ENABLE MASK (VERB ID=716H)..................................................................................................51

8.33. VERB – GET GPIO DIRECTION (VERB ID=F17H).......................................................................................................52

8.34. VERB – SET GPIO DIRECTION (VERB ID=717H)........................................................................................................52

8.35. VERB – GET GPIO WAKE ENABLE MASK(VERB ID=F18H).......................................................................................53

8.36. VERB-SET GPIO WAKE ENABLE MASK(VERB ID=718H)..........................................................................................53

8.37. VERB – GET GPIO UNSOLICITED RESPONSE ENABLE MASK (VERB ID=F19H) .........................................................54

8.38. VERB – SET GPIO UNSOLICITED RESPONSE ENABLE MASK (VERB ID=719H)..........................................................54

8.39. VERB – FUNCTION RESET (VERB ID=7FFH) ..............................................................................................................55

8.40. VERB – GET DIGITAL CONVERTER CONTROL 1 & CONTROL 2 (VERB ID=F0DH, F0EH) ...........................................55

8.41. VERB – SET DIGITAL CONVERTER CONTROL 1 & CONTROL 2 (VERB ID=70DH, 70EH).............................................56

8.42. GET/SET VOLUME KNOB WIDGET (VERB ID=F0FH/70FH)........................................................................................57

8.43. GET/SET SUBSYSTEM ID [31:0] (VERB ID=F20H/723H~720H TO SET BIT[31:0]).....................................................57

8.44. GET/SET EAPD ENABLE (VERB ID= F0CH/70CH) ....................................................................................................58

9. ELECTRICAL CHARACTERISTICS...........................................................................................................................59

9.1. DC CHARACTERISTICS...............................................................................................................................................59

9.1.1. Absolute Maximum Ratings..................................................................................................................................59

9.1.2. Threshold Voltage .................................................................................................................................................59

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

iv Track ID: JATR-1076-21 Rev. 1.4

Page 5

ALC269

Datasheet

9.1.3. Digital Filter Characteristics ...............................................................................................................................60

9.1.4. S/PDIF Output Characteristics ............................................................................................................................60

9.2. AC CHARACTERISTICS...............................................................................................................................................61

9.2.1. Link Reset and Initialization Timing.....................................................................................................................61

9.2.2. Link Timing Parameters at the Codec ..................................................................................................................62

9.2.3. S/PDIF Output Timing..........................................................................................................................................63

9.2.4. Test Mode..............................................................................................................................................................63

9.3. ANALOG PERFORMANCE ............................................................................................................................................64

9.4. CLASS-D POWER AMPLIFIER PERFORMANCE .............................................................................................................65

10. APPLICATION CIRCUITS .......................................................................................................................................66

10.1. FILTER CONNECTION..................................................................................................................................................66

10.2. POWER AND JACK CONNECTION.................................................................................................................................67

10.3. S/PDIF-OUT CONNECTION .......................................................................................................................................68

11. MECHANICAL DIMENSIONS.................................................................................................................................69

11.1. MECHANICAL DIMENSIONS NOTES ............................................................................................................................70

12. ORDERING INFORMATION ...................................................................................................................................71

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

v Track ID: JATR-1076-21 Rev. 1.4

Page 6

ALC269

Datasheet

List of Tables

TABLE 1. DIGITAL I/O PINS .........................................................................................................................................................8

TABLE 2. ANALOG I/O PINS.........................................................................................................................................................8

TABLE 3. FILTER/REFERENCE ......................................................................................................................................................9

TABLE 4. POWER/GROUND..........................................................................................................................................................9

TABLE 5. LINK SIGNAL DEFINITIONS.........................................................................................................................................11

TABLE 6. HDA SIGNAL DEFINITIONS ........................................................................................................................................ 11

TABLE 7. DEFINED SAMPLE RATE AND TRANSMISSION RAT E ....................................................................................................17

TABLE 8. 48KHZ VARIABLE RAT E OF DELIVERY TIMING ...........................................................................................................17

TABLE 9. 44.1KHZ VARIABLE RAT E OF DELIVERY TIMING ........................................................................................................18

TABLE 10. 40-BIT COMMANDS IN 4-BIT VERB FORMAT ..............................................................................................................22

TABLE 11. 40-BIT COMMANDS IN 12-BIT VERB FORMAT............................................................................................................22

TABLE 12. SOLICITED RESPONSE FORMAT ..................................................................................................................................22

TABLE 13. UNSOLICITED RESPONSE FORMAT .............................................................................................................................22

TABLE 14. SYSTEM POWER STATE DEFINITIONS .........................................................................................................................23

TABLE 15. POWER CONTROLS IN NID=01H ................................................................................................................................23

TABLE 16. POWERED DOWN CONDITIONS...................................................................................................................................23

TABLE 17. VERB – GET PARAMETERS (VERB ID=F00H).............................................................................................................24

TABLE 18. PARAMETER – VENDOR ID (VERB ID=F00H, PARAMETER ID=00H) ..........................................................................24

TABLE 19. PARAMETER – REVISION ID (VERB ID=F00H, PARAMETER ID=02H) ........................................................................24

TABLE 20. PARAMETER – SUBORDINATE NODE COUNT (VERB ID=F00H, PARAMETER ID=04H) ................................................25

TABLE 21. PARAMETER – FUNCTION GROUP TYPE (VERB ID=F00H, PARAMETER ID=05H).......................................................25

TABLE 22. PARAMETER – AUDIO FUNCTION CAPABILITIES (VERB ID=F00H, PARAMETER ID=08H) ..........................................25

TABLE 23. PARAMETER – AUDIO WIDGET CAPABILITIES (VERB ID=F00H, PARAMETER ID=09H)..............................................26

TABLE 24. PARAMETER – SUPPORTED PCM SIZE, RAT E S (VERB ID=F00H, PARAMETER ID=0AH) ............................................27

TABLE 25. PARAMETER – SUPPORTED STREAM FORMATS (VERB ID=F00H, PARAMETER ID=0BH)............................................28

TABLE 26. PARAMETER – PIN CAPABILITIES (VERB ID=F00H, PARAMETER ID=0CH) ................................................................28

TABLE 27. PARAMETER – AMPLIFIER CAPABILITIES (VERB ID=F00H, INPUT AMPLIFIER PARAMETER ID=0DH)........................29

TABLE 28. PARAMETER – AMPLIFIER CAPABILITIES (VERB ID=F00H, OUTPUT AMPLIFIER PARAMETER ID=12H) .....................29

TABLE 29. PARAMETER – CONNECT LIST LENGTH (VERB ID=F00H, PARAMETER ID=0EH) .......................................................30

TABLE 30. PARAMETER – SUPPORTED POWER STATES (VERB ID=F00H, PARAMETER ID=0FH) .................................................30

TABLE 31. PARAMETER – PROCESSING CAPABILITIES (VERB ID=F00H, PARAMETER ID=10H)...................................................30

TABLE 32. PARAMETER – GPIO CAPABILITIES (VERB ID=F00H, PARAMETER ID=11H) .............................................................31

TABLE 33. PARAMETER – VOLUME KNOB CAPABILITIES (VERB ID=F00H, PARAMETER ID=13H) ..............................................31

TABLE 34. VERB – GET CONNECTION SELECT CONTROL (VERB ID=F01H)................................................................................32

TABLE 35. VERB – SET CONNECTION SELECT (VERB ID=701H) .................................................................................................32

TABLE 36. VERB – GET CONNECTION LIST ENTRY (VERB ID=F02H) .........................................................................................33

TABLE 37. VERB – GET PROCESSING STATE (VERB ID=F03H)....................................................................................................35

TABLE 38. VERB – SET PROCESSING STATE (VERB ID=703H).....................................................................................................35

TABLE 39. VERB – GET COEFFICIENT INDEX (VERB ID=DH)......................................................................................................36

TABLE 40. VERB – SET COEFFICIENT INDEX (VERB ID=5H) .......................................................................................................36

TABLE 41. VERB – GET PROCESSING COEFFICIENT (VERB ID=CH) ............................................................................................37

TABLE 42. VERB – SET PROCESSING COEFFICIENT (VERB ID=4H)..............................................................................................37

TABLE 43. VERB – GET AMPLIFIER GAIN (VERB ID=BH)...........................................................................................................38

TABLE 44. VERB – SET AMPLIFIER GAIN (VERB ID=3H) ............................................................................................................40

TABLE 45. VERB – GET CONVERTER FORMAT (VERB ID=AH)....................................................................................................41

TABLE 46. VERB – SET CONVERTER FORMAT (VERB ID=2H) .....................................................................................................42

TABLE 47. VERB – GET POWER STATE (VERB ID=F05H)............................................................................................................43

TABLE 48. VERB – SET POWER STATE (VERB ID=705H).............................................................................................................43

TABLE 49. VERB – GET CONVERTER STREAM, CHANNEL (VERB ID=F06H) ...............................................................................44

TABLE 50. VERB – SET CONVERTER STREAM, CHANNEL (VERB ID=706H) ................................................................................44

TABLE 51. VERB – GET PIN WIDGET CONTROL (VERB ID=F07H) ..............................................................................................45

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

vi Track ID: JATR-1076-21 Rev. 1.4

Page 7

ALC269

Datasheet

TABLE 52. VERB – SET PIN WIDGET CONTROL (VERB ID=707H) ...............................................................................................45

TABLE 53. VERB – GET UNSOLICITED RESPONSE CONTROL (VERB ID=F08H)...........................................................................46

TABLE 54. VERB – SET UNSOLICITED RESPONSE CONTROL (VERB ID=708H)............................................................................46

TABLE 55. VERB – GET PIN SENSE (VERB ID=F09H)..................................................................................................................47

TABLE 56. VERB – EXECUTE PIN SENSE (VERB ID=709H)..........................................................................................................47

TABLE 57. VERB – GET CONFIGURATION DEFAULT (VERB ID=F1CH)........................................................................................48

TABLE 58. VERB – SET CONFIGURATION DEFAULT BYTES 0, 1, 2, 3 (VERB ID=71CH/71DH/71EH/71FH FOR BYTES 0, 1, 2, 3)48

TABLE 59. VERB – GET BEEP GENERATOR (VERB ID=F0AH) ...................................................................................................49

TABLE 60. VERB – SET BEEP GENERATOR (VERB ID=70AH) ....................................................................................................49

TABLE 61. VERB – GET GPIO DATA (VERB ID=F15H) ...............................................................................................................50

TABLE 62. VERB – SET GPIO DATA (VERB ID=715H) ................................................................................................................50

TABLE 63. VERB – GET GPIO ENABLE MASK (VERB ID=F16H) ................................................................................................51

TABLE 64. VERB – SET GPIO ENABLE MASK (VERB ID=716H) .................................................................................................51

TABLE 65. VERB – GET GPIO DIRECTION (VERB ID=F17H) ......................................................................................................52

TABLE 66. VERB – SET GPIO DIRECTION (VERB ID=717H) .......................................................................................................52

TABLE 67. VERB – GET GPIO WAKE ENABLE MASK (VERB ID=F18H)......................................................................................53

TABLE 68. VERB – SET GPIO WAKE ENABLE MASK (VERB ID=718H).......................................................................................53

TABLE 69. VERB – GET GPIO UNSOLICITED RESPONSE ENABLE MASK (VERB ID=F19H).........................................................54

TABLE 70. VERB – SET GPIO UNSOLICITED RESPONSE ENABLE MASK (VERB ID=719H)..........................................................54

TABLE 71. VERB – FUNCTION RESET (VERB ID=7FFH)..............................................................................................................55

TABLE 72. VERB –GET DIGITAL CONVERTER CONTROL 1 & CONTROL 2 (VERB ID=F0DH, F0EH) ............................................55

TABLE 73. VERB – SET DIGITAL CONVERTER CONTROL 1 & CONTROL 2 (VERB ID=70DH, 70EH).............................................56

TABLE 74. GET/SET VOLUME KNOB WIDGET (VERB ID=F0FH/70FH) .......................................................................................57

TABLE 75. GET/SET SUBSYSTEM ID [31:0] (VERB ID=F20H / 723H~720H TO SET BIT[31:0])....................................................57

TABLE 76. GET/SET EAPD ENABLE (VERB ID=F0CH / 70CH ) ..................................................................................................58

TABLE 77. ABSOLUTE MAXIMUM RAT IN G S .................................................................................................................................59

TABLE 78. THRESHOLD VOLTAGE ...............................................................................................................................................59

TABLE 79. DIGITAL FILTER CHARACTERISTICS ...........................................................................................................................60

TABLE 80. S/PDIF INPUT/OUTPUT CHARACTERISTICS................................................................................................................60

TABLE 81. LINK RESET AND INITIALIZATION TIMING..................................................................................................................61

TABLE 82. LINK TIMING PARAMETERS AT THE CODEC ................................................................................................................62

TABLE 83. S/PDIF OUTPUT TIMING............................................................................................................................................63

TABLE 84. ANALOG PERFORMANCE............................................................................................................................................64

TABLE 85. CLASS-D POWER AMPLIFIER PERFORMANCE.............................................................................................................65

TABLE 86. ORDERING INFORMATION ..........................................................................................................................................71

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

vii Track ID: JATR-1076-21 Rev. 1.4

Page 8

ALC269

Datasheet

List of Figures

FIGURE 1. BLOCK DIAGRAM .......................................................................................................................................................5

FIGURE 2. ANALOG INPUT/OUTPUT UNIT....................................................................................................................................6

FIGURE 3. PIN ASSIGNMENTS - ALC269 (QFN-48).....................................................................................................................7

FIGURE 4. HDA LINK PROTOCOL ..............................................................................................................................................10

FIGURE 5. BIT TIMING...............................................................................................................................................................11

FIGURE 6. SIGNALING TOPOLOGY .............................................................................................................................................12

FIGURE 7. SDO OUTBOUND FRAME ..........................................................................................................................................13

FIGURE 8. SDO STREAM TAG IS INDICATED IN SYNC...............................................................................................................14

FIGURE 9. STRIPED STREAM ON MULTIPLE SDOS.....................................................................................................................14

FIGURE 10. SDI INBOUND STREAM.............................................................................................................................................15

FIGURE 11. SDI STREAM TAG AND DATA ....................................................................................................................................15

FIGURE 12. CODEC TRANSMITS DATA OVER MULTIPLE SDIS .....................................................................................................16

FIGURE 13. LINK RESET TIMING.................................................................................................................................................20

FIGURE 14. CODEC INITIALIZATION SEQUENCE ..........................................................................................................................21

FIGURE 15. LINK RESET AND INITIALIZATION TIMING ................................................................................................................61

FIGURE 16. LINK SIGNALS TIMING .............................................................................................................................................62

FIGURE 17. OUTPUT TIMING .......................................................................................................................................................63

FIGURE 18. FILTER CONNECTION ................................................................................................................................................66

FIGURE 19. POWER AND JACK CONNECTION...............................................................................................................................67

FIGURE 20. S/PDIF-OUT CONNECTION......................................................................................................................................68

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

viii Track ID: JATR-1076-21 Rev. 1.4

Page 9

ALC269

Datasheet

1. General Description

The ALC269 is a High Definition Audio Codec that integrates a 2+2-channel DAC, a 4-channel ADC, and a Class-D Speaker Amplifier.

The 2+2-channel DAC supports two independent stereo sound outputs simultaneously. The 4-channel ADC integrates two stereo and independent analog sound inputs (multiple streaming).

The ALC269 incorporates Realtek converter technology to achieve a 98dB dynamic range playback quality and a 98dB dynamic range recording quality. It meets the current WLP3.10 (Windows Logo Program) and future WLP requirements.

The ALC269 also supports stereo digital microphone channels (microphone array) with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technology simultaneously, significantly improving voice quality for PC VoIP applications.

As well as basic audio functions, the ALC269 has two independent S/PDIF outputs; one could be used to connect a PC to high-quality consumer electronic products such as digital decoders and speakers, the other could provide a dedicated digital output to a HDMI transmitter (common in high end PCs).

There are three integrated power amplifiers. The first is a linear headphone amplifier at port C. The second headphone amplifier at port A removes the need for external DC blocking capacitors, eliminating pop noise caused by these capacitors. The third is an integrated stereo Class-D amplifier to directly drive a mini-speaker. The Class-D amplifier is designed to drive speakers with as low as 4Ω impedance. Its maximum output power is 2.3W per channel at 5V power supply. The advantage of an integrated Class-D amplifier in the ALC269 is high efficiency with low power consumption.

The ALC269 integrates five hardware equalizer bands composed of one low-pass filter, one high-pass filter, and three band-pass filters to compensate for mini-speaker frequency response. All the equalizer filters are programmable via the BIOS, allowing the equalizer to function without the need to customize the audio driver.

The ALC269 conforms to Intel’s Audio Codec low power state white paper and is ECR compliant.

Note: ALC269 version differences are listed in section 12 Ordering Information, page 71.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

1 Track ID: JATR-1076-21 Rev. 1.4

Page 10

ALC269

Datasheet

2. Features

2.1.

Hardware Features

 98dB Signal-to-Noise Ratio (A-weighting) for DAC output

 98dB Signal-to-Noise Ratio (A-weighting) for ADC input

 Meets WLP (Windows Logo Program) 3.10 and future WLP requirements

 2+2-channel DAC supports 16/20/24-bit PCM format for independent two stereo channel audio

playback

 4-channel ADC supports 16/20/24-bit PCM format for independent two stereo channel audio inputs

 All DACs supports 44.1/48/96/192kHz sample rate

 All ADCs support 44.1/48/96kHz sample rate

 S/PDIF-OUT support 16/20/24-bit format and 32/44.1/48/88.2/96/192kHz rate

 Supports MONO line level output

 Supports external PCBEEP input and built-in digital BEEP generator

 Software selectable 2.5V/3.2V/4.2V VREFOUT as bias voltage for analog microphone input

 Two jack detection pins each designed to detect up to 4 jacks

 1dB resolution of input and output volume control

 Programmable +10/+20/+30dB boost gain for analog microphone input

 Built-in headphone amplifiers for port-A and port-C.

 2 GPIOs are supported for customized applications (pin shared with digital microphone interface)

 EAPD (External Amplifier Power Down) is supported (pin shared with secondary S/PDIF-OUT)

 Supports Anti-pop mode when analog power AVDD is on and digital power is off

 Power support: 3.3V digital core power; 1.5V~3.3V digital IO power for HDA link; 3.3V~5.0V

analog power; 3.3V~5.0V power stage voltage

 Enhanced power management features

 Secondary S/PDIF-OUT supports 16/20/24-bit format and 32k/44.1k/48k/88.2k/96k/192kHz rate

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

2 Track ID: JATR-1076-21 Rev. 1.4

Page 11

ALC269

Datasheet

 Supports stereo digital microphone input

 Programmable boost gain and volume control for digital microphone input

 Headphone amplifier for port-A does not require DC blocking capacitors

 Stereo Bridge-Tied Load Class-D amplifier at port-D has 2Watt (rms)/4Ω per channel output

 Short circuit and thermal overload protection for Class-D amplifier

 Supports digital PWM output at port-D which system integrator can easily connect the output to

external power amplifier receives digital audio stream

 Five band hardware equalizer designed for BTL output (port-D) to compensate for frequency

response while driving the mini-speaker

 Intel low power ECR compliant: supports power status control, jack detection, and wake-up event in

D3 mode

 48-pin QFN ‘Green’ package

2.2.

Software Features

 Compatible with Windows Logo Program 3.10 and future requirements

 WaveRT-based audio function driver for Windows Vista

 EAX™ 1.0 & 2.0 compatible

 Direct Sound 3D™ compatible

 A3D™ compatible

 I3DL2 compatible

 HRTF 3D Positional Audio (Windows XP only)

 Emulation of 26 sound environments to enhance gaming experience

 Multi-band software equalizer and tools

 Voice Cancellation and Key Shifting in Karaoke mode

 Dynamic range control (expander, compressor, and limiter) with adjustable parameters

 Intuitive Configuration Panel (Realtek Audio Manager) to enhance user experience

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

3 Track ID: JATR-1076-21 Rev. 1.4

Page 12

ALC269

Datasheet

 Provides 10-foot GUI for Windows Media Center

 Microphone Acoustic Echo Cancellation (AEC), Noise Suppression (NS), and Beam Forming (BF)

technology for voice application

 Smart multiple streaming operation

 HDMI audio driver for AMD platform

 Dolby® PCEE program™ (optional software feature)

 SRS® TrueSurround HD (optional software feature)

 Fortemedia® SAM™ technology for voice processing (Beam Forming and Acoustic Echo

Cancellation) (optional software feature)

 MaxxAudio technologies from Waves (optional software feature, ALC269W only)

3. System Applications

 Windows Vista premium desktop and laptop PCs

 Information Appliances (IA) with High Definition Audio Controller

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

4 Track ID: JATR-1076-21 Rev. 1.4

Page 13

4. Block Diagram

ALC269

Datasheet

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

Figure 1. Block Diagram

5 Track ID: JATR-1076-21 Rev. 1.4

Page 14

ALC269

Datasheet

4.1.

Analog Input/Output Unit

Pin widgets NID=18h, 19h, 1Ah, and 1Bh are re-tasking IO supporting input units. NID=15h and 1Ah support amplifier units.

Output_Signal_Left

Output_Signal_Right

Input_Signal_Left

Input_Signal_Right

Figure 2. Analog Input/Output Unit

EN_OBUF

EN_AMP

EN_OBUF

EN_IBUF

Left

Right

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

6 Track ID: JATR-1076-21 Rev. 1.4

Page 15

5. Pin Assignments

ALC269

Datasheet

AVSS2

AVDD 2

PVDD1

SPK-OUT- L +

SPK-OUT- L-

PVSS1

PVSS2

SPK - OUT- R-

SPK-OUT-R+

PVDD2

EAPD/SPDIFO2

SPDIFO

CBP

363534 33

DVDD

CBN

CPVEE

HPOUT-R

HPOUT-L

CPV REF

30 29 28

MIC1-VREFO-R

MIC2- V REFO

MIC1- V REFO- L

VREF

26 25

ALC269

LLLLLLL TXXXVV

PD#

7891011 12

DVSS

BCLK

SDAT A-IN

SDATA-OUT

SYNC

DVDD-IO

AVSS1

AVDD1

LINE1- R

LINE1- L

MIC 1 - R

MIC 1 - L

MONO - OUT

JDREF

Sense B

MIC 2 - R

MIC 2 - L

LINE 2 - R

LINE 2 - L

Sense A

RESET#

PCBEEP

GPIO1/D MI C-CL K

GPIO0/D MI C-D AT A

Figure 3. Pin Assignments - ALC269 (QFN-48)

5.1.

Green Package and Version Identification

Green package is indicated by a ‘G’ in the location marked ‘T’ in Figure 3. The version number is shown in the location marked ‘VV’.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

7 Track ID: JATR-1076-21 Rev. 1.4

Page 16

6. Pin Descriptions

6.1.

Digital I/O Pins

Table 1. Digital I/O Pins

Name Type Pin Description Characteristic Definition

RESET# I 11 H/W Reset Control Vt=0.5*DVDD

SYNC I 10 Sample Sync (48kHz) Vt=0.5*DVDD

BCLK I 6 24MHz Bit Clock Input Vt=0.5*DVDD

SDATA-OUT I 5 Serial TDM Data Input Vt=0.5*DVDD

SDATA-IN O 8 Serial TDM Data Output VOH=0.9*DVDD, VOL=0.1*DVDD

EAPD/ SPDIFO2

SPDIFO O 48 S/PDIF Output

GPIO0/ DMIC-DATA

GPIO1/ DMIC-CLK

PD# I 4

Total: 10 pins

O 47 Signal to power down ext. amp

Secondary S/PDIF output

IO 2 General Purpose Input/Output 0

Data input from digital MIC1&2

IO 3 General Purpose Input/Output 1

Clock output for digital MIC

Low to Power Down Speaker (BTL) Output

Output to mute/un-mute external amplifier

Output has 12 mA@75Ω driving capability.

Output has 12mA@75Ω driving capability.

Input Vt=(1/2)*DVDD, output V

=DVSS, internal pulled up by 50KΩ

Input Vt=(1/2)*DVDD, output V V

=DVSS, Default 2.048MHz clock output

Input Vt=(1/2)*DVDD, internal pulled up by 50KΩ

=DVDD,

ALC269

Datasheet

6.2.

Analog I/O Pins

Table 2. Analog I/O Pins

Name Type Pin Description Characteristic Definition

PCBEEP I 12 External PCBEEP Input Analog input, 1.6Vrms of full-scale input

LINE2-L IO 14 2nd Line Input Left Channel Analog input/output, default is input (JACK-E)

LINE2-R IO 15 2nd Line Input Right Channel Analog input/output, default is input (JACK-E)

MIC2-L IO 16 2nd Stereo Microphone Input Left Channel Analog input/output, default is input (JACK-F)

MIC2-R IO 17 2nd Stereo Microphone Input Right Channel Analog input/output, default is input (JACK-F)

MONO-OUT O 20 MONO Output Analog mono output is summation of (L+R)/2.

MIC1-L IO 21 1st Stereo Microphone Input Left Channel

MIC1-R IO 22 1st Stereo Microphone Input Right Channel

LINE1-L IO 23 1st Line Input Left Channel

LINE1-R IO 24 1st Line Input Right Channel

SPK-OUT-L+ O 40 BTL Mode Positive Left Channel Pulse width modulation output (JACK-D)

SPK-OUT-L- O 41 BTL Mode Negative Left Channel Pulse width modulation output (JACK-D)

SPK-OUT-R- O 44 BTL Mode Negative Right Channel Pulse width modulation output (JACK-D)

Analog input/output, default is input (JACK-B)

Analog input/output, default is input (JACK-C)

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

8 Track ID: JATR-1076-21 Rev. 1.4

Page 17

ALC269

Datasheet

Name Type Pin Description Characteristic Definition

SPK-OUT-R+ O 45 BTL Mode Positive Right Channel Pulse width modulation output (JACK-D)

HP-OUT-L O 32 First Out Left Channel Analog output (JACK-A)

HP-OUT-R O 33 First Out Right Channel Analog output (JACK-A)

Sense A I 13 Jack Detect Pin L

Sense B I 18 Jack Detect Pin 2

Total: 18 pins

6.3.

Filter/Reference

Table 3. Filter/Reference

Name Type Pin Description Characteristic Definition

JDREF - 19 Ref. Resistor for Jack Detect 20K, 1% accuracy resistor to analog ground

VREF - 27 2.5V Reference Voltage 1µf capacitor to analog ground

MIC1-VREFO-L O 28 Bias Voltage for MIC1 Jack 2.5V/3.2V/4.2V reference voltage

MIC2-VREFO O 29 Bias Voltage for MIC2 Jack 2.5V/3.2V/4.2V reference voltage

MIC1-VREFO-R O 30 Secondary Bias voltage for MIC1 jack 2.5V/3.2V/4.2V reference voltage

CPVREF 31 0V Reference Voltage Analog ground

CBN - 35 Reference Capacitor 2.2µf capacitor to CBP

CBP - 36 Reference Capacitor 2.2µf capacitor to CBN

Total: 8 pins

Resistor (5.1K, 10K, 20K, 39.2K) w/ 1% accuracy

6.4.

Power/Ground

Table 4. Power/Ground

Name Type Pin Description Characteristic Definition

AVDD1 P 25 Analog VDD (5.0V or 3.3V) Analog power for mixer and amplifier

AVSS1 G 26 Analog GND Analog ground for mixer and amplifier

AVDD2 P 38 Analog VDD (5.0V or 3.3V) Analog power for DACs and ADCs

AVSS2 G 37 Analog GND Analog ground for DACs and ADCs

DVDD P 1 Digital VDD (3.3V) Digital core power for core logic

DVDD-IO P 9 Digital VDD (3.3V or 1.5V) Digital I/O power for HDA link

DVSS G 7 Digital GND Digital ground

PVDD1 P 39 Power Stage VDD 5.0V Power supply for full-bridge left channel

PVSS1 G 42 Power Stage GND Ground for full-bridge left channel

PVSS2 G 43 Power Stage GND Ground for full-bridge right channel

PVDD2 P 46 Power Stage VDD 5.0V Power supply for full-bridge right channel

CPVEE P 34 Reference Voltage Output 2.2µf capacitor to analog ground

Total: 12 pins

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

9 Track ID: JATR-1076-21 Rev. 1.4

Page 18

ALC269

Datasheet

7. High Definition Audio Link Protocol

7.1.

Link Signals

The High Definition Audio (HDA) Link is the digital serial interface that connects the HDA codecs to the HDA Controller. The HDA link protocol is controller synchronous, based on a 24.0MHz BIT-CLK sent by the HDA controller. The input and output streams, including command and PCM data, are isochronous with a 48kHz frame rate. Figure 4 shows the basic concept of the HDA link protocol.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

Figure 4. HDA Link Protocol

10 Track ID: JATR-1076-21 Rev. 1.4

Page 19

7.1.1. Signal Definitions

Table 5. Link Signal Definitions

Item Description

BCLK 24.0MHz bit clock sourced from the HDA controller and connected to all codecs.

SYNC

SDO

SDI

RST#

48kHz signal used to synchronize input and output streams on the link. It is sourced from the HDA controller and connects to all codecs.

Serial Data Output signal driven by the HDA controller to all codecs. Commands and data streams are carried on SDO. The data rate is double pumped; the controller drives data onto the SDO, the codec samples data present on SDO with respect to each edge of BCLK. The HDA controller must support at least one SDO. To extend outbound bandwidth, multiple SDOs may be supported.

Serial Data Input signal driven by the codec. It is point-to-point serial data from the codec to the HDA controller. The controller must support at least one SDI, and up to a maximum of 15 SDI’s can be supported. SDI is driven by the codec at each rising edge of BCLK, and sampled by the controller at each rising edge of BCLK. SDI can be driven by the controller to initialize the codec’s ID.

Active low reset signal. Asserted to reset the codec to default power on state. RST# is sourced from the HDA controller and connects to all codecs.

ALC269

Datasheet

Table 6. HDA Signal Definitions

Signal Name Source Controller Type Description

BCLK Controller Output Global 24.0MHz Bit Clock.

SYNC Controller Output Global 48kHz Frame Sync and outbound tag signal.

SDO Controller Output Serial Data Output from Controller.

SDI Codec/Controller Input/Output

RST# Controller Output Global Active Low Reset Signal.

Serial Data Input from codec. Weakly pulled down by the controller.

BCLK

SYNC

SDO

8- Bit Frame SYNC

7654 0123 999 998 997 996 995 994 993 992 991 990

Start of Frame

SDI

Codec samples SDO at both rising and falling edge of BCLK

Controller samples SDI at rising edge of BCLK

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

3 210499

Figure 5. Bit Timing

11 Track ID: JATR-1076-21 Rev. 1.4

498

497 496 495 494

Page 20

ALC269

Datasheet

7.1.2. Signaling Topology

The HDA controller supports two SDOs for the outbound stream, up to 15 SDIs for the inbound stream. RST#, BCLK, SYNC, SDO0 and SDO1 are driven by controller to codecs. Each codec drives its own point-to-point SDI signal(s) to the controller.

Figure 6 shows the possible connections between the HDA controller and codecs:

• Codec 0 is a basic connection. There is one single SDO and one single SDI for normal transmission

• Codec 1 has two SDOs for doubled outbound rate, a single SDI for normal inbound rate

• Codec 3 supports a single SDO for normal outbound rate, and two SDIs for doubled inbound rate

• Codec N has two SDOs and multiple SDIs

The multiple SDOs and multiple SDIs are used to expand the transmission rate between controller and codecs. Section 7.2 Frame Composition, page 13 describes the detailed outbound and inbound stream compositions for single and multiple SDOs/SDIs.

The connections shown in Figure 6 can be implemented concurrently in an HDA system. The ALC269 is designed to receive a single SDO stream.

BCLK

SYNC

RST#

SDI0

SDO0

Figure 6. Signaling Topology

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

SDI1

BCLK

SYNC

RST#

SDI0

SDO1

SDO0

BCLK

RST#

SDI0

SYNC

SDO0

BCLK

RST#

SYNC

SDI0

SDI2

SDI1

SDO1

SDO0

12 Track ID: JATR-1076-21 Rev. 1.4

Page 21

ALC269

Datasheet

7.2.

Frame Composition

7.2.1. Outbound Frame – Single SDO

An outbound frame is composed of one 32-Bit command stream and multiple data streams. There are one or multiple sample blocks in a data stream. Only one sample block exists in a stream if the HDA controller delivers a 48kHz rate of samples to the codec. Multiple sample blocks in a stream means the sample rate is a multiple of 48kHz. This means there should be 2 blocks in the same stream to carry 96kHz samples (Figure 7).

For outbound frames, the stream tag is not in SDO, but in the SYNC signal. A new data stream is started at the end of the stream tag. The stream tag includes a 4-Bit preamble and 4-Bit stream ID (Figure 8).

To keep the cadence of converters bound to the same stream, samples for these converters must be placed in the same block.

SYNC

SDO

A 48kHz Frame is composed of Command stream and multiple Data streams

Frame SYNC

Command Stream

Sample Block(s)

Block 1

Sample 1 Sample 2

msb

Block 2

...

Stream 'A' Tag Stream 'X' Tag

(Here 'A' = 5) (Here 'X' = 6)

One or multiple blocks in a stream

.. .

msb first in a sample

lsb

Figure 7. SDO Outbound Frame

Block Y

Sample Z

Stream 'X' DataStream 'A' Data

Null Field

For 48kHz rate, only Block1 is included For 96kHz rate, Block1 includes (N) includes (N+1)

Z channels of PCM Sample

time of samples

time of samples, Block2

Next FramePrevious Frame

Padded at the

end of Frame

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

13 Track ID: JATR-1076-21 Rev. 1.4

Page 22

BCLK

SYNC

Stream Tag

msb lsb

110

ALC269

Datasheet

Stream=10

Data of Stream 10

msb

SDO

Preamble

(4-Bit) (4-Bit)

7654 0123

Previous Stream

Figure 8. SDO Stream Tag is Indicated in SYNC

7.2.2. Outbound Frame – Multiple SDO

The HDA controller allows two SDO signals to be used to stripe outbound data, completing transmission in less time to get more bandwidth. If software determines the target codec supports multiple SDO capability, it enables the stripe control bit in the controller’s Output Stream Control Register to initiate a specific stream (Stream ‘A’ in Figure 9) to be transmitted on multiple SDOs. In this case, the MSB of stream data is always carried on SDO0, the second bit on SDO1 and so forth.

SDO1 is for transmitting a striped stream. The codec does not support multiple SDOs connected to SDO0.

To guarantee all codecs can determine their corresponding stream, the command stream is not striped. It is always transmitted on SDO0, and copied on SDO1.

Figure 9. Striped Stream on Multiple SDOs

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

14 Track ID: JATR-1076-21 Rev. 1.4

Page 23

ALC269

Datasheet

7.2.3. Inbound Frame – Single SDI

An Inbound Frame – Single SDI is composed of one 36-Bit response stream and multiple data streams. Except for the initialization sequence (turnaround and address frame), SDI is driven by the codec at each rising edge of BCLK. The controller also samples data at the rising edge of BCLK (Figure 10).

The SDI stream tag is not carried by SYNC, but included in the SDI. A complete SDI data stream includes one 4-Bit stream tag, one 6-Bit data length, and n-Bit sample blocks. Zeros will be padded if the total length of the contiguous sample blocks within a given stream is not of integral byte length (Figure 11).

SYNC

SDI

A 48kHz Frame is Composed of a Response Stream and Multiple Data streams

Frame SYNC

Response Stream

Sample Block(s)Stream Tag

Block 1

Sample 1 Sample 2 ... Sample Z

Block 2

msb ... lsb

... Block Y

msb first in a sample

Figure 10. SDI Inbound Stream

Stream 'A'

Null Pad

Z channels of PCM Sample

For 48kHz rate, only Block1 is included

For 96kHz rate, Block{1, 2} includes {(N)

Stream 'X'

Null Field

Next FramePrevious Frame

Padded at the end of Frame

(N+1)th} time of samples

BCLK

Data Length in Bytes

Figure 11. SDI Stream Tag and Data

SDI

Stream Tag

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

A Complete Stream

15 Track ID: JATR-1076-21 Rev. 1.4

n-Bit Sample Block

n-1

(Data Length in Bytes *8)-Bit

n-2

Null Pad

Next Stream

Page 24

ALC269

Datasheet

7.2.4. Inbound Frame – Multiple SDI

A codec can deliver data to the controller on multiple SDIs to achieve higher bandwidth. If an inbound stream exceeds the data transfer limits of a single SDI, the codec can divide the data onto separate SDI signals, each of which operate independently, with different stream numbers at the same frame time. This is similar to having multiple codecs connected to the controller. The controller samples the divided stream into separate memory with multiple DMA descriptors, then software re-combines the divided data into a meaningful stream.

SYNC

Frame SYNC

SDI

Codec drives SDI

Response Stream

and SDI

Tag A

Tag B Data B

Figure 12. Codec Transmits Data Over Multiple SDIs

Stream 'A'

Data A

Stream 'B'

Stream A, B, X, and Y are independent and have separate IDs

Stream 'X'

Stream 'Y'

7.2.5. Variable Sample Rates

The HDA link is designed for sample rates of 48kHz. Variable rates of sample are delivered in multiple or sub-multiple rates of 48kHz. Two sample blocks per frame result in a 96kHz delivery rate, one sample block over two frames results in a 24kHz delivery rate. The HDA specification states that the sample rate of the outbound stream be synchronized by the controller, not by the codec. Each stream has its own sample rate, independent of any other stream.

The HDA controller supports 48kHz and 44.1kHz base rates. Table 7, page 17, shows the recommended sample rates based on multiples or sub-multiples of one of the two base rates.

Rates in sub-multiples (1/n) of 48kHz are interleaving n frames containing no sample blocks. Rates in multiples (n) of 48kHz contain n sample blocks in a frame. Table 8, page 17, shows the delivery cadence of variable rates based on 48kHz.

The HDA link is defined to operate at a fixed 48kHz frame rate. To deliver samples in (sub) multiple rates of 44.1kHz, an appropriate ratio between 44.1kHz and 48kHz must be maintained to avoid frequency drift. The appropriate ratio between 44.1kHz and 48kHz is 147/160. Meaning 147 sample blocks are transmitted every 160 frames.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

16 Track ID: JATR-1076-21 Rev. 1.4

Page 25

ALC269

Datasheet

The cadence ‘12-11-11-12-11-11-12-11-11-12-11-11-11- (repeat)’interleaves 13 frames containing no sample blocks in every 160 frames. It provides a low long-term frequency drift for 44.1kHz of delivery rate. Rates in sub-multiples (1/n) of 44.1kHz also follow this cadence AND interleave n empty frames. Rates in multiples (n) of 44.1kHz applying this cadence contain n sample blocks in the non-empty frame AND interleave an empty frame between non-empty frames (Table 9, page 18).

Table 7. Defined Sample Rate and Transmission Rate

(Sub) Multiple 48kHz Base 44.1kHz Base

1/6 8kHz (1 sample block every 6 frames) -

1/4 12kHz (1 sample block every 4 frames) 11.025kHz (1 sample block every 4 frames)

1/3 16kHz (1 sample block every 3 frames) -

1/2 - 22.05kHz (1 sample block every 2 frames)

2/3 32kHz (2 sample blocks every 3 frames) -

1 48kHz (1 sample block per frame) 44.1kHz (1 sample block per frame)

2 96kHz (2 sample blocks per frame) 88.2kHz (2 sample blocks per frame)

4 192kHz (4 sample blocks per frame) 176.4kHz (4 sample blocks per frame)

Table 8. 48kHz Variable Rate of Delivery Timing

Rate Delivery Cadence Description

8kHz YNNNNN (repeat) One sample block is transmitted in every 6 frames

12kHz YNNN (repeat) One sample block is transmitted in every 4 frames

16kHz YNN (repeat) One sample block is transmitted in every 3 frames

32kHz Y2NN (repeat) One sample block is transmitted in every 6 frames

48kHz Y (repeat) One sample block is transmitted in every 6 frames

96kHz Y2 (repeat) Two sample blocks are transmitted in each frame

192kHz Y4 (repeat) Four sample blocks are transmitted in each frame

N: No sample block in a frame. Y: One sample block in a frame. Yx: X sample blocks in a frame.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

17 Track ID: JATR-1076-21 Rev. 1.4

Page 26

ALC269

Datasheet

Table 9. 44.1kHz Variable Rate of Delivery Timing

Rate Delivery Cadence

11.025kHz

22.05kHz

44.1kHz 12-11-11-12-11-11-12-11-11-12-11-11-11- (repeat)

88.2kHz 122-112-112-122-112-112-122-112-112-122-112-112-112- (repeat)

174.4kHz 124-114-114-124-114-114-124-114-114-124-114-114-114- (repeat)

11.025kHz: {12}=YNNNYNNNYNNNYNNNYNNNYNNNYNNNYNNNYNNNYNNNYNNNYNNN {11}=YNNNYNNNYNNNYNNNYNNNYNNNYNNNYNNNYNNNYNNNYNNN { - }=NNNN

22.050kHz: {12}=YNYNYNYNYNYNYNYNYNYNYNYN {11}=YNYNYNYNYNYNYNYNYNYNYN { - }=NN

{12}{-}{11}{-}{11}{-}{12}{-}{11}{-}{11}{-}{12}{-}{11}{-}{11}{-}{12}{-}{11}{-}{11}{-}{11}{-} (repeat)

44.1kHz: 12- =Contiguous 12 frames containing 1 sample blocks each, followed by one frame with no sample block.

88.2kHz: 122- =Contiguous 12 frames containing 2 sample blocks each, followed by one frame with no sample block.

176.4kHz: 124- =Contiguous 12 frames containing 4 sample blocks each, followed by one frame with no sample block.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

18 Track ID: JATR-1076-21 Rev. 1.4

Page 27

ALC269

Datasheet

7.3.

Reset and Initialization

There are two types of reset within an HDA link:

• Link Reset. Generated by assertion of the RST# signal, all codecs return to their power on state

• Codec Reset. Generated by software directing a command to reset a specific codec back to its default

state

An initialization sequence is requested after any of the following three events:

1. Link Reset

2. Codec Reset

3. Codec changes its power state (For example, hot docking a codec to an HDA system)

7.3.1. Link Reset

A link reset may be caused by 3 events:

1. The HDA controller asserts RST# for any reason (power up, or PCI reset)

2. Software initiates a link reset via the ‘CRST’ bit in the Global Control Register (GCR) of the HDA

controller

3. Software initiates power management sequences. Figure 13, page 20, shows the ‘Link Reset’ timing

including the ‘Enter’ sequence (n~r) and ‘Exit’ sequence (s~v)

Enter ‘Link Reset’:

n Software writes a 0 to the ‘CRST’ bit in the Global Control Register of the HDA controller to initiate a link reset

o As the controller completes the current frame, it does not signal the normal 8-Bit frame SYNC at the end of the frame

p The controller drives SYNC and all SDOs to low. Codecs also drive SDIs to low

q The controller asserts the RST# signal to low, and enters the ‘Link Reset’ state

r All link signals driven by controller and codecs should be tri-state by internal pull low resistors

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

19 Track ID: JATR-1076-21 Rev. 1.4

Page 28

ALC269

Datasheet

Exit from ‘Link Reset’:

s If BCLK is re-started for any reason (codec wake-up event, power management, etc.)

t Software is responsible for de-asserting RST# after a minimum of 100µsec BCLK running time (the

100µsec provides time for the codec PLL to stabilize)

u Minimum of 4 BCLK after RST# is de-asserted, the controller starts to signal normal frame SYNC

v When the codec drives its SDI to request an initialization sequence (when the SDI is driven high at the

last bit of frame SYNC, it means the codec requests an initialization sequence)

>=100 usec >= 4 BCLK Initialization Sequence

Normal Frame

SYNC

Wake Event

BCLK

SYNC

SDOs

SDIs

RST#

Previous Frame

Normal Frame

SYNC is absent

4 BCLK

Driven Low

4 BCLK

4 53 6 7

Link in Reset

Pulled Low

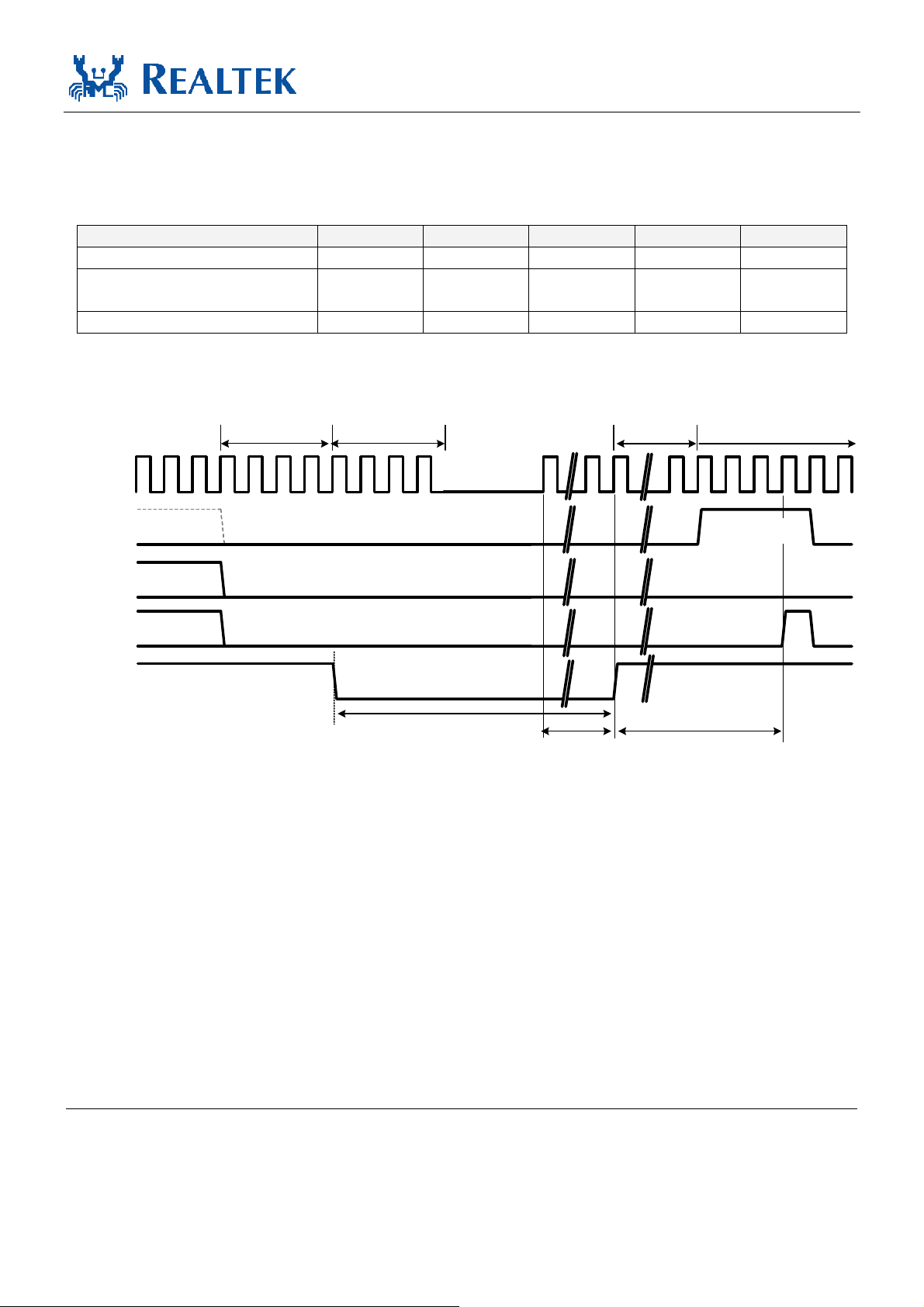

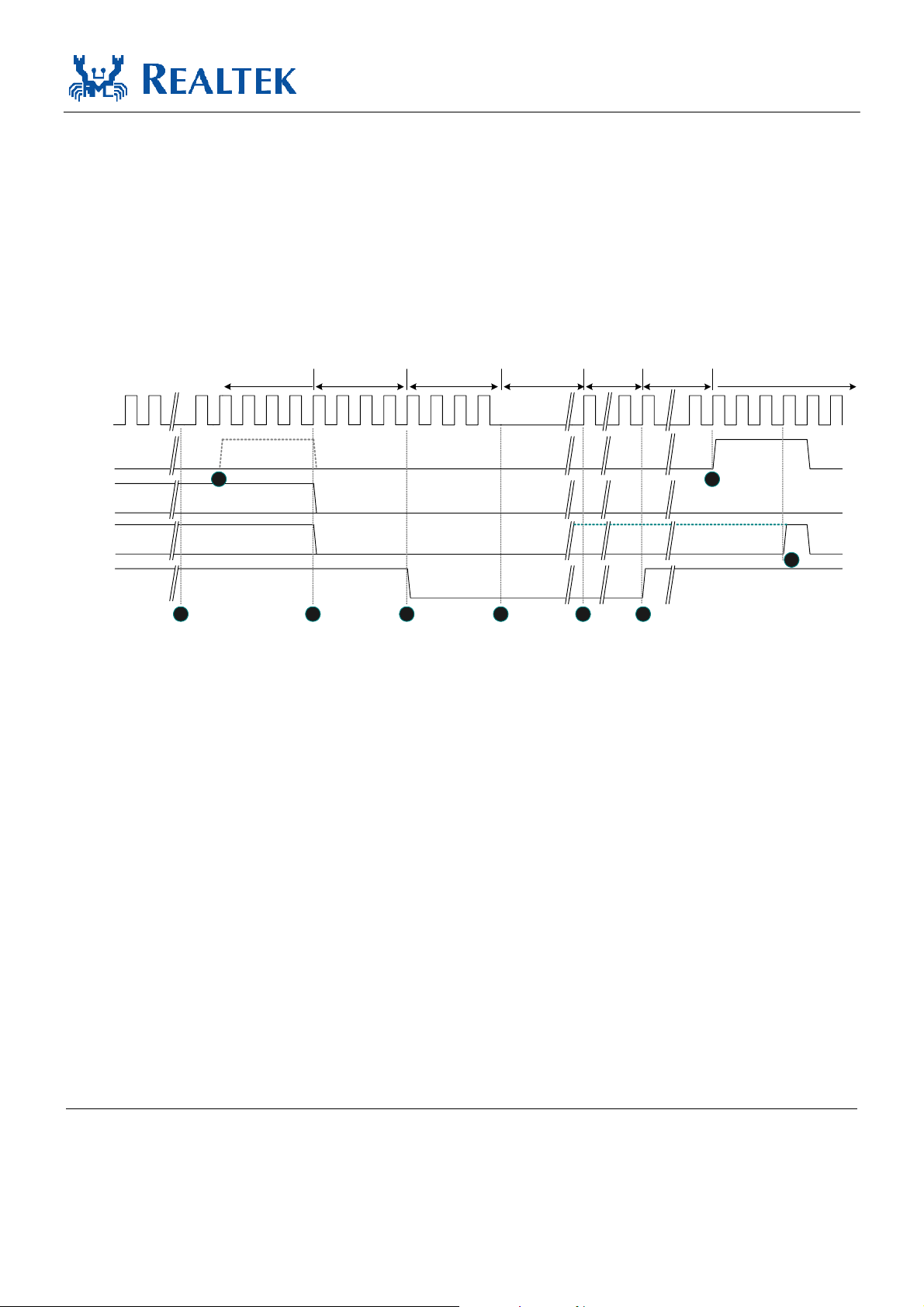

Figure 13. Link Reset Timing

7.3.2. Codec Reset

A ‘Codec Reset’ is initiated via the Codec RESET command verb. It results in the target codec being reset to the default state. After the target codec completes its reset operation, an initialization sequence is requested.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

20 Track ID: JATR-1076-21 Rev. 1.4

Page 29

ALC269

Datasheet

7.3.3. Codec Initialization Sequence

n The codec drives SDI high at the last bit of SYNC to request a Codec Address (CAD) from the controller

o The codec will stop driving the SDI during this turnaround period

pqrs The controller drives SDI to assign a CAD to the codec

t The controller releases the SDI after the CAD has been assigned

u Normal operation state

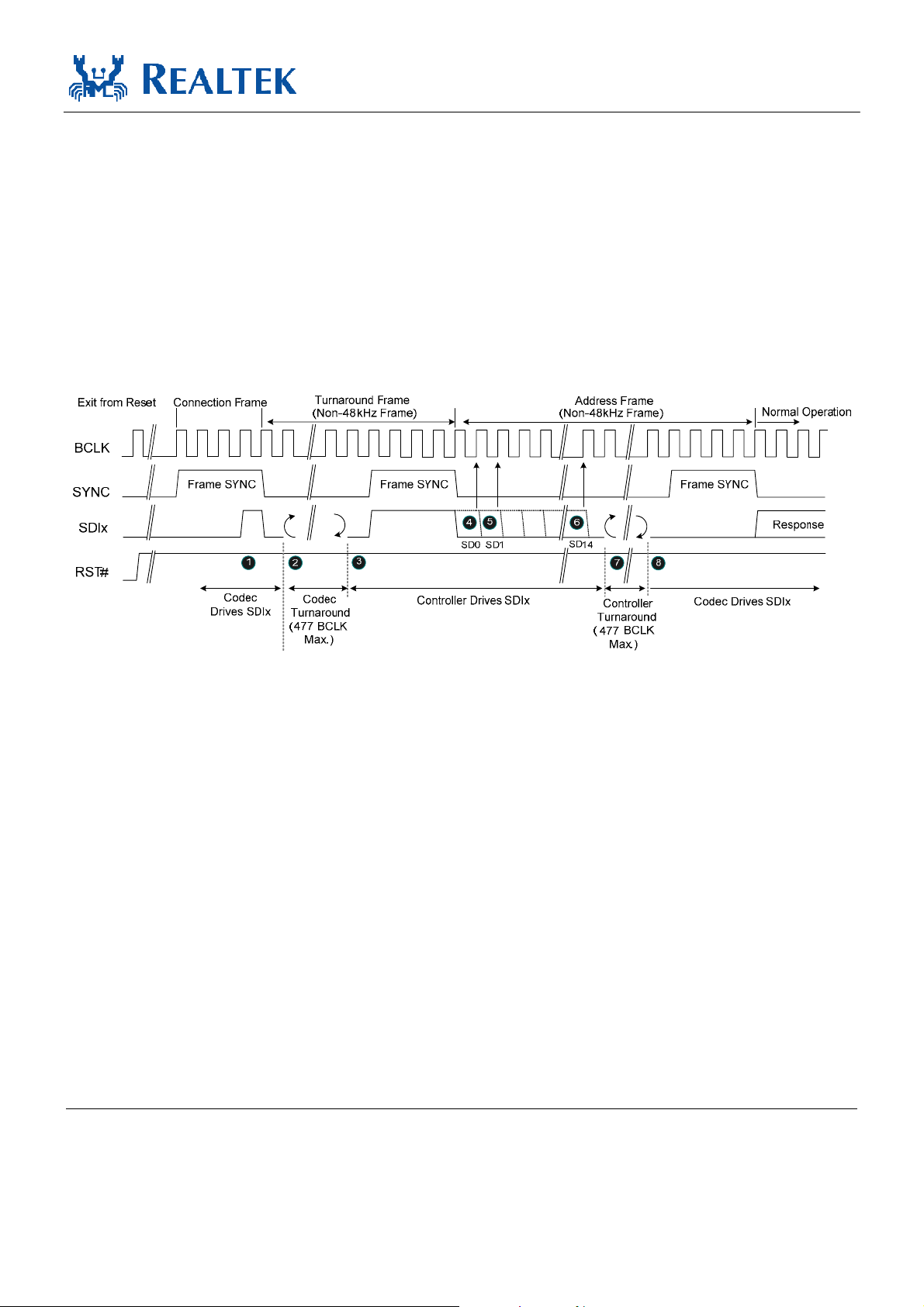

Figure 14. Codec Initialization Sequence

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

21 Track ID: JATR-1076-21 Rev. 1.4

Page 30

ALC269

Datasheet

7.4.

Verb and Response Format

7.4.1. Command Verb Format

There are two types of verbs: one with 4-Bit identifiers (4-Bit verbs) and 16-Bits of data, the other with 12-Bit identifiers (12-Bit verbs) and 8-Bits of data. Table 10 shows the 4-Bit verb structure of a command stream sent from the controller to operate the codec. Table 11 is the 12-Bit verb structure that gets and controls parameters in the codec.

Table 10. 40-Bit Commands in 4-Bit Verb Format

Bit [39:32] Bit [31:28] Bit [27:20] Bit [19:16] Bit [15:0]

Reserved Codec Address Node ID Verb ID Payload

Table 11. 40-Bit Commands in 12-Bit Verb Format

Bit [39:32] Bit [31:28] Bit [27:20] Bit [19:8] Bit [7:0]

Reserved Codec Address Node ID Verb ID Payload

7.4.2. Response Format

There are two types of response from the codec to the controller. Solicited Responses are returned by the codec in response to a current command verb. The codec will send Solicited Response data in the next frame, without regard to the Set (Write) or Get (Read) command. The 32-Bit Response is interpreted by software, opaque to the controller.

Unsolicited Responses are sent by the codec independently of software requests. Jack Detection or GPI status information can be actively delivered to the controller and interpreted by software. The ‘Tag’ in Bit[31:28] is used to identify unsolicited events. This tag is undefined in the HDA specifications.

Table 12. Solicited Response Format

Bit [35] Bit [34] Bit [33:32] Bit [31:0]

Valid Unsol=0 Reserved Response

Table 13. Unsolicited Response Format

Bit [35] Bit [34] Bit [33:32] Bit [31:28] Bit [27:0]

Valid Unsol=1 Reserved Tag Response

Note: The response stream in the link protocol is 36-Bits wide. The response is placed in the lower 32-bit field. Bit-35 is a ‘Valid’ bit to indicate the response is ‘Ready’. Bit-34 is set to indicate that an unsolicited response was sent.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

22 Track ID: JATR-1076-21 Rev. 1.4

Page 31

ALC269

Datasheet

7.5.

Power Management

All power management state changes in widgets are driven by software. Table 14 shows the System Power State Definitions.

In the ALC269, all the widgets include output/input converters support power control. Software may have various power states depending on system configuration.

Table 15 indicates those nodes that support power management. To simplify power control, software can configure whole codec power states through the audio function (NID=01h). Output converters (DACs) and input converters (ADCs) have no individual power control to supply fine-grained power control.

Table 14. System Power State Definitions

Power States Definitions

D0 All power on. Individual DACs and ADCs can be powered up or down as required.

D3 (Hot) Power still supplied. The codec stops the internal clock. State is maintained.

D3 (Cold) All power removed. State lost.

All amplifiers and converters (DACs and ADCs) are powered down. State maintained, analog reference stays up.

All amplifiers and converters (DACs and ADCs) are powered down. State maintained, but analog reference off (D1 + analog reference off).

Table 15. Power Controls in NID=01h

Description D0 D1 D2 D3 (Hot/Cold) Link Reset

Audio Function

(NID=01h)

Note: PD=Powered Down

LINK Response Normal Normal Normal PD PD

DACs Normal PD PD PD PD

ADCs Normal PD PD PD PD

All Headphone Drivers Normal Normal PD PD Normal

All Mixers Normal Normal PD PD Normal

All Reference Normal Normal PD PD Normal

Table 16. Powered Down Conditions

Condition Description

LINK Response powered down

DAC powered down Analog block and digital filter are powered down.

ADC powered down Analog block and digital filter are powered down. The data on SDATA-IN is quiet.

Headphone Driver powered down All headphone drivers are powered down.

Mixers powered down

Reference power down

Internal clock is stopped. SDATA-IN and S/PDIF-OUT are floated with pulled low 47K resistors internally. Detection of ‘Link Reset Entry’ and ‘Link Reset Exit’ sequences are supported. All states are maintained if DVDD is supplied.

All internal mixer widgets are powered down. The DC reference and VREFOUTx at individual pin complexes are still alive.

All internal references, DC reference, and VREFOUTx at individual pin complexes are off.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

23 Track ID: JATR-1076-21 Rev. 1.4

Page 32

ALC269

Datasheet

8. Supported Verbs and Parameters

This section describes the Verbs and Parameters supported by various widgets in the ALC269. If a verb is not supported by the addressed widget, it will respond with 32 bits of ‘0’.

8.1.

Verb – Get Parameters (Verb ID=F00h)

The ‘Get Parameters’ verb is used to get system information and the function capabilities of the HDA codec. All the parameters are read-only. Refer to section 7.4.1 Command Verb Format, page 22, to get detailed information about supported parameters.

Table 17. Verb – Get Parameters (Verb ID=F00h)

Get Parameter Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0] Response [31:0]

Cad=X Node ID=00h Verb ID=F00h Parameter ID[7:0] 32-bit Response

Note: If the parameter ID is not supported, the returned response is 32 bits of ‘0’.

8.1.1. Parameter – Vendor ID (Verb ID=F00h, Parameter ID=00h)

Table 18. Parameter – Vendor ID (Verb ID=F00h, Parameter ID=00h)

Codec Response Format

Bit Description

31:16 Vendor ID=10ECh (Realtek’s PCI vendor ID).

15:0 Device ID=0269h.

Note: The Root Node (NID=00h) supports this parameter.

8.1.2. Parameter – Revision ID (Verb ID=F00h, Parameter ID=02h)

Table 19. Parameter – Revision ID (Verb ID=F00h, Parameter ID=02h)

Codec Response Format

Bit Description

31:24 Reserved. Read as 0’s.

23:20 MajRev. The major version number (in decimal) of the HDA Spec to which the ALC269 is fully compliant.

19:16 MinRev. The minor version number (in decimal) of the HDA Spec to which the ALC269 is fully compliant.

15:8

7:0 Stepping ID. The vendor’s stepping number within the given Revision ID.

Note: The Root Node (NID=00h in the ALC269) supports this parameter. For example, Revision ID=00h and Stepping ID=01h indicates the silicon is the A1 version.

Revision ID. The vendor’s revision number. 00h is for the first silicon version A, 01h is for the second version B, etc.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

24 Track ID: JATR-1076-21 Rev. 1.4

Page 33

ALC269

Datasheet

8.1.3. Parameter – Subordinate Node Count

(Verb ID=F00h, Parameter ID=04h)

For the root node, the Subordinate Node Count provides information about audio function group nodes associated with the root node. For function group nodes, it provides the total number of widgets associated with this function node.

Table 20. Parameter – Subordinate Node Count (Verb ID=F00h, Parameter ID=04h)

Codec Response Format

Bit Description

31:24 Reserved. Read as 0’s.

23:16 Starting Node Number. The starting node number in the sequential widgets.

15:8 Reserved. Read as 0’s.

7:0

Total Number of Nodes. For a root node, the total number of function groups in the root node. For a function group, the total number of widget nodes in the function group.

8.1.4. Parameter – Function Group Type

(Verb ID=F00h, Parameter ID=05h)

Table 21. Parameter – Function Group Type (Verb ID=F00h, Parameter ID=05h)

Codec Response Format

Bit Description

31:9 Reserved. Read as 0’s.

7:0 Function Group Type.

Note: The Audio Function Group (NID=01h) supports this parameter.

UnSol Capable. 0: Unsolicited response is not supported by this function group 1: Unsolicited response is supported by this function group

00h: Reserved 01h: Audio Function 02h: Modem Function 03h~7Fh: Reserved 80h~FFh: Vendor Defined Function.

8.1.5. Parameter – Audio Function Capabilities

(Verb ID=F00h, Parameter ID=08h)

Table 22. Parameter – Audio Function Capabilities (Verb ID=F00h, Parameter ID=08h)

Codec Response Format

Bit Description

31:17 Reserved. Read as 0’s.

16 Beep Generator.

A ‘1’ indicates the presence of an integrated Beep generator within the Audio Function Group.

15:12 Reserved. Read as 0’s.

11:8 Input Delay.

7:4 Reserved. Read as 0’s. 3:0 Output Delay.

Note: The Audio Function Group (NID=01h) supports this parameter.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

25 Track ID: JATR-1076-21 Rev. 1.4

Page 34

8.1.6. Parameter – Audio Widget Capabilities

(Verb ID=F00h, Parameter ID=09h)

Table 23. Parameter – Audio Widget Capabilities (Verb ID=F00h, Parameter ID=09h)

Codec Response Format

Bit Description

31:24 Reserved. Read as 0’s.

23:20 Widget Type.

0h: Audio Output 1h: Audio Input 2h: Mixer 3h: Selector 4h: Pin Complex 5h: Power Widget 6h: Volume Knob Widget 7h~Eh: Reserved Fh: Vendor defined audio widget

19:16 Delay. Samples delayed between the HDA link and widgets.

15:11 Reserved. Read as 0’s.

10 Power Control.

0: Power state control is not supported on this widget 1: Power state is supported on this widget

9 Digital.

0: An analog input or output converter 1: A widget translating digital data between the HDA link and digital I/O (S/PDIF, I2S, etc.)

8 ConnList. Connection List.

0: Connected to HDA link. No Connection List Entry should be queried 1: Connection List Entry must be queried

7 UnsolCap. Unsolicited Capable.

0: Unsolicited response is not supported 1: Unsolicited response is supported

6 ProcWidget. Processing Widget.

0: No processing control 1: Processing control is supported

5 Reserved. Read as 0.

4 Format Override.

3 AmpParOvr. AMP Param Override.

2 OutAmpPre. Out AMP Present.

1 InAmpPre. In AMP Present.

0 Stereo.

0: Mono Widget 1: Stereo Widget

ALC269

Datasheet

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

26 Track ID: JATR-1076-21 Rev. 1.4

Page 35

ALC269

Datasheet

8.1.7. Parameter – Supported PCM Size, Rates

(Verb ID=F00h, Parameter ID=0Ah)

Parameter in audio function provides default information about formats. Individual converters have their own parameters to provide supported formats if their ‘Format Override’ bit is set.

Table 24. Parameter – Supported PCM Size, Rates (Verb ID=F00h, Parameter ID=0Ah)

Codec Response Format

Bit Description

31:21 Reserved. Read as 0’s.

20 B32. Indicates whether 32-Bit audio format is supported.

0: Not supported 1: Supported

19 B24. Indicates whether 24-Bit audio format is supported.

0: Not supported 1: Supported

18 B20. Indicates whether 20-Bit audio format is supported.

0: Not supported 1: Supported

17 B16. Indicates whether 16-Bit audio format is supported.

0: Not supported 1: Supported

16 B8. Indicates whether 8-Bit audio format is supported.

0: Not supported 1: Supported

15:12 Reserved. Read as 0’s.

11 R12. Indicates whether 384kHz (=8*48kHz) rate is supported.

0: Not supported 1: Supported

10 R11. Indicates whether 192kHz (=4*48kHz) rate is supported.

0: Not supported 1: Supported

9 R10. Indicates whether 176.4kHz (=4*44.1kHz) rate is supported.

0: Not supported 1: Supported

8 R9. Indicates whether 96kHz (=2*48kHz) rate is supported.

0: Not supported 1: Supported

7 R8. Indicates whether 88.2kHz (=2*44.1kHz) rate is supported.

0: Not supported 1: Supported

6 R7. Indicates whether 48kHz rate is supported.

0: Not supported 1: Supported

5 R6. Indicates whether 44.1kHz rate is supported.

0: Not supported 1: Supported

4 R5. Indicates whether 32kHz (=2/3*48kHz) rate is supported.

0: Not supported 1: Supported

3 R4. Indicates whether 22.05kHz (=1/2*44.1kHz) rate is supported.

0: Not supported 1: Supported

2 R3. Indicates whether 16kHz (=1/3*48kHz) rate is supported.

0: Not supported 1: Supported

1 R2. Indicates whether 11.025kHz (=1/4*44.1kHz) rate is supported.

0: Not supported 1: Supported

0 R1. Indicates whether 8kHz (=1/6*48kHz) rate is supported.

0: Not supported 1: Supported

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

27 Track ID: JATR-1076-21 Rev. 1.4

Page 36

ALC269

Datasheet

8.1.8. Parameter – Supported Stream Formats

(Verb ID=F00h, Parameter ID=0Bh)

Parameters in this node only provide default information for audio function groups. Individual converters have their own parameters to provide supported formats if the ‘Format Override’ bit is set.

Table 25. Parameter – Supported Stream Formats (Verb ID=F00h, Parameter ID=0Bh)

Codec Response Format

Bit Description

31:3 Reserved. Read as 0’s.

2 AC3.

0: Not supported 1: Supported

1 Float32.

0: Not supported 1: Supported

0 PCM.

0: Not supported 1: Supported

Note: Input converters and output converters support this parameter.

8.1.9. Parameter – Pin Capabilities

(Verb ID=F00h, Parameter ID=0Ch)

The Pin Capabilities parameter returns a bit field describing the capabilities of the Pin Complex widget.

Table 26. Parameter – Pin Capabilities (Verb ID=F00h, Parameter ID=0Ch)

Codec Response Format

Bit Description

31:16 Reserved. Read as 0’s.

15:8 VREF Control Capability.

‘1’ in corresponding bit field indicates signal levels of associated Vrefout are specified as a percentage of AV D D .

7:6 5 4 3 2 1 0

Reserved 100% 80% Reserved Ground 50% Hi-Z

7 L-R Swap. Indicates the capability of swapping the left and rights.

6 Balanced I/O Pin. ‘1’ indicates this pin complex has balanced pins.

5 Input Capable. ‘1’ indicates this pin complex supports input.

4 Output Capable. ‘1’ indicates this pin complex supports output.

3 Headphone Drive Capable. ‘1’ indicates this pin complex has an amplifier to drive a headphone.

2 Presence Detect Capable. ‘1’ indicates this pin complex can detect whether there is anything plugged in.

1 Trigger Required. ‘1’ indicates whether a software trigger is required for an impedance measurement.

Note: Only Pin Complex widgets support this parameter.

Impedance Sense Capable. ‘1’ indicates this pin complex can perform analog sense on the attached device to determine its type.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

28 Track ID: JATR-1076-21 Rev. 1.4

Page 37

ALC269

Datasheet

8.1.10. Parameter – Amplifier Capabilities

(Verb ID=F00h, Input Amplifier Parameter ID=0Dh)

Parameters in this node provide audio function group default information. Individual converters have their own parameters to provide amplifier capabilities if the ‘AMP Param Override’ bit is set.

Table 27. Parameter – Amplifier Capabilities (Verb ID=F00h, Input Amplifier Parameter ID=0Dh)

Codec Response Format

Bit Description

31 (Input) Mute Capable.

30:23 Reserved. Read as 0.

22:16 Step Size.

Indicates the size of each step in the gain range. Each step may be 0~32dB, specified in 0.25dB steps. ‘0’ indicates a step of 0.25dB. ‘127’ indicates a step of 32dB.

15 Reserved. Read as 0.

14:8 Number of Steps. Indicates the number of steps in the gain range. ‘0’ means the gain is fixed.

7 Reserved. Read as 0.

6:0 Offset. Indicates which step is 0dB.

8.1.11. Parameter – Amplifier Capabilities

(Verb ID=F00h, Output Amplifier Parameter ID=12h)

Parameters in this node provide audio function group default information. Individual converters have their own parameters to provide amplifier capabilities if the ‘AMP Param Override’ bit is set.

Table 28. Parameter – Amplifier Capabilities (Verb ID=F00h, Output Amplifier Parameter ID=12h)

Codec Response Format

Bit Description

31 (Output) Mute Capable.

30:23 Reserved. Read as 0.

22:16 Step Size.

Indicates the size of each step in the gain range. Each step may be 0~32dB, specified in 0.25dB steps. ‘0’ indicates a step of 0.25dB. ‘127’ indicates a step of 32dB.

15 Reserved. Read as 0.

14:8 Number of Steps. Indicates the number of steps in the gain range. ‘0’ means the gain is fixed.

7 Reserved. Read as 0.

6:0 Offset. Indicates which step is 0dB.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

29 Track ID: JATR-1076-21 Rev. 1.4

Page 38

8.1.12. Parameter – Connect List Length

(Verb ID=F00h, Parameter ID=0Eh)

Parameters in this node provide audio function widget connection information.

Table 29. Parameter – Connect List Length (Verb ID=F00h, Parameter ID=0Eh)

Codec Response Format

Bit Description

31:8 Reserved. Read as 0.

7 Short Form.

0: Short Form 1: Long Form

6:0 Connect List Length.

Indicates the number of inputs connected to a widget. If the Connect List Length is 1, there is only one input, and there is no Connection Select Control (Not a MUX widget).

8.1.13. Parameter – Supported Power States

(Verb ID=F00h, Parameter ID=0Fh)

ALC269

Datasheet

Table 30. Parameter – Supported Power States (Verb ID=F00h, Parameter ID=0Fh)

Codec Response Format

Bit Description

31:4 Reserved. Read as 0’s.

3 D3Sup.

1: Power state D3 is supported.

2 D2Sup.

1: Power state D2 is supported.

1 D1Sup.

1: Power state D1 is supported.

0 D0Sup

1: Power state D0 is supported.

8.1.14. Parameter – Processing Capabilities

(Verb ID=F00h, Parameter ID=10h)

Table 31. Parameter – Processing Capabilities (Verb ID=F00h, Parameter ID=10h)

Codec Response Format

Bit Description

31:16 Reserved. Read as 0’s.

15:8 NumCoeff. Number of Coefficient.

7:1 Reserved. Read as 0’s.

0 Benign.

0: Processing unit is not linear and time invariant 1: Processing unit is linear and time invariant

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

30 Track ID: JATR-1076-21 Rev. 1.4

Page 39

8.1.15. Parameter – GPIO Capabilities

(Verb ID=F00h, Parameter ID=11h)

Table 32. Parameter – GPIO Capabilities (Verb ID=F00h, Parameter ID=11h)

Codec Response Format

Bit Description

31 GPIWake=0.

The ALC269 does not support GPIO wake up function.

30 GPIUnsol=1.

The ALC269 supports GPIO unsolicited response.

29:24 Reserved. Read as 0’s.

23:16 NumGPIs=00h.

No GPI pin is supported.

15:8 NumGPOs=00h.

No GPO pin is supported.

7:0 NumGPIOs=02h.

Two GPIO pins are supported.

ALC269

Datasheet

8.1.16. Parameter – Volume Knob Capabilities

(Verb ID=F00h, Parameter ID=13h)

Table 33. Parameter – Volume Knob Capabilities (Verb ID=F00h, Parameter ID=13h)

Codec Response Format

Bit Description

31:8 Reserved. Read as 0’s.

7 Delta.

0: Software cannot modify the Volume Control Knob volume 1: Software can write a base volume to the Volume Control Knob

6:0 NumSteps.

The number of steps in the range of the Volume Control Knob.

Note: The ALC269 does not support volume control knob.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

31 Track ID: JATR-1076-21 Rev. 1.4

Page 40

8.2.

Verb – Get Connection Select Control (Verb ID=F01h)

Table 34. Verb – Get Connection Select Control (Verb ID=F01h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0] Response [31:0]

Cad=X Node ID=Xh Verb ID=F01h 0’s Bit[7:0] are Connection Index

Codec Response for Multiplexer Widget NID=14h~15h, 18h~1Bh

Bit Description

31:8 0’s.

7:0 Connection Index currently Set (Default value is 00h).

00h: Pin Widget NID=0Ch 01h: Pin Widget NID=0Dh Other: Reserved

Codec Response for Multiplexer Widget NID=23h

Bit Description

31:8 0’s.

7:0 Connection Index Currently Set (Default value is 00h).

00h: Pin Widget NID=18h 01h: Pin Widget NID=19h 02h: Pin Widget NID=1Ah 03h: Pin Widget NID=1Bh 04h: Pin Widget NID=1Dh 05h: Pin Widget NID=12h 06h: Mixer Widget NID=0Bh Other: Reserved

ALC269

Datasheet

Codec Response for other NID

Bit Description

31:0 Not Supported (returns 00000000h).

8.3.

Verb – Set Connection Select (Verb ID=701h)

Table 35. Verb – Set Connection Select (Verb ID=701h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0] Response [31:0]

Cad=X Node ID=Xh Verb ID=701h Select Index [7:0] 0’s for all nodes

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

32 Track ID: JATR-1076-21 Rev. 1.4

Page 41

8.4.

Verb – Get Connection List Entry (Verb ID=F02h)

Table 36. Verb – Get Connection List Entry (Verb ID=F02h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F02h Offset Index – N[7:0] 32-bit Response

Response [31:0]

Codec Response for NID=07h ADC

Bit Description

31:8

7:0

Connection List Entry (N+3), (N+2), (N+1). Returns 000000h.

Connection List Entry (N). Returns 24h (Sum Widget) for N=0~3. Returns 00h for N>3.

Codec Response for NID=08h ADC

Bit Description

31:8

7:0

Connection List Entry (N+3), (N+2), (N+1). Returns 000000h.

Connection List Entry (N). Returns 23h (Sum Widget) for N=0~3. Returns 00h for N>3.

Codec Response for NID=0Ch

Bit Description

31:16

15:8

7:0

Connection List Entry (N+3), (N+2). Returns 0000h.

Connection List Entry (N+1). Returns 0Bh (Mixer) for N=0~3. Returns 00h for N>3.

Connection List Entry (N). Returns 02h (LOUT1 DAC) for N=0~3. Returns 00h for N>3.

Codec Response for NID=0Dh

Bit Description

31:16

15:8

7:0

Connection List Entry (N+3), (N+2). Returns 0000h.

Connection List Entry (N+1). Returns 0Bh (Mixer) for N=0~3. Returns 00h for N>3.

Connection List Entry (N). Returns 03h (LOUT2 DAC) for N=0~3. Returns 00h for N>3.

Codec Response for NID=0Eh

Bit Description

31:16

15:8

7:0

Connection List Entry (N+3), (N+2). Returns 0000h.

Connection List Entry (N+1). Returns 0Dh (Mixer) for N=0~3. Returns 00h for N>3.

Connection List Entry (N). Returns 0Ch (Mixer) for N=0~3. Returns 00h for N>3.

ALC269

Datasheet

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

33 Track ID: JATR-1076-21 Rev. 1.4

Page 42

Codec Response for NID=14h~15h, 18h~1Bh

Bit Description

31:16

15:8

7:0

Connection List Entry (N+3), (N+2). Returns 0000h.

Connection List Entry (N+1). Returns 0Dh (Mixer) for N=0~3. Returns 00h for N>3.

Connection List Entry (N). Returns 0Ch (Mixer) for N=0~3. Returns 00h for N>3.

Codec Response for NID=16h

Bit Description

31:8

7:0

Connection List Entry (N+3), (N+2), (N+1). Returns 000000h.

Connection List Entry (N). Returns 0Eh (Mixer) for N=0~3. Returns 00h for N>3.

Codec Response for NID=1Eh)

Bit Description

31:8

7:0

Connection List Entry (N+3, (N+2), (N+1). Returns 000000h.

Connection List Entry (N). Return 06h (First S/PDIF-OUT converter) for N=0~3. Returns 00h for N>3.

ALC269

Datasheet

Codec Response for NID=11h)

Bit Description

31:8

7:0

Connection List Entry (N+3, (N+2), (N+1). Returns 000000h.

Connection List Entry (N). Return 10h (Secondary S/PDIF-OUT converter) for N=0~3. Returns 00h for N>3.

Codec Response for NID=23h (MUX Widget)

Bit Description

31:24

23:16

15:8

7:0

Connection List Entry (N+3). Return 1Bh (Pin Complex - LINE2) for N=0~3. Return 00h for N>3.

Connection List Entry (N+2). Return 1Ah (Pin Complex - LINE1) for N=0~3. Return 0Bh (Mixer Widget) for N=4~7. Return 00h for N>7.

Connection List Entry (N+1). Return 19h (Pin Complex - MIC2) for N=0~3. Return 12h (Pin Complex – DMIC-DATA) for N=4~7. Return 00h for N>7.

Connection List Entry (N). Return 18h (Pin Complex - MIC1) for N=0~3. Return 1Dh (Pin Complex - PCBEEP) for N=4~7. Return 00h for N>7.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

34 Track ID: JATR-1076-21 Rev. 1.4

Page 43

Codec Response for NID=24h (Mixer Widget)

Bit Description

31:24

23:16

15:8

7:0

Connection List Entry (N+3). Return 1Bh (Pin Complex - LINE2) for N=0~3. Return 00h for N>3.

Connection List Entry (N+2). Return 1Ah (Pin Complex - LINE1) for N=0~3. Return 00h for N>3.

Connection List Entry (N+1). Return 19h (Pin Complex - MIC2) for N=0~3. Return 0Bh (Mixer Widget) for N=4~7. Return 00h for N>3.

Connection List Entry (N). Return 18h (Pin Complex - MIC1) for N=0~3. Return 1Dh (Pin Complex - PCBEEP) for N=4~7. Return 00h for N>7.

Codec Response for Other NID

Bit Description

31:0 Not Supported (returns 00000000h).

ALC269

Datasheet

8.5.

Verb – Get Processing State (Verb ID=F03h)

Table 37. Verb – Get Processing State (Verb ID=F03h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F03h 0’s 32-bit response

Response [31:0]

Codec Response for All NID

Bit Description

31:0 Not Supported (returns 00000000h).

8.6.

Verb – Set Processing State (Verb ID=703h)

Table 38. Verb – Set Processing State (Verb ID=703h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=703h Processing State [7:0] 0’s for all nodes

Response [31:0]

Codec Response for All NID

Bit Description

31:0 0’s.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

35 Track ID: JATR-1076-21 Rev. 1.4

Page 44

8.7.

Verb – Get Coefficient Index (Verb ID=Dh)

Table 39. Verb – Get Coefficient Index (Verb ID=Dh)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:16] Payload Bit [15:0]

Cad=X Node ID=Xh Verb ID=Dh 0’s Bit [15:0] are Coefficient Index

Response [31:0]

Codec Response for NID=20h (Realtek Vendor Registers)

Bit Description

31:16 Reserved. Read as 0’s.

15:0 Coefficient Index.

Codec Response for Other NID

Bit Description

31:0 Not Supported (returns 00000000h).

ALC269

Datasheet

8.8.

Verb – Set Coefficient Index (Verb ID=5h)

Table 40. Verb – Set Coefficient Index (Verb ID=5h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:16] Payload Bit [15:0]

Cad=X Node ID=Xh Verb ID=5h Coefficient Index [15:0] 0’s for all nodes

Response [31:0]

Codec Response for All NID

Bit Description

31:0 0’s.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

36 Track ID: JATR-1076-21 Rev. 1.4

Page 45

8.9.

Verb – Get Processing Coefficient (Verb ID=Ch)

Table 41. Verb – Get Processing Coefficient (Verb ID=Ch)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:16] Payload Bit [15:0]

Cad=X Node ID=Xh Verb ID=Ch 0’s Processing Coefficient [15:0]

Response [31:0]

Codec Response for NID=20h (Realtek Vendor Registers)

Bit Description

31:16 Reserved. Read as 0’s.

15:0 Processing Coefficient.

Codec Response for Other NID

Bit Description

31:0 Not Supported (returns 00000000h).

ALC269

Datasheet

8.10. Verb – Set Processing Coefficient (Verb ID=4h)

Table 42. Verb – Set Processing Coefficient (Verb ID=4h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:16] Payload Bit [15:0]

Cad=X Node ID=Xh Verb ID=4h Coefficient [15:0] 0’s for all nodes

Codec Response for All NID

Bit Description

31:0 0’s

Response [31:0]

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

37 Track ID: JATR-1076-21 Rev. 1.4

Page 46

8.11. Verb – Get Amplifier Gain (Verb ID=Bh)

This verb is used to get gain/attenuation settings from each widget.

Table 43. Verb – Get Amplifier Gain (Verb ID=Bh)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:16] Payload Bit [15:0]

Cad=X Node ID=Xh Verb ID=Bh ‘Get’ payload [15:0] Bit[7:0] are responsible for ‘Get’

‘Get’ Payload in Command Bit[15:0]

Bit Description

15 Get Input/Output.

0: Input amplifier gain is requested 1: Output amplifier gain is requested

14 Reserved. Read as 0.

13 Get Left/Right.

0: Right amplifier gain is requested 1: Left amplifier gain is requested

12:4 Reserved. Read as 0’s.

3:0 Index[3:0] for Input Source.

Select amplifier for this converter. If a widget has no multiple input sources, the index will be ignored.

Response [31:0]

ALC269

Datasheet

Codec Response for NID=02h (LOUT1 DAC) and 03h (LOUT2 DAC)

Bit Description

31:8 0’s.

7 Payload[15] is 0 in ‘Get Amplifier Gain’: Read as 0 (No Input Amplifier Mute).

Payload[15] is 1 in ‘Get Amplifier Gain’: Read as 0 (No Output Amplifier Mute).

6:0 Payload[15] is 0 in ‘Get Amplifier Gain’: Read as 0’s (No Input Amplifier Gain).

Payload[15] is 1 in ‘Get Amplifier Gain’: 6-bit control specifying the volume from–63dB~ +1dB in 1dB step.

Node Gain[6:0] (Default) Gain Range

LOUT1 DAC(NID=02h) 1000000b=3Fh (0dB) –63dB~+1dB in 1dB step

LOUT2 DAC (NID=03h) 1000000b=3Fh (0dB) –63dB~+1dB in 1dB step

Codec Response for NID=0Ch, 0Dh and 0Eh (Mixer)

Bit Description

31:8 0’s.

7 Payload[15] is 0 in ‘Get Amplifier Gain’: 1: Mute, 0:Unmute (Input Amplifier Mute).

Payload[15] is 1 in ‘Get Amplifier Gain’: Read as 0 (No Output Amplifier Mute).

6:0 Payload[15] is 0 in ‘Get Amplifier Gain’: Read as 0’s (No Input Amplifier Gain).

Payload[15] is 1 in ‘Get Amplifier Gain’: Read as 0’s (No Output Amplifier Gain).

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

38 Track ID: JATR-1076-21 Rev. 1.4

Page 47

Codec Response for NID=18h, 19h, 1Ah and 1Bh (Pin widget: MIC1, MIC2, LINE1 and LINE2)

Bit Description

31:8 0’s.

6:0

Payload[15] is 0 in ‘Get Amplifier Gain’: Read as 0’s (No Input Amplifier Mute). Payload[15] is 1 in ‘Get Amplifier Gain’: 1: Mute, 0:Unmute (Output Amplifier Mute, default=1).

Payload[15] is 0 in ‘Get Amplifier Gain’: Input Amplifier Gain [6:0]. The volume 0dB/10dB/20dB/30dB in 10dB per step (default=0, 0dB). Payload[15] is 1 in ‘Get Amplifier Gain’: Read as 0 (No Output Amplifier Gain).

Codec Response for NID=14h, 15h and 16h (Pin widget: SPK-OUT, HP-OUT and MONO-OUT)

Bit Description

31:8 0’s.

6:0

Payload[15] is 0 in ‘Get Amplifier Gain’: Read as 0’s (No Input Amplifier Mute). Payload[15] is 1 in ‘Get Amplifier Gain’: 1: Mute, 0:Unmute (Output Amplifier Mute, default=1).

Payload[15] is 0 in ‘Get Amplifier Gain’: Read as 0’s (No Input Amplifier Gain). Payload[15] is 1 in ‘Get Amplifier Gain’: Read as 0 (No Output Amplifier Gain).

ALC269

Datasheet

Codec Response for NID=0Bh (Mixer)

Bit Description

31:8 0’s.

6:0

Payload[15] is 0 in ‘Get Amplifier Gain’: Input Amplifier Mute. 0: Unmute, 1: Mute (Default for all) Payload[15] is 1 in ‘Get Amplifier Gain’: Read as 0 (No Output Amplifier Mute).

Payload[15] is 0 in ‘Get Amplifier Gain’: Input Amplifier Gain [6:0]. Specifying the volume from -34.5dB~+12dB in 1.5dB step (Default: 17h, 0dB). Payload[15] is 1 in ‘Get Amplifier Gain’: Read as 0 (No Output Amplifier Gain).

Mute [7] 0/1 0/1 0/1 0/1 0/1 0

Gain [6:0] 0s 0s 0s 0s 0s 0

Default[7:0] 10010111 10010111 10010111 10010111 10010111 00000000

Index=0

(MIC1)

Index=1

(MIC2)

Index=2

(LINE1)

Index=3 (LINE2)

Index=4

(PCBEEP)

Index>5

(Other)

Codec Response for NID=07h, 08h (ADCs)

Bit Description

31:8 0’s.

6:0

Payload[15] is 0 in ‘Get Amplifier Gain’: Input Amplifier Mute. 0: Unmute, 1: Mute (Default) Payload[15] is 1 in ‘Get Amplifier Gain’: Read as 0 (No Output Amplifier Gain).

Payload[15] is 0 in ‘Get Amplifier Gain’: Input Amplifier Gain [6:0]. Specifying the volume from –17dB~ 29dB in 1.0dB step.

Node Gain[6:0] Default Gain Range

MIC ADC(NID=07h) 0010001b=11h (0dB) –17dB~29dB in 1.0dB step

LINE ADC( NID=08h) 0010001b=11h (0dB) –17dB~29dB in 1.0dB step

Payload[15] is 1 in ‘Get Amplifier Gain’: Read as 0 (No Output Amplifier Gain).

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

39 Track ID: JATR-1076-21 Rev. 1.4

Page 48

Codec Response for NID=24h (Mixer)

Bit Description

31:8 0’s.

6:0

Payload[15] is 0 in ‘Get Amplifier Gain’: Input Amplifier Mute. 0: Unmute, 1: Mute (Default for all) Payload[15] is 1 in ‘Get Amplifier Gain’: Read as 0 (No Output Amplifier Mute).

Payload[15] is 0 in ‘Get Amplifier Gain’: Read as 0 (No Input Amplifier Gain). Payload[15] is 1 in ‘Get Amplifier Gain’: Read as 0 (No Output Amplifier Gain).

ALC269

Datasheet

Mute [7] 0/1 0/1 0/1 0/1 0/1 0/1 0

Gain [6:0] 0s 0s 0s 0s 0s 0s 0

Default[7:0] 10000000 10000000 10000000 10000000 10000000 10000000 00000000

Index=0

(MIC1)

Index=1

(MIC2)

Index=2 (LINE1)

Index=3 (LINE2)

Index=4

(PCBEEP)

Index=5 (Mixer )

Index>5

(Other)

Codec Response to Other NID

Bit Description

31:0 Not Supported (returns 00000000h).

8.12. Verb – Set Amplifier Gain (Verb ID=3h)

This verb is used to set amplifier gain/attenuation in each widget.

Table 44. Verb – Set Amplifier Gain (Verb ID=3h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=3h ‘Set’ payload [7:0] 0’s for all nodes

Response [31:0]

‘Set’ Payload in Command Bit[15:0]

Bit Description

15 Set Output Amp. 1 indicates output amplifier gain will be set.

14 Set Input Amp. 1 indicates input amplifier gain will be set.

13 Set Left Amp. 1 indicates left amplifier gain will be set.

12 Set Right Amp. 1 indicates right amplifier gain will be set.

11:8 Index Offset (for input amplifiers on Sum widgets and Selector Widgets).

5 bits index offset in connection list is used to select which input gain will be set on a mixer or a multiplexer widget. The index is ignored if the node is not a mixer or a multiplexer widget, or the ‘Set Input Amp’ bit is not set.

7 Mute.

0: Unmute 1: Mute (-∞gain)

6:0 Gain[6:0]. A 7-bit step value specifying the amplifier gain.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

40 Track ID: JATR-1076-21 Rev. 1.4

Page 49

8.13. Verb – Get Converter Format (Verb ID=Ah)

Table 45. Verb – Get Converter Format (Verb ID=Ah)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:16] Payload Bit [15:0]

Cad=X Node ID=Xh Verb ID=Ah 0’s Bit[15:0] are converter format

Codec Response for NID=02h, 03h, 06h, 10h (Output Converters: LOUT1 DAC, LOUT2 DAC, S/PDIF-OUT, S/PDIF-OUT2). Codec Response for NID=07h, 08h (Input Converters: MIC ADC, LINE ADC)

Bit Description

31:16 Reserved. Read as 0.

15 Stream Type (TYPE).

0: PCM 1: Non-PCM

14 Sample Base Rate (BASE).

0: 48kHz 1: 44.1kHz

13:11 Sample Base Rate Multiple (MULT).

000b: *1 001b: *2 010b: *3 011b: *4 100b~111b: Reserved.

10:8 Sample Base Rate Divisor (DIV).

000b: /1 001b: /2 010b: /3 011b: /4 100b: /5 101b: /6 110b: /7 111b: /8 The ALC269 does not support Divisor. Always read as 000b.

7 Reserved. Read as 0.

6:4 Bits per Sample (BITS).

000b: 8 bits 001b: 16 bits 010b: 20 bits 011b: 24 bits 100b: 32 bits 101b~111b: Reserved

3:0 Number of Channels.

0: 1 channel 1: 2 channels 2: 3 channels ......... 15: 16 channels

Response [31:0]

ALC269

Datasheet

BASE MULT DIV BITS Sample Rate

0 000b, 001b, 011b 000b 001b, 010b, 011b 48K, 96K,192K NID=02h (LOUT1 DAC) 1 000b 000b 001b, 010b, 011b 44.1K 0 000b, 001b, 011b 000b 001b, 010b, 011b 48K, 96K,192K NID=03h (LOUT2 DAC) 1 000b 000b 001b, 010b, 011b 44.1K

NID=06h (S/PDIF-OUT)

NID=10h (S/PDIF-OUT2)

0 000b, 001b, 011b 000b 001b, 010b, 011b, 100b 48K, 96K, 192K 1 000b, 001b 000b 001b, 010b, 011b, 100b 44.1K, 88.2K 0 001b 010b 001,010b, 011b 32K 0 000b, 001b, 011b 000b 001b, 010b, 011b, 100b 48K, 96K, 192K 1 000b, 001b 000b 001b, 010b, 011b, 100b 44.1K, 88.2K 0 001b 010b 001,010b, 011b 32K 0 000b, 001b 000b 001b, 010b, 011b 48K, 96K NID=07h (MIC ADC) 1 000b 000b 001b, 010b, 011b 44.1K 0 000b, 001b 000b 001b, 010b, 011b 48K, 96K NID=08h (LINE ADC) 1 000b 000b 001b, 010b, 011b 44.1K

Codec Response for other NID

Bit Description

31:0 Not Supported (returns 00000000h).

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

41 Track ID: JATR-1076-21 Rev. 1.4

Page 50

8.14. Verb – Set Converter Format (Verb ID=2h)

Table 46. Verb – Set Converter Format (Verb ID=2h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:16] Payload Bit [15:0]

Cad=X Node ID=Xh Verb ID=2h Set format [15:0] 0’s for all nodes

‘Set’ Payload in Command Bit[15:0]

Bit Description

31:16 Reserved. Read as 0.

15 Stream Type (TYPE).

0: PCM 1: Non-PCM

14 Sample Base Rate (BASE).

0: 48kHz 1: 44.1kHz

13:11 Sample Base Rate Multiple (MULT).

000b: *1 001b: *2 010b: *3 011b: *4 100b~111b: Reserved.

10:8 Sample Base Rate Divisor (DIV).

000b: /1 001b: /2 010b: /3 011b: /4 100b: /5 101b: /6 110b: /7 111b: /8

7 Reserved. Read as 0.

6:4 Bits per Sample (BITS).

000b: 8 bits 001b: 16 bits 010b: 20 bits 011b: 24 bits 100b: 32 bits 101b~111b: Reserved

3:0 Number of Channels.

0: 1 channel 1: 2 channels 2: 3 channels

.........

15: 16 channels

Response [31:0]

ALC269

Datasheet

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

42 Track ID: JATR-1076-21 Rev. 1.4

Page 51

8.15. Verb – Get Power State (Verb ID=F05h)

Table 47. Verb – Get Power State (Verb ID=F05h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F05h 0’s Power State [7:0]

Codec Response for NID=01h (Audio Function Group)

Bit Description

31:6 Reserved. Read as 0’s.

5:4 PS-Act. Actual Power State [1:0].

00: Power state is D0 01: Power state is D1 10: Power state is D2 11: Power state is D3 PS-Act indicates the actual power state of the referenced node. For Audio Function Group nodes

(NID=01h), PS-Act is always equal to PS-Set.

3:2 Reserved. Read as 0’s.

1:0 PS-Set, Set Power State [1:0].

00: Power state is D0 01: Power state is D1 10: Power state is D2 11: Power state is D3 PS-Set controls the current power setting of the referenced node.

Note: Specific blocks will be powered down in each power state. Refer to section 7.5 Power Management, page 23.

Response [31:0]

ALC269

Datasheet

Codec Response for other NID

Bit Description

31:0 Not Supported (returns 00000000h).

8.16. Verb – Set Power State (Verb ID=705h)

Table 48. Verb – Set Power State (Verb ID=705h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=705h Power State [7:0] 0’s for all nodes

‘Power State’ in Command Bit[7:0]

Bit Description

7:6 Reserved. Read as 0’s.

5:4 PS-Act. Actual Power State [1:0].

00: Power state is D0 01: Power state is D1 10: Power state is D2 11: Power state is D3 PS-Act indicates the actual power state of the referenced node.

3:2 Reserved. Read as 0’s.

1:0 PS-Set. Set Power State [1:0].

00: Power state is D0 01: Power state is D1 10: Power state is D2 11: Power state is D3

Response [31:0]

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

43 Track ID: JATR-1076-21 Rev. 1.4

Page 52

ALC269

Datasheet

8.17. Verb – Get Converter Stream, Channel (Verb ID=F06h)

Table 49. Verb – Get Converter Stream, Channel (Verb ID=F06h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F06h 0’s Stream & Channel [7:0]

Codec Response for NID=02h, 03h, 06h, 10h (Output Converters: LOUT1 DAC, LOUT2 DAC, S/PDIF-OUT, and S/PDIF-OUT2).

Codec Response for NID=07h, 08h (Input Converters: MIC ADC, LINE ADC)

Bit Description

31:8 Reserved. Read as 0’s.

7:4 Stream[3:0].

The link stream used by the converter. 0000b is stream 0, 0001b is stream 1, etc.

3:0 Channel[3:0].

The lowest channel used by the converter. A stereo converter will use the set channel n as well as n+1 for its left and right channel.

Response [31:0]

Codec Response for other NID

Bit Description

31:0 Not Supported (returns 00000000h).

8.18. Verb – Set Converter Stream, Channel (Verb ID=706h)

Table 50. Verb – Set Converter Stream, Channel (Verb ID=706h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=706h Stream & Channel [7:0] 0’s for all nodes

‘Stream and Channel’ in Command Bit[7:0]

Bit Description

31:8 Reserved. Read as 0’s.

7:4 Set Stream[3:0].

The link stream used by the converter. 0000b is stream 0, 0001b is stream 1, etc.

1:0 Set Channel[3:0].

The lowest channel used by the converter. A stereo converter will use the set channel n as well as n+1 for its left and right channel.

Note: This verb assigns stream and channel for output converters (NID=02h, 03h, 06h, 10h) and input converters (NID=07h, 08h). Other widgets will ignore this verb.

Response [31:0]

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

44 Track ID: JATR-1076-21 Rev. 1.4

Page 53

Datasheet

8.19. Verb – Get Pin Widget Control (Verb ID=F07h)

Table 51. Verb – Get Pin Widget Control (Verb ID=F07h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F07h 0’s Pin Control [7:0]

Codec Response for pin widget NID=12h, 14h, 15h, 16h, 18h~1Bh, 1Dh, 1Eh and 11h. (Pin Complex: DMIC-DATA, SPK-OUT, HP-OUT, MONO-OUT, MIC1, MIC2, LINE1, LINE2, PCBEEP, S/PDIF_OUT, and S/PDIF-OUT2).

Bit Description

31:1 Reserved. Read as 0’s.

7 H-Phn Enable (Headphone Amplifier Enable, EN_AMP for an I/O unit).

0: Disabled 1: Enabled.

6 Out Enable (Output Buffet Enable, EN_OBUF for an I/O unit).

0: Disabled 1: Enabled.

5 In Enable (Input Buffer Enable, EN_IBUF for an I/O unit).

0: Disabled 1: Enabled. 4:3 Reserved. 2:0 VrefEn (Vrefout Enable Control).

000b: Hi-Z (Disabled) 001b: 50% of AVDD

010b: Ground 0V 011b: Reserved

100b: 80% of AVDD 101b: 100% of AVDD 110b~111b: Reserved

Codec Response for other NID

Bit Description

31:0 Not Supported (returns 00000000h).

Response [31:0]

ALC269

8.20. Verb – Set Pin Widget Control (Verb ID=707h)

Table 52. Verb – Set Pin Widget Control (Verb ID=707h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=707h Pin Control [7:0] 0’s for all nodes

‘Pin Control’ in command [7:0]: pin widget NID=12h, 14h, 15h, 16h, 18h~1Bh, 1Dh, 1Eh and 11h. (Pin Complex: DMIC-DATA, SPK-OUT, HP-OUT, MONO-OUT, MIC1, MIC2, LINE1, LINE2, PCBEEP, S/PDIF_OUT, and S/PDIF-OUT2).

Bit Description

31:1 Reserved. Read as 0’s.

7 H-Phn Enable.

0: Disabled 1: Enabled

6 Out Enable.

0: Disabled 1: Enabled

5 In Enable (Input Buffer Enable, EN_IBUF for an I/O unit).

0: Disabled 1: Enabled

4: Reserved.

2:0 VrefEn (Vrefout Enable Control).

000b: Hi-Z (Disabled) 001b: 50% of AVDD

010b: Ground 0V 011b: Reserved

100b: 80% of AVDD) 101b: 100% of AVDD 110b~111b: Reserved

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

45 Track ID: JATR-1076-21 Rev. 1.4

Response [31:0]

Page 54

ALC269

Datasheet

8.21. Verb – Get Unsolicited Response Control (Verb ID=F08h)

Determines whether a widget is enabled to send an unsolicited response. An HDA codec can use an unsolicited response to inform software of a real time event.

Table 53. Verb – Get Unsolicited Response Control (Verb ID=F08h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F08h 0’s 32-bit Response

Codec Response for NID=01h (GPIO in Audio Function Group), 14h~16h (port jack detect), 18h~1Bh (port jack detect)

Bit Description

31:8 Reserved. Read as 0’s.

6:4 Reserved. Read as 0’s.

3:0

Unsolicited Response is Enabled.

0: Disabled 1: Enabled

Assigned Tag for Unsolicited Response.

The tag[3:0] is assigned by software to determine which widget generates unsolicited responses.

Response [31:0]

Codec Response for other NID

Bit Description

31:0 Not Supported (returns 00000000h).

8.22. Verb – Set Unsolicited Response Control (Verb ID=708h)

Enable a widget to generate an unsolicited response.

Table 54. Verb – Set Unsolicited Response Control (Verb ID=708h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=708h EnableUnsol [7:0] 0’s for all nodes

‘EnableUnsol’ in Command Bit[7:0] For NID=01h (GPIO in Audio Function Group), 15h, 18h~1Bh (port jack detect)

Bit Description

31:8 Reserved. Read as 0’s.

6:4 Reserved. Read as 0’s.

3:0

Enable Unsolicited Response.

0: Disable 1: Enable

Tag for Unsolicited Response.

Tag[3:0] is defined by software to assign a 4-bit tag for nodes that are enabled to generate unsolicited

responses.

Response [31:0]

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

46 Track ID: JATR-1076-21 Rev. 1.4

Page 55

8.23. Verb – Get Pin Sense (Verb ID=F09h)

Returns the Presence Detect status and the impedance of a device attached to the pin.

Table 55. Verb – Get Pin Sense (Verb ID=F09h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F09h 0’s 32-bit Response

Codec Response: Pin widget 15h (HP-OUT), 18h (MIC1), 19h (MIC2), 1Ah (LINE1), 1Bh (LINE2)

Bit Description

31 Presence Detect Status.

0: No device is attached to the pin

1: Device is attached to the pin

30:0 Measured Impedance.

Note: The ALC269 does not support impedance sensing. Read as 0’s.

Response [31:0]

ALC269

Datasheet

Codec Response for other NID

Bit Description

31:0 Not Supported (returns 00000000h).

8.24. Verb – Execute Pin Sense (Verb ID=709h)

Table 56. Verb – Execute Pin Sense (Verb ID=709h)

Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=709h Right Channel[0] 0’s for all nodes

‘Payload’ in Command Bit[7:0]

Bit Description

7:1 Reserved. Read as 0’s.

0 Right (Ring) Channel Select.

0: Sense Left channel (Tip)

1: Sense Right channel (Ring)

Note: The ALC269 does not support ‘Execute Pin Sense’ and will ignore this verb and respond with 0’s.

Response [31:0]

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

47 Track ID: JATR-1076-21 Rev. 1.4

Page 56

ALC269

Datasheet

8.25. Verb – Get Configuration Default (Verb ID=F1Ch)

Read the 32-bit sticky register for each Pin Widget configured by software.

Table 57. Verb – Get Configuration Default (Verb ID=F1Ch)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F1Ch 0’s 32-bit Response

Codec Response for Pin Widget: NID=12h (Digital MIC), 14h (SPK-OUT), 15h (HP-OUT), 16h (MONO-OUT), 18h (MIC1), 19h (MIC2), 1Ah (LINE1), 1Bh (LINE2), 1Dh (PCBEEP), 1Eh (S/PDIF-OUT), 11h (S/PDIF-OUT2)

Bit Description

31:0 32-bit configuration information for each pin widget.

Note: The 32-bit registers for each Pin Widget are sticky and will not be reset by a LINK Reset or Codec Reset (Function Reset Verb).

Response [31:0]

8.26. Verb – Set Configuration Default Bytes 0, 1, 2, 3 (Verb ID=71Ch/71Dh/71Eh/71Fh for Bytes 0, 1, 2, 3)

The BIOS can use this verb to figure out the default conditions for the Pin Widgets 14h~1Bh and 1Eh~1Fh such as placement and expected default device.

Table 58. Verb – Set Configuration Default Bytes 0, 1, 2, 3

(Verb ID=71Ch/71Dh/71Eh/71Fh for Bytes 0, 1, 2, 3)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh

Note: Supported by Pin Widget NID=12h (Digital MIC), 14h (SPK-OUT), 15h (HP-OUT), 16h (MONO-OUT), 18h (MIC1), 19h (MIC2), 1Ah (LINE1), 1Bh (LINE2), 1Dh (PCBEEP), 1Eh (S/PDIF-OUT), 11h (S/PDIF-OUT2)

Verb ID=71Ch,

71Dh, 71Eh, 71Fh

Label [7:0] 0’s for all nodes

Codec Response for All NID

Bit Description

31:0 0’s.

Response [31:0]

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

48 Track ID: JATR-1076-21 Rev. 1.4

Page 57

8.27. Verb – Get BEEP Generator (Verb ID=F0Ah)

Table 59. Verb – Get BEEP Generator (Verb ID=F0Ah)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F0Ah 0’s Divider [7:0]

‘Response’ for NID=01h (Audio Function Group)

Bit Description

31:8 Reserved.

7:0 Frequency Divider, F[7:0].

The internal BEEP frequency is the result of dividing the 48kHz clock by 4 times the number specified in F[7:0].

The lowest tone is 48kHz/(255*4)=47Hz. The highest tone is 48kHz/(1*4)=12kHz. A value of 00h in F[7:0] disables the internal BEEP generator and allows external PCBEEP input.

Codec Response for Other NID

Bit Description

31:0 0’s.

Response [31:0]

ALC269

Datasheet

8.28. Verb – Set BEEP Generator (Verb ID=70Ah)

Table 60. Verb – Set BEEP Generator (Verb ID=70Ah)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=70Ah Divider [7:0] 0’s for all nodes

‘Divider’ in Set Command

Bit Description

31:8 Reserved.

7:0 Frequency Divider, F[7:0].

The internal BEEP frequency is the result of dividing the 48kHz clock by 4 times the number specified in F[7:0].

The lowest tone is 48kHz/(255*4)=47Hz. The highest tone is 48kHz/(1*4)=12kHz. A value of 00h in F[7:0] disables the internal BEEP generator and allows external PCBEEP input.

Note: All nodes except Audio Function Group (NID=01h) will ignore this verb.

Codec Response for All NID

Bit Description

31:0 0’s.

Response [31:0]

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

49 Track ID: JATR-1076-21 Rev. 1.4

Page 58

8.29. Verb – Get GPIO Data (Verb ID=F15h)

Table 61. Verb – Get GPIO Data (Verb ID=F15h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=01h Verb ID=F15h 0’s 32-bit Response

Codec Response for NID=01h (Audio Function Group)

Bit Description

31:8 Reserved.

7:2 GPIO[7:2] Data. Not supported in the ALC269.

1:0 GPIO[1:0] Data.

The value written (output) or sensed (input) on the corresponding pin if it is enabled.

Codec Response for Other NID

Bit Description

31:0 0’s.

Response [31:0]

ALC269

Datasheet

8.30. Verb – Set GPIO Data (Verb ID=715h)

Table 62. Verb – Set GPIO Data (Verb ID=715h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=01h Verb ID=715h Data [7:0] 0’s for all nodes

‘Data’ in Set command for NID=01h (Audio Function Group)

Bit Description

31:8 Reserved.

7:2 GPIO[7:2] Output Data. Not supported in the ALC269.

1:0 GPIO[1:0] Output Data.

The value written determines the value driven on a pin that is configured as an output pin.

Codec Response for All NID

Bit Description

31:0 0’s.

Response [31:0]

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

50 Track ID: JATR-1076-21 Rev. 1.4

Page 59

8.31. Verb – Get GPIO Enable Mask (Verb ID=F16h)

Table 63. Verb – Get GPIO Enable Mask (Verb ID=F16h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=01h Verb ID=F16h 0’s EnableMask [7:0]

Codec Response for NID=01h (Audio Function Group)

Bit Description

31:2 Reserved.

1:0 GPIO[1:0] Enable Mask.

0: The corresponding GPIO pin is disabled and is in Hi-Z state. 1: The corresponding GPIO pin is enabled. It’s behavior is determined by the GPIO direction control.

Note: All nodes except Audio Function Group (NID=01h) will ignore this verb.

Codec Response for Other NID

Bit Description

31:0 0’s.

Response [31:0]

ALC269

Datasheet

8.32. Verb – Set GPIO Enable Mask (Verb ID=716h)

Table 64. Verb – Set GPIO Enable Mask (Verb ID=716h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=01h Verb ID=716h Enable Mask [7:0] 0’s for all nodes

Codec Response for NID=01h (Audio Function Group)

Bit Description

31:8 Reserved.

7:2 GPIO[7:2] Enable Mask. Not supported in the ALC269.

1:0 GPIO[1:0] Enable Mask.

0: The corresponding GPIO pin is disabled and is in Hi-Z state 1: The corresponding GPIO pin is enabled. It’s behavior is determined by the GPIO direction control

Note: All nodes except Audio Function Group (NID=01h) will ignore this verb.

Codec Response for All NID

Bit Description

31:0 0’s.

Response [31:0]

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

51 Track ID: JATR-1076-21 Rev. 1.4

Page 60

8.33. Verb – Get GPIO Direction (Verb ID=F17h)

Table 65. Verb – Get GPIO Direction (Verb ID=F17h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=01h Verb ID=F17h 0’s Direction [7:0]

Codec Response for NID=01h (Audio Function Group)

Bit Description

31:8 Reserved.

7:2 GPIO[7:2] Direction Control. Not supported in the ALC269.

1:0 GPIO[1:0] Direction Control.

0: The corresponding GPIO pin is configured as an input 1: The corresponding GPIO pin is configured as an output

Note: All nodes except Audio Function Group (NID=01h) will ignore this verb.

Codec Response for Other NID

Bit Description

31:0 0’s.

Response [31:0]

ALC269

Datasheet

8.34. Verb – Set GPIO Direction (Verb ID=717h)

Table 66. Verb – Set GPIO Direction (Verb ID=717h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=01h Verb ID=717h Direction [7:0] 0’s for all nodes

Codec Response for NID=01h (Audio Function Group)

Bit Description

31:8 Reserved.

7:2 GPIO[7:2] Direction Control. Not supported in the ALC269.

1:0 GPIO[1:0] Direction Control.

0: The corresponding GPIO pin is configured as an input 1: The corresponding GPIO pin is configured as an output

Note: All nodes except Audio Function Group (NID=01h) will ignore this verb.

Codec Response for Other NID

Bit Description

31:0 0’s.

Response [31:0]

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

52 Track ID: JATR-1076-21 Rev. 1.4

Page 61

ALC269

Datasheet

8.35. Verb – Get GPIO Wake Enable Mask(Verb ID=F18h)

Table 67. Verb – Get GPIO Wake Enable Mask (Verb ID=F18h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=01h Verb ID=F18h 0’s WakeEnalbeMask [7:0]

Codec Response for NID=01h (Audio Function Group)

Bit Description

31:8 Reserved.

7:2 GPIO[7:2] Wake Enable Mask. Not supported in the ALC269.

1:0 GPIO[1:0] Wake Enable Mask.

0: The corresponding GPIO pin will not generate a wake-up event 1: The corresponding GPIO pin will generate a wake-up event

Note: All nodes except Audio Function Group (NID=01h) will ignore this verb.

Codec Response for Other NID

Bit Description

31:0 0’s.

Response [31:0]

8.36. Verb-Set GPIO Wake Enable Mask(Verb ID=718h)

Table 68. Verb – Set GPIO Wake Enable Mask (Verb ID=718h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=01h Verb ID=718h WakeEnalbeMask [7:0] 0’s for all nodes

Codec Response for NID=01h (Audio Function Group)

Bit Description

31:8 Reserved.

7:2 GPIO[7:2] Wake Enable Mask. Not supported in the ALC269

1:0 GPIO[1:0] Wake Enable Mask.

0: The corresponding GPIO pin will not generate a wake-up event 1: The corresponding GPIO pin will generate a wake-up event

Note 1: All nodes except the Audio Function Group (NID=01h) will ignore this verb.

Codec Response for Other NID

Bit Description

31:0 0’s.

Response [31:0]

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

53 Track ID: JATR-1076-21 Rev. 1.4

Page 62

ALC269

Datasheet

8.37. Verb – Get GPIO Unsolicited Response Enable Mask (Verb ID=F19h)

Table 69. Verb – Get GPIO Unsolicited Response Enable Mask (Verb ID=F19h)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=01h Verb ID=F19h 0’s UnsolEnable [7:0]

Codec Response for NID=01h (Audio Function Group)

Bit Description

31:8 Reserved.

7:2 GPIO[7:2] Unsolicited Enable Mask. Not supported in the ALC269. 1:0 GPIO[1:0] Unsolicited Enable Mask.

0: Unsolicited response will not be sent on link 1: Unsolicited response will be sent on link when state of corresponding GPIO has been changed

Note: All nodes except Audio Function Group (NID=01h) will ignore this verb.

Response [31:0]

Codec Response for Other NID

Bit Description

31:0 0’s.

8.38. Verb – Set GPIO Unsolicited Response Enable Mask (Verb ID=719h)

Table 70. Verb – Set GPIO Unsolicited Response Enable Mask (Verb ID=719h)

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=01h Verb ID=719h UnsolEnable [7:0] 0’s for all nodes

Codec Response for NID=01h (Audio Function Group)

Bit Description

31:8 Reserved.

7:2 GPIO[7:2] Unsolicited Enable Mask. Not supported in the ALC269 1:0 GPIO[1:0] Unsolicited Enable Mask.

0: Unsolicited response will not be sent on link 1: Unsolicited response will be sent on link when state of corresponding GPIO has been changed

Note 1: All nodes except the Audio Function Group (NID=01h) will ignore this verb. Note 2: The unsolicited response of corresponding GPIO is enabled when it’s ‘Enable Mask’ and Verb-‘Unsolicited Response’ for NID=01h are enabled.

Response [31:0]

Codec Response for Other NID

Bit Description

31:0 0’s.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

54 Track ID: JATR-1076-21 Rev. 1.4

Page 63

8.39. Verb – Function Reset (Verb ID=7FFh)

Table 71. Verb – Function Reset (Verb ID=7FFh)

Command Format (NID=01H) Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=01h Verb ID=7FFh 0’s 0’s

Response [31:0]

Codec Response

Bit Description

31:0 Reserved. Read as 0’s.

Note: The Function Reset command causes all widgets in the ALC269 to return to their power-on default state.

8.40. Verb – Get Digital Converter Control 1 & Control 2 (Verb ID=F0Dh, F0Eh)

Table 72. Verb –Get Digital Converter Control 1 & Control 2 (Verb ID=F0Dh, F0Eh)

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F0Dh/F0Eh 0’s Bit[31:16]=0’s, Bit[15:0] are SIC bit

Response [31:0]

ALC269

Datasheet

NID=06h, 10h (S/PDIF-OUT, S/PDIF-OUT2) Response to ‘Get verb’ – F0Dh (Control 1 for SIC bit[15:0]). NID=06h, 10h (S/PDIF-OUT, S/PDIF-OUT2) Response to ‘Get verb’ – F0Eh (Control 2 for SIC bit[15:0])

Bit Description – SIC (S/PDIF IEC Control) Bit[7:0]

31:16 Read as 0’s.

15 Reserved. Read as 0’s.

14:8 CC[6:0] (Category Code).

7 LEVEL (Generation Level). 6 PRO (Professional or Consumer Format).

0: Consumer format 1: Professional format

5 /AUDIO (Non-Audio Data type).

0: PCM data 1: AC3 or other digital non-audio data

4 COPY (Copyright).

0: Asserted 1: Not asserted

3 PRE (Pre-Emphasis).

0: None 1: Filter pre-emphasis is 50/15 microseconds 2 VCFG for Validity Control (control V bit and data in Sub-Frame). 1 V for Validity Control (control V bit and data in Sub-Frame). 0 Digital Enable. DigEn.

0: OFF 1: ON

Codec Response for Other NID

Bit Description

31:0 0’s.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

55 Track ID: JATR-1076-21 Rev. 1.4

Page 64

8.41. Verb – Set Digital Converter Control 1 & Control 2 (Verb ID=70Dh, 70Eh)

Table 73. Verb – Set Digital Converter Control 1 & Control 2 (Verb ID=70Dh, 70Eh)

Set Command Format (Verb ID=70Dh, Set Control 1) Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=70Dh SIC [7:0] 0’s

Set Command Format (Verb ID=70Eh, Set Control 2) Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=70Eh SIC [15:8] 0’s

‘Payload’ in Set Control 1 for NID=06h (S/PDIF-OUT), 10h (S/PDIF-OUT2)

Bit Description – SIC (S/PDIF IEC Control) Bit[7:0]

7 LEVEL (Generation Level).

6 PRO (Professional or Consumer Format).

0: Consumer format 1: Professional format

5 /AUDIO (Non-Audio Data Type).

0: PCM data 1: AC3 or other digital non-audio data

4 COPY (Copyright).

0: Asserted 1: Not asserted

3 PRE (Pre-Emphasis).

0: None 1: Filter pre-emphasis is 50/15 microseconds

2 VCFG for Validity Control (control V bit and data in Sub-Frame).

1 V for Validity Control (control V bit and data in Sub-Frame).

0 Digital Enable. DigEn.

0: OFF 1: ON

Response [31:0]

ALC269

Datasheet

‘Payload’ in Set Control 2 for NID=06h (S/PDIF-OUT), 10h (S/PDIF-OUT2)

Bit Description – SIC (S/PDIF IEC Control) Bit[7:0]

7 Reserved. Read as 0’s.

6:0 CC[6:0] (Category Code).

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

56 Track ID: JATR-1076-21 Rev. 1.4

Page 65

ALC269

Datasheet

8.42. Get/Set Volume Knob Widget (Verb ID=F0Fh/70Fh)

Table 74. Get/Set Volume Knob Widget (Verb ID=F0Fh/70Fh)

Get Command Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F0Fh 0’s

Codec Response for Volume Knob Widget

Bit Description

31:8 Reserved.

7 Direct.

0: The volume generated by an external HW volume control will be sent by unsolicited response. Software is responsible for programming the amplifier appropriately 1: The volume generated by an external HW volume control will directly affect amplifier volume

6:0 Volume in Steps.

Note: The ALC269 does not support volume knob widget and will ignore this verb and respond with 0’s.

Codec Response Format

Response [31:0]

Bit[31:8]=0’s, Bit[7:0] is volume

Set Command Format (Verb ID=70Fh)

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=70Fh Bit[7] is ‘Direct’ control

Codec Response Format

Response [31:0]

‘Payload’ in Set Command for Volume Knob Widget

Bit Description

31:8 Reserved.

7 Direct.

6:0 Reserved.

Note: The ALC269 does not support volume knob widget and will ignore this verb and respond with 0’s.

8.43. Get/Set Subsystem ID [31:0] (Verb ID=F20h/723h~720h to Set Bit[31:0])

Table 75. Get/Set Subsystem ID [31:0] (Verb ID=F20h / 723h~720h to Set Bit[31:0])

Get Command Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F20h 0’s

Codec Response Format

Response [31:0]

32 bits response

0’s

Codec Response for NID=01h (Audio Function Group)

Bit Description

31:16 Subsystem ID[23:8] (Default=10Ech).

15:8 Subsystem ID[7:0] (Default=02h).

7:0 Assembly ID[7:0] (Default=69h).

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

57 Track ID: JATR-1076-21 Rev. 1.4

Page 66

8.44. Get/Set EAPD Enable (Verb ID= F0Ch/70Ch)

Table 76. Get/Set EAPD Enable (Verb ID=F0Ch / 70Ch )

Get Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0]

Cad=X Node ID=Xh Verb ID=F0Ch 0’s Bit[1] is EAPD Control

Codec response in Get Command for NID=14h (LINE-OUT Pin Widget), 15h (HP-OUT Pin Widget)

Bit Description

31:3 Reserved.

2 L-R Swap.

The ALC269 does not support swapping left and right channel, it is read as 0.

1 EAPD Value.

0: EAPD pin state is low potential to power down external amplifier in all power state of AFG. 1: EAPD pin state is high potential to power up external amplifier in all power state of AFG.

0 BTL Enable.

The ALC269 does not support BTL output, it is read as 0.

Response [31:0]

ALC269

Datasheet

Codec Response in Get Command for other NID

Bit Description

31:0 0s.

Set Command Format Codec Response Format

Bit [31:28] Bit [27:20] Bit [19:8] Payload Bit [7:0] Response [31:0]

CAd = X Node ID=Xh Verb ID=70Ch Bit[1] is EAPD Control 0s

Payload in Set Command for NID=14h (SPK-OUT Pin Widget), 15h (HP-OUT Pin Widget)

Bit Description

7:3 Reserved.

2 L-R Swap.

The ALC269 does not support swapping left and right channel, it is read as 0.

1 EAPD Value (Default=0).

0: EAPD pin state is low potential to power down external amplifier in all power state of AFG. 1: EAPD pin state is high potential to power up external amplifier in power state of AFG.

0 BTL Enable.

The ALC269 does not support BTL output, it is read as 0.

Codec Response in Set Command for all NID

Bit Description

31:0 0s.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

58 Track ID: JATR-1076-21 Rev. 1.4

Page 67

ALC269

Datasheet

9. Electrical Characteristics

9.1.

DC Characteristics

9.1.1. Absolute Maximum Ratings

Table 77. Absolute Maximum Ratings

Parameter Symbol Minimum Typi cal Maximum Units

Power Supplies

Digital Power for Core Digital Power for Link*1 Analog Power*2 BTL Analog Power*2, *3

Ambient Operating Temperature Ta 0 - +70

Storage Temperature Ts - - +125

All Pins Except PVDD1, PVDD2 4000V

PVDD1 (Pin39), PVDD2 (Pin 46) 3500V

Note1: DVDD-IO must be lower than DVDD. Note2: PVDD must be greater than AVDD, and keep PVDD-AVDD ≤ 0.8V for best performance. When (PVDD ≥ AVDD + 1V), THD+N will be degraded when playing at full power output. Note3: When the Class-D amplifier is operating, surges of PVDD > 7V duration for 0.1ms may damage the amplifier. To suppress such surges, 10µF tantalum capacitors are required at PVDD1 and PVDD2.

AVDD1, AVDD2 PVDD1, PVDD2

DVDD

DVDD-IO

ESD (Electrostatic Discharge)

3.0

1.5

3.3

Susceptibility Voltage

3.3

5.0

3.6

5.25

V V V V

9.1.2. Threshold Voltage

DVDD-IO=3.3V±5%, T

Parameter Symbol Minimum Typical Maximum Units

Input Voltage Range V

Low Level Input Voltage (BCLK, RST#, SDO, SYNC, SDI)

High Level Input Voltage (BCLK, RST#, SDO, SYNC, SDI)

Low Level Input Voltage (S/PDIF-OUT, GPIOs)

High Level Input Voltage (S/PDIF-OUT, GPIOs)

High Level Output Voltage V

Low Level Output Voltage V

Input Leakage Current - -10 - 10 µA

Output Leakage Current (Hi-Z) - -10 - 10 µA

Output Buffer Drive Current - - 5 - mA

Internal Pull Up Resistance - - 50k -

=25°C, with 50pF external load.

ambient

Table 78. Threshold Voltage

0.65*DVDDIO - - V

-0.30 - DVDD+0.30 V

- - 0.30*DVDDIO V

- - 0.44*DVDD V

0.56*DVDD - - V

0.9*DVDD - - V

- - 0.1*DVDD V

Ω

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

59 Track ID: JATR-1076-21 Rev. 1.4

Page 68

ALC269

Datasheet

9.1.3. Digital Filter Characteristics

Table 79. Digital Filter Characteristics

Filter Symbol Minimum Ty pica l Maximum Units

ADC Lowpass Filter Passband 0 - 0.454*Fs (-1dB) kHz

Stopband 28.8 - - kHz

Stopband Rejection - -76.0 - dB

Passband Ripple -

DAC Lowpass Filter Passband 0 - 0.454*Fs (-1dB) kHz

Stopband 28.8 - - kHz

Stopband Rejection - -78.5 - dB

Passband Ripple -

±0.02

- dB

9.1.4. S/PDIF Output Characteristics

DVDD=3.3V, T

Parameter Symbol Minimum Typ ical Maximum Units

S/PDIF-OUT High Level Output V

S/PDIF-OUT Low Level Output V

=25°C, with 75Ω external load.

ambient

Table 80. S/PDIF Input/Output Characteristics

3.0 3.3 - V

- 0 0.3 V

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

60 Track ID: JATR-1076-21 Rev. 1.4

Page 69

Datasheet

9.2.

AC Characteristics

9.2.1. Link Reset and Initialization Timing

Table 81. Link Reset and Initialization Timing

Parameter Symbol Minimum Typi cal Maximum Units

RESET# Active Low Pulse Width T

RESET# Inactive to BCLK Startup Delay for PLL Ready Time

SDI Initialization Request T

RST

PLL

- - 1 Frame Time

FRAME

1.0 - - µs

20 - - µs

ALC269

BCLK

SYNC

SDO

SDI

RESET#

4 BCLK 4 BCLK

RST

Figure 15. Link Reset and Initialization Timing

PLL

> = 4 BCLK

Initialization Request

Initialization Sequence

Normal Frame

SYNC

FRAME

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

61 Track ID: JATR-1076-21 Rev. 1.4

Page 70

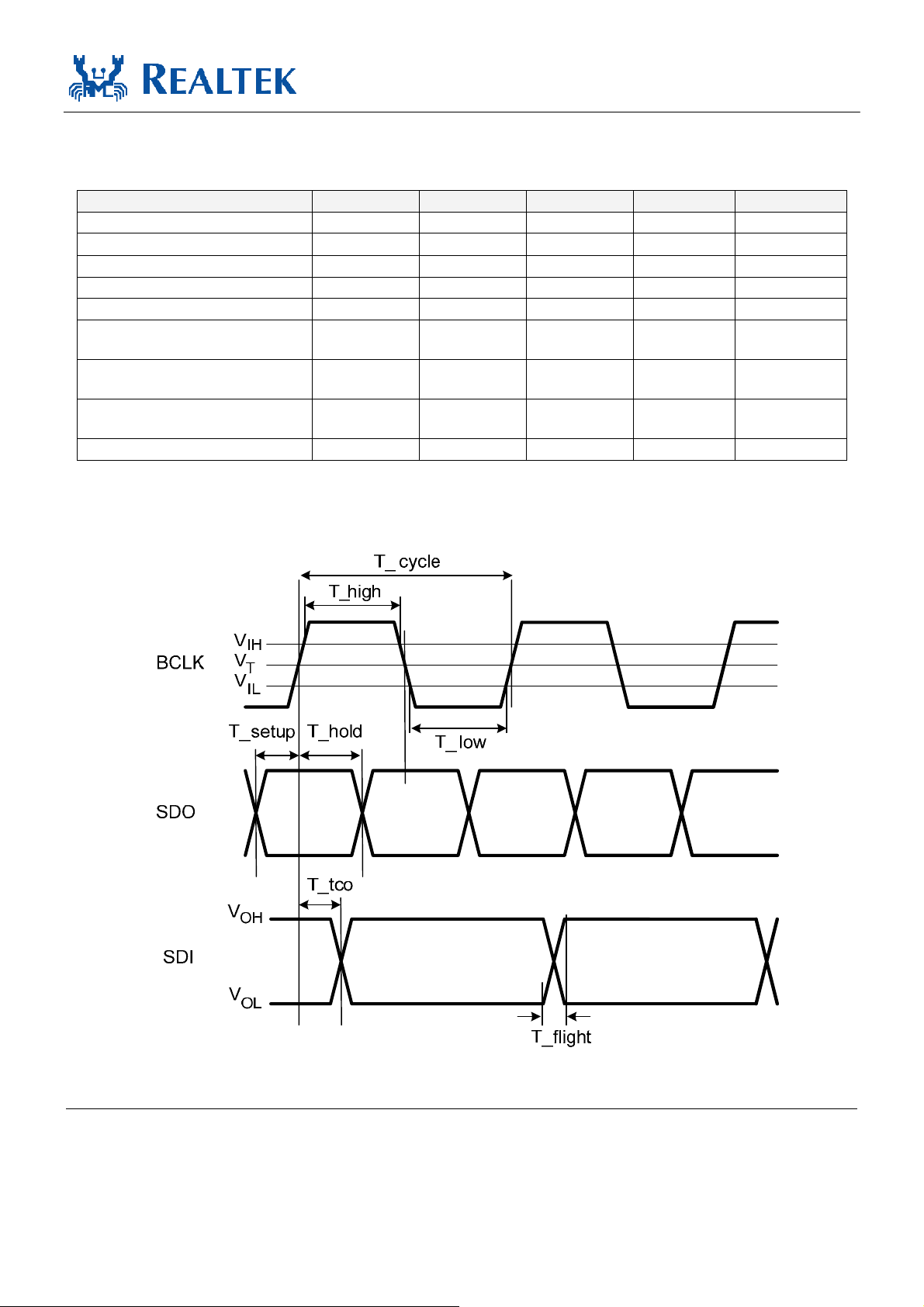

9.2.2. Link Timing Parameters at the Codec

Table 82. Link Timing Parameters at the Codec

Parameter Symbol Minimum Ty pica l Maximum Units

BCLK Frequency

BCLK Period T

BCLK Jitter T

BCLK High Pulse Width T

BCLK Low Pulse Width T

SDO Setup Time at Both Rising and Falling Edge of BCLK

SDO Hold Time at Both Rising and Falling Edge of BCLK

SDI Valid Time After Rising Edge of BCLK (1:50pF external load)

SDI Flight Time T

cycle

jitter

high

low

setup

hold

tco

flight

- 24.0 - MHz

- 41.67 - ns

- - 2.0 ns

18.75 (45%) - 22.91 (55%) ns (%)

2.1 - - ns

- 7.5 8.0 ns

- 2.0 - ns

ALC269

Datasheet

Figure 16. Link Signals Timing

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

62 Track ID: JATR-1076-21 Rev. 1.4

Page 71

ALC269

Datasheet

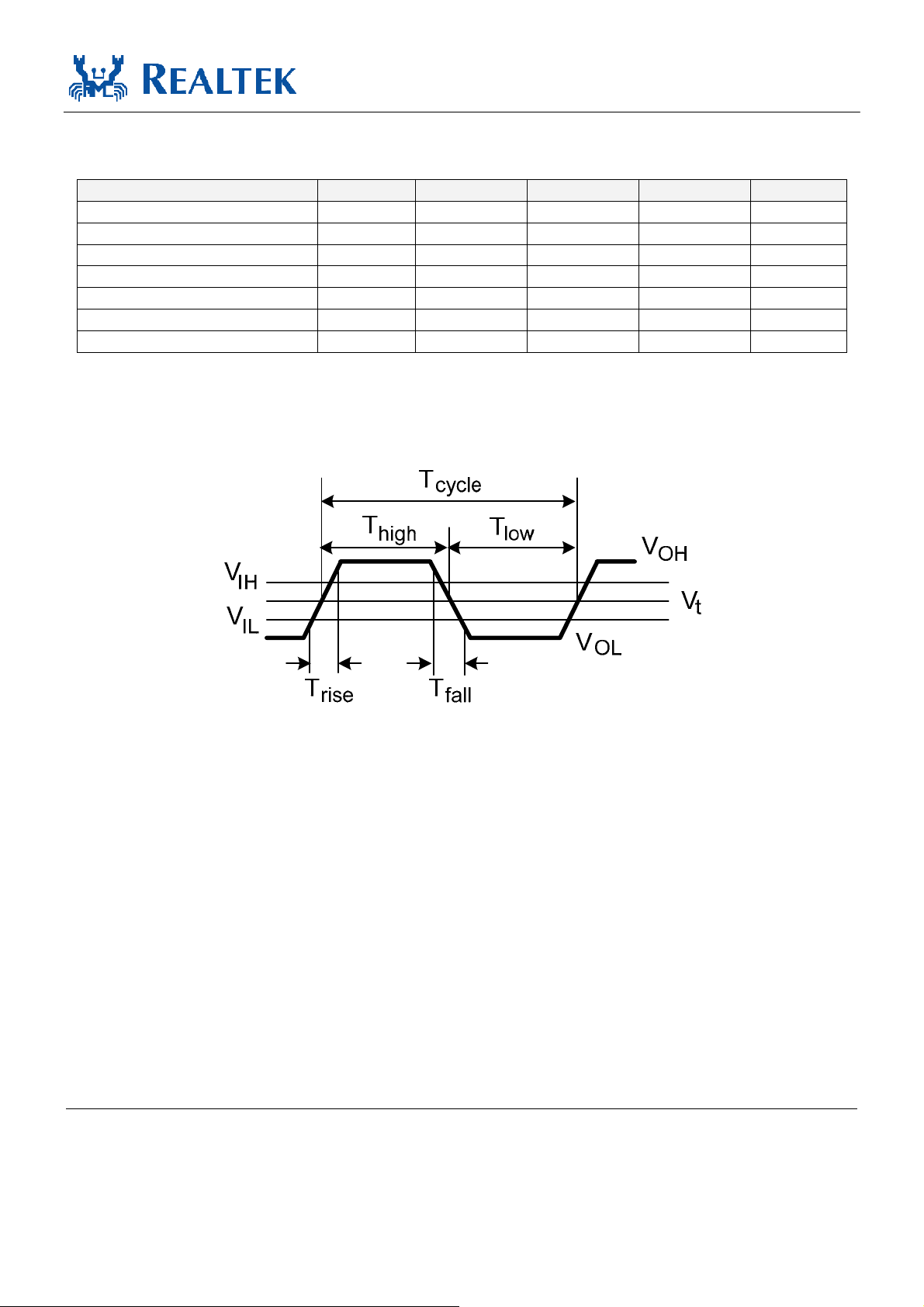

9.2.3. S/PDIF Output Timing

Table 83. S/PDIF Output Timing

Parameter Symbol Minimum Ty pica l Maximum Units

S/PDIF-OUT Frequency*1 - - 3.072 - MHz

S/PDIF-OUT Period*1 T

S/PDIF-OUT Jitter T

S/PDIF-OUT High Level Width*1 T

S/PDIF-OUT Low Level Width*1 T

S/PDIF-OUT Rising Time T

S/PDIF-OUT Falling Time T

*1: Bit parameters for 48kHz sample rate of S/PDIF-OUT.

cycle

jitter

High

Low

- 2.0 - ns

rise

fall

- 325.6 - ns

- - 4 ns

156.2 (48%) 162.8 (50%) 169.2 (52%) ns (%)

- 2.0 - ns

Figure 17. Output Timing

9.2.4. Te st M od e

The ALC269 does not support codec test mode or Automatic Test Equipment (ATE) mode.

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

63 Track ID: JATR-1076-21 Rev. 1.4

Page 72

9.3.

Analog Performance

ALC269

Datasheet

Standard Test Conditions

• T

=25oC, DVDD-CORE=3.3V ±5%, AVDD=5.0V±5%

ambient

• 1kHz input sine wave; Sampling frequency=48kHz; 0dB=1Vrms

• 10KΩ/50pF load; Test bench Characterization BW:10Hz~22kHz

Table 84. Analog Performance

Parameter Min Ty p Max Units

Full-Scale Input Voltage

All ADC (Gain=0dB)

Full-Scale Output Voltage

All DAC (Gain=+1dB)

Dynamic Range with 1kHz Tone, DR (A Weighted)

ADC DAC

Headphone Out @32Ω Load

Total Harmonic Distortion Plus Noise, THD+N

ADC DAC

Headphone Out @32Ω Load

Frequency Response

ADC (-3dB lower edge, -1dB higher edge) DAC (-3dB lower edge, -1dB higher edge)

Power Supply Rejection Ratio - -60 - dB

Total Out-of-Band Noise (28.8kHz~100kHz) - -60 - dB

Amplifier Gain Step

ADC DAC

Crosstalk Between Input Channels - -80 - dB

Input Impedance (Gain=0dB) - 32 -

Output Impedance

Amplified Output Non-Amplified Output

Digital Power Supply Current (Normal Operation) DVDD=3.3V, DVDD-IO=3.3V

Digital Power Supply Current (Power Down Mode) DVDD=3.3V, DVDD-IO=3.3V

Analog Power Supply Current (Normal Operation) AVDD1, AVDD2=5.0V

Analog Power Supply Current (Power Down Mode) AVDD1, AVDD2=5.0V

VREFOUTx Output Voltage 0 2.50 4.20 V

VREFOUTx Output Current - 5 - mA

Note: FSA=Full-Scale with A-weighting filter. FS=Full-Scale.

10 10

- 50 - mA

- 2 - mA

- 48 - mA

- 7 - mA

1.5

98 98 95

-85

-90

-70

1.0

200

0.454*Fs

Vrms

dB FSA dB FSA dB FSA

dB FS dB FS dB FS

Hz Hz

dB dB

KΩ

Ω

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

64 Track ID: JATR-1076-21 Rev. 1.4

Page 73

ALC269

Datasheet

9.4.

Class-D Power Amplifier Performance

Table 85. Class-D Power Amplifier Performance

Parameter Min Ty p Max Units

Output Voltage @ BTL Mode (Vrms) - 3.07 - Vrms

Maximum Output Peak Current @ BTL Mode - 1.3 - A

Maximum Output Power @ BTL Mode - 2.0 2.3 W

Power Efficiencyη@ BTL Mode into 4ohm

Power Efficiencyη@ BTL Mode into 4ohm with Filter

Power Efficiencyη@ BTL Mode into 8ohm

Power Efficiencyη@ BTL Mode into 8ohm with Filter

Full-Scale Output Voltage @ BTL Mode PCM/PWM Converter

S/N (A weighted) @ BTL Mode PCM/PWM Converter

THD+N @ BTL Mode at test signal 997Hz~3dB sine wave PCM/PWM Converter

THD+N @ BTL Mode at test signal around 20Hz~22KHz PCM/PWM Converter

Frequency Response @ BTL Mode PCM/PWM Converter

Total Quiescent Current (Iq) - 1.25 - nA

P-Type MOS Output Impendence (Rds) - 150 -

N-Type MOS Output Impendence (Rds) - 250 -

PWM Frequency - 384K - Hz

Dead Time (Shoot) - 0 - nS

Modulation Index - 0.8896 - N/A

Minimum Pulse Width - 150 - nS

LQFP-48 Package Thermal Characteristic, Ө

QFN-48 Package Thermal Characteristic, ӨJA - 32.4 -

Output Voltage Noise(Vn) at Mute Condition - 50 - µV

Output Short Circuit Protection Limit - 2.5 - A

Class-D Output RMS Current, IL

(BTL 4Ω Load, PVDD = 5.0V, Full Power Output)

Class-D Output RMS Current, IL

(BTL 4Ω Load, PVDD = 5.0V, Power Down)

- 80 - %

- 84 - %

- 88 - %

- 92 - %

- +/-4.34 - Vpeak

- 90 - dB FSA

- -75 - dB FS

- -60 - dB FS

20 - 22K Hz

mΩ

- 65.4 -

- 0.6 - A

- 0 - mA

°C/W

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

65 Track ID: JATR-1076-21 Rev. 1.4

Page 74

10. Application Circuits

10.1. Filter Connection

2.2u

MIC 1-V REF O_R

MIC 2-V REF O

MIC1-VREF O-L

ALC269

Datasheet

+5VA

PVDD1

C39

C10

10u

0.1u

PGND

Tantalum capacitor is required for C39, C40

PVDD2

C40

10u

S/PDI F-OUT2 or EAPD

Pin 47 (EAPD):

Output to control external amplifier

Pin 47 (Secondary S/PDIF-OUT):

Optional digital output to HDMI Tx

S/PDI F-OUT

AGND

C12

0.1u

PGND

0.1u

10u

SPKL+

SPKL-

PGND

SPKR-

SPKR+

GPIO0, or D ATA for digital MIC

GPIO1, or C LK for digital MIC

Power down speaker amplifier (internal pulled high)

0V: Power down speaker amplifier

3.3V: Power up speaker amplifier

+3.3 VD

AVSS2

AVDD2

PVDD1

SPK-L+

SPK-L-

PVSS1

PVSS2

SPK-R-

SPK-R+

PVDD2

SPDIF O2/EAPD

SPDIF O

2.2u

CBP

CBN

HPOUT-L

HPOUT-R

CPVEE

HP-OUT-L

HP-OUT-R

CPVREF

MIC2-VREFO

MIC1-VREFO-R

ALC269

DVDD11GPIO0/DMIC-DATA2GPIO1/DMIC-CLK3PD#4SDATA-OU T5BIT-C LK6DVSS27SDATA-I N8DVDD-IO9SYNC10RESET#11PCBEEP

C19

0.1u

C17

10u

PD#

C30

22p

GND

C31

22p

10u

AVDD1

LINE1-R

LINE1-L

MIC 1-R

MIC 1-L

JDREF

Sense-B

MIC 2-R

MIC 2-L

LINE2-R

LINE2-L

Sense A

C16 1u

R4 10

C22 22p

VREF

AVSS1

MIC1-VREFO-L

MONO-OUT

R7 10

C24

22p

R8 10

R9 10

R10 10

10u

20K,1%

RESET#

SYN C

SDIN

BCLK

SDOUT

0.1u

RJ1

MIC 2-R

MIC 2-L

+5VA

LINE1-R

LINE1-L

MIC 1-R

MIC 1-L

MONO-OUT

RJ2

RJ3

RJ4

RJ5

RJ6

RJ7

RJ8

RJ9

C21

100P

C29

0.1u

C28

10u

39.2K,1%

20K,1%

10K,1%

5.1K,1%

39.2K, 1%

20K,1%

10K,1%

5.1K,1%

R1 47k

10K

+3.3V D

LINE2-J D

MIC 2-J D

MONO-OUT-JD

SPDIF -OUT2-JD

HPOUT-JD

MIC 1-J D

LINE1-J D

SPDIF -OUT-JD

1 2

PCBEEP

speaker

digital_ground

GND

amplifier ground

PGND

Tied at one point only under the codec or near the codec

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

Analog_ground

AGND

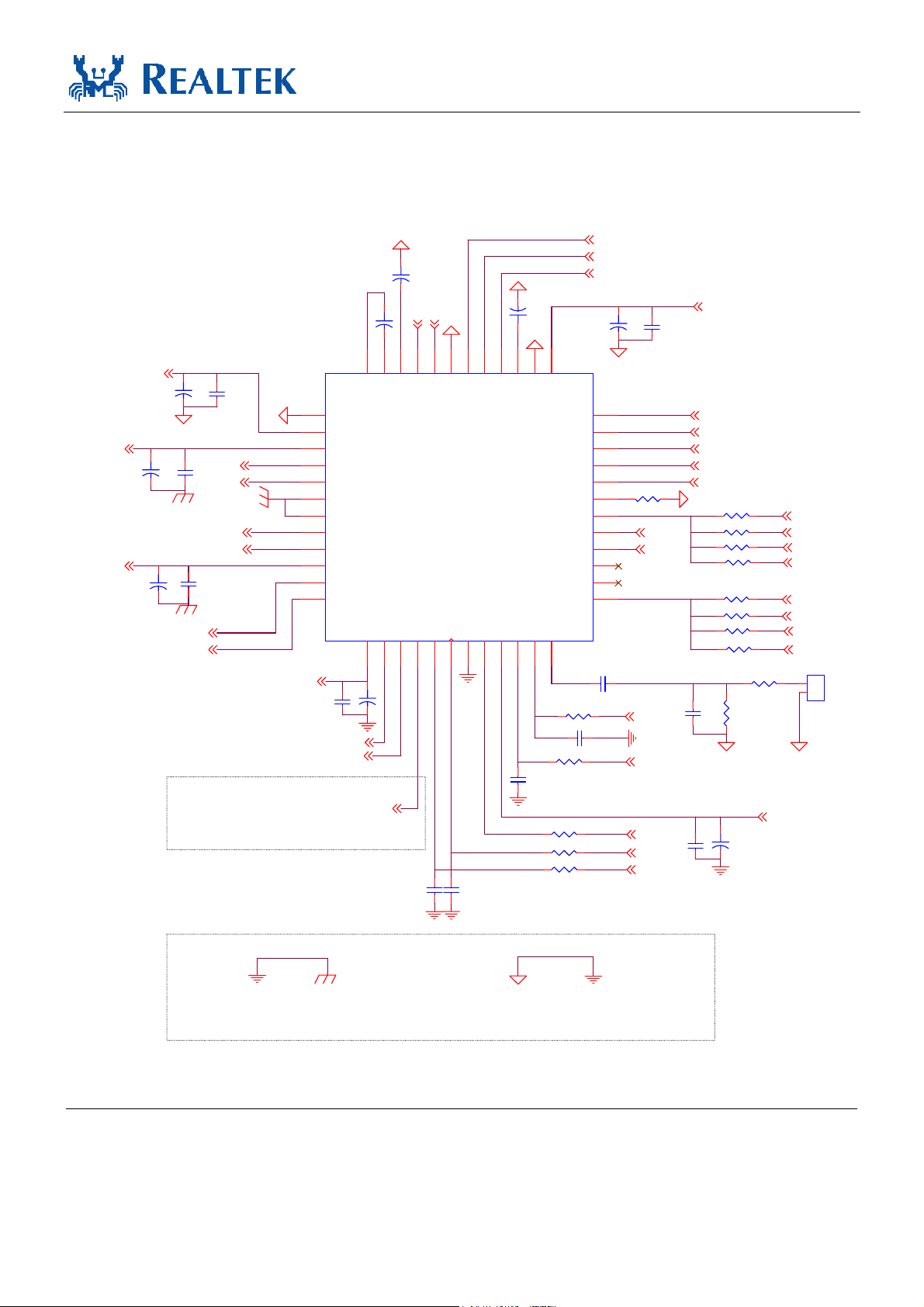

Figure 18. Filter Connection

66 Track ID: JATR-1076-21 Rev. 1.4

digital_ground

GND

Page 75

10.2. Power and Jack Connection

ALC269

Datasheet

Power for Speaker Amplifier

PVDD2

PVDD1

100u

Standby +5V

For Standby mode De-pop purpose

B130LAW/1N 5817

LM7805CT/200mA

+10u

OUT

+5VA

C18

AC1085-50/3A

OUT

PGND

GND

To reduce background noise when boosting Microphone

C20

+100u

GND

speaker amplifier ground

FERBL5

+12V

1N4148

100u

+12V

HPOUT-R

LINE1-R

LINE1-L

MIC1-VREFO-L

MIC1-VREFO-R

MIC 1-R

MIC 1-L

HPOUT-L

C11

C13

C23

C25

L1 F ERB

L2 F ERB

2.2K

L3 F ERB

L4 F ERB

2.2K

HPOUT-JD

LINE1-J D

C14

100P

L6 F ERB

L7 F ERB

C26

100P

C15

100P

MIC 1-J D

C27

100P

PH1

CN CS 1 3 4 5

HP-OUT (Port-A)

PH2

CN CS 1 3 4 5

LINE-I N(Port-C)

PH3

CN CS 1 3 4 5

MIC-IN (Port-B)

MIC2-VREFO

MIC 2-R

MIC 2-L

C32

C33

1N5817

R11

2.2K

C34

100P

C35

100P

D4 1N5817

R12

2.2K

INTERNAL MIC (Port-F)

Configuation: (Standard case for Laptop)

Pin/Port Assignment

MIC1 (pin-21,22)/Port-B

LINE1 (pin-23,24)/Port-C

MIC2 (pin-16,17)/Port-F

SPK-OUT (pin-40,41,44,45)/Port-D

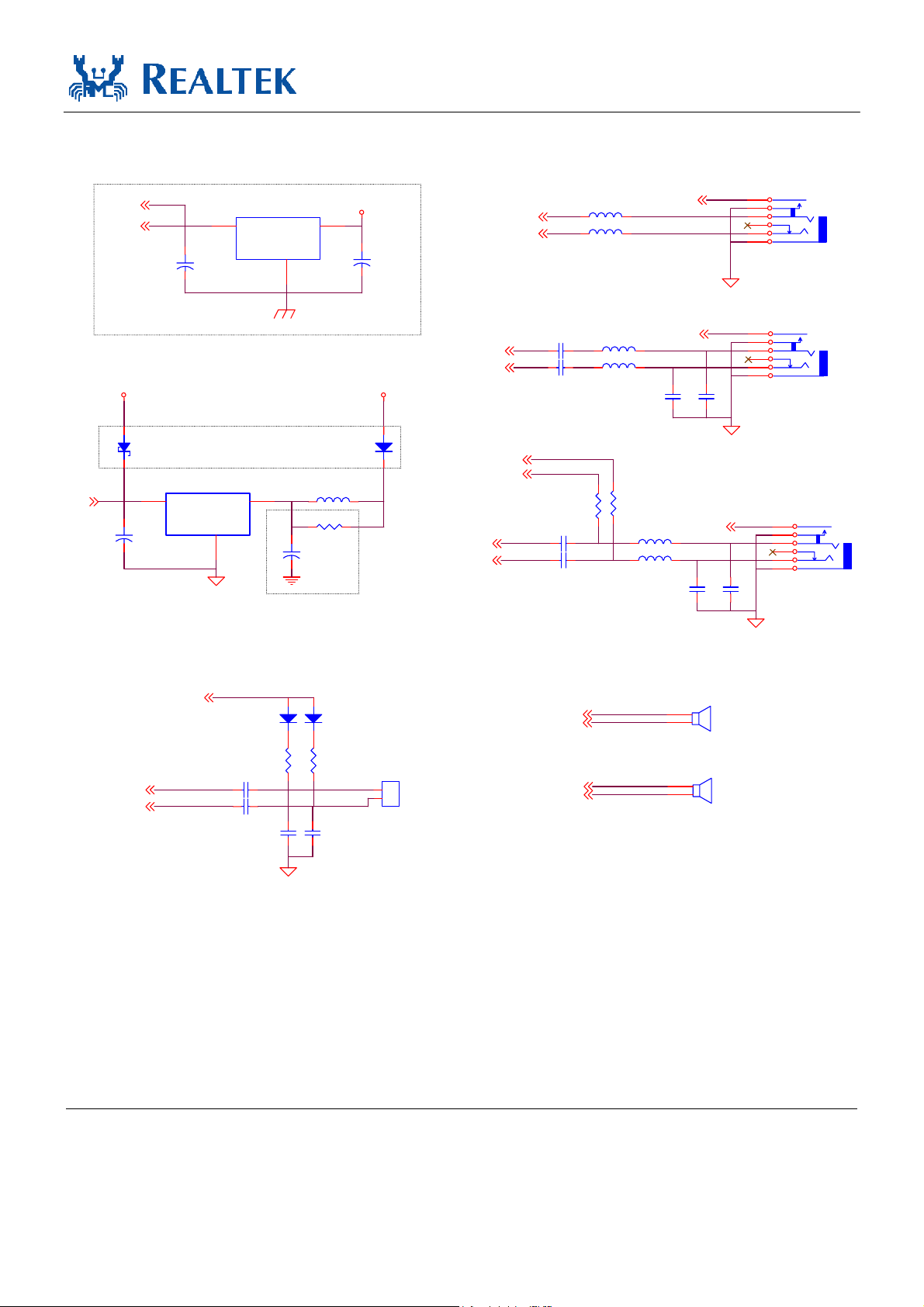

Figure 19. Power and Jack Connection

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

SPKL+

SPKL-

1 2

Location

ChassisHP-OUT (pin-32,33)/Port-A

Chassis

Internal

SPKR+

SPKR-

Functions

Headphone output

Mic-In for external microphone

Line-In for external line input

Mic-In for internal analog microphone

Amplifier output for internal speakerInternal

SPK1

INTERN AL SPEAKER (Port-D Lef t)

SPK2

INTERN AL SPEAKER (Port-D R ight)

67 Track ID: JATR-1076-21 Rev. 1.4

Page 76

10.3. S/PDIF-OUT Connection

ALC269

Datasheet

S/PDIF module option 1: Optical

+5VD

TOTX178

N.C

C36

0.1u

Optical Transmitter

N.C

IN3VCC2GND

R13 10

S/PDIF-OUT

S/PDIF module option 2: Coaxial

S/PDIF OUTPUT

R15

100

R14 200

S/PDIF-OUT

C37 0.01u

C38

100P

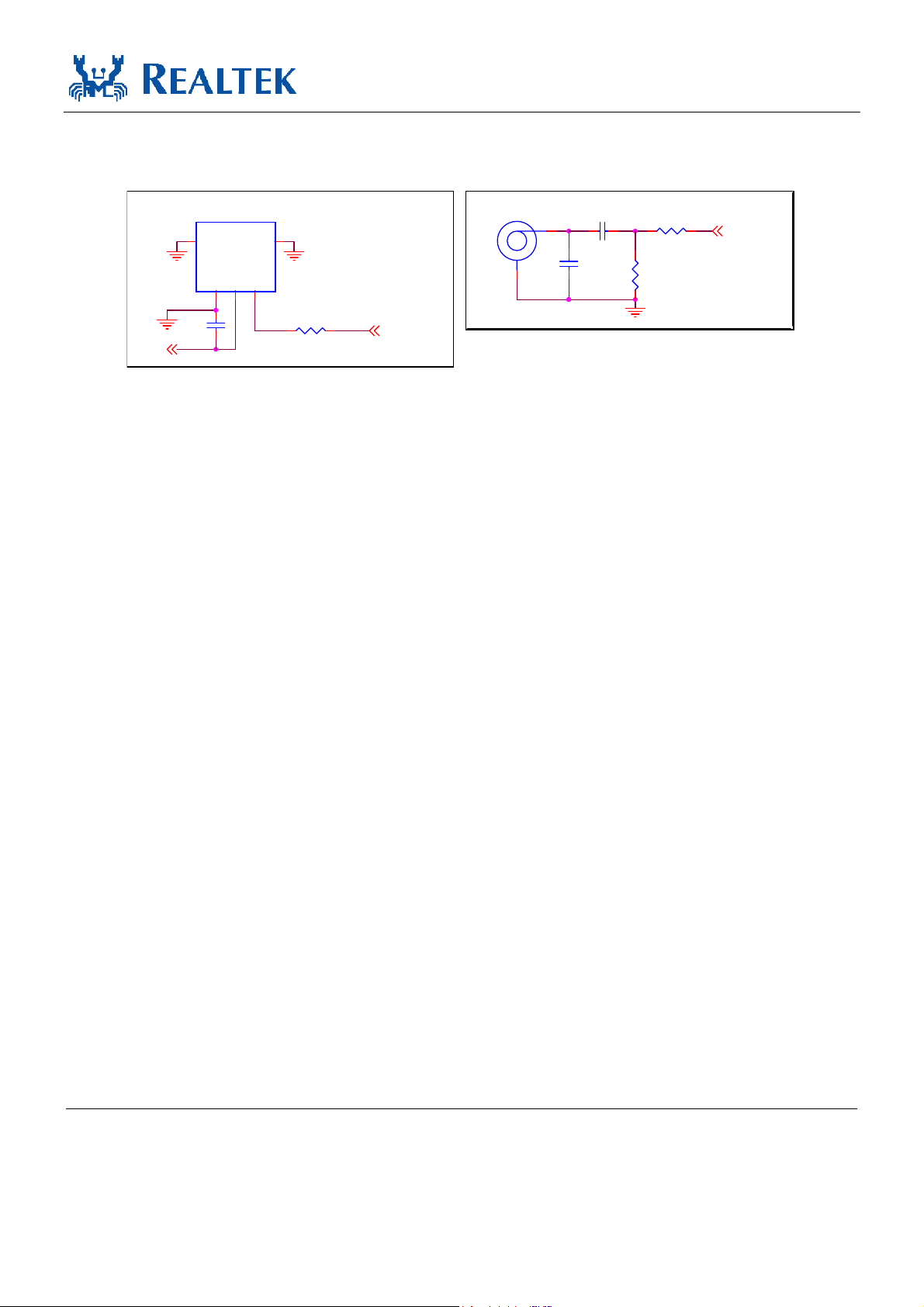

Figure 20. S/PDIF-OUT Connection

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

68 Track ID: JATR-1076-21 Rev. 1.4

Page 77

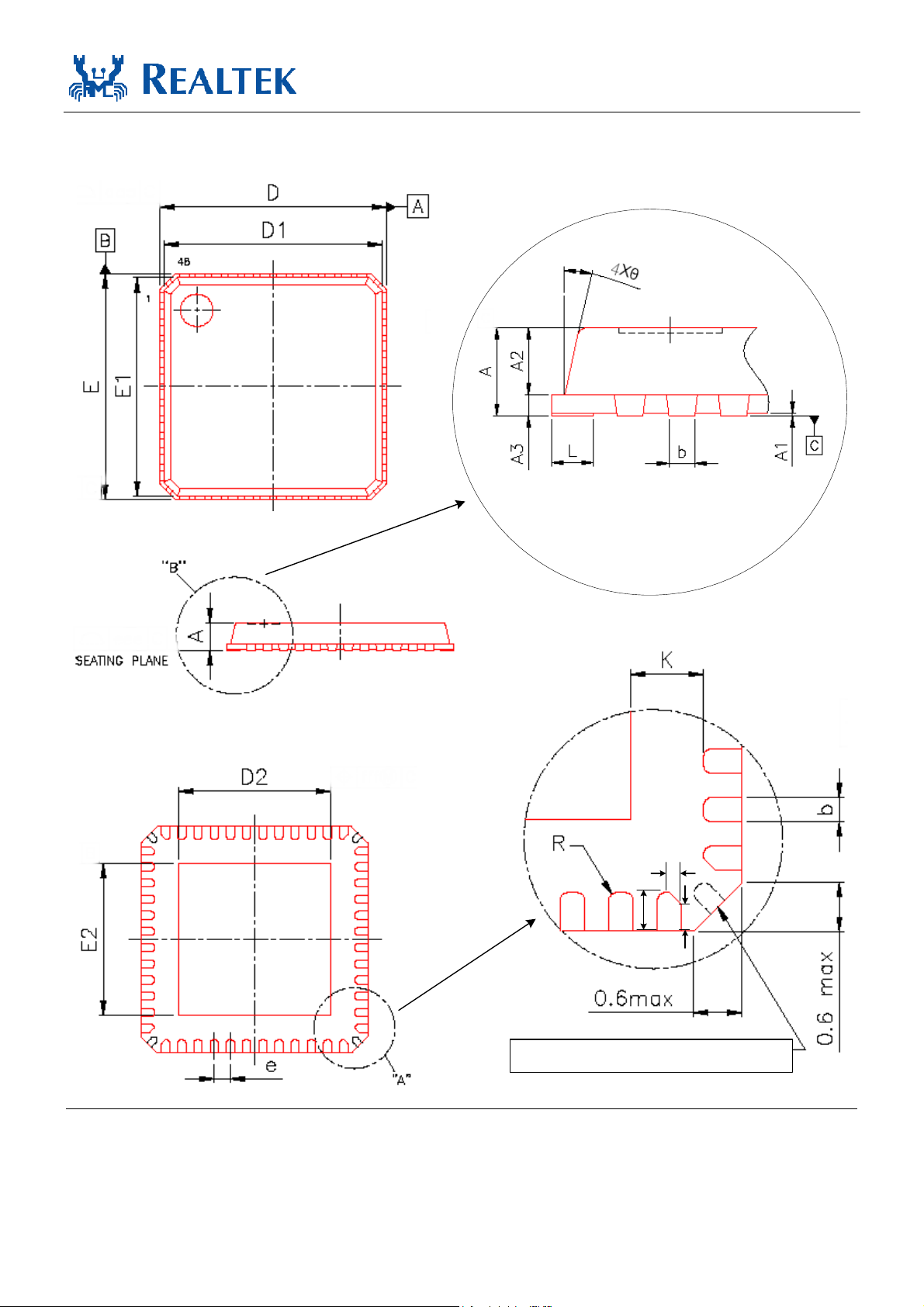

11. Mechanical Dimensions

ALC269

Datasheet

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

0.129mm

0.40mm

0.28mm

(mm)

Optional support bar does not appear in the ALC269Q package

69 Track ID: JATR-1076-21 Rev. 1.4

(mm)

Page 78

11.1. Mechanical Dimensions Notes

SYMBOL MILLIMETER INCH

MIN. TYPICAL MAX. MIN. TYPICAL MAX

A 0.75 0.85 1.00 0.030 0.034 0.039

A1 0.00 0.02 0.05 0.000 0.001 0.002

A2 0.55 0.65 0.80 0.022 0.026 0.032

A3 0.20 REF 0.008 REF

b 0.18 0.25 0.30 0.007 0.010 0.012

D 7.00 BSC 0.276 BSC

D1 6.75 BSC 0.266 BSC

D2 4.80 5.05 5.30 0.189 0.199 0.209

E 7.00 BSC 0.276 BSC

E1 6.75 BSC 0.266 BSC

E2 4.80 5.05 5.30 0.189 0.199 0.209

e 0.50 BSC 0.020 BSC

L 0.30 0.40 0.50 0.012 0.016 0.020

θ 0

R 0.09 - - 0.004 - -

K 0.20 - - 0.008 - -

- 14o 0

- 14o

ALC269

Datasheet

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

70 Track ID: JATR-1076-21 Rev. 1.4

Page 79

12. Ordering Information

Table 86. Ordering Information

Part Number Description Status

ALC269Q-GR QFN-48 ‘Green’ Package Production

ALC269QSRS-GR ALC269Q-GR + SRS Audio Software Production

ALC269W-GR ALC269Q-GR + Waves MaxxAudio (software feature) Production

Note: See page 7 for ‘Green’ package and version identification.

ALC269

Datasheet

Realtek Semiconductor Corp. Headquarters

No. 2, Innovation Road II Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com

High Definition Audio Codec with Embedded Class-D Speaker Amplifier

71 Track ID: JATR-1076-21 Rev. 1.4
