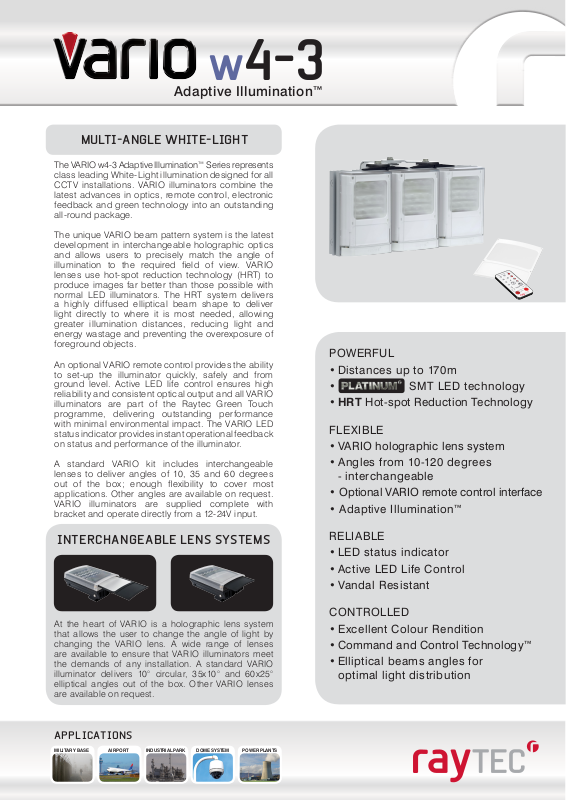

Raytec VAR-w4-LENS-80-30, VAR-w4-3, VAR-w4-LENS-120-50 Specsheet

w4-3

Adaptive Illumination™

MULTI-ANGLE WHITE-LIGHT

The VARIO w4-3 Adaptive Illumination™ Series represents
class leading White-Light illumination designed for all
CCTV installations. VARIO illuminators combine the
latest advances in optics, remote control, electronic
feedback and green technology into an outstanding
all-round package.

The unique VARIO beam pattern system is the latest
development in interchangeable holographic optics
and allows users to precisely match the angle of
illumination to the required field of view. VARIO
lenses use hot-spot reduction technology (HRT) to
produce images far better than those possible with
normal LED illuminators. The HRT system delivers
a highly diffused elliptical beam shape to deliver
light directly to where it is most needed, allowing
greater illumination distances, reducing light and
energy wastage and preventing the overexposure of
foreground objects.

An optional VARIO remote control provides the ability
to set-up the illuminator quickly, safely and from
ground level. Active LED life control ensures high
reliability and consistent optical output and all VARIO
illuminators are part of the Raytec Green Touch
programme, delivering outstanding performance
with minimal environmental impact. The VARIO LED
status indicator provides instant operational feedback
on status and performance of the illuminator.

POWERFUL

• Distances up to 170m

• SMT LED technology

• HRT Hot-spot Reduction Technology

FLEXIBLE

• VARIO holographic lens system

A standard VARIO kit includes interchangeable
lenses to deliver angles of 10, 35 and 60 degrees
out of the box; enough flexibility to cover most
applications. Other angles are available on request.
VARIO illuminators are supplied complete with
bracket and operate directly from a 12-24V input.

INTERCHANGEABLE LENS SYSTEMS

At the heart of VARIO is a holographic lens system
that allows the user to change the angle of light by
changing the VARIO lens. A wide range of lenses
are available to ensure that VARIO illuminators meet
the demands of any installation. A standard VARIO
illuminator delivers 10° circular, 35x10° and 60x25°
elliptical angles out of the box. Other VARIO lenses
are available on request.

APPLICATIONS

INDUSTRIAL PARKMILITARY BASE AIRPORT POWER PLANTSDOME SYSTEM

• Angles from 10-120 degrees

- interchangeable

• Optional VARIO remote control interface

• Adaptive Illumination™

RELIABLE

• LED status indicator

• Active LED Life Control

• Vandal Resistant

CONTROLLED

• Excellent Colour Rendition

• Command and Control Technology™

• Elliptical beams angles for
optimal light distribution

MULTI-ANGLE WHITE-LIGHT

VARIO INTERCHANGEABLE LENSING

Angle of illumination can be easily, quickly and precisely adjusted by changing the Vario holographic lens insert.
Never again be caught with the wrong angle illuminator. Elliptical and Circular beam patterns available.

LED STATUS INDICATOR

Quick operational feedback on status and performance of the illuminator. Allows simple and quick commissioning
of the installation and easy maintenance reviews

HRT - HOT-SPOT REDUCTION TECHNOLOGY

HRT - hot-spot reduction technology delivers a highly diffused, elliptical beam shape to deliver more light where
it is needed, generating both longer distances and minimizing light wastage. The HRT system also prevents

overexposure of foreground objects.

VARIO REMOTE CONTROL

1 man installation, reduces both cost and time of installation. Allows set up quickly and safely from ground level and
provides access to advanced set up features.

GREEN TOUCH TECHNOLOGY

In-built green features such as power adjust, telemetry control and timer function enhance the potential for energy
savings. Fully recyclable packaging minimises physical waste and less light is wasted with the use of elliptical beam
patterns. All VARIO units deliver high performance with low running costs.

INSIDE

PLATINUM ADVANCED LED TECHNOLOGY

PLATINUM illuminators use cutting edge SMT LED technology together with Light Intensification Miniature Optics
(LIMO™) and an enhanced Cool Running™ thermal management system into a single high performance LED.
The result is World leading power, reliability and flexibility.

5 YEAR WARRANTY

All Raytec CCTV illuminators are provided with a 5 year warranty, unmatched anywhere in
the CCTV lighting industry. Raytec illuminators provide guaranteed long life!

TECHNICAL SPECIFICATIONS

ILLUMINATOR

Total Lumens: 4356lm

Max Distance: 170 m ( 558f t )

Angle: Each single unit standard

pack includes 10 circular +
35 x 10 (fitted as standard)
and 60 x 25 elliptical lenses

Additional optional lenses:
80 x 30
120 x 50

Optics: SMT LED’s

Consumption: 72W max

Input: 12/24V AC/DC

Voltage: 13.5V current controlled

Weight: 3.75kg (8. 3lbs)

Environmental: IP66

Temp Range: -50 to +50˚C (-58 to 122°F )

Cable Length: 2.5m

Colour: Silver

Wave len gth: White-Light

Dimensions: 318 x 182 x 67mm

12.5”x7”x3” approx

BRACKETRY

U Bracket and Adaptive Illumination bracket included.

INTEGRATED COMMAND AND CONTROL
TECHNOLOGY

Integrated Standard Features

• In-built photocell for automatic on/off operation

• LED status indicator provides status on
performance of the unit

• Photocell following output

Integrated Advanced Features

(accessed via VARIO remote control)

• Power adjust from 20-100%

• Photocell sensitivity adjust

• Timer function (up to 30 mins)

• Telemetry control

• Remote Dimming

• LED status indicator on/off

• Restore factory default settings

Version 4

PART CODES & DISTANCES NARROW ANGLE WIDE ANGLE

VAR-w4 -3 VARIO w4 -3 with 3 angle 10x10° 170m (558 ft) at 10° 115m (377ft) at 30°
options included 12-24V, 850nm 35x10°(fitted as standard on all panels) 95m (312ft) at 35° 60m (197f t) at 95°
60x 25° 55m (180f t) at 6 0° 35m (115ft) at 180°
80 x 30° 35m (115ft) at 80° 21m (69ft) at 180°
120 x 50° 26m (85ft) at 120° 21m (69ft) at 180°

OPTIONAL PARTS

VAR-rc Remote Control for any VARIO illuminator (only 1 remote n eeded)
VAR-w4 -LENS-8030 Individual w4 VARIO lens – 80 H x 30V
VAR-w4 -LENS-12050 Individual w4 VAR IO lens – 120H x 50V
