Raytec VAR-PSU-2X4 Specsheet

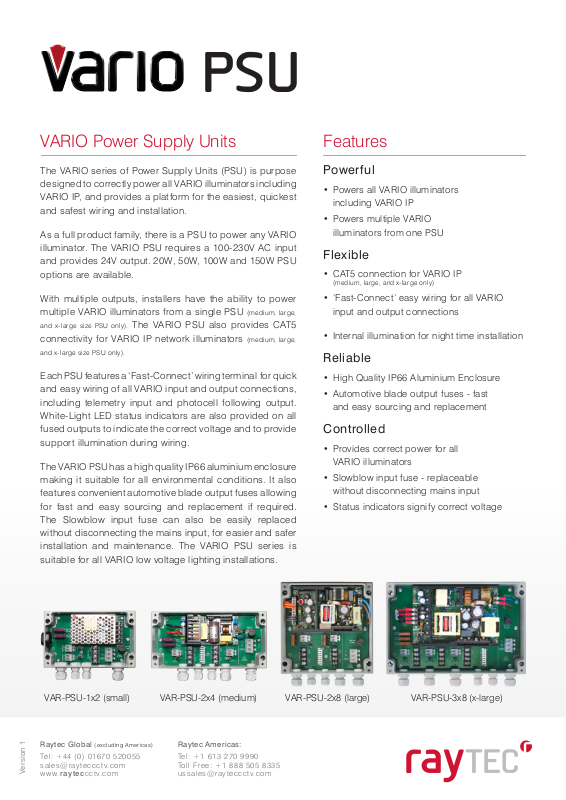

PSU

VARIO Power Supply Units

The VARIO series of Power Supply Units (PSU) is purpose
designed to correctly power all VARIO illuminators including
VARIO IP, and provides a platform for the easiest, quickest
and safest wiring and installation.

As a full product family, there is a PSU to power any VARIO
illuminator. The VARIO PSU requires a 100-230V AC input
and provides 24V output. 20W, 50W, 100W and 150W PSU
options are available.

With multiple outputs, installers have the ability to power
multiple VARIO illuminators from a single PSU

and x-large size PSU only).

connectivity for VARIO IP network illuminators

and x-large size PSU only).

Each PSU features a ‘Fast-Connect’ wiring terminal for quick
and easy wiring of all VARIO input and output connections,
including telemetry input and photocell following output.
White-Light LED status indicators are also provided on all
fused outputs to indicate the correct voltage and to provide
support illumination during wiring.

The VARIO PSU has a high quality IP66 aluminium enclosure
making it suitable for all environmental conditions. It also
features convenient automotive blade output fuses allowing
for fast and easy sourcing and replacement if required.
The Slowblow input fuse can also be easily replaced
without disconnecting the mains input, for easier and safer
installation and maintenance. The VARIO PSU series is
suitable for all VARIO low voltage lighting installations.

The VARIO PSU also provides CAT5

(medium, large,

(medium, large,

Features

Powerful

• Powers all VARIO illuminators

including VARIO IP

• Powers multiple VARIO
illuminators from one PSU

Flexible

• CAT5 connection for VARIO IP

(medium, large, and x-large only)

• ‘Fast-Connect’ easy wiring for all VARIO
input and output connections

• Internal illumination for night time installation

Reliable

• High Quality IP66 Aluminium Enclosure

• Automotive blade output fuses - fast

and easy sourcing and replacement

Controlled

• Provides correct power for all

VARIO illuminators

• Slowblow input fuse - replaceable
without disconnecting mains input

• Status indicators signify correct voltage

VAR-PSU-1x2 (small) VAR-PSU-2x4 (medium) VAR-PSU-2x8 (large) VAR-PSU-3x8 (x-large)

Raytec Global (excluding Americas) Raytec Americas:

Tel: [phone]
[e-mail]

Version 1

www.rayteccctv.com

Tel: [phone]
Toll Free: [phone]
[e-mail]

VARIO PSU Diagram

VARIO PSU

Model shown:
VAR-PSU-2x4 (medium)

Automotive blade

output fuse

Cat5

Connector

Illuminator

Outputs 1 + 2

High quality IP66

aluminium enclosure

White-Light LED
status indicators

Slowblow
input fuse

Glands x 5

Mains Input

‘Fast-Connect’

wiring terminal:

inc. telemetry input

and photocell

following output

Features Benefits

Purpose designed PSU for VARIO illuminators

A full family of VARIO PSU’s

Multiple outputs

(available on medium, large, and x-large model)

Cat 5 connector

(available on medium, large, and x-large model)

‘Fast-Connect’ Wiring

White-Light LED status indicators

High quality IP66 aluminium enclosure

Automotive blade output fuses

Slowblow input fuse

Provides correct power and provides easy wiring and installation

Can power any VARIO illuminator

Ability to run multiple VARIO units from a single PSU

Easy CAT5 connection for VARIO IP illuminators

Robust terminal for fast and easy wiring of all input/output connections

To identify correct output voltage and provide support illumination
during installation and maintenance

Suitable for all environmental conditions

Fast, easy sourcing and replacement

Can be replaced without disconnecting mains for easier and safer
installation and maintenances.
