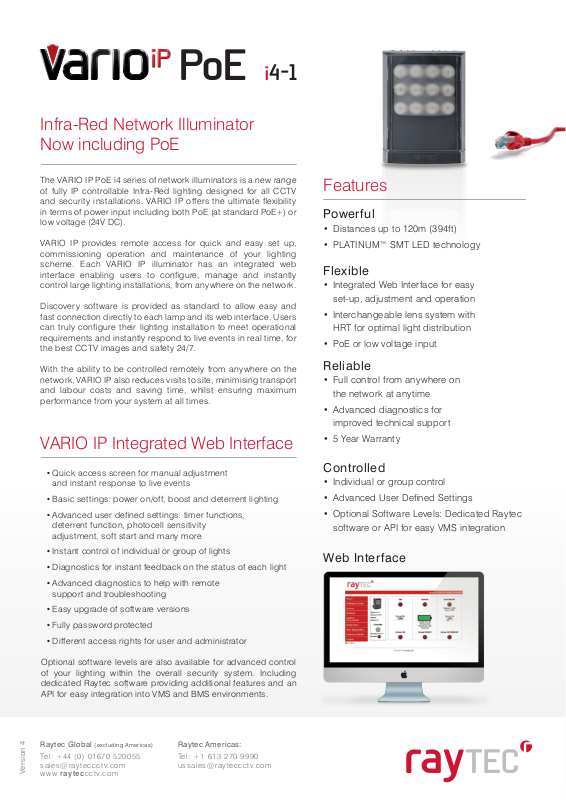

Raytec VAR-IPPOE-i4-1, VAR-IPPOE-i4-2, VAR-IPPOE-i4-3 Specsheet

PoE

Infra-Red Network Illuminator
Now including PoE

i4 -1

The VARIO IP PoE i4 series of network illuminators is a new range
of fully IP controllable Infra-Red lighting designed for all CCTV
and security installations. VARIO IP offers the ultimate flexibility
in terms of power input including both PoE (at standard PoE+) or
low voltage (24V DC).

VARIO IP provides remote access for quick and easy set up,
commissioning operation and maintenance of your lighting
scheme. Each VARIO IP illuminator has an integrated web
interface enabling users to configure, manage and instantly
control large lighting installations, from anywhere on the network.

Discovery software is provided as standard to allow easy and
fast connection directly to each lamp and its web interface. Users
can truly configure their lighting installation to meet operational
requirements and instantly respond to live events in real time, for
the best CCTV images and safety 24/7.

With the ability to be controlled remotely from anywhere on the
network, VARIO IP also reduces visits to site, minimising transport
and labour costs and saving time, whilst ensuring maximum
performance from your system at all times.

VARIO IP Integrated Web Interface

Features

Powerful

• Distances up to 120m (394ft)

• PLATINUM™ SMT LED technology

Flexible

• Integrated Web Interface for easy

set-up, adjustment and operation

• Interchangeable lens system with
HRT for optimal light distribution

• PoE or low voltage input

Reliable

• Full control from anywhere on

the network at anytime

• Advanced diagnostics for
improved technical support

• 5 Year Warranty

•

Quick access screen for manual adjustment
and instant response to live events

•

Basic settings: power on/off, boost and deterrent lighting

•

Advanced user defined settings: timer functions,
deterrent function, photocell sensitivity
adjustment, soft start and many more

•

Instant control of individual or group of lights

•

Diagnostics for instant feedback on the status of each light

•

Advanced diagnostics to help with remote
support and troubleshooting

•

Easy upgrade of software versions

•

Fully password protected

•

Different access rights for user and administrator

Optional software levels are also available for advanced control
of your lighting within the overall security system. Including
dedicated Raytec software providing additional features and an
API for easy integration into VMS and BMS environments.

Raytec Global (excluding Americas) Raytec Americas:

Tel: [phone]
[e-mail]

Version 4

www.rayteccctv.com

Tel: [phone]
[e-mail]

Controlled

• Individual or group control

• Advanced User Defined Settings

• Optional Software Levels: Dedicated Raytec

software or API for easy VMS integration

Web Interface

VARIO IP PoE - i4 Series

Software Levels

Standard Software:

Level 1: Integrated Web Interface

All lights are provided as standard with an Integrated Web Interface
which can be accessed from anywhere on the network. Allows quick
access to basic settings as well as a host of advanced user defined
settings.

Optional Software:

Level 2: Dedicated Raytec Software

Dedicated software loaded onto a network PC offering additional
features and powerful capability for scheduling operation of all lights
in larger systems.

Level 3: Raytec API

Raytec API allows easy integration into a VMS environment, for control
of lighting in overall security system.

Applications

Military Base Airport Industrial Park

Dome Sy stem Power Plant

Vario Family Features

All VARIO illuminators combine the latest advances in
optics, electronic feedback and green technology into an
outstanding all-round package.

The unique VARIO beam pattern system is the latest
development in interchangeable holographic optics and
allows users to precisely match the angle of illumination
to the required field of view. A standard VARIO kit includes
interchangeable lenses to deliver angles of 10,35 and 65
degrees out of the box. Other angles available on request.

VARIO lenses use hot-spot reduction technology (HRT)
to produce images far better than those possible with
normal LED illuminators. The HRT system delivers a
highly diffused elliptical beam shape to deliver light
directly to where it is most needed, allowing greater
illumination distances, reducing light and energy wastage
and preventing the overexposure of foreground objects.

Key Features

Dedicated IP Lighting with PoE

Remote control from anywhere on the network. Easy set-up, commissioning, operation and maintenance, minimising
labour time and costs whilst maximising performance 24/7

Integrated Web Interface

Provides quick access screen for instant response to live events in real time as well as a host of advanced settings

Advanced User Defined Settings

Integrated web interface also provides a host of user defined additional settings. Tailor your solution to meet the exact
demands of your installation, for the best CCTV images and safety 24/7. Illuminators can operate individually or as
part of a group.

Optional Software Levels

Dedicated Raytec software loaded onto a network PC provides enhanced features, user friendly GUI, powerful
capability for scheduling operation of all lights in larger systems. An API is also available allowing smooth integration
into a VMS environment to maximise the performance of lighting within the overall security system.

Interchangeable Lensing

Angle of illumination can be easily, quickly and precisely adjusted by changing the holographic lens insert. Never
again be caught with the wrong angle illuminator.

Hot-spot Reduction Technology

Hot-Spot Reduction Technology (HRT) delivers a highly diffused, elliptical beam shape to deliver more light where it is
needed, generating both longer distances and minimising light wastage. The HRT system also minimises overexposure
of foreground objects.
