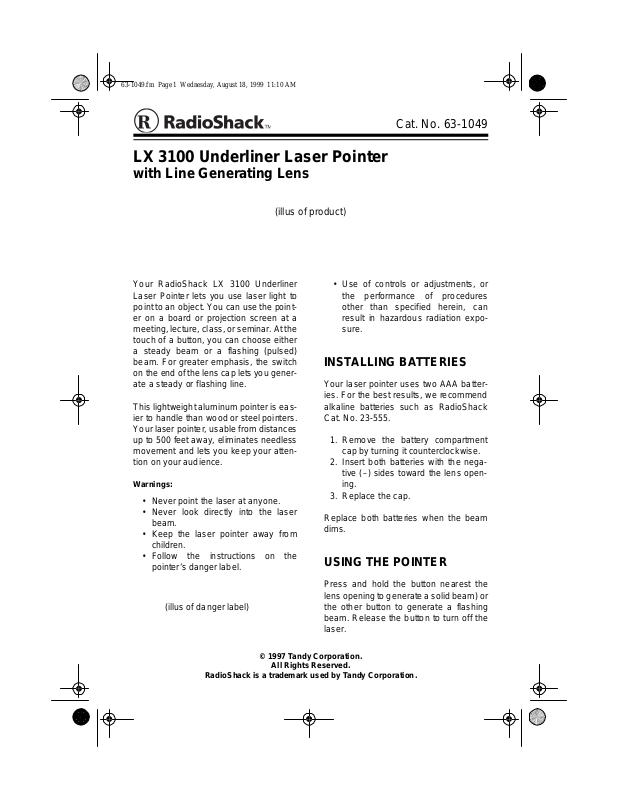

LX 3100 Underliner Laser Pointer

with Line Generating Lens

(illus of product)

Your RadioShack LX 3100 Underliner
Laser Pointer lets you use laser light to
point to an object. You can use the point­er on a board or projection screen at a
meeting, lect ure, class, or seminar. At the
touch of a button, you can choose either
a steady beam or a flashing (pulsed)
beam. For greater emphasis, the switch
on the end of t he lens cap l ets y ou gen er­ate a steady or flashing line.

This lightweight aluminum poin ter is eas­ier to handle than wood or steel pointers.
Your laser pointer , usable f rom dist ance s
up to 500 feet away, eliminates needl ess
movement and lets you keep your atten­tion on your audience.

Warnings:

• Never point the laser at anyone.

• Never look directly into the laser

• Keep the laser pointer away from

• Follow the instructions on the

beam.
children.

pointer’s danger label.

• Use of controls or adjustments, or
the performance of procedures
other than specified herein, can
result in hazardous radiation expo­sure.

INSTALLING BATTERIES

Your laser pointer uses two AAA batter­ies. For the best results, we recommend
alkaline batteries such as RadioShack
Cat. No. 23-555.

1. Remove the battery compartment
cap by turning it counterclockwise.

2. Insert both batteries with the nega­tive (–) sides toward the lens open­ing.

3. Replace the cap.

Replace both batteries when the beam
dims.

USING THE POINTER

(illus of danger la bel)

RadioShack is a trademark used by Tandy Corporation.

Press and hold the button nearest the
lens opening t o generate a sol id beam) or
the other button to generate a flashing
beam. Release the button to turn off the
laser.

© 1997 Tandy Corporation.

All Rights Reserved.

63-104 9.fm Page 2 Wednesday, August 18, 1999 11 :10 AM

To generate a solid or flashing line, push
down the swit ch at the f ront of the p ointer,
then press the desired button. To return
to the regular pinpoint beam, push the
switch back up.

CARE

Your RadioShack LX 3100 Underliner
Laser Pointer is an example of superior
design and craftsmanship. The following
suggestions will help you care for and en­joy your las e r po i nter for ye a rs .

• Keep the pointer dry. If it gets wet,
wipe it dry immediately.

• Use and store the pointer only in
normal temperature environments.

• Handle the pointer gently and care­fully. Don’t drop it.

• Keep the pointer away from dust
and dirt.

• Wipe the pointer with a damp cloth
occasionally to keep it looking new.

Modifying or tampering wit h the point er’ s
internal components can cause a mal­function and might invalidate the point­er’s warranty. If your laser pointer does
not work as it should, take it to your local
RadioShack store for assistance.

Weight..........0.75 oz. (Without Batteries)

Outer Length...... ....................5

Mater ia l.......... ... ........................ .....B r a ss

3

/4 Inches

SPECIFICATIONS

Laser Type.........................Index Guided

Wavelength.................................670 nm

Output Power .............................. <5 mW

Beam Expanse.........................<2 mRad

Battery Li fe................................. 4 Ho ur s

(Continuous Operation)

5/97 Printed in the USA

(Class IIIa Product)

RadioShack

A Division of Tandy Corporation

Fort Worth, Texas 76102
