Quantum StorNext 3.5 User Manual

6-00360-14
StorNext® 3.5
StorNext
Installation Guide Installation Guide Installation GuideInstallation Guide
StorNext 3.5 Installation Guide, 6-00360-14 Rev B, October 2009, Made in USA.
COPYRIGHT STATEMENT
© Copyright 2000 - 2008 Quantum Corporation. All rights reserved.
US Patent No: 5,990,810 applies. Other Patents pending in the US and/or other countries.
StorNext is either a trademark or registered trademark of Quantum Corporation in the US and/or other countries.
Your right to copy this manual is limited by copyright law. Making copies or adaptations without prior written authorization of Quantum Corporation is prohibited by law and constitutes a punishable violation of the law.
TRADEMARK STATEMENT
ADIC, Quantum, DLT, DLTtape, the Quantum logo, and the DLTtape logo are all registered trademarks of Quantum Corporation.
SDLT and Super DLTtape are trademarks of Quantum Corporation.
Other trademarks may be mentioned herein which belong to other companies.

Contents

Chapter 1 Installing StorNext File System and Storage Manager 1
Storage Manager System Requirements.........................................................2
Operating System Requirements.............................................................. 2
Hardware Requirements ...........................................................................2
LAN Requirements..................................................................................... 4
Getting Ready to Install ....................................................................................5
Configuring Storage Devices .................................................................... 5
Planning for LUNs Larger than 1 TB....................................................... 5
Installing the Linux Kernel Source Code ................................................ 7
Verifying Hostname Length......................................................................7
Pre-Installation Script........................................................................................ 8
Before You Begin.........................................................................................8
Running snPreInstall.................................................................................. 9
Interpreting snPreInstall Output............................................................ 10
StorNext Installation Script ............................................................................ 12
Upgrading From a StorNext File System-Only Configuration..........12
Launching the StorNext Installation Script........................................... 12
Changing Installation Configuration Options......................................14
Performing an Installation Operation.................................................... 17
Chapter 2 Installing StorNext File System 18
File System Requirements............................................................................... 19
StorNext 3.5 Installation Guide iii
Contents
Operating System Requirements............................................................ 19
Hardware Requirements .........................................................................19
LAN Requirements................................................................................... 20
Getting Ready to Install ..................................................................................20
Configuring Storage Devices .................................................................. 21
Planning for LUNs Larger than 1 TB..................................................... 21
Installing the Linux Kernel Source Code .............................................. 23
Installing StorNext File System on Linux or Unix ...................................... 23
Launching the SNFS Installation Script................................................. 23
Changing Installation Configuration Options......................................25
Performing an Installation Operation.................................................... 26
Installing StorNext File System on Windows.............................................. 27
Disabling Automatic IP Address Configuration.................................. 27
Removing a Previous Version of StorNext ........................................... 28
Running the Setup Wizard...................................................................... 29
Restoring a Previous Client Configuration........................................... 33
Chapter 3 Installing the StorNext Client 36
Client System Requirements .......................................................................... 37
Operating System Requirements............................................................ 37
Hardware Requirements .........................................................................38
StorNext File System Client Buffer Cache............................................. 38
Downloading the StorNext Client Software ................................................ 39
Installing the StorNext Client on Linux or Unix .........................................42
Installing the StorNext Client on Linux................................................. 42
Installing the StorNext Client on Sun Solaris ....................................... 44
Installing the StorNext Client on HP-UX .............................................. 46
Installing the StorNext Client on IBM AIX ........................................... 47
Installing the StorNext Client on Windows................................................. 49
Removing a Previous Version of StorNext ........................................... 49
Running the Setup Wizard...................................................................... 50
Restoring a Previous Client Configuration........................................... 54
Chapter 4 Configuring StorNext 57
StorNext GUI .................................................................................................... 58
Accessing the StorNext GUI.................................................................... 58
Configuration Wizard ..................................................................................... 60
Displaying the Configuration Wizard................................................... 61
StorNext 3.5 Installation Guide iv
Contents
Using the Configuration Wizard............................................................ 61
Configuring a Distributed LAN Client Server ............................................65
Configuring a Distributed LAN Client on Linux................................. 66
Configuring a Distributed LAN Server on Linux................................ 66
Windows Configuration Utilities .................................................................. 70
Client Configuration................................................................................. 71
Disk Device Labeler.................................................................................. 83
License Identifier....................................................................................... 85
Simple File System Configuration.......................................................... 85
Start File System Services ........................................................................ 87
Stop and Remove File System Services ................................................. 87
Stop File System Services.........................................................................87
Version Information ................................................................................. 88
Check (Read-Only) a File System ........................................................... 88
File System Startup List ........................................................................... 88
Re-initialize a File System........................................................................ 90
Repair a File System ................................................................................. 90
Server Administration.............................................................................. 90
Server Configuration................................................................................ 96
Installing Promise RAID Controller Software........................................... 106
Appendix A Uninstalling StorNext 110
Uninstalling StorNext on Unix and Linux .................................................110
Uninstalling SNSM and SNFS .............................................................. 111
Uninstalling the StorNext Client Software ......................................... 112
Uninstalling StorNext on Windows............................................................ 113
Appendix B StorNext Administration Tasks 114
Sharing a Library Between Applications....................................................114
Manually Modifying Storage Manager Configuration ............................ 116
fs_sysparm_override Configuration File............................................. 116
filesize.config Configuration File ......................................................... 117
log_params Configuration File............................................................. 117
Connecting to a StorNext Network Using Xsan 1.4.2............................... 118
Mounting SNFS on the OSx Computer ............................................... 118
Creating the automount.plist File ........................................................ 120
Connecting to a StorNext Network Using Xsan 2..................................... 121
Mounting SNFS on the Mac OS X Computer..................................... 121
StorNext 3.5 Installation Guide v
Contents
Viewing a Fibre Channel Device ................................................................. 124
StorNext Log Rolling Administration......................................................... 125
Changing Log Rolling Times ................................................................ 125
Log Rolling Options ............................................................................... 125
Avoiding Poor System Performance........................................................... 126
Appendix C StorNext Files 127
The example.cfg File......................................................................................127
Cluster-Wide Central Control...................................................................... 134
Cluster-Wide Control File Example.....................................................135
Commonly Used SNFS Files ........................................................................ 138
Appendix D Quality of Service Guide 142
Overview.........................................................................................................143
Active vs. Passive.................................................................................... 143
Supported Platforms .............................................................................. 143
Non-Realtime Operation .......................................................................144
Configuration ................................................................................................. 144
Unit of I/O............................................................................................... 144
Converting MB/sec to I/O/sec............................................................ 145
Real-time I/O..................................................................................................149
SetRtio.......................................................................................................150
Oversubscription ....................................................................................150
Handles .................................................................................................... 150
Ungated files............................................................................................ 151
Calculating Available RTIO ..................................................................152
Non-Realtime I/O Configuration................................................................ 152
Configuration File Examples.................................................................153
Callbacks ......................................................................................................... 154
Callback Failures.....................................................................................155
Tokens ...................................................................................................... 156
Failure Semantics....................................................................................158
FSM Failures............................................................................................159
Client Failures ......................................................................................... 159
Client Token Releases ............................................................................ 160
Monitoring ...................................................................................................... 160
Sharing Disk Resources................................................................................. 161
StorNext 3.5 Installation Guide vi
Figures
Figure 1 Pre-Installation Script ................................................................ 10
Figure 2 StorNext Installation Script....................................................... 13
Figure 3 Configuration Menu .................................................................. 15

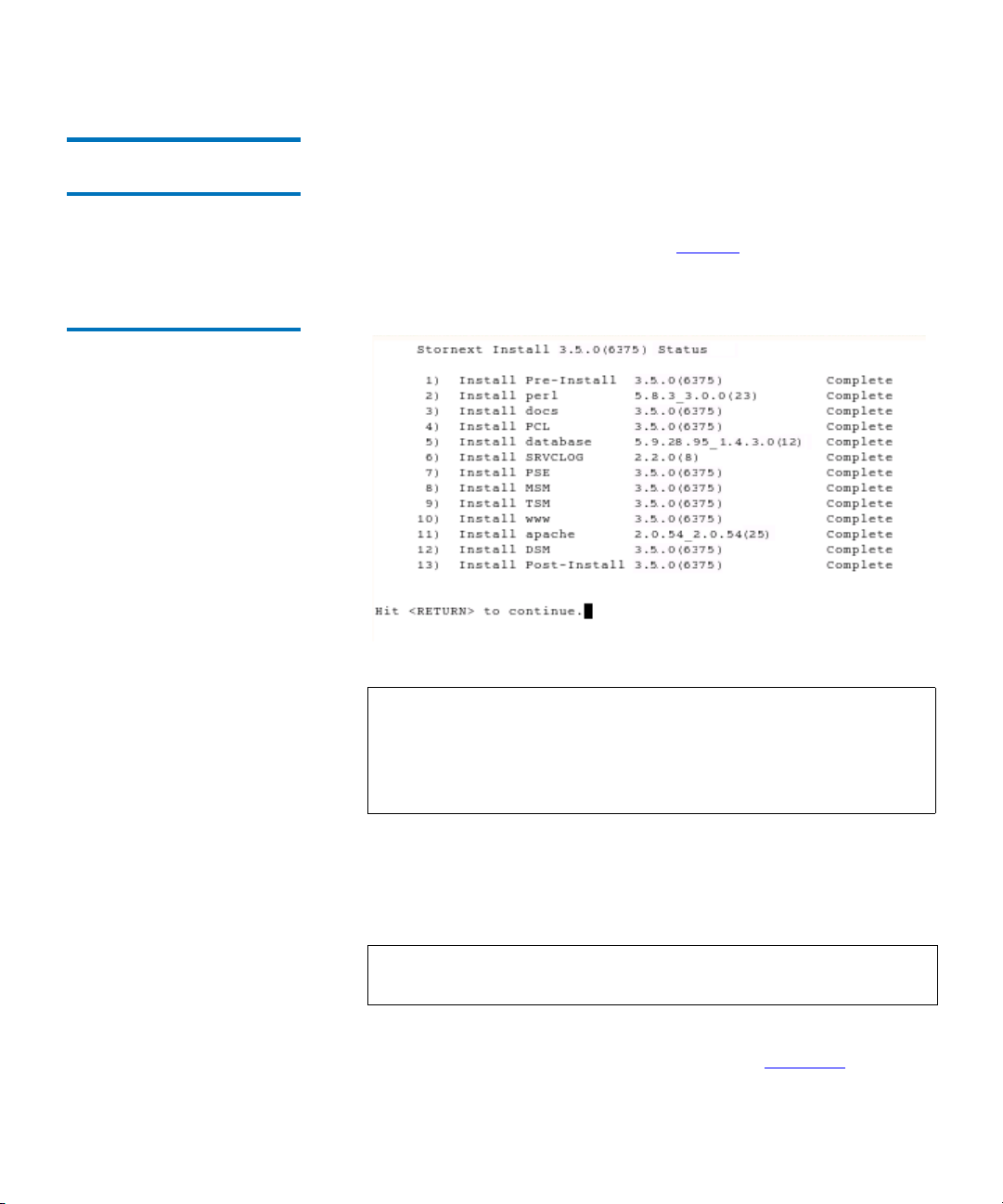

Figure 4 StorNext Installation Status ...................................................... 17
Figure 5 SNFS Installation Script............................................................. 24
Figure 6 Configuration Menu .................................................................. 25
Figure 7 StorNext Installation Status ...................................................... 26
Figure 8 StorNext Installation Window: Remove StorNext ................28
Figure 9 StorNext Installation Window: Install StorNext.................... 30
Figure 10 SNFS Setup: Welcome ............................................................... 30

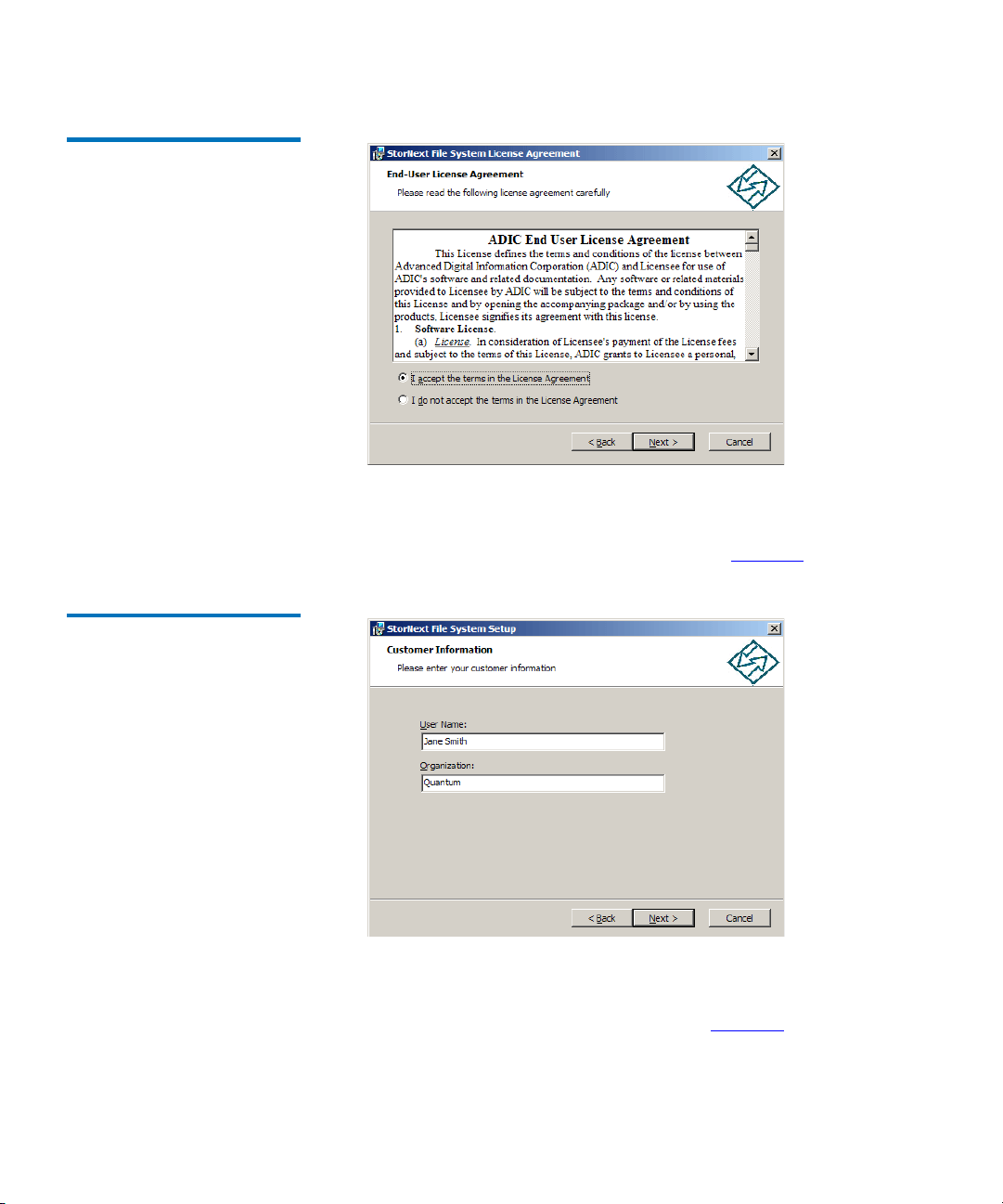

Figure 11 SNFS Setup: End-User License Agreement............................31
Figure 12 SNFS Setup: Customer Information ........................................ 31
Figure 13 SNFS Setup: Choose Setup Type..............................................32
Figure 14 SNFS Setup: Ready to Install .................................................... 32
Figure 15 SNFS Setup: Finish ..................................................................... 33
Figure 16 StorNext Installation Window: Configure StorNext.............34
Figure 17 StorNext Configuration Window............................................. 34
StorNext 3.5 Installation Guide vii
Figures
Figure 18 Import/Export Client Configuration Window...................... 35
Figure 19 Select Platform Window............................................................40

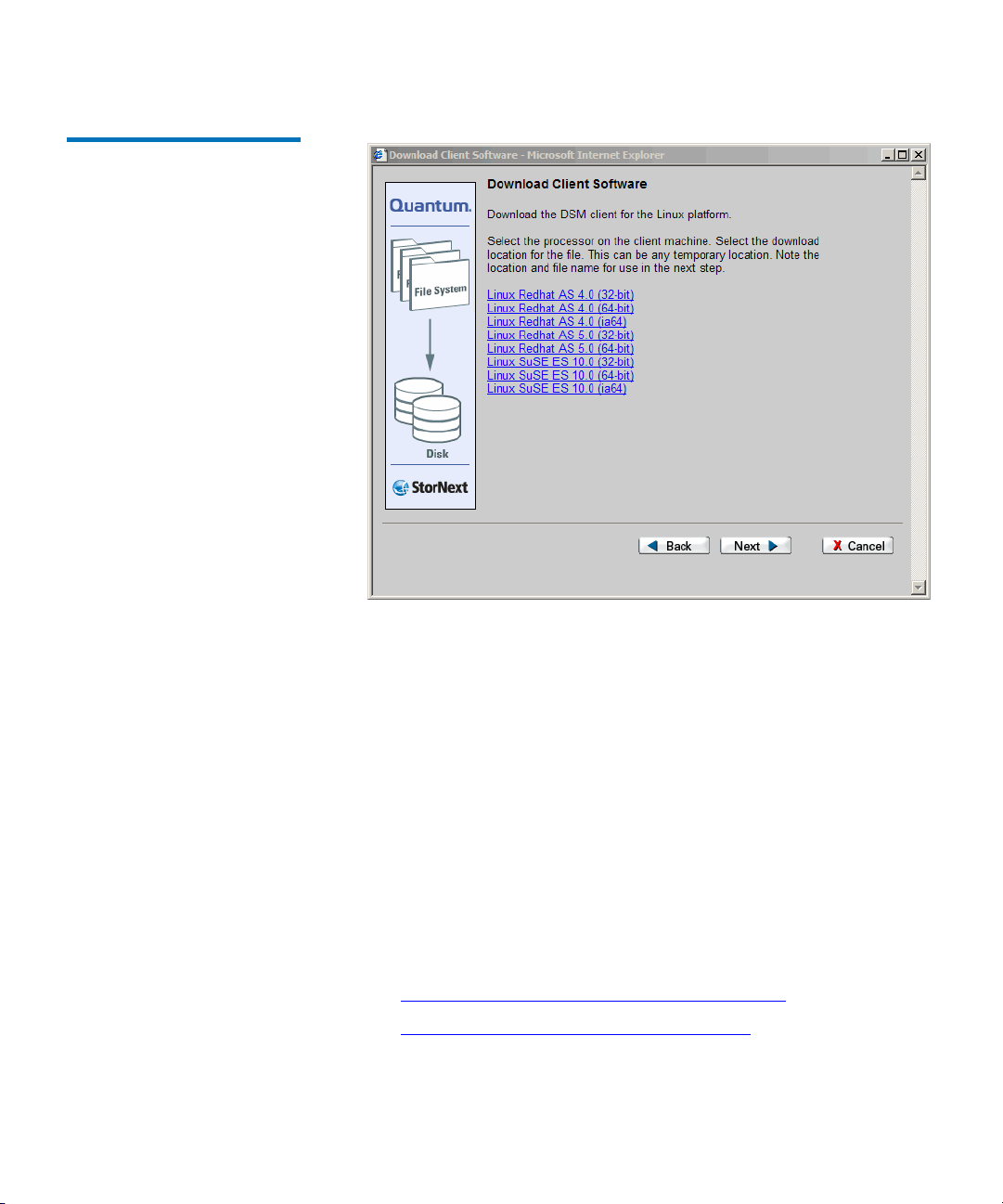

Figure 20 Download Client Software Window ....................................... 41
Figure 21 StorNext Installation Window: Remove StorNext ................50
Figure 22 StorNext Installation Window: Install StorNext.................... 51
Figure 23 SNFS Setup: Welcome ............................................................... 51
Figure 24 SNFS Setup: End-User License Agreement............................52
Figure 25 SNFS Setup: Customer Information ........................................ 52
Figure 26 SNFS Setup: Choose Setup Type..............................................53
Figure 27 SNFS Setup: Ready to Install .................................................... 53
Figure 28 SNFS Setup: Finish ..................................................................... 54
Figure 29 StorNext Installation Window: Configure StorNext.............55
Figure 30 StorNext Configuration Window............................................. 55
Figure 31 Import/Export Client Configuration Window...................... 56
Figure 32 StorNext Home Page: File System and Storage Manager .... 59
Figure 33 StorNext Home Page: File System Only ................................. 59
Figure 34 StorNext Configuration Wizard: Storage Manager............... 60
Figure 35 StorNext Configuration Wizard: File System Only............... 61
Figure 36 sndpscfg Configuration Utility ................................................ 67
Figure 37 Client Configuration: Mount Point.......................................... 72
Figure 38 Client Configuration: Distributed LAN.................................. 74
Figure 39 Client Configuration: Advanced Mount Options..................76
Figure 40 Client Configuration: Advanced Cache Options................... 80
Figure 41 Disk Device Labeler ................................................................... 83
Figure 42 Disk Labeler Dialog Box............................................................ 84
Figure 43 Simple File System Configuration ...........................................86
Figure 44 File System Startup List............................................................. 89
Figure 45 Server Administration ............................................................... 91
Figure 46 Server Administration: File System Properties...................... 92
StorNext 3.5 Installation Guide viii
Figures
Figure 47 Server Administration: Stripe Group Properties...................93
Figure 48 Server Administration: Quota Properties............................... 95
Figure 49 Configuration Administrator ...................................................97
Figure 50 Server Configuration: Global Settings..................................... 98
Figure 51 Server Configuration: Disk Types..........................................101
Figure 52 Server Configuration: Enter New Disk Type ....................... 102
Figure 53 Server Configuration: Disk Definitions................................. 103
Figure 54 Server Configuration: Stripe Groups..................................... 104
Figure 55 Windows Boot Manager Screen 1 ..........................................107
Figure 56 Windows Boot Manager Screen 2 ..........................................108
Figure 57 Advanced Boot Options Screen.............................................. 108
Figure 58 StorNext Remove Main Menu................................................112
Figure 59 Sharing Access to Files.............................................................151
Figure 60 Callback Flow for Initial RTIO Request................................ 154
Figure 61 Callback Retraction Example..................................................156
Figure 62 Non-Real-time Token Adjustments....................................... 158
StorNext 3.5 Installation Guide ix
Tables
Table 1 Storage Manager Supported Platforms.................................... 2
Table 2 Storage Manager Hardware Requirements.............................. 3
Table 3 Required Disk LUN Labels ......................................................... 6
Table 4 StorNext Support Directories ..................................................... 8
Table 5 Pre-Installation Script Recommendation Types .................... 11
Table 6 StorNext Installation Main Menu Options ............................. 14
Table 7 File System Supported Platforms............................................19
Table 8 File System Hardware Requirements...................................... 20
Table 9 Required Disk LUN Labels ....................................................... 22
Table 10 SNFS Installation Main Menu Options................................... 25
Table 11 StorNext Client Supported Platforms .................................... 37
Table 12 Default Memory Consumed by cachebufsize........................ 39
Table 13 Distributed LAN Server Parameters ....................................... 68
Table 14 Distributed LAN Client and Server Commands ................... 69
Table 15 Client Configuration: Mount Point.......................................... 72
Table 16 Client Configuration: Distributed LAN.................................. 74
Table 17 Client Configuration: Advanced Mount Options..................76
StorNext 3.5 Installation Guide x
Tables
Table 18 Client Configuration: Advanced Cache Options................... 80
Table 19 Disk Labeler Dialog Box............................................................ 84
Table 20 Simple File System Configuration ........................................... 86
Table 21 File System Startup List............................................................. 89
Table 22 Server Administration: File System Properties...................... 92
Table 23 Server Administration: Stripe Group Properties................... 94
Table 24 Server Administration: Quota Properties............................... 95
Table 25 Server Configuration: Global Settings..................................... 98
Table 26 Server Configuration: Enter New Disk Type.......................102
Table 27 Server Configuration: Disk Definitions................................. 103
Table 28 Server Configuration: Stripe Groups..................................... 105
Table 28 QOS Configuration Keywords...............................................146
StorNext 3.5 Installation Guide xi

Preface

StorNext provides high performance data sharing and intelligent archiving that is compatible with an industry-leading range of operating systems, server platforms, and storage devices.
StorNext includes two main components:
• StorNext File System (SNFS) is high performance data sharing software that lets applications on multiple operating systems access a single data set.
• StorNext Storage Manger (SNSM) is an intelligent, policy-based data mover that automatically moves and locates data across multiple storage tiers.
You can choose to install both StorNext File System and Storage Manager, or install StorNext File System only. In addition, StorNext includes client software that allows client systems to mount and work with StorNext file systems.
StorNext 3.5 Installation Guide xii
Audience
Purpose
Preface
Audience
This document is intended for service professionals and system administrators who install StorNext software. The installer should have strong familiarity with the operating system on which StorNext is installed.
Only service professionals, experienced StorNext users, or individuals who have successfully completed StorNext training should configure StorNext. Attempting to configure StorNext without proper experience or training can affect system performance and may result in data loss.
This document provides information about installing and configuring StorNext. The following topics are covered:
• System requirements
• Pre-installation tasks
• Installation
• Configuration
• Uninstalling StorNext
StorNext 3.5 Installation Guide xiii
Document Organization
This document contains the following chapters:
Chapter 1, “Installing StorNext File System and Storage Manager,” provides system requirements, pre-installation information, and instructions for installing StorNext File System and Storage Manger on a metadata controller (MDC).
Chapter 2, “Installing StorNext File System,” provides system requirements, pre-installation information, and instructions for installing StorNext File System (without Storage Manager) on a metadata controller (MDC).
Chapter 3, “Installing the StorNext Client,” provides system requirements, pre-installation information, and instructions for installing the StorNext client software.
Chapter 4, “Configuring StorNext,” describes how to use the StorNext configuration wizard and the Windows configuration utilities to create a basic StorNext configuration, and how to configure a distributed LAN client or server.
Preface
Document Organization
Appendix A, “Uninstalling StorNext,” describes how to remove StorNext software from a server or client system.
Appendix B, “StorNext Administration Tasks,”describes how to perform file system tasks that do not apply to a typical StorNext setup.
Appendix C, “StorNext Files,”describes the files used and modified to configure a file system.
Appendix D, “Quality of Service Guide,”describes how to configure and use the StorNext File System (SNFS) Quality of Service (QOS) feature.
StorNext 3.5 Installation Guide xiv
Notational Conventions
This manual uses the following conventions:
Convention Example
Preface
Notational Conventions
User input is shown in Arial regular
./install.stornext
font.
User input variables are enclosed in
mkdir -p <mount point>
angle brackets and are shown in Arial italic font.
For UNIX and Linux commands, the command prompt is implied.
File and directory names, menu
./install.stornext
is the same as
# ./install.stornext
/stornext/snfs1
commands, button names, and window names are shown in Arial bold font.
Menu names separated by arrows indicate a sequence of menus to be
Admin > Download Client Software
navigated.
The following formats indicate important information:
Note: Notes emphasize important information related to the main
topic.
Tech Tip: Tech Tips provide technical information which may be
helpful in performing the procedure.
Caution: Cautions indicate potential hazards to equipment and are
included to prevent damage to equipment.
StorNext 3.5 Installation Guide xv
Related Documents
Documents related to StorNext are shown below:

Quantum StorNext Documentation 0

Preface
Related Documents
Warning: Warnings indicate potential hazards to personal safety and
are included to prevent injury.
Document No. Document Title Document Description
6-01658-05 StorNext User’s Guide Provides in-depth
information about using StorNext to create and manage StorNext File Systems.
6-01376-09 StorNext File System
Tuning Guide
6-01620-08 StorNext Upgrade
Guide
6-01688-05 StorNext CLI Reference
Guide
StorNext 3.5 Installation Guide xvi
Provides information for maximizing file system performance.
Provides procedures for upgrading from earlier versions of StorNext.
Provides procedures for performing common tasks using the command line interface.
Preface
Contacting Quantum
Document No. Document Title Document Description
6-01564-02 AMASS Conversion
6-00431-22 StorNext 3.5 Release
Contacting Quantum
More information about this product is available on the Quantum Service and Support website at Quantum Service and Support website contains a collection of information, including answers to frequently asked questions (FAQs). You can also access software, firmware, and drivers through this site.
To request a software upgrade, visit www.quantum.com/
ServiceandSupport/Upgrade/Index.aspx. For further assistance, or if
training is desired, contact Quantum Global Services:
Provides information about
Guide
Notes
www.quantum.com/ServiceandSupport. The
migrating systems running AMASS to StorNext.
Includes the latest product information, fixes, and issues.
North America
EMEA
Online Service and Support
World Wide Web
(Local numbers for specific countries are listed on the Quantum Service and Support Website.)
StorNext 3.5 Installation Guide xvii
+1 800-284-5101 Option 5
00800 9999 3822
www.quantum.com/OSR
www.quantum.com/ServiceandSupport
Chapter 1
1Installing StorNext File System
and Storage Manager
This chapter describes how to install StorNext File System (SNFS) and StorNext Storage Manager (SNSM) on a metadata controller (MDC). Install both SNFS and SNSM for storage systems that require policy­based data movement (for example, systems that include tape drives or libraries).
To ensure successful operation, do the following tasks before installing StorNext:
• Make sure the MDC meets all operating system and hardware requirements (see
• Make sure all storage devices are correctly configured and are visible to the MDC (see
Storage Manager System Requirements).
Getting Ready to Install on page 5)
• (Optional) Run the pre-installation script to check for available disk space and view recommended locations for support directories (see
Pre-Installation Script on page 8).
When you are ready to install StorNext File System and Storage Manager on the MDC, run the installation script (see on page 12).
Note: To install only StorNext File System (without Storage
Manager), see install the StorNext client software, see Chapter 3, “Installing the StorNext Client.”
StorNext 3.5 Installation Guide 1
Chapter 2, “Installing StorNext File System.” To
StorNext Installation Script
Chapter 1 Installing StorNext File System and Storage Manager

Storage Manager System Requirements

Storage Manager System Requirements
To run StorNext File System and Storage Manager, the metadata controller must meet all operating system, hardware, and LAN requirements.

Operating System Requirements 1

Table 1 Storage Manager Supported Platforms

Hardware Requirements1

The operating systems, kernel versions, and hardware platforms supported by StorNext SNFS and SNSM are presented in sure the MDC uses a supported operating system and platform, and if necessary update to a supported kernel version before installing StorNext.
Operating System Kernel Platform
Red Hat® Enterprise
®
Linux
SUSETM Linux Enterprise Server 10
The minimum amount of RAM and available hard disk space required to run StorNext SNFS and SNSM are presented in files (such as database and journal files) are stored on the MDC, the amount of local disk space that is required increases with the number of data files stored on StorNext file systems.
If necessary, upgrade the RAM and local disk storage in the MDC to meet the minimum requirements before installing StorNext.
5
2.6.18-53.EL (Update 1)
2.6.18-92.EL (Update 2)
2.6.16-46-0.12 (SP1)
2.6.16-60-0.27 (SP2)
Table 2. Because support
Table 1. Make
x86 64-bit
x86 64-bit
Note: The RAM requirements in Table 2 are for running StorNext
File System and Storage Manager only. Running additional software (including the StorNext client software) requires additional RAM.
StorNext 3.5 Installation Guide 2
Chapter 1 Installing StorNext File System and Storage Manager
Storage Manager System Requirements
Table 2 Storage Manager Hardware Requirements
File Systems RAM Disk Space
1–4* 2 GB • For application binaries, log files,
5–8** 4 GB
and documentation: up to 30GB (depending on system activity)
• For support directories: 3 GB per million files stored
• For metadata: 25GB minimum
* Two CPUs recommended for best performance. ** Two CPUs required for best performance.
For non-managed file systems, the requirement is 1GB per million files stored.
Note: If a file system uses deduplicated storage disks (DDisks), note
the following additional requirements:
• Requires 2 GB RAM per DDisk in addition to the base RAM noted in
Table 2.
• Requires an additional 5GB of disk space for application binaries and log files.
• Deduplication is supported only for file systems running on a Linux operating system.
• An Intel Pentium 4 or later processor (or an equivalent AMD processor) is required. For best performance, Quantum recommends an extra CPU per blockpool.
Partitioning Local Hard Disks 1
StorNext can be installed on any local file system (including the root file system) on the MDC. However, for optimal performance, as well as to aid disaster recovery, follow these recommendations:
• Avoid installing StorNext on the root file system.
• Partition local hard disks so that the MDC has four available local file systems (other than the root file system) located on four separate hard drives.
StorNext 3.5 Installation Guide 3
Chapter 1 Installing StorNext File System and Storage Manager
Storage Manager System Requirements
Note: You can run the pre-installation script to help determine the
estimated size of and optimal location for StorNext support directories. For more information, see
Pre-Installation Script
on page 8.

LAN Requirements 1

The following LAN requirements must be met before installing StorNext on the MDC:
• In cases where gigabit networking hardware is used and maximum StorNext performance is required, a separate, dedicated switched Ethernet LAN is recommended for the StorNext metadata network. If maximum StorNext performance is not required, shared gigabit networking is acceptable.
• A separate, dedicated switched Ethernet LAN is mandatory for the metadata network if 100 Mbit/s or slower networking hardware is used.
• The MDC and all clients must have static IP addresses.
Verify network connectivity with pings, and also verify entries in the
/etc/hosts file. Alternatively, telnet or ssh between machines to verify
connectivity.
• If using Gigabit Ethernet, disable jumbo frames and TOE (TCP offload engine).
Note: StorNext does not support file system metadata on the same
network as iSCSI, NFS, CIFS, or VLAN data when 100 Mbit/s or slower networking hardware is used.
StorNext 3.5 Installation Guide 4

Getting Ready to Install

Before installing StorNext SNFS and SNSM, complete the following tasks to ensure successful installation:
• Correctly configure all storage devices (see Configuring Storage
Devices).
• If using LUNs larger than 1 TB, decide on a label type and install any necessary operating system patches (see
than 1 TB).
• (Linux only) Install the kernel source code (see Installing the Linux
Kernel Source Code on page 7).
Chapter 1 Installing StorNext File System and Storage Manager
Getting Ready to Install
Planning for LUNs Larger

Configuring Storage Devices 1

Planning for LUNs Larger than 1 TB 1

Before installing StorNext SNFS and SNSM, make sure that all LUNs are visible to the MDC. (A LUN, or logical unit number, is a logical device that corresponds to one or more disks, drives, or storage devices.)
If there are any connection issues, resolve them before installing StorNext. For assistance in configuring storage devices, refer to the documentation that came with the storage device, or contact the manufacturer.
Note: LUNs that you plan to use in the same stripe group must be
the same size. Consider this when configuring storage devices. (For more information about stripe groups, see the StorNext 3.5 User’s Guide.)
Caution: StorNext does not support the connection of multiple
devices through fibre channel hubs. Multiple devices must be connected using fibre channel switches.
StorNext supports LUNs greater than 1 TB in size if they are allowed by the operating system. To enable support for 1 TB or larger LUNs, all StorNext LUNs must be correctly labeled according to the requirements
StorNext 3.5 Installation Guide 5
Chapter 1 Installing StorNext File System and Storage Manager
Getting Ready to Install
of the operating system running on the MDC as well as the operating system running on all connected clients. Disk LUNs can have one of three labels: VTOC, EFI, or sVTOC (short VTOC).
Required disk LUN label settings based on operating system and LUN size are presented in
Table 3. Before installing StorNext, decide what
label type will be used, and then install any required operating system patches or updates (for both MDC and client) as indicated in the notes for
Table 3.
Note: After labeling a disk LUN, you must reboot systems running
Solaris before they can access the disk LUN.
Table 3 Required Disk LUN Labels
Operating System
Windows XP
Windows 2003
Label for LUNs < 1 TB
a
VTOC, EFI VTOC, EFI EFI, sVTOC
Label for LUNs 1–2 TB
VTOC, EFI VTOC, EFI EFI, sVTOC
Label for LUNs > 2 TB
Server
Linux 2.6
VTOC, EFI VTOC, EFI EFI, sVTOC
Kernel
Linux 2.4
VTOC, EFI VTOC, EFI Not supported
Kernel
Solaris 9
Solaris 10
HP-UX
IBM AIX
b
c
a
d
VTOC, EFI EFI Not supported
VTOC, EFI EFI EFI
VTOC, EFI VTOC, EFI EFI, sVTOC
VTOC, EFI VTOC, EFI EFI, sVTOC
SGI IRIX VTOC VTOC Not supported
Apple Xsan 1.3
VTOC, EFI VTOC, EFI EFI, sVTOC (MacOS X 10.4 Tiger)
Apple Xsan 1.3 (MacOS X 10.3 Panther)
StorNext 3.5 Installation Guide 6
a
VTOC, EFI VTOC, EFI EFI, sVTOC
Chapter 1 Installing StorNext File System and Storage Manager
Getting Ready to Install

Installing the Linux Kernel Source Code 1

Operating System
Apple Xsan
a
1.2
a. Supports only the first 2 TB of LUNs larger than 2 TB. b. Support for EFI labels requires the Multiterabyte Disk Support patch. c. Support for 2 TB or larger LUNs requires Solaris 10 Update 2 (06/06). d. Supports only LUNs of 2.2 TB or less.
Label for
LUNs < 1 TB
Label for LUNs 1–2 TB
Label for LUNs > 2 TB
VTOC VTOC sVTOC
Note: For best results, Quantum recommends using persistent
binding for disk LUNs. For more information, contact the vendor of your HBA (host bus adapter).
For management servers running Red Hat Enterprise Linux version 4 or 5, before installing SNFS and SNSM you must first install the kernel header files (shipped as the kernel-devel or kernel-devel-smp RPM, depending on your Linux distribution).
For servers running SUSE Linux Enterprise Server, you must install the first kernel source code (shipped as the kernel-source RPM). StorNext will not operate correctly if these packages are not installed. You can install the kernel header files or kernel source RPMs by using the installation disks for your operating system.

Verifying Hostname Length 1

The maximum hostname length for a StorNext server is limited to 25 characters. Before you begin the installation, verify that the destination hostname is not longer than 25 characters. (The hostname is read during the installation process, and if the hostname is longer than 25 characters the installation process could fail.)
StorNext 3.5 Installation Guide 7

Pre-Installation Script

The StorNext pre-installation script (snPreInstall) is included on the StorNext installation CD. When you run for information about your system. The pre-installation script uses this information to estimate the amount of local disk space required for SNFS and SNSM support directories. In addition, the script recommends the optimal locations for support directories.
StorNext uses five directories to store application support information. These directories are stored locally on the metadata controller, except for the
Backup directory, which is stored on the managed file system.
The StorNext support directories are described in Table 4.
Chapter 1 Installing StorNext File System and Storage Manager
Pre-Installation Script
snPreInstall, you are prompted
Table 4 StorNext Support Directories

Before You Begin 1

Support Directory Description
Database
/adic/database
Journal
/adic/database_jnl
Mapping
/adic/mapping_dir
Metadata
/adic/database_meta
Backup
/backup
Records information about where and how data files are stored.
Records changes made to the database.
Contains index information that enables quick searches on the file system.
Stores metadata dumps (backups of file metadata).
Contains configuration files and support data required for disaster recovery.
Before running the pre-installation script, be prepared to answer the following questions:
• Is this an upgrade installation?
• What local file systems can be used to store support information?
• Which version of StorNext will be installed?
StorNext 3.5 Installation Guide 8
Chapter 1 Installing StorNext File System and Storage Manager
Pre-Installation Script
• What is the maximum number of directories expected (in millions)?
• What is the maximum number of files expected (in millions)?
• How many copies will be stored for each file?
• How many versions will be retained for each file?
Note: Keep in mind that storage needs typically grow rapidly.
Consider increasing the maximum number of expected directories and files by a factor of 2.5x to ensure room for future growth.
Note: The pre-installation script ignores unmounted file systems.
Before running
snPreInstall, be sure to mount all local file
systems that will hold StorNext support information.

Running snPreInstall 1

To run the pre-installation script, use the StorNext installation CD.
1 Log on to the MDC as root. 2 Mount the StorNext installation CD and change to the CD root
directory.
3 List the installation directories on the CD. At the command prompt,
type:
ls -l
4 Identify the correct installation directory for your operating system
and hardware platform, and then change to that directory.
For example, for Red Hat Linux 5 running on an x86 64-bit platform, change to the
RedHat50AS_26x86_64 directory.
5 Run the script. At the command prompt, type:
./snPreInstall
The pre-installation script runs (figure 1).
StorNext 3.5 Installation Guide 9
Figure 1 Pre-Installation Script
Chapter 1 Installing StorNext File System and Storage Manager
Pre-Installation Script
6 Follow the onscreen instructions, and answer each question when
prompted.
The script outputs results based on the information you entered.

Interpreting snPreInstall Output 1

After you enter all requested information, the pre-installation script outputs the following results:
• Estimated disk space required for each support directory.
• Recommended file system location for each support directory.
Tech Tip: For optimal performance, each support directory
(other than the
Backup directory) should be located on
its own local file system, and each local file system should reside on a separate physical hard disk in the MDC.
There are three types of directory recommendations, as indicated by the text preceding the recommendation. The three types of recommendations are described in
StorNext 3.5 Installation Guide 10
Table 5.
Chapter 1 Installing StorNext File System and Storage Manager
Pre-Installation Script
Table 5 Pre-Installation Script Recommendation Types
Type Description
RECOMMEND The suggested directory locations will result in
optimal system performance.
NOTE The suggested directory locations are valid but
system performance will not be optimal.
SPACE Additional hard disk space is required to store
the required support directories.
The pre-installation script bases directory location recommendations on the following criteria:
• To aid disaster recovery, the Database and Journal directories should
be located on different file systems.
• For optimal performance, the Metadata directory should not be
located on the same file system as (in order of priority) the
Database, or Mapping directory.
Journal,
Note: Do not change the location of support directories manually.
Instead, use the installation script to specify the location for support directories. For more information, see
StorNext
Installation Script.
StorNext 3.5 Installation Guide 11

StorNext Installation Script

When you are ready to install StorNext, use the StorNext installation script to install StorNext File System and Storage Manager on the metadata controller. The installation script also installs the client software on the MDC.
If you are upgrading from a StorNext File System only system to include StorNext Storage Manager, please follow the instructions in
From a StorNext File System-Only Configuration. Otherwise, you can
proceed to Launching the StorNext Installation Script.
Chapter 1 Installing StorNext File System and Storage Manager
StorNext Installation Script
Upgrading
Upgrading From a StorNext File System­Only Configuration 1

Launching the StorNext Installation Script 1

If you have StorNext File System only and are adding StorNext Storage Manager, some components remain from the File System installation and the new installation could fail. To prevent installation failure, you should first remove the old components.
The following procedure describes how to remove the old components before starting the new StorNext installation. Follow the steps below only if you are upgrading from a StorNext File System-only configuration to StorNext File System and Storage Manger.
1 Log on to the MDC as root. 2 Save /etc/fstab and /usr/cvfs/config 3 Remove the existing rpms. 4 Install StorNext as described in Launching the StorNext Installation
Script.
5 Restore /etc/fstab and /usr/cvfs/config
The StorNext installation script lets you choose installation configuration options and install StorNext. To launch the script, use the correct StorNext installation CD for your operating system.
1 Log on to the MDC as root. 2 Mount the StorNext installation CD and change to the CD root
directory.
StorNext 3.5 Installation Guide 12
Chapter 1 Installing StorNext File System and Storage Manager
StorNext Installation Script
Note: When you mount a CD in a Red Hat 4 or 5 system, CDs are
mounted by default with a noexec (non-executable) option which prevents you from proceeding with the installation.
For Red Hat users only, before proceeding you must
remount the CD by typing mount -o remount, exec ...
3 List the installation directories on the CD. At the command prompt,
type:
ls -l
4 Identify the correct installation directory for your operating system
and hardware platform, and then change to that directory.
For example, for Red Hat Linux 5 running on an x86 64-bit platform, change to the
RedHat50AS_26x86_64 directory.
5 Run the script. At the command prompt, type:
./install.stornext
The installation script runs (figure 2).
Figure 2 StorNext Installation Script
StorNext 3.5 Installation Guide 13
Chapter 1 Installing StorNext File System and Storage Manager
StorNext Installation Script
6 Type the number corresponding to a menu option and press <Enter>.
Installation menu options are described in
Table 6.
Table 6 StorNext Installation Main Menu Options

Changing Installation Configuration Options 1

Menu Option Description
1 Change installation options, including the
location of application directories and the default media type (see
Changing Installation
Configuration Options).
2 Install StorNext using the installation options
specified on the Configuration Menu (see
Performing an Installation Operation on page
17).
3 View the status of an installation operation that
is currently in progress.
4 Exit the StorNext installation script.
Use the Configuration Menu to change StorNext installation options. You can specify the location of application and support directories and change the default media type for storage devices.
On the Main Menu, type 1 and press <Enter>. The Configuration Menu appears (
figure 3).
StorNext 3.5 Installation Guide 14
Figure 3 Configuration Menu
Chapter 1 Installing StorNext File System and Storage Manager
StorNext Installation Script
Changing Application Directory Locations 1
When you first enter the Configuration Menu, it displays recommended locations for StorNext application directories based on the available file systems detected by the installation script. To accept the recommended directory locations and return to the Main Menu, press
<Enter>.
Alternately, customize the installation by specifying the file systems where application and support files are stored.
1 On the Configuration Menu, type the number that corresponds to the
directory location you want to customize (
<Enter>.
1–14), and then press
A list of available local file systems is shown.
2 To change the file system where the directory is located, type the
name of the file system and press
StorNext 3.5 Installation Guide 15
<Enter>.
Chapter 1 Installing StorNext File System and Storage Manager
StorNext Installation Script
3 To confirm the change, type yes and press <Enter>.
To customize additional directory locations, repeat steps 1–3.
4 When you are done customizing the installation, press <Enter> to
return to the Main Menu.
Note: To help determine the optimal location for StorNext support
directories, use the StorNext pre-installation script. For more information, see
Pre-Installation Script on page 8.
Changing the Default Media Type 1
If you do not specify a different media type, the StorNext installation script selects LTO as the default media type for storage devices. If storage devices in your system use a different media type, change the default media type before installing StorNext.
1 On the Configuration Menu, type 15 and press <Enter>.
A list of valid default media types is shown. The valid media types are: DDISK, SDISK, LTO, LTOW, 3590, 3592, 9840, 9940, AITW, AIT, DLT4, and T10K.
Note: The DDISK option is available only for MDCs running
the x86 64-bit version of Linux.
2 Type the correct default media type for storage devices in your
system and press
<Enter>.
3 To confirm the change, type yes and press <Enter>. 4 When you are done customizing the installation, press <Enter> to
return to the Main Menu.
Note: For multiple libraries or systems with mixed media types,
specify the media type used in the primary backup.
StorNext 3.5 Installation Guide 16
Chapter 1 Installing StorNext File System and Storage Manager
StorNext Installation Script

Performing an Installation Operation 1

Figure 4 StorNext Installation Status
To install StorNext using the options specified on the Configuration Menu, perform an installation operation.
1 On the Main Menu, type 2 and press <Enter>.
The StorNext installation script runs (figure 4). The script displays the current progress of the installation.
Note: Depending on your system configuration, the post-
installation procedure could take a long time (up to several hours) to complete. Until the status changes to Complete, a message informs you that the procedure is still running. Please be patient while this step runs.
2 When the installation is complete, press <Enter> to return to the Main
Menu.
3 To exit the installation script, type 4 and press <Enter>.
Note: The script displays the URL at which the MDC can be
accessed. Make a note of this information.
You can now access StorNext File System and Storage Manager, and run the configuration wizard. For more information, see
Chapter 4,
“Configuring StorNext.”
StorNext 3.5 Installation Guide 17
Chapter 2

2Installing StorNext File System

This chapter describes how to install StorNext File System (SNFS) on a metadata controller (MDC). Install SNFS to create data sets that can be shared by clients and applications running on multiple operating systems.
To ensure successful operation, do the following tasks before installing StorNext:
• Make sure the MDC meets all operating system and hardware requirements (see
• Make sure all storage devices are correctly configured and are visible to the MDC (see
When you are ready, install StorNext File System on the MDC using the appropriate method for your operating system (see
File System on Linux or Unix on page 23 or Installing StorNext File System on Windows on page 27).
File System Requirements).
Getting Ready to Install on page 20).
Installing StorNext
Note: To install both StorNext File System and StorNext Storage
Manager, see Storage Manager.” To install the StorNext client software, see
Chapter 3, “Installing the StorNext Client.”
StorNext 3.5 Installation Guide 18
Chapter 1, “Installing StorNext File System and

File System Requirements

To run StorNext File System, the metadata controller must meet all operating system and hardware requirements.
Chapter 2 Installing StorNext File System
File System Requirements

Operating System Requirements 2

Table 7 File System Supported Platforms

Hardware Requirements2

The operating systems, releases and kernels, and hardware platforms supported by StorNext SNFS are presented in MDC uses a supported operating system and platform, and if necessary update to a supported release or kernel version before installing StorNext.
Operating System Release or Kernel Platform
Windows Server 2003®SP2 x86 64-bit
Windows Server 2008®n/a x86 64-bit
Red Hat® Enterprise
®
Linux
SUSETM Linux Enterprise Server 10
The minimum amount of RAM and available hard disk space required to run StorNext SNFS are presented in
If necessary, upgrade the RAM and local disk storage in the MDC to meet the minimum requirements before installing StorNext.
5
2.6.18-53.EL (Update 1)
2.6.18-92.EL (Update 2)
2.6.16.46-0.12 (SP1)
2.6.16.60-0.27 (SP2)
Table 8.
Table 7. Make sure the
x86 64-bit
x86 64-bit
Note: The RAM requirements in Table 8 are for running StorNext
File System only. Running additional software (including the StorNext client software) requires additional RAM.
StorNext 3.5 Installation Guide 19
Chapter 2 Installing StorNext File System

Getting Ready to Install

Table 8 File System Hardware Requirements

LAN Requirements 2

File Systems RAM Disk Space
1–4* 2 GB 2 GB
5–8** 4 GB 4 GB
* Two CPUs recommended for best performance. ** Two CPUs required for best performance.
The following LAN requirements must be met before installing StorNext on the MDC:
• In cases where gigabit networking hardware is used and maximum StorNext performance is required, a separate, dedicated switched Ethernet LAN is recommended for the StorNext metadata network. If maximum StorNext performance is not required, shared gigabit networking is acceptable.
• A separate, dedicated switched Ethernet LAN is mandatory for the metadata network if 100 Mbit/s or slower networking hardware is used.
• The MDC and all clients must have static IP addresses.
Verify network connectivity with pings, and also verify entries in the
/etc/hosts file.
• If using Gigabit Ethernet, disable jumbo frames and TOE (TCP offload engine).
Note: StorNext does not support file system metadata on the same
network as iSCSI, NFS, CIFS, or VLAN data when 100 Mbit/s or slower networking hardware is used.
Getting Ready to Install
Before installing StorNext SNFS, complete the following tasks to ensure successful installation:
StorNext 3.5 Installation Guide 20
Chapter 2 Installing StorNext File System
Getting Ready to Install
• Correctly configure all storage devices (see Configuring Storage
Devices on page 21).
• If using LUNs larger than 1 TB, decide on a label type and install any necessary operating system patches (see
Planning for LUNs Larger
than 1 TB on page 21).
• (Linux only) Install the kernel source code (see Installing the Linux
Kernel Source Code on page 23).

Configuring Storage Devices 2

Planning for LUNs Larger than 1 TB 2

Before installing StorNext SNFS, make sure that all LUNs are visible to the MDC. (A LUN, or logical unit number, is a logical device that corresponds to one or more disks, drives, or storage devices.)
If there are any connection issues, resolve them before installing StorNext. For assistance in configuring storage devices, refer to the documentation that came with the storage device, or contact the manufacturer.
Note: LUNs that you plan to use in the same stripe group must be
the same size. Consider this when configuring storage devices. (For more information about stripe groups, see the StorNext 3.5 User’s Guide.)
Caution: StorNext does not support the connection of multiple
devices through fibre channel hubs. Multiple devices must be connected using fibre channel switches.
StorNext supports LUNs greater than 1 TB in size if they are allowed by the operating system. To enable support for 1 TB or larger LUNs, all StorNext LUNs must be correctly labeled according to the requirements of the operating system running on the MDC as well as the operating system running on all connected clients. Disk LUNs can have one of three labels: VTOC, EFI, or sVTOC (short VTOC).
Required disk LUN label settings based on operating system and LUN size are presented in
Table 9. Before installing StorNext, decide what
label type will be used, and then install any required operating system
StorNext 3.5 Installation Guide 21
Chapter 2 Installing StorNext File System
Getting Ready to Install
patches or updates (for both MDC and client) as indicated in the notes for
Table 9.
Note: After labeling a disk LUN, you must reboot systems running
Solaris before they can access the disk LUN.
Table 9 Required Disk LUN Labels
Operating System
Windows XP
Windows 2003
Label for LUNs < 1 TB
a
VTOC, EFI VTOC, EFI EFI, sVTOC
Label for LUNs 1–2 TB
VTOC, EFI VTOC, EFI EFI, sVTOC
Label for LUNs > 2 TB
Server
Linux 2.6
VTOC, EFI VTOC, EFI EFI, sVTOC
Kernel
Linux 2.4
VTOC, EFI VTOC, EFI Not supported
Kernel
Solaris 9
Solaris 10
HP-UX
IBM AIX
b
c
a
d
VTOC, EFI EFI Not supported
VTOC, EFI EFI EFI
VTOC, EFI VTOC, EFI EFI, sVTOC
VTOC, EFI VTOC, EFI EFI, sVTOC
SGI IRIX VTOC VTOC Not supported
Apple Xsan 1.3
VTOC, EFI VTOC, EFI EFI, sVTOC (MacOS X 10.4 Tiger)
Apple Xsan 1.3 (MacOS X 10.3 Panther)
Apple Xsan
1.2
StorNext 3.5 Installation Guide 22
a
a
VTOC, EFI VTOC, EFI EFI, sVTOC
VTOC VTOC sVTOC
Chapter 2 Installing StorNext File System

Installing StorNext File System on Linux or Unix

Installing the Linux Kernel Source Code 2

Operating System
a. Supports only the first 2 TB of LUNs larger than 2 TB. b. Support for EFI labels requires the Multiterabyte Disk Support patch. c. Support for 2 TB or larger LUNs requires Solaris 10 Update 2 (06/06). d. Supports only LUNs of 2.2 TB or less.
Note: For best results, Quantum recommends using persistent
binding for disk LUNs. For more information, contact the vendor of your HBA (host bus adapter).
For MDCs running Red Hat Linux or SUSE Linux Enterprise Server you must install the kernel source code as well as all tools required to compile the kernel before installing SNFS. StorNext will not operate correctly if the kernel source code is not installed.
The kernel source code can be installed using the installation disks for your operating system.
Label for
LUNs < 1 TB
Label for LUNs 1–2 TB
Label for LUNs > 2 TB
Installing StorNext File System on Linux or Unix
When you are ready to install StorNext, use the SNFS installation script to install StorNext File System on a metadata controller running Linux or Unix. The installation script also installs the client software on the MDC.
StorNext can be installed on any local file system (including the root file system) on the MDC. However, for optimal performance, avoid installing StorNext on the root file system.

Launching the SNFS Installation Script 2

StorNext 3.5 Installation Guide 23
The SNFS installation script lets you choose installation configuration options and install StorNext. To launch the script, use the correct StorNext installation CD for your operating system.
1 Log on to the MDC as root.
Chapter 2 Installing StorNext File System
Installing StorNext File System on Linux or Unix
2 Mount the StorNext installation CD and change to the CD root
directory.
Note: When you mount a CD in a Red Hat 4 or 5 system, CDs are
mounted by default with a noexec (non-executable) option which prevents you from proceeding with the installation.
For Red Hat users only, before proceeding you must
remount the CD by typing mount -o remount, exec ...
3 List the installation directories on the CD. At the command prompt,
type:
ls -l
4 Identify the correct installation directory for your operating system
and hardware platform, and then change to that directory.
For example, for Red Hat Linux 5 running on an x86 64-bit platform, change to the
RedHat50AS_26x86_64 directory.
5 Run the script. At the command prompt, type:
./install.snfs
The installation script runs (figure 5).
Figure 5 SNFS Installation Script
6 Type the number corresponding to a menu option and press <Enter>.
Installation menu options are described in
StorNext 3.5 Installation Guide 24
Table 10.
Chapter 2 Installing StorNext File System
Installing StorNext File System on Linux or Unix
Table 10 SNFS Installation Main Menu Options

Changing Installation Configuration Options 2

Menu Option Description
1 Change installation options for the location of
application directories (see
Changing
Installation Configuration Options on page 25).
2 Install StorNext using the installation options
specified on the Configuration Menu (see
Performing an Installation Operation on page
26).
3 View the status of an installation operation that
is currently in progress.
4 Exit the SNFS installation script.
Use the Configuration Menu to change the location of application directories.
On the Main Menu, type 1 and press <Enter>. The Configuration Menu appears (
figure 6).
Figure 6 Configuration Menu
When you first enter the Configuration Menu, it displays recommended locations for StorNext application directories based on the available file systems detected by the installation script. To accept the recommended directory locations and return to the Main Menu, press
<Enter>.
Alternately, customize the installation by specifying the file systems where application and support files are stored.
StorNext 3.5 Installation Guide 25
Chapter 2 Installing StorNext File System
Installing StorNext File System on Linux or Unix
1 On the Configuration Menu, type the number that corresponds to the
directory location you want to customize (
<Enter>.
1–6), and then press
A list of available local file systems is shown.
2 To change the file system where the directory is located, type the
name of the file system and press
<Enter>.
3 To confirm the change, type yes and press <Enter>.
To customize additional directory locations, repeat steps 1–3.
4 When you are done customizing the installation, press <Enter> to
return to the Main Menu.

Performing an Installation Operation 2

Figure 7 StorNext Installation Status
To install StorNext using the options specified on the Configuration Menu, perform an installation operation.
1 On the Main Menu, type 2 and press <Enter>.
The installation script runs (figure 7). The script displays the current progress of the installation.
Note: Depending on your system configuration, the post-
installation procedure could take a long time (up to several hours) to complete. Until the status changes to Complete, a message informs you that the procedure is still running. Please be patient while this step runs.
StorNext 3.5 Installation Guide 26
Chapter 2 Installing StorNext File System

Installing StorNext File System on Windows

2 When the installation is complete, press <Enter> to return to the Main
Menu.
3 To exit the installation script, type 4 and press <Enter>.
Note: The script displays the URL at which the MDC can be
accessed. Make a note of this information.
You can now access StorNext File System and run the configuration wizard. For more information, see
Chapter 4, “Configuring StorNext.”
Installing StorNext File System on Windows
The StorNext setup wizard guides you through the process of installing StorNext File System on a metadata controller running Windows 2003 Server. (The installation wizard also installs the client software on the MDC.)
Before installing StorNext, remove any previously installed versions (see
Removing a Previous Version of StorNext on page 28).
When you are ready, use the setup wizard to install StorNext (see
Running the Setup Wizard on page 29).
(Optional) After installation, restore the previous client configuration (see
Restoring a Previous Client Configuration on page 33).
Note: You must log on as an Administrator to install StorNext.

Disabling Automatic IP Address Configuration 2

StorNext 3.5 Installation Guide 27
Before installing StorNext, you should disable automatic IP address configuration in Windows. Disabling automatic IP address configuration ensures that the FSM passes the correct IP address to file system nameservers. Failure to disable automatic IP address configuration could result in StorNext clients or servers being unable to talk to the active FSM.
There are two methods for disabling automatic IP address configuration:
Chapter 2 Installing StorNext File System
Installing StorNext File System on Windows
Manually configuring the TCP/IP information, which disables DHCP. You should use this method if any static IP addresses have been configured.
Editing the Windows registry to disable automatic IP address configuration but not disable DHCP. To use this method, follow the procedure outlined in Microsoft article 220874 available here:
support.microsoft.com/kb/220874.
http://

Removing a Previous Version of StorNext 2

Figure 8 StorNext Installation Window: Remove StorNext
If a previous version of StorNext older than version 3.0 exists on the system, you must remove it before installing the new version. If you are upgrading from a version of StorNext newer than version 3.0, the old client configuration is retained so there is no need to restore the old configuration.
1 Insert the StorNext installation CD. 2 Browse to the root directory of the installation CD and double-click
the file
SnfsSetup64.exe.
The StorNext Installation window appears (figure 8).
3 Click Remove StorNext.
A dialog box appears informing you that the current client configuration has been saved.
StorNext 3.5 Installation Guide 28
Chapter 2 Installing StorNext File System
Installing StorNext File System on Windows
4 Note the name and location of the saved configuration file, and then
click
OK.
5 If prompted, click Yes to continue, and then click OK to finish the
removal.
6 When the removal is complete, click Yes to reboot the system.
Note: After installing the new version of StorNext, you can restore
the saved client configuration (see
Restoring a Previous Client
Configuration on page 33).

Running the Setup Wizard 2

To launch the setup wizard, use the correct StorNext installation CD for your operating system.
Note: Due to variables and different system configurations, the
installation process for Windows could be slightly different than described. For example, you may or may not be asked to reboot your system, depending on your configuration. Generally speaking, the best policy is to follow the onscreen instructions after you launch the Setup Wizard.
1 Insert the StorNext installation CD. 2 Browse to the root directory of the installation CD and double-click
the file
SnfsSetup64.exe.
The StorNext Installation window appears (figure 9).
StorNext 3.5 Installation Guide 29
Figure 9 StorNext Installation Window: Install StorNext
Figure 10 SNFS Setup: Welcome
Chapter 2 Installing StorNext File System
Installing StorNext File System on Windows
3 Click Install StorNext to begin installation.
The StorNext setup wizard appears (figure 10).
4 Click Next to continue.
The License Agreement window appears (figure 11).
StorNext 3.5 Installation Guide 30
Figure 11 SNFS Setup: End­User License Agreement
Chapter 2 Installing StorNext File System
Installing StorNext File System on Windows
5 Click the option to accept the license agreement, and then click Next
to continue. The Customer Information window appears (figure 12).
Figure 12 SNFS Setup: Customer Information
6 Type your name and the name of your company or organization in
the boxes, and then click
Next to continue.
The Choose Setup Type window appears (figure 13).
StorNext 3.5 Installation Guide 31
Figure 13 SNFS Setup: Choose Setup Type
Chapter 2 Installing StorNext File System
Installing StorNext File System on Windows
7 Click an installation option:
Typical: (Recommended) Installs StorNext File System, client
software, and help files in the default location (
Files\StorNext
).
C:\Program
Figure 14 SNFS Setup: Ready to Install
Custom: Lets you choose which components to install and specify
an installation location. When ready, click
Next.
Complete: Same as a typical installation. The Ready to Install window appears (figure 14).
StorNext 3.5 Installation Guide 32
Figure 15 SNFS Setup: Finish
Chapter 2 Installing StorNext File System
Installing StorNext File System on Windows
8 Click Install to continue.
Wait while the setup wizard installs StorNext. When installation is complete, the
Finish window appears (figure 15).
9 Click Finish to close the setup wizard.
10 On the StorNext Installation window, click Exit.
You are prompted to reboot the system.
11 Click Yes to reboot.
You can now configure StorNext File System. For more information, see
Chapter 4, “Configuring StorNext.” Or, to restore a previous client
configuration, see the next section.

Restoring a Previous Client Configuration 2

If you saved a client configuration file (for example, when removing a previous version of StorNext), you can import it after installing StorNext. This configures StorNext using the same settings as the previous installation.
1 Insert the StorNext installation CD. 2 Browse to the root directory of the installation CD and double-click
the file
SnfsSetup32.exe (32-bit systems) or SnfsSetup64.exe (64-bit
systems). The StorNext Installation window appears (figure 16).
StorNext 3.5 Installation Guide 33
Figure 16 StorNext Installation Window: Configure StorNext
Figure 17 StorNext Configuration Window
Chapter 2 Installing StorNext File System
Installing StorNext File System on Windows
3 Click Configure StorNext.
The StorNext Configuration window appears (figure 17).
4 Click Import/Export Client Settings.
The Import/Export Client Configuration window appears (figure 18).
StorNext 3.5 Installation Guide 34
Figure 18 Import/Export Client Configuration Window
Chapter 2 Installing StorNext File System
Installing StorNext File System on Windows
5 Under Import, click Browse. Locate the client configuration (*.reg) file
to import, and then click
Open.
Client configuration files saved during removal of a previous version of StorNext are located in one the following directories:
C:\SNFS\config\
C:\Program Files\StorNext\confi g\
6 Click an option for handling current configuration settings:
Merge with current configuration: The imported configuration is
merged with the current configuration settings.
Replace current configuration: The imported configuration
overwrites the current configuration settings.
7 Click Import, and then click Yes to confirm.
A message appears informing you the configuration settings were successfully added to the registry.
8 Click OK, and then click Quit to close the Import/Export Client
Configuration
StorNext 3.5 Installation Guide 35
window.
Chapter 3

3Installing the StorNext Client

This chapter describes how to install the StorNext client software. The StorNext client software lets you mount and work with StorNext file systems.
To ensure successful operation, make sure the client system meets all operating system and hardware requirements (see
Requirements).
To install the StorNext client software, first download the client software from the metadata controller (MDC) (see
Client Software on page 39).
After downloading the client software, install and configure it using the appropriate method for your operating system (see
StorNext Client on Linux or Unix on page 42 or Installing the StorNext Client on Windows on page 49).
Downloading the StorNext
Client System
Installing the
Note: Before installing the StorNext client software, you must install
and configure StorNext on an MDC. For more information, see
Chapter 1, “Installing StorNext File System and Storage
Manager” or Chapter 2, “Installing StorNext File System.”
StorNext 3.5 Installation Guide 36

Client System Requirements

To run the StorNext client software, the client system must meet all operating system and hardware requirements.
Chapter 3 Installing the StorNext Client
Client System Requirements

Operating System Requirements 3

Table 11 StorNext Client Supported Platforms
The operating systems, releases and kernels, and hardware platforms supported by the StorNext client software are presented in Make sure the client system uses a supported operating system and platform, and if necessary update to a supported release or kernel version before installing StorNext.
Operating System Release or Kernel Platform
Windows XP SP3 x86 32-bit
Windows 2003 Server SP2 x86 32-bit
Windows Vista SP1 x86 32-bit
Windows 2008 Server x86 32-bit
Red Hat Enterprise Linux 4
Red Hat Enterprise Linux 5
2.6.9-67.EL (Update 6)
2.6.9-78.EL (Update 7)
2.6.18-53.EL (Update 1)
2.6.18-92.EL (Update 2)
Table 11.
x86 64-bit
x86 64-bit
x86 64-bit
x86 64-bit
x86 64-bit
x86 64-bit
SUSE Linux Enterprise Server 10
Sun Solaris 10 5.10 SPARC 64-bit
HP-UX 11i v2 IA-64
StorNext 3.5 Installation Guide 37
2.6.16-46-0.12 (SP1)
2.6.16-60-0.27 (SP2)
x86 64-bit
x86 64-bit
Chapter 3 Installing the StorNext Client
Client System Requirements
Operating System Release or Kernel Platform
IBM AIX 5.3 64-bit Power
Architecture

Hardware Requirements3

StorNext File System Client Buffer Cache 3

To install and run the StorNext client software, the client system must meet the following minimum hardware requirements.
For SAN (FC-attached) clients or for distributed LAN clients:
•1 GB RAM
• 500 MB available hard disk space
For SAN clients acting as a distributed LAN server:
•2 GB RAM
• 500 MB available hard disk space
Note: Distributed LAN servers may require additional RAM
depending on the number of file systems, distributed LAN clients, and NICs used. See
Distributed LAN Server Memory Tuning in the StorNext User’s Guide for Distributed LAN
Server memory tuning guidelines.
As of StorNext 3.0, multiple mounted file systems typically share a single buffer cache. A StorNext client buffer cache is created for each different
cachebufsize. By default, all file systems have the same cachebufsize of
64K, so they all share the same buffer cache.
Note: These settings do not apply to Apple Xsan clients, which do
not use the StorNext buffer cache.
The amount of memory consumed by default for each cachebufsize depends on the platform type and the amount of memory in the system.
Table 12 shows the default amount of memory consumed by cachebufsize.
StorNext 3.5 Installation Guide 38
Table 12 Default Memory Consumed by cachebufsize
Chapter 3 Installing the StorNext Client

Downloading the StorNext Client Software

Platform Type <=2GB Memory >2GB Memory
32-bit Windows 32MB 64MB
32-bit Linux 64MB 128MB
All other platforms 64MB 256MB
To see information about the buffer cache after mounting file systems, use the memory used by the buffer cache at mount time, use the
cvdb(1) command with the -b option. To change the amount of
buffercachecap
parameter.
On Windows, the non-paged pool is used for buffer cache memory until it consumes up to 64 megabytes (32-bit systems) or 64 gigabytes (64-bit systems). Any additional buffer cache memory comes from the paged pool.
Downloading the StorNext Client Software
The StorNext client software can be downloaded from a metadata controller. (To download the client software, the client system must have network access to the MDC.)
Note: You can download the client software only from MDCs
running Linux or Unix.
1 On the client system, point a web browser to the URL (host name and
port number) of the MDC. For example,
Use one of the following web browsers to access the MDC (make sure pop-up blockers are turned off):
Internet Explorer 6.0 or later (including 7.0)
Mozilla Firefox 1.5 or later (including 2.0 or later)
StorNext 3.5 Installation Guide 39
http://servername:81
Figure 19 Select Platform Window
Chapter 3 Installing the StorNext Client
Downloading the StorNext Client Software
2 When prompted, type the username and password for the MDC, and
then click
admin.)
OK. (The default value for both username and password is
The StorNext home page appears.
3 Do one of the following:
For a MDC running SNFS and SNSM: On the Admin menu, click
Download Client Software.
For a MDC running SNFS only: On the home page, click
Download Client Software.
The Select Platform window appears (figure 19).
4 In the list, click the operating system running on the client system,
and then click
Next.
The Download Client Software window appears (figure 20).
StorNext 3.5 Installation Guide 40
Figure 20 Download Client Software Window
Chapter 3 Installing the StorNext Client
Downloading the StorNext Client Software
5 Click the download link that corresponds to your operating system
version and hardware platform. (Depending on the operating system, you may have only one choice.)
For example, for Red Hat Linux 4 running on an x86 64-bit platform, click
Linux Redhat AS 4.0 (Intel 64bit).
6 When prompted, click Save or OK to download the file to the client
system.
Make sure to note the file name and the location where you save the file.
7 After the download is complete, click Cancel to close the Download
Client Software
window.
Do not follow the onscreen installation instructions. Instead, continue with the correct procedure for your operating system:
Installing the StorNext Client on Linux or Unix on page 42
Installing the StorNext Client on Windows on page 49.
StorNext 3.5 Installation Guide 41
Chapter 3 Installing the StorNext Client

Installing the StorNext Client on Linux or Unix

Installing the StorNext Client on Linux or Unix
After downloading the StorNext client software from the metadata controller, install it on the client system using the correct procedure for your operating system:

Installing the StorNext Client on Linux on page 42

Installing the StorNext Client on Sun Solaris on page 44
Installing the StorNext Client on HP-UX on page 46
Installing the StorNext Client on IBM AIX on page 47
Installing the StorNext Client on Linux 3
To run the StorNext client software on Red Hat Linux or SUSE Linux Enterprise, first install the client software package, and then configure the client.
Caution: Before installing the StorNext client software, you must
install the kernel source code. You can install the kernel source code by using the installation disks for your operating system.
1 Log on to the client system as root. 2 Change to the directory where the client software archive file you
downloaded from the MDC is located.
3 Extract the software archive file. At the command prompt, type:
tar xf <archive name>
where <archive name> is the name of the software archive file you downloaded from the MDC.
4 List the packages extracted from the software archive file. At the
command prompt, type:
ls -l
Identify the correct package to install. The correct package begins with
snfs-client and ends with the .rpm file name extension.
StorNext 3.5 Installation Guide 42
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Linux or Unix
Note: The file that ends with .rpm.md5sum is a checksum file, not
the client software package.
5 Install the client software package. At the command prompt, type:
rpm -ivh <package name>
where <package name> is the name of the client software package you identified in
step 4.
6 Configure the boot order for system services. Do one of the following:
For Red Hat Linux, at the command prompt, type:
chkconfig --level 3456 cvfs on
For SUSE Linux Enterprise, at the command prompt, type:
chkconfig -s raw 235 chkconfig -s cvfs 345
7 Edit the /usr/cvfs/config/fsnameservers text file to contain the IP
address of the MDC the client will connect to. The fsnameservers file on the client must be exactly the same as on
the MDC. If the
fsnameservers file does not exist, use a text editor to
create it.
Note: The fsnameservers file only needs to contain the name of
the MDC. For example, if the MDC is named the
fsnameservers file should contain a single line with a
single word:
snserver
snserver, then
8 Create a mount point for the file system. At the command prompt,
type:
mkdir -p <mount point> chmod 777 <mount point>
where <mount point> is the directory path where you want the file system to be mounted. For example:
/stornext/snfs1
StorNext 3.5 Installation Guide 43
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Linux or Unix
9 Configure the file system to automatically mount after reboot. To do
this, edit the
<file system> <mount point> cvfs verbose=yes 0 0
/etc/fstab file so that it contains the following line:
where <file system> is the name of the StorNext file system and <mount
point>
is the directory path created in step 8.
10 Reboot the client system.
After reboot, the StorNext file system is mounted at the mount point you specified.
Note: To manually mount a file system, at the command prompt,
type:
mount -t cvfs <file system> <mount point>
where <file system> is the name of the StorNext file system and
<mount point> is the directory path where you want the file
system to be mounted.

Installing the StorNext Client on Sun Solaris 3

To run the StorNext client software on Sun Solaris, first install the client software package, and then configure the client.
1 Log on to the client system as root. 2 Change to the directory where the client software archive file you
downloaded from the MDC is located.
3 Extract the software archive file. At the command prompt, type:
tar xf <archive name>
where <archive name> is the name of the software archive file you downloaded from the MDC.
4 Install the client software package. At the command prompt, type:
pkgadd -d .
5 Type 1 to select the ADICsnfs package. 6 Type y to confirm installation of the ADICsnfs package. When
installation is complete, type
StorNext 3.5 Installation Guide 44
q to quit the installation program.
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Linux or Unix
7 Edit the /usr/cvfs/config/fsnameservers text file to contain the IP
address of the MDC the client will connect to. The fsnameservers file on the client must be exactly the same as on
the MDC. If the
fsnameservers file does not exist, use a text editor to
create it.
Note: The fsnameservers file only needs to contain the name of
the MDC. For example, if the MDC is named the
fsnameservers file should contain a single line with a
single word:
snserver
snserver, then
8 Create a mount point for the file system. At the command prompt,
type:
mkdir -p <mount point> chmod 777 <mount point>
where <mount point> is the directory path where you want the file system to be mounted. For example:
/stornext/snfs1
9 Configure the file system to automatically mount after reboot. To do
this, edit the
/etc/vfstab file so that it contains the following line:
<file system> - <mount point> cvfs 0 auto rw
where <file system> is the name of the StorNext file system and <mount
point>
is the directory path created in step 8.
10 Reboot the client system.
After reboot, the StorNext file system is mounted at the mount point you specified.
Note: To manually mount a file system, at the command prompt
type:
mount -F cvfs <file system> <mount point>
where <file system> is the name of the StorNext file system and
<mount point> is the directory path where you want the file
system to be mounted.
StorNext 3.5 Installation Guide 45
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Linux or Unix

Installing the StorNext Client on HP-UX 3

To run the StorNext client software on HP-UX, first install the client software package, and then configure the client.
1 Log on to the client system as root. 2 Change to the directory where the client software archive file you
downloaded from the MDC is located.
3 Extract the software archive file. At the command prompt, type:
tar xf <archive name>
where <archive name> is the name of the software archive file you downloaded from the MDC.
4 List the packages extracted from the software archive file. At the
command prompt, type:
ls -l
Identify the correct package to install. The correct package begins with
snfs-client and ends with the .depot file name extension.
5 Install the client software package. At the command prompt, type:
swinstall -s <package path and name> -x mount_all_filesystems=false \*
where <package path and name> is the full path and name of the client software package you identified in
step 4.
6 Edit the /usr/cvfs/config/fsnameservers text file to contain the IP
address of the MDC the client will connect to. The fsnameservers file on the client must be exactly the same as on
the MDC. If the
fsnameservers file does not exist, use a text editor to
create it.
Note: The fsnameservers file only needs to contain the name of
the MDC. For example, if the MDC is named the
fsnameservers file should contain a single line with a
single word:
StorNext 3.5 Installation Guide 46
snserver
snserver, then
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Linux or Unix
7 Create a mount point for the file system. At the command prompt,
type:
mkdir -p <mount point> chmod 777 <mount point>
where <mount point> is the directory path where you want the file system to be mounted. For example:
/stornext/snfs1
8 Configure the file system to automatically mount after reboot. To do
this, edit the
<mount point> <mount point> cvfs rw,fsname=<file system> 0 0
/etc/fstab file so that it contains the following line:
where <mount point> is the directory path created in step 7 and <file
system> is the name of the StorNext file system.
9 Reboot the client system.
After reboot, the StorNext file system is mounted at the mount point you specified.
Note: To manually mount a file system, at the command prompt,
type:
mount -F cvfs <mount point> <mount point>
where <mount point> is the directory path where you want the file system to be mounted.

Installing the StorNext Client on IBM AIX 3

To run the StorNext client software on IBM AIX, first install the client software package, and then configure the client.
1 Log on to the client system as root. 2 Change to the directory where the client software archive file you
downloaded from the MDC is located.
3 Extract the software archive file. At the command prompt, type:
tar xf <archive name>
where <archive name> is the name of the software archive file you downloaded from the MDC.
StorNext 3.5 Installation Guide 47
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Linux or Unix
4 List the packages extracted from the software archive file. At the
command prompt, type:
ls -l
Identify the correct package to install. The correct package begins with
snfs and ends with the .bff file name extension.
5 Install the client software package. At the command prompt, type:
installp -ac -d <package name> all .
where <package name> is the name of the client software package you identified in
step 4.
6 Edit the /usr/cvfs/config/fsnameservers text file to contain the IP
address of the MDC the client will connect to. The fsnameservers file on the client must be exactly the same as on
the MDC. If the
fsnameservers file does not exist, use a text editor to
create it.
Note: The fsnameservers file only needs to contain the name of
the MDC. For example, if the MDC is named the
fsnameservers file should contain a single line with a
single word:
snserver
snserver, then
7 Create a mount point for the file system. At the command prompt,
type:
mkdir -p <mount point> chmod 777 <mount point>
where <mount point> is the directory path where you want the file system to be mounted. For example:
/stornext/snfs1
8 Configure the file system to automatically mount. At the command
prompt, type:
crfs -v cvfs -d <file system> -a verbose=yes -a type=cvfs -A yes -m <mount point>
where <file system> is the name of the StorNext file system and <mount
point>
is the directory path created in step 7.
The StorNext file system is mounted at the mount point you specified.
StorNext 3.5 Installation Guide 48
Chapter 3 Installing the StorNext Client

Installing the StorNext Client on Windows

Note: To manually mount a file system, at the command prompt,
type:
mount <mount point>
where <mount point> is the directory path where you want the file system to be mounted.
Installing the StorNext Client on Windows
The StorNext setup wizard guides you through the process of installing the StorNext client software on Windows XP, Windows 2003 Server, or Windows Vista.
Before installing StorNext, remove any previously installed versions (see

Removing a Previous Version of StorNext on page 49).

When you are ready, use the setup wizard to install StorNext (see
Running the Setup Wizard on page 50).
(Optional) After installation, restore the previous client configuration (see
Restoring a Previous Client Configuration on page 54).
Note: You must log on as an Administrator to install StorNext.
If you are installing on Windows Vista, answer Yes to any messages asking if you want to run the installation process with administrative privileges.
Removing a Previous Version of StorNext 3
StorNext 3.5 Installation Guide 49
If a previous version of StorNext exists on the system, you must remove it before installing the new version.
1 Unzip the client software archive file you downloaded from the
MDC.
2 Open the unzipped folder and double-click the client software
installer file. This file is named
SnfsSetup64.exe (64-bit systems).
SnfsSetup32.exe (32-bit systems) or
Figure 21 StorNext Installation Window: Remove StorNext
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Windows
The StorNext Installation window appears (figure 21).
3 Click Remove StorNext.
A dialog box appears informing you that the current client configuration has been saved.
4 Note the name and location of the saved configuration file, and then
click
OK.
5 If prompted, click Yes to continue, and then click OK to finish the
removal.
6 When the removal is complete, click Yes to reboot the system.
Note: After installing the new version of StorNext, you can restore
the saved client configuration (see
Restoring a Previous Client
Configuration on page 54).

Running the Setup Wizard 3

To launch the setup wizard, use the correct StorNext installation CD for your operating system, or use the client software installer you downloaded from the MDC.
1 If necessary, unzip the client software archive file you downloaded
from the MDC.
StorNext 3.5 Installation Guide 50
Figure 22 StorNext Installation Window: Install StorNext
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Windows
2 Open the unzipped folder and double-click the client software
installer file. This file is named
SnfsSetup64.exe (64-bit systems).
SnfsSetup32.exe (32-bit systems) or
The StorNext Installation window appears (figure 22).
3 Click Install StorNext to begin installation.
The StorNext setup wizard appears (figure 23).
Figure 23 SNFS Setup: Welcome
4 Click Next to continue.
StorNext 3.5 Installation Guide 51
Figure 24 SNFS Setup: End­User License Agreement
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Windows
The License Agreement window appears (figure 24).
5 Click the option to accept the license agreement, and then click Next
to continue. The Customer Information window appears (figure 25).
Figure 25 SNFS Setup: Customer Information
6 Type your name and the name of your company or organization in
the boxes, and then click
Next to continue.
The Choose Setup Type window appears, (figure 26).
StorNext 3.5 Installation Guide 52
Figure 26 SNFS Setup: Choose Setup Type
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Windows
7 Click an installation option:
Typical: (Recommended) Installs the StorNext client software and
help files in the default location (
C:\Program Files\StorNext).
Custom: Lets you choose which components to install and specify
an installation location. When ready, click
Next.
Complete: Same as a typical installation. The Ready to Install window appears (figure 27).
Figure 27 SNFS Setup: Ready to Install
StorNext 3.5 Installation Guide 53
Figure 28 SNFS Setup: Finish
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Windows
8 Click Install to continue.
Wait while the setup wizard installs StorNext. When installation is complete, the
Finish window appears (figure 28).
9 Click Finish to close the setup wizard.
10 On the StorNext Installation window, click Exit.
You are prompted to reboot the system.
11 Click Yes to reboot.
You can now configure StorNext File System. For more information, see
Chapter 4, “Configuring StorNext.”

Restoring a Previous Client Configuration 3

If you saved a client configuration file (for example, when removing a previous version of StorNext), you can import it after installing StorNext. This configures StorNext using the same settings as the previous installation.
1 If necessary, unzip the client software archive file you downloaded
from the MDC.
2 Open the unzipped folder and double-click the client software
installer file. This file is named
SnfsSetup64.exe (64-bit systems).
SnfsSetup32.exe (32-bit systems) or
The StorNext Installation window appears (figure 29).
StorNext 3.5 Installation Guide 54
Figure 29 StorNext Installation Window: Configure StorNext
Figure 30 StorNext Configuration Window
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Windows
3 Click Configure StorNext.
The StorNext Configuration window appears (figure 30).
4 Click Import/Export Client Settings.
The Import/Export Client Configuration window appears (figure 31).
StorNext 3.5 Installation Guide 55
Figure 31 Import/Export Client Configuration Window
Chapter 3 Installing the StorNext Client
Installing the StorNext Client on Windows
5 Under Import, click Browse. Locate the client configuration (*.reg) file
to import, and then click
Open.
Client configuration files saved during removal of a previous version of StorNext are located in one the following directories:
C:\SNFS\config\
C:\Program Files\StorNext\confi g\
6 Click an option for handling current configuration settings:
Merge with current configuration: The imported configuration is
merged with the current configuration settings.
Replace current configuration: The imported configuration
overwrites the current configuration settings.
7 Click Import, and then click Yes to confirm.
A message appears informing you the configuration settings were successfully added to the registry.
8 Click OK, and then click Quit to close the Import/Export Client
Configuration
StorNext 3.5 Installation Guide 56
window.
Chapter 4

4Configuring StorNext

This chapter describes how to configure StorNext after installation. To configure StorNext, enter license information and create one or more file systems. In addition, on metadata controllers (MDCs) running StorNext Storage Manager, you can add storage devices and media, create storage policies, and set up e-mail notifications. In addition, Linux or Windows SAN clients can be configured as a distributed LAN client or a distributed LAN server.
For system running Unix or Linux, use the web-based GUI (graphical user interface) to access StorNext running on an MDC (see
GUI).
The first time you log on to StorNext, the Configuration Wizard appears. The wizard guides you through the process of setting up StorNext (see
Configuration Wizard on page 60).
StorNext
To configure a StorNext client as a distributed LAN client or server, edit the distributed LAN configuration file (see
LAN Client Server on page 65).
For systems running Windows, use the Windows-based configuration utilities to set up server and client features (see
Utilities on page 70).
StorNext 3.5 Installation Guide 57
Configuring a Distributed
Windows Configuration

StorNext GUI

Chapter 4 Configuring StorNext
StorNext GUI
The StorNext GUI provides access to StorNext features and displays system status information. Use the StorNext GUI to create and work with file systems. In addition, on metadata controllers running Storage Manager, you can use the StorNext GUI to configure storage devices and media, and to set up storage policies.
Note: The StorNext GUI is available only for MDCs running on Unix
or Linux. For MDCs running on Windows, use the configuration utilities to configure StorNext (see
Configuration Utilities on page 70).
Windows

Accessing the StorNext GUI 4

To log on to the StorNext GUI, use a web browser running on the MDC, or on any system that has network access to the MDC.
1 Point a web browser to the URL of the MDC.
The URL consists of the host name or IP address of the MDC followed by the port number at which StorNext can be reached. (The default port number is
Use one of the following web browsers to access the MDC (make sure pop-up blockers are turned off):
Internet Explorer 6.0 or later (including 7.0)
Mozilla Firefox 1.5 or later (including 2.0 or later)
2 When prompted, type the user name and password for the MDC, and
click
OK. (The default value for both user name and password is
admin.)
The StorNext home page appears. The appearance of the home page differs depending on if both Storage Manager and File System are installed on the MDC, or if File System only is installed.
The StorNext home page for an MDC running File System and Storage Manager is shown in an MDC running File System only is shown in figure 33.
81.) For example: http://servername:81
figure 32. The StorNext home page for
StorNext 3.5 Installation Guide 58
Figure 32 StorNext Home Page: File System and Storage Manager
Figure 33 StorNext Home Page: File System Only
Chapter 4 Configuring StorNext
StorNext GUI
StorNext 3.5 Installation Guide 59

Configuration Wizard

The first time you log onto the StorNext GUI, the Configuration Wizard appears. The wizard guides you step-by-step through the process of configuring StorNext.
The appearance of the wizard differs depending on if both Storage Manager and File System are installed on the MDC, or if File System only is installed.
The Configuration Wizard for an MDC running File System and Storage Manager is shown in running File System only is shown in figure 35.
Figure 34 StorNext Configuration Wizard: Storage Manager
Chapter 4 Configuring StorNext
Configuration Wizard
figure 34. The Configuration Wizard for an MDC
StorNext 3.5 Installation Guide 60
Figure 35 StorNext Configuration Wizard: File System Only
Chapter 4 Configuring StorNext
Configuration Wizard

Displaying the Configuration Wizard 4

The Configuration Wizard appears each time you log on to StorNext until all steps of the wizard are completed. You can also control the wizard manually:
• To set the Configuration Wizard to not appear the next time you log in, select the
Don’t Show CW Again check box.
• To display the Configuration Wizard at any time, on the Config

Using the Configuration Wizard 4

menu, click
The Configuration Wizard consists of eight steps. (If Storage Manager is not installed on the MDC, only the first two steps appear.) The wizard
Configuration Wizard.
lets you navigate between steps and tracks your progress as you complete each step.
• To go to the next step, click Next.
• To return to a previous step, click the step in the list.
• To start the wizard over from the beginning, click Reset.
• To exit the wizard, click Done.
StorNext 3.5 Installation Guide 61
Chapter 4 Configuring StorNext
Configuration Wizard
The following sections describe each step of the Configuration Wizard. Each step consists of a separate wizard that guides you through a task. To complete a task, follow the onscreen instructions. To see more detailed instructions for completing a task, refer to the indicated section in the StorNext User’s Guide.
Note: Using the Configuration Wizard to configure StorNext is
optional. All configuration tasks can be accessed at any time using the StorNext main menu, as described in the following sections.
Step 1: Enter License 4
The Enter License Wizard guides you through the steps of entering a license string. A license string must be entered before you can configure or use StorNext.
You can generate a temporary license that is valid for 30 days. To obtain a permanent license, contact the Quantum Technical Assistance center at
licenses@quantum.com and provide the following information:
• The product serial number from the StorNext box or CD.
• The number of client machines connecting to the MDC.
• The StorNext Server ID number. (This number can be found on the
Enter License String window of the Enter License Wizard.)
To display the Enter License Wizard at any time, on the Config menu, click
Enter License. For more information about entering a license, see
Chapter 4, “Common StorNext Tasks,” in the StorNext User’s Guide.
Step 2: Add File System 4
The Add New File System Wizard guides you through the steps of creating and configuring a new file system. The wizard also lets you establish a mount point for the file system, specify disk block size, and customize stripe groups.
A file system is a shared data pool that can be accessed by client systems and applications. Each file system contains one or more stripe groups. (A stripe group is a logical volume that consists of one or more disks.)
StorNext 3.5 Installation Guide 62
Chapter 4 Configuring StorNext
Configuration Wizard
To display the Add New File System Wizard at any time, on the Config menu, click
Add File System. For more information about adding file
systems, see Chapter 6, “Managing the File System,” in the StorNext User’s Guide.
Step 3: Add Library 4
The Add Library wizard guides you through the steps of adding and configuring a tape library or vault. The wizard lets you specify the type of library (SCSI, ACSLS, DAS, or vault) and set the appropriate parameters for that library type.
To display the Add Library Wizard at any time, on the Config menu, click
Add Library. For more information about adding libraries, see Chapter 7,
“Managing Libraries,” in the StorNext User’s Guide.
Step 4: Add Tape Drive 4
The Add Drive Wizard guides you through the steps of adding and configuring tape drives. The wizard lets you associate hardware devices with libraries and, if necessary, map them to slots.
To display the Add Drive Wizard at any time, on the Config menu, click
Add Tape Drive. For more information about adding tape drives, see
Chapter 8, “Managing Drives and Disks,” in the StorNext User’s Guide.
Step 5: Add Media 4
The Add Media Wizard guides you through the steps of adding media to a configured library. The wizard lets you specify a media type and, for vaults, specify media IDs. (Before adding media, make sure no tape drives contain media.)
To display the Add Media Wizard at any time, on the Config menu, click
Add Media. For more information about adding media, see Chapter 9,
“Managing Media,” in the StorNext User’s Guide.
StorNext 3.5 Installation Guide 63
Chapter 4 Configuring StorNext
Configuration Wizard
Step 6: Add Storage Disks 4
The Add Storage Disk wizard guides you through the steps of adding external storage disks to a managed system. The wizard lets you specify which file systems to define as storage disks. Once defined, storage disks can be used as a target media type when creating storage policies.
To display the Add Storage Disk Wizard at any time, on the Config menu, click
Add Storage Disk. For more information about adding storage disks,
see Chapter 10, “Managing Storage Disks,” in the StorNext User’s Guide.
Step 7: Add Storage Policy 4
The Add New Storage Policy Wizard guides you through the steps of adding disk-to-disk policy classes to a managed system. Storage policies allow data to be intelligently moved between disks (stripe groups) without affecting the file name space.
To display the Add New Storage Policy Wizard at any time, on the Config menu, click
Add Storage Policy. For more information about adding
storage policies, see Chapter 11, “Data Migration Management,” in the StorNext User’s Guide.
Step 8: E-Mail Notification 4
The E-mail Notification Wizard guides you through the steps of setting up e-mail notifications on the MDC. The wizard lets you specify the SMTP server to use for outgoing e-mail, and the addresses to which system alerts and notifications are sent. (Make sure the SMTP server is configured before setting up e-mail notifications.)
To display the E-mail Notification Wizard at any time, on the Config menu, click
E-Mail Notification. For more information about setting up
e-mail notifications disks, see Chapter 4 “Common StorNext Tasks,” in the StorNext User’s Guide.
StorNext 3.5 Installation Guide 64

Configuring a Distributed LAN Client Server

Configuring a Distributed LAN Client Server
Traditional StorNext SAN clients access data disks using a high throughput, low-latency fibre channel connection. In addition, using the distributed LAN client and server feature, StorNext clients can access data disks over a network instead of directly accessing disks.
A StorNext client running on Linux or Windows can be configured as a distributed LAN client or a distributed LAN server. (This is a licensed feature.)
Distributed LAN Server: A distributed LAN server has direct access to data disks (using fibre channel) and makes the shared storage pool available to distributed LAN clients over a network.
Distributed LAN Client: A distributed LAN client does not have direct access to data disks and instead accesses the shared storage pool by connecting to a distributed LAN server over a network. (Distributed LAN clients have full StorNext client functionality.)
Chapter 4 Configuring StorNext
Note: A StorNext client configured as a distributed LAN server
requires a dedicated system. Do not run other applications or services on a system configured as a distributed LAN server.
To configure a Linux client as a distributed LAN client, see Configuring a
Distributed LAN Client on Linux. To configure a Linux client as a
distributed LAN server, see Configuring a Distributed LAN Server on
Linux.
To configure a Windows client as a distributed LAN server or a distributed LAN client, use the Windows Client Configuration utility. For more information, see
LAN on page 73.
StorNext 3.5 Installation Guide 65
Client Configuration on page 71 and Distributed
Chapter 4 Configuring StorNext
Configuring a Distributed LAN Client Server

Configuring a Distributed LAN Client on Linux 4

Configuring a Distributed LAN Server on Linux 4

To configure a StorNext client as a distributed LAN client, edit mount options in the
/etc/fstab file.
1 Stop the StorNext client. At the command prompt, type:
/etc/init.d/cvfs stop
2 Configure the client to mount a file system as a distributed LAN
client. To do this, edit the
/etc/fstab file so that it contains the
following line:
<file system> <mount point> cvfs rw,diskproxy=client 0 0
where <file system> is the name of the StorNext file system and <mount
point>
is the directory path where the file system is mounted.
3 Start the StorNext client. At the command prompt, type:
/etc/init.d/cvfs start
To configure a StorNext client as a distributed LAN server, edit mount options in the
/etc/fstab file, and then configure distributed LAN server
options.
1 Stop the StorNext client. At the command prompt, type:
/etc/init.d/cvfs stop
2 Configure the client to mount a file system as a distributed LAN
server. To do this, edit the
/etc/fstab file so that it contains the
following line:
<file system> <mount point> cvfs rw,diskproxy=server 0 0
where <file system> is the name of the StorNext file system and <mount
point>
is the directory path where the file system is mounted.
3 Change to the /usr/cvfs/bin/ directory. 4 Launch the StorNext distributed LAN server configuration utility. At
the command prompt, type:
./sndpscfg -e
Note: To get help for the sndpscfg utility, at the command
prompt, type:
./sndpscfig -h
The distributed LAN server configuration utility appears (figure 36).
StorNext 3.5 Installation Guide 66
Figure 36 sndpscfg Configuration Utility
Chapter 4 Configuring StorNext
Configuring a Distributed LAN Client Server
5 Edit the default distributed LAN server configuration:
• (Required) Uncomment (delete the # next to) the line that corresponds to the network interface used by the distributed LAN server when connecting to distributed LAN clients. (For best performance, do not choose the network used for metadata.)
• (Optional) To change a tunable parameter from the default value, uncomment the parameter, and then specify a new value.
Table 13
describes the tunable parameters.
Note: The distributed LAN server configuration utility uses the
default text editor. If a default text editor has not been specified, the utility uses the
vi editor.
StorNext 3.5 Installation Guide 67
Chapter 4 Configuring StorNext
Configuring a Distributed LAN Client Server
Table 13 Distributed LAN Server Parameters
Field / Button Description
tcp_window_size_kb
The TCP window size (in KB) used by the distributed LAN server. (Default: 64)
transfer_buffer_size_kb
The transfer buffer size (in KB) used by the distributed LAN server. A larger buffer may increase performance for larger files. (Default: 256)
transfer_buffer_count
The number of transfer buffers used by the distributed LAN server. This parameter is used only by Windows servers and clients. Linux servers pass the value of this parameter to Windows clients. (Default: 16)
server_buffer_count
The number of I/O buffers allocated for each network interface on the distributed LAN server. This parameter is used only by Linux servers. (Default: 8)
daemon_threads
The maximum number of daemon threads used by the distributed LAN server. (Default: 8)
6 When you are done making edits, type :x to save and close the
configuration file. The configuration is saved in the file dpserver in the /user/cvfs/config/
directory.
Note: To edit this file at a later date, you can run the sndpscfg
utility again or edit the
dpserver file directly.
7 Start the StorNext client. At the command prompt, type:
/etc/init.d/cvfs start
StorNext 3.5 Installation Guide 68
Chapter 4 Configuring StorNext
Configuring a Distributed LAN Client Server
Creating an Override Configuration 4
By default, the settings specified in the dpserver configuration file are used for all file systems mounted by the distributed LAN server. To use different settings for a file system, create an override configuration file for that file system. At the command prompt, type:
./sndpscfg -E <file system>
where <file system> is the name of the file system to which the override settings apply. Edit the configuration file, and then save and exit. A new configuration file with the name
/user/cvfs/config/ directory.
dpserver.<file system> is created in the
Using Distributed LAN Client and Server Commands 4
Use the cvadmin commands described in Table 14 to see information about distributed LAN servers and clients. (For more information about using
cvadmin commands, see the CLI Reference Guide.)
Table 14 Distributed LAN Client and Server Commands
Command Description
proxy
Lists all distributed LAN servers for the currently selected file system.
proxy long
Lists all distributed LAN servers for the currently selected file system, as well as tunable parameters and attached disks.
proxy who <distributed LAN client>
Lists distributed LAN servers connected to the specified distributed LAN client, as well as current I/O statistics.
proxy who <distributed LAN server>
Lists distributed LAN clients connected to the specified distributed LAN server, as well as current I/O statistics.
StorNext 3.5 Installation Guide 69

Windows Configuration Utilities

To configure StorNext File System or the StorNext client software on Windows operating systems, use the Windows configuration utilities. The configuration utilities let you set up a Windows-based metadata controller, configure a StorNext client, and work with StorNext file systems.
To run a configuration utility, on the Windows Start menu, click All
Programs > StorNext File System
The StorNext client software includes the following configuration utilities:
Client Configuration on page 71
Disk Device Labeler on page 83
License Identifier on page 85
Simple File System Configuration on page 85
Chapter 4 Configuring StorNext
Windows Configuration Utilities
, and then click the utility.
Start File System Services on page 87
Stop and Remove File System Services on page 87
Stop File System Services on page 87
Version Information on page 88
StorNext File System server includes all the configuration utilities installed by the client software as well as the following additional utilities:
Check (Read-Only) a File System on page 88
File System Startup List on page 88
Re-initialize a File System on page 90
Repair a File System on page 90
Server Administration on page 90
Server Configuration on page 96
StorNext 3.5 Installation Guide 70
Chapter 4 Configuring StorNext
Windows Configuration Utilities

Client Configuration 4

The Client Configuration utility lets you view and modify properties for the StorNext client software. Use the utility to specify mount points and mount options, set various cache settings, and configure a distributed LAN server or a distributed LAN client.
To run the Client Configuration utility, on the Windows Start menu, click
All Programs > StorNext File System > Client Configuration.
The Client Configuration utility includes four tabs:
Mount Point on page 71
Distributed LAN on page 73
Advanced Mount Options on page 75
Advanced Cache Options on page 79
Click a tab to view or modify StorNext client properties. After making changes on one or more tabs, click appears prompting you to restart the system. Click
OK to save the changes. A message
Yes. Most changes do
not take affect until the system is restarted.
Mount Point 4
StorNext file systems can be mapped to a drive letter or to a folder. When mapping to a folder, the folder must be empty or non-existent, and must
exist within an NTFS file system (e.g., C:\Mount\MySnfs). Use the Mount Point tab (figure 37) to specify drive mappings. Table 15
describes the fields on the Mount Point tab.
Note: Make sure the host list is the same for all clients on the SAN.
An incorrect or incomplete host list may prevent the client from connecting to the file system.
StorNext 3.5 Installation Guide 71
Figure 37 Client Configuration: Mount Point
Chapter 4 Configuring StorNext
Windows Configuration Utilities
Table 15 Client Configuration: Mount Point
Field / Button Description
Map to Drive Letter
Select Map to Drive Letter to map the drive to a specific drive letter.
Drive (Letter) Map to Directory
Select the desired drive letter.
Instead of selecting Map to Drive Letter, select Map to Directory. Enter a directory path, or click Browse to navigate to the directory path.
Note: If this is a Distributed LAN client or server, be sure to enter the
parameters on the Distributed LAN tab.
StorNext 3.5 Installation Guide 72
Chapter 4 Configuring StorNext
Windows Configuration Utilities
Distributed LAN 4
The Distributed LAN tab is used to enable and configure StorNext Distributed LAN (DLAN) Clients and Servers for a file system. The Enable Client and Enable Server radio buttons determine whether the system is a Client or Server. Note that separate licensing is required for DLAN.
StorNext Distributed LAN Clients provide the same functionality as normal StorNext Clients but do not need to be connected directly to the SAN. They instead send I/O via the TCP/IP network to a Distributed LAN Server; a normal SAN client with DLAN Server Selected in its configuration. Metadata is sent over the TCP/IP network directly to the File System Metadata Controller (Server/MDC).
Distributed LAN Clients request the location of normal DLAN Servers via the Name Server.
Distributed LAN Server: A distributed LAN server has direct access to data disks (using fibre channel) and makes the shared storage pool available to distributed LAN clients over a network.
Distributed LAN Client: A distributed LAN client does not have direct access to data disks and instead accesses the shared storage pool by connecting to a distributed LAN server over a network. (Distributed LAN clients have full StorNext client functionality.)
Note: A StorNext client configured as a distributed LAN server
requires a dedicated system. Do not run other applications or services on a system configured as a distributed LAN server.
Use the Distributed LAN tab (figure 38) to configure a distributed LAN server or a distributed LAN client. Table 16 describes the fields on the
Distributed LAN tab.
StorNext 3.5 Installation Guide 73
Figure 38 Client Configuration: Distributed LAN
Chapter 4 Configuring StorNext
Windows Configuration Utilities
Table 16 Client Configuration: Distributed LAN
Field / Button Description
Disable
Select this option to disable the StorNext client as a distributed LAN client or distributed LANserver.
Enable Client
Select to configure the StorNext client as a distributed LAN client. The StorNext client will connect to all available distributed LAN servers.
(If you select this check box, all other fields on the tab become unavailable.)
Enable Server
Select to configure the StorNext client as a distributed LAN server. The StorNext client will make the disks for this file system available to distributed LAN clients over the specified LAN.
StorNext 3.5 Installation Guide 74
Field / Button Description
Chapter 4 Configuring StorNext
Windows Configuration Utilities
Number of Transfer Buffers
Read Timeout (sec)
Write Timeout (sec)
Transfer Buffer Size (kb)
TCP Window Size (kb)
Max Threads
Server Interfaces
Specify the number of socket transfer buffers used for Distributed LAN Client I/O.
Specify how long the Distributed LAN Client will wait for a read operation to complete before retrying it on a different Distributed LAN Server.
Specify how long the Distributed LAN Client will wait for a write operation to complete before retrying it on a different Distributed LAN Server.
Specify the size in kilobytes of the socket transfer buffers used for Distributed LAN Client I/O.
Specify the size in kilobytes of the TCP window used for Distributed LAN Client I/O connections.
Specify the number of kernel threads that will be used to service Distributed LAN Client I/O requests.
To complete Distributed LAN Server configuration, select one or more network interfaces to be used for Distributed LAN Client traffic.
Advanced Mount Options 4
The Mount Options tab (figure ) displays the mount options for the drive currently selected on the Drive Mappings tab. Table 16 describes the fields on the Distributed LAN tab.
Caution: Changing the values on the Mount Options tab can affect
system performance and stability. Do not change mount options unless instructed to do so by the Quantum Technical Assistance Center.
StorNext 3.5 Installation Guide 75
Figure 39 Client Configuration: Advanced Mount Options
Chapter 4 Configuring StorNext
Windows Configuration Utilities
Table 17 Client Configuration: Advanced Mount Options
Field / Button Description
Mount Retransmit Limit
Specify the number of times the driver will re­transmit a message to the FSM. After a successful connection, this value is no longer used.
The default is 1.
Hard Mount
When this box is checked, the driver attempts to mount the file system forever.
The default is off (Soft Mount). Quantum recommends that Hard Mount NOT be used on Windows systems.
StorNext 3.5 Installation Guide 76
Field / Button Description
Chapter 4 Configuring StorNext
Windows Configuration Utilities
Allow Diskless Mount
Read Only
Restrict Pre-allocation API
Number of Async I/O Threads
Number of System Threads
Message TImeout x 1/ 10th Sec.
When this box is checked, the file system can be mounted and accessed without all the disks being accessible in the file system stripe groups. In this mode, file metadata can be viewed and changed, but no data can be accessed.
The default is to not allow a file system to be mounted unless all disks are accessible.
When this box is checked, the file system is mounted in read-only mode. The default is off or not checked.
When set to yes, non-administrator users are unable to use the preallocation ioctl.
Specify the number of threads created to be used as asynchronous I/O threads for user applications. The default is 8. The allowed range is 4 to 32.
Specify the number of threads created for use by the file system. The default value is 16.
Specify (in tenths of a second) the amount of time before a message to the FSM is timed out. The default is 50 (five seconds).
Message Retry Count
Specify the number of attempts to be made for sending a message to the File System Service. The default is 12.
Retry I/Os Forever or Allow I/O Timeouts
Choose either Retry I/Os Forever or Allow I/O Timeouts, depending on whether you want to allow timeouts or keep trying I/O. The default value is to Retry I/Os Forever.
StorNext 3.5 Installation Guide 77
Field / Button Description
Chapter 4 Configuring StorNext
Windows Configuration Utilities
I/O Retry Time Seconds
I/O Penalty TIme Seconds
When you choose Allow I/O Timouts, this option controls the I/O retry behavior. This parameter establishes the amount of time that may elapse during an I/O retry sequence.
An I/O retry sequence consists of the following:
• Retry an I/O request across all available paths that are currently present.
• Compare the current time to the Instantiation time of the I/O request, if at least <n> seconds have elapsed, return the I/O request in error, otherwise reset the paths used, and retry again.
This option controls the Multi-Path I/O penalty value, where <n> is expressed in seconds with a minimum value of 1 and a maximum value of 15.
This parameter establishes the amount of time
a Path_In_Error will be bypassed in favor of
an Operational Path during a Multi-Path selection sequence. If all paths are currently in the Path_In_Error state, the first available path will be selected, independent of the Path_In_Error state.
The default value is 5 seconds.
Fast Failover Detection
When this box is checked, the client uses a more aggressive approach to detecting if the FSM has failed. With this option on, the client monitors the FSM heartbeat. If no heartbeat is detected within three (3) seconds, a failover request is initiated.
This option is desirable for near realtime activities that cannot sustain more than 10 seconds of access loss to the server. Quantum does not recommend enabling this option for normal file system operations.
StorNext 3.5 Installation Guide 78
Field / Button Description
Chapter 4 Configuring StorNext
Windows Configuration Utilities
Hard Reconnect
Token Hold Seconds
When this box is checked, the file system attempts to reconnect to the FSM forever. If this option is not enabled, the file system attempts to reconnect to the FSM for the number of times specified at the Mount Retransmit Limit field before failing the request.
The default value is off.
The QOS Token Hold Time parameter is applicable only when using the StorNext Quality of Service (QOS) feature for real-time IO.
This parameter determines the number of seconds a client stripe group holds on to a non-realtime I/O token during periods of inactivity. If no I/O is performed on a stripe group within the specified number of seconds, the token is released back to the FSM.
The default value is 60 seconds. The parameter should be specified in five-second increments; if the parameter is not a multiple of five, it will be rounded up automatically.
Advanced Cache Options 4
The Data Buffer Cache keeps the file system data in memory on the local computer to speed up performance for small I/O operations.
The Advanced Cache Options tab (figure 40) displays performance values that control how many file system lookup names are kept in memory.
Caution: Changing the values on the Advanced Cache Options tab
can affect system performance and stability. Do not change cache parameters unless instructed to do so by the Quantum Technical Assistance Center.
StorNext 3.5 Installation Guide 79
Figure 40 Client Configuration: Advanced Cache Options
Chapter 4 Configuring StorNext
Windows Configuration Utilities
Table 18 Client Configuration: Advanced Cache Options
Field / Button Description
Enable Data Buffer Cache
When this box is not checked, the file system will not buffer any data. All files will be read directly into the application's memory using DMA. Requests that are not properly aligned will be read into temporary buffers, then copied to the application's buffer.
If Buffer Cache is disabled, the remaining Data Buffer Cache options are ignored.
StorNext 3.5 Installation Guide 80
Field / Button Description
Chapter 4 Configuring StorNext
Windows Configuration Utilities
Individual Buffer Size
Minimum Total Cache Size
Auto-DMA Read/Write Sizes
This option sets the size of each cache buffer. This determines the I/O transfer size used for the buffer cache. For optimal performance, Individual Buffer Size should match the RAID stripe size. If Individual Buffer Size is less than the RAID stripe size write performance may be severely degraded.
This size must be divisible by the file system block size. The maximum value allowed is 512K and the minimum value allowed is the file system block size. The value default is 64K.
This value controls the amount of memory used to cache data from the file system. This parameter is shared by all file systems with the same block size.
Buffer Cache Auto DMA Read Length and Buffer Cache Auto DMA Write Length control the minimum I/O size for DMA transfers. That is, any smaller transfer will always go through the buffer cache.
The default value is 1MB.
Number of Read­ahead Buffers
This option controls the size of the read-ahead window used by the buffer cache.
The default value is 16 buffers with a maximum of 100. Using a value of 0 disables read-ahead.
Number of Threads
This option controls the number of dedicated background threads used by the buffer cache for performing I/O.
The default value is 8, with a minimum of 1 and a maximum of 100. Using a larger value can increase I/O concurrency in the buffer cache and therefore improve performance.
StorNext 3.5 Installation Guide 81
Field / Button Description
Chapter 4 Configuring StorNext
Windows Configuration Utilities
Seconds for Shared/ Non-Shared
Delay Atime Updates
The Attribute Flush Time parameters control the length of time attributes are held on the client before they are flushed back to the FSM (unless there is an explicit attribute request from the FSM).
The default values are 30 seconds for non­shared files (Attribute Flush Time, non shared), and 2 seconds for shared files (Attribute Flush Time, shared).
Setting these parameters lower will greatly increase the amount of metadata traffic between clients and the FSM. However, in circumstances where files are frequently shared on the SAN, setting the Attribute Flush Time Shared can result in other clients seeing size updates more frequently if a file is being written on one client and read on another.
A value of zero is invalid, and will result in using the default setting.
When this box is checked, the file system delays Atime (access time) updates when reading a file to the time when the file is closed. This cuts down on FSM metadata updates at the expense of coherency.
Low Water Mark High Water Mark Max. Entries Purge Period
(Seconds) Minimum Directory
Cache Size
Metadata Caches contain non-data information such as file names, sizes, update times, etc.
Tuning the low and high water marks and the frequency of purge passes can help certain large mix applications.
This option sets the size of the directory cache. Directory entries are cached on the client to reduce client-FSM communications during directory reads.
The default value is 10 MB.
StorNext 3.5 Installation Guide 82
Chapter 4 Configuring StorNext
Windows Configuration Utilities

Disk Device Labeler 4

The Disk Device Labeler utility lets you configure StorNext File System storage area network (SAN) disks. Use the Disk Device Labeler to create a list of disk labels, associated device names, and (optional) the sectors to use.
Note: Run the Disk Device Labeler on a system that has visibility to
all disk devices on the SAN.
The file system uses the volume labels to determine which disk drives to use. The label name written to a disk device must match the disk name specified in the Server Configuration utility. For more information, see
Server Configuration on page 96.
Caution: Modifying the label of a system disk may render the
system inoperable and require you to repair the volume. Only label disk devices that are intended for use with the StorNext File System SAN.
To run the Disk Device Labeler utility, on the Windows Start menu, click
All Programs > StorNext File System > Disk Device Labeler. The Disk Labeler
window (figure 41) appears.
Figure 41 Disk Device Labeler
On the Disk Labeler window, do one of the following:
StorNext 3.5 Installation Guide 83
