Q-See QSNDVR16R, QSNDVR16, QSNDVR8R Technical Manual

Download

8/16 Channel Digital Video Recorder

QSNDVR8/16R

Digital Video Recorder

Rev 050907

err’’

all

8/16 Channel Digital Video Recorder

Precautions & Safety Instructions

Power Source

This Digital-Video-Recorder uses an AC90-240 V power source. This recorder should only be

operated using the specified power supply. Please check the voltage of the power supply

before using.

If you are not going to use the recorder for a long period of time, be sure to disconnect the

power supply from the wall outlet. To disconnect the power supply, grasp the plug itself; never

pull the cord.

On Placement

• This recording unit is to be used and installed indoors. It must not be exposed to rain or

moisture.

• Place the recorder in a location with adequate ventilation to prevent heat build-up in the

recorder. Slots and openings in the cabinet are provided for ventilation to ensure reliable

operation of the recorder and to protect from overheating. These openings must not be blocked

or covered. Do not place the recorder on a soft surface such as a rug that might block the

ventilation holes. Do not place the recorder in a confined space such as a bookshelf or similar

type unit.

• Do not place the recorder in a location near heat sources such as a radiator or heat register.

• Do not place the recorder in a location subject to direct sunlight, excessive dust or mechanical

shock.

Object and Liquid Entry

Should any solid object fall into, or liquid spill into the cabinet, unplug the recorder and have it

checked by qualified service technicians before operating it any further.

Servicing

This Digital-Video-Recorder is a precision instrument. In case of damage or malfunction of the

recorder have it repaired by qualified service technicians or contact the dealers in your area.

Do not attempt to make the repairs yourself.

Copyrights

Television programs, films, video tapes, discs, and other materials may be copyrighted.

Unauthorized recording of such materials may be contrary to the provisions of the copyright

laws.

8/16 Channel Digital Video Recorder

Features



Video input: 8/16channels; video output: 3



Audio input: 4channels; audio output: 1



Four levels of image quality: very high, high, normal, low. Record and playback frame rate is

changeable for recording.



Compression standard: MJEPG



NTSC / PAL Compatible.



Supports alarm recording and set times recording.



Multi-function searches: Identifies and sorts various alarm records and time records from routine

recording; search by time, by segment or by event.



Playback modes: pause, variable fast forward and reverse play modes.



Zoom, auto function, watermark security



8/16 alarm input and 1 relay alarm output.



Remote control and PTZ control enabled.



Loss and motion detection functions.



Triplex operation, play back and search while recording.



Supports network viewing.



Archiving via USB and CD-RW



480 fps Display Speed (Compared to NTSC/PAL, 400 fps). Up to 120 fps Recording Speed

(Compared to NTSC/PAL, 100 fps).

8/16 Channel Digital Video Recorder

Table of Contents

SYSTEM CONNECTIONS.............................................................................5

1. R

EAR PANEL AND CONNECTION TERMINALS

2. V

IDEO AND AUDIO CONNECTIONS

3. A

LARM AND SENSORS CONNECTION

4. H

ARD DISK

(HDD) C

ONNECTION

........................................................................................................ 8

....................................................................................................... 5

................................................................................................... 6

....................................................................................... 5

SYSTEM SETUP............................................................................................10

1. A

CCESSING MENUS

2. S

ETUP OPTIONS

3. S

YSTEM SETUP

4. T

IME/DATE SET

5. H

ARD DISK

6. F

ACTORY RESET

7. M

ENU LANGUAGE

8. C

HANGE PASSWORD

9. F

IRMWARE UPDATE

10. D

ISPLAY SETUP

11. C

AMERA NAME

12. C

OLOR SETUP

13. A

UTOSEQ SETUP

14. R

ECORDING SETUP

15. R

EC CH SETUP

16. A

UDIO CH SETUP

17. N

ETWORK SETUP

18. N

ETWORK ENABLE SETTING

19. M

AC (MEDIA ACCESS CONTROL) SET

20. S

ENSOR SETUP

21. M

OTION DETECTION SETTINGS

22. M

OTION AREA SET

23. S

CHEDULE SET

24. B

ACKUP SET

25. CD-RW B

26. D

ATA STORAGE INFO

27. P

ROTOCOL SET

(HDD) F

ACKUP

............................................................................................................................ 10

................................................................................................................................. 11

.................................................................................................................................. 11

................................................................................................................................. 12

ORMAT SET

....................................................................................................... 13

................................................................................................................................. 13

............................................................................................................................. 14

.......................................................................................................................... 15

........................................................................................................................... 16

................................................................................................................................ 17

................................................................................................................................ 18

.................................................................................................................................. 19

.............................................................................................................................. 19

.......................................................................................................................... 20

................................................................................................................................ 21

............................................................................................................................ 22

............................................................................................................................. 23

........................................................................................................... 24

............................................................................................. 24

................................................................................................................................. 25

....................................................................................................... 26

.......................................................................................................................... 27

................................................................................................................................ 28

.................................................................................................................................... 28

............................................................................................................................. 30

....................................................................................................................... 32

................................................................................................................................ 32

8/16 Channel Digital Video Recorder

FRONT PANEL BUTTONS..........................................................................34

1. R

ECORDING/PLAYBACK CONTROL BUTTONS

2. F

UNCTION CONTROLS AREA

3. F

UNCTION CONTROLS AREA

4. C

HANNEL SELECTION CONTROLS AREA

5. C

HANNEL SELECTION CONTROLS AREA

(16-CH DVR M

(8-CH DVR M

.................................................................................... 34

ODEL

) .........................................................................35

ODEL

) ...........................................................................36

(16-CH DVR M

(8-CH DVR M

ODEL

)........................................................ 38

ODEL

).......................................................... 39

USER GUIDELINE .......................................................................................40

1. T

URNING THE

2. T

URNING THE

3. N

ORMAL RECORDING PROCESS

4. A

LARM RECORDING

5. T

IME RECORDING

6. P

LAYBACK

7. S

EARCH PLAY

8. T

IME SEARCH

9. E

VENT SEARCH

10. S

TART/STOP SEARCH

11. USB D

12. Z

OOM OPERATION

13. I

NFORMATION DISPLAY

14. PAN-T

15. D

EFAULT SETTINGS

16. R

EMOTE CONTROL

17. N

ETVIEWER SOFTWARE INSTALLATION AND OPERATION

DVR ON..................................................................................................................... 40

DVR OFF ................................................................................................................... 40

......................................................................................................... 40

.......................................................................................................................... 41

.............................................................................................................................. 41

......................................................................................................................................... 42

.................................................................................................................................... 43

.................................................................................................................................. 44

....................................................................................................................... 45

EVICE BACKUP

ILT-ZOOM

..................................................................................................................... 46

........................................................................................................................... 47

................................................................................................................... 47

(PTZ) O

PERATION

.......................................................................................................................... 49

.......................................................................................................................... 51

................................................................................................. 48

................................................................ 52

STANDARD AND PRODUCT SPECIFICATIONS...................................57

EQUIPMENT AND ACCESSORIES SUPPLIED......................................58

APPENDIX A: Q&A TROUBLESHOOTING GUIDE..............................59

APPENDIX B: PROTOCOL FOR DVR CONTROL ................................62

APPENDIX C: RECORDING CAPACITY FOR 120GB HDD ................65

APPENDIX D: INTERNET VIEW/PLAYBACK CONFIGURATION...65

8/16 Channel Digital Video Recorder

SSyysstteemm CCoonnnneeccttiioonnss

1. Rear Panel and Connection Terminals

Power cord, input and output signal terminals are all situated on the rear panel of the DVR. The

connections to monitor(s), video cameras, and all external peripherals are also through the terminals and

sockets on the rear panel. The rear view of the DVR is illustrated below. The 16 CH DVR configuration

is shown; the 8 CH configuration is similar.

The rear panel layout:

1: VIDEO INPUT 1-16 2: MAIN OUTPUT 3: ASSISTANT MONITOR

4: S-VIDEO 5: AUDIO INPUT 6: AUDIO OUTPUT

7: NET INTERFACE 8: USB PORT 9: ALARM AND RS485 PORT (see Section 3)

10: DEBUG PORT 11: FAN 12: POWER INPUT (DC12V)

2. Video and Audio Connection

The DVR can support up to 16 camera’s video input simultaneously. Up to three monitors can be

installed as shown in the diagram below. At least one monitor is to be installed for system setup

which is described in the next section.

8/16 Channel Digital Video Recorder

There are two steps for camera installation:

1. Connect the Video Signal Line to the DVR channel input.

2. Connect the power adaptor jack to the camera.

The DVR can connect up to four channels for audio input, but only one can be selected for output

and recording at any given time.

To display the DVR image, the video output signal should be displayed to a TV set or monitor

connected to the rear panel. Any TV set that has a “video input” terminal is suitable for

the image. The figure above shows the video and audio signal line connection.

displaying

3. Alarm and Sensors Connection (Requires professional installer)

The DVR can support 16 alarm inputs and 3 alarm outputs.

Alarm input: There are two types of alarm input.

1. Voltage output

A: If the sensor output is high voltage (5V) normally and output is low voltage (0V) when

triggered, then users must set DVR as low voltage alarm.

B: If the sensor output is low voltage (0V) normally and output is high voltage (5V) when

triggered, then users must set DVR as high voltage alarm.

（（（（

5V and 0V

））））

Refer to the diagram below; Ch 2 to Ch 16 connectivity is similar to that for channel 1.

8/16 Channel Digital Video Recorder

N O

. .

COM

Before alarm

2. Open/Close output

A: N.O. Normal Open; closes when triggered. DVR must be set as low voltage alarm.

B: N.C. Normal Close; opens when triggered. DVR must set as high voltage alarm.

Please refer to the diagram below, channel 2 to channel 16 are similar to channel 1.

Alarm output

There are three alarm output pins, the status of these pins are illustrated below:

N O

. .

After alarm

COM

N C

. .

N C

8/16 Channel Digital Video Recorder

Alarm

Example for alarm output connection:

N O

. .

COM

N C

. .

Alarm and RS485 port pins are defined:

1 through 12: Sensor 1 through Sensor 12

20, 24, 25: GND

14 through 17: Sensor 13 through Sensor 16

18: RS485+ 19: RS485-

21: COM 22: NC 23: NO

4. Hard Disk (HDD) Connection

THERE ARE TWO POSSIBLE PROCESSES TO INSTALL THE HARD DISK:

Option 1. If the DVR comes without a CD-RW, please follow the following installation sequence:

1. Pull out the hard drive rack from the DVR

side panel.

3. Set jumper on HDD to MASTER

Open the top cover of the drawer.

4. Connect the ribbon (IDE) cable & power

cable.

Jump to Master

8/16 Channel Digital Video Recorder

5. Close the top cover of the drawer

the hard drive drawer back into the DVR.

and

put

Lock the hard disk drawer by turning the

key clockwise.

(Make sure the cables are firmly pressed onto

the HDD interface)

If you have another HDD, set the jumper on that HDD to SLAVE, open the DVR cover, put the

HDD to a second HDD shelf, and then connect the power and ribbon cable.

Option 2: If the DVR comes with a CD-RW, please follow the steps outlined below:

Open the DVR cover, fix the HDD to the DVR HDD plate that supports the HDD, then connect the

power and ribbon cable. When installing a second HDD, set the jumper on the first one to MASTER and

the jumper on the second HDD to SLAVE; put that HDD on the other HDD shelf. Connect the power

and ribbon cable. The process is similar as that for Option 1.

8/16 Channel Digital Video Recorder

Prior to use, program the DVR with your desired settings, otherwise the DVR will run in the default

settings.

1. Accessing Menus

To access the menus in the 16CH DVR continuously press the Menu/Search button on the front panel,

until the password input window appears. For the 8CH DVR just press the Menu button, the password

input window will display.

The password is a random combination of 4 digits, “0-9”. The default is “0000”. For security, as you

input your password, “*” will display. If you input an incorrect password, the PASSWORD CHECK

screen will automatically return. If you don’t want to input the password and cancel the operation, exit

the system. To exit the system, it is not necessary to input your password, just press the menu button. To

change the password, please refer to “password change”.

SSyysstteemm SSeettuupp

After you enter the correct password, the main menu will display as shown below for “

MODE”

SETUP

2. Setup Options

8/16 Channel Digital Video Recorder

When in SETUP MODE,

settings. The selection will be highlighted in yellow.

When selecting a digit for items such as year, month, day, hour, minute, second, etc, click on the left or

right arrow.

To change a value you must press the ADD or DEC button. DEC stands for decrease. These buttons are

accessed on the front DVR panel or correspond to the “-SET+” button on the remote control. Click on

ENTER to enter a sub menu and click on MENU to return to the previous menu.

click on either the up or down arrow to scroll through the selection of

3. System Setup

To access System Setup, select SYSTEM SET and click on ENTER. The SYSTEM SETUP window will

appear. This is illustrated below:

8/16 Channel Digital Video Recorder

• VIDEO SYSTEM: To set up the video format, NTSC or PAL

• BUZZER SOUND: Buzzer switcher. If set to “OFF”, the buzzer will not work..

4. Time/Date Set

Move the cursor to TIME/DATE SET, press ENTER and the TIME/DATE SETUP window will appear

as shown below. Please note if the DVR is in recording mode you cannot access this menu unless

you stop recording first.

Press UP, DOWN, LEFT, and RIGHT buttons to move the cursor. Press ADD or DEC buttons in the

front panel (or “-SET+” on the remote control) to set up the DATE and TIME values.

8/16 Channel Digital Video Recorder

• FORMAT: The time display format, which is different for USA, Europe and Asia users.

• DISPLAY: If set to “OFF”, time will not display on the screen.

• LOCAL: Time display position in the cameras’ video output.

5. HDD Format Set

Move the cursor to HDD FORMAT SET, press ENTER and the HDD Format Setup window will appear

to confirm this operation. This is illustrated below:

If “YES” is selected and ENTER is pressed to confirm, all video files on the HDD will be lost in the

reformatting process. Select “NO” to skip this operation.

6. Factory Reset

In the SYSTEM SETUP menu window, select FACTORY RESET then ENTER and the following

window will appear as illustrated below:

8/16 Channel Digital Video Recorder

If “YES” is selected and the ENTER button is pressed, the DVR will reset to default factory settings.

To skip this operation, select “NO” and hit ENTER.

7. Menu Language

Move the cursor to MENU LANGUAGE, press the ENTER button and the MENU LANGUAGE

window will appear. This is illustrated below:

Push “-SET+” on the remote control or ADD/DEC in the front panel to change the interactive language

settings.

8/16 Channel Digital Video Recorder

8. Change Password

Move the cursor to CHANGE PASSWORD, press ENTER and the CHANGE PASSWORD window will

appear as illustrated below:

Password Level: The DVR has different types of passwords that can be setup:

• SETUP: If set to “YES”, a password must be input to enter the menu.

• SYSTEM: If set to “YES”, a password must be input to boot the DVR.

• RECORD: If set to “YES”, a password must be input to stop manual recording.

• SCHEDULE: If set to “YES”, a password must be input to cancel schedules.

If you select the PASSWORD CHANGE and press the ENTER button, PASSWORD CHANGE window

will display as shown below:

8/16 Channel Digital Video Recorder

Enter the current password, then input a new password and then confirm the new password.

9. Firmware Update

Move the cursor to FIRMWARE UPDATE in the main SYSTEM SETUP menu window, press the

ENTER button and the update window will appear. This is illustrated below:

Updating Methods: There are two methods to update the system: USB and NETWORK (currently not

supported).

USB UPDATE: Create a new folder named “firmware” in the USB device‘s root directory, copy the

update file to the folder, plug in the USB device to the DVR, enter this menu and select UPDATE

START and press the ENTER button. The system will start updating. When updating is completed, the

8/16 Channel Digital Video Recorder

window will display as shown below. Manually reboot the DVR. To reboot the system simply unplug

the power cable and then plug it back.

10. Display Setup

Move the cursor to DISPLAY SETUP, press the ENTER button and the DISPLAY SETUP menu

window will appear. This is illustrated below. The BOUND COLOR (Boundary Color) and BLANK

COLOR settings define colors for border lines between split screens and inactive screens.

8/16 Channel Digital Video Recorder

11. Camera Name

Move the cursor to CAMERA NAME. Press the ENTER button, the camera NAME SETUP window

will appear. This is illustrated below for seven channels (CH01 to CH07) as an example:

Pressing the up button or down button (arrow up or arrow down) will select the channels separately.

Press the ENTER button to change each channel’s name as shown below.

Each channel’s name is the combination of up to eight characters. Pressing the left arrow or right arrow

buttons will select each character. Pressing the ADD or DEC button selects characters for the name.

8/16 Channel Digital Video Recorder

When the name setup for each channel is completed press the ENTER button to save this name.

Note: When DISPLAY is set to “OFF”, the channel’s name will not display on the screen.

12. Color Setup

Move the cursor to COLOR SET, press the ENTER button and the COLOR SETUP window will appear

as illustrated below. Colors can be adjusted separately for each channel for the following four options:

CON: Picture Contrast

BRI: Picture Brightness

HUE: Picture Hue

SAT: Picture Saturation

Press the left or right arrow buttons to select separately CON/BRI/HUE/SAT. Pressing ADD or DEC

will adjust the values. Pressing ADD or DEC on the channel name will change the channel. The

process is repeated for each channel for color adjustment.

13. Autoseq Setup

Autosec will display one camera at a time at specific intervals. Move the cursor to AUTOSEQ SET in

the DISPLAY SETUP menu, pressing the ENTER button will result in the AUTOSEQ SETUP window

appearing. This is illustrated below:

8/16 Channel Digital Video Recorder

Press up button or down button arrows to select each channel separately. Press the ADD or DEC button

to change Auto Sequence time for each channel.

14. Recording Setup

Move the cursor to RECORD SET in the main SETUP MODE menu, pressing the ENTER button will

result in the RECORD SETUP window appearing. This is illustrated below. Press the up or down

arrow buttons to move the cursor. Press the “-SET+” button on the remote control or the ADD or DEC

button in the front panel to change the value.

Note: While the DVR is in recording or playback mode, you cannot access this menu unless you

stop recording or playback first.

OVER WRITE: If set to YES, the DVR will automatically overwrite the HDD when the HDD is full. If

8/16 Channel Digital Video Recorder

set to NO, the DVR will automatically stop recording when the HDD is full. If there are two HDDs

installed in the DVR, when the MASTER HDD is full, the video will store to the SLAVE HDD. When

the SLAVE HDD is full, the DVR will overwrite the MASTER HDD if OVER WRITE is set to YES,

otherwise recording will stop.

REC SPEED: The DVR factory default setting for the recording frame rate is 30F/SEC (frames/second)

under video standard NTSC (25F/SEC default under video standard PAL). This means the DVR

records events at the speed of 30 frames per second. The higher the recording speed rate, the more

natural look is displayed on the screen during playback. The lower the recording frame rate, the more

space is saved on the hard disk. The highest frame rate is 120F/SEC for NTSC (for PAL is 100F/SEC)

when the resolution is set as 360.

REC QUALITY: There are four different video quality settings: VERY LOW, LOW, NORMAL and

HIGH. The higher the video quality is set, the clearer images are obtained during playback. The lower

the video quality is set, the more space is saved on the hard disk drive.

RESOLUTION: The recording picture size of the DVR has two modes: 360 and 720. The default

value is 360. In 720 mode, the recorded picture is twice as large as in 360 mode. In 360 mode the REC

speed is 120F/SEC for NTSC (100F/SEC for PAL) and the maximum REC SPEED in 720 mode is

60F/SEC for NTSC (50F/SEC for PAL).

PB SPEED: The default playback frame rate is AUTO, which is the same as REC SPEED. Otherwise,

there are also nine options to choose from: 1/2/3/5/12/20/30/60/120 F/SEC for NTSC standard

(1/2/3/5/10/12/25/50/100 F/SEC for PAL).

15. Rec CH Setup

Move the cursor to REC CH SET in the RECORD SETUP menu, pressing the ENTER button results in

the REC CH SET window appearing. It is different for 720 and 360 resolutions. For 720 resolution,

the setup window is illustrated below. Press the up or down arrow buttons to select each channel

separately. Press the ADD or DEC buttons in the front panel (“-SET+”on the remote control) to change

the setting. If any channel is set to OFF, this channel will not be active in recording mode.

8/16 Channel Digital Video Recorder

Note: If the resolution is set to 360, the REC CH SET window can not be setup.

16. Audio CH Setup

Move the cursor to AUDIO CH SET in the RECORD SETUP menu, pressing the ENTER button results

in the AUDIO CH SET window appearing. This is illustrated below.

There are four Audio Input channels. For each channel, any four of the 8 or 16 channels available

(depending on the DVR model) can be selected. Although there are four Audio Input channels, you can

only record one channel’s audio at any given time. To set the audio recording correctly select only one

channel, among these four Audio Input channels, in the RECORD SETUP menu under AUDIO CH SET.

8/16 Channel Digital Video Recorder

17. Network Setup (May require IT expertise)

Move the cursor to NETWORK SET in the SETUP MODE Top Main Menu, pressing the ENTER button

results in the NETWORK SETUP menu window appearing. This is illustrated below. Note: If the

Netviewer software is accessing the DVR, this menu cannot be accessed unless the Netviewer

software is closed.

IP MODE: the DVR has 2 IP mode options: STATIC IP and DHCP. If STATIC IP is selected, the IP

ADDR (IP Address) is input manually. If the DHCP mode is selected, the DVR will automatically get

the IP address from the network..

For STATIC IP, pressing up, down, left or right arrow buttons moves the cursor among the digits for

each IP ADDR, GATEWAY and SUB NET. Pressing the ADD and DEC buttons in the front panel

modifies the digits. To select each digit press the ENTER button, the left or right arrow buttons to

move to the next one, press ADD or DEC button to modify any digit and press ENTER to save the

selected number or the change.

NETWORK ENV: The DVR has three types of different network options: LOCAL, EXTER_LAN and

EXTER_WAN. If in a local network, please select LOCAL; for internet use, please choose

EXTER_LAN and if the internet condition is not very reliable, select EXTER_WAN.

VIDEO PORT: The video transmit port number for the computer.

COMMAND PORT: The command transmit port number for the computer.

If you change the VIDEO PORT, COMMAND PORT or MAC address, you have to restart the DVR to

use the Netviewer software provided.

The MAC (Media Access Control) address is a unique value associated with a network adapter. MAC

addresses are also known as hardware addresses or physical addresses. They uniquely identify an

adapter on a LAN.

8/16 Channel Digital Video Recorder

Note: If the MAC address has been changed, the MAC ADDR SET line is not visible.

18. Network Enable Setting

Move the cursor to N/W Enable in the NETWORK SETUP menu, pressing the ENTER button results in

the NET CH SETUP window appearing. This is illustrated below.

Any active channel set to OFF results in this channel not transmitting to the network. To see a channel

from the network, the channel must be set to ON.

19. Mac (Media Access Control) Set (May require IT expertise)

Move the cursor to MAC ADDR SET in the NETWORK SETUP menu, pressing the ENTER button

results in the MAC ADDR SET window appearing. This is illustrated below:

8/16 Channel Digital Video Recorder

If there is more than one DVR in a local area network, each DVR must be set to have an exclusive MAC

Address. There is only one chance to modify the MAC Address. Once the MAC ADDRESS is

changed, this menu will not appear again. If you want to change the MAC ADDRESS again, the factory

default settings have to be reloaded with Factory Reset. Move the cursor to FACTORY RESET in the

SYSTEM SETUP menu, pressing ENTER will prompt you to INITIALIZE. Enter YES, DVR settings

revert to default.

MAC addresses are 12-digit hexadecimal numbers (48 bits in length). For MAC ADDRESS set the first

two byte sets to 00.00, and change the other bytes.

20. Sensor Setup

Move the cursor to SENSOR SET in the SETUP MODE Top Main Menu, pressing the ENTER button

results in the SENSOR SETUP menu window appearing. This is illustrated below. Press up or down

arrow buttons to move the cursor. Press the ADD or DEC buttons in the front panel (“-SET+”on the

remote control) to change the setting. Setup individually, for each channel with sensor, using

CHANNEL SELECT.

The following Setup Options are available for each selected channel:

ALARM ENABLE: Alarm trigger switch that can be set to OFF, LOW LEVEL or HIGH LEVEL; if set

to OFF, the DVR will ignore the alarm input.

MOTION ENABLE: Motion alarm switch that can be set to ON or OFF; if set to OFF, the motion

alarm will be ignored.

MOTION LEVEL: Motion sensitivity level. If the moving object in the picture is small relative to the

screen output, set to HIGH or VERY HIGH. The default level is NORMAL.

BUZZER TIME: Buzzer sound duration when there is a sensor or motion alarm triggered.

8/16 Channel Digital Video Recorder

SENSOR RECTIME: When a motion or sensor alarm occurs, the duration of the DVR recording by

default is 60 Sec. You can change this with this menu option.

SCREEN SWITCHTIME: If set to ON, when there is an alarm on any one channel, the screen will

automatically switch to full screen mode from that video channel.

Note: Users should activate Schedule Set explained below after setting up these parameters to

activate the settings.

21. Motion Detection Settings

1) When surveying nearby objects (2-10 meters)

For daytime hours, set the MOTION LEVEL detection sensitivity to NORMAL; at night set to

LOW.

2) When surveying objects in 50-100 meters distance

The objects 50-100 meters away will appear quite small on the screen. For daytime hours, set the

motion detection sensitivity to HIGH level.

During nighttime hours (see below), set to the NORMAL level.

8/16 Channel Digital Video Recorder

Note: The above suggestions are the result of extensive testing. The user can select the best settings

for the actual operational environment.

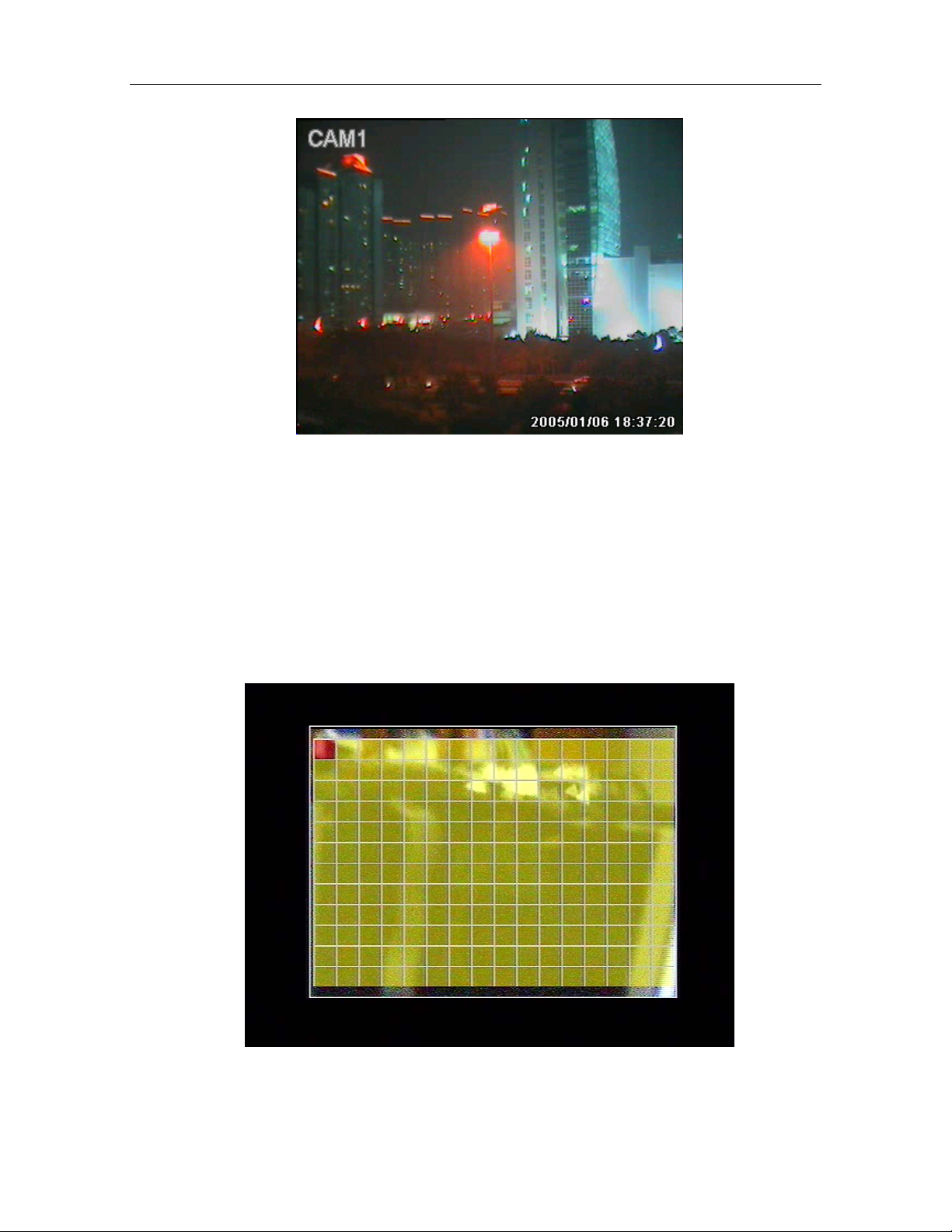

22. Motion Area Set

Move the cursor to MOTION AREA SET in the SENSOR SETUP menu, pressing the ENTER button

will result in the image for AREA SETUP appearing. This is illustrated below. Pressing the up, down,

left, right arrow buttons moves the cursor throughout the grid areas. Pressing the ENTER button

toggles the grid areas between yellow (enabled) and gray (disabled). To copy the areas grid condition

to adjacent square grid areas press ENTER continuously.

The grid areas set to yellow are motion detection enabled; the ones set to gray are motion detection

disabled.

8/16 Channel Digital Video Recorder

23. Schedule Set

Move the cursor to SCHEDULE SET in the SETUP MODE Top Main Menu, pressing the ENTER

button results in the SCHEDULE SETUP menu window appearing. This is illustrated below:

The weekly recording schedule is setup for a period of time each day, from Monday to Sunday.

START: Start recording time

STOP: Stop recording time

Note: Manual record mode (activate recording at any time) and Schedule record mode (including

motion detection record mode, sensor record mode and time schedule record mode) are not active

simultaneously. Once users select a Schedule record mode, manual record mode will be disabled;

once users select manual record mode, schedule record mode will be disabled.

24. Backup Set

Move the cursor to BACKUP SET in the SETUP MODE Top Main Menu, pressing the ENTER button

results in the BACKUP SET window appearing. This is illustrated below. The CD-RW backup

function is selectable when a CD-RW is installed.

8/16 Channel Digital Video Recorder

There are two types of backup modes: USB and CD-RW (optional).

If USB BACKUP is selected, plug in the USB device first, then press the ENTER button. The USB

BACKUP window appears. This is illustrated below:

There are two types of BACKUP MODE: STILL and MOVIE.

STILL mode will backup still pictures; MOVIE mode will backup real video.

Press ADD or DEC buttons in the front panel or –SET+ on the remote control to set the mode.

To backup to the USB Port on the DVR a USB Flash Memory Card is normally used. To backup with

USB Flash, plug the device to the USB port in the back of the DVR. The USB Flash should be

detected. As mentioned above, still pictures or movie can be backed up. Search and playback the video

8/16 Channel Digital Video Recorder

files or set the frames to watch. This is further explained in the User Guideline. The images are backed

up to the USB Flash device.

To Playback the files, connect the USB Flash to a PC and run the Network Viewer program. On the PC

do a HDD scan, click on Local Search and click on Open Folder and select the Flash Drive. Select the

files and click on PLAY in Network Viewer.

25. CD-RW Backup

This function is only selectable if the DVR has a CD-RW installed. Pressing ENTER results in the

CD_RW BACKUP menu appearing as shown below.

START TIME SET: To set the backup start time.

START: Backup start time display.

END: Backup end time display.

BACKUP START: To start backup to CD-RW.

Selecting START TIME SET and pressing the ENTER button results in the BACKUP START SEARCH

window appearing. This is illustrated below. This operation is similar to Time Search in the User

Guideline section. The start time to backup is selected.

8/16 Channel Digital Video Recorder

Once the backup start time is selected, the backup size can also be input. The backup size can be set

from 1MB to 650MB. When these steps are completed, place a recordable CD in the CD-RW and select

BACKUP START. The CD_RW BACKUP window is illustrated below:

When backup is finished, from the Net Viewer software, use the Drive Scan function to playback the

video.

8/16 Channel Digital Video Recorder

26. Data Storage Info

Move the cursor to STORAGE INFO in the SETUP MODE Top Main Menu, pressing the ENTER

button results in the STORAGE INFO window appearing. This is illustrated below. The HDD

information is displayed.

27. Protocol Set (Requires IT expertise)

For “speed dome cameras”, pan, tilt, zoom, etc. functions must be set up. If protocol is set correctly,

the speed dome parameters for each camera can be controlled by the DVR. Move the cursor to

PROTOCOL SET in the SETUP MODE Top Main Menu, pressing the ENTER button results in the

PROTOCOL SET window appearing. This is illustrated below. Press up or down arrow buttons to

move the cursor, and press “-SET+” on the remote control or ADD or DEC in the front panel to set the

values for each channel.

8/16 Channel Digital Video Recorder

CHANNEL SEL: Channel which is connected to the speed dome camera to control

BAUDRATE: Changeable from 1200bps to 19200bps.The default value is 2400bps.

DOME ADDR: Address of the speed dome, changeable from 0x00 to 0xff.

PROTOCOL: Protocol of speed dome; includes PELCOP, PELCOD, NEON, and LILIN.

DVRPROTOCOL: Protocol suitable for computer/keyboard control of the DVR. See App. A.

DVRADDRESS: Address of the DVR for DVRPROTOCOL: From 0x00 to 0xff

DVRBAUDRATE: The baud rate of the DVR for DVRPROTOCOL.

8/16 Channel Digital Video Recorder

FFRROONNTT PPAANNEELL BBUUTTTTOONNSS

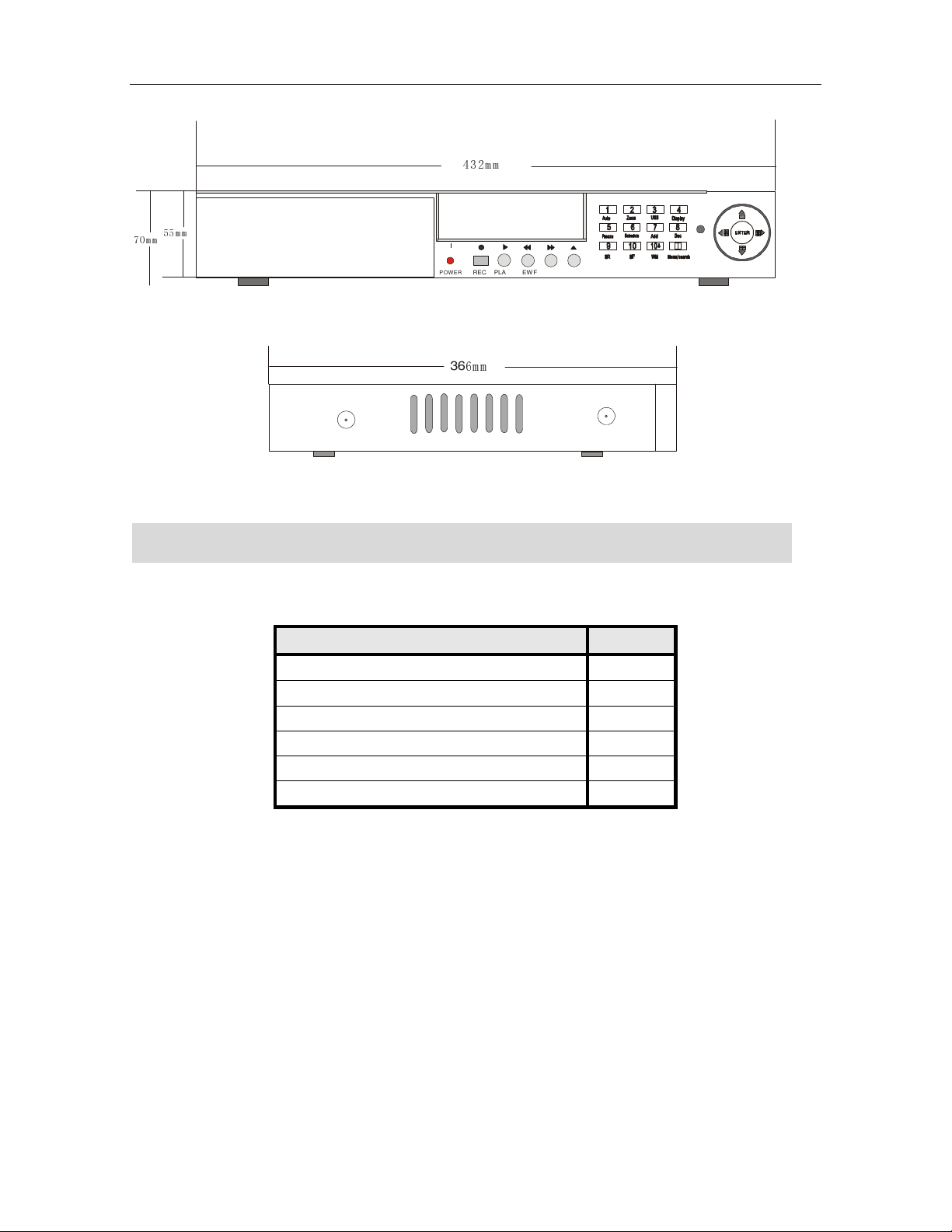

The front view of the video-recorder is illustrated below:

1.Recording/Playback Control Buttons

1. REC: This is the manual recording button. Press this button to record, if you re-press this button,

it will stop recording. This function may require a password (if setup). This button is the toggle control

for manual recording and stop recording operations. Recording and Stop will be simultaneous for all

active channels up to 16 channels. This button will not work when Schedule Mode is set.

2. PLAY: Press this button to start playing the video stored in the HDD, press this button again and

it will stop playing. This button is the toggle control for playing and stopping playback operations.

Play and Stop will be simultaneous for all active channels. This button will not work during Time Set

recording and during Alarm triggered recording.

3. REW: Rewind button. Press this button to start fast backward search playing until the PLAY

button is pressed to start normal playing.

4. FORWARD: Fast forward button. Press this button to start fast forward playing until the PLAY

button is pressed to start normal playing The fast forward function has five speeds; each time the

FORWARD button is pressed changes the forward speed to the next fastest level..

5. MODE: Mode change key. Press this key to switch to Shift Mode, press again to change back to

Normal Mode.

8/16 Channel Digital Video Recorder

2. Function Controls Area (16-CH DVR Model)

1. Auto/1: Auto key. In shift mode, pressing this button puts the DVR in auto sequence mode.

Sequences each channel image for the duration set in the AUTO SEQ setup menu. Press this button

again to quit this mode. If not in shift mode, press this button to see Channel 1 full screen. When

inputting numbers this button is used to key in number “1”.

2. Zoom/2: Zoom key. In shift mode, pressing this button puts the DVR in zoom mode. Refer to

Zoom Operation in the User Guideline section for details. Press this button again to cancel the zoom

operation. If not in shift mode, press this button to see Channel 2 full screen. When inputting numbers

this button is used to key in number “2”.

3. USB/3: USB key. In shift mode, pressing this button starts USB backup. Refer to USB Device

Backup in the User Guideline section for details. If not in shift mode, press this button to see Channel 3

full screen. When inputting numbers this button is used to key in number “3”.

4. Display/4: Display key. In shift mode, pressing this button displays current information on the

screen, pressing again clears the information display. If not in shift mode, press this button to see

Channel 4 full screen. When inputting numbers this button is used to key in number “4”.

5. Freeze/5: Freeze (pause) key. In shift mode, pressing this button puts the DVR in freeze mode.

Press this button again to quit freeze mode. If not in shift mode, press this button to see Channel 5 full

screen. When inputting numbers this button is used to key in number “5”.

6. Schedule/6: Schedule key. In shift mode, press this button to enter the Schedule Set state set up in

the SCHEDULE SETUP menu. If the DVR is in schedule state, there will be an “S” symbol on the

screen. Press this button again to quit schedule mode. If not in shift mode, press this button to see

Channel 6 full screen. When inputting numbers this button is used to key in number “6”.

7. ADD/7: Add key. Press this button to see Channel 7 full screen. When in System Setup menus,

this is an “increase” button. When inputting numbers this button is used to key in number “7”.

8. DEC/8: Decrease key. Press this button to see Channel 8 full screen. When in System Setup

menus, this is a “decrease” button. When inputting numbers this button is used to key in number “8”.

9. SR/9: Single Frame Rewind button. In shift mode, during playback, press and hold this button to

8/16 Channel Digital Video Recorder

see single frames running backwards. Press the PLAY button to play normally. If not in shift mode, press

this button to see Channel 9 full screen. When inputting numbers this button is used to key in number

“9”.

10. Sf/0/10: Single Frame Forward button. In shift mode, during playback, press and hold this

button to see single frames running forward. Press the PLAY button to play normally. If not in shift

mode, press this button to see Channel 10 full screen. When inputting numbers this button is used to key

in“0”.

11. WM/10+: Watermark button. In shift mode, if the DVR is playing video, press this button to see

the watermark symbol (WM) of the picture. If the video was recorded by this DVR and has not changed

there will be the watermark symbol in the picture. Pressing the watermark key again clears the display. If

not in shift mode, press and hold this button and then press 1 to 6 to see Channel 11 to Channel 16 full

screen.

12. Menu/Search: Press this key to enter the Search Mode menu. See sections Search Play, Time

Search, Event Search and Start Stop Search in the User Guideline for further details. Press and hold this

key to enter the SETUP MODE Top Main Menu (a password is needed). Press this key again to quit any

active menu on the screen.

3. Function Controls Area (8-CH DVR Model)

1. Auto/1: Auto key. In shift mode, pressing this button puts the DVR in auto sequence mode.

Sequences each channel image for the duration set in the AUTO SEQ setup menu. Press this button

again to quit this mode. If not in shift mode, press this button to see Channel 1 full screen. When

inputting numbers this button is used to key in number “1”.

2. Zoom/2: Zoom key. In shift mode, pressing this button puts the DVR in zoom mode. Refer to

Zoom Operation in the User Guideline section for details. Press this button again to cancel the zoom

operation. If not in shift mode, press this button to see Channel 2 full screen. When inputting numbers

this button is used to key in number “2”.

3. USB/3: USB key. In shift mode, pressing this button starts USB backup. Refer to USB Device

8/16 Channel Digital Video Recorder

Backup in the User Guideline section for details. If not in shift mode, press this button to see Channel 3

full screen. When inputting numbers this button is used to key in number “3”.

4. Freeze/4: Freeze (pause) key. In shift mode, pressing this button puts the DVR in freeze mode.

Refer to Freeze Operation in the User Guideline section for details. Press this button again to quit freeze

mode. If not in shift mode, press this button to see Channel 4 full screen. When inputting numbers this

button is used to key in number “4”.

5. Stop/5: Stop key. In shift mode, pressing this button, causes the DVR to stop recording and

playing. If not in shift mode, press this button to see Channel 5 full screen. When inputting numbers this

button is used to key in number “5”.

6. WM/6: Watermark button. In shift mode, if the DVR is playing video, press this button to see the

watermark symbol in the picture (WM). If the video was recorded by this DVR and has not changed,

there will be the watermark symbol in the picture. Pressing the watermark key again clears the display. If

not in shift mode, press this button to see Channel 6 full screen. When inputting numbers this button is

used to key in number “6”.

7. ADD/7: Add key. Press this button to see Channel 7 full screen. When in System Setup menus,

this is an “increase” button. When inputting numbers this button is used to key in number “7”.

8. DEC/8: Decrease key. Press this button to see Channel 8 full screen. When in System Setup

menus, this is a “decrease” button. When inputting numbers this button is used to key in number “8”.

9. Display/9: Display key. In shift mode, pressing this button displays current information on the

screen, pressing again clears the info display. When inputting numbers this button is used to key in

number “9”.

10. Schedule/0: Schedule key. In shift mode, press this button to enter the Schedule Set state set

up in the SCHEDULE SETUP menu. If the DVR is in schedule state, there will be an “S” symbol on the

screen. Press this button again to quit schedule mode. When inputting numbers this button is used to key

in number “0”.

11. Menu: Press this key to enter the Search Mode menu. Press and hold this key to enter the

SETUP MODE Top Main Menu (a password is needed). Press this key again to quit any active menu on

the screen.

12. Search: Press this key to enter the Search Mode menu. See sections Search Play, Time Search,

Event Search and Start Stop Search in the User Guideline for further details.

8/16 Channel Digital Video Recorder

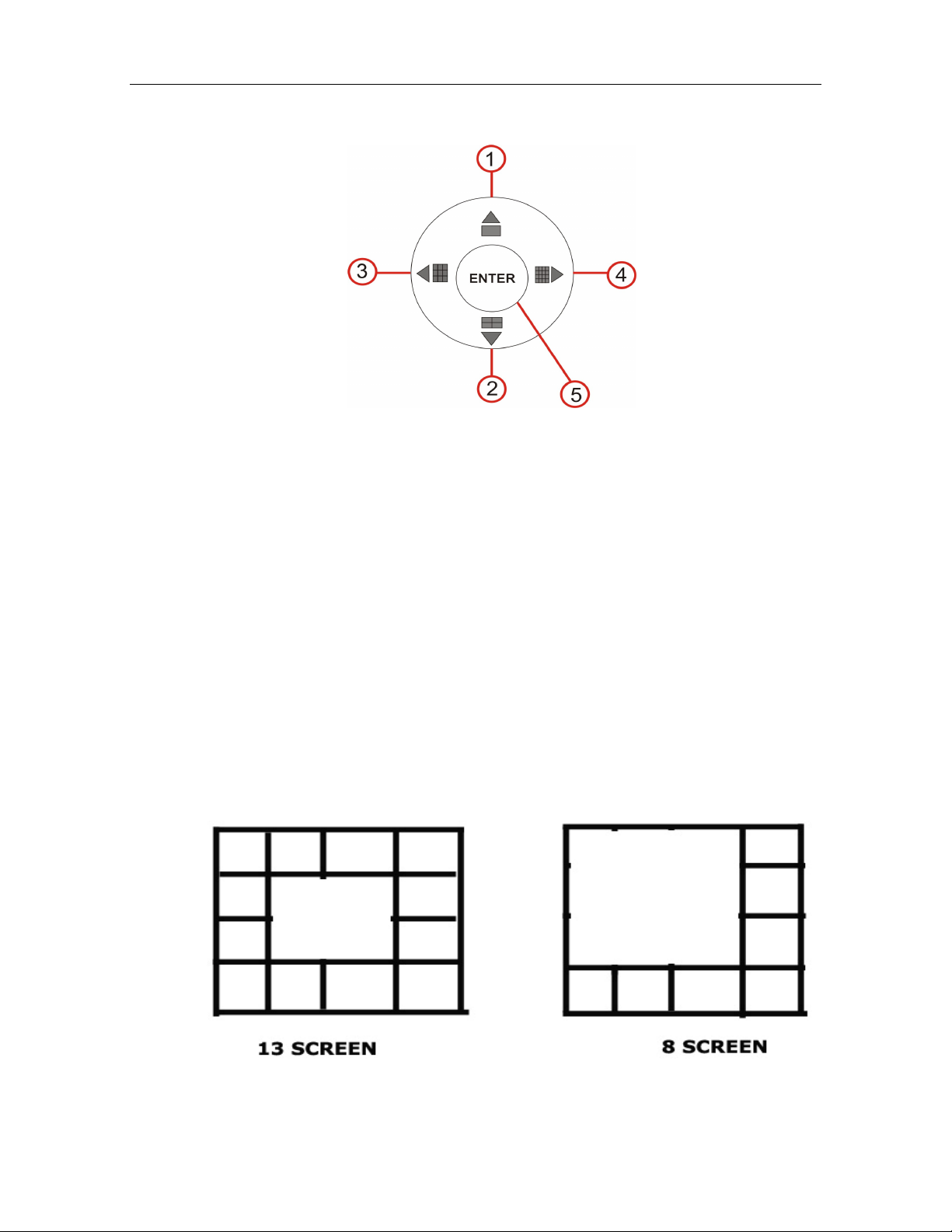

4. Channel Selection Controls Area (16-CH DVR Model)

1. Full Screen/UP: Press this button to see full screen, press this button again to see the next

channel. While selecting menu items, press this button to move the cursor up.

2. Four Pictures/DOWN: Press this button to see a four pictures display, press this button again to

display next four pictures. While selecting menu items, press this button to move the cursor down

3. Nine Pictures/LEFT: Press this button to see a nine pictures display, press this button again to

see eight pictures. While selecting menu items, press this button to move the cursor to the left.

4. Sixteen Pictures/RIGHT: Press this button to see a sixteen picture display, press this button

again to see thirteen pictures. While selecting menu items, press this button to move the cursor to the

right.

5. ENTER: While selecting menu items, press this button to select the item. When playing video

press this button to pause the play, press the PLAY button to continue play.

Sample multi-screen views:

8/16 Channel Digital Video Recorder

5. Channel Selection Controls Area (8-CH DVR Model)

1. Full Screen Add/UP: Press this button to see full screen, press this button again to see the next

channel. When selecting menu items press this button to move the cursor up.

2. Full Screen Dec/DOWN: Press this button to see full screen, press this button again to see the

previous channel. When selecting menu items press this button to move the cursor down.

3. Four Pictures/LEFT: Press this button to see a four pictures display, press this button again to

see the next four pictures. When selecting menu items press this button to move the cursor to the left.

4. Eight Pictures/RIGHT: Press this button to see an eight pictures display. When selecting menu

items press this button to move the cursor to the right.

5. ENTER: While selecting menu items, press this button to select the item. When playing video

press this button to pause the play, press the PLAY button to continue play.

8/16 Channel Digital Video Recorder

UUSSEERR GGUUIIDDEELLIINNE

1. Turning the DVR ON

• The contents in the “Precautions and Safety Instructions” at the beginning of this manual must

be understood and always complied with. Read this section carefully.

• Before turning the DVR ON, check the system connections. All input and output peripherals and

devices must be properly and securely connected.

• Ensure that the DVR’s video format (NTSC/PAL) and the monitor(s) video format (NTSC/PAL)

meet the technical requirements of each and are properly installed.

• Turn on all exterior equipment after checking their connectivity and settings that are not

controlled by the DVR.

• If required, insert and connect the removable hard disk to the DVR and lock it up (turn the hard

disk lock to the right-clockwise).

• Plug the power cord into an AC90-240 outlet and press the power switch ON in the front panel.

2. Turning the DVR OFF

• Normally turn OFF the DVR when the system shuts down according to schedule or is idle (not

recording or playing). Do not turn off the DVR while playing, during playback or at any stage

of System Setup taking place. Do not turn off the DVR while recording

• Press the recording REC button to stop recording or press the PLAY button to stop playing or

exit from the System Setup menu before turning the power OFF.

• If the DVR will not be used for a long time, also disconnect the power cord from the electrical

outlet.

3. Normal Recording Process

• Turn power ON to DVR and all related peripheral devices (cameras, monitor). Ensure that there

is video input.

• Press the DISPLAY button to check the amount of spare space on the hard disk. If there

appears to be insufficient space on the hard disk, consider whether to change hard disk first or

select overwriting mode via System Setup.

• Check all recording parameters setup before recording. Video quality and frame rate must be

selected. Recording settings cannot be modified during the recording process.

• Manual recording is part of a normal recording process. Under the manual recording mode

(non-schedule status), pressing the REC button will record video on ALL active channels.

• Press the REC button to begin recording; up to 16 channels will start simultaneous recording.

While in normal recording mode, press the REC button again, enter the correct password (if

setup for entering a recording password) and it will stop recording.

• During the recording process, if the hard disk is full, and the system is set to automatic overwrite,

then the recording will not be interrupted, and it will begin to overwrite the earliest recorded files;

8/16 Channel Digital Video Recorder

if the system is not set to overwrite, it will stop recording.

4. Alarm Recording

• Alarm recording will not start by manually pressing the REC button.

• Alarm recording can only be activated by an alarm input signal or a sensed motion, so it is very

important to check whether the connection of the alarm input equipment is correct (for all its

physical components), stable, reliable, and the alarm and sensors are properly setup. Refer to

Alarm Connection in the SYSTEM CONNECTION section, and Sensor Setup and Motion

Detection settings in the SYSTEM SETUP section of this manual.

• The precondition of whether the alarm recording can be activated by an exterior input signal or

by motion is that the system must be set via the SCHEDULE SET. Also, in the menu of Alarm

Setup, for alarm triggering, the Alarm Enable of the channel(s) must be set to “ON”. And

finally, for motion alarm triggering, the Motion Enable of the respective channels must be set to

“ON”. The Area Set for each channel must be defined for motion detection. Refer to the

SYSTEM SETUP sections of this manual.

• Under an “off-schedule” status, the system will not start alarm recording. Setting the Schedule

ON or OFF is achieved by pressing the Schedule key on the front panel, not through a System

Setup menu and screen windows. Under a Schedule-ON situation, “S” will display on the screen.

• Alarm video recording cannot stop by simply pressing the REC button, but will stop by removing

the set Schedule. Once the system is set on schedule, the schedule may not be removed randomly,

there is a password protection (if set up that way) to remove Schedule. In that case, only after

inputting the correct password, the schedule settings can be turned off (cancelled).

• Check the Alarm recording setup before recording; confirm video quality and frame rate,

remember that the record settings cannot be modified during the recording process.

• As long as the alarm triggering input signal is effective (active), the alarm recording continues.

After the alarm input signal becomes ineffective, the duration set up by “Alarm/Motion

Recording Time” (defined in the SENSOR SETUP menu for SENSOR RECTIME) becomes

effective, and when that extra time has expired, the alarm recording automatically stops. Again,

to manually stop the alarm recording, the only way possible is by removing the setup Schedule as

explained above.

5. Time Recording

• Time recording will begin and end automatically according to pre-determined time periods.

Recording is associated to a fixed timetable, for example, working hours or after hours recording

with fixed start/stop times. It is setup via the SCHEDULE SETUP menu for a weekly schedule.

See Schedule Set in the SYSTEM SETUP section of this manual.

• To start the Time Recording function, prepare a recording schedule beforehand and set it up as

explained above. Press the Schedule key on the front panel to set Schedule ON. The schedule

symbol “S” will display on the screen. Without pressing the Schedule button, the Time Recording

parameter setup will not work.

• Time Recording is effective if the system is set up according to a Schedule.

8/16 Channel Digital Video Recorder

• During Time Recording, pressing the Schedule button in the front panel again and entering a

password (if set up that way) will stop time recording.

• Because Time Recording is correlated with real time, before using this function adjust the

Time/Date settings. See the corresponding section in the SYSTEM SETUP section of this

manual.

6. Playback

• Press the PLAY button and the DVR starts playback of images recorded. In the process of

playing, press the pause button (remote only) to pause playing, pressing PLAY again continues

playback. Pressing PLAY on the front panel will start and stop playback.

• During FORWARD (fast forward) playing or REW (fast rewind), pressing PLAY will resume

normal playing from current location.

• Continuously pressing the FORWARD button will cycle the fast-forward speed among five levels:

x2, x4, x8, x16, and x32. Continuously pressing the REW button will cycle the fast-rewind speed

among four levels: x2, x4, x8, and x16.

• During playback mode, press and hold the SF (Single Frame) button to backward play, frame by

frame. Press and hold both the SF and FORWARD buttons will play forward frame by frame.

Release and it pauses, then press the PLAY button again to playback normally.

• Pressing the PLAY button again will stop playing.

8/16 Channel Digital Video Recorder

7. Search Play

Press the SEARCH button and the SEARCH MODE menu displays on the screen as shown below:

TIME SEARCH: Search play by input time.

EVENT SEARCH: Search play by event list.

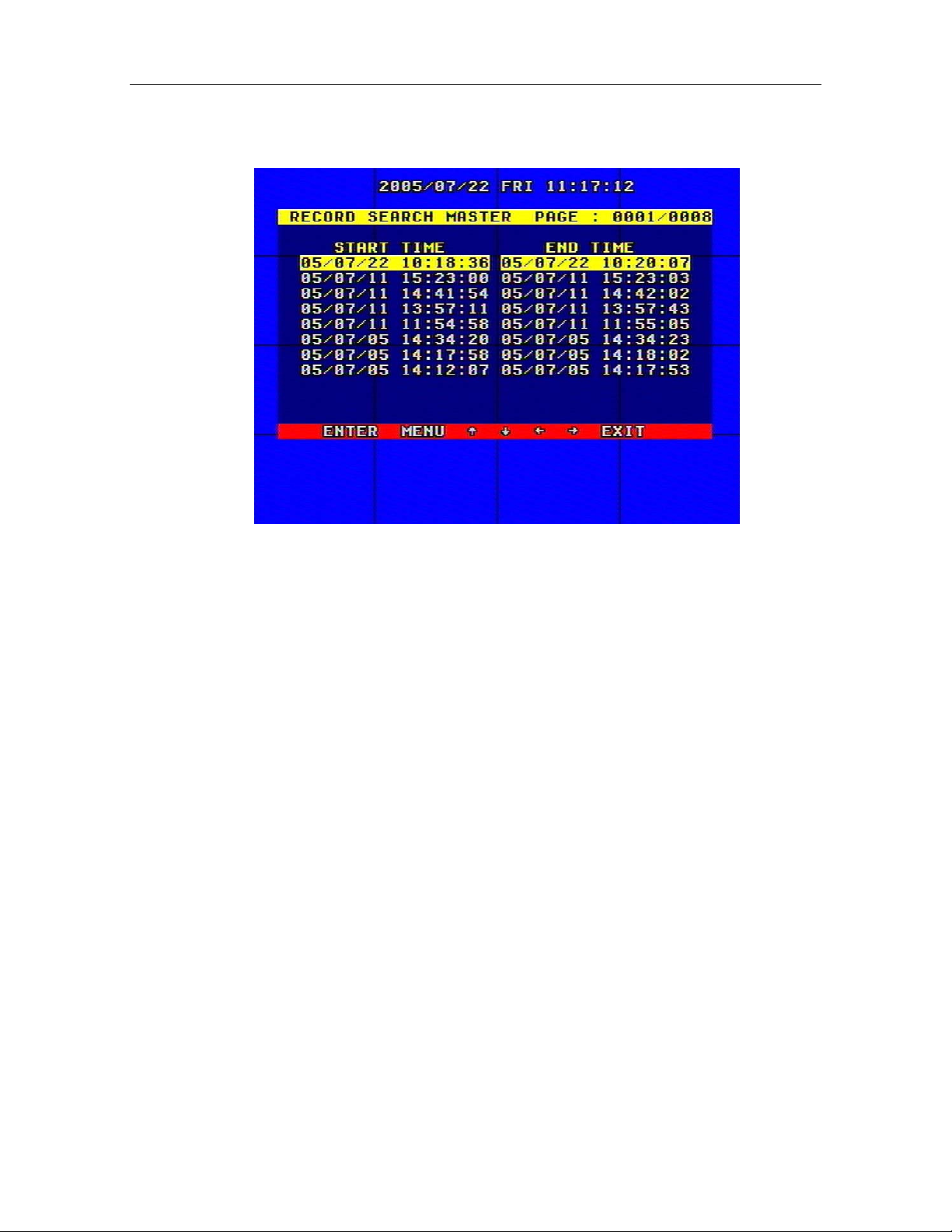

START STOP SEARCH: Search play by segment.

Press up and down arrow buttons to move the cursor, then press the ENTER button to enter the

respective sub menu selected. To quit from the Search Menu press the SEARCH key again.

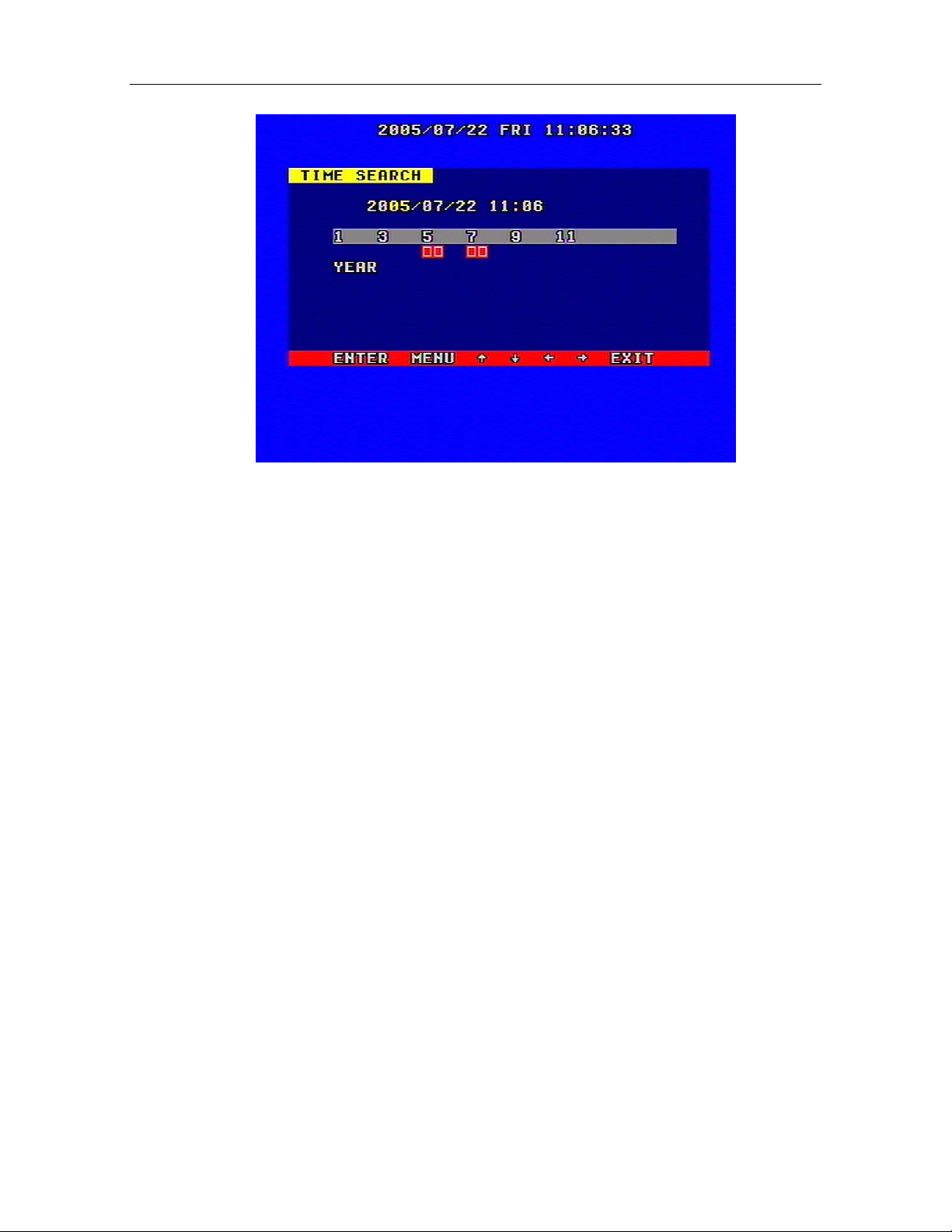

8. Time Search

Move the cursor to TIME SEARCH in the SEARCH MODE menu, pressing the ENTER button will

result in the TIME SEARCH window appearing. This is illustrated below:

8/16 Channel Digital Video Recorder

The red blocks indicate the presence of video files at the time selected. The time selections are by

year, month within that year, day of the month, hour and even minutes.

Press the left and right arrow buttons to move the cursor. An input sequence follows for year, month,

day, hour and minute. After the YEAR is selected, press the ENTER button to select the month, and

the same for day and hour. Press the ADD and DEC (or “-SET+” on the remote control) to modify the

time. The time refinement can stop at any time as long as there is a red block. If minute is selected,

and that minute has a red block, then pressing the ENTER button will start playing the video from that

time.

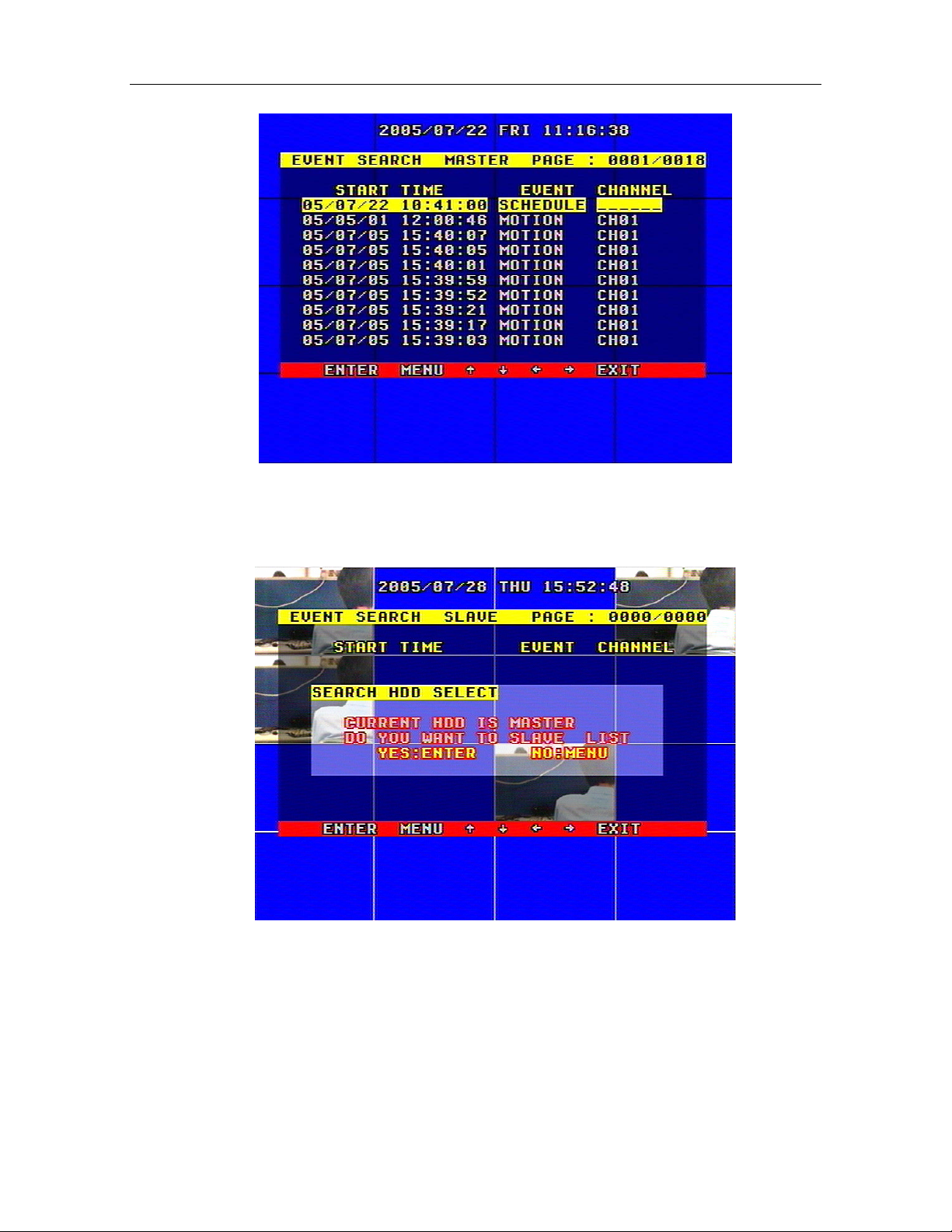

9. Event Search

Move the cursor to EVENT SEARCH in the SEARCH MODE menu, pressing the ENTER button will

result in the EVENT SEARCH MASTER window appearing. A sample screen is illustrated below.

There are four possible types of events that can be listed for each channel: MOTION, ALARM,

SCHEDULE and NETWORK.

MOTION refers to motion alarm recording, ALARM refers to sensor alarm recording, SCHEDULE

refers to time recording (for all channels), and NETWORK refers to network recording (for all

channels).

Press the up and down arrow buttons to move the cursor to highlight the event, press left and right

arrow buttons to see the previous or next page. Press the ENTER button to play the segment selected.

Press the SEARCH button to go back to the SEARCH MODE Search Play menu.

8/16 Channel Digital Video Recorder

If you want to change the HDD storage source listing between MASTER HDD and SLAVE HDD,

press the MODE key in the front panel, then press the ENTER key to change the HDD or press MENU

to cancel.

10. Start/Stop Search

Move the cursor to START STOP SEARCH in the SEARCH MODE menu, pressing the ENTER button

will result in the RECORD SEARCH MASTER window appearing. A sample screen is illustrated

below.

All recorded segments are displayed here. Press the up and down arrows button to move the cursor

among the segment list, press left and right button to see the previous or next page, select the segment

and press the ENTER button to play the segment . Press the SEARCH button to go back to the

8/16 Channel Digital Video Recorder

SEARCH MODE Search Play menu.

If you want to change the HDD storage source listing between MASTER HDD and SLAVE HDD,

press the MODE key in the front panel, then press the ENTER key to change the HDD or press

MENU to cancel.

11. USB Device Backup

• Press and hold the Menu key (front panel of the DVR or remote) to enter the SETUP MODE

Top Main Menu (a password is needed). Move the cursor to BACKUP SET in the SETUP

MODE Top Main Menu, pressing the ENTER button results in the BACKUP SET window

appearing. If USB BACKUP is selected, plug in the USB device first, and press the ENTER

button. The USB BACKUP window appears. There are two types of BACKUP MODE:

STILL and MOVIE. STILL mode will backup still pictures; MOVIE mode will backup real

video. Press ADD or DEC buttons in the front panel or –SET+ on the remote control to set the

mode.

• To backup, USB Flash Memory Card is normally used. To backup with USB Flash, plug the

device to the USB port in the back of the DVR. After plugging the USB device check whether

the USB device was detected (information appears, in the menu window of BACKUP SET), and

that the free space of the USB device is enough. Select the backup mode (STILL or MOVIE),

then EXIT the menu setup.

• If the USB Flash is detected as mentioned above, still pictures or movie segments can be backed

up. Search and playback the video files or set the frames to watch. The images will be backed

up to the USB Flash device as follows.

• If you selected STILL for the backup mode in the BACKUP SET menu, in shift mode (press the

MODE key in the front panel) press the USB button on the DVR front panel (or USB on the

8/16 Channel Digital Video Recorder

remote control) to begin backup of the main out picture to the USB device. During backup there

will be an “S” blinking on the screen, when it stops blinking, the backup of the picture is

complete. The USB device can be unplugged and the picture can be seen on a computer with

the Network Viewer software. Choose full screen display for still pictures.

• If you selected “MOVIE” for the backup mode in the BACKUP SET menu, press the USB button

in shift mode in the front panel (or USB on the remote control) to mark the beginning of the main

out video to the USB device. Press the USB button again to select the end of the backup video

and begin backup. There will be an “A” blinking on the screen. This operation may take some

time. Always make sure that the USB device has enough free space before backing up. When

blinking stops, the backup is complete. The video can be seen on a computer with the Network

Viewer software.

• To Playback the files, connect the USB Flash to a PC and run the Network Viewer program.

On the PC do a HDD scan, click on Local Search and click on Open Folder and select the Flash

Drive. Select the files and click on PLAY in Network Viewer.

12. Zoom Operation

In shift mode (press the MODE key in the front panel) press the ZOOM button in the front panel (or

simply press the ZOOM key on the remote control) and the DVR will be in Zoom Mode. This is

illustrated below. Press the up, down, left or right arrow buttons to move the Zoom Area. Press the

ENTER button to zoom in. Press ADD or DEC (or –SET+ on the remote control) to zoom in and

out at different levels. Press the ZOOM button again to cancel the zoom operation.

13. Information Display

In shift mode (press the MODE key in the front panel) press the DISPLAY button in the front panel

(or simply press the DISPLAY key on the remote control) and information on the DVR will appear

on the screen. This is illustrated below. For HDD, information for both MASTER and SLAVE

disks is displayed.

8/16 Channel Digital Video Recorder

HDD SIZE: Size of the Hard Disk

HDD USED: Used Space of the Hard Disk.

HDD READ: Current HDD Address for Playback

OVERWRITE: Overwrite Time of the HDD

NETWORK IP: IP address of the DVR.

REC LIST: Number of screen pages in the Record Search listings for MASTER and SLAVE disks

EVENT LIST: Number of screen pages in the Event Search listings for MASTER and SLAVE disks

REC OVER: Record List overwrite or not

EVENT OVER: Event List overwrite or not.

S/W VER: Software Version

14. Pan-Tilt-Zoom (PTZ) Operation (Requires technical expertise for initial setup)

The DVR can control all “speed dome” operations for cameras that are connected to the DVR.

To control the speed dome, ensure that all the lines are properly connected and that the right protocol,

baud rate, and speed dome’s address for each speed dome camera has been input. Refer to Protocol

Set in the SYSTEM SETUP section of this manual. For example, if the first speed dome camera is

connected to channel one, you should make sure that the baud rate, the protocol, and speed dome’s

address is the same as that of the speed dome camera connected to that channel. Also refer to the

setup and operations manual for the speed dome cameras.

PTZ can only be operated by the remote control. Press the PTZ button on the remote control and

“PTZ” will be displayed on the screen. Select 1 to 16 to choose the PTZ channel and the channel

number will be displayed besides “PTZ”. The PTZ Screen for CH01 is illustrated below:

8/16 Channel Digital Video Recorder

You can press the up, down, left, right arrow keys on the remote control to move the speed dome,

and press the ENTER button to stop.

If you press the IRIS button, IRIS will appear on the screen as illustrated below. The Iris is an

adjustable opening (aperture), which controls the amount of light coming through the lens (i.e. the

"exposure"). Press the “-SET+” key on the remote control to change the Iris.

Press the ZOOM, FOCUS and SPEED buttons to separately control the zoom, focus and speed of

the speed dome camera adjusting each with the –SET+ key on the remote control. Press the

ENTER button to stop adjustments. Press the PTZ button one more time to exit from PTZ control.

15. Default Settings

“Defaults” are the initial setup by the manufacturer. User can change the setup according to the

8/16 Channel Digital Video Recorder

actual environment and demands. If there is any confusion or unexpected effects or results, choose

“Default Settings” and readjust. You can choose “FACTORY RESET” in “SYSTEM SET” menu,

and reset all settings to Default Settings.

Default (factory) settings and range of selection for the DVR are listed in the chart below:

S T E

S E T U

Item Setup Items

Year/Month/Day/

Hour/Minute

General

Settings

Recording

Parameters

Net Work

Settings

Alarm

Settings

Protocol

Setting

Auto Time 2 second 0~99second

Buzzer Sound ON ON/OFF

Password 0000 N/A

Video Input NTSC format NTSC/PAL

Quality Normal Very high/High/Normal/Low

Overwrite Enable YES YES/NO

Rec Speed

Resolution 360

PB Speed AUTO

Audio Enable CAM 1 CAM1~CAM4/OFF

A/M REC Time 30 Sec 30sec~99minute

Sub Net 255.255.255.0

Gate Way 192.168.1.1

IP Address 192.168.1.111

N/W Enable ON ON/OFF

Mac Address 0a0b0c0d0e0f N/A

Alarm Enable OFF ON/OFF

Motion Enable OFF ON/OFF

Motion Level Normal

Buzzer Time 5 Sec 0~99 second

Schedule setting OFF OFF/ON

Baud Rate 2400 2400/4800/9600/19200/38400

Protocol PELCOP

Address 0X01-0X10 0~0xff

Default

Setup

2005/01//01

12/00/00

60f/s(NTSC)

50f/s(PAL)

Selectable Setup

2000~2099/Common sense

rules

120f/s~1f/2s(NTSC)

100f/s~1f/2s(PAL)

360/720

60f/s~AUTO(NTSC)

50f/s~AUTO(PAL)

N/A N/A N/A

Very low/Low/

Normal/High/Very high

PELCOP/PELCOPD/

LILIN/ NENO

16. Remote Control

8/16 Channel Digital Video Recorder



All the functions of the DVR can be operated by the remote control.

8/16 Channel Digital Video Recorder

17. Netviewer Software Installation and Operation (May require IT expertise)

Use the Netviewer software (provided) to view the DVR through the Internet and also view and backup

video information on the HDD through a PC. The DVR is normally connected to a Router using an

Ethernet CAT5 Cable. Open the software and the main control window below opens:

Click the “Setting” button to open the window below:

8/16 Channel Digital Video Recorder

Enter the IP address, factory default is 192.168.1.111, the first 3 numbers have to match your computer’s

IP, change them if they do not. Make sure the Subnet and Gateway in the network settings on the DVR

are the same as on your computer, if not, change the settings in the DVR to match your computer. You can

find your computer’s IP, Subnet, and Gateway by going to the start button on your computer, clicking on

“Run”, type CMD, click OK, and type IPCONFIG at the prompt. Check default set or input values for AV

Port, Command Port, Channel Enable, Video, etc. and click OK.

Click the “Connect” button in the main window. The Logon window appears. Enter the password and

click OK. The password is the same as the DVR password, which by default is 0000.

If the connection to the DVR is established the Connect OK window appears. Click the “OK” button,

and then click on the “Play” button (the clipboard image in the upper right hand corner of the program).

Remote Access: When users access the DVR on a remote computer through the Internet, they need to

open ports 5000-5001 (default which can be changed on the DVR) on the router the DVR is connected to.

Refer to the router manual, or go to http://www.portforward.com, click on the “Routers” link, click on the

model number of your router, and on the page for that model click on the “Default Guide” link to get

instructions on how to forward ports for your router. To access the DVR remotely you will also need to

put the IP address of the network the DVR is attached to into Netviewer. You can get this by going to the

website http://myipaddress.com from a computer attached to the same router as the DVR. Enter this

address into the IP window in Netviewer and enter the default password for the DVR which is 0000 by

default.

8/16 Channel Digital Video Recorder

The control buttons in the main Netviewer window are:

1. PLAY: Click to start playing video on the DVR

2. STOP: Click to stop playing video.

3. AVI: Click to save the video in AVI format in the computer.

4. LOCAL: Video is saved in the computer by clicking LOCAL.

5. Live: Select this tab button to see video in real time. Click the PLAY button.

6. PlayBack: To view playback video in the DVR. Refer to Net Search operation below.

7. ScanDisk: To set for viewing the video in the HDD or CD-RW recorded in the DVR when

connected to the computer.

8. FilePlay: To set for playing video files on the computer.

9. PTZ Control: To control the Fast Speed Dome Camera through the PC.

• AVI Save: When playing video, click the AVI button and the video will save as AVI format

on the computer. The file can be played back with any media player that supports this

format.

• Local: When playing video, click the LOCAL button and the video will be saved in the

computer. To play files with this software refer to File Play.

• Live Operation: If the software is in live mode (click Live) and then clicking PLAY will

connect to the DVR. Live pictures will be transmitted to the channels display area on the

main window. Click STOP to quit live transmission.

• Net Search operation: if the software is in net search mode (click PlayBack), net search

window will display. First select the HDD (Master or slave) of the DVR. The menu icons

are activated.

8/16 Channel Digital Video Recorder

Click the “Get Event List” button then click on “Select Event List”. If the DVR has an Event List, the list

can be seen in the ListDlg window as shown below:

Double click the Event to see the playback video.

Note: The Select Record List operation is similar to the Event List operation.

• ScanDisk: Connect the HDD in the DVR to the PC as Slave and then select the ScanDisk tab.

The ScanDisk window will display. Click and select the device to play the video. Play

control buttons and time location indicator are available. If the DVR has recorded a CD-RW,

insert the CD in the CDROM drive of the PC and run Scan Disk to playback.

• FilePlay: If the software is in File Play mode (click FilePlay), the FilePlay window will display.

You can play video stored in the HDD of the computer. Click Open, select one video file then

click PLAY. The video file plays from the beginning. Moving the slide bar locates different times

and dates.

8/16 Channel Digital Video Recorder

• PTZ Control: The Fast Speed Dome cameras (selected via Protocol Set in the SETUP MODE

Top Main Menu) can be controlled through the following buttons:

(1)

(2)

(3)

(4) : Camera swings to the right

(5) : To fix camera position

(6) : Lengthen focus

(7) : Shorten focus

: Camera swings upward

: Camera swings downward

: Camera swings to the left

(8) : Increase light amount for exposure

(9) : Decrease light amount for exposure

(10)

(11) : ZOOM-OUT

: ZOOM-IN

(12) : Speed controller of Fast Speed Dome

8/16 Channel Digital Video Recorder

SSttaannddaarrdd aanndd PPrroodduucctt SSppeecciiffiiccaattiioonns

ITEM

ITEM SPECIFICATION

ITEMITEM

Video Signal NTSC/PAL

SPECIFICATION

SPECIFICATIONSPECIFICATION

Video Input

Video Output

Audio Input

Audio Output

Alarm Input 16

Alarm Output 1

Compression Standard Modified MJPEG

Recording Time 18-1680 hours/40G

Electronic Clock

Confidential Function Password protection

Power Source IN DC12V via Adapter

Power 40W

Working Temperature：+5°C~+50°C ；humidity：< 90%

Ambient Temperature

Storage Temperature：-20°C ~+70°C ；humidity：< 95%

Exterior Size 432×55×366mm

Composite：1.0V p-p/75Ω，BNC×8/16

Composite：1.0V p-p/75Ω，BNC×2 S video

-8Db 22KΩ, RCA connector×4

-8Db 3KΩ, RCA connector×1

Year/Month/Day；Hour/Minute/Second

Weight About 4 Kg

EExxtteerriioorr ssiizze

43 2mm

70 mm

6m m

POW ER

FORWARD

8/16 Channel Digital Video Recorder

55 mm

REC PLAY REW

EEQQUUIIPPMMEENNTT AANNDD AACCCCEESSSSOORRIIEESS SSUUPPPPLLIIEED

Name Quantity

16 or 8-channel Digital Video Recorder

Remote control 1

CD-RW(selectable) 1

Power cord 1

Network Viewer software CD 1

User Guideline 1

MOD E

If you have any questions, please do not hesitate to contact the dealer directly.

8/16 Channel Digital Video Recorder

AAppppeennddiixx AA::

Q. What kind of cameras should I buy for this DVR?

A. Any BNC or RCA interface indoor/outdoor/infrared camera will work with the DVR. It doesn’t

matter whether it’s a color or black/white camera. However, web cameras that require a USB interface

are not compatible with the DVR.

Q. What kind of alarm devices should I buy for this DVR?

A. Most sound alarm systems are compatible with our DVR.

Q. I can’t turn the DVR on.

A. Make sure that the power cord is plugged in correctly and the power light on DVR front panel is on.

Q. I see nothing but a blue screen after I turn on the DVR.

A. Check the camera input and video output connection on DVR back panel. If you can’t any find

problem with these connections, check whether the camera power cable is firmly connected. Make sure

the system format for NTSC and PAL is set up correctly.

Q. I see a fatal error message on the screen.

A. If you see an error message such as “System fatal error has occurred”, disconnect, pull out and

re-install the hard disk drive. Also make sure that hard disk rack is firmly locked. If this does not correct

the problem, replace the hard disk.

Q. Can I prevent other people from stopping the recording while I am gone?

A. If the DVR is in Schedule or Recording mode, and the password requirement is set to “on” in menu

setup, no one can change the set parameters without the right password.

Q. How can I erase all data on the hard disk drive?

A. Select “HDD Format Set” option in the menu to do so.

Q. I forgot my password. What should I do?

A. Press “MODE” button 12 times to reset the password to 0000.

Q. Can my desktop PC read the video data on hard disk drive in DVR?

A. Yes, you can use the Netviewer software to read all the video data on the hard disk.

Q. What happens if I install my PC hard disk drive into the DVR?

A. You can use a PC hard disk drive in the DVR. However, once it runs in the DVR, it will delete any

PC operation system information and existing files on the hard disk drive.

Q. What kind of hard disk drive should I purchase to make the DVR run?

QQ&&AA TTRROOUUBBLLEESSHHOOOOTTIINNGG GGUUIIDDE

8/16 Channel Digital Video Recorder

A. Any PC compatible IDE, ATA hard disk drive will work.

Q. Does this DVR kit come with sensors, cameras, or hard disk drive?

A. No. You have to buy each accessory separately.

Q. What is the maximum capacity to record?

A. Up to a year with two 120 GB HDDs at the lowest quality setting when set at 1 frame per second.

Q. Does this DVR come with a remote control either hardwire or wireless?

A. Yes, there is a wireless remote control that comes with the DVR.

Q. Why am I not able to access the Time/Date Set, HDD Format Set and Record Set setup menus?

A. You need to stop record or play before you can access these menus.

Q. Why can’t I access Network Set menu?

A. You need to stop the connection of the Netviewer software from the internet or network before you

access Network Set menu.

Q. I press the Record button, but the DVR does not start recording, why?

A. Press the Display button to see if there is a hard disk detected, also check to see if the DVR is in

Schedule mode (there is a “S” on the screen in yellow in this mode). One cannot start recording by

pressing the Record button in Schedule mode. Press the Schedule button again to cancel Schedule mode.

If the hard disk is not detected, check its installation.

Q. I press the Record button while recording, but the DVR does not stop recording, why?

A. If the DVR is recording in Schedule mode (there is an “S” on screen), you cannot stop recording

unless you quit the Schedule mode first. Press the Schedule button to cancel Schedule mode.

Q. There is movement that should have been detected, but the DVR does not start recording.

A. Make sure that Motion Enable for that channel is on, the Area Set is setup properly, the Alarm/Motion

Rec Time is not set to off, and the DVR is in Schedule mode. Otherwise, set the motion level sensitivity

to HIGH or VERY HIGH.

Q. When the network connection between DVR and client computer is cut off, why does the DVR

and the clock stop?

A: In case the network is disconnected inadvertently, the DVR will temporarily stop for 20 seconds

without response to any pressing of the front panel buttons. 20 seconds later, it will restore itself to

normal, but the icon that shows network status will not disappear for 10 minutes. During this period the

client computer cannot connect to the DVR or enter the network menus.

Q. I press the Menu button, but it does not display the password menu to enter the main Menu,

why?

8/16 Channel Digital Video Recorder

A. For 16-CH user, to enter the top menu, one has to press and hold the Menu/search button. If you just

press and release this button, you will only access the Search menu.

Q. I press and hold the “Menu/search” button, but it does not display the password prompt menu,

and directly enters the Setup Mode menu, why am I not prompted for a password?

A. If the password level setup in Password Setup is NO, one will not need a password to enter the menu,

if you want to have a password when entering the Setup Menu, just change the password prompt level to

ON.

Q. What HDD capacity does this DVR support?

A. Any capacity size of HDD is supported by the DVR, but if the size is larger than 300G, it may display

only 300G on the DVR monitor, but this does not affect the real HDD capacity installed in the DVR.

Q. How can I monitor the cameras on a Remote Computer?

A. IT expertise may be required for this setup. Plug an RJ45 cable from the back of the DVR to the

Switch/Hub or Router. By default the network settings on this DVR are as follows:

IP Address: 192.168.1.111; Subnet: 255.255.255.0; Gateway: 192.168.1.1; Video Port: 5000; Command

Port: 5001.

From a PC connected to the same router as the DVR find out the IP Address of the router by going to the

Start button, click on Run-type in CMD and click OK, then type in IPCONFIG at the curser to list the IP,

Gateway and Subnet. If the IP is 192.168.1.xxx, then nothing else is needed. But if the IP is something

like this: 192.168.0.xxx and Gateway: 192.168.0.1, then the IP of the DVR must be changed. Go to the

SETUP MODE menu and then to NETWORK SETUP and change the IP to 192.168.000.167 and

Gateway to 192.168.000.001. Refer to the Router Manual under Router Setup on how to do port

forwarding, to forward ports 5000 and 5001 to the IP Address of the DVR. To access the DVR remotely

you will also need to put the IP address of the network the DVR is attached to into Netviewer. You can get

this by going to the website http://myipaddress.com from a computer attached to the same router as the

DVR. Enter this address into the IP window in Netviewer and enter the password for the DVR which is

0000 by default. Also refer to pages 52-54, Netviewer software installation.

8/16 Channel Digital Video Recorder

AAPPPPEENNDDIIXX BB::

Serial port setting: BAUD, n, 8, 1 (BAUD RATE = 1200, 2400, 4800, 9600, 19200)

PTC1: (three-byte)

Command (CHAR) Hexadecimal Number Function Description

/RE 0x2F 0x52 0x45 Record

/DP 0x2F 0x44 0x50 Display

/SC 0x2F 0x53 0x43 Schedule

/US 0x2F 0x55 0x53 USB

/AU 0x2F 0x41 0x55 Auto

/ZM 0x2F 0x5a 0x4d ZOOM

/FR 0x2F 0x46 0x52 Freeze

/CM 0x2F 0x43 0x4d CH Minus

/CP 0x2F 0x43 0x50 CH Plus

/AD 0x2F 0x41 0x44 Add

/DE 0x2F 0x44 0x45 Dec

/MN 0x2F 0x4d 0x4e Menu

/WM 0x2F 0x57 0x4d Watermark

/PL 0x2F 0x50 0x4c Play

/PA 0x2F 0x50 0x41 Pause

/ST 0x2F 0x53 0x54 Stop

/FW 0x2F 0x46 0x57 Forward

/RW 0x2F 0x52 0x57 Rewind

/RR 0x2F 0x52 0x52 Frame rewind

/FF 0x2F 0x46 0x46 Frame forward

/PT 0x2F 0x50 0x54 PTZ

/ZO 0x2F 0x5a 0x4f Zoom

/FO 0x2F 0x46 0x4f Focus

/IR 0x2F 0x49 0x52 Iris

/SP 0x2F 0x53 0x50 Speed

/UP 0x2F 0x55 0x50 Full/up

/DW 0x2F 0x44 0x57 Quad/down

/LE 0x2F 0x4c 0x45 Nine/left

/RT 0x2F 0x52 0x54 Hex/right

/EN 0x2F 0x45 0x4e Enter

/01 0x2F 0x49 0x52 Ch1

/02 0x2F 0x30 0x32 Ch2

… … …

/0F 0x2F 0x30 0x3F Ch15

/0G 0x2F 0x30 0x40 Ch16

PPRROOTTOOCCOOLL FFOORR DDVVRR CCOONNTTRROOL

8/16 Channel Digital Video Recorder

PTC2: (seven-byte)

Transmitting S.N.

SPECS for

Transmitting

Instructions

Byte1 0x03 Fixed byte

Byte2 0xaa DVR identifier word

Byte3 0x01 Fixed byte

Byte4 Device id DVR device address

Byte5~7 Refer to PTC 1 Same command as PTC 1

PTC3: (seven byte)

Byte1 Byte2 Byte3 Byt4 Byte5 Byte6

Byte7

0xFF Addr Var1 Var2 Check sum

Var1 Var2 Function PELCO-D

0x00 0x08 Full/up Up

0x00 0x10 Quad/down Down

0x00 0x04 Nine/left Left

0x00 0x02 Hex/right Right

0x04 0x00 Enter Iris close

0x00 0x40 Record Zoom wide

0x00 0x20 Play zoom tele

0x02 0x00 Search Iris open

0x00 0x80 Add Focus far

0x01 0x00 Dec Focus near

Byte 5 and byte 6 have random values from 0x00 to 0xff.

Byte 7 = mod [(byte2 + byte3 + byte4 + byte5 + byte6)/100]

Note: This protocol is the same as PELCO-D, which is used to control the speed domes. If PELCO-D

is used to control speed domes via a keyboard, the keyboard can be used to control the DVR through this

protocol. Different addresses can be used to distinguish the DVR and the speed domes.

PTC4: (eight byte)

Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8

0xa0 Addr 0x00 0x07 0x00 Var 0xAF Checksum

Byte8 = byte1 xor byte2 xor byte3 xor byte4 xor byte5 xor byte6 xor byte7

8/16 Channel Digital Video Recorder

Var Function Var Function

0x01 Ch1 0x21 Zoom

0x02 Ch2 0x22 Freeze

0x03 Ch3 0x24 Ch minus

0x04 Ch4 0x25 Ch plus

0x05 Ch5 0x26 Add

0x06 Ch6 0x27 Dec

0x07 Ch7 0x28 Menu

0x08 Ch8 0x33 Watermark

0x09 Ch9 0x35 Play

0x0A Ch10 0x36 Pause

0x0b Ch11 0x37 Stop

0x0c Ch12 0x38 Forward

0x0d Ch13 0x39 Rewind

0x0e Ch14 0x40 Frame forward

0x0f Ch15 0x41 Frame rewind

0x10 Ch16 0x42 PTZ

0x16 Record 0x43 Zoom

0x17 Display 0x44 Focus

0x18 Schedule 0x45 Iris

0x19 USB 0x46 Speed

0x20 Auto

Note: This protocol is the same as PELCO-P’s call function; the PELCO-P’s call function can be used to

control the DVR. First, the right protocol must be set, including baud rate and address; second, press the

call button on the keypad, then press the number according to Var above. Press the ENTER button to set.

8/16 Channel Digital Video Recorder

AAPPPPEENNDDIIXX CC::

Rec Rate frames/sec Picture Quality Resolution Recording Time

60 fps Very high 720 22.5 hours

60 fps Low 720 60 hours

120 fps Normal 360 22.5 hours

1 fps Normal 720 2160 hours

Note: The above values are from test results and presented just for users’ reference. Different

definition and stabilization (objects’ movement) of images will give different results.

AAppppeennddiixx DD::

IINNTTEERRNNEETT VVIIEEWW//PPLLAAYYBBAACCKK CCOONNFFIIGGUURRAATTIIOON

RREECCOORRDDIINNGG CCAAPPAACCIITTYY FFOORR 112200GGBB HHDDDD

1. About the Network

Users can select the following types of Network:

1): Local Area Network (LAN): Telecom companies offer Internet connection, e.g. optical fiber, and

users of a community/building set up with the Internet server. Cables installed in the end user’s

office/home via HUB.

2): ADSL: User applies for ADSL from Internet service supplier and connects an ADSL MODEM.

Connect the computer to the ADSL MODEM. Input user name and password in the dialing software so

that users can connect to the Internet.

3): Close Circuit Television Broadband: Users apply for CCTV connection from a CCTV services

supplier. Connect the computer to a CABLE MODEM to access internet services.

4): In companies or Internet cafes: Network administrators utilize routers or a proxy server to connect

all the computers to one Internet cable. All the computers will use the same Internet IP address.

Corporations are currently using this type of network connection.

Switcher

8/16 Channel Digital Video Recorder

2. Network Configuration

After connecting to the Internet, DVR users should configure for remote view/playback.

1. LAN: When in LAN, network administrators should open the following ports for specific computers:

5000- 5001. Please make sure that other services do not use the same ports.

2. PROXY SERVER: If the connection to the Internet is by proxy server, users should utilize port

mapping software and open ports 5000 –5001 for the surveillance DVR.

3. ROUTER: If users connect to the Internet by router, users should add the IP address of the

surveillance DVR and open the above mentioned ports in DMZ setup or via Virtual Server setup of the

router (the names may be different for different types of routers) To do this, from a PC connected to the

same router as the DVR find out the IP Address of the router by going to the Start button, click on

Run-type in CMD and click OK, then type in IPCONFIG at the curser to list the IP, Gateway and Subnet.

If the IP is 192.168.1.xxx, then nothing else is needed. But if the IP is something like this:

192.168.0.xxx and Gateway: 192.168.0.1, then the IP of the DVR must be changed. Go to the SETUP

MODE menu and then to NETWORK SETUP and change the IP to 192.168.000.167 and Gateway to

192.168.000.001. Refer to your Router Manual under Router Setup on how to do port forwarding, to

forward ports 5000 and 5001 to the IP Address of the DVR. To access the DVR remotely you will also

need to put the IP address of the network the DVR is attached to into Netviewer. You can get this by

going to the website http://myipaddress.com from a computer attached to the same router as the DVR.

Enter this address into the IP window in Netviewer and enter the password for the DVR which is 0000

8/16 Channel Digital Video Recorder

by default, a sample router setup for port forwarding is shown below:

Under Protocol Type select Both, if there is no “Both” option then you have to create an entry for TCP,

and then create another entry for UDP so that the ports are forwarded for both protocols.

8/16 Channel Digital Video Recorder

You may also need to modify the firewall on the router to allow the ports to be forwarded. Below is a

sample of what that program may look like for your router:

4. CABLE and ADSL MODEM: For CABLE MODEM and ADSL MODEM types, the configuration

is somewhat similar. If users use a CABLE/ADSL network connection and the surveillance system

computer connects to the CABLE/ADSL MODEM, then the ports should all open by default. If not,

close the Firewall per the MODEM user’s manual. Since CABLE and ADSL MODEM network users

usually use dynamic IP addresses, once the MODEM restarts, the IP addresses will change. In this case,

users should contact their Internet Service Provider for a static IP address for the DVR.

Version 2.0

Q-See QSNDVR16R, QSNDVR16, QSNDVR8R Technical Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
