Q-See QSIPO26X Technical Manual

Network Speed Dome Operating Manual

Content

Welcome ........................................................................................................................................ 1

Important Safeguards and Warnings .......................................................................................... 2

1 Features and Functions

1.1

Functions

................................................................................................................... 3

......................................................................................................... 3

1.1.1 Network Management ........................................................................................ 3

1.1.2 User Management.............................................................................................. 3

1.1.3 Proportional Pan and Tilt ................................................................................... 3

1.1.4 Preset .................................................................................................................. 3

1.1.5 Auto Scan ........................................................................................................... 3

1.1.6 Auto Touring ....................................................................................................... 3

1.1.7 Auto Pattern ........................................................................................................ 3

1.1.8 Window Blanking (privacy mask) ...................................................................... 3

1.1.9 Action on Alarm .................................................................................................. 3

1.1.10

1.1.11

1.1.12

1.1.13

1.1.14

1.1.15

Storage ......................................................................................................... 3

Day and Night Mode ................................................................................... 4

Auto Focus ................................................................................................... 4

Backlight Compensation ............................................................................. 4

Support Zoom and PTZ Operation at the Same Time ............................. 4

Fast 3D Positioning ..................................................................................... 4

1.2

High Quality Components

1.2.1 Build-in Network Video Server .......................................................................... 4

1.2.2 Build-in Decoder ................................................................................................. 4

1.2.3 Build-in PTZ ........................................................................................................ 4

1.2.4 High Sensitive, High Resolution Integrated Digital Color Camera ................ 5

1.3

Specification

.............................................................................................................. 5

2 Network Speed Dome Installation

2.1

Safeguarding and Warnings

2.2

Preparation before Installation

2.3

Network Speed Dome Package

2.4

2.5

Bracket

In-ceiling Network Speed Dome Installation

....................................................................................................................... 9

........................................................................................ 4

........................................................................................ 8

.................................................................................... 8

................................................................................. 8

.............................................................................. 9

........................................................ 10

2.6

Pendant Network Speed Dome Installation

......................................................... 12

2.7

Network Speed Dome Installation Dimension

...................................................... 14

3 DH Network Speed Dome Bracket Installation

3.1

Important Safeguard and Warnings

3.2

Please Refer to Concerning Manual for Repair Operation.

3.3

3.4

3.5

3.6

Check accessories

Installation and Service after Sales

Maintenance

DH-FB Wall Mount Bracket

............................................................................................................ 16

.................................................................................................. 16

4 Network keyboard control dome

4.1

Dome and Network Keyboard Connection

4.2

Network Keyboard Setup before Operation

.................................................................................... 17

......................................................................................... 29

...................................................................... 16

....................................................................... 16

.................................................................. 16

................................ 16

........................................................... 29

......................................................... 29

4.3

Menu and Key Introduction

4.4

Network Keyboard Operation

4.4.1 Direction Setup ................................................................................................. 31

4.4.2 Preset ................................................................................................................ 31

4.4.3 Scan ................................................................................................................. 31

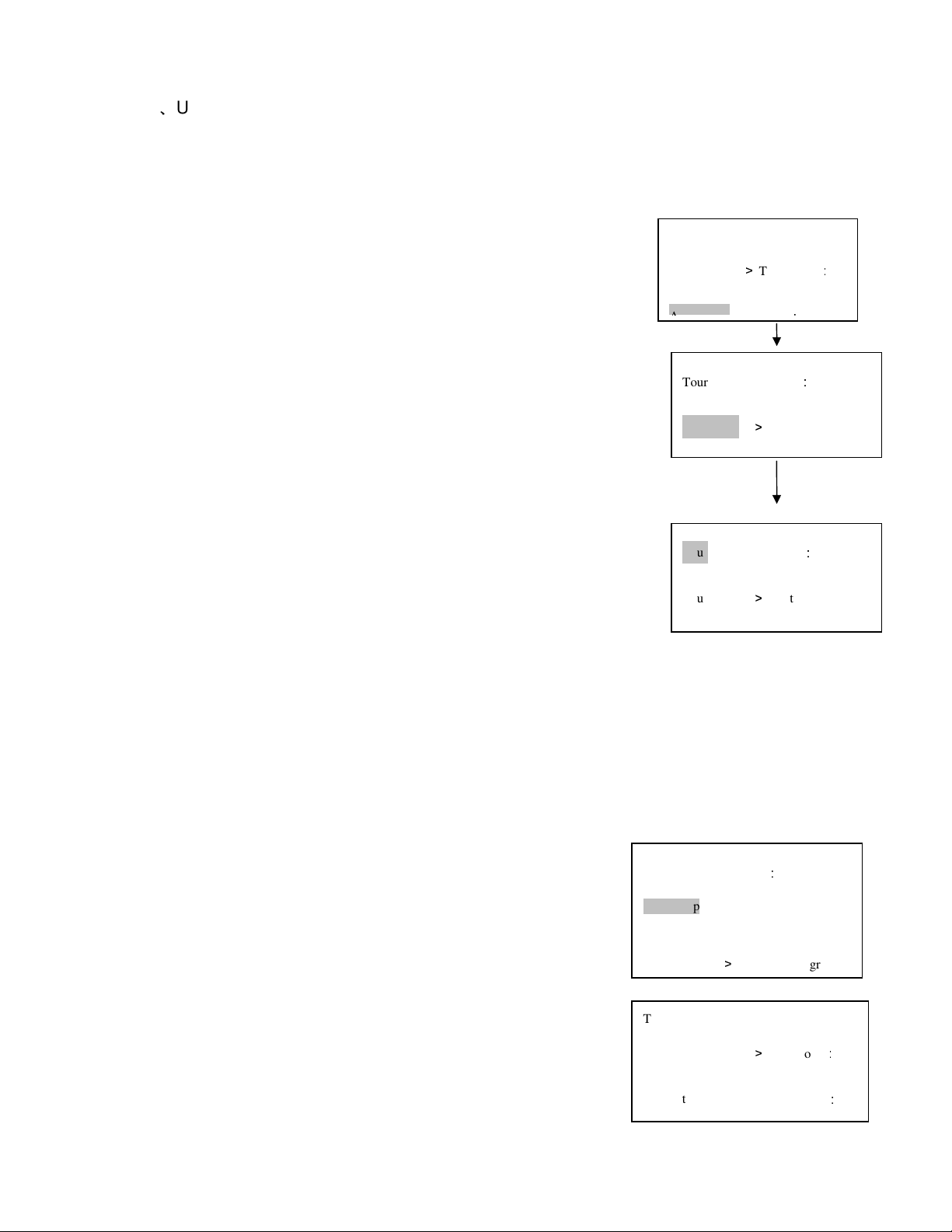

4.4.4 Tour ................................................................................................................... 32

4.4.5 PATTERN ......................................................................................................... 33

4.4.6 Pan Rotation ..................................................................................................... 33

5 Web client operation

5.1

Network connection

5.2

5.2.1 Before login ....................................................................................................... 35

5.2.2 After login .......................................................................................................... 35

5.3

Video (Right mouse menu operation)

5.3.1 Real-time surveillance ..................................................................................... 36

5.3.2 Decode quality .................................................................................................. 36

5.3.3 Playback control bar ........................................................................................ 36

.................................................................................... 29

................................................................................ 30

............................................................................................................ 34

................................................................................................ 34

..................................................................................................... 34

................................................................... 35

5.3.4 PTZ Control ...................................................................................................... 37

5.4

Camera setting

........................................................................................................ 39

5.4.1 Zoom ................................................................................................................. 39

5.4.2 Focus ................................................................................................................. 39

5.4.3 Iris ...................................................................................................................... 39

5.4.4 Preset ................................................................................................................ 40

5.5

5.6

5.7

5.8

5.9

Auto tour

Auto scan

Auto pattern

PTZ Alarm input and output setup

Call assistant function

.................................................................................................................. 40

................................................................................................................. 40

............................................................................................................. 41

........................................................................ 41

............................................................................................ 42

6 Other Functions in Web Menu (Configuration/Assistant)

6.1

Configuration

........................................................................................................... 44

6.1.1 Load and save configuration ........................................................................... 44

6.1.2 General ............................................................................................................. 45

6.1.3 Scheduled ......................................................................................................... 46

6.1.4 Image ................................................................................................................ 47

6.1.5 Motion Detection .............................................................................................. 48

6.1.6 Alarm ................................................................................................................. 49

6.1.7 Video setup ....................................................................................................... 50

6.1.8 Network Setup .................................................................................................. 51

................................................. 44

6.2

Assistant

6.2.1 Main menu ........................................................................................................ 52

6.2.2 Change language ............................................................................................. 53

6.2.3 User manage .................................................................................................... 53

6.2.4 Record control .................................................................................................. 55

6.2.5 Log Information ................................................................................................ 55

6.2.6 Date Time ......................................................................................................... 56

6.2.7 System Information .......................................................................................... 56

6.2.8 Alarm prompt .................................................................................................... 57

6.2.9 Channel name .................................................................................................. 57

6.2.10

6.2.11

6.2.12

6.2.13

6.2.14

.................................................................................................................. 52

Upgrade BIOS ........................................................................................... 58

Mail Setting ................................................................................................ 58

Record directory ........................................................................................ 59

Auto Maintenance ..................................................................................... 59

Privacy Mask Zone .................................................................................... 59

6.2.15

About .......................................................................................................... 60

Welcome

Thank you for purchasing our network speed dome system! This operating manual is designed to be a reference tool for the installation and operation of your system. Here you can find information about this speed dome features and functions. Before installation and operation please read the following safeguards and warnings carefully!

Important Safeguards and Warnings

．．．．

Electrical safety

All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.

．．．．

Transportation security

No heavy stress, violent vibration or water splash are allowed during transportation, storage and installation. The camera could be damaged by improper handling.

3．．．．

Installation

Keep upwards. Handle with care. Do not apply power to the dome before completing installation.

．．．．

Qualified engineers needed

All installation here should be done by the qualified engineers. All the examination and repair should be done by the qualified service engineers. We shall not be liable for any problems caused by unauthorized modifications or attempted repair.

．．．．

Environment

This product has been tested and found to comply with the IP66 standard of Degrees of protection provided by enclosure (IP Code). The dome should be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc.

．．．．

About Camera

Camera should be installed away from direct sunlight or other strong artificial lights to avoid blooming or smear. Only use mild detergent or dry cloth to clean the camera.

8. About Accessories

Be sure to use all the accessories recommended by manufacturer. Before installation, please open the package and check that all the components listed below are included here:

 Dome  Dome operating manual  Bracket anchor  Camera holder

Contact you local retailer ASAP if some thing is missing in your package.

1111 Feature

Featuressss and F

FeatureFeature

1.1

1.1 Functions

Functions

1.11.1

Functions Functions

This series network speed dome has the following functions:

1.1.1 Network Management

This series speed dome supports IE browser to realize network management. You can implement speed dome functions via IE. Besides, its most advantage is to realize simple operation and management via a network cable without much peripheral equipment. You can access dome by inputting dome IP address directly.

1.1.2 User Management

System supports multiple right groups and various modifications. Each user must belong to one group. You can set surveillance right freely when there is no login user. System also supports several IP users visit speed dome at the same time. All the user operations are confined by their own right limit.

1.1.3 Proportional Pan and Tilt

This function keeps the image from moving too fast when there is a large amount of zoom. This series dome can continually decrease or increase pan and tilt speeds in proportion to depth of zoom. When zooms speed is increasing, the camera moving speed becomes slow. When zooms speed is decreasing, the camera moving speed becomes fast.

1.1.4 Preset

Preset function is to save the address information (such as PTZ pan/tilt, focus and etc) to the memory so that you can quickly adjust the dome and PTZ to the correct position. This series speed dome supports 80 presets.

1.1.5 Auto Scan

Camera scans back and forth regularly in a horizontal field. Here you need to set left and right limit and scan speed. You can set 5 scanning paths.

1.1.6 Auto Touring

Add addresses into a routine in a desired order and then set time and stop duration for each address. The dome will begin an auto touring between these addresses. You can set 8 touring paths.

1.1.7 Auto Pattern

Memorize dome operation such as pan, tilt, and zoom to repeat. Focus and iris are in auto mode during auto pattern. For each pattern, the time should be less than 60 seconds. You can set 5 pattern paths.

1.1.8 Window Blanking (privacy mask)

Window blanking is a user-defined, four-sided section that can not be viewed by you. The blank area will move with pan and tilt functions and automatically adjust in size as the lens zooms.

1.1.9 Action on Alarm

This series speed dome support 2 alarm input and one relay output. Alarms can activate PTZ movement or video record. It also supports SMS service.

1.1.10 Storage

and Function

and Fand F

unctionssss

unctionunction

System can backup the concerning video to the central storage server via alarm or scheduled setting as you have set. You can record in local PC and backup the video to the client PC.

1.1.11 Day and Night Mode

Auto/manual switches in low illumination .In auto mode camera will automatically adjust CCD light level. In manual mode you can use menu or function keys to select day/night mode.

1.1.12 Auto Focus

Auto focus function allows the lens to remain in focus during zoom-in, zoom-out and motion functions to get vivid image. You can use FAR or NEAR button to adjust focus manually. System goes back to auto focus mode after pan tilt operate camera.

1.1.13 Backlight Compensation

Balance the brightest and darkest sections of a scene to produce a more vivid picture.

1.1.14 Support Zoom and PTZ Operation at the Same Time

This series speed dome can operate zoom function during pan tilt movement, or you can stop either of these functions (speed dome movement or zoom). During the whole process focus and iris are in auto mode to get vivid image.

1.1.15 Fast 3D Positioning

Working with DVR, just click part of the current scene will be displayed in the central window and automatically zooms. All of these allow you to trace precisely.

1.2

1.2 High Quality C

High Quality Components

1.21.2

High Quality CHigh Quality C

This series network dome integrated the following high quality components:

1.2.1 Build-in Network Video Server

 NVS compress and decode video data to the terminal via network  Maximally support 8 to 10 connections at the same time

 Support HTTP、TCP、UDP、MULTICAST、RTP/RTCP

 Alarm data and information via SMTP  Support WEB visit suitable for WAN  Network dome configuration management and authentication via Ethernet  Support IP address dynamic allocation

1.2.2 Build-in Decoder

All digital design, memorize all data on connecting plate, which guarantees data safety once power supply failure occurred.

 Integrated design, high reliability.  80 presets (in English or Chinese). Support 8 auto tours.  5 auto scan  5 auto pattern  Support RS485 control  Maximally support 8 privacy mask zones  Support multiple-protocol and various baud rates

1.2.3 Build-in PTZ

 Stepper motor running smoothly and sensitively, locate accurately  Integrated design, compact conformation

omponents

omponentsomponents

 Delicate engine drive. Support 360 º continuous pan rotation. No blind area.  Support 0.1º /s pan rotate while maintain image stability  180 º continuous tilt surveillance.

1.2.4 High Sensitive, High Resolution Integrated Digital Color Camera

 Auto focus  Auto backlight compensation  Auto light control  Auto white balance  Auto day/night mode

1.3

1.3 Specification

Specification

1.31.3

Specification Specification

Power

Auto

Scan

Auto

Pattern


uality

Alarm

nput/

utput

Video

peed

Alarm

elay

Auto

ens

Auto

otation

Auto

an Scan

PTZ Scan

ccuracy

S/N

atio

Effective

ixel

Horizontal

Fan and Heater

Humidity

Environment

AC 24V/3A（±20%）(include temperature control circuit)

Core Consumption 15W Heater

35W

Consumption Decode Card Build-in

Network Video

Build-in

Server Engine stepper motor Preset 80 Auto Cruise 8

5 5 Six levels (Optional) 2/1

Video Display One-window display mode

Signal Format PAL:625 TV Line, 50F/S

NTSC:525 TV Line, 60F/S

Resolution

D1、HD1、CIF、QVGA、QCIF

Compression

MPEG-4 CBR、MPEG-4 VBR Rea-time mode:

Pal:1-25f/s NTSC:1-30f/s

30VDC 1A ，125V 0.5A

Adjust speed in accordance with lens Vertical 90º rotates to horizontal 180 º 360º continuously

Manual Pan Motion

0.1º—120º/S

Speed Preset Maximum

300º

Speed Manual Tilt Motion 0.1º—90º/S Manual Tilt Scan

0º—180º

Section Control Mode Network Baud Rate 1200/2400/4800/9600 (Optional)

0.06 ± 0.015º > 50dB

752（H）× 582（V） 480TVL

Resolution

Auto/Manual (Default mode: auto)

＜

90%

-30—55（Outdoor. Pre-heat needed） -10—50

（

Indoor）

CAUTION

：

2222 Network Speed Dome Installation

Network Speed Dome Installation

Network Speed Dome InstallationNetwork Speed Dome Installation

2.1

2.1 Safeguarding and Warnings

2.12.1

Before installation and operation, please read the following safety warnings carefully!

 All the installation here should be done by the qualified service engineer.  All the operation here should conform to your local electrical safety code.  The indoor series dome shall not be installed in wet or moisture environment.  After reinstallation or repair work, please check the electric resistance between

 The stuff used to sustain should support at least four times of that of speed dome.

These symbols means there is a risk of electric shock.

This symbol means you should follow the important instructions to operate or maintenance.

Safeguarding and Warnings

Safeguarding and WarningsSafeguarding and Warnings

circuits and network speed dome. You should guarantee sound insulation.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

2.2

2.2 Preparation before Installation

2.22.2

These series network speed domes are divided into two types: in-ceiling network speed dome and pendant network speed dome. Please contact your local retailer if something is missing or damaged in your package.

Preparation before Installation

Preparation before InstallationPreparation before Installation

Pendant Series Fittings In-ceiling Series Fittings

Back box

Dome drive

Back box

Dome drive

Lower dome

2.3

2.3 Network Speed Dome Package

2.32.3

2.4

2.4 Bracket

2.42.4

We provide various installation brackets and installation ways for indoor and outdoor pendent network speed dome.

1. Corner mount bracket DH-FW corner mount bracket×1 DH-FB wall mount bracket×1(Optional) Gasket×1 Other installation fittings

Network Speed Dome Package

Network Speed Dome Package Network Speed Dome Package

Bracket

Bracket Bracket

DH—FB1

Wall mount bracket

DH—FW

DH—FB2

Wall mount bracket

（

with 24V/3A power box）

2. Pole mount bracket DH-FQ pole mount bracket ×1 We provide the following dimensions:

Φ59~82mm、Φ84~108mm

Φ103~127m、Φ130~152mm

Φ155~178mm、Φ180~203mm

Φ194~216mm

DH-FB wall mount bracket×1(Optional) Gasket×1 Other installation kit

Corner mount

装件

DH—FQ

3. Wall surface mount bracket DH-FM wall surface mount bracket×1 DH-FB wall mount bracket×1 Gasket×1 Other installation kit

4. Pendant mount bracket DH-FD pendant fixed chassis×1 DH-FD200/500/800/1000 pendant bracket×1

DH—FM

DH—FD

（

200mm /500mm/800mm/1000mm）

DH-FD stud×1 Gasket×1 Other installation kit

2.5

2.5 In

In----ceiling Network Speed Dome I

2.52.5

Step 1 Draw a circle in the surface and cut the circle out of the ceiling.

Step2 Install in-ceiling dome back box.

ceiling Network Speed Dome Installation

InIn

ceiling Network Speed Dome Iceiling Network Speed Dome I

nstallation

nstallationnstallation

DH—FD

Open the hinged door to the back box. Pull power cable, video cable, RS485 cable, network cable through cable feed out of the conduit fittings. Connect them with PCB board. Close the hinged door and screw the bolts. Pushing the back box into the installation hole (you just cut in step 1) by compressing the tab lock. Tighten the screws in the black tab locks to fix the back box in the ceiling.

Steel safety c

Note: please install a safety chain/cable (not supplied) between the back box and the ceiling to prevent network speed dome falling down!

Step 3 Install the dome drive. Before installation, please take out the protective foam and put it in a well place for future use.

Note: when you ship the network speed dome to the manufacturer, please insert these foams to protect the drive.

able

Line up the red (A) and red (B) tabs with the red

(A) and red (B) labels in the interior back box.

Push in (B) side and then the other side.

Continue pushing on the ends of the tabs until

you hear a click noise.

Red tab

Note: Please make sure the clips on both sides

are firmly fixed. You can follow the tab on the

outside cover to check.

Step 4 Install lower dome. Match the two grooves of the lower dome with the two black tab locks. Insert one side while pressing the other side. Continue pushing on the ends until you hear a click noise.

2.6

2.6 Pendant Network Speed D

Pendant Network Speed Dome

2.62.6

Pendant Network Speed DPendant Network Speed D

Step 1 Network speed dome back box installation For outdoor installation series domes, please make sure the dome has sound pressured and avoid installing in a high-temperature or humid environment. Here are just the steps for installing the speed dome. You can refer to chapter three for bracket installation.

ome IIIInstallation

ome ome

nstallation

nstallationnstallation

a; Pull the power cable, video cable, RS485 and network cable through wall mount bracket hole.

c; Pull the power cable, video cable, RS485 and network cable through back box feed through hole and reserve a considerable

b; Loosen the screws and then open the hinged box.

d; Refer to the above figure, use bolts to connect bracket and the back box.

Stp2

Connect cables

Connect power cable, video cable, RS485 and network cable with the PCB board. Close hinged door and screw firmly. Turn on the power, the indicate light is red.

Step 3 Install dome drive a. Before installation, please take out the protective foam and put it in a well place for future use.

Note: when you ship the speed dome to the

manufacturer, please insert these foams to protect the drive.

b. Line up the red (A) and red (B) tabs with the

red (A) and red (B) labels in the interior cover.

Push in (B) side and then the other side.

Continue pushing on the ends of the tabs until

you hear a click noise.

Note: Please make sure the clips on both sides

are firmly fixed. You can follow the tab on the

outside cover to check.

Step 4 a.Install transparent cover Insert the silica gel ring into the pressured groove of the lower dome.

b. Connect unfixed end of the steel interior safety cab with the fasten end of carriage in the lower dome. Line up the two bolts in the carriage up with the dome interior cover holes and then press the transparent cover into the dome. Screw the two stainless bolts to fix the lower dome.

Note: please strictly follow above mentioned instructions to guarantee the lower dome meet the IP66 waterproof level.

Fasten bolt

2.7

2.7 Network Speed

Network Speed Dome Installation D

2.72.7

Network Speed Network Speed

You can refer to the following figure for installation dimensions,

Dome Installation Dimension

Dome Installation DDome Installation D

imension

imensionimension

+ 45 hidden pages
