QSC Q-SYS I/O-22 User Manual

™

Hardware User Manual

I/O-22

TD-000342-00-A

*TD-000342-00*

1

EXPLANATION OF TERMS AND SYMBOLS

The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death.

The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in
damage to the equipment that may not be covered under the warranty.

The term “IMPORTANT!” indicates instructions or information that are vital to the successful completion of the procedure.

The term "NOTE" is used to indicate additional useful information.

The intent of the lightning flash with arrowhead symbol in a triangle is to alert the user to the presence of un-insulated "dangerous"
voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to humans.

The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of important safety, and operating
and maintenance instructions in this manual.

IMPORTANT SAFETY INSTRUCTIONS

WARNING!:
– Maximum operating ambient temperature is 50°C (122°F).

• Read these instructions.

• Keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with a dry cloth.

• Do not block any ventilation opening. Install in accordance with the manufacturer's instructions and all federal, state, and local municipal codes.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• If your unit uses an auxiliary power supply, do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two

blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from
the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply

cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.

TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

• Adhere to all applicable, local codes.

• Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation.

CAUTION!:

UL Listed direct plug-in power unit, marked Class 2, with a rated output of 24 VDC, 30 watts minimum, 1.25 A."

The power supply used to provide 24 VDC power to the unit shall be a UL Listed ITE power supply, marked LPS, or a

FCC Statement

NOTE:

FCC Rules.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

2

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warranty (USA only; other countries, see your dealer or distributor)

QSC Audio Products 3 Year Limited Warranty

QSC Audio Products, LLC (”QSC”) guarantees its products to be free from defective material and/or workmanship and will replace defective parts
and repair malfunctioning products under this warranty when the defect occurs under normal installation and use, provided the unit is returned to
our factory, one of our authorized service stations or an authorized QSC International Distributor via pre-paid transportation with a copy of proof
of purchase (i.e., sales receipt). This warranty provides that the examination of the return product must indicate, in our judgment, a manufacturing
defect. This warranty does not extend to any product which has been subjected to misuse, neglect, accident, improper installation, or where the
date code has been removed or defaced. QSC shall not be liable for incidental and/or consequential damages. This warranty gives you specific legal
rights. This limited warranty is freely transferable during the term of the warranty period. The warranty on QSC products is NOT VALID if the products
have been purchased from an unauthorized dealer/online e-tailer, or if the original factory serial number has been removed, defaced, or replaced in
any way. Damage to, or loss of any software or data residing on the product is not covered. When providing repair or replacement service, QSC will
use reasonable efforts to reinstall the product’s original software configuration and subsequent update releases, but will not provide any recovery or
transfer of software or data contained on the serviced unit not originally included in the product.

Customers may have additional rights, which vary from state to state or from country to country. In the event that a provision of this limited warranty is
void, prohibited or superseded by local laws, the remaining provisions shall remain in effect.

The QSC limited warranty is valid for a period of three (3) years from date of purchase in the United States and many (but not all)
other countries.

For QSC warranty information in countries other than the United States, contact your authorized QSC international distributor. A list of QSC
International distributors is available at www.qscaudio.com.

To register your QSC product online, go to www.qscaudio.com and select ”Product Registration”. Other questions regarding this warranty can be
answered by calling, e-mailing or contacting your authorized QSC distributor.

Phone: [phone] within US and Canada, [phone] international, E-mail: [e-mail], Website: www.qscaudio.com.

3

RoHS STATEMENT

The Q-Sys I/O-22 products are in compliance with European Directive 2002/95/EC – Restriction of Hazardous Substances (RoHS).

The Q-Sys I/O-22 products are in compliance with “China RoHS” directives. The following chart is provided for product use in China and its territories:

Q-Sys I/O-22

部件名称

(Part Name)

铅

(Pb)

电路板组件

(PCB Assemblies)

机壳装配件

(Chassis Assemblies)

O: 表明这些有毒或有害物质在部件使用的同类材料中的含量是在 SJ/T11363_2006 极限的要求之下。

(O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement
in SJ/T11363_2006.)

X: 表明这些有毒或有害物质在部件使用的同类材料中至少有一种含量是在 SJ/T11363_2006 极限的要求之上。
(X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the
limit requirement in SJ/T11363_2006.)

X O O O O O

X O O O O O

汞

(Hg)

(Toxic or hazardous Substances and Elements)

有毒有害物质或元素

镉

(Cd)

六价铬

(Cr(vi))

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

4

Introduction

Q-Sys is a platform of software and hardware products that provide the system designer and system operator with all the tools necessary to design,
configure, and manage medium to large scale audio systems. In addition to the primary signal processing and system management components that
make up a Q-Sys audio system, the Q-Sys solution includes peripheral components that offer services including conferencing, paging, remote and
mobile control. This manual addresses the features and specifications related to the hardware components of the Q-Sys I/O-22 peripherals.

Q-Sys operates on the Q-LAN network. Q-LAN is a third-generation networked media distribution technology providing higher quality, lower latency
and greater scalability when compared to its third generation peers and previous-generation audio networks. Q-LAN operates over gigabit and higher
rate Ethernet variants. Q-LAN is a central component of QSC’s comprehensive Q-Sys integrated system platform. Interactive integration with Q-Sys
means that Q-LAN can be configured and monitored using the graphical and scripting tools available on the Q-Sys platform.

The Q-Sys I/O-22 is a sophisticated network device that provides microphone and line level inputs, line level outputs, and amplification services for
a Q-Sys audio system. Like all Q-Sys system components, functionality of the I/O-22 is defined and configured by the system designer using Q-Sys
Designer. Q-Sys Designer is Windows-based software used to design, and optionally manage, a Q-Sys system. Once a Q-Sys design file has been
created, it is then deployed to a Q-Sys Core Processor over the Q-LAN network. The Q-Sys Core Processor is the centralized processing entity for the
Q-Sys system. And as such, the Q-Sys Core Processor pushes all necessary design and configuration information to each end node in the system,
including the I/O-22.

The I/O-22 connects to a Q-Sys system by joining the Q-LAN network. Once connected to the network, the Q-Sys Core Processor can automatically
discover the I/O-22 device, assimilate it into the Q-Sys system and push the appropriate configuration, as defined in the Q-Sys Designer design file,
to the I/O-22. Once assimilated into the Q-Sys system, the I/O-22 can be used, without further need of a PC connected to the network, running
Q-Sys Designer.

I/O-22 Features

• The I/O-22 is a network enabled, Power over Ethernet (PoE) device. The I/O-22 products are designed to connect to a Q-Sys system via Q-LAN
to which the system Core Processor(s) is connected. Q-Sys, via the Q-LAN network, provides configuration and management services to all Q-Sys
products and peripherals in the system, including the I/O-22.

• In addition to, or instead of PoE, the I/O-22 can be powered by an external 24 VDC power supply.

NOTE:

CAUTION!:

Listed direct plug-in power unit, marked Class 2, with a rated output of +24 VDC, 30 watts minimum, 1.25 A.

• The I/O-22 is an Input/Output device. Analog input sources can be connected to the I/O-22 and the analog audio is converted to digital audio and
sent over the Q-LAN network to the Core for Processing. Likewise, digital audio can be sent from the Core over the Q-LAN network to the I/O-22
which converts the digital signal to analog for local use.

• The I/O-22 has two General Purpose Input Output (GPIO) connectors providing digital input and output control signals.

• The RS-232 connector on the I/O-22 allows you to make a connection to the Serial Port and Control Script components in a Q-Sys design. When a

connection is made, and an appropriate Lua script written, you can control and read from devices such as DVD players, recording hardware, video,
lighting, and so on.

• The I/O-22 includes an amplifier that can power a small (4 or 8 ohms) local loudspeaker (not included).

• The I/O-22 includes a quick-release Mounting Bracket for mounting in various situations.

Power must be supplied by PoE or the AUX PWR external power supply.

The power supply used to provide 24 VDC power to the unit shall be a UL Listed ITE power supply, marked LPS, or a UL

5

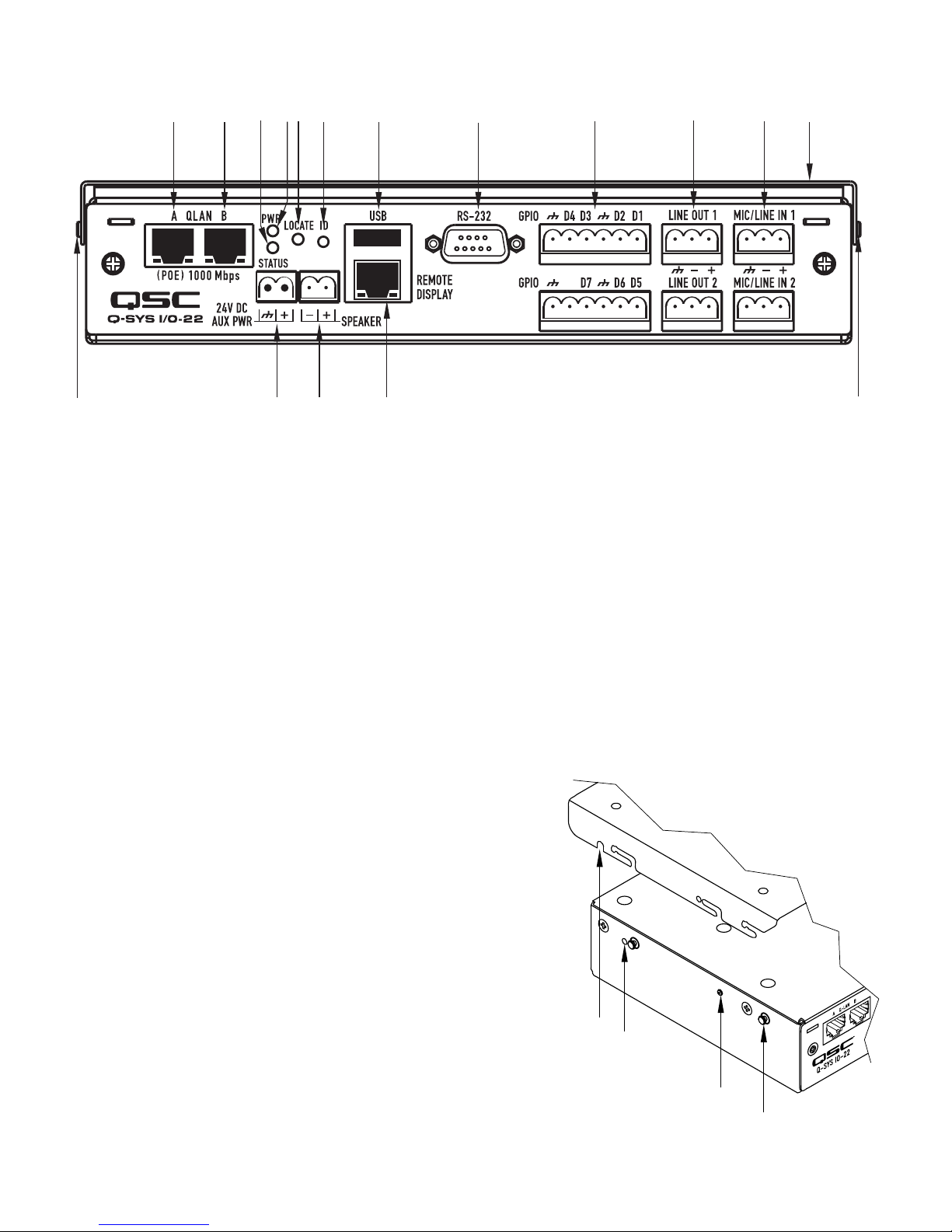

I/O-22 Connector Panel Features

1

2

5 6 7

8

9

10

11

3 4

12

D8

16 14

13

15

1. LAN Port A (Q-LAN Primary) PoE (RJ-45)

2. LAN Port B (Q-LAN Redundant) PoE (RJ-45)

3. Status LED

4. Power LED

5. Locate LED (Flashes when its associated ID button in the Q-Sys
design is pressed)

6. ID Button (When pressed, the associated ID button in the Q-Sys
Design flashes)

7. USB 2.0 host port interfaces (type A) – auxiliary functions (for
future use)

I/O-22 Side Panel Features

1. Reset Button Access Slot

2. Reset Button

— Figure 1 —

8. RS-232 Connector

9. Two GPIO Connectors (6-Pin Euro-Style connector)

10. Line Out 1 and 2 (3-Pin Euro-Style connector)

11. Mic/Line In 1 and 2 (3-Pin Euro-Style connector)

12. Quick-release Mounting Bracket

13. Mounting Bracket Pin

14. Remote Display Connector (RJ-45)

15. Loudspeaker Output (2-Pin Euro-Style connector)

16. 24 VDC Auxiliary Power Connector (2-Pin Female Euro-

13

Style connector)

3. Mounting Bracket Locking Detent

4. Mounting Bracket Pin

1

2

— Figure 2 —

3

4

6

I/O-22 Rear Panel Features

4

4

4

1. Bracket Securing Holes – “Mounting Option 1” on page 9

2. Bracket Mounting Slots – “Mounting Option 2” on page 10

3

2

1

— Figure 3 —

3. Rear Bracket Mounting Pin

4. Bracket Securing Holes and Screws– “Mounting Option 2” on
page 10

7

The Q-Sys Q-LAN Network

The Q-Sys solution (Figure 4) is designed to be deployed on QSC’s high performance Q-LAN network. Q-LAN is a proprietary network
implementation that bundles several industry standard protocols into a data transport solution appropriate for live performance multimedia
environments. Q-LAN offers gigabit data rates, device and network redundancy, 32-bit floating point audio data transfers, and low-latency support on
local area network deployments. Accurate synchronization of end nodes and high-quality clock distribution are built into the Q-LAN solution using
the IEEE-1588 Precision Time Protocol. Discovery of end nodes and auto-configuration of end nodes are all included in the solution using industry
standard protocols over a standards-based IP network implementation that utilizes off-the-shelf hardware components.

The figure below shows a very simple Q-LAN network implementation with a Q-Sys Core Processor, a Q-Sys I/O Frame, a Q-Sys I/O-22, Ethernet
switch, and a PC running Q-Sys Designer.

All devices are connected to a managed 1000 Mbps Ethernet switch that includes the appropriate QoS (Quality of Service), suitable for a
high-performance gigabit network to support multimedia applications.

The I/O-22 can be configured via Q-Sys Designer for one or two analog Mic/Line inputs, one or two analog Line outputs, redundant network, and
GPIO functionality. All audio is processed by the Core Processor based on the Q-Sys design running on the Core..

NOTE:

A PC is only required during initial configuration of the system or when a PC is the preferred means for providing on-going

management services to the system designer or operator.

Q-Sys I/O Frame Windows PC

Ethernet Switch

Q-Sys IO-22

Q-Sys Core

• The optional Q-Sys I/O Frame provides an audio access point for the Q-Sys system by providing the means to get audio onto and off of the
Q-LAN network.

• The Q-Sys Core Processor provides signal processing, distribution, and management services for the Q-Sys system. All time-sensitive audio and
management communications traverse the Q-LAN network. In addition, the Core provides an audio access point to get audio onto and off of the
Q-LAN network.

• The Windows PC can be a desktop or laptop running Q-Sys Designer or Q-Sys UCI Viewer remote management application. The PC is only
required by the Q-Sys system during the design phase for designing and configuring the system. The PC is not required for runtime operation,
though it may be used for on-going system management

• The Q-Sys I/O-22, in conjunction with the Core Processor, provides dedicated audio inputs and outputs for the Q-Sys system.

— Figure 4 —

8

Unpacking

1

2

1

There are no special unpacking precautions. However, it is recommended that you keep the original packing materials for reuse in the rare event that
service is required. If service is required and the original packing material is not available, ensure that the unit is adequately protected for shipment
(use a strong box of appropriate size with sufficient packing/padding material to prevent load shifting or impact damage), or call QSC’s Technical
Services Group for replacement packing material and a carton.

I/O-22 Packing List

1. Q-Sys I/O-22

2. Q-Sys I/O-22 Mounting Bracket

3. Q-Sys I/O-22 Mounting Bracket Template

4. Unit to Bracket Screws

5. Hardware User Manual

6. Mounting point standoff covers (2)

7. 6-pin Euro-Style Connectors (green) for GPIO (2)

8. 3-pin Euro-Style Connectors (green) for Line Out (2)

9. 3-pin Euro-Style Connectors (orange) for Mic/Line In (2)

10. 2-pin Euro Connector (green) for Speaker Out (1)

11. 2-pin inverted Euro-Style Connector (green) for Aux Power In (1)

Mounting

The Q-Sys I/O-22 is designed to be mounted in a small area, in any orientation. In addition, you can use either of two mounting options as
described below.

Mounting Option 1

Mounting Option 1 secures the Mounting Bracket to the mounting surface, then
the I/O-22 unit is snapped into the bracket. You can easily remove the I/O-22
box from the Mounting Bracket, while the Mounting Bracket itself stays on the
mounting surface.

1. Use the Mounting Bracket as a template, and mark the five screw holes

(Figure 5) on the mounting surface.

2. Using an appropriate size drill bit for the screws you are going to use, drill five
holes in the mounting surface where you marked them in step 1.

3. Use an appropriate screw driver and five screws to secure the Mounting Bracket
to the mounting surface.

4. Ensure that the screws are screwed in all the way to prevent damage, and allow
enough clearance to install the I/O-22 unit.

NOTE:

you may connect the cabling before or after attaching the I/O-22 to
the Mounting Bracket.

Refer to Figure 6

5. Carefully align the Mounting Pins (1) on the I/O-22 with the slots in the
Mounting Bracket. Ensure both sides are aligned properly.

6. Push up on the I/O-22 until the Mounting Pins are at the top of the vertical
portion of the slots.

7. Push back on the I/O-22 until the Mounting Pins are at the back of the horizontal portion of the slot, and the Mounting Bracket Locking Detent is
engaged with the Detent Hole (2) on the Mounting Bracket.

8. Refer to “Connections” on page 11 for instructions on connecting the cables to the I/O-22 .

Depending on the available clearance for your installation,

— Figure 5 —

2. Back

1. Up

— Figure 6 —

9

Mounting Option 2

Mounting Option 2 secures the Mounting Bracket to the I/O-22, then the Mounting
Bracket and I/O-22 are mounted to the mounting surface. You can easily remove
the I/O-22 and Mounting Bracket assembly from the mounting surface.

1. Using the Mounting Bracket as a template, mark the four four-way screw slots

(Figure 7) on the mounting surface.

2. Using an appropriate size drill bit for the screws you are going to use, drill four
holes in the mounting surface in the center of the four-way slots you marked
in step 1.

NOTE:

through the center of the four-way slot, yet large enough not to fit
through the slots.

3. Use an appropriate screw driver to install four screws into the mounting surface
leaving enough room between the screw head and the mounting surface to
allow for the thickness of the Mounting Bracket.

4. Prior to assembling the I/O-22 and Mounting Bracket, install the Mounting
Bracket onto the mounting surface to test the fit of the screws and the four-way
mounting slots. You should be able to install the bracket easily, and it should be
snug enough against the mounting surface to prevent accidental movement.
Make any needed adjustments to the screws before continuing.

5. Remove the Mounting Bracket from the mounting surface.

6. Refer to Figure 6 and complete steps 5 through 7 on page 9 to assemble
the Mounting Bracket to the I/O-22.

7. Install three screws (supplied) through the Mounting Bracket and into the
IO-22 as shown in Figure 8. Tighten the screws.

NOTE:

the Mounting Bracket.

8. Mount the I/O-22 / Mounting Bracket assembly by aligning the four-way slots with the screws installed in step 3, pushing the assembly up against
the mounting surface, then slide the unit in one of the four directions provided by the slots.

Ensure that the screws have a small enough head to fit

Depending on the available clearance for your installation, you may connect the cabling before or after attaching the I/O-22 to

— Figure 7 —

1

— Figure 8 —

9. Ensure that the assembly is snug against the mounting surface.

10. Refer to “Connections” on page 11 for instructions on connecting the cables to the I/O-22 .

10

Connections

When making connections to the I/O-22, make sure that the cables are secured in such a was as to provide stress relief for all connectors you use.

1 2 3

9

8 10

— Figure 9 —

4

5

6

7

1. Q-LAN A — PoE/PoE+ capable (RJ-45) — Required.

◦ Provides the primary connection between the I/O-22 and the design running on the Q-Sys Core Processor via the Q-LAN network. For details

on the Q-LAN network, and Q-Sys redundancy, refer to the Networking section of the Q-Sys Designer online help.

◦ Provides the connection for PoE and PoE+ power, if available from the Ethernet switch.

2. Q-LAN B — PoE/PoE+ capable (RJ-45) — Optional.

◦ Provides redundant network capability in the event of LAN-A failure.

◦ Provides the connection for PoE and PoE+ power, if available from the Ethernet switch.

3. USB (2.0) host port interfaces (type A) — Optional

◦ Provides auxiliary functions (for future use)

◦ Current limited

4. RS-232 – The RS-232 connector is represented in Q-Sys Designer by the I/O-22 Serial Port component. When you connect a Q-Sys Control
Script component to the I/O-22 Serial Port component, and write an appropriate Lua script, you can control and read from devices such as DVD
players, recording hardware, video, lighting, and so on.

5. GPIO (two 6-Pin Euro-Style connectors) – The GPIO controller is used to integrate Q-Sys with custom or third-party controls. Using the GPIO you
can control external hardware and certain aspects of Q-Sys with external hardware. The GPIO provides digital input and output control signals
and clock signals. The GPIO is configured in the Q-Sys design through the I/O-22 GPIO component. Refer to the I/O-22 GPIO component online
help in Q-Sys Designer for details.

6. LINE OUT 1 and 2 (3-Pin Euro-Style connector) – The output can be used as input for amplifiers, recording devices, and so on. Line Out 2 is the
same line-level signal sent to the I/O-22 amplifier.

7. MIC/LINE In 1 and 2 (3-Pin Euro-Style connector) – Can be used to connect a microphone (Phantom power available), or any line-level device.

8. 24 VDC AUX PWR (2-Pin Female Euro-Style connector) – Optional, +24 VDC only.

9. Speaker (2-Pin Euro-Style connector)

◦ Powered by a single-channel amplifier. The input for the amplifier is Channel 2 in Q-Sys Designer, and is the same signal supplied at

LINE OUT 2.)

◦ Supports a 4 or 8 ohm loudspeaker

10. Remote Display Connector (RJ-45) – for future use.

11

I/O-22 Dimensions

1.97"

The dimensions for width and depth are the same with or without the bracket. The dimension for depth includes the RS-232 connector.

1.74"

50 mm

45 mm

9.10"

231 mm

1.97"
50 mm

6.20"

157.5 mm

— Figure 10 —

12

I/O-22 Specifications

Line Input

Dynamic Range

Unweighted At -27 to +12 setting, Dynamic range is >98 dB minimum, and >100 dB typical

A-weighted At -27 to +12 setting, Dynamic range is >101 dB minimum, and >103 dB typical

THD+N (Total Harmonic Distortion + Noise) (20 Hz - 20 kHz) at maximum input levels

+12 dBu gain setting -82 dB (0.0079%) maximum, -85 dB (0.0056%) typical

-8 dBu gain setting -74 dB (0.02%) maximum, -78 dB (0.012%) typical

-28 dBu gain setting -75 dB (0.02%) maximum, -78 dB (0.013%) typical

Crosstalk (20 Hz - 20 kHz) -78 dB maximum, -80 dB typical

Frequency Response (20 Hz - 20 kHz) +0 dB to -1 dB maximum, +0 dB to -0.8 dB typical

Input Impedance

Balanced 10K ohms

Unbalanced 10K ohms

Common Mode Rejection (20 Hz - 20 kHz) -62 dB maximum, -65 dB typical

Maximum Input Level

Vrms 30.8 mV, 1.9 V, and 3.09 V

NOTE:

The Dynamic range depends on the "Peak Input Level" setting.

At -56 to -28 setting, Dynamic range is >83 dB minimum, and >88 dB typical

At -56 to -28 setting, Dynamic range is >86 dB minimum, and >91 dB typical

NOTE:

The Input level is continuously variable from -56 dBu to +12 dBu. Internally, there are switches that auto-select based on
the Max RMS Input Level. The maximum input level to achieve 0 dBfs at the A/D converter is shown below, all in-between settings
use software attenuation.

dBu -28 dBu, -8 dBu, and +12 dBu

dBV -30.2 dBV, -5.8 dBV, and 9.8 dBV

Line Output

Dynamic Range

Unweighted > 101 dB minimum, 104 dB typical

A-weighted >104 dB minimum, 107 dB typical

Channel to Channel Crosstalk (20 Hz - 20 kHz) 102 dB maximum, -104 dB typical

Max Output Level 10 dBu, 7.8 dBv, 2.5 V

(Continuously adjustable from -10 dBu to +10 dBu)

Mute Relay — infinite attenuation

Frequency Response (20 Hz to 20 KHz) +0, -1 maximum, -0.6 typical

THD+N -82 dB (0.079%) maximum, -85 dB (0.056%) typical

Loudspeaker

Amplifier

Frequency Response (20 Hz to 20 kHz) +0 dB to -3 dB maximum, +0 dB to -2.5 dB typical

THD+N

4 ohms -45 dB (0.56%) maximum, -47 dB (0.45%) typical

4 or 8 ohms, 10 watts (not included)

NOTE:

Output power is determined by the power source. Refer to the specifications in this table for Power Source

8 ohms -50 dB (0.32%) maximum, -52 dB (0.25%) typical

13

I/O-22 Specifications

Controls and Indicators

Status LED Green

Power LED Green

ID button When pressed, the associated ID button in the Q-Sys Design flashes

Locate LED Green Flashes when its associated ID button is pressed in the Q-Sys design

NOTE:

Power Source

AUX PWR External Supply (not included), +24 VDC, 30 watts minimum, 1.25 A

PoE PoE (IEEE 802.3.af) or PoE+ (IEEE 802.3at) via Q-LAN A, Q-LAN B or both.

Power Configuration

Single PoE 2-3W @ 4Ω, 2-3W @ 8 Ω 9W @ 4Ω, 4W @ 8Ω

1

Dual PoE

Single PoE+ 8-10W @ 4Ω, 4W @ 8 Ω 9W @ 4Ω, 4W @ 8Ω

Dual PoE+ 8-10W @ 4Ω, 4W @ 8 Ω 9W @ 4Ω, 4W @ 8Ω

AUX PWR 8-10W @ 4Ω, 4W @ 8 Ω 9W @ 4Ω, 4W @ 8Ω

1

Dual PoE or PoE and PoE+

2

Peak power, as measured over an approximately 10 second interval.

3

Numbers are typical output power.

You must use either the AUX PWR or PoE. In addition, you can use both AUX PWR and PoE.

Average Amplifier Power Output

3

Peak Amplifier Power Output

8-10W @ 4Ω, 4W @ 8 Ω 9W @ 4Ω, 4W @ 8Ω

2, 3

Connectors

LAN Port A (Q-LAN Primary) PoE

LAN Port B (Q-LAN Redundant) PoE

Auxiliary functions (for future use)

Third-party control interface

Two GPIO Connectors

Line Out 1 and 2

Mic/Line In 1 and 2

Remote Display Connector
(for future use)

Loudspeaker Output

24 VDC Auxiliary Power Connector

RJ-45

RJ-45

USB 2.0 host port interfaces (type A)

RS-232

6-Pin Euro-Style connector

3-Pin Euro-Style connector

3-Pin Euro-Style connector

RJ-45

2-Pin Euro-Style connector

2-Pin Female Euro-Style connector

Dimensions (HWD)

I/O-22 (without bracket) 1.74" x 9.10" x 6.20" (45.0 mm x 231.0 mm x 157.5 mm)

I/O-22 (with bracket) 1.97" x 9.10" x 6.20" (50.0 mm x 231.0 mm x 157.5 mm)

Weight

I/O-22 (without bracket) 3.0 lbs (1.4 kg)

Bracket 0.5 lbs (0.2 kg)

14

Contact

Support

Mailing Address

QSC Audio Products, LLC

1675 MacArthur Boulevard

Costa Mesa, CA 92626-1468 U.S.

Main Number

[phone]

World Wide Web

www.qscaudio.com

Sales & Marketing

Voice

[phone] International

Toll free (U.S. only) [phone]

FAX

[phone]

E-mail

24/7 Support

QSC offers 24/7 support on Q-Sys™
Networked Audio Systems only.

Q-Sys™ Customer Support

Full Support

Business Hours: 6 AM to 5 PM Pacific Time (Mon-Fri)

Tel. [phone] (U.S. only)

Tel. [phone]

Fax. [phone]

Q-Sys Emergency-only After-Hours and Weekend Support*

Tel: [phone] (U.S./Canada)

Tel: [phone] (non-U.S.)

* After hours calls are guaranteed a 30 minute response time from a
Q-Sys Support Team member for Q-Sys ONLY!

E-mail

[e-mail]

(immediate e-mail response not guaranteed. For URGENT issues use
the phone numbers above.)

[e-mail]

© 2012, QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark office
and other countries. Q-Sys, Q-LAN, Q-Sys Core Processor, Q-Sys Core 1000, Q-Sys Core 3000, Q-Sys Core 4000, Q-Sys I/O Frame, and Q-Sys Designer are trademarks of

“Windows” is a trademark of Microsoft Corp. All other trademarks are the property of their respective owners.

QSC Audio Products, LLC. Patents may apply or be pending.
