PGX DIGITAL WIRELESS SYSTEMS
PURE DIGITAL SOUND, UNLEASHED.
Page 2
PGX Digital Wireless Systems
TOTAL CLARITY. ROCK-SOLID RELIABILITY.
The precision of 24-bit digital audio comes to the renowned Shure PGX Wireless System.
Combining rugged, trusted Shure microphones with state of the art digital wireless technology,
PGX Digital delivers stunning sound and a strong, clean RF signal. Add in easy setup and operation,
and the result is wireless audio that completely redenes clarity, simplicity and performance.
EACH SYSTEM INCLUDES:
PGXD4 Wireless Receiver
24-bit/48kHz digital technology for incredibly accurate sound
Scan and sync quickly and easily sets up the system with
a clear channel
900 MHz operation free from TV signal interference
Up to 5 compatible systems per frequency band
(region dependent)
1/4" and XLR audio outputs
PGXD2 Handheld
Shure microphones trusted by musicians for over 80 years
Rugged construction for reliable performance
Up to 10 hours of continuous use from 2 AA batteries
(9 hours PGXD2)
Up to 200 ft (60 m) range for total wireless freedom
[OR]
PGXD1 Bodypack Transmitter
Page 3

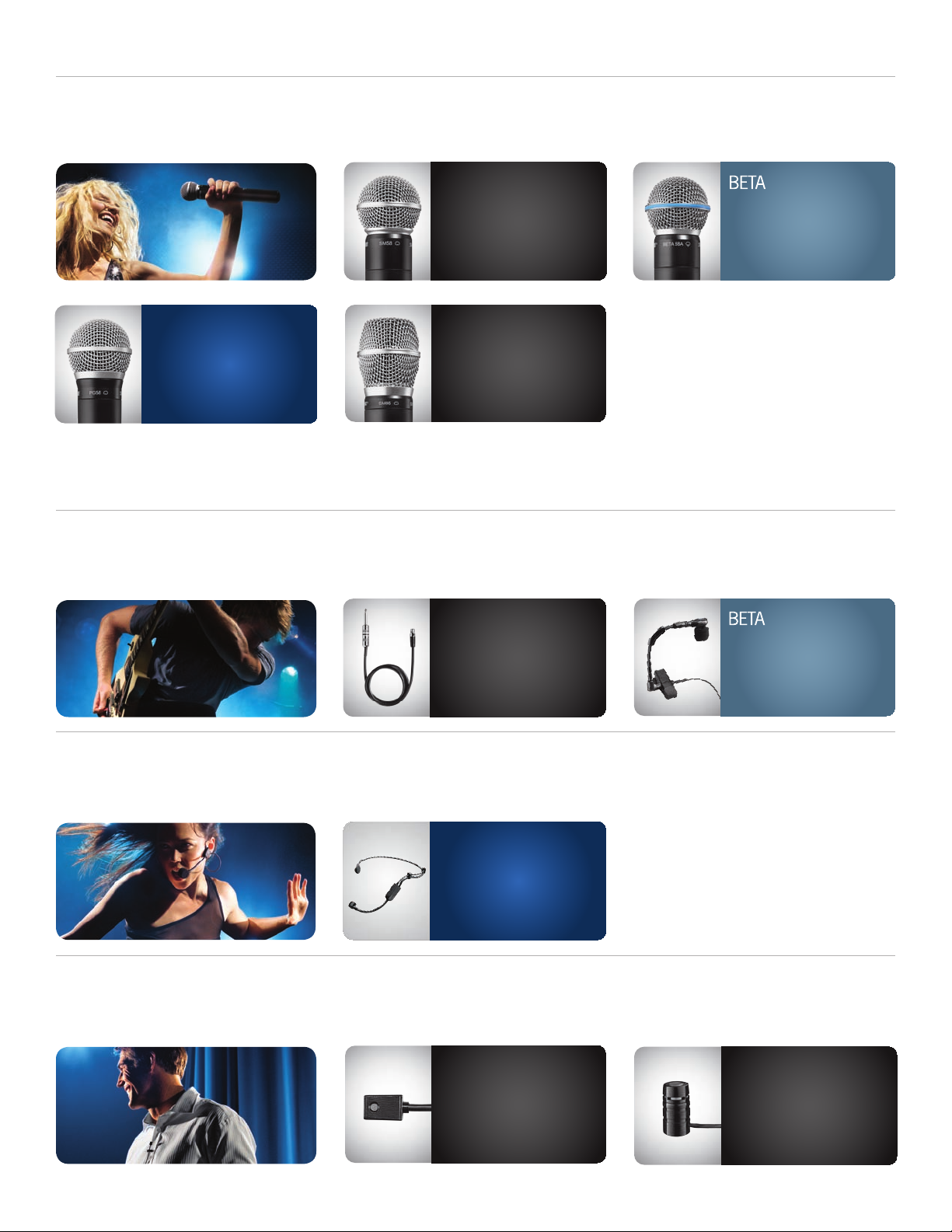

PGXD2 HANDHELD OPTIONS:
VOCAL
For lead and backup vocals.
PG58
CARDIOID | DYNAMIC
Professional quality microphone for lead and backup vocal performance applications
*BETA87A Supercardioid Cond enser Microphone is als o available (Australia only)
PGXD1 BODYPACK TRANSMITTER OPTIONS:
INSTRUMENT
For guitar, bass, wind, and percussion instruments.
SM58
CARDIOID | DYNAMIC
Industry-standard microphone tailored to deliver warm and clear vocal reproduction
®
SM86
CARDIOID | CONDENSER
Rugged microphone with extended high frequency response for smooth reproduction of lead vocals
WA302
Instrument cable to connect transmitter to a guitar or bass
®
58A
SUPERCARDIOID | DYNAMIC
Precision-engineered microphone optimized for lead vocal applications
98H/C
CARDIOID | CONDENSER
Precision-engineered miniature microphone with integrated gooseneck
HEADSET
For vocalists, presenters, aerobics instructors and drummers.
PRESENTER
For presenters, instructors, teachers and clergy.
PGA31
CARDIOID
Comfortable, durable head-worn microphone for active performance applications
|
CONDENSER
WL93
OMNIDIRECTIONAL | CONDENSER
Subminiature lavalier microphone with tie clip and windscreen
WL185
CARDIOID | CONDENSER
Lavalier microphone with tie clip and windscreen
Page 4
Technical Specications
PGXD2 HANDHELD OPTIONS: PGXD1 BODYPACK TRANSMITTER OPTIONS:
Model ModelIncludes Includes
®
®
58A
VOCAL INSTRUMENT
50hz – 16khz
87A
VOCAL INSTRUMENT
(Available only in Australia)
50hz – 16khz 20hz – 20khz
SM58
VOCAL HEADSET
®
50hz – 15khz 40hz – 20khz
SM86 W L18 5
VOCAL PRESENTER
50hz – 16khz 50hz – 20khz
PG58 WL93
VOCAL PRESENTER
60hz – 15khz
BETA58A Handheld Microphone with PGXD2 Transmitter
PGXD4 Wireless Receiver
Padded Carr ying Case
Microphone Clip
2 AA Batteries
BETA87A Handheld Microphone with PGXD2 Transmitter
PGXD4 Wireless Receiver
Padded Carr ying Case
Microphone Clip
2 AA Batteries
SM58 Handheld Microphone with PGXD2 Transmitter
PGXD4 Wireless Receiver
Padded Carr ying Case
Microphone Clip
2 AA Batteries
SM86 Handheld Microphone with PGXD2 Transmitter
PGXD4 Wireless Receiver
Padded Carr ying Case
Microphone Clip
2 AA Batteries
PG58 Handheld Microphone with PGXD2 Transmitter
PGXD4 Wireless Receiver
Padded Carr ying Case
Microphone Clip
2 AA Batteries
WA302
98H/C
PGA31
50hz – 20khz
WA302 Instrument Cable
PGXD1 Bodypack Transmitter
PGXD4 Wireless Receiver
Padded Carr ying Case
2 AA Batteries
BETA98 H/ C
Clip-on Instrument Microphone
PGXD1 Bodypack Transmitter
PGXD4 Wireless Receiver
Padded Carr ying Case
2 AA Batteries
PGA31 Headset Microphone
PGXD1 Bodypack Transmitter
PGXD4 Wireless Receiver
Padded Carr ying Case
2 AA Batteries
WL185 Lavalier Microphone
PGXD1 Bodypack Transmitter
PGXD4 Wireless Receiver
Padded Carr ying Case
Tie Clip
Windscreen
2 AA Batteries
WL93 Subminiature
Lavalier Microphone
PGXD1 Bodypack Transmitter
PGXD4 Wireless Receiver
Padded Carr ying Case
Tie Clip
Windscreen
2 AA Batteries
TECHNICAL SPECIFICATIONS:
Operating Range:
200 ft (60 m) line of sight
(actual range depends on RF signa l abso rption, re ectio n and interferen ce)
RF Carrier Range: X8: 902 – 928 MHz (Americas)
X8A: 915 – 928 MHz (Australia)
X8B: 9 02 – 907.5 MHz, 915 – 928 MHz (Brazil)
Audio Frequency Range: 20 – 20,000 Hz
(dependent on microphone type)
Transmitter RF Output Power: 10 mW
(var ies by re gio n)
Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced
Maximum Output Level:
-2.5 dBV (XLR, mic level), +10 dBV (1/4")
Battery Life: PGXD1: Up to 10 hours
PGXD2: Up to 9 hours
Dynamic Range: 108 dB A-weighted
System Distortion: <
0.02% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)
Operating Temperature Range:
-18°C (0°F) – +50°C (122°F)
Power Requirements: PGXD1, PGXD2: 2 AA size alkaline or rechargeable batteries
PGXD4: 12 – 18 V DC at 150 mA, supplied by external power supply
Operating Principle Polar Pattern Frequency Response
Dynamic Condenser Flat TailoredCardioid SuperCardioid
United States, Canada, Latin America, Caribbean:
Shure Incorporated 5800 West Touhy Avenue
OmniDirectional
Europe, Middle East, Africa:
Shure Europe GmbH Jakob-Dieffenbacher-Str. 12, 75031 Eppingen, Germany
Niles, IL 60714-4608 USA
Phone: +1 847-600-2000 Fax: +1 847-600-1212 (USA) Fax: +1 847-600-6446 Email: info@shure.com
Phone: +49-7262-92490 Fax: +49-7262-9249114 Email: info@shure.de www.shure.eu
www.shure.com
AL242 02 2.5K 03 /14©2014 Shure Incorporated
Note: Performance may vary depending on country regulations and operating environment.
Asia, Pacic:
Shure Asia Limited 22/F, 625 King’s Road North Point, Island East Hong Kong
Phone: +852-2893-4290 Fax: +852-2893-4055 Email: info@shure.com.hk www.shureasia.com
