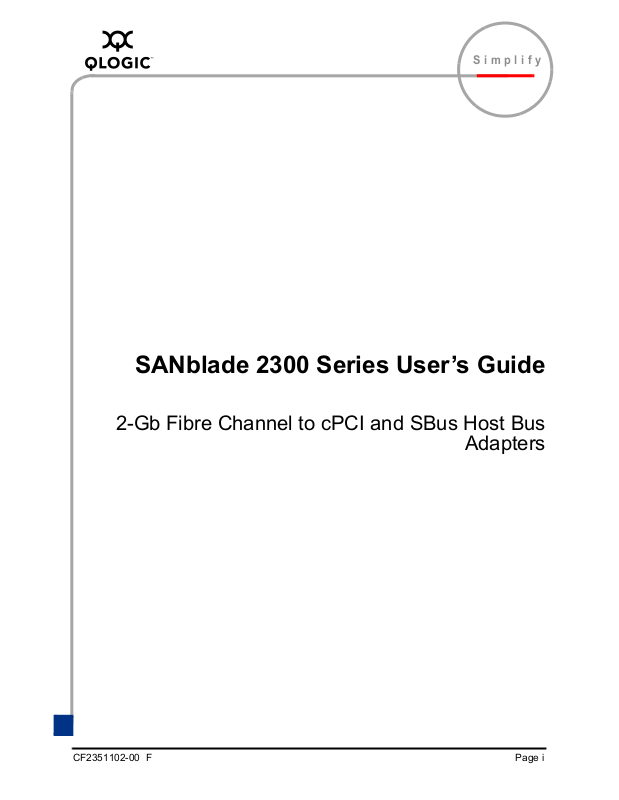

SANblade 2300 Series User’s Guide

2-Gb Fibre Channel to cPCI and SBus Host Bus

Adapters

CF2351102-00 F Page i

SANblade 2300 Series User’s Guide

2-Gb Fibre Channel to cPCI and SBus Host Bus Adapters

Information furnished in this manual is believed to be accurate and reliable. However, QLogic Corporation assumes no responsibility for its use, nor for any infringements of patents or other rights of third parties which may result from its use. QLogic Corporation reserves the right to change product specifications at any time without notice. Applications described in this document for any of these products are for illustrative purposes only. QLogic Corporation makes no representation nor warranty that such applications are suitable for the specified use without further testing or modification. QLogic Corporation assumes no responsibility for any errors that may appear in this document.

No part of this document may be copied nor reproduced by any means, nor translated nor transmitted to any magnetic medium without the express written consent of QLogic Corporation.

Microsoft, Windows NT, and Windows 2000 are trademarks or registered trademarks of Microsoft Corporation.

QLogic is a trademark of QLogic Corporation.

Solaris is a registered trademark of Sun Microsystems, Inc.

SPARC is a registered trademark of SPARC International, Inc. Products bearing SPARC trademarks are based on an architecture developed by Sun Microsystems, Inc.

All other brand and product names are trademarks or registered trademarks of their respective owners.

Document Revision History

Rev. A release, 4/23/02

Rev. B update, 5/2/02

Rev. C update, 9/17/02

Rev. D update, 2/14/03

Rev. E update, 8/22/03

Rev. F update, 9/29/03

Changes Document Sections Affected

Added FDMI support 1.4

Added FC-SP support 1.4

First Published: March 2002

Printed in U.S.A.

QLogic Corporation, 26650 Aliso Viejo Parkway, Aliso Viejo, CA 92656, (800) 662-4471 or (949) 389-600

Page ii CF2351102-00 F

Section 1 Introduction

1.1 How to Use this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2 General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.3 What is Fibre Channel? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.4 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Part I Hardware

Section 2 QCP2330/2332

2.1 QCP2330/2332 HBA Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.1.1 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.1.2 Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2.2 Installation and Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2.2.1 Installation in the Computer (Standard) . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2.2.2 Installation in the Computer (Hot Swap) . . . . . . . . . . . . . . . . . . . . . . . 2-3

2.3 Removing the QCP2330/2332 HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2.4 FCode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2.4.1 Updating FCode on the QCP2330/2332 HBA . . . . . . . . . . . . . . . . . . . 2-6

2.4.2 Setting the QCP2330/2332 HBA Connection Mode . . . . . . . . . . . . . . 2-6

2.4.3 Setting the QCP2330/2332 HBA Loop ID . . . . . . . . . . . . . . . . . . . . . . 2-7

2.4.4 Selecting the Boot Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2.4.5 Building the Bootable Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

2.4.6 Setting and Viewing the Fibre Channel Data Rate . . . . . . . . . . . . . . . 2-11

2.5 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

2.6 Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

2.7 Agency Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

2.7.1 EMC/EMI Test Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

2.7.2 Product Safety Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Section 3 QCP2340/2342

3.1 QCP2340/2342 HBA Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.1.1 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3.1.2 Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3.2 Installation and Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3.2.1 Installation in the Computer (Standard) . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3.2.2 Installation in the Computer (Hot Swap) . . . . . . . . . . . . . . . . . . . . . . . 3-3

CF2351102-00 F Page iii

SANblade 2300 User’s Guide 2-Gb Fibre Channel to cPCI and SBus Host Bus Adapters

3.3 Removing the QCP2340/2342 HBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

3.4 FCode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

3.4.1 Updating FCode on the QCP2340/2342 HBA . . . . . . . . . . . . . . . . . . . 3-7

3.4.2 Setting the QCP2340/2342 HBA Connection Mode . . . . . . . . . . . . . . 3-7

3.4.3 Setting the QCP2340/2342 HBA Loop ID . . . . . . . . . . . . . . . . . . . . . . 3-8

3.4.4 Selecting the Boot Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

3.4.5 Building the Bootable Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

3.4.6 Setting and Viewing the Fibre Channel Data Rate . . . . . . . . . . . . . . . 3-13

3.5 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3.6 Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

3.7 Agency Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

3.7.1 EMI and EMC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

3.7.2 Product Safety Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

Section 4 QSB2340/2342

4.1 QSB2340/2342 HBA Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

4.1.1 LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4.1.2 Jumpers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4.2 Installation in the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4.3 FCode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

4.3.1 Updating FCode on the QSB2340/2342 HBA . . . . . . . . . . . . . . . . . . . 4-3

4.3.2 Setting the QSB2340/2342 HBA Connection Mode . . . . . . . . . . . . . . 4-4

4.3.3 Setting the QSB2340/2342 HBA Loop ID . . . . . . . . . . . . . . . . . . . . . . 4-4

4.3.4 Selecting the Boot Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

4.3.5 Building the Bootable Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

4.4 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

4.5 Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

4.6 Agency Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

4.6.1 EMI and EMC Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

4.6.2 Product Safety Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Section 5 Troubleshooting

5.1 Problems After Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5.2 Hardware Problem Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5.3 Fibre Channel Problem Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Page iv CF2351102-00 F

SANblade 2300 User’s Guide

2-Gb Fibre Channel to cPCI and SBus Host Bus Adapters

Part II Software

Section 6 Solaris SPARC Driver Installation

6.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

6.2 Pre-installation Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

6.3 Installing the Solaris SPARC Driver from a CD-ROM. . . . . . . . . . . . . . . . 6-2

6.4 Installing the Solaris SPARC Driver from the QLogic Web Site . . . . . . . . 6-2

6.5 FCode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Figures

Figure Page

2-1 QCP2330/2332 HBA Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

3-1 QCP2340/2342 HBA Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

4-1 QSB2340/2342 HBA Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Tables

Table Page

2-1 Fibre Channel Data Rates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

2-2 QCP2330/2332 Board Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

2-3 QCP2330/2332 Board Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

3-1 LED1 and LED2 (QCP2342) Activity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3-2 Fibre Channel Data Rates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3-3 QCP2340/2342 Board Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

3-4 QCP2340/2342 Board Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

4-1 LED1 and LED2 (QCP2342) Activity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4-2 QSB2340/2342 Board Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

4-3 QSB2340/2342 Board Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

CF2351102-00 F Page v

SANblade 2300 User’s Guide 2-Gb Fibre Channel to cPCI and SBus Host Bus Adapters

Notes

Page vi CF2351102-00 F

1.1

How to Use this Guide

The SANblade QLogic host bus adapters (HBAs) supported in this document are described in the following paragraphs. They are collectively referred to as the QCP/QSB23xx HBA unless otherwise noted. The QCP23xx HBAs are all 64-bit PCI to Fibre Channel optical media. The QSB23xx HBAs are all 64-bit SBus to Fibre Channel optical media.

■ QCP2330 (cPCI to single-channel)

■ QCP2332 (cPCI to dual-channel)

■ QCP2340 (cPCI to single-channel)

■ QCP2342 (cPCI to dual-channel)

■ QSB2340 (SBus to single-channel)

■ QSB2342 (SBus to dual-channel)

First, install the QCP/QSB23xx HBA according to the directions in the appropriate hardware installation section. Second, install the Solaris driver. If the device attached to the HBA is the boot device, install the FCode.

Section 1

Introduction

1.2

General Description

Thank you for selecting the QCP/QSB23xx Fibre Channel (FC) HBA. The QCP/QSB23xx HBA is a single- or dual-channel, intelligent, high-performance, DMA bus master host adapter designed for high-end systems. The intelligence and performance are derived from the ISP23xx controller, making the QCP/QSB23xx HBA a leading-edge host adapter. The ISP23xx combines a powerful RISC processor and a fibre protocol module (FPM) with one 2-Gb Fibre Channel transceiver in a single-chip solution. The QCP/QSB23xx HBA supports all FC peripherals that support private loop direct attach (PLDA) and fabric loop attach (FLA). Installation of the QCP/QSB23xx board is quick and easy.

1.3

What is Fibre Channel?

Fibre channel technology is outlined in the SCSI-3 Fibre Channel Protocol (SCSI-FCP) standard. Fibre Channel is a high-speed data transport technology used for mass storage and networking. It connects mainframes, super computers, workstations, storage devices, and servers.

Two-gigabit Fibre Channel supports data transfer rates of 200 MBps half-duplex and 400 MBps full-duplex. The QCP/QSB23xx HBA uses a multimode optical

CF2351102-00 F 1-1

1 – Introduction Features

1.4

Features

interface for intermediate distances (less than 500 meters at the data rate of 1 Gbps; less than 300 meters at the data rate of 2 Gbps).

With increased connectivity and performance, Fibre Channel is the technology preferred and used by system designers.

■ Compliance with the following PCI standards (QCP HBAs):

❑ PCI Local Bus Specification, revision 2.1 ❑ PCI Hot Plug Specification, revision 1.0 ❑ PCI Power Management Interface Specification, revision 1.0 ❑ PICMG 2.0 Compact PCI Specification, revision 2.1 ❑ CompactPCI Hot Swap Specification, revision 2.1

■ Compliance with SBus Specification, IEEE std 1496-1993 (QSB HBAs)

■ Compliance with the following Fibre Channel standards:

❑ Second Generation Fibre Channel Physical and Signaling Interface

(FC-PH-2), revision 7.4

❑ Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3),

revision 9.2

❑ Fibre Channel-Arbitrated Loop (FC-AL-2), revision 5.4

❑ Fibre Channel Fabric Loop Attachment (FC-FLA), revision 2.7

❑ Fibre Channel Generic Services 2 (FC-GS-2), revision 5.3

❑ Fibre Channel Switched Fabric (FC-SW), revision 3.3

■ Compliance with U.S. and international safety and emissions standards

■ Support for bus master DMA

■ Supports Fibre Channel SCSI (FCP-SCSI) protocol

■ Supports point-to-point fabric connection (F-PORT FABRIC LOGIN)

■ Supports Fibre Channel security protocol (FC-SP) using DH-CHAP

■ Supports fabric device management interface (FDMI)

Using FDMI, storage area network (SAN) administrators can view device-specific information (for example, driver version, firmware version, and model number) from a central console, regardless of the device manufacturer. This information is kept at the FC switch and viewed through the switch's management application or third party SAN management applications.

1-2 CF2351102-00 F

Part I

Hardware

This part of the SANblade 2300 User’s Guide describes the host bus adapters (HBAs) and how to install and configure them. See the section that corresponds to your HBA. Section 5 contains troubleshooting information.

HBA Section

QCP2330/2332 2

QCP2340/2342 3

QSB2340/2342 4

CF2351102-00 F I-1

I – Hardware

Notes

I-2 CF2351102-00 F

Section 2

QCP2330/2332

2.1

QCP2330/2332 HBA Components

Figure 2-1 identifies the QCP2330/2332 HBA components referenced throughout

this section.

Each QCP2330/2332 HBA has a unique serial number, located on the back of the HBA. Take a minute to write down the serial number of the QCP2330/2332 HBA in the unlikely event that the NVRAM is corrupted.

2.1.1

LEDs

LED1

RELEASE SWITCH

NOTE: THE SERIAL NUMBER IS ON THE OTHER SIDE

OF THE HBA.

J5 and J1 QCP2332 ONLY

ISP CHIP

QCP2332 ONLY

Figure 2-1. QCP2330/2332 HBA Layout

In a standard installation, LED1 is off, indicating that the HBA is active.

In a hot swap installation, LED1 turns blue while the HBA is inserted. If the LED turns off, the HBA is inserted and has been configured.

CF2351102-00 F 2-1

2 – QCP2330/2332 Installation and Removal

2.1.2

Jumpers

Jumpers J1 (QCP2332) and J2 on the QCP2330/2332 HBA determine the default state of connectors J5 (QCP2332) and J6, respectively. The jumpers are set at the factory with a jumper plug on pins 2–3, which enables the connectors.

CAUTION!

2.2

Changing the jumper settings can result in the HBA being inoperable.

Installation and Removal

The following sections describe how to install the QCP2330/2332 HBA (standard and hot swap installations) as well as how to remove the HBA.

Before you install the QCP2330/2332 HBA in your computer, you need the following:

■ A screwdriver (usually a Phillips #1)

■ An optical, multimode cable with an LC-style duplex connector

2.2.1

Installation in the Computer (Standard)

Perform the following steps to install the QCP2330/2332 HBA in your system. These instructions are for a standard installation (the computer is shut down). See

section 2.2.2 for hot swap instructions.

1. Shut down the system.

2. Choose any available cPCI slot. (Check the indicator lights next to (or above) the available slots. The top two lights are off; the bottom light is amber.)

3. Place the QCP2330/2332 HBA into the slot. Carefully press the HBA into the slot until it seats firmly (the switch clicks into a locked position when the HBA is seated).

4. Connect the appropriate cables from the devices to the J5 (QCP2332) and J6 connectors.

5. Power up all external FC devices, then power up the system and observe the monitor. The HBA will not appear as part of the system components unless the driver has been installed; in which case, the HBA and corresponding driver are listed.

6. Check the QCP2330/2332 HBA hot swap LED1; it should be off, indicating that the HBA is active. The bottom indicator light next to the slot should be green (in some systems, the lights are above the slots).

See section 6 for detailed instructions on how to install the software driver.

If you need FCode, see section 2.4 for instructions on how to install or update the FCode on the QCP2330/2332 HBA.

2-2 CF2351102-00 F

2.2.2

Installation in the Computer (Hot Swap)

Perform the following steps to install the QCP2330/2332 HBA without shutting down the system (hot swap). See section 2.2.1 for standard installation instructions.

1. Log on to the system as a superuser.

2. At the prompt (#), type the following command to find an available slot for the QCP2330/2332 HBA:

cfgadm

A list of the system’s processors, memory, and I/O boats appears, as in the following example. In this example, cPCI slots 0, 1, 3, and 4 are available.

Ap_Id Typ e Receptacle Occupant Condition

N0.IB6 cPCI_I/O_bo connected configured ok

N0.IB8 unknown empty unconfigured unknown

N0.SB0 CPU_Board connected configured ok

N0.SB2 CPU_Board connected configured ok

c0 scsi-bus connected configured unknown

pcisch0:sg6slot2 stpcipci/fhs connected configured ok

pcisch0:sg6slot3 unknown empty unconfigured unknown

pcisc1:sg6slot0 unknown empty unconfigured unknown

pcisch2:sg6slot4 unknown empty unconfigured unknown

pcisch2:sg6slot5 unknown connected unconfigured unknown

pcisch3:sg6slot1 unknown empty unconfigured unknown

2 – QCP2330/2332

Installation and Removal

NOTE: If the cPCI slots are not displayed, add the following line to the

etc/system file:

set sghsc:cpci_enable=1

Check the indicator lights next to the available slots (in some systems, the lights are above the slots). The top two lights are off; the bottom light is amber. This is another way to verify an available slot.

3. Place the QCP2330/2332 HBA into the slot. Carefully press the HBA into the slot until it seats firmly (the switch clicks into a locked position when the HBA is seated). The bottom indicator light next to (or above) the slot changes from amber to off. The top indicator light turns green.

The hot swap LED1 on the QCP2330/2332 HBA turns blue while the HBA is inserted. If LED1 turns off, the HBA is inserted and has been configured; continue with step 6. If LED1 stays blue after the HBA is inserted, continue with

step 4.

CF2351102-00 F 2-3

2 – QCP2330/2332 Installation and Removal

4. Type the cfgadm command (see step 2) to verify that the system recognizes the QCP2330/2332 HBA and that the HBA is not configured. In the following example, the QCP2330/2332 HBA has been installed in slot 4 and is not configured.

N0.IB6 cPCI_I/O_bo connected configured ok

N0.IB8 unknown empty unconfigured unknown

N0.SB0 CPU_Board connected configured ok

N0.SB2 CPU_Board connected configured ok

c0 scsi-bus connected configured unknown

pcisch0:sg6slot2 stpcipci/fhs connected configured ok

pcisch0:sg6slot3 unknown empty unconfigured unknown

pcisc1:sg6slot0 unknown empty unconfigured unknown

pcisch2:sg6slot4 unknown disconnected unconfigured unknown

pcisch2:sg6slot5 unknown connected unconfigured unknown

pcisch3:sg6slot1 unknown empty unconfigured unknown

Ap_Id Typ e Receptacle Occupant Condition

5. Type the following commands to configure the QCP2330/2332 HBA:

cfgadm -c configure slot path

For example, type the following commands to configure the QCP2330/2332 HBA in slot 4, as shown in step 4:

cfgadm -c configure pcisch2:sg6slot4

The system configuration is as follows:

Ap_Id Typ e Receptacle Occupant Condition

N0.IB6 cPCI_I/O_bo connected configured ok

N0.IB8 unknown empty unconfigured unknown

N0.SB0 CPU_Board connected configured ok

N0.SB2 CPU_Board connected configured ok

c0 scsi-bus connected configured unknown

pcisch0:sg6slot2 stpcipci/fhs connected configured ok

pcisch0:sg6slot3 unknown empty unconfigured unknown

pcisc1:sg6slot0 unknown empty unconfigured unknown

pcisch2:sg6slot4 stpcipci/fhs connected configured ok

pcisch2:sg6slot5 unknown connected unconfigured unknown

pcisch3:sg6slot1 unknown empty unconfigured unknown

2-4 CF2351102-00 F

6. Connect the appropriate cables from the devices to the J5 (QCP2332) and J6 connectors.

7. Check the QCP2330/2332 HBA hot swap LED1; it should be off, indicating that the HBA is active.

See section 6 for detailed instructions on how to install the software driver.

If you need FCode, see section 2.4 for instructions on how to install or update the FCode on the QCP2330/2332 HBA.

2.3

Removing the QCP2330/2332 HBA

Follow these steps to unconfigure and remove the QCP2330/2332 HBA.

1. Type the following commands to unconfigure the QCP2330/2332 HBA:

cfgadm -c unconfigure slot path

For example, type the following commands to unconfigure the QCP2330/2332 HBA in slot 4, as shown in section 2.2.2:

2 – QCP2330/2332

FCode

2.4

FCode

cfgadm -c unconfigure pcisch2:sg6slot4

2. When the QCP2330/2332 HBA hot swap LED1 is blue, remove the cables from the J5 (QCP2332) and/or J6 connectors.

3. Remove the HBA by pressing the release button, then gently pull the HBA out of the slot.

This section provides instructions for installing FCode on a QCP2330/2332 HBA installed in a Solaris SPARC system. A QCP2330/2332 HBA with FCode loaded in its flash ROM provides boot capability to its attached devices.

The following files are included. Be sure to review the Readme.txt file for both new and changed information. The naming convention for the associated files and messages is QLA; however, the FCode supports standard QLogic PCI HBAs (QLAxxxx) and cPCI HBAs (QCPxxxx).

■ ifp2300.prom—FCode code binary file

■ readme.txt—FCode readme file

■ qla2x00flash — Solaris flash utility

■ readme — readme for qla2x00flash

The procedure for installing FCode flash is summarized in the following steps and explained in detail in the following sections.

1. Update FCode on the QCP2330/2332 HBA (see section 2.4.1).

2. Set the QCP2330/2332 HBA connection mode (see section 2.4.2).

CF2351102-00 F 2-5

2 – QCP2330/2332 FCode

3. Set the QCP2330/2332 HBA loop ID (see section 2.4.3).

4. Select the boot device (see section 2.4.4).

5. Build the bootable disk (see section 2.4.5).

2.4.1

Updating FCode on the QCP2330/2332 HBA

If you need to update the FCode on the QCP2330/2332 HBA, use the QLogic qla2x00 flash utility. A QLogic Solaris SPARC driver revision 3.06 or later must be installed before the flash utility can be run.

WARNING!!

Perform the following steps to run the flash utility:

1. Copy the qla2x00flash file and the ifp2300.prom file to the desired directory.

2. At the command line, enter the appropriate path. Use the information obtained with the show-devs command (see step 1 in section 2.4.4). For example:

./qla2x00flash -l /devices/pci@1f,0/pci@1/QLGC,qla@4: devctl ifp2300.prom

2.4.2

Be very careful when changing flash contents; incorrect data may render the QCP2330/2332 HBA unusable to the point that the operating system may no longer function.

Setting the QCP2330/2332 HBA Connection Mode

Perform the following steps to view the current QCP2330/2332 HBA connection mode and change it if necessary:

1. To view the current connection mode, type the show-connection-mode command:

ok show-connection-mode

The connection mode and options display. For example:

Current HBA connection mode: 1 - Point-to-point only

Possible connection mode choices: 0 - Loop Only 1 - Point-to-point only 2 - Loop preferred, otherwise point-to-point

2. If the connection mode is not correct based on the devices connected to the QCP2330/2332 HBA, change it using the set-connection-mode command. For example:

ok 0 set-connection-mode

2-6 CF2351102-00 F

The new connection mode displays. For example:

Calculating NVRAM checksum, please wait...

Current HBA connection mode: 0 - Loop Only

Possible connection mode choices: 0 - Loop Only 1 - Point-to-point only 2 - Loop preferred, otherwise point-to-point

2.4.3

Setting the QCP2330/2332 HBA Loop ID

When the QCP2330/2332 HBA is currently operating in loop mode (through connection mode 0 or connection mode 2), perform the following steps to view its loop ID and change it if necessary:

1. To view the loop ID, type the show-adapter-loopid command.

ok show-adapter-loopid

The loop ID displays. For example:

2 – QCP2330/2332

FCode

Adapter loopid - 7c

2. If the loop ID is not correct, change it using the set-adapter-loopid command. For example:

ok 0 set-adapter-loopid

The new loop ID displays. For example:

Adapter loopid - 0

2.4.4

Selecting the Boot Device

Perform the following steps to select a Fibre Channel device that is attached to the QCP2330/2332 HBA as the boot device:

1. Use the show-devs command to display the device tree for all devices attached to the machine.

ok show-devs

The device tree displays. The QCP2330/2332 HBAs with FCode are referenced with QLGC,qla@. For example:

ok show-devs . . /pci@1f,0/pci@1/QLGC,qla@4

CF2351102-00 F 2-7

2 – QCP2330/2332 FCode

2. Select the QCP2330/2332 HBA attached to the Fibre Channel device from which you want to boot. For example, type the following at the ok prompt:

ok " /pci@1f,0/pci@1/QLGC,qla@4" select-dev

3. Use the show-children command to view the devices attached to the QCP2330/2332 HBA. For example:

ok show-children

4. The list of devices displays. Write down the boot device’s world wide name (WWN), loop ID, and logical unit number (LUN).

5. Save the boot device information to the QCP2330/2332 HBA’s NVRAM. Use the set-boot-id command. Include the selected QCP2330/2332 HBA’s WWN, loop ID, and LUN. For example:

ok 2200002037009eeb 82 0 set-boot-id

The following displays:

Calculating NVRAM checksum, please wait.... done

Boot device login successful Boot WWN - 20000020 37009eeb WWPN - 22000020 37009eeb

Id - 82 Lun - 0

6. To boot the QCP2330/2332 HBA, type the complete boot path, including the loop ID and LUN. The loop ID and LUN must match those entered in step 5. For example:

ok boot /pci@1f,0/pci@1/QLGC,qla@4/sd@82,0

NOTE: Enter the reset command before attempting to boot if the boot was

interrupted or any of the QLogic FCode commands were executed.

2.4.5

Building the Bootable Disk

This procedure assumes that the system is already booted from an existing system hard disk, and that you have already performed a full system backup.

The device path on each system differs, depending on the PCI bus slot, target ID, LUN, etc. The device name shown in this example is for a device on the third PCI bus slot, target ID 130, LUN 0, slice 0.

You must have already completed the steps in the previous sections before attempting to create a bootable disk.

2-8 CF2351102-00 F

2 – QCP2330/2332

FCode

To build a bootable disk, perform the following steps:

1. Determine the amount of disk space used/available on your current boot disk. Use the df command for a listing. For example:

/usr/bin/df -k -l

Filesystem /dev/dsk/c0t0d0s0 /proc fd mnttab swap swap /dev/dsk/c0t0d0s7

This df example shows that the current boot disk is /dev/dsk/c0t0d0s(x). There are two partitions of interest, slice 0 (/) and slice 7 (/home). Slice 0 uses 1.65 GB and has 875 MB free. Slice 7 uses 114 MB and has 5 GB free. Therefore, slice 7 (/home) contains enough disk space to store the temporary saveset files.

If there were not at least 1.7 GB free on this disk, you would need to create a partition on the new bootable disk large enough to hold the largest temporary saveset files plus the largest used space on a partition. In this example, it would be a 3.2 GB (1.6 GB+1.6 GB) partition.

2. Use the format command to create, label, and format partitions on the new bootable disk. These partitions must be able to contain the contents of your temporary saveset files. If you are not familiar with the format command, refer to the Solaris documentation.

kbytes

2577118

1310480 1311344 5135326

used

1650245 0 0 0

864 114

avail

0 0 0 0

1310480 1310480 5083859

875331

capacity

0 0 0

66%

0% 0% 0% 0% 1% 1%

Mounted on / /proc /dev/fd /etc/mnttab /var/run /tmp /home

WARNING!!

Misusing the format command can destroy the data on your current disk drives.

a. At the root prompt, type format.

b. A list of available hard disks displays. Specify the disk.

c. At the format prompt, type partition.

CF2351102-00 F 2-9

2 – QCP2330/2332 FCode

d. At the partition prompt, type print. The partition table displays, as in the

following example.

Part

0 1 2 3 4 5 6 7

Tag root swap

backup unassigned unassigned unassigned unassigned unassigned

Flag

wm wu wu wm wm wm wm wm

Cylinders

0 - 8738

8739 - 9188

0 - 9201

0 0 0 0 0

Size

4.00GB

210.94MB

4.21GB

Blocks (8739/0/0) 8389440 (450/0/0) 432000 (9202/0/0) 8833920

(0/0/0) 0

e. At the partition prompt, type label. Enter the label.

f. At the label prompt, type quit.

g. Type quit until the system prompt displays.

3. To create the file system, use the newfs command. For example:

newfs -v /dev/rdsk/c3t130d0s0

NOTE: The target device ID (t130) is in decimal. The hexadecimal value for

the target ID is used in the boot command line shown in step 11.

4. Mount the boot partition to the /mnt mount point. For example:

mount /dev/dsk/c3t130d0s0 /mnt

5. Change to the root partition mount point directory. For example:

cd /mnt

6. Use the ufsdump utility to copy the root partition to the new book disk. For example:

ufsdump 0f - / | ufsrestore rf -

7. Use the rm command to delete the restoresymtable file:

rm restoresymtable

8. Install the boot block on the new boot disk. For example:

installboot /usr/platform/`uname -i` /lib/fs/ufs/bootblk /dev/rdsk/c3t130d0s0

9. Edit the new vfstab file to properly mount the new partitions during boot. In this case, each reference to c0t0d0s0 is changed to c3t130d0s0. For example:

vi /mnt/etc/vfstab

2-10 CF2351102-00 F

2 – QCP2330/2332

FCode

10. Shut down the system. Type the following:

/sbin/init 0

11. Boot from the newly created boot disk. For example:

boot /pci@1f,0/pci@1/QLGC,qla@4/sd@82,0

NOTE: The target device ID (sd@82) is in hexadecimal. The decimal value

is used in step 3.

12. View the current dump device setting. For example:

# dumpadm Dump content: kernel pages Dump device: /dev/dsk/c0t0d0s1 (swap) Savecore directory: /var/crash/saturn Savecore enabled: yes

13. Change the dump device to the swap area of the new boot drive. For example:

# dumpadm -d /dev/dsk/c3t130d0s1

NOTE: Steps 14 and 15 set the newly created boot disk as the default boot

disk. These steps are performed at the system OBP (ok) prompt.

14. Create an alias entry for the new boot device (optional). For example:

ok nvalias fibredisk /pci@1f,0/pci@1/QLGC,qla@4/sd@82,0

15. Set default boot device to be the new boot device (optional). For example:

ok setenv boot-disk fibredisk

2.4.6

Setting and Viewing the Fibre Channel Data Rate

Use the show-data-rate command to view the current QCP2330/2332 Fibre Channel data rate. For example:

ok show-data-rate Current HBA data rate: One Gigabit rate

Use the set-data-rate command to change the current QCP2330/2332 Fibre Channel data rate. For example:

ok 1 set-data-rate Calculating NVRAM checksum, please wait... Current HBA data rate: Two Gigabit rate

CF2351102-00 F 2-11

2 – QCP2330/2332 Specifications

Table 2-1 lists the values to enter and their corresponding data rates.

2.5

Specifications

Tables 2-2 and 2-3 define the QCP2330/2332 specifications.

Operating temperature 0°C/32°F 55°C/131°F

Storage temperature –20°C/–4°F 70°C/158°F

Relative humidity (noncondensing) 10% 90%

Storage humidity (noncondensing) 5% 95%

Table 2-1. Fibre Channel Data Rates

Value Data Rate

0 One gigabit

1 Two gigabits

2 Auto-negotiated rate

Table 2-2. QCP2330/2332 Board Operating Environment

Environment Minimum Maximum

Table 2-3. QCP2330/2332 Board Specifications

Typ e Specification

Host bus Conforms to PCI Local Bus Specification, revision 2.1

Fibre Channel specifications

Central processing unit (CPU)

RAM 256K bytes of synchronous SRAM (SSRAM) for each ISP2310

NVRAM 256 bytes for each ISP2310, field programmable

Flash 128K bytes of flash ROM in each ISP2310, field programmable

On-board DMA Three independent DMA channels: two data and one command.

Connectors LC-style connector that supports non-OFC, multimode fibre optic

Form factor 16.0 cm × 10.0 cm (6.3" × 3.9")

Operating power Less than 15 watts

Bus type: fibre optic media Bus transfer rate: 200 MBps maximum at half duplex

400 MBps maximum at full duplex

Interface chip: ISP2310 (one in QCP2330; two in QCP2332)

Single-chip design that includes a RISC processor, Fibre Channel protocol manager, DMA controller, and 1-Gb transceivers.

Integrated frame buffer FIFOs (6K-byte receive and 4K-byte transmit) for each data channel.

cabling using 2× 5 fibre optic transceiver module.

2-12 CF2351102-00 F

2.6

Label

The transceiver on the QCP2330/2332 HBA is a Class I laser product. It complies with IEC 825-1 and FDA 21 CFR 1040.10 and 1040.11. The transceiver must be operated under recommended operating conditions.

CLASS I LASER PRODUCT

2.7

Agency Certification

The following sections contain a summary of EMC/EMI test specifications performed on the QCP2330/2332 (CF2310401) to comply with emission, immunity and product safety standards.

2.7.1

EMC/EMI Test Requirements

2 – QCP2330/2332

Agency Certification

The QCP2330/2332 conform to the following requirements:

■ FCC Part 15, Class A

❑ Radiated Emission Class A ❑ Conducted Emission Class A

■ CNS 13438 Class A

■ ICES-003, Class A

■ 89/336/EEC EMC Directive CE

❑ EN55022:1995 Class A

❑ Radiated Emission Class A ❑ Conducted Emission Class A

❑ EN55024:1998

❑ Immunity Standards ❑ EN61000-4-2:1995 ESD ❑ EN61000-4-3:1995 RF Electro Magnetic Field ❑ EN61000-4-4:1995 Fast Transient/Burst ❑ EN61000-4-5:1995 Fast Surge Common/Differential ❑ EN61000-4-6:1996 RF Conducted Susceptibility ❑ EN61000-4-8:1994 Power Frequency Magnetic Filed ❑ EN61000-4-11: 1994 Voltage Dips and Interrupt

CF2351102-00 F 2-13

2 – QCP2330/2332 Agency Certification

❑ EN61000-3-2:1995 Harmonic Current Emission

❑ EN61000-3-3:1994 Voltage Fluctuation and Flicker

■ VCCI, Class A

■ AS/NZS 3548, Class AC-tick

2.7.2

Product Safety Requirements

■ UL, cUL

❑ UL 6095050 ❑ CSA C22.2 No 60950 ❑ Class 1 Laser Product per DHHS 21CFR (J)

■ 73/23/EEC Low Voltage Directive

❑ TUV EN60950:1992 +A1,2,3,4,11 ❑ TUV EN 60825-1/A11:1996 EN 60825-2

2-14 CF2351102-00 F

Section 3

QCP2340/2342

3.1

QCP2340/2342 HBA Components

Figure 3-1 identifies the QCP2340/2342 HBA components referenced throughout

this section.

Each QCP2340/2342 HBA has a unique serial number, located on the back of the HBA. Take a minute to write down the serial number of the QCP2340/2342 HBA in the unlikely event that the NVRAM is corrupted.

LED1 LED2

PORT 1

J2 PORT 2

J2, J4, and LED2

LED3

RELEASE SWITCH

NOTE: THE SERIAL NUMBER IS ON THE OTHER SIDE

OF THE HBA.

QCP2342 ONLY

ISP CHIP

Figure 3-1. QCP2340/2342 HBA Layout

CF2351102-00 F 3-1

3 – QCP2340/2342 Installation and Removal

3.1.1

LEDs

The QCP2340/2342 LED1 and LED2 (QCP2342) function as shown in table 3-1.

Green LED Amber LED Activity

Flashing Flashing Firmware error

In a standard installation, LED3 is off, indicating that the HBA is active. In a hot swap installation, LED3 turns blue while the HBA is inserted. If the LED turns off, the HBA is inserted and has been configured.

3.1.2

Jumpers

Table 3-1. LED1 and LED2 (QCP2342) Activity

On On Power

On Off Online

Off On Signal acquired

Off Flashing Loss of synchronization

Jumpers J4 (QCP2342) and J5 on the QCP2340/2322 HBA determine the default state of connectors J2 (QCP2342) and J1, respectively. The jumpers are set at the factory with a jumper plug on pins 2–3, which enables the connectors.

CAUTION!

3.2

Changing the jumper settings can result in the HBA being inoperable.

Installation and Removal

The following sections describe how to install the QCP2340/2342 HBA (standard and hot swap installations) as well as how to remove the HBA.

Before you install the QCP2340/2342 HBA in your computer, you need the following:

■ A screwdriver (usually a Phillips #1)

■ An optical, multimode cable with an LC-style duplex connector

3.2.1

Installation in the Computer (Standard)

Perform the following steps to install the QCP2340/2342 HBA in your system. These instructions are for a standard installation (the computer is shut down). See

section 3.2.2 for hot swap instructions.

1. Shut down the system.

2. Choose any available cPCI slot. (Check the indicator lights next to (or above) the available slots. The top two lights are off; the bottom light is amber.)

3-2 CF2351102-00 F

3 – QCP2340/2342

Installation and Removal

3. Place the QCP2340/2342 HBA into the slot. Carefully press the HBA into the slot until it seats firmly (the switch clicks into a locked position when the HBA is seated).

4. Connect the appropriate cables from the devices to the J2 (QCP2342) and J1 connectors.

6. Check the QCP2340/2342 HBA hot swap LED3; it should be off, indicating that the HBA is active. The bottom indicator light next to the slot should be green (in some systems, the lights are above the slots).

See section 6 for detailed instructions on how to install the software driver.

If you need FCode, see section 3.4 for instructions on how to install or update the FCode on the QCP2340/2342 HBA.

3.2.2

Installation in the Computer (Hot Swap)

Perform the following steps to install the QCP2340/2342 HBA without shutting down the system (hot swap). See section 3.2.1 for standard installation instructions.

1. Log on to the system as a superuser.

2. At the prompt (#), type the following command to find an available slot for the QCP2340/2342 HBA:

cfgadm

CF2351102-00 F 3-3

3 – QCP2340/2342 Installation and Removal

A list of the system’s processors, memory, and I/O boats appears, as in the following example. In this example, cPCI slots 0, 1, 3, and 4 are available.

N0.IB6 cPCI_I/O_bo connected configured ok

N0.IB8 unknown empty unconfigured unknown

N0.SB0 CPU_Board connected configured ok

N0.SB2 CPU_Board connected configured ok

c0 scsi-bus connected configured unknown

pcisch0:sg6slot2 stpcipci/fhs connected configured ok

pcisch0:sg6slot3 unknown empty unconfigured unknown

pcisc1:sg6slot0 unknown empty unconfigured unknown

pcisch2:sg6slot4 unknown empty unconfigured unknown

pcisch2:sg6slot5 unknown connected unconfigured unknown

pcisch3:sg6slot1 unknown empty unconfigured unknown

Ap_Id Typ e Receptacle Occupant Condition

NOTE: If the cPCI slots are not displayed, add the following line to the

etc/system file:

set sghsc:cpci_enable=1

3. Place the QCP2340/2342 HBA into the slot. Carefully press the HBA into the slot until it seats firmly (the switch clicks into a locked position when the HBA is seated). The bottom indicator light next to (or above) the slot changes from amber to off. The top indicator light turns green.

The hot swap LED3 on the QCP2340/2342 HBA turns blue while the HBA is inserted. If LED3 turns off, the HBA is inserted and has been configured; continue with step 6. If LED3 stays blue after the HBA is inserted, continue with

step 4.

3-4 CF2351102-00 F

3 – QCP2340/2342

Installation and Removal

4. Type the cfgadm command (see step 2) to verify that the system recognizes the QCP2340/2342 HBA and that the HBA is not configured. In the following example, the QCP2340/2342 HBA has been installed in slot 4 and is not configured.

Ap_Id Typ e Receptacle Occupant Condition

N0.IB6 cPCI_I/O_bo connected configured ok

N0.IB8 unknown empty unconfigured unknown

N0.SB0 CPU_Board connected configured ok

N0.SB2 CPU_Board connected configured ok

c0 scsi-bus connected configured unknown

pcisch0:sg6slot2 stpcipci/fhs connected configured ok

pcisch0:sg6slot3 unknown empty unconfigured unknown

pcisc1:sg6slot0 unknown empty unconfigured unknown

pcisch2:sg6slot4 unknown disconnected unconfigured unknown

pcisch2:sg6slot5 unknown connected unconfigured unknown

pcisch3:sg6slot1 unknown empty unconfigured unknown

5. Type the following commands to configure the QCP2340/2342 HBA:

cfgadm -c configure slot path

For example, type the following commands to configure the QCP2340/2342 HBA in slot 4, as shown in step 4:

cfgadm -c configure pcisch2:sg6slot4

The system configuration is as follows:

Ap_Id Typ e Receptacle Occupant Condition

N0.IB6 cPCI_I/O_bo connected configured ok

N0.IB8 unknown empty unconfigured unknown

N0.SB0 CPU_Board connected configured ok

N0.SB2 CPU_Board connected configured ok

c0 scsi-bus connected configured unknown

pcisch0:sg6slot2 stpcipci/fhs connected configured ok

pcisch0:sg6slot3 unknown empty unconfigured unknown

pcisc1:sg6slot0 unknown empty unconfigured unknown

pcisch2:sg6slot4 stpcipci/fhs connected configured ok

pcisch2:sg6slot5 unknown connected unconfigured unknown

pcisch3:sg6slot1 unknown empty unconfigured unknown

CF2351102-00 F 3-5

3 – QCP2340/2342 Removing the QCP2340/2342 HBA

6. Connect the appropriate cables from the devices to the J2 (QCP2342) and J1 connectors.

7. Check the QCP2340/2342 HBA hot swap LED3; it should be off, indicating that the HBA is active.

See section 6 for detailed instructions on how to install the software driver.

If you need FCode, see section 3.4 for instructions on how to install or update the FCode on the QCP2340/2342 HBA.

3.3

Removing the QCP2340/2342 HBA

Follow these steps to unconfigure and remove the QCP2340/2342 HBA.

1. Type the following commands to unconfigure the QCP2340/2342 HBA:

cfgadm -c unconfigure slot path

For example, type the following commands to unconfigure the QCP2340/2342 HBA in slot 4, as shown in section 3.2.2:

3.4

FCode

cfgadm -c unconfigure pcisch2:sg6slot4

2. When the QCP2340/2342 HBA hot swap LED3 is blue, remove the cables from the J2 (QCP2342) and/or J1 connectors.

3. Remove the HBA by pressing the release button, then gently pull the HBA out of the slot.

This section provides instructions for installing FCode on a QCP2340/2342 HBA installed in a Solaris SPARC system. A QCP2340/2342 HBA with FCode loaded in its flash ROM provides boot capability to its attached devices.

■ ifp2312.prom—FCode binary file

■ readme.txt—FCode readme file

■ qla2x00flash — Solaris flash utility

■ readme — readme for qla2x00flash

The procedure for installing FCode flash is summarized in the following steps and explained in detail in the following sections.

1. Update FCode on the QCP2340/2342 HBA (see section 3.4.1).

2. Set the QCP2340/2342 HBA connection mode (see section 3.4.2).

3-6 CF2351102-00 F

3. Set the QCP2340/2342 HBA loop ID (see section 3.4.3).

4. Select the boot device (see section 3.4.4).

5. Build the bootable disk (see section 3.4.5).

The QCP2340 has one channel; the QCP2342 has two channels. The code distinguishes between the channels as follows:

■ qla@4 (QCP2340 and QCP2342 (first channel))

■ qla@4,1 (QCP2342 second channel)

Throughout the FCode sections, the examples use qla@4;substitute qla@4,1 for the example to apply to the QCP2342’s second channel.

3.4.1

Updating FCode on the QCP2340/2342 HBA

If you need to update the FCode on the QCP2340/2342 HBA, use the QLogic qla2x00 flash utility. A QLogic Solaris SPARC driver revision 3.06 or later must be installed before the flash utility can be run.

3 – QCP2340/2342

FCode

WARNING!!

Perform the following steps to run the flash utility:

1. Copy the qla2x00flash file and the ifp2312.prom file to the desired directory.

2. At the command line, enter the appropriate path. Use the information obtained with the show-devs command (see step 1 in section 3.4.4). For example:

./qla2x00flash -l /devices/pci@1f,0/pci@1/QLGC,qla@4: devctl ifp2312.prom

For the QCP2342, the second channel must be run as well, for example:

./qla2x00flash -l /devices/pci@1f,0/pci@1/QLGC,qla@4,1: devctl ifp2312.prom

3.4.2

Be very careful when changing flash contents; incorrect data may render the QCP2340/2342 HBA unusable to the point that the operating system may no longer function.

Setting the QCP2340/2342 HBA Connection Mode

Perform the following steps to view the current QCP2340/2342 HBA connection mode and change it if necessary.

1. To view the current connection mode, type the show-connection-mode command:

ok show-connection-mode

CF2351102-00 F 3-7

3 – QCP2340/2342 FCode

The connection mode and options display. For example:

Current HBA connection mode: 2 - Point-to-point only

Possible connection mode choices: 0 - Loop Only 1 - Point-to-point only 2 - Loop preferred, otherwise point-to-point

2. If the connection mode is not correct based on the devices connected to the QCP2340/2342 HBA, change it using the set-connection-mode command. For example:

ok 0 set-connection-mode

The new connection mode displays. For example:

Calculating NVRAM checksum, please wait...

Current HBA connection mode: 0 - Loop Only

Possible connection mode choices: 0 - Loop Only 1 - Point-to-point only 2 - Loop preferred, otherwise point-to-point

3.4.3

Setting the QCP2340/2342 HBA Loop ID

When the QCP2340/2342 HBA is currently operating in loop mode (through connection mode 0 or connection mode 2), perform the following steps to view its loop ID and change it if necessary:

1. To view the loop ID, type the show-adapter-loopid command.

ok show-adapter-loopid

The loop ID displays. For example:

Adapter loopid - 7c

2. If the loop ID is not correct, change it using the set-adapter-loopid command. For example:

ok 0 set-adapter-loopid

The new loop ID displays. For example:

Adapter loopid - 0

3-8 CF2351102-00 F

3.4.4

Selecting the Boot Device

Perform the following steps to select a Fibre Channel device that is attached to the QCP2340/2342 HBA as the boot device:

1. Use the show-devs command to display the device tree for all devices attached to the machine.

ok show-devs

The device tree displays. The QCP2340/2342 HBAs with FCode are referenced with QLGC,qla@. For example:

ok show-devs . . /pci@1f,0/pci@1/QLGC,qla@4 (QCP2340, QCP2342 first channel) /pci@1f,0/pci@1/QLGC,qla@4,1 (QCP2342, second channel)

2. Select the QCP2340/2342 HBA attached to the Fibre Channel device from which you want to boot. For example, type the following at the ok prompt:

3 – QCP2340/2342

FCode

ok " /pci@1f,0/pci@1/QLGC,qla@4" select-dev

3. Use the show-children command to view the devices attached to the QCP2340/2342 HBA. For example:

ok show-children

4. The list of devices displays. Write down the boot device’s world wide name (WWN), loop ID, and logical unit number (LUN).

5. Save the boot device information to the QCP2340/2342 HBA’s NVRAM. Use the set-boot-id command. Include the selected QCP2340/2342 HBA’s WWN, loop ID, and LUN. For example:

ok 2200002037009eeb 82 0 set-boot-id

The following displays:

Calculating NVRAM checksum, please wait.... done

Boot device login successful Boot WWN - 20000020 37009eeb WWPN - 22000020 37009eeb

Id - 82 Lun - 0

6. To boot the QCP2340/2342 HBA, type the complete boot path, including the loop ID and LUN. The loop ID and LUN must match those entered in step 5. For example:

ok boot /pci@1f,0/pci@1/QLGC,qla@4/sd@82,0

NOTE: Enter the reset command before attempting to boot if the boot was

interrupted or any of the QLogic FCode commands were executed.

CF2351102-00 F 3-9

3 – QCP2340/2342 FCode

3.4.5

Building the Bootable Disk

This procedure assumes that the system is already booted from an existing system hard disk, and that you have already performed a full system backup.

You must have already completed the steps in the previous sections before attempting to create a bootable disk.

To build a bootable disk, perform the following steps:

1. Determine the amount of disk space used/available on your current boot disk. Use the df command for a listing. For example:

/usr/bin/df -k -l

Filesystem /dev/dsk/c0t0d0s0 /proc fd mnttab swap swap /dev/dsk/c0t0d0s7

kbytes

2577118

1310480 1311344 5135326

used

1650245 0 0 0

864 114

avail

0 0 0 0

1310480 1310480 5083859

875331

capacity

0 0 0

66%

0% 0% 0% 0% 1% 1%

Mounted on / /proc /dev/fd /etc/mnttab /var/run /tmp /home

WARNING!!

Misusing the format command can destroy the data on your current disk drives.

3-10 CF2351102-00 F

3 – QCP2340/2342

FCode

a. At the root prompt, type format.

b. A list of available hard disks displays. Specify the disk.

c. At the format prompt, type partition.

d. At the partition prompt, type print. The partition table displays, as in the

following example.

Part

0 1 2 3 4 5 6 7

Tag root swap

backup unassigned unassigned unassigned unassigned unassigned

Flag

wm wu wu wm wm wm wm wm

Cylinders

0 - 8738

8739 - 9188

0 - 9201

0 0 0 0 0

Size

4.00GB

210.94MB

4.21GB

Blocks (8739/0/0) 8389440 (450/0/0) 432000 (9202/0/0) 8833920

(0/0/0) 0

e. At the partition prompt, type label. Enter the label.

f. At the label prompt, type quit.

g. Type quit until the system prompt displays.

3. To create the file system, use the newfs command. For example:

newfs -v /dev/rdsk/c3t130d0s0

NOTE: The target device ID (t130) is in decimal. The hexadecimal value for

the target ID is used in the boot command line shown in step 11.

4. Mount the boot partition to the /mnt mount point. For example:

mount /dev/dsk/c3t130d0s0 /mnt

5. Change to the root partition mount point directory. For example:

cd /mnt

6. Use the ufsdump utility to copy the root partition to the new book disk. For example:

ufsdump 0f - / | ufsrestore rf -

7. Use the rm command to delete the restoresymtable file:

rm restoresymtable

8. Install the boot block on the new boot disk. For example:

installboot /usr/platform/`uname -i` /lib/fs/ufs/bootblk /dev/rdsk/c3t130d0s0

CF2351102-00 F 3-11

3 – QCP2340/2342 FCode

10. Shut down the system. Type the following:

11. Boot from the newly created boot disk. For example:

12. View the current dump device setting. For example:

9. Edit the new vfstab file to properly mount the new partitions during boot. In this case, each reference to c0t0d0s0 is changed to c3t130d0s0. For example:

vi /mnt/etc/vfstab

/sbin/init 0

boot /pci@1f,0/pci@1/QLGC,qla@4/sd@82,0

NOTE: The target device ID (sd@82) is in hexadecimal. The decimal value

is used in step 3.

# dumpadm Dump content: kernel pages Dump device: /dev/dsk/c0t0d0s1 (swap) Savecore directory: /var/crash/saturn Savecore enabled: yes

13. Change the dump device to the swap area of the new boot drive. For example:

# dumpadm -d /dev/dsk/c3t130d0s1

NOTE: Steps 14 and 15 set the newly created boot disk as the default boot

disk. These steps are performed at the system OBP (ok) prompt.

14. Create an alias entry for the new boot device (optional). For example:

ok nvalias fibredisk /pci@1f,0/pci@1/QLGC,qla@4/sd@82,0

15. Set default boot device to be the new boot device (optional). For example:

ok setenv boot-disk fibredisk

3-12 CF2351102-00 F

3.4.6

Setting and Viewing the Fibre Channel Data Rate

Use the show-data-rate command to view the current QCP2340/2342 Fibre Channel data rate. For example:

ok show-data-rate Current HBA data rate: One Gigabit rate

Use the set-data-rate command to change the current QCP2340/2342 Fibre Channel data rate. For example:

ok 1 set-data-rate Calculating NVRAM checksum, please wait... Current HBA data rate: Two Gigabit rate

Table 3-2 lists the values to enter and their corresponding data rates.

Table 3-2. Fibre Channel Data Rates

Value Data Rate

0 One gigabit

1 Two gigabits

2 Auto-negotiated rate

3 – QCP2340/2342

Specifications

3.5

Specifications

Tables 3-3 and 3-4 define the QCP2340/2342 specifications.

Operating temperature 0°C/32°F 55°C/131°F

Storage temperature –20°C/–4°F 70°C/158°F

Relative humidity (noncondensing) 10% 90%

Storage humidity (noncondensing) 5% 95%

Host bus Conforms to PCI Local Bus Specification, revision 2.1

Fibre Channel specifications

Central processing unit (CPU)

Table 3-3. QCP2340/2342 Board Operating Environment

Environment Minimum Maximum

Table 3-4. QCP2340/2342 Board Specifications

Typ e Specification

Bus type: fibre optic media Bus transfer rate: 200 MBps maximum at half duplex

400 MBps maximum at full duplex

Interface chip: ISP2312

Single-chip design that includes a RISC processor, Fibre Channel protocol manager, DMA controller, and 2-Gb transceivers

CF2351102-00 F 3-13

3 – QCP2340/2342 Label

RAM 256K bytes of synchronous SRAM (SSRAM) per RISC

NVRAM 256 bytes, field programmable

Flash 512K bytes of flash ROM, field programmable

On-board DMA

Connectors LC-style connector that supports non-OFC, multimode fibre optic cabling

Form factor 16.0 cm × 10.0 cm (6.3" × 3.9")

Operating power

3.6

Label

Table 3-4. QCP2340/2342 Board Specifications (Continued)

Typ e Specification

Three independent DMA channels: two data and one command. Integrated frame buffer FIFOs (6K-byte receive and 4K-byte transmit) for each data channel.

using 2×5 fibre optic transceiver module.

Less than 15 watts

The transceiver on the QCP2340/2342 HBA is a Class I laser product. It complies with IEC 825-1 and FDA 21 CFR 1040.10 and 1040.11. The transceiver must be operated under recommended operating conditions.

CLASS I LASER PRODUCT

3.7

Agency Certification

The following sections contain a summary of the EMC/EMI test specifications performed on the QCP2340/2342 (CF2310402) to comply with radiated emission, radiated immunity, and product safety standards.

3.7.1

EMI and EMC Requirements

The QCP2340/2342 conforms to the following requirements:

■ FCC Part 15, Class A

❑ Radiated Emission Class A ❑ Conducted Emission Class A

■ ICES-003, Class A, Industry Canada

■ 89/336/EEC EMC Directive CE

3-14 CF2351102-00 F

3 – QCP2340/2342

Agency Certification

❑ EN55022:1995 Class A

❑ Radiated Emission Class A ❑ Conducted Emission Class A

❑ EN55024:1998

❑ Immunity Standards ❑ EN61000-4-2 :1995 ESD ❑ EN61000-4-3 :1995 RF Electro Magnetic Field ❑ EN61000-4-4 :1995 Fast Transient/Burst ❑ EN61000-4-5 :1995 Fast Surge Common/Differential ❑ EN61000-4-6 :1996 RF Conducted Susceptibility ❑ EN61000-4-8 : 1994 Power Frequency Magnetic Filed ❑ EN61000-4-11: 1994 Voltage Dips and Interrupt

❑ EN61000-3-2:1995 Harmonic Current Emission

❑ EN61000-3-3:1994 Voltage Fluctuation and Flicker

■ VCCI, Class A certified

■ AS/NZS 3548 Class A C-tick

■ CNS 13438 Class A BMSI

3.7.2

Product Safety Requirements

■ UL, cUL

❑ UL6095050 ❑ CSA C22.2 No 60950 ❑ Class 1 Laser Product per DHHS 21CFR (J)

■ 73/23/EEC Low Voltage Directive

❑ TUV: EN60950:2000 ❑ TUV: EN 60825-1/A11:1996 EN 60825-1:1994+A11

CF2351102-00 F 3-15

3 – QCP2340/2342 Agency Certification

Notes

3-16 CF2351102-00 F

Section 4

QSB2340/2342

4.1

QSB2340/2342 HBA Components

Figure 4-1 identifies the QSB2340/2342 HBA components referenced throughout

this section.

Each QSB2340/2342 HBA has a unique serial number, located on the back of the HBA. Take a minute to write down the serial number of the QSB2340/2342 HBA in the unlikely event that the NVRAM is corrupted.

SERIAL NUMBER

J10, J7, LED2

QSB2342

ONLY

ISP CHIP

PORT 1

PORT 2

PORT 1 PORT 2

LED2

J10

NOTE: The QLOGIC FPGA is on the back.

Figure 4-1. QSB2340/2342 HBA Layout

LED1

CF2351102-00 F 4-1

4 – QSB2340/2342 Installation in the Computer

4.1.1

LEDs

The QSB2340/2342 LED1 and LED2 (QSB2342) function as shown in table 4-1.

Green LED Amber LED Activity

On On Power

On Off Online

Off On Signal acquired

Off Flashing Loss of synchronization

Flashing Flashing Firmware error

4.1.2

Jumpers

Jumpers J7 (QSB2342) and J8 on the QSB2340/2342 HBA determine the default state of connectors J10 (QSB2342) and J9, respectively. The jumpers are set at the factory with a jumper plug on pins 2–3, which enables the connectors.

Table 4-1. LED1 and LED2 (QCP2342) Activity

CAUTION!

4.2

Changing the jumper settings can result in the HBA being inoperable.

Installation in the Computer

Before you install the QSB2340/2342 HBA in your computer, you need the following:

■ A screwdriver (usually a Phillips #1)

■ An optical, multimode cable with an LC-style duplex connector

Perform the following steps to install the QSB2340/2342 HBA in your system:

1. Shut down the computer.

2. Remove the computer cover and save the screws.

3. Choose any available SBus slot.

4. Remove the slot cover.

5. Place the QSB2340/2342 HBA into the slot. Carefully press the HBA into the slot until it seats firmly.

6. Connect the appropriate cable from the devices to the J1 and J2 connectors.

7. Carefully reinstall the computer cover. Insert and tighten the computer cover screws.

8. Power up all external FC devices, then power up the system and observe the monitor.

NOTE: SunSPARC systems do not display the BIOS banner.

4-2 CF2351102-00 F

4.3

FCode

4 – QSB2340/2342

FCode

See section 6 for detailed instructions on how to install the software driver.

If you need FCode, see section 4.3 for instructions on how to install or update the FCode on the QSB2340/2342 HBA.

This section provides instructions for installing FCode on a QSB2340/2342 HBA installed in a Solaris SPARC system. A QSB2340/2342 HBA with FCode loaded in its flash ROM provides boot capability to its attached devices.

The following files are included. Be sure to review the readme.txt file for both new and changed information.

■ 2312fs.prom— FCode binary file

■ readme.txt—FCode readme file

■ qla2x00fcode — Solaris flash utility

■ readme — readme for qla2x00FCode

The procedure for installing FCode flash is summarized in the following steps and explained in detail in the following sections.

1. Update FCode on the QSB2340/2342 HBA (see section 4.3.1).

2. Set the QSB2340/2342 HBA connection mode (see section 4.3.2).

3. Set the QSB2340/2342 HBA loop ID (see section 4.3.3).

4. Select the boot device (see section 4.3.4).

5. Build the bootable disk (see section 4.3.5).

4.3.1

Updating FCode on the QSB2340/2342 HBA

If you need to update the FCode on the QSB2340/2342 HBA, use the QLogic qla2x00 flash utility. A QLogic Solaris SPARC driver revision 3.07 or later must be installed before this flash utility can be run.

WARNING!!

Perform the following steps to run the utility.

1. Copy the qla2x00fcode file and the 2312fs.prom file to the desired directory.

2. At the command line, enter the appropriate path. Use the information obtained using the show-devs command (see section 4.3.4). For example:

qla2x00fcode -l /devices/sbus@1f,0/QLGC,qla@1,30000: devctl 2312fs.prom

Be very careful when changing flash contents; incorrect data may render the QSB2340/2342 HBA unusable to the point that the operating system may no longer function.

CF2351102-00 F 4-3

4 – QSB2340/2342 FCode

4.3.2

Setting the QSB2340/2342 HBA Connection Mode

Perform the following steps to view the current QSB2340/2342 HBA connection mode and change it if necessary:

1. Perform steps 1 and 2 in section 4.3.4.

2. To view the current connection mode, type the show-connection-mode command.

ok show-connection-mode

The connection mode and options display. For example:

Current HBA connection mode: 2 - Point-to-point only

Possible connection mode choices: 0 - Loop Only 1 - Point-to-point only 2 - Loop preferred, otherwise point-to-point

3. If the connection mode is not correct based on the devices connected to the QSB2340/2342 HBA, change it using the set-connection-mode command. For example:

ok 0 set-connection-mode

The new connection mode displays. For example:

Calculating NVRAM checksum, please wait...

Current HBA connection mode: 0 - Loop Only

Possible connection mode choices: 0 - Loop Only 1 - Point-to-point only 2 - Loop preferred, otherwise point-to-point

4.3.3

Setting the QSB2340/2342 HBA Loop ID

When the QSB2340/2342 HBA is currently operating in loop mode (through connection mode 0 or connection mode 2), perform the following steps to view its loop ID and change it if necessary.

1. Perform steps 1 and 2 in section 4.3.4.

2. To view the loop ID, type the show-adapter-loopid command.

ok show-adapter-loopid

The loop ID displays. For example:

Adapter loopid - 7c

4-4 CF2351102-00 F

3. If the loop ID is not correct, change it using the set-adapter-loopid command. For example:

ok 0 set-adapter-loopid

The new loop ID displays. For example:

Adapter loopid - 0

4.3.4

Selecting the Boot Device

Perform the following steps to select a Fibre Channel device that is attached to the QSB2340/2342 HBA as the boot device.

1. Use the show-devs command to display the device tree for all devices attached to the machine.

ok show-devs

The device tree displays. The QSB2340/2342 HBAs are referenced with /sbus@ and QLGC,qla@n,xxxxx, where:

4 – QSB2340/2342

FCode

= SBus slot number

xxxxx

= port number

30000 denotes port 0 30400 denotes port 1

For example:

ok show-devs . . /sbus@1f,0/QLGC,qla@0,30000 /sbus@1f,0/QLGC,qla@0,30400 /sbus@1f,0/QLGC,qla@1,30000 /sbus@1f,0/QLGC,qla@1,30400

2. Select the port on the QSB2340/2342 HBA attached to the Fibre Channel device from which you want to boot. For example, type the following at the ok prompt to specify port 0 of the QSB2340/2342 HBA in SBus slot 1.

ok select /sbus@1f,0/QLGC,qla@1,30000

3. Use the show-children command to view the devices attached to the QSB2340/2342 HBA port specified in step 2. For example:

ok show-children

4. The list of devices displays. Write down the boot device’s world wide name (WWN), loop ID, and logical unit number (LUN).

CF2351102-00 F 4-5

4 – QSB2340/2342 FCode

5. Save the boot device information to the QSB2340/2342 HBA’s NVRAM. Use the set-boot-id command. Include the selected QSB2340/2342 HBA’s WWN, loop ID, and LUN. For example:

ok 2200002037009eeb 82 0 set-boot-id

The following displays:

Calculating NVRAM checksum, please wait.... done

Boot device login successful Boot WWN - 20000020 37009eeb WWPN - 22000020 37009eeb

Id - 82 Lun - 0

To boot the QSB2340/2342 HBA, type the complete boot path, including the loop ID and LUN. The loop ID and LUN must match those entered in step 5. For example:

ok boot /sbus@1f,0/QLGC,qla@1,30000/sd@82,0

NOTE: Enter the reset command before attempting to boot if the boot was

interrupted or any of the QLogic FCode commands were executed.

4.3.5

Building the Bootable Disk

This procedure assumes that the system is already booted from an existing system disk, and that you have already performed a full system backup.

The device path on each system differs, depending on the SBus slot, target ID, LUN, etc. The device name shown in this example is for a device on the third SBus slot, target ID 130, LUN 0, slice 0.

You must have already completed the steps in the previous sections before attempting to create a bootable disk.

This procedure involves using the Solaris ufsdump command to create temporary saveset files for each partition on your current boot disk. For this method to be successful, you must have enough extra disk space to create the saveset files, or your Solaris machine must have a high-capacity tape drive attached.

4-6 CF2351102-00 F

4 – QSB2340/2342

FCode

To build a bootable disk, perform the following steps:

1. Determine the amount of disk space used/available on your current boot disk. Use the df command for a listing. For example:

/usr/bin/df -k -l

Filesystem /dev/dsk/c0t0d0s0 /proc fd mnttab swap swap /dev/dsk/c0t0d0s7

kbytes 2577118 0 0 0 1310480 1311344 5135326

used 1650245 0 0 0 0 864 114

avail 875331 0 0 0 1310480 1310480 5083859

capacity

66%

0% 0% 0% 0% 1% 1%

Mounted on / /proc /dev/fd /etc/mnttab /var/run /tmp /home

WARNING!!

Misusing the format command can destroy the data on your current disk drives.

CF2351102-00 F 4-7

4 – QSB2340/2342 FCode

a. At the root prompt, type format.

b. A list of available hard disks displays. Specify the disk.

c. At the format prompt, type partition.

d. At the partition prompt, type print. The partition table displays, as in the

following example.

Part

0 1 2 3 4 5 6 7

Tag root swap

backup unassigned unassigned unassigned unassigned unassigned

Flag

wm wu wu wm wm wm wm wm

Cylinders

0 - 8738

8739 - 9188

0 - 9201

0 0 0 0 0

Size

4.00GB

210.94MB

4.21GB

Blocks (8739/0/0) 8389440 (450/0/0) 432000 (9202/0/0) 8833920

(0/0/0) 0

e. At the partition prompt, type label. Enter the label.

f. At the label prompt, type quit.

g. Type quit until the system prompt displays.

3. To create the file system, use the newfs command. For example:

newfs -v /dev/rdsk/c3t130d0s0

NOTE: The target device ID (t130) is in decimal. The hexadecimal value for

the target ID is used in the boot command line shown in step 11.

4. Mount the boot partition to the /mnt mount point. For example:

mount /dev/dsk/c3t130d0s0 /mnt

5. Change to the root partition mount point directory. For example:

cd /mnt

6. Use the ufsdump utility to copy the root partition to a dump file and copy the dump file to the new boot device. For example:

-ufsdump 0f - /|ufstestore rf -

7. Use the rm command to delete the restoresymtable file.

rm restoresymtable

8. Install the boot block on the new boot disk. For example:

installboot /usr/platform/`uname -i`/lib/fs/ufs/ bootblk /dev/rdsk/c3t130d0s0

4-8 CF2351102-00 F

9. Edit the new vfstab file to properly mount the new partitions during boot. In this

10. Shutdown the system. Type the following:

11. Boot from the newly created boot disk. For example:

4.4

Specifications

Tables 4-2 and 4-3 define the QSB2340/2342 specifications.

Operating temperature 0°C/32°F 55°C/131°F

Storage temperature –20°C/–4°F 70°C/158°F

Relative humidity (noncondensing) 10% 90%

Storage humidity (noncondensing) 5% 95%

4 – QSB2340/2342

Specifications

case, each reference to c0t0d0s0 is changed to c3t130d0s0. For example:

vi /mnt/etc/vfstab

/sbin/init 0

boot /sbus@1f,0/QLGC,qla@1,30000/sd@82,0

NOTE: The target device ID (sd@82) is in hexadecimal. The decimal value

is used in step 3.

Table 4-2. QSB2340/2342 Board Operating Environment

Environment Minimum Maximum

Table 4-3. QSB2340/2342 Board Specifications

Typ e Specification

Host bus Conforms to SBus Specification, IEEE std 1496-1993

Fibre Channel specifications

Central processing unit (CPU)

RAM 256K bytes of SRAM per RISC

NVRAM 256 bytes, field programmable

Flash 512K bytes of flash ROM, field programmable

Onboard DMA Three independent DMA channels: two data and one command.

Connectors LC-style duplex connector that supports non-OFC, multimode fibre optic

Bus type: fibre optic media Bus transfer rate: 200 MBps maximum at half duplex

400 MBps maximum at full duplex

Interface chip: ISP2312

Single-chip design that includes a RISC processor, Fibre Channel protocol manager, DMA controller, and 2-Gb transceivers

Integrated frame buffer FIFOs (4K-byte receive and 4K-byte transmit) for each data channel.

cabling using 2×5 fibre optic transceiver module.

CF2351102-00 F 4-9

4 – QSB2340/2342 Label

4.5

Label

The transceiver on the QSB2340/2342 HBA is a Class I laser product. It complies with IEC 825-1 and FDA 21 CFR 1040.10 and 1040.11. The transceiver must be operated under recommended operating conditions.

Table 4-3. QSB2340/2342 Board Specifications (Continued)

Typ e Specification

Form factor 14.7 cm× 8.4cm (5.8"× 8.4")

Operating power

Less than 15 watts

CLASS I LASER PRODUCT

4.6

Agency Certification

The following sections contain a summary of the EMC/EMI test specifications performed on the QSB2340/2342 (SF0310401) to comply with radiated emission, radiated immunity, and product safety standards.

4.6.1

EMI and EMC Requirements

The QSB2340/2342 conforms to the following requirements:

■ FCC Part 15, Class B

❑ Radiated Emission Class B ❑ Conducted Emission Class B

■ ICES-003 Class B, Industry Canada

■ 89/336/EEC EMC Directive CE

❑ EN55022:1995 CISPR 22:1997 Class B

❑ Radiated Emission Class B ❑ Conducted Emission Class B

❑ EN55024:1998

❑ Immunity Standards ❑ EN61000-4-2 :1995 ESD ❑ EN61000-4-3 :1995 RF Electro Magnetic Field ❑ EN61000-4-4 :1995 Fast Transient/Burst

4-10 CF2351102-00 F

❑ EN61000-4-5 :1995 Fast Surge Common/Differential ❑ EN61000-4-6 :1996 RF Conducted Susceptibility ❑ EN61000-4-8 : 1993 Power Frequency Magnetic Filed ❑ EN61000-4-11: 1994 Voltage Dips and Interrupt

❑ EN61000-3-2:1995 Harmonic Current Emission

❑ EN61000-3-3:1995 Voltage Fluctuation and Flicker

■ VCCI, Class B

■ AS/NZS 3548 Class B

4.6.2

Product Safety Requirements

■ UL, cUL

❑ UL60950 ❑ CSA C22.2 No 60950 ❑ Class 1 Laser Product per DHHS 21CFR (J)

4 – QSB2340/2342

Agency Certification

CF2351102-00 F 4-11

4 – QSB2340/2342 Agency Certification

Notes

4-12 CF2351102-00 F

Troubleshooting

5.1

Problems After Installation

There are two basic types of installation problems that can cause your QCP/QSB23xx HBA to function incorrectly: hardware problems and Fibre Channel problems. The following section provides itemized checklists to help you determine why your QCP/QSB23xx HBA is not functioning.

5.2

Hardware Problem Checklist

■ Are all of the circuit cards installed securely in the system?

■ Are all of the cables securely connected to the correct connectors? Be sure that

the FC cables that attach from the QCP/QSB23xx HBA connectors to the device are connected correctly. For example, the optical transmit connector on the QCP/QSB23xx HBA must be connected to the optical receive connector on the device. Some connectors require a firm push to ensure proper seating. An easy way to check for correct seating is to switch the connectors on either the QCP/QSB23xx HBA or the device, then restart your system.

Section 5

■ Is the QCP/QSB23xx HBA installed correctly? Is it seated firmly in the slot?

■ Check for interference due to nonstandard PCI connectors.

■ Are all external peripherals properly powered up?

5.3

Fibre Channel Problem Checklist

■ Were all of the FC devices powered up before you powered up the PC?

■ Check that all cables are properly connected.

■ Some Fibre Channel switches support zoning. Make sure that your switch is

configured correctly.

■ Make sure that the data rate of the QCP/QSB23xx HBA matches the target

device. For example, if the QCP/QSB23xx HBA data rate is 2 Gb, the target device must also be set to 2 Gb.

CF2351102-00 F 5-1

5 – Troubleshooting Fibre Channel Problem Checklist

Notes

5-2 CF2351102-00 F

Part II

Software

This part of the SANblade 2300 User’s Guide describes how to install the software drivers for the supported operating systems. See the section that corresponds to your computer’s operating system:

Operating System Section

Solaris SPARC 6

Before you install the software drivers, you need to locate and download the appropriate drivers for your operating system. The latest version of the QLA23xx drivers are located on the QLogic Web site, www.qlogic.com

QLogic drivers are self-extracting and meant to be downloaded onto disks. The installation instructions in this guide assume that the QLogic drivers reside on disks.

CF2351102-00 F II-1

II – Software

Notes

II-2 CF2351102-00 F

6.1

Introduction

This section provides instructions for installing the Solaris SPARC driver in an already installed Solaris SPARC operating system. The naming convention for the drivers, associated files, and messages is QLA; however, the Solaris SPARC driver supports standard QLogic PCI HBAs (QLAxxxx), cPCI HBAs (QCPxxxx), and SBus HBAs (QSBxxxx).

The latest version of the Solaris SPARC driver package is available on the QLogic web site (www.qlogic.com installed from a DOS environment. Be sure to review the Readme.txt file for both new and changed information.

To install the driver from a CD-ROM, see section 6.3. To install the driver from the QLogic Web site, see section 6.4. If you are installing the driver from another media, for example, a floppy disk, transfer the qla2300.Z file to a temporary directory on the machine where the driver will be installed, then continue with step 4 in

section 6.4.

Section 6

Solaris SPARC Driver Installation

(QL2300)

). The files in the driver package cannot be read nor

6.2

Pre-installation Requirements

Before you install the Solaris driver, uninstall any existing QLA2300 driver using the pkgrm utility.

NOTE:

■ If you are uninstalling Solaris driver version 4.07 or later, the Solaris pkgrm

utility creates a backup copy of the qla2300.conf configuration file in the /kernel/drv directory.

■ If you are uninstalling a driver version before 4.07, QLogic recommends

that you manually create a backup copy of the qla2300.conf configuration file.

■ To upgrade from qla2300 driver version 4.11 (and earlier) to qla2300 driver

version 4.12 (and above), you must remove the appropriate qla2300 driver package before installing the new one, even though the package name has been changed and may not appear to be conflicting.

CF2351102-00 F 6-1

6 – Solaris SPARC Driver Installation Installing the Solaris SPARC Driver from a CD-ROM

qla2300 driver versions 4.11 (and earlier) have the following package names:

❑ QLA2300-1 (Solaris 2.6) ❑ QLA2300-2 (Solaris 2.7) ❑ QLA2300-3 (Solaris 2.8 and 9)

Checks within the package installation will terminate the new driver installation if a pervious version of the driver package is found.

For additional information, please review the latest Solaris README.TXT file, available on the QLogic web site (www.qlogic.com

6.3

Installing the Solaris SPARC Driver from a CD-ROM

Perform the following steps to install the Solaris SPARC driver from a CD-ROM to your system.

NOTE: To install the QLA2300 driver, you must have superuser privileges.

1. Log on to the system as superuser.

2. Create a temporary directory where you can copy the driver.

3. Change the directory (cd) to the CD-ROM mount point (usually /cdrom, but the location varies. Ask your system administrator for the specific directory).

4. Change the directory (cd) to the Solaris directory.

5. Copy (cp) the qla2300_pkg.Z file from the CD-ROM to the temporary directory created in step 2.

6. Change the directory (cd) to the temporary directory created in step 2.

7. At the command prompt, type:

uncompress ./qla2300_pkg.Z

8. Step 7 produces a file in the same directory called qla2300_pkg.

9. At the command prompt, type:

pkgadd -d ./qla2300_pkg

10. Continue with step 7 in section 6.4.

6.4

Installing the Solaris SPARC Driver from the QLogic Web Site

Perform the following steps to download the Solaris SPARC driver from the web to your hard disk, then install the driver on your system.

NOTE: To install the QLA2300 driver, you must have superuser privileges.

6-2 CF2351102-00 F

6 – Solaris SPARC Driver Installation

Installing the Solaris SPARC Driver from the QLogic Web Site

1. Log on to the system as a superuser.

2. Download the driver package from the QLogic Web site (www.qlogic.com directory on the Solaris machine’s hard disk.

3. At the command prompt, change the directory (cd) to the directory where the file was downloaded.

4. At the command prompt, type:

uncompress ./qla2300_pkg.Z

5. Step 4 produces a file in the same directory called qla2300_pkg.

6. At the command prompt in the directory where the file was uncompressed, type:

pkgadd -d ./qla2300_pkg

7. You are prompted to select a driver package. For example:

The following packages are available: 1 QLA2300 QLogic QLA2300 driver

(sparc) Solaris, Rev=X.XX

2 QLSDMLIB QLogic SDM Library

(sparc) Solaris 7-8-9, Rev=X.XX

3 QLSDMLIB6 QLogic SDM Library

(sparc) Solaris 2.6, Rev=X.XX

Select package(s) you wish to process (or ’all’ to process all packages). (default: all) [?,??,q]:

) to a

NOTE: The revision number, X.XX, indicates the version of the driver.

8. Type the number associated with the Solaris SPARC version on your system. Separate the numbers by pressing the SPACEBAR.

a. Type 1 to install the driver package.

b. If you are installing the storage networking industry association (SNIA)

application programming interface (API) libraries, type 2 or 3.

For example, type the following to install the driver and SDM library for a Solaris 8 system:

Select package(s) you wish to process (or ’all’ to process all packages). (default: all) [?,??,q]: 1 2

Press ENTER to continue.

CF2351102-00 F 6-3

6 – Solaris SPARC Driver Installation Installing the Solaris SPARC Driver from the QLogic Web Site

9. You are prompted to select the directory where the driver will be installed. For example:

Processing package instance <QLA2300> from </tmpdir/qla2300_pkg>

QLogic QLA2300 driver (sparc) Solaris, Rev=X.XX

Where do you want the driver object installed (default=/kernel/drv):

10. Press ENTER to accept the default.

11. The pkgadd program performs a series of checks, then posts a script warning and asks whether to continue the installation. For example:

Using </> as the package base directory. ## Processing package information. ## Processing system information. ## Verifying disk space requirements. ## Checking for conflicts with packages already installed. ## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user permission during the process of installing this package.

Do you want to continue with the installation of <QLA2300> [y,n,?]

12. Type y and press ENTER to continue the driver installation. The pkgadd program notifies you when the driver installation is complete. For example:

Installing QLogic QLA2300 driver as <QLA2300>

## Installing part 1 of 1. /kernel/drv/q2ip /kernel/drv/q2ip.conf /kernel/drv/q2ip_v9 /kernel/drv/qla2300 /kernel/drv/qla2300.conf /kernel/drv/qla2300_v9 [ verifying class <none> ] ## Executing postinstall script

Installation of <QLA2300> was successful.

If you are not installing an SDM API library, continue with step 15.

6-4 CF2351102-00 F

6 – Solaris SPARC Driver Installation

FCode

13. The pkgadd program then installs the SDM library, if selected in step 8. A script warning is posted, asking whether to continue the installation. For example:

Processing package instance <QLSDMLIB> from </tmpdir/qla2300_pkg>

QLogic SDM Library (sparc) Solaris 7-8-9, Rev=X.XX

## Processing package information. ## Processing system information. ## Verifying disk space requirements. ## Checking for conflicts with packages already installed. ## Checking for setuid/setgid programs.

This package contains scripts which will be executed with super-user permission during the process of installing this package.

Do you want to continue with the installation of <QLSDMLIB> [y,n,?] y

6.5

FCode

14. Type y and press ENTER to continue the driver installation. The pkgadd program notifies you when the SDM library installation is complete. For example:

Installing QLogic SDM Library as <QLSDMLIB>

## Installing part 1 of 1. /tmp/hba.conf /usr/lib/libqlsdm.a /usr/lib/libqlsdm.so [ verifying class <none> ] ## Executing postinstall script. Setting up QLSDM library...

Installation of <QLSDMLIB> was successful.

15. Type the following text to reboot and reconfigure the system:

reboot -- -r

16. See the README.TXT file in the Solaris directory (on the SANsurfer Management Suite CD-ROM or the QLogic web site (www.qlogic.com

)) for possible modifications to the qla2300.conf, sd.conf, and st.conf files. These modifications include configuring devices and driver parameters.

If you need FCode, see the appropriate section for instructions on how to install or update the FCode on the QCP/QSB23xx board.

CF2351102-00 F 6-5

6 – Solaris SPARC Driver Installation FCode

Notes

6-6 CF2351102-00 F

Q-Logic PHE-ORE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

How to Use this Guide

General Description

What is Fibre Channel?

Features

QCP2330/2332 HBA Components

LEDs

Figure 2-1. QCP2330/2332 HBA Layout

Jumpers

Installation and Removal

Installation in the Computer (Standard)

Installation in the Computer (Hot Swap)

Removing the QCP2330/2332 HBA

FCode

Updating FCode on the QCP2330/2332 HBA

Setting the QCP2330/2332 HBA Connection Mode

Setting the QCP2330/2332 HBA Loop ID

Selecting the Boot Device

Building the Bootable Disk

Setting and Viewing the Fibre Channel Data Rate

Specifications

Table 2-1. Fibre Channel Data Rates

Table 2-2. QCP2330/2332 Board Operating Environment

Table 2-3. QCP2330/2332 Board Specifications

Label

Agency Certification

EMC/EMI Test Requirements

Product Safety Requirements

QCP2340/2342 HBA Components

Figure 3-1. QCP2340/2342 HBA Layout

LEDs

Jumpers

Table 3-1. LED1 and LED2 (QCP2342) Activity

Installation and Removal

Installation in the Computer (Standard)

Installation in the Computer (Hot Swap)

Removing the QCP2340/2342 HBA

FCode

Updating FCode on the QCP2340/2342 HBA

Setting the QCP2340/2342 HBA Connection Mode

Setting the QCP2340/2342 HBA Loop ID

Selecting the Boot Device

Building the Bootable Disk

Setting and Viewing the Fibre Channel Data Rate

Table 3-2. Fibre Channel Data Rates

Specifications

Table 3-3. QCP2340/2342 Board Operating Environment

Table 3-4. QCP2340/2342 Board Specifications

Label

Agency Certification

EMI and EMC Requirements

Product Safety Requirements

QSB2340/2342 HBA Components

Figure 4-1. QSB2340/2342 HBA Layout

LEDs

Jumpers

Table 4-1. LED1 and LED2 (QCP2342) Activity

Installation in the Computer

FCode

Updating FCode on the QSB2340/2342 HBA

Setting the QSB2340/2342 HBA Connection Mode

Setting the QSB2340/2342 HBA Loop ID

Selecting the Boot Device

Building the Bootable Disk

Specifications

Table 4-2. QSB2340/2342 Board Operating Environment

Table 4-3. QSB2340/2342 Board Specifications

Label

Agency Certification

EMI and EMC Requirements

Product Safety Requirements

Problems After Installation

Hardware Problem Checklist

Fibre Channel Problem Checklist

Introduction

Pre-installation Requirements
