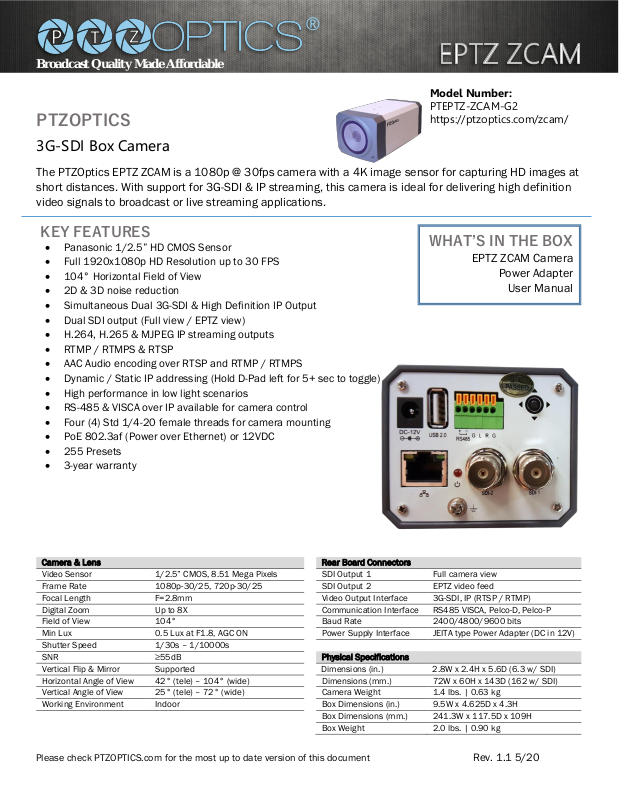

PTZOptics PTEPTZ-ZCAM-G2 Data Sheet

®

Broadcast Quality Made Affordable

Please check PTZOPTICS.com for the most up to date version of this document Rev. 1.1 5/20

Model Number:

PTEPTZ-ZCAM-G2
https://ptzoptics.com/zcam/

PTZOPTICS

3G-SDI Box Camera

The PTZOptics EPTZ ZCAM is a 1080p @ 30fps camera with a 4K image sensor for capturing HD images at
short distances. With support for 3G-SDI & IP streaming, this camera is ideal for delivering high definition
video signals to broadcast or live streaming applications.

KEY FEATURES

• Panasonic 1/2.5” HD CMOS Sensor

• Full 1920x1080p HD Resolution up to 30 FPS

• 104° Horizontal Field of View

• 2D & 3D noise reduction

• Simultaneous Dual 3G-SDI & High Definition IP Output

• Dual SDI output (Full view / EPTZ view)

• H.264, H.265 & MJPEG IP streaming outputs

• RTMP / RTMPS & RTSP

• AAC Audio encoding over RTSP and RTMP / RTMPS

• Dynamic / Static IP addressing (Hold D-Pad left for 5+ sec to toggle)

• High performance in low light scenarios

• RS-485 & VISCA over IP available for camera control

• Four (4) Std 1/4-20 female threads for camera mounting

• PoE 802.3af (Power over Ethernet) or 12VDC

• 255 Presets

• 3-year warranty

Camera & Lens

Rear Board Connectors

Video Sensor

1/2.5” CMOS, 8.51 Mega Pixels

SDI Output 1

Full camera view

Frame Rate

1080p-30/25, 720p-30/25

SDI Output 2

EPTZ video feed

Focal Length

F=2.8mm

Video Output Interface

3G-SDI, IP (RTSP / RTMP)

Digital Zoom

Up to 8X

Communication Interface

RS485 VISCA, Pelco-D, Pelco-P

Field of View

104°

Baud Rate

2400/4800/9600 bits

Min Lux

0.5 Lux at F1.8, AGC ON

Power Supply Interface

JEITA type Power Adapter (DC in 12V)

Shutter Speed

1/30s – 1/10000s

SNR

≥55dB

Physical Specifications

Vertical Flip & Mirror

Supported

Dimensions (in.)

2.8W x 2.4H x 5.6D (6.3 w/ SDI)

Horizontal Angle of View

42° (tele) – 104° (wide)

Dimensions (mm.)

72W x 60H x 143D (162 w/ SDI)

Vertical Angle of View

25° (tele) – 72° (wide)

Camera Weight

1.4 lbs. | 0.63 kg

Working Environment

Indoor

Box Dimensions (in.)

9.5W x 4.625D x 4.3H

Box Dimensions (mm.)

241.3W x 117.5D x 109H

Box Weight

2.0 lbs. | 0.90 kg

WHAT’S IN THE BOX

EPTZ ZCAM Camera

Power Adapter

User Manual
