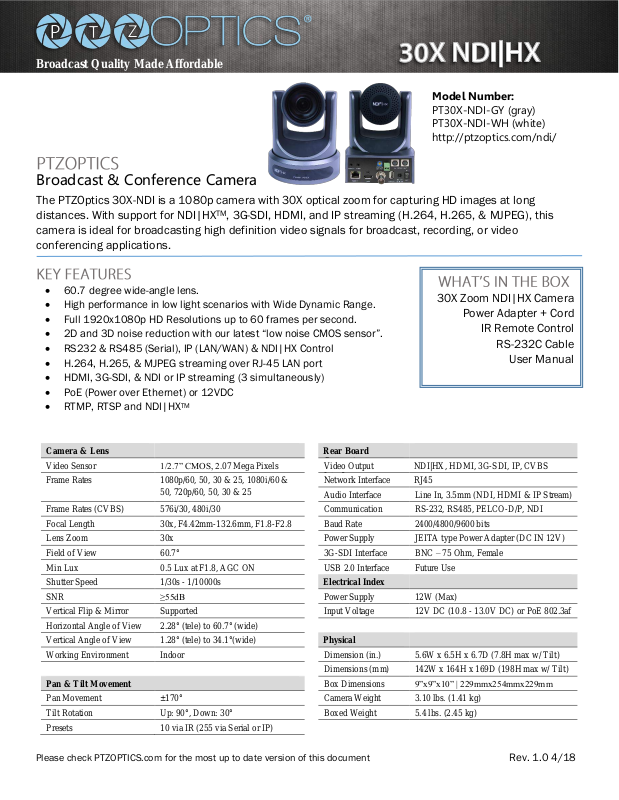

PTZOptics PT30X-NDI Data Sheet

Broadcast Quality Made Affordable

Please check PTZOPTICS.com for the most up to date version of this document Rev. 1.0 4/18

Model Number:

PT30X-NDI-GY (gray)
PT30X-NDI-WH (white)
http://ptzoptics.com/ndi/

Broadcast & Conference Camera

The PTZOptics 30X-NDI is a 1080p camera with 30X optical zoom for capturing HD images at long
distances. With support for NDI|HXTM, 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this
camera is ideal for broadcasting high definition video signals for broadcast, recording, or video
conferencing applications.

• 60.7 degree wide-angle lens.

• High performance in low light scenarios with Wide Dynamic Range.

• Full 1920x1080p HD Resolutions up to 60 frames per second.

• 2D and 3D noise reduction with our latest “low noise CMOS sensor”.

• RS232 & RS485 (Serial), IP (LAN/WAN) & NDI|HX Control

• H.264, H.265, & MJPEG streaming over RJ-45 LAN port

• HDMI, 3G-SDI, & NDI or IP streaming (3 simultaneously)

• PoE (Power over Ethernet) or 12VDC

• RTMP, RTSP and NDI|HX

TM

Camera & Lens

Rear Board

Video Sensor

1/2.7” CMOS, 2.07 Mega Pixels

Video Output

NDI|HX, HDMI, 3G-SDI, IP, CVBS

Frame Rates

1080p/60, 50, 30 & 25, 1080i/60 &
50, 720p/60, 50, 30 & 25

Network Interface

RJ45

Audio Interface

Line In, 3.5mm (NDI, HDMI & IP Stream)

Frame Rates (CVBS)

576i/30, 480i/30

Communication

RS-232, RS485, PELCO-D/P, NDI

Focal Length

30x, F4.42mm-132.6mm, F1.8-F2.8

Baud Rate

2400/4800/9600 bits

Lens Zoom

30x Power Supply

JEITA type Power Adapter (DC IN 12V)

Field of View

60.7°

3G-SDI Interface

BNC – 75 Ohm, Female

Min Lux

0.5 Lux at F1.8, AGC ON

USB 2.0 Interface

Future Use

Shutter Speed

1/30s - 1/10000s

Electrical Index

SNR

≥55dB

Power Supply

12W (Max)

Vertical Flip & Mirror

Supported

Input Voltage

12V DC (10.8 - 13.0V DC) or PoE 802.3af

Horizontal Angle of View

2.28° (tele) to 60.7° (wide)

Vertical Angle of View

1.28° (tele) to 34.1°(wide)

Physical

Working Environment

Indoor

Dimension (in.)

5.6W x 6.5H x 6.7D (7.8H max w/ Tilt)

Dimensions (mm)

142W x 164H x 169D (198H max w/ Tilt)

Pan & Tilt Movement

Box Dimensions

9”x9”x10” | 229mmx254mmx229mm

Pan Movement

±170°

Camera Weight

3.10 lbs. (1.41 kg)

Tilt Rotation

Up: 90°, Down: 30°

Boxed Weight

5.4 lbs. (2.45 kg)

Presets

10 via IR (255 via Serial or IP)

30X Zoom NDI|HX Camera

Power Adapter + Cord

IR Remote Control

RS-232C Cable

User Manual

OPTICS

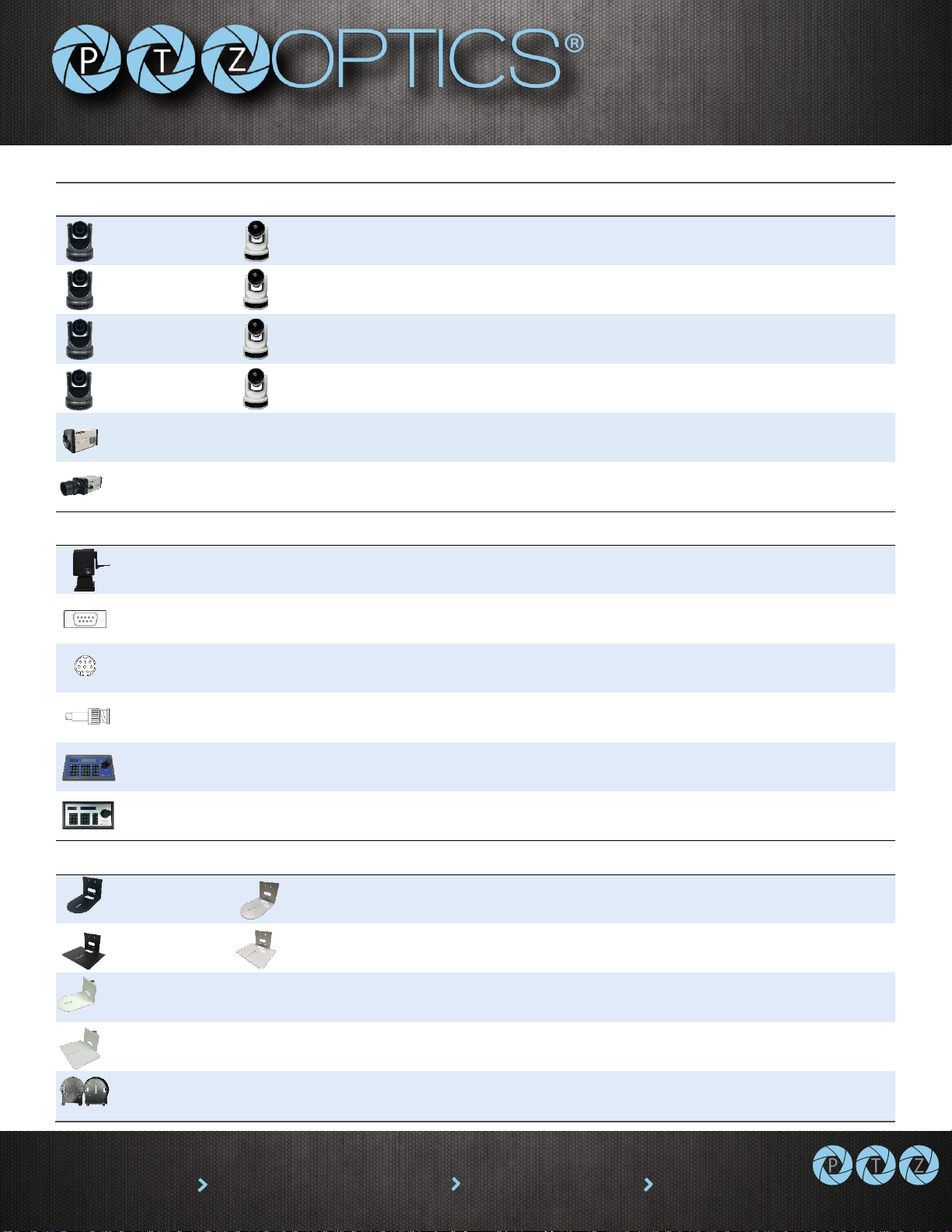

DATA SHEET PTZ Optics Specifications & Diagrams

152 Robbins Road Downingtown, PA 19335 PTZOptics.com 800-486-5276

1. Standby Button
Press this button to enter standby mode.
Press it again to enter normal mode.
NOTE: Power consumption in standby mode
is approximately half of the normal mode.

2. Position Buttons (0-9)

To set preset or call presets and for Special
Shortcut Functions.

3. * (asterisk) Button

For use with multiple function buttons (see

12)

4&13. Set/Clear Preset Buttons

Set preset: Store a preset position [PRESET]
+ Numeric button (0-9): Setting a
corresponding numeric key preset position.
Clear preset: Erase a preset position
[RESET] + Numeric button (0-9)
Note: [*] + [#] + [RESET]: Erase all presets.

5&14. Pan/Tilt & Home Control Buttons

Press the arrow buttons to perform panning

and tilting. Press the [HOME] button to face
the camera back to its Home position.

6. Return Button
Press button to return to previous menu.

7. Zoom Buttons (Slow & Fast)

Zoom+: Zoom In (Slow and fast speeds)
Zoom-: Zoom Out (Slow and fast speeds)

8. L/R Set Button

Set the left & right direction of panning
control. Hold [L/R Set] + Press [1]: Normal
panning direction. Hold [L/R Set] + Press [2]:
Left and right panning direction will be
reversed.

9. Focus Buttons

Used for focus adjustment. Press [AUTO] to
adjust the focus on the center of the object
automatically. To adjust the focus manually,
press the [MANUAL] button, and then
adjust focus with [Far] (focus on far object)
and [Near] focus on near object).

10. Camera Address Select Buttons
Press the button corresponding to the
camera which you want to operate with
the IR remote controller.

11. # Button
For use with multiple function buttons (see

12)

12. Multiple Function Buttons

Function 1. Set camera IR address function:
Press 3 keys consecutively to set the camera’s
IR address as follow:
[*] + [#] + [F1]: IR Address 1

[*] + [#] + [F2]: IR Address 2
[*] + [#] + [F3]: IR Address 3
[*] + [#] + [F4]: IR Address 4
Function 2. Image freezing function: Press [F4]
to start the freeze function. The word "Freeze"
displays on the upper left corner. After five
seconds, the display disappears automatically
(though the freeze feature continues). To cancel
the freeze, press the [F4] key the word
"Unfreeze" displays on the upper left corner.
After five seconds, the display disappears
automatically.

15. Menu Button

OSD Menu Settings: Press this button to enter
or exit the OSD (on screen display) menu.

16. Backlight Button
Backlight (aka BLC) button: Press this button to
enable backlight compensation. Press it again to
disable backlight compensation. NOTE:
Effective only in auto exposure mode. NOTE: If
there is a light behind the subject, the subject
will appear dark (i.e. silhouetted). In this case,
press the backlight button to turn BLC On . To
cancel this function, press the backlight button
to turn BLC Off.

17. P/T RST Button
Press the button to self-calibrate the pan and tilt
positions and limits.

Special Shortcut Functions

[*] + [#] + [1]: Display OSD menu in English
[*] + [#] + [3]: Display OSD menu in Chinese
[*] + [#] + [4]: Show IP address
[*] + [#] + [6]: Quickly restore default settings
[*] + [#] + [8]: Show the camera FW version
[*] + [#] + [9]: Quickly set mounting mode
(vertical flip / normal)
