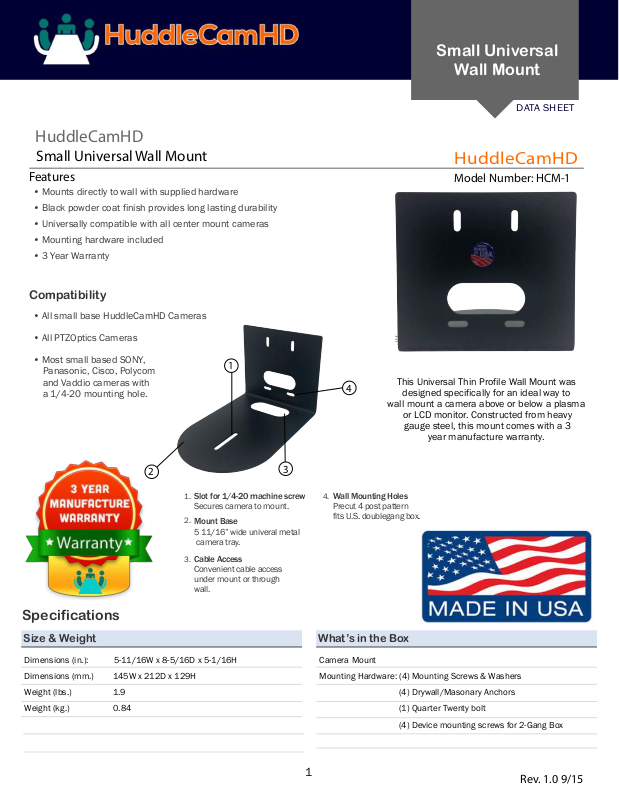

PTZOptics HCM-1 Data Sheet

HuddleCamHD

Small Universal

Wall Mount

DATA SHEET

Small Universal Wall Mount

Features

• Mounts directly to wall with supplied hardware

• Black powder coat finish provides long lasting durability

• Universally compatible with all center mount cameras

• Mounting hardware included

• 3 Year Warranty

Compatibility

• All small base HuddleCamHD Cameras

• All PTZOptics Cameras

• Most small based SONY,
Panasonic, Cisco, Polycom
and Vaddio cameras with
a 1/4-20 mounting hole.

1

HuddleCamHD

Model Number: HCM-1

Cable Access

4.8” univeral metal
camera tray.

4

This Universal Thin Profile Wall Mount was

designed specifically for an ideal way to

wall mount a camera above or below a plasma

or LCD monitor. Constructed from heavy

gauge steel, this mount comes with a 3

year manufacture warranty.

2

Slot for 1/4-20 machine screw

1.

Secures camera to mount.

2.

Mount Base

5 11/16” wide univeral metal
camera tray.

3. Cable Access

Convenient cable access
under mount or through
wall.

Specifications

Size & Weight

Dimensions (in.): 5-11/16W x 8-5/16D x 5-1/16H

Dimensions (mm.) 145W x 212D x 129H

Weight (lbs.) 1.9

Weight (kg.) 0.84

3

4.

Wall Mounting Holes

Precut 4 post pattern
fits U.S. doublegang box.

What’s in the Box

Camera Mount

Mounting Hardware: (4) Mounting Screws & Washers

(4) Drywall/Masonary Anchors

(1) Quarter Twenty bolt

(4) Device mounting screws for 2-Gang Box

1

Rev. 1.0 9/15
