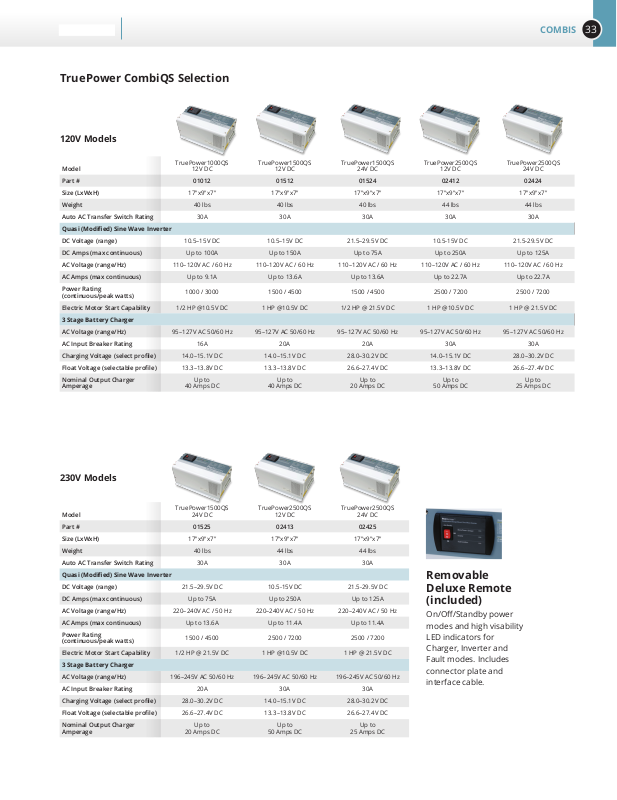

ProMariner TruePower CombiQS Data Sheet
TruePower CombiQS Selection
120V Models
COMBIS
33
Model
Part # 01012 01512 01524 02412 02424
Size (LxWxH) 17"x9"x7" 17"x9"x7" 17"x9"x7" 17"x9"x7" 17"x9"x7"
Weight 40 lbs 40 lbs 40 lbs 44 lbs 44 lbs
Auto AC Transfer Switch Rating 30A 30A 30A 30A 30A
Quasi (Modied) Sine Wave Inverter
DC Voltage (range) 10.5–15V DC 10.5–15V DC 21.5–29.5V DC 10.5-15V DC 21.5-29.5V DC
DC Amps (max continuous) Up to 100A Up to 150A Up to 75A Up to 250A Up to 125A
AC Voltage (range/Hz) 110–120V AC / 60 Hz 110–120V AC / 60 Hz 110–120V AC / 60 Hz 110–120V AC / 60 Hz 110–120V AC / 60 Hz
AC Amps (max continuous) Up to 9.1A Up to 13.6A Up to 13.6A Up to 22.7A Up to 22.7A
Power Rating
(continuous/peak watts)
Electric Motor Start Capability 1/2 HP @10.5V DC 1 HP @10.5V DC 1/2 HP @ 21.5V DC 1 HP @10.5V DC 1 HP @ 21.5V DC
3 Stage Battery Charger
AC Voltage (range/Hz) 95–127V AC 50/60 Hz 95–127V AC 50/60 Hz 95–127V AC 50/60 Hz 95–127V AC 50/60 Hz 95–127V AC 50/60 Hz
AC Input Breaker Rating 16A 20A 20A 30A 30A
Charging Voltage (select prole) 14.0–15.1V DC 14.0–15.1V DC 28.0–30.2V DC 14.0–15.1V DC 28.0–30.2V DC
Float Voltage (selectable prole) 13.3–13.8V DC 13.3–13.8V DC 26.6–27.4V DC 13.3–13.8V DC 26.6–27.4V DC
Nominal Output Charger
Amperage
TruePower1000QS
12V DC
1000 / 3000 1500 / 4500 1500 / 4500 2500 / 7200 2500 / 7200
Up to
40 Amps DC
TruePower1500QS
12V DC
Up to
40 Amps DC
TruePower1500QS
24V DC
Up to
20 Amps DC
TruePower2500QS
12V DC
Up to
50 Amps DC
TruePower2500QS
24V DC
Up to
25 Amps DC
230V Models
Model
Part # 01525 02413 02425
Size (LxWxH) 17"x9"x7" 17"x9"x7" 17"x9"x7"
Weight 40 lbs 44 lbs 44 lbs
Auto AC Transfer Switch Rating 30A 30A 30A
Quasi (Modied) Sine Wave Inverter
DC Voltage (range) 21.5–29.5V DC 10.5-15V DC 21.5-29.5V DC
DC Amps (max continuous) Up to 75A Up to 250A Up to 125A
AC Voltage (range/Hz) 220–240V AC / 50 Hz 220–240V AC / 50 Hz 220–240V AC / 50 Hz
AC Amps (max continuous) Up to 13.6A Up to 11.4A Up to 11.4A
Power Rating
(continuous/peak watts)
Electric Motor Start Capability 1/2 HP @ 21.5V DC 1 HP @10.5V DC 1 HP @ 21.5V DC
3 Stage Battery Charger
AC Voltage (range/Hz) 196–245V AC 50/60 Hz 196–245V AC 50/60 Hz 196–245V AC 50/60 Hz
AC Input Breaker Rating 20A 30A 30A
Charging Voltage (select prole) 28.0–30.2V DC 14.0–15.1V DC 28.0–30.2V DC
Float Voltage (selectable prole) 26.6–27.4V DC 13.3–13.8V DC 26.6–27.4V DC
Nominal Output Charger
Amperage
TruePower1500QS
24V DC
1500 / 4500 2500 / 7200 2500 / 7200
Up to
20 Amps DC
TruePower2500QS
12V DC
Up to
50 Amps DC
TruePower2500QS
24V DC
Up to
25 Amps DC
Removable
Deluxe Remote
(included)
On/O/Standby power
modes and high visability
LED indicators for
Charger, Inverter and
Fault modes. Includes
connector plate and
interface cable.
