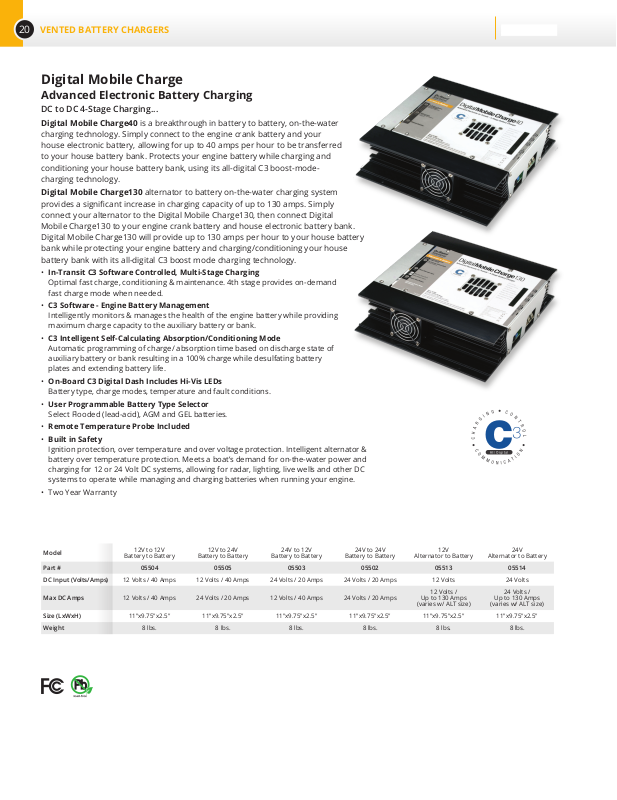

ProMariner Digital Mobile Charge Data Sheet

VENTED BATTERY CHARGERS

20

Digital Mobile Charge

Advanced Electronic Battery Charging

DC to DC 4-Stage Charging...

Digital Mobile Charge40 is a breakthrough in battery to battery, on-the-water
charging technology. Simply connect to the engine crank battery and your
house electronic battery, allowing for up to 40 amps per hour to be transferred
to your house battery bank. Protects your engine battery while charging and
conditioning your house battery bank, using its all-digital C3 boost-mode­charging technology.

Digital Mobile Charge130 alternator to battery on-the-water charging system

provides a signicant increase in charging capacity of up to 130 amps. Simply

connect your alternator to the Digital Mobile Charge130, then connect Digital
Mobile Charge130 to your engine crank battery and house electronic battery bank.
Digital Mobile Charge130 will provide up to 130 amps per hour to your house battery
bank while protecting your engine battery and charging/conditioning your house
battery bank with its all-digital C3 boost mode charging technology.

• In-Transit C3 Software Controlled, Multi-Stage Charging
Optimal fast charge, conditioning & maintenance. 4th stage provides on-demand
fast charge mode when needed.

• C3 Software - Engine Battery Management
Intelligently monitors & manages the health of the engine battery while providing
maximum charge capacity to the auxiliary battery or bank.

• C3 Intelligent Self-Calculating Absorption/Conditioning Mode
Automatic programming of charge/ absorption time based on discharge state of
auxiliary battery or bank resulting in a 100% charge while desulfating battery
plates and extending battery life.

• On-Board C3 Digital Dash Includes Hi-Vis LEDs
Battery type, charge modes, temperature and fault conditions.

• User Programmable Battery Type Selector

Select Flooded (lead-acid), AGM and GEL batteries.

• Remote Temperature Probe Included

• Built in Safety
Ignition protection, over temperature and over voltage protection. Intelligent alternator &
battery over temperature protection. Meets a boat’s demand for on-the-water power and

charging for 12 or 24 Volt DC systems, allowing for radar, lighting, live wells and other DC

systems to operate while managing and charging batteries when running your engine.

• Two Year Warranty

Model

Part # 05504 05505 05503 05502 05513 05514

DC Input (Volts/Amps) 12 Volts / 40 Amps 12 Volts / 40 Amps 24 Volts / 20 Amps 24 Volts / 20 Amps 12 Volts 24 Volts

Max DC Amps 12 Volts / 40 Amps 24 Volts / 20 Amps 12 Volts / 40 Amps 24 Volts / 20 Amps

Size (LxWxH) 11"x9.75"x2.5" 11"x9.75"x2.5" 11"x9.75"x2.5" 11"x9.75"x2.5" 11"x9.75"x2.5" 11"x9.75"x2.5"

Weight 8 lbs. 8 lbs. 8 lbs. 8 lbs. 8 lbs. 8 lbs.

12V to 12V

Battery to Battery

12V to 24V

Battery to Battery

24V to 12V

Battery to Battery

24V to 24V

Battery to Battery

12V

Alternator to Battery

12 Volts /

Up to 130 Amps

(varies w/ ALT size)

24V

Alternator to Battery

24 Volts /

Up to 130 Amps

(varies w/ ALT size)
