Pro-face PL-7900 Series, PL-7900T, PL-7901T User Manual

PL-7900 Series

Panel Computer

User Manual

When printing out this PDF manual, since the printer setting can effect the quality of the printout, be sure your printer’s quality setting is set to “High”.

Preface

Digital’s PL-7900 series of Panel Computers (each of which are hereafter referred to collectively as the “PL” ) are multipurpose factory automation (FA) computers, which embody Digital’s latest, cost-effective architecture. Before using the PL-7900 series read this manual thoroughly to familiarize yourself with the PL-7900 series operation procedures and functions.

NOTE:

1. It is forbidden to copy the contents of this manual in whole, or in part, without the permission of the Digital Electronics Corporation.

2. The information in this manual is subject to change without notice.

3. This manual was written with care; however, if you should find any errors or omissions, please contact Digital Electronics and inform them of your findings.

4. Please be aware that Digital is not responsible for any damages resulting from the use of our products, regardless of article 3 above.

Product names used in this manual are the trademarks of their respective manufacturers.

Corporation. IBM®, and DOS® are registered trademarks of IBM.

PL-7900 Series User Manual

Preface

Essential Safety Precautions

This manual includes the following cautions concerning procedures that must be followed to operate the PL correctly and safely . Prior to operating the PL, be sure to read this manual and any related materials thoroughly to understand the correct operation and functions of this unit.

Safety Icons

To allow you to use the PL correctly, throughout this manual, the following icons are provided next to operations requiring special attention. These icons are used to describe the following situations:

Indicates situations where severe bodily

W arning

injury, death or major equipment damage may occur .

Caution

Indicates situations where slight bodily injury or machine damage can occur .

WARNINGS

• To avoid the possibility of an electric shock, be sure to connect the power cord to the PL before connecting it to the main power supply.

• A fire or electrical shock may occur if voltages used with the PL are beyond the specified range. Be sure to use only the specified voltage.

• Before opening the PL’s protective cover, be sure to turn the unit’s power OFF. This is because the PL’s internal parts carry high voltages.

• T o avoid fires or electrical hazards, do not modify the PL in any way.

• Do not create touch panel switches that are used to either control or to ensure the safety of equipment and personnel. Mechanical switches, such as an emergency stop switch, a deadman (two-handed) start switch, etc., must be installed and operated via a separate control system.

PL-7900 Series User Manual

Preface

WARNINGS

• Do not create touch panel switches which could possibly endanger the safety of humans and equipment. This is due to the possibility of a malfunction in the PL or its cable(s), causing the output of a signal that could result in a major accident. All of a system’s major, safety-related switches should be designed to be operated separately from the PL.

• After the PL’s backlight burns out, unlike the PL’s “Standby Mode”, the touch panel is still active. If the operator fails to notice that the backlight is burned out and touches the panel, a potentially dangerous machine missoperation can occur.

If your PL's backlight suddenly turns OFF, use the following

steps to determine if the backlight is actually burned out.

1) If your PL is has gone blank, your backlight is burned out.

2) Or , if your PL screen does not cause the display to reappear, your backlight is burned out.

• If metal particles, water or other types of liquids contact

any of the PL ’s internal parts, immediately turn the unit’s power OFF, unplug the power cord, and contact either your PL distributor or the Digital Electronics Corporation.

• Read and understand Chapter 4 “Installation and Wiring”

thoroughly in order to select an appropriate installation location for the PL.

• Before either plugging in or unplugging a board or inter-

not set to "Standby Mode" and the screen

is set to Standby Mode, but touching the

face connector, be sure to turn the PL’s power OFF.

PL-7900 Series User Manual

iii

Preface

WARNINGS

• To prevent a possible explosion, do not install the PL in

areas containing flammable gases.

• The PL is not appropriate for use with aircraft control de-

vices, aerospace equipment, central trunk data transmission (communication) devices, nuclear power control devices, or medical life support equipment, due to these devices’ inherent requirements of extremely high levels of safety and reliability.

• When using the PL with transportation vehicles (trains,

cars and ships), disaster and crime prevention devices, various types of safety equipment, non-life support related medical devices, etc. redundant and/or fail-safe system designs should be used to ensure the proper degree of reliability and safety.

PL-7900 Series User Manual

Preface

CAUTIONS

• Do not push on the PL’s screen too strongly, with either

your finger or with a hard object. Excessive pressure can scratch, crack or damage the screen. Also, do not use a pointed object, such as a mechanical pencil or screwdriver, to press any of the touch panel’s switches, since they can damage the display.

• If the screen becomes dirty or smudged, moisten a soft

cloth with diluted neutral detergent, wring the cloth well, and wipe the display. Do vents.

• Avoid exposing the PL to, or operating the PL in direct

sunlight, high temperatures and humidity, and in areas where excessive dust and vibration will occur.

• Avoid using the PL in areas where sudden, extreme

changes in temperature can occur . This may cause condensation to form inside the unit, possibly leading to an accident.

• To prevent the PL from overheating, be sure its air circula-

tion vents are clear and clean, and keep the unit’s operation area well-ventilated.

• Avoid operating or storing the PL near chemicals, or

where chemicals can come into contact with the unit.

When PL Hard Disk (HDD) data is lost:

• The Digital Electronics Corporation can not be held re-

not use thinner or organic sol-

sponsible or provide any compensation for damage(s) caused by the loss of data stored in the PL ’s hard disk drive (HDD). It is therefore strongly suggested that all important data and software be backed up regularly to an external data backup device.

• Please be aware that the Digital Electronics Corporation

bears no responsibility for any damages resulting from the customer’s application of this unit’s hardware or software.

PL-7900 Series User Manual

Preface

! The displayed color will look different when viewed from an angle outside the

specified view angle. This is also normal.

! Displaying a single screen image for long periods of time can cause an afterimage

to remain on the screen. To correct this, turn the unit OFF for 5 to 10 minutes, then ON again. This phenomenon is a common attribute of the LCDs, and is not a defect. To prevent this effect, you can:

- use the Display OFF feature; if the same image is to be displayed for a long period of time.

- change the screen display periodically to prevent the displaying of a single image for a long period of time.

Notes on Handling the Hard Disk Drive

! The Digital Electronics Corporation cannot take responsibility or provide any

compensation for damage(s) caused by the loss of data stored in the PL-7900 series’ hard disk drive (HDD). It is therefore strongly suggested that all important data and software be backed up regularly to an external data backup device.

! Please be aware that the Digital Electronics Corporation bears no responsibility

for any damages resulting from the customer’s application of this unit’s hardware or software.

! Please be aware that the Digital Electronics Corporation will not provide com-

pensation for any damages occurring as a result of problems with this unit’s software or hardware.

! Since the PL’s hard disk drive (HDD) is a consumable item, i.e. it has a finite

usage lifetime, be sure to back up its data frequently and perform regular maintenance.

! T o prevent damage to file data, be sure to shut down the PL’s OS before turning

OFF the main power.

PL-7900 Series User Manual

Preface

Preface .......................................................................................................................... i

Essential Safety Precautions........................................................................................ ii

Table of Contents....................................................................................................... vii

Prior to Using the PL................................................................................................... x

Symbol Information.................................................................................................... xi

Package Contents ...................................................................................................... xii

PL-7900 Series Features........................................................................................... xiii

UL/cUL Application Notes ...................................................................................... xiv

CE Marking ............................................................................................................... xv

Chapter 1 Overview

1-1 System Configuration ..................................................................................... 1-1

1-2 Options............................................................................................................. 1-2

1-3 PL Series Panel Types..................................................................................... 1-5

Chapter 2 Specifications

2-1 General Specifications .................................................................................... 2-1

2-1-1 Electrical Specifications ....................................................................... 2-1

2-1-2 Environment Specifications.................................................................. 2-2

2-1-3 Dimensions ........................................................................................... 2-3

2-2 Performance Specifications............................................................................ 2-4

2-2-1 Performance Specifications .................................................................. 2-4

2-2-2 Display Functions ................................................................................. 2-5

2-2-3 Expansion Slots .................................................................................... 2-5

2-2-4 Clock(R TC) Accuracy .......................................................................... 2-5

2-3 Interface Specifications .................................................................................. 2-6

2-3-1 Printer Interface .................................................................................... 2-6

2-3-2 Keyboard Interface ............................................................................... 2-6

2-3-3 Mouse Interface .................................................................................... 2-6

2-3-4 RS-232C Interface (COM1/COM2/COM3)......................................... 2-7

2-3-5 RAS Interface ....................................................................................... 2-7

2-4 PL External Features...................................................................................... 2-9

2-5 PL Dimensions............................................................................................... 2-11

2-5-1 PL-7900T General Dimensions .......................................................... 2-11

2-5-2 PL-7901T General Dimensions .......................................................... 2-12

2-5-3 Full Sized Cover Attachment Dimensions ......................................... 2-13

2-5-4 Installation Slot Dimensions............................................................... 2-14

PL-7900 Series User Manual

vii

Preface

Chapter 3 Installing Optional Units and Expansion Boards

3-1 Installing Options and Expansion Boards ..................................................... 3-1

Chapter 4 Installation and Wiring

4-1 Installation Cautions........................................................................................ 4-1

4-2 Installing the PL ............................................................................................... 4-3

3-1-1 Removing the Rear maintenance cover ................................................ 3-2

3-1-2 Installing the DIM Module (PL-EM220 / PL-EM230)......................... 3-4

3-1-3 Installing the FDD Unit (PL-FD200).................................................... 3-5

3-1-4 Installing the FDD Unit (PL-FD210).................................................... 3-6

3-1-5 Removing/Installing the HDD unit (PL-HD220) ................................. 3-7

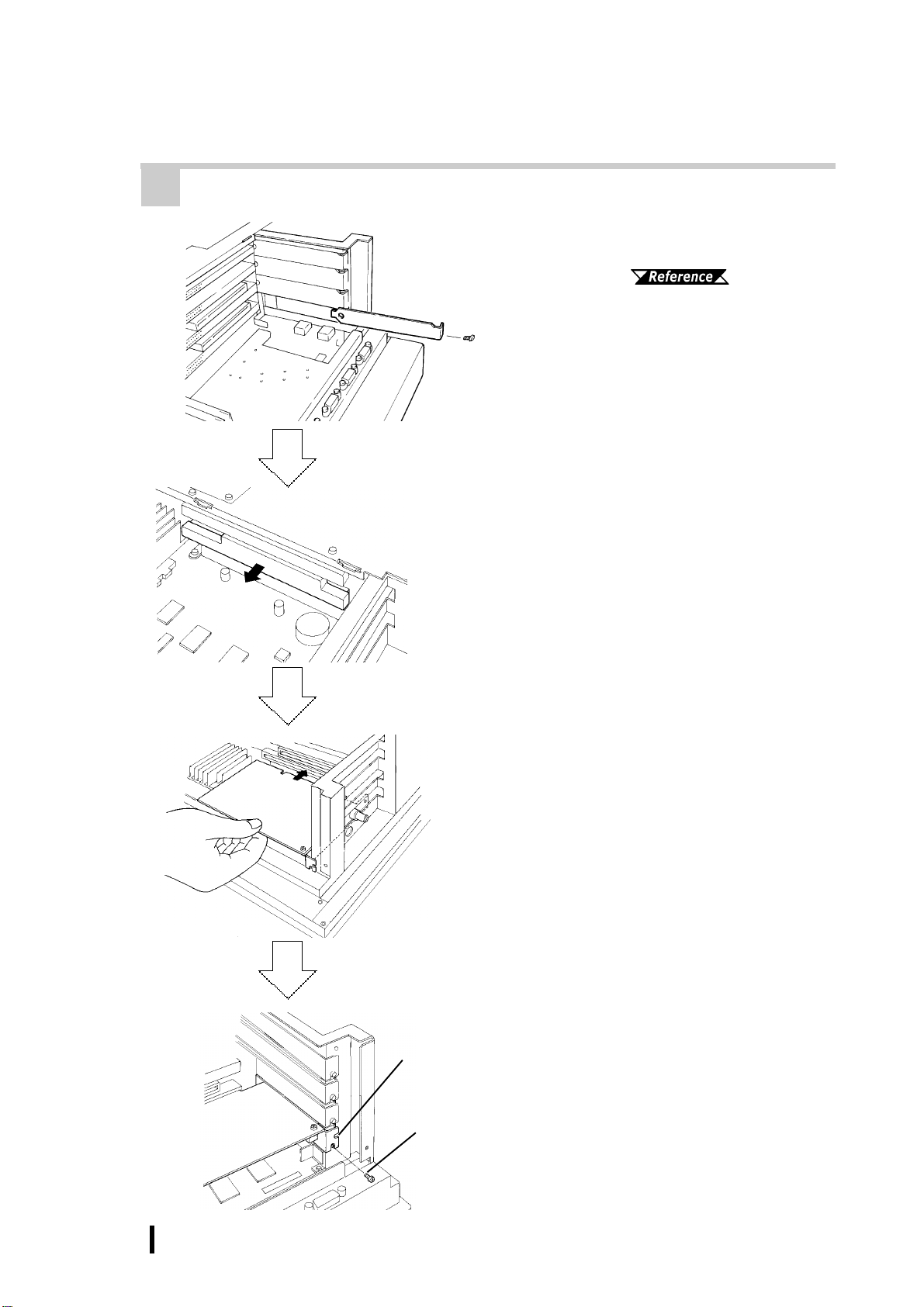

3-1-6 Installing an Expansion Board.............................................................. 3-8

3-1-7 Connecting the CD-ROM Unit (PL-DK200) ....................................... 3-9

3-1-8 Removing the Cooling Fan Unit......................................................... 3-10

4-2-1 Installation Procedures ......................................................................... 4-3

4-3 Wiring the PL ................................................................................................... 4-6

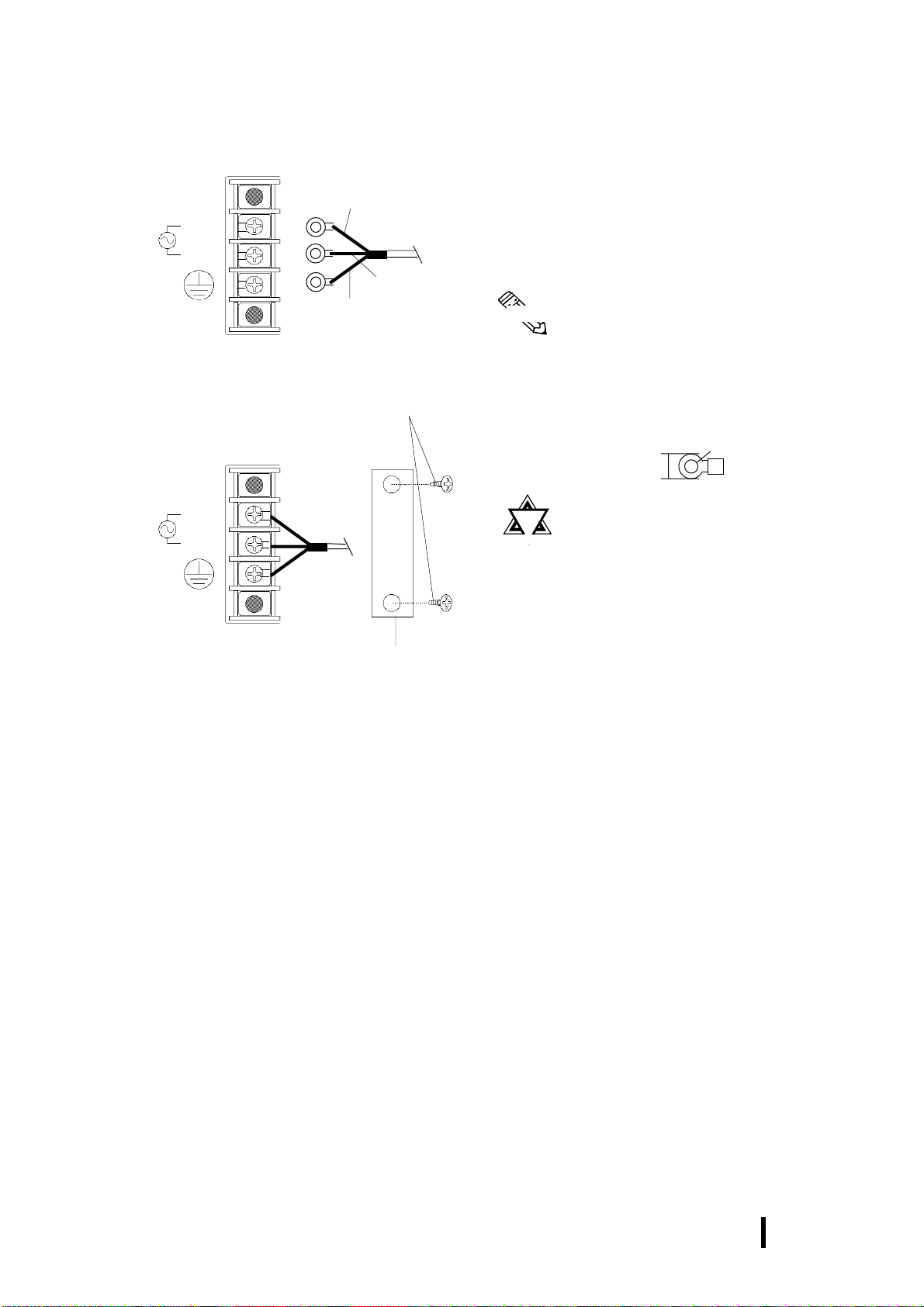

4-3-1 Connecting the Power Cord.................................................................. 4-6

4-3-2 Power Supply Cautions ........................................................................ 4-8

4-3-3 Grounding Cautions.............................................................................. 4-9

4-3-4 Cautions When Connecting I/O Signal Lines....................................... 4-9

Chapter 5 System Setup

5-1 Setup Procedures............................................................................................. 5-1

5-2 System Parameters.......................................................................................... 5-2

5-2-1 STANDARD CMOS SETUP ............................................................... 5-2

5-2-2 BIOS FEATURES SETUP ................................................................... 5-4

5-2-3 CHIPSET FEATURES SETUP ............................................................ 5-6

5-2-4 POWER MANAGEMENT SETUP ..................................................... 5-8

5-2-5 PNP/PCI CONFIGURATION SETUP ............................................... 5-10

5-2-6 SYSTEM MONITOR UTILITY ........................................................ 5-12

5-2-7 INTEGRATED PERIPHERALS ........................................................ 5-14

5-2-8 IDE HDD AUTO DETECTION SETUP ........................................... 5-16

Chapter 6 OS Setup

viii

6-1 Setting Up Your PL OS .................................................................................. 6-1

6-1-1 Touch Panel Device Driver Settings ..................................................... 6-2

Chapter 7 Maintenance and Inspection

7-1 Regular Cleaning ............................................................................................ 7-1

7-1-1 Cleaning the Display............................................................................. 7-1

7-1-2 Moisture Resistant Gasket Replacement .............................................. 7-2

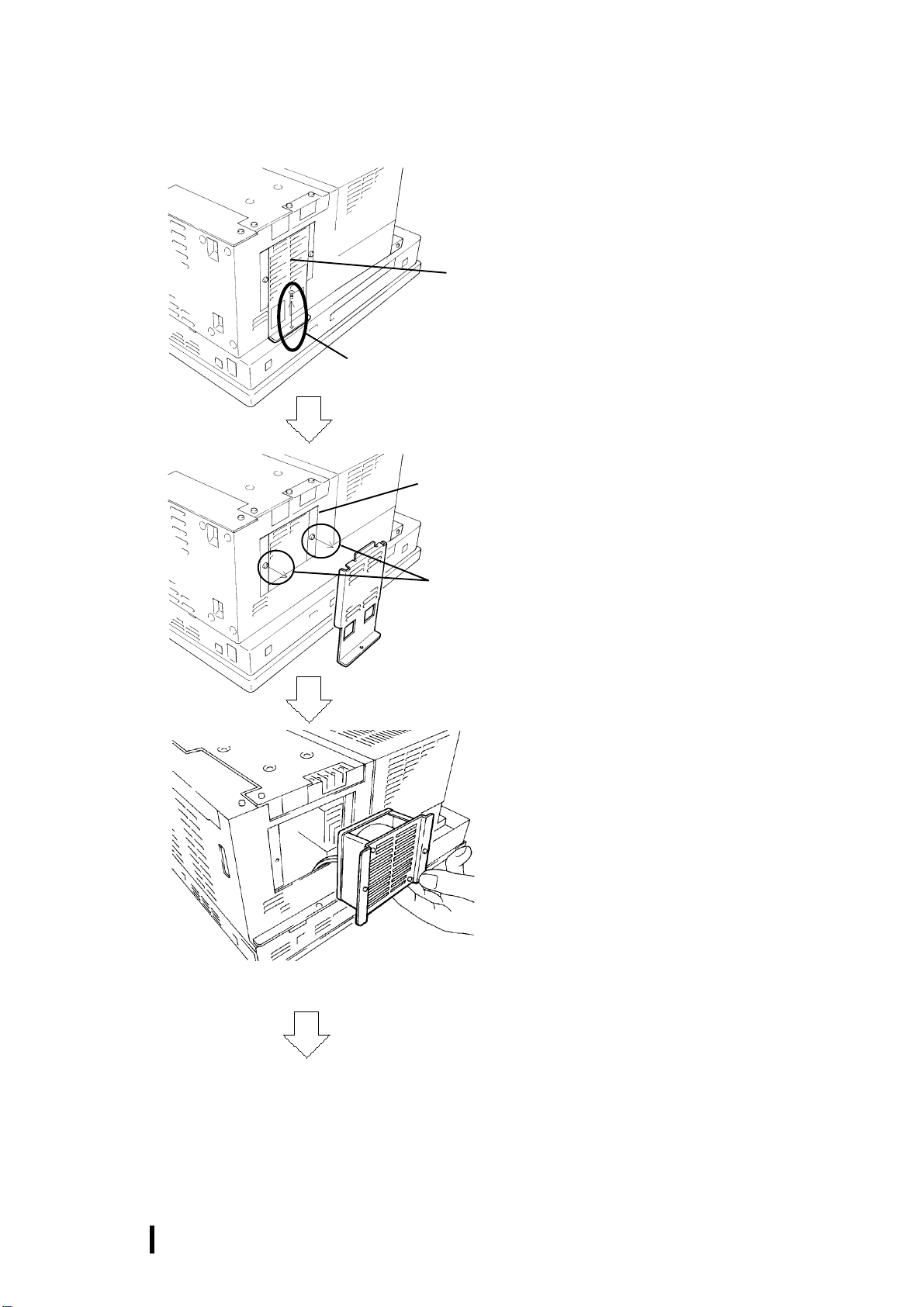

7-2 Cleaning the Filter .......................................................................................... 7-2

PL-7900 Series User Manual

Preface

7-3 Replacing the PL Backlight .......................................................................... 7-4

7-4 Periodic Check................................................................................................ 7-8

Appendix

1 Hardware Configuration............................................................................... A-1

1-1 I/O Mapping ........................................................................................ A-1

1-2 Memory Mapping ................................................................................ A-2

1-3 IRQ Mapping ....................................................................................... A-3

2 RAS Feature ................................................................................................... A-4

2-1 PL’s RAS Features............................................................................... A-4

2-2 RAS Feature Details ............................................................................ A-5

2-3 RAS Feature Overview........................................................................ A-9

Index

PL-7900 Series User Manual

Preface

Prior To Using the PL

Prior to actual use, be sure to setup your PL as follows.

Important

Turn PL ON Refer to 4-3 Wiring the PL

Setup System Refer to Chapter 5 System Setup

Install the OS

After completing the hardware setup, before any data or applications can be placed on the HDD drive, the OS (Windows® or MS-DOS®, etc.) must be used to initialize the HDD and create partitions. For details concerning these procedures, refer to the OS maker’s installation manual.

• The PL-7900T/PL-7901T’s hard disk is designed for use with the Windows

Windows NT®4.0 or later OS. The Mirror Disk unit will operate only with the Windows NT®4.0 operating system. Other operating systems do not support this driver software, etc.

Reference

Refer to the OS maker’s Installation Manual.

95,

• For system setup and OS installation, a PS/2 type keyboard is necessary.

• When using Windows

7900 series Driver & Utility Disk’s Display Driver (For installation pr ocedures, see the disk’s README text file).

• For information on the PL-7900 series’ bundled utility software, see the

README text file on the Driver & Utility Disk.

• Since the PL-7900 series’ hard disk drive (HDD) is a consumable item, i.e. it has

a finite usage lifetime, be sure to back up its data frequently and perform regular maintenance.

• After turning the PL OFF, be sure to wait a few seconds before turning ON

again. If the unit is stated within a few seconds, it may not start up correctly.

NT®

4.0/Windows® 95, be sure to install the PL-

PL-7900 Series User Manual

Symbol Information

The list below describes the symbols used in this manual:

Symbol Meaning

Failure to observe this instruction may cause severe bodily injury, death or major machine damage.

Failure to observe this instruction may cause abnormal operation of equipment or data loss.

Preface

1), 2)

Indicates useful or important supplemental information.

Used to provide useful or important supplemental information.

Used to refer to useful or important supplemental information. Indicates steps used to accomplish a given task. Be sure to

follow these steps in the order they are written.

PL-7900 Series User Manual

Preface

Package Contents

The PL package should include the following items:

Power CordPL Unit

(PL-7900T/PL-7901T)

Be careful when

Important

“PL-X900 Series Driver & Utility Disk” (3) Installation Brackets (12)

handling the PL not to damage the built-in HDD

Floppy Disks

CD-ROM (1) Contains PL-7900 Series User Manual (This Manual)*

Important

This cord is designed only for AC100/115V use. Any other voltage will require a different cable.

Instruction Guide

(English1/Japanese1)

xii

Instruction

Guide

If your PL contains a built-in HDD

Your PL unit package will also contain an Installation Guide for your built-in HDD unit.

Be sure to check that guide’s package contents.

PL-7900 Series User Manual

New PL-7900 Series Features

The PL-7900 series displays are equipped with the following features:

! The Latest, High-Performance Architecture

Designed around the AMD-K6®-2 333MHz CPU, the PL utilizes the type of high performance architecture that offers you superior compatibility. Add to this unrivalled support of the Windows 95®/WindowsNT® and other operating systems.

! Bright 15" LCD with a Wide Viewing Angle

The PL’s large 15-inch 1024× 768 dot TFT LCD display offers excellent visibility and brightness.

• Digital’s top of the line TFT color LCD model allows you to create detailed and

Note:

powerful visual images, with excellent brightness, a wide viewing angle, and a display capable of 260,000 colors.

Preface

! Easy Front Panel Installation

The PL is designed to be installed easily into the front of any panel or device. It is also rugged enough for use in harsh, industrial environments, such as those found in the factory automation industries and boasts an IP65f rating.

! High Resolution, Analog-Resistance-Film Touch Panel

Standard equipment with the PL is a high resolution 1024 × 1024 touch panel. Also, the Windows® mouse emulation utility provides mouse-like functionality and pointer control.

! Highly Expandable

The PL units consist of two types; a 2 slot type (with 1 PCI bus also available), and a 4 slot type (with 2 PCI buses available). These slots can accommodate both Digital’s own optional boards as well as other commercially available expansion boards.

Digital also offers a wide variety of optional products, such as a -5/-12V DC power unit, DIM memory modules, etc.

PL-7900 Series User Manual

xiii

Preface

The PL790*-T4* is (c)UL 1950 recognized product. (UL File No. E171486). Please pay special attention to the following instructions when applying for UL/cUL approval for machinery which includes any of these PL units.

The PL conforms as a component to the following standards:

UL 1950, Third Edition, dated March 1,1998 (Standard for Safety of Information T echnology Equip-

ment, including Electrical Business Equipment)

CSA-C22.2 No. 950-95 (Standard for Safety of Information T echnology Equipment, including Electrical

Business Equipment)

- Equipment with a PL mounted in it requires UL/cUL evaluation for the combination of the

- The PL must be used as a built-in component of an end-use product.

- Use the PL indoors only .

- When connecting the PL’s power cable, be sure to use a cable that is appropriate for the

- With an end-use product which includes the PL, be sure to place the PL’s Power cut-off

- Danger of explosion if backup battery is incorrectly replaced. Replaced only with same or

- Be sure the unit the PL is built into uses a UL1950 compatible equipment structure.

UL/cUL Application Notes

PL7900-T4* (UL Registration Model No.: 2780054-02) PL7901-T4* (UL Registration Model No.: 2780054-01)

PL and equipment.

current and voltage used and that has conductive wires that are 0.75 mm2 or larger .

switch as the disconnect device where the unit’s operator can easily reach it.

equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

xiv

PL-7900 Series User Manual

Preface

CE Marking

The PL790*-T4* units are CE marked, EMC and LVD compliant products.

! Safety

EN60950

! EMI (EN50081-2)

EN55011 group1 (Class A)

!EMS (EN50082-2)

EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8,ENV50204

If following requirements are not met, the PL may fail to meet EN60950 standard requirements. ! Equipment with a PL mounted in it requires UL/cUL evaluation for the combination of the

PL and equipment.

! The PL must be used as a built-in component of an end-use product. ! Use the PL indoors only .

! When connecting the PL’s power cable, be sure to use a cable that is appropriate for the

current and voltage used and that has conductive wires that are 0.75 mm2 or larger.

! When installing the PL in a metal panel or cabinet, be sure to place the PL’s Power discon-

nect device (cut-off switch) where the unit’s operator can easily reach it.

! There is a danger of explosion if the backup battery is incorrectly replaced. This battery

should be replaced only with same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

! Be sure the cabinet/enclosure the PL is built into uses an EN60950 approved sheet steel struc-

ture.

PL-7900 Series User Manual

Preface

MEMO

xvi

This page intentionally left blank.

PL-7900 Series User Manual

Chapter

1-1 System Configuration 1-2 Options 1-3 PL Series Panel Types

1Overview

1-1 System Configuration

The following chart shows the range of peripheral items connected to the PL.

The figure above shows simply the internal data flow and the

Important

*1 Only one FDD unit can be used at one time, i.e. either the front panel’s FDD, or the main

PL-7900 Series User Manual

PL’s peripheral connections, and may differ from the actual layout used by the customer.

unit’s FDD.

1-1

Overview

1-2 Options

The following table provides a list of optional products for the PL.

Expansion Options

Name

LAN Board DAX-IET02 NE2000 compatible board. Provides connectors for

FDD Unit

-5V/-12V Power Unit

FFD Unit (Flash File Disk) CD-ROM Unit PL-DK200 IDE (ATAPI) compliant CD-ROM drive unit

Mirror Disk Unit PL-MD200-HU01 IDE compliant mirror disk unit without OS

Model number

10BASE-5, 10BASE-2 and 10BASE-T

PL-EM220 SDRAM (DIMM) Provides 32MB of memory DIM Module PL-EM230 SDRAM (DIMM) Provides 64MB of memory PL-FD200*1 IBM PC Compatible 3.5” FDD unit (Attaches to side

slot)

PL-FD210*1 IBM PC Compatible 3.5” FDD unit (Attaches to front

slot) Only for PL-7900T

PL-PW100 Provides –5V and –12V power to expansion slots. Can

provide a total of 200mA of current (sum of both slots)

PL-FF200 Flash File Disk Provides 20MB of memory, connected

to IDE I / F. Used as HDD.

– for development and maintenance use (special connection cable is included with unit)

Description

1-2

Accessories

Name

Screen Protection Sheet

*1 Both the PL-FD200 and the PL-FD210 cannot be used at the same time.

Model

number

PL-CS100

Description

Disposable overlay sheets for display face protection and stain resistance. Touch panel senses User’s touch through sheet. (5 sheets/set)

PL-7900 Series User Manual

Maintenance Options

Name

Mounting Brackets Moisture Resistant Gasket HDD Unit PL-HD220

Mirror Disk Unit Replacement HDD Full-sized cover

Backlight PL7900-BL

Model

number

GP070-AT 01 PL-WS300

PL-MD200MD01

PL-FC200

PL-FC210

00-MS

Overview

Description

Used to install the PL into a panel or cabinet. Same as original equipment brackets

Used to prevent moisture from entering into the PL’s case from the front face. Same as original equipment gasket

2.5” HDD unit (10.0GB or larger - contains no pre-installed OS) Mirror Disk Unit’s replacement HDD (1)

Attached when ISA bus full-sized board is used in the expansion slot. (for PL-7901T) Attached when ISA bus full-sized board is used in the expansion slot. (for PL-7900T) Spare PL-7900 series backlight for maintenance (2 bulbs/set)

Be aware that not only does the Hard Disk have a fixed lifetime,

Important

but that accidents can always occur. Therefore, be sure to back up your Hard Disk’s data regularly, or prepare another Hard Disk unit that can be used for backup.

When Installing Commercially Available Products

Product Description Installation Area

PCI/ISA Bus compatible board

In all PL-7900 series units, slot 1 can accommodate boards up to 163mm wide. Slot 2 (slots 2, 3 and 4 for PL-7900T) can accommodate boards up to 250mm wide.

All PL-7900 series slot heights are 122mm. When

■■■■

using the full-sized cover, be sure to use boards that are no more than 338mm wide and 122mm high in slot 2. The height of the devices attached to the face of

■■■■

an expansion board can be, for slot 1 (slots 1 and 4 for PL-7900T), up to 13mm, and for slot 2 (slots 2 and 3 for PL-7900T), up to 18mm.

Into the PL's expansion slots.

PL-7900 Series User Manual

Width

Height

Installation Direction

1-3

Overview

Important

• Check that your expansion board’s “foot” matches the width of the expansion slot. Slot 1 (slot 1 and 4 for PL-7900T) is 20 mm wide, and slot 2 (slot 2 and 3 for PL-7900T) is 25 mm wide. Be sure the width of your expansion board’s width matches that of the intended slot.

• Since the PL does not supply -5 and -12 V current, ISA(AT)-bus compatible boards requiring -5 or -12 V can be used only if the optional PL-PW100 power supply is installed.

• Certain commercially available boards may not be compatible with Digital’s PL unit. Installing incompatible boards may result in either damage to or failure of the PL and will void your warranty. Prior to using those boards, be sure to contact your local PL distributor .

• Within the entire range of PCI buses currently available on the market, there may be certain devices which will not operate when used with the PL. Prior to the use of any PCI Bus, be sure to contact your local PL distributor.

• Be sure to use only DIM modules manufactured by Digital. Installing other DIM modules may result in either damage to or failure of the PL, and will void your warranty.

• Within the range of peripheral devices currently available on the market, there may be certain devices which will not operate correctly when used with the PL. Prior to using any peripheral device, be sure to contact your local PL distributor. Installing incompatible boards may result in either damage to or failure of the PL and will void your warranty.

1-4

PL-7900 Series User Manual

1-3 PL Series Panel Types

Model Number:

PL790 X - T X X

A B CDE

PL790 PL-7900 Series Unit

B C

D E

0 4-slot type 1 2-slot type T TFT Color LCD display 4 CE Marking, UL/cUL Approval X PL Revision No.

Overview

PL-7900 Series User Manual

1-5

Overview

MEMO

1-6

This page intentionally left blank.

PL-7900 Series User Manual

Chapter

2-1 General Specifications

2-4 PL External Features 2-2 Performance Specifications 2-3 Interface Specifications

2-5 PL Dimensions

2Specifications

2-1 General Specifications

1 Electrical Specifications

PL-7900T PL-7901T Operating Voltage AC 100V to AC 240V Voltage Endurance AC 85V to AC 265V Rated Frequency 50/60Hz

Allowable Pause Duration

Power Consumption less than 150VA less than 100VA Voltage Endurance

Insulation Resistance

shorter than 1 cycle (however, pause occurrences must be more than 1 second apart)

AC 1500V at 20mA for 1 minute

(between the live wire and the grounding (FG) terminal)

Greater than 10MΩΩΩΩ at DC 500V

(between the live wire and the grounding (FG) terminal)

PL-7900 Series User Manual

2-1

Specifications

2 Environment Specifications

W/Fan

C to 40oC

5 oC to 50oC

C to 40oC

Panel Interior

Ambient Operating Temperature

Ambient Storage Temperature Ambient Operating Humidity Ambient Storage Humidity Dust Level Free of dust Operating Atmosphere Vibration Endurance 2G: 10 to 25Hz applied in X, Y, and Z directions for 30 minutes each

Noise Endurance

Noise Immunity 1kV IEC 61000-4-4 Electrostatic

Discharge Immunity

W/out Fan

Panel Face

-10

C to 60 oC

30% RH to 85% RH (no condensation)

Free of corrosive gas

(0.5G when using HDD unit, 1.0G when using FDD) Noise Voltage: 1500V(via noise simulator)

Pulse Duration: 50ns, 500ns, 1µµµµs Start-up Time: 1ns

4kV IEC 61000-4-2

*1 The PL’s internal cooling fan is removed.

• When using any of the PL’s optional devices, be sure to check that device’s

Important

specifications for any special conditions or cautions that may apply to its use.

• When using a full sized expansion board, be sure to check its dimensions and shape, since they will affect the board’s environment specifications, such for vibration, etc.

• Be aware that not only does the Hard Disk have a fixed lifetime, but that acci-

dents can always occur. Therefore, be sure to back up your Hard Disk’s data regularly, or prepare another Hard Disk unit that can be used for backup.

• The Hard Disk lifetime given here may be reduced due to unforeseen environ-

mental factors, however, generally speaking, at an operating temperature of 20oC the disk should last for 20,000 hours (of operation) or approximately 5 years, whichever comes first.

• Using the Hard Disk in an environment that is excessively hot and/or humid

will shorten the disk’s usage lifetime. A maximum wet bulb temperature of

Temperature Humidity

at 35oC no higher t han 71%RH

at 40

C no higher t han 54%RH

at 50

C no higher t han 33%RH

2-2

PL-7900 Series User Manual

3 Dimensions

PL-7900T PL-7901T

Grounding*1

Rating Cooling Method Via cooling pipes and electric fan Weight Less than 10.5 kg

External Dimensions W374 x H325 x D180mm

Dimensions Including Full-sized Cover Dimensions Including Mirror Disk Unit

(with HDD and FDD installed)

(excluding projections) W422 x H325 x D180mm (excluding projections)

W374 x H325 x D184mm (excluding projections)

100ΩΩΩΩ or less, or your country’s applicable standard.

Exclusive grounding only.

Equivalent to IP65f (JEM1030)

Specifications

Less than 9.5kg (with HDD And FDD installed) W374 x H325 x D134mm (excluding projections) W422 x H325 x D134mm (excluding projections)

W374 x H325 x D184mm (excluding projections)

*1 Refer to 4-3-3, Grounding Cautions. *2 The front face of the PL unit, installed in a solid panel, has been tested using conditions equiva-

lent to the standard shown in the specification . Even though the PL unit’s level of resistance is equivalent to the standard, oils that should have no effect on the PL can possibly harm the unit. This can occur in areas where either vaporized oils are present, or where low viscosity cutting oils are allowed to adhere to the unit for long periods of time. If the PL’s front face protection sheet becomes peeled off, these conditions can lead to the ingress of oil into the PL and separate protection measures are suggested. Also, if non-approved oils are present, it may cause deformation or corrosion of the front panel’s plastic cover. Therefore, prior to installing the PL be sure to confirm the type of conditions that will be present in the PL’s operating

environment. If the installation gasket is used for a long period of time, or if the unit and its gasket are removed from the panel, the original level of the protection cannot be guaranteed. To maintain the original protection level, you need to replace the installation gasket regularly.

PL-7900 Series User Manual

2-3

Specifications

2-2 Performance Specifications

1 Performance Specifications

CPU AMD-K6®-2 333 MHz (AMD Corporation) DRAM (SDRA M DIMM) 64MB (2 DIMM sockets – expandable to 128MB) BIOS AWARD PC/AT Compatible Secondary Cache Memory 512KB (built-in)

Graphics Video Memory 2MB (SDRAM)

Touch Panel

Interfaces

XGA (1024 x 768 dots) VESA 16 colors/256 colors/32K colors/64K colors

Type Resistive Film (Analog type) Resolution 1024 x 1024 Interface COM4 (uses Mouse Emulator)

Serial

Printer Complies with Centronics Standards (ECP/EPP equivalent)

Keyboard PS/2 Interface (mini DIN 6 pin, female) side & front Mouse PS/2 Interface (mini DIN 6 pin, female) side RAS RAS Interface (D-sub 25 pin, male) Disk I/F

RS-232C (w/FIFO)

D-sub 25 pin, female

Unit

E-IDE 2.5 inch HDD I/F

COM1 D-Sub 9 pin (male) COM2 D-Sub 9 pin (male) COM3 D-Sub 9 pin (male)

Side Access/ 2 modes/ 3.5 inch FD FDD Front Access/ 2 modes/ 3.5 inch FD (Available for only

PL-7900T)

PL units equipped with a built-in HDD will use a 6.0 or more GB unit.

2-4

PL-7900 Series User Manual

2 Display Functions

Display Type TFT Color LCD (15 Inch) Pixel Density 1024 x 768 (pixels) Dot Pitch 0.297 x 0.297mm Effective Display Area W304.1 x H228.1mm Display Colors 260,000 colors Contrast Control Not Possible Backlight CFL (Replaceable) Backlight Life time More than 50,000 hours at an ambient temperature of 25oC. (Until

the backlight’s brightness dims to half of the original level.)

The PL’s backlight should only be replaced by a trained maintenance person. For information about changing the PL’ s backlight, r efer to Chapter 7-3 Replacing the PL Backlight, or contact your local PL distributor.

Specifications

3 Expansion Slots

Board Size

PL-7900T

(4-slot type)

1st slot 2nd slot 3rd slot

4th slot ISA None 250 x 122 mm 338 x 122 mm 20 mm Less than 13 mm Power

Supply

ISA ISA 163 x 122 mm 163 x 122 mm 20 mm Less than 13 mm PCI PCI 250 x 122 mm ISA ISA PCI/ISA None 250 x 122 mm 338 x 122 mm 25 mm Less than 18 mm

5V: 4A, 12V: 1A (total for 4 slots)

PL-7901T

(2-slot type)

5V: 2A, 12V: 0.5A (total for 2 slots)

Without

Full-sized

cover

250 x 122 mm

With

Full-sized

cover

338 x 122 mm

Slot

Pitch

25 mm Less than 18 mm

For the 2nd and 3rd slots on the PL-7900T, and the 2nd slot on the PL-7901T, either the PCI or the ISA type of expansion board can be used.

For PL dimensions when using the full-sized cover, refer to 1-2

Options.

Actual thickness

of Expansion

4 Clock(RTC) Accuracy

Board

Clock(RTC) accuracy

The PL’ s built-in clock (RTC) may have a slight error. W ith the ambient temperature mentioned in the specification with no power flow, the allowance is +180 seconds per month, however, the allowance may vary and could be up to +300 seconds per month depending on the ambient temperature difference or how old the unit is. If the clock accuracy is essential for the system, you need to adjust the clock regularly .

PL-7900 Series User Manual

+180 seconds per month

2-5

Specifications

2-3 Interface Specifications

1 Printer Interface (LPT1)

D-sub 25 Pin (Female)

13121110987654321

25 24 23 22 21 20 19 18 17 16 15 14

Screw Size: (4-40): Inch Type

Pin No.

SPP/ECP Mode

Signal Name

EPP Mode

Signal Name

Direction

Electrical

Specif.

Pin No.

SPP/ECP Mode

Signal Name

EPP Mode

Signal Name

Direction

Electrical

Specif.

1 STRB WRITE 2 DATA0 DATA0

3 DATA1 DATA1 4 DATA2 DATA2

5 DATA3 DATA3 6 DATA4 DATA4 7 DATA5 DATA5 8 DATA6 DATA6 9 DATA7 DATA7

10 ACKNLG ACKNLG Input TTL 23 GND GND 11 BUSY WAIT Input TTL 24 GND GND 12 PE PE Input TTL 25 GND GND 13 SLCT SLCT Inp ut TTL

The Input and Output settings used will depend the BIOS set up screen settings used.

2 Keyboard Interface

In/Output In/Output

In/Output In/Output In/Output In/Output In/Output

O.D 14 AUTOFD DSTRB O.D 15 ERROR ERROR Input TTL

O.D 16 INIT INIT O.D 17 SLCTIN ADSTRB

O.D 18 GND GND O.D 19 GND GND O.D 20 GND GND O.D 21 GND GND O.D 22 GND GND

(The PL’s front and side connectors are the same)

Mini - DIN 6 pin (Female)

Pin No. Signal Name

In/Output

In/Output In/Output

O.D

O.D O.D

1 KEY DATA 2 NC 3 GND 4 +5V 5 KEY CLK 6 NC

SHIELD GND

3 Mouse Interface

Mini - DIN 6 pin (Female)

2-6

Pin No. Signal Name

1 Mouse DATA

2 NC 3 GND 4 +5V 5 Mouse CLK

6 NC SHIELD GND

PL-7900 Series User Manual

Specifications

4 RS-232C Interface (COM1/COM2/COM3)

D-sub 9 pin (Male)

4321

Screw Size: (4-40): Inch Type

5 RAS Interface

Item Feature

Input

Outpu t

D-Sub 25 pin (Male)

12 34 5678910111213

14 15 16 17 18 19 20 21 22 23 24 25

Screw Size: (4-40): Inch Type

DIN 0,1 Digital Input Port (2 points) RESET DOUT Digital output port (1 point)

Alarm Alarm signal output port (1 point) Lamp Alarm lamp connection port (1 point)

Hardware can be reset via external re set si gnal .

Pin No. Signal Name Pin No. Signal Name

1CD6DSR 2RXD7RTS 3TXD8CTS 4DTR9 RI 5GND

Pin No. Signal Name Pin No. Signal Name

1 GND 14 GND 2 +5V 15 +5V 3 +12V 16 NC 4 NC 17 NC 5 RESET INPUT (+) 18 NC 6 DIN 0 (+) 19 NC 7 DOUT (-) 20 NC 8 DOUT (+) 21 LAMP OUT (-)

9 ALARM OUT (-) 22 LAMP OUT (+) 10 ALARM OUT (+) 23 NC 11 RESET INPUT (-) 24 DIN1 (-) 12 DIN 0 (-) 25 NC 13 DIN 1 (+)

! Power Lamp LED Error Display

The Power Lamp LED indicates when the RAS feature has detected an error, due to a PL operation or environment related problem.

To use this feature, you need to install the RAS system monitor feature from the PL’s additional floppy disk. 6-1 Floppy Disk File List

LED Status

Gr een,Light s Contin uously Normal Operation Or ang e, Lights Continuously Sy stem Monitor Alarm has occur r e d

Or ang e, Blinking

PL-7900 Series User Manual

When the Mirror Disk unit is inst alled, indic ates that a hard disk error has detected

2-7

Specifications

! Input Port (Dual use of DIN,Remote Set Input Port)

- External Power : DC12V to 24V connection possible

- Input Hold : Hold Diode

- Isolation : Used (Photo isolation)

Input Port

(I nterface Circ uit)

+5V

PC357

3.3k

Ω

1/4W

Reset Input(+)pin 5

DIN0(+)pin 6

DIN1(+)pin 13

(12 to 24V)

Reset Input(-)pin 11

DIN0(-)pin 12 DIN1(-)pin 24

(Connection Example)

D-sub 25 pin Connector

! Output Port (DOUT, Alarm Output, Lamp Output Port)

- Output Specifications : DC 24V 100mA (MAX)

DC12 to 24V (External Power)

Cable

- Isolation : Used (Photo isolation)

(I nterface Circ uit)

+5V

DOUT(+)pin 8

Lamp Output(+)pin 22

N3904

DOUT(-)pin 7

Alarm Output(-)pin 9

Lamp Output(-)pin 21

Output Port

PC357

4.7k

Alarm Output(+)pin 10

Ω

(Connection Example)

Cable

Dsub 25pin connector

2-8

PL-7900 Series User Manual

2-4 PL External Features

A: Display Area

Display output area. The built-in XGA controller supports PC compatible architecture.

B: T ouch Panel

A B

This high-resolution analogue touch panel allows you to configure a keyboard-less system.

C: Power Lamp LED

The status of the lamp changes according to the alarm type detected by the RAS feature. 2-3-5 RAS Interface

D: Front Maintenance Cover

Specifications

nside the front maintenance cover>

PL-7900T(4Slot)

Open this cover to connect the optional FDD unit.

E: IrDA

Infra-red signals can be sent and received by this unit.

F: Keyboard Connector

A PS/2 compatible keyboard is connected here.

G: Hardware Reset Switch H: FDD Slot (only for PL-7900T)

Slot for installing the FDD unit.

I : Brightness Adjustment Slide

Allows adjustment of backlight brightness.

J : RS-232C Connector (COM1) K: RS-232C Connector (COM2) L: RS-232C Connector (COM3)

These RS-232C interfaces (D-sub 9 pin male connectors), allow communication with other computers and connection to peripheral devices.

M: Printer Connector (LPT1)

Centronics standard interface (D-sub 25 pin female connector), which connects a parallel device, such as a printer .(supports ECP/EPP)

PL-7901T(2Slot)

PL-7900 Series User Manual

N: RAS Connector

Interface for DIN, DOUT, Watchdog, and Remote Reset. (D-sub 25 pin male connector)

O: Power T erminals

The PL ’ s AC100V/240V power cord terminals are connected here.

P: IDE I/F Cover

T o connect the optional CD-ROM drive unit (PLDK200) and Mirror Disk Unit(PL-MD200-HU01), remove this cover and use this connector.

2-9

Specifications

PL-7900T(4Slot)

Q:Keyboard Connector

A PS/2 compatible keyboard can be connected here.

R:Mouse Connector

A PS/2 compatible mouse can be connected here.

S:FDD Slot

Houses the FDD (PL-FD200) unit.

T: Expansion Slots (2) U:HDD/FFD Expansion Unit Slot

Houses an additional HDD or FFD unit.

V:Half Cover

When an optional DIM module or expansion board is used here, this cover is removed.

W:Power Switch

Use this switch to turn the PL’s power ON or OFF.

X:Rear Maintenance Cover

Remove this cover to install the optional DIM module, or an expansion board.

PL-7900T(4Slot)

To avoid an electrical shock, be sure to first disconnect the PL’s

Important

power cord from the power supply before connecting the cord’s power terminals or any peripheral devices to the PL.

PL-7900T(4Slot)

4-3-1 Connecting the Power Cord

2-10

PL-7900 Series User Manual

2-5 PL Dimensions

1 PL-7900T General Dimensions

(Unit: mm - excluding projections)

Specifications

325

359

Top View

374

Front View

180

310

Side View

PL-7900 Series User Manual

Rear View

2-11

Specifications

2 PL-7901T General Dimensions

359

(Unit: mm - excluding projections)

325

Top View

134

374

310

Front View

Side View

2-12

Rear View

PL-7900 Series User Manual

Specifications

3 Full-Sized Cover Attachment Dimensions

(Unit: mm - excluding projections)

(PL-7900T)

Rear View

Note:

Important

Top View

310

The above figure’s dimensions are the same for the 2 and 4 slot

units.

• When using a full-sized board and the PL’s full-sized cover (PLFC200/PL-FC210), be sure that the PL is mounted in its attachment panel/cabinet before starting this work. Due to size differences, the PL-FC200 or a full sized expansion board cannot be attached first and then the PL installed into a panel.

• When using a full sized expansion board, be sure to check its dimensions and shape, since they will affect the board’s environment specifications, such as for vibration, etc.

6639

PL-7900 Series User Manual

2-13

Specifications

4 Installation Slot Dimensions

311.0+0.5

Important

less than

4-R2

360.0 +0.5 0

• Be sure the thickness of the panel is from 1.6 to 10 mm.

• All panel surfaces used should be strengthened. Especially, if high levels of vibration are expected and the PL’s installation surface (i.e. an operation panel’s door, etc.) can move (i.e.open or close) due consideration should be given to the PL’s weight.

(Unit: mm)

• To insure that the PL’s water resistance is maintained, be sure to install the PL into a panel that is flat and free of scratches or dents.

• Be sure all installation tolerances are maintained to prevent the unit from falling out of its installation panel.

2-14

PL-7900 Series User Manual

Chapter

3-1 Installing Options and Expansion Boards

Installing Optional Units

The User can install a variety of optional units and expansion boards made by Digital in the PL, as well as a number of commercially available PCI-bus or ISA-bus compatible boards. This chapter describes how to install these products in the PL.

3-1

Installing Options and Expansion Boards

The following explanation pages describe the installation procedures for the PL’s DIM module (PL-EM220/PL-EM230), FDD unit (PL-FD200/PL-FD210), HDD unit (PL-HD220), expansion boards, and the CD-ROM drive unit (PL-DK200).

For information about the installation of other option units, please refer to those unit’s individual [Operation Instructions].

and Expansion Boards

WARNING

To avoid electric hazards, be sure to turn the PL’s power OFF before installing any optional units or expansion boards.

• Use a screw driver to loosen or tighten the screws. Be careful

Important

PL-7900 Series User Manual

not to over-tighten any screws, since it may damage the equipment.

• Be careful when removing or inserting any screws that they do not fall inside the body of the PL.

3-1

Installing Optional Units and Expansion Boards

1 Removing the Rear Maintenance Cover

! PL-7901T (2 slot type)

Half Cover

Rear Maintenance Cover

Guide Tabs

1) Unscrew four (4) attachment screws used to hold the rear maintenance cover and half cover.

Remove the rear mainte-

Important

2) Pivot the half cover open and lift up slightly to free the guide tabs. Next, remove the half cover.

nance cover, and then the half cover.

3-2

Half Cover

3) Remove the rear maintenance cover.

Important

Handle the rear maintenance cover with care, since it is made of aluminum and is easily bent.

PL-7900 Series User Manual

Installing Optional Units and Expansion Boards

! PL-7900T (4 slot type)

Half-Cover

Rear Maintenance Cover

1) Unscrew five (5) attachment screws used to hold the rear maintenance cover and half cover.

Remove the half cover,

Important

2) Remove the rear maintenance cover.

and then the rear maintenance cover.

Half-Cover

PL-7900 Series User Manual

Guide Tabs

3) Pivot the half cover open and slide the cover slightly to the side to free the guide tabs. Next, remove the half cover.

Handle the rear mainte-

Important

nance cover with care, since it is made of aluminum and is easily bent.

3-3

Installing Optional Units and Expansion Boards

2 Installing the DIM Module

The PL-7900T/PL-7901T come with a single, 64MB DIM module pre-installed. There is one more empty socket that can be used and the procedures that follow describe how to install a second DIM module in that socket.

Note:

Built-in DIM Module

Empty Socket

Since DIM module sockets are easy to break, be sure to install the DIM module very carefully.

Foolproof Positioning grooves

(

PL-EM220 / PL-EM230

1) Install the DIM expansion module in the empty socket.

2) Adjust the foolproof positioning grooves so that they align with the foolproof positioning pins.

)

Foolproof Positioning pins

3) Insert the DIM module into the DIM module socket.

4) Push the DIM module down until the ejector tabs lock.

5) Replace the rear maintenance cover and the half cover and secure them in place with the attachment screws.

!To Remove the DIM Module

When removing the module from its socket, press down on the socket’s ejector tabs to release the module.

3-4

PL-7900 Series User Manual

Installing Optional Units and Expansion Boards

3 Installing the FDD Unit (PL-FD200)

1) Remove the two(2) attachment screws from the lowermost Expansion Slot Cover, and remove the cover.

Lowermost Cover

Attachment Screws

2) Insert the FDD unit so that its guide grooves fit the slot’s guide ways. Push the unit in until its rear connector is connected securely .

3) Secure the unit in place with its two(2) attachment screws.

PL-7900 Series User Manual

3-5

Installing Optional Units and Expansion Boards

4 Installing the FDD Unit (PL-FD210)

1) Open the front maintenance cover and remove the FDD’ s blank (filler) panel.

2) Close the front maintenance cover.

FDD’s blank (filler) panel

PL-FD210 Blank Panel (Rear Face)

3) Unscrew the two(2) attachment screws from the PL-FD210’ s Blank Panel, and remove it.

4) Insert the FDD unit so that its guide grooves fit the chassis guide ways. Push the unit in until its connector (middle of unit) is connected securely.

3-6

5) Fix the unit in place with its two(2) attachment screws.

6) Last, replace the Blank Panel, (removed in step 3).

PL-7900 Series User Manual

Installing Optional Units and Expansion Boards

5 Removing/ Installing the HDD Unit (PL-HD220)

The following explanation demonstrates the procedure for removing an existing HDD unit, and for installing a new HDD unit.

Note:

Important

The following procedure is applicable also to the FFD(PL-FF200) unit and the HDD (IDE) expansion slot.

• Since the PL-HD220 is a precision instrument, be sure not to jar or shake it unnecessarily.

1) Remove the two(2) attachment screws from the middle Expansion Slot Cover.

Middle Expansion Slot

Attachment Screws

HDD/FFD Expansion Slot

2) Grasp the HDD unit’s handle and pull the unit slowly out of the PL. Be sure you do not damage the unit.

3) Insert the new HDD unit into the PL’s guideways and push it in until its rear connector is securely connected.

4) Fix the unit in place with its two(2) attachment screws.

PL-7900 Series User Manual

3-7

Installing Optional Units and Expansion Boards

6 Installing an Expansion Board

1) Unscrew the desired expansion slot’s cover attachment screw, and remove the cover . 3.1.1, Remov-

ing the Rear Maintenance Cover

Unscrew the Blank Panel’s attachment screw to remove the Blank Panel.

2) Remove the expansion slot’s duster cover.

Positioning Strip

Attachment Screw

3) Insert the expansion board into the expansion slot.

4) Secure the expansion board’s metal positioning strip in place with its attachment screw.

5) Last, replace the rear maintenance cover and the half cover and secure them in place with their attachment screws.

3-8

PL-7900 Series User Manual

Installing Optional Units and Expansion Boards

7 Connecting the CD-ROM Unit (PL-DK200)

!PL-7901T(2-Slot)Unit

1) Unscrew the two(2) IDF I/F cover attachment screws, and remove the cover.

!PL-7900T(4-Slot) Unit

Connected to CD-ROM

2) Connect the CD-ROM unit’s cable (PL-x900) to the IDF I/Fconnector.

Be sure that the cable is

Important

1) Unscrew the two(2) IDF I/F cover’s attachment screws, and remove the cover.

securely connected before turning ON the PL’s power switch.

PL-7900 Series User Manual

2) Connect the CD-ROM unit cable (PL-x900) to the PL’s IDF I/F connector.

Important

Be sure that the cable is securely connected before turning ON the PL’s power switch.

3-9

Installing Optional Units and Expansion Boards

8 Removing the Cooling Fan Unit

The PL-7900 Series can be operated without its bottom face cooling fan unit. The user should, however, be aware that doing so (i.e. removing the fan unit) will cause the PL’s ambient temperature to rise. See “2-1-2 Envi- ronment Specifications”

! PL-7901T (2 slot type)

1) Remove the attachment screw on the cooling filter cover , and r emove the cover.

Cooling Filter Cover

Filter

2) Remove the filter.

3) Remove the two(2) fan unit attachment screws, and take out the fan unit.

3-10

PL-7900 Series User Manual

Installing Optional Units and Expansion Boards

4) Unplug the fan unit’s power cable connector from the PL.

5) Unscrew the two (2) attachment screws and remove the fan unit, and then remove the fan unit from the metal plate.

6) Secure the metal attachment plate and the cooling filter cover to the PL in place.

PL-7900 Series User Manual

3-11

Installing Optional Units and Expansion Boards

! PL-7900T (4 slot type)

1) Remove the cooling filter cover’s attachment screws.

Cooling Filter Cover

Filter Cover Attachment Screw

2) Remove the cooling filter cover from

Fan Unit

the fan unit, and then remove the fan unit’s two attachment screws.

Fan Unit Attachment Screws

3) Remove the fan unit from the PL.

3-12

PL-7900 Series User Manual

Installing Optional Units and Expansion Boards

Power Cable Connector

4) Disconnect the fan unit’s power cable connector from the PL.

5) Replace the cooling filter cover and reattach the cooling filter cover’s attachment screw.

6) Unscrew the two(2) fan unit’s attachment screws and remove the fan unit from the metal plate holding the fan unit.

Metal Plate

Fan unit

7) Attach the metal plate and the cooling filter cover to the PL.

PL-7900 Series User Manual

3-13

Installing Optional Units and Expansion Boards

MEMO

3-14

This page intentionally left blank.

PL-7900 Series User Manual

Chapter

4-1 Installation Cautions 4-2 Installing the PL 4-3 Wiring the PL

This chapter explains how to install and wire the PL-7900T/PL-7901T, as well as the cautions required both before and during installation.

Installation and Wiring

4-1 Installation Cautions

1) Temperature Related Cautions

Panel Face

30mm

Panel Interior

30mm

• The PL should be installed in a vertical position, and forced air cooling should be used, instead of natural air circulation.

100mm100mm

• To prevent a machine breakdown, be sure to use the PL within the allowable temperature range as below-listed. Please check “Ambient Operating Temperature” in the position drawn on the left. (“Ambient Operating T emperature” indicates both the panel interior and panel face temperature.)

Vertical Installation Horizontal Installation

No more than 30 degrees of tilt

PL-7900 Series User Manual

W/ PL Fan W/OUT PL Fan

2) Installation Positioning Cautions

Be sure to install the panel in an upright (vertical) position.

Panel Interi or Panel Face

C to 50oC

C to 40oC

Also, be sure that the panel’s viewing angle is tilted no more than 30 degrees from parallel to the operator (i.e. directly in front).

C to 40oC

4-1

Installation and Wiring

3) Vibration Related Cautions

Be sure to protect the PL from excessive vibration or jolting. These kinds of shocks can cause the PL to malfunction.

PL Condition

When using the HDD Up to 0.5G When using the FDD Up to 1.0G When using no drives Up to 2.0G

Important

• Be sure not to move the PL unit while the HDD is starting up. This can lead to a machine breakdown.(Even a slight movement of the PL should not be performed.)

• When using a fan to cool the PL unit, be sure that the fan does not point directly at any of the PL’s disk drive units.

Shock Strength

4-2

PL-7900 Series User Manual

4-2 Installing the PL

1 Installation Procedures

Follow the steps given below when installing the PL-7900 series.

Attaching the Moisture Resistant Gasket

Even if the your PL’s Moisture Resistant Gasket is not needed to prevent water from entering the unit, the gasket also acts as a vibration absorber and should always be attached. To install it, place the PL face down on a soft surface and attach the packing to the rear side of the display face, in the plastic bezel’s groove. (see picture below)

Before mounting the PL into a cabinet or panel, check that the

Important

moisture resistant gasket is attached to the unit.

PL Rear Face

Installation and Wiring

Create an Installation Slot

Create a hole for mounting the PL, like that pictured here. Two additional items, the Moisture Resistant gasket and the mounting brackets are also required when installing the PL. 2-5 PL Dimensions

Note:

Important

• To obtain the maximum degree of moisture resistance, be sure to mount the PL on a smooth, flat surface.

• The panel itself can be from 1.6 to 10.0 mm thick.

Strengthening may be required for the panel. Be sure to consider the weight of the PL when designing the panel.

Reference

Gasket

Panel

Mounting hole

PL-7900 Series User Manual

1.6 - 10.0 mm

> <

4-3

Installation and Wiring

Note:

To enhance the PL’s maintainability, operability and ventilation, allow at least 50mm clearance between the PL and any other objects. (The clearance must be large enough to allow you to insert or remove expansion boards and to attach connectors.)

Side View Rear View

50mm

PL Viewing Angle

• Be sure that the panel’s viewing angle is tilted no more than 30 degrees from parallel to the operator (i.e. operator is directly in front).

OKOK

Must be 30 degrees or less

• Avoid placing the PL next to other devices that might cause overheating.

• Avoid using the PL where the ambient temperature will exceed 40°C (50°C when using a cooling fan).

• Keep the PL away from arc-generating devices such as magnetic switches and nonfuse breakers.

• Avoid using the PL in environments where corrosive gases are present.

Insert the PL into the installation slot

Mounting panel

Side panel

Important

Be sure the installation panel’s actual measurements are the same as those given in this chapter, otherwise the PL may move or fall out of the panel.

4-4

PL-7900 Series User Manual

Installation and Wiring

Attach and Secure the Rear Attachment Brackets

1) The PL has twelve attachment holes, located on the top, bottom, and sides of the PL.

Attachment hole

Left Side

2) Insert each bracket into its attachment hole.

3) Slide the bracket backwards until it stops.

Front panel of PL

Top Face

Mounting bracket

Attachment hole

Rear panel of PL

4) Use a screwdriver to tighten each bracket’s adjustment screw. To ensure a high degree of moisture resistance, the torque should be 0.5N•m.

Excessive torque may damage the panel or bracket.

Important

PL-7900 Series User Manual

4-5

Installation and Wiring

4-3 Wiring the PL

1 Connecting the Power Cord

(Side View)

Power T erminals

Power Input Terminals

Connecting these two terminals provides AC100V to

L N

240V power. L= live and N= Neutral

(screw size: M3)

Power Switch

PL-7900T (4-Slot Unit)

This terminal is connected to the PL ’s frame (chassis).

WARNING

To prevent electric shocks, be sure to turn the PL OFF before connecting the power cord.

To avoid the dangers of fire, electric hazards and equipment damage, be sure to use only the specified power supply voltage when operating the PL-7900 Series unit.

Use the following steps when connecting the power cord to the PL’s power terminals.

POWER

I:ON o:OFF

1) Confirm that the PL’s power switch is turned OFF. Then, remove the power terminal’s transparent plastic cover.

4-6

L N

Transparent Cover

Screws

PL-7900 Series User Manual

Installation and Wiring

L N

Black

White

Green/Yellow

Attachment

Screws

Transparent

Cover

2) Loosen and remove the middle three screws from the terminal strip. Align the crimp terminals with each screw hole, and tighten the screws.

Note:

Important

• Crimp Terminal Types : V1.25-3, by J.S.T. or equivalent (JIS standard part number : RAV1.25-3)

• Crimp terminals must be the same as shown below.

Max. 6.0 mm

• The colors used in the

figure above are for the

φφ

3.2 mm or larger

cable which came with the PL.

• This power cable is designed only for AC100V/ 115V use. Be sure to use a different cable when using other than AC100V/115V power.

3) Reattach the terminal strip’s transparent cover and secure it in place with its attachment screws.

PL-7900 Series User Manual

4-7

Installation and Wiring

2 Power Supply Cautions

When connecting the PL unit’s AC power terminals, please be aware of the following:

Constant voltage transformer

Insulating transformer

AC 100V

Main power

source

Twisted-pair

cable

Twisted-pair

cable

PL power

source

I/O power

source

PL FG

I/O device

• If voltage fluctuations are expected to vary beyond the specified range, connect a constant voltage transformer.

Reference

For information about

the specified voltage, refer to 2-1

General Specifications

• Use a low-noise power supply both between the lines and between the PL and its ground. If there is still excess noise, connect an insulating transformer (noise-prevention type).

Note:

Be sure any constant or insulating transformer used has a capacity of 200VA or more.

• Wire the power cords of the PL, I/O devices, and power supply devices separately.

Main power

source

AC200V

Twisted-pair

PL power

source

T1 T2

I/O power

source

Main circuit power source

cable

Lightning surge absorber

I/O device

Power device

• To improve noise immunity, it is recommended to attach a ferrite core to the power cord.

• Isolate the main circuit (high voltage, large current) line, I/O signal lines, and power cord, and do not bind or group them together .

• To prevent damage from lightning, connect a lightning surge absorber.

• Ground the lightning surge

Important

absorber (E1) and the PL (E2) separately.

• Select a lightning surge absorber which will not exceed the allowable circuit voltage, even when the voltage rises to the maximum.

4-8

PL-7900 Series User Manual

3 Grounding Cautions

Installation and Wiring

(a) Dedicated Ground - best

(b) Shared Ground - allowed

Other device

• Set up a dedicated ground when using the rear panel’s FG terminal.

• If a dedicated ground is not possible, use a shared ground, as shown in figure (b).

• The grounding point must be as close to the PL as possible, and the grounding wires must be as short as possible. If the wires must be long, use thick, insulated wires and run them through conduits.

4 Cautions When Connecting I/O Signal Lines

• I/O signal lines must be wired separately from the power cord. If the power code needs to be wired together with the cord (I/O) signal lines for any reason, use shielded cables and ground one end of the shield to the PL’s FG terminal.

• To improve noise immunity, attaching a ferrite core to the power cord is recommended.

*1 Use a grounding resistance of 100Ω or less, and a 2mm2 or thicker wire, or your

country’ s applicable standard. For details, contact your local PL distributor.

PL-7900 Series User Manual

4-9

Installation and Wiring

MEMO

4-10

This page intentionally left blank.

PL-7900 Series User Manual

System Setup

Chapter

5-1 Setup Procedures 5-2 System Parameters

This chapter explains how to enter a PL-6900 Series unit's system settings, as well as the cautions required both before and during set up.

System Setup

5-1 Setup Procedures

Normally, use only the factory (default) settings.

Important

Note:

1) Connect a keyboard to the PL.

The following settings are those pre-set at the factory.

2) Turn the PL's power ON.

3) After the message "Press <DEL> to Enter SETUP" appears, press the [DEL] key until the following screen appears.

ROM PCI/ISA BIOS (2A5LEU1C)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

PNP/PCI CONFIGURATION

LOAD BIOS DEFAULTS

LOAD SETUP DEFAULTS

ESC : Quit !"#$ : Select Item F10 : Save & Exit Setup (Shift)F2 : Change Color

Time,Date,Hard Disk Type •••

SYSTEM MONITOR UTILITY

INTEGRATED PERIPHERALS

SUPERVISOR PASSWORD

USER PASSWORD

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

KEYBOARD ACTION KEYS

Provides a summary of the keyboard keys used to carry out the set up.

SYSTEM SETTING SELECTION AREA

Each of the titles (areas) listed here contains system setting items.

4) Use the arrow keys to move the cursor to the desired selection.

PL-7900 Series User Manual

5 - 1

System Setup

5-2

System Parameters

1 ST ANDARD CMOS SETUP

Selecting the STANDARD CMOS SETUP menu item produces the following screen.

ROM PCI/ISA BIOS(2A5LEU1C)

STANDARD CMOS SETUP AWARD SOFTWARE, INC.

Date (mm:dd:yy): Thu,Jul 2 1998

Time (hh:mm:ss): 14 : 50 : 3

CYLS. HEADS PRECOMP LANDZONE SECT0RS MODE Drive C :Auto( 0Mb) 0 0 0 0 0 AUTO

Drive D :Auto( 0Mb) 0 0 0 0 0 AUTO

Drive A :1.44M,3.5 in.

Video : EGA/VGA VGA Text Mode : Normal VGA Graphics Mode : Normal Halt On : All, But Disk/Key

ESC : Quit #$%& : Select Item PU/PD/+/-:Modify F1 : Help (Shift)F2 : Change Color

Base Memory : 640K

Extended Memory : 645612K

Other Memory : 384K

Total Memory : 66536K

! Date/Time

This data sets the PL's internal time and date.

Hours :00 - 23 Minutes :00 - 59 Seconds :00 - 59

! Drive C

This data sets the IDE hard disk's parameters. When this setting is set to [AUTO], the hard disk's parameters are automatically read in. Also, if the "IDE HDD AUTO DETECTION" is in use, the value entered there is automatically set. The three options are [User],[Auto], and [None]. The [Auto] setting is factory set and recommended for most users.

! Drive D

The three options are [User],[None]and [Auto].

! Drive A

This setting determines the format used by the PL's internal floppy disk drive. The[1.44M - 3.5in] selection is factory set and recommended for most users. The other available settings are [720K - 3.5in], [1.2M

- 5.25in], [360K - 5.25in], [2.88M - 3.5in.], and [None].

! Video

The selections for the screen (video) mode. The [EGA/VGA] selection is factory set and recommended for most users. The other available settings are [CGA40], [CGA80] and [Mono].

5 - 2

PL-7900 Series User Manual

System Setup

! VGA Text Mode

This mode changes the screen (video) mode from [Normal](VGA mode) to [Expansion](800×600). The[Normal] selection is factory set and recommended for most users.

! VGA Graphics Mode

This mode changes the screen (Graphics) mode from [Normal](VGA mode) to [Expansion](800×600). The[Normal] selection is factory set and recommended for most users.

! Halt On

Designates the type of processing that will be performed when an error occurs during the Initial Start-Up's Self Test. The [All But Disk /Key] selection is factory set and recommended for most users.

[All Errors] : Displays all errors and stops the unit. [No Errors] : Displays all errors and does not stop the unit. [All,But Keyboard] : Displays all errors, except for those related to

the keyboard, and stops the unit. If the User has no keyboard connected, please use this setting.

[All,But Diskette] : Displays all errors, except for those related to

the disk drive (FDD), and stops the unit.

[All,But Disk/Key] : Displays all errors, except for those related to the disk

drive (FDD) and keyboard, and then stops the unit.

PL-7900 Series User Manual

5 - 3

System Setup

2 BIOS FEA TURES SETUP

Selecting the BIOS FEATURES SETUP menu item calls up the following screen.

ROM PCI/ISA BIOS(2A5LEU1C)

BIOS FEATURES SETUP

AWARD SOFTWARE, INC.

Virus Warning CPU Internal Cache

External Cache Quick Power On Self Test Boot Sequence Boot Up Floppy Seek Boot Up NumLock Status Boot Up System Speed Gate A20 Option Memory Parity/ECC Check Typematic Rate Setting Typematic Rate(Chars/Sec) Typematic Delay (Msec) Security Option

PCI/VGA Palette Snoop OS Select For DRAM > 64MB

! Virus Warning

Designates whether a warning message appears when an error occurs during a write to the Hard Disk's Boot Sector. The two selections are[Disabled] and [Enabled]. The [Disabled] selection is factory set and recommended for most users.

:Disabled :Enabled

:Enabled :Enabled :A,C,SCSI :Enabled :On :High :Fast :Enabled :Disabled :6 :250 :Setup

:Disabled :Non-OS2

Video BIOS Shadow : Enabled C8000-CBFFF Shadow : Disabled CC000-CFFFF Shadow : Disabled D0000-D3FFF Shadow : Disabled D4000-D7FFF Shadow : Disabled D8000-DBFFF Shadow : Disabled DC000-DFFFF Shadow : Disabled

ESC :Quit $%& : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

! CPU Internal Cache

Designates if the CPU's Internal Cache Memory is used or not. The two selections available are [Disabled] and [Enabled]. The [Enabled] selection is factory set and recommended for most users.

! External Cache

Designates if the CPU's External Cache Memory (L2) is used or not. The two selections available are [Disabled] and [Enabled]. The [Enabled] selection is factory set and recommended for most users.

! Quick Power On Self Test

Designates if a simplified Self Test is used after the power is turned ON. The two selections available are [Disabled] and [Enabled]. The [Enabled] selection is factory set and recommended for most users.

! Boot Sequence

Designates the drive order used by the OS during start up. The [A,C,SCSI] is factory set and recommended for most users.

The other available settings are [A,C,SCSI], [C,A,SCSI], [C,CDROM,A], [CDROM,C,A], [D,A,SCSI], [SCSI, A,C,], [SCSI,C,A] and [C Only].

5 - 4

PL-7900 Series User Manual

System Setup

! Boot Up Floppy Seek

Designates if the floppy disk drive installation check is used or not. The available selections are [Disabled] and [Enabled]. [Enabled] is factory set and recommended for most users.

! Boot Up NumLock Status

Designates the condition of the NumLock key at startup. The two selections are either [On] or [Off]. The [On] selection is factory set and recommended for most users.

! Boot Up System Speed

Designates the speed of CPU. [High] is factory set and recommended for most users. The other available selection is [Low].

! Gate A20 Option

The two selections available are [Fast] and [Normal]. When [Normal] is selected, Keyboard Control is used for Gate A20 control. When [Fast] is selected, the Chipset is used. The [Fast] selection is factory set and recommended for most users.

! Memory Parity / ECC Check

Designates if a Parity Check is used for Parity Memory. The two selections available are [Disabled] and [Enabled]. The [Enabled] selection is factory set and recommended for most users.

! Typematic Rate Setting

Designates the repeat mode for characters on the keyboard. The selections [Disabled] and [Enabled] are available. [Disabled] is factory set and recommended for most users.

! Typematic Rate (Chars/Sec)

When [Enabled] is selected on [Typematic Rate Setting], it designates the actual rate (the number of repeating characters per second). [6],[8],[10],[12],[15], [20],[24] and [30] are the available selections.[6] is factory set.

! Typematic Delay (Msec)

When [Enabled] is selected on [Typematic Rate Setting], it designates the time until repetition of a character starts. The unit is mili-second (msec). The available selections are [250],[500],[750]and [1000]. [250] is factory set.

! Security Option

Designates the location of the Password Entry. The selection [Setup] is for BIOS setup,and the other selection [System] is for both BIOS setup and Start up.When the [Supervisor Password] or [User Password] has not been designated, this setting is disabled. [Setup] is factory set and recommended for most users.

! PCI/VGA Palette Snoop

When the PCI/VGA and the MPEG ISA/VESA VAG cards are both

used, this setting is set to [Enabled]. In all other cases, this should be set to [Disabled]. The [Disabled] selection is factory set and recommended for most users.

PL-7900 Series User Manual

5 - 5

System Setup

! OS Select For DRAM >64MB

Select either [Non-OS2] or [OS2]. The [Non-OS2] selection is factory

set and recommended for most users.

Video BIOS Shadow

Designates whether Video BIOS ROM is expanded into RAM and used

from there (C0000-C7FFF). The two selections available are [Disabled] and [Enabled]. The [Enabled] selection is factory set and recommended for most users.

! C8000-CBFFF Shadow to DC000-DFFFF Shadow

When the Expansion Board's ROM is placed in this area, this setting designates if the ROM expands into the RAM area. The two available selections are [Disabled] and [Enabled]. The [Disabled] selection is factory set and recommended for most users.

3 CHIPSET FEATURES SETUP

Selecting the CHIPSET FEATURES SETUP menu item calls up the following screen.

ROM PCI/ISA BIOS(2A5LEU1C)

CHOS SETUP UTILITY

CHIPSET FEATURES SETUP

Bank 0/1 DRAM Timing :70ns

SDRAM Cycle Length :3 DRAM Read Pipeline :Enabled Sustained 3T Write :Enabled Cache Rd+CPU Wt Pipeline Cache Timing :Fast Video BIOS Cacheable :Enabled System BIOS Cacheable :Enabled M

emory Hole At 15Mb Addr.

:Enabled

:Disabled

OnChip USB :Disabled

ESC :Quit $%& : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

5 - 6

! Bank 0/1 DRAM Timing

Designates the length of time of accessing to the memory set up on the memory slot 0/1. The available selections are [70ns], [60ns], [Normal], [Medium], [Fast] and [Turbo]. [70ns] is factory set and recommended for most users.

PL-7900 Series User Manual

System Setup

! SDRAM Cycle Length

Designates the length of the cycle time of SDRAM. The available selections are [3] and[2], [3] is factory set and recommended for most users.

! DRAM Read Pipeline

Designates if the DRAM performs the pipeline read. The available selections are [Enabled] and [Disabled], [Enabled] is factory set and recommended for most users.

! Sustained 3T Write

Designates if the DRAM performs the write back and the write through in the secondary cache.The available selections are [Enabled] and [Disabled]. [Enabled] is factory set and recommended for most users.

! Cache Rd+CPU Wt Pipeline

Designates the length of time of waiting for the cache performance. The available selections are [Enabled] and [Disabled], [Enabled] is factory set and recommended for most users.

! Cache Timing

Designates the access speed of the cache. The available selections are [Fast] and [Fastest]. [Fast] is factory set and recommended for most users.

! Video BIOS Cacheable

Designates if the cache performs on the Video BIOS. The available selections are [Enabled] and [Disabled], [Enabled] is factory set and recommended for most users.

! System BIOS Cacheable

Designates if the cache performs on the System BIOS. Using System BIOS speeds up the program operation. The available selections are [Enabled] and [Disabled], [Enabled] is factory set and recommended for most users.

! Memory Hole At 15Mb Addr.

Designates if the memory hole 15MB to 16MB is allocated to the buffer memory for the ISA bus card. The available selections are [15M-16M] and [Disabled], [Disabled] is factory set and recommended for most users.

! On Chip USB

Used for USB type peripheral equipment. The available selections are [Enabled] and [Disabled], [Disabled] is factory set and recommended for most users.

PL-7900 Series User Manual

5 - 7

System Setup

4 POWER MANAGEMENT SETUP

Selecting the POWER MANAGEMENT SETUP menu item calls up the following screen.

ROM PCI/ISA BIOS(2A5LEU1C)

POWER MANAGEMENT SETUP

AWARD SOFTWARE, INC.

Primary INTR : ON

Power Management : User Define PM Control by APM : No Video Off Option : Suspend% Off Video Off method : MODEM Use IRQ : NA

**PM Timers** HDD Power Down : 10Min Doze Mode : Disable Suspend Mode : Disable **PM Events** VGA : OFF LPT & COM : LPT/COM HDD & FDD : ON DMA/master : OFF

V/H SYNC+Blank

IRQ3 (COM 2) : Primary IRQ4 (COM 1) : Primary IRQ5 (LPT 2) : Primary IRQ6 (Floppy Disk) : Primary IRQ7 (LPT 1) : Primary IRQ8 (RTC Alarm) : Primary IRQ9 (IRQ2 Redir) : Primary IRQ10 (Reserved) : Primary IRQ11 (Reserved) : Primary IRQ12 (PS/2 Mouse) : Primary IRQ13 (Coprocessor) : Primary IRQ14 (Hard Disk) : Primary IRQ15 (Reserved) : Primary

ESC :Quit $%& : Select Item F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift)F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

! Power Management

You can choose from three power management options. These are [User Define], [Min Saving] or [Max Saving]. The [User Define] selection is factory set and recommended for most users.

! PM Control by APM

Designates if the power management is controlled by the APM. The two selections available are [Yes] and [No]. The [No] selection is factory set and recommended for most users.

! Video Off Option

Turns the display off. The selections are [Always On], [Suspend% Off],[All Modes% Off]. [Suspend% Off] is factory set and recommended for most users.

! Video Off Method

Designates the method of turning the display off. The available selections are [V/H SYNC+Blank], [Blank Screen] and [DPMS Support]. To turn off both the display and the Vertical / Horizontal synchronous signal, select [V/H SYNC+Blank]. To turn off the display only, select [Blank Screen]. Select [DPMS support] when the CRT display is supported by DPMS. [V/H SYNC+Blank] is factory set and recommended for most users.

5 - 8

PL-7900 Series User Manual

System Setup

! MODEM Use IRQ

Selections for this feature include [NA],[3],[4],[5],[7],[9][10],[11]. The [NA] selection is factory set and recommended for most users.

! HDD Power Down

Designates the length of time until the motor of the hard disk stops. The available selections are[1Min]% [15Min] and [Disabled]. [10Min] is factory set and recommended for most users.

! Doze Mode

When there is no reply from the system within designated time, by using this mode the CPU operation will be automatically stopped. [Disable] is factory set and recommended for most users.

! Suspend Mode

When there is no reply from the system within designated time, by using this mode all peripheral equipment operation will be stopped. [Disable] is factory set and recommended for most users.

! VGA

Designates if the system is turned on when any event is driven in the VGA port. The available selections are [ON] and [OFF]. [OFF] is factory set and recommended for most users.

! LPT & COM

Designates if the system is turned on when any event is driven in the serial port or the printerport. The available selections are [None], [LPT], [COM] and [LPT /COM]. [LPT/COM] is factory set and recommended

for most users.

! HDD & FDD

Designates if the system is turned on when any event is driven in the hard disk or floppy disk. The available selections are [ON] and [OFF]. [ON] is factory set and recommended for most users.

! DMA / master

Designates if the system is turned on when any event is driven in the DMA controller. The available selections are [ON] and [OFF]. [OFF] is factory set and recommended for most users.

! Primary INTR

Designates if the system is turned on when any event is driven in the Primary Interrupt Controller. The available selections are [ON] and [OFF]. [ON] is factory set and recommended for most users.

! IRQ3-IRQ15

Designates if the COM Port is monitored or not. The available selections are [Disabled], [Primary] and [Secondary].

PL-7900 Series User Manual

5 - 9

System Setup

5 PNP/PCI CONFIGURATION SETUP

Selecting the PNP/PCI CONFIGURATION SETUP menu item displays the following screen.

ROM PCI/ISA BIOS(2A5LEU1C)

PNP/PCI CONFIGURATION

AWARD SOFTWARE, INC.

PNP OS Installed : No Resources Controlled By : Manual Reset Configuration Data ACPI I/O Device Node : Enabled IRQ-3 assigned to : Legacy ISA IRQ-4 assigned to : Legacy ISA IRQ-5 assigned to : PCI/ISA PnP IRQ-7 assigned to : Legacy ISA IRQ-9 assigned to : Legacy ISA IRQ-10 assigned to : Legacy ISA IRQ-11 assigned to : PCI/ISA PnP IRQ-12 assigned to : Legacy ISA IRQ-14 assigned to : Legacy ISA IRQ-15 assigned to : PCI/ISA PnP DMA-0 assigned to : PCI/ISA PnP DMA-1 assigned to : PCI/ISA PnP DMA-3 assigned to : PCI/ISA PnP DMA-5 assigned to : PCI/ISA PnP DMA-6 assigned to : PCI/ISA PnP DMA-7 assigned to : PCI/ISA PnP

! PNP OS Installed

: Disabled

CPU to PCI Write Buffer : Enabled PCI Dynamic Bursting :Enabled PCI Master 0 WS Write : Enabled PCI Delay Transaction : Enabled PCI Master Read Prefetch : Enabled PCI#2 Access #1 Retry :Disabled

PCI IRQ Actived By :Level Assign IRQ For USB :Disabled

ESC: Quit ↑↓→← :Select Item F1 : Help PU/PD/+/-:Modify

F5 : Old Values (Shift)F2:Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

Setting used when the user's OS complies with Plug-And-Play standards. The selection options are either [Yes] or [No]. The [No] setting is factory set and recommended for most users.

5 - 10

! Resources Controlled By

The Plug and Play feature allows you to designate whether the allocation of I/O Port, IRQ and DMA resources is performed automatically or manually. The two selections available are [Manual] and [Auto]. The [Manual] selection is factory set and recommended for most users.

! Reset Configuration Data

Designates whether ESCD (Extended System Configuration Data) data

should be erased or not. The two selections available are [Disabled] and [Enabled]. The [Disabled] selection is factory set and recommended for most users.

! ACPI I/O Device Node

When an I/O device is connected to the PL that is ACPI compliant, The PL's ACPI feature is enabled. The two selections available are [Enabled] and [Disabled]. The [Enabled] selection is factory set and recommended for most users.

PL-7900 Series User Manual

System Setup

! IRQ-3 assigned to - IRQ-15 assigned to

Only after the "Resources Controlled By" setting is set to [Manual] can the following IRQ-3assigned to - IRQ-15assigned to settings be changed. These settings are used for the [PCI/ISA PnP] and [Legacy ISA] items. [PCI/ISA PnP] :Used for PCI or ISA's PnP Card [Legacy ISA] :Used for ISA Cards that do not comply with PnP

INITIAL SETTING INITIAL SETTING

IRQ-3 assigned to IRQ-4 assigned to IRQ-5 assigned to IRQ-7 assigned to IRQ-9 assigned to

! DMA-0 assigned to - DMA-7 assigned to

Legacy ISA Legacy ISA PCI/ISA PnP Legacy ISA Legacy ISA

IRQ-10 assigned to IRQ-11 assigned to IRQ-12 assigned to IRQ-14 assigned to IRQ-15 assigned to

Legacy ISA PCI/ISA PnP Legacy ISA Legacy ISA PCI/ISA PnP

Only after the "Resources Controlled By" setting is set to [Manual] can the following DMA-0 assigned to - DMA-7 assigned to settings be changed. These settings are used for the [PCI/ISA PnP] and [Legacy ISA] items.

[PCI/ISA PnP] : Used for PCI or ISA's PnP Card [Legacy ISA] : Used for ISA Cards that do not comply with PnP

INITIAL SETTING INITIAL SETTING

DMA-0 assigned to DMA-1 assigned to DMA-3 assigned to

! CPU to PCI Write Buffer

PCI/ISA PnP PCI/ISA PnP PCI/ISA PnP

DMA-5 assigned to DMA-6 assigned to DMA-7 assigned to

PCI/ISA PnP PCI/ISA PnP PCI/ISA PnP

Setting for the PCI Write Buffer. If [Disabled] is selected, it becomes the CPU's Read Cycle [Enable] or [Disable] toggle. The [Enabled] selection is factory set and recommended for most users.

! PCI Dynamic Bursting

Setting for the PCI's Burst Transmission. The available settings are [Enable] and [Disable]. [Enabled] is factory set and recommended for most users.

! PCI Master 0 WS Write

Sets the duration of the wait for the writing to the PCI Bus to "0". [Enabled] and [Disabled] are available. The [Enabled] setting is factory set and recommended for most users.

! PCI Delay Transaction

This feature enables or disables the Chip Set's PCI Delay Transaction Cycle's built in 32Bit Posted Buffer support. [Enabled] and [Disabled] are available. The [Enabled] setting is factory set and recommended for most users.

! PCI Master Read Prefetch

Enables or disables the PCI Master Read Prefetch feature.[Enabled] and [Disabled] are available. The [Enabled] setting is factory set and recommended for most users.

PL-7900 Series User Manual

5 - 11

System Setup

! PCI #2 Access #1 Retry

Enables or disables the PCI "2 Access #1 Retry feature. [Enabled] and [Disabled] are available. The [Disabled] setting is factory set and recommended for most users.

! PCI IRQ Actived by

Designates the interrupt method used for the unit's PCI slots. [Level] or [Edge] can be used. [Level] is factory set and recommended for most users.

! Assign IRQ For USB

Designates if the interrupt is allocated for USB equipment or not. [Enabled] and [Disabled] are available. The [Disabled] setting is factory set and recommended for most users.

6 SYSTEM MONITOR UTILITY

Selecting SYSTEM MONITOR UTILITY menu item displays the following screen.

ROM PCI/ISA BIOS(2A5LEU1C)

SYSTEM MONITOR UTILITY

AWARD SOFTWARE, INC.

CPU Warning Temperature : Disabled

System Warning Temp. : Disabled

Power FAN : Tolerance : Disabled CPU FAN : Tolerance : Disabled

IN0(Vcore) : Tolerance : Disabled IN2( 3.3V) : Tolerance : Disabled IN3( 5V) : Tolerance : Disabled IN4( 12V) : Tolerance : Disabled IN5( -12V) : Tolerance : Disabled

IN6( -5V) : Tolerance : Disabled

ESC: Quit ↑↓→← :Select Item F1 : Help PU/PD/+/-:Modify

F5 : Old Values (Shift)F2:Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

5 - 12

! CPU Warning Temperature

Sets the temperature level that will trigger a CPU overheating alarm. Ten selections are available - [Disabled], [40oC/104oF], [45oC/113oF], [50oC/122oF], [55oC/131oF], [60oC/140oF], [65oC/149oF], [70oC/158oF], [75oC/167oF], [80oC/176oF]. The [Disabled] selection is factory set and recommended for most users.

PL-7900 Series User Manual

System Setup

! System Warning Temp

Sets the temperature level where a motherboard overheating alarm is triggered. Ten selections are available - [Disabled], [40oC/104oF], [45oC/ 113oF], [50oC/122oF], [55oC/131oF], [60oC/140oF], [65oC/149oF], [70oC/ 158oF], [75oC/167oF], [80oC/176oF]. The [Disabled] selection is factory set and recommended for most users.

! Power FAN

Sets the allowable range for the PL's power supply fan. [Disabled] , [+/30%] and [+/-50%] are available. The [Disabled] selection is factory set and recommended for most users.

! CPU FAN

Sets the allowable range for the PL's power supply fan. [Disabled] , [+/30%] and [+/-50%] are available. The [Disabled] selection is factory set and recommended for most users.

! INO(Vcore)

Sets the allowable range for the INO(Vcore) voltage. [Disabled], [+/4%] and [+/-6%] are available. The [Disabled] selection is factory set and recommended for most users.

! IN2(3.3V)

Sets the allowable range for the IN2(3.3V) voltage. [Disabled], [+/-4%] and [+/-6%] are available. The [Disabled] selection is factory set and recommended for most users.

! IN3(5V)

Sets the allowable range for the IN3(5V) voltage. [Disabled], [+/-4%] and [+/-6%] are available. The [Disabled] selection is factory set and recommended for most users.

! IN4(12V)

Sets the allowable range for the IN4(12V) voltage. [Disabled], [+/-4%] and [+/-6%] are available. The [Disabled] selection is factory set and recommended for most users.

! IN5(-12V)

Sets the allowable range for the IN5(-12V) voltage. [Disabled], [+/-4%] and [+/-6%] are available. The [Disabled] selection is factory set and recommended for most users.

! IN6(-5V)

Sets the allowable range for the IN6(-5V) voltage. [Disabled], [+/-4%] and [+/-6%] are available. The [Disabled] selection is factory set and recommended for most users.

PL-7900 Series User Manual

5 - 13

System Setup

7 INTEGRATED PERIPHERALS

Selecting INTEGRATED PERIPHERALS SETUP menu item displays the following screen.

ROM PCI/ISA BIOS(2A5LEU1C)

INTEGRATED PERIPHERALS

AWARD SOFTWARE, INC.

OnChip IDE First Channel :Enabled

Onboard Serial Port 3 : 3E8H

IDE Prefetch Mode :Disabled IDE HDD Block Mode :Disabled IDE Primary Master PIO :Auto IDE Primary Slave PIO :Auto

IDE Primary Master UDMA :Auto IDE Primary Slave UDMA :Auto

Serial Port 3 Use IRQ : IRQ9 Onboard Serial Port 4 : 2E8H

Serial Port 4 Use IRQ : IRQ10

Onboard FDC Controller :Enabled Onboard Serial Port 1 :3F8/IRQ4 Onboard Serial Port 2 :2F8/IRQ3 UR2 Mode : Onboard Parallel Port : Parallel Port Mode :SP P

! OnChip IDE First Channel

Standard 3BC/IRQ7

ESC: Quit ↑↓→← :Select Item F1 : Help PU/PD/+/-:Modify

F5 : Old Values (Shift)F2:Color F6 : Load BIOS Defaults F7 : Load Setup Defaults

Designates the internal IDE port's setting. The two selections available are [Disabled] and [Enabled]. The [Enabled] selection is factory set and recommended for most users.

! IDE Prefetch Mode

Designates if the IDE drive's high speed access is performed by enabling the Prefetch Mode. The two selections available are [Disabled] and [Enabled]. The [Disabled] selection is factory set and recommended for most users.

! IDE HDD Block Mode

Designates the Hard disk's Block Operation Mode. The two selections available are [Disabled] and [Enabled]. The [Disabled] selection is factory set and recommended for most users.

5 - 14

! IDE Primary Master PIO

Designates the Master Drive's Operation Mode. Only after the "Internal PCI/IDE" has been set to [Primary] can these IDE Primary Master PIO settings be entered. The two selections available are [Auto], [Mode0], [Mode1], [Mode2], [Mode3], and [Mode4]. The [Auto] selection is factory set and recommended for most users.

! IDE Primary Slave PIO

Designates the Slave Drive's Operation Mode. Only after the "Internal PCI/IDE" has been set to [Primary] can these IDE Primary Slave PIO settings be entered. The two selections available are [Auto], [Mode0], [Mode1], [Mode2], [Mode3], and [Mode4]. The [Auto] selection is factory set and recommended for most users.

PL-7900 Series User Manual

System Setup

! IDE Primary Master UDMA

Designates the Master Drive's UDMA Operation Mode. The two selections available are [Auto] or [Disabled]. The [Auto] selection is factory set and recommended for most users.

! IDE Primary Slave UDMA

Designates the Slave Drive's UDMA Operation Mode. The two selections available are [Auto] or [Disabled]. The [Auto] selection is factory set and recommended for most users.

! Onboard FDC Controller

Designates whether the PL's FDD(Floppy Disk Drive) controller is used or

not. The two selections available are [Disabled] or [Enabled]. The [Enabled] selection is factory set and recommended for most users.

! Onboard Serial Port1

Designates the PL's Serial Port1 address setting. The selections include

[Disabled], [Auto], [3F8/IRQ4], [2F8/IRQ3], [3E8/IRQ4] or [2E8/IRQ3]. The [3F8/IRQ4] selection is factory set and recommended for most users.

! Onboard Serial Port2

Designates the PL's Serial Port2 address setting. The selections include

[Disabled], [Auto], [3F8/IRQ4], [2F8/IRQ3], [3E8/IRQ4] or [2E8/IRQ3]. The [2F8/IRQ3] selection is factory set and recommended for most users.

! UR2 Mode

Designates the IR function used by the PL's onboard I/O chip. The selections

include [Standard], [Sharp IR], [IrDA SIR]. The [Standard] selection is factory set and recommended for most users. When serial port 2 is used for RS-232C communication, and the [standard] option's PL-IR100 selection is used, set this item to [IrDA/SIR].

! Onboard Parallel Port

Selects the PL Parallel Port 1's I/O Address. The selections include

[Disabled], [3BC/IRQ7], [378/IRQ7] or [278/IRQ5]. The [3BC/IRQ7] selection is factory set and recommended for most users.

! Parallel Port Mode

Here, the parallel port's operation mode can be selected ([SPP], [EPP1.7],

[EPP1.9], [ECP], or [ECP recommended for most users. When either [ECP] or [ECP+EPP] is selected, the [ECP Mode Use DMA] setting can be used.

! ECP Mode Use DMA

Designates the ECP mode's DMA channel. [1] and [3] are available

selections, however, this item can be set only when the Parallel Port Mode is set to either [ECP] or [ECP+EPP].

! Onboard Serial Port 3

Designates the PL's Serial port 3 address setting. The selections include

[Disabled], [3F8H], [2F8H], [3E8H], or [2E8H]. The [3E8H] selection is

EPP]). Normally, [SPP] is used and

factory set and recommended for most users.

PL-7900 Series User Manual

5 - 15

System Setup

! Serial Port 3 Use IRQ

Designates the PL's Serial Port 3, which is internally connected to the touch panel, allocation numbers. The selections include [IRQ3], [IRQ4], [IRQ9], [IRQ10], or [IRQ15]. The [IRQ9] selection is factory set and recommended for most users.

! Onboard Serial Port 4

Designates the PL's Serial Port 4, which is internally connected to the touch panel, address setting. The selections include [Disabled], [3F8H], [2F8H], [3E8H], or [2E8H]. The [2E8H] selection is factory set and recommended for most users.

! Serial Port 4 Use IRQ

Designates the PL's Serial Port 4 allocation numbers. The selections include [IRQ3], [IRQ4], [IRQ9], [IRQ10], or [IRQ15]. The [IRQ10] selection is factory set and recommended for most users.

8 IDE HDD AUTO DETECTION SETUP

Selecting the IDE HDD AUTO DETECTION menu item produces the following screen.

Provides automatic detection of any hard disk connected to the IDE. Normally unused.

ROM PCI/ISA BIOS(2A5IIU1C)

CMOS SETUP UTILITY

AWARD SOFTWARE, INC.

CYLS. HEADS PRECOMP LANDZONE SECT0RS MODE Drive C : ( Mb)

Select Drive C Option(N=Skip) : N

OPTIONS SIZE CYLS. HEADS PRECOMP LANDZONE SECTORS MODE 2(Y) 2167 525 128 0 4199 63 LBA 1 2167 4200 16 65535 4199 63 NORMAL 3 2167 525 128 65535 4199 63 LARGE

Note : Some OSes (like SCO-UNIX) must use "NORMAL" for Installation

5 - 16

ESC:Skip

PL-7900 Series User Manual

Chapter

OS Setup

6-1 Setting Up Your PL OS

OS Setup

This chapter provides information about the set up of the PL’s Windows® 95 or Windows NT® operating systems (OS).

6-1 Setting Up Your PL OS

The Digital Electronics Corporation has prepared the following additional program files which are not supported by the standard versions of the Windows® 95 and Windows NT® 4.0 operating systems. These files must be installed from the additional “PL-X900 Series Driver & Utility Disk”.

To set up the OS with these files, you will need to prepare one of the FDD units, the PL-FD200 or the PL-FD210 (only for the PL-7900), and a PS/2 compatible keyboard.

The software contained in the PL's accompanying “PL-X900 Series Driver & Utility Disk” is designed specifically for use with only the Windows® type of OS.

If this software is used with other OS types, its performance cannot be guaranteed.

Be sure to read “PL-X900 Series Driver and Utility Disk” README documents prior to using the PL unit, since they contain the latest PL related information and manual updates.

PL-7900 Series User Manual

6-1

OS Setup

1 T ouch Panel Device Driver Settings

The README file contains the following information.

Windows NT® 4.0 (README.NT)Windows® 95 (README.95)

I. Preface 1. Preface II. Cautions II. Cautions III. Software Configuration III. Software Configuration IV. Installation Method IV. Installation Method V. Software Installation V. Software Installation

VI. System Automatic Log-On Settings VII. Uninterrupted Power Supply

When using the Touch Panel display, the following touch panel drivers will be needed.

With Windows® 95: Digital Electronics Corporation’s PL-ME000 With Windows NT® 4.0: Gunze Corporation’s TT-WINNT

The PL-ME000 software is designed exclusively by Digital for the Windows® 95 OS. The Gunze corporation’s TT-WINNT software’s performance is still being evaluated by Digital for the Windows NT® 4.0 system.

When installing the Touch Panel’s device driver, the following page’s dialog boxes will be used. Enter the settings given here in these screens.

6-2

PL-7900 Series User Manual

' Hardware Controls(Serial)

COM Port :COM 4 Configuration

Address : 2E8h Irq : 10 Baud rate : 9600 Parity : None Data Bits : 8 Stop Bits : 1

' Button Modes

Current Button Mode : Time/Tap

OS Setup

' User Controls

Miscellaneous Settings

Click time : One level slower than Fast Double Click speed : Slow Lift off time : Fast Stabilization : Low Touch Offset : Leave unselected Sound : Select (check mark) Button simulation : Left

' Advanced Settings

Miscellaneous

Swap X/Y : Leave unselected Initialize : Leave unselected

PL-7900 Series User Manual

6-3

OS Setup

MEMO

6-4

This page intentionally left blank.

PL-7900 Series User Manual

Maintenance and Inspection

Chapter

7-1 Regular Cleaning 7-3 Replacing the PL Backlight 7-2 Cleaning the Filter 7-4 Periodic Check

7Maintenance and Inspection

7-1 Regular Cleaning

1 Cleaning the Display

When the display surface or frame become dirty, use a soft cloth moistened with neutral detergent to wipe away any dust or stains.

Neutral detergent

Thinner

Organic solvent

Strong acid

Protection sheet

Maintenance panel Display

Do not clean the unit with thinner, organic solvents, or strong acids.

Do not use sharp or hard objects, such as a mechanical pencil or screwdriver, to push on the display . This could damage the unit.

PL-7900 Series User Manual

Use the screen protection sheet when using the PL in extremely dirty or dusty areas.

7-1

Maintenance and inspection

2 Moisture Resistant Gasket Replacement

The moisture resistant gasket protects the PL and improves its water resistance. For instructions on installing the PL’s gasket, 4-2 Installing

the PL

Note:

A gasket which has been used for a long period of time may have scratches or dirt on it, and could have lost much of its water resistance. Be sure to change the gasket periodically (or when scratches or dirt become visible).

7-2 Cleaning the Filter

Since excessive dirt and dust in the filter of the PL-7900T/PL-7901T’s cooling fan can potentially affect the performance of the unit, regular inspection and cleaning of the filter is strongly recommended.

!PL-7900T(4 slot type)

Attachment Screw

Filter

1) Unscrew the cooling fan filter cover’s attachment screw and remove the filter cover.

Filter Cover

2) Remove the filter from the fan cover.

7-2

PL-7900 Series User Manual

!PL-7901T(2 slot type)

3) Clean the filter completely.

If stubborn dirt or stains are present, wash

Important

Attachment Screw

the filter with a neutral detergent.

• Do not wring the filter to dry it.

• Be sure the filter is completely dry

before reattaching the filter to the fan cover.

• Allow it to air dry. Do not leave the

filter in direct sunlight.

4) After reattaching the filter to the filter

cover, reattach the cover to the cooling unit with the filter cover attachment screw.

Maintenance and inspection

Filter Cover

Filter

Important

1) Unscrew the cooling fan filter cover’s at-

tachment screw and remove the filter cover.

2) Remove the filter from the fan cover.

3) Clean the filter completely.

If stubborn dirt or stains are present, wash the filter with a neutral detergent.

• Do not wring the filter to dry it.

• Be sure the filter is completely dry

before reattaching the filter to the fan cover.

PL-7900 Series User Manual

• Allow it to air dry. Do not leave the

filter in direct sunlight.

4) After reattaching the filter to the filter

cover, reattach the cover to the cooling unit with the cover attachment screw.

7-3

Maintenance and inspection

7-3 Replacing the PL Backlight

The PL-7900T/PL-7901T’s backlight can be changed after it wears out. The steps involved are outlined below.

Note:

Please use the following table to identify which backlight model number to

use when ordering your backlight.

PL Type Backlight Type

PL-7900/ PL-7901 PL7900T-BL00-MS

Important

If the backlight or the display unit are damaged, the screen display will go out. Even if the screen goes out, however, there is a possibility that the touch panel is still operating correctly. Therefore, since any type of touch panel contact could have an unexpected or dangerous effect or result, be sure not to touch the screen when this condition occurs.

WARNING

• Whenever changing the backlight, be sure the PL's power cord has been disconnected and that the unit is cooled down.

• When the PL's power cord is connected and the PL is ON, high voltage runs through the wires in the backlight area—do not touch

them!

• When the PL's power has just been turned OFF, the backlight area is still very hot! Be sure to wear gloves to prevent being burned.

• Do not try to replace the backlight while the PL is installed in a cabinet or panel. Remove the PL first, then begin the backlight replacement procedures.

Reference

Model:PL7900T

3-1

-1 Installing Options and Expansion Boards

Follow the steps given below to change the PL-7900T/PL-7901T's backlight. Be sure to wear cotton gloves when performing this work to prevent burns.

1) Unplug the PL's power cord from the main power supply.

2) Disconnect the PL power cord terminals from the PL's power terminal block.

Be sure to perform the backlight changeover on a flat, level surface. This will prevent damage to the PL unit and the accidental cutting of any of its power cord terminals.

Power Cord

Important

7-4

PL-7900 Series User Manual

With a pre-installed PLFD210, unscrew these attachment screws to take the unit out.

Maintenance and inspection

3) Remove the PL’s four chassis at-

tachment screws.

Top Face

Attachment Screws

Important

PL-FD210

With a pre-installed PL-FD210 (can only be installed in the PL7900T), unscrew the attachment screws and remove the unit.

4) Remove the last two (2) attachment

screws. Next, hold both sides of the PL’s front panel section and use your thumbs to slide (push) the chassis forward in the direction shown here (see figure).

Slide Forward

5) The chassis can then be pivoted

back and open. Remove the three (3) attachment screws from inside the cover.

PL-7900 Series User Manual

7-5

Maintenance and inspection

Power

Connectors

6) The PL’s LCD display unit is fixed in place with two attachment screws. Remove these screws.

7) Disconnect both backlight power connectors from the inverter board.

Connector

Cable Holder (closed)

Attachment Screw

Cable Holder (opened)

Inverter Board

Important

8) Each backlight (upper and lower) is fixed in place with an attachment screw. Remove each of these screws.

• Use an"0" sized Phillips screwdriver to remove the backlight attachment screws.

• Be careful not to lose any of the small attachment screws.

• Do not let any of attachment screws fall inside the PL unit’s chassis or front panel area, since it could cause an electrical short.

9) Open/release each plastic cable

holder.

Each backlight uses a cable

holder to prevent the cable from becoming caught or pinched when the PL’s rear cover is opened or closed. Be sure both cables are secured by their holder before closing the rear cover.

7-6

PL-7900 Series User Manual

Maintenance and inspection

Important

10) Remove each backlight unit.

11) Insert each new backlight.

12) After installing both new backlights, replace and tighten all backlight and LCD panel attachment screws ( total of 4 screws ). Then, re-connect both inverter board power connectors.

• Be sure to always change

both of the PL backlights at the same time.

• Be sure that the

backlight’s power cord connector is inserted completely into the Inverter Board’s receptacle. If not, the PL may be damaged.

• The PL-FD210 can only be

used in the PL-7900T.

13) Reassemble the rear cover, being careful not to pinch any internal electrical wires.

14) Replace the PL-FD210’s two attachment screws (only PL-

7900).

15) Replace and tighten the PL’s four chassis attachment screws.

PL-7900 Series User Manual

7-7

Maintenance and inspection

7-4 Periodic Check

Check the PL periodically to ensure it is in good working condition.

Ambient environment check

• Is the ambient temperature within the specified range?

Panel Interi or Panel Face W/ PL Fan W/OUT PL Fan

• Is the ambient humidity within the specified range (30 %RH to 85 %RH) ?

• Is the atmosphere free of corrosive gas ?

Electrical specifications check

C to 50oC

C to 40oC

• Is the voltage adequate (AC85 to 265V, 50/60 Hz) ?

Installation check points

• Is the connection cable firmly connected (not loose) ?

• Are any bolts or screws loose ?

• Are there any flaws or tears in the moisture resistant gasket ?

Display check

• Is the display bright enough ?

Note:

When the PL’s backlight needs to be replaced, please contact your local PL

distributor.

7-8

PL-7900 Series User Manual

Chapter

1. Hardware Configuration

Appendix

1 Hardware Configuration

1 I/O Mapping

Address AT system device System device

0000H - 001FH DMA controller (8237) 0020H - 003FH Interrupt controller (8259A) 0040H - 005FH System timer (8254) 0060H - 006FH Keyboard Controller 0070H - 007FH Real-time clock, NMI mask 0080H - 009FH DMA page register 00A0H - 00BFH Interrupt controller 2 (8259A) 00C0H - 00DFH DMA controller 2 (8237) 00F0H - 00FFH Numeric data processor 01F0H - 01FFH Hard disk (IDE) 0200H - 0207H Game I/O *1 0290H - 0297H Reserved System Monitor 0298H - 029FH Reserved RAS

02E8H - 02EFH Reserved

02F8H - 02FFH Serial port 2 (COM 2) : General Use 03B0H - 03BBH Video controller (VG A) 03BCH - 03BFH Parallel port 1 (LPT1) 03C0H - 03DFH Video controller (VGA) 03E8H - 03EFH Reserved Serial port 3

03F0H - 03F7H Floppy disk controller 03F8H - 03FFH Serial port 1 (COM 1) :General Use

Touch Panel Serial Port 4 (COM4 )

(COM3)

*1 : The game I/O is not used by the PL system, but is normally reserved.

PL-7900 Series User Manual

App-1

Appendix

2 Memory Mapping

FFFFFFFFH

System ROM

FFFF0000H

Unused RAM

System ROM

00100000H

000E0000H

App-2

Expanded ROM Area

000CC000H

VGA BIOS

000C0000H

(Display Adaptor)

000A0000H

Unused RAM

640 KB

System Board DRAM

00000000H

PL-7900 Series User Manual

3 IRQ Mapping

Hardware Interruption List

NMI P arity Error or I/O Channel Chec k

IRQ 0 Timer (in the Chips et ) IRQ 1 Keyboard

IRQ 2 Casc ade from Controll er 2 IRQ 3 Serial P ort 2 (COM2): General Us e P ort IRQ 4 Serial P ort 1 (COM1): General Us e P ort IRQ 5 Available for users IRQ 6 Floppy Di s k Controll er IRQ 7 Parallel Port 1 (LPT1) : Printer Port IRQ 8 Real Time Clock

IRQ 9 Serial P ort 3 (COM3): General Us e P ort IRQ 10 Serial P ort 4 (COM4): Touch P anel IRQ 11 Available for users IRQ 12 PS / 2 M ouse IRQ 13 Num e ri c Data Proc e ss o r IRQ 14 Hard Di sk ( IDE ) IRQ 15 Available for users

Appendix

Description

DMA Channel List

DMA 0 DMA 1 DMA 2 Floppy disk con t r ol l er DMA 3 DMA 4 Cascade to cont rol ler 1

DMA 5 DMA 6 DMA 7

Description

For 8-bit transmission

For 16-bit transmission

PL-7900 Series User Manual

App-3

Appendix

2 RAS Feature

1 PL’s RAS Features

RAS, which stands for Reliability , Availability and Serviceability, is a device-level monitoring function that provides a variety of features to improve the reliability of your PL system.

Though the standard set of RAS features used will vary depending on the devices used, the following features are used to provide Alarm Monitoring and External Input Signal support.

Alarm Monitoring

External Input Signal

Power Voltage Alarm Cooling Fan Alarm Internal Temperature Alarm Watchdog Timer Time Up Mirror Disk Alarm Standard Signal Input (DIN 2 bit) Remote Reset Input

Also, when either the one of the above mentioned alarms occurs, or an external signal input is received, the following types of alarm processing output signals and features are supported.

External Output Signal

Types of Processing (all units)

Standard Signal Output (DOUT 1 bit) Alarm Output (1 point) Lamp Output (1 point)

LED Indicator (3-state display – 1 point) Pop-up Message Output Buzzer Output System Shutdown

*1 When a Mirror Disk Alarm occurs and the standard RAS feature settings are used, the

*2 The remote reset feature’s input can be either enabled or disabled, the alarm output setting

*3 For System Monitor Feature details, refer to the accompanying Driver and Utility disk.

App-4

Furthermore, using the PL’s System Monitor feature (included in the PL’s software utility disk), allows the easy setting and control (Enable/Disable) of the aforementioned Alarm Monitor and External Input Signals.

Last, the system monitor feature’s use of an Application Link Library (API-DLL) allows it to also be used with other applications.

alarm output is limited to the Mirror Disk unit’s LED indicator. (Alternately flashing orange and green)

cannot be set to trigger a forced system reset.

Chapter 6 - OS Set up

PL-7900 Series User Manual

Appendix

2 RAS Feature Details

! Alarm Monitoring

' '

' Power Voltage Alarm

' '

Monitors the condition of the PL’s internal and CPU power.

' '

' Cooling Fan Alarm

' '

Monitors the condition of the PL’s internal power and CPU cooling fans.

' '

' Internal Temperature Alarm

' '

Monitors the PL’s internal and CPU vicinity temperatures. The degree of monitoring (3 levels) and the enabling or disabling of the above

three items is performed via the System Setup Area’s settings. For detailed information about the monitoring level settings,

5.2.6 SYSTEM MONITOR UTILITY

This utility can also be used to enable or disable the above mentioned features, as well as designate what type of processing is to be performed.

' '

' Watchdog Timer Time Up

' '

This feature alternately writes Time Up Count values from the CPU to the RAS feature’ s special programmable timer and then periodically clears them, which provides a means of monitoring the CPU’s performance. If the clearing of this count value is stopped, the timer will overflow and an alarm will be detected. The System Monitor utility can be used to enable or disable this feature, as well as designate what type of processing is to be performed.

' '

' Mirror Disk Alarm

' '

Whenever a disk crash, or other alarm event occurs to the optional Mirror Disk unit, this unit’s LED indicator will flash (either orange or green) to indicate there is a problem.

This unit’s error detection occurs independently of and cannot be set by the RAS feature.

PL-7900 Series User Manual

App-5

Appendix

! External Input Signal

The PL’s RAS interface connector uses the following input signals.

Standard Signal Input (DIN)

This standard digital input is used for alarm detection in external devices. The input signal uses two bits.

The System Monitor utility can be used to enable or disable this feature, as well as designate what type of processing is to be performed once a signal is received.

Remote Reset Input

This is the reset signal sent from an external device to the PL. When this signal is enabled, a forced reset of the PL is performed.

The System Monitor utility can be used to enable or disable this feature

External Input Signal (for both DIN and Remote Reset Input)

- External Power DC12V to DC24V connections are possible

- Input Protection Protection Diode

- Isolation Used (photo-isolation)

(Interface Circuit) (Connection Example)

+5V

3.3kΩ 1/4W

Input Port

Reset Input(+)5pi n

DIN0(+) 6pin

DIN1(+) 13pin

(DC12V to DC24V)

Reset Input(-)11pin

DIN0(-) 12pin DIN1(-) 24pin

DC12V to DC24V External Power)

Cable

App-6

PC357

Dsub 25Pin Connector

For connection pin location details,

2.3.5 RAS Interface

PL-7900 Series User Manual

Appendix

! External Output Signal

The PL’s RAS interface connector uses the following output signals.

General Purpose Signal Output (DOUT)

This general purpose digital output signal provides system condition information to external devices.

The System Monitor’s API-DLL are used by applications to control this signal.

Alarm Output (1 point) Lamp Output (1 point)

The above mentioned general purpose digital output signals provide system condition information to external devices.

The System Monitor utility can be used to enable or disable any of these output signals.

Also, when alarm output is enabled, the orange colored LED indicator will also blink.

External Output Signal (used for DOUT, Alarm Output, Lamp Output)

- Output Specification DC24V 100mA (MAX)

- Isolation Used (photo-isolation)

(Interface Circuit) (Connection Example)

+5V

DOUT(+) 8pin

Cable

DOUT(-) 7pin

Alarm Output(-) 9pin

Output(-) 21pin

Output Port

PC357

4.7kΩ

Alarm Output(+) 10pin

Lamp Output(+) 22pin

SST3904

Lam

PL-7900 Series User Manual

Dsub 25 Pin Connector

For connection pin location details,

2.3.5 RAS Interface

App-7

Appendix

! Types of Processing (all units)

The PL provides system condition information via the following methods.

LED Indicator (3-state display – 1 point)

In addition to indicating if the unit’s power is ON or OFF, the 3-state LED indicator (power lamp) provides the following system condition information.

Color System Condition Output Crea te d

Green

Orange

Flashing Orange/ Green

Normal Operation ( P owe r ON) None RAS ha s d etected a system alarm.

Mirror Disk Alarm has occurred None

The alarm output set in the sys tem monit or is enabled.

Pop-up Message Output

This feature uses the Windows® system’s pop-up message feature to indicate that an alarm has occurred.

Buzzer Output

This feature uses the PL’s internal speaker to indicate the system’s condition.

System Shutdown

This feature shuts down the PL’s OS (Windows® 95/ Windows® 98 Second Edition/ Windows® NT 4.0). The System Monitor utility can be used to enable or disable this feature.

App-8

PL-7900 Series User Manual

3 RAS Feature Overview

System Setup

Alarm Level Detection

Settings

Enable/Disable Settings

(Voltage, Fan RPM, Temp.)

System Monitor

API-

DLL

Appendix

User Application

CPU

Clear

System Monitor Timeout

General

Purpose Input

Remote Reset

Input

Power Alarm

Cooling Fan

RPM Alarm

Int. Temp. Alarm

Watchdog

Timer

Time Setting

RAS

Connector

2 Bit

Alarm

Time Up

Enable

Disable

Settings

Output

Settings

Shutdown

Processing

Pop-Up

Message

Buzzer Output

General

RAS

Conne-

ctor

Hardware Reset

Purpose

Signal Output

Lamp Output

Alarm Output

Mirror Disk

Alarm

PL-7900 Series User Manual

Power ON

LED

Lights Orange

Blinks Orange/

Green

Lights Green

App-9

Appendix

MEMO

App-10

PL-7900 Series User Manual

Index

AC power terminals .......................................... 4- 8

Accessories ...................................................... 1- 2

ACPI I/O Device Node .................................... 5- 10

aerospace equipment .......................................... iv

Afterimage ........................................................... vi

air circulation vents.............................................. v

Ambient environment........................................ 7- 8

Ambient environment check ............................. 7- 8

ambient humidity .............................................. 7- 8

ambient temperature ........................................ 4- 4

Analog-Resistance-Film .................................... xiii

Appendix ...........................................................A-1

arc-generating devices ..................................... 4- 4

Assign IRQ For USB....................................... 5- 12

Attachment Brackets ........................................ 4- 5

automatic detection ........................................ 5- 16

backlight ........................................................... 7- 8

Bank 0/1 DRAM Timing .................................... 5- 6

BIOS FEA TURES SETUP................................ 5- 4

Boot Sequence ................................................. 5- 4

Boot Up Floppy Seek........................................ 5- 5

Boot Up NumLock Status ................................. 5- 5

Boot Up System Speed .................................... 5- 5

Brightness Adjustment Slide............................. 2- 9

Cache Rd+CPU Wt Pipeline............................. 5- 7

Cache Timing ................................................... 5- 7

Cautions When Connecting I/O Signal Lines .... 4- 9

CE Marking......................................................... xv

CHIPSET FEA TURES SETUP ......................... 5- 6

Cleaning the Display......................................... 7- 1

Cleaning the Filter ............................................ 7- 2

Commercially Available Boards ........................ 1- 4

Commercially Available Products ..................... 1- 3

condensation ....................................................... v

conduits ............................................................. 4-9

Connecting the CD-ROM Unit ........................... 3-8

Connecting the Power Cord............................... 4-6

connection cable................................................ 7-8

Constant voltage transformer ............................ 4-8

corrosive gas .............................................. 4-4, 7-8

CPU FAN......................................................... 5-13

CPU Internal Cache........................................... 5-4

CPU to PCI Write Buffer.................................. 5-11

CPU Warning Temperature ............................. 5-12

Create an Installation Slot.................................. 4-3

crime prevention devices ......................................iv

crimp terminals .................................................. 4-7

damages ............................................................. v

Date/Time......................................................... 5- 2

deadman (two-handed) start switch...................... ii

Dedicated ground ............................................. 4- 9

DIM modules .................................................... 1- 4

Dimensions............................................... vii, 3, 3

DIMM module sockets...................................... 3- 4

direct sunlight ...................................................... v

Display Area .......................................... 2- 10, 2- 9

Display check ................................................... 7- 8

Display Functions ..................................... vii, 5, 5

Displayed color .................................................... vi

DMA / master ................................................... 5- 9

DMA-0 assigned to - DMA-7 assigned to........ 5- 11

Doze Mode ....................................................... 5- 9

DRAM Read Pipeline........................................ 5- 7

Drive A.............................................................. 5- 2

Drive C ............................................................. 5- 2

Drive D ............................................................. 5- 2

PL-7900 Series User Manual
