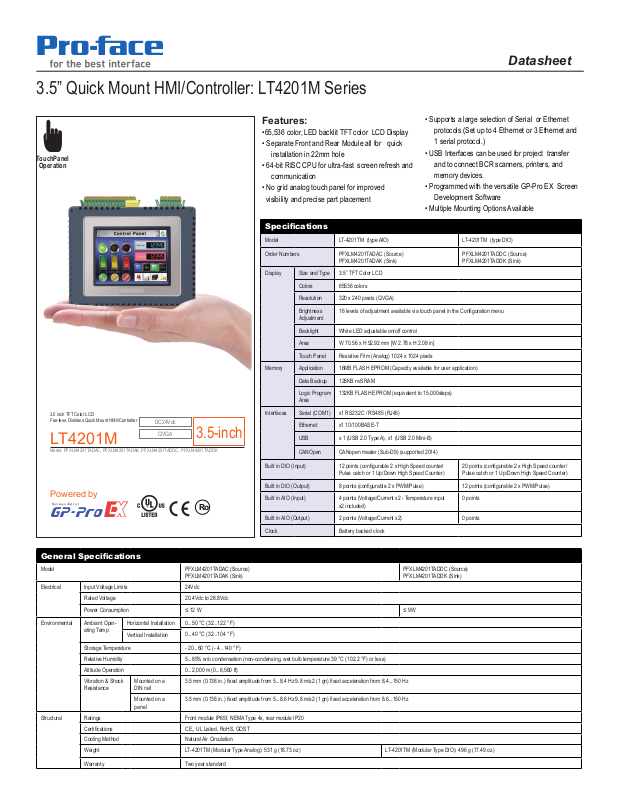

Proface LT4200M User Manual

3.5” Quick Mount HMI/Controller: LT4201M Series

TouchPanel

Operation

Ro

Datasheet

3.5 inch TFT Color LCD
Fan-less, Diskless Quick Mount HMI\/Controller

LT4201M

Model: PFXLM4201TADAC, PFXLM4201TADAK, PFXLM4201TADDC, PFXLM4201TADDK

DC24Vdc

QVGA

3.5-inch

Powered by

Features:

•65,536 color, LED backlit TFT color LCD Display

• Separate Front and Rear Module all for quick
installation in 22mm hole

• 64-bit RISC CPU for ultra-fast screen refresh and
communication

• No grid analog touch panel for improved

visibility and precise part placement

• Supports a large selection of Serial or Ethernet
protocols (Set up to 4 Ethernet or 3 Ethernet and
1 serial protocol.)

• USB Interfaces can be used for project transfer
and to connect BCR scanners, printers, and
memory devices.

• Programmed with the versatile GP-Pro EX Screen
Development Software

• Multiple Mounting Options Available

Specications

Model LT-4201TM (type AIO) LT-4201TM (type DIO)

Order Numbers PFXLM4201TADAC (Source)

Display Size and Type 3.5” TFT Color LCD

Colors 65536 colors

Resolution 320 x 240 pixels (QVGA)

Brightness
Adjustment

Backlight White LED adjustable on/off control

Area W 70.56 x H 52.92 mm [W 2.78 x H 2.08 in]

Touch Panel Resistive Film (Analog) 1024 x 1024 pixels

Memory Application 16MB FLASH EPROM (Capacity available for user application)

Data Backup 128KB nvSRAM

Logic Program
Area

Interfaces Serial (COM1) x1 RS232C / RS485 (RJ45)

Ethernet x1 10/100BASE-T

USB x 1 (USB 2.0 Type A), x1 (USB 2.0 Mini-B)

CANOpen CANopen master (Sub-D9) (supported 2014)

Built in DIO (Input) 12 points (congurable 2 x High Speed counter/

Built in DIO (Output) 8 points (congurable 2 x PWM/Pulse) 12 points (congurable 2 x PWM/Pulse)

Built in AIO (Input) 4 points (Voltage/Current x2 - Temperature input

Built in AIO (Output)

Clock Battery backed clock

PFXLM4201TADAK (Sink)

16 levels of adjustment available via touch panel in the Conguration menu

132KB FLASH EPROM (equivalent to 15,000steps)

Pulse catch or 1 Up/Down High Speed Counter)

x2 included)

2 points (Voltage/Current x2) 0 points

PFXLM4201TADDC (Source)
PFXLM4201TADDK (Sink)

20 points (congurable 2 x High Speed counter/
Pulse catch or 1 Up/Down High Speed Counter)

0 points

General Specications

Model PFXLM4201TADAC (Source)

Electrical Input Voltage Limits 24Vdc

Rated Voltage 20.4Vdc to 28.8Vdc

Power Consumption ≤ 12 W ≤ 9W

Environmental Ambiant Oper-

Structural Ratings Front module IP65f, NEMA Type 4x, rear module IP20

ating Temp

Storage Temperature - 20...60 °C (- 4...140 °F)

Relative Humidity 5...85% w/o condensation (non-condensing, wet bulb temperature 39 °C (102.2 °F) or less)

Altitude Operation 0...2,000 m (0...6,560 ft)

Vibration & Shock
Resistance

Certications CE,, UL Listed, RoHS, GOST

Cooling Method Natural Air Circulation

Weight LT-4201TM (Modular Type Analog): 531 g (18.73 oz) LT-4201TM (Modular Type DIO): 496 g (17.49 oz)

Warranty Two year standard

Horizontal Installation 0...50 °C (32...122 °F)

Vertical Installation

Mounted on a
DIN rail

Mounted on a
panel

PFXLM4201TADAK (Sink)

0...40 °C (32...104 °F)

3.5 mm (0.138 in.) xed amplitude from 5...8.4 Hz 9.8 m/s2 (1 gn) xed acceleration from 8.4...150 Hz

3.5 mm (0.138 in.) xed amplitude from 5...8.6 Hz 9.8 m/s2 (1 gn) xed acceleration from 8.6...150 Hz

©2012 Pro-face. All rights reserved. Specications may change without notice.

PFXLM4201TADDC (Source)
PFXLM4201TADDK (Sink)

Datasheet

LT4201M External Dimensions

LT4201M Cut-Out Dimensions

Unit: MM (in)

Panel Mounted

Ordering Information

Part Number Description

PFXLM4201TADAC
(Source)

PFXLM4201TADAK (Sink) 3.5” TFT, 1 Serial, 2 USB, Ethernet, 22mm Quick Mount,

PFXLM4201TADDC
(Source)

PFXLM4201TADDK (Sink) 3.5” TFT, 1 Serial, 2 USB, Ethernet, 22mm Quick Mount,

3.5” TFT, 1 Serial, 2 USB, Ethernet, 22mm Quick Mount,
24Vdc, Analog, Source

24Vdc, Analog, Sink

3.5” TFT, 1 Serial, 2 USB, Ethernet, 22mm Quick Mount,
24Vdc, Source

24Vdc, Sink

Optional Items

Part Number Product Name

EX-ED-Vxx GP-Pro EX Development Software (download version), xx

EX-ED-Vxx-DVD GP-Pro EX Development Software (download version + DVD

PFXZXMADSM31 Display module / rear module separation cable (3m)

PFXZXMADSM51 Display module / rear module separation cable (5m)

PFXZLMCBRJR21 Cable for RS-232C connection between various hosts and the

PFXZLMCBRJR81 Cable for RS-485 connection between various hosts and the

PFXLM4B01DAC LT4000M Analog model Rear Module - Source

PFXLM4B01DAK LT4000M Analog model Rear Module - Sink

PFXLM4B01DDC LT4000M DIO model Rear Module - Source

PFXLM4B01DDK LT4000M DIO model Rear Module - Sink

PFXXM4200TP 3.5” Display Module

PFXXM4300TP 5.7" Display Module

PFXZLMCNI01 DIO Connector set for LT4000M

refers to current version

backup media), xx refers to current version

LT4000M (RJ45 Type) -open leads

LT4000M (RJ45 Type) -open leads

Software Compatibillity

Pro-face America

Phone: [phone]
Fax: [phone]
www.profaceamerica.com

DS-LT4201M(C)

Powered By

HMI Development
Software

(Version 3.12 or newer)

Customer Service Hotline: [phone]

For more information

ACCESS

©2013 Pro-face. All rights reserved. Specications may change without notice.

LT4201TM

Rear Module

www.profaceamerica.com

DIN Rail Mount with Cable

PLC Serial Cable
