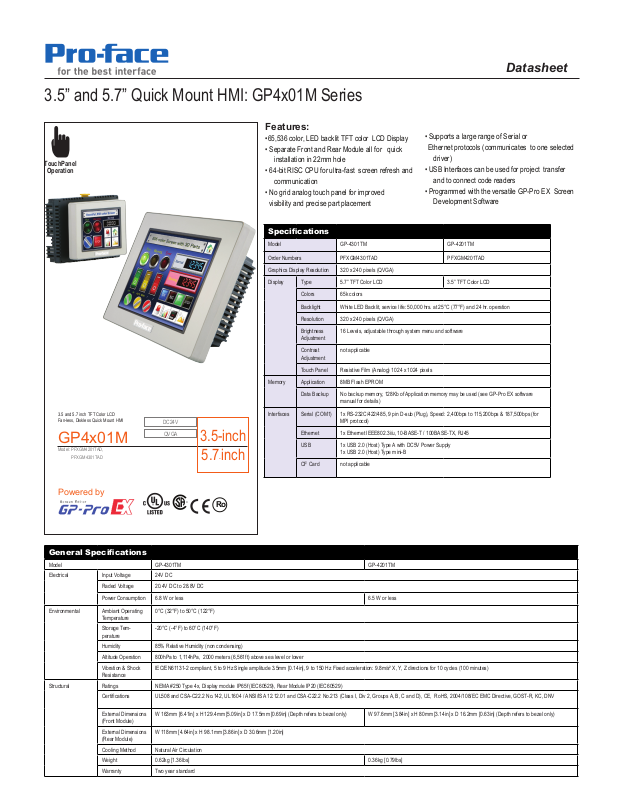

3.5” and 5.7” Quick Mount HMI: GP4x01M Series
TouchPanel
Operation
Ro
Datasheet
3.5 and 5.7 inch TFT Color LCD
Fan-less, Diskless Quick Mount HMI
GP4x01M
Model: PFXGM4201TAD,
PFXGM4301TAD
DC24V
QVGA
3.5-inch
5.7-inch
Features:
•65,536 color, LED backlit TFT color LCD Display
• Separate Front and Rear Module all for quick
installation in 22mm hole
• 64-bit RISC CPU for ultra-fast screen refresh and
communication
• No grid analog touch panel for improved
visibility and precise part placement
Specications
Model GP-4301TM GP-4201TM
Order Numbers PFXGM4301TAD PFXGM4201TAD
Graphics Display Resolution 320 x 240 pixels (QVGA)
Display Type 5.7” TFT Color LCD 3.5” TFT Color LCD
Colors 65k colors
Backlight White LED Backlit, service life: 50,000 hrs. at 25°C (77°F) and 24 hr. operation
Resolution 320 x 240 pixels (QVGA)
Brightness
Adjustment
Contrast
Adjustment
Touch Panel Resistive Film (Analog) 1024 x 1024 pixels
Memory Application 8MB Flash EPROM
Data Backup No backup memory, 128Kb of Application memory may be used (see GP-Pro EX software
Interfaces Serial (COM1) 1x RS-232C/422/485, 9 pin D-sub (Plug), Speed: 2,400bps to 115,200bps & 187,500bps (for
Ethernet 1x Ethernet IEEE802.3i/u, 10-BASE-T / 100BASE-TX, RJ45
USB 1x USB 2.0 (Host) Type A with DC5V Power Supply
CF Card not applicable
16 Levels, adjustable through system menu and software
not applicable
manual for details)
MPI protocol)
1x USB 2.0 (Host) Type mini-B
• Supports a large range of Serial or
Ethernet protocols (communicates to one selected
driver)
• USB Interfaces can be used for project transfer
and to connect code readers
• Programmed with the versatile GP-Pro EX Screen
Development Software
Powered by
General Specications
Model GP-4301TM GP-4201TM
Electrical Input Voltage 24V DC
Raded Voltage 20.4V DC to 28.8V DC
Power Consumption 6.8 W or less 6.5 W or less
Environmental Ambiant Operating
Structural Ratings NEMA #250 Type 4x, Display module IP65f (IEC60529), Rear Module IP20 (IEC60529)
Temperature
Storage Temperature
Humidity 85% Relative Humidity (non condensing)
Altitude Operation 800hPa to 1,114hPa, 2000 meters (6,561ft) above sea level or lower
Vibration & Shock
Resistance
Certications UL508 and CSA-C22.2 No.142, UL1604 / ANSI/ISA 12.12.01 and CSA-C22.2 No.213 (Class I, Div 2, Groups A, B, C and D), CE, RoHS, 2004/108/EC EMC Directive, GOST-R, KC, DNV
External Dimensions
(Front Module)
External Dimensions
(Rear Module)
Cooling Method Natural Air Circulation
Weight 0.62kg [1.36lbs] 0.36kg [0.79lbs]
Warranty Two year standard
0°C (32°F) to 50°C (122°F)
-20°C (-4°F) to 60°C (140°F)
IEC/EN61131-2 compliant, 5 to 9 Hz Single amplitude 3.5mm [0.14in], 9 to 150 Hz Fixed acceleration: 9.8m/s² X, Y, Z directions for 10 cycles (100 minutes)
W 163mm [6.41in] x H 129.4mm [5.09in] x D 17.5mm [0.69in] (Depth refers to bezel only) W 97.6mm [3.84in] x H 80mm [3.14in] x D 16.2mm [0.63in] (Depth refers to bezel only)
W 118mm [4.64in] x H 98.1mm [3.86in] x D 30.6mm [1.20in]
©2012 Pro-face. All rights reserved. Specications may change without notice.
Datasheet
Communication Capabilities
Rockwell Automation DF1 Mistsubishi Electric A and FX Series Computer Link
DH485 A and FX Series Ethernet
Ethernet FX, Q and QnA Series CPU Direct
Siemens AG SIMATIC S7 MPI Direct Q/QnA Series Serial and Ethernet
SIMATIC S7 Ethernet QUTE Series CPU Direct
Modbus-IDA Modbus Master (RTU/TCP) Q Series QnU CPU Ethernet
Omron Corporation C/CV Series HOST Link Digital Electronics General Ethernet / Serial
CS/CJ Series HOST Link Memory Link (SIO/ETH)
CS/CJ Series Ethernet Keyence KV700/1000/3000/5000 CPU Direct
KV-10 80 RW/TW CPU Direct
Yaskawa Electric MP Series SIO (Extension) The list above is a small selection of the many drivers that are supported by
MP / SERVO Ethernet
Koyo Electronics /
Automation Direct
Fuji Electric Micrex-F Series SIO
KOSTAC/DL Series CCM SIO
KOSTAC/DL Series Modbus
TCP
Micrex-SX Series SIO
Micrex-SX Series Ethernet
the GP4x01M HMI. In addition to these drivers the GP4x01M Series HMI
support USB code readers and USB Storage Devices for Project Transfer
without PC.
Pro-face continuously adds and updates drivers and makes
these available free of charge on the Otasuke-Pro! Technical Support
website.
For a full list of supported drivers, new drivers and updates
visit: https://www.hmisource.com/otasuke/download/update
Cut-Out Dimensions
Unit: MM (in)
Ordering Information
Part Number Description
PFXGM4301TAD 5.7” TFT, 1 Serial, 2 USB, Ethernet, 22mm Quick Mount,
PFXGM4201TAD 3.5” TFT, 1 Serial, 2 USB, Ethernet, 22mm Quick Mount,
24VDC
24VDC
Optional Items
Part Number Product Name
EX-ED-Vxx GP-Pro EX Development Software (download version), xx
EX-ED-Vxx-DVD GP-Pro EX Development Software (download version + DVD
PFXZGMAK1 1x Replacement Anti Rotation Tee, USB Cable Clamp (1 each
PFXZGMNT1 Replacement display module installation nut (qty10)
PFXZGMSW1 Replacement Socket Wrench
PFXZGMCNDC1 Replacement DC Power connector (qty 5)
PFXZCBDS61 Hard Screen Protection Cover for GM4301 (qty 5)
CA6-DFS4-01 Hard Screen Protection Cover for GM4201 (qty 5)
CA5-USBEXT-01 USB extension cable for front panel USB access (USB Type
ZC9USEXMB1 USB extension cable for front panel USB access (USB Type
CA6-USB232-01 USB to Serial (RS232C) Conversion Cable, 0.5m
ZC9USCBMB1 USB Transfer Cable (USB Type A to USB Type mini-B), 1.8m
refers to current version
backup media), xx refers to current version
Type A and Type mini-B, 1x 2mm spacer (panel thickness
adjustment)
A), 1m
mini-B), 1m
Software Compatibillity
Pro-face America
Phone: 734.477.0600
Fax: 734.864.7347
www.profaceamerica.com
DS-GP4x00M(B)
Powered By
HMI Development
Software
(Version 2.71 or newer)
Customer Service Hotline: 800.289.9266
For more information
ACCESS
©2012 Pro-face. All rights reserved. Specications may change without notice.
GM4301TAD
Rear Module
www.profaceamerica.com
GM4201TAD
PFXZGMAK1
