Prochem Trident Dehumidifier User Manual

LGR DEHUMIDIFIER

Operating instructions (ENG)

MODEL: 10079000

86352290-J
05/14/13

Read these instructions before using the machine.

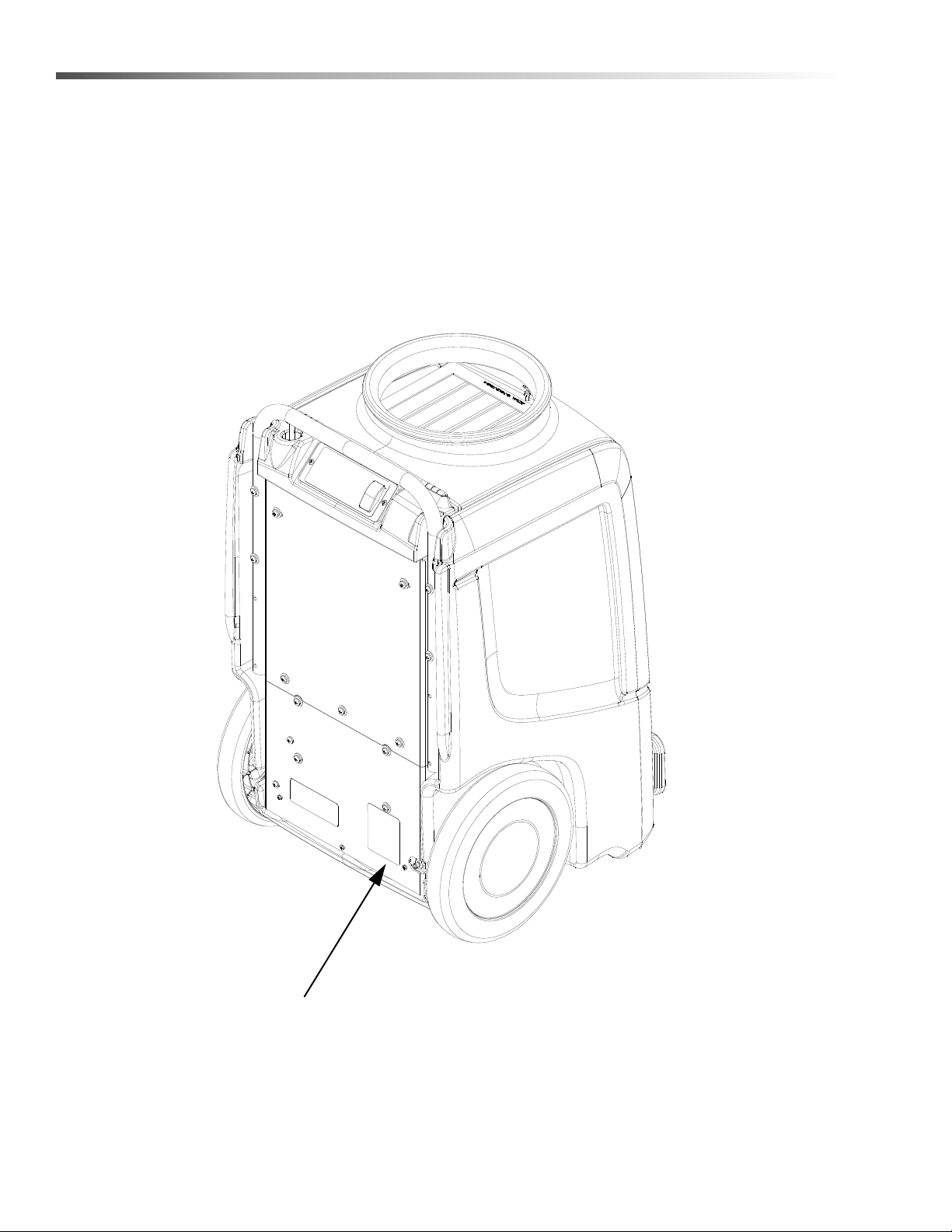

Machine Data Label

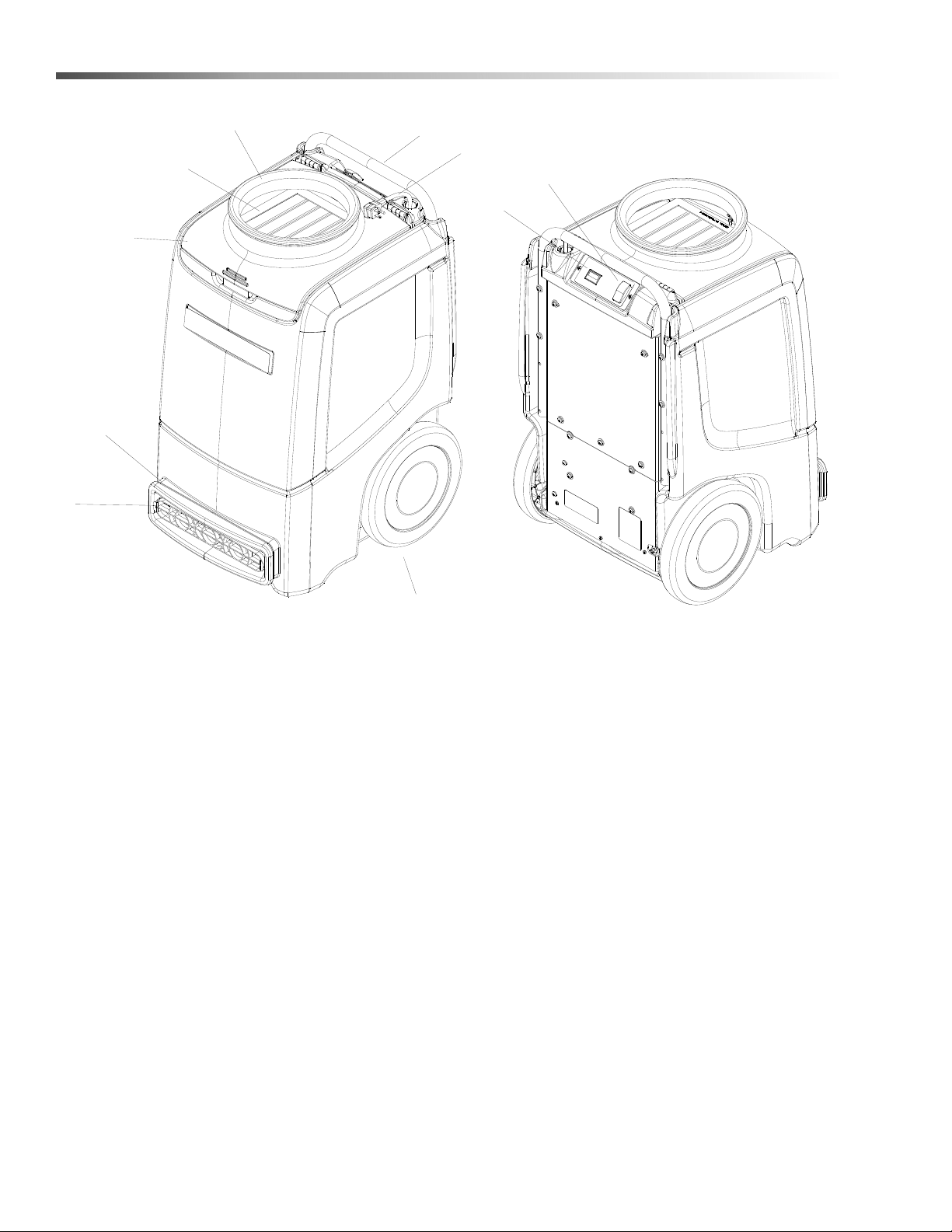

Overview

The Trident LGR Dehumidifier is intended for professional disaster restoration and remediation, but can also be
used for construction, janitorial / sanitation or other professionals needing to control humidity in an area.

Warranty Registration

Thank you for purchasing a Prochem product. Warranty registration is quick and easy.

Your registration will allow us to serve you better over the lifetime of the product.

To register your product go to :

www.prochem.com/WarrantyRegistration.aspx

For customer assistance:

1-800-776-2436

2 86352290 Trident LGR Dehumidifier

Table of Contents

Machine Data Label. . . . . . . . . . . . . . . . . . . . . . . . . .2

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3

How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4

Safety

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .5

CONSIGNES IMPORTANTES DE SÉCURITÉ . . . .6

HAZARD INTENSITY LEVEL. . . . . . . . . . . . . . . . . .7

DEGRÉS DE RISQUES EN CAS DE DANGER. . . .8

115V Grounding Instructions . . . . . . . . . . . . . . . . . .9

Safety Label Location . . . . . . . . . . . . . . . . . . . . . . .10

Operations

Technical Specifications . . . . . . . . . . . . . . . . . . . . .11

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

How to Transport Dehumidifier . . . . . . . . . . . . . . . .13

Cord Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Storing in Warehouse and in Delivery Truck: . . . . .13

Operating Dehumidifier. . . . . . . . . . . . . . . . . . . . . .14

Ducting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Back Draft Prevention. . . . . . . . . . . . . . . . . . . . . . .16

Purging Dehumidifier . . . . . . . . . . . . . . . . . . . . . . .16

Maintenance

Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . . .17

Cleaning Dehumidifier. . . . . . . . . . . . . . . . . . . . . . .17

Replace Condensate Pump . . . . . . . . . . . . . . . . . .17

Fan Replacement . . . . . . . . . . . . . . . . . . . . . . . . . .18

Thermistor Replacement. . . . . . . . . . . . . . . . . . . . .18

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Parts

Air Mover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Compressor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Electronics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Frame & Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Housing-Upper . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Condensate Pump . . . . . . . . . . . . . . . . . . . . . . . . 34

Refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Serial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

86352290 Trident LGR Dehumidifier

3

How To Use This Manual

Model:

Date of Purchase:

Serial Number:

Dealer:

Address:

Phone Number:

Sales Representative:

This manual contains the following sections:

• How to Use This Manual

•Safety

• Operations

• Maintenance

•Parts List

The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.

Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.

The model and serial number of your machine is
located on the back of the machine.

The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.

The OPERAT IONS section is to familiarize the operator
with the operation and function of the machine.

The MAINTENANCE section contains preventive main­tenance to keep the machine and its components in
good working condition. They are listed in this general
order:

• Storage

• Maintenance

• Troubleshooting

The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts lists
include a number of columns of information:

• REF – column refers to the reference number
on the parts illustration.

• PART NO. – column lists the part number for
the part.

• PRV NO. – reference number.

• QTY – column lists the quantity of the part used
in that area of the machine.

• DESCRIPTION – column is a brief description
of the part.

• SERIAL NO. FROM – If this column has an (*)
and a Reference number, see the SERIAL
NUMBERS page in the back of your manual. If
column has two asterisk (**), call manufacturer
for serial number. The serial number indicates
the first machine the part number is applicable
to. The main illustration shows the most current
design of the machine. When a boxed illustra­tion is shown, it displays the older design.

• NOTES – column for information not noted by
the other columns.

NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.

4

The manual part number is located on the lower left
corner of the front cover.

86352290 Trident LGR Dehumidifier

Safety

IMPORTANT SAFETY INSTRUCTIONS

When using this machine, basic precaution

must always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.

To reduce the risk of fire, electric shock, or injury:

Use only indoors. Do not use outdoors or expose to rain or water.
Use only as described in this manual. Use only manufacturer's recommended components and attachments.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
Do not operate this machine near flammable fluids, dust or vapors.
Maintenance and repairs must be done by qualified personnel.
The machine shall only be operated by instructed and authorized persons.
Do not handle the plug or machine with wet hands.
Do not unplug machine by pulling on cord. To unplug, grasp the plug, not the cord.
Do not use with damaged cord or plug.
Do not pull or carry by cord, use cord as a handle, run over cord, close a door on cord , or pull cord around sharp

edges or corners.
Connect to a properly grounded outlet.
Connect only to an outlet provided with a ground fault circuit interrupting device (GFCI).
Do not use this dehumidifier with any solid-state speed control device.
Never service or clean the unit while plugged in.
Do not operate without safety guards properly installed and secured.

READ AND SAVE THESE INSTRUCTIONS

86352290 Trident LGR Dehumidifier

5

Safety

CONSIGNES IMPORTANTES DE SÉCURITÉ

Lors de l'utilisation d'un appareil électrique, il faut toujours

observer des précautions élémentaires, qui comprennent parmi celles-ci:

LISEZ BIEN L'ENSEMBLE DES CONSIGNES AVANT D'UTILISER CET APPAREIL.

Utilisez-le exclusivement dans des endroits fermés. Ne l'utilisez pas en plein air et ne le laissez pas sous la pluie.
Utilisez-le exclusivement de la manière décrite dans ce manuel. Utilisez exclusivement les composants et les

fixations recommandés par le fabricant.
Ne faites pas fonctionner l'appareil si des ouvertures sont bouchées. Dégagez des ouvertures tous débris

susceptibles d'entraver le passage de l'air.
Ne faites pas fonctionner cet appareil à proximité de fluides, de poussières ou de vapeurs inflammables.
Les travaux de maintenance et de réparation doivent absolument être effectués par du personnel qualifié.
L'utilisation de l'appareil est exclusivement réservé à des personnes formées et autorisées.
Ne manipulez pas la fiche ou l'appareil les mains mouillées.
Ne débranchez pas l'appareil en tirant sur le cordon. Pour le débrancher, empoignez la fiche, non pas le cordon.
N'utilisez pas l'appareil si le cordon ou la fiche est endommagé(e). Observez toutes les consignes figurant dans ce

manuel au sujet de la mise à la terre de l'appareil.
Ne tirez pas sur le cordon, ne portez pas l'appareil par le cordon, n'utilisez pas le cordon comme poignée, ne

fermez pas une porte sur le cordon, ne tirez pas sur le cordon dans des angles ou des coins pointus.
Raccordez l'appareil à une prise adéquatement reliée à la terre. Voir les Consignes de mise à la terre.
Utilisez-le uniquement sur des réceptacles protégés GFCI.
N'utilisez pas ce déhumidifier avec quelconque dispositif de contrôle de la vitesse à l'état solide.
Ne jamais entretenir ou nettoyer l'unité pendant qu'a branché sur.
Ne pas fonctionner sans les gardes de sécurité convenablement installé et obtenu.

CONSERVEZ CES CONSIGNES

6

86352290 Trident LGR Dehumidifier

Safety

The following symbols are used throughout this guide as indicated in their descriptions:

HAZARD INTENSITY LEVEL

There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY.
The level of hazard intensity is determined by the following definitions:

WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.

CAUTION - Hazards or unsafe practices which could result in min or personal in jury or pr oduct or pr operty damag e.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.

Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the equip­ment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the
machine. Please take the necessary steps to train the machine operating personnel.

FOR SAFETY:

DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.

WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clot hing; jackets, shirt s, or sleeves when working on the machine.
Use only manufacturer approved replacement parts

86352290 Trident LGR Dehumidifier

7

Safety

!

AVERTISSEMENT:

!

ATTENTION:

Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions:

DEGRÉS DE RISQUES EN CAS DE DANGER

Il existe trois degrés de risques identifiés par les termes signalétiques -AVERTISSEMENT et ATTENTION et
POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante:

AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou

entraîner la mort.

ATTENTION - Dangers ou méthodes dangereuses qui pourraient provoquer des blessures légères ou une
détérioration du produit ou des biens immobiliers.

POUR VOTRE SÉCURITÉ: ce signe permet d'identifier les mesures de précaution à prendre pour assurer
un bon fonctionnement du matériel.

Rendre compte immédiatement d'une défaillance ou d'une détérioration de la machine. Ne pas utiliser la machine
si celle-ci ne fonctionne pas correctement. Lire soigneusement les informatio ns ci-dessous signalant certains
dangers potentiels pour l'opérateur de la machine. L'opérateur doit être absolument au courant de ces dangers
potentiels. Localiser tous les dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures
nécessaires pour former le personnel opérateur.

POUR VOTRE SÉCURITÉ:

NE PAS MANOEUVRER LA MACHINE:
Lorsqu'on n'est pas expérimenté ou qualifié.
Lorsque le guide d'utilisation n'est pas été lu ou compris.
Dans des zones inflammables ou explosives.
Dans des zones où des objets peuvent tomber.

LORS DE L'ENTRETIEN DE LA MACHINE:
Éviter les parties amovibles. Ne p as porter de vête ment s amples, tels que des ve stes, des chemises ou de s

vêtements avec manches lors de l'utilisation de la machine. Utiliser les pièces détachées Windsor
homologuées.

8

86352290 Trident LGR Dehumidifier

1 15V Grounding Instructions

USING AN ADAPTOR

GROUNDING CONNECTION

Note: Adaptors are not allowed in Canada.

Outlet

Tab for Grounding

Outlet Box

FIGURE C

Grounded

FIGURE A

Adaptor

Screw

FIGURE B

Adaptor

Metal Screw

Grounded

Grounding Pin

!

AVERTISSEMENT:

ELECTRICAL:
In the USA this machine operates on a standard 15

amp 115V, 60 hz, A.C. power circuit. The amp, hertz,
and voltage are listed on the data label found on each
machine. Using voltages above or below those
indicated on the data label will cause serious damage
to the machine.

EXTENSION CORDS:
If an extension cord is used, the wire size must be at

least one size larger than the power cord on the
machine, and must be limited to 50 feet (15.5m) in
length.

GROUNDING INSTRUCTIONS:
This appliance must be grounded. If it should malfunc-

tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of
electric shock. This appliance is equipped with a cord
having an equipment-grounding conductor and
grounding plug. The plug must be inserted into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordi­nances.

This appliance is for use on a nominal 120-volt circuit,
and has a grounded plug that looks like the plug in "Fig.
A". A temporary adaptor that looks like the adaptor in
"Fig. C" may be used to connect this plug to a 2-pole
receptacle as shown in "Fig. B", if a properly grounded
outlet is not available. The temporary adaptor should
be used only until a properly grounded outlet (Fig. A)
can be installed by a qualified electrician. The green
colored rigid ear, lug, or the like extending from the
adaptor must be connected to a permanent ground
such as a properly grounded outlet box cover.
Whenever the adaptor is used, it must be held in place
by a metal screw.

Safety

Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or service person
if you are in doubt as to whether the outlet is
properly grounded. Do not modify the plug
provided with the appliance - if it will not fit the
outlet, have a proper outlet installed by a qualified
electrician. Use only GFCI protected receptacles.

Le raccordement incorrect du conducteur de terre
d'équipement peut entraîner des risques d'électro­cution. Vérifiez auprès d'un électricien qualifié ou
d'un responsable de l'entretien si vous avez
quelque doute que ce soit quant au ra ccordement à
la terre de votre prise murale. Ne modifiez pas la
fiche fournie avec l'appareil : si elle ne correspond
pas à la prise murale, faites installer une prise
adéquate par un électricien qualifié. Utilisez-le
uniquement sur des réceptacles protégés GFCI.

86352290 Trident LGR Dehumidifier

9

Safety

Safety Label Location

NOTE: These drawings indicate the location of safety labels on the Machine. If, at any time, the labels become
illegible contact your authorized representative for prompt replacement.

Emplacement De L'étiquette De Sécurité

REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout
moment, les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapide.

10

Warning Label

8.633-839.0

86352290 Trident LGR Dehumidifier

Technical Specifications

Height

Width

Length

ITEM MEASURE

Height 35 In (89 cm)

Length 23 In (58 cm)

Width 20.5 In (52 cm)

Cord 25’ X 14 Gauge / 3 Wire Black

Body Construction Rotationally Molded Polyethylene

Frame Construction Powder Coated Steel

Refrigerant R410A / 630 grams

Water extraction / Day 110 pints @ 80°F/60% RH

Max Process Air rate 350CFM / 10 CMH

Electrical

Fan 2.4 Amps @ 110 / 120 VAC 60 Hz

Compressor 6.0 Amps @ 110 / 120 VAC 60 Hz

Total Power 8.4 Amps @ 110 / 120 VAC 60 Hz

Operations

SPECIAL NOTES:

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.

The ambient sound pressure level was measured to be 68.3 dBA. This was a nearfield, broadband measurement
taken in a typical industrial environment on a tile floor.

86352290 Trident LGR Dehumidifier

11

Operations

1

2

3

4

5

6

7

8

9

10

Components

1. Power Cord

2. Handle

3. Intake Nozzle/Cord Storage

4. Filter

5. Housing Lid

6. Ducting Flanges

7. Exhaust Nozzle

8. Wheels

9. Power Switch

10. Hour Meter

12

86352290 Trident LGR Dehumidifier

Operations

How to T ransport Dehumidifier

1. Wrap the power cord around intake nozzle.

2. Tilt on back wheels with exhaust outlet pointing up.

3. Pull by handle.

4. Place the machine back down on its base.

5. Position exhaust as desired.

Cord Storage

Fans power cord is best stored around neck of intake
nozzle.

1. Turn off machine.

2. Working from machine to cord plug end, lay cord
out straight, remove any twists as you go.

3. Make a 2” loop in cord near strain-relief then wrap
cord snugly around neck of intake nozzle coiling
from bottom up.

4. Allow cord to untwist as you coil cord around intake
neck.

Storing in Warehouse and in Delivery
Truck:

Dehumidifiers should always be stored and transported
in an upright position. If the dehumidifier is transported
in a horizontal position, upon being set upright the unit
should not be operated for 30 minutes. Always store
the dehumidifier inside away from weather, in an area
not exposed to excessive heat or cold.

5. Secure cord end by attaching cords plug retaining
clip to cord of the previous loop.

86352290 Trident LGR Dehumidifier

13

!

ATTENTION:

!

AVERTISSEMENT:

!

AVERTISSEMENT:

Operations

Operating Dehumidifier

Never allow anything to block intake airflow. Be
careful of objects which could be drawn against
intake. The fan must sit on a level surface. Always
position and orient machine before turning on.

Ne permettez jamais à quoi que ce soit de bloquer
l'entrée d'air. Faites attention aux objets qui pour­raient être attirés contre l'entrée d'air. Le ventilateur
doit reposer sur une surface de niveau. Dirigez et
orientez toujours le ventilateur avant de l'allumer.

For best results, operate dehumidifier in enclosed
space. Close all exterior doors and windows. Keep
traffic through drying area to a minimum

1. Connect drain hose to condensate pump’s quick
connect fitting.

2. Uncoil and straighten entire hose; to prevent water
backing up to pump and leaking.

Ducting

Switch off and unplug machine from its power
source before connecting ducting.

Arrêtez et débranchez le ventilateur de sa source
d'énergie avant de relier la canalisation.

Be aware that ducting will move as it inflates or has
air moving through it.

Prenez conscience que la canalisation se
déplacera alors qu'elle se gonflera ou alors que l'air
passera à travers.

3. Place other end in a sink drain bucket or outside,
no more than 10 ft above pump.

NOTE: If a bucket or other receptacle is used for
water collection, check and empty regularly to
prevent spills.

4. Plug in electrical cord into 115 volt GFCI protected
outlet rated for minimum 15 amps.

5. Turn the machine on.

14

86352290 Trident LGR Dehumidifier

Operations

Exhaust Ducting

1. Place quick-ducting band over lay-flat duct
approximately 1 foot from end.

2. Slide ducting 3 or 4 inches over front exhaust
nozzle, make sure it is even all around.

3. Secure in place by sliding quick-ducting band
along ducting and over exhaust ducting flange.

4. Verify that ducting is sandwiched b etween machine
exhaust nozzle and quick-ducting band and even
all around making a good seal.

5. Position machine and ducting in desired orientation
and location.

6. Plug machine into power source.

7. Switch machine on.

8. Observe ducting as air starts to flow through it,
ducting may move around.

Intake Ducting

1. Unwrap cord from cord storage area.

2. Place a quick-ducting band over ridged spiral duct
about 1 foot from end.

3. Slide ducting 3 or 4 inches over top intake nozzle,
make sure it is even all around.

4. Secure in place by sliding quick-ducting band
along ducting and over the intake ducting flange.

5. Verify tha t ducting is sandwiched between machine
intake nozzle and quick-ducting band.

6. Position machine and ducting in desired orientation
and location.

7. Plug machine into power source.

8. Switch machine on.

9. Observe ducting as air starts to flow through it,
ducting may move around.

86352290 Trident LGR Dehumidifier

15

Operations

Back Draft Prevention

Exhausting too much air from a space with Open
Combustion Devices (e.g. furnace, fireplace or
water heater) can cause those devices to back draft.
This can contaminate the space with potentially
fatal gases.

Évacuer trop d'air d'un espace av ec des app areils à
combustion ouverte (p ex., fournaise, foyer ou
chauffe-eau) peut entraîner un refoulement de ces
appareils. Cela peut contaminer l'espace avec des
gaz potentiellement mortels.

Use the machine as a dehumidifying unit only.
Exhausting no air from the space and thus causing no
negative pressure or back drafting.

OR

Exhaust a very limited amount of air , which do es not
cause back drafting.

OR

Direct one or more forced air outlet ducts into the room
with combustion devices. This will positively pressurize
the room, thus preventing back drafting.

Purging Dehumidifier

1. After space reaches desired humidity level, pr ess
switch to Purge. This manually empties water from
the condensate pump reservoir.

2. Hold switch to purge setting until the pump is
empty.

3. Disconnect drain hose.

NOTE: The drain hose will be full of water. Take
precautions to avoid spilling in undesirable areas.

When exhausting air from a space, always check
Combustion Devices with the machine running to
guarantee that back draft prevention measures are
working.

En évacuant l'air d'un espace, toujours vé rifier que
le ventilateur des appareils à combustion ouverte
est en marche pour garantir l'efficacité des
mesures de prévention antirefoulement.

16

86352290 Trident LGR Dehumidifier

Service Schedule

Power Cord Daily Inspect for wear, fraying or cuts.

Filter Daily Inspect, vacuum up to 3 times, replace as needed
Coils Monthly Inspect, clean when visibly dirty

Heat Exchange Block Monthly Inspect, clean with compressed air only when needed.

Condensate Pump Monthly Inspect, clean when needed.

Condensate Drip Tray Monthly Inspect, clean when needed.

Cleaning Dehumidifier

Do not perform any cleaning operations with the
unit plugged into power.

N'effectuez aucun nettoyage avec l'unité branchée
à la source d'alimentation électrique.

To maximize dehumidifier performance, replace the air
filter often and clean the internal components when
they become dirty.

1. Unplug unit from power.

2. Remove drain tube from machine.

Maintenance

Do not use high pressure water to clean any of the
internal components of the dehumidifier.

N'utilisez pas l'eau à haute pression pour nettoyer
les composants internes du déshumidificateur.

10. If necessary use a foaming refrigerant coil cleaner
to clean the evaporator and condenser.

11. Wash the air-to-air heat exchanger and any other
internal components that have debris buildup with
warm soapy water.

3. Open housing lid, remove air filter.

4. Remove 4 screws, with hardware and handle.

5. Remove 5 screws with hardware and back panel.

6. Remove 4 screws with hardware and condensate
pump panel.

7. Remove cover, inner fairing and upper housing.

8. Remove air-to-air heat exchanger block.

9. Inspect all internal components for debris buildup.

Replace Condensate Pump

The condensate pump removes water that collects in
the reservoir.

1. Turn off and unplug unit from power.

2. Remove condensate pump panel.

3. Disconnect pump hose.

4. Disconnect pump wiring.

5. Remove pump bracket and pump.

86352290 Trident LGR Dehumidifier

17

Maintenance

Fan Replacement

The motorized impeller has internal thermal overload
protection. If defective, the complete assembly must be
replaced.

1. Unplug power cord.

2. Remove condensate cover to disconnect the
impeller fan leads.

3. Remove the four screws attaching the bottom plate
to the lower housing.

4. Remove the four screws holding the impeller fan to
bottom plate.

5. Reassemble the new impeller fan using the above
procedure in reverse.

Thermistor Replacement

The defrost thermistor is attached to the refrigerant
suction line between the accumulator and the evapo­rator.

1. Unplug unit from power.

2. Remove drain tube from machine.

3. Open housing lid, remove air filter.

4. Remove 4 screws, with hardware and handle.

5. Remove 5 screws with hardware and back panel.

6. Remove 4 screws with hardware and condensate
pump panel.

7. Remove cover, inner fairing and upper housing.

8. Remove air-to-air heat exchanger block.

9. Remove right evaporator end cap (4 screws).

10. Replace thermistor.

11. Reassemble the dehumidifier in reverse order of
the above steps.

When replacing the evaporator end cap, ensure
that the capillary tubes fit in the relief slo t an d are
not damaged or crimped by the end cap.

En remplaçant le capuchon de l'évaporateur,
assurez-vous que les tubes capillaires s'ajustent
dans la fente de protection et ne sont ni endom­magés ni poinçonnés par le capuchon.

18

86352290 Trident LGR Dehumidifier

Troubleshooting

PROBLEM CAUSE SOLUTION

Defective switch Replace switch.

Nothing runs

Coils don’t get hot

and cold

Compressor

doesn’t run

Fan doesn’t run

Machine doesn’t

extract as much

water as expected

Water drips from

machine

Compressor,

pump or fan runs

when power

switch is OFF

Defective control board Replace control board.
Loose connection in internal wiring Find and repair loose connection.
Compressor is not running. See compressor doesn’t run.
Leak in system / refrigerant gone. Find Leak, Repair, Recharge system.
Bad connection in compressor circuit. Find and repair bad connection.
Defective compressor capacitor. Replace compressor capacitor.
Defective compressor overload. Replace compressor overload.
Defective compressor. Replace compressor.
Defective control board. Replace control board.
Defective relay. Replace relay.
Ambient temperature is too low. Move the machine to a warmer area.
Defective fan. Replace impeller fan.
Bad connection in blower circuit. Find and repair bad connection
Obstruction blocking impeller motion. Remove blockage.
Air Temperature / Humidity has dropped. Retest Temperature / Humidity, Recalculate
Machine has entered defrost cycle. Wait 1 hour recheck.
Dirty air filter. Clean / Replace filter
Frosted coils. Check / Replace thermister or control board.
Dirty coils. Clean coils
Low refrigerant charge. Find Leak, Repair, Recharge system.
Defective compressor. Replace compressor.
Restrictive exhaust or inlet ducting. Straighten, unblock ducting.
Condensate pump is defective. Replace pump.
Drain hose is kinked or plugged. Straighten / Unplug /check for damage
Pump check valve is plugged. Unplug valve.
Bad connection in pump circuit. Find and repair bad connection
Hose is disconnected internally. Reconnect hose.
Defective control board. Replace control board.

Incorrect wiring. Repair wiring.

Maintenance

86352290 Trident LGR Dehumidifier

19

Notes:

20 86352290 Trident LGR Dehumidifier

PARTS

Parts

86352290 Trident LGR Dehumidifier

21

Air Mover

1

2

3

4

5

6

7

8

9

10

22

86352290 Trident LGR Dehumidifier

Air Mover

REF PART NO. QTY DESCRIPTION

1 86349360 8 SCR, PHMS M6 X 25 SS
2 86341580 5 SPACER, DEHU IMPELLER
3 86337710 1 PLATE, AIR MOVER MOUNT
4 86337700 1 FAN ASM, DEHU 250MM
5 86264920 1 CABLE TIE, .19 X 7
6 86173320 4 WASHER, M4, FL, ISO7089, SST
7 86173310 4 WASHER,SPRING LK,6MM,DIN127B,SS
8 86172870 4 SCR, M4X14, PPHMS, ISO7045,SST
9 86134850 4 WASHER,SPRING LK,4MM,DIN127B,SS

10 86013850 8 WASHER, M6, FNDR, ISO7039,SS

SERIAL NO.

FROM

NOTES

2386352290 Trident LGR Dehumidifier

Compressor

1

3

4

5

6

2

7

24

86352290 Trident LGR Dehumidifier

Compressor

REF PART NO. QTY DESCRIPTION

1 86350050 1 DISCHARGE TUBE
2 86172650 3 NUT, M6, LK, ISO7040, SST
3 86337650 1 AIR TO AIR HEAT EXCHANGER
4 86337630 1 BRKT, COMPRESSOR MOUNT
5 86337530 1 ACCUMULATOR, SUPPLEMENTAL
6 86337510 1 COMPRESSOR, R410-A, 8200
7 86013850 3 WASHER, M6, FNDR, ISO7093, SS

SERIAL NO.

FROM

NOTES

2586352290 Trident LGR Dehumidifier

Electronics

26

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

22

21

22

24

23

25

26

86352290 Trident LGR Dehumidifier

Electronics

REF PART NO. QTY DESCRIPTION

1 86349620 1 CORD ASSY, 14/3 SJT X 30' BLK
2 86346210 1 CASE, CAPACITOR
3 86343660 1 CAPACITOR, 45 µF
4 86374070 1 COVER, DEHU ELECTRICAL *(1)
5 86343250 4 NUT, HEX M3
6 86343240 4 SPACER, M3 X 5mm
7 86343220 1 FRAME, DEHU ELECTRICAL
8 86342910 1 CLAMP 40MM ID

9 86341930 1 CAPACITOR, 25 µF
10 86337760 1 PCBA, DEHU DEFROST
11 86331810 2 WASHER, M5 SPLIT LOCK SS
12 86331700 1 SCR, M5 X 25 PPHMS SS
13 86331680 2 NUT, M5 HEX SS
14 86302700 2 SCR, M6 X 16 PH, SS
15 86297930 2 GROMMET, RUBBER
16 86276290 2 SCR, #10 X 3/4 PPHST HI-LO BLK
17 86274240 2 SCR, M4 X.7X10PPHMS DIN7985PLT
18 86256940 1 SWITCH SPOT ROCKER
19 86173310 2 WASHER,SPRING LK,6MM,DIN127B,SS
20 86173110 4 SCR,M3X16,BSHCS,ISO7380,SST
21 86172860 4 SCR, M4X12, PPHMS, ISO7045,SST
22 86134850 6 WASHER,SPRING LK,4MM,DIN127B,SS
23 86337750 1 PLATE,CONTROL PANEL
24 86351580 1 LABEL, CONTROL PANEL
25 86315470 1 METER, HOUR ICD
26 86374080 1 GASKET, DEHU ELECTRICAL *(1)

SERIAL

NO. FROM

NOTES

* SEE SERIAL NUMBER PAGE
** CALL MANUFACTURER FOR SERIAL NUMBER

2786352290 Trident LGR Dehumidifier

Frame & Wheels

1

3

5

6

7

8

9

10

11

13

14

15

16

17

2

16

12

4

17

15

28

86352290 Trident LGR Dehumidifier

Frame & Wheels

REF PART NO. QTY DESCRIPTION

1 86341010 2 BRKT, ATTACHMENT

2 86001660 2 HUBCAP, 5/8 SHAFT

3 86337600 1 BRKT, REAR ATAXH SUPPORT

4 86337540 1 FRAME ASSY, DEHU

5 86337480 2 BUSHING, 5/8" AXLE

6 86337470 2 BRKT, AXLE MOUNT

7 86337450 1 AXLE, DEHU

8 86331810 3 WASHER, M5 SPLIT LOCK SS

9 86331700 1 SCR, M5 X 25 PPHMS SS

10 86331680 3 NUT, M5 HEX SS

11 86309790 2 WHEEL, 12" X 2.25"

12 86273700 4 SCR, M8 X 25MM SHCS SS
13 86219480 2 HUBCAP, 9.75" WHEEL
14 86173300 2 WASHER, M8, FL, ISO7089, SST
15 86172870 6 SCR, M4X14, PPHMS, ISO7045,SST
16 86172640 4 NUT, M8, LK, ISO7040,SST
17 86172630 6 NUT, M4, LK, ISO7040,SST

SERIAL NO.

FROM

NOTES

2986352290 Trident LGR Dehumidifier

Housing

1

2

3

4

5

6

7

8

9

10

2

5

11

1

2

11

11

2

12

13

13

30

86352290 Trident LGR Dehumidifier

Housing

REF PART NO. QTY DESCRIPTION

1 86349360 4 SCR, PHMS M6 X 25 SS

2 86013850 16 WASHER, M6, FNDR, ISO7039,SS

3 86341780 2 BRKT, GUARD

4 86341770 1 GUARD, FRONT, DEHU

5 86340860 4 SCR, M6 X 50 PHMS SS

6 86350540 1 PLATE, BACK PANEL WITH GASKET

7 86337440 1 HANDLE, DEHU

8 86333040 1 HOUSING, DEHU, TRIMMED

9 86302700 3 SCR, M6 X 16 PH, SS

10 86276290 4 SCR, #10 X 3/4 PPHST HI-LO BLK

11 86173310 14 WASHER,SPRING LK,6MM,DIN127B,SS

12 86337770 1 LABEL, TRIDENT 110
13 86353670 2 SCR, M6 X 30 PHMS SS

SERIAL

NO. FROM

NOTES

3186352290 Trident LGR Dehumidifier

Housing-Upper

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

8

12

16

2

9

11

32

86352290 Trident LGR Dehumidifier

Housing-Upper

REF PART NO. QTY DESCRIPTION

1 86349400 8 SCR, M4 X 20 FHMS SS

2 86349360 5 SCR, M4 X 25 PHMS SS

3 86349230 1 FAIRING W/ SEALS

4 86337460 1 FILTER, 14 X 14 X 1 MIRV

5 86337430 1 CATCH LEVER

6 86337420 2 HINGE, 2 X 1.2 PLASTIC

7 86173330 2 WASHER, M5, FLAT, ISO7093, SS

8 86173320 8 WASHER, M4, FLAT, DIN125 SST

9 86173310 5 WASHER,SPRNG LK,M6,DIN127B,SST

10 86172950 2 SCR, M5X12, SHCS, ISO4762, SS

11 86172820 4 SCR,M5 X 20 ,PHMS,ISO7045, SST

12 86172630 8 NUT, M4, LK, ISO7040,SST
13 86024750 2 NUT, M5 HEX NYLOCK, SS
14 86013850 3 WASHER, M6, FNDR, ISO7093, SS
15 86349220 1 HOUSING UPPER W/ SEALS
16 86351480 1 LID ASSY, INTAKE INCLUDES ITEMS 5, 10

SERIAL

NO. FROM

NOTES

3386352290 Trident LGR Dehumidifier

Condensate Pump

9

11

5

1

2

3

4

10

10

10

7

7

7

8

8

8

6

34

86352290 Trident LGR Dehumidifier

Condensate Pump

REF PART NO. QTY DESCRIPTION

1 86351420 1 FITTING, QUICK DISCONNECT

2 86341910 1 TUBE, CONDENSATE PUMP

3 86341900 1 PUMP ASSY, DEHU

4 86341710 1 HOSE, .5" ID X 5.25" LONG

5 86337720 1 PLATE, BACK PLA TE

6 86350040 1 BRKT, PUMP MOUNT

7 86302700 6 SCR, M6 X 16 PH, SS

8 86173310 6 WASHER,SPRING LK,6MM,DIN127B,SS

9 86172640 4 NUT, M8, LK, ISO7040,SST

10 86013850 6 WASHER, M6, FNDR, ISO7039,SS

11 86351340 1 TUBE, DISCHARGE SERVICE KIT INCLUDES 86351420

SERIAL NO.

FROM

NOTES

3586352290 Trident LGR Dehumidifier

Refrigeration

13

16

14

14

12

13

16

14

12

6

1

2

3

4

5

7

8

9

10

11

12

13

14

15

16

17

14

36

86352290 Trident LGR Dehumidifier

Refrigeration

REF PART NO. QTY DESCRIPTION

1 86349390 1 THERMISTOR ASSY

2 86349270 1 FAN SHROUD W/SEALS

3 86349250 1 RIGHT CAP W/SEAL

4 86349240 1 LEFT CAP W/SEAL

5 86349190 2 GASKET, EVAP COIL

6 86172950 4 SCR, M5X12, SHCS, ISO4762, SS

7 86340990 1 TRAY, CONDENSATE LINER

8 86337520 2 CAPILLARY TUBE .049 X 48 IN

9 86337500 1 EVAPORATOR 110 PINT

10 86337490 1 CONDENSER, 110 PINT

11 86297930 1 GROMMET, RUBBER

12 86173330 8 WASHER, M5, FLAT, ISO7093, SS
13 86173320 12 WASHER, M4, FL, ISO7089, SST
14 86172870 20 SCR, M4X14, PPHMS, ISO7045,SST
15 86172820 2 SCR, M5X20, PPHMS, ISO7045,SST
16 86134850 15 WASHER,SPRING LK,4MM,DIN127B,SS
17 86024750 2 NUT, M5 HEX NYLOCK, SS

SERIAL NO.

FROM

NOTES

3786352290 Trident LGR Dehumidifier

Wiring Diagram

-C2

TP8

TP7

+K1

-S2-S1

-SENSOR

bn/4

bn/4

sw/1

sw/9

sw/10

bl/11 bl/12

+F

ge/15bl/7bn/8

-X2

1 5 6 3 24

-X1

3 1 4 2

bn/14 rt/6 bl/5 ge/13

ws/18

bl/21vi/17

bl/16

bn/20

TP4

A

1.134

A

1.141

GNDGND

1.107

GND

1.116

-HOUR

L
N
G

120V/60Hz

10 2

12

-FAN

1~

M

12

-PUMP

1~

M

12

-COMPRESSOR

1~

M

sw/1
ws/2

ge/19

2

1 3

-MAIN SWITCH

ws

sw

ge/3

-PCB

TP1

TP3

TP2

+T

+D

+N

TP5 TP6

+PUMP

+FAN

-C1

38

86352290 Trident LGR Dehumidifier

Wiring Diagram

REF PART NO. QTY DESCRIPTION

- 86337830 1 HARNESS, DEHU 110 PINT

- 86351670 1 HARNESS, DEHU HOUR METER

SERIAL NO.

FROM

NOTES

3986352290 Trident LGR Dehumidifier

Suggested Spare Parts

PART NO. DESCRIPTION

86349620 CORD ASSY, 14/3 SJT X 30' BLK
86343660 CAPACITOR, 45 µF
86341930 CAPACITOR, 25 µF
86256940 SWITCH SPOT ROCKER
86315470 METER, HOUR ICD
86309790 WHEEL, 12" X 2.25"
86219480 HUBCAP, 9.75" WHEEL
86001660 HUBCAP, 5/8 SHAFT
86013850 WASHER, M6, FNDR, ISO7039,SS
86341780 BRKT, GUARD
86341770 GUARD, FRONT, DEHU
86340860 SCR, M6 X 50 PHMS SS
86276290 SCR, #10 X 3/4 PPHST HI-LO BLK
86173310 WASHER, SPRING LK, 6MM, DIN127B, SS
86337460 FILTER, 14 X 14 X 1 MIRV
86349390 THERMISTOR ASSY
86351420 FITTING, QUICK DISCONNECT
86341910 TUBE, CONDENSATE PUMP
86341900 PUMP ASSY, DEHU
86341710 HOSE, .5" ID X 5.25" LONG
86351340 TUBE, DISCHARGE SERVICE KIT

SERIAL NO.

FROM

NOTES

40

86352290 Trident LGR Dehumidifier

Serial Numbers

REF.

NO.

1 10079000000471

MODEL: SERIAL #

86352290 Trident LGR Dehumidifier

41
