Primus XCONTROL PLUS Original Programming Manual

INDUSTRIAL WASHER EXTRACTORS

HIGH SPIN WASHER EXTRACTORS:

7 kg

8 kg
11 kg
14 kg

18 kg
24 kg

ORIGINAL PROGRAMMING MANUAL XCONTROL PLUS

540876 A

Publication date: 1 Feb 2012

Machine type selection:

High spin industrial

washer extractors

Dry load
capacity

7 kg / 15 lb => FX65

8 kg / 18 lb => FX80
11 kg / 25 lb => FX105
14 kg / 30 lb => FX135
18 kg / 40 lb => FX180
24 kg / 55 lb => FX240

„Machine type“

selection

1. TABLE OF CONTENTS

1. TABLE OF CONTENTS..................................................................................................3

2.1. WARNINGS.................................................................................................................................................5

2.2. SYMBOLS USED.............................................................................................................. ..........................6

3. BASIC DESCRIPTION OF CONTROLS.........................................................................8

3.1. GENERAL ...................................................................................................................................................8

3.2. SPECIFIC....................................................................................................................................................9

3.3. HOW TO GET INTO THE SETUP MODE.................................................................................................10

3.4. THE CREATION OF A WASH PROGRAM...............................................................................................12

3.5. PROGRAMMING THE FUNCTIONS........................................................................................................14

4. INITIALIZING THE MACHINE.......................................................................................19

4.1 INITIALIZATION MENU..............................................................................................................................19

4.2 CONFIGURATION MENU..........................................................................................................................24

4.3 ADVANCED MENU....................................................................................................................................29

5. PROGRAMMING ..........................................................................................................34

5.1 GENERAL ..................................................................................................................................................34

5.2. STEP  : PROGRAM MENU...................................................................................................................34

5.3. STEP  : PROGRAM FUNCTIONS.........................................................................................................35

5.4. STEP  : PROGRAM STEP FUNCTION ................................................................................................37

5.5. STEP  : PROGRAMMING THE WASH PART ......................................................................................38

5.6. STEP  : PROGRAMMING THE DRAIN STEP ......................................................................................47

6. OPERATION MENU...................................................................................................... 50

6.1. STARTING UP ..........................................................................................................................................50

6.2. SWITCHING ON THE POWER.................................................................................................................50

6.3. LOAD THE WASHING MACHINE.............................................................................................................50

6.4. PUT SOAP INTO THE SOAP DISPENSER..............................................................................................50

6.5. STARTING A WASH PROGRAM .............................................................................................................50

6.6. PROGRAMMING A DELAY TIME............................................................................................................51

6.7. THE ACTIVE PROGRAM..........................................................................................................................51

6.8. ADVANCING A WASH PROGRAM..........................................................................................................52

6.9. WASH TIME..............................................................................................................................................52

6.10. PROGRAM END .....................................................................................................................................53

6.11. WATER FILL PROCESS.........................................................................................................................53

6.12. HEATING PROCESS..............................................................................................................................53

6.13. COOLDOWN FUNCTION .......................................................................................................................54

6.14. SPRAY FUNCTION.................................................................................................................................54

6.15. UNBALANCE...........................................................................................................................................54

6.16. PAUSE ....................................................................................................................................................54

6.17. STOP.......................................................................................................................................................54

6.18. WAIT STATE...........................................................................................................................................54

6.19. HOW TO HANDLE FAILURE MESSAGES.............................................................................................55

6.20. HOW TO HANDLE POWER INTERRUPTIONS.....................................................................................56

6.21. SPECIAL FUNCTION BUTTONS ...........................................................................................................56

6.22. EXTERNAL LIQUID SOAP BOXES........................................................................................................57

6.23. SYSTEM WITH MANUAL ENTERING OF THE LINEN WEIGHT (SMART LOAD)...............................57

7. PRE-PROGRAMMED PROGRAMS .............................................................................58

7.1. LEGEND....................................................................................................................................................58

INTRODUCTION

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 3

7.2. WASH PROGRAMS..................................................................................................................................59

 Wash program 1: HOT WASH INTENSIVE - 90°C......................................................................................59

 Wash program 2: WARM WASH INTENSIVE - 60°C .................................................................................59

 Wash program 3: COLORED WASH INTENSIVE - 40°C...........................................................................60

 Wash program 4: BRIGHT WASH INTENSIVE - 30°C...............................................................................60

 Wash program 5: WOOLENS - 15°C ..........................................................................................................61

 Wash program 6: HOT WASH - 90°C .........................................................................................................61

 Wash program 7: WARM WASH - 60°C .....................................................................................................62

 Wash program 8: COLORED WASH - 40°C...............................................................................................62

 Wash program 9: BRIGHT WASH - 30°C....................................................................................................63

 Wash program 10: eco HOT WASH - 90°C ................................................................................................63

 Wash program 11: eco WARM WASH - 60°C..............................................................................................64

 Wash program 12: eco color WASH - 40°C...............................................................................................64

 Wash program 13: eco bright wash - 30°C ..................................................................................................65

 Wash program 14: EXTRACTION - LOW SPEED....................................................................................65

 Wash program 15: EXTRACTION - HIGH SPEED...................................................................................65

 Wash program 16: SPORT - 60°C ..............................................................................................................66

 Wash program 17: MOPS - 60°C................................................................................................................66

 Wash program 18: Horse cloths - 40°C.......................................................................................................67

 Wash program 19: JEANS - 60°C..............................................................................................................67

 Wash program 20: Starching.......................................................................................................................68

8. TROUBLESHOOTING...................................................................................................69

8.1. DISPLAY MESSAGES..............................................................................................................................69

8.2. FAULT MESSAGES..................................................................................................................................69

8.3. HOW TO HANDLE FAULT MESSAGES..................................................................................................70

8.4. OVERVIEW...............................................................................................................................................72

8.5. SERVICE MENU.......................................................................................................................................74

8.6. DIAGNOSTIC PROGRAM ........................................................................................................................78

8.7. PROBLEM CHECK LIST...........................................................................................................................81

8.8. EXTERNAL COMMUNICATION PROBLEMS..........................................................................................82

8.9. EXPLANATION ERROR MESSAGES......................................................................................................82

9. SERVICE INFORMATION.............................................................................................97

9.1. MAINTENANCE........................................................................................................................................97

9.2. INFORMATION FOR SERVICE................................................................................................................97

9.3. PROGRAMMER CIRCUIT BOARD..........................................................................................................98

9.4. INSTRUCTIONS FOR REPLACING THE PROGRAMMER BOARDS ....................................................98

9.5. INSTRUCTIONS FOR INSTALLING NEW SOFTWARE..........................................................................99

10. SPECIFICATION OF YOUR MACHINE ....................................................................100

4 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

2. WARNINGS AND SYMBOLS

2.1. WARNINGS

BEFORE OPERATING A MACHINE CONTROLLED BY AN ELECTRONIC PROGRAMMER, READ THIS

MANUAL. INCORRECT USE CAN RESULT IN SERIOUS INJURIES OR DAMAGE TO THE MACHINE
CONTROLS. IGNORING INSTRUCTIONS CAN CAUSE AN INCORRECT MACHINE FUNCTION, WHICH
MAY RESULT IN INJURIES OR MACHINE AND/OR LINEN DAMAGES.

– This English version is the original version of thi s manual. Without t his versio n, the i nstructi ons are i ncomplet e.

Before installation, operating and maintenance of the machine, read complete instructions thoroughly
which means the following manuals: „Original Programming Manual“ and „Original Installation, maintenance
and user's manual“. Follow these instructions and keep them handy for later use.

– A machine must be installed by foll owi ng th e „Or i g i n a l I n st a l l a t i o n , m a i n t e n a n c e and user's manual“. Before

the fi rst machine start, it must be initialized and tested by a qualified worker.

– The electric service line must not be affected by other electrical loading. A nominal voltage, if loaded or not

must work in the range ±10% with a maximum permanent frequency deviation of 1% or a short-time one at
2% of a given frequency. Connecting or starting the machine at an incorrect voltage can damage the

programmer.
– The machine must not be exposed to high humidity or extreme high and low temperatures.
– Do not tamper with the controls.

INSTRUCTIONS IN THIS MANUAL DO NOT COVER ALL DANGEROUS SITUATIONS.
IT IS UP TO THE USER TO HANDLE THE MACHINE CAREFULLY.

The manufacturer has the right to change specifications in this manual without prior notice. All the stated
information is only for informative purpose and must be considered as general. It is not possible to present all
the specific data of the device.

NOTE!

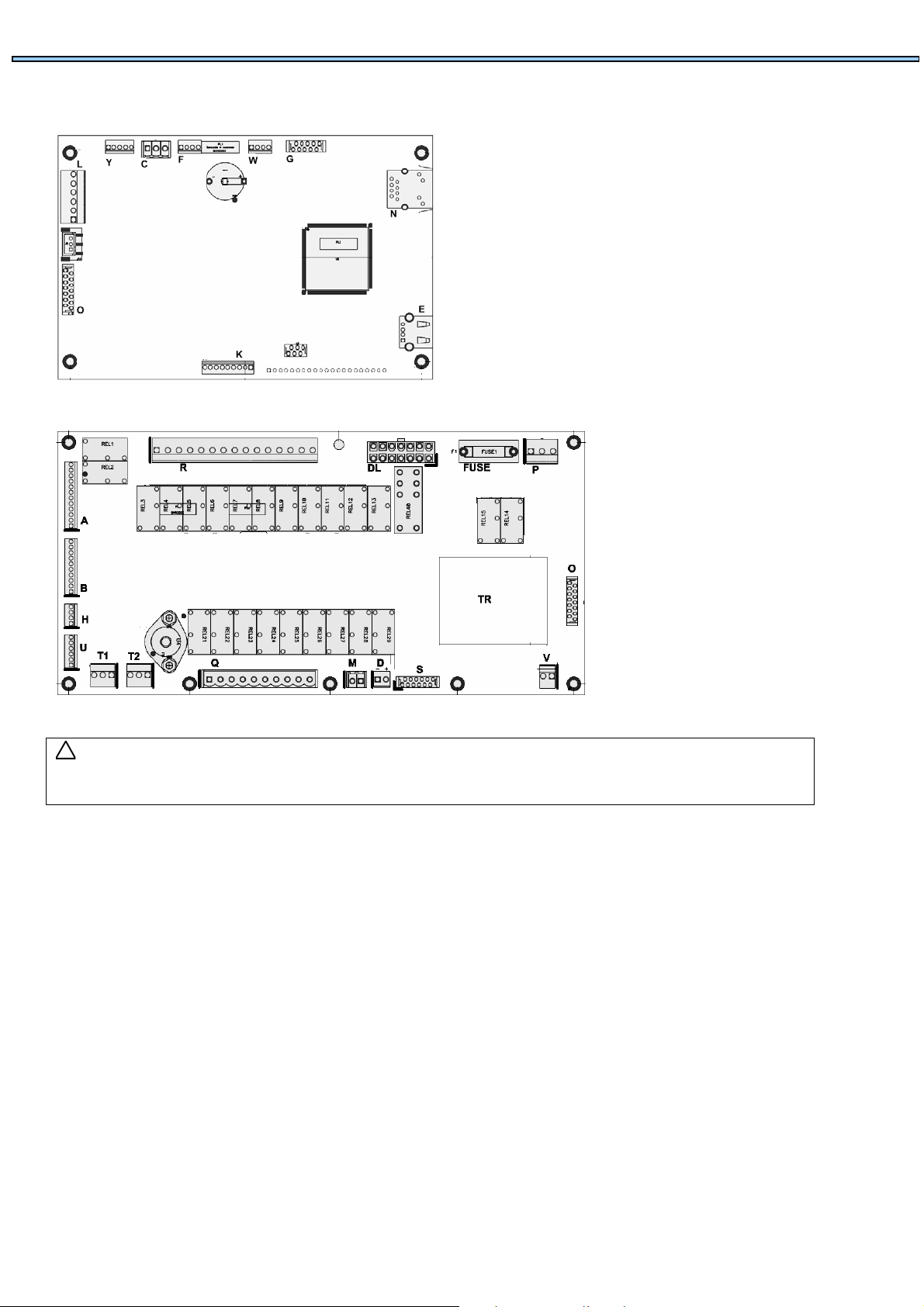

EVERY CIRCUIT BOARD HAS A SERIAL NUMBER AND THE CODE OF THE BOARD (Picture 9.3).
THE MODEL AND SERIAL NUMBER OF THE MACHINE, MUST BE MENTIONED IN ALL CORRESPONDENCE

OR INQUIRIES ADDRESSED TO THE DISTRIBUTOR OR MANUFACTURER.

NOTE!
THE PROGRAMMER USES „MACHINE TYPE“ CODES TO SELECT THE DIFFERENT PROGRAMMABLE

MACHINES EXECUTIONS.
The model number on the machine doesn’t indicate the „machine type“ but must be linked with the

description of the „machine type“ letters.

INTRODUCTION

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 5

2.2. SYMBOLS USED

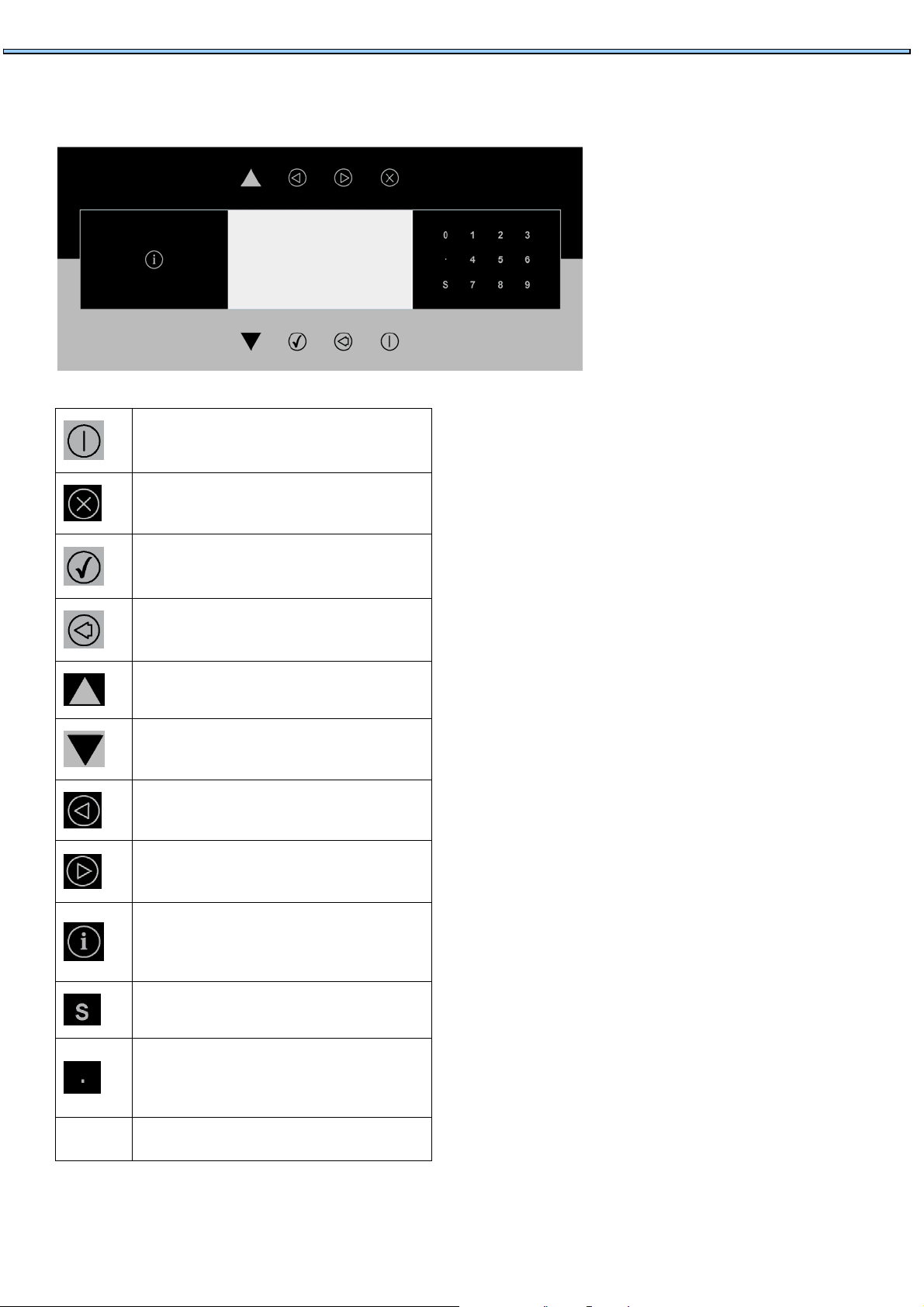

 BUTTONS

START (ADVANCE function)

STOP (program interruption)

CONFIRM THE SELECTION (ENTER)

CANCEL THE SELECTION

MOVE UP

MOVE DOWN

SELECTION NO
DECREASING THE TIME SEQUENCE

SELECTION YES
INCREASING THE TIME SEQUENCE

INFO

(overview of available wash programs
and program information)

SERVIS INFO (servicing information)

DELAYED START FUNCTION

(the delay starts running upon the
pressing of the "start" button )

0 až 9 NUMERIC KEYPAD

6 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

INTRODUCTION

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 7

3. BASIC DESCRIPTION OF CONTROLS

3.1. GENERAL

 THE CONTROL OFFERS :

 99 programmable programs (including 20 pre-programmed ones).
 Control of signal voltages for external pumps or liquid supply dispensers.
 Redistribution of the garments to avoid imbalance.
 Automatic temperature balance during the water fill process.
 Setting the machine options and configuration.
 Multiple languages can be selected (one at a time).

 IN OPERATION THE FOLLOWING DATA IS DISPLAYED :

 The selected program.
 The active wash step.
 The remaining program time.
 Wash cycle progression bar.
 Indication of wait for heat (if selected).
 Diagnostic messages.

 THE OPERATION MENU :

 A program can be manually Shortened, Extended, Stopped.
 A pause can be programmed.
 A direct operation of selected components (water valves, etc.).
 Program overview.
 Service information.

 THE HARDWARE AND SOFTWARE OF THE WASH COMPUTER

 Easy operation by a comprehensive keypad.
 The hardware contains 2 electronic board.
 The wash computer with graphic LCD display.
 The control software of the washing machine is stored in the internal memory of the wash computer

and it can be easily adjusted (USB flash drive).

 The Wash Programs are kept in EEPROM memory (non-volatile memory).

8 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

3.2. SPECIFIC

 The PROGRAM Menu is designated for:

 the creation of a specific name for a wash program.
 the creation and implementation of a new wash program step by step.
 editing a wash program step by step.
 inserting and deleting steps in the wash program.
 copying a wash program.
 deleting a wash program.
 inspecting the wash program by the view function.

 The CONFIGURATION Menu is designated for :

 the selection of the machine type.
 loading the default factory settings for the CONFIGURATION and INITIALIZATION menu.
 the selection of the Brightness of the display.
 the selection of the power supply voltage of the washing machine.
 loading the frequency inverter parameters.
 erasing all the programmed wash programs (reset Wash program EEPROM memory).
 loading the standard wash programs.
 the selection of the number of wash machine water supply inlets.
 the selection of a second drain valve. (water recycling system)
 the selection if external liquid pumps have been connected to the washing machine.
 the selection if the temperature must be displayed in degrees Celsius or degrees Fahrenheit.
 the selection Full Heating.
 the selection of Wet Cleaning (very low programmable water levels).
 the selection of the minimum level start supplies.

INTRODUCTION

 The INITIALIZATION Menu is designated for :

 the selection of the displayed Language.
 programming the Service due value.
 the selection of the Buzzer time interval.
 the selection of the Advance function.
 the selection of the Wait for temperature function.
 the selection of the Manual override function.
 the selection of the Temperature balance function.
 programming the Default Motor On and Off times for reversing wa sh action.
 the selection of the Automatic Cool-down function.
 programming the Boiler temperature (hot water supply).
 programming the Temperature Overshoot Protection value.
 programming the Maximum Heating time value.
 programming the Maximum Fill time value.
 programming the Maximum Level overfill value.

 The SERVICE Menu is designated for :

 the inspection of the error messages log register and the list with statistics.
 activating the power of the frequency inverter.
 the inspection of the functionality of the electric input signals.
 resetting the Cycle counter.

 The DIAGNOSTIC Menu is designated for :

 running a Diagnostic Program.

 The ADVANCED Menu is designated for :

 special optional applications

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 9

3.3. HOW TO GET INTO THE SETUP MODE

Press the SERVICE INFO button on the keypad.
Press the Arrow Down Button several times until you see the screen with the Menu Selection:

"To program mode press 0"

Press 0 (the Zero button). You will see the Main Menu Screen.
If a Password was enabled first you have to Enter the right Password.

How to leave a setup mode

When the „Main Menu“ screen is shown.

To pogram mode Press 0

Password ....

SERVICE INFO

To Program Mode

Press the SERVICE INFO button on the keypad. Then you will return to “Run Mode“ and „SELECT

CYCLE“ is shown.

10 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

99 Wash Programs - 99 Steps

INTRODUCTION

Program 1 Program 2 Program 3 . . . Program 99

Name Prog Name Prog Name Prog Name Prog

Step 1 Step 1 Step 1 . . . Step 1

Wash
Sequence

Drain/
Extraction
Sequence

Wash
Sequence

Drain/
Extraction
Sequence

Wash
Sequence

Drain/
Extraction
Sequence

Wash
Sequence

Drain/
Extraction
Sequence

Step 2 Step 2 . . . Step 2

Wash
Sequence

Drain/
Extraction
Sequence

Wash
Sequence

Drain/
Extraction
Sequence

Wash
Sequence

Drain/
Extraction
Sequence

Step 3 . . . Step 3

Wash
Sequence

Drain/
Extraction
Sequence

Step 99 Step 99

Wash
Sequence

Drain/
Extraction
Sequence

Tumble

. . .

Sequence

Available Wash Sequences : Prewash, Wash, Cooldown, Rinse, Final Rinse, Soak, Spray, No Wash

Tumble

Sequence

Tumble

Sequence

. . . Tumble

Wash
Sequence

Drain/
Extraction
Sequence

Wash
Sequence

Drain/
Extraction
Sequence

Sequence

. . .

AVAILABLE DRAIN/EXTRACTION SEQUENCES : DRAIN, EXTRACT, NO DRAIN, STATIC DRAIN, REV DRAIN

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 11

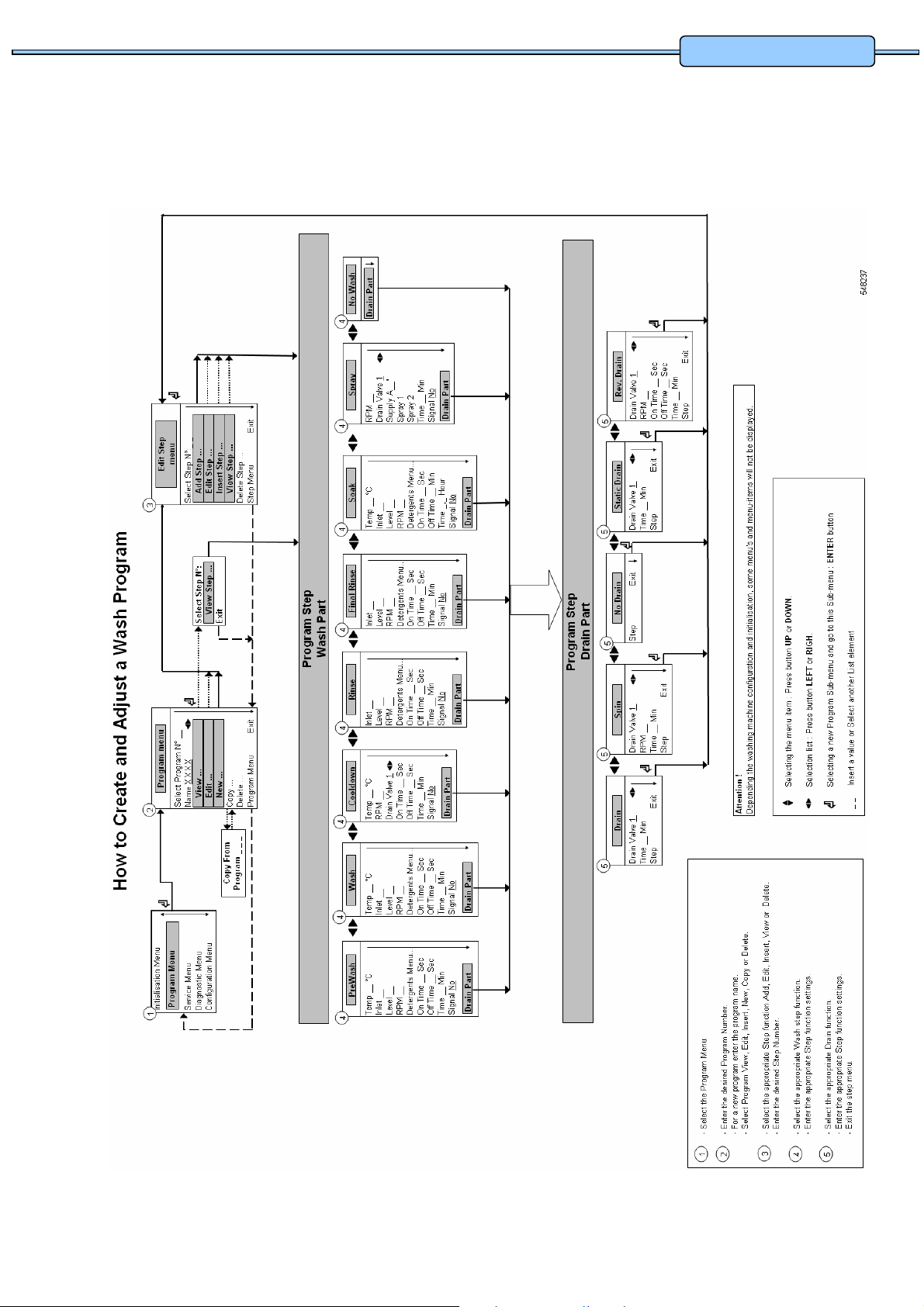

3.4. THE CREATION OF A WASH PROGRAM

 A Wash Program is built up step by step.
 Each step always consists of a Wash sequence and a Drain/Extraction sequence.

 Programming the Wash sequence :

 First choose the type of Wash sequence.

 PREWASH
 WASH
 COOLDOWN
 RINSE
 FINAL RINSE
 SOAK
 SPRAY
 No WASH

 Then program all the related functions of the sequence.

The available functions are :

 Temperature

 Water Level

 Water Inlet Valves

 The Wash Speed

 The Reversing Interval times

 Supplies

 Sequence Time ( length of step )

 Drain valve 1 – 2
 Pause Signal

 You will notice that each step has default settings.

This feature is very helpful as most of the newly created programs will not require changes to be
made to the suggested values.

12 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

 Programming the Drain sequence :

INTRODUCTION

 After programming the Wash sequence, next program the Drain/Extraction sequence.

 DRAIN
 EXTRACTION
 No DRAIN
 STATIC DRAIN
 REVERSING DRAIN

 Then program all the related functions of the Drain/Extraction sequence.

The available functions are :

 Sequence Time ( length of step )

 Speed

 Drain valve 1 - 2

 As you will notice it’s also possible to skip a sequence between two other sequences by

programming No WASH or No Drain.

Example : The No drain sequence should be programmed between a wash and a cool-down

sequence.

!

ATTENTION!
A MORE DETAILED EXPLANATION FOR THE SPECIFIC SEQUENCES CAN BE FOUND IN CHAPTER 5.

 The Tumble sequence :

 The wash cycle will always end with the Tumble sequence.

 The tumble sequence takes 30 Seconds, then the program is finished and the door can be opened.

 The Tumble sequence cannot be skipped.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 13

3.5. PROGRAMMING THE FUNCTIONS

 Limits

 To ensure the correct functionality of the washing machine you have to program values within
certain limits.
 If you program a value that falls below the minimal or above the maximal programmable limit
then the new value will not be accepted and the previous value stays valid.

 Programming the Water Temperature

 Limits

- Minimum value : 1 °C

- Maximum value : 45°C for the PREWASH and SOAK and 92°C for the WASH sequence.

- For RINSE, FINAL RINSE and SPRAY no Temperature can be programmed.

 Programming the Water Inlet valves

 Depending on the programmed temperature the water inlet valves are suggested.
 While the tub is filling with water, the computer controls the water temperature. By switching on

and off the hot and cold water inlet valves the correct water temperature is obtained.
 For machines with a Top Soap Dispenser you have to consider that by programming the water inlet

valves, at the same time, you are also selecting the soap Box at which the soap must be added.

 If you want to program a wash sequence with :

- Cold Water : only Cold Inlet Valves must be programmed

- Warm or Hot water : Cold and Hot Inlet Valves must be programmed

The cold water inlet valves
Inlet Valve 1 corresponds with soap box for a Prewash
Inlet Valve 2 corresponds with soap box for a Wash - detergent
Inlet Valve 3 corresponds with soap box for a Wash - liquid soap
Inlet Valve 4 corresponds with soap box for a Final Rinse
Inlet Valve 7 is a direct Inlet Valve and speeds up the water fill process

The hot water inlet valves
Inlet Valve 5 corresponds with soap box for a Prewash
Inlet Valve 6 corresponds with soap box for a Wash - detergent
Inlet Valve 8 corresponds with soap box for a Wash - liquid soap

How to select inlet valves : EXAMPLE

 For a Prewash : Programmable temperature: 1 - 45°C

Inlet Valve 1 (cold) and/or 5 (hot) soap box for a Prewash

and/or 7 (cold) direct Inlets

 For a Wash : Programmable temperature: 1 - 92°C
Inlet Valve 2 (cold) and/or 6 (hot) soap box for a Wash - detergent
and/or 7 (cold) direct Inlets

 For a Rinse : Inlet valves 1+2+7 (cold) No detergent is added

 For a Final Rinse : Inlet valve 4 soap box for a Final rinse

and/or 7 (cold) direct inlets

14 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

ATTENTION!

!

FOR MACHINES WITH LIQUID SUPPLY PUMPS, DIRECT WATER INLET VALVE 7 MUST BE
PROGRAMMED BECAUSE THE LIQUID IS ADDED AT THE DIRECT WATER INLET CHANNEL.
FOR WASHING MACHINES WITH WATER RECYCLING, THE WATER RECYCLING SUPPLY MUST
BE CONNECTED TO INLET VALVE 5 OR 7.

 Programming the water level

– Water level Limits

 See table 3.5. A. The values are different for each machine type.
 Minimum value: above the heating elements and the temperature sensor
 Maximum value: half the wash drum
– Normal Low Level, Normal High Level
 The Normal Low Level is recommended for the PREWASH, WASH and SOAK sequences.
 The Normal High Level is recommended for the RINSE and FINAL RINSE Sequences.
 At the C O O L DO W N s e q u en c e, t h e W a s h C o m pu t e r ma k es u s e o f a l o w w a t er level and is
draining the water automatically.
 At the Spray sequence, the Drain valve stays open.

– Wet Cleaning selection Configuration menu
 It’s possible to program a level below default minimum programmable level. (see table 3.5.A).
 The heating will not be functional for a water level below the standard minimum
programmable water level.

INTRODUCTION

ATTENTION!

!

FOR WOOLENS AND OTHER DELICATE LINEN A NORMAL HIGH WATER LEVEL IS RECOMMENDED.
THE ECONOMY WASH PROGRAMS SHOULD ONLY BE USED FOR LIGHTLY SOILED AND/OR

SMALLER VOLUMES OF LAUNDRY. IN OTHER CASES, THE PROGRAM WILL GIVE POOR WASHING
QUALITY.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 15

Programmable water level units related

to the amount of water in the tub

Machine type

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

Programmed water LEVEL

26

(Water level height in units)

27
28
29

30

FX65 FX80 FX105 FX135 FX180 FX240

9,5  10,5  10,5  11,5  18,8  21 

11  12  12,5  14  21,3  24 

 13   13,5  14  16,5  24,3  28 

14,5  15,5   16   18,5  27,2  31,5 

16  17  18  21,5   30   33,5 

 18   19   20  24  33  37 

 19,5   21  22,5  27  35,8  41 

21,5  23 
23,5  25,5  27,5 
25,5  27,5  30  35,5  45,1  52 
27,5  29,5  32  39  49,1  54,5 

29  31,5  34,5 
31  33,5  37  45,5  56,2  64 

 25  29,5  38,9  45 

 32,5   41,5   48,5 

 42   52,2   59,5 

39,5  48,5  59  68,5 

42  52  63,1  73 

55  66,4  77,5 

68,3  83 
73,2  88 
76,4  93 
80,5  98,5 
83,5  104,5 
87,2  110,5 

 Economic Low Level  Normal Low Level
 Economic High Level  Normal High Level

Machine type

Minimum

programmable

level

Normal Low

Level

Default value

Normal High

Level

Default value

Maximum

programmable

level

FX 65 9 14 15 21
FX 80 9 14 15 21
FX 105 9 14 16 23
FX 135 9 17 20 24
FX 180 9 17 20 30
FX 240 9 17 20 30

Tab.3.5.A. Programmable water Level

Wash Speed Spin Speed

Low spin

Speed

Machine
type

default

RPM

RPM

FX65 050
FX80 050
FX105 046
FX135 046
FX180 42
FX240 42

min

10 60
10 60
10 60
10 60
10 60
10 60

max

RPM

default

RPM
1120

1120
1035
1035

940
940

min

RPM

locking

RPM

max

RPM

default

RPM

150 91-149 1165 400
150 91-149 1165 400
150 91-149 1075 400
150 91-149 1075 400
150 91-149 980 370
150 91-149 980 370

Tab.3.5.B. Speed of machines with frequency inverter.

16 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

 Programming the Wash Speed

INTRODUCTION

 Standard reversing wash speed is between  40 and 50 RPM. ( Verify exact value at table 3.5.B.)
 For some special applications the drum should only turn very slowly.

- Speed Limits
 The minimum programmable wash speed is 10 RPM.
 The maximum programmable wash speed is 40 - 60 RPM, depending on machine size.

 Programming Extraction speed

Extraction  [150 - 1165] RPM

 An Intermediate spin between two sequences should be about ½ of the max spin.
 Between 90 and 150 RPM ( Verify exact value at table 3.5.B.) it’s not allowed to program a steady

speed, as the machine could VIBRATE TOO MUCH.

- Speed Limits

 Check table 3.5.B with the minimum and maximum speed limits. The limits differ depending on the

maximum allowed g-force at high spin for each washing machine type.

 Programming Supplies

 Up to 4 Supplies can be programmed at the same time in a sequence.

 If Liquid soap pumps have been installed on the washing machine, then these pumps will be activated

by programming a time value for the corresponding supply signal 1, 2, 3, 4, 5, 6, 7, 8.

- Time Limits
 The maximum programmable time is 99 Seconds
 If the time is 0 Seconds then the supply will NOT be activated at the wash process.

ATTENTION!

!

IF FOR SOME SPECIAL APPLICATION MORE THAN 4 SUPPLIES MUST BE PROGRAMMED IN THE
SAME SEQUENCE, THIS CAN BE SOLVED BY PROGRAMMING THE SAME SEQUENCE TWICE; ONE
AFTER THE OTHER. SPLIT THE WATER LEVEL ( SO IT WILL TAKE WATER FOR THE SECOND FILL,
say 60%, 100%), STEP TIME, AND THE NUMBER OF SUPPLIES, OVER THE TWO SUBSEQUENT
SEQUENCES. PROGRAM A „NO DRAIN“ BETWEEN THE TWO SEQUENCES TO AVOID DRAINING
THE WATER. SET TEMPERATURE THE SAME FOR BOTH PARTS.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 17

 Programming the Motor On and Off times for Reversing

 The standard Reversing Motor On and Off times at Wash speed is 12 Seconds On and 3 Seconds Off.
 For Delicates and Woolens it’s recommended to program a gentl e wash action with a

Reversing On time of 3 Seconds and an Off time of 12 Seconds.

 Programming the Sequence time.

 The sequence time starts running after the water level is reached.
 If wait for Temperature has been selected, the sequence time starts only running once the

programmed temperature has been reached at the heating process.
 For a Cooldown Sequence, the programmed time corresponds with the time for decreasing the

water temperature.
Recommendation
At least a cooldown of 3 minutes must be programmed. And to avoid the shrinking of the garments,
it’s recommended to program the time so that the temperature will decrease with about 3°C for each
minute.

!

ATTENTION!

FOR A SPRAY SEQUENCE, IF A SUPPLY HAS BEEN PROGRAMMED, THE SEQUENCE TIME
CORRESPONDS WITH THE PROGRAMMED SUPPLY TIME.

:

 Signal

 The signal should be programmed when a running wash cycle h as to be interrupted.
 The Buzzer will be activated to alert the operator.
 For most cases, the operator interrupts a program to fill the soap box an additional time.
 The program interruption will always occur at the end of a step.

18 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

4. INITIALIZING THE MACHINE

Initializing the machine goes in four steps:

1. Install the machine mechanically. (See Installation Manual)

2. Select the machine specific settings in the Configuration Menu.

3. Select the operator specific settings in the Initialization Menu.

4. Adjust standard Programs or create new Programs at the Program Menu.

ATTENTION!

!

THE INITIALIZATION SHOULD BE PERFORMED BY QUALIFIED PERSONNEL ONLY. AN INCORRECT
INITIALIZATION MAY CAUSE SERIOUS INJURIES AND SERIOUS DAMAGE TO THE MACHINE!

ATTENTION!

!

BEFORE MAKING CHANGES IN THE CONFIGURATION AND INITIALIZATION MENU READ THIS MANUAL
CAREFULLY.
CHANGES YOU HAVE MADE WILL INFLUENCE THE WASH PROGRAM PROCESSES.

WE RECOMMEND BEFORE MAKING CHANGES TO CAREFULLY WRITE DOWN WHAT THE PREVIOUS
SETTINGS WERE.

AS THE WASH COMPUTER IS USED FOR A WHOLE RANGE OF WASHING MACHINES, AFTER THE
INSTALLATION OF A NEW WASH COMPUTER, YOU NEED TO PROGRAM MACHINE SPECIFIC
SETTINGS INTO THE CONFIGURATION MENU. SEE PARAGRAPH 4.2.

AT THE INSTALLATION OF NEW SOFTWARE, AFTER LOADING THE FACTORY SETTINGS (SEE
PARAGRAPH 4.2) YOU NEED TO CHECK THE DEFAULT SETTINGS ONE BY ONE TO FIND OUT IF
THEY CORRESPOND WITH THE SETUP AS YOU PREFER.

THE CONFIGURATION AND INITIALIZATION OF THE WASHING MACHIN E HAS BEEN DONE
AT THE FACTORY. FOR THE CREATION OF NEW PROGRAMS, NO CHANGES HAVE TO BE MADE
IN THE INITIALIZATION OR CONFIGURATION MENUS.

SETUP

4.1 INITIALIZATION MENU

 HOW TO GET INTO THE INITIALIZATION MENU

The initialization menu can only be accessed when the machine is in standby (the power is switched on, but
no program is started).

 Select Cycle is displayed.
 Switch the machine to the setup mode (see chap ter 3.3).
 The Main menu is now available.
 The Initialization Menu is the first Menu.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 19

 Press the ENTER button to make your selection.
 Now you will see the first menu item.
 By pressing the ARROW DOWN or UP button you can select the menu items one by on e.

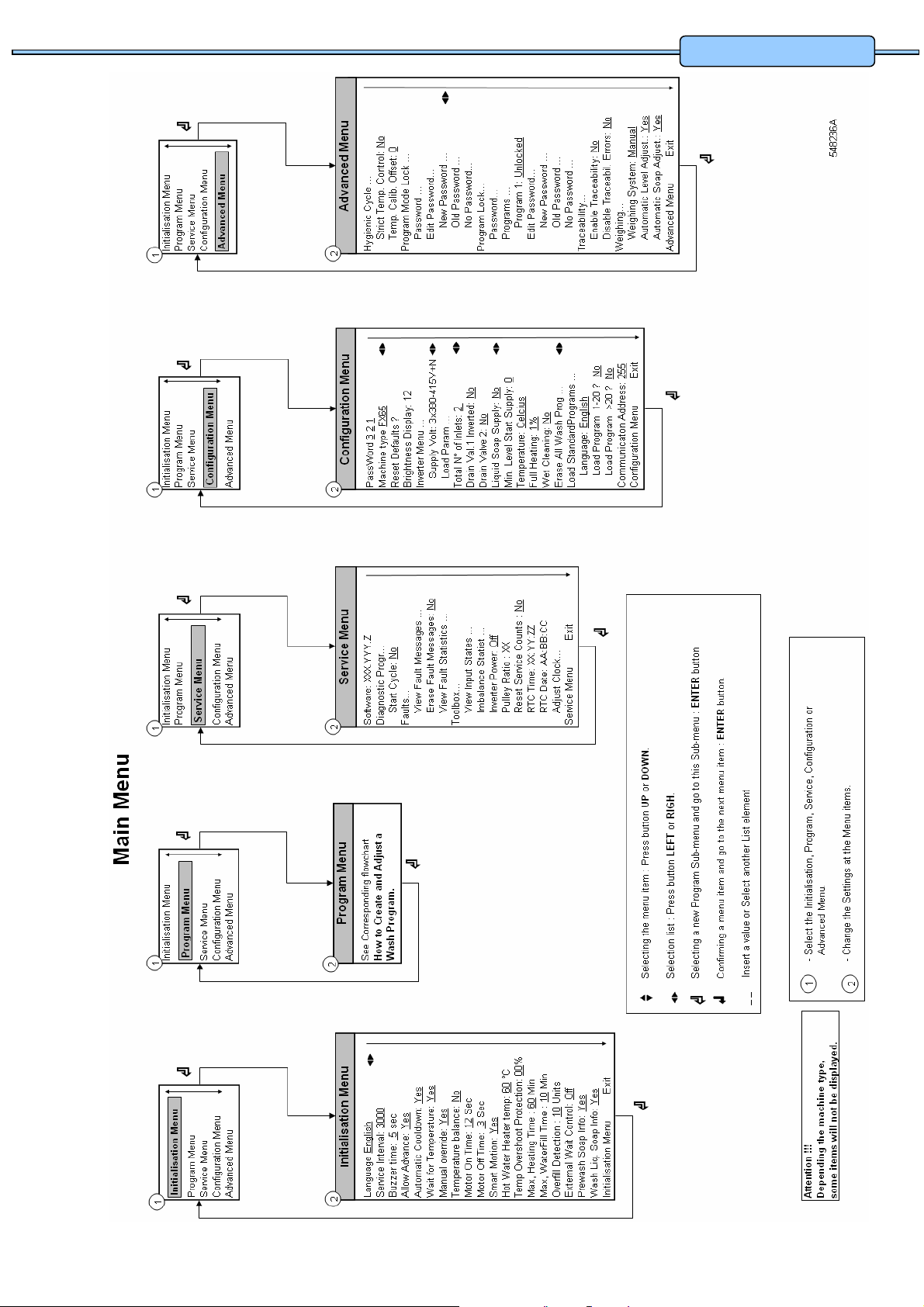

Initialization …
Program …
Servis …

Configuration …

Advanced …

Main Menu

Menu Item Default Info Limits

Language English Language selection: English, Spanish, French,… List

Service Interval 3000 Number of cycles at which maintenance is required.

9999: the servicing interval is ignored

Buzzer Time 5 Sec The time the Buzzer is beeping at end of wash cycle

while „Unload“ is displayed.

1 - 9999

0 - 99

Allow Advance Yes The Advance function allows to Skip a Sequence or

to extend & decrease the time of a sequence.

Automatic Cooldown Yes Automatic Cooldown selection.

(see info (*)).

Wait for Temp Yes Wash Process time is put on Hold as long as the

programmed temperature hasn't been reached. Once
the temperature has been reached, the wash cycle
time will decrease.

Manual Override Yes

Activates special functions in the Servis Info menu.
The operator can directly operate the water
inlet, drain, heating and spin speed functions.

!

Attention!
The particular functions can only be used if the safety

conditions are fulfilled. For example: if there is no water in
the drum, the heating function cannot be activated.

No / Yes

No / Yes

No / Yes

No / Yes

20 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

Menu Item Default Info Limits

SETUP

Temperature Balance No The right water temperature at the water fill process is

obtained by switching the cold and hot water inlet
valves. For high temperatures extra heating will be
required after the fill process. For some special
customer applications, it is allowed to switch off the
automatic Temperature Balance control.

Motor On Time 12 Sec At normal wash action, drum turns for 12 seconds.

Recommended 3 Sec for Gentle wash action.

(= suggested values for the program menu)

Motor Off Time 3 Sec At normal wash action, drum is stopped for 3 seconds.

Recommended 12 Sec for Gentle wash action.

(= suggested values for the program menu)

Smart Motion Yes

This option decreases the drum R.P.M. during water
filling therefore the laundry absorps water more quickly
and washing efficiency increases.

Hot Water Heater Temp. 60 °C The Hot Water Heater Temperature should correspond

with the hot water supply of the washing machine.
The value of the hot water supply temperature is
required to obtain a correct bath temperature at the
water fill process.

No / Yes

1 - 99 Sec

1 - 99 Sec

No / Yes

50 - 80 °C

Temp. Overshoot Prot. 00 % To avoid temperature overshoot at steam heating,

the % value is the reduced temperature at which the
heating is switching off before reaching the target
value. In the tub cold and hot water gets mixed and if
after 30 seconds the programmed target temperature
is not reached, the heating will be started again.

Max. Heating Time 60 Min A diagnostic message is generated by the wash

computer when the water hasn't reached the
programmed temperature in 60 Minutes. (Err 14)

!

Attention!
If 99 minutes has been selected, NO error message will be
generated at all, even if the heating time exceeds 99 minutes.
The machine will only stop heating when the programmed
temperature has been reached.

0 - 30 %

10 - 90 Min

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 21

Menu Item Default Info Limits

Max. Water Fill Time 10 Min A diagnostic message is generated by the wash

computer when the water hasn't reached the
programmed level in 10 Minutes. (Err 11)

!

Attention!
If 99 minutes has been selected, NO error message will be
generated at all, even if the heating time exceeds 99 minutes.
The machine will only stop filling when the programmed
water level has been reached.

Overfill Detection 10 units A diagnostic message is generated by the wash

computer when the water has reached the
programmed level + 10 units. (Err 12)

!

Attention!
It's strongly recommended that the heating power of the
steam installation has enough power to heat the bath
quickly. Otherwise the tub will be filled with extra water and
an error message will occur that the machine takes more
then 10 units extra water. This will also increase the water,
energy and detergent supply consumption.

To solve the problem in another way, reduce the
programmed target water level so that less
energy is needed to heat up the bath and with the
extra water of the condensed steam you will wash
with a normal amount of water.

5 - 99 Min

10 - 25 units

External Wait Control Off

Prewash Soap Info Yes

Wash Liq. Soap Info Yes

Liquid soap supply system:
Slection for a washing machine connected to a central
liquid soap supply system.

Some washing machines are connected to a central
liquid soap supply system which can only provide 1
washing machine at a time with liquid soap.
This central pump system is able to let Wait the washing
machine before continuing the wash process until the
central pump system is free to pump the liquid soap
supply into the machine.

Heating, (for installations with limited power supply):
You can disable the heating system of the machine
by an external signal.
The heating will switch on again and the wash process
will continue as soon as the external signal is switched o ff.

Wait:

External signal suspends the whole wash process until
the external signal gets switched off.

Selection whether the information on soap dosage for
prewash should be shown or not.

Selection whether the information on liquid soap
dosage for the main wash should be shown or not.

Off / Soap /
Heating / Wait

No / Yes

No / Yes

Exit

22 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

Return to Main Menu

(*) Automatic Cooldown

 To avoid mechanical temperature shock and to extend the life time of your washing machine, after a hot
wash, cold water is injected bit by bit. As a result at the end of the hot wash, the temperature will be
lowered to about 65°C.
 The automatic cooldown function will only be functional if a hot wash with a temperature above 65°C has
been programmed and if a cold water inlet valve is programmed in the next step. When a Cooldown
sequence has been programmed, the automatic cooldown will not function.
 The automatic cooldown differs from a normal cooldown sequence. The purpose of a normal cooldown
sequence is to avoid the shrinking of the garments. (Takes more time)
See Chapter 5.

SETUP

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 23

_

4.2 CONFIGURATION MENU

This electronic wash computer has been specially constructed for a wide range of washing ma chines.
For that reason it must be individually set up with important parameters for various machine types.
Basic machine adjusting is made in the factory.

WARNING!

!

ONLY A QUALIFIED TECHNICIAN SHOULD CHANGE THE CONFIGURATION SET UP. AN INCORRECT
CONFIGURATION CAN CAUSE INJURIES AND SERIOUS MACHINE DAMAGE.

 HOW TO GET INTO THE CONFIGURATION MENU

The configuration menu can only be accessed when the machine is in standby (the power is switched on, but
no program is started).

SELECT CYCLE is displayed.
Switch the machine to the setup mode (see chapter 3.3).
The Main menu is now available.
Press the ARROW DOWN button to select the Configuration Menu.

Press the ENTER button to make your selection.
For the Configuration Menu a Pass-Word is required.

Insert 3 2 1 and Press the ENTER button
Now you will see the first menu item.
By pressing the ARROW DOWN or UP button you can select the menu items one by one.

Initialization …
Program …
Servis …

Configuration …

Advanced …

Password

Configuration Menu

Main menu

_ _

24 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

Menu Item Default Info Limits

SETUP

Machine Type
Are You Sure ?

Reset Defaults ?
Are You Sure ?

FX65
No

No

No

Select the right machine type.

 Look at Machine Name Plate at the rear of the

washing machine.

 Confirm that you want to change the machine

type.

!

Attention!
Reset Defaults must
installed wash Computer and after selecting a new machine
type, to ensure correct EEPROM memory configuration!
(just by selecting another machine type the default settings
are not reloaded)

!

Attention!
By changing the machine type the wash programs kept in
EEPROM memory are not changed. After changing the wash
machine type it's recommended to erase the program
memory and load the standard wash programs again as the
wash program settings differ for each machine type.

!

Attention!

MAKE SURE THAT YOU HAVE SELECTED THE CORRECT

MACHINE TYPE, OTHERWISE THE MACHINE WILL NOT
FUNCTION PROPERLY.

All the Initialization and Configuration Menu Settings

will be reset to its default Factory settings.
Should only be used at SETUP of a new wash
computer.

(only) be executed for each new

List
No / Yes

No / Yes
No / Yes

 Confirm that you want to Reset Defaults.

!

Attention!
Reset Defaults must
installed wash Computer and after selecting a new machine
type, to ensure correct EEPROM memory configuration!

!

Attention!

BE SURE YOU WANT TO ERASE THE OLD SETTINGS, AS

THEY CAN'T BE RECAPTURED.

(only) be executed for each new

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 25

Menu Item Default Info Limits

Brightness Display 12 The brightness of the display is changed by adjusting

the contrast of the optimal viewing angle.

Inverter Menu…

Supply Voltage XXXXXXX
(Inverter Type)

Load Param…

Attention!

!

The washing machine can only operate correctly if the
right inverter (same as washing machine) has been
set in the Configuration menu.

Select the right inverter.

 Look at Machine Name Plate on the rear of the

washing machine.

 Select the Supply Voltage as shown on the

Machine Name Plate.

The frequency inverter will be selected by default.

 Check Inverter Type

Attention!

!

The washing machine can only perform properly if the
inverter contains the right list of inverter parameters. By the
wash computer it is possible to load the list of parameters in
the inverter. Make sure that the correct Supply Voltage has
been selected first.

Attention!

!

Loading parameters is only required after installing a new
inverter.

Load the inverter Parameters.

 Door must be closed.

Are You Sure ?

No

 Check if the SETUP is correct.

- Parameter List Version

- machine type, inverter type, softw version

 Confirm that you want to load the inverter

Parameters.

 Check status screen while parameters are loaded.

- Sending Param.: 0 - 100 %

- Verify Param: 0 - 100 %

1 - 20

List

No / Yes

26 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

Menu Item Default Info Limits

SETUP

Total N° of Inlets 2 A washing machine can be delivered with 2 or 3 main

water Inlet supplies.
A machine with 2 main water inlet supplies is prepared
for : - soft warm water

- soft cold water
A machine with 3 main water inlet supplies is prepared
for : - soft warm water

- soft cold water

- hard or recycled cold water

Depending on this selection other inlet valves will be
suggested at the final rinse sequence.
Depending on this selection other inlet valves will be
programmed when the standard programs are loaded.

Drain Val.1 Inverted No

If a drain valve 1 with inverted function (normally closed) or
a pump is used on the machine, then this item must be set
to “Yes”.

Drain Valve 2 No Some machines function with water recovery are

equipped with a second drain valve.
If this second drain valve is a normal Closed drain
Valve, then drain valve 2 must be Selected Yes.

2 / 3

No / Yes

No / Yes

Liquid Soap Supply No

Some washing machines function with external Liquid
soap supplies and others do not. To program External
Liquid soap supplies at the Program Menu, this
selection must be Yes.

Min. Level Start Supply 0 units Soap Supply signals are only started when the pre-set

„Minimum water level Start Supply“ has been reached.
Minimum programmable level, see water consumption
table 3.5.A.

Temperature Celsius

Select Celsius or Fahrenheit, depending if you prefer
that the temperature is displayed in degrees Celsius
or degrees Fahrenheit.

Full Heating 1 % This function allows to reduce the energy consumption

at long hot washes.
When the heating has reached the programmed
target temperature, heating will be restarted when the
bath temperature goes below the temperature
hysteresis.

- Full Heating 100 %, the heating will be restarted until
the end of the hot wash sequence.

- Full Heating 1 %, the heating will not be restarted once
the target temperature has been reached.

- Full Heating 67 %, the heating will be switched Off 1/3
before the end of the hot wash sequence.

!

Attention!
In case of a hygienic program, 100% must be selected.

No / Yes

0 - Minimum

progr. level

Celsius /
Fahrenheit

1 - 100 %

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 27

Menu Item Default Info Limits

Wet Cleaning No Selection Wet Cleaning allows to program water

levels below the standard minimum programmable
levels. The heating will not be functional for a water
level below the standard minimum programmable
water level.

Erase All Wash Prog ?
Are You Sure ?

Load Standard Programs ?

Language
Load Program 1 - 20 ?
Load Program >20 ?

No
No

No

English
No
No

Allows erasing all the wash programs at once.
To be used only at the installation of a new wash
computer and if you want to ensure that no old
programs stay in the memory of the wash computer
anymore.
All the memory Blocks will be cleared one by one.

!

Attention!

Erase All Wash Programs must be executed for each new

installed wash Computer, to ensure correct EEPROM
memory configuration!

To use the 20 wash computer Standard Wash

programs, these standard programs must be loaded
into the Wash Program Memory of the wash computer.
Choose the language of the Wash Program name.
The Wash Program name shows to the operator the
type of wash process.
A confirmation is asked to load Standard Programs.
Standard programs 1 - 20 see chapter 7.
It is also possible to load 37 dedicated programs.

!

Attention!
After selecting a different machine type, best is to load again
the Standard Programs in memory, this to avoid that the
washing machine runs with wrong water levels, drum speed.

No / Yes

No / Yes

No / Yes

List
No / Yes
No / Yes

Communication Addr. 255 Each washing machine in the serial RS485 washing

machine communication network must have a unique
Communication Address. (Master - Slave)

!

Attention!
If 2 or more machines have the same Communication
Address the communication network will not function
properly.

1 - 255

Exit Return to Main Menu

28 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

SETUP

4.3 ADVANCED MENU

Some special wash computer applications are only accessible by the Advanced Menu.
In the advanced menu you can find the not frequently used, optional and special applications.

 HOW TO GET INTO THE ADVANCED MENU

The Advanced menu can only be accessed when the machine is in standby (the power is switche d on, but no
program is started).

SELECT CYCLE is displayed.
Switch the machine to the setup mode (see chapter 3.3).
The Main menu is now available.
Select the Advanced Menu after turning it on in the Configuration menu.

The advanced menu contains a list of extra menu's with special functions :

Initialization …
Program …
Servis …

Configuration …

Advanced …

1 Hygienic Cycle …

2 Program Mode Lock …
3 Program Lock …
4

Traceability …

5

Weighing …

6

Exit

Main menu

Advanced Menu

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 29

 HYGIENIC CYCLE MENU

A. Strict Temperature Control

In normal operation, the washing machine heating system works with a temperature control hysteresis below
the programmed target temperature value. This corresponds with line 1 at the fig.4.3.

Some washing machine operators want a strict temperature control in case of hygienic wash cycles.
Example: this means when 70°C is programmed, the linen must be washed at a temperature that doesn't

drop below 70°C. This solution is possible by switching on the „Strict Temperature Control“ function. In this
case the wash computer works with a temperature control with a hysteresis above the programmed
temperature value. See line 2 at the fig.4.3.

Strict Temperature Control is not applicable for delicates and woollens, and will not work for a program med
temperature < 30°C.

Water
Temperature

Target

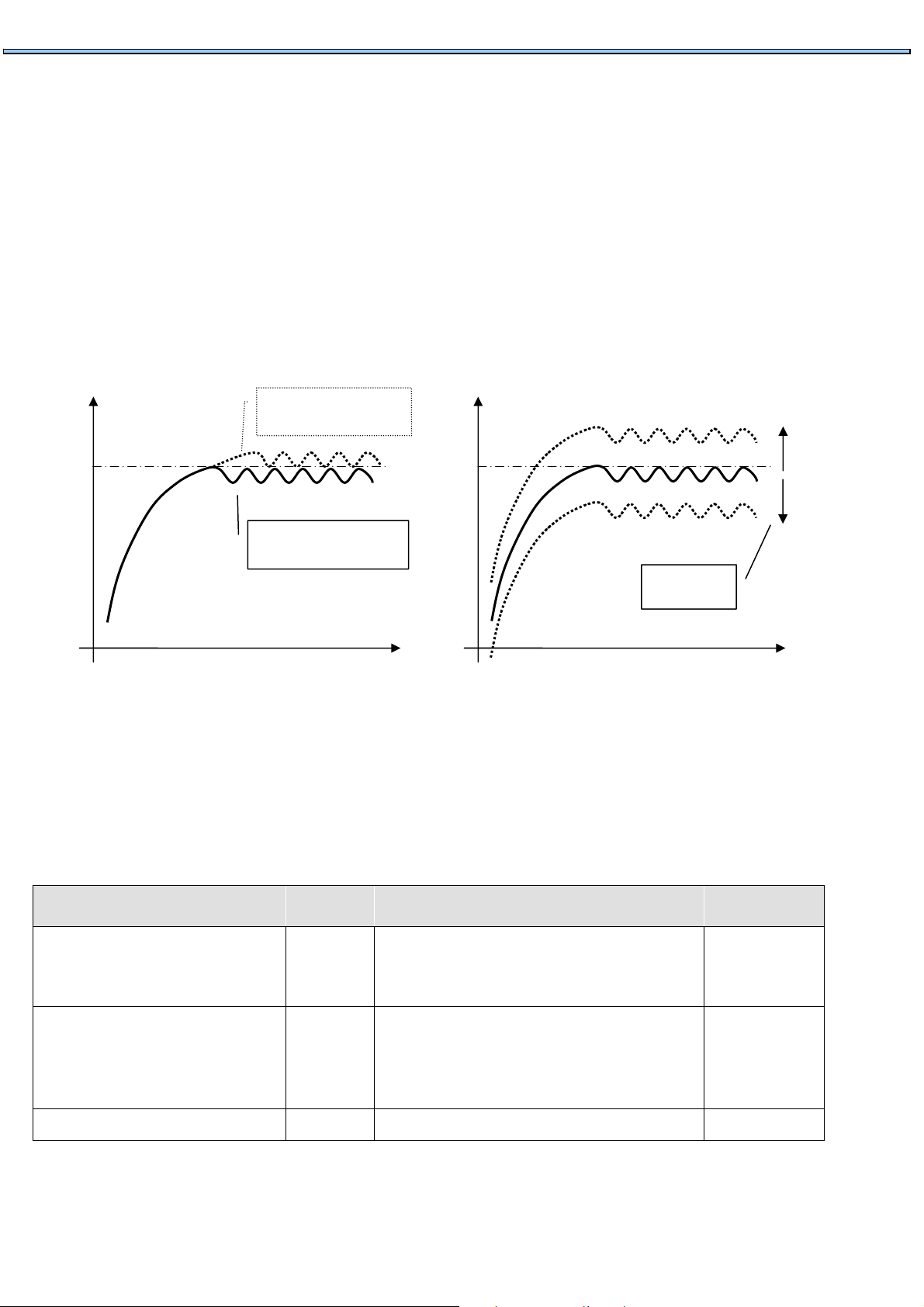

 Water Heating graphs.

A. Strict Temperature Control B. Temperature Calibration Offset

2 : Strict Temperature
Control

1 : Normal Temperature
Control

B. Temperature Calibration Offset

The temperature sensor of the washing machine can be calibrated with an external temperature
measurement device as reference. The temperature sensor value can be adjusted in a range of +/- 5°C.

For normal washing machine use such calibration is not require d.

Water
Temperature

Target

Offset
adjustment

Time

Fig.4.3.

+ 5

- 5

Time

Menu Item Default Info Limits

Strict Temp. Control No The Strict Temperature Control of the wash computer

makes that the fabrics is washed at same value like

the programmed target temperature.

the water temperature sensor value is adjusted so that
it gets equal with the value of an external reference
temperature sensor.

Temp. Calib. Offset

0 By changing the Temperature Calibration Offset value

Exit Return to Advanced Menu.

30 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

No / Yes

-5 / 0 / 5

 PROGRAM MODE LOCK MENU

SETUP

The access to the Program Mode can be locked by a password.
It means that without password you can't have access to the Main Menu Screen.

Menu Item Default Info Limits

Password . . . . None Enter a 4 digit value for the Password and press

ENTER.

!

Attention!

The Password will not be requested if it has not been set.

Edit Password …
New Password ….
No Password …

Old Password ….

Insert a 4 digit numeric value to create a new
password.
Select the menu item „No Password“ if you want to get
rid of the Password.

To change the Password insert first the old Password,
then you are invited to create a new Password.

Exit Return to Advanced Menu

 PROGRAM LOCK MENU

Each wash program can be locked individually.
When the program is locked, it means no settings can be changed anymore.
It avoids that programs once created get changed by somebody else.
To get access to this menu a password is needed if it has been set.

0000 - 99999

Menu Item Default Info Limits

Password . . . . None Enter a 4 digit value for the Password and press

ENTER.

!

Attention!

The Password will not be requested if it has not been set.

Programs …

1 HOT INTENS Unlocked
2 WARM INTENS Locked
…
99 Program 99 Unlocked
EXIT

Edit Password …
New Password ….
No Password …

Old Password ….

Unlocked Each program can be locked – unlocked individually.

When the program is locked, it means no Program
settings can be changed anymore.
It avoids that programs once created get changed by
somebody else.

Insert a 4 digit numeric value to create a new
password.
Select the menu item „No Password“ if you want to get
rid of the Password.

To change the Password insert first the old Password,

then you are invited to create a new Password.

0000 - 99999

Unlocked / Locked

Exit Return to Advanced Menu

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 31

 TRACEABILITY MENU

Traceability is a function to store wash cycle data outside the washing machine, to be able to prove that the
laundering process has been correctly executed.

In case of any failure, the Wash Cycle must be stopped and there must be a warning that the wash cycle
must be repeated correctly.

For more information about traceability see Manual Traceability Management Software.

Menu Item Default Info Limits

Enable Traceability No / Yes No First you have to select Traceability to obtain the other

menu items.

Disable Traceability Errors No Err 81 and Err 82 can be switched off if they disturb to

often the wash process.

No / Yes

No / Yes

Exit Return to Advanced Menu.

 WEIGHING MENU

Menu Item Default Info Limits

Weighing System

Automatic Level Adjust.

Automatic Soap Adjust.

Manual

Yes

Yes

No - without weighing system
Manual - manual entering of the linen weight

If the amount of weighed load in the washing machine
is smaller then the capacity of the washing machine,
then the washing machine will run automatically with a
reduced amount of water. This will reduce the water
consumption of the washing machine.

Similar like Automatic water Level Adjustment, also the
time value of the liquid soap signal is adjusted in
relation with the amount of weighed load, which will
reduce the liquid soap consumption of the washing
machine.

No / Manual

No / Yes

No / Yes

Exit Return to Advanced Menu

32 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

SETUP

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 33

5. PROGRAMMING

5.1 GENERAL

Specific functions have been implemented in the wash computer to allow a detailed prog ramming.

 Functions for the complete program.

- Program Number : Selecting the wash Program.

- Name : Insert or Modify the Name for the Program.

- View : Inspecting the Program settings without making changes.

- Edit : Adjusting a Program.

- New : Creating a New Program.

- Copy : Making a Copy of an existing Program.

- Delete : Erase the Program.

- Exit : Leave the Program Menu.

 Functions for the program steps.

- Step Number : Selecting the Program Step.

- Add : Adding a Program Step at the end of the program.

- Edit : Adjusting the Program Step.

- Insert : Adding a Program Step between two other steps.

- View : Inspecting the Step settings without making changes.

- Delete : Deleting a Step.

- Exit : Leave the Program Step Menu.

Follow the flowchart step by step.

5.2. STEP  : PROGRAM MENU

 HOW TO GET INTO THE PROGRAM MENU

The Program menu can only be accessed when the machine is in standby (the machine is
powered up but no program is started).

SELECT CYCLE is displayed.
Switch the machine to the setup mode (s ee chap ter 3.3).
The Main menu is now available.
Press the ARROW DOWN button to select the Program Menu.

34 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

Initialization …
Program …
Servis …

Configuration …

Advanced …

Press the ENTER button to confirm your selection.
Go to  

Main menu

5.3. STEP  : PROGRAM FUNCTIONS

Select Program N: 1
Name: HOT INTENS
View …
Edit …

New …
Copy …
Delete …
Exit

Program menu

PROGRAMMING

Menu Item Info

Select Program N°: 1 Insert the desired program number.

Program 1 to 99 can be selected.

Name: _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 35

The Program Name gives info about the type of wash
Program.
With the ARROW LEFT and RIGHT button you can
select the character position.
With the ARROW UP and DOWN button you can
select the desired character.
By pressing the ENTER button, the dashes will
disappear.

Menu Item Info

View In Program View you can look to the Program

Settings, without making any changes.

Edit Editing a program is changing the program by

selecting a new element from a list or by changing

values in an existing program. You can also

add, insert or delete steps in an existing

program.

New To create a new program, you have to make use of

the add step function. By adding steps the

program will grow step by step.

A confirmation is asked first to delete the old program.

Copy

Copy From Program N°: XXX

Sometimes it's easier to make a copy of an existing

program and to make some small changes to the
copied program. A confirmation is asked first to delete
the old program.
Insert the desired program number from which you
want to copy the program.

Attention!

!

The standard programs can be selected at the program
numbers 101-120.

Program number 101 corresponds with program 1.
Program number 102 corresponds with program 2.
…
Program number 120 corresponds with program 20.

A confirmation is asked first to delete the old program.

Delete a Program To get rid of an existing program, use the delete

program function. The complete program will be
erased at once.
A confirmation is asked first to delete the old program.

new program, you have to make use of

Exit Return to Main Menu

In the Advanced Menu, it is possible to lock - unlock each wash program individually.
If a program is locked, a sign “Locked” is displayed in brackets next to the program number and it is not

possible to change the wash programs. Only the View function will be functional and the other functions to
adjust the program will be disabled.

36 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

5.4. STEP  : PROGRAM STEP FUNCTION

Prog. 1: HOT INTENS
Select Step N: 1
Add …
Edit ...

Insert …
View …
Delete …
Exit

Edit Step Menu

Menu Item Info

PROGRAMMING

Select Step N°: 1 Insert the desired step number.

Step 1 to 99 can be selected.

Attention!

!

If the number is not accepted, this means that the step is not
available.
No Step number must be selected for „Add Step“ function.

Add Step To create new programs, a new extra step should be

added at the end of the program.

Edit Step To change values and list elements from an existing

step.

Insert Step A new step is inserted in between two existing steps.

If the number is not accepted, this means there is no
step with a step number = inserted number - 1
available. A new step can only be inserted between
two available steps.

View Step Before making changes in a wash program, it's

recommended to have a look at the actual settings by
the view function. No changes can be made at the
View Step function.

Delete Step An existing Step in the program disappears when it's

deleted. A confirmation is asked first before deleting
the Old Step.

Exit Return to Program Menu

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 37

5.5. STEP  : PROGRAMMING THE WASH PART

Step number Program number

+ name

Program 1: HOT INTENS
Step 2

Wash

Spin

Time: 8.0 min

8.0 [4.0-20.0]

Menu
item

Value menu
item

Original
value

This paragraph gives a detailed explanation about programming the Wash Sequences.

 Each program step contains a wash part and a drain/spin part.
 First the wash part must be selected, item by item can be programmed.
 Next the drain/spin part must be selected, item by item can be programmed. See step  .
 Without making changes you can watch item by item, by pressing the ARROW DOWN or UP

button.
 If you want to make changes :

- Insert a new value.

- Enable or disable a Setting by pressing the YES or NO button.

- Select a list element by pressing the ARROW LEFT or RIGHT button.
 You always need to confirm by pressing the ENTER button.
 Each time you add or insert a new step, default values have been pre-programmed.
So with less effort, complete programs can be programmed.
See also chapter 3 for a general explanation concerning the creation of wash programs.
 You can recognize a list element by the LEFT and RIGHT ARROW symbol at the right side
on the display.
 The arrow down symbol on the display points to the last Menu Item : EXIT.

STEP
Wash  Spin part

Limits
menu item

5

Position
menu item

38 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

|

 SELECTING THE WASH PART

PROGRAMMING

Prewash

Type: Prewash

Spin

 If you have selected Add Step, Edit Step or Insert Step, you
have to select the wash sequence now.

z

 Depending on the machine type, with top or front soap
dispenser, you have more or less sequences available.

Prewash | Wash| Cooldown | Rinse | Final Rinse | Soak | Spray | No wash

 For a new step, as a default, the first displayed function is the Wash sequence.
 Now by pressing the ARROW LEFT or RIGHT button, you can select the desired sequence.
 Press the ENTER button to confirm.

 You can also use the ARROW DOWN button if you accept the pre-programmed default value.

 THE PREWASH SEQUENCE

Prewash

Wash | Cooldown | Rinse | Final Rinse | Soak | Flush| Spray | No wash

Menu Item Default Info Limits

Temperature 40 °C The water temperature.
Inlet I1 - I5

(40°C)

Level Normal

Low

The suggested inlet valves are related to the
temperature and the soap box to be used.

!

Attention!
If you insert other inlet valves than the suggested ones,
problems can occur at the water fill process.

The suggested water level depends on the machine
Type.

1 - 45 °C
I1...I8

See table 3.5.A

RPM - The suggested RPM depends on the machineType. See table 3.5.B

Detergents Menu…
Supply 1, …, 8

0 sec

Time selection for external liquid soap supplies.
You can program up to 4 supplies at the same time.
If you have programmed more then 4 supplies an error
message will be generated. Put the time of the
supplies back to zero until not more than 4 non-zero
time values are remaining.

(Liquid soap supplies must be switched on at the configuration
Menu)

0 - 99 sec

On Time 12 sec The wash action, motor On Time.

1 - 99 sec

Gentle wash action : 3 sec.

(The suggested default values can be adjusted at the Initialization
menu)

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 39

Menu Item Default Info Limits

Off Time 3 sec The wash action, motor Off Time.

Gentle wash action : 12 sec.

(The suggested default values can be adjusted at the Initialization
menu)

Time 4.0 Min The Prewash Sequence Time.

(for 0 Minutes the Prewash sequence will be skipped)
(programmable in steps of 0,5 Minutes)

Signal No When a signal is programmed, a pause will be

introduced at the end of the Wash Step. This allows
the operator to add soap for the next step. A buzzer
signal warns the operator that the cycle has been
interrupted.

1 - 99 sec

0 - 99.5 Min

No / Yes

40 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

 THE WASH SEQUENCE

Prewash | Wash| Cooldown | Rinse | Last Rinse | Soak | Spray | No wash

PROGRAMMING

Menu Item Default Info Limits

Temperature 60 °C The water temperature.
Inlet I2-I3-I6-I8 The suggested inlet valves are related to the

1 - 92 °C
I1...I8

temperature and the soap box to be used.

!

Attention!

If you insert other inlet valves than the suggested ones,

Level Normal

Low

problems can occur at the water fill process.

The suggested water level depends on the machine
Type.

See table 3.5.A

RPM - The suggested RPM depends on the machine Type. See table 3.5.B

Detergents Menu…
Supply 1, …, 8

0 sec

Time selection for Soap Boxes (hopper) and external
liquid soap supplies.
You can program up to 4 supplies at the same time.
If you have programmed more then 4 supplies an error
message will be generated. Put the time of the
supplies back to zero until not more than 4 non-zero
time values are remaining.

(Liquid soap supplies must be switched on at the configuration
Menu)

0 - 99 sec

On Time 12 sec The wash action, motor On Time.

Gentle wash action : 3 sec.

(The suggested default values can be adjusted at the Initialization
menu)

Off Time 3 sec The wash action, motor Off Time.

Gentle wash action : 12 sec.

(The suggested default values can be adjusted at the Initialization
menu)

Time 7.0 Min The Wash Sequence Time.

(for 0 Minutes the Wash sequence will be skipped)
(programmable in steps of 0,5 Minutes)

Signal No When a signal is programmed, a pause will be

introduced at the end of the Wash Step. This allows
the operator to add soap for the next step. A buzzer
signal warns the operator that the cycle has been
interrupted.

1 - 99 sec

1 - 99 sec

0 - 99.5 Min

No / Yes

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 41

 THE COOLDOWN SEQUENCE

Prewash | Wash | Cooldown | Rinse | Final Rinse | Soak | Spray | No wash

 After a Hot wash you can program a Cool-down Sequence to avoid temperature shock and

shrinking of the garments.

 The drain step after the Hot wash must be put on NO DRAIN.
 No inlets are programmable :

- machine with three water inlets: inlet 7 is the standard inlet.

- machine with two water inlets: inlet 1 is the standard inlet.

 The water level can‘t be programmed as the process of adding and draining water doesn’t allow this.

ATTENTION!

!

DO NOT PROGRAM A DRAIN SEQUENCE BEFORE A COOLDOWN SEQUENCE

Menu Item Default Info Limits

Temperature 60 °C The water temperature.

1 - 60 °C

RPM - The suggested RPM depends on the machine Type. See table 3.5.B
Drain Valve 1 Only available on washing machines with both : a

normal Open and normal Closed Drain valve.

On Time 12 sec The wash action, motor On Time.

Gentle wash action : 3 sec.

(The suggested default values can be adjusted at the Initialization menu)

Off Time 3 sec The wash action, motor Off Time.

Gentle wash action : 12 sec.

(The suggested default values can be adjusted at the Initialization menu)

Time 7.0 Min The programmed time = time needed to decrease the

water temperature.
Once the programmed temperature has been reached,
the next Sequence will be started.

(for 0 Minutes the Cooldown sequence will be skipped)
(programmable in steps of 0,5 Minutes)

!

Attention!

If a short time is programmed, the water temperature will
decrease fast.
Recommendation!
Program 1 minute for each 3°C temperature drop.
Example :
For a hot wash of 90°C and a Cooldown Sequence of 60°C a
time of about 30°C/3°C = 10 Minutes should be programmed
for the Cooldown Sequence.

1 - 2

1 - 99 sec

1 - 99 sec

0 - 99.5 Min

Signal No When a signal is programmed, a pause will be

No / Yes

introduced at the end of the Wash Step. This allows
the operator to add soap for the next step. A buzzer
signal warns the operator that the cycle has been
interrupted.

42 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

 THE RINSE SEQUENCE

PROGRAMMING

Prewash | Wash | Cooldown | Rinse| Final Rinse | Soak | Spray | No wash

 No temperature can be programmed as a Rinse is only dedicated for cold water.

Menu Item Default Info Limits

Inlet I1-I2-I7 3 Inlets can be programmed.

I1,2,3,4,7

The suggested inlet valves are related to the
temperature and the soap box to be used.

!

Attention!

If you insert other inlet valves than the suggested ones,

Level Normal

High

problems can occur at the water fill process.

The suggested water level depends on the machine
Type.

See table 3.5.A

RPM - The suggested RPM depends on the machine Type. See table 3.5.B

Detergents Menu…

Time selection for Soap Boxes (hopper) and external
liquid soap supplies.

Supply 1, …, 8

0 sec

You can program up to 4 supplies at the same time.
If you have programmed more then 4 supplies an error
message will be generated. Put the time of the
supplies back to zero until not more than 4 non-zero
time values are remaining.

(Liquid soap supplies must be switched on at the configuration

MENU) .

On Time 12 sec The wash action, motor On Time.

Gentle wash action : 3 sec.

(The suggested default values can be adjusted at the Initialization
menu)

0 - 99 sec

1 - 99 sec

Off Time 3 sec The wash action, motor Off Time.

1 - 99 sec

Gentle wash action : 12 sec.

(The suggested default values can be adjusted at the Initialization
menu)

Time 2.0 Min The Rinse Sequence Time.

(for 0 Minutes the Rinse sequence will be skipped)
(programmable in steps of 0,5 Minutes)

Signal No When a signal is programmed, a pause will be

0 - 99.5 Min

No / Yes

introduced at the end of the Wash Step. This allows
the operator to add soap for the next step. A buzzer
signal warns the operator that the cycle has been
interrupted.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 43

 THE FINAL RINSE SEQUENCE

Prewash | Wash | Cooldown | Rinse | Final Rinse| Soak | Spray | No wash

 No temperature can be programmed as a Last Rinse is only dedicated for cold (hard) water.

Menu Item Default Info Limits

Inlet I4-I7

(3 inlets)

I4

(4 inlets)

Level Normal

High

RPM - The suggested RPM depends on the machine Type. See table 3.5.B
Detergents Menu…

Supply 1, …, 8

0 sec

On Time 12 sec The wash action, motor On Time.

3 Inlets can be programmed.
The suggested inlet valves are related to the
temperature and the soap box to be used.

!

Attention!
If you insert other inlet valves than the suggested ones,
problems can occur at the water fill process.

The suggested water level depends on the machine
Type.

Time selection for external liquid soap supplies.
You can program up to 4 supplies at the same time.
If you have programmed more then 4 supplies an error
message will be generated. Put the time of the
supplies back to zero until not more than 4 non-zero
time values are remaining.

(Liquid soap supplies must be switched on at the configuration Menu)

Gentle wash action : 3 sec.

(The suggested default values can be adjusted at the Initialization menu)

I1,2,3,4,7

See table 3.5.A

0 - 99 sec

1 - 99 sec

Off Time 3 sec The wash action, motor Off Time.

Gentle wash action : 12 sec.

(The suggested default values can be adjusted at the Initialization menu)

Time 2.0 Min The Final Rinse Sequence Time.

(for 0 Minutes the Final Rinse sequence will be skipped)
(programmable in steps of 0,5 Minutes)

Signal No When a signal is programmed, a pause will be

introduced at the end of the Wash Step. This allows
the operator to add soap for the next step. A buzzer
signal warns the operator that the cycle has been
interrupted.

1 - 99 sec

0 - 99.5 Min

No / Yes

44 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

 THE SOAK SEQUENCE

Prewash | Wash | Cooldown | Rinse | Final Rinse | Soak| Flush| Spray | No wash

PROGRAMMING

Menu Item Default Info Limits

Temperature 40 °C The water temperature.
Inlet I1 - I7 The suggested inlet valves are related to the

temperature and the soap box to be used.

!

Attention!
If you insert other inlet valves than the suggested ones,
problems can occur at the water fill process.

Level Normal

Low

The suggested water level depends on the machine
Type.

1 - 45 °C
I1...I8

See table 3.5.A

RPM - The suggested RPM depends on the machine Type. See table 3.5.B

Detergents Menu…
Supply 1, …, 8

0 sec

Time selection for Soap Boxes (hopper) and external
liquid soap supplies.
You can program up to 4 supplies at the same time.

If you have programmed more then 4 supplies an error
message will be generated. Put the time of the
supplies back to zero until not more than 4 non-zero
time values are remaining.

(Liquid soap supplies must be switched on at the configurat ion menu)

0 - 99 sec

On Time 12 sec The wash action, motor On Time.

(The suggested default values can be adjusted at the Initialization menu)

Off Time 10 Min The wash action, motor Off Time.

(The suggested default values can be adjusted at the Initialization menu)

Time 1.0 Hour The Soak Sequence Time.

(for 0 Hour the Soak sequence will be skipped)
(programmable in steps of 0,1 Hour)

Signal No When a signal is programmed, a pause will be

introduced at the end of the Wash Step. This allows
the operator to add soap for the next step. A buzzer
signal warns the operator that the cycle has been
interrupted.

1 - 99 sec

1 - 99 minutes

0 - 25.5 Hour

No / Yes

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 45

pray

|

 THE SPRAY SEQUENCE

Prewash | Wash | Cooldown | Rinse | Final Rinse | Soak | S

 Water or Liquid is injected at Distribution or Low Spin Speed
 No standard water inlets can be programmed in this function.
 The liquid will be injected based on soap supply programming.

No wash

Menu Item Default Info Limits

RPM - The suggested RPM depends on the machine Type. See table 3.5.B

Drain Valve 1 Only available on washing machines with both : a

normal Open and normal Closed Drain valve.

Detergents Menu…
Supply 1, …, 8

0 sec

Time selection for Soap Boxes (hopper) and external
liquid soap supplies.
The Spray sequence only functions with 1 Supply.
If you have programmed more then 1 supply an error
message will be generated. Put the time of the
supplies back to zero until not more than 1 non-zero
time value is remaining.
If No supply has been programmed: the Spray

sequence will be skipped.

(Liquid soap supplies must be switched on at the configuration

menu).

Signal No When a signal is programmed, a pause will be

introduced at the end of the Wash Step. This allows
the operator to add soap for the next step. A buzzer
signal warns the operator that the cycle has been
interrupted.

1 - 2

0 - 99 sec

No / Yes

 THE NO WASH SEQUENCE

Prewash | Wash | Cooldown | Rinse | Final Rinse | Soak | Spray | No wash

 In case of a No Wash Sequence, the wash function of the programmed step is skipped.
Goto  

46 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

|

5.6. STEP  : PROGRAMMING THE DRAIN STEP

PROGRAMMING

This paragraph gives a detailed explanation about programming the
Drain/Extraction Sequences.

After programming the wash step, the drain/extraction step still has to be programmed.

ATTENTION!

!

YOU DON’T HAVE TO PROGRAM A DRAIN SEQUENCE BEFORE AN EXTRACTION SEQUENCE AS
THE WATER WILL AUTOMATICALLY BE DRAINED AT THE EXTRACTION SEQUENCE

 SELECTING THE DRAIN/EXTRACTION STEP

Depending on the machine type, you have more or less functions.

Wash

Type: Drain

Drain

 For a new step, the first sequence that is displayed is

z

the Drain sequence (default).
 Select the desired Drain step sequence from the list by
pressing the ARROW LEFT or RIGHT button.
 Press the ENTER button to confirm your selection.
 You can also use the ARROW DOWN button if you
accept the pre-programmed default value.

 THE DRAIN SEQUENCE

Drain

Extract | No Drain | Static Drain | Reversing Drain

Menu Item Default Info Limits

Drain Valve 1 Only available on washing machines with both:

a normal Open and normal Closed Drain valve.

Time 0.5 Min The Drain Sequence Time.

(for 0 Minutes the Drain sequence will be skipped)
(programmable in steps of 0,5 Minutes)

Exit Return to Edit Program Menu.

1 - 2

0 - 15.0 Min

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 47

 THE EXTRACT SEQUENCE

Drain | Extract | No Drain | Static Drain | Reversing Drain

Menu Item Default Info Limits

Drain Valve 1 Only available on washing machines with both : a

normal Open and normal Closed Drain valve.

1 - 2

RPM - The suggested RPM depends on the machine Type. See table 3.5.B
Time 4.5 Min The Extract Sequence Time.

(for 0 Minutes the Extract sequence will be skipped)
(programmable in steps of 0,5 Minutes)

0 - 15,0 Min

Exit Return to Edit Program Menu.

 THE NO DRAIN SEQUENCE

Drain | Extract | No Drain| Static Drain | Reversing Drain

 The Drain/Extraction part of the programmed step is skipped.

!

Attention!

For some specific functions „No Drain“ must be programmed.

Example:
If you want to program a Cool-down Sequence, then „No Drain“ must be programmed between the Hot Wash

and the Cool-down Sequence.

Menu Item Default Info Limits

Exit Return to Edit Program Menu.

 THE STATIC DRAIN SEQUENCE

Drain | Extract | No Drain | Static Drain | Reversing Drain

The drum is at standstill while the water is drained.

Menu Item Default Info Limits

Drain Valve 1 Only available on washing machines with both :

a normal Open and normal Closed Drain valve.

RPM - The suggested RPM depends on the machine Type. See table 3.5.B
Time 0.5 Min The Static Drain Sequence Time.

(for 0 Minutes the Static Drain sequence will be skipped)
(programmable in steps of 0,5 Minutes)

Exit Return to Edit Program Menu.

1 - 2

0 - 15,0 Min

48 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

g

Attention!

!

It’s not recommended to program a spin sequence just after a Static Drain Sequence.
At a Static Drain sequence, the garments are not distributed around the drum while the water is drained.
When the spin sequence starts, the garments are a big imbalance and the imbalance (tilt) function will be

activated.

 THE REVERSING DRAIN SEQUENCE

PROGRAMMING

Drain | Extract | No Drain | Static Drain| Reversin

The drum is reversing while the water is drained.

Drain

Menu Item Default Info Limits

Drain Valve 1 Only available on washing machines with both : a

normal Open and normal Closed Drain valve.

RPM - The suggested RPM depends on the machine Type. See table 3.5.B
On Time 12 sec The mechanical action, motor On Time.

(The suggested default values can be adjusted at the Initialization
menu)

Off Time 3 sec The mechanical action, motor Off Time.

Time 0.5 Min The Static Drain Sequence Time.

(The suggested default values can be adjusted at the Initialization
menu)

(for 0 Minutes the Static Drain sequence will be skipped)
(programmable in steps of 0,5 Minutes)

1 - 2

1 - 99 sec

1 - 99 sec

0 - 15,0 Min

Exit Return to Edit Program Menu.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 49

6. OPERATION MENU

6.1. STARTING UP

ATTENTION!

!

BEFORE STARTING UP THE FIRST TIME, BE SURE THAT THE MACHINE IS WELL INSTALLED.
SEE INSTALLATION MANUAL.

MAKE SURE THAT THE CONFIGURATION AND INITIALIZATION MENU HAVE THE RIGHT SETTINGS.
SEE CHAPTER 4.

6.2. SWITCHING ON THE POWER

 The display lights up when you switch on the power.

 If the machine is ready to be started, Select CYCLE is displayed.

6.3. LOAD THE WASHING MACHINE

 Open the door and load the laundry into the drum. When the drum is loaded, close the door.

6.4. PUT SOAP INTO THE SOAP DISPENSER

 Put the correct amount of soap into the soap dispenser.

 At the wash sequence, it depends of the pre-programmed water inlets in which

the soap dispenser you have to add soap
 See paragraph 3.4. for more information

6.5. STARTING A WASH PROGRAM

 Up to 99 programs can be selected. The first 20 are the standard Wash programs you can

find in this manual at Paragraph 7.2.

 Insert the program number.

 Press the „START“ button.

 If there is no program available for a specific program number, INVALID is displayed.

50 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

6.6. PROGRAMMING A DELAY TIME

 Enter the selected Program Number.
 Press the Dot button.

The Delay time message will be displayed.

 The door must be closed first.

 Now you can insert the value for a delay time

DELAYED START _ _ : _ _
 First insert a value for the Hours, then insert a value for the Minutes

 The minimum delay time is 1 minute [ 00:01]

 The maximum delay time is 99 hours and 59 minutes [99:59]

 By pressing the START button, the delay time will start to decrease.

 The Door will be locked immediately.

Once the delay time is over, the wash cycle will start automatically.

 The Delay Time Sequence can be interrupted by pressing the Stop button.
The program will return to the Start Up menu: SELECT CYCLE.

OPERATION

6.7. THE ACTIVE PROGRAM

 The cycle time will decrease minute by minute and gives you an indication how long it will
take before the cycle is finished.
 A Progression bar shows the progression of the wash cycle and the active wash step.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 51

Program
number

Prog 2: WARM WASH

Wash program
name

35 Min.

Remaining time
wash program

Progression

bar

Time unit

6.8. ADVANCING A WASH PROGRAM

 Press the ARROW RIGHT button to increase the wash sequence time.
 Press the ARROW LEFT button to decrease the wash sequence time.
 Press the START button to skip the current step.

6.9. WASH TIME

 Once the program has been started, the remaining cycle time is displayed.
 The clock symbol indicates whether the time of the running cycle is being counted down or

not. If the clock symbol i s not fla shing, it means th at the cycle tim e is not b eing cou nted down.

 The time for which the symbol is not flashing is the extra time.
 The total wash time = programmed time (1) + the extra time (2+3+4+5)

1. The programmed time of the processes.

2. The extra time for taking water.

3. The extra time for draining (if the water is not drained in 30 sec and the extended
drain time is started)

4. The extra time for heating if „Wait for temperature“ is selected.

5. The extra free run time at the end of the spin sequence.

52 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

6.10. PROGRAM END

OPERATION

 The time on the display counts down until 0.
 At the end of the cycle, the door lock is released, the display shows the UNLOAD message

and it is possible to open the door (unload the laundry).

 Open the door and unload the machine.

 The Message UNLOAD will be erased and the machine is ready to start a new program.

SELECT CYCLE is displayed.

ATTENTION!

!

IN CASE OF HYGIENIC DESINFECTIVE WASH PROGRAMS IN THE INITIALIZATION MENU
„MANUAL OVERRIDE“ AND „ALLOW ADVANCE“ MUST BE SWITCHED OFF.

6.11. WATER FILL PROCESS

 Depending on the water temperature the cold and hot inlet valves will be opened.
 The water level is measured by an electronic water level sensor.
 If the Temperature Balance function is enabled, the Wash Computer will control the water

temperature until the target temperature is reached. For Hot wash programs, extra heating
will be required after the fill process to reach the programmed hot water temperature.

 In the standard wash tables you will find a Normal Low and Normal High water level.
 These are the standard water levels :

- The Normal Low water level is used for the Prewash, Wash and Soak sequence.

- The Normal High water level is used for the Rinse and Final Rinse sequence.

 The water level can only be programmed between two limits:

- The lower limit is above the heating elements and the temperature sensor.

- The upper limit is in the middle of the wash drum.

6.12. HEATING PROCESS

 When „No Wait for Temperature“ (No Wait for Heat) is selected:

- The machine will heat until the time of the specific wash step is over or if the
programmed temperature was reached.

- Even if the programmed temperature is not reached, the program will start the next
sequence if the time of the sequence is over.

 When „Wait for Temperature“ (Wait for Heat) is selected:

- The machine will heat until the programmed temperature is reached.
The programmed time of the wash sequence will only start co unting down from the
moment that the target temperature was reached.

ATTENTION!

!

WHEN THE MACHINES DO NOT HAVE ELECTRICAL OR STEAM HEATING NO „WAIT FOR
TEMPERATURE“ SHOULD BE SELECTED IN THE INITIALIZATION MENU.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 53

6.13. COOLDOWN FUNCTION

 AUTOMATIC COOLDOWN : this function avoids thermal shock in the washing machine.
 For Hot washes above 65°C, Cold water is added at the end of the step.
 PROGRAMMED COOLDOWN : this function is recommended to avoid the shrinking of the
garments.
 Water is drained and cold water is added bit by bit. The temperature of the water in the
tub will decrease slowly as a function of the programmed Cool-down Sequence
(temperature and time).

6.14. SPRAY FUNCTION

 The special product is injected while the drain valve is open and depending the
programmed speed, the drum will spin at distribution or low spin speed.

6.15. UNBALANCE

 When the machine is badly loaded during the spin sequence, then the tilt switch will get
activated.

 The spin sequence will be interrupted and the garments in the drum will be redistributed.
 The washing machine will try up to 5 times to redistribute the garments.

6.16. PAUSE

 When a signal has been programmed, at the end of a wash sequence, the machine will
stop the Program and the message „Pause, Press Start to Continue“ will be displayed.

 The buzzer will give a warning for the operator.
 Now the operator can add Soap.
 By pressing the START button the PROGRAM will go on with the next Program step.

6.17. STOP

 By pressing the STOP button the program is interrupted.
 First the machine will go over to a safe state.
 Then the message CONTINUE ? is displayed.

 STOP : the program is stopped. (A tumble sequence will be executed before the door can be

opened.)

 START : the program restarts the last active step, and goes on with the rest of the program.

6.18. WAIT STATE

 It can occur that the normal machine operation has been interrupted and that you have to
wait until the Wash Computer allows you to go on.

 You can recognize the wait state by a display that shows WAIT and a decreasing counter.
 This will occur when the power has been switched off and on at a running wash cycle.
 As the software doesn‘t know how fast the motor was spinning, a delay time is respected

before the machine can be restarted.

54 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

6.19. HOW TO HANDLE FAILURE MESSAGES

 When a failure has been detected by the Wash Computer, a failure message is generated

to inform the operator about the problem.

OPERATION

XX : The Program number
YY : The Step number
Err ZZZ : The error number
Fault Message : The name of the error message

 Safety conditions

ATTENTION!

!

IT’S UP TO THE OPERATOR TO TAKE THE NECESSARY PRECAUTIONS IF THE DRAIN VALVE IS
NOT FUNCTIONAL AND THERE IS STILL HOT WATER IN THE TUB AT THE END OF THE WASH

CYCLE.
ON THE DISPLAY THE ACTUAL WATER TEMPERATURE AND LEVEL WILL BE DISPLAYED.
WAIT UNTIL THE WATER IS DRAINED AND UNTIL THE WATER HAS COOLED BEFORE ALL

INTERVENTIONS AS HOT WATER CAN CAUSE BURNS.

ATTENTION!

!

GO TO THE CHAPTER 8 TROUBLE SHOOTING TO FIND OUT MORE ABOUT ERROR HANDLING.

Out Of Order (Pr: XX St: YY)

Ask For Service

(Err ZZZ : Fault Message)

 At the upper line, the program number and step number of the interrupted program are
displayed.

 The message UNLOAD! will inform you if it‘s allowed to open the door.

 If there is still water in the drum or if the temperature is too high, it‘s not possible to open

the door.
 The messages „WATER IN CAGE“ or „TOO HOT “ will be displayed together with the level
and the temperature.

 If something goes wrong with the door lock, the program will be finished immediately.
 For safety purposes, the door will stay locked.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 55

6.20. HOW TO HANDLE POWER INTERRUPTIONS

See Installation, maintenance and user's manual.

6.21. SPECIAL FUNCTION BUTTONS

The Special Function buttons Info and Service are dedicated to supply the operator with more
information about the wash programs and the wash machine functions.

6.21.1. INFO

 Press the INFO button if you want to find out what a program looks like.

 If no program is selected or running, an overview of all available programs is displayed.
 If a program is selected or running, a detailed overview of all the program steps is displayed.
 At each step are shown all the menu items.
 You can leave the Info menu by pressing the INFO button again.

6.21.2. SERVICE INFO

 Press the SERVICE INFO button if you want to inspect the actual water temperature and level.

 At the Service info you can inspect:

- the water temperature and water level

- the number of cycles that have been accumulated (service due)

- the actual wash machine states at the running wash cycle

 By pressing the ARROW DOWN button you will see all the menu items.
 You can leave the Service info by pressing the Service info button again.

6.21.3. INLETS 1, 2, 3, 4, 5, 6, 7, 8

 If, during a process in operation, you want to open a water inlet, move in the Service Info menu

to the last page and activate the desired inlet (valve) by pressing the corresponding button of
the buttons numbered 1 to 8.

INLET 1, 2, 3, 4 , 5, 6, 7, 8.

 Only functional at a running wash sequence.
 The corresponding inlet valve will be opened while you are pressing the button.

ATTENTION!

!

ALL THE SAFETY FUNCTIONS WILL STILL BE ACTIVE, SO IT CAN OCCUR THAT YOU CAN’T
ACTIVATE THE INLETS.

56 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

6.21.4. DRAIN

OPERATION

 If, during a process in operation, you want to open the draining valve, move in the Service Info

menu to the last page and activate the draining by pressing the button 0.

 Only functional at a running wash sequence.
 The drain valve will be opened for the time you are pressing the button.

6.21.5. HEATING

 If, during a process in operation, you want to activate the heating, move in the Service Info

menu to the last page and activate the heating by pressing the button 9.

 Only functional at a running wash sequence.
 The contactor of the heating will remain activated for the time for which you hold the button

pressed.

ATTENTION!

!

ALL THE SAFETY FUNCTIONS WILL STILL BE ACTIVE, SO IT CAN OCCUR THAT YOU CAN’T
ACTIVATE THE HEATING.

6.21.6. SPEED ADJUST

 If, during a process in operation, you want to change the rotational speed (revolutions) of the

drum, move in the Service Info menu to the last page and after having pressed the “.” (dot) button, enter a
new rotational speed (number of revolutions).

 You can adjust the drum speed by inserting a new value.
 The speed limits will be respected depending on the washing machine type.

ATTENTION!

!

ALL THE SAFETY FUNCTIONS WILL STILL BE ACTIVE , SO IT CAN OCCUR THAT YOU CAN’T
CHANGE THE SPIN SPEED.

6.22. EXTERNAL LIQUID SOAP BOXES

 If the washing machine is connected with external soap pumps, a signal from the soap
supply reservoir can be connected to the washing machine computer.
 If the Soap box is almost empty, then the diagnostic message „Err 39 out of soap“ will be
shown on the display of the Wash Computer.
 So the operator does not have to check the soap supply reservoirs continuously to avoid
washing without soap.

6.23. SYSTEM WITH MANUAL ENTERING OF THE LINEN WEIGHT
(SMART LOAD)

 If you now the weight of the linen load (e.g. you weight it before washing), you can activate

the function of manual entering of the linen weight (Advanced menu / Weighing).

 If the door is open there is shown „0kg“ as the linen load weight on the display.

Enter the weight value. When you close the door, you will be able to select a wash cycle.

 Depending on the entered weight value of the linen you can enable an automatic setting of

the water consumption and liquid soap supply.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 57

7. PRE-PROGRAMMED PROGRAMS

The Wash Computer contains 20 pre-programmed Standard Wash Programs.

(Standard Programs : 1 to 20. Programs 21 to 57 are dedicated.)

ATTENTION!

!

THE PRE-PROGRAMMED PROCESSES ARE GIVEN AS AN EXAMPLE ONLY.
FOR THE CREATION OF YOUR OWN WASH PROGRAMS, CONTACT YOUR SOAP SUPPLIER.

7.1. LEGEND

 WATER INLETS (VALVES)

- Inlet Valve 1: Cold Soft Water Soap Dispenser Compartment „I“ Pre wash

- Inlet Valve 2: Cold Soft Water Soap Dispenser Compartment „II“ Wash - detergent

- Inlet Valve 3: Cold Soft Water Soap Dispenser Compartment „III“ Wash - liquid

- Inlet Valve 4: Cold Hard Water Soap Dispenser Compartment Last rinse

„Fabric softener“

- Inlet Valve 5: Hot Soft Water Soap Dispenser Compartment „I“ Pre wash

- Inlet Valve 6: Hot Soft Water Soap Dispenser Compartment „II“ Wash - detergent

- Inlet Valve 7: Cold Hard Water Direct Inlet (External liquid soap)

- Inlet Valve 8: Hot Soft Water Soap Dispenser Compartment „III“ Wash - liquid

 WATER LEVEL

- NL: Normal Low level

- NH: Normal High level

- EL: Economic Low level

- EH: Economic High level

 WASH ACTION

 Normal Wash Action

- A = 12“ 12 Seconds Action

- R = 3“ 3 Seconds Rest

 Gentle Wash Action

- A = 3“ 3 Seconds Action

- R = 12“ 12 Seconds Rest

 RPM (REVOLUTIONS PER MINUTE)

- W: Washing Speed ( 32 - 50 RPM)

- D: Distribution Speed (not changeable) ( 100 RPM)

- L: Low extraction speed, standard ( 400 RPM)

- H: High extraction speed ( 625 - 1165 RPM) (depending on the machine capacity)

58 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

7.2. WASH PROGRAMS

 WASH PROGRAM 1: HOT WASH INTENSIVE - 90°C

WASH PROGRAMS

Step 1

Step 2

Step 3

Step 4

Step 5

Slowdown - - - x - -

Tumble - - - 30 s W (5 s / 5s) -

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Prewash / wash 1-5 30°C NL 5 min W (normal) 1=30“

Spin - - - 1 min L -

Main wash 2-3-6-8 90°C NL 10 min W (normal 2=30“

Drain - - - 30 s D

Rinse 1 1-2-7 - NH 2 min W (normal) -

Spin - - - 1 min L -

Rinse 2 1-2-7 - NH 2 min W (normal) -

Spin - - - 1 min L -

Rinse 3 4-7 - NL 3 min W (normal) 3=30“

Final spin/Spin - - - 12 min H -

 WASH PROGRAM 2: WARM WASH INTENSIVE - 60°C

Step 1

Step 2

Step 3

Step 4

Step 5

Slowdown - - - X - -

Tumble - - - 30 s W (5s / 5s) -

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Prewash / wash 1-5 30°C NL 5 min W (normal) 1=30“

Spin - - - 1 min L -

Main wash 2-3-6-8 60°C NL 10 min W (n ormal) 2=30“

Drain - - - 30 s D

Rinse 1 1-2-7 - NH 2 min W (normal) -

Spin - - - 1 min L -

Rinse 2 1-2-7 - NH 2 min W (normal) -

Spin - - - 1 min L -

Rinse 3 4-7 - NL 3 min W (normal) 3=30“

Final spin/Spin - - - 12 min H -

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 59

 WASH PROGRAM 3: COLORED WASH INTENSIVE - 40°C

Step 1

Step 2

Step 3

Step 4

Step 5

Slowdown - - - x - -

Tumble - - - 30 s W (5 s / 5s) -

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Prewash / wash 1-5 30°C NL 5 min W (normal) 1=30“

Spin - - - 1 min L -

Main wash 2-3-6-8 40°C NL 10 min W (normal) 2=30“

Drain - - - 30 s D

Rinse 1 1-2-7 - NH 2 min W (n ormal) -

Spin - - - 1 min L -

Rinse 2 1-2-7 - NH 2 min W (normal) -

Spin - - - 1 min L -

Rinse 3 4-7 - NL 3 min W (normal) 3=30“

Final spin/Spin - - - 12 min H -

 WASH PROGRAM 4: BRIGHT WASH INTENSIVE - 30°C

NO PREWASH

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Step 1

Step 2

Step 3

Step 4

Slowdown - - - x - -

Tumble - - - 30 sec W (5s / 5s) -

Main wash 2-3-6-8 30°C NL 8 min W (normal) 2=30“

Drain - - - 30 sec D

Rinse 1 1-2-7 - NH 2 min W (n ormal) -

Drain - - - 30 sec D -

Rinse 2 1-2-7 - NH 2 min W (normal) -

Drain - - - 30 sec D -

Rinse 3 4-7 - NL 3 min W (normal) 3=30“

Final spin/Spin - - - 9 min H -

60 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

 WASH PROGRAM 5: WOOLENS - 15°C

NO PREWASH

WASH PROGRAMS

Step 1

Step 2

Step 3

Step 4

Slowdown - - - X - -

Tumble - - - 30 s W (gentle) -

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Main wash 2-3 15°C NH 6 min W (gentle) 2=30“

Drain - - - 30 s D

Rinse 1 1-2-7 - NH 2 min W (gentle) -

Drain - - - 30 sec D -

Rinse 2 1-2-7 - NH 2 min W (gentle) -

Drain - - - 30 s D -

Rinse 3 4-7 - NH 3 min W (gentle) 3=30“

Final spin/Spin - - - 2,5 min L -

 WASH PROGRAM 6: HOT WASH - 90°C

NO PREWASH

Step 1

Step 2

Step 3

Step 4

Slowdown

Tumble

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Main wash

Drain

Rinse 1

Spin

Rinse 2

Spin

Rinse 3 4-7

Final spin/Spin

2-3-6-8 90°C EH

- - - 30 s D

1-2-7 - EH 4 min

- - - 1 min L -

1-2-7 - NL 4 min

- - - 1 min L -

- EH 6 min

- - - 12 min H -

- - - X - -

- - - 30 s

25 min W (normal) 2=30“

W (normal)

W (normal)

W (normal) 3=30“

W (5s / 5s)

-

-

-

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 61

 WASH PROGRAM 7: WARM WASH - 60°C

NO PREWASH

Step 1

Step 2

Step 3

Step 4

Slowdown - - - x - -

Tumble - - - 30 s W (5 s / 5s) -

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Main wash 2-3-6-8 60°C EH 20 min W (normal) 2=30“

Drain - - - 30 s D

Rinse 1 1-2-7 - EH 4 min W (normal) -

Spin - - - 1 min L -

Rinse 2 1-2-7 - NL 4 min W (normal) -

Spin - - - 1 min L -

Rinse 3 4-7 - EH 6 min W (normal) 3=30“

Final spin/Spin - - - 12 min H -

 WASH PROGRAM 8: COLORED WASH - 40°C

NO PREWASH

Step 1

Step 2

Step 3

Step 4

Slowdown - - - x - -

Tumble - - - 30 s W (5s / 5s) -

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Main wash 2-3-6-8 40°C EH 20 min W (normal) 2=30“

Drain - - - 30 s D

Rinse 1 1-2-7 - EH 4 min W (normal) -

Spin - - - 1 min L -

Rinse 2 1-2-7 - NL 4 min W (normal) -

Spin - - - 1 min L -

Rinse 3 4-7 - EH 6 min W (normal) 3=30“

Final spin/Spin - - - 12 min H -

62 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

 WASH PROGRAM 9: BRIGHT WASH - 30°C

NO PREWASH

WASH PROGRAMS

Step 1

Step 2

Step 3

Step 4

Slowdown - - - x - -

Tumble - - - 30 s W (5s / 5s) -

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Main wash 2-3-6-8 30°C EH 20 min W (normal) 2=30“

Drain - - - 30 s D

Rinse 1 1-2-7 - EH 4 min W (normal) -

Drain - - - 1 min D -

Rinse 2 1-2-7 - NL 4 min W (normal) -

Drain - - - 1 min D -

Rinse 3 4-7 - EH 6 min W (normal) 3=30“

Final spin/Spin - - - 9 min H -

 WASH PROGRAM 10: ECO HOT WASH - 90°C

NO PREWASH

Step 1

Step 2

Step 3

Slowdown - - - x - -

Tumble - - - 30 s

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Main wash 2-3-6-8 85°C EL 10 min W (normal) 2=30“

Drain - - - 1 min L

Rinse 1 1-2-7 - EH 2 min W (normal) -

Spin - - - 1 min L -

Rinse 3 4-7 - EH 3 min W (normal) 3=30“

Final spin/Spin - - - 12 min H -

W (5s/5s)

-

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 63

 WASH PROGRAM 11: ECO WARM WASH - 60°C

NO PREWASH

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Step 1

Step 2

Step 3

Slowdown - - - X - -

Tumble - - - 30 s

Main wash 2-3-6-8 55°C EL 10 min W (normal) 2=30“

Drain - - - 1 min L

Rinse 1 1-2-7 - EH 2 min W (normal) -

Spin - - - 1 min L -

Rinse 3 4-7 - EH 3 min W (normal) 3=30“

Final spin/Spin - - - 12 min H -

W (5s/5s)

 WASH PROGRAM 12: ECO COLOR WASH - 40°C

NO PREWASH

Step 1

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Main wash 2-3-6-8 40°C EL 10 min W (normal) 2=30“

Drain - - - 1 min L

-

Step 2

Step 3

Slowdown - - - X - -

Tumble - - - 30 s

Rinse 1 1-2-7 - EH 2 min W (normal) -

Spin - - - 1 min L -

Rinse 3 4-7 - EH 3 min W (normal) 3=30“

Final spin/Spin - - - 12 min H -

W (5s/5s)

-

64 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

 WASH PROGRAM 13: ECO BRIGHT WASH - 30°C

NO PREWASH

WASH PROGRAMS

Step 1

Step 2

Step 3

Slowdown - - - x - -

Tumble - - - 30 s

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Main wash 2-3-6-8 30°C EL 8 min W (normal) 2=30“

Drain - - - 1 min D

Rinse 1 1-2-7 - EH 2 min W (normal) -

Spin - - - 1 min D -

Rinse 3 4-7 - EH 3 min W (normal) 3=30“

Final spin/Spin - - - 9 min H -

W (5s/5s)

 WASH PROGRAM 14: EXTRACTION - LOW SPEED

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

-

Step 1

Slowdown - - - x - -

Tumble - - - 30 s W (normal) -

Rinse 4-7 - NH 3 min W (normal) 3=30“

Final spin/Spin - - - 5,5 min L -

 WASH PROGRAM 15: EXTRACTION - HIGH SPEED

Step 1

Slowdown - - - X - -

Tumble - - - 30 s W (normal) -

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Rinse 4-7 - NH 3 min W (normal) 3=30“

Final spin/Spin - - - 15 min H -

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 65

 WASH PROGRAM 16: SPORT - 60°C

NO PREWASH

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Step 1

Step 2

Step 3

Step 4

Slowdown - - - X - -

Tumble - - - 30 s W (5s / 5s) -

Main wash 2-3-6-8 54°C NL 6 min W (normal) 2=30“

Drain - - - 1 min L

Rinse 1 1-2-7 - NL 2 min W (normal) -

Drain - - - 1 min L -

Rinse 2 1-2-7 - NL 2 min W (normal) -

Drain - - - 1 min L -

Rinse 3 4-7 - NL 2 min W (normal) 3=30“

Final spin/Spin - - - 9 min H -

 WASH PROGRAM 17: MOPS - 60°C

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Step 1

Step 2

Step 3

Step 4

Step 5

Slowdown - - - x - -

Tumble - - - 30 s W (5s / 5s) -

Prewash / wash 1-5 1°C NH 2 min W (normal) 1=30“

Spin - - - 1 min L -

Main wash 2-3-6-8 60°C NL 10 min W (normal) 2=30“

Drain - - - 1 min L

Rinse 1 1-2-7 - NH 2 min W (n ormal) -

Spin - - - 1 min L -

Rinse 2 1-2-7 - NH 2 min W (normal) -

Spin - - - 1 min L -

Rinse 3 4-7 - NL 3 min W (normal) 3=30“

Final spin/Spin - - - 9 min H -

66 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

 WASH PROGRAM 18: HORSE CLOTHS - 40°C

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

WASH PROGRAMS

Step 1

Step 2

Step 3

Step 4

Step 5

Slowdown - - - x - -

Tumble - - - 30 s W (5s / 5s) -

Prewash / wash 1-5 28°C NH 4 min W (normal) 1=30“

Spin - - - 1 min L -

Main wash 2-3-6-8 35°C NH 6 min W (normal) 2=30“

Drain - - - 30 sec D

Rinse 1 1-2-7 - NH 2 min W (n ormal) -

Spin - - - 1 min L -

Rinse 2 1-2-7 - NH 2 min W (normal) -

Spin - - - 1 min L -

Rinse 3 4-7 - NL 3 min W (normal) 3=30“

Final spin/Spin - - - 4 min L -

 WASH PROGRAM 19: JEANS - 60°C

NO PREWASH

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Step 1

Step 2

Step 3

Slowdown - - - x - -

Tumble - - - 30 s

Main wash 2-3-6-8 52°C NL 8 min W (normal) 2=30“

Drain - - - 1 min D

Rinse 1 1-2-7 - NH 3 min W (normal) -

Spin - - - 1 min L -

Rinse 3 4-7 - NH 3 min W (normal) 3=30“

Final spin/Spin - - - 9 min H -

W (5s/5s)

-

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 67

 WASH PROGRAM 20: STARCHING

Sequence Inlet Temp. Level Time R.P.M (x) Soap Supply

Step 1

Slowdown - - - x - -

Tumble - - - 30 s W (5s / 5s) -

Prewash / wash 1-5 28°C NL 4 min W (normal) 1=30“

Spin - - - 9 min H -

68 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

8. TROUBLESHOOTING

8.1. DISPLAY MESSAGES

 Various messages may appear on the display at the start, during or at the end of a washing cycle.
 In some specific cases, an acoustic signal will alert the operator.
 When an error occurs the machine will automatically go over to a safe state. With the

diagnostic program you can determine the problem. This program will test the individual functions
of the washing machine one by one.

8.2. FAULT MESSAGES

 If a failure occurs the computer will display a diagnostic error message.
 The program number and step at which the interruption has occurred are di splayed.
 The fault message itself contains a number and a corresponding text label by which it’s easy to

find the related information in the manual.

 If UNLOAD is displayed, the door can be opened.

XX : the program number

Out Of Order (Pr XX St YY)

Ask For Service

(Err ZZZ : Fault Message)

TROUBLESHOOTING

YY : the program step number
Err ZZZ : the number of the occurred error

Fault Message : the text label of the error message

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 69

C

8.3. HOW TO HANDLE FAULT MESSAGES

ATTENTION!

!

CHECK IN THE MANUAL TO SEE WHAT PROBLEM THE ERROR MESSAGE CORRESPONDS WITH.
ASK THE ASSISTANCE OF AN EXPERIENCED TECHNICIAN TO SOLVE THE PROBLEM.
ALL THE SAFETY PRECAUTIONS MUST BE FOLLOWED BEFORE EACH INTERVENTION.

 You can overrule and erase fault messages by:

 pressing the SERVIS button
 pressing the STOP or ENTER button

 switching the power off/on
 opening the door (fault 4 and 41)

 For safety reasons the door will not be unlocked if :

- there is still water in the drum

- the water temperature is above 55°C

- the drum is still turning (a safety time will be respected until the drum comes to a standstill)

- there is a problem with the door lock system

 Each time at the end of the cycle, the Wash computer will fulfill a safety test sequence.
 If at the end of the cycle the safety conditions are not fulfilled, the messages TOO HOT or

WATER IN CAGE will be displayed.

 If the problem disappears (the water has dropped below the safety level for spin or the water temperature
has dropped below 55°C) the Error message TOO HOT or WATER IN CAGE will disappear automatically.

TOO HOT
XX°

WATER IN CAGE

XX°C Level YY

ATTENTION!

!

IT’S UP TO THE OPERATOR TO TAKE THE NECESSARY PRECAUTIONS IF THE DRAIN VALVE IS
NOT FUNCTIONAL AND IF THERE IS STILL HOT WATER IN THE TUB AT THE END OF THE WASH CYCLE.
ON THE DISPLAY THE ACTUAL WATER TEMPERATURE AND LEVEL WILL BE DISPLAYED.
WAIT UNTIL THE WATER IS DRAINED AND UNTIL THE WATER HAS COOLED BEFORE ALL

INTERVENTIONS AS HOT WATER CAN CAUSE SEVERE BURNS.
CARE MUST BE TAKEN THAT NOBODY GETS BURNED DUE TO HOT WA TER.

70 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

TROUBLESHOOTING

ATTENTION!

!

THE ERROR MESSAGE TOO HOT CAN ALSO APPEAR AT THE END OF A CYCLE EVEN IF NO
FAILURE HAS OCCURED
AS AN EXAMPLE, SUPPOSE A WASH PROGRAM WITH A HOT WASH.
AFTER THIS HOT WASH SEQUENCE, NO SEQUENCE WITH A LOW WATER TEMPERATURE HAS
BEEN PROGRAMMED.
AT THE END OF SUCH A WASH CYCLE, THE TEMPERATURE IN THE TUB WILL STAY HIGH EVEN
IF THERE IS NO WATER IN THE TUB.
AS A RESULT THE WASH COMPUTER WILL DECIDE THAT IT’S NOT SAFE TO OPEN THE DOOR
AS THE MEASURED TEMPERATURE INSIDE THE TUB IS TOO HIGH.
WITHOUT INSERTING COLD WATER INSIDE THE TUB, IT CAN TAKE A LONG TIME BEFORE THE
TEMPERATURE DROPS TO AN ACCEPTABLE SAFE LEVEL.
ONCE THE TEMPERATURE IN THE DRUM HAS DROPPED SUFFICIENTLY, THE FAILURE
MESSAGE WILL DISAPPEAR AND THE DOOR WILL BE UNLOCKED AUTOMATICALLY.

DEPENDING ON THE FAILURE TYPE THE COMPUTER WILL START A SPECIFIC PROCEDURE:

 WHEN SAFETY IS INVOLVED
 Full stop + tumble : the program is stopped but will run the tumble sequence
 Full stop + safety time : the program is stopped and a safety time is started
 Don’t start : the program will not be started as long as the safety

conditions are not fulfilled

 WHEN SAFETY IS NOT INVOLVED

 Full stop + request for continue : a request to Continue ? the program is displayed
 Skip + continue : the actual cycle step is skipped and the program continues

with the next step

 Continue : the program continues

SPECIAL CASES :

 For E11: Fill Time failure and E14: Heating time failure after overruling and erasing the

failure message, you can restart or stop the sequence, as Continue ? will be displayed.
Possible cause : - water supply inlets closed

- decreasing capacity of the heating elements

 For E24: Defective Level sensor, E25: Defective Temperature sensor and E35:Wrong software

version the Failure message can only be erased by switching the power off and back on.

 Fault 31: Initialization fault inverter and 32: Verification fault inverter can be erased by switching

off the power. But as Fault 31 and 32 indicates that the frequency inverter is not loaded with the
correct parameter settings, the washing machine can be damaged when the inverter is functioning
with the wrong settings.
Do not use the washing machine before a technician has inspected the problem.

 Fault 41: Service Due will occur over and over again until you have reset the cycle counter.
See Paragraph 8.5 how to reset the cycle counter.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 71

8.4. OVERVIEW

N° Failure message Failure Action Fault occurrence
E2

E3
E4

E5
E6
E7

E8

E9

E11
E12

E13
E14
E15

E21
E24

E25

E26

E27
E28

E29
E31

E32

No Drain
Tilt Fault

Imbalance
Tilt High Sp

Door Switch
Door Coil

Door Start
Door Unload
No Fill

Overfill
No Heating

Heat Time
Too Hot

Overflow
Level Sens

Temp Sensor
Mitsub code
Comm fault

THT time / E.OL
OV3 time / E.OP

Load Parr
Verify Parr

E35 Wrong Softw
E37 No Drain Sp
E39 Out of Soap

E41 Service Due

E42 Connection
E43 Voltage Par

E80

E81

E82

Time Out Input16

No Reheat

No Refill

Drain failure Full Stop + tumble Draining sequence
Out of balance Full stop + tumble Whole cycle
Out of balance :

Normal spin
Out of balance : high

spin
Door switch failure Full stop + safety time Whole cycle
Door lock switch

failure
Door lock check at

start failure
Door lock switch

closed failure
Fill failure Full stop + request for

Overfill failure Full stop + tumble While filling
Heating failure Full stop + tumble While heating
Heating time failure Full stop + request for

Too Hot Full stop + tumble While heating
Overflow failure Full stop + tumble Wash step
Defective level sensor Continue + Don’t start Before start up
Defective temperature

sensor
Undefined frequency

inverter error code
Communication fault

inverter
THT Time out / E.OL Full stop + safety time At spin sequence
OV3 Time out / E.OP Full stop + safety time At spin sequence
Initialization fault

inverter
Verification fault

inverter
Wrong software

version
Drain failure at the

Spray Sequence
The Soap Supplies

are running Out of Soap
Service Due Warning For Info only

No Network
Connection

Wrong Voltage
Range Selection

On Hold Signal Failure
Soap Dispensing
System

Heating Failure Full stop + tumble.

Refill failure Full stop + request for

Skip + continue After 5 x tilt

Full stop + safety time >500 or 750 RPM

Full stop + safety time Whole cycle

Don’t start At start up

Don’t start End cycle

While filling

Continue

While heating

Continue

Continue + Don’t start Before start up

Full stop + tumble Whole cycle

Full stop + safety time Whole cycle

Don’t start At initialization

Don’t start At loading parameters

Don’t start New software ve rsion

Full stop + tumble Spray Sequence

For Info only Wash step

End cycle
Open door = reset
For Info only Data Transfer Networking

Make correct selection Configuration menu

Full stop + tumble. Whole cycle

Wash Step

Continue

(Traceability only)

Wash Step

(Traceability only)

72 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

TROUBLESHOOTING

N° Failure message Failure Action Fault occurrence

E83

E85

E300-

E353

E500-

E525
E550

E551

E600-

E628

Cycle Fail

RTC Low Batt

Mits Err
Memory Err

TRACEYBILITY
Write

TRACEYBILITY
Full

Softw Err

No successful wash
cycle termination

Real Time Clock, No
Battery or battery low
power

Specific Mitsubishi
Inverter Alarm

Memory Error Full stop + safety time Any time
Internal memory Error

data for traceability
Internal Traceability

memory is full
Software Error Full stop + safety time Any time

Info that the wash cycle
has to be repeated.

For Info only. End cycle

Full stop + safety time Whole cycle

For Info only Traceability function, whole

For Info only Traceability function, whole

Abnormal Cycle Termination
(Traceability only)

(Traceability only)

cycle

cycle

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 73

8.5. SERVICE MENU

In the Service menu you have some extra utilities:

 The Software Version Number.
 An overview of the 20 last failure messages.
 Statistics for 10 general error messages.
 Pulley ratio.
 An overview of the input states.
 Switching On the Inverter for a technical intervention.
 Reset Cycle Counter and Statistics Error Messages.

 HOW TO GET INTO THE SERVICE MENU

Initialization …
Program …
Service …

Configuration …

Advanced …

The SERVICE menu can only be accessed when the machine is in standby (the power is switched
on, but no program is started).

 SELECT CYCLE is displayed.
 Turn the washing machine to the setup mode, (see 3.3).
 The Main menu is now available.
 Press the ARROW DOWN button to select the SERVICE menu.
 Press the ENTER button to make your selection.
 Now you will see the Service Menu Screen.

Software version: 771.100.0

Diagnostic prog ...
Faults …

Toolbox …

Exit …

Main Menu

Service menu

74 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

TROUBLESHOOTING

Menu Item Info

Software XXX Version: 771.100.0 The software version number.

 FAULTS MENU (SERVICE FAULTS)

Menu Item Info

View Fault Messages …

1 Fault 1: E XXX: YYYYYYYYYYYY
…
20 Fault: E XXX: YYYYYYYYYYYY

Erase Fault Messages No - the Error log is reset by erasing the Fault Messages.

View Fault Statist …

1 No Drain 0x

…

- check the last 20 fault messages from the Err log
Fault N° 1 : the last occurred error message
…
Fault N° 20 : the last - 20 occurred error message
E XXX : The Error message number
YYYYYYYYYYYY : The Error message name

(If no messages are displayed, this means that no Errors have
occurred.)

The Fault Statistics are an accumulation of Error
messages that have appeared over a long period.
With this information the technician has an indication
on which parts an intervention should be needed.

(the statistics are reset by the „Reset Service Counts“ menu item
in the toolbox menu)

The List with Statistics :
 No Drain : E2 + E37
 Door Switch : E6 + E7 + E8 + E9
 No Fill : E11 + E40
 No Heating : E13 + E14
 Temp Sensor : E25
 Level Sensor : E24
 Out of balance switch : E3
 Invert Com : E27
 Invert Alarm : E26 + E28 + E29 +

E72 + E73 + E74 + E75
 Invert OV Alarm : E303 + E304 + E305

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 75

 TOOLBOX MENU

The purpose of the Toolbox Menu is to give support at technical interventions.

Menu Item Info

View Input States ?

1 Input 1 On
…
20 Input 20 Off

The Input states for Input 1, …, Input 20.
The exact function of the inputs can be found on the
electrical drawing of the washing machine programmer.

- if the Input state is Off, the Input signal is low.

- if the input state is On, the Input signal is high.

Imbalance Statistics …

Diagnostic information on imbalance of the machine.

Imbalance …

1 ...0,5 0
...
31 > 15 0

Current …

1 I0 0
...
4 I3 0

Inverter Power Off By this function it‘s possible to switch on the power of

the inverter if a technical intervention is needed.

!

Attention!
SPECIAL CARE HAS BEEN TAKEN AT THE INITIALIZATION
OF THE PARAMETERS OF THE FREQUENCY INVERTER.
THE MANUFACTURER IS NOT RESPONSIBLE FOR THE
WRONG BEHAVIOR OF THE WASHING MACHINE IF THE
OWNER HAS INSTALLED NEW PARAMETER SETTINGS IN
THE INVERTER THAT DO NOT CORRESPOND WITH THE
ORIGINAL SETTINGS AT THE FACTORY.

Pulley Ratio X.XX The Pulley Ratio allows to verify if the motor pulley

and the drum pulley have the correct size by
calculating the pulley ratio.

RTC Time XX:YY:ZZ

RTC Date AA:BB:CC

Adjust Clock …

Hour XX
Minutes YY
Day AA
Month BB
Year CC

The Time value of the Real Time Clock.

XX : Hours, YY : Minutes, ZZ : Seconds

The Date value of the Real Time Clock.
AA : Day, BB : Month, CC : Year

Set the correct Date and Time for the RTC.

76 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

Reset Service Counts No Once the washing machine has reached the total

TROUBLESHOOTING

number of wash cycles like set at the „Service Interval“
a warning is given at the end of each cycle until the
Cycle Counter has been reset.

Exit Return to Service Menu

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 77

8.6. DIAGNOSTIC PROGRAM

The purpose of the diagnostic program is to test the wash machine functions one by one.

 HOW TO GET INTO THE DIAGNOSTIC MENU

The Diagnostic menu can only be accessed when the machine is in standby (the power is switched on, but
no program is started).

Select Cycle is displayed.
Turn the washing machine to the setup mode, (see 3.3).
The Main menu is now available.
Press the ARROW DOWN button to select the Service menu.
Select the Diagnostic Program menu at the Service menu.

Diagnostic Prog …

Program No

Exit

Service menu

 Select diagnostic program.

Diagnostic Cycle

 Press START if you want to start the diagnostic program.

78 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

 TEST SEQUENCE

 Display test and door lock test
 Sensor test
 Motor test
 Water fill, heating and drain test
 BASIC Diagnostic Wash program

Test Info Explanation

TROUBLESHOOTING

Black display followed

1

by a Text display.

***

Note : * The second drain valve will be opened if a second drain valve has been selected in the
Configuration menu.
*** No number 2 is displayed at the sensor test as this takes only a fraction of a second.

Remark!

If ++ ++ is displayed at the motor test sequence, then you can Advance (Press START) the test Sequence.

None  Sensor test (all wash machine sensors are

Motor Reverse  Wash speed (inverse direction high spin)

3

Motor Stop

4

Motor Forward  Wash speed (same direction high spin)

5

Motor Distribute  Distribution speed (same directi on high spin)

6

Motor Low spin  Low spin speed (same direction high spin)

7

Motor High spin  High spin speed

8

Motor Stop  Free run or controlled deceleration

9

Inlet I1  The machine takes water by inlet 1

20

Drain 1  The water is drained by drain valve 1

21

Inlet I2  The machine takes water by inlet 2 until the

22

Drain 1 (2)*  The water is drained by drain valve 1

23

Inlet I3  The machine takes water by inlet 3

24

Drain 1  The water is drained by drain valve 1

25

Inlet I4  The machine takes water by inlet 4

26

Drain 1  The water is drained by drain valve 1

27

Inlet I5  The machine takes water by inlet 5

28

Drain 1  The water is drained by drain valve 1

29

Inlet I6  The machine takes water by inlet 6

30

Drain 1  The water is drained by drain valve 1

31

32 Inlet I7  The machine takes water by inlet 7
33 Drain 1  The water is drained by drain valve 1
34 Inlet I8  The machine takes water by inlet 8
35 Drain 1  The water is drained by drain valve 1
50 Tumble

Unload

 Door lock test (locks and unlocks 5 x the door)
 Display test

tested)

 Standstill motor

(the drum is turning away from the soap box)

safety level for heating is reached
 Heating activated (only if Wait temp = on)

 The tumble sequence
 End of the Diagnostic Cycle

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 79

 BASIC Diagnostic Wash program

Sequence Supply Inlet

Temp. Level Wash action Time R.P.M.

Step 1

Wash 2=30” 2-3-6-8 40°C NL A=12“ R=3“ 6 min W
Drain - - - - - 30 s D

Step 2

Rinse 1 - 1-2-7 - NH A=12“ R=3“ 1,5 min W
Spin - - - - - 1 min L

Step 3

Final Rinse 3=30” 4-7 - NL A=12“ R=3“ 2 min W
Spin - - - - - 4,5 min H

Slowdown - - - - - 1 min ­Tumble - - - - A=12“ R=3“ 30 s W

Error messages :

 If the computer detects some problem during the Diagnostic Help Program, a diagnostic error message is
generated.

 Check also the Error Log List in the Service-menu.
 Check the error handling and explanation of the error messages.

80 PROGRAMOVACÍ MANUÁL 540876_A_PUB_DATE_1_FEB_2012.DOC

8.7. PROBLEM CHECK LIST

Problem Cause Solving the problem

When the power is switched on :
the display is not illuminated

The display is illuminated, but it’s
difficult to read the text on the display.

The display just shows “Bootloader”but
the application does not run.

The machine is not responding on
pressing the keyboard buttons

The machine is not behaving as
expected

A program is started, but the outputs
are not activated

Wait is displayed and a counter is
counting down

Unload is displayed and the Door is
Open

Wrong water level
(the water level sensor must not be

calibrated)

The drum is not turning
(No error message will be generated)

 no external power

 the emergency button is activated
 the power connector is not connected

on the board
 the power connector is inverse

connected
 the fuse on the wash computer has

burned

 disconnect the input connector A & B

 The connector between the CPU and

the I/O board of the wash computer is
either absent or incorrectly pushed in.

 the brightness is not Ok  Change the value for Brightness, Viewing

 There is no SW loaded in the application  Load the application software from the

 no button is functional
 there is no beep signal when the

buttons are pressed
 if the wrong machine type is selected

the wrong outputs will be activated

 check if connector „R“ is connected  connect the connector at the correct

 this is a wait state caused by a power

interruption or a safety sequence at the
end of the process

 Check if the „Door Switch“ is still
closed

 check if the programmed water levels
are the correct ones

 check if the right machine type is
selected in the Configuration Menu

 you have changed the machine type,
but the standard water levels do not
change

 Check if the belt is broken

 Check the applied motor voltage
 Check if the motor is still functional
 Check the Inverter

TROUBLESHOOTING

 Switch on the external power supply
 verify the external power to the machine

 deactivate the emergency button
 connect the power connector

 check the wiring and connect the

connector as it must be
 if the transformer is broken replace the

wash computer
Check the wiring and the voltage at the

power Connector
If the transformer is still OK change the

Fuse
 if the display is lighting up:

verify if the input signals or the +16Vdc
Supply Signal are touching the cabinet

Angle in the Configuration Menu until you
get a bright display.

USB flash drive
 check if the connector „K“ of the keyboard

is well connected
 check if the connector „K“ of the keyboard

is well connected
 check if the right machine type is selected

in the Configuration Menu.

position

 wait until the counter has reached 0
 do not switch off/on the power again as

you will restart the counter
 If the „Door Switch“ is broken, replace the

Door Switch“

 set the right water levels

 select the right machine type in the

Configuration Menu
 the standard water levels can only be

reinitialized by programming new values or
by loading the Standard Wash programs
again.

 Check the tension of the belt or replace
the belt

 repair the motor power supply circuit
 change the motor if needed
 send a request for more info to the

manufacturer

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMOVACÍ MANUÁL 81

8.8. EXTERNAL COMMUNICATION PROBLEMS

The machine communicates with the PC (TraceTech SW) via the RS485 line. If the external communication
is not working, check the connection between the PC and machine. Check also if you have selected the right
machine communication address.

8.9. EXPLANATION ERROR MESSAGES

FAILURE 2: DRAIN FAILURE

Failure 2 occurs when the electronic timer detects that the water is not drained after 3 minutes in a Drain or
Spin Sequence. The failure message is displayed at the end of the cycle.

DIAGNOSE:

1. Check the drain tube of the washing machine If the drain tube is blocked: repair the drain tube

2. Check the drain valve If the drain valve is defective: replace the drain
valve

3.Check the wiring:

When the drain valve is switched Off, the drain
valve should be open. (normal open)

FAILURE 3 : OUT OF BALANCE

Failure 3 occurs when the out of balance sensor is activated before the spin sequence has started.

If the wiring is damaged: repair the wiring

DIAGNOSE:

1. Check if the out of balance switch is broken.

(Make sure shipping braces are removed)

2. Check the position of the out of balance

switch.

3. Check the wiring, the contact of the out of

balance switch is normally closed.
Check connector pins for loose connections.

If the out of balance switch is broken: replace the out
of balance switch.

If the out of balance switch is not correctly mounted:
install the out of balance switch properly.

If there is no continuity: repair the wiring.

FAILURE 4 : OUT OF BALANCE NORMAL SPIN

Out of balance at normal Spin will occur when a washing machine is badly loaded.
The machine will try up to 5 times to redistribute the laundry in the drum before the spin step is skipped.
This function will protect the machine against overloa d and assures the no rmal lifetime of the washi ng machine.

DIAGNOSE:

1. Check the position of the out of balance switch. If the out of balance switch is not correctly mounted,

install the out of balance switch properly.

2. If this failure occurs often. Use a fully loaded drum. A completely filled drum produces

less unbalance than a drum that is only filled for 1/3.

3. Check the wiring if there is no bad

connection.
The out of balance sensor is a NC contact.

If there is a bad connection: repair the wiring.

82 PROGRAMMING MANUAL 540876_A_PUB_DATE_1_FEB_2012.DOC

FAILURE 5 : OUT OF BALANCE HIGH SPIN

TROUBLESHOOTING

Failure 5 occurs when the out of balance sensor is activated during high spin. This failure indicates that there
will probably is a mechanical defect.

DIAGNOSE:

1. Check the position of the out of balance switch. If the out of balance switch is not correctly mounted,
install the out of balance switch properly

2.Check the springs and the other mechanical

parts that fix the drum.

3. Check the wiring if there is a bad connecti on. If there is a bad connection: repair the wiring

4. Check that the washing machine is installed

correctly and stable.

If you see a broken mechanical part: replace the
broken part

Adjust the supports at the bottom of the washing
machine.

FAILURE 6 : DOOR SWITCH FAILURE

While a wash cycle is running the internal door lock systems are scanned all the time.
If during the wash cycle the wash computer detects that the „DOOR SWITCH“ is not closed then the

machine will immediately stop all its functions. The door will stay locked.

DIAGNOSE:

1. Check the well functioning of the door

switch. The door switch is a normal open
contact.

2. Check the continuity of the wiring. If the wiring is not continuous: repair the wiring

3. Check the good functioning of the „DOOR

SWITCH“ at the inputs menu.

If the door switch is broken or malfunctions
replace the door switch.

If the input is not functional replace the wash
computer.

FAILURE 7: DOOR LOCK SWITCH FAILURE

While a wash cycle is running: the internal door lock systems are scanned all the time.
If during the wash cycle the electronic wash computer detects that the door lock switch is not clo sed, then the
machine will immediately stop all its functions. The door will stay locked.

DIAGNOSE:

1. Check the well functioning of the

door lock switch. The door lock switch is a
normal open contact.

2. Check the door lock coil If the door lock coil doesn’t function: replace the

3. Check the mechanical functionality of the door

lock.

4. Check the continuity of the wiring. If the wiring is not continuous: repair the wiring

5. Check the good functioning of the door lock

switch at the inputs menu.

If the door lock switch is broken or doesn't function
correct: replace the door lock.

door lock.
If the door lock is not functioning mechanically:

replace the door lock.

If the input is not functional replace the wash
computer.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMMING MANUAL 83

FAILURE 8: DOOR LOCK CHECK AT START FAILURE

The washing machine will not start a new process when the door is not locked after pressing the START button.
Failure message 8 will be generated each time the door lock sequence could not be finished once started.

DIAGNOSE:

1. Check door handle for damage traces and
centering against door lock.

2. Check if the input connector DL (door lock)
is connected.

3. Check the well functioning of the door lock
switch.

4. Check the door lock coil. If the door lock coil doesn’t function: replace the door

5. Check the mechanical functionality of the
door lock.

6. Check the continuity of the wiring. If the wiring is not continuous : repair the wiring.

7. Check the output relay that powers the door
lock coil.

8. Check the good functioning of the door
lock switch at the inputs menu.

If handle is damaged, replace hanle.
If not good centered, center door against door lock.
If the input connector DL (door lock) is not connected :

connect connector DL.
If the door lock switch is broken or doesn't function

correct: replace the door lock

lock coil.
If the door lock is not functioning mechanically and can

not be corrected: replace the door lock system.

If the relay is broken, replace the wash computer.

If the input is not functional replace the wash
computer.

FAILURE 9: DOOR LOCK SWITCH FAILURE AT CYCLE END

At the end of the cycle the Door Lock coil is switched off and the door lock switch must open its contact.
If within 30 sec the „DOOR LOCK SOLENOID SWITCH“ doesn’t change state failure message 9 will be
displayed. As long the contact stay closed, failure message 9 stays on the display. If the contact should
change state, the error message will be removed from the display and machine will be rea dy for use again.

DIAGNOSE:

1. Check the functioning of the door lock
switch.

2. Check the door lock coil. If the door lock coil doesn’t function: replace the door lock.

3. Check the mechanical functionality
of the door lock.

4. Check the continuity of the wiring. If the wiring is not continuous: repair the wiring.

5. Check the output relay that powers
the door lock coil.

If the door switch is broken or doesn't function correct:
replace the door lock.

If the door lock is not functioning mechanically and can not
be corrected: replace the door lock system.

If the relay stays closed and the relay is broken, replace
the wash computer.

84 PROGRAMMING MANUAL 540876_A_PUB_DATE_1_FEB_2012.DOC

FAILURE 11: FILL FAILURE

Failure 11 occurs when the water level has not reached its target level in x minutes.
x = Max fill time, a value that can be programmed at the Initialization Menu.

ATTENTION! The rubber hose must be fixed with a flexible clamp on the electronic water level sensor.

!

DIAGNOSE:

TROUBLESHOOTING

1. Check if the programmed Max fill time in the

Initialization menu is acceptable.

2. Check if the external water valves are open. If the water valves are closed: ope n the water inlet

3. Check if the water inlet valves are not

blocked by dirt.

4. Check the coil of the water inlet valves. If the coil of the water inlet valve is electric open:

5. Check the drain valve. If the drain valve is defective: replace the drain valve.

6. Check if the rubber hose (for measuring the

water level) is well mounted on the
electronic level sensor and on the drain valve.

7. Check if the hose on the electronic sensor

is air tight.

8. Check if the hose doesn’t contain water.

(siphon)

9. Check the continuity of the wiring. If the wiring is not continuous: repair the wiring.

10. Check the output relay that powers inlet

valves and the drain valve.

If the water flow is very slow, increase the value for the
Max fill time. The default value is 10 minutes.

valves.
If the water inlet valves are blocked by dirt: clean the

water inlet valves or replace the water inlet valves.

replace the coil or the complete water inlet valve.

If the hose is not well mounted: install the rubber hose
properly.

If the air hose is not air tight: replace the air tube.

If the air tube contains water: remove the water and fix
the hose so that it doesn’t work as a siphon.

If the relay receives a command signal but is not
closed, replace the wash computer.

FAILURE 12: OVERFILL FAILURE

If the target water level is X units above the target level then failure message 12 will be displayed.
The fault message will not be generated when the user is advancing from a sequence with a high water level
to a sequence with a low water level.

X= „Max. level Overfill“, a value that can be programmed at the Initialization menu.

DIAGNOSE:

1. Check if the water inlet valves are broken. If the water inlet valves are broken: clean or replace
the water inlet valve diaphragms.

2. Check if the water pressure is too high. Lower the water pressure.

3. Check the output relay that powers the inlet

valve.

In Case of Steam Heating :

If the steam has not enough heating power (too low temperature), the machine will be filled with too much
water at the heating part. This will result in an increased water, energy and supply consumption.

It’s strongly recommended that the heating installation works with enough heating power.
A simple solution can also be to reduce the programmed target water level. As less steam will be required,

the normal water level should be reached. In the initialization menu it is also possible to adjust the alarm level
to avoid the error message. (= not recommended).

If the relay stays closed and the relay is broken,
replace the wash computer.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMMING MANUAL 85

FAILURE 13: HEATING FAILURE

If the heater elements are not functioning : message 13 will be displayed.
The message is generated when the temperature is not raising with 3°C in 10 minutes time.

DIAGNOSE:

1. Check if the heating contactor is activated. If the heating contactor is not activated: repair the
wiring or replace the contactor.

2. Check if the heating elements are heating. If the heating elements are not heating:
Repair the wiring or replace the defective heater elements.

3. Check if the temperature sensor is

functioning.

4. Check the output relay that powers the

heating contactor.

If the temperature sensor is defective: replace the
temperature sensor.

If the relay is broken, replace the wash computer.

FAILURE 14: HEATING TIME FAILURE

When after x minutes the target temperature is not reached (for a machine set as wait for heat):
Message 14 will be displayed.

x = the programmed Max heating time in the Initialization Menu.

DIAGNOSE:

1. Check if the programmed Max Heating time

in the Initialization menu is acceptable.

2. Check if the heating resistors are heating. If the heating resistors are not heating:

3. Check the water temperature. If the hot water supply temperature is too low: increase

4. Check if the temperature sensor

is functioning.

If the machine has a small heating capacity, increase
the value of the Max heating time.

The default is 60‘. (for machines with big heating
capacity)

Repair the wiring or replace the defective heater
elements.

the temperature of the hot water.
If the temperature sensor is defective: replace

the temperature sensor.

FAILURE 15: TOO HOT

When the water temperature is 15°C above the target temperature : message 15 will be displayed.
For evaluation of the problem, you can follow the water temperature of the bath on the display of the washing

machine by pressing the Service Button on the keypad.

DIAGNOSE:

1. Check if correct water inlet valves have

been programmed.
If only hot water inlet valves have been
programmed, and if the hot water supply
has a temperature value above
the programmed wash sequence value then
the temperature of the wash bath wi ll be too high.

Choose the correct water inlet valves for the wash
sequence when you create or adjust the parameters of
the wash program.

Don't program only hot water inlet valves but also cold
ones!

86 PROGRAMMING MANUAL 540876_A_PUB_DATE_1_FEB_2012.DOC

2. Check if the correct water inlet valves are
Functional.
If the cold water inlet valves are not
functional or if the main cold water supply is
not available and only hot water inlet valves
are open, and if the hot water supply has a
temperature value above the programmed
wash sequence value then the temperature
of the wash bath will be too high.

3. Check the water temperature. If the temperature of the supplied hot water is too high:

4. Check if the temperature sensor is
functioning.

5. Check if the heating contactor stays closed.
(check voltage to contactor coil.)

6. Check the output relay that powers the

heating contactor.

7. Check the output relay that powers the

heating contactor.

See diagnostics Failure 11 : Fill Failure

decrease the temperature of the hot water.
If the temperature sensor is defective:

replace the temperature sensor.
If the heating contactor stays closed : Replace the

heating contactor.
If the relay stays closed and the relay is broken,

replace the power board.
If the relay is not broken, but receives a not allowed

signal from the wash computer, replace the wash
computer.

FAILURE 21: OVERFLOW FAILURE

When the water level is raising above the hole of the overflow tube: message 21 will be displayed.

TROUBLESHOOTING

DIAGNOSE:

1. Check if the overflow hole and tube isn’t

blocked.

2. Check if the drain tube isn’t blocked. If the drain tube is blocked: repair the drain tube.

3. Check the water inlet valves. If the water inlet valves are broken: replace the water

4. Check the output relay that powers the

water inlet valve.

If the overflow tube is blocked: repair the tube.

inlet valves.
If the relay stays closed and the relay is broken,

replace the wash computer.

FAILURE 24: DEFECTIVE LEVEL SENSOR

If the level sensor is broken then fault 24 will be displayed. The fault is only generated when the machine is in
standby mode and no wash cycle is running.
The fault can only be erased by switching off and on the power.

DIAGNOSE:

1. Check the level sensor visually. If you see some damage: replace the wash computer.

2. If the fault is persistent. Replace the wash computer. (be sure there is no drain problem)

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMMING MANUAL 87

FAILURE 25: DEFECTIVE TEMPERATURE SENSOR

When the temperature sensor is broken then fault 25 will be displayed. The fault is only generated when the
machine is in standby mode and no wash cycle is running.
The fault can only be erased by switching off and on the power. If the fault is still available after switching on
the power : fault 25 will be displayed again.

DIAGNOSE:

1. Check if the temperature sensor is
connected on the PCB Board.

2. Check the temperature sensor. If the temperature sensor is broken: replace the

3. Measure the resistance of the sensor. If the resistance is not OK: replace the temperature

4. Check if the earth wire is at the middle
position of the connector.

5. Check the PCB board visually. If you see some damage : replace the wash computer.

6. If the fault is persistent. Replace the wash computer.

The Female connector must be connected with the
Male connector T of the PCB board.

temperature sensor.

sensor.
If the earth wire is not at the middle position: put the

earth wire in the middle position of connector T.

Be sure that the problem is related to the PCB board
and not to a defective temperature sensor.

FAILURE 26: UNDEFINED MITSUBISHI FREQUENCY INVERTER ERROR CODE

Occurs if the inverter gives an error message which is not recognised by the wash computer.

FAILURE 27: COMMUNICATION FAULT INVERTER

This fault will only occur when there is no communication between the wash computer and the inverter.
The wash computer is sending requests to the inverter, and the inverter is sending answers to the wash
computer. If the wash computer is not receiving the answers within 5 seconds then fault 27 will be displayed.

DIAGNOSE:

1.For a new inverter or wash computer :
Check if the right machine type and Washing

machine power supply have been selected.

2. Check if the door is closed and locked. If the door is not closed then the inverter can not be

3. Check if the inverter is energized.
If the inverter power LED is not illuminated,
measure if there is supply voltage at the
inverter input terminals.

4. Check if the fuses are still operational. If the fuses are blown up : replace the fuses.

5. Check if the safety inverter contactor is activated. If the safety contactor is broken: replace the contactor.

6. Check if the connectors on both sides of the
communication cable are still connected.

7. Check the wiring for continuity. Repair the wiring.

8. Check if the output relays that activates the
safety inverter contactor is functional.

When the Inverter parameters are loaded at the
Configuration menu, make sure that you have selected
the right machine type and washing machine power supply.

powered. Close the door.
If the door lock is broken, repair the door lock system.

Repair the power supply.
If the supply voltage is OK and the power LED is not

illuminated, replace the inverter.

Connect the connectors on the wash computer and
the inverter.

If the relay is broken, replace the wash computer.

88 PROGRAMMING MANUAL 540876_A_PUB_DATE_1_FEB_2012.DOC

FAILURE 28: THT (Mitsubishi) TIME OUT

TROUBLESHOOTING

Fault 28 occurs when the wash computer can not handle the THT (Mitsubishi) / E.OL (KEB) fault of the
frequency inverter.
This fault is a specific fault of the frequency inverter caused by an over current.

DIAGNOSE:

1. Check if the correct machine type

is selected at the Configuration Menu.

2. Check if the dedicated inverter parameters

have been loaded by the wash computer.

3. Check if the power supply is sufficient high

and stable during extraction with load.

4. Check if the drum rotates normally by hand. Repair / clean what is necessary.

5. Check if the fault is persistent. If the fault is persistent, contact the manufacturer.

If the wrong machine type is selected, enter the right
machine type.

Load the correct Inverter parameters.

Repair the power supply.

FAILURE 29: OV3 (Mitsubishi) TIME OUT

Fault 29 occurs when the wash computer can not handle the OV3 (Mitsubishi).
This fault is a specific fault of the frequency inverter caused by an overvoltage.

DIAGNOSE:

1. Check if the correct machine type

is selected at the Configuration menu.

2. Check if the dedicated inverter parameters

have been loaded by the wash computer.

3. Check if there was a high unbalance during

extraction, which can be caused by putting
only half loads in the machine.

4. Check if the fault is persistent. If the fault is persistent, contact the manufacturer.

If the wrong machine type is selected, enter the right
machine type.

Load the correct Inverter parameters.

Put always a full load in the machine drum.
Do not put other material than textile linen (fabrics)
in the machine.

FAILURE 31: INITIALIZATION FAULT INVERTER

Fault 31 occurs when something goes wrong while the wash computer writes the dedicated inverter
parameters into the inverter EEPROM memory. This fault message means that not all dedicated inverter
parameters have been loaded. As a result the inverter will not work in a correct way.

IT IS NOT RECOMMENDED TO USE THE WASHING MACHINE AS THE INVERTER WILL FUNCTION
WITH THE WRONG PARAMETERS SETTINGS.

DIAGNOSE:

1. Check if the door is closed and locked. If the door is not closed, close the door. If the door

is not locked, repair the door lock system.

2. Check if the inverter is energized. If the inverter is not energized, check the power

to the inverter (see fault 27).

3. Write the parameters once more into

the inverter.

If the fault is persistent, contact the manufacturer.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMMING MANUAL 89

FAILURE 32: VERIFICATION FAULT INVERTER

Fault 32 occurs if a wrong parameter is detected at the verification of the inverter parameters. After writing
the inverter parameters in the inverter, the parameters are verified one by one to ensure that they have been
correctly loaded. This fault message means that at least one of the dedicated inverter parameters is wrong.
As a result the inverter will not work in a correct way.

DIAGNOSE:

1. Check if the correct machine type
is selected in the Configuration Menu.

2. Check if the door is closed and locked. If the door is not closed, close the door.

3. Check if the inverter is energized. If the inverter is not energized, check the power to the

4. Write the parameters once more
into the inverter.

If the wrong machine type is selected, enter the right
machine type.

If the door is not locked, repair the door lock system.

inverter (see fault 27).
If the fault is persistent, contact the manufacturer.

FAILURE 35: WRONG SOFTWARE VERSION

When a totally new software that isn’t backward compatible with previous software versions is loaded, then
the software will detect that the old and new software's are not compatible.
You have to reconfigure the Wash Computer. See Chapter 4.

ATTENTION!

!

ALL THE CUSTOM SETTINGS WILL BE ERASED IN THE WASH COMPUTER BY LOADING THE FACTORY
SETTINGS.

After reconfiguration of the Wash Computer, fault 35 can only be erased by switching the power Off/On.

FAILURE 37: DRAIN FAILURE AT THE SPRAY SEQUENCE

Failure 37 occurs when the electronic timer detects that the water is not drained after 3 minutes at the Spray
Sequence.

DIAGNOSE:

1. Check the drain tube of the washing machine. If the drain tube is blocked: repair the drain tube.

2. Check the drain valve. If the drain valve is defective: rep lace the drain valve.

3. Check the wiring:
When the drain valve is switched Off, the drain

valve should be open. (normal open)

If the wiring is damaged: repair the wiring.

FAILURE 39: EMPTY SOAP SUPPLY BOX

Failure 39 occurs when the electronic timer detects that the Soap Reservoir is empty.
To avoid that No Liquid Soap is added at the wash process, the operator gets a warning when a Liquid Soap

Supply Reservoir is almost empty.

DIAGNOSE:

1. Check if the Liquid Soap Supply is empty. Add Soap to the Liquid Soap Supply System.

90 PROGRAMMING MANUAL 540876_A_PUB_DATE_1_FEB_2012.DOC

FAILURE 41: SERVICE DUE WARNING

TROUBLESHOOTING

Failure 41 occurs when the cycle counter of the Electronic timer has reached the Programmed Value for
Service due. The fault message will be erased by opening the door. If the cycle counter has not been reset
the message will appear again at the end of the next wash cycle.

DIAGNOSE:

1. Check the cycle counter in the Service info

menu.

You can reset the cycle counter in the Service
Menu.

FAILURE 42: NO NETWORK CONNECTION

Failure 42 occurs when there is No Network Connection available.
For more information about the networking see manual "TRACE-TECH".

DIAGNOSE:

1. Check the network cable. If the network cable is broken, replace the network cable.

2. Check the USB-RS485 converter. If the converter is out of order, replace it.

FAILURE 43: WRONG VOLTAGE RANGE SELECTION

Failure 43 occurs when the wrong Voltage Range has been selected in the Configuration menu.
Depending on the machine type and the inverter type, certain Voltage ranges are not allowed.

DIAGNOSE:

1. Check the Machine Identification plate at the

back of the machine.

Select the same Voltage range in the Configuration
menu as on the Identification plate of your washing
machine.

Menu Item C:Supply Voltage

FAILURE 80: TIME OUT INPUT 16

Failure 80 occurs when the On Hold Signal of the Liquid Supply Central Dispensing System stays high for
more then 1 hour. At Input 16 of the wash computer, the Liquid Supply Central Dispensing System sends a
„High“ signal that makes that the washing machine waits at the Wash Sequence to add Liquid Supply until
the Liquid Supply Central Dispensing System has pumped its liquid supplies inside the washing machine.
When the On Hold signal is „LOW“ the wash program is NOT put On Hold.

When the On Hold signal is „HIGH“ the wash program is put On Hold.
In normal operation the On Hold Signal of the Liquid Supply Central Dispensing System must not stay high

for more then 1 hour, as otherwise the machine will not finish the running wash cycle anymore.

DIAGNOSE:

1. Check if the Central Soap Dispensing System

operates correctly.

2. Check if the wiring of the input signal „On Hold“

is not damaged.

3. Check the wash computer.

(Inputs can be checked one by one in the
Service menu)

Repair Liquid Supply Central Dispensing
System in case of failure.

If the wiring is damaged: repair the wiring.

If the input of the wash computer is not
functional, replace the wash computer.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMMING MANUAL 91

FAILURE 81: NO REHEAT

Traceability only. Failure 81 occurs when the heating is not restarted (at the wash sequence) when the

water temperature of the bath is below its normal programmed value. When the temperature drops below the
predefined temperature limit of a hygienic wash cycle, the wash cycle can not be validated for hygienic reasons
as the wash process has not followed the standards of the wash program in execution. This means that the
linen must be washed again after repairing the problem with the heating system.

DIAGNOSE:
Check Diagnostics Failure 13 : Heating Failure, and Failure 14 : Heating Time Failure

FAILURE 82: NO REFILL

Traceability only. Failure 82 occurs when the water filling is not restarted (at the wash sequence) when the

water level of the bath is below its normal programmed value. When the water level drops below the
predefined water level limit of a hygienic wash cycle, the wash cycle can not be validated for hygienic
reasons as the wash process has not followed the standards of the wash program in execution. This means
that the linen must be washed again after repairing the problem with the water fill system.

DIAGNOSE:
Check Diagnostics Failure 11 : Fill Failure

FAILURE 83: CYCLE FAIL

Traceability only. Failure 83 occurs when the wash cycle can not be validated for hygienic reasons as the

wash process has not followed the standards of the wash program in execution. This means that the linen
must be washed again after repairing the problem. The Error message is only for information purposes and
at the end of the wash cycle the operator will get a warning the wash cycle must be repeated.

DIAGNOSE:

See Extra Error message that shows the cause of the failure.

FAILURE 85: RTC LOW BATTERY

Failure 85 occurs when there is no battery available at the real time clock, or if the power of the battery is too
small to make the real time clock run correctly.

DIAGNOSE:

Replace the CPU board.

92 PROGRAMMING MANUAL 540876_A_PUB_DATE_1_FEB_2012.DOC

FAILURE 95: WATCH DOG

TROUBLESHOOTING

If the watch dog has been activated, message 95 is logged in the Error log register. If this occurs often, ask
the help of a technician.

FAILURE 300-353: MITSUBISHI INVERTER ALARM MESSAGE

Always make sure you have the correct inverter parameter settings in the inverter, especially when you have
replaced an inverter. If you are not sure go to the Configuration menu and select „Inverter Menu…“, set the
correct machine type and supply voltage and load the parameters from the wash computer to the inverter
once more. If the correct parameters are not in the inverter all kind of inverter alarms may occur. See also
inverter manual (available on request) for more info.

Err N° Failure Failure Name Explanation

300 Err OC1 Overcurrent See detailed explanation below
301 Err OC2 Overcurrent See detailed explanation below
302 Err OC3 Overcurrent See detailed explanation below
303 Err OV1 Overvoltage See detailed explanation below
304 Err OV2 Overvoltage See detailed explanation below
305 Err OV3 Overvoltage See detailed explanation below
306 Err THT Inverter overload See detailed explanation below
307 Err THM Motor overload See detailed explanation below
308 Err FAN Fan stopped Repair the cooling fan (clean or replace if necessary)
309 Err OLT Stall prevention See detailed explanation below
310 Err BE Brake transistor Short circuit in brake transistor circuit. Power off

immediately! Replace the inverter.

311 Err GF Ground fault Output overcurrent to ground.

1) Check the motorcable and motor for ground faults.

2) Disconnect the motorcable and try again. If you still
have the error, replace the inverter.

312 Err OHT* Ext thermal relay External thermal relay (TRM module, see electrical

scheme) for motor protection tripped. TRM module was
only used on certain machines with MCB controller and

A500 inverter.
313 Err OPT Option See detailed explanation below
314 Err PE Corrupt memory Memory was overwritten too many times. Replace inverter.
315 Err PUE PU leave out See detailed explanation below
316 Err Ret* Retry no over The max number of retries after fault reached.

The actual inverter error code that causes the problem and

which should be solved, is stored just before Err 316 in the

error log.
317 Err CPU CPU Fault Communication error of built in CPU. Replace inverter
318 Err E.6 CPU Fault 6 Internal fault, If the fault is persistent, replace the inverter
319 Err E.7 CPU Fault 7 Internal fault, If the fault is persistent, replace the inverter
320 Err IPF Instantaneous

power failure
321 Err UVT Under voltage Supply voltage too low. Check jumper P/+-P1.
322 Err LF Output phase

failure
323 Err OP1* Option slot 1 Problem with the option in slot 1 or option contact fault
324 Err OP2* Option slot 2 Problem with the option in slot 2 or option contact fault
325 Err OP3* Option slot 3 Problem with the option in slot 3 or option contact fault

Power failure between 15 and 100ms. Check for bad
contacts in the power circuit. Repair the power supply.

Phase open detected on inverter output. Check for bad
contacts or defect (open) motor windings.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMMING MANUAL 93

Err N° Failure Failure Name Explanation

326 Err CTE PU short circuit Short circuit on the RS485 communication connector.

Check for short circuit in the communication cable.

327 Err P24 24VDC short circuit Short circuit on the 24VDC power output (PC terminal).

Check for short circuit on the inverter control terminals.

328 Err MB1* Brake sequence

error 1

329 Err MB2* Brake sequence

error 2

330 Err MB3* Brake sequence

error 3

331 Err MB4* Brake sequence

Sequence errors during use of the brake function.

error 4

332 Err MB5* Brake sequence

error 5

333 Err MB6* Brake sequence

error 6

334 Err MB7* Brake sequence

error 7
335 Err FIN Heatsink overheat See detailed explanation below
336 Err OSD* Speed deviation

Too big speed deviation during vector control

excess
337 Err ECT* Encoder signal loss Problem with the encoder signal
338 Err E.1* Option

alarm(connector1)
339 Err E.2* Option

alarm(connector2)

Occurs if there is a contact fault of the connector between
the inverter and the communication option or if the
communication option is fitted to connector 1 or 2 or if the
switch of the plug-in option is not on the default setting.

340 Err E.3* Option

alarm(connector3)
341 Err ILF* Input phase failure 1 phase of the 3-ph input was lost for more than 1 second.

Repair the 3-phase power supply.

342 Err PTC PTC thermistor

operation

Overtemperature of motor PTC(swit ch AU/PTC must be on PTC)

1) Check if motor cooling fan (if present) functions
normally

2) check for contact faults in the wiring (see electrical
scheme)

343 Err PE2 Parameter storage

error
344 Err CDO* Output Current

Problem with parameter storage (EEPROM failure). If the
fault is persistent, replace the inverter.

Current exceeded the output current detection level

detection
345 Err IOH Inrush overheat Resistor inrush current limit circuit overheated.

1) do not switch on/off the inverter frequently

2) Wait some time (15min) and try again

3) if the fault is persistent, replace the inverter

346 Err SER* Communication

error

Communication problem on the RS485 terminals

connector
347 Err AIE* Analog input error Overcurrent or overvoltage on input terminal 2/4
348 Err USB* USB communication

USB communication check time interval has elapsed

error
349 Err OS* Overspeed Speed exceeded the limit during encoder feedback control
350 Err OD* Position error Too big difference between the position command and the

position feedback during position control

94 PROGRAMMING MANUAL 540876_A_PUB_DATE_1_FEB_2012.DOC

TROUBLESHOOTING

Err N° Failure Failure Name Explanation

351 Err EP* Encoder phase

error

352 Err E.11* Opposite rotation

deceleration

353 Err E.13 Internal circuit error Problem with an internal circuit, replace the inverter

* : This option or function is not used. If you have this error anyway do the following :

1) Reload the inverter parameters.

2) If the fault is persistent, replace the inverter.

DIAGNOSE FAILURE 300-301-302: OC-ERRORS (OVERCURRENT)

1. Check if there is no short circuit on the
output of the inverter. (loose wire of motor
cable, motor windings, screws or other loose
parts inside the motor terminal box,…)

2. Disconnect the motor cable from the inverter and
try again.

Rotation command different than the motor rotation
direction

Rotation direction of the speed command different than the
estimated speed causing overload

Repair the short circuit.

If you still have the error with motor cable
disconnected, replace the inverter.

DIAGNOSE FAILURE 303-304-305 : OV-ERRORS (OVERVOLTAGE)

If the DC-voltage on the capacitors is too high, the inverter will generate OV error.

1. Check if there was a high unbalance during

Put always a full load in the machine drum.
extraction, which can be caused by putting
only half loads in the machine.

2. Check if the supply voltage is not too high. Reduce the supply voltage.

3. Check if the fault is persistent If the fault is persistent, contact the manufacturer

DIAGNOSE FAILURE 306: THT-ERROR (INVERTER OVERLOAD)

If the output current of the inverter is abnormal high for some time, the inverter will go into THT-alarm
state.

1. Check if the power supply is sufficient high

Repair the power supply.

and stable during extraction with load.

2. Check if the drum rotates normally by hand.

Repair / clean what is necessary.

(no abnormal high friction)

3. Chec k i f t h e m o t o r wi n d i n g s a r e O K . Replace the motor.

DIAGNOSE FAILURE 307: THM-ERROR (MOTOR OVERLOAD)

If the motor current is higher than allowed for a longer time, the inverter will activate the electronic
overcurrent protection to prevent the motor from overheating and the inverter will go into THM-alarm state.

1. Check if the drum rotates normally by hand. Repair / clean what is necessary.

2. Check if the motor windings are OK. Replace the motor.

3. Check if the fault is persistent. If the fault is persistent, contact the manufacturer.

DIAGNOSE FAILURE 309: OLT-ERROR (STALL PREVENTION)

The output frequency has dropped to minimum because of current limitation.

1. Check if the power supply is sufficient high and

Repair the power supply.

stable during extraction with load.

2. Check if the drum rotates normally by hand.

Repair / clean what is necessary.

(no abnormal high friction)

3. Check if the motor windings are OK. Replace the motor.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMMING MANUAL 95

DIAGNOSE FAILURE 313/315: OPT/PUE-ERROR (OPTION FAULT/PARAMETER UNIT LEAVE OUT)

If the inverter doesn't receive requests from the wash computer (= no serial communication), after some
time (about 10-30 seconds), the inverter will go into OPT/PUE-alarm state.

1. Check at the end of the wash cycle, if the
power supply contactor of the frequency
inverter switches is switched off on all phases.

The OPT/PUE-ERROR can happen occasionally by a very short general mains power supply interruption.
(Due to the power interruption, the inverter was not able to reset itself correctly.)
=> In such case the contactor must not be replaced. The Inverter must be reset by a longer power

interruption.

DIAGNOSE FAILURE 335: FIN-ERROR (COOLING FIN INVERTER OVERHEAT)

If the heatsink temperature of the inverter crosses it's max allowed operation temperature, the inverter will
go into FIN-alarm state.

1. Check if the cooling fan of the inverter
(if present) rotates normally.

2. Check if the cooling fan in the washer that
takes fresh air to the inverter’s environment
(if present) rotates normally.

3. Check if the heatsink or the cooling fans are
not clogged with dust/dirt so that fresh air
can circulate freely.

4. Check if the ambient temperature of the
washer is within the specified limits
(see installation manual).

Replace the contactor if the problem is persistent.

Replace the cooling fan on the inverter (on the
heatsink of the inverter).

Replace the cooling fan of the washer.

Clean what is necessary.

Take care that the ambient temperature is within
the specified limits.

FAILURE 500-525: MEMORY ERRORS

If a memory error occurs then something is going wrong with the EEPROM.
Try to reload the washing Programs. Check for source of electrical „noise“.

FAILURE 550: TRACEABILITY WRITE

The failure 550 is a failure of the wash computer internal memory. This failure message appears after a failed
attempt to write the Traceability into the internal memory. Change the CPU control board.

(Traceability function can be switched off in the Advanced Menu.)

FAILURE 551: TRACEABILITY FULL

The failure message 551 is displ ayed if the T raceabil ity data fi ll up th e internal memory of the wash comp uter.
The Traceability data need to be “cleaned” utilizing a PC software.
As a consequence of the failure no data of the wash cycle can be saved.
(Traceability function can be switched off in the Advanced Menu.)

FAILURE 600-628: SOFTWARE ERRORS

Software errors must never occur. If a software error message occurs inform the manufacturer.

96 PROGRAMMING MANUAL 540876_A_PUB_DATE_1_FEB_2012.DOC

9. SERVICE INFORMATION

ATTENTION!

!

PROFESSIONAL REPAIRS IN ELECTRO INSTALLATION CAN BE CARRIED OUT ONLY BY
SERVICE ORGANIZATION WITH PERMISSION GIVEN BY PRODUCER / SUPPLIER.

IN CASE OF ANY MAINTENANCE OR REPAIR, DISCONNECT THE MACHINE FRO M SOURCE OF
ENERGY AND WAIT UNTIL THE MACHINE COOLS DOWN OR DRAINS WATER.

PLEASE FOLLOW ALL INSTRUCTIONS IN THE MANUALS AND THE LABELS AND AS WELL AS
VALID BASIC SECURITY LAWS IN ORDER TO PREVENT BURNS AND SCALDS AND
INJURIES CAUSED BY ELECTRICITY.

9.1. MAINTENANCE

Remove dirt from the keyboard by a damp cloth after disconnection from the power supply.

ATTENTION!

!

DO NOT USE AGGRESSIVE SOAPS, CAUSTIC CHEMICALS, GASOLINE OR OTHER
PETROCHEMICAL SUBSTANCES WHICH CAN DAMAGE THE KEYBOARD .

TROUBLESHOOTING

9.2. INFORMATION FOR SERVICE

Finding out the SW version:

- Press the SERVIS button to display the service information.

- Use the DOWN button and move to the SOFTWARE page. Here you can find the SW version in the format

771.XXX.X

Please always state the SW version together with the machine’s serial number and the purchase order code
in any correspondence with the manufacturer or when making any enquiries with the manufacturer.

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMMING MANUAL 97

9.3. PROGRAMMER CIRCUIT BOARD

CPU board

I/O board

Fig.9.3.

WARNING!

!

CONNECTION TO THE WRONG VOLTAGE SUPPLY MAY CAUSE SERIOUS BODILY INJURY AS
WELL AS DAMAGE TO THE ELECTRONIC PARTS AND TO THE WASHING MACHINE ITSELF.

- Voltage : 200-240 Vac, 50/60 Hz

- Power : max 20 VA

- Outputs : 24 relays

- Serial interface: RS485 (2 wire) networking b etween wash com puter and externa l device (PC Comp uter)

- Display : LCD display

9.4. INSTRUCTIONS FOR REPLACING THE PROGRAMMER BOARDS

 Switch off the main power supply.
 Open the cover plate of the washing machine.
 Remove the connectors from the programmer boards (including the connector between the CPU and

I/O boards) and remove the small hose from the water level sensor.

 The CPU board of the programmer can be removed after you have unscrewed the securing screws.
 The I/O board of the programmer remove including the bearing sheet metal after you have losened

the two securing screws.

 Insert a new electronic programmer into the machine and secure it by the screws.
 Reconnect all the connectors and put the little hose back on the level sensor.
 Close the cover plate of the washing machine.
 Now you can Switch On the power supply.
 The display should illuminate.

98 PROGRAMMING MANUAL 540876_A_PUB_DATE_1_FEB_2012.DOC

ATTENTION!

!

MAKE SURE THAT THE SMALL HOSE OF THE LEVEL SENSOR IS CORRECTLY SECURED BY A
FLEXIBLE CLAMP.
IF THE HOSE IS NOT AIR TIGHT THEN THE LEVEL SENSOR WILL NOT MAKE A CORRECT MEASUREMENT.

MAKE SURE THAT YOU DON’T DAMAGE THE FLEX CABLE OF THE KEYPAD WHEN YOU PUT
THE WASH COMPUTER BACK INTO THE MACHINE.

9.5. INSTRUCTIONS FOR INSTALLING NEW SOFTWARE

 Switch the machine power supply off.
 Open the cover plate of the washing machine.
 Insert a flash drive containingn the software into the USB connector E (of the CPU board).
 Switch the machine power supply on.
 The display shows information that the software is being copied from the flash drive into the programmer board.

 When the copying is finished a prompt to remove the flash drive from the CPU is displayed.
 Switch the machine power supply off and remove the flash drive.
 Close the washing machine cover plate.
 Switch the machine power supply on.
 If the software is compatible with the previous software: the new software can be used without

re-initialization.

 You have to clear all the error messages in the Service-menu, if you want to make a correct

inspection of the functioning of the new installed software.

 If the software is not 100% compatible with the previous software version:

 The new software will generate a diagnostic message 35. When fault message 35 occurs you
have to reset the settings of the configuration and initialization menu.

 This can be easily done by Selecting Reset Factory Settings in the Configuration Menu.
 This is explained in Chapter 3 : Basic Description of Controls.

 Go through the Menu items of the Configuration and Initialization Menu one by one to ensure
that all the settings do correspond with the ones you prefer.
 All the Custom Settings will be lost.

TROUBLESHOOTING

540876_A_PUB_DATE_1_FEB_2012.DOC PROGRAMMING MANUAL 99

10. SPECIFICATION OF YOUR MACHINE

 MACHINE DATA

 type :…………………….  phases : …………………….
 serial number :…………………….  frequency : ………………… ….
 voltage :…………………….  output : …………………….
 water supply :  cold soft  cold hard  hot soft
 heating :  electrical…… kW  hot water  steam

 ELECTRONIC DATA

Programmer type :
 serial number of the CPU : ……………………………

 serial number I/O board : ……………………………
 software version : ……………………………

 software date : ……………………………
 keyboard : ……………………………

 MACHINE CONFIGURATION DATA

FUNCTION DATA ENTERED

 SUPPLY VOLTAGE : ……………………………………
 TOTAL N° OF INLETS :  2  3
 DRAIN VALVE 2 :  Yes  No
 WATER RECYCLE INLETS :  Yes  No
 LIQUID SOAP SUPPLY :  Yes  No

 TEMPERATURE :  Celsius  Fahrenheit
 FULL HEATING : ……………………………………. %
 WET CLEANING :  Yes  No

 MACHINE TYPE : ……………………………………
 BRIGHTNESS DISPLAY : ……………………………………

 MINIMUM LEVEL START SUPPLY : ……………………………………. Units

 MACHINE INITIALIZATION DATA

FUNCTION DATA ENTERED

 LANGUAGE : …………………………………….
 SERVICE INTERVALL : …………………………………….
 BUZZER TIME : ……………………………………. Seconds
 ALLOW ADVANCE :  Yes  No
 AUTOMATIC COOLDOWN :  Yes  No
 WAIT FOR TEMP :  Yes  No
 MANUAL OVERRIDE :  Yes  No

 TEMPERATURE BALANCE :  Yes  No

 WASH MOTOR ON TIME : ……………………………………. Seconds

 WASH MOTOR OFF TIME : ……………………………………. Seconds

 SMART MOTION :  Yes  No
 HOT WATER HEATER TEMPERATURE :  50  60  70  80 °C
 TEMP OVERSHOOT PROTECTION : - …………………………………. %

 MAX. HEATING TIME : ……………………………………. Minutes

 MAX. WATERFILL TIME : ……………………………………. Minutes

 OVERFILL DETECTION : ……………………………………. Units

 EXTERNAL WAIT CONTROL :  No  Soap  Heating
 PREWASH SOAP INFO :  Yes  No
 WASH LIQUID SOAP INFO :  Yes  No

100 PROGRAMMING MANUAL 540876_A_PUB_DATE_1_FEB_2012.DOC
