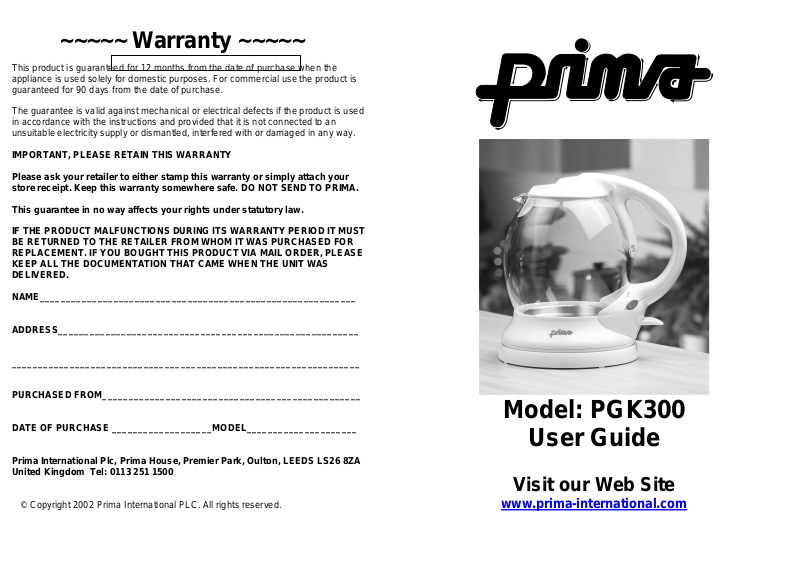

Prima PGK300 User Manual

~~~~~ Warranty ~~~~~
This product is guaranteed for 12 months from the date of purchase when the appliance is used solely for domestic purposes. For commercial use the product is guaranteed for 90 days from the date of purchase.
The guarantee is valid against mechanical or electrical defects if the product is used in accordance with the instruc tions and pr o vid ed that it is not connect ed t o an unsuitable electricity supply or dismantled, interfered with or damaged in any way.
IMPORTANT, PLEASE RETAIN THIS WARRANTY Please ask your retailer to either stamp this warranty or simply attach your
store receipt. Keep this warranty somewhere safe. DO NOT SEND TO PRIMA. This guarantee in no way affects your rights under statutory law. IF THE PRODUCT MALFUNCTIONS DURING ITS WARRANTY PERIOD IT MUST
BE RETURNED TO THE RETAILER FROM WHOM IT WAS PURCHASED FOR REPLACEMENT. IF YOU BOUGHT THIS PRODUCT VIA MAIL ORDER, PLEASE KEEP ALL THE DOCUMENTATION THAT CAME WHEN THE UNIT WAS DELIVERED.
NAME____________________________________________________________
ADDRESS_________________________________________________________
__________________________________________________________________
PURCHASED FROM_________________________________________________
DATE OF PURCHASE ___________________MODEL_____________________
Prima International Plc, Prima House, Premier Park, Oulton, LEEDS LS26 8ZA United Kingdom Tel: 0113 251 1500
© Copyright 2002 Prima International PLC. All rights reserved.
Model: PGK300

User Guide

Visit our Web Site

www.prima-international.com

GLASS JUG KETTLE MODEL: PGK300

Prior to First Use

Remove all packing materials from the inside and outside of the kettle.
BOIL FRESH WATER INSIDE THE KETTLE TWO TO THREE TIMES AND DISCARD THE
BOILED WATER BEFORE NORMAL USE

How to Use

Always use the appliance on a heat-resistant, flat surface.
Fill the kettle with the desired quantity of cold water between the Min. and Max. level.
Close the lid properly.
Plug the kettle into the wall socket and press the ‘ON/OFF’ switch to the ON position. The
power indicator on the base will then be illuminated.
When the water has boiled, the kettle will switch off automatically.

Cleaning

It is extremely important to remember that cleaning of the kettle can only be performed when the plug has been removed from the supply.
Never immerse any part of the kettle especially the cable and base plate into water.
Cleaning should be performed when the kettle has cooled down.
Always ensure the electrical connections of the kettle remain absolutely dry.
Clean the kettle with a damp cloth. Do not use cleaning products, which can cause health
hazard or discoloration of the kettle.
Ensure the outside and the electrical connection parts of the kettle are completely dry before
using.

De- scaling

It is important to de-scale the kettle at regular intervals in order to maintain its looks and efficiency.
The frequency of de-scaling will depend upon the area in which you live There are many de-scaling powders and tablets available in supermarkets & hardware stores. Just follow the instructions on the packet. NOTE: The kettle warranty does NOT cover faults caused by excessive limescale build-up.
Important Safety Notes
Always unplug the kettle in the following situations:-
- Before cleaning
- After use
- Before pouring water
- Before leaving the kettle unattended
Do not unplug the kettle by pulling the cable cord.
Never place the kettle in a tilt position.
Keep the kettle out of reach of children.
Improper use of kettle may result in serious scald.
As there is boiling water inside the kettle, always put the lid on whenever kettle is turned
on or hot water is inside.
Never switch on the kettle when the water level inside is higher than the indicated maximum level or lower than the minimum level. Otherwise, this will cause water spillage and damage to the heating element respectively. Though there is a cut-off device if the kettle overheats, allowing the unit to boil dry will eventually damage the heating element.
Do not touch the exterior of the kettle, except the insulated handle as it will be very hot.
Never place the kettle on a hot surface.
If the supply cord of this appliance is damaged, it must only be replaced by Prima
The kettle is only to be used with the stand provided.

U.K. PLUG WIRING INSTRUCTIO NS

The wires in the mains lead are coloured in accordance with the following code:
BROWN - LIVE (L) BLUE - NEUTRAL (N) GREEN/YELLOW - EARTH (E)
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The BLUE wire is the NEUTRAL and must be connected to the terminal which is marked with the letter N or coloured BLACK
The BROWN wire is the LIVE and must be connected to the terminal that is marked with the letter L or coloured RED.
The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked E or coloured GREEN or GREEN/YELLOW.
Always ensure that the cord grip is positioned and securely fastened.
WARNING: THIS APPLIANCE MUST BE EARTHED.
If a 13A (BS1363) fused plug is used it must be fitted with a 13A fuse. If in doubt consult a qualified electrician.

WIRING FOR A 13AMP PLUG

EARTH
(GREEN & YELLOW)
NEUTRAL
(BLUE)
13 AMP
LIVE
(BROWN)
