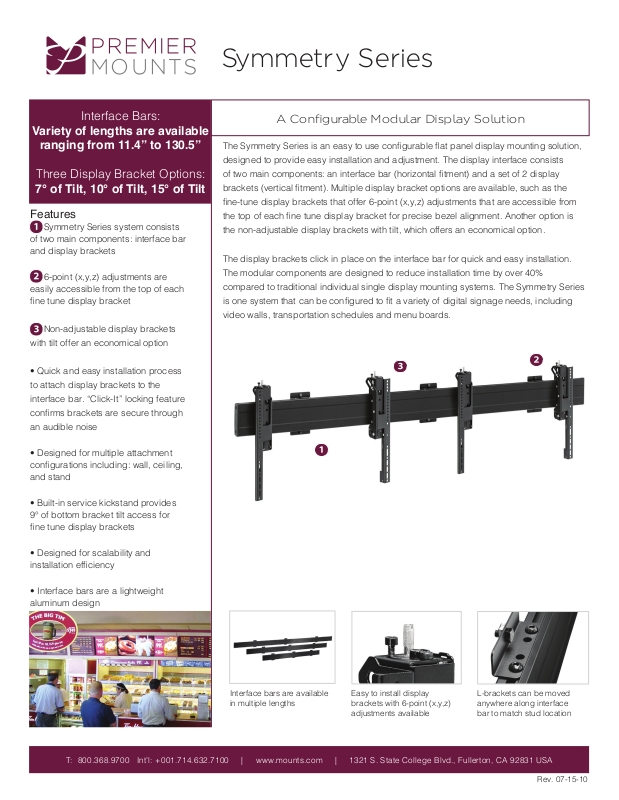

Premier Mounts SYM-DB-FT Data Sheet
Symmetry Series
Interface Bars:
Variety of lengths are available
ranging from 11.4” to 130.5”
Three Display Bracket Options:
7° of Tilt, 10° of Tilt, 15° of Tilt
Features
Symmetry Series system consists
of two main components: interface bar
and display brackets
6-point (x,y,z) adjustments are
easily accessible from the top of each
ne tune display bracket
Non-adjustable display brackets
with tilt offer an economical option
• Quick and easy installation process
to attach display brackets to the
interface bar. “Click-It” locking feature
conrms brackets are secure through
an audible noise
A Configurable Modular Display Solution
The Symmetry Series is an easy to use congurable at panel display mounting solution,
designed to provide easy installation and adjustment. The display interface consists
of two main components: an interface bar (horizontal tment) and a set of 2 display
brackets (vertical tment). Multiple display bracket options are available, such as the
ne-tune display brackets that offer 6-point (x,y,z) adjustments that are accessible from
the top of each ne tune display bracket for precise bezel alignment. Another option is
the non-adjustable display brackets with tilt, which offers an economical option.
The display brackets click in place on the interface bar for quick and easy installation.
The modular components are designed to reduce installation time by over 40%
compared to traditional individual single display mounting systems. The Symmetry Series
is one system that can be congured to t a variety of digital signage needs, including
video walls, transportation schedules and menu boards.
• Designed for multiple attachment
congurations including: wall, ceiling,
and stand
• Built-in service kickstand provides
9° of bottom bracket tilt access for
ne tune display brackets
• Designed for scalability and
installation efciency
• Interface bars are a lightweight
aluminum design
Interface bars are available
in multiple lengths
Easy to install display
brackets with 6-point (x,y,z)
adjustments available
L-brackets can be moved
anywhere along interface
bar to match stud location
T: 800.368.9700 Int’l: +001.714.632.7100 | www.mounts.com | 1321 S. State College Blvd., Fullerton, CA 92831 USA
Rev. 07-15-10
Symmetry Series
SYM-IB-11B, SYM-IB-28B, SYM-IB-36B, SYM-IB-75B, SYM-IB-108B, SYM-IB-130B,
SYM-DB-FT, SYM-DB-TA, SYM-DB-TB
Interface Bar Specifications
Length x Height x Depth
SYM-IB-11B
SYM-IB-28B
SYM-IB-36B
SYM-IB-75B
SYM-IB-108B
SYM-IB-130B
11.4 x 5.4 x 1.2 in. | 290 x 137 x 30 mm
28.1 x 5.4 x 1.2 in. | 714 x 137 x 30 mm
36 x 5.4 x 1.2 in. | 914 x 137 x 30 mm
75.4 x 5.4 x 1.3 in. | 1915 x 137 x 33 mm
108.9 x 5.4 x 1.3 in. | 2766 x 137 x 33 mm
130.5 x 5.4 x 1.4 in. | 3315 x 137 x 36 mm
Warranty
5 Years
Display Bracket Specifications
Description
SYM-DB-FT Display Brackets with Fine Tune Adjustment
SYM-DB-TB Display Brackets with 10° of Tilt
Vertical Mounting Pattern*
SYM-DB-FT & SYM-DB-TB 100 mm (Min) - 400 mm (Max)
*Horizontal mounting point width is
unlimited and relative to bar length
Color
Black
Black
Black
Black
Black
Black
Applications
Wall, Ceiling, Stand
Width x Height x Depth
3.2 x 19.1 x 2.7 in. | 81 x 485 x 70 mm
2.6 x 16.5 x 2.5 in. | 66 x 419 x 64 mm
Applications
Wall, Ceiling, Stand
Weight Capacity
176 lb.| 80 kg
176 lb.| 80 kg
176 lb.| 80 kg
353 lb.| 160 kg
353 lb.| 160 kg
353 lb.| 160 kg
Tilt Adjustment (max)
-3° / +7°
Warranty
5 Years
+10°
Color
Black
Adjustment Axis
SYM-DB-FT ONLY 6-Point (x,y,z) Adjustments
Horizontal Adjustment
-5mm / +5mm
Depth Adjustment
-5mm / +5mm
Optional Tilt Adapter Brackets (For Additional 8° of Tilt When Paired w/ SYM-DB-FT Only)
Description
SYM-DB-TA
Fixed Tilt Adapter Bracket
Width x Height x Depth
2.46 x 18.75 x 3.15 in. | 62 x 476 x 80 mm
Tilt Adjustment (max)
+8° (for a total of 15°)
Vertical Mounting Pattern*
100 mm (Min) - 400 mm (Max)
*Horizontal mounting point width is
unlimited and relative to bar length
Wall, Ceiling, Stand
Warranty
5 Years
Acces o ri es
Symmetry Series
Interface Bar
Extension
SYM-IB-EXT
Specications subject to change without notice
Symmetry Series
Ceilin g Pipe Adapter
SYM-PA
Symmetry Series
Ceilin g Pipe
Adapter Cover
SYM-PAC
Applications
Color
Black
Symmetry Series
Interface Bar
Stand Adapter
SYM-IB-SA
T: 800.368.9700 Int’l: +001.714.632.7100 | www.mounts.com | 1321 S. State College Blvd., Fullerton, CA 92831 USA
Visit mounts.com to see the complete line of AV solutions from Premier Mounts, including at-panel mounts, projector mounts, carts/stands, and a full assortment of accessories.
© 2015 Premier Mounts. All rights reserved.
Rev. 07-15-10
