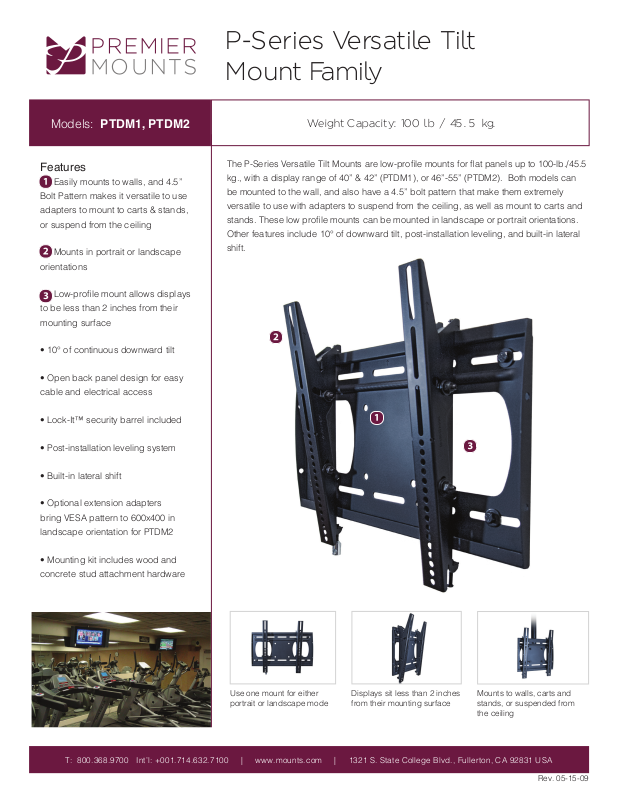

Page 1
P-Series Versatile Tilt
Mount Family
Models: PTDM1, PTDM2
Features
Easily mounts to walls, and 4.5”
Bolt Pattern makes it versatile to use
adapters to mount to carts & stands,
or suspend from the ceiling
Mounts in portrait or landscape
orientations
Low-prole mount allows displays
to be less than 2 inches from their
mounting surface
• 10° of continuous downward tilt
• Open back panel design for easy
cable and electrical access
Weight Capacity: 100 lb / 45 . 5 kg.
The P-Series Versatile Tilt Mounts are low-prole mounts for at panels up to 100-lb./45.5
kg., with a display range of 40” & 42” (PTDM1), or 46”-55” (PTDM2). Both models can
be mounted to the wall, and also have a 4.5” bolt pattern that make them extremely
versatile to use with adapters to suspend from the ceiling, as well as mount to carts and
stands. These low prole mounts can be mounted in landscape or portrait orientations.
Other features include 10° of downward tilt, post-installation leveling, and built-in lateral
shift.
• Lock-It™ security barrel included
• Post-installation leveling system
• Built-in lateral shift
• Optional extension adapters
bring VESA pattern to 600x400 in
landscape orientation for PTDM2
• Mounting kit includes wood and
concrete stud attachment hardware
Use one mount for either
portrait or landscape mode
Displays sit less than 2 inches
from their mounting surface
Mounts to walls, carts and
stands, or suspended from
the ceiling
T: 800.368.9700 Int’l: +001.714.632.7100 | www.mounts.com | 1321 S. State College Blvd., Fullerton, CA 92831 USA
Rev. 05-15-09
Page 2
P-Series Versatile Tilt Mount Family
PTDM1, PTDM2
Specifications
Weight
PTDM1 12 lb.| 5.5 kg
PTDM2 13 lb.| 5.9 kg
Width x Height x Depth
PTDM1 14.39 x 16.5 x 1.99 in. | 366 x 419 x 51 mm
PTDM2 20.8 x 16.5 x 1.99 in. | 528 x 419 x 51 mm
Packaging
Width x Height x Depth
18 x 4 x 21 in. | 457 x 102 x 533 mm
Architectural Drawing
Color
Black
Black
Total Weight Capacity
100 lb.| 45.5 kg
100 lb.| 45.5 kg
Wall Plate (x1), Mounting Bracket (x2), Universal Hardware Pack (x1)
200 x 200 mm (Min) x 300 x 400 mm (Max)
200 x 200 mm (Min) x 400 x 400 mm (Max)
Mounting Pattern
Warranty
Lifetime
Lifetime
Contents
Specications subject to change without notice
T: 800.368.9700 Int’l: +001.714.632.7100 | www.mounts.com | 1321 S. State College Blvd., Fullerton, CA 92831 USA
Visit mounts.com to see the complete line of AV solutions from Premier Mounts, including at-panel mounts, projector mounts, carts/stands, and a full assortment of accessories.
© 2015 Premier Mounts. All rights reserved.
Rev. 05-15-09
