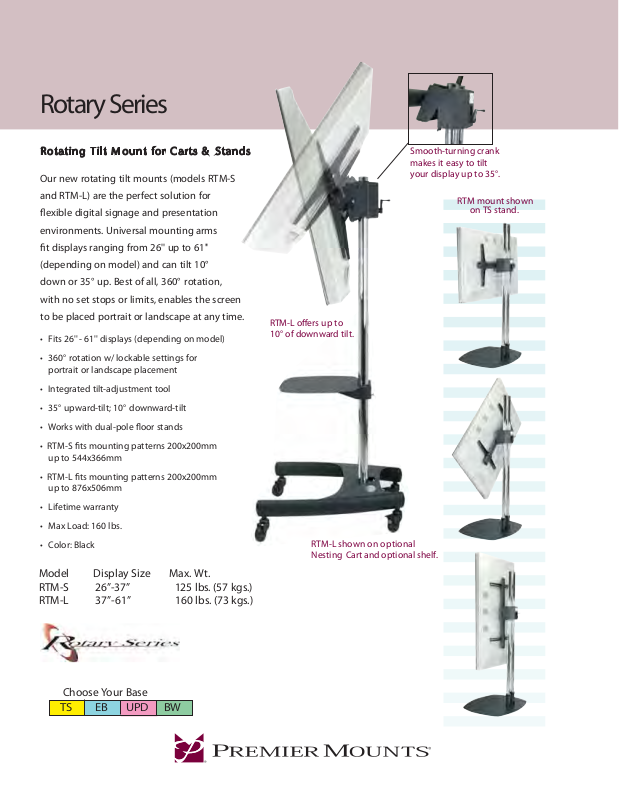

Rotary Series
R
o
t
a
tin
g
T
ilt
M
o
u
n
t
f
o
r
C
a
r
t
s
&
S
tan
d
s
Our new rotating tilt mounts (models RTM-S
and RTM-L) are the perfect solution for
exible digital signage and presentation
environments. Universal mounting arms
t displays ranging from 26'' up to 61''
(depending on model) and can tilt 10°
down or 35° up. Best of all, 360° rotation,
with no set stops or limits, enables the screen
to be placed portrait or landscape at any time.
• Fits 26'' - 61'' displays (depending on model)
• 360° rotation w/ lockable settings for
portrait or landscape placement
• Integrated tilt-adjustment tool
• 35° upward-tilt; 10° downward-tilt
• Works with dual-pole oor stands
• RTM-S ts mounting patterns 200x200mm
up to 544x366mm
• RTM-L ts mounting patterns 200x200mm
up to 876x506mm
• Lifetime warranty
• Max Load: 160 lbs.
• Color: Black
Model Display Size Max. Wt.
RTM-S 26”-37” 125 lbs. (57 kgs.)
RTM-L 37”-61” 160 lbs. (73 kgs.)
RTM-L shown on optional
Nesting Cart and
optional shelf.
RTM-L oers up to
10° of downward tilt.
Smooth-turning crank
makes it easy to tilt
your display up to 35°.
TS
EB
UPD
BW
Choose Your Base
RTM mount shown
on TS stand.
800.368.9700
I
www.mounts.com
Dimensions are in inches and millimeters [mm].
Drawings are subject to change without notice.
RTM-L
RTM-S
