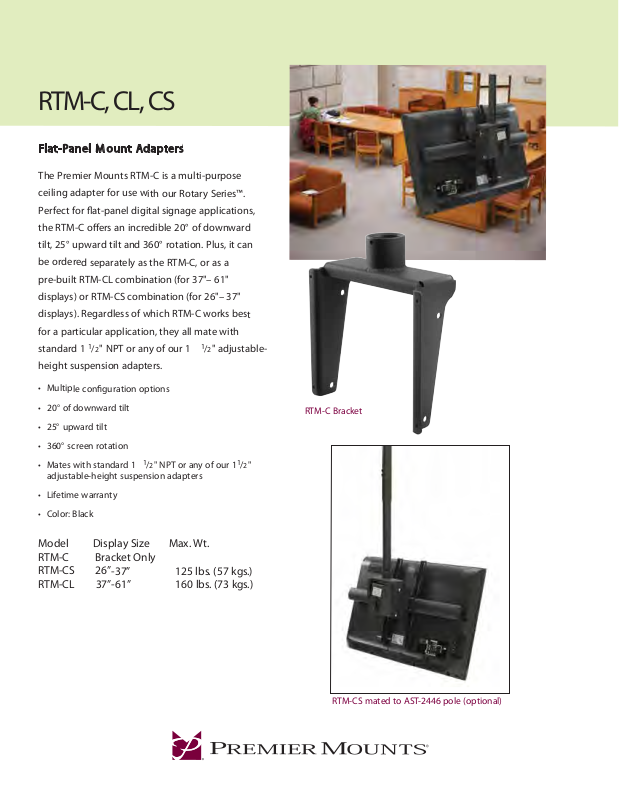

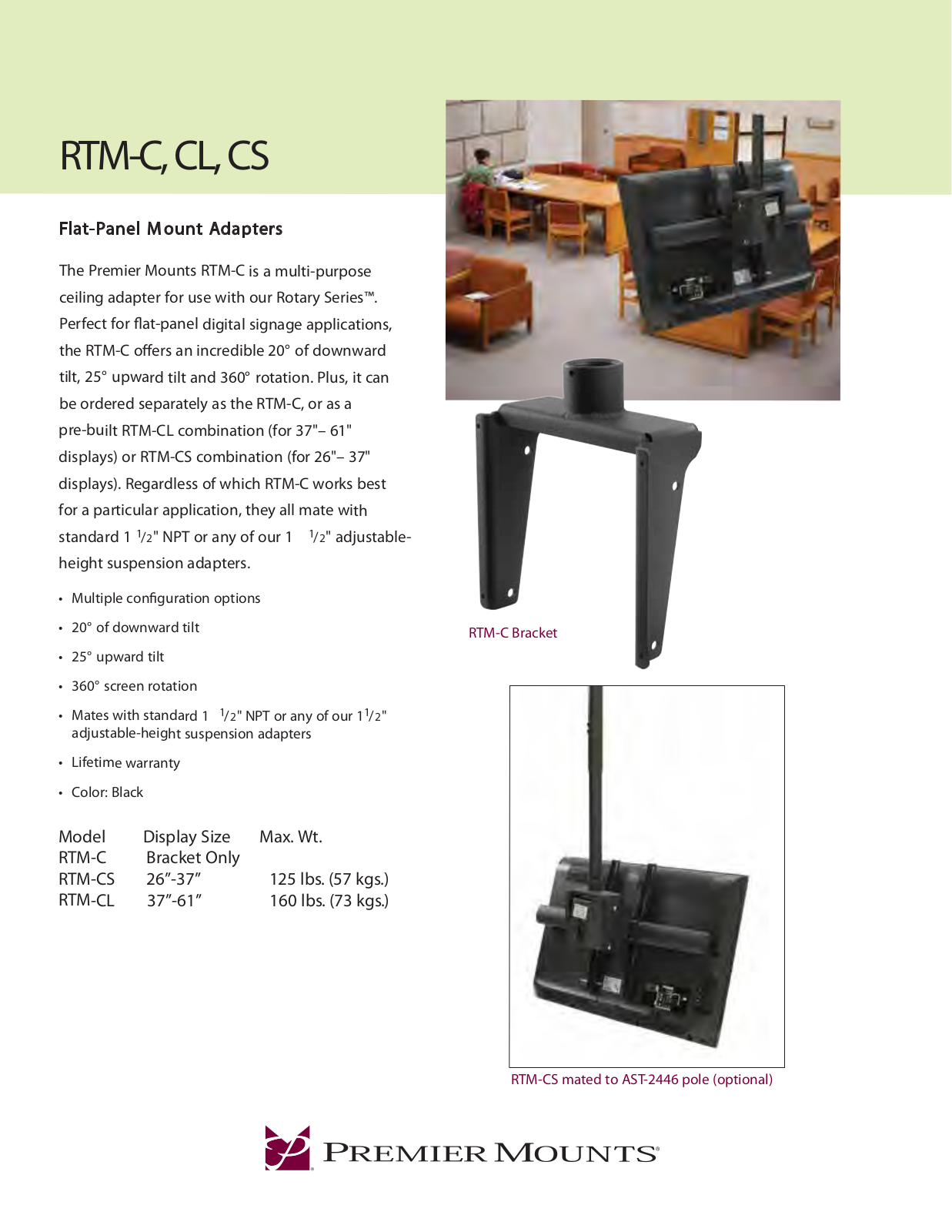

Premier Mounts RTM-C User Manual
RTM-C, CL, CS
Model Display Size Max. Wt.
RTM-C Bracket Only
RTM-CS 26”-37” 125 lbs. (57 kgs.)
RTM-CL 37”-61” 160 lbs. (73 kgs.)
F
l
a
t
-
P
a
n
e
l
M
o
u
n
t A
d
a
p
t
e
r
s
The Premier Mounts RTM-C is a multi-purpose
ceiling adapter for use with our Rotary Series™.
Perfect for at-panel digital signage applications,
the RTM-C oers an incredible 20° of downward
tilt, 25° upward tilt and 360° rotation. Plus, it can
be ordered separately as the RTM-C, or as a
pre-built RTM-CL combination (for 37"– 61"
displays) or RTM-CS combination (for 26"– 37"
displays). Regardless of which RTM-C works best
for a particular application, they all mate with
standard 1
1
/
2
" NPT or any of our 1
1
/
2
" adjustable-
height suspension adapters.
• Multiple conguration options
• 20° of downward tilt
• 25° upward tilt
• 360° screen rotation
• Mates with standard 1
1
/
2
" NPT or any of our 1
1
/
2
"
adjustable-height suspension adapters
• Lifetime warranty
• Color: Black
RTM-C Bracket
RTM-CS mated to AST-2446 pole (optional)
800.368.9700
I
www.mounts.com

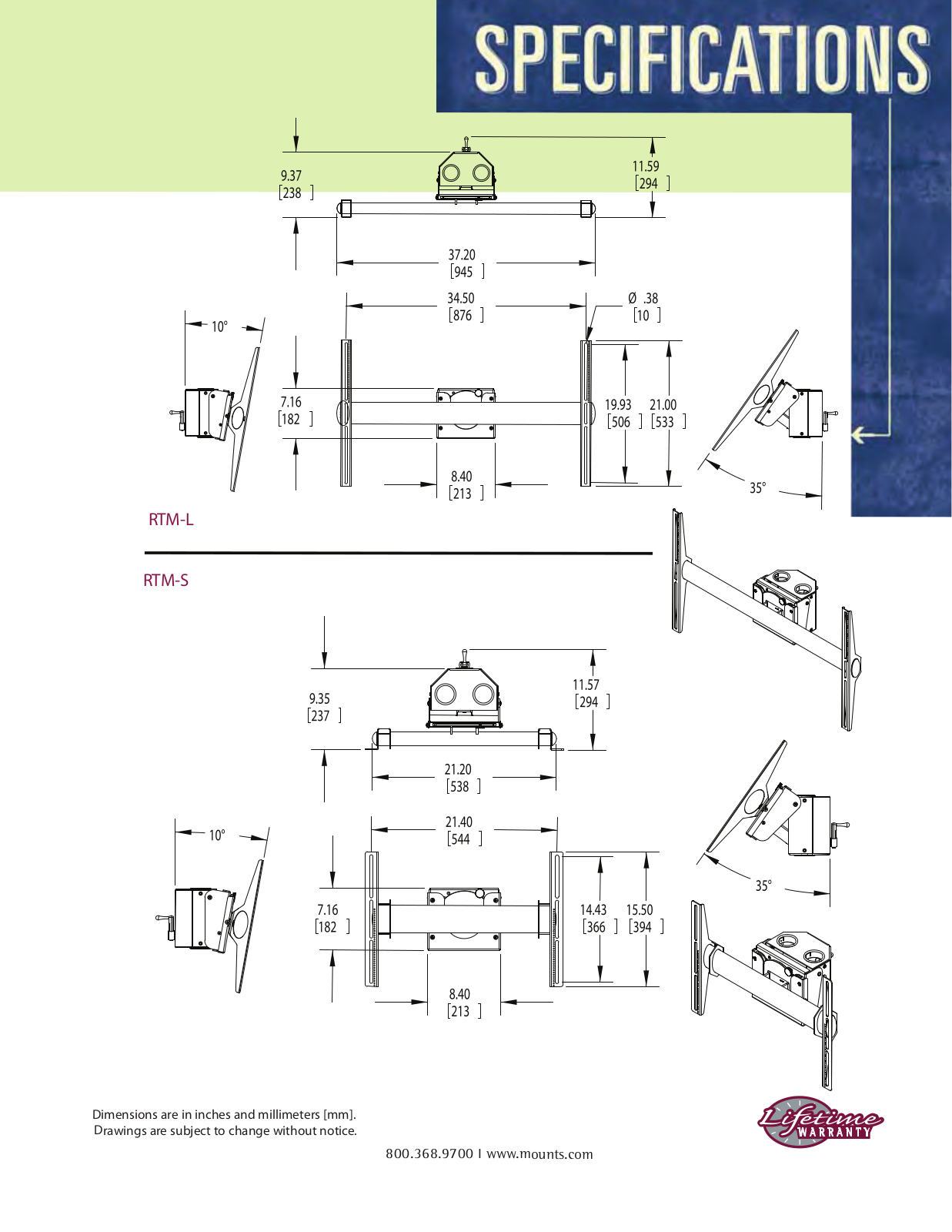

Dimensions are in inches and millimeters [mm].
Drawings are subject to change without notice.
RTM-L
RTM-S
