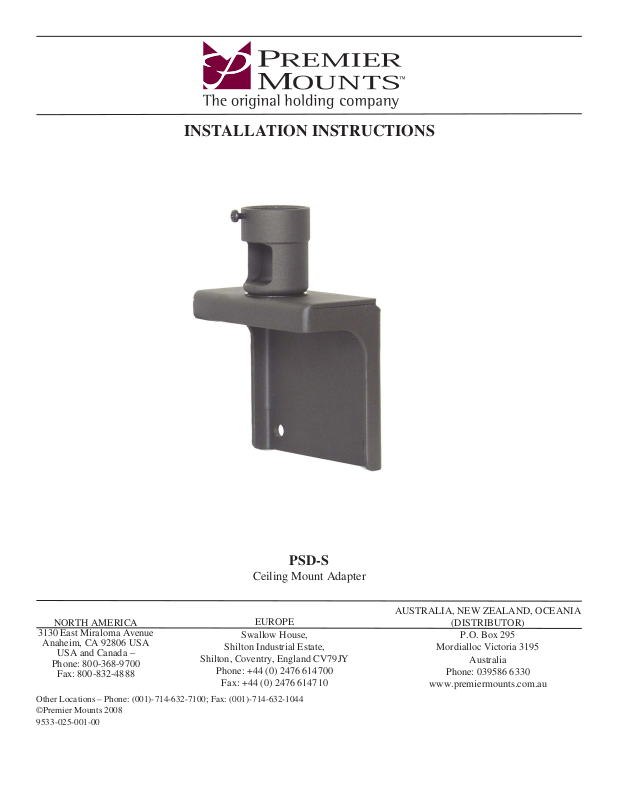

Premier Mounts PSD-S User Manual

INSTALLATION INSTRUCTIONS

PSD-S

Ceiling Mount Adapter

NORTH AMERICA

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada –

Phone: [phone]

Fax: [phone]

Other Locations – Phone: [phone]; Fax: [phone]
©Premier Mounts 2008

9533-025-001-00

Shilton Industrial Estate,

Shilton, Coventry, England CV79JY

Phone: [phone]

Fax: [phone]

EUROPE

Swallow House,

AUSTRALIA, NEW ZEALAND, OCEANIA

(DISTRIBUTOR)

P.O. Box 295

Mordialloc Victoria 3195

Australia

Phone: [phone]

www.premiermounts.com.au

Table of Contents

Warning Statements 2
Parts List 3
Installation Tools 3
Attaching the Ceiling Adapter 4
Attaching the Mounting Plate 6
Technical Specififcations 8
Warranty 9

PSD-S

Warning Statements

THE CEILING STRUCTURE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE TIMES THE WEIGHT OF THE DISPLAY.
IF NOT, THE CEILING STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED
SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO
COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH.

DO NOT PLACE DISPLAYS WEIGHING MORE THAN 175LBS. ON THIS MOUNT. IF THIS WEIGHT IS EXCEEDED, DAMAGE TO
THE MOUNT AND/OR UNIT MAY OCCUR.

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND
COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND
PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE
REFERENCE.
Indicates that the power plug is to be disconnected
from the power outlet.

Safety precautions must be taken at all times.

Warning and Caution statements.

Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do so could result in damage to the flat panel
display and/or damage to the mounting surface.

Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct heat energy. Failure to do so may result in
damage to the flat panel display and could increase the risk of fire.

Contact Premier Mounts with any questions.

At least two qualified people should perform the installation procedure. Injury and/or damage can result from dropping or mishandling the
flat panel display.

Page 2 Installation Instructions

PSD-S

Parts List

Ceiling Adapter
(Qty 1)

This ceiling mount is shipped with all proper installation hardware and components. Make sure that none of these parts
are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the
installation and contact Premier Mounts (800-368-9700).

M10 Nut (Qty 4)

M10 Hex Head Bolt
(Qty 4)

M10 Flat Washer
(Qty 8)

Installation Tools

Phillips Head Screwdriver Soft Material/Blanket Pencil Ladder

Installation Instructions Page 3

Attaching the Ceiling Adapter

PSD-S

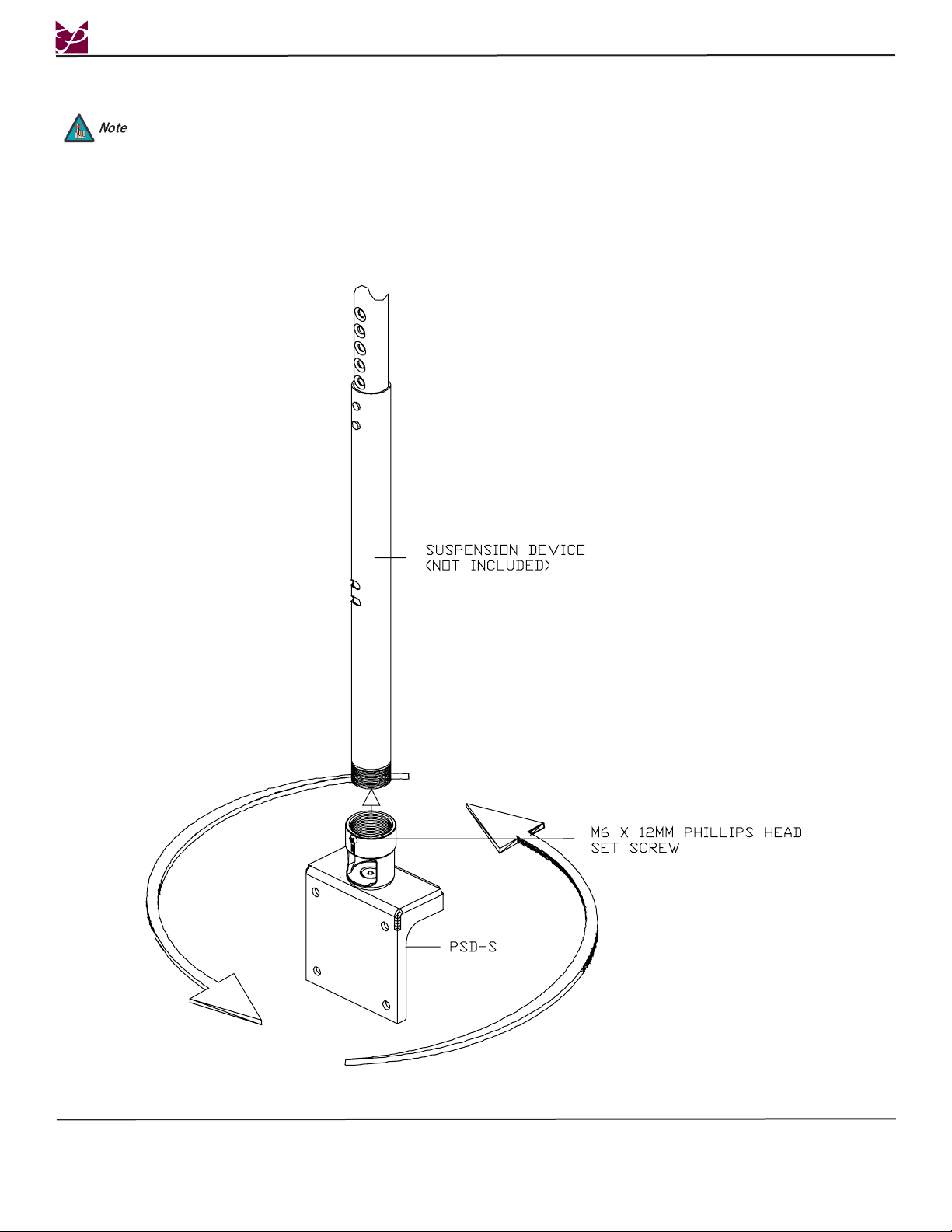

Step 1. To attach the ceiling adapter to the suspension device (not included), rotate the ceiling adapter clockwise onto the suspension
device a minimum of five (5) complete turns.

Before the following steps are begun, the appropriate suspension device must be installed. Premier mounts offers the
AST-1321, AST-2446 or a standard 1-1/2” NPT extension pipe. Please see the installation instructions that are included
with these respective mounting configurations.

Page 4 Installation Instructions

PSD-S

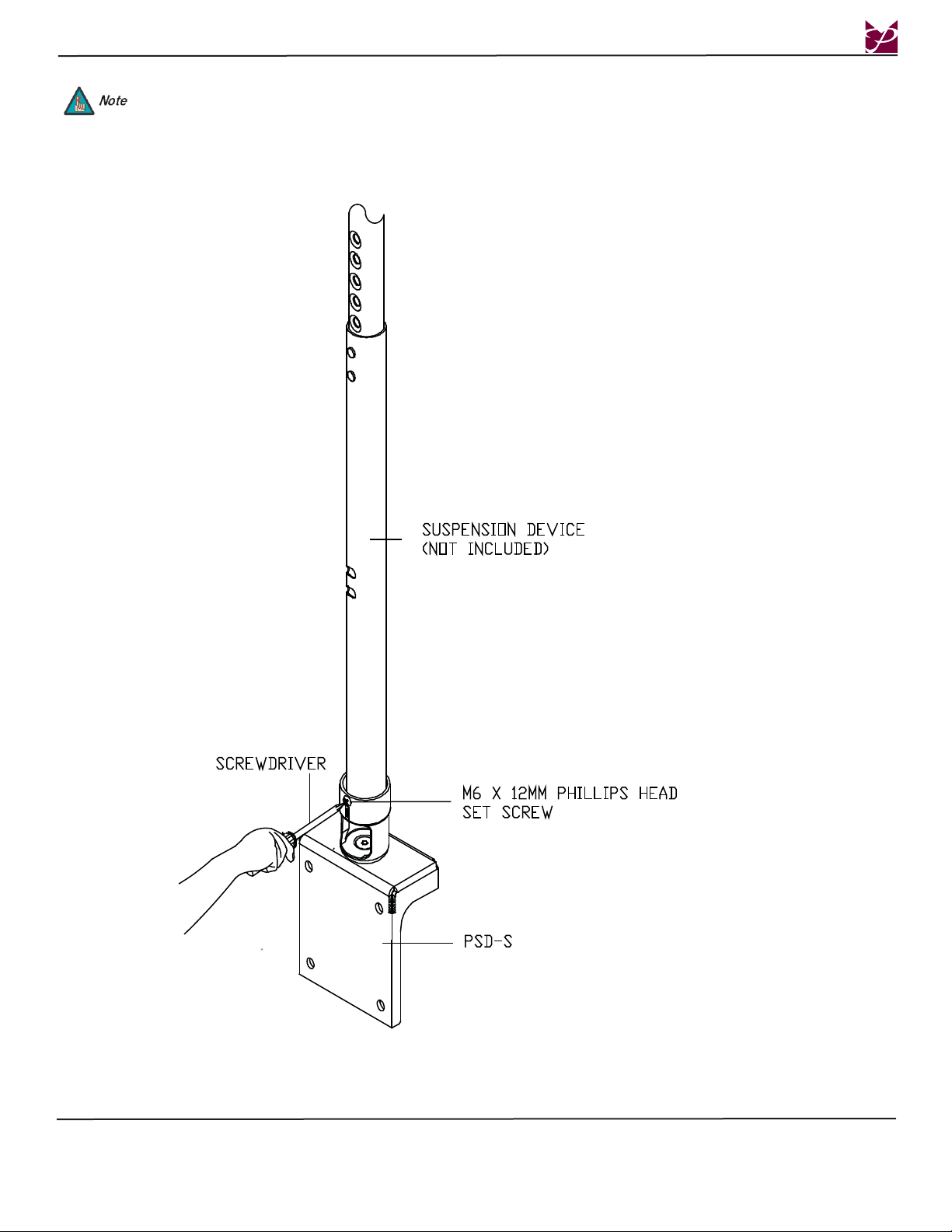

Step 2. Once the ceiling adapter has been attached, tighten the M6 x 12mm Phillips head set screw using a Phillips screwdriver.

A Phillips head screwdriver is required to perform the following step.

Installation Instructions Page 5

PSD-S

Attaching the Mounting Plate

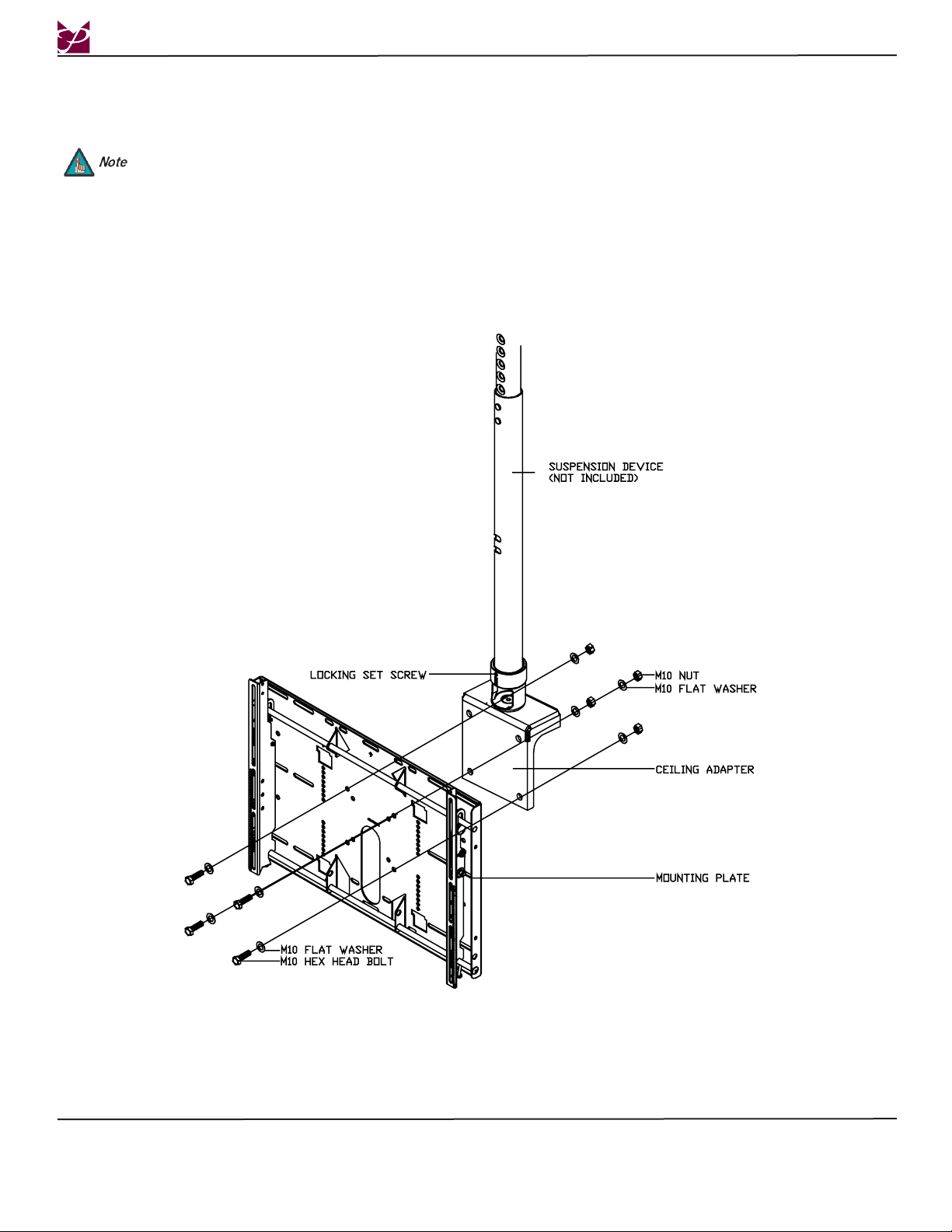

Step 1. Use four (4) M10 hex head bolts, eight (8) M10 fl at washers, and four (4) M10 nuts to attach the mounting plate to the ceiling

adapter.

At this time, fi nger tighten all hardware.

Page 6 Installation Instructions

PSD-S

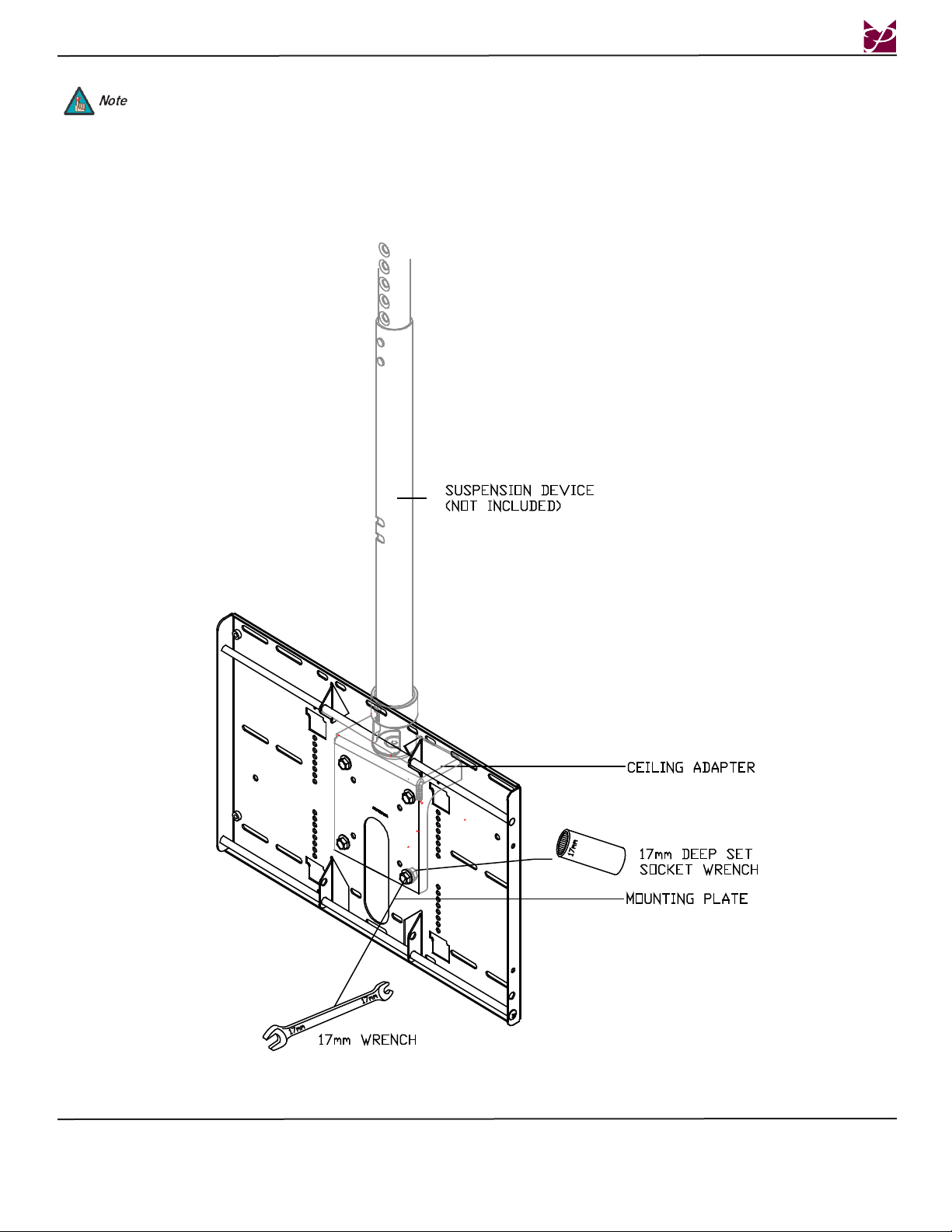

Step 2. Once the both units have been attached together, use a 17mm socket wrench and a 17mm wrench to tighten the
M10 hardware.

A 17mm open-end wrench and a 17mm socket wrench will be required to perform the following step.

Installation Instructions Page 7

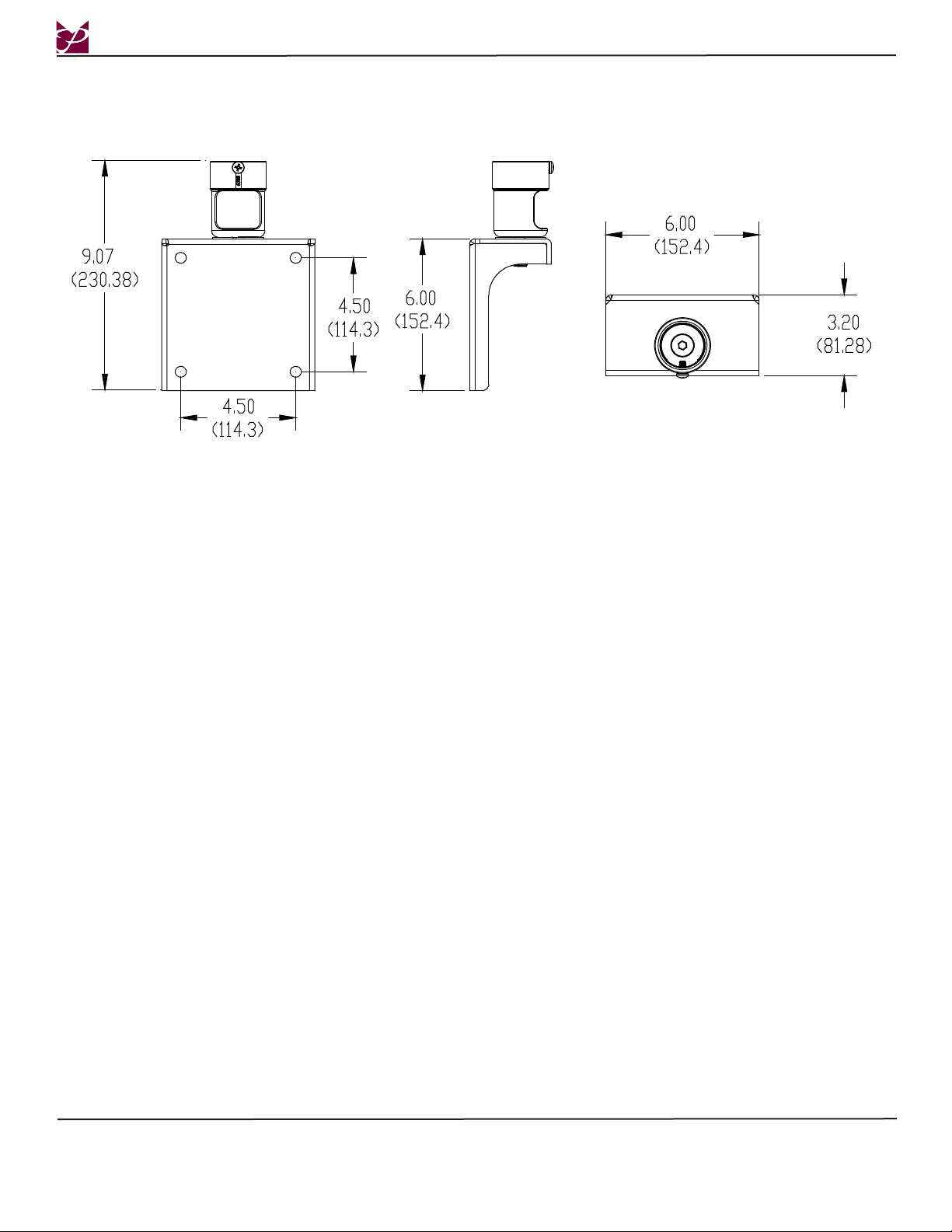

Technical Specifi cations

All measurements are in inches (mm).

PSD-S

Page 8 Installation Instructions

PSD-S

Warranty

PREMIER MOUNTS

LIMITED LIFETIME WARRANTY

What and Who is Covered by this Limited Warranty and for How Long

Premier Mounts warrants this product to be free from defects in material and workmanship for the lifetime of
the original owner of this product. The limited warranty is valid only for the original purchaser of the product.

What Premier Mounts Will Do

At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is
defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will
be shipped to you at no charge, but you must pay any labor costs.

What is Not Covered; Limitations

PREMIER MOUNTS DISCLAIMS ANY LIABILITY FOR DAMAGE TO MOUNTS, ADAPTERS, DIS­PLAYS, PROJECTORS, OTHER PROPERTY, OR PERSONAL INJURY RESULTING, IN WHOLE OR IN
PART, FROM IMPROPER INSTALLATION, MODIFICATION, USE OR MISUSE OF ITS PRODUCTS.

PREMIER MOUNTS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PREMIER
MOUNTS IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUD­ING BUT NOT LIMITED TO, INABILITY TO USE ITS PRODUCTS OR LABOR COSTS FOR REMOV­ING AND REPLACING DEFECTIVE PRODUCTS OR PARTS. SOME STATES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

What Customers Must Do for Limited Warranty Service

If you discover a problem that you think may be covered by the warranty you MUST REPORT it in writing to
the address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original con­sumer purchaser must accompany all warranty claims. Warranty claims must also include a description of the
problem, the purchaser’s name, address, and telephone number. General inquiries can be addressed to Premier
Mounts Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or by fax.

Premier Mounts
Attn: Warranty Claim
3130 E. Miraloma Avenue
Anaheim, CA 92806

How State Law Applies

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STA TE.

Installation Instructions Page 9
