Premier Mounts PSD-EB84 Installation Guide

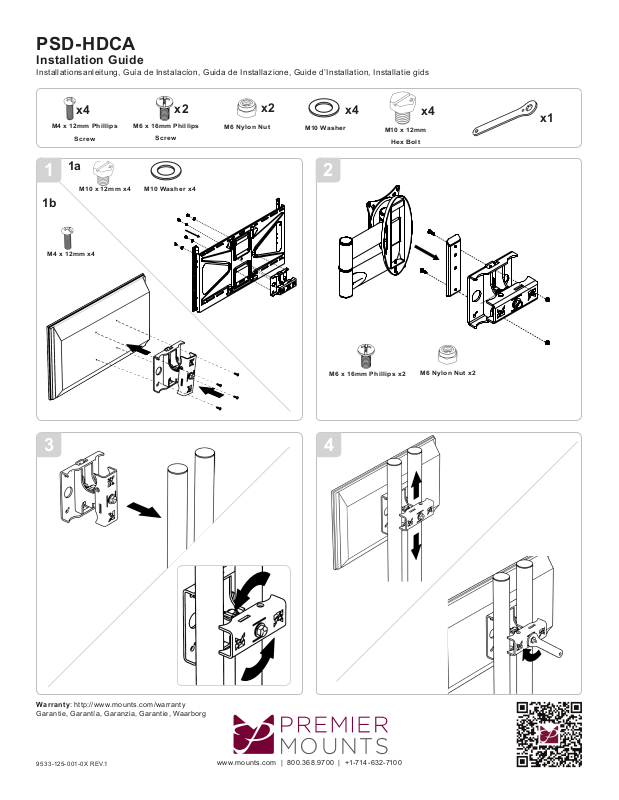

PSD-HDCA

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

x4

M4 x 12mm Phi llips

Screw

1a

1

1b

M4 x 12mm x4

x2

M6 x 16mm Ph illips

Screw

M10 Washer x4M10 x 12mm x4

x2

M6 Nylo n Nut

x4

M10 Wash er

2

M6 x 16mm Ph illips x 2

M10 x 12mm

Hex Bol t

x4

M6 Nylo n Nut x2

x1

3

Warranty: http://ww w.mounts.com/warranty

Garantie, Garantía, Garanzia, Garantie, Waarborg

4

9533 -125-0 01-0X REV.1

www.mounts.com | 800.3 68.970 0 | [phone]

PSD-HDCA

Installation Guide

Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids

Optional

Lock Commerically Available
