Premier Mounts PSD-EB60B Users Manual

INSTALLATION MANUAL

IN-PSDEB.R3

PSD-EB

Elliptical Floor Stand Series

Premier Mounts

3130 E. Miraloma Avenue

Anaheim, CA 92806

Phone: [phone] Fax: [phone]

[e-mail]

www.mounts.com

PSD-EB

Table of Contents

WARRANTY ....................................................................................................................................................- 2 -

CONTACT PREMIER MOUNTS ....................................................................................................................- 2 -

WARNING STATEMENTS .............................................................................................................................- 3 -

PARTS LIST ......................................................................................................................................................- 4 -

INSTALLATION TOOLS ................................................................................................................................- 4 -

PSD-EB ASSEMBLY OVERVIEW .................................................................................................................- 5 -

SUPPORT TUBE INSTALLATION ................................................................................................................- 6 -

INSTALLING THE BACKPLATE TO THE ADAPTER ................................................................................- 7 -

INSTALLING THE PLASMA TO THE STAND ............................................................................................- 8 -

TECHNICAL SPECIFICATIONS ....................................................................................................................- 9 -

OPTIONAL ACCESSORIES ..........................................................................................................................- 10 -

NOTES .............................................................................................................................................................- 10 -

Warranty

Limited Lifetime Warranty

All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials and
workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts, adapters,
display equipment or personal injury.

Contact Premier Mounts

In the event of missing and/or damage equipment, or technical questions, the following information can help in
the completion of the installation.

Customer Service – [phone]
Technical Support – [e-mail]

Assembly Manual Page - 2 -

Warning Statements

WARNING:

WARNING:

WARNING:

THE FLOOR STRUCTURE MUST BE CAPABLE OF SUPPORTING AT LEAST 200 LBS.
IF NOT, THE FLOOR STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION
PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE
INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO
COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE
ASSEMBLY OF THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR THE
ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE ASSEMBLY
INSTRUCTIONS SHOULD BE READ AND COMPLETELY UNDERSTOOD. THE
ASSEMBLY INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND
PROPERTY DAMAGE. KEEP THESE ASSEMBLY INSTRUCTIONS IN AN EASILY
ACCESSIBLE LOCATION FOR FUTURE REFERENCE.

Indicates that the power plug is to be
disconnected from the power outlet.

Contact Premier Mounts with any
questions.

Safety precautions must be taken at all
times.

Warning and Caution statements.

Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do
so could result in damage to the plasma display and/or damage to the mounting surface.

Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct heat
energy. Failure to do so may result in damage to the display and could increase the risk of fire.

At least two qualified people should perform the assembly procedure. Injury and/or damage can
result from dropping or mishandling the display.

PSD-EB

Page - 3 - Assembly Manual

PSD-EB

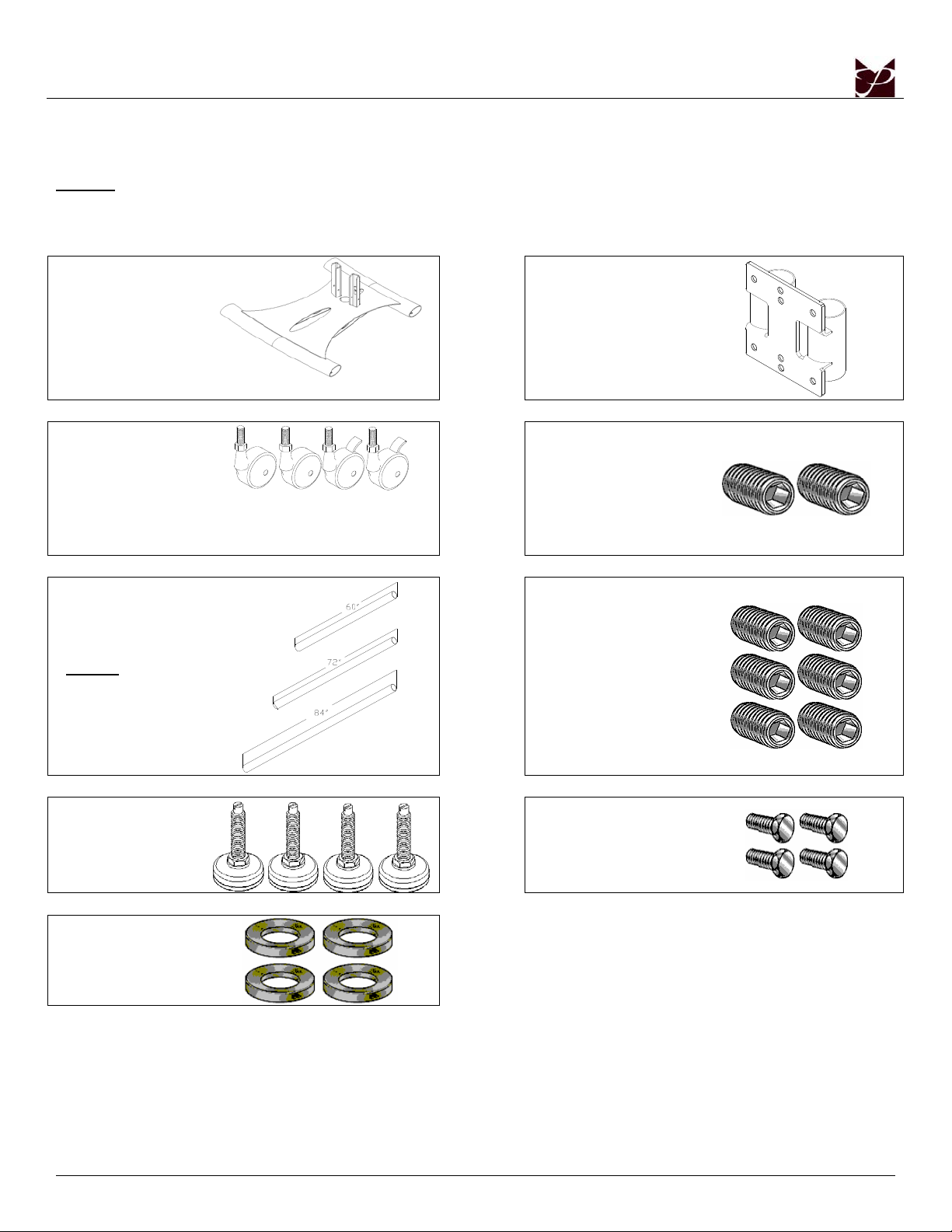

Parts List

NOTE: This floor stand is shipped with all proper installation hardware and components. Make sure that

none of these parts are missing and/or damaged before beginning installation. If there are parts
missing and/or damaged, please stop the installation and contact Premier Mounts
(800-368-9700).

PSD-EB Base

(1ea)

PSD-SPA (1ea)

4” Casters (4ea)

(2 locking,

2 non-locking)

optional

(Included on the

PSD-EB60C/-

EB72C)

10mm Set Screws

(2ea)

Support Tubes

(2ea)

NOTE: Length

will vary

M8 Set Screws

(6ea)

depending on

model purchased.

Levelers (4ea)

M10 x 12mm Hex

Head Screws (4ea)

M10 Flat

Washers (4ea)

Installation Tools

Flat Head Screw Driver/ Socket head wrench M5 Allen Wrench (Supplied)
Soft Material/ Blanket 5/32” Allen Wrench (Supplied)

Assembly Manual Page - 4 -

123

4

PSD-EB

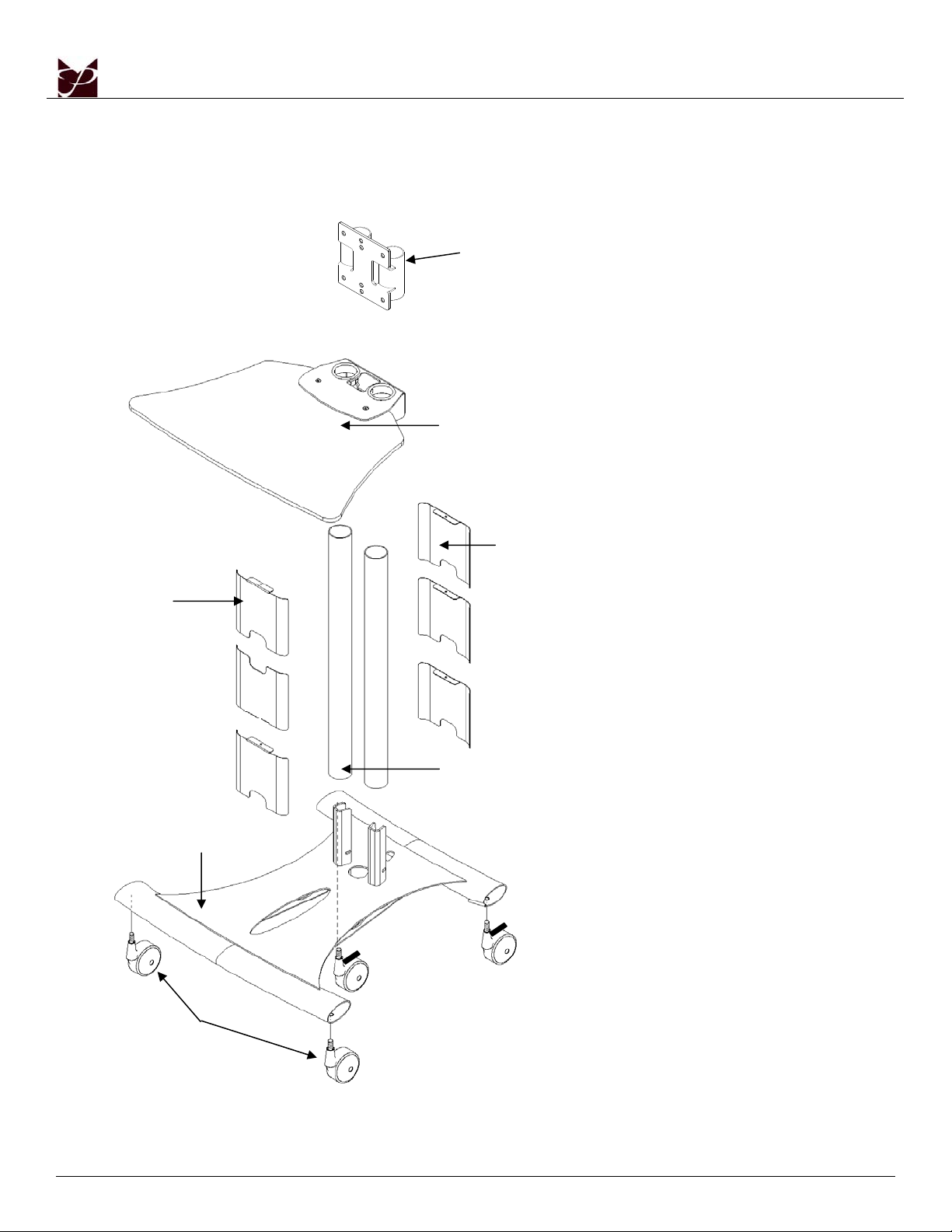

PSD-EB Assembly Overview

Unpack the PSD-EB and review any WARNING statements that apply to the installation. Select the desired
location for the PSD-EB Floor Stand. Please see Figure 1 for layout.

1. PSD-SPA (1ea)

2. PSD-SHV (Optional)

3. CPA - Magnetic Covers (Optional)

4. Support Tubes

5. PSD-EB Base

6. 4” Caster Wheels (Optional)

3

5

6

Page - 5 - Assembly Manual

PSD-EB

Support Tube Installation

1. Place the PSD-EB base on a flat surface.

2. Take the support tubes and slide them over the mounting clamps that are located on the PSD-EB base.
NOTE: To perform the following step, the access holes that are located at the end of the support tubes

must line up with the set screw holes on the clamps.

3. Insert the set screws into each hole and tighten with the supplied Allen wrench (Figure 1).

4. OPTIONAL: Attach the four (4) casters by threading the bolts into the holes that are located under each

leg of the PSD-EB base. Make sure that the two locking casters are mounted on the rear legs of the stand.

5. Attach the four (4) levelers by threading the bolts into the holes that are located under each leg of the
PSD-EB base.

Optional

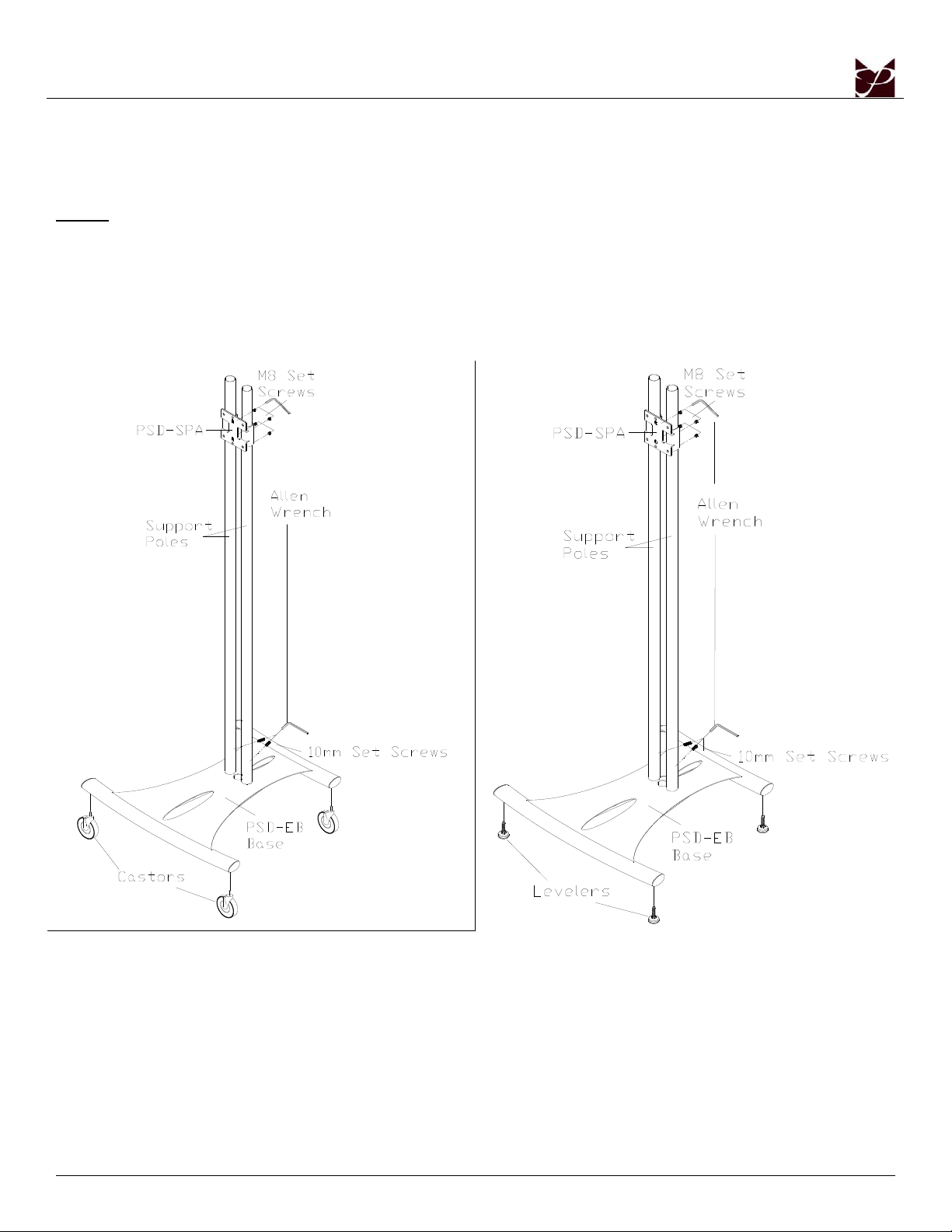

Figure 1. Support Tube Installation

Assembly Manual Page - 6 -

(

PSD-EB

Installing the Backplate to the Adapter

NOTE: The back plate will vary depending on the system ordered. There are two (2) different systems for

this stand: PSM series (PDB-UWFB back plate) and CTM (back plate) series.

CAUTION: Arrow must be pointing up prior to installation. Secure the following plates to the secured PSD-

SPA on the tubes.

1. For the PDB-UWFB (PSM-Series) secure the back plate to the four (4) threaded mounting points found on
the PSD-SPA with the four (4) M10 x 12 bolts and flat washers (supplied).

2. For the CTM-Back plate (CTM-Series) secure the back plate to the four (4) threaded mounting points
found on the PSD-SPA with the four (4) M10 x 12 bolts and flat washers (supplied) – (Figure 2)

Arrows must be

facing up prior

to assembly

CTM
Back Plate

PSD-SPA

M10 x 12 Hex
Head Bolts
(4ea)

M10 Flat
Washers

4ea)

2” Tubes (2ea)

PDB-UWFB
Back Plate

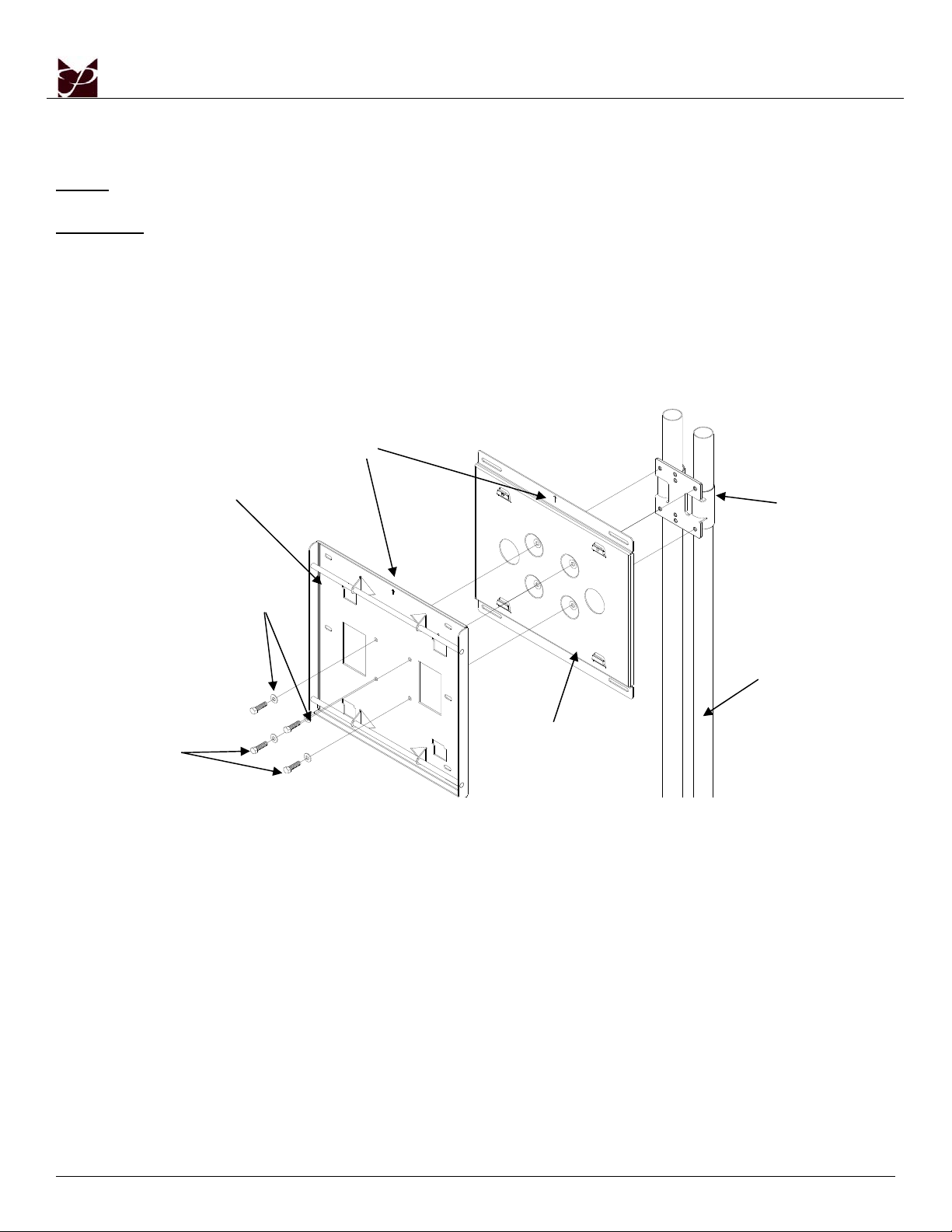

Figure 2

Page 7 Assembly Manual

PSD-EB

play

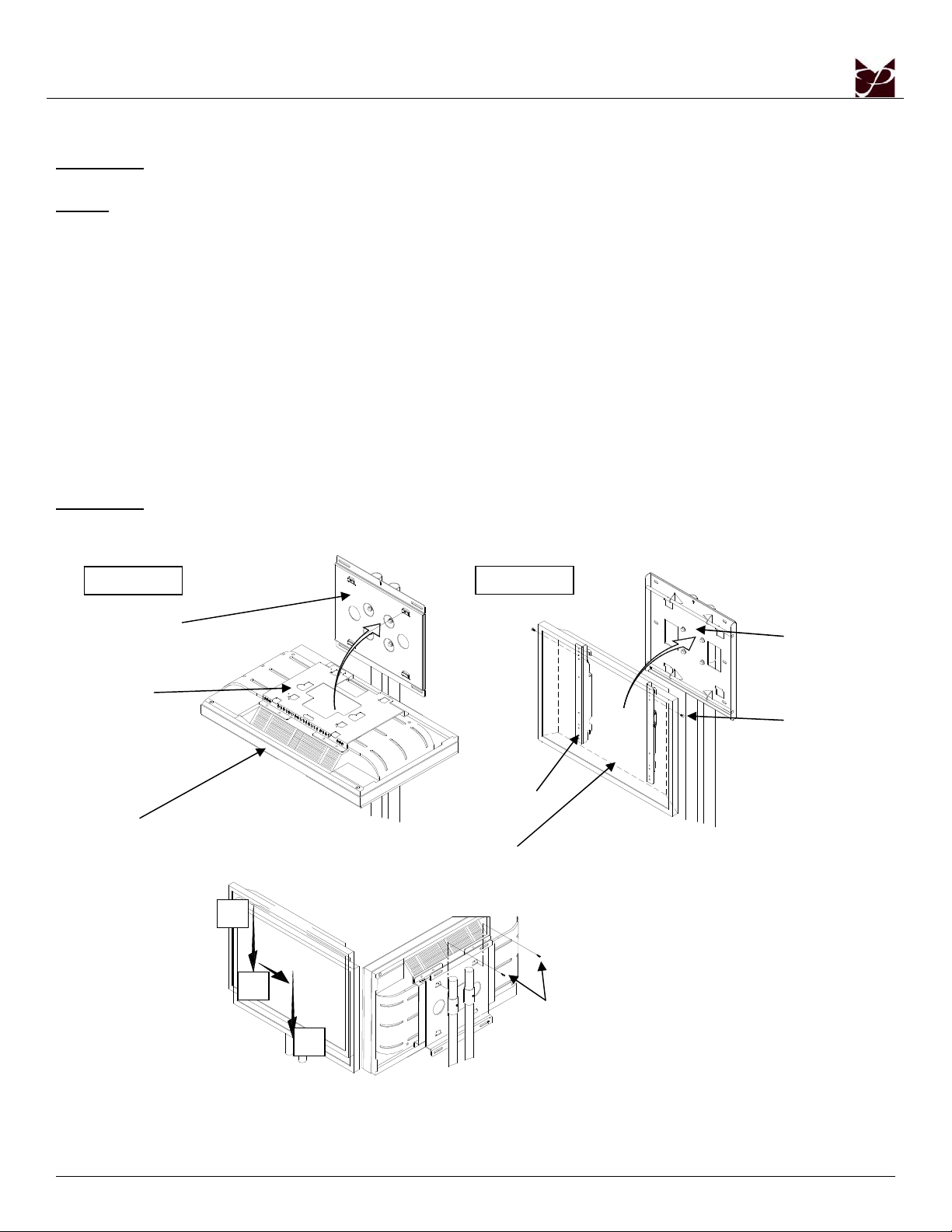

Installing the Plasma to the Stand

CAUTION: The flat panel display is very heavy. Two people are required to safely lift the flat panel and

secure it to the back plate installed on the stand.

NOTE: To install the PSM-Series or CTM-Series mounting brackets to the flat panel, refer to its installation

instructions.

The flowing diagrams show the CTM and PCM series systems.
PSM-Series: Raise the flat panel display with the mounting bracket secured. Insert the four (4) tab openings

from the PSM mount to the four (4) receiving tabs found on the PDB-UWFB back plate. Push to
slide the flat panel display down, right and down again to lock the mounts together (Figure 3).
Make sure all tab openings are interlocked with the receiving tabs before letting go of the flat
panel. Secure the brackets with the two (2) M6 x 12 (mm) Phillip (supplied) screws for
additional security.

CTM-Series: Raise the flat panel display with the left and right brackets secured to the plasma and insert the

bottom and top hooks from the mounting arms to the top and bottom rods found on the CTM
back plate. Secure the mounting arms with the two (2) M6 x 12 Safety knobs (supplied).

CAUTION: The safety knobs MUST be used. Failure to do so may result in damage to the flat panel display

or personal injury (Figure 3).

PSM Back
Plate

PSM-Series
Mounting
Brackets

Flat Panel
Dis

PSM-Series

1

2

3

CTM-Series

CTM Back
Plate

M6 x 12mm
Safety Knobs
(2ea)

CTM-Series
Mounting
Brackets

Flat
Panel

M6 x 12mm
Security Screws
(4ea)

Figure 3

Assembly Manual Page 8

Technical Specifications

All measurements are in inches (mm).

PSD-EB

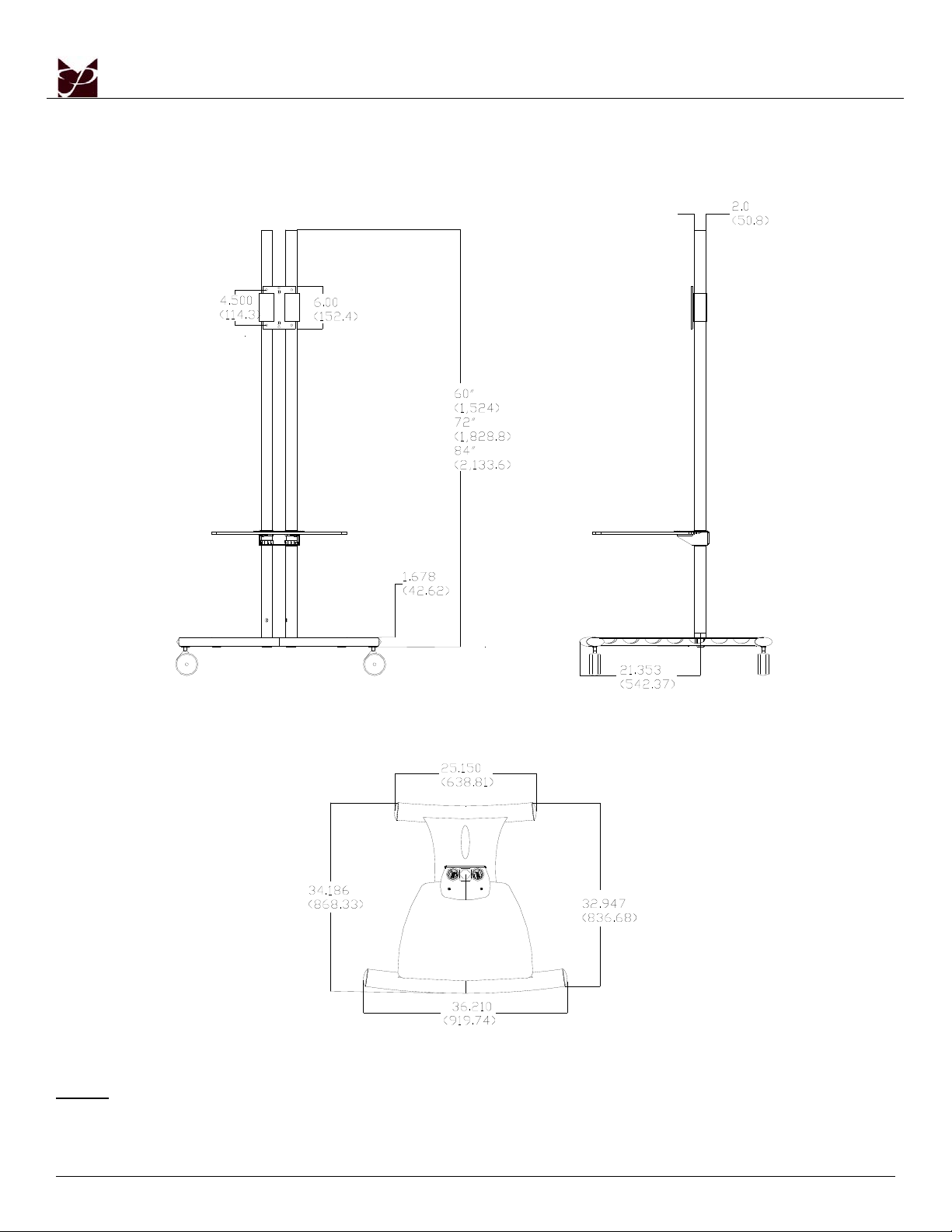

Figure 4. Technical Specifications

NOTE: If the 84” support tubes are ordered, the PSD-EB will only come with feet levelers. The casters are

not an option with the 84” support tubes as the unit will not pass through regular height doors.

Page 9 Installation Manual

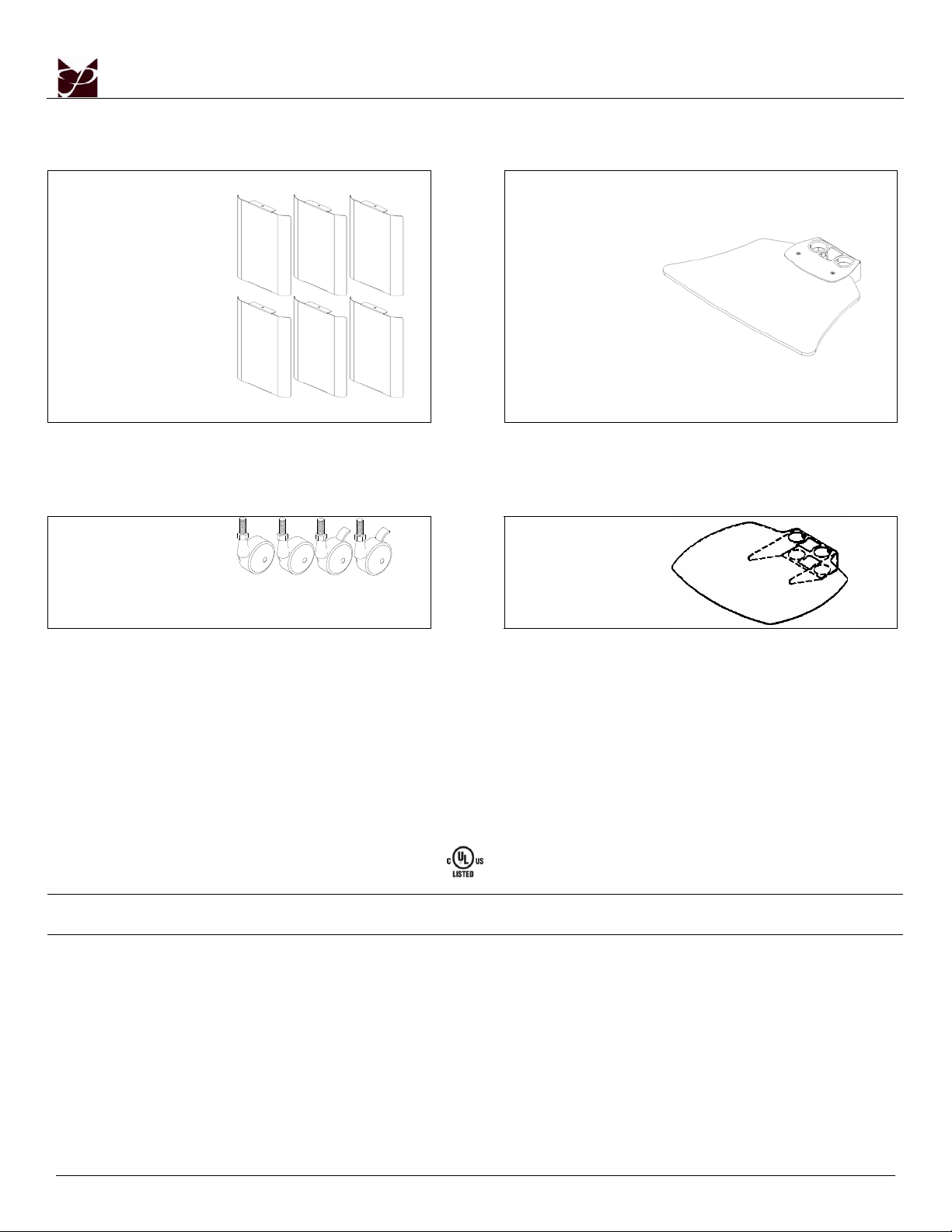

Optional Accessories

PSD-EB

CPA

Magnetic Covers

PSD-SHV

Glass Shelf

4” Casters (4ea)

(2 locking and
2 non-locking)

PSD-SHA

Metal Shelf

Notes

AUSTRALIA, NEW ZEALAND,

NORTH AMERICA EUROPE

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada –

Phone: [phone]

Fax: [phone]

Other Locations – Phone: [phone]; Fax: [phone]

©Premier Mounts 2007

IN-PSDEB.R3

Assembly manual Page 10

Shilton, Coventry, England CV79JY

Swallow House,

Shilton Industrial Estate,

Phone: [phone]

Fax: [phone]

OCEANIA

Mordialloc Victoria 3195

Phone: [phone]

www.premiermounts.com.au

(DISTRIBUTOR)

P.O. Box 295

Australia
