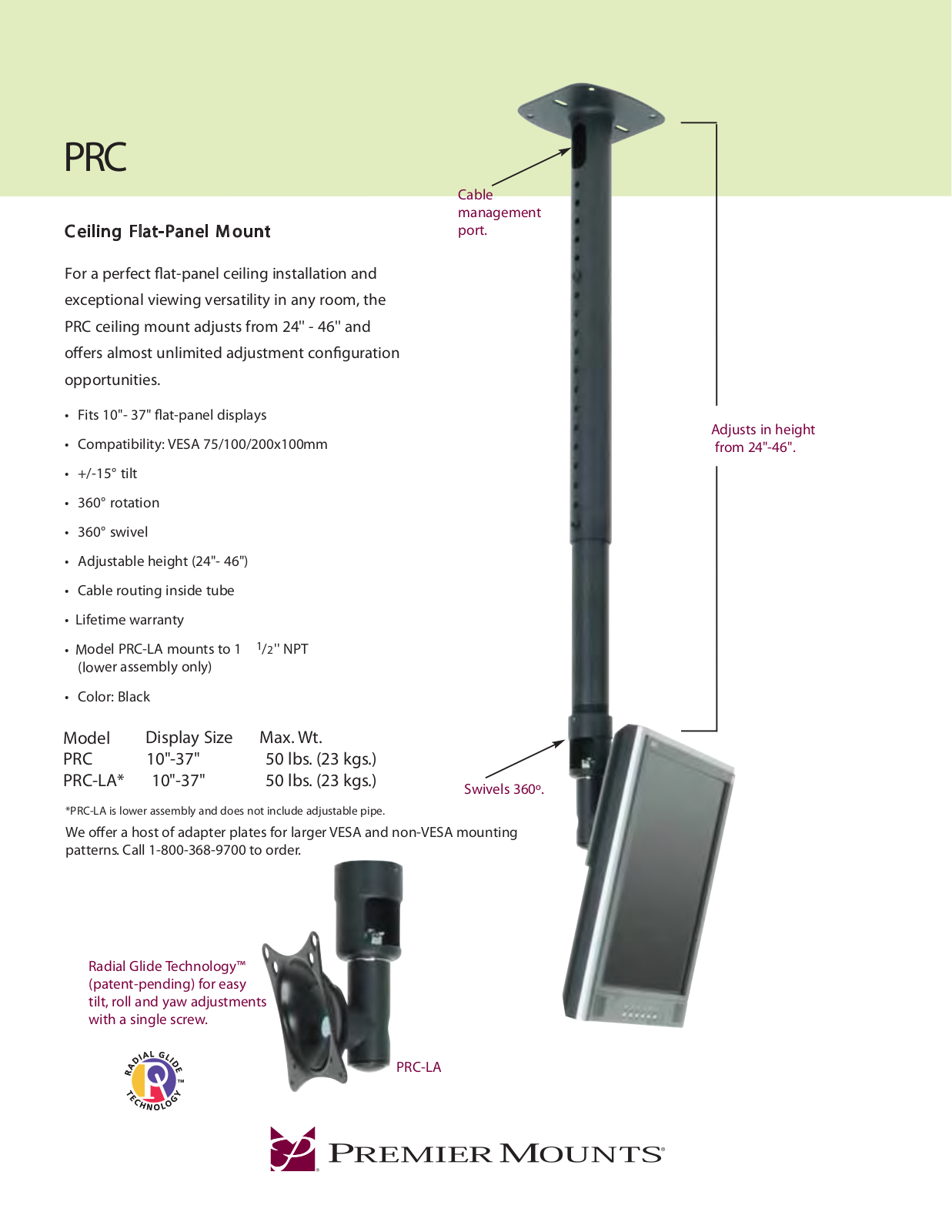

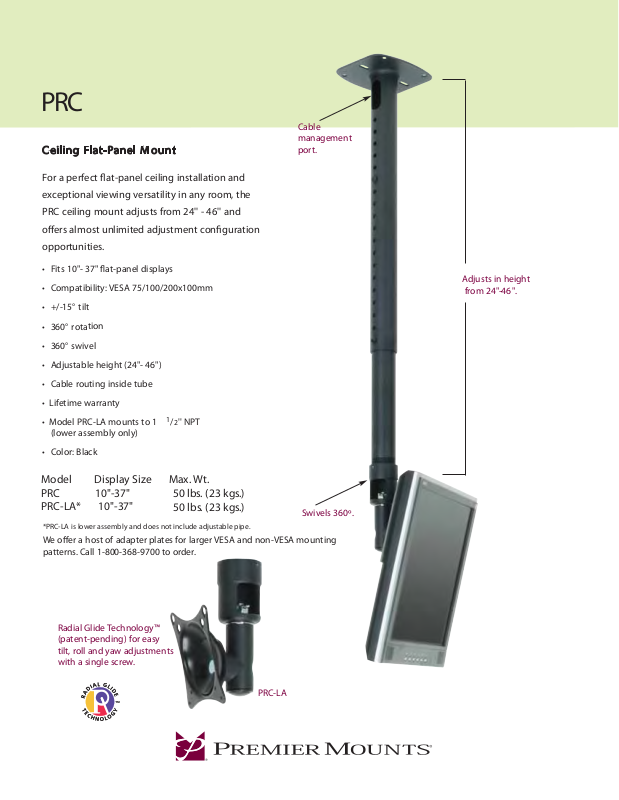

Premier Mounts PRC-LA User Manual

PRC

C

e

i

l

i

n

g

F

l

a

t

-

P

a

n

e

l

M

o

u

n

t

For a perfect at-panel ceiling installation and

exceptional viewing versatility in any room, the

PRC ceiling mount adjusts from 24'' - 46'' and

oers almost unlimited adjustment conguration

opportunities.

• Fits 10"- 37" at-panel displays

• Compatibility: VESA 75/100/200x100mm

• +/-15° tilt

• 360° rotation

• 360° swivel

• Adjustable height (24"- 46")

• Cable routing inside tube

• Lifetime warranty

• Model PRC-LA mounts to 1

1

/

2

'' NPT

(lower assembly only)

• Color: Black

Model Display Size Max. Wt.

PRC 10"-37" 50 lbs. (23 kgs.)
PRC-LA* 10"-37"

Swivels 360º.

Adjusts in height

from 24"-46".

PRC-LA

Radial Glide Technology™
(patent-pending) for easy
tilt, roll and yaw adjustments
with a single screw.

Cable
management
port.

*PRC-LA is lower assembly and does not include adjustable pipe.

We oer a host of adapter plates for larger VESA and non-VESA mounting
patterns. Call 1-800-368-9700 to order.

50 lbs. (23 kgs.)

800.368.9700

I

www.mounts.com

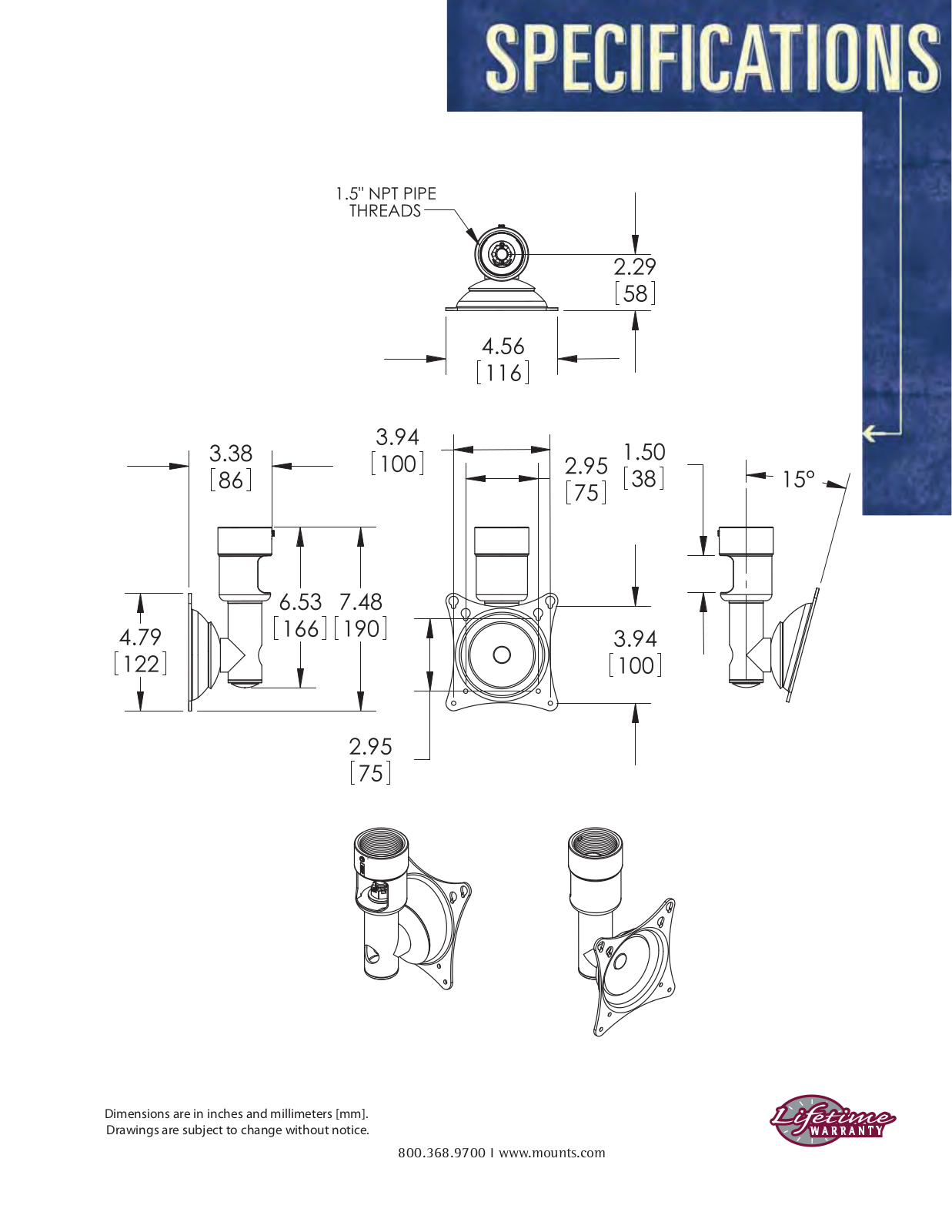

Dimensions are in inches and millimeters [mm].

Drawings are subject to change without notice.
